Study on the Mineralogical and Geochemical Characteristics of Arsenic in Permian Coals: Focusing on the Coalfields of Shanxi Formation in Northern China
Abstract
:1. Introduction

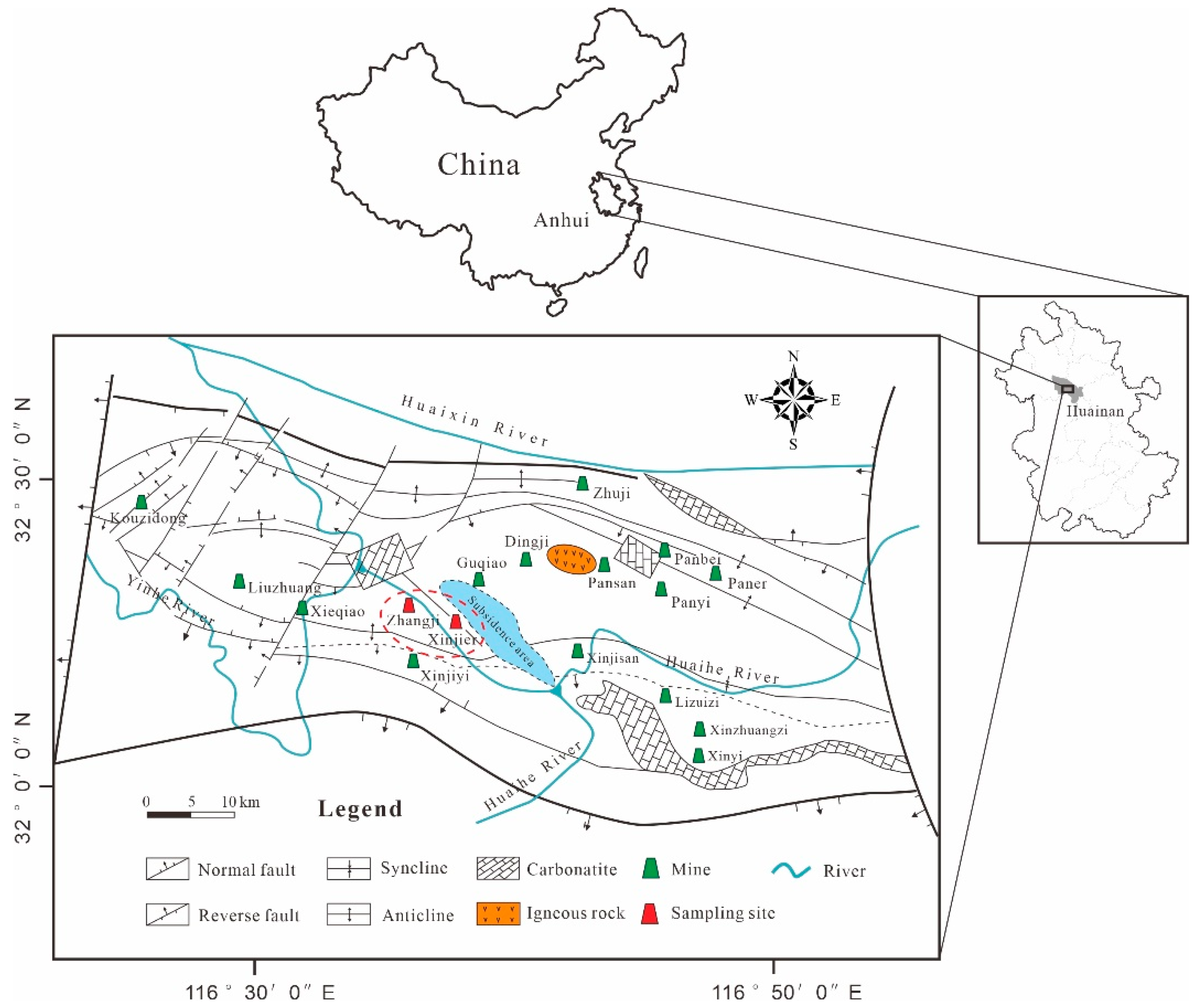

2. Geological Background
3. Methodology
3.1. Sampling
3.2. Analysis
4. Results
4.1. Standard Coal Characteristics

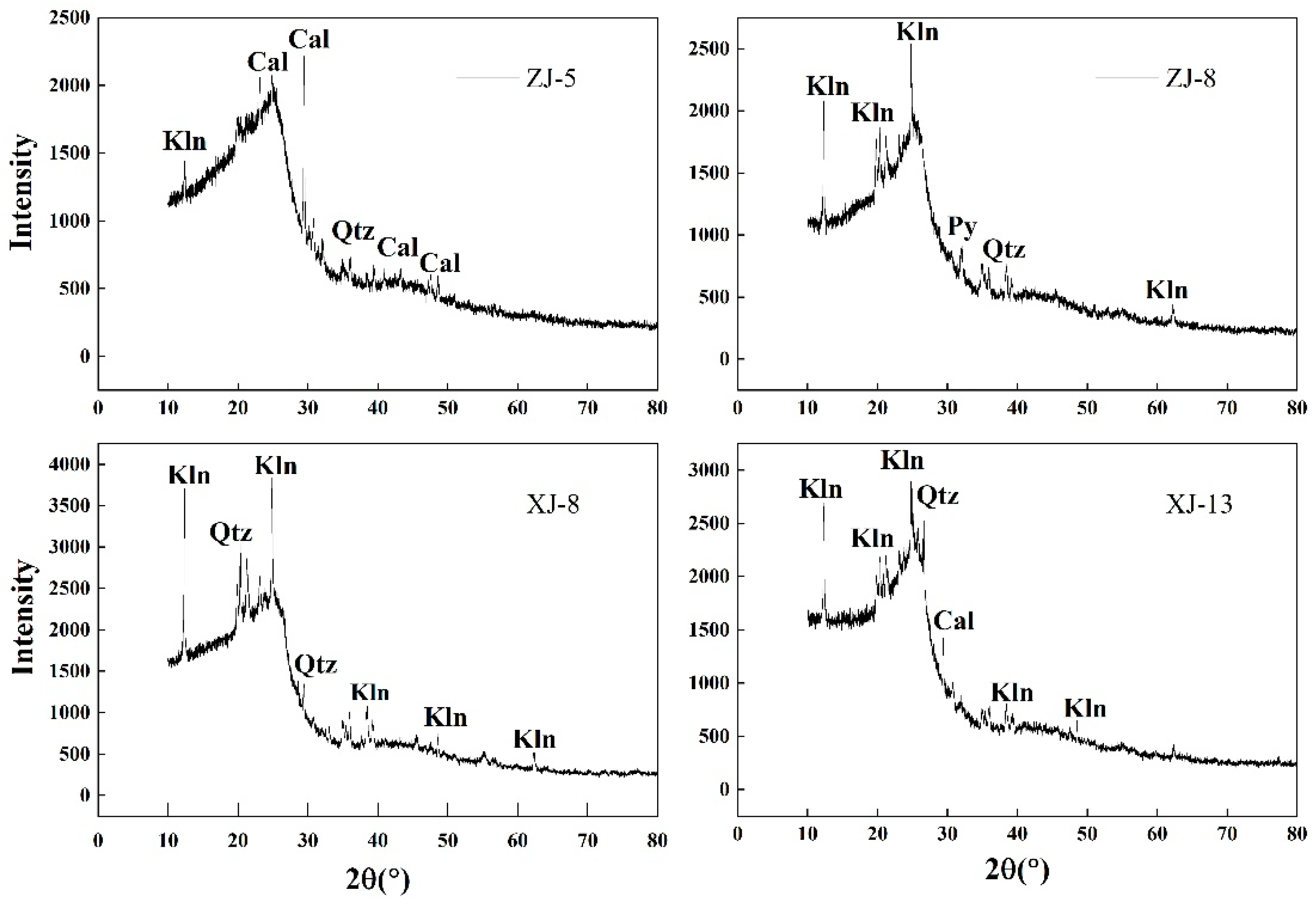

4.2. Mineralogical Compositions
4.3. Major Oxides
4.4. Content and Vertical Distribution of As
5. Discussion

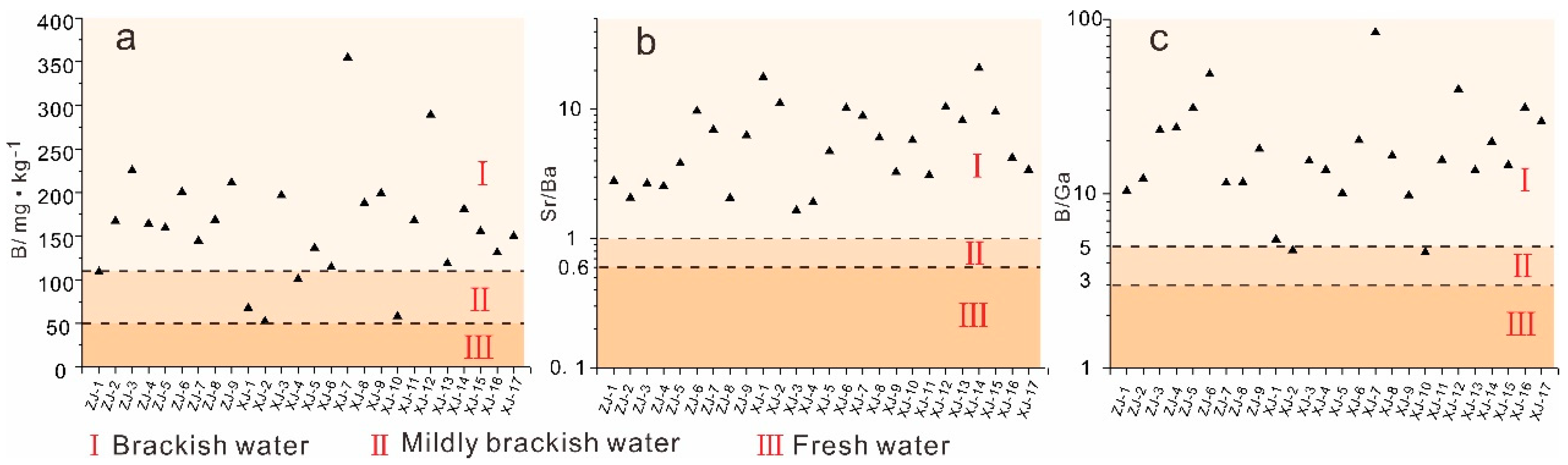

5.1. Depositional Environment of Coal
5.2. Geochemistry of As
5.3. Controlling Factors on As Enrichment
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Kang, Y.; Liu, G.J.; Chou, C.L.; Wong, M.H.; Zheng, L.G.; Ding, R. Arsenic in Chinese coals: Distribution, modes of occurrence, and environmental effects. Sci. Total Environ. 2011, 412–413, 1–13. [Google Scholar] [CrossRef]
- Hu, G.Q.; Liu, G.J.; Wu, D.; Fu, B. Geochemical behavior of hazardous volatile elements in coals with different geological origin during combustion. Fuel 2018, 233, 361–376. [Google Scholar] [CrossRef]
- Zhang, L.Q.; Zhou, H.H.; Chen, X.; Liu, G.J.; Jiang, C.L.; Zheng, L.G. Study of the micromorphology and health risks of arsenic in copper smelting slag tailings for safe resource utilization. Ecotoxicol. Environ. Saf. 2021, 219, 112321. [Google Scholar] [CrossRef] [PubMed]
- Dai, S.F.; Zeng, R.S.; Sun, Y. Enrichment of arsenic, antimony, mercury, and thallium in a Late Permian anthracite from Xingren, Guizhou, Southwest China. Int. J. Coal Geol. 2006, 66, 217–226. [Google Scholar] [CrossRef]
- Diehl, S.F.; Goldhaber, M.B.; Koenig, A.E.; Lowers, H.A.; Ruppert, L.F. Distribution of arsenic, selenium, and other trace elements in high pyrite Appalachian coals: Evidence for multiple episodes of pyrite formation. Int. J. Coal Geol. 2012, 94, 238–249. [Google Scholar] [CrossRef]
- Karayiğit, A.; Bircan, C.; Mastalerz, M.; Oskay, R.; Querol, X.; Lieberman, N.; Türkmenb, I. Coal characteristics, elemental composition and modes of occurrence of some elements in the İsaalan coal (Balıkesir, NW Turkey). Int. J. Coal Geol. 2017, 172, 43–59. [Google Scholar] [CrossRef]
- Yudovich, Y.E.; Ketris, M.P. Mercury in coal: A review: Part 1. Geochemistry. Int. J. Coal Geol. 2005, 62, 107–134. [Google Scholar] [CrossRef]
- Tian, H.Z.; Zhu, C.Y.; Gao, J.J.; Cheng, K.; Hao, J.M.; Wang, K.; Hua, S.B.; Wang, Y.; Zhou, J.R. Quantitative assessment of atmospheric emissions of toxic heavy metals from anthropogenic sources in China: Historical trend, spatial distribution, uncertainties, and control policies. Atmos. Chem. Phys. 2015, 15, 10127–10147. [Google Scholar] [CrossRef] [Green Version]
- Fu, C.; Bai, X.F.; Jiang, Y. Discussion on the relationship between the content of Arsenic and the coal quality characteristic and the Arsenic modes of occurrence in Chinese high Arsenic coal. J. China Coal Soc. 2012, 37, 96–102. (In Chinese) [Google Scholar]
- Zhang, Y.Y.; Tian, J.J.; Feng, S.; Yang, F.; Lu, X.Y. The occurrence modes and geologic origins of arsenic in coal from Santanghu Coalfield, Xinjiang. J. Geochem. Explor. 2018, 186, 225–234. [Google Scholar] [CrossRef]
- Li, B.; Zhuang, X.; Li, J.; Querol, X.; Font, O.; Moreno, N. Enrichment and distribution of elements in the Late Permian coals from the Zhina Coalfield, Guizhou Province, Southwest China. J. Geochem. Explor. 2017, 171, 111–129. [Google Scholar] [CrossRef] [Green Version]
- Sun, R.Y.; Liu, G.J.; Zheng, L.G.; Chou, C.L. Characteristics of coal quality and their relationship with coal-forming environment: A case study from the Zhuji exploration area, Huainan coalfield, Anhui, China. Energy 2010, 35, 423–435. [Google Scholar] [CrossRef]
- Sun, R.Y.; Liu, G.J.; Zheng, L.G.; Chou, C.L. Geochemistry of trace elements in coals from the Zhuji mine, Huainan coalfield, Anhui, China. Int. J. Coal Geol. 2010, 81, 81–96. [Google Scholar] [CrossRef]
- Chen, J.; Liu, G.J.; Jiang, M.M.; Chou, C.L.; Li, H.; Wu, B.; Zheng, L.G.; Jiang, D.D. Geochemistry of environmentally sensitive trace elements in Permian coals from the Huainan coalfield, Anhui, China. Int. J. Coal Geol. 2011, 88, 41–54. [Google Scholar] [CrossRef]
- Chen, S.; Wu, D.; Liu, G.; Sun, R.; Fan, X. Geochemistry of major and trace elements in Permian coal: With an emphasis on no. 8 coal seam of Zhuji coal mine, Huainan coalfield, China. Environ. Earth Sci. 2016, 75, 494. [Google Scholar] [CrossRef]
- Dai, S.F.; Liu, J.J.; Ward, C.R.; Hower, J.C.; French, D.; Jia, S.H.; Hood, M.M.; Garrison, T.M. Mineralogical and geochemical compositions of Late Permian coals and host rocks from the Guxu Coalfield, Sichuan Province, China, with emphasis on enrichment of rare metals. Int. J. Coal Geol. 2016, 166, 71–95. [Google Scholar] [CrossRef]
- Munir, M.A.M.; Liu, G.J.; Yousaf, B.; Ali, M.U.; Abbas, Q.; Ullah, H. Enrichment of Bi-Be-Mo-Cd-Pb-Nb-Ga, REEs and Y in the Permian coals of the Huainan Coalfield, Anhui, China. Ore Geol. Rev. 2018, 95, 431–455. [Google Scholar] [CrossRef]
- Wang, G.; Ju, Y.; Yan, Z.; Li, Q. Pore structure characteristics of coal-bearing shale using fluid invasion methods: A case study in the Huainan–Huaibei Coalfield in China. Mar. Pet. Geol. 2015, 62, 1–13. [Google Scholar] [CrossRef]
- Chen, S.; Wu, D.; Liu, G.; Sun, R. Raman spectral characteristics of magmatic-contact metamorphic coals from Huainan Coalfield, China. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 171, 31–39. [Google Scholar] [CrossRef]
- Wei, Q.; Hu, B.; Li, X.; Feng, S.; Xu, H.; Zheng, K.; Liu, H. Implications of geological conditions on gas content and geochemistry of deep coalbed methane reservoirs from the Panji Deep Area in the Huainan Coalfield, China. J. Nat. Gas Sci. Eng. 2021, 85, 103712. [Google Scholar] [CrossRef]
- Ketris, M.P.; Yudovich, Y.E. Estimations of Clarkes for Carbonaceous biolithes: World averages for trace element contents in black shales and coals. Int. J. Coal Geol. 2009, 78, 135–148. [Google Scholar] [CrossRef]
- Dai, S.F.; Luo, Y.B.; Seredin, V.V.; Ward, C.R.; Hower, J.C.; Zhao, L.; Liu, S.D.; Zhao, C.L.; Tian, H.M.; Zou, J.H. Revisiting the late Permian coal from the Huayingshan, Sichuan, southwestern China: Enrichment and occurrence modes of minerals and trace elements. Int. J. Coal Geol. 2014, 122, 110–128. [Google Scholar] [CrossRef]
- Finkelman, R.; Dai, S.; French, D. The importance of minerals in coal as the hosts of chemical elements: A review. Int. J. Coal Geol. 2019, 212, 103251. [Google Scholar] [CrossRef]
- Chou, C.L. Sulfur in coals: A review of geochemistry and origins. Int. J. Coal Geol. 2012, 100, 1–13. [Google Scholar] [CrossRef]
- Dai, S.F.; Bechtel, A.; Eble, C.; Flores, R.; French, D.; Graham, I.T.; Hood, M.M.; Hower, J.C. Recognition of peat depositional environments in coal: A review. Int. J. Coal Geol. 2020, 219, 103383. [Google Scholar] [CrossRef]
- Karayigit, A.I.; Atalay, M.; Oskay, R.G.; Córdoba, P.; Querol, X.; Bulut, Y. Variations in elemental and mineralogical compositions of Late Oligocene, Early and Middle Miocene coal seams in the Kale-Tavas Molasse sub-basin, SW Turkey. Int. J. Coal Geol. 2020, 218, 103366. [Google Scholar] [CrossRef]
- Munir, M.A.M.; Liu, G.J.; Yousaf, B.; Ali, M.U.; Abbas, Q. Enrichment and distribution of trace elements in Padhrar, Thar and Kotli coals from Pakistan: Comparison to coals from China with an emphasis on the elements distribution. J. Geochem. Explor. 2018, 185, 153–169. [Google Scholar] [CrossRef]
- Ding, D.S.; Liu, G.J.; Fu, B.; Qi, C.C. Characteristics of the coal quality and elemental geochemistry in Permian coals from the Xinjier mine in the Huainan Coalfield, north China: Influence of terrigenous inputs. J. Geochem. Explor. 2018, 186, 50–60. [Google Scholar]
- Fu, B.; Liu, G.J.; Liu, Y.; Cheng, S.W.; Qi, C.C.; Sun, R.Y. Coal quality characterization and its relationship with geological process of the Early Permian Huainan coal deposits, southern North China. J. Geochem. Explor. 2016, 166, 33–44. [Google Scholar] [CrossRef]
- Jiang, Y.F.; Zhao, L.; Zhou, G.Q.; Wang, X.B.; Zhao, L.X.; Wei, J.P.; Song, H.J. Petrological, mineralogical, and geochemical compositions of Early Jurassic coals in the Yining Coalfield, Xinjiang, China. Int. J. Coal Geol. 2015, 152, 47–67. [Google Scholar] [CrossRef]
- Li, C.H.; Liang, H.D.; Wang, S.K.; Liu, G.J. Study of harmful trace elements and rare earth elements in the Permian tectonically deformed coals from Lugou Mine, North China Coal Basin, China. J. Geochem. Explor. 2018, 190, 10–25. [Google Scholar] [CrossRef]
- Oskay, R.G.; Christanis, K.; Inaner, H.; Salman, M.; Taka, M. Palaeoenvironmental reconstruction of the eastern part of the Karapınar-Ayrancı coal deposit (Central Turkey). J. Geochem. Explor. 2016, 163, 100–111. [Google Scholar] [CrossRef]
- Dill, H.G. A geological and mineralogical review of clay mineral deposits and phyllosilicate ore guides in Central Europe—A function of geodynamics and climate change. Ore Geol. Rev. 2020, 119, 103304. [Google Scholar] [CrossRef]
- Dai, S.F.; Hower, J.C.; Ward, C.R.; Guo, W.M.; Song, H.J.; O’Keefe, J.M.K.; Xie, P.P.; Hood, M.M.; Yan, X.Y. Elements and phosphorus minerals in the middle Jurassic inertinite-rich coals of the Muli Coalfield on the Tibetan Plateau. Int. J. Coal Geol. 2015, 144–145, 23–47. [Google Scholar] [CrossRef]
- He, B.; Xu, Y.G.; Zhong, Y.T.; Guan, J.P. The Guadalupian-Lopingian boundary mudstones at Chaotian (SW China) are clastic rocks rather than acidic tuffs: Implication for a temporal coincidence between the end-Guadalupian mass extinction and the Emeishan volcanism. Lithos 2010, 119, 10–19. [Google Scholar] [CrossRef]
- Song, D.Y.; Li, C.H.; Song, B.Y.; Yang, C.B.; Li, Y.B. Geochemistry of mercury in the Permian tectonically deformed coals from Peigou mine, Xinmi coalfield, China. Acta Geol. Sin.-Engl. Ed. 2017, 91, 2243–2254. [Google Scholar] [CrossRef]
- Beaton, A.P.; Goodarzi, F.; Potter, J. The petrography, mineralogy and geochemistry of a paleocene lignite from southern Saskatchewan, Canada. Int. J. Coal Geol. 1991, 17, 117–148. [Google Scholar] [CrossRef]
- Chen, J.; Chen, P.; Yao, D.; Liu, Z.; Wu, Y.; Liu, W.; Hu, Y. Mineralogy and geochemistry of Late Permian coals from the Donglin Coal Mine in the Nantong coalfield in Chongqing, southwestern China. Int. J. Coal Geol. 2015, 149, 24–40. [Google Scholar] [CrossRef]
- Dai, S.F.; Liu, J.; Ward, C.R.; Hower, J.C.; Xie, P.; Jiang, Y. Petrological, geochemical, and mineralogical compositions of the low-Ge coals from the Shengli Coalfield, China: A comparative study with Ge-rich coals and a formation model for coal-hosted Ge ore deposit. Ore Geol. Rev. 2015, 71, 318–349. [Google Scholar] [CrossRef]
- Alastuey, A.; Jiménez, A.; Plana, F.; Querol, X.; Suárez-Ruiz, I. Geochemistry, mineralogy, and technological properties of the main Stephanian (Carboniferous) coal seams from the Puertollano Basin, Spain. Int. J. Coal Geol. 2001, 45, 247–265. [Google Scholar] [CrossRef]
- Wang, A.; Wang, Z.; Liu, J.; Xu, N.; Li, H. The Sr/Ba ratio response to salinity in clastic sediments of the Yangtze River Delta. Chem. Geol. 2021, 559, 119923. [Google Scholar] [CrossRef]
- Dai, S.; Hou, X.; Ren, D.; Tang, Y. Surface analysis of pyrite in the no. 9 coal seam, Wuda coalfield, Inner Mongolia, China, using high-resolution time-of-flight secondary ion mass-spectrometry. Int. J. Coal Geol. 2003, 55, 139–150. [Google Scholar] [CrossRef]
- Hu, X.F.; Liu, Z.J.; Liu, R.; Liu, D.Q.; Zhang, M.M.; Xu, S.C.; Meng, Q.T. Trace Element Characteristics of Eocene Jijuntun Formation and the Favorable Metallogenic Conditions of Oil Shale in Fushun Basin. J. Jilin Univ. 2012, 42, 60–71. [Google Scholar]
- Eskenazy, G.; Finkelman, R.B.; Chattarjee, S. Some considerations concerning the use of correlation coefficients and cluster analysis in interpreting coal geochemistry data. Int. J. Coal Geol. 2010, 83, 491–493. [Google Scholar] [CrossRef]
- Xie, H.; Nie, A.G. The modes of occurrence and washing floatation characteristic of arsenic in coal from Western Guizhou. J. China Coal Soc. 2010, 35, 117–121. [Google Scholar]
- Hower, J.C.; Campbell, J.L.; Teesdale, W.J.; Nejedly, Z.; Robertson, J.D. Scanning proton microprobe analysis of mercury and other trace elements in Fe-sulfides from a Kentucky coal. Int. J. Coal Geol. 2008, 75, 88–92. [Google Scholar] [CrossRef]
- Sun, Y.Z.; Zhao, C.L.; Li, Y.H.; Wang, J.X.; Liu, S.M. Li distribution and mode of occurrences in Li-bearing coal seam # 6 from the Guanbanwusu Mine, Inner Mongolia, Northern China. Energy Explor. Exploit. 2012, 30, 109–130. [Google Scholar]
- Wang, P.P.; Ji, D.P.; Yang, Y.C.; Zhao, L.X. Mineralogical compositions of Late Permian coals from the Yueliangtian mine, western Guizhou, China: Comparison to coals from eastern Yunnan, with an emphasis on the origin of the minerals. Fuel 2016, 181, 859–869. [Google Scholar] [CrossRef]
- Liu, G.J.; Yang, P.Y.; Peng, Z.C.; Wang, G.L. Geochemistry of trace elements from the No.3 coal seam of Shanxi Formation in the Yanzhou mining district. Geochimica 2003, 32, 255–262. [Google Scholar]
- Jiu, B.; Huang, W.; Mu, N. Mineralogy and elemental geochemistry of Permo-Carboniferous Li-enriched coal in the southern Ordos Basin, China: Implications for modes of occurrence, controlling factors and sources of Li in coal. Ore Geol. Rev. 2022, 141, 104686. [Google Scholar] [CrossRef]
- Oboirien, B.O.; Thulari, V.; North, B.C. Enrichment of trace elements in bottom ash from coal oxy-combustion: Effect of coal types. Appl. Energy 2016, 177, 81–86. [Google Scholar] [CrossRef]
Step | Speciation | Extractant | Extraction Conditions | Cellulose Filter |
---|---|---|---|---|
F1 | exchangeable | 1.00 g sample + 8 mL NaOAc (1 M, pH = 8.2) | oscillate at room temperature of (25 ± 2) °C for 1 h, centrifuge | 0.1 μm |
F2 | carbonate | sample recovered in F1 + HOAc (1 M, pH = 5.0) | stir until the reaction is complete at room temperature, then centrifuge | 0.1 μm |
F3 | Fe-Mn oxides | sample recovered in F2 + 20 mL of 0.3 M Na2S2O4 + 0.175 M Na-citrate + 0.025H-citrate | occasional stirring at 96 ± 3 °C, then centrifuge | 0.1 μm |
F4 | organic | sample recovered in F3 + ①3 mL of 0.02 M HNO3 + 5 mL of H2O2 (pH = 2); ②3 mL of 30% H2O2(pH = 2, with HNO3); ③5 mL of 3.2 M NH4OAc | ①2 h at 85 ± 2 °C ②3 h at 85 ± 2 °C ③0.5 h continuous stirring, then centrifuge | 0.1 μm |
F5 | residual | tailings recovered in F4 + 5 mL HNO3 + 5 mL HF | digestion at 110 ℃ to clear liquid, and then the cover was lifted at 90 ℃ to remove the acid | 0.1 μm |
Samples | M (%) | Ad (%) | V (%) | St (%) | Sp (%) | Ss (%) | So (%) |
---|---|---|---|---|---|---|---|
ZJ-1 | 2.12 | 5.65 | 38.04 | 0.37 | 0.26 | 0.02 | 0.09 |
ZJ-2 | 1.79 | 13.3 | 29.97 | 0.20 | 0.14 | 0.02 | 0.04 |
ZJ-3 | 2.17 | 7.44 | 35.61 | 0.25 | 0.17 | 0.03 | 0.05 |
ZJ-4 | 2.02 | 6.02 | 36.43 | 0.30 | 0.20 | 0.05 | 0.05 |
ZJ-5 | 1.81 | 5.94 | 33.26 | 0.22 | 0.15 | 0.04 | 0.03 |
ZJ-6 | 2.07 | 6.03 | 36.26 | 0.28 | 0.18 | 0.04 | 0.06 |
ZJ-7 | 1.93 | 11.90 | 31.60 | 0.17 | 0.08 | 0.02 | 0.07 |
ZJ-8 | 1.97 | 9.70 | 31.03 | 0.25 | 0.15 | 0.03 | 0.07 |
ZJ-9 | 1.92 | 9.40 | 31.32 | 0.18 | 0.12 | 0.01 | 0.05 |
Ave (ZJ) | 1.98 | 8.38 | 33.72 | 0.25 | 0.16 | 0.03 | 0.06 |
XJ-1 | 2.05 | 9.73 | 33.43 | 1.70 | 1.21 | 0.05 | 0.44 |
XJ-2 | 1.76 | 5.25 | 34.61 | 1.05 | 0.67 | 0.03 | 0.35 |
XJ-3 | 1.94 | 12.28 | 31.8 | 2.45 | 0.64 | 0.09 | 1.72 |
XJ-4 | 1.64 | 14.34 | 27.38 | 2.40 | 0.77 | 0.13 | 1.50 |
XJ-5 | 1.97 | 11.67 | 29.58 | 0.37 | 0.19 | 0.02 | 0.16 |
XJ-6 | 1.63 | 7.55 | 28.16 | 0.41 | 0.27 | 0.05 | 0.09 |
XJ-7 | 1.57 | 6.66 | 30.77 | 0.33 | 0.22 | 0.03 | 0.08 |
XJ-8 | 1.86 | 8.08 | 32.02 | 0.37 | 0.24 | 0.04 | 0.09 |
XJ-9 | 1.36 | 14.69 | 25.66 | 0.31 | 0.21 | 0.03 | 0.07 |
XJ-10 | 2.04 | 9.01 | 24.89 | 0.34 | 0.28 | 0.04 | 0.02 |
XJ-11 | 1.90 | 13.96 | 30.02 | 0.30 | 0.23 | 0.03 | 0.04 |
XJ-12 | 1.80 | 7.70 | 30.93 | 0.39 | 0.29 | 0.06 | 0.04 |
XJ-13 | 1.99 | 6.26 | 30.30 | 0.42 | 0.31 | 0.07 | 0.04 |
XJ-14 | 1.63 | 7.83 | 28.52 | 0.29 | 0.18 | 0.02 | 0.09 |
XJ-15 | 1.77 | 4.83 | 30.17 | 0.20 | 0.13 | 0.01 | 0.07 |
XJ-16 | 2.16 | 7.91 | 26.56 | 0.18 | 0.06 | 0.01 | 0.11 |
XJ-17 | 1.74 | 7.04 | 28.5 | 0.22 | 0.14 | 0.01 | 0.07 |
Ave(XJ) | 1.81 | 9.11 | 29.61 | 0.69 | 0.36 | 0.04 | 0.29 |
Sample | Project | Al2O3 | SiO2 | CaO | Fe2O3 | MgO | P2O5 | Na2O | TiO2 | C | Al2O3/TiO2 |
---|---|---|---|---|---|---|---|---|---|---|---|
Zhangji Mine | Min | 1.81 | 0.31 | 0.01 | 1.01 | 0.03 | 0.01 | 0.05 | 0.05 | 0.14 | 7.89 |
Max | 6.21 | 5.5 | 0.88 | 3.22 | 0.86 | 0.08 | 0.06 | 0.51 | 0.87 | 72.25 | |
Ave | 3.65 | 2.89 | 0.35 | 1.68 | 0.24 | 0.03 | 0.05 | 0.22 | 0.41 | 27.67 | |
Xinjier Mine | Min | 1.48 | 2.13 | 0.58 | 0.4 | 0.03 | 0.02 | 0.01 | 0.11 | 0.19 | 13.45 |
Max | 10.65 | 24.13 | 4.98 | 1.71 | 1.26 | 0.17 | 0.11 | 0.48 | 0.41 | 35.63 | |
Ave | 4.22 | 6.19 | 1.41 | 0.99 | 0.24 | 0.06 | 0.04 | 0.21 | 0.28 | 20.71 |
Sample | As | Sample | As |
---|---|---|---|
ZJ-1 | 42.73 | XJ-1 | 29.14 |
ZJ-2 | 95.03 | XJ-2 | 55.84 |
ZJ-3 | 23.54 | XJ-3 | 12.08 |
ZJ-4 | 41.25 | XJ-4 | 10.33 |
ZJ-5 | 13.38 | XJ-5 | 69.16 |
ZJ-6 | 12.51 | XJ-6 | 28.45 |
ZJ-7 | 73.96 | XJ-7 | 41.01 |
ZJ-8 | 61.54 | XJ-8 | 58.69 |
ZJ-9 | 55.78 | XJ-9 | 63.05 |
Ave | 46.64 | XJ-10 | 42.52 |
XJ-T | 244.65 | XJ-11 | 48.95 |
XJ-P | 107.97 | XJ-12 | 76.10 |
XJ-B | 124.65 | XJ-13 | 57.92 |
Upper Shihezi a | 6.27 | XJ-14 | 11.13 |
Lower Shihezi a | 4.81 | XJ-15 | 33.76 |
Northern China b | 3.92 | XJ-16 | 67.60 |
World c | 8.30 | XJ-17 | 37.71 |
China d | 3.79 | Ave | 43.73 |
USA e | 24.00 | - | - |
Project | B (mg/kg) | Sr (mg/kg) | Ba (mg/kg) | Ga (mg/kg) | Sr/Ba | B/Ga |
---|---|---|---|---|---|---|
Min | 52.32 | 71.29 | 11.74 | 4.22 | 1.65 | 4.81 |
Max | 354.6 | 2742.71 | 135.69 | 20.37 | 17.72 | 48.44 |
Ave | 162 | 585.08 | 72.35 | 9.87 | 5.81 | 20.57 |
