Perspective

De-Risking Solar Receivers to Achieve SunShot Targets

Solar Energy Technologies Office, US Department of Energy, Washington, DC 20585, USA
Academic Editors: Clifford K. Ho and Tapas Mallick
Energies 2022, 15(7), 2508; https://doi.org/10.3390/en15072508
Received: 17 January 2022 / Revised: 11 March 2022 / Accepted: 17 March 2022 / Published: 29 March 2022
Concentrating solar thermal (CST) systems are unique among renewable energy options for the ease of integration with thermal energy storage (TES). This enables dispatchable (or continuous) production of electricity, process heat, solar fuels, or other chemical products. The solar receiver in a CST system converts concentrated sunlight to transportable thermal energy. In solar power towers, the solar receiver’s physical limitations are often the constraining conditions for the system; they restrict maximum temperature, maximum solar concentration, or controllable chemical production. It is also a uniquely challenging component to prototype and test at sizes beyond the laboratory scale. Transitioning exceptional research innovations into viable components for an integrated system and ultimately leading to CST market adoption requires a multiscale vision for component de-risking and development. Technical requirements for holistic novel receiver development are reviewed based on learnings from the US Department of Energy’s (USDOE) SunShot Initiative, its active Third Generation of Concentrating Solar Power Systems (Gen3 CSP) program, and anticipation of requirements for future high value applications for CST. Context and learnings from the Gen3 CSP program are provided to exemplify successful receiver risk-reduction paradigms. View Full-Text
Keywords: Concentrating Solar-thermal Power; CSP; Solar Receiver; Solar Reactor; SunShot; Thermal Systems; Gen3 CSP Concentrating Solar-thermal Power; CSP; Solar Receiver; Solar Reactor; SunShot; Thermal Systems; Gen3 CSP
Show Figures

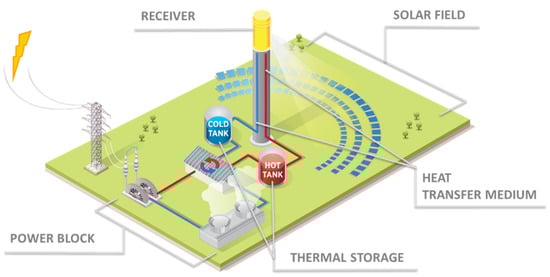

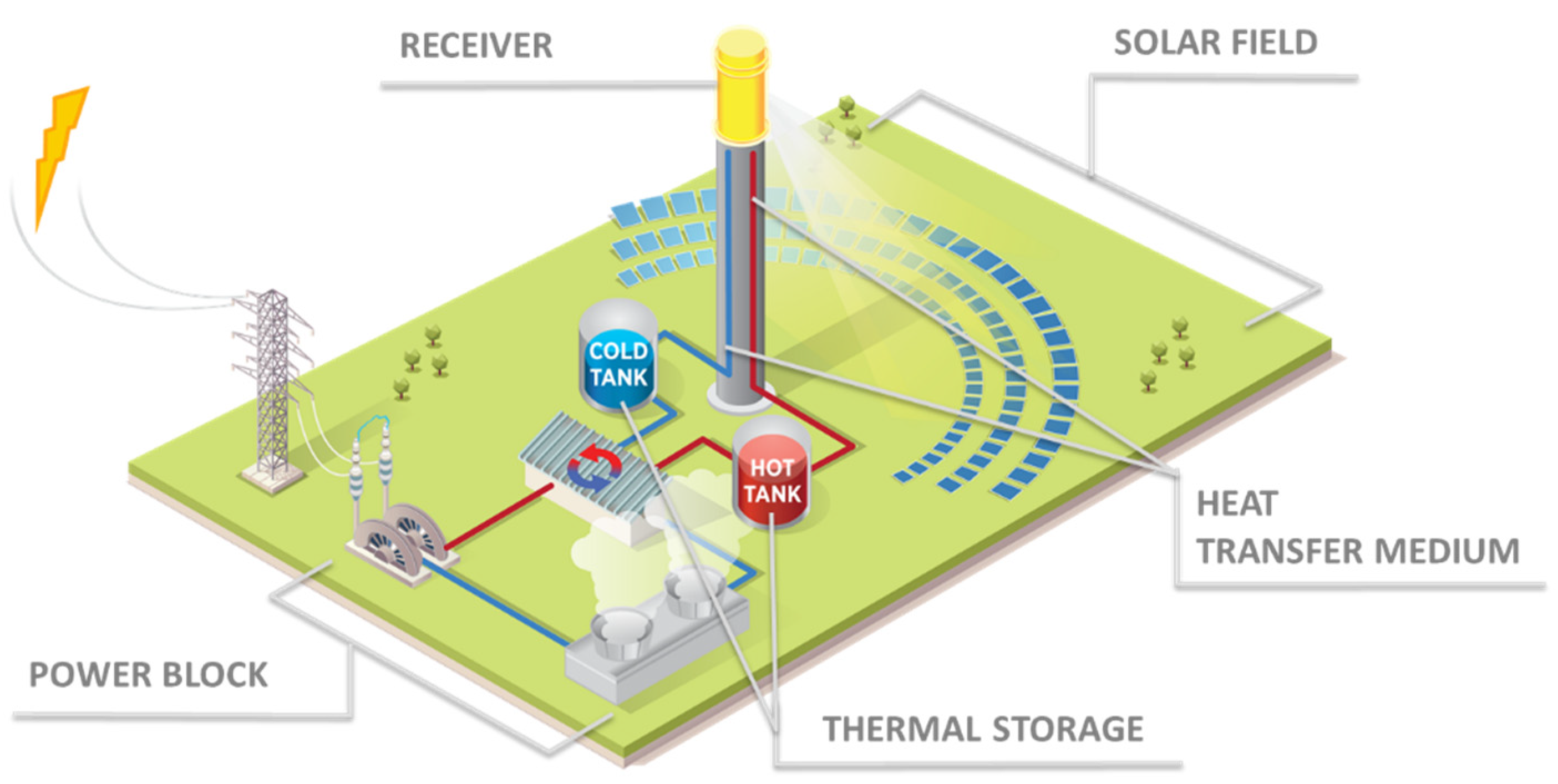

Figure 1

MDPI and ACS Style

Bauer, M.L. De-Risking Solar Receivers to Achieve SunShot Targets. Energies 2022, 15, 2508. https://doi.org/10.3390/en15072508

AMA Style

Bauer ML. De-Risking Solar Receivers to Achieve SunShot Targets. Energies. 2022; 15(7):2508. https://doi.org/10.3390/en15072508

Chicago/Turabian Style

Bauer, Matthew L. 2022. "De-Risking Solar Receivers to Achieve SunShot Targets" Energies 15, no. 7: 2508. https://doi.org/10.3390/en15072508
