Transforming a Historic Public Office Building in the Centre of Rome into nZEB: Limits and Potentials
Abstract
:1. Introduction
2. Case Study

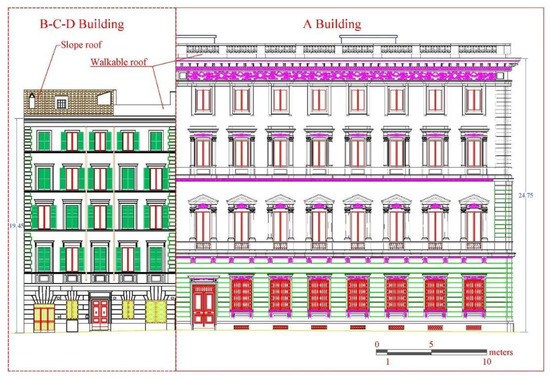

2.1. Building Envelope
2.2. Technical Building Systems
- Heating systems (thermal and cooling);
- Distribution (heat transfer fluid);
- Settings (Heating systems and terminal units);
- Emission (terminals units);
- Water storage (if any).
2.3. Lighting Systems and Electric Equipments
3. Materials and Methods

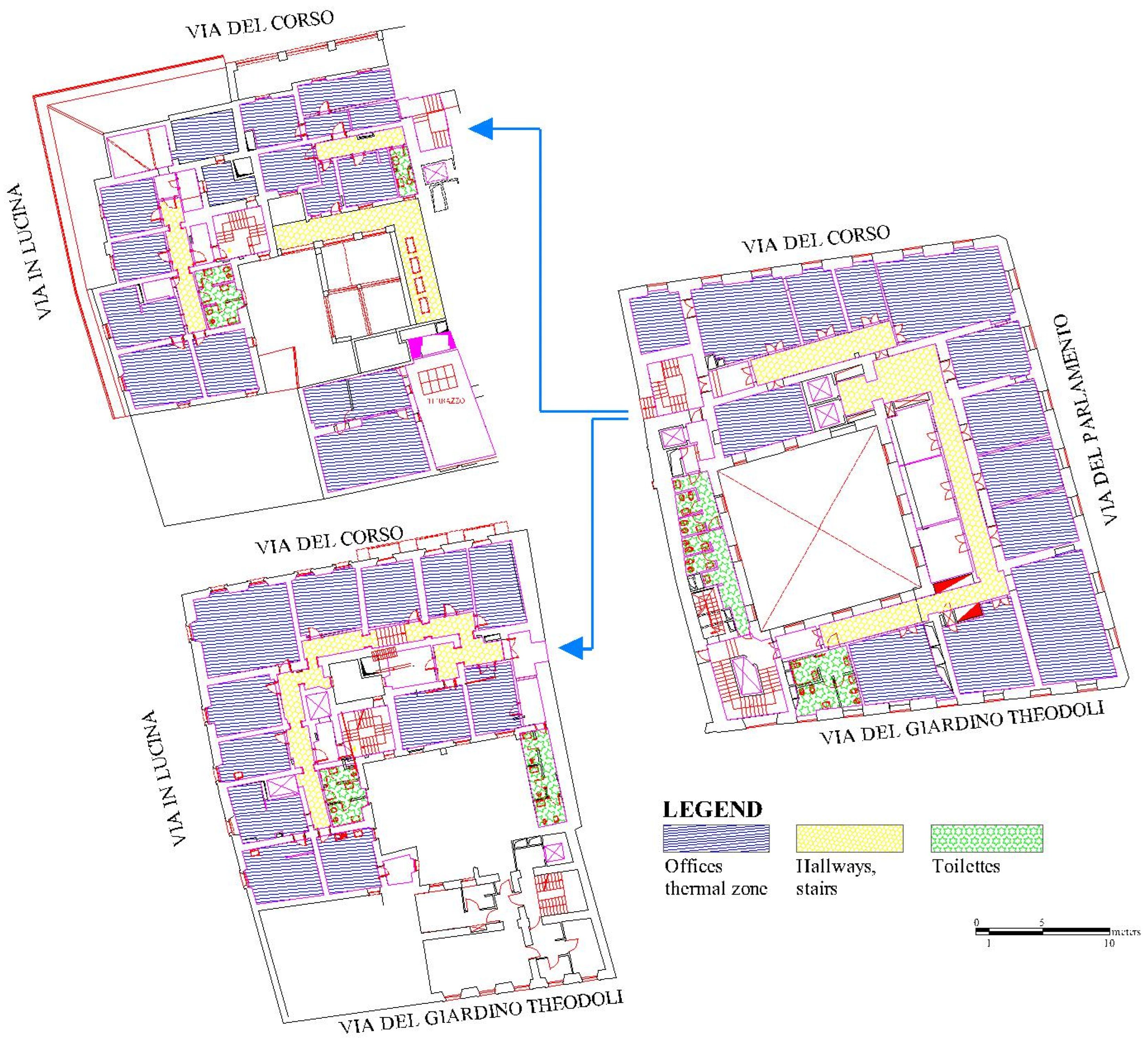

3.1. Numerical Model
3.2. nZEB Targets
4. Results
4.1. Analysis of the State of the Dynamic Simulations
4.2. Retrofit Efficiency Analysis
5. Discussion
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Ye, Y.; Hinkelman, K.; Lou, Y.; Zuo, W.; Wang, G.; Zhang, J. Evaluating the energy impact potential of energy efficiency measures for retrofit applications: A case study with U.S. medium office buildings. Build. Simul. 2021, 14, 1377–1393. [Google Scholar] [CrossRef]
- Foley, H.C. Challenges and opportunities in engineered retrofits of buildings for improved energy efficiency and habitability. AIChE J. 2012, 58, 658–667. [Google Scholar] [CrossRef]
- Kouma, L. Energy Efficiency Measures to Consider. ASHRAE Add. 2011, 62, 1–12. Available online: https://xp20.ashrae.org/PCBEA/Files/EEMs-to-Consider-2011-09-15.pdf (accessed on 24 June 2021).
- Mavromatidis, L.E.; Bykalyuk, A.; Lequay, H. Development of polynomial regression models for composite dynamic envelopes’ thermal performance forecasting. Appl. Energy 2013, 104, 379–391. [Google Scholar] [CrossRef]
- Webb, A.L. Energy retrofits in historic and traditional buildings: A review of problems and methods. Renew. Sustain. Energy Rev. 2017, 77, 748–759. [Google Scholar] [CrossRef]
- Italian Parliament. Ordinary Law of Parliament n. 373/76: Standards for the Reduction of Energy Consumption for Heating in Buildings; Italian Parliament: Rome, Italy, 1976.
- Biele, E.; Di Santo, D.; Petraccaro, A.; Tomassetti, G.; Romeo, C. The nZEB Buildings in the Public Administration—Gli Edifici nZEB Nella Pubblica Amministrazione. 2016. Available online: https://www.qualenergia.it/wp-content/uploads/2018/03/NZEB_PA_enea_fire.pdf (accessed on 12 September 2021).
- Energy Consumption per m2 2. Available online: https://ec.europa.eu/energy/content/energy-consumption-m2-2_en (accessed on 12 November 2021).
- Guidelines to the Presentation of Projects for the Program for Energy Redevelopment of the Buildings of the Central Public Administration PREPAC (Ministerial Decree of 16 September 2016)—Linee Guida alla Presentazione dei Progetti per il Programma per la Riqualificazione Energetica degli Edifici della Pubblica Amministrazione Centrale PREPAC. 2017. Available online: https://www.efficienzaenergetica.enea.it/pubblicazioni/linee-guida-alla-presentazione-dei-progetti-per-il-programma-per-la-riqualificazione-energetica-degli-edifici-della-pubblica-amministrazione-centrale-prepac.html (accessed on 14 September 2021).
- De Santoli, L.; Garcia, D.A.; Groppi, D.; Bellia, L.; Palella, B.I.; Riccio, G.; Cuccurullo, G.; d’Ambrosio, F.R.; Stabile, L.; Dell’Isola, M.; et al. A General Approach for Retrofit of Existing Buildings towards NZEB: The Windows Retrofit Effects on Indoor Air Quality and the Use of Low Temperature District Heating. In Proceedings of the 2018 IEEE International Conference on Environment and Electrical Engineering and 2018 IEEE Industrial and Commercial Power Systems Europe (EEEIC/I&CPS Europe), Palermo, Italy, 12–15 June 2018; pp. 1–6. [Google Scholar] [CrossRef]
- European Parliament. Directive 2012/27/EU of the European Parliament and of the Council of 25 October 2012 on energy efficiency. Off. J. Eur. Union Dir. 2012, 1–56. [Google Scholar] [CrossRef]
- Direttiva 2009/28/CE del Parlamento Europeo e del Consiglio del 23 aprile 2009 sulla Promozione dell’Uso dell’Energia da Fonti Rinnovabili, Recante Modifica e Successiva Abrogazione delle Direttive 2001/77/CE e 2003/30/CE. Available online: http://eur-lex.europa.eu/legal-content/IT/TXT/PDF/?uri=CELEX:32009L0028&from=IT (accessed on 8 February 2018).
- da Graça Carvalho, M. EU energy and climate change strategy. Energy 2012, 40, 19–22. [Google Scholar] [CrossRef]
- Comprehensive Study of Building Energy Renovation Activities and the Uptake of Nearly Zero-Energy Buildings in the EU|Energy. Available online: https://ec.europa.eu/energy/studies/comprehensive-study-building-energy-renovation-activities-and-uptake-nearly-zero-energy_en?redir=1 (accessed on 7 April 2020).
- Mancini, F.; Nardecchia, F.; Groppi, D.; Ruperto, F.; Romeo, C. Indoor Environmental Quality Analysis for Optimizing Energy Consumptions Varying Air Ventilation Rates. Sustainability 2020, 12, 482. [Google Scholar] [CrossRef] [Green Version]
- Mancini, F.; Lo Basso, G. How climate change affects the building energy consumptions due to cooling, heating, and electricity demands of Italian residential sector. Energies 2020, 13, 410. [Google Scholar] [CrossRef] [Green Version]
- Nastasi, B.; Di Matteo, U. Solar Energy Technologies in Sustainable Energy Action Plans of Italian Big Cities. Energy Procedia 2016, 101, 1064–1071. [Google Scholar] [CrossRef]
- Mancini, F.; Nastasi, B. Energy Retrofitting Effects on the Energy Flexibility of Dwellings. Energies 2019, 12, 2788. [Google Scholar] [CrossRef] [Green Version]
- Calice, C.; Clemente, C.; de Santoli, L.; Fraticelli, F. Guidelines for the retrofit of the school building stock for sustainable urban regeneration of the city of Rome. WIT Trans. Ecol. Environ. 2011, 155, 417–428. [Google Scholar] [CrossRef] [Green Version]
- Romano, G.; Pennacchia, E.; Agostinelli, S. Historical analysis and refurbishment proposal of the “red schools” in Viterbo. E3S Web Conf. 2020, 197, 02003. [Google Scholar] [CrossRef]
- Directive 2009/28/EC of the European Parliament and of the Council of 23 April 2009 on the Promotion of the Use of Energy from Renewable Sources and Amending and Subsequently Repealing Directives 2001/77/EC and 2003/30/EC. Available online: http://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:32009L0028&from=IT (accessed on 8 February 2018).
- EN; EU. Directive 2010/31/EU of the European Parliament and of the Council of 19 May 2010 on the energy performance of buildings. Off. J. Eur. Union. 2010, 13–35. Available online: https://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2010:153:FULL:EN:PDF (accessed on 14 September 2021). [CrossRef]
- CEN ISO/TR 52000-2:2017; Energy Performance of Buildings—Overarching EPB Assessment—Part 2: Explanation and Justification of ISO 52000-1. CEN: Milan, Italy, 2017.
- Nearly Zero Energy Buildings Definitions across Europe. Episcope Project, Brussels. 2015. Available online: http://bpie.eu/uploads/lib/document/attachment/128/BPIE_factsheet_nZEB_definitions_across_Europe.pdf (accessed on 27 April 2018).
- Costanzo, E. Osservatorio Degli Edifici a Energia Quasi Zero (nZEB) in Italia; ENEA: Rome, Italy, 2019. [Google Scholar]
- Marino, C.; Nucara, A.; Panzera, M.F.; Pietrafesa, M. Towards the nearly zero and the plus energy building: Primary energy balances and economic evaluations. Therm. Sci. Eng. Prog. 2019, 13, 100400. [Google Scholar] [CrossRef]
- Nezhad, M.M.; Neshat, M.; Groppi, D.; Marzialetti, P.; Heydari, A.; Sylaios, G.; Garcia, D.A. A primary offshore wind farm site assessment using reanalysis data: A case study for Samothraki Island. Renew. Energy 2021, 172, 667–679. [Google Scholar] [CrossRef]
- Tronchin, L.; Manfren, M.; Nastasi, B. Energy analytics for supporting built environment decarbonisation. Energy Procedia 2019, 157, 1486–1493. [Google Scholar] [CrossRef]
- Prina, M.G.; Groppi, D.; Nastasi, B.; Garcia, D.A. Bottom-up energy system models applied to sustainable islands, Renew. Sustain. Energy Rev. 2021, 152, 111625. [Google Scholar] [CrossRef]
- Official Journal—Gazzetta Ufficiale Presidential Decree 412/1993, Regolamento Recante Norme per la Progettazione, l’Installazione, l’Esercizio e la Manutenzione degli Impianti Termici degli Edifici ai Fini del Contenimento dei Consum di Energia, Attuazione dell’art. 4, Comma 4, della Legge 9 Gennaio 1991, n. 10. 1993. Available online: https://www.gazzettaufficiale.it/eli/id/1993/10/14/093G0451/sg (accessed on 2 September 2020).
- de Santoli, L. Guidelines on energy efficiency of cultural heritage. Energy Build. 2015, 86, 534–540. [Google Scholar] [CrossRef]
- Flavio, R.; Elisa, C.; Rosa, F.; Carbonara, E. An analysis on technological plant retrofitting on the masonry behaviour structures of 19th century Traditional Historical Buildings (THB) in Rome. Energy Procedia 2017, 133, 121–134. [Google Scholar] [CrossRef]
- Ma, Z.; Cooper, P.; Daly, D.; Ledo, L. Existing building retrofits: Methodology and state-of-the-art. Energy Build. 2012, 55, 889–902. [Google Scholar] [CrossRef]
- Mazzarella, L. Energy retrofit of historic and existing buildings. The legislative and regulatory point of view. Energy Build. 2015, 95, 23–31. [Google Scholar] [CrossRef]
- Albo, A.; Rosa, F.; Tiberi, M.; Vivio, B. High-efficiency and low-environmental impact systems on a historical building in Rome: An InWall solution. WIT Trans. Built Environ. 2014, 142, 529–540. [Google Scholar] [CrossRef] [Green Version]
- ICOMOS. Guidance on Heritage Impact Assessments for Cultural World Heritage Properties A publication of the International Council on Monuments and Sites. ICOMOS 2011, 66, 37–39. [Google Scholar]
- Nastasi, B. Hydrogen policy, market, and R&D projects. Sol. Hydrog. Prod. Process. Syst. Technol. 2019, 31–44. [Google Scholar] [CrossRef]
- Di Matteo, U.; Pezzimenti, P.M.; Garcia, D.A. Methodological proposal for optimal location of emergency operation centers through multi-criteria approach. Sustainability 2016, 8, 50. [Google Scholar] [CrossRef] [Green Version]
- Ascione, F.; Bianco, N.; De Masi, R.F.; De’Rossi, F.; Vanoli, G.P.; Mauro, G.M.; Vanoli, G.P.; De’Rossi, F.; Vanoli, G.P. Energy retrofit of an educational building in the ancient center of Benevento. Feasibility study of energy savings and respect of the historical value. Energy Build. 2017, 95, 172–183. [Google Scholar] [CrossRef]
- Giombini, M.; Pinchi, E.M. Energy functional retrofitting of historic residential buildings: The case study of the historic center of Perugia. Energy Procedia 2015, 82, 1009–1016. [Google Scholar] [CrossRef] [Green Version]
- Galatioto, A.; Ciulla, G.; Ricciu, R. An overview of energy retrofit actions feasibility on Italian historical buildings. Energy 2017, 137, 991–1000. [Google Scholar] [CrossRef]
- Martínez-Molina, A.; Tort-Ausina, I.; Cho, S.; Vivancos, J.-L. Energy efficiency and thermal comfort in historic buildings: A review. Renew. Sustain. Energy Rev. 2016, 61, 70–85. [Google Scholar] [CrossRef]
- Pisello, A.L.; Petrozzi, A.; Castaldo, V.L.; Cotana, F.; Pisello, A.L.; Petrozzi, A.; Castaldo, V.L.; Cotana, F.; Yan, J.; Lee, D.; et al. On an innovative integrated technique for energy refurbishment of historical buildings: Thermal-energy, economic and environmental analysis of a case study. Appl. Energy 2016, 162, 1313–1322. [Google Scholar] [CrossRef]
- Troi, A.; Bastian, Z. Energy Efficiency Solutions for Historic Buildings: A Handbook; EURAC Research: Basel, Switzerland, 2015; ISBN 9783038216506. [Google Scholar]
- Jafari, A.; Valentin, V. An optimization framework for building energy retrofits decision-making. Build. Environ. 2017, 115, 118–129. [Google Scholar] [CrossRef]
- Grytli, E.; Kværness, L.; Rokseth, L.S.; Ygre, K.F. The impact of energy improvement measures on heritage buildings. J. Archit. Conserv. 2012, 18, 89–106. [Google Scholar] [CrossRef]
- Lo Basso, G.; Rosa, F.; Garcia, D.A.; Cumo, F. Hybrid systems adoption for lowering historic buildings PFEC (primary fossil energy consumption)—A comparative energy analysis. Renew. Energy 2018, 117, 414–433. [Google Scholar] [CrossRef]
- Burattini, C.; Nardecchia, F.; Bisegna, F.; Cellucci, L.; Gugliermetti, F.; De Lieto Vollaro, A.; Salata, F.; Golasi, I. Methodological approach to the energy analysis of unconstrained historical buildings. Sustainability 2015, 7, 10428–10444. [Google Scholar] [CrossRef] [Green Version]
- Astiaso Garcia, D. Can radiant floor heating systems be used in removable glazed enclosed patios meeting thermal comfort standards? Build. Environ. 2016, 106, 378–388. [Google Scholar] [CrossRef]
- Manfren, M.; Nastasi, B.; Tronchin, L.; Groppi, D.; Garcia, D.A. Techno-economic analysis and energy modelling as a key enablers for smart energy services and technologies in buildings. Renew. Sustain. Energy Rev. 2021, 150, 111490. [Google Scholar] [CrossRef]
- Motlagh, S.F.M.; Sohani, A.; Saghafi, M.D.; Sayyaadi, H.; Nastasi, B. The Road to Developing Economically Feasible Plans for Green, Comfortable and Energy Efficient Buildings. Energies 2021, 14, 636. [Google Scholar] [CrossRef]
- PANZEB. Piano d’Azione Nazionale per Incrementare gli Edifici ad Energia Quasi Zero, Roma. 2015. Available online: http://www.sviluppoeconomico.gov.it/images/stories/documenti/PANZEB_13_11_2015.pdf (accessed on 31 October 2017).
- Barthelmes, V.M.; Becchio, C.; Corgnati, S.P.; Guala, C. Design and construction of an nZEB in Piedmont Region, North Italy. Energy Procedia 2015, 78, 1925–1930. [Google Scholar] [CrossRef] [Green Version]
- Ciampi, G.; Rosato, A.; Scorpio, M.; Sibilio, S. Energy and economic evaluation of retrofit actions on an existing historical building in the south of Italy by using a dynamic simulation software. Energy Procedia 2015, 78, 741–746. [Google Scholar] [CrossRef] [Green Version]
- De Santoli, L.; Basso, G.L.; Garcia, D.A.; Piras, G.; Spiridigliozzi, G. Dynamic simulation model of trans-critical carbon dioxide heat pump application for boosting low temperature distribution networks in dwellings. Energies 2019, 12, 484. [Google Scholar] [CrossRef] [Green Version]
- Manfren, M.; Nastasi, B. Parametric Performance Analysis and Energy Model Calibration Workflow Integration—A Scalable Approach for Buildings. Energies 2020, 13, 621. [Google Scholar] [CrossRef] [Green Version]
- Groppi, D.; Nastasi, B.; Prina, M.G.; Astiaso Garcia, D. The EPLANopt model for Favignana island’s energy transition. Energy Convers. Manag. 2021, 241, 114295. [Google Scholar] [CrossRef]
- Mora, T.D.; Cappelletti, F.; Peron, F.; Romagnoni, P.; Bauman, F. Retrofit of an Historical Building toward NZEB. Energy Procedia 2015, 78, 1359–1364. [Google Scholar] [CrossRef] [Green Version]
- Sauchelli, M.; Masera, G.; D’antona, G.; Manzolini, G. ISIS Facchinetti: A nearly zero energy retrofit in Italy. Energy Procedia 2014, 48, 1326–1335. [Google Scholar] [CrossRef] [Green Version]
- Mauri, L. Feasibility Analysis of Retrofit Strategies for the Achievement of NZEB Target on a Historic Building for Tertiary Use. Energy Procedia 2016, 101, 1127–1134. [Google Scholar] [CrossRef]
- Astiaso Garcia, D.; Di Matteo, U.; Cumo, F. Selecting eco-friendly thermal systems for the “Vittoriale Degli Italiani” historic museum building. Sustainability 2015, 7, 12615–12633. [Google Scholar] [CrossRef] [Green Version]
- Astiaso Garcia, D.; Cumo, F.; Tiberi, M.; Sforzini, V.; Piras, G. Cost-Benefit Analysis for Energy Management in Public Buildings: Four Italian Case Studies. Energies 2016, 9, 522. [Google Scholar] [CrossRef]
- Rosa, F.; Cumo, F.; Calcagnini, L.; Vivio, B. Redevelopment of Historic Buildings through the Implementation of Green Roofs: A Study of a Design Methodology. (n.d.). Available online: http://www.academia.edu/2421781/Redevelopment_of_historic_buildings_through_the_implementation_of_green_roofs_a_study_of_a_design_methodology (accessed on 9 September 2013).
- Groppi, D.; de Santoli, L.; Cumo, F.; Astiaso Garcia, D. A GIS-based model to assess buildings energy consumption and usable solar energy potential in urban areas. Sustain. Cities Soc. 2018, 40, 546–558. [Google Scholar] [CrossRef]
- Roversi, R.; Cumo, F.; D’Angelo, A.; Pennacchia, E.; Piras, G. Feasibility of municipal waste reuse for building envelopes for near zero-energy buildings. WIT Trans. Ecol. Environ. 2017, 224, 115–125. [Google Scholar] [CrossRef] [Green Version]
- Mattoni, B.; Nardecchia, F.; Bisegna, F. Towards the development of a smart district: The application of a holistic planning approach. Sustain. Cities Soc. 2019, 48, 101570. [Google Scholar] [CrossRef]
- Pompei, L.; Nardecchia, F.; Mattoni, B.; Bisegna, F.; Mangione, A. Comparison between two energy dynamic tools: The impact of two different calculation procedures on the achievement of nZEBs requirements. Build. Simul. Conf. Proc. 2019, 6, 4259–4266. [Google Scholar] [CrossRef]
- Romano, G.; Pennacchia, E.; Agostinelli, S. Refurbishment of a house in a historical building: Energy saving, electrification and flexibility. E3S Web Conf. 2020, 197, 02010. [Google Scholar] [CrossRef]
- Ministero per i Beni e le Attività Culturali (MIBACT). Legislative Decree n. 42 of 22 January 2004. Code of Cultural and Landscape Heritage. 2004. Available online: http://www.unesco.org/culture/natlaws/media/pdf/italy/it_cult_landscapeheritge2004_engtof.pdf (accessed on 23 March 2017).
- University of Wisconsin-Madison. TRNSYS 17. Multizone Building Modeling with Type 56 and TRNBuild. 2010, Volume 6. Available online: http://web.mit.edu/parmstr/Public/Documentation/06-MultizoneBuilding.pdf (accessed on 10 September 2021).
- EN ISO 52016-1:2018; Energy Performance of Buildings—Energy Needs for Heating and Cooling, Internal Temperatures and Sensible and Latent Heat Loads—Part 1: Calculation Procedures. Ente Nazionale Italiano di Unificazione (UNI): Milan Italy, 2018.
- Opaque Envelope Components of Buildings—Thermo-Physical Parameters UNI/TR 11552: 2014. Available online: http://store.uni.com/catalogo/uni-tr-11552-2014?___store=en&josso_back_to=http%3A%2F%2Fstore.uni.com%2Fjosso-security-check.php&josso_cmd=login_optional&josso_partnerapp_host=store.uni.com&___from_store=it (accessed on 2 September 2020).
- Decree of 26 June 2015 Concerning New Minimum Requirements and Methodology for Calculating Energy Performance of Buildings. 2015. Available online: https://www.mise.gov.it/index.php/it/normativa/decreti-interministeriali/2032966-decreto-interministeriale-26-giugno-2015-applicazione-delle-metodologie-di-calcolo-delle-prestazioni-energetiche-e-definizione-delle-prescrizioni-e-dei-requisiti-minimi-degli (accessed on 7 February 2020).
- UNI/TS 11300-1; Prestazioni Energetiche degli Edifici-Parte 1: Determinazione del Fabbisogno di Energia Termica dell’Edificio per la Climatizzazione Estiva ed Invernale. Ente Nazionale Italiano di Unificazione (UNI): Milan, Italy, 2014.
- Regione Lazio-Price List-Public works-Tariffa dei Prezzi (Lavori Pubblici). 2016. Available online: http://www.regione.lazio.it/rl_infrastrutture/?vw=contenutiDettaglio&cat=1&id=122 (accessed on 20 March 2019).
- Council Directive 2011/70/Euratom of 19 July 2011 Establishing a Community Framework for the Responsible and Safe Management of Spent Fuel and Radioactive Waste. 2011. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex:32012L0027 (accessed on 23 January 2021).
- Development of Energy Communities and the Strategic Implications for the Country and Its Economy—The European House Ambrosetti, (n.d.). Available online: https://www.ambrosetti.eu/en/whats-hot-en/cities-and-territories/development-of-energy-communities/ (accessed on 24 June 2021).
- Cumo, F.; Astiaso Garcia, D.; Calcagnini, L.; Rosa, F.; Sferra, A.S. Urban policies and sustainable energy management. Sustain. Cities Soc. 2012, 4, 29–34. [Google Scholar] [CrossRef]
Winter/Summer | Conditioning | Heating | ||||
---|---|---|---|---|---|---|
Mon–Fri | Sat | Sun | Mon–Fri | Sat | Sun | |
Building A | 8–19 | Off | Off | 7–13 16–19 | 7–13 | Off |
Building B-C-D | 7–13 16–22 | 7–13 16–22 | 7–13 16–22 |
AHU Position | Technical Characteristics |
---|---|
AHU Bank | Brand: Atisa 17,500 m3/h |
AHU Int/Basement | Brand: Atisa 6000 m3/h |
AHU A | Brand: Atisa 12,500 m3/h |
AHU B | Brand: Atisa 6000 m3/h |
Type | Transmittance (W/m2K) |
---|---|
Vertical opaque areas | 1.15 |
Inter-floor slab | 1.34 |
Covering slab | 1.51 |
Slab-on-grade floor | 1.08 |
Windows | 3.74 |
Power Density | |
---|---|
People | 150 W/people |
Illumination | 10 W/m2 |
Electronic devices | 3.2 W/m2 |
Input |
---|
Heating set-point temperature: 19 °C |
Relative humidity percentage indoor before humidification: 38% |
Cooling set-point temperature: 26 °C |
Relative humidity percentage indoor before dehumidification: 52% |
External air temperature: variable according to outdoor simulation period |
Incident solar radiation each cardinal axis varies according to the simulation period |
Parameter | u.m. | Requirements | |
---|---|---|---|
H’T | Average overall heat transfer coefficient for transmission per unit of surface dispersant | (W/m2K) | ≤0.53 |
Asol.est/Asup utile | Summer equivalent solar area per unit of useful surface | (-) | ≤0.040 |
ηH | Seasonal average efficiency for domestic hot water production | (%) | ≥81% |
EpH | Specific primary energy index for winter heating. (1) | (kWh/m2) | ≤80.35 |
EpH.nd | Useful thermal performance index for winter heating | (kWh/m2) | ≤99.19 |
ηw | Seasonal average efficiency for domestic hot water production | (%) | ≥81% |
Epw | Specific primary energy index for hot water supply. (1) | (kWh/m2) | ≤18.45 |
Epw.nd | Useful thermal performance index for hot water supply. | (kWh/m2) | ≤26.35 |
ηc | Seasonal average efficiency for air cooling systems (including the possible humidity control) | (%) | ≥81% |
Epc | Specific primary energy for summer cooling (including the possible humidity control). (1) | (kWh/m2) | ≤45.22 |
Epc.nd | Useful thermal performance index for summer cooling | (kWh/m2) | ≤52.77 |
Ept | Energy performance index of the service for the transport of people and things (lift systems and escalators). (2) | (kWh/m2) | ≤15.46 |
Epv | Energy performance index for ventilation. (1). | (kWh/m2) | ≤22.47 |
EpL | Energy performance index of the service for lighting. (2) | (kWh/m2) | ≤21.15 |
Epgl | Index overall energy performance of the building. (1) | (kWh/m2) | ≤165.17 |
Pel.ren | Photovoltaic power plant | (kW) | ≥35.20 |
CFEren.DHW+CLIM | Requirements for DWH and air-conditioning due to renewable sources | (%) | ≥55 |
CFEren.DHW | Requirements for DWH due to renewable sources | (%) | ≥55 |

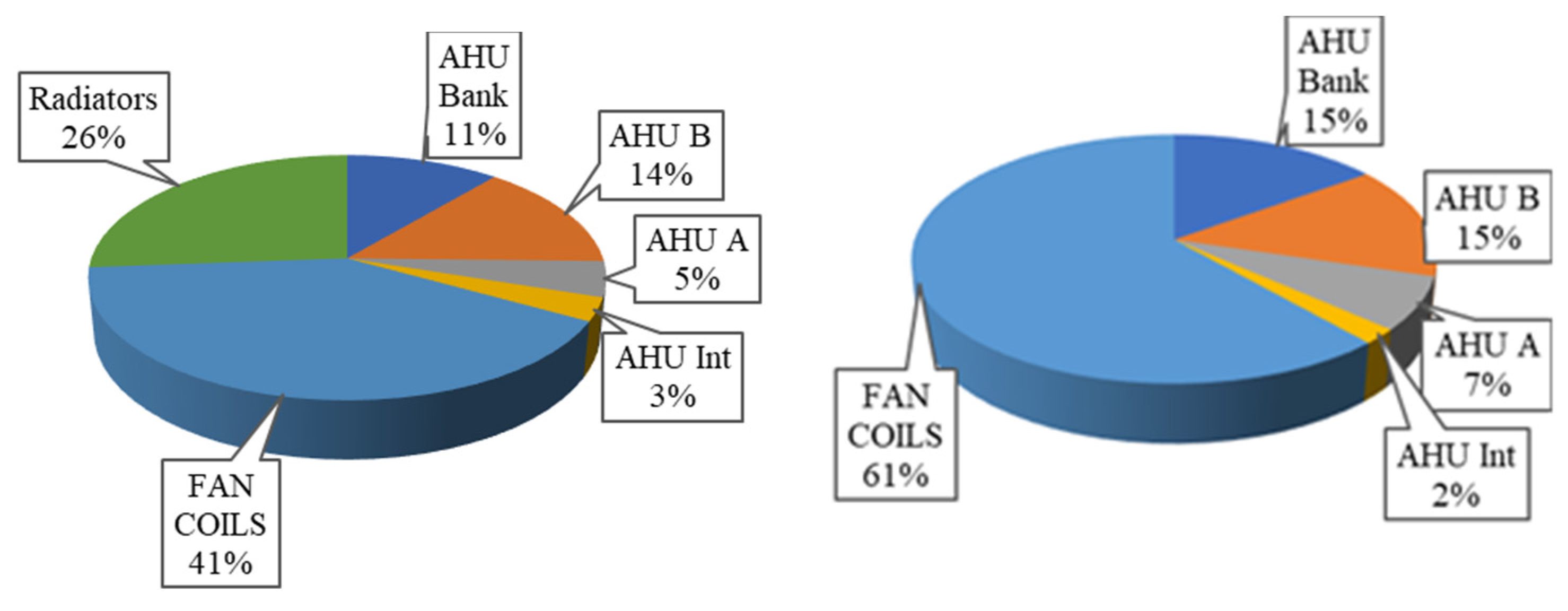

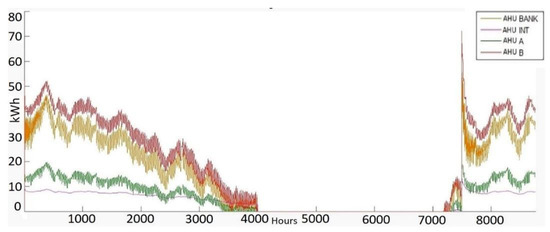

Plant | kWhavg/Heating Hour | kWhmax/Heating Hour | kWhavg/Cooling Hour | KWhmax/Cooling Hour |
---|---|---|---|---|
FAN COILS | 52.87 | 191.87 | 37.16 | 287.51 |
AHU BANK | 14.51 | 59.75 | 9.09 | 62.57 |
AHU B | 18.44 | 72.07 | 8.88 | 67.32 |
AHU A | 6.08 | 19.69 | 4.16 | 22.03 |
AHU INT/Basement | 3.98 | 13.79 | 1.18 | 10.89 |
Parameters | u.m. | Requirements | Current State Data | |
---|---|---|---|---|
H’T | Average overall heat transfer coefficient for transmission per unit of surface dispersant | (W/m2K) | ≤0.53 | 0.78 |
Asol.est/Asup utile | Summer equivalent solar area per unit of useful surface | (-) | ≤0.040 | 0.035 |
ηH | Seasonal average efficiency for domestic hot water production | (%) | ≥81% | 85% |
EpH | Specific primary energy index for winter heating. (1) | (kWh/m2) | ≤80.35 | 79.10 |
EpH.nd | Useful thermal performance index for winter heating | (kWh/m2) | ≤99.19 | 93.06 |
ηw | Seasonal average efficiency for domestic hot water production | (%) | ≥81% | 85% |
Epw | Specific primary energy index for hot water supply. (1) | (kWh/m2) | ≤18.45 | 17.65 |
Epw.nd | Useful thermal performance index for hot water supply. | (kWh/m2) | ≤26.35 | 24.85 |
ηc | Seasonal average efficiency for air cooling systems (including the possible humidity control) | (%) | ≥81% | 85% |
Epc | Specific primary energy for summer cooling (including the possible humidity control). (1) | (kWh/m2) | ≤45.22 | 43.24 |
Epc.nd | Useful thermal performance index for summer cooling | (kWh/m2) | ≤52.77 | 52.34 |
Ept | Energy performance index of the service for the transport of people and things (lift systems and escalators). (2) | (kWh/m2) | ≤5.46 | 3.58 |
Epv | Energy performance index for ventilation. (1). | (kWh/m2) | ≤22.47 | 17.45 |
EpL | Energy performance index of the service for lighting. (2) | (kWh/m2) | ≤21.15 | 18.65 |
Epgl | Index overall energy performance of the building. (1) | (kWh/m2) | ≤171.95 | 168.64 |
Pel.ren | Photovoltaic power plant | (kW) | ≥35.20 | 0 |
CFEren.DHW+CLIM | Requirements for DWH and air-conditioning due to renewable sources | (%) | ≥55 | 71% |
CFEren.DHW | Requirements for DWH due to renewable sources | (%) | ≥55 | 60% |
Monocrystalline module power | (Wp) | 325 |
Module efficiency | (%) | 20 |
Modules number | (-) | 110 |
Total power plant | (kWp) | 35.75 |
Inverter number | (-) | 1 |
Auxiliaries efficiency | (%) | 85 |
Electric power consumption preintervention | (MWh/year) | 876 |
Electric power consumption postintervention | (MWh/year) | 832 |
Energy saving | (kWh/year) | 43,900 |
PV total cost | (€) | 11,281 |
Inverter cost | (€) | 6000 |
Additional costs: parallel switchboard, conduits, connections, etc. | (€) | 2000 |
Total supply costs | (€) | 19,281 |
Cost of labour | (€) | 3800 |
Investment | (€) | 24,001 |

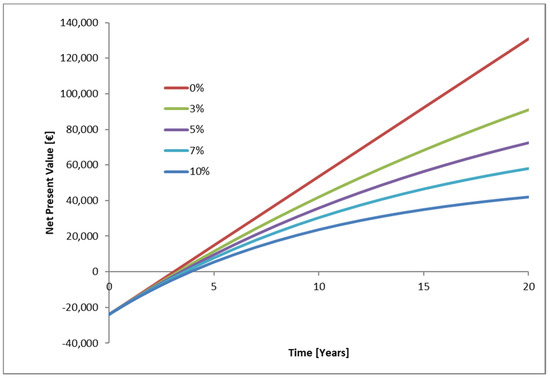

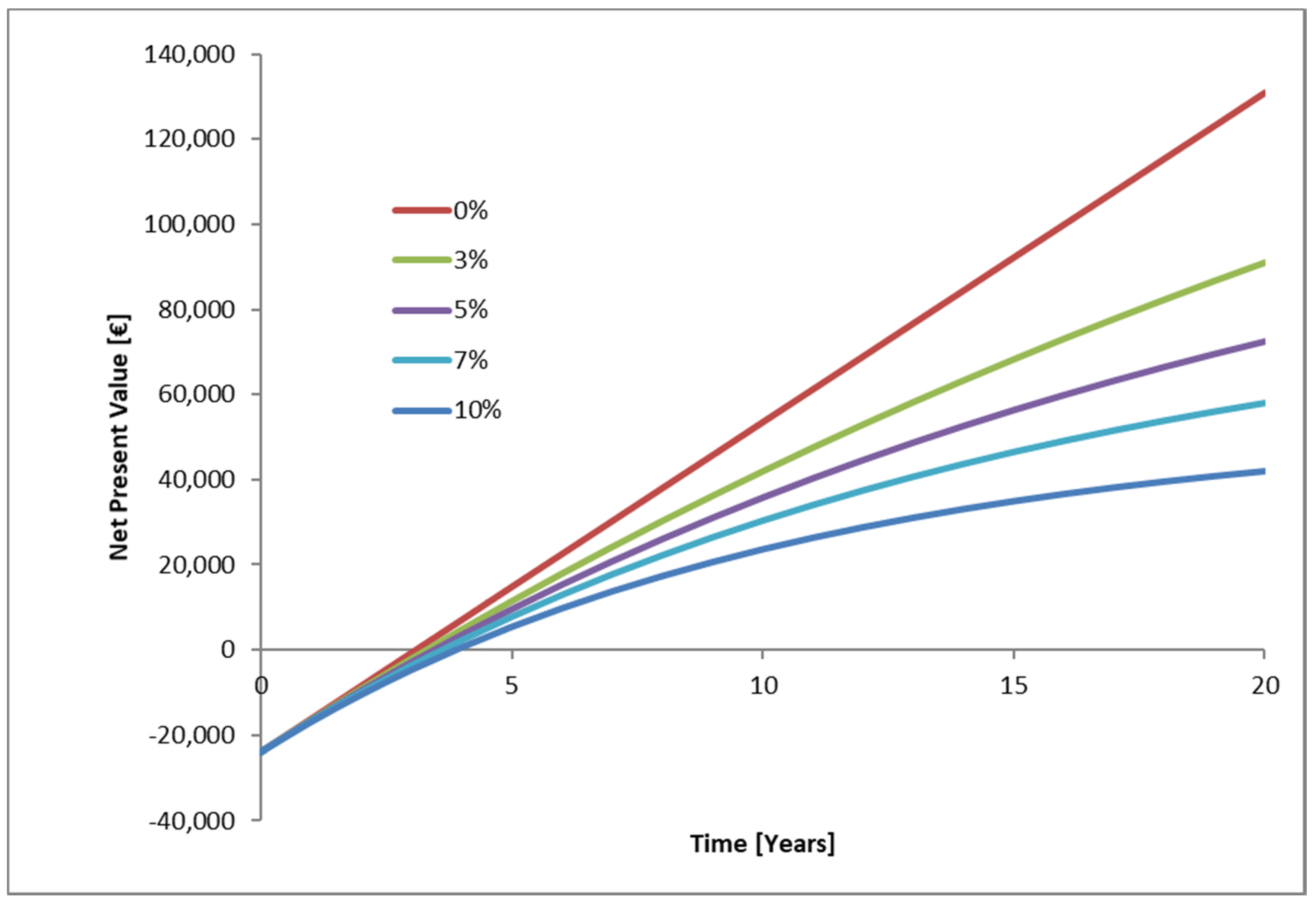

i | In | NPV | PI |
---|---|---|---|
(%) | (Years) | (€) | (€/€) |
0 | 3 | 130,791.00 | 5.44 |
3 | 3 | 91,142.66 | 3.79 |
5 | 3 | 72,448.51 | 3.02 |
7 | 3 | 57,988.67 | 2.42 |
10 | 4 | 41,885.98 | 1.74 |
Parameters | u.m. | Requirements | Post Retrofit Data | |
---|---|---|---|---|
H’T | Average overall heat transfer coefficient for transmission per unit of surface dispersant | (W/m2K) | ≤0.53 | 0.78 |
Asol.est/Asup utile | Summer equivalent solar area per unit of useful surface | (-) | ≤0.040 | 0.035 |
ηH | Seasonal average efficiency for domestic hot water production | (%) | ≥81% | 85% |
EpH | Specific primary energy index for winter heating. (1) | (kWh/m2) | ≤80.35 | 79.10 |
EpH.nd | Useful thermal performance index for winter heating | (kWh/m2) | ≤99.19 | 93.06 |
ηw | Seasonal average efficiency for domestic hot water production | (%) | ≥81% | 85% |
Epw | Specific primary energy index for hot water supply. (1) | (kWh/m2) | ≤18.45 | 17.65 |
Epw.nd | Useful thermal performance index for hot water supply. | (kWh/m2) | ≤26.35 | 24.85 |
ηc | Seasonal average efficiency for air cooling systems (including the possible humidity control) | (%) | ≥81% | 85% |
Epc | Specific primary energy for summer cooling (including the possible humidity control). (1) | (kWh/m2) | ≤45.22 | 43.24 |
Epc.nd | Useful thermal performance index for summer cooling | (kWh/m2) | ≤52.77 | 52.34 |
Ept | Energy performance index of the service for the transport of people and things (lift systems and escalators). (2) | (kWh/m2) | ≤5.46 | 3.58 |
Epv | Energy performance index for ventilation. (1). | (kWh/m2) | ≤22.47 | 17.45 |
EpL | Energy performance index of the service for lighting. (2) | (kWh/m2) | ≤21.15 | 18.65 |
Epgl | Index overall energy performance of the building. (1) | (kWh/m2) | ≤171.95 | 168.64 |
Pel.ren | Photovoltaic power plant | (kW) | ≥35.20 | 36 |
CFEren.DHW+CLIM | Requirements for DWH and air-conditioning due to renewable sources | (%) | ≥55 | 71% |
CFEren.DHW | Requirements for DWH due to renewable sources | (%) | ≥55 | 60% |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Cumo, F.; Nardecchia, F.; Agostinelli, S.; Rosa, F. Transforming a Historic Public Office Building in the Centre of Rome into nZEB: Limits and Potentials. Energies 2022, 15, 697. https://doi.org/10.3390/en15030697
Cumo F, Nardecchia F, Agostinelli S, Rosa F. Transforming a Historic Public Office Building in the Centre of Rome into nZEB: Limits and Potentials. Energies. 2022; 15(3):697. https://doi.org/10.3390/en15030697
Chicago/Turabian StyleCumo, Fabrizio, Fabio Nardecchia, Sofia Agostinelli, and Flavio Rosa. 2022. "Transforming a Historic Public Office Building in the Centre of Rome into nZEB: Limits and Potentials" Energies 15, no. 3: 697. https://doi.org/10.3390/en15030697
