# Tuning Model Predictive Control for Rigorous Operation of the Dalsfoss Hydropower Plant

^{*}

## Abstract

**:**

## 1. Introduction

## 2. System Description

#### 2.1. System Model

#### 2.2. Operational Constraints

- The sudden change in the flowrate at downstream, ${\dot{V}}_{\mathrm{o}}$, can endanger the properties and ecosystem along the watercourse. Therefore, the flowrate at downstream must be kept as constant as possible. The change of the flowrate at downstream is desired to keep less than 50 ${\mathrm{m}}^{3}/\mathrm{s}$ on every time step.
- The flowrate at downstream, ${\dot{V}}_{\mathrm{o}}$, must be more than $4\phantom{\rule{3.33333pt}{0ex}}{\mathrm{m}}^{3}/\mathrm{s}$. This constraint is to ensure that fishes in downstream can move freely along the water course.
- The water level at Merkebekk, ${x}_{\mathrm{M}}$, must be maintained within a certain range as:$${x}_{\mathrm{M}}\in [{x}_{\mathrm{LRV}},{x}_{\mathrm{HRV}}]$$
- The maximum flowrate through the turbine, ${V}_{\mathrm{t}}$, is limited up to 36 ${\mathrm{m}}^{3}/\mathrm{s}$.

#### 2.3. Optimal Control Problem

## 3. Simulation Setting

#### 3.1. Test Sets of Parameters

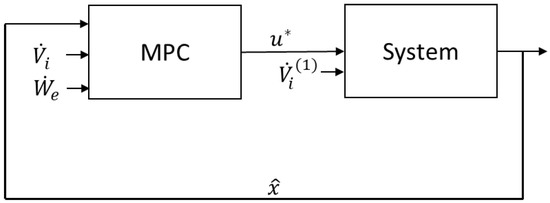

#### 3.2. Simulation Condition

## 4. Simulation Result

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Ahmed, T.; Muttaqi, K.; Agalgaonkar, A. Climate change impacts on electricity demand in the State of New South Wales, Australia. Appl. Energy
**2012**, 98, 376–383. [Google Scholar] [CrossRef] - Torabi Haghighi, A.; Ashraf, F.B.; Riml, J.; Koskela, J.; Kløve, B.; Marttila, H. A power market-based operation support model for sub-daily hydropower regulation practices. Appl. Energy
**2019**, 255, 113905. [Google Scholar] [CrossRef] - IEA. Hydropower Special Market Report—Analysis and Forecast to 2030; IEA: Paris, France, 2021. [Google Scholar]
- Morari, M.; Lee, J.H. Model predictive control: Past, present and future. Comput. Chem. Eng.
**1999**, 23, 667–682. [Google Scholar] [CrossRef] - Mayne, D.; Rawlings, J.; Rao, C.; Scokaert, P. Constrained model predictive control: Stability and optimality. Automatica
**2000**, 36, 789–814. [Google Scholar] [CrossRef] - Lee, J.H. Model predictive control: Review of the three decades of development. Int. J. Control. Autom. Syst.
**2011**, 9, 415–424. [Google Scholar] [CrossRef] - SkagerakKraft. Dalsfos. 2021. Available online: https://www.skagerakkraft.no/dalsfos/category1277.html (accessed on 24 May 2021).
- SkagerakKraft. Kragerø Watercourse System. 2021. Available online: https://www.skagerakkraft.no/kragero-watercourse/category2391.html (accessed on 24 May 2021).
- NVE. Supervision of Dams. 2021. Available online: https://www.nve.no/supervision-of-dams/?ref=mainmenu (accessed on 24 May 2021).
- Lie, B. Final Report: KONTRAKT NR INAN-140122 Optimal Control of Dalsfos Flood Gates—Control Algorithm; Telemark University College: Porsgrunn, Norway, 2014. [Google Scholar]
- Kvam, K.D.; Furenes, B.; Hasaa, Å.; Gjerseth, A.Z.; Skeie, N.O.; Lie, B. Flood Control of Lake Toke: Model Development and Model Fitting. In Proceedings of the 58th Conference on Simulation and Modelling (SIMS 58), Reykjavik, Iceland, 25–27 September 2017. [Google Scholar]
- Menchacatorre, I.; Sharma, R.; Furenes, B.; Lie, B. Flood Management of Lake Toke: MPC Operation under Uncertainty. In Proceedings of the 60th SIMS Conference on Simulation and Modelling SIMS 2019, Västerås, Sweden, 12–16 August 2019; pp. 9–16. [Google Scholar] [CrossRef]
- Jeong, C.; Furenes, B.; Sharma, R. MPC Operation with Improved Optimal Control Problem at Dalsfoss Power Plant. In Proceedings of the First SIMS EUROSIM Conference on Modelling and Simulation, SIMS EUROSIM 2021, and 62nd International Conference of Scandinavian Simulation Society, SIMS 2021, Virtual Conference, Finland, 21–23 September 2021; Volume 11, pp. 226–233. [Google Scholar] [CrossRef]
- Jeong, C.; Sharma, R. Stochastic MPC For Optimal Operation of Hydropower Station under Uncertainty. IFAC-PapersOnLine
**2022**, 55, 155–160. [Google Scholar] [CrossRef] - Andersson, J.A.E.; Gillis, J.; Horn, G.; Rawlings, J.B.; Diehl, M. CasADi—A software framework for nonlinear optimization and optimal control. Math. Program. Comput.
**2019**, 11, 1–36. [Google Scholar] [CrossRef]

**Figure 1.**Schematic of lake Toke [10].

**Figure 2.**Structure of floodgate [10].

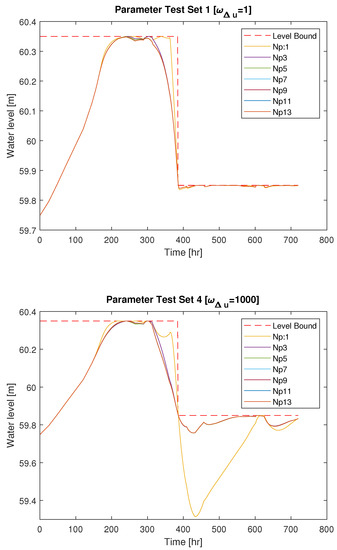

**Figure 6.**Change of the water level at Merkebekk during the simulations with parameter test set 1 and test set 4.

**Figure 7.**Flowrate of water at downstream, ${V}_{\mathrm{O}}$, with different sets of parameters when the length of prediction horizon, ${N}_{\mathrm{p}}$, is set as 3 days.

**Figure 8.**Average computational time taken depending on the length of the prediction horizon when the test set 3 is used.

Parameter | Value | Unit | Comment |
---|---|---|---|

$\alpha $ | 0.05 | - | Fraction of surface area in compartment 2 |

$\beta $ | 0.02 | - | Fraction of inflow to compartment 2 |

${K}_{12}$ | 800 | m${}^{\frac{3}{2}}$/s | Flow coefficient |

${C}_{\mathrm{d}}$ | 0.7 | - | Discharge coefficient, Dalsfoss gate |

${w}_{1}$ | 11.6 | m | Width of Dalsfoss gate 1 |

${w}_{2}$ | 11.0 | m | Width of Dalsfoss gate 2 |

${x}_{\mathrm{LRV}}^{\mathrm{min}}$ | 55.75 | m MSL | Minimal low regulated level value |

g | 9.81 | m/s${}^{2}$ | Acceleration of gravity |

a | 124.69 | Pa${}^{-1}$ | Coefficient in Equation (6) |

b | 3.161 | m${}^{3}$/s | Coefficient in Equation (6) |

${c}_{1}$ | 0.13152 | W/m${}^{-3}$ | Polynomial coefficient in Equation (7) |

${c}_{2}$ | −9.5241 | W/m${}^{2}$ | Polynomial coefficient in Equation (7) |

${c}_{3}$ | 1.7234 · 10${}^{2}$ | W/m | Polynomial coefficient in Equation (7) |

${c}_{4}$ | −7.7045 · 10${}^{-3}$ | Pa/m | Polynomial coefficient in Equation (7) |

${c}_{5}$ | −8.7359 · 10${}^{-1}$ | W | Polynomial coefficient in Equation (7) |

Date | ${\mathit{x}}_{\mathbf{LRV}}\left[\mathbf{m}\right]$ | ${\mathit{x}}_{\mathbf{HRV}}\left[\mathbf{m}\right]$ |
---|---|---|

1 January–30 April | 55.75 | 60.35 |

1 May–30 August | 58.85 | 59.85 |

1 September–14 September | 55.75 | 59.35 |

28 October–11 November | 55.75 | 59.85 |

12 November–31 December | 55.75 | 60.35 |

Parameter | Test Set 1 | Test Set 2 | Test Set 3 | Test Set 4 |
---|---|---|---|---|

${\omega}_{R}$ | 10 | 10 | 10 | 10 |

${\omega}_{\Delta u}$ | 1 | 10 | 100 | 1000 |

${\omega}_{u}$ | 1 | 1 | 1 | 1 |

${\omega}_{p}$ | 10,000 | 10,000 | 10,000 | 10,000 |

${\mathit{N}}_{\mathbf{p}}$ [d] | Testset 1 | Testset 2 | Testset 3 | Test Set 4 |
---|---|---|---|---|

1 | 4.2637 | 4.2625 | 4.2595 | 4.1644 |

3 | 4.2554 | 4.2537 | 4.2472 | 4.2314 |

5 | 4.2545 | 4.2528 | 4.2463 | 4.2290 |

7 | 4.2542 | 4.2526 | 4.2462 | 4.2294 |

9 | 4.2542 | 4.2526 | 4.2462 | 4.2294 |

11 | 4.2542 | 4.2526 | 4.2462 | 4.2294 |

13 | 4.2542 | 4.2526 | 4.2462 | 4.2294 |

**Table 5.**Maximum change of water amount discharged from the plant throughout simulations [${\mathrm{m}}^{3}$].

${\mathit{N}}_{\mathit{p}}$ [d] | Testset 1 | Testset 2 | Testset 3 | Test Set 4 |
---|---|---|---|---|

1 | 139.1463 | 71.9443 | 38.7613 | 31.4636 |

3 | 57.2664 | 33.3261 | 18.6869 | 17.2223 |

5 | 57.0969 | 33.1774 | 19.7069 | 14.8696 |

7 | 57.0943 | 33.1746 | 19.6943 | 16.4958 |

9 | 57.0941 | 33.1746 | 19.6950 | 16.3057 |

11 | 57.0941 | 33.1746 | 19.6935 | 16.3650 |

13 | 57.0941 | 33.1746 | 19.6934 | 16.3708 |
