Coupling Effects on Distributed Multi-Propeller Channel Wing at Low Speed Condition
Abstract
:1. Introduction
2. Numerical Methods Validation
2.1. Flow Solver
2.2. Results
3. The Single-Propeller Channel Wing Integration

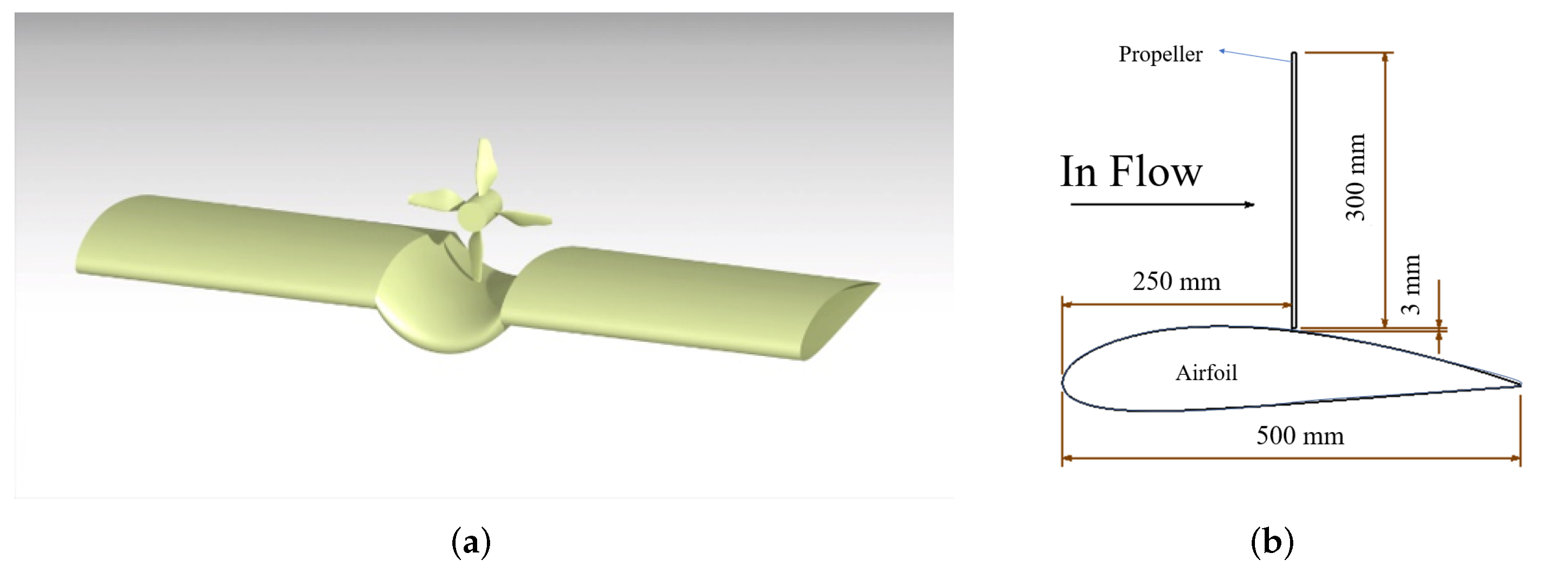

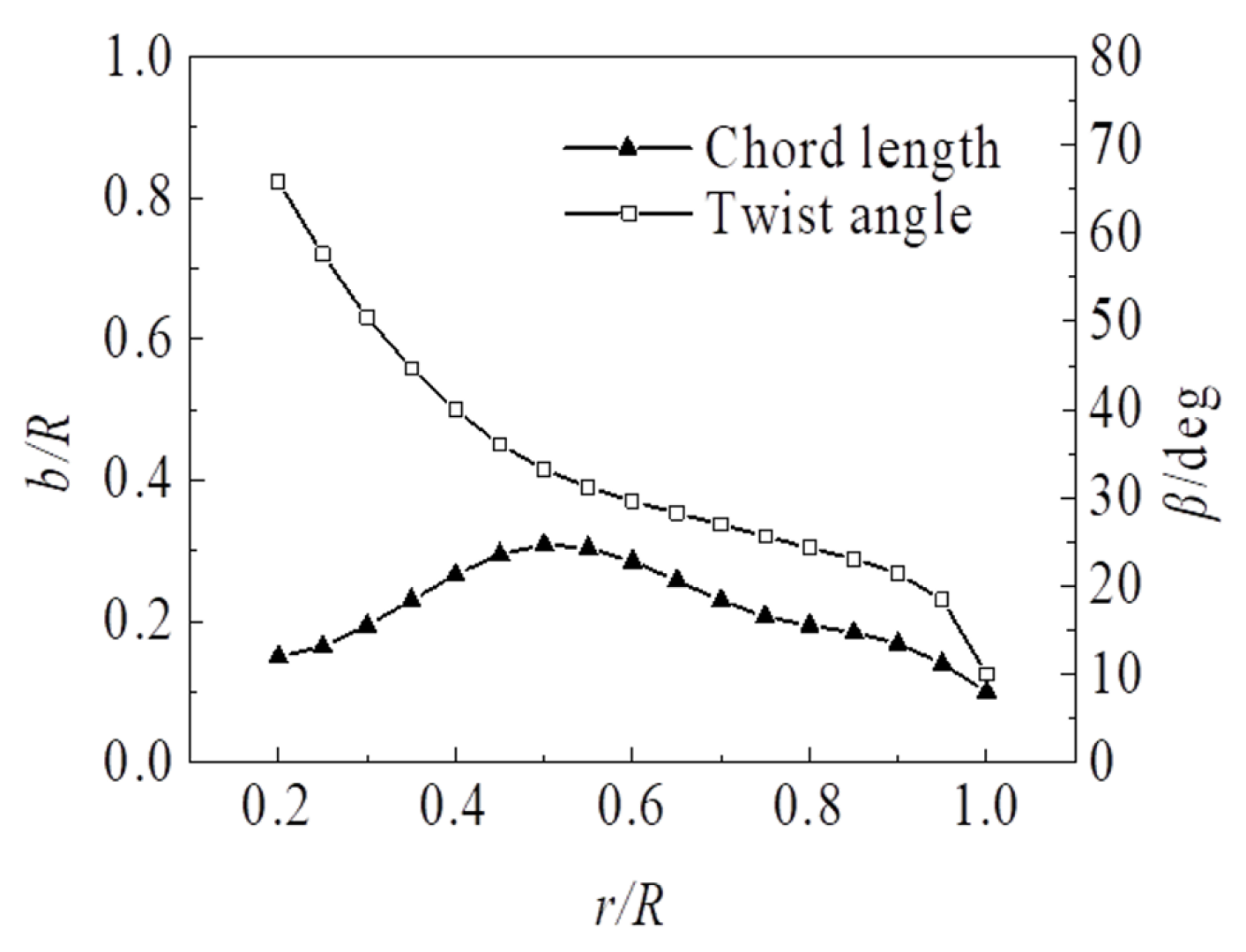

3.1. Model and Methods

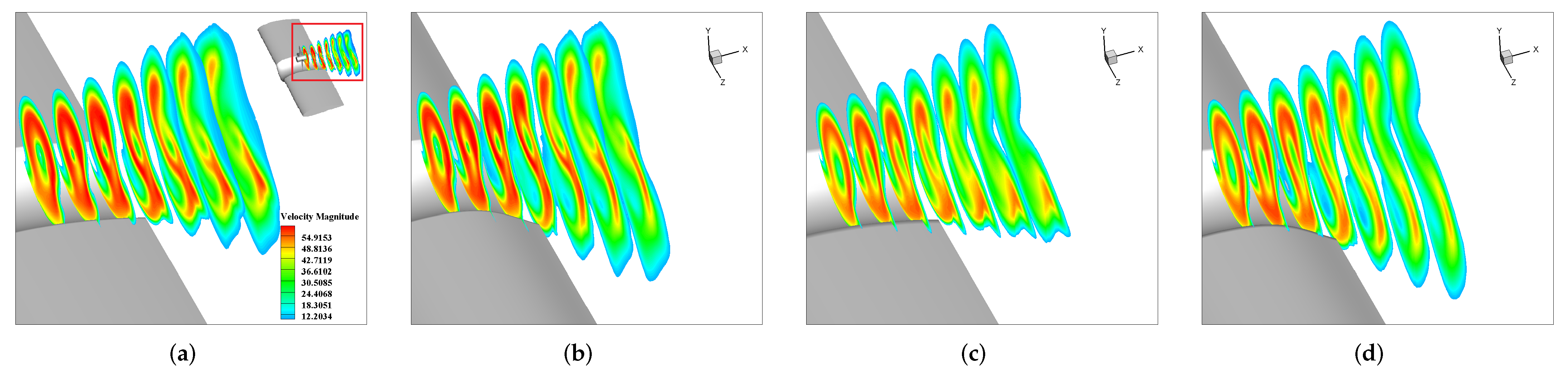

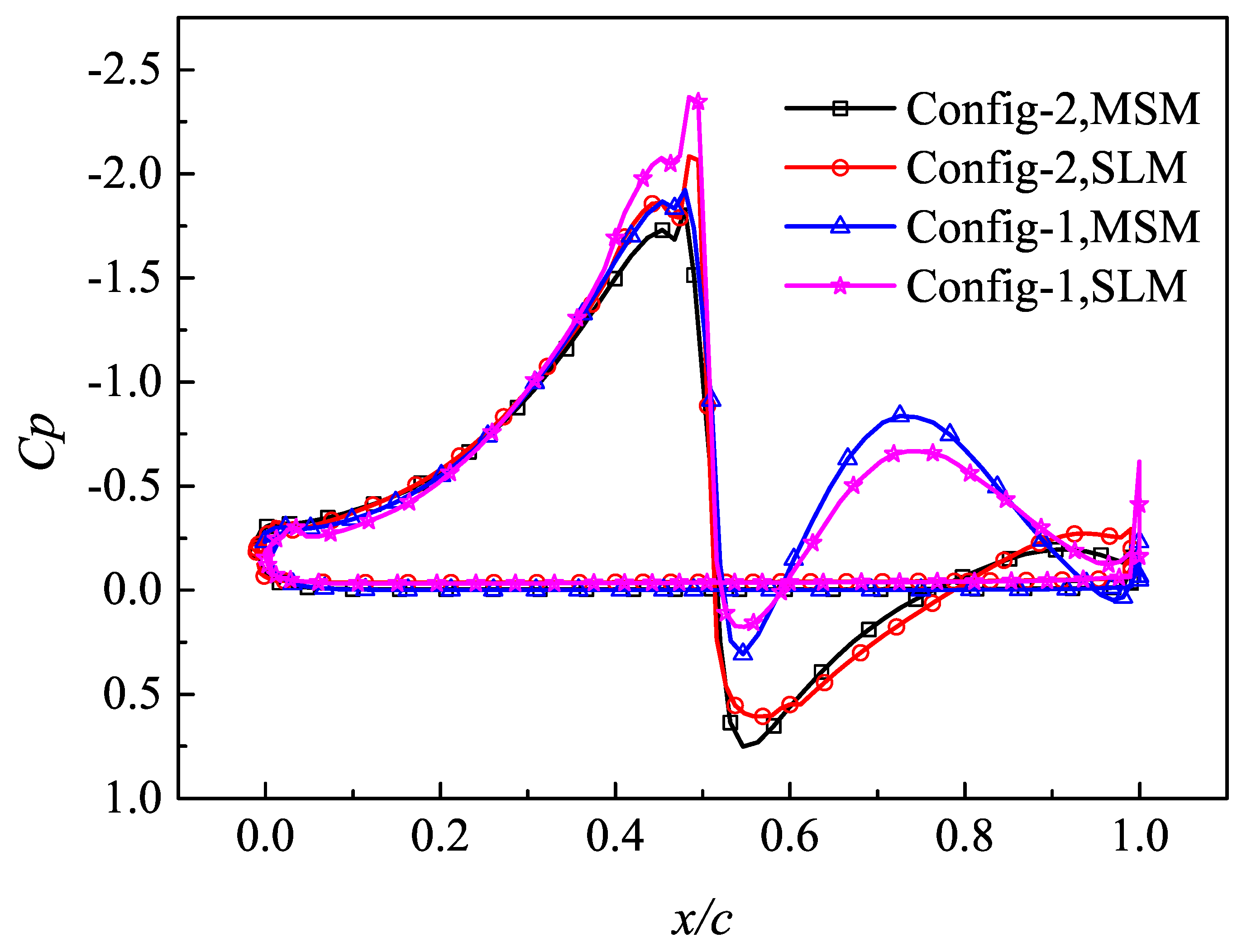

3.2. Results

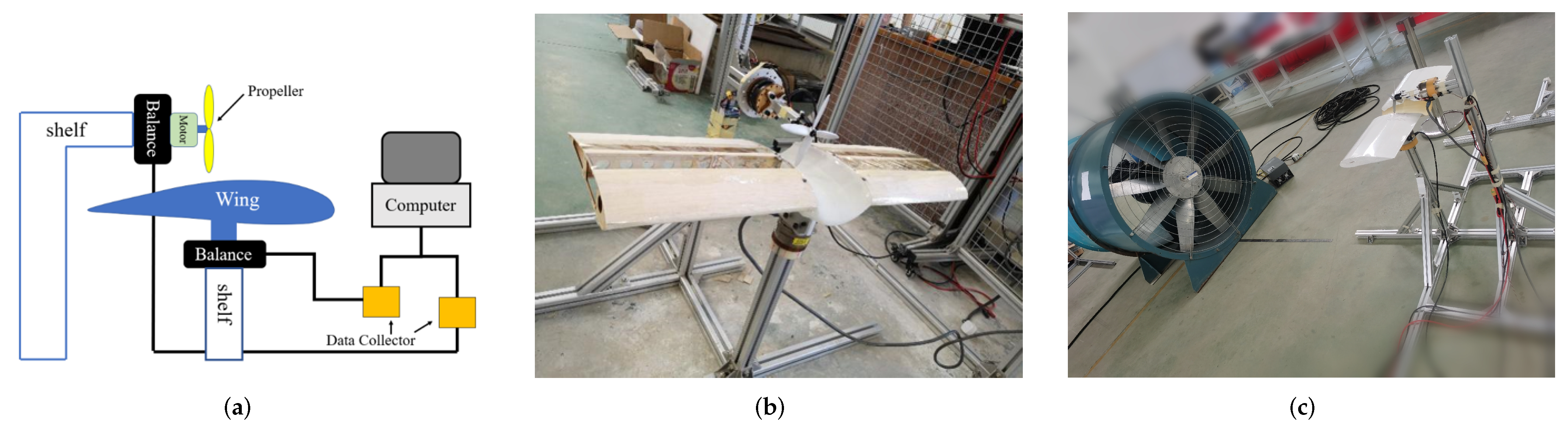

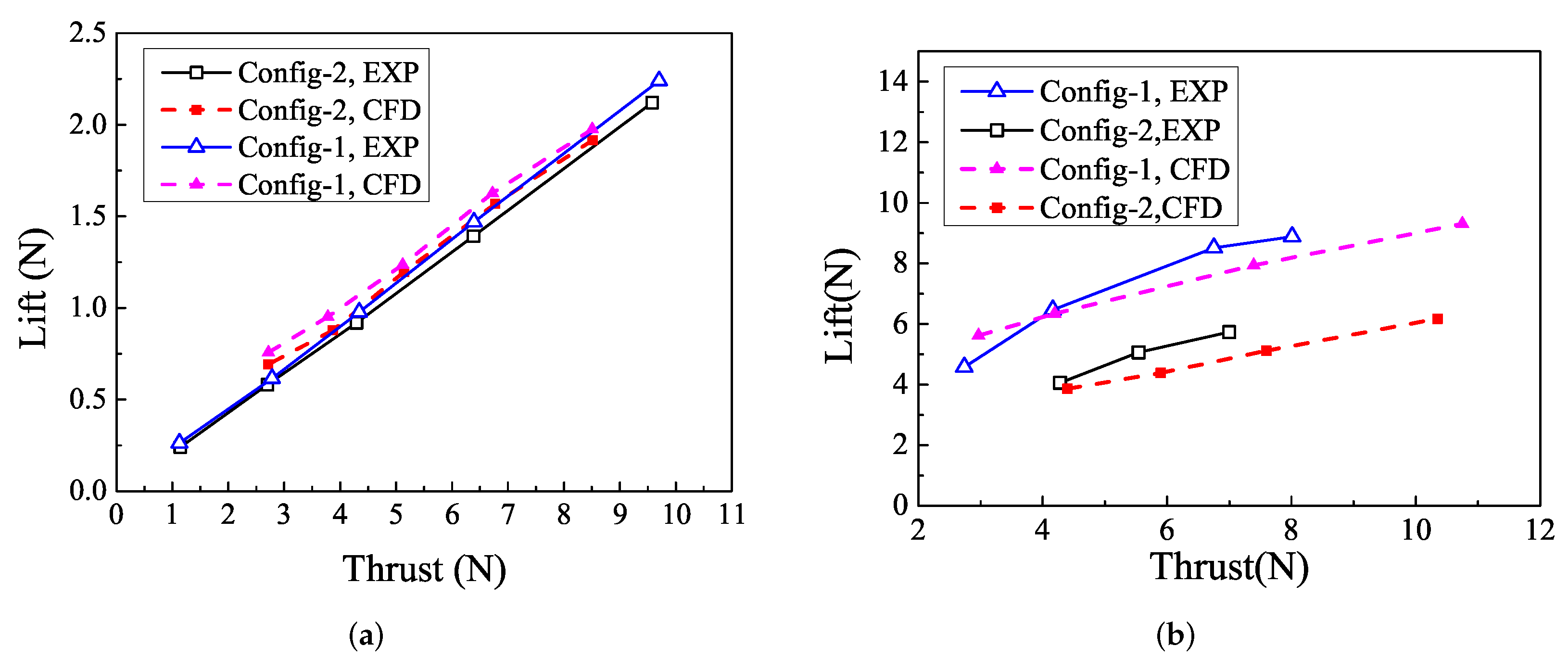

3.3. Ground Test of a Scaled Model

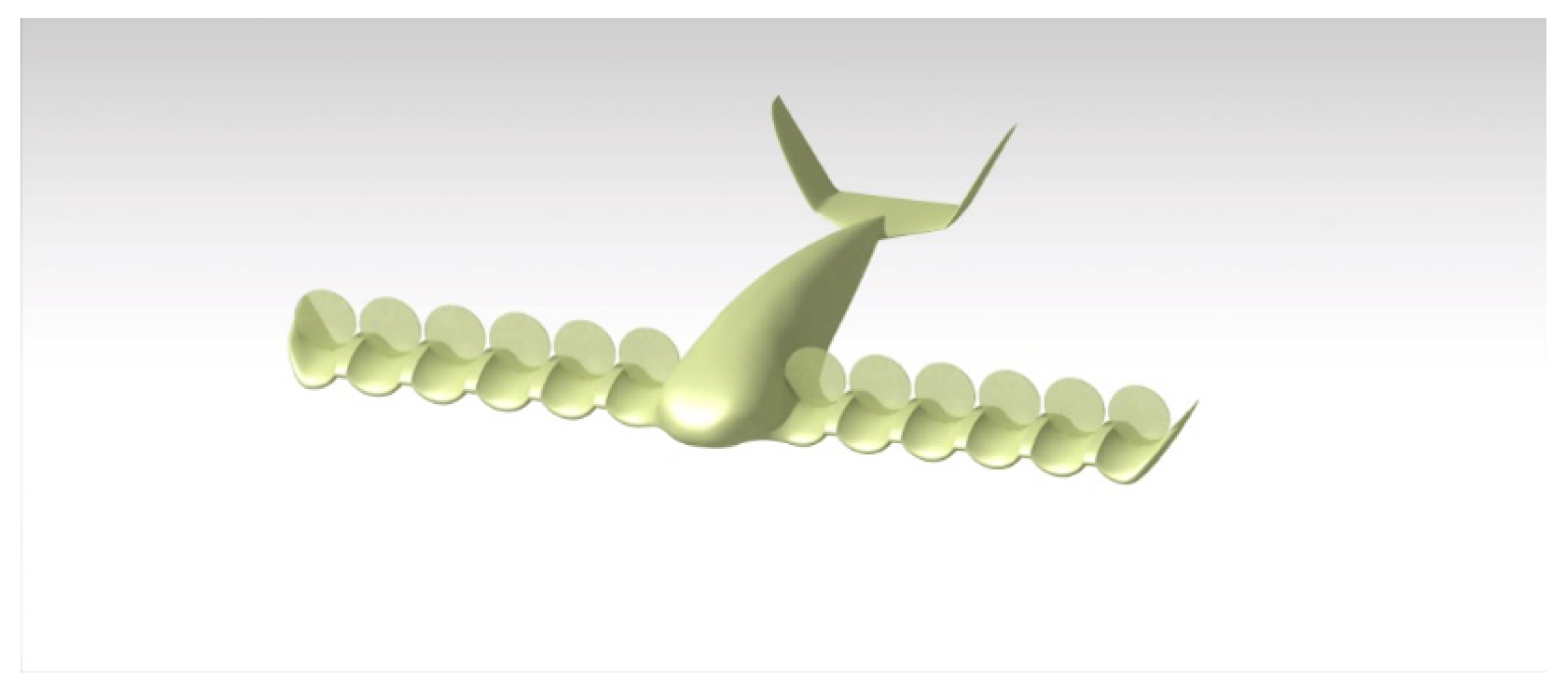

4. The Multi-Propeller Channel Wing Integration

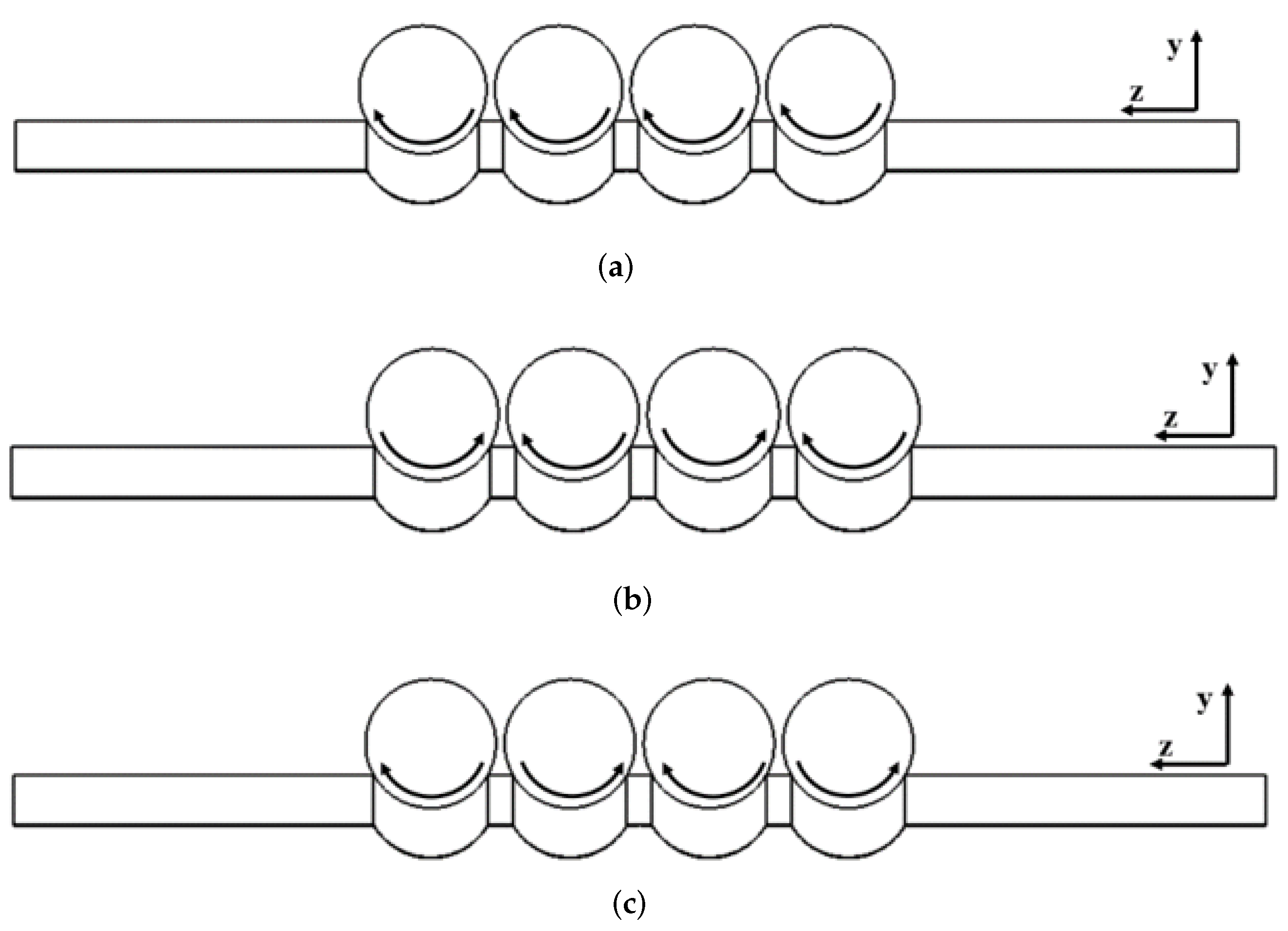

4.1. Model and Methods
4.2. Results and Discussion
4.2.1. The S/VTOL Stage

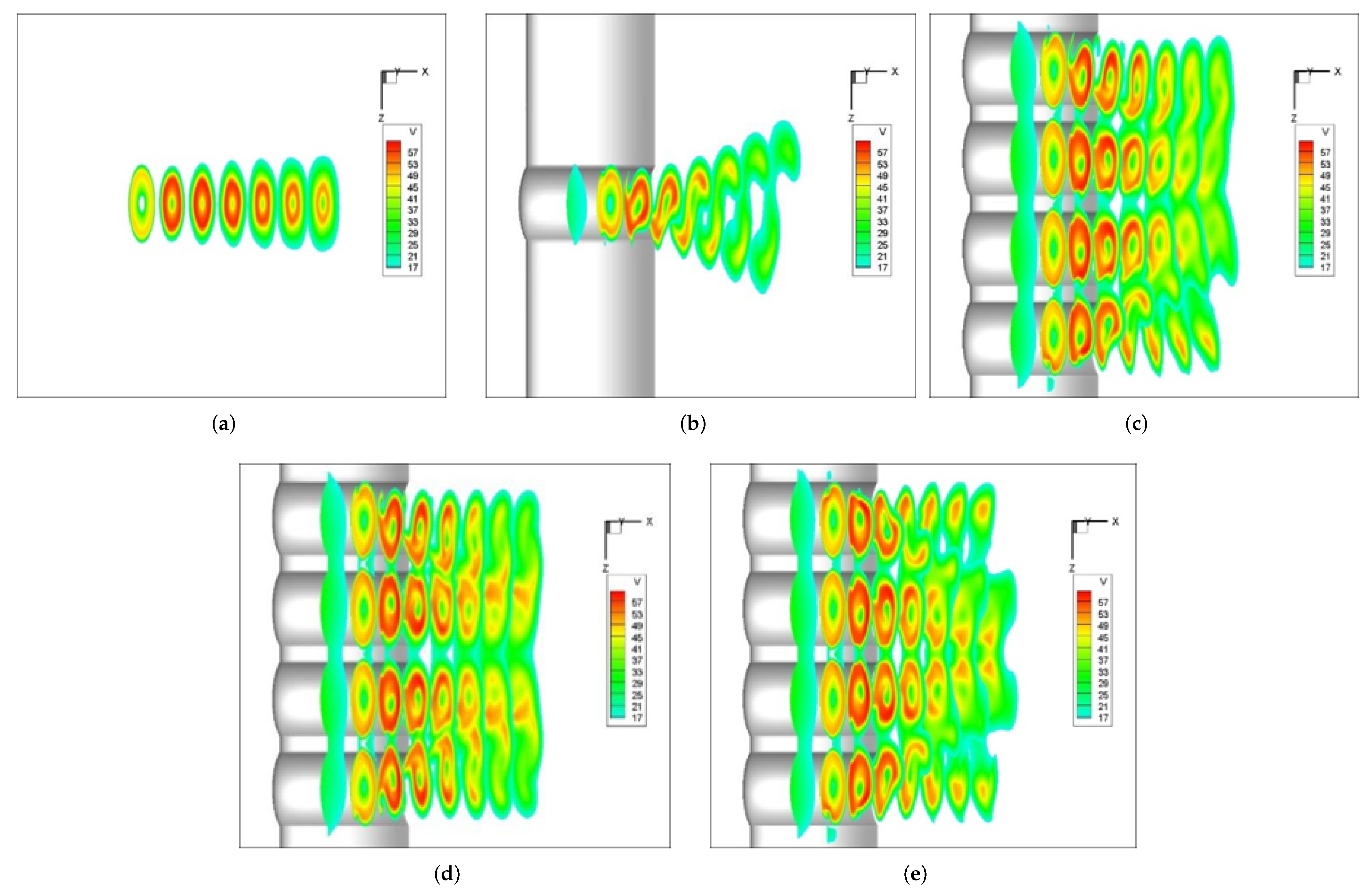

Wake Distortion and Dissipation

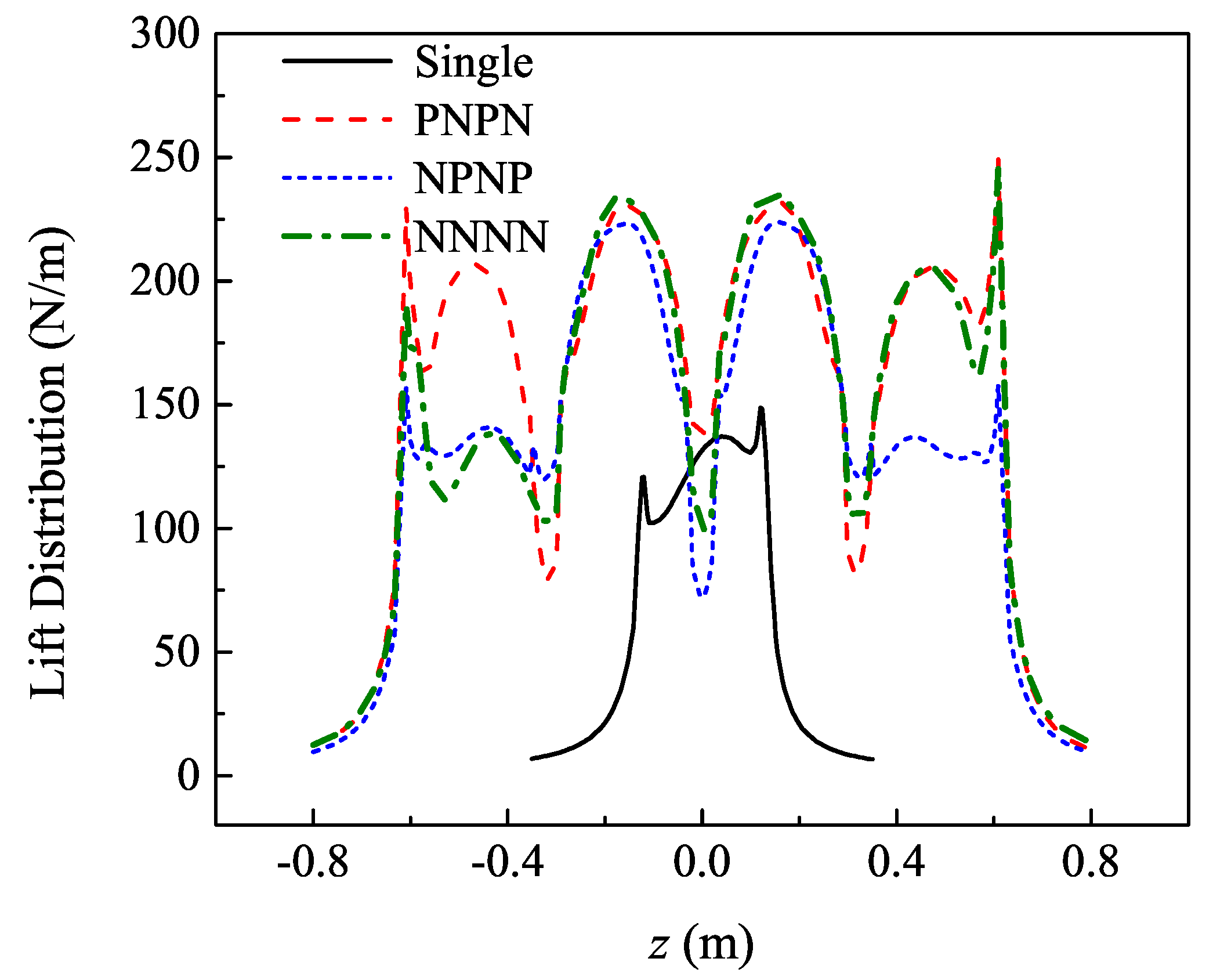

Interference between Adjacent Propellers

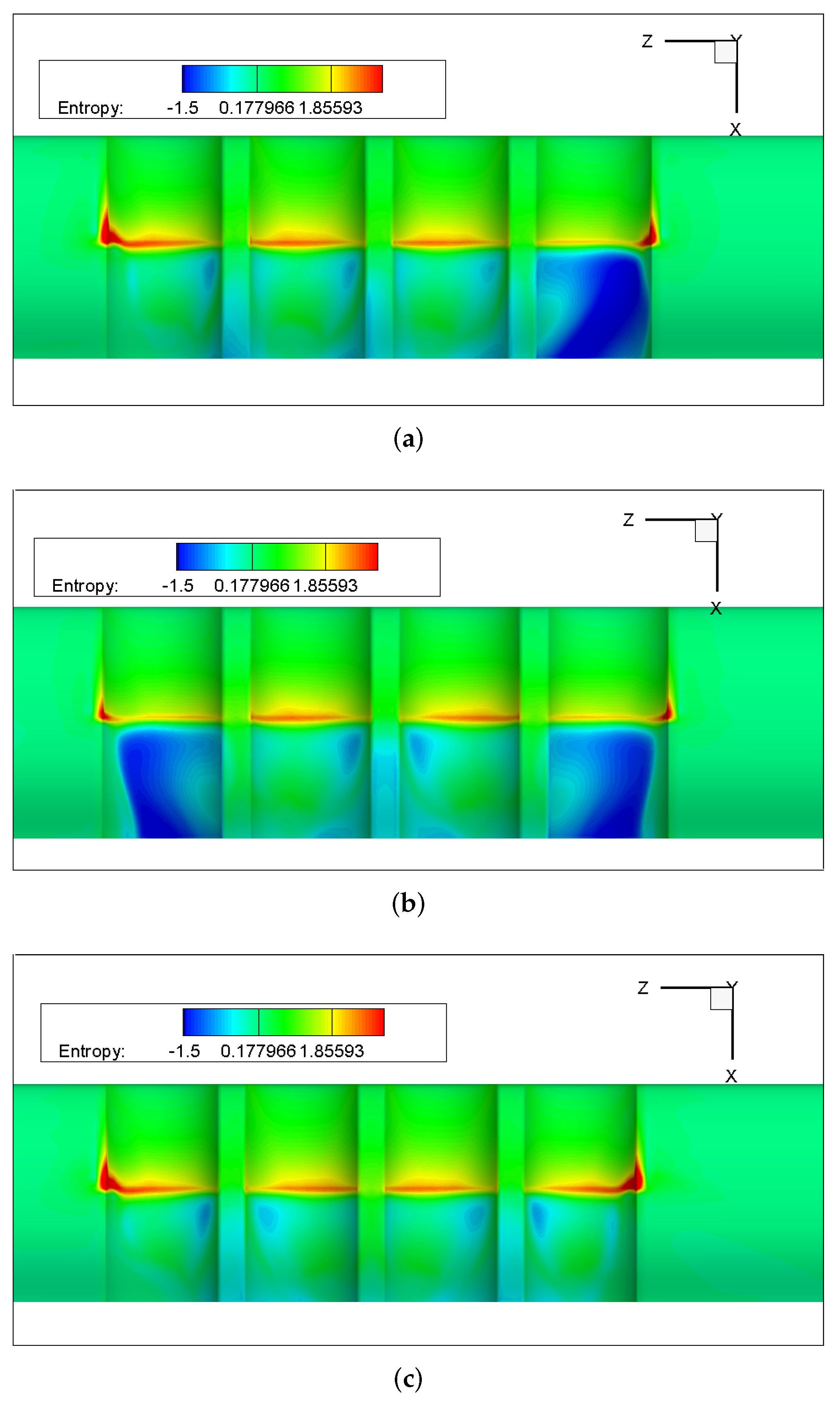

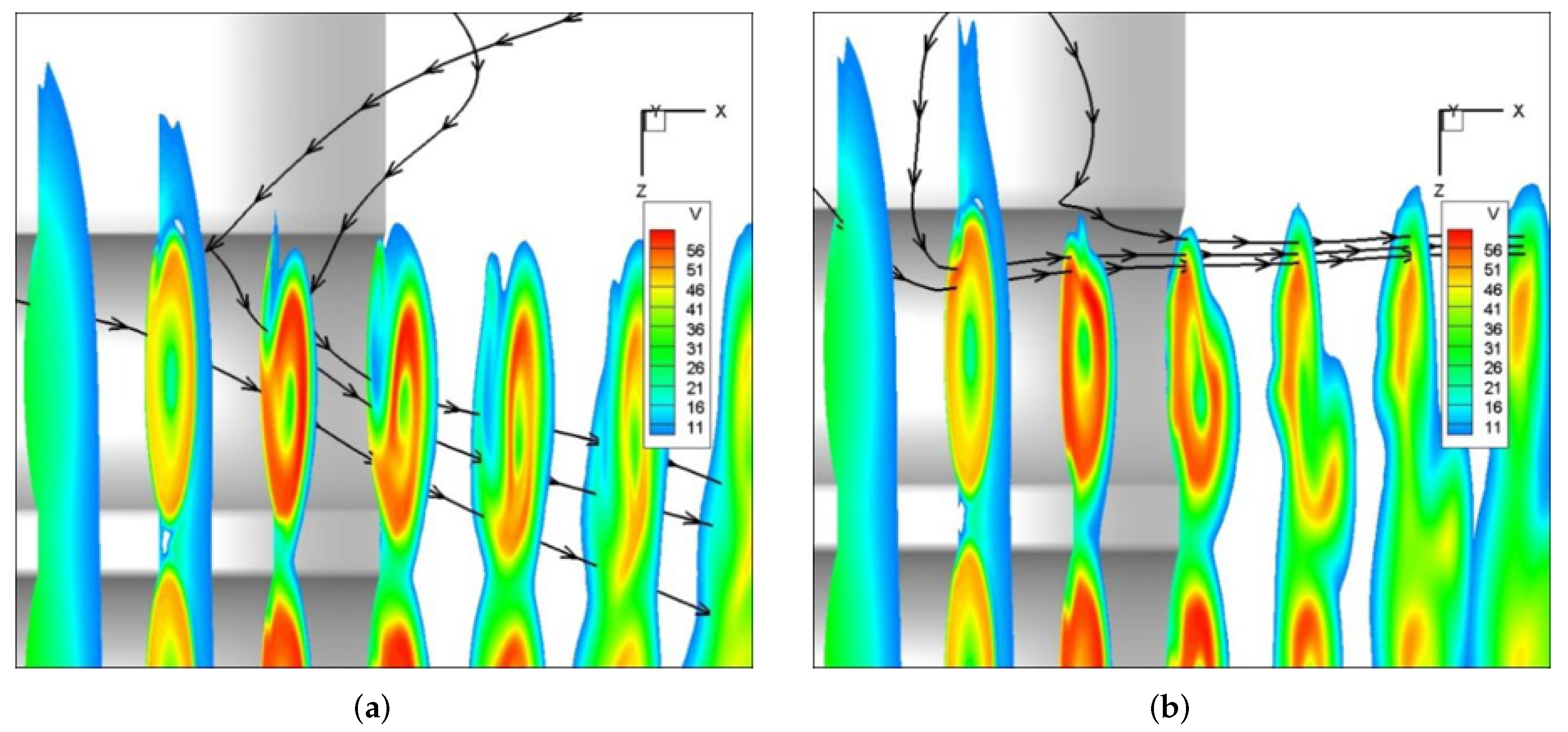

Entrainment of Low-Momentum Flow

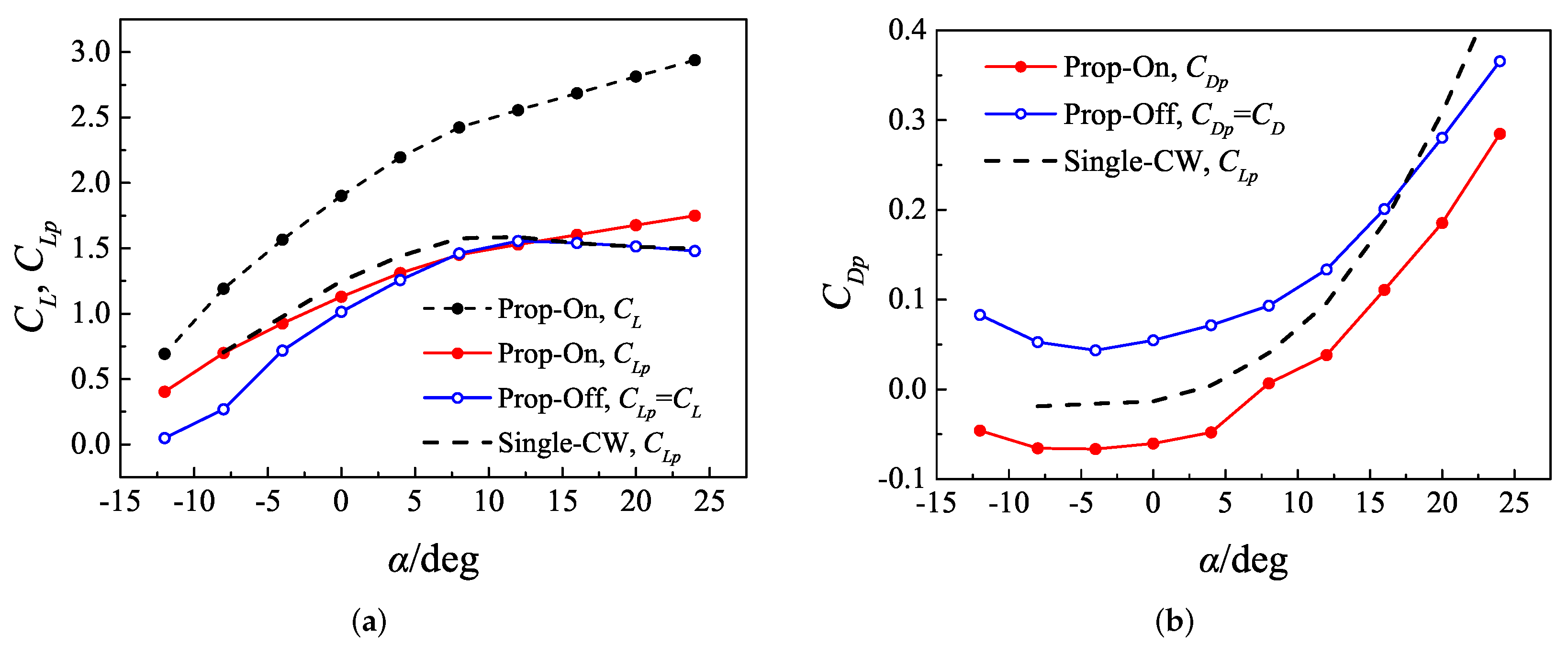

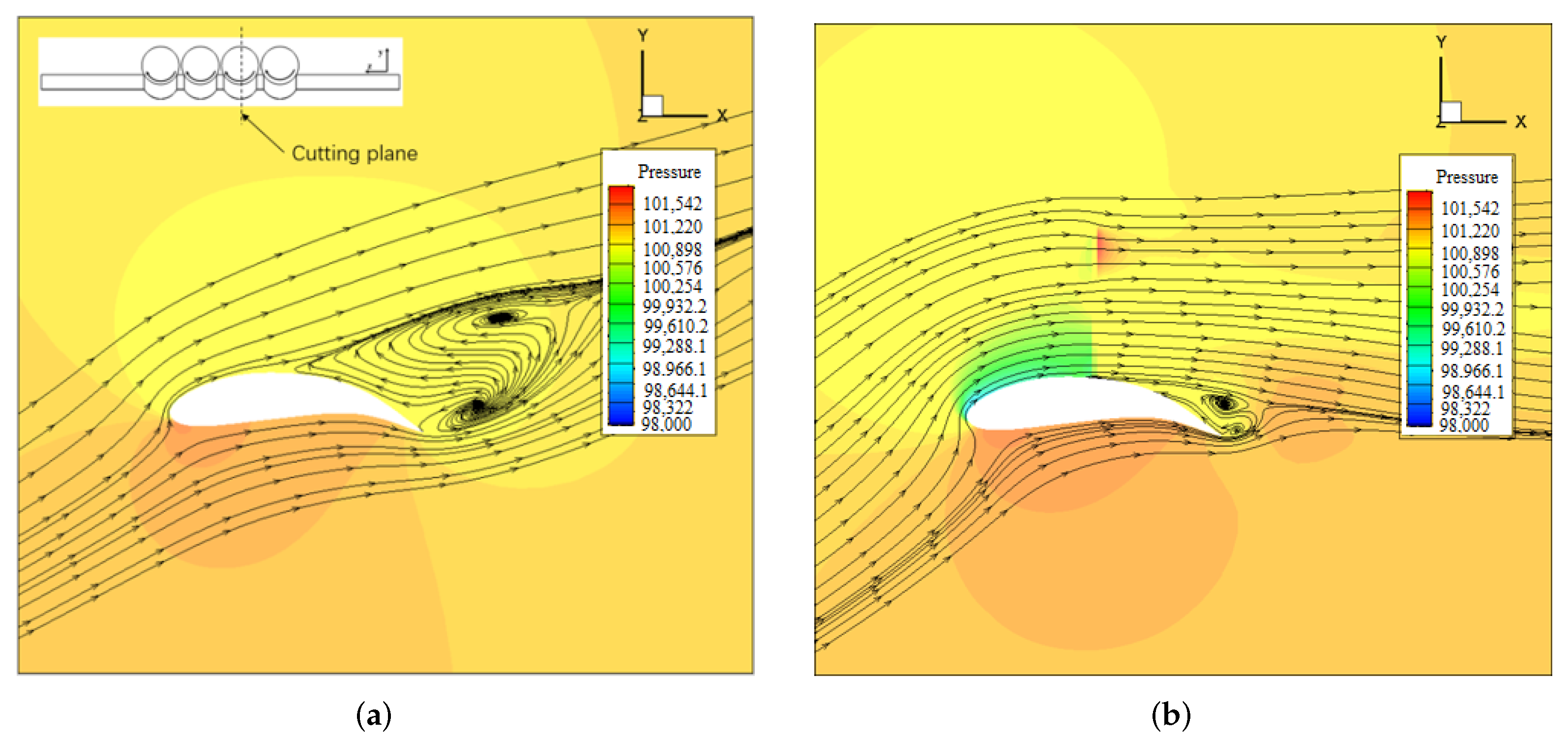

4.2.2. The Low-Speed Flight
5. Conclusions
Author Contributions
Funding
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
n | rotation rate, r/min |
freestream velocity, m/s | |
H | altitude, m |
air density, kg/m | |
diameter of propeller, m | |
J | advance ratio, |
angle of attack of duct, degree | |
K | lift-to-drag ratio |
disc loading, N/m | |
thrust coefficient of propeller, | |
torque coefficient of propeller, | |
blade thrust, N | |
total thrust including blade and lip of duct, N | |
l | wingspan, m |
S | wing area, m |
c | wing chord, m |
blade twist angle, degree | |
r | radius location of blade section, m |
R | radius of propeller, m |
number of propeller in distributed-propeller wing | |
propeller induced velocity, m/s | |
a | ratio of to |
powered lift coefficient, | |
powered drag coefficient, | |
p | pressure, pa |
pressure coefficient, | |
Shaft power of the propeller, W | |
power coefficient of propeller, | |
deflect angle, degree | |
reference frame | |
b | blade chord, m |
Subscripts | |
deg | degree |
config | configuration |
prop | propeller |
Abbreviations | |
OTWP | Over-the-wing propeller |
DEP | Distributed electric propulsion |
CFD | Computational Fluid Dynamics |
MRF | Multiple Reference Frame |
MSM | Momentum Source Method |
SLM | The method of sliding mesh |
BET | The Blade Element Theory |
CW | Channel wing |
S/VTOL | Short/Vertical Take-Off and Landing |
