Degradation Evaluation Method with a Test Device for Aging Diagnosis in PV Modules †

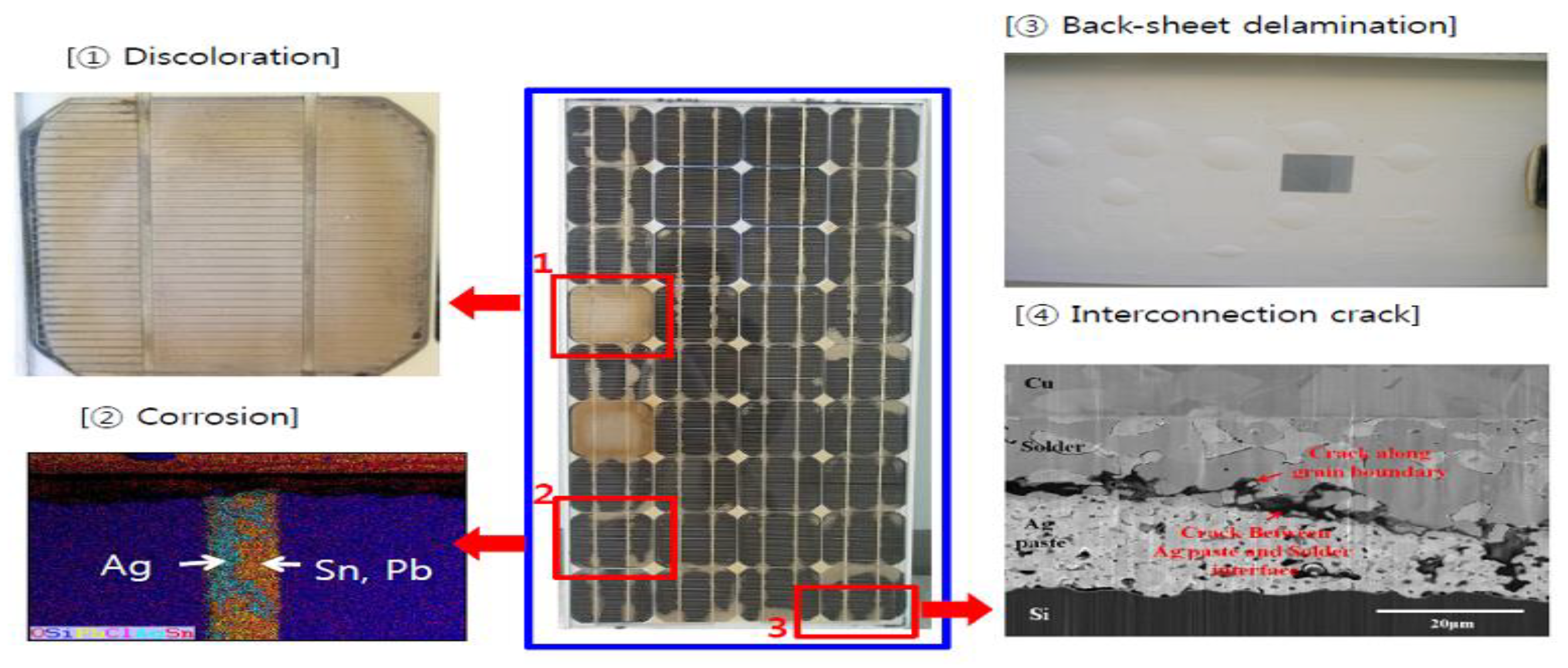

2. Characteristics of Aging Factors in PV Modules
3. Implementation of a Test Device for Aging Diagnosis in PV Modules
3.1. PV Module Section

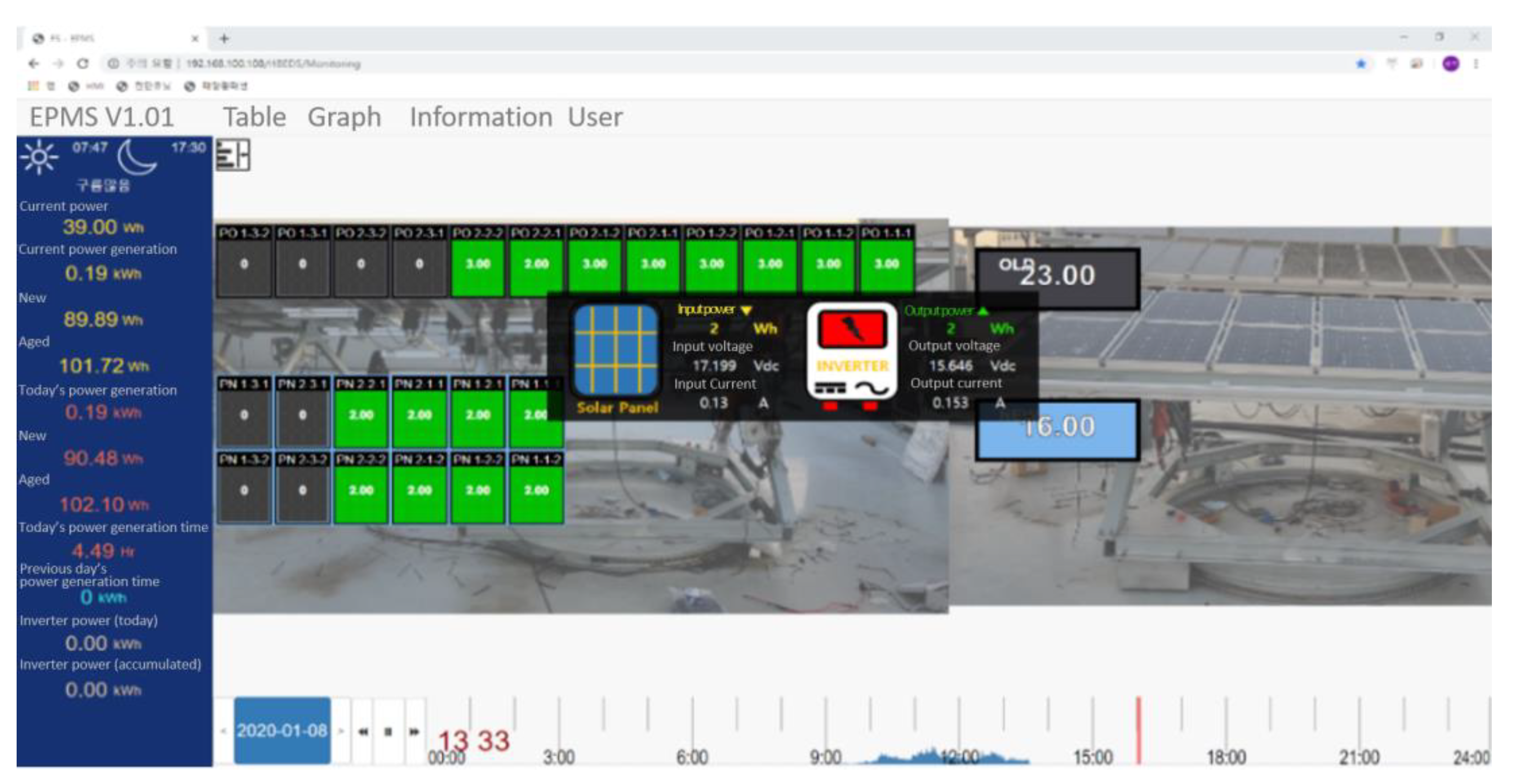

3.2. Monitoring Section

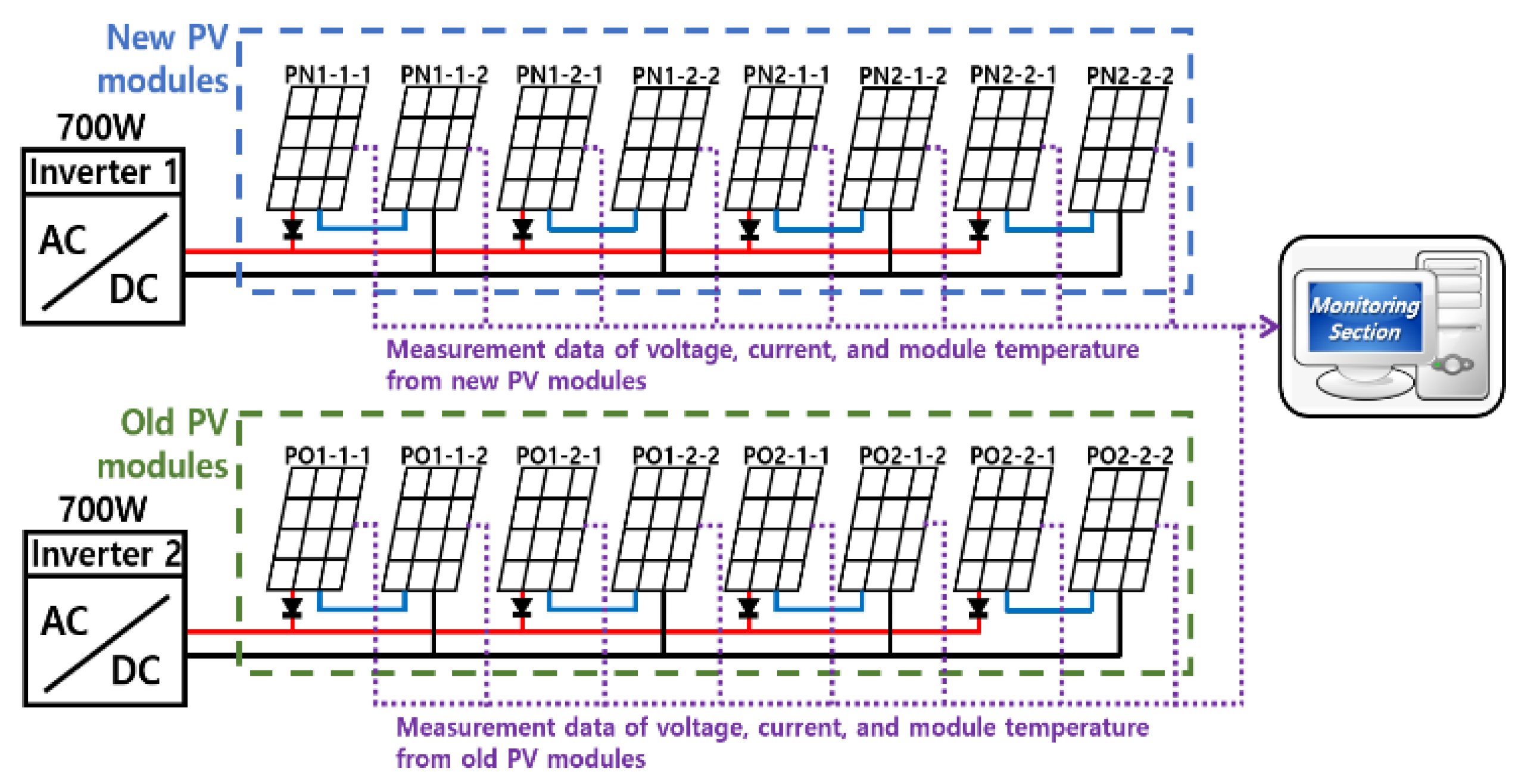

3.3. Entire Configuration of the Test Device
4. Degradation Evaluation Modeling Using MATLAB
5. Case Studies

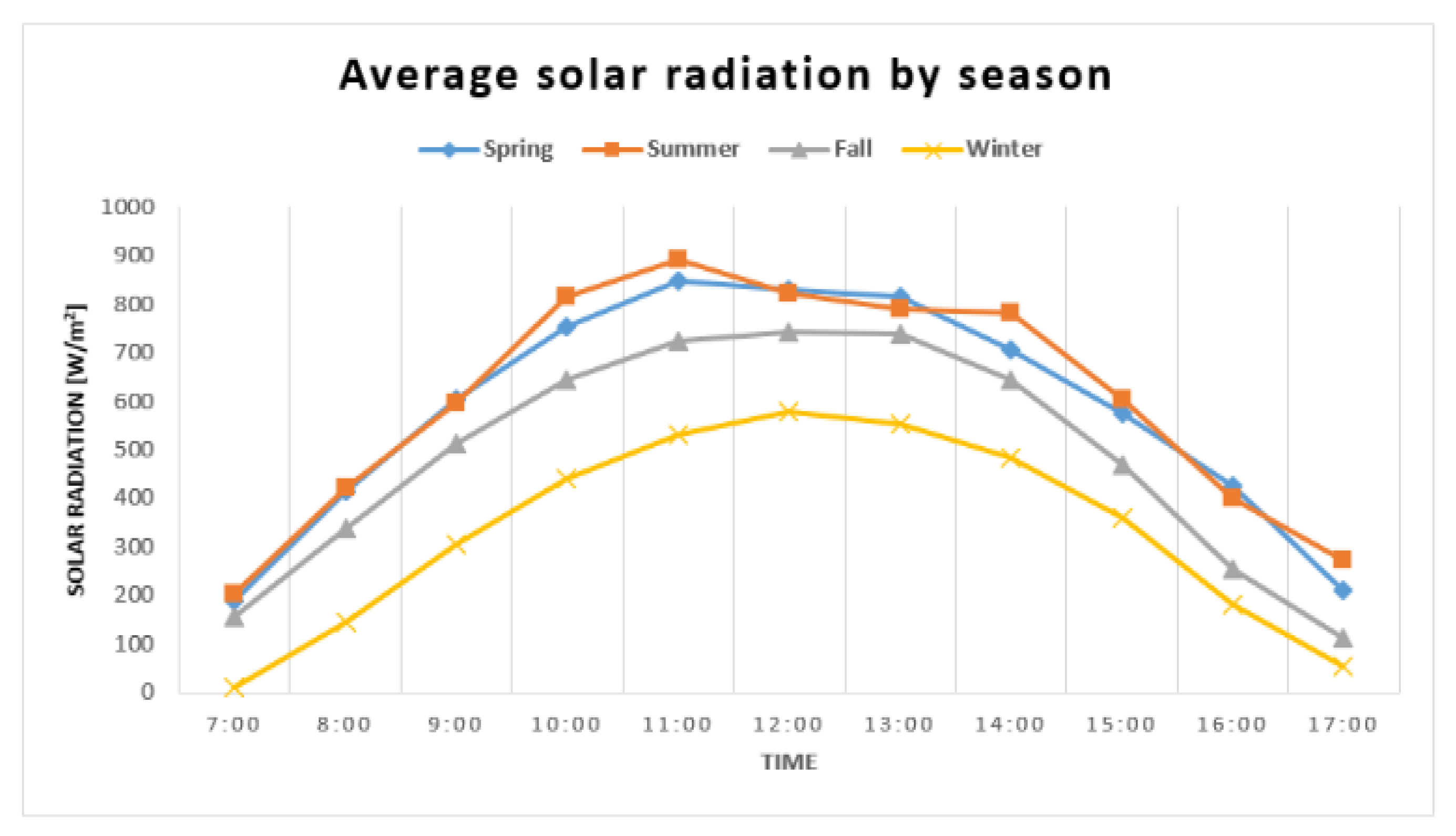

5.1. Operation Conditions
5.2. Season-Basis Output Characteristics in PV Modules
5.3. Aging Characteristics in PV Modules

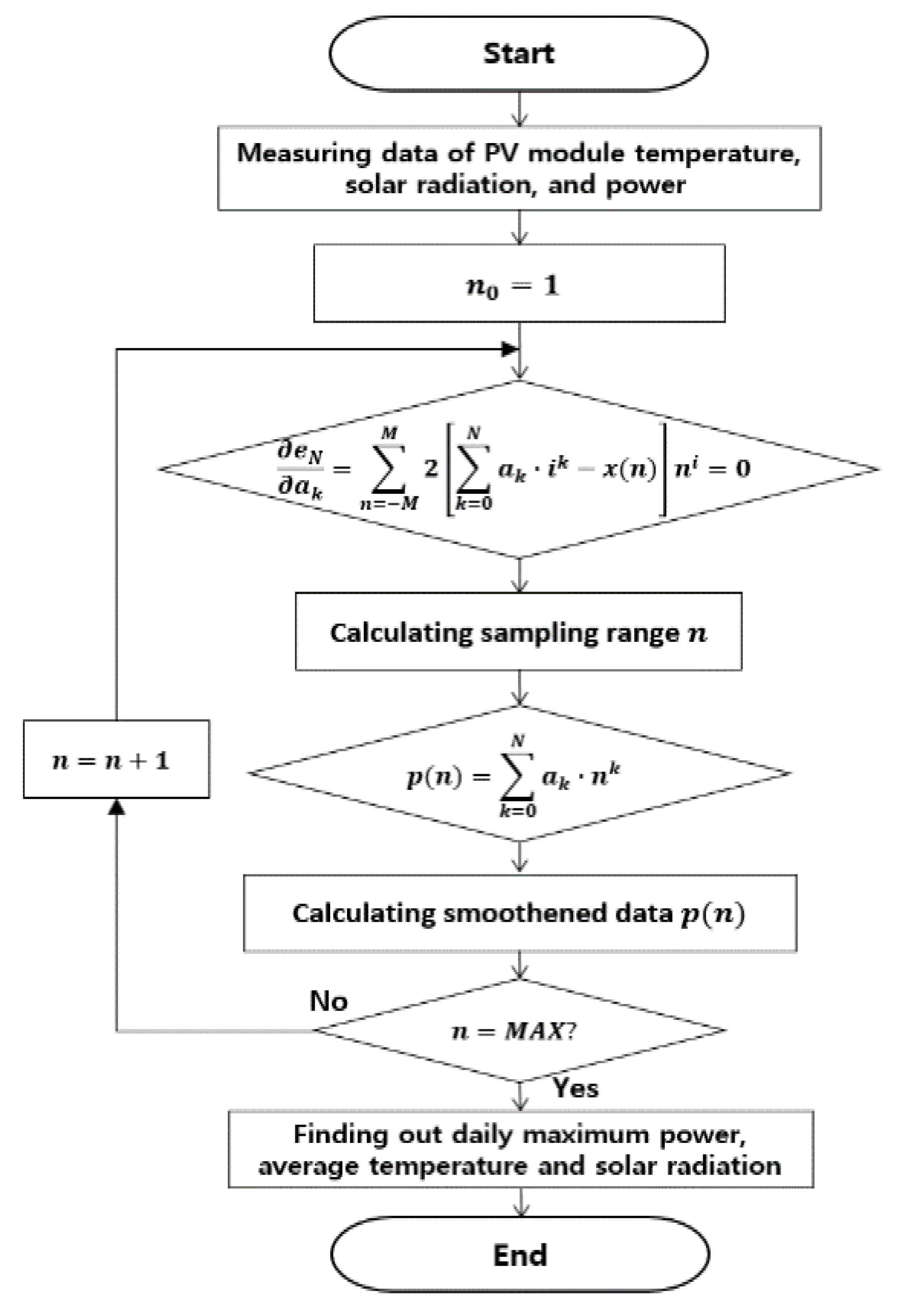

- The measurement data, such as solar radiation, temperature, and module-basis output data, which are collected by one-minute basis, are smoothened based on modeling of polynomial regression filter using MATLAB S/W in order to minimize the variability of PV output, communication error, delay, etc.

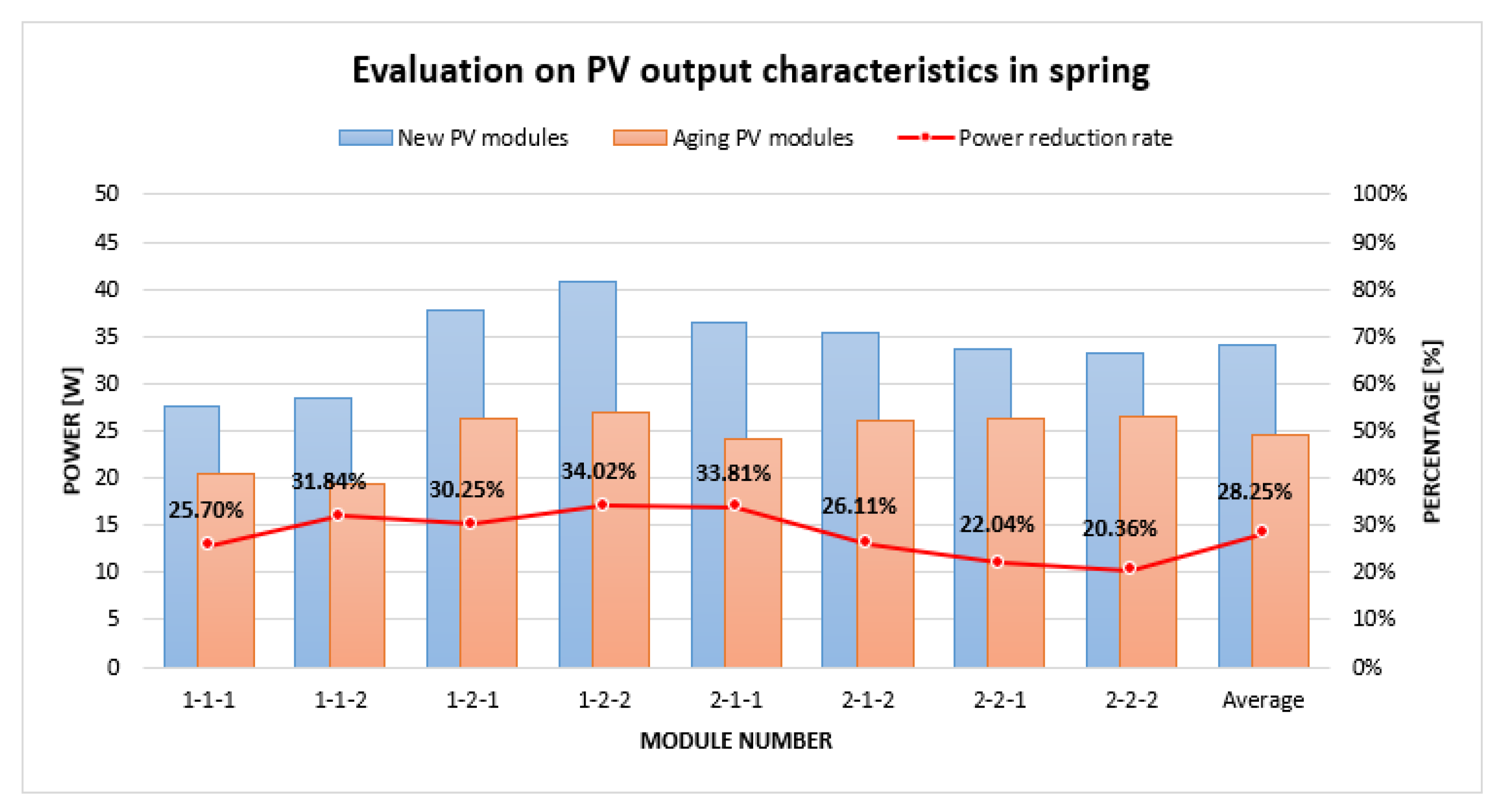

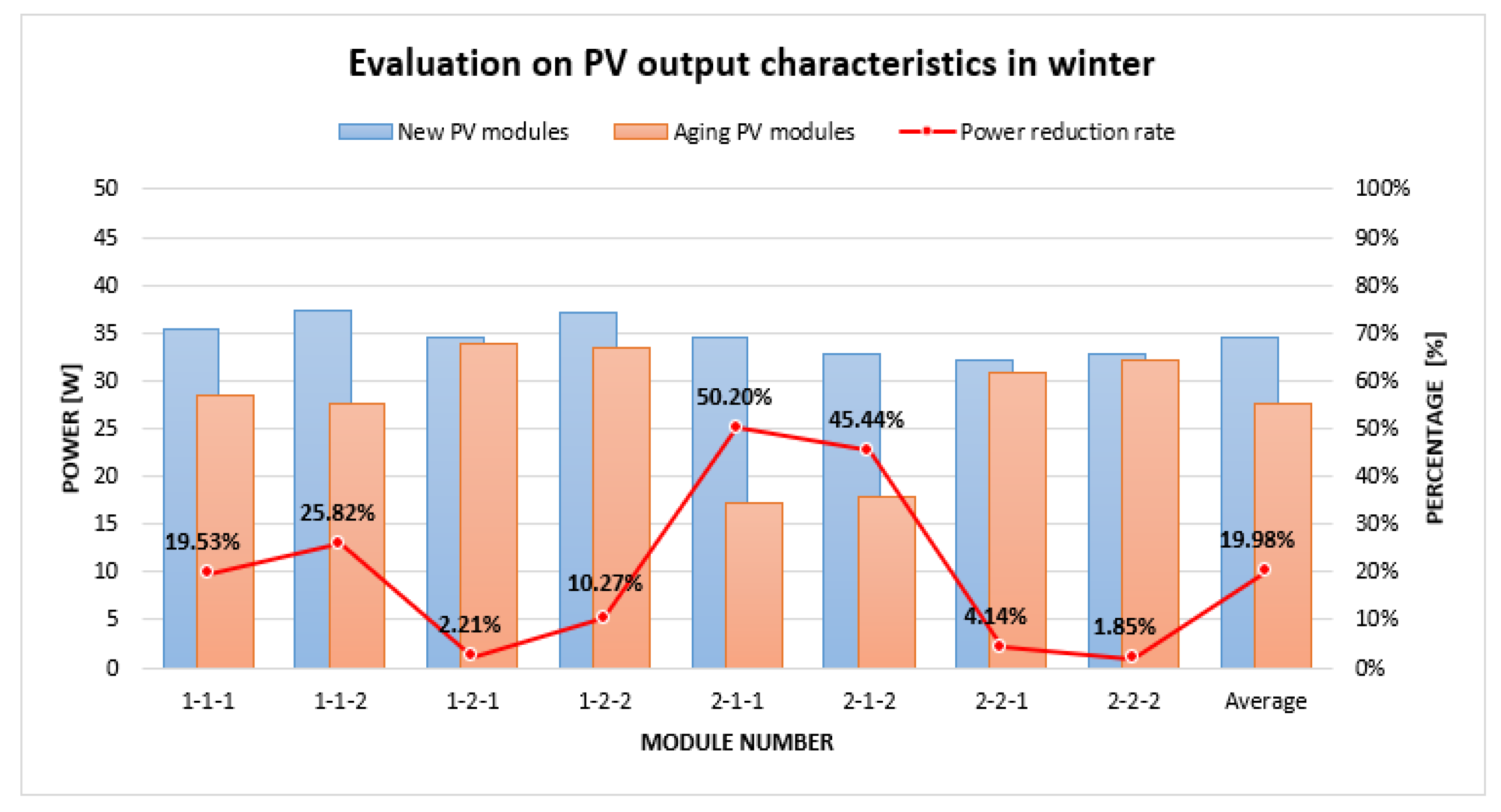

- From the evaluation results of output power characteristics of new and aged PV modules between January and October in 2020, it was found that the average reduction rates of output power of aged PV modules for each season were calculated as 28.25%, 50.53%, 5.23%, and 20.01%, and the maximum reduction rate was obtained as 50.53% in the summer season.

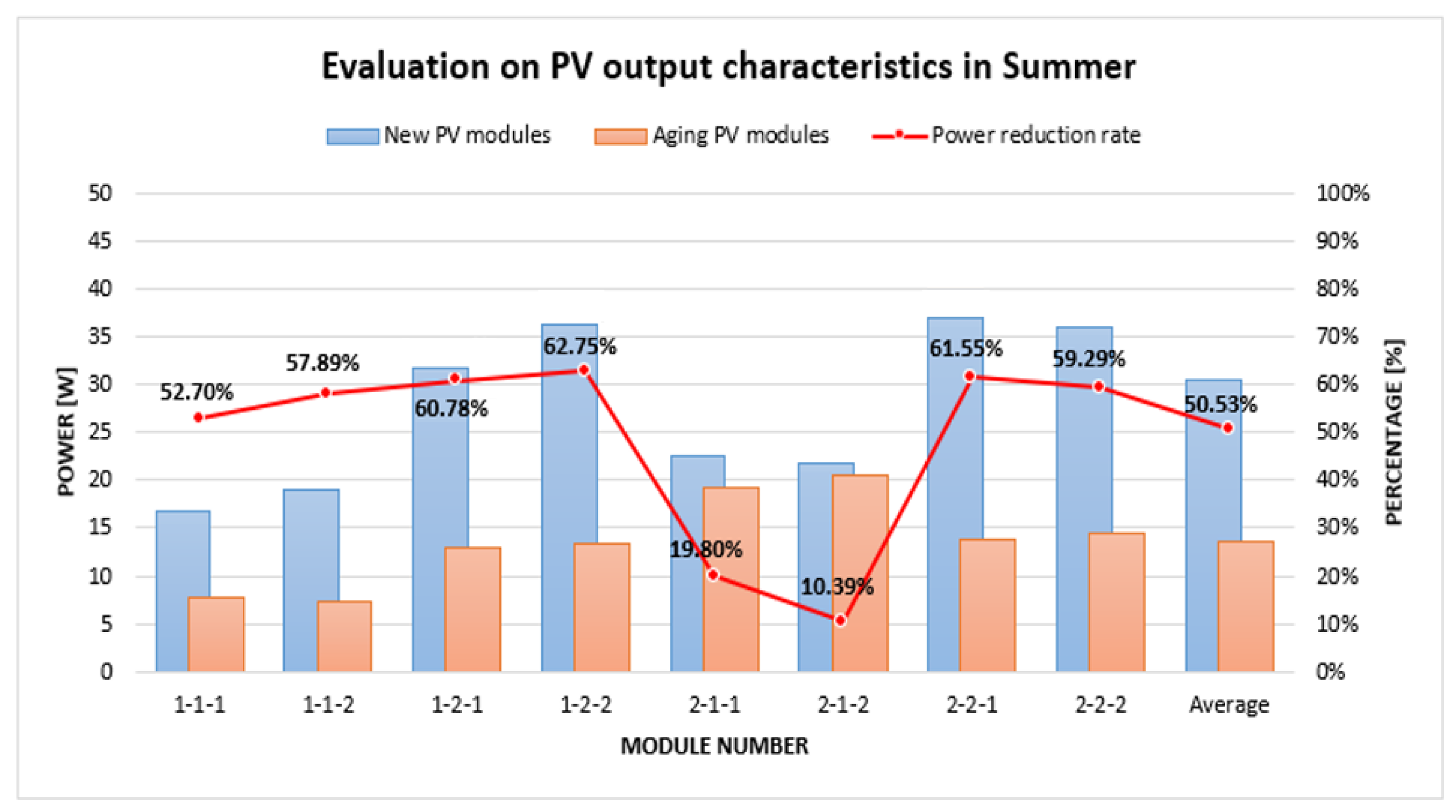

- In the case of summer in 2020, when the rainy weather lasted for weeks, the minimum and maximum reduction rates of output power were respectively calculated as 10.39% and 62.75%, and the average was 50.53% due to low solar radiation and high temperature. Namely, the characteristics of output power in aged PV modules can be reduced much more than new PV modules when the solar radiation is very low as the output voltage of the aged PV modules can be decreased below the range of operation voltage, while new PV modules can still maintain within the range of operation voltage.

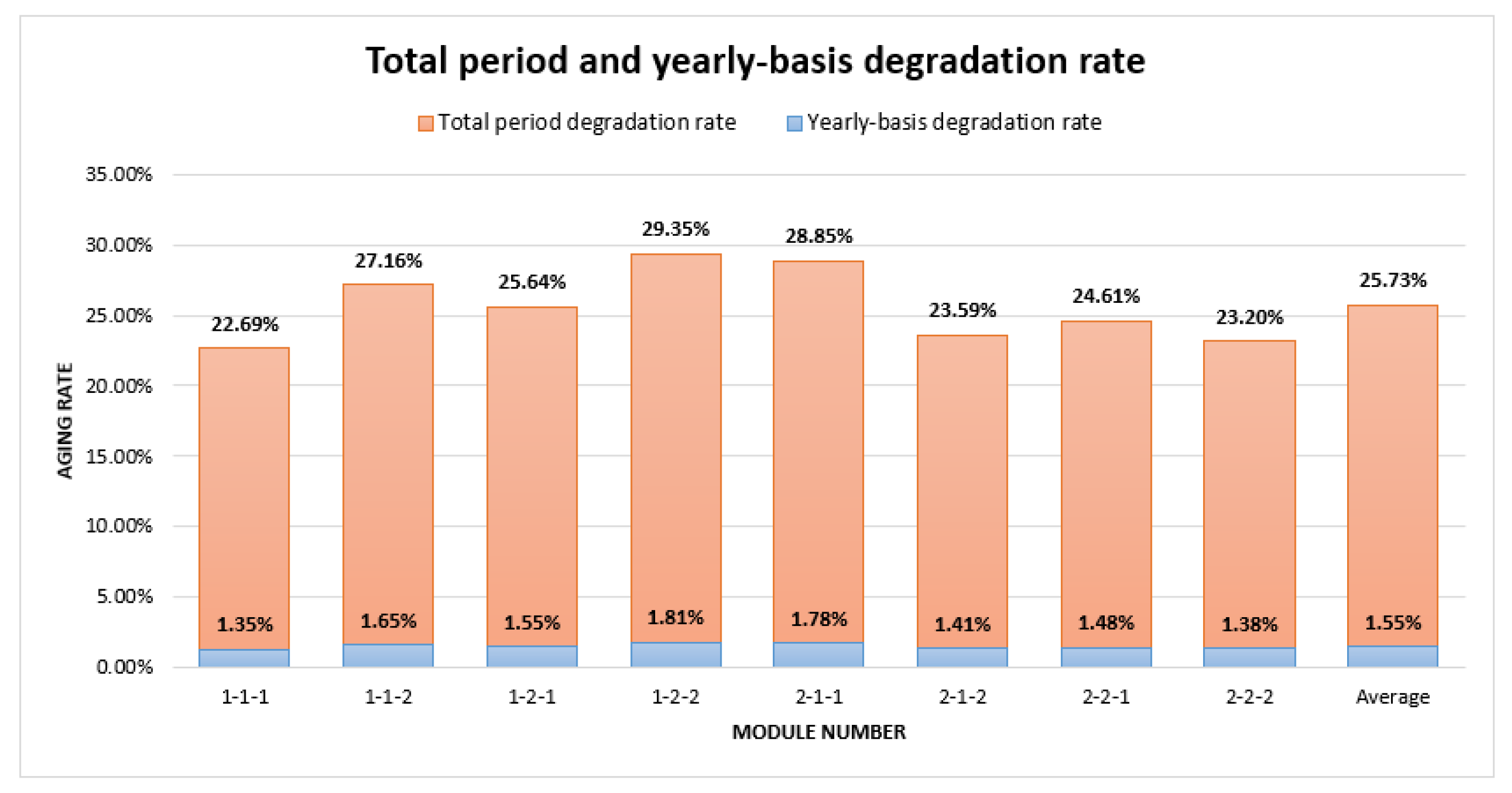

- Based on the aging characteristics of aged PV modules for all seasons, it was found that there was a considerable deviation among modules since the total degradation rates for 19 years were calculated as 29.35% and 22.69%, while yearly-basis degradation rates were calculated as 1.81% and 1.35%, respectively, and also, it was found that the average and yearly-basis degradation rate of the entire aged PV modules were calculated as 25.73% and 1.55%, respectively.
- From the test results performed by season and year, based on the actual measurement data of new and aged PV modules, it was confirmed that the proposed method can evaluate the deterioration rate of PV modules in an objective manner, by minimizing the errors from the process of compensation calculation, using the proposed test device for deterioration diagnosis in PV modules, and effectively performing the aging diagnosis without implementing facilities for STC.
