Simulation and Economic Research of Circulating Cooling Water Waste Heat and Water Resource Recovery System

Abstract

Industrial circulating cooling water contains a large amount of low-quality energy, which is lost to the environment through cooling towers. It is of great significance and potential to recover the waste heat to improve energy-saving effects and economic efficiency. However, the effect of common water harvesting and energy saving devices is not significant. Heat pumps have been shown to be effective in improving low-quality heat energy in energy conversion systems, although there are not many applications of heat pump scenarios in engineering practice. Based on this, a recovery solution of circulating cooling water waste heat and water resource using lithium bromide absorption heat pump has been put forward. The energy-saving performance of the recovery system was simulated and analyzed using Aspen Plus V10.0 (Bedford, MA, USA) to explore the effects of the parameters of the working medium in evaporators, condensers, absorbers, generators, heat exchangers, etc., and the modelling results indicated that the evaporation pressure and temperature have a great influence on the system COP (coefficient of performance) and can raise the thermal economy of the system. The heat from driving steam and heating capacity both increased with the increase in generating temperature, while the increase in temperature difference between evaporation and condensation inhibits the COP of heat pump systems. Furthermore, economic analyses and comparisons of the recovery solutions were conducted and the recovery solution of circulating cooling water waste heat with heat pump had the best economic performance due to the annual income from the recovery of waste heat and water resource. The static payback period results indicate that the recovery solution from circulating cooling water waste heat with a heat pump has better economic performance than the scenario with a cooling tower. The waste heat recovery solution with a heat pump can improve the thermal economy of the system and has a great guiding significance for engineering practice.

1. Introduction

As the global energy crisis intensifies day by day, the greenhouse effect and the ecological environment problem become more and more prominent; therefore, developing clean, renewable energy and improving energy efficiency are the most important ways of sustainable development with energy conservation and emission reductions. It is projected that this will reduce about 40% of global power in 2040 (19% of transportation energy demand and 25% of heat demand) [1]. Approximately 72% of the global primary energy consumption is lost during energy conversion [2]; therefore, it is of great significance and potential to make full use of the waste heat [3]. A lot of effort has been focused on saving and recovering energy. Sheikholeslami [4] studied thermal units for the heat recovery of exhaust gas of engines using simulations and experiments. Wang [5] presented a process for recovering waste heat and water from high-humidity flue gas after using a wet flue gas desulfurization scrubber. Some cutting-edge research [6,7] has used advanced nano-fluid technology to study the thermal performance of heat exchangers to improve energy efficiency.

In all available waste heat resources, waste heat carried by industrial circulating cooling water has been proven to be the largest and the highest proportion. The evaporated water loss from cooling towers accounts for more than 50% of the total water consumption of the whole system [8]. Considering the shortage of water resources, the increase in sewage discharge and the increasingly strict control policies of wastewater discharge, studies on energy-saving and water-saving technology of waste heat and water resource recovery of industrial circulating cooling water has become an urgent task. Effective measures must be taken to recover waste heat from industrial circulating cooling water, which can improve the efficiency of energy and energy utilization. A great deal of research has been conducted. Notaro [9] and Freni [10] presented a decision support tool and efficient measures to test the water and energy balance of an integrated system. Zhu [11] established a comprehensive evaluation index system for circulating cooling water systems through the in-depth analysis of the operating mechanism, which fulfilled a complete energy-saving evaluation of the system in various aspects. Ma [12] put forward the feasible direction of optimizing the design of several cooling towers to find new energy saving technologies with the circulating water. Cai [13] developed a virtual simulation scene of the circulating water system to study the pump frequency conversion and energy saving in the circulating water system. Terzi [14] dealt with the design and implementation of a model predictive control algorithm for an industrial recirculating cooling water system and verified the potentialities of the proposed solution in terms of energy savings.

However, it is very difficult to make full use of circulating cooling water due to the low temperature and low quality. The upgrading and utilization of low-quality heat is an important technique to recover the waste heat of industrial circulating cooling water. Research shows that heat pump technology can enhance the utilization of low-grade thermal energy [15] and upgrade the low-grade heat to make recycling easier. Heat pump technology has played an important role in energy supply systems over the past decade; there have been many studies on the energy-saving technology of heat pumps to recover waste heat and improve energy efficiency, and some progress has been made from experimental and theoretical research to pilot-scale process. Li [16] recovered waste heat from thermal power to heat the primary network water supply using several absorption heat pumps and analyzed the economic benefits. Gou [17] integrated air source heat pumps and wastewater source heat pumps and incorporated a preheater to recover shower wastewater heat, improving the total COP of the system up to 6.588. Wang [18] introduced an exergoeconomic criterion to measure the exergy performance of each type of heat pump and assist the screening of industrial heat pumps, considering the economic impact. Zhang [19] offered an effective way to recover waste heat in urban wastewater using wastewater source heat pumps; the COP of this system was 9.52% higher. Estefanía [20] studied an energy recovery system from a low-grade temperature source based on heat pumps for domestic hot water. Liu [21] revealed the working domains of a hybrid absorption–compression heat pump for high-temperature (>403 K) saturated steam production and obtained its optimized thermodynamic performance at different conditions.

Lithium bromide–water working pairs have excellent physical properties for absorption heat pumps; lithium bromide absorption heat pumps have been widely used in industrial waste heat recovery. However, the applications of lithium bromide absorption heat pumps in industrial recirculating cooling water systems and related research are rare, because the amount of industrial circulating water is very large and the heat loss through cooling tower is huge; at present, the conventional energy-saving measure is to install water-collecting devices, although the effect is not significant, or to collect waste heat to heat the network water supply. How to efficiently recover and use the waste heat of circulating cooling water was the purpose of the present study. This study established a circulating cooling water waste heat and water resource recovery system with lithium bromide absorption heat pump technology and assessed the energy-saving performance of the system using a reliable numerical methodology based on Aspen Plus simulation. The influence of several operation parameters on the system COP is discussed, including economic analysis. The result can provide the theoretical basis and reference for the practical applications of low-grade waste heat using heat pump technology.

2. Materials and Methods

Aspen Plus is general process simulation software with common theoretical bases on the fundamental equation of states, transfer equations, and can be used in the chemical industry and fields of heat pumps and refrigeration [22]. In the present study, Aspen Plus V10.0 was used to model the whole process simulation of the system, and to design and optimize the operating parameters, which is the basis of the system for industrial application.

2.1. Introduction of System

The total circulating cooling water flow rate is 80,000 t/h in a thermal power plant, and 16 new cooling towers with a circulating water treatment capacity of 5000 t/h per unit were planned. The outlet circulating water (316 K) of the power plant flows directly into the cooling tower, cools down to 305 K, and then the inlet circulating water from the cooling tower returns to the cooling water main pipe, as in most power plants.

This design scenario established a recovery system of circulating cooling wastewater heat and water resource to recover circulating cooling water to raise the heat efficiency of the system with lithium bromide absorption heat pump technology, which is an important form for low-grade heat energy applications [23]. A certain percentage of circulating cooling water from the 316 K, 5000 t/h main pipe is extracted to enter into the heat pump for precooling, and the precooled circulating water is returned to the main pipe, mingles with the original 316 K circulating water, and then enters the cooling tower together. After cooling in the cooling tower and assuming that the evaporation water loss was 1.71%, the 305 K, 4914.5 t/h circulating water returned to the internal users in the thermal plant. The cycle model of design scenario in Aspen Plus is shown in Figure 1, and the main symbols used in the models are described in

Table 1. Description of the main symbols used in the models.

Module Symbol	Components	Module Symbol	Components
B2	Generator	B5	Evaporator
B3	Condenser	B8	Pump
B7	Absorber	B9	Heat exchanger

.

Temperature and the humidity content of wet saturated air at the cooling tower exit decreased due to the precooling of circulating water. Moreover, the decrease in temperature and the humidity content of wet saturated air can cause the part-condensing of water vapor and recovery of the condensed water. The greater the amount of precooled circulation water, the more condensed water vapor, and the higher the efficiency of water-saving.

Exhaust steam from the steam turbine in the thermal power plant could be used as driving steam (position 13) of the lithium bromide absorption heat pump. The exhaust steam contains a large amount of low-temperature waste heat and a great deal of energy. However, it is usually difficult for it to be directly used in the actual production process due to the low energy quality, which results in a great deal of residual heat wasted [24]. In this system scenario, the residual heat of circulating cooling water and the waste heat of exhaust steam of the steam turbine were utilized effectively, and the evaporation water loss and the steam-water loss in the steam turbine were saved greatly.

2.2. Method Description

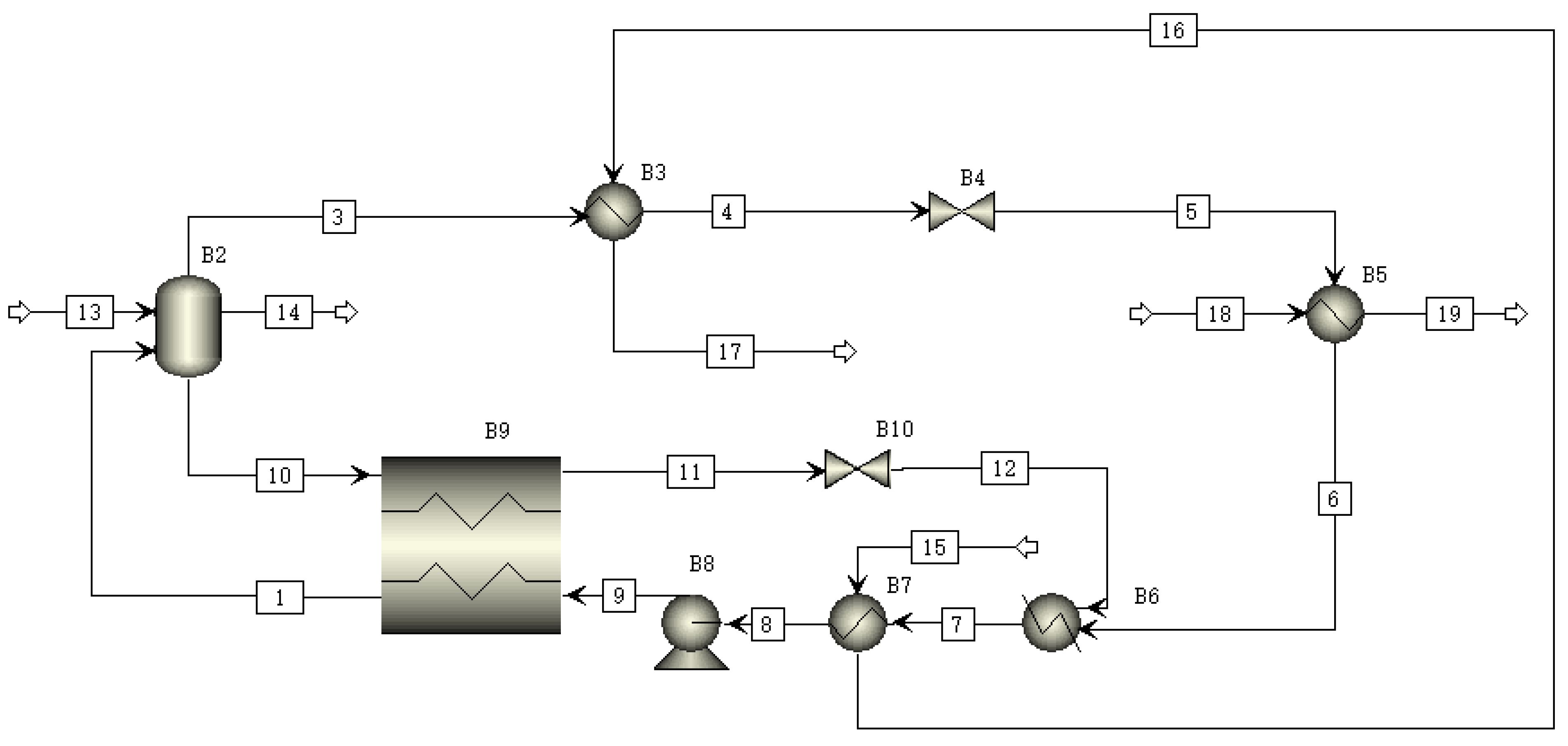

As shown in Figure 1, the design scenarios were simulated using Aspen Plus V10.0, which has an integrated structure and includes process-related unit operation modules besides components, properties, and state equations. The effects of several operating parameters, such as physical properties of the working medium, were explored in different working conditions. All the components of the system correspond to the equivalent modules. The descriptions of the module symbols used in the models are shown in Table 1, and typical state points of basic working condition results from Aspen Plus models are shown in

Table 2. Typical stream result in the Aspen Plus model.

State Point	Position	Temperature (K)	Pressure (KPa)	Flow Rate (t/h)
Absorber B7	15	328	300	5500
	16	341	300	5500
	7	353	4.16	1650
	8	349	4.16	1650
Condenser B3	17	353	300	5500
	3	427	53	112
	4	356	53	112
Generator B2	13	523	600	113
	14	432	600	113
	3	427	53	112
	10	427	53	1538
Evaporator B5	18	316	200	5400
	19	305	200	5400
	5	303	4.16	112
	6	303	4.16	112
Heat Exchanger B9	11	353	53	1538
	9	349	58	1650
	1	416	53	1650

. The operating parameters affecting the energy efficiency of the system were calculated and adjusted to achieve the best energy efficiency and stable operating to optimize the actual engineering process.

The 313–333 K water from external users first entered the absorber to absorb thermal energy and raise temperature, and then entered the condenser to further absorb thermal energy and satisfy temperature demand of external users, usually less than 363 K. Driving steam entered the generator to offer thermal and then condensed. At the same time, the 316 K circulating cooling water from internal users in the thermal plant entered the evaporator to release thermal energy, and temperature of the circulating water was decreased to 305 K, which was return to the main pipe of internal users. Some necessary assumptions regarding the mathematical model of system were adopted to simplify the model. The process was adiabatic and at steady state, condenser and generator pressures were the same, condenser and evaporator output streams were saturated, and pumping consumption was neglected.

The following is the basic cycle of lithium bromide solution: Dilute lithium bromide solution (position 1) flows into the generator (B2), which includes a heat module and flash module. The heat module is used to heat the lithium bromide solution, and the flash module separates gas from the liquid solution; then, the generated steam (3) flows into the condenser (B3) and reheats the returned water from external users. The concentrated solution of lithium bromide (position 10) passes through a heat exchanger (B9) and then flows into the absorber (B7). The water vapor condenses to water after passing through the condenser (B3) and flows into the evaporator (B5) to absorb heat, then returns to the absorber (B7) to mix with the concentrated lithium bromide solution (B6). Then, the lithium bromide solution flows through a pump (B8) into the heat exchanger (B9) to exchange heat with the concentrated lithium bromide solution from the generator (B2) after heating the water returned from external users. After being heated, the lithium bromide solution flows into the generator (B2) to complete the lithium bromide solution cycle.

3. Results

The effects of physical properties of working media in different operating conditions were adjusted and optimized to achieve the best energy efficiency and economy. Specific simulation results and discussions are described hereafter.

3.1. Effect of Evaporation Parameters

The water return temperature of network water supply has little or no effect on the COP of the recovery system of circulating cooling wastewater heat and water resources using a lithium bromide absorption heat pump, and the increase in water supply temperature and driving steam consumption decreased the COP [25]. A higher water supply temperature of 363 K or more can promote the energy efficiency of the whole system and make it even more efficient in practical applications, especially in the co-generation industry. Considering the economic and stable operation of the whole system, this study combined practical engineering parameters and discussed the influence of different evaporation pressures on the COP of the system. The temperature of supply and return water varied from 328 K to 353 K, when the system performance was more economical and stable. For some specific applications, or even to obtain saturated steam, the hot water could be heated further to a higher temperature by a peak heater [26], or directly using the second type of absorption heat pump.

The COP in the present work represents the sum of heating COP and cooling COP. Evaporation temperature is consistent with evaporation pressure (position 5 and 6 in Figure 1); the higher the evaporation pressure, the higher the evaporation temperature, thus only the evaporation pressure was studied in this work. The calculation was conducted in the case: driving steam was kept at 523 K, 0.6 MPa and 145 t/h, the water return and supply temperatures of network water users were 328 K and 353 K, respectively, and the return temperature of the circulating cooling water was kept at 316 K. The results are shown in Figure 2.

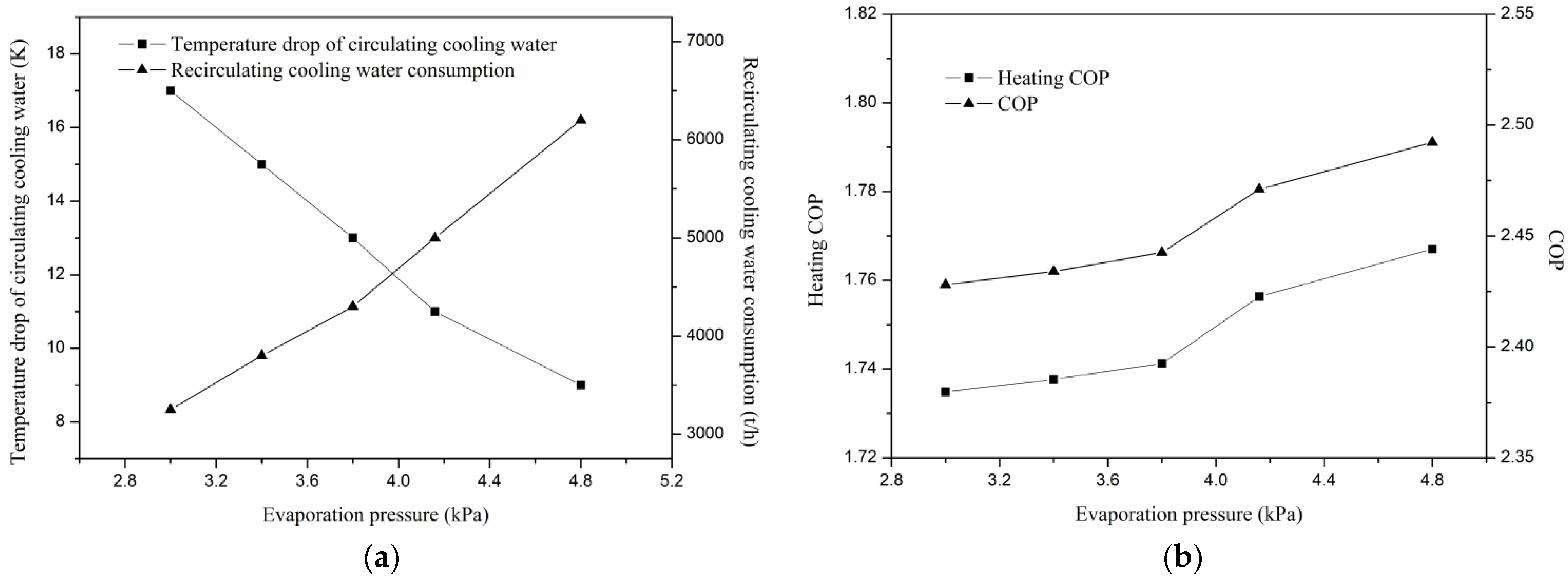

In Figure 2a, the left ordinate represents the temperature drop of circulating cooling water, i.e., the temperature difference between the water entering and leaving the cooling tower, and the horizontal axis represents the evaporating pressure in the evaporator. As can be seen from Figure 2a, the increase in evaporation pressure caused the temperature of the circulating cooling water to decrease. Due to the return temperature of circulating cooling water being kept at 316 K, the supply temperature of circulating cooling water was higher than before, which is disadvantageous to the users of cooling water. The right ordinate represents the consumption of recirculating cooling water; circulating cooling water consumption increased with the increase in evaporation pressure. The parameters of driving steam and the water supply and return temperature of network water users were constant; therefore, the refrigerating capacity and heating capacity were basically unchanged, meaning that there is a counter-trend between the temperature drop and consumption of circulating cooling water, which is in accordance with the law of energy balance.

In Figure 2b, the left ordinate represents the heating COP of the recovery system, the right ordinate represents the sum of heating COP and cooling COP, and the horizontal axis represents the evaporating pressure in the evaporator. Heating COP is the ratio of the heat capacity produced by the system to the heat absorbed from an external heating source: driving steam in this case. In the same way, cooling COP is the ratio of the refrigerating capacity produced by the system to the heat absorbed from an external heating source. The variation trend is shown in Figure 2b. The heating COP of the heat pump and the sum of system COP both increased gradually with the increase in evaporation pressure. The modelling result indicated that the evaporation pressure and temperature have a great influence on the heating COP and the system COP and can raise the thermal economy of the system. This trend is consistent with the conclusion of Yang [27], who verified that the parameters of evaporation in an evaporator are proportional to the system COP. The improvement of the energy-saving performance of the model depends on the development of the heat pump technology. In theory, the system performance can be optimized and improved by adjusting and matching some parameters such as cycle design, working medium selection, system component heat and mass transfer enhancement, the system control strategy [23], etc., which can provide operation guidance for engineering practice under the consideration of actual operating conditions.

3.2. Effect of Temperature Difference between Evaporation and Condensation

The evaporation temperature and condensation temperature are both crucial parameters in absorption heat pump systems. The evaporation temperature is consistent with evaporation pressure, which has been discussed in Section 3.1. Additionally, temperature difference between evaporation and condensation is studied here. Group 1 and group 2 are two groups of different working conditions: in group 1, the driving steam is kept at 523 K, 0.6 MPa and 145 t/h, water return and supply temperature of network water users are kept at 328 K and 353 K, respectively, and the refrigerating capacity produced by the system is constant; in group 2, the parameters of driving steam and water supply temperature of network water users are variable, and changes in specific parameters are described in the analysis below.

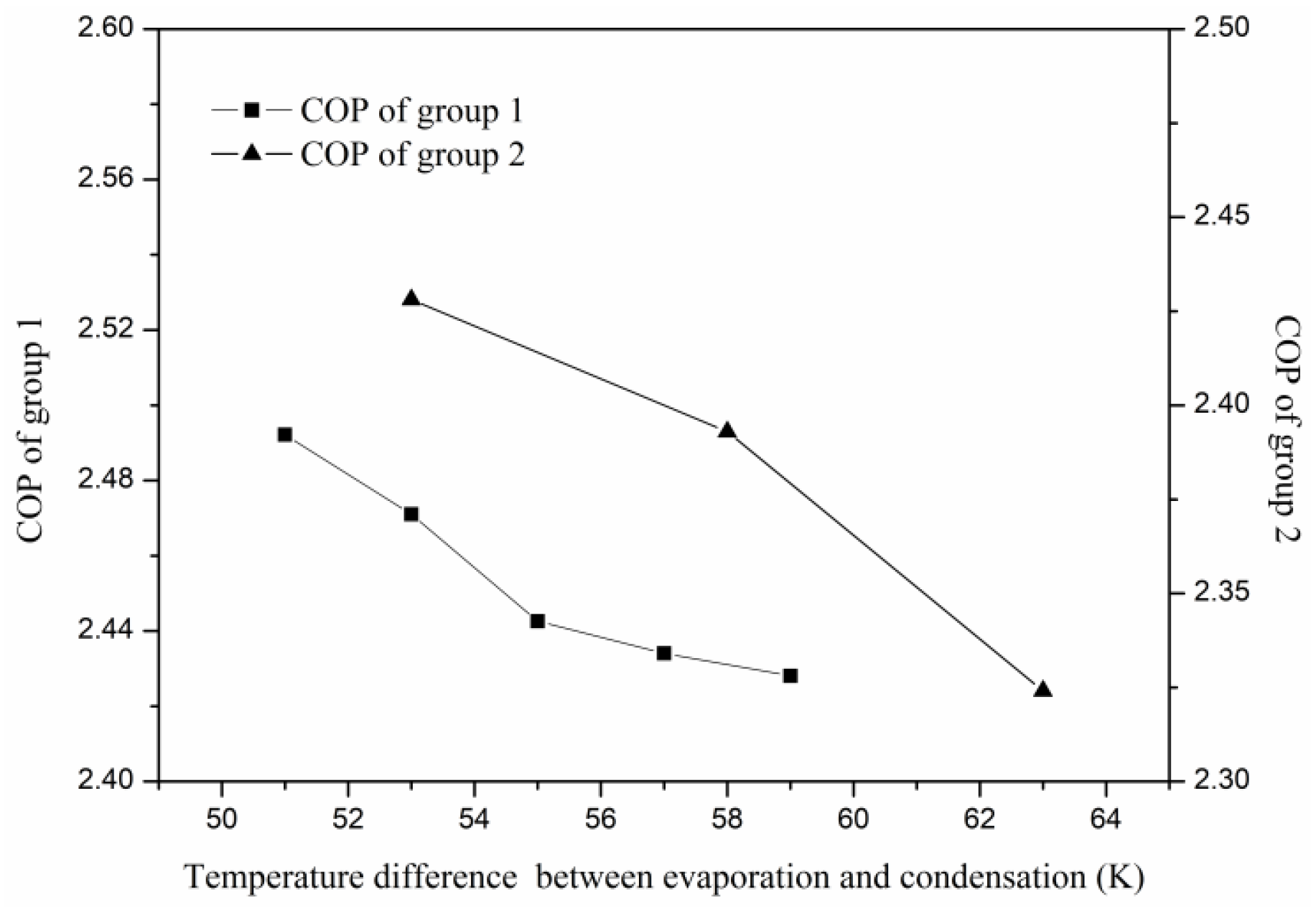

In Figure 3, the left ordinate represents the COP of the recovery system in group 1; the right ordinate represents the system COP of group 2. The system COP represents the sum of heating COP and cooling COP. The horizontal axis represents the temperature difference between evaporation and condensation, which means the evaporation temperature in the evaporator and condensation temperature in the condenser. As shown in Figure 3, results show that the COP of the heat pump system decreased with the increase in temperature difference between evaporation and condensation both in group 1 and group 2.

In group 1, the parameters of driving steam and water return and supply temperature of network water users were constant, and refrigerating capacity produced by the system was constant, which meant that the heat released by circulating cooling water was unchanged. Under these conditions, the COP of heat pump system decreased with the increase in temperature difference between evaporation and condensation, which is consistent with the conclusion of Sun [28], who demonstrated the effect of temperature difference between evaporation and condensation on system COP. In the same way, in group 2, with the increase in temperature difference between evaporation and condensation, the consumption of driving steam, the water supply temperature of network water users, and the consumption of circulating cooling water increased; in the meantime, the heat capacity and refrigerating capacity produced by the system increased, and the heat absorbed from external heating source also increased. Taken together, the system COP decreased with the increase in temperature difference between evaporation and condensation. The probable reason is that when temperature difference between evaporation and condensation increases, the refrigerating capacity decreases linearly with the increase in the power consumption of the system, and the evaporation temperature decreases faster than the condensation temperature; thus, the performance coefficient of the system decreases due to increased effects of evaporation temperature. When temperature difference between evaporation and condensation increases from 51 K to 59 K, the system performance coefficient decreases by 2.64%, and the refrigeration capacity decreases by 1%.

3.3. Effect of Generating Temperature

The effect of the consumption of circulating cooling water and water supply temperature of network water users on the COP of the system have been reported in many studies [25,26]. However, the contribution of generating temperature on system COP is not yet clear. Temperature and pressure of the driving steam are related to the generating temperature of the generator; therefore, the effect of generating temperature (positions 2 and 3 in Figure 1) on the driving steam parameters, heating capacity, and the COP of the system are explored and analyzed in this section. The changes of heat from driving steam source, heating capacity, and COP of the system were simulated while keeping the temperature of driving steam and return water constant, as well as the inlet and outlet temperatures of the circulating cooling water.

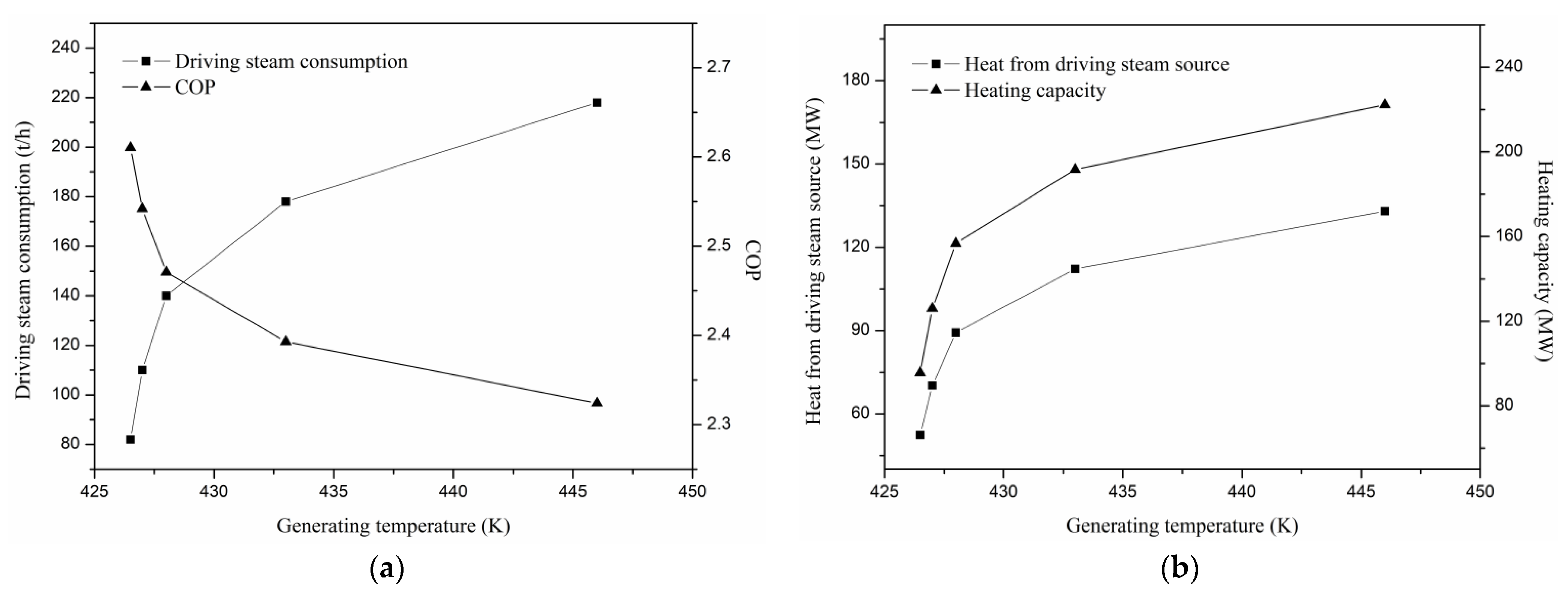

In Figure 4a, the left ordinate represents the consumption of driving steam, the right ordinate represents the system COP (the sum of heating COP and cooling COP), and the horizontal axis represents the generating temperature in the generator. The driving steam consumption increased and the COP of the system decreased with the increase in generating temperature. The reason is that the change in generating temperature will affect the condenser pressure and condenser temperature, which leads to the decrease in driving steam consumption. The consumption of driving steam indicates the heat absorption from the external heating source, which corresponds to heating capacity and cooling capacity and is inversely proportional to the system COP. This result was consistent with the conclusions of Zhang [29] and Che [26], who proved that the COP of heat pump recovery systems decreased with the increase in temperature difference between water supply and the return of network users or temperature difference between inlet and outlet circulating cooling water.

In Figure 4b, the left ordinate represents the heat from the driving steam source, and the right ordinate represents the heating capacity produced by the recovery system, which was used to heat the network water. The horizontal axis represents the generating temperature in the generator. As shown in Figure 4b, the conclusion can be proved further; the heat from the driving steam source and heating capacity produced by the heat pump system both increased with the increase in generating temperature. The heat from driving steam source comes from the driving steam consumption when temperature of driving steam is constant; therefore, the more driving steam consumed, the more heat absorbed from the driving steam source and heating capacity produced by the heat pump system. However, the system COP was decreased with the increase in heat from the driving steam source and heating capacity because the system COP is a composite parameter: it is a sum of cooling COP and heating COP, which is a result of heating production capacity divided by the total heat absorption from the driving steam source.

All these results show that it is feasible to improve the system coefficient of performance by optimizing some parameters of waste heat recovery systems using heat pumps in many fields such as the food, paper, electroplating, metal processing and chemical industries, etc., and the suitability depends on the existing environmental and economic framework conditions of the local electricity grid and the COP [30].

4. Discussion

Based on the simulation results, the actual operation case, and parameters of the power plant, the following results are regarded as guidance for optimizing operation parameters after retrofit: in the present case, when evaporation parameters were 4.2 kPa and 303 K, temperature difference between evaporation and condensation was 53 K, driving steam parameters were 523 K and 82 t/h, water supply temperature was 343 K, thus the system COP had the best value of 2.611. On the basis of the safe and stable operation of the system, the evaporation pressure can be increased properly, temperature difference between evaporation and condensation can be minimized, and the generating temperature can be decreased to improve the COP of the whole system. However, the combination of the best values of the parameters does not mean the best values for the whole system; it needs to be adjusted in a reasonable range according to the actual operation.

On the basis of optimized operation, several technical scenarios of waste heat recovery from circulating cooling water were introduced to compare and analyze, with the assumptions as follows: the treatment capacity of circulating cooling water in one single cooling tower is 5000 t/h, the temperature of circulating cooling water reduces from 316 K to 305 K, and the total water loss of evaporation, floating, and sewage in the cooling tower is 1.71%. The circulating cooling water will evaporate in 59 h without water-saving measures or replenishment, therefore four technical scenarios are listed in

Table 3. Water saving performance comparison of several technical scenarios.

Items	Unit	Scenario 1	Scenario 2	Scenario 3	Scenario 4
Device	/	hot air mixture	heat pump with 10% cooling water	heat pump with 20% cooling water	heat pump with 100% cooling water
Water Saving	t/h	9.8	23	36	85.5
Water Saving Rate	%	13.87	27	42	100 (theoretical)
Annual Water Saving	t	70,560	165,600	259,200	615,600

: Scenario 1 represents a cooling tower with a hot air mixture, which is popular in some existing thermal plants; Scenario 2 represents 10% of circulating water entering the heat pump; Scenario 2 represents 20% of circulating water entering the heat pump; and Scenario 4 represents all the circulating water entering the heat pump. Scenario 1 represents condensing and recovering water from the wet saturated air coming out of cooling tower a using hot air mixing device; the other three scenarios precool part or all of the circulating water by heat pump; therefore, the temperature and moisture content of the wet saturated air in the cooling tower can be reduced, so that some water vapor can be condensed and recovered. The more precooling circulating water, the more water vapor can be condensed, the more obvious water saving effect.

According to Table 3, it is clear that waste heat recovery by heat pump has a better water saving performance. The water saving rate can theoretically reach 100% when all the circulating water enters the heat pump, which means that one cooling tower with a treatment capacity of 5000 t/h could be completely replaced by a heat pump system. This is a sign that the waste heat recovery scenario can greatly reduce the evaporation loss of circulating cooling water and save water resources.

The economy of the technical scenario is vital and must be considered in actual production, besides the COP of the waste heat recovery system. In the present work, the static payback period method [31] was used to analyze and compare the above waste heat recovery scenarios of circulating cooling water. The static payback period is calculated as follows: the total original investment of the project is divided by the annual net cash flow of the project, which is the differential value between the annual operating income and annual operating cost of the project [32]. The total original investment is the purchase cost of the main equipment, which mainly includes the cooling tower, heat pump, water saving measures, civil construction and installation, etc., as listed in

Table 4. Comparison of investment costs (unit: million USD).

Items	Scenario 1	Scenario 3	Scenario 4
Cost of Cooling Tower	65.14 (including fans and pumps)	65.14 (including fans and pumps)	0
Cost of Water Saving Measures	42.48	21.24	0
Cost of Heat Pump	0	113.28 (1 MW × 30 MW)	155.76 (3 MW × 50 MW)
Cost of Civil Construction and Installation	51.68	95.86	224.29
Total Investment Costs	180.82	335.45	785.03

. For the sake of brevity, Scenario 2, which is similar to Scenario 3, is omitted.

Annual operating income refers to the annual income from hot water supply to external users generated by recovering the waste heat of circulating cooling water, which reduces the steam demand for the production of hot water and reduces the production cost of enterprises. The annual operating cost mainly refers to the power cost and the maintenance and management costs of the system, such as electricity consumption and water replenishment cost. In addition, the cost of driving steam consumption of the heat pump operation is considered in the operating cost. The comparison of operating costs and income are listed in

Table 5. Comparison of annual operating costs and annual income (unit: million USD).

Items	Scenario 1	Scenario 3	Scenario 4
Electricity Consumption Cost	11.89	0.92	4.59
Water Replenishment Cost	7.50	5.10	0
Cost of Driving Steam	0	165.25	856.40
Total Annual Operating Costs	19.40	171.34	860.93
Annual Income	0	324.83	1624.15

.

All the calculation results in the present work were based on the following principles: the annual operating time was 7200 h, the water price was 0.1416 USD/t, the electricity price was 70.7 USD/MWh, and the heat price was 4.25 USD/GJ.

According to the economic comparison results in Table 4 and Table 5, the total investment cost and annual operating cost of Scenario 4 with a heat pump is much higher than Scenario 1 with a cooling tower, and Scenario 3 with a heat pump and cooling tower is in the middle, although the construction cost of cooling towers with corresponding circulating water treatment capacity in Scenario 4 is saved. However, the annual income of Scenario 4 is the best of all the scenarios, because the evaporation water loss of Scenario 4 is nearly zero. Scenario 1 is a one-time investment project without any recovery cost and all the circulating cooling water heat is wasted; Scenario 4 can not only decrease the construction cost of the cooling tower and operation costs of eliminating white smoke, but also decreases the humidity content of the wet saturated air even further using a small amount of the high-temperature heat source produced by the heat pump to heat the humid saturated air, which achieving the goal of water recovery and energy conservation. This design scenario will have very broad application prospects in the circulating cooling water treatment of electric power, chemical manufacturing, and other industries.

As shown in Table 4 and Table 5, the economic analysis and comparison results show that the total investment cost of Scenario 4 with a heat pump is USD 785.03 million, and the annual operating costs and annual income are USD 860.93 million and USD 1624.15 million, respectively. The static payback period is calculated as approximately two years, assuming that all of the recovered waste heat can be fully used with 100% efficiency. However, it is impossible to make full use of heat energy in actual industry due to the technical constraints and practical application conditions. Assuming that 40% of the recovered waste heat was used in the recovery system, the static payback period of Scenario 3 with a cooling tower and heat pump is about four years, and the payback period of Scenario 4 with a heat pump is approximately three years. The static payback period of scenarios with heat pumps is not very long and far less than the lifetime of the equipment, which indicates that it is feasible to recover the waste heat of circulating cooling water and save water resources with a heat pump.

5. Conclusions

The energy-saving performance of a cooling water waste heat recovery system and water resource recovery system of with a lithium bromide absorption heat pump was simulated and analyzed using Aspen plus V10.0 software, and the results indicated that the evaporating pressure and temperature have great influence on the system performance, which can improve the thermal economy of the system. The heat from driving steam and heating capacity both increased with the increase in generating temperature, while the increase in temperature difference between evaporation and condensation constrained the operation of the heat pump system. In the present case, when the evaporation parameters were 4.2 kPa and 303 K, temperature difference between evaporation and condensation was 53 K, driving steam parameters were 523 K and 82 t/h, and water supply temperature was 343 K, the system COP had the best value of 2.611. The economic analysis and comparison showed that the scenario of 100% heat recovery by the heat pump had the best comprehensive economic performance, although it had the highest total investment cost and annual operating cost. The annual saving amount of water was about 615,600 t for a cooling tower with a treatment capacity of 5000 t/h. The results of static investment indicated that the payback period of recovery scenario from a circulating cooling wastewater heat system with a heat pump is about three years, which is less than other scenarios and far less than the lifetime of the equipment. It indicates that the recovery scenario of a heat pump is feasible. The heat economy of the system can be improved by using the heat pump waste heat recovery scenario, which has important guiding significance to engineering practice. According to the simulation results and the safe and stable operation of the system, considering the actual operation conditions and parameters of the power plant, it is suggested that the evaporation pressure should be increased properly, the temperature difference between evaporation and condensation should be reduced, the generating temperature should be lowered, and the COP of the system should be increased. However, the best value combination of the parameters does not mean the best value of the whole system; it also should be adjusted in a reasonable range according to the actual operation of the whole system. The next step is to carry out a series of pilot tests, further simulating and optimizing the whole system using lithium bromide absorption heat pumps in a real petrochemical plant based on the actual parameters of field operation.
