Rockburst Precursors and the Dynamic Failure Mechanism of the Deep Tunnel: A Review

State Key Laboratory of Hydroscience and Engineering, Tsinghua University, Beijing 100084, China
School of Energy and Mining Engineering, China University of Mining and Technology, Beijing 100083, China
Key Laboratory of Mining Disaster Prevention and Control, Shandong University of Science and Technology, Qingdao 266590, China
Author to whom correspondence should be addressed.
Energies 2021, 14(22), 7548;
Submission received: 21 October 2021 / Revised: 7 November 2021 / Accepted: 10 November 2021 / Published: 12 November 2021
(This article belongs to the Special Issue Rock Burst Disasters in Coal Mines)


With the rapid development of underground caverns in the fields of hydraulic engineering, mining, railway and highway, the frequency, and intensity of rockburst and dynamic instability have gradually increased, which has become a bottleneck restricting the safe construction of deep caverns. This paper presents a review of the current understanding of rockburst precursors and the dynamic failure mechanism of the deep tunnel. Emphasis is placed on the stability of the surrounding rock of the deep tunnel, the rockburst prediction method, and the dynamic failure characteristics of the surrounding rock of the deep tunnel. Throughout the presentation, the current overall gaps in understanding rockburst precursors and the dynamic failure mechanism of deep tunnels are identified in an attempt to stimulate further research in these promising directions by the research community.

1. Introduction

China has experienced a rapid development in high-speed rail over the past 15 years, and the national network has reached 35,000 km in total length since 2019. Railways in the mountainous areas are made up of tunnels. By the end of 2019, more than 16,000 railway tunnels (total length of 18,041 km) were fully operational in China. Meanwhile, more than 3200 tunnels (total length of 7975 km) were in the planning stages [1,2]. Additionally, a large number of subway tunnels, utility tunnels, and diversion tunnels are currently under construction. Thus, tunnels are being constructed at an annual increasing rate of 7% worldwide for the next 5 to 10 years (equating to 5200 km of tunnels being built every year) [3].
The increase in underground engineering can result in the consequent increment of geohazards, and one representative example is the rockburst. Rockburst is a dynamic geological disaster associated with the spalling, fragmentation, and ejection of rock due to the sudden and violent release of elastic energy stored in the hard and brittle surrounding rock under excavation or other loading disturbances. Rockbursts occur frequently and violently with the increase of excavation depth [4,5,6,7,8,9]. Rockburst not only poses a severe threat to mine workers and mechanical equipment, but also delays the construction period and causes great economic losses.
Rockburst and the dynamic failure of surrounding rock have become a major problem in deep underground tunnels [10,11,12]. According to incomplete statistics, in China, a total of 660 rock bursts have occurred and 224 people have died in the past 10 years [13]; in the United States, a total of 172 bursts have occurred between 1936 and 1993, resulting in a total of 87 fatalities and 163 injuries [14]. However, it should be mentioned that, although more and more attention has been drawn to the research on rockburst in the past decades, the review concerning rockburst precursors and the dynamic failure mechanism of the deep tunnel is rather limited in number and scope. It is thus the intention of this study to comprehensively review the rockburst precursors and the dynamic failure mechanism of the deep tunnel. In doing so, a reference can be offered for the rockburst precursors and the dynamic failure mechanism of the deep tunnel in the future.
This review is organized as follows: Section 2 presents a review of the stability of the surrounding rock of the deep tunnel. Section 3 reviews the studies for rockburst prediction methods. Section 4 presents the work applying numerical simulation techniques and laboratory tests for the investigation of the dynamic failure characteristics of surrounding rock of deep tunnels. Section 5 concludes the review and suggests future research directions.

2. Stability of the Surrounding Rock of the Deep Tunnel

Scholars have conducted plenty of work on the instability mechanisms, influential factors, and the prevention measures of rock mass in tunnels under high stress by theoretical analysis, laboratory experiment, physical model test, field monitoring, and numerical simulation, and have achieved a lot of useful results. Zhu et al. [15] proposed a constitutive model to describe the rock creep with a logarithmic function. Thus, the stability of the surrounding rock of the underground circular tunnel was analyzed mechanically, and the relationship between the artificial support structure and the surrounding rock was discussed, and the result derived was a characteristic equation. Goodman and Shi [16] established a block theory for evaluating the stability of discontinuous massive rock masses. Zhang et al. [17] used a finite element method to identify unstable blocks and evaluate the stability of underground caverns. The Underground Research Laboratory of the Atomic Energy of Canada Limited carried out a series of field tests to study the damage process of surrounding rock under excavation unloading and revealed the factors affecting the stability of the surrounding rock of underground caverns [18,19,20]. Meng et al. [21] carried out shear tests for the prediction of rockburst hazards induced by dynamic structural plane shearing in deep hard rock tunnels, which was used to simulate the fault-slip rockburst and proposed a slip-type rockburst based on the evolution characteristics of the AE b-value method of prediction. Liang et al. [22] used far infrared and AE technologies to monitor the progressive failure of a rock tunnel model under biaxial stress. Gong et al. [23] conducted large scale true triaxial tests on the red sandstone samples with a prefabricated hole for understanding the mechanism of slab buckling rockburst in deep tunnels in hard rock. Liu et al. [24] studied the AE activities of coarse-grained granite and fine-grained sandstone with prefabricated square and round holes under uniaxial loading. The simplex positioning algorithm was used to study the temporal and spatial evolution of AE in the process of rock rupture, and the characteristics of the AE activity, energy release rate, and spatial correlation length were analyzed. Verma and Singh [25] used a numerical model to predict the deformation and stability of the tunnel to be excavated. Saiang [26] used the discrete–continuous coupling method to analyze the development and characteristics of the rock mass explosion damage zone. Shreedharan and Kulatilake [27] used the discrete element method to study the stability of two deep coal mine roadways under high stress. Cai et al. [28] utilized the FLAC/PFC coupled method to study the AE activities in underground excavations at the Kannagawa underground powerhouse cavern in Japan.
With the development of computer technology, some scholars have introduced artificial intelligence algorithms such as neural networks, genetic algorithms, and deep learning to analyze the stability of the tunnel surrounding rock. Yang and Zhang [29] introduced a hierarchical analytical method based on the neural networks to identify the important degree of factors which controlled the stability of underground openings so as to recognize the key factors. Feng et al. [30] used a data mining method to judge the stability of the surrounding rock of underground caverns.
Since the introduction of the New Austrian Tunnelling Method from the 1960s, surrounding rock monitoring and measurement technologies have been widely applied and developed as an important basis for determining the stability of surrounding rock [31,32,33,34,35]. This technology mainly uses strain gauges, stress gauges, multipoint displacement gauges, etc., to closely monitor the changes in surrounding rock strain, stress, and displacement during construction, thereby determining the corresponding support timing and support plan, ultimately realizing dynamic construction. However, this technology can only obtain the local displacement and stress information in the rock mass, and it cannot give a comprehensive evaluation of the overall stability of the rock mass structure. Meanwhile, it cannot monitor the development and evolution of microfractures inside the rock mass, so it cannot capture the precursor information of the macroscopic failure of the rock mass. Microseismic monitoring technology, as a space monitoring technology capable of capturing microfractures in the rock masses, is widely used in various tunnels [36,37,38,39,40,41,42,43], mines [44,45,46,47,48], rock slopes [49,50], and unconventional oil and gas exploration [51], carbon dioxide storage [52], and other fields. It is used to identify potential failure zones in rock mass engineering, so as to achieve the early warning and forecast of rock mass damage [53,54,55]. During the rock mass failure, the energy accumulated inside is released in the form of stress waves, causing microseismic signals [56,57]. By monitoring, analyzing, and processing the microseismic signals, the time, the spatial location, and the intensity of the microseismic signals can be obtained, and then qualitative and quantitative evaluations of regional rock mass stability can be made.
The above research results have laid a good foundation for further understanding of the failure characteristics and instability mechanisms of the surrounding rock of deep underground caverns under complex conditions. With the emergence of a large number of deep underground caverns in various fields, the occurrence environment of deep rock masses has undergone major changes compared to shallow rock masses, which are mainly manifested by high ground stress, high ground temperature, high karst water pressure, and strong dynamic disturbance. On the one hand, the high ground stress environment has brought many deep engineering disasters, among which rockbursts are the most prominent and cause the most serious damage, often causing serious personal injuries and deaths, equipment damage, and huge economic losses. On the other hand, under the strong dynamic disturbance, the mechanical characteristics of deep rock masses and the nonlinearity, uncertainty, and complexity of failure modes have become more prominent, and the frequency and intensity of dynamic disasters in the surrounding rock of deep underground caverns have increased significantly. The stability of the surrounding rock of deep caverns has become the focus of attention of scholars. However, the existing theories and methods still lag behind engineering practice and cannot provide effective guidance for engineering. Rockburst and the dynamic instability of surrounding rock have become key issues that restrict the safety of deep engineering construction. It is urgent for further research on the mechanism of rockburst prediction and the dynamic failure of surrounding rock under complex deep environments.

3. Rockburst Prediction Method

Since the first recorded rockburst in a British tin mine in 1738, scholars have carried out a lot of research in theory, experiment, numerical simulation, and other aspects, trying to understand the mechanism of rockburst and its influential factors, and on this basis to realize the prediction and early warning of rockburst [58,59,60,61,62,63,64,65,66,67,68,69,70]. Scholars have explored the mechanism of rockburst from the perspectives of stress [71], energy [72,73,74], stiffness [75,76], instability [77], and fractal [78], and put forward the corresponding prediction index of rockburst. According to different occurrence mechanisms, Kaiser [79] divided rockburst into two categories: spontaneous rockburst and remote disturbance-induced rockburst. The former is mainly related to the sudden release of the elastic energy accumulated in the surrounding rock under excavation unloading, while the latter is caused by the disturbance (blasting, mechanical vibration, rockburst stress, earthquake, etc.), and the damage caused by the disturbance is usually a certain distance away [80,81]. Yan et al. [82] found that disturbances due to excavation, particularly blasting excavation, have a significant impact on the scale and intensity of rockbursts, and summarized the rockburst prevention and control methods based on blasting technology. Li and Weng [83] numerically studied the dynamic fracturing behavior of underground caverns subjected to static geo-stress and dynamic loading. Li et al. [84] pointed out that deep underground engineering rock mass is inevitably affected by mechanical drilling, blasting, and other dynamic disturbances, and the influence of dynamic disturbances should be considered when studying rockburst. Li [85] summarized the current situation of rockburst support and put forward the ideas of rockburst control.
A large number of rockburst cases show that the occurrence of rockburst needs to meet two basic conditions: (1) the surrounding rock is hard, brittle, and relatively complete, and can store a large amount of elastic strain energy [86]; (2) high stress environment (including in situ stress and induced stress) [87,88,89,90], where the former is the internal cause of rockburst, and the latter is the external cause.
The above research has improved the understanding of rockburst and laid a foundation for the implementation of rockburst prediction and prevention measures in practical engineering. Rockburst prediction is the basis of reducing and even eliminating rockburst hazards and is an important basis for guiding engineering construction. Due to the complexity of the rockburst mechanism and its influencing factors, the prediction methods of rockburst are not mature and still need to be improved, which can be roughly divided into three categories [60,61,62,63,64,65]: (1) theoretical criteria, (2) case analysis, and (3) field monitoring-based rockburst prediction methods.

3.1. Theoretical Criteria-Based Rockburst Prediction Method

The theoretical criteria-based rockburst prediction method mainly uses various criteria, including stress [71], brittleness, energy [72,73,74], and stiffness [75,76], etc., which contributes to the rockburst mechanism to judge the rockburst tendency of engineering the surrounding rock. The widely used indexes are mainly the stress intensity ratio, the brittleness coefficient, the rockburst proneness index, the impact energy index, and the modified brittleness index, etc. These indexes are the basis for evaluating and predicting rockburst risk, and are mainly determined by field geological survey, in situ stress measurement and analysis, and in laboratory rock mechanics tests. These methods are mainly used in project planning, design, and the preliminary analysis and prediction of rockburst tendency in the construction stage [91,92].

3.1.1. Stress Criteria

The stress criteria are based on the intensity stress ratio (the ratio of the uniaxial compressive strength of rock to the stress of surrounding rock) or the stress intensity ratio (the ratio of the stress of surrounding rock to the uniaxial compressive strength of rock) to judge the occurrence and grade of rockburst. Commonly used stress criteria mainly include Tao Zhenyu criteria [71], Erlangshan Highway tunnel criteria [93], Norwegian Barton criteria [94], Russense criteria [95], Turchaninov criteria [96], Hoek criteria [97], etc., as shown in Table 1. These criteria are proposed based on different engineering cases, so the classification standards of rockburst are different, as well as the physical parameters used to characterize the surrounding rock stress. The commonly used physical parameters mainly include maximum shear stress, maximum principal stress, and axial stress.

3.1.2. Brittleness Coefficient

Brittleness is a significant property of rock and is the key internal cause of the rockburst of deep buried hard rock under high stress. Based on different purposes and applicable objects, scholars have proposed many rock brittleness coefficients. In 1974, Hucka and Das [98] summarized the brittleness coefficients, and Zhou et al. [99] further analyzed and summarized the characteristics of different brittleness coefficients. The brittleness coefficients, i.e., the ratio of uniaxial compressive strength to uniaxial tensile strength (B1 = σc/σt, σc is the uniaxial compressive strength of rock, σt is the tensile strength) [100] and the ratio of the difference between the uniaxial compressive strength and tensile strength to their sum ((B2 = (σcσt)/(σc + σt)) [101], have been widely used for the evaluation of rockburst proneness. Peng et al. [100] and Wang et al. [102] pointed out that the smaller the B1, the more violent the rockburst, and proposed the rockburst intensity classification standard based on B1. However, Zhang et al. [97,103] and Li et al. [104] found that the larger the B1, the larger the rockburst proneness, and they also proposed corresponding rockburst classification standards. The two discrimination criteria are contradictory and are listed in Table 2.

3.1.3. Energy Criteria

The storage capacity of elastic strain energy in rock mass is an important internal cause of rockburst. Cook [105] first established the relationship between rock mass residual potential energy and rockburst disaster. Subsequently, scholars began to study rockburst from the view of energy storage and release, and proposed many energy-based rockburst discrimination indexes, such as the commonly used elastic energy index [106], improved brittleness index [74], and impact energy index.

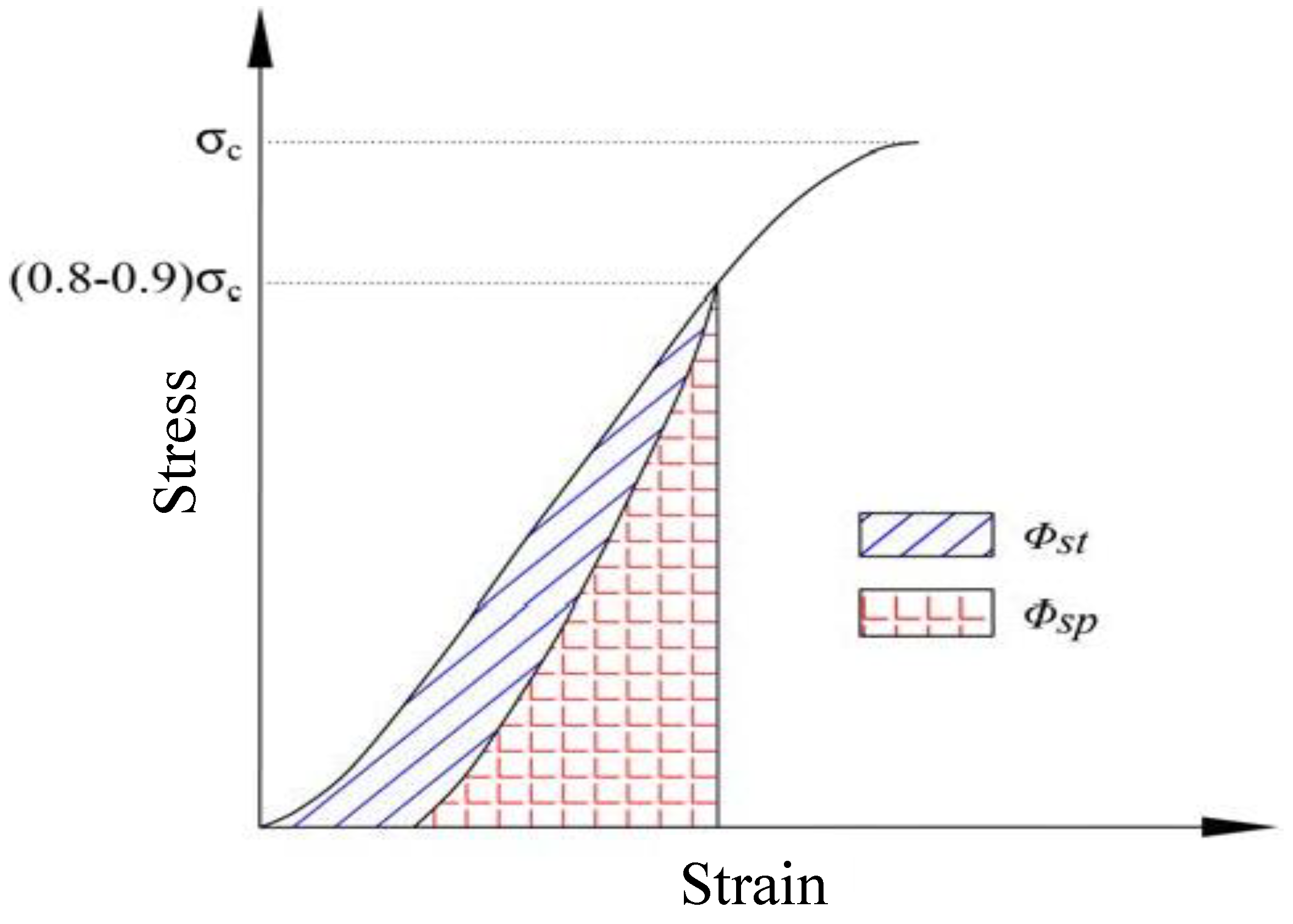

Neyman [106] proposed an elastic energy index to determine the level of rockburst based on laboratory uniaxial loading and unloading tests. The index Wet was defined as the ratio of the elastic energy released during unloading Φsp to the dissipated plastic strain energy Φst. It is mathematically given as
Wet = Φsp/Φst
In order to obtain the value of Wet, a series of tests were first carried out to determine the average uniaxial compressive strength of the rock sample. On this basis, the uniaxial compression loading and unloading tests were conducted. Rock samples were loaded to 80–90% of their average uniaxial compressive strength, and then unloaded, as shown in Figure 1. The greater the Wet value, the greater the rockburst proneness [107].

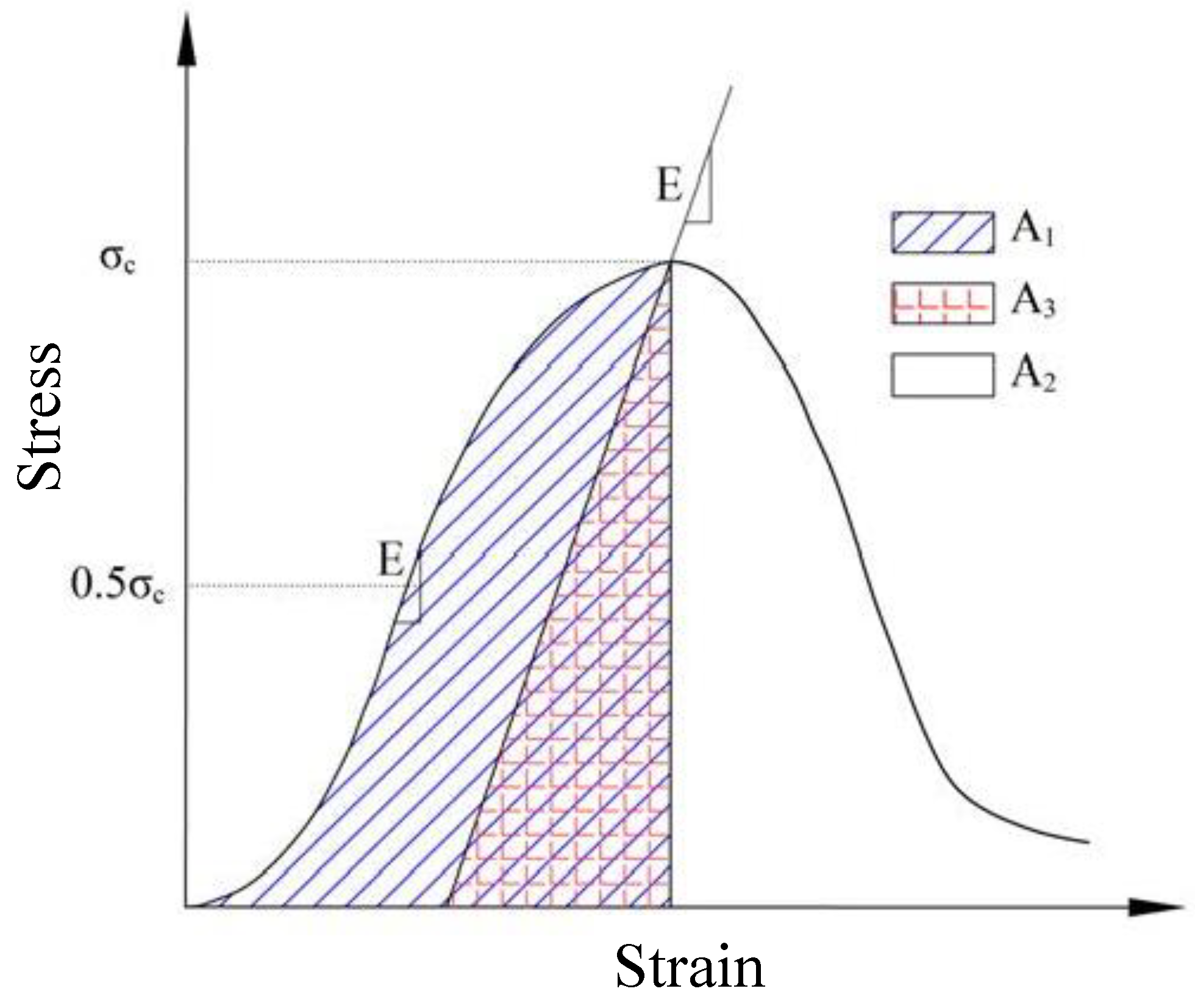

In such tests, it started to unload when the load reached 80–90% of peak strength. However, due to the heterogeneity of rock mass, the unloading stress determined by this method and its peak strength may vary greatly with different samples, which greatly affected the accurate acquisition of Wet. To solve this problem, Aubertin [74] proposed an improved brittleness index (BIM), which was also calculated based on uniaxial compression tests in which unloading was not required. The calculation diagram is shown in Figure 2. The loading was up to the peak stress, and the unloading curve was the straight line that passed through the peak stress point as the slope of the elastic modulus at the half of the peak strength. The improved brittleness index (BIM) can be calculated by Equation (2).
BIM = A1/A3
where A1 is the area under the loading curve and represents the total strain energy in the rock sample under uniaxial compression; A3 is the area under the assumed unloading curve passing through the peak point. A3 represents the peak elastic strain energy stored in the rock sample. The value of BIM is greater than or equal to 1, and a smaller BIM value means larger elastic energy released and higher rockburst proneness. The evaluation criteria of rockburst proneness based on BIM are shown in Table 3.
Impact energy index (F) is also based on the complete stress–strain curve of rock samples under uniaxial compression and is defined as the ratio of stored energy before the peak to that after the peak, as shown in Equation (3).
F = A1/A2
where A1 is the area under the pre-peak stress–strain curve, and A2 is the area under the post-peak stress–strain curve. For brittle rocks, the F-value is greater than 1, that is, the stored energy is greater than the dissipated energy, indicating that the rockburst may occur. The larger the F-value, the more violent the rockburst.

3.2. Case Analysis-Based Intelligent Method

The case analysis-based prediction method of rockburst is mainly based on the heuristic algorithm [108], machine learning methods [109,110,111], data mining technology [112,113], and other mathematical tools, by analyzing a large number of engineering rockburst cases and considering multiple factors to establish a comprehensive prediction method of rockburst. Compared with the theoretical criteria-based rockburst prediction method, the case analysis-based prediction method takes into account the comprehensive functions of many factors, so that the calculation results are more reliable. In these methods, stress, strength, and energy-related parameters are usually used as input factors and the actual rockburst intensity as output parameters. Based on a large number of rockburst case data, the algorithm is continuously trained and optimized, and the correlation between the input factors and the output parameters is established to predict the possibility of rockburst in target engineering. The accuracy and reliability of this method mainly depend on the quantity and quality of the case data [114].
Recently, with the emergence of a large number of rockburst disasters in hydraulic engineering, transportation, mining, and other fields, as well as the rapid development of artificial intelligence methods like machine learning, the case analysis-based intelligent method has been further developed. Li et al. [110] proposed a rockburst prediction method based on the theory of logistic regression classifiers. Adoko et al. [112] developed five different fuzzy inference systems for rockburst prediction based on a fuzzy reasoning system, an adaptive neural fuzzy reasoning system, and field measurement data. Gong et al. [115] established a comprehensive distance discriminant model of rockburst intensity classification and prediction that considered the lithology, stress level, and energy of the surrounding rock. Ge et al. [116] proposed a new method based on the combination of artificial neural networks (ANN) classifiers as weak classifiers by using the AdaBoost algorithm in data mining. Wang et al. [117] established a new model for predicting the classification of rockburst based on the efficacy coefficient method by considering the key influential factors of rockburst comprehensively. Based on the technique for order preference by similarity to ideal solution, Zhou et al. [118] chose five indices, including uniaxial compressive strength σc, the ratio of rock compressive tensile strength σc/σt, the stress coefficient of rock σθ/σc, the elastic energy index of rock Wet, and the integrality coefficient Kv as the predictor variables of rockburst. Twenty rockburst cases were taken as the training and testing samples, according to the classification standard of rockburst, the supports, and weighs of the predictor variables were calculated by rough set theory, and the RS-TOPSIS model of rockburst prediction was established. Dong et al. [119] established a random forest model for predicting rockburst proneness. Zhou et al. [120] used ten supervised learning algorithms to predict rockburst based on 246 rockburst cases and compared the prediction results of different algorithms. Afraei et al. [113,121,122] established several rockburst proneness evaluation models based on the evaluation of different influencing factors.

3.3. Field Monitoring-Based Rockburst Prediction Method

The field monitoring-based rockburst prediction method mainly includes the microgravity method [123], the electromagnetic radiation method [124], the drilling cuttings method, the AE method [125], the electrical resistance method [126], the computed tomography method [127], and the microseismic monitoring method [128,129,130]. These methods watch the changes in a physical parameter, like stress and strain, resistance, microseismicity, AE, electromagnetic radiation, etc., to indirectly reflect the changes of physical and mechanical properties of rock mass during construction and mining. In this way, the corresponding relationship between the monitoring information and the rock mass stability is established, and the evolution of the monitoring physical parameter during the development process of rockburst is further obtained, which can be used as the precursor information of rockburst so as to predict the occurrence of rockburst. The most important advantage of the field monitoring method is that it can receive feedback information in time, so as to effectively guide the construction and ensure the project safety. Among these methods, microseismic monitoring technology has been widely used in all kinds of underground engineering and has been proved to be an effective tool to reveal the mechanism of rockburst and give predictions [131,132,133,134,135,136]. Microseismic monitoring can obtain the time, location, and intensity of fracture in rock mass. Most importantly, it can locate the rock mass instability zone [137]. Based on the microseismic monitoring technology, scholars have carried out a large number of studies on the rockburst development process and obtained the microseismic precursor information about the evolution of microseismic parameters, such as the microseismic event number, cumulative released energy, b-value, and the spectrum characteristics of the microseismic waveform, etc. [138].
The above methods have enriched the knowledge of rockburst prediction. However, due to the complexity of the rockburst mechanism and the influencing factors, accurate rockburst prediction is still challenging and the current accuracy cannot effectively meet the needs of the safe construction of a deep hard rock underground cavern. Further exploration and development of rockburst prediction methods are needed.

4. Dynamic Failure Characteristics of Surrounding Rock of Deep Tunnels

The surrounding rock of deep underground caverns is subjected to numerous dynamic disturbances caused by blasting, earthquakes, rock caving, and excavation, besides gravity and tectonic stress. For deep rock mass, because the stress concentration around the cavern is more significant, the influence of dynamic disturbance on the stability of the surrounding rock is more prominent. With the continuous increase of the depth of underground caverns, more and more attention has been paid to the stability of the surrounding rock of deep tunnels under dynamic disturbance [139,140,141,142,143]. Li et al. [83] used FLAC3D software to simulate the characteristics of the strain energy density and the fracturing zone of tunnels under dynamic disturbance with different lateral pressure coefficients. Manouchehrian and Cai [144] used Abaqus to study the influence of weak planes on rockburst occurrence in tunnels under static and dynamic loadings. Zhu et al. [145] used the RFPA-Dynamics to simulate the rockburst caused by coupled static geo-stress and dynamic disturbance around the deep underground opening and indicated that the dynamic disturbance was one of the most important triggers responsible for the rockbursts around the underground opening. Yilmaz and Unlu [146] used FLAC3D to simulate the damage development of rock mass under blasting loading. Yan et al. [147] used PFC to analyze the characteristics of the surrounding rock damage zone of a deep tunnel under blasting excavation loading and in situ stress transient unloading, respectively. Lu et al. [148] investigated the process of release of in situ stress accompanying rock fragmentation by blasting to determine the dynamic response of reserved surrounding rock mass, such as vibration. Lu et al. [149] studied the influence of the thickness and strength of overburden strata on the rockburst failure process of an underground roadway by using UDEC.
Numerical methods are used to study the failure characteristics of underground caverns under dynamic disturbance, and the influence of different factors of dynamic disturbance (amplitude, duration, applied direction, etc.) on the stability of underground caverns. However, due to the combined high static stress and dynamic disturbance, the uncertainty and complexity of mechanical behavior, the deformation and failure mechanism of rock engineering will become more prominent, which will undoubtedly restrain the accuracy of numerical simulation and bring huge challenges to numerical methods.
Laboratory tests can visually reflect the mechanical properties, deformation, and failure evolution and stability characteristics of rock mass, and obtain visual knowledge that cannot be obtained by numerical simulation and verify the numerical simulation results [150,151,152,153,154,155]. Therefore, many scholars have investigated the dynamic failure characteristics of the surrounding rock based on laboratory tests. Liu et al. [156,157] carried out impact rockburst test on sandstone samples with a central hole under true triaxial static loading and vertical dynamic loading to analyze the fragmentation characteristics of the sandstone fragments. Du et al. [158] studied the failure behaviors of granite, red sandstone, and cement mortar under true triaxial unloading and then local dynamically disturbed loading and found that the rockburst and slabbing were closely related to the rock type, stress path, and dynamic disturbance. Su et al. [159,160] compared the ramp and cyclic dynamic disturbances-induced rockbursts in terms of the failure phenomenon, damage evolutions, and energy characteristics under true triaxial conditions with a low–intermediate strain rate of 2~5‰/s.
However, the dynamic loading used in the above tests are all cyclic loading with low strain rate and low amplitude, and the failure characteristics of the samples under such loading are affected by fatigue characteristics, which are significantly different from those under dynamic disturbance with a high strain rate [161,162]. Many scholars have experimentally studied the dynamic mechanical properties and failure characteristics of rock-like materials under the combined action of high static stress and high strain rate impact loading [163,164,165,166]. For instance, Tang et al. [167] conducted the dynamic response tests of a polymethylmethacrylate simulated tunnel under coupled biaxial static stress and high strain rate dynamic disturbance. Li et al. [168] observed the crack propagation of polymethylmethacrylate semicircular arch roadway specimens under stress wave loading. However, the dynamic failure characteristics of deep underground caverns under high static stress and high strain rate dynamic disturbance should be further systematically investigated in future research for better application in deep rock engineering practice.

5. Conclusions and Future Perspective

A comprehensive review was performed on the rockburst precursors and dynamic failure mechanisms of surrounding rock. The research presented in this review has been widely accepted and applied in engineering practices involving tunnel, cavern, and roadway stability problems. However, they have some weaknesses due to the complexity of rockburst and the uncertainty of the influencing factors, and hence require improvements in some respects.
(1) Due to the complexity of the mechanism and the influencing factors of rockburst, rock physical and mechanical properties, and the environment of deep rock mass, the accurate forecasting rock burst is still challenging. The accuracy of rock burst prediction methods could not effectively meet the needs of underground cavern construction in deep hard rock. Further exploration and development of rock burst prediction methods are required;
(2) The accuracy and reliability of the case analysis-based rockburst prediction method mainly depended on the quantity and quality of rockburst cases. Current studies are commonly based on tens of rockburst cases; thus, the reliability and applicability of the established prediction model are not satisfied. Recently, a large number of rockburst disasters have emerged in the fields of hydraulic engineering, transportation, and mining, and artificial intelligence methods, such as machine learning, have been rapidly developed. The increasing number of rockburst cases and the rapid development of artificial intelligence methods lay the foundation for the further development of the case analysis-based rockburst prediction methods. Therefore, it is necessary to establish a new case analysis-based rockburst prediction method by applying machine learning in rockburst case analyses;
(3) To study the dynamic failure mechanism of surrounding rock, numerical simulations are mainly used. However, under the combined action of high static stress and dynamic disturbance, the uncertainty and complexity of mechanical behavior, the deformation and failure mechanism of rock engineering become more prominent, which will undoubtedly restrain the accuracy of numerical simulation and bring huge challenges to numerical methods. On the other hand, laboratory tests can directly reflect the overall mechanical characteristics, deformation, and failure, and the stability characteristics of rock mass, and can obtain a direct understanding that cannot be obtained from numerical simulation, as well as verify the numerical simulation results. However, the dynamic loads used in the above tests are all periodic cyclic loads with low strain rate and low amplitude. The sample failure under such loading is affected by the fatigue characteristics, which is quite different from the failure caused by dynamic disturbance with a high strain rate. Therefore, it is necessary to further study the dynamic failure characteristics of surrounding rock under the combined action of high static stress and high strain rate dynamic disturbance.

Author Contributions

Conceptualization, Y.C. and J.Z. (Junwen Zhang); methodology, Y.C. and J.Z. (Junwen Zhang); writing—original draft preparation, Y.C., J.Z. (Jiahao Zhang), B.X., L.Z.; writing—review and editing, Y.C., J.Z. (Junwen Zhang), J.Z. (Jiahao Zhang), B.X., L.Z.; supervision, J.Z. (Junwen Zhang); project administration, Y.C., J.Z. (Junwen Zhang), W.L.; funding acquisition, Y.C. and J.Z. (Junwen Zhang). All authors have read and agreed to the published version of the manuscript.


This study is supported by the National Natural Science Foundation of China (52034009, 52009131), Beijing Natural Science Foundation (8204068), and the Open Research Fund Programs of State key Laboratory of Hydroscience and Engineering (sklhse-2020-C-02), Key Laboratory of Mining Disaster Prevention and Control (MDPC201918).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used to support the findings of this study are available from the corresponding author upon request.

Conflicts of Interest

The authors declare no competing interest.
