1. Introduction
Energy use of buildings as well as the health and wellbeing of a building’s occupants have been repeatedly associated with the interaction between occupants and their indoor environment as they respond to environmental cues to achieve comfort [
1,
2,
3,
4]. Indoor environmental quality (IEQ) is often evaluated by assessing thermal, acoustic, visual and air quality factors [
1,
5]. A recent literature review, however, has identified a gap in studies on the combined effects of these factors on overall comfort [
6], as most studies take place in controlled environments (e.g., climate chambers) and/or focus only on single effects.
Comfort research has historically been approached with siloed, discipline-specific approaches and methods that fail to provide a holistic interpretation of the physio-socio-psychological relationships and their evolution over time and external forcing. In addition, differences between individuals [
3,
7], and the yet unknown mechanisms of how stimuli trigger sensations, add complexity when evaluating comfort and applying comfort models to building design and the operation of building systems [
8]. From a trans-modal perspective [
9], the interactions between different comfort domains (i.e., cross-modal effects [
10,
11,
12]) are interpreted as comfort and satisfaction within a physio-psychological context.
Current research has investigated the relationships and mechanisms that link the level of comfort with the perception of indoor environment quality and its contextual manifestation. In general, comfort dimensions are distinguished as expectation (non-sensory stimuli), sensation (sensory stimuli) and relative perception (satisfaction and preference) [
13]. This interpretation of comfort is linked to the “affect” defined in Heydarian et al.’s (2020) [
14] review of behavioural theories and to the holistic review into the drivers of thermal perception [
15]. In that direction, Schweiker et al. (2020) examined the concept of “seasonal alliesthesia” that approaches comfort through the view of thermal pleasure and suggests the existence of long-term experiences and expectations, which affect contextual thermal perception [
13,
16]. Studies on multi-modal perception interactions and their effect on comfort remain limited. Tang et al. (2020) in a controlled laboratory experiment identified relationships between indoor air quality and both thermal satisfaction and sound pressure levels [
17]. In another controlled experiment, Yang and Moon (2019) investigated multisensory interactions between thermal, acoustic and illuminance conditions, and their study has revealed that indoor sound levels have a larger impact on thermal comfort than illuminance, whereas interestingly sound levels had significant effects on both the overall indoor environment and visual comfort [
18]. Similarly, in an experimental laboratory study, satisfaction with thermal conditions has been shown to influence satisfaction with other IEQ factors, but most importantly thermal satisfaction has created “comfort expectations” that subsequently affect an occupant’s evaluation of other surveyed parameters [
19]. These important findings all come from studies in controlled environments and quite often with student participants. Most studies usually assess the combined effects of IEQ factors, and they evaluate the relative effect and influence of factors, instead of explicitly looking at interaction effects in terms of the examined factors. This paper addresses those limitations by presenting results from “real life” office environments, and we analyze the multi-modal interactions (i.e. cross-modal) between thermal, acoustic and air quality perception and commonly monitored environmental IEQ factors.
Over the last few decades, before the SARS COVID pandemic, open-space offices prevailed as an office type, mainly due to the reduction in facility costs that this working environment offers. Several studies have shown that open-space design has adversely affected productivity, health and wellbeing in the workspace [
20,
21]. Amount of space, noise, visual intrusiveness and lack of privacy are commonly identified by employees as the key factors for their (lack of) satisfaction with their workspace environment [
22,
23]. More recently, studies have shown that despite the important roles of factors related to the indoor environment, there are additional socio-psychological parameters that could influence thermal perception and comfort, such as personal mood, aesthetics, likable architecture, office layout and employer’s policies related to wellbeing [
24,
25,
26,
27]. Post Occupancy Evaluation (POE) methodologies have been increasingly used to identify issues that might affect a building’s performance and occupant satisfaction. POE has gained attention from the industry and has been included as a requirement in popular “green” building certifications and sustainability assessment methods. Reportedly, though, high scores in such certification schemes often do not translate into occupants’ satisfaction with the indoor environment [
28,
29]. Nevertheless, POE results offer valuable insights into the aspects that require attention and cause dissatisfaction among the buildings’ users.
This study combines results from a POE and comfort surveys to evaluate the mixed effects of indoor environment parameters and multi-domain comfort on thermal comfort perception. The present work aims to provide new evidence on the cross-modal comfort perception in “real-living” conditions. The research questions addressed by this study are as follows:
(1) Is there a cross-modal effect of thermal, acoustic and air quality perception on occupants’ comfort?
(2) How does indoor environmental quality affect thermal perception?
2. Materials and Methods
2.1. Study Design
This research was carried out in three stages, described as follows.
Stage 1: In the first stage, a Post Occupancy Evaluation (POE) was carried out following the Building Use Studies (BUS) methodology [
30,
31]. The aim of POE was to gain an understanding of the buildings users’ satisfaction with their living environment. BUS is an established POE methodology that has been widely used and reported in relevant literature [
29,
32,
33,
34]. On top of the expected benefits, BUS offers the opportunity to compare occupants’ satisfaction and building performance with other similar buildings worldwide.
The case study building was a mixed-mode office building at the University of Southampton (referred to as B1). This pilot study had 26 participants who completed the BUS online questionnaire survey during August 2020. The survey includes 16 sections, collecting demographic data such as age, gender, working hours and days at the building and at their work area. It is also designed to collect feedback regarding the building’s environmental performance, building services and overall design. The analysis of the POE focused on the reported satisfaction with typical indoor environmental quality (IEQ) (air quality, thermal conditions, noise and lighting) factors and the occupants’ thermal perception and comfort in winter and summer. The survey applied a 7-point scale to assess the satisfaction level from “1” representing “very dissatisfied” to “7” representing “very satisfied”. Similarly, a 7-point scale was used to assess thermal comfort from “1” representing “uncomfortable” to “7” representing “comfortable”.
Stage 2: In the second stage, building upon the findings from the POE, a weekly “right-here right-now” comfort survey took place over a period of a year (from 25 July 2017 to 25 June 2018) to review the relationship among thermal sensation (
TSV), thermal preference (
TPV), acoustic perception (
NSV) and perceived air quality (
ASV). The thermal sensation vote (
TSV), thermal preference vote (
TPV), acoustic (i.e., noise) perception vote (
NSV) and air quality perception vote (
ASV) were collected from the questionnaire responses, as shown in
Table 1. Four different scales were used following the smart controls and thermal comfort project (SCATs) survey method [
35]. Thermal sensation (
TSV) was assessed with the ASHRAE 7-point scale [
36], and thermal preference, acoustic and air quality perception were evaluated with a relevant 7-point scale, respectively (
Table 1). The survey responses were collected from participants in two mixed-mode office buildings at the University of Southampton (referred to as B2 and B3). The number of valid, completed surveys and consequently the sample size is n = 1079 responses from 116 individual participants. In addition to the surveys, the researchers interviewed the respective building managers to understand any daily operation issues and common grievances from the occupants.
Stage 3: In Stage 3 of the research design, a small and focused study in building B1 was undertaken to assess thermal, acoustic and air quality perception with a comfort survey and concurrent environmental conditions monitoring (i.e., sound pressure levels, air temperature and relative humidity), between January and March 2020. Typical individual control opportunities were monitored such as (1) private office door open/close, (2) window open/close, (3) air conditioning on/off, (4) ventilation on/off and (5) heating on/off. The sample comprised 12 participants, and most worked in an open plan office (N = 9) in B1 or individual offices (N = 3) at the same floor level. Following a similar method as Stage 2, the 12 participants in the Stage 3 survey were asked to complete three surveys; an initial background survey that collected contextual metadata and demographic information, a weekly survey that assessed their comfort perception and productivity, and a final feedback survey. The questionnaire followed the thermal comfort informative for subjective evaluation in the ASHRAE 55 [
36] and EN 15251 (Annex H) [
37]. The three investigated variables (
TSV, NSV, ASV) were assessed with the same as in Stage 2 perceptual scales. Non-intrusive environmental sensors were installed in selected locations that represent the average ambient environment. Although the participants from B1 were different from the participants at B2 and B3, they all worked in similar buildings at the same location, and they did similar jobs. In addition, the buildings were maintained and operated by the same organization, they all had mixed-mode ventilation and followed the same operation schedule.
2.2. Case Study Buildings
The three case study buildings have been commissioned recently and they are located at the Highfield and Bolderwood Campuses of the University of Southampton, UK. All three buildings have mixed-mode ventilation (both mechanical and natural ventilation) providing heating in winter and peak cooling only during extreme heat events in summer.

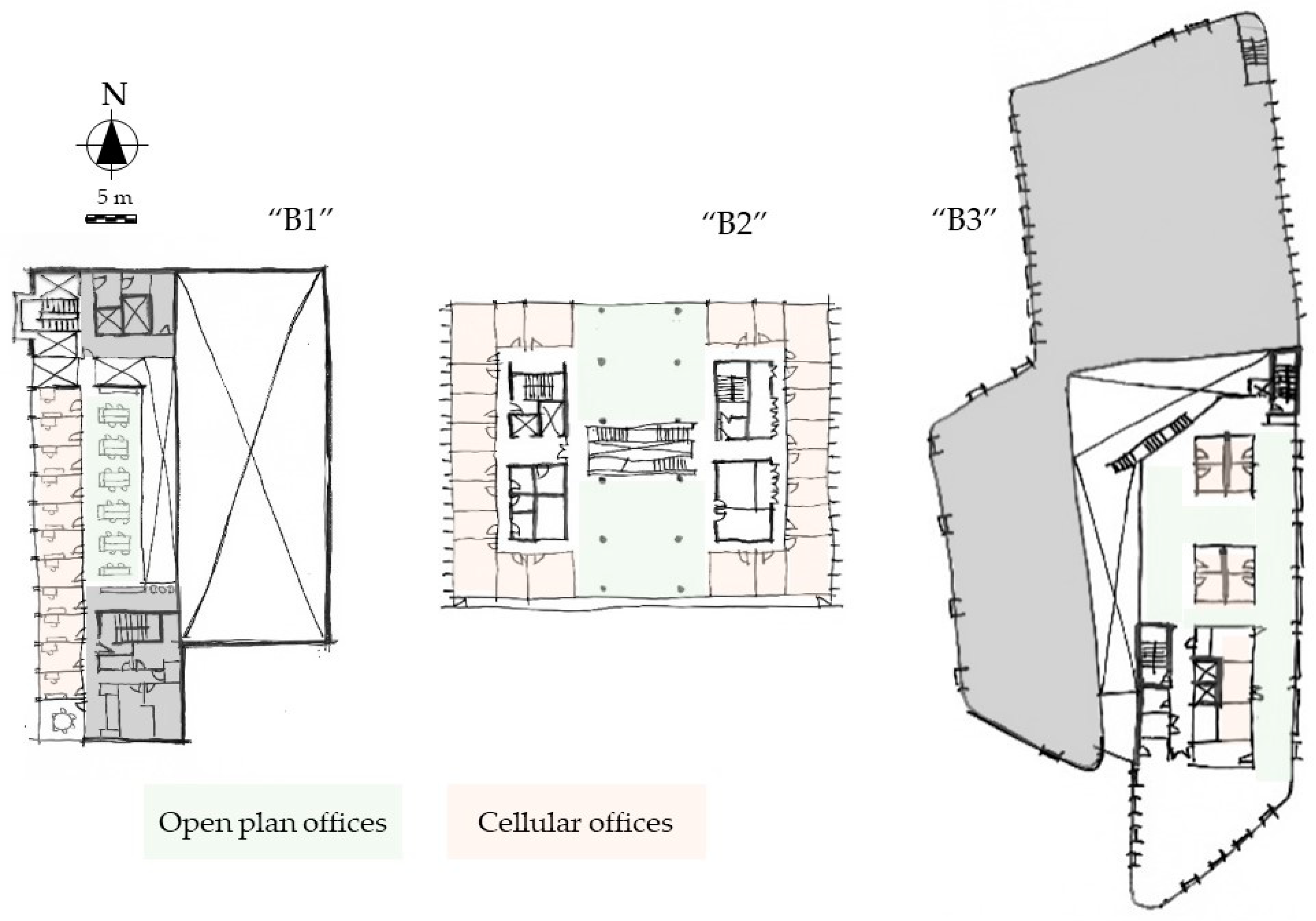

Figure 1 shows the three buildings’ typical floor plans which all encompass cellular offices and open plan office spaces next to a central atrium. The atriums are key features of the natural ventilation strategy.
Traffic noise levels as represented with
LAeq,16h were estimated around the 60 dB level for all the buildings.
LAeq,16h is defined as the annual average noise level (in dB) for the 16-h period between 07:00–23:00 and it is typically assessed at a receptor’s height of 4 m above ground. B1 floors are connected with an atrium that starts from the common, multi-functional space at the ground floor and extends upwards to the roof of the building. Each floor has an open plan office and a mezzanine style area open to the atrium and the corridor next to the private, individual offices (
Figure 1).
2.3. Indoor Environmental Quality (IEQ) Data Collection
The dataloggers used for the IEQ data collection in Stage 3 of this study were installed whenever possible at heights and locations that would be representative of the occupants’ working conditions while seated at a desk. Air temperature (
T) and relative humidity (
RH) were monitored with 5 min frequency. Sound pressure levels were monitored every second. The specifications of the data loggers and the sampling rates are shown in
Table 2. In the beginning of Stage 3, the reverberation time (RT) was measured with a Brüel & Kjær 2250 handheld analyser in unoccupied conditions at different places of B1, all with a potential to impact the acoustic conditions of the surveyed offices. The wide band reverberation times were averaged across the 400 Hz to 1.25 kHz frequencies and the acoustic conditions were assessed based on the RT60 (
T30) measurements. The sound test at the atrium was the only one not surprisingly to return high RT longer than 1.2 s while the other tested locations had RT values lower than 1 s.

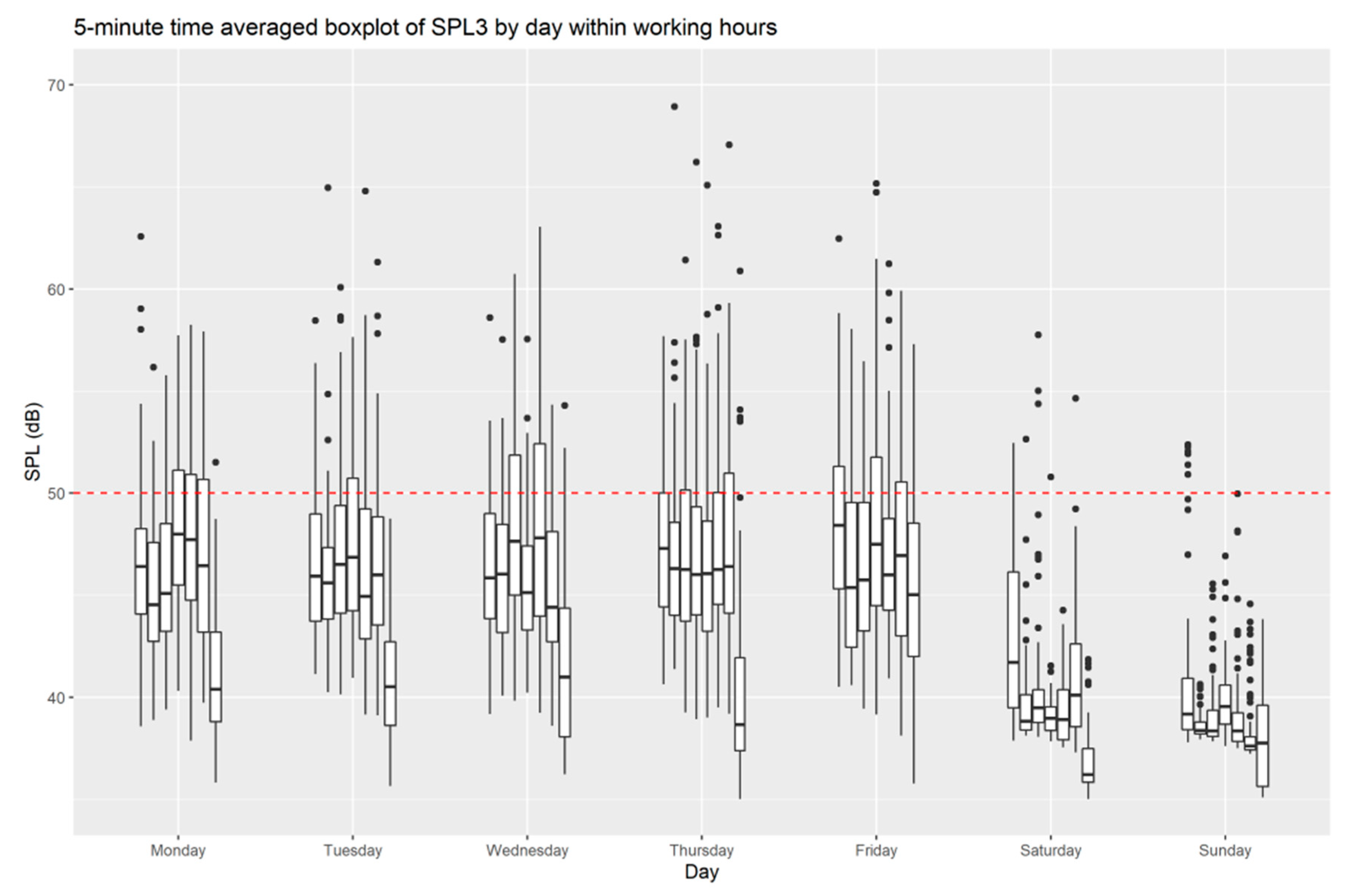

Three sound pressure level (SPL) meters were used to assess background noise conditions during the working and after work hours. The sound level meters were positioned at heights and locations to represent the sound heard by the participants while at their typical seating positions (about 1.0 m above floor level). The sampling time was 1 s to allow for the detection of short impulse sound sources. The collected sound data were used to compute time-averaged acoustic parameters such as the equivalent continuous sound level (
LAeq) and
LA10, a statistical noise level measure commonly used to evaluate if the sound pressure levels exceed the acceptable threshold (i.e., 50 dB [
38]) for 10% of the study’s duration.
2.4. Building Services and Controls
Individual, cellular offices in B1 have operable windows, thermostats and passive infrared sensors that control the mechanical ventilation and cooling through a roof mounted air-handling unit. The heating is provided with a wet system through radiators with thermostatic valve (TRV) control. Open plan offices have no direct access to windows. Ventilation and cooling are provided through a roof-mounted, centralised air-handling unit.
B2 has operable windows with external shades whereas mechanical ventilation and cooling are provided by centralised air handling units through floor grilles across the span of the floor. Trench heating is provided with radiators around the perimeter of the floor, next to the windows, through grilles at the floor. There are thermostats in each individual office and at different zones of the large open plan office space.
B3 has operable windows too. Mechanical ventilation, heating and cooling are provided by centralised air handling units and distributed by wall and roof mounted grilles. There are thermostats in the individual offices and in different zones at the open plan office space.
In most cases the thermostats at all studied buildings are connected with the building management systems (BMS) and the temperature of each zone is pre-set and controlled by the building managers and the estates and facilities personnel. Individual access and control of the temperature is restricted.
2.5. Participants
The number of participants in the sample at each stage and the response rates are shown in
Table 3. The survey duration refers to the number of weeks that comfort survey questionnaires were sent to each participant. In general, the response rate was acceptable for web-based surveys [
39] and comparable with previous relevant studies when sample size is considered [
40].
The sample at all stages comprised administrative staff, academic staff and postgraduate researchers that work regularly and have a permanent workspace in the three case study buildings. All participants had consented to participate in the questionnaire surveys. All responses and data were pseudonymized, and any data were collected and managed in accordance with the approved ethics.
4. Discussion

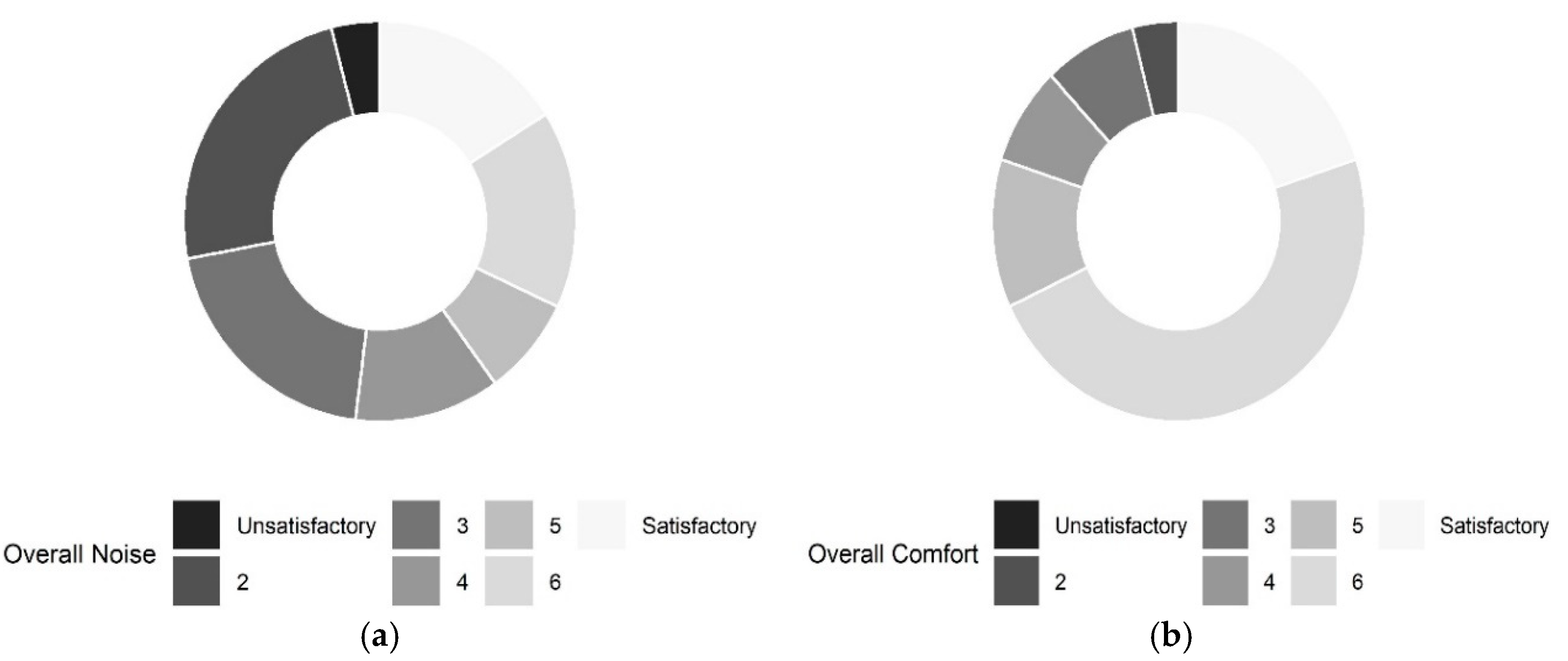

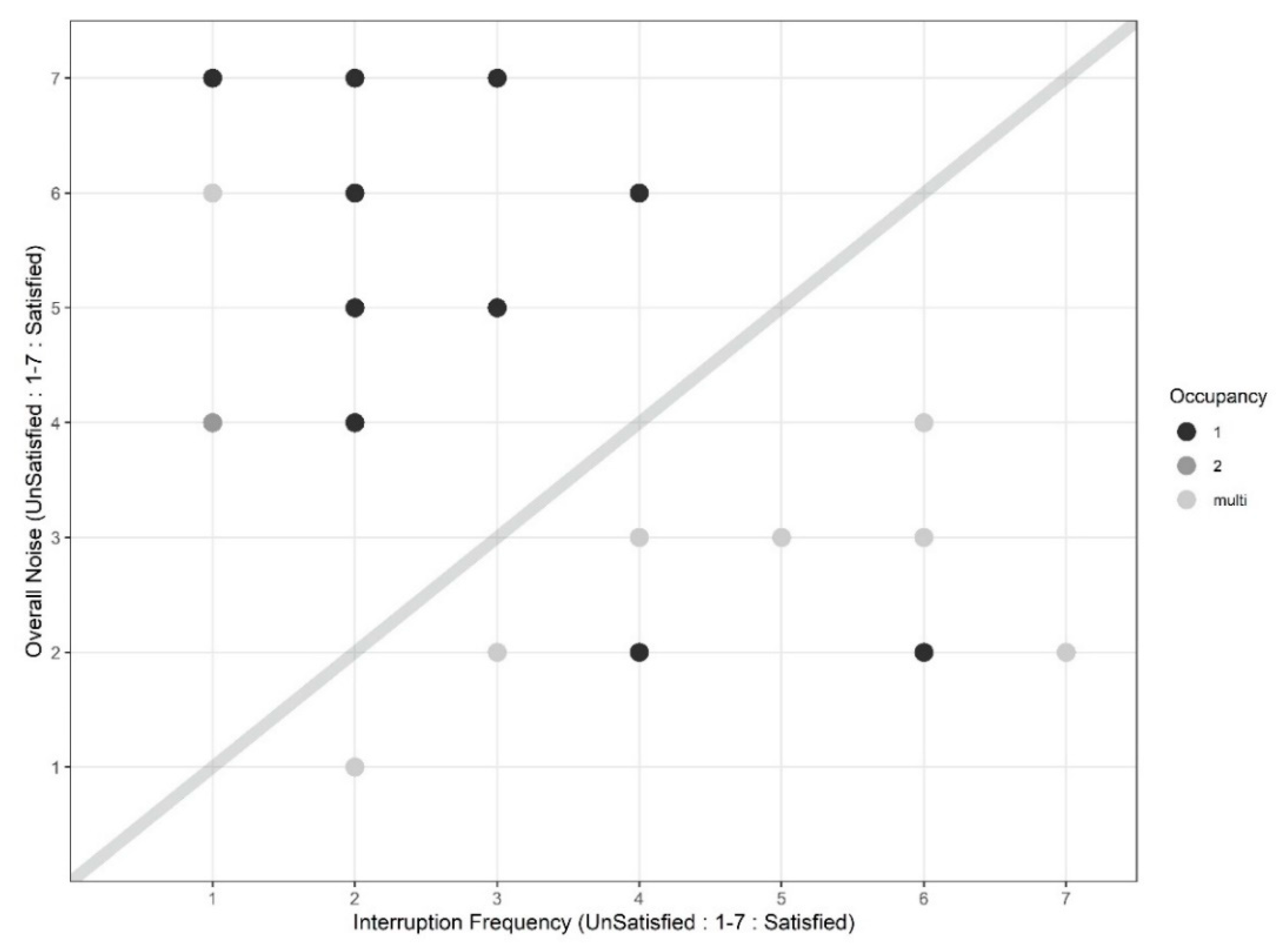

The POE results identified potential issues with building acoustics and noise in the case study building B1. Individual, cellular office occupants were mostly dissatisfied with the frequency of interruptions, whereas the occupants of the open plan office were mostly dissatisfied with background noise. Open plan offices are often preferred as a solution because they maximize density, but their design should include provisions for noise control [
41,
42]. The marked contrast between the cause of dissatisfaction in single/twin and multi occupancy offices in an academic context could also be a result of the role and responsibilities of individuals and the hierarchy in ranking and space. Senior academics are more likely to have individual offices and frequent interruptions from visitors. Open plan office space is typically occupied by research students, researchers and administration staff. In general, the POE showed that noise was the only category that occupants were not satisfied with the building and the indoor environmental quality (IEQ). In relation to this proposition of indoor noise nuisance, it was found that the overall noise perception was negatively associated with the frequency of interruptions. Most importantly it was shown that noise did not have a significant effect on productivity. This result contradicts previous studies that concluded background noise has adverse effects on productivity [
49,
50,
51,

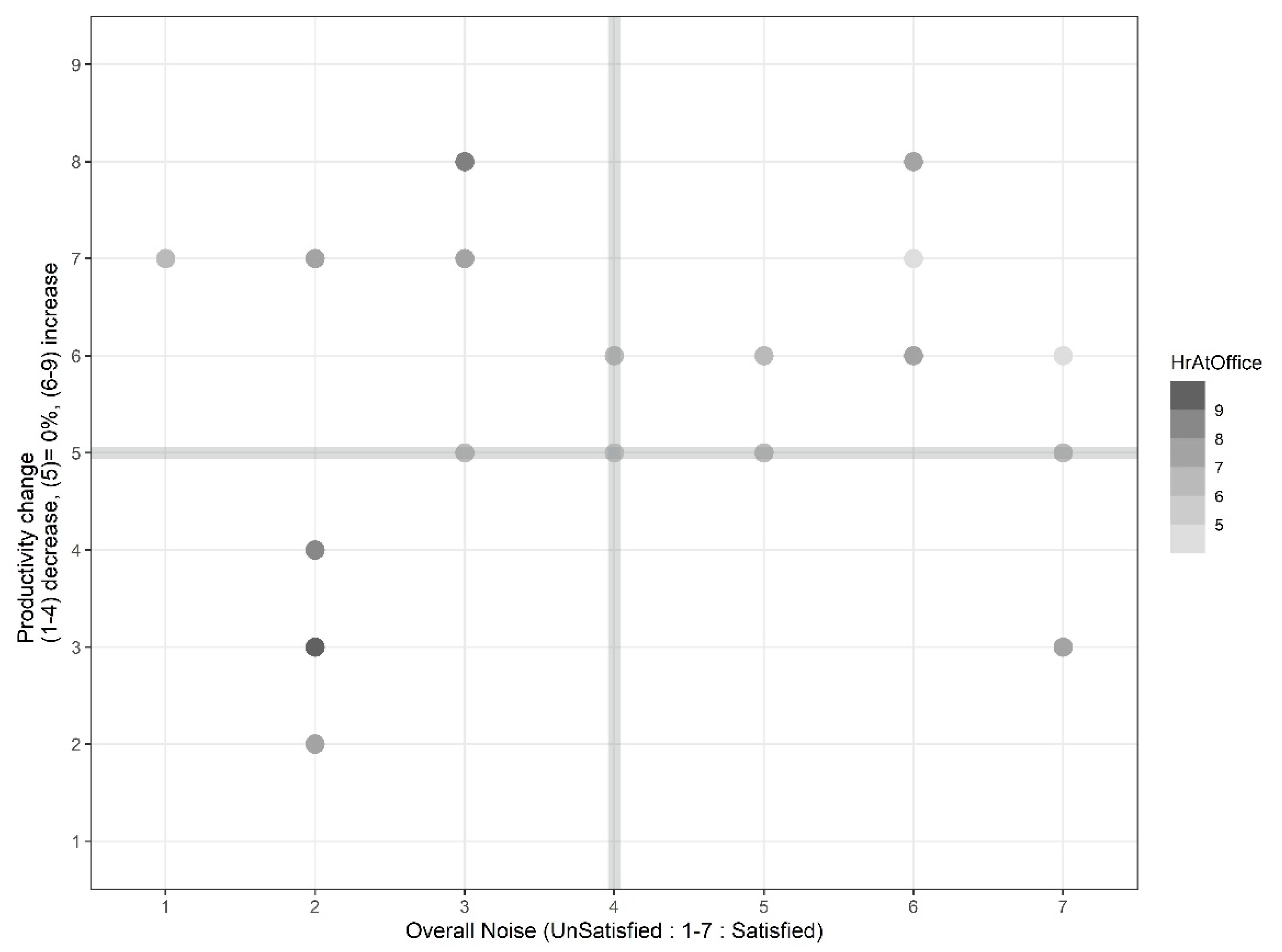

52]. Relevant research has shown that the factors associated with productivity and the magnitude of their effect are related to the office types, and they include, as expected, IEQ parameters and demographics but also building design features and organizational arrangements (e.g., working hours, position and workplace arrangements) [
27,
53].

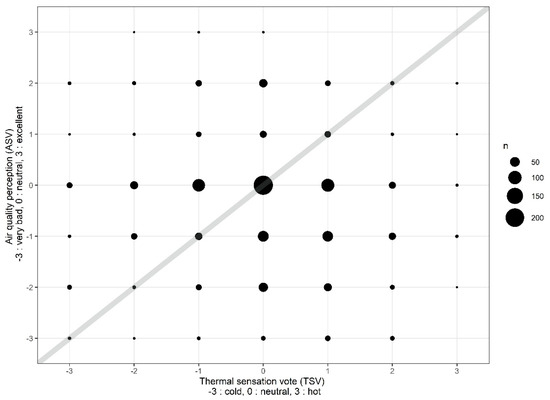

Adding to the current literature on IEQ and its association with health and comfort, it was shown that bad air quality is generally associated with a “warm” thermal sensation response. This could be describing the feeling of “stuffiness”, a condition often attributed to low air movement, high RH and a high concentration of carbon dioxide [
44,

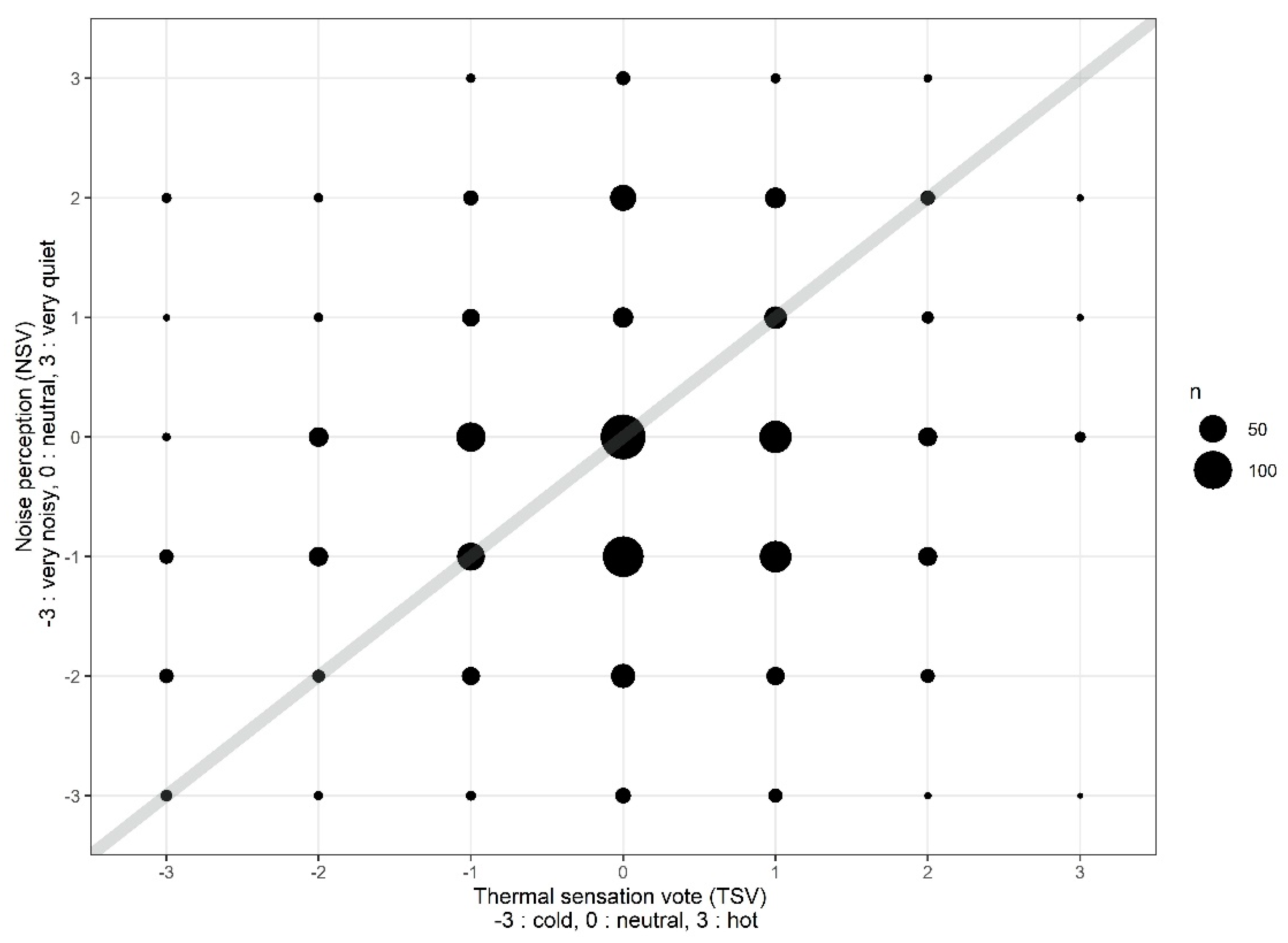

54]. Looking into the association of related IEQ components and their interactions, this study pointed out that air quality (
ASV) and noise perception (
NSV) are both correlated with thermal perception (
TSV), but there is no evidence for the effect of their interaction on

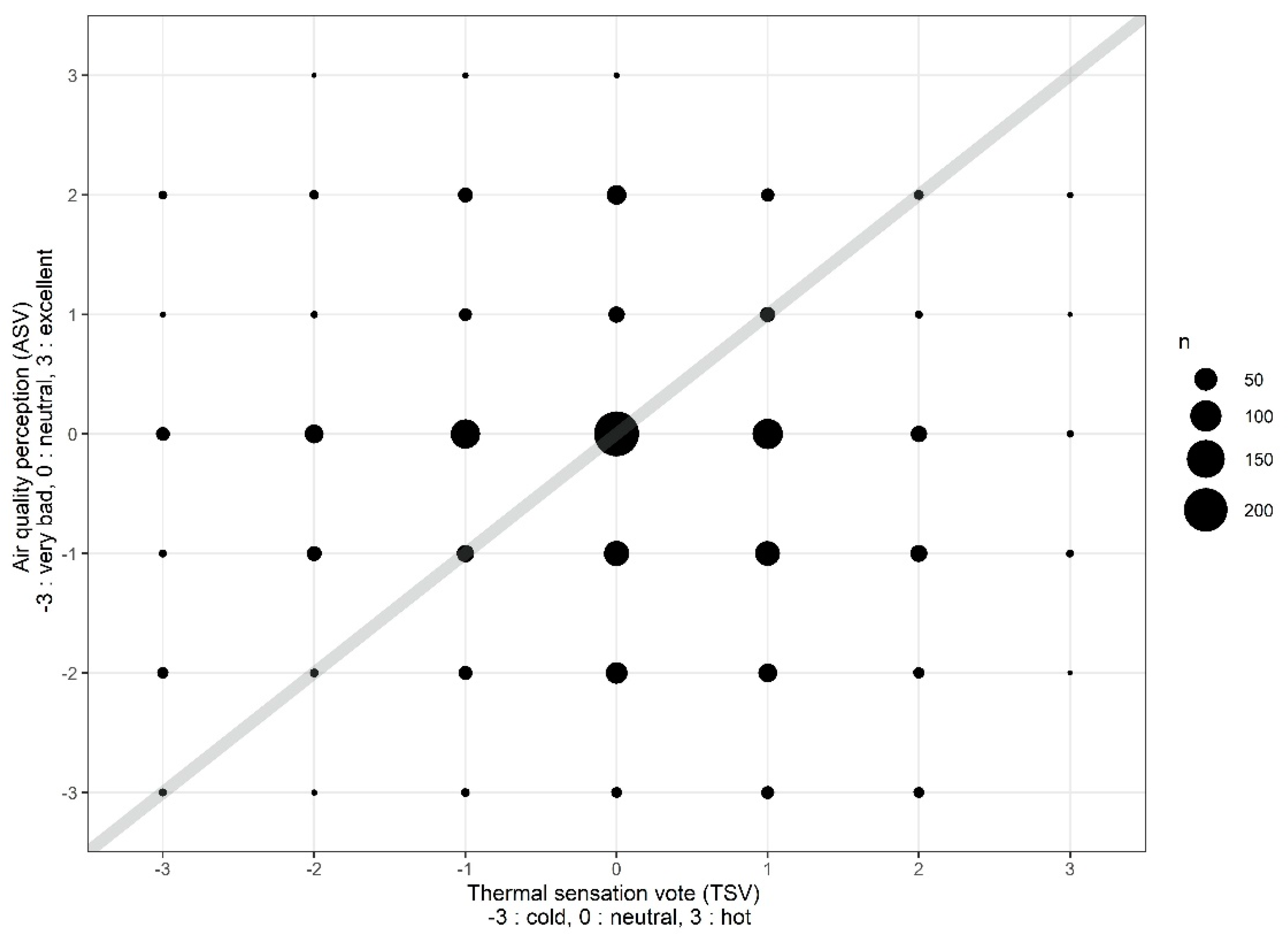

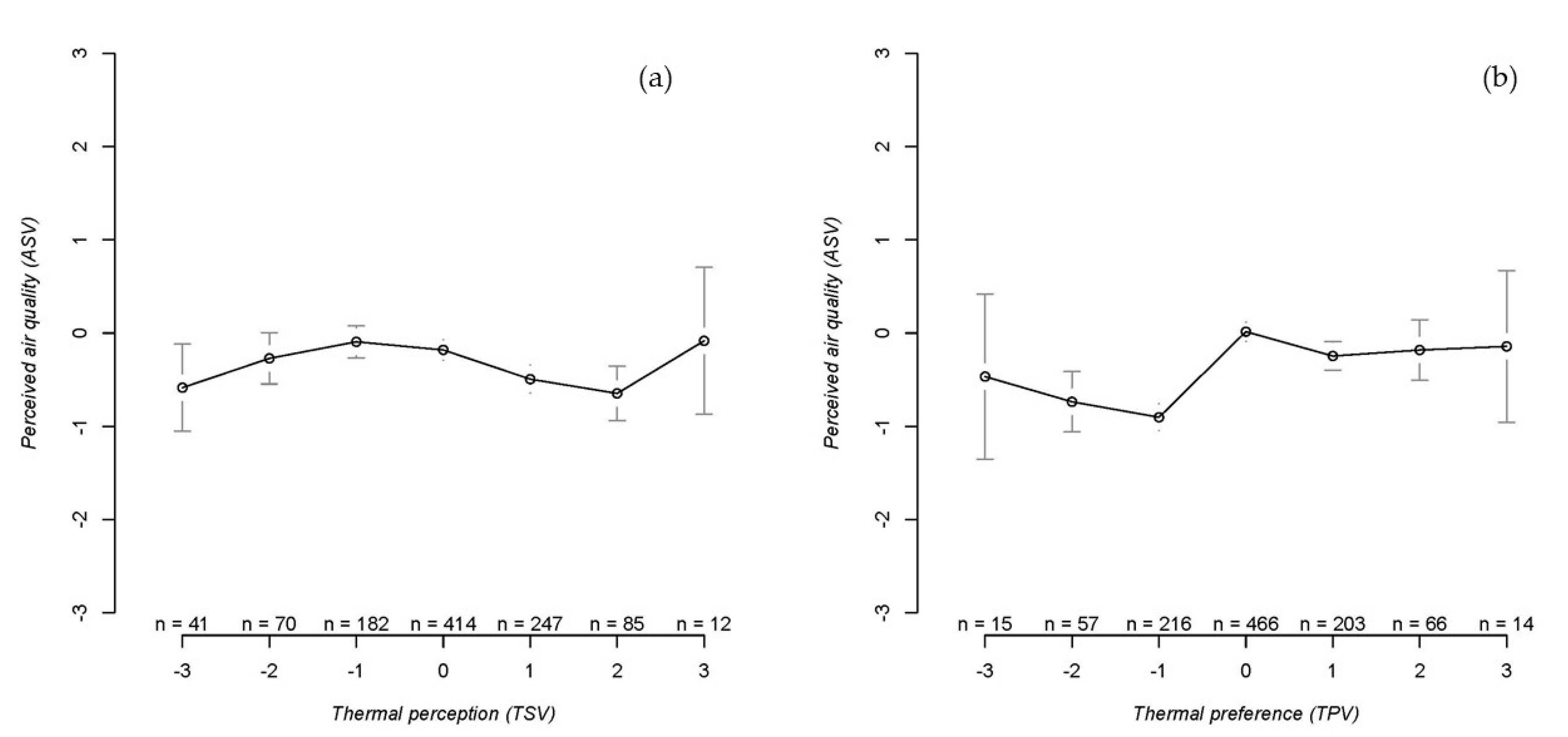

TSV. Air quality perception was correlated with both
TSV and

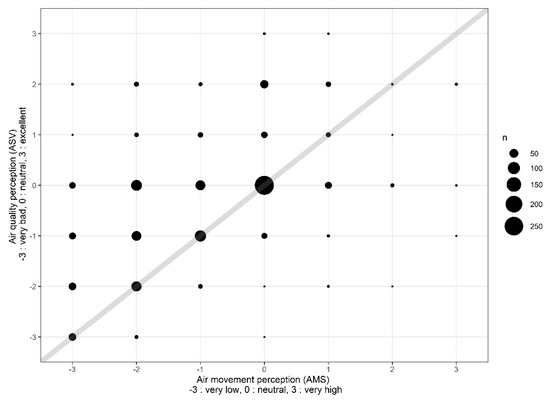

NSV, showing once again the complexity of occupants’ perception and comfort. With regard to the relationship between air quality and thermal comfort, participants who were feeling uncomfortable (in particular if feeling warm and preferring to be cooler) perceived the air-quality worse than participants who felt comfortable. This finding is consistent with results from previous studies [
55].
Building on the findings from the first two stages, the third stage of the analysis in this study looked at noise perception and its relationship to background noise exposure duration (based on sound pressure levels in the hours before the survey was taken). Interestingly, the noise perception in the hours before the survey was associated with both the noise perception at the time of the survey (NSV) and overall acoustic comfort (NSC). Then a combined effect analysis of air quality and noise perception on the thermal perception was undertaken through a different method in order to validate the findings from stage 2. The results confirmed the weak negative correlation between TSV and ASV but could not conclude on the relationship of TSV with noise perception. The contradictory results lead to the investigation of the effect of the monitored environmental parameters directly on the thermal and noise perception. The results indicated that operative temperature, Top, was correlated with thermal sensation as expected, but it was also correlated with noise perception and acoustic comfort. In conclusion, thermal perception in this last analysis was found to be a function of the Top, the sound pressure levels (SPL30) and air quality perception (ASV), but there was also a significant effect found of the interaction terms of (1) Top with ASV and (2) SPL30 with ASV. A finding that confirmed the importance of good air quality to achieve comfort in office buildings.
5. Conclusions
This study concluded that thermal sensation is associated with both air quality and noise perception. An effect of the interaction of air quality and noise perception on thermal sensation was not evident. A key finding was the significant correlation of operative temperature (Top) with TSV as expected, but also a correlation of operative temperature with noise perception and overall acoustic comfort. Regarding the crossed effect of IEQ parameters on the thermal sensation, a significant effect was found for the interaction of (1) Top with air quality perception and (2) sound pressure levels (SPL30) with air quality perception. Most importantly, the findings highlighted the importance of air quality perception in achieving comfort and high satisfaction within the space where people work. It is expected that air quality in office buildings will play an important role in the future design of buildings and building services systems. The conclusions of this study aim to contribute to the research on cross-modal comfort perception and its application to the development of models and systems for adaptive buildings.
5.1. Internal and External Validity
The research design could be replicated in studies with non-university office buildings to examine the consistency of the findings. The differences between the POE and “right-here-right-now” surveys might not allow a direct comparison of results from the surveys in this study. In addition, the variation in the sample size and survey duration might introduce a “seasonal effect” on the questionnaires’ results due to the number of valid questionnaires used in the analysis and their distribution across the seasons. The impact of different data collection methods on the final sample size and on the quality of responses should be also examined.
The results may apply only to buildings that are similar to the buildings in this study in terms of use and characteristics (i.e., mixed mode with concurrent or change-over mode of operation). Any findings might not be transferable to other building types that would have different adaptive opportunities. The generalization of the results might be further restricted by the sample size and the participants’ characteristics, especially their environmental awareness and energy-saving attitudes, as they all are highly educated and they work in relevant disciplines in an academic environment. The effects of education, gender, age and possibly of any relevant beliefs and social roles, as result of their profession, should be carefully investigated in future work.
5.2. Future Research
This study has identified the importance of indoor environmental quality, and in particular air quality perception and operative temperature, in the cross-modal perception of comfort in office buildings. It is suggested that longitudinal, POE-comfort mixed surveys are a useful tool to investigate the effect of building design and environmental factors on occupants’ comfort and behaviour. Further research is required to explore the trans-modal perspective of comfort through studying the integration of cross-modal comfort perception with contextual preferences and behaviours for different occupant characteristics. This trans-modal comfort approach could be used to develop adaptive, reactive and dynamic systems for buildings with occupant-specific zonal conditions that proactively respond to external forcing (including different degrees of environmental discomfort), the preferences of present occupants and the use of personalized controls.
It has been suggested that the ways we work and live may have changed permanently due to the SARS COVID pandemic. These changes will inevitably affect the places where we live and work, especially as work and home spaces become similar. Under these propositions, research about comfort and IEQ in office spaces will also become relevant in the context of homeworking. It will likely become more important to monitor and control the IEQ and comfort parameters in buildings that were designed and built with different adaptive opportunities, specifications, systems, occupancy assumptions and use in mind.
Future work will focus on the study of air quality and IEQ-related parameters in both office and home-office spaces. Future research needs to further investigate the variability in the impact of different office design characteristics (between work and home) on cross-modal comfort. The findings could be also used in the research about an office design’s effect on the occupants’ physical and mental wellbeing and the necessary retrofits and adjustments to office space both at work and home, as we adapt in new ways to future living.
