# Storage Placement and Sizing in a Distribution Grid with High PV Generation

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

## 3. Cost Analysis

#### 3.1. Energy Storage Costs

#### 3.2. Grid Reinforcement Costs

## 4. Input Data and Scenario

#### 4.1. PV Generation

#### 4.2. Simulation Scenario

#### 4.3. Battery Sizing and Placement

## 5. Approach

#### 5.1. Grid Reinforcement

#### 5.2. Grid Reinforcement

#### 5.3. Battery Placement

#### 5.4. Comparison

## 6. Conclusions and Outlook

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## References

- Dunn, B.; Kamath, H.; Tarascon, J.M. Electrical Energy Storage for the Grid: A Battery of Choices. Science
**2011**, 334, 928–935. [Google Scholar] [CrossRef] [PubMed][Green Version] - Divya, K.; Østergaard, J. Battery Energy Storage Technology for Power Systems—An Overview. Electr. Power Syst. Res.
**2009**, 79, 511–520. [Google Scholar] [CrossRef] - Beaudin, M.; Zareipour, H.; Schellenberglabe, A.; Rosehart, W. Energy Storage for Mitigating the Variability of Renewable Electricity Sources: An Updated Review. Energy Sustain. Dev.
**2010**, 14, 302–314. [Google Scholar] [CrossRef] - Ferreira, H.L.; Garde, R.; Fulli, G.; Kling, W.; Lopes, J.P. Characterisation of Electrical Energy Storage Technologies. Energy
**2013**, 53, 288–298. [Google Scholar] [CrossRef][Green Version] - Mateo, C.; Sánchez, Á.; Frías, P.; Rodriguez-Calvo, A.; Reneses, J. Cost–Benefit Analysis of Battery Storage in Medium-Voltage Distribution Networks. IET Gener. Transm. Distrib.
**2016**, 10, 815–821. [Google Scholar] [CrossRef] - Oudalov, A.; Chartouni, D.; Ohler, C. Optimizing a Battery Energy Storage System for Primary Frequency Control. IEEE Trans. Power Syst.
**2007**, 22, 1259–1266. [Google Scholar] [CrossRef] - Aditya, S.; Das, D. Battery Energy Storage for Load Frequency Control of an Interconnected Power System. Electr. Power Syst. Res.
**2001**, 58, 179–185. [Google Scholar] [CrossRef] - Lazzeroni, P.; Repetto, M. Optimal Planning of Battery Systems for Power Losses Reduction in Distribution Grids. Electr. Power Syst. Res.
**2019**, 167, 94–112. [Google Scholar] [CrossRef] - Grover-Silva, E.; Girard, R.; Kariniotakis, G. Optimal Sizing and Placement of Distribution Grid Connected Battery Systems through an SOCP Optimal Power Flow Algorithm. Appl. Energy
**2018**, 219, 385–393. [Google Scholar] [CrossRef][Green Version] - Bose, S.; Gayme, D.F.; Topcu, U.; Chandy, K.M. Optimal Placement of Energy Storage in the Grid. In Proceedings of the 2012 IEEE 51st IEEE Conference on Decision and Control (CDC), Maui, HI, USA, 10–13 December 2012; pp. 5605–5612. [Google Scholar] [CrossRef]
- Prakash, P.; Khatod, D.K. Optimal Sizing and Siting Techniques for Distributed Generation in Distribution Systems: A Review. Renew. Sustain. Energy Rev.
**2016**, 57, 111–130. [Google Scholar] [CrossRef] - Motalleb, M.; Reihani, E.; Ghorbani, R. Optimal Placement and Sizing of the Storage Supporting Transmission and Distribution Networks. Renew. Energy
**2016**, 94, 651–659. [Google Scholar] [CrossRef][Green Version] - Fossati, J.P.; Galarza, A.; Martín-Villate, A.; Fontán, L. A Method for Optimal Sizing Energy Storage Systems for Microgrids. Renew. Energy
**2015**, 77, 539–549. [Google Scholar] [CrossRef] - Chen, C.; Duan, S.; Cai, T.; Liu, B.; Hu, G. Optimal Allocation and Economic Analysis of Energy Storage System in Microgrids. IEEE Trans. Power Electron.
**2011**, 26, 2762–2773. [Google Scholar] [CrossRef] - Arabali, A.; Ghofrani, M.; Etezadi-Amoli, M. Cost Analysis of a Power System Using Probabilistic Optimal Power Flow with Energy Storage Integration and Wind Generation. Int. J. Electr. Power Energy Syst.
**2013**, 53, 832–841. [Google Scholar] [CrossRef] - Ahmadian, A.; Sedghi, M.; Aliakbar-Golkar, M.; Elkamel, A.; Fowler, M. Optimal Probabilistic Based Storage Planning in Tap-Changer Equipped Distribution Network Including PEVs, Capacitor Banks and WDGs: A Case Study for Iran. Energy
**2016**, 112, 984–997. [Google Scholar] [CrossRef] - Kerdphol, T.; Qudaih, Y.; Mitani, Y. Battery Energy Storage System Size Optimization in Microgrid Using Particle Swarm Optimization. In Proceedings of the IEEE PES Innovative Smart Grid Technologies Europe, Istanbul, Turkey, 12–15 October 2014; pp. 1–6. [Google Scholar] [CrossRef]
- Harsha, P.; Dahleh, M. Optimal Management and Sizing of Energy Storage Under Dynamic Pricing for the Efficient Integration of Renewable Energy. IEEE Trans. Power Syst.
**2015**, 30, 1164–1181. [Google Scholar] [CrossRef] - Müller, M.; Viernstein, L.; Truong, C.N.; Eiting, A.; Hesse, H.C.; Witzmann, R.; Jossen, A. Evaluation of Grid-Level Adaptability for Stationary Battery Energy Storage System Applications in Europe. J. Energy Storage
**2017**, 9, 1–11. [Google Scholar] [CrossRef] - Bansal, V. Building A Bankable Solar + Energy Storage Project. Available online: https://16iwyl195vvfgoqu3136p2ly-wpengine.netdna-ssl.com/wp-content/uploads/2018/10/PV-Magazine-Webinar_11-Oct-2018_Sterling-and-Wilson.pdf (accessed on 3 May 2019).
- Rupp, L.; Brunner, M.; Tenbohlen, S. Einfluss Dezentraler Wärmepumpen auf die Netzausbaukosten des Niederspannungsnetzes; In Proceedings of the Power and Energy Student Summit (PESS) 2015, Dortmund, Germany, 13–14 Januar 2015. [CrossRef]
- Hofman, O. Vergleich Erdkabel–Freileitung Im 110-kV-Hochspannungsbereich. Technical Report. 2010. Available online: https://www.yumpu.com/de/document/view/45325316/vergleich-erdkabel-freileitung-im-110-kv-hochspannungsbereich (accessed on 29 April 2019).
- Heuck, K.; Dettmann, K.D.; Schulz, D. Elektrische Energieversorgung Erzeugung, Übertragung und Verteilung elektrischer Energie für Studium und Praxis; Vieweg+Teubner: Wiesbaden, Germany, 2010. [Google Scholar]
- Holmgren, W.F.; Hansen, C.W.; Mikofski, M.A. Pvlib Python: A Python Package for Modeling Solar Energy Systems. J. Open Source Softw.
**2018**, 3, 884. [Google Scholar] [CrossRef][Green Version] - Matthiss, B.; Kraft, M.; Binder, J. Fast Probabilistic Load Flow for Non-Radial Distribution Grids. In Proceedings of the 2018 IEEE International Conference on Environment and Electrical Engineering and 2018 IEEE Industrial and Commercial Power Systems Europe (EEEIC / I CPS Europe), Palermo, Italy, 12–15 June 2018; pp. 1–6. [Google Scholar] [CrossRef]
- Matthiss, B.; Momenifarahani, A.; Ohnmeiss, K.; Felder, M. Influence of Demand and Generation Uncertainty on the Operational Efficiency of Smart Grids. arXiv
**2018**, arXiv:cs/1812.01886. [Google Scholar]

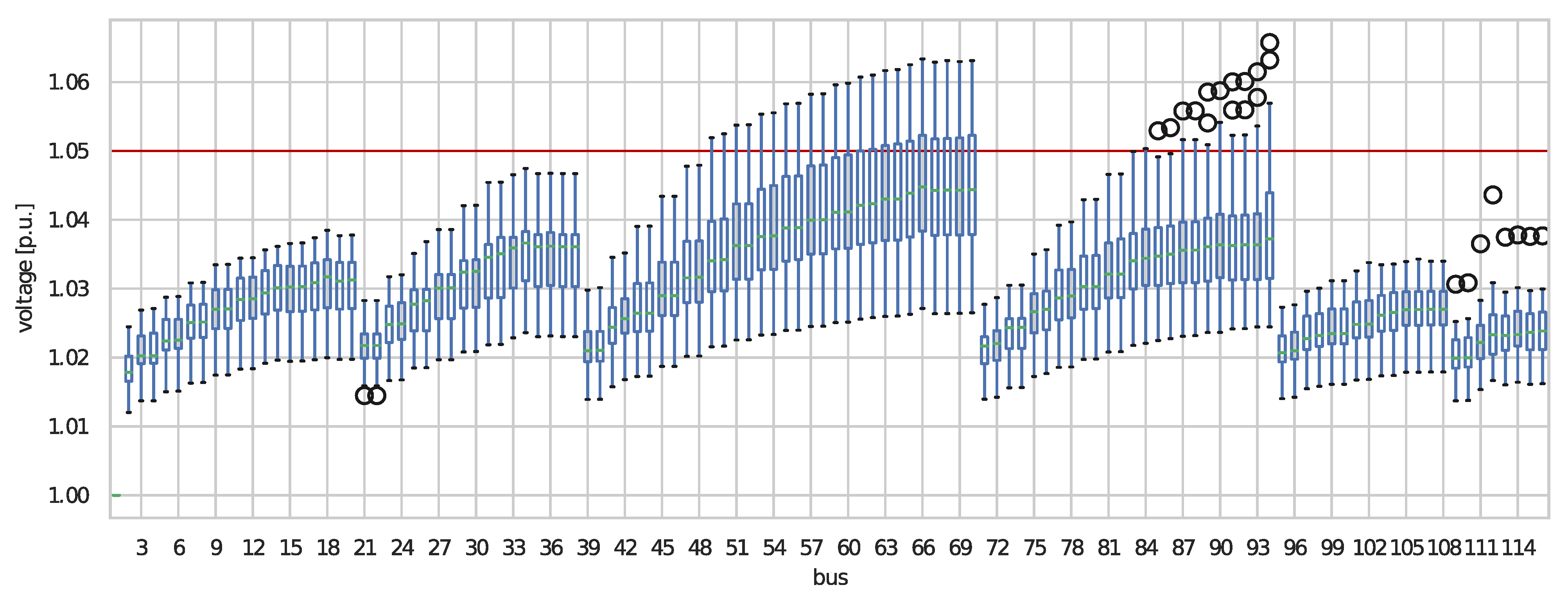

**Figure 1.**Voltage distribution for the selected worst-case scenario without battery or energy curtailment. The voltage limit is 1.05 p.u., which is clearly exceeded.

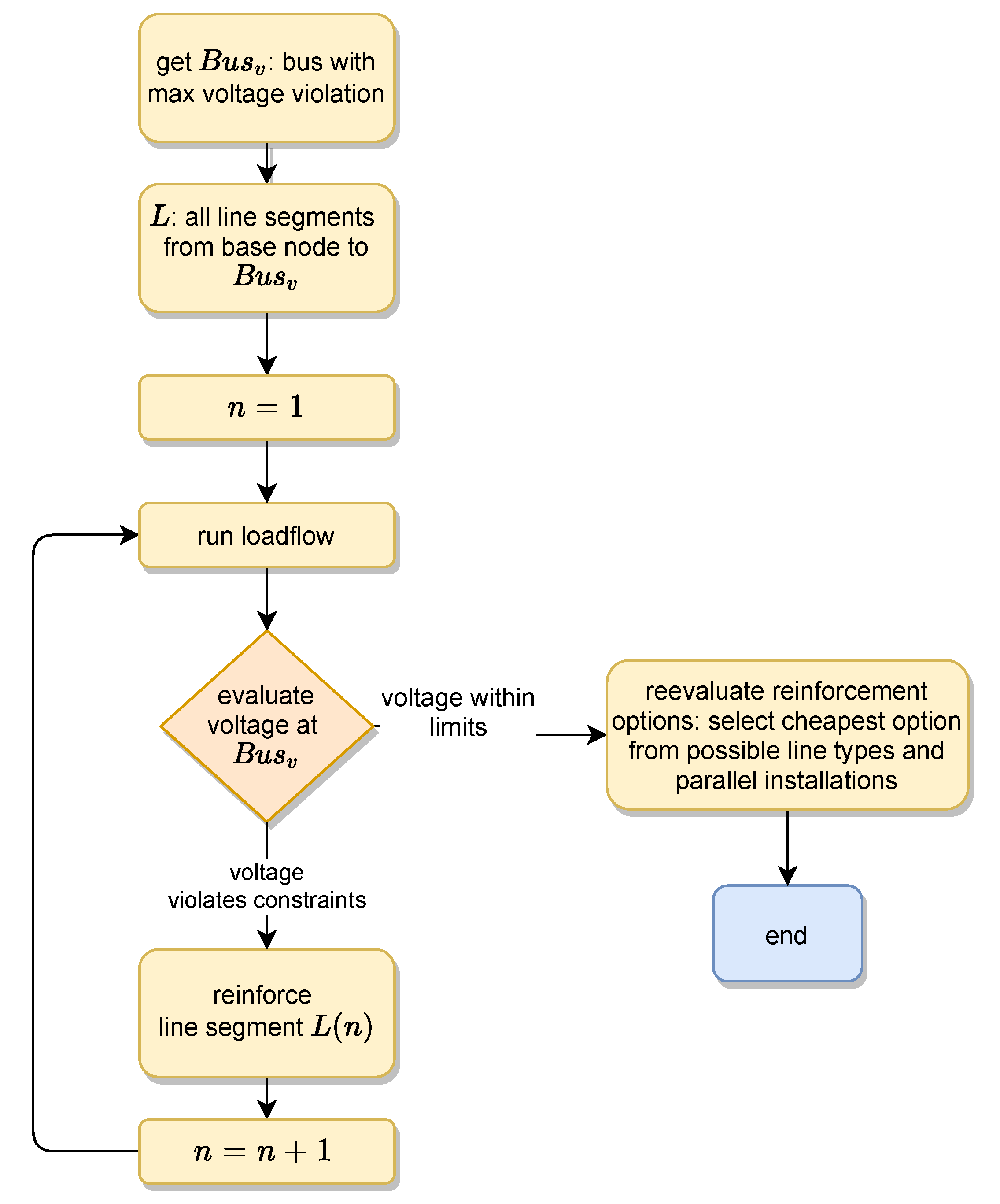

**Figure 2.**Flowchart of the heuristic grid reinforcement algorithm. The method shown above was repeated for all branches.

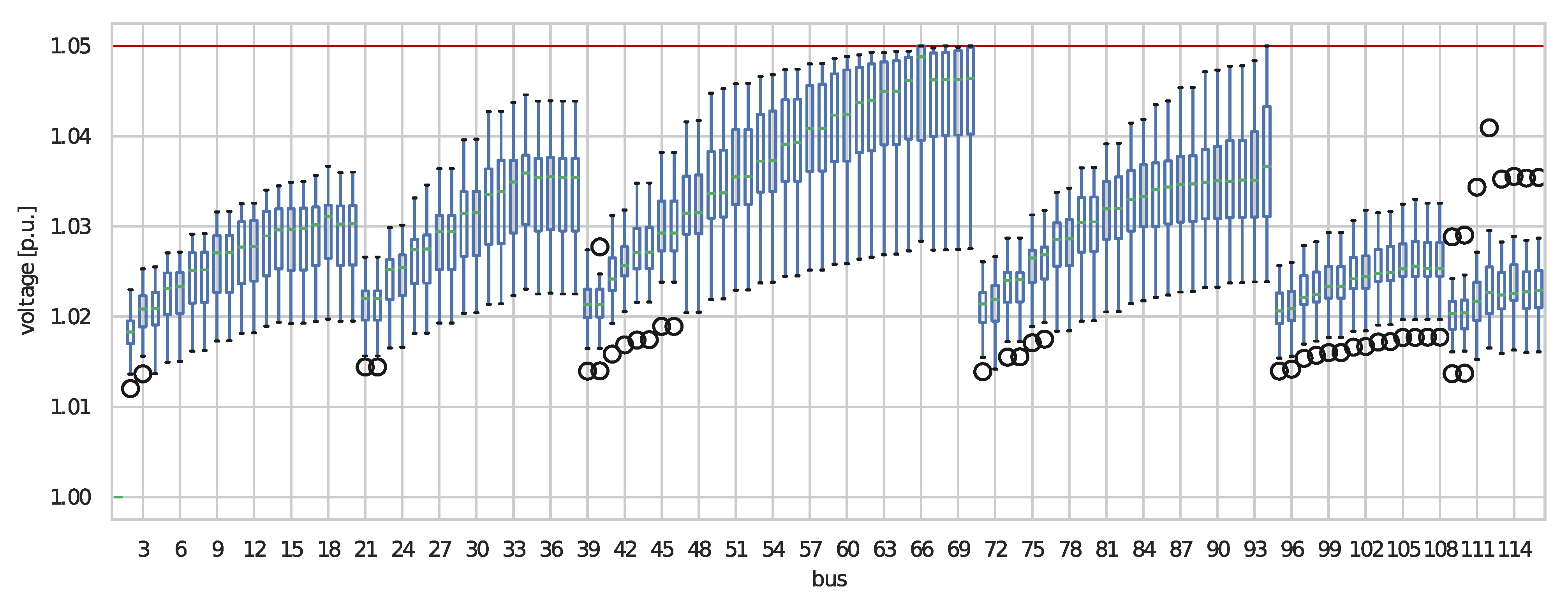

**Figure 3.**Voltage distribution for a day with high solar photovoltaic (PV) generation and one installed battery. In this case, the voltage limit is obeyed at all nodes. The algorithm selected a battery placement at buses 65 and 93 to avoid voltage limit violations. Whiskers were set to 1.5 × IQR, the circles represent data points exceeding that range.

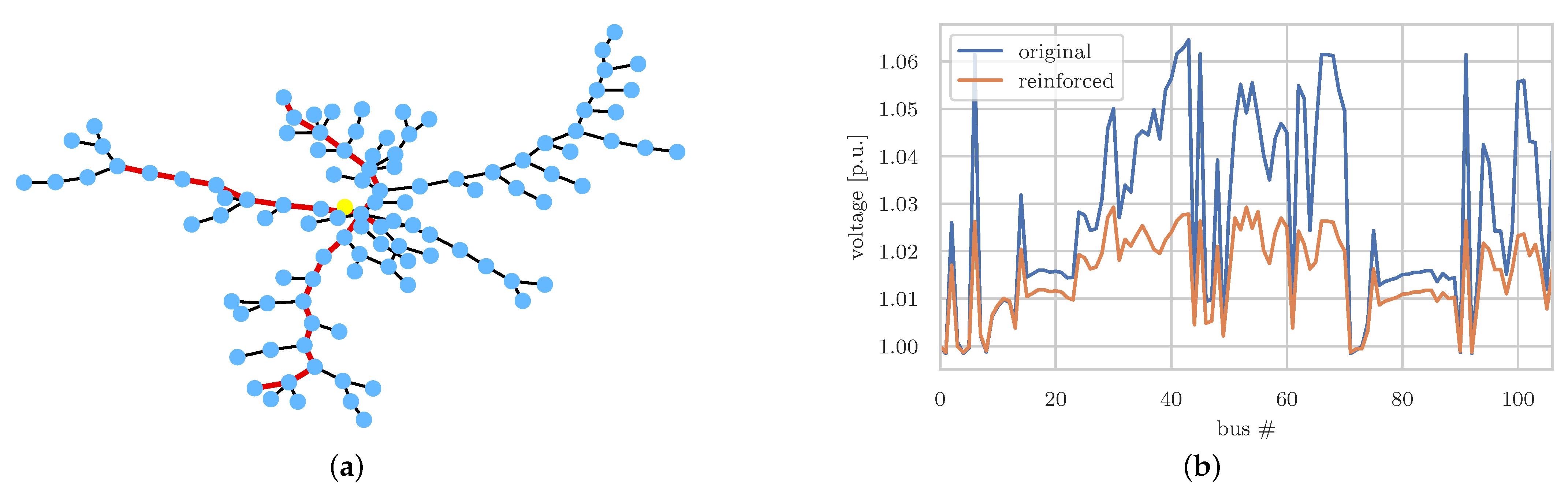

**Figure 4.**Exemplary results from the automated grid reinforcement algorithm. On the left, a graph with the reinforced line segments is shown. The yellow node indicates the transformer and the red edges indicate reinforced line segments. A comparison of the resulting bus voltages is shown on the right. In this case, a voltage limit of 1.03 p.u. was used. (

**a**) Graph diagram of the reinforced grid; (

**b**) Voltage comparison of the reinforced grid.

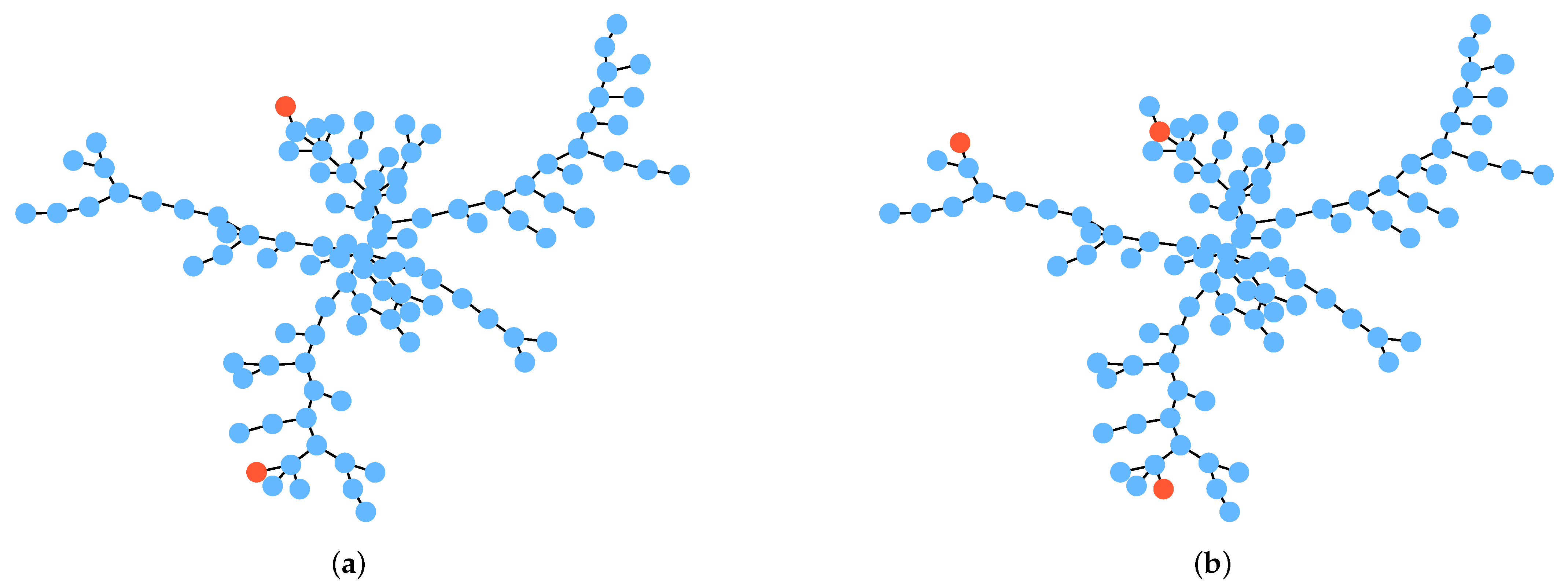

**Figure 5.**Optimal battery placement for voltage stability within the test grid. (

**a**) 50% PV penetration, voltage limit 3%. (

**b**) 80% PV penetration, voltage limit 3%.

Type | Perc. | Costs/Value |
---|---|---|

capacity | 42% | 130 EUR/kwh |

periphery | 28% | 87 EUR/kwh |

power electronics | 30% | 93 EUR/kw |

installation | - | 20,000 EUR/batt |

batt. lifetime | - | 10 yr |

Line Type | Cost Type | Costs |
---|---|---|

0.4 kV, $4\times 50$ mm | installation | 60,000 EUR/km |

acquisition | 3500 EUR/km | |

0.4 kV, $4\times 120$ mm | installation | 60,000 EUR/km |

acquisition | 9900 EUR/km | |

0.4 kV, $4\times 150$ mm | installation | 60,000 EUR/km |

acquisition | 12,000 EUR/km | |

parallel line installation | installation | additional 15% of installation costs |

Trafo, 630 kVA | total | 21,000 EUR |

**Table 3.**Example result of the grid reinforcement algorithm: overview of the installed assets and costs.

From Bus | To Bus | n Parallel | Type | Cost [k€] |
---|---|---|---|---|

1 | 105 | 2 | NAYY $4\times 120$ SE | 109.5 |

1 | 73 | 2 | NAYY $4\times 120$ SE | 109.5 |

1 | 106 | 3 | NAYY $4\times 120$ SE | 131.1 |

2 | 28 | 1 | NAYY $4\times 120$ SE | 87.9 |

2 | 104 | 2 | NAYY $4\times 120$ SE | 109.5 |

3 | 61 | 1 | NAYY $4\times 120$ SE | 87.9 |

3 | 73 | 2 | NAYY $4\times 120$ SE | 109.5 |

6 | 43 | 1 | NAYY $4\times 50$ SE | 81.5 |

6 | 68 | 2 | NAYY $4\times 120$ SE | 109.5 |

28 | 29 | 1 | NAYY $4\times 50$ SE | 81.5 |

29 | 30 | 1 | NAYY $4\times 50$ SE | 81.5 |

50 | 57 | 1 | NAYY $4\times 120$ SE | 87.9 |

50 | 61 | 1 | NAYY $4\times 120$ SE | 87.9 |

56 | 57 | 1 | NAYY $4\times 120$ SE | 87.9 |

63 | 70 | 2 | NAYY $4\times 120$ SE | 109.5 |

63 | 69 | 2 | NAYY $4\times 120$ SE | 109.5 |

65 | 70 | 2 | NAYY $4\times 120$ SE | 109.5 |

65 | 106 | 1 | NAYY $4\times 120$ SE | 87.9 |

68 | 100 | 2 | NAYY $4\times 120$ SE | 109.5 |

69 | 100 | 2 | NAYY $4\times 120$ SE | 109.5 |

104 | 105 | 2 | NAYY $4\times 120$ SE | 109.5 |

PV Pen. | $\Delta {\mathit{V}}_{\mathbf{max}}$ | Batt. 1 | Batt. 2 | Batt. 3 | ||||||
---|---|---|---|---|---|---|---|---|---|---|

[${\mathit{P}}_{\mathbf{PV},\text{}\mathbf{max}}$] | [${\mathit{V}}_{\mathbf{nom}}$] | C [kWh] | P [kW] | Bus # | C [kWh] | P [kW] | Bus # | C [kWh] | P [kW] | Bus # |

50% | 5% | - | - | - | - | - | - | - | - | - |

3% | 61 | 15 | 30 | 99 | 20 | 42 | - | - | - | |

80% | 5% | 75 | 20 | 30 | 149 | 30 | 43 | - | - | - |

3% | 377 | 61 | 29 | 414 | 67 | 45 | 909 | 25 | 59 |

PV Pen. | $\Delta {\mathit{V}}_{\mathbf{max}}$ | Grid Reinf. | 5 Batt. | 10 Batt. | Unconstrained | |
---|---|---|---|---|---|---|

[${\mathit{P}}_{\mathbf{PV},\text{}\mathbf{max}}$] | [${\mathit{V}}_{\mathbf{nom}}$] | [k€] | [k€] | [k€] | [k€] | [n batt.] |

50% | 3% | 710 | 138 | 238 | 79 | 2 |

5% | - | - | - | - | - | |

80% | 3% | 1679 | 307 | 406 | 273 | 3 |

5% | 488 | 154 | 254 | 94 | 2 |

PV Pen. | $\Delta {\mathit{V}}_{\mathbf{max}}$ | Grid Reinf. | 5 Batt. | 10 Batt. | Unconstrained | |
---|---|---|---|---|---|---|

[${\mathit{P}}_{\mathbf{PV},\text{}\mathbf{max}}$] | [${\mathit{V}}_{\mathbf{nom}}$] | [k€] | [k€] | [k€] | [k€] | [n batt.] |

50% | 3% | 18 | 14 | 24 | 8 | 2 |

5% | 0 | 0 | 0 | 0 | 0 | |

80% | 3% | 42 | 31 | 41 | 27 | 3 |

5% | 12 | 15 | 25 | 9 | 2 |
