Short-Circuit Analysis of DER-Based Microgrids in Connected and Islanded Modes of Operation^{ †}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. The Microgrid Concept

## 3. DER Models

- Synchronous machines directly connected to the grid;
- Induction machines directly connected to the grid;
- IBDERs;
- DFIMs.

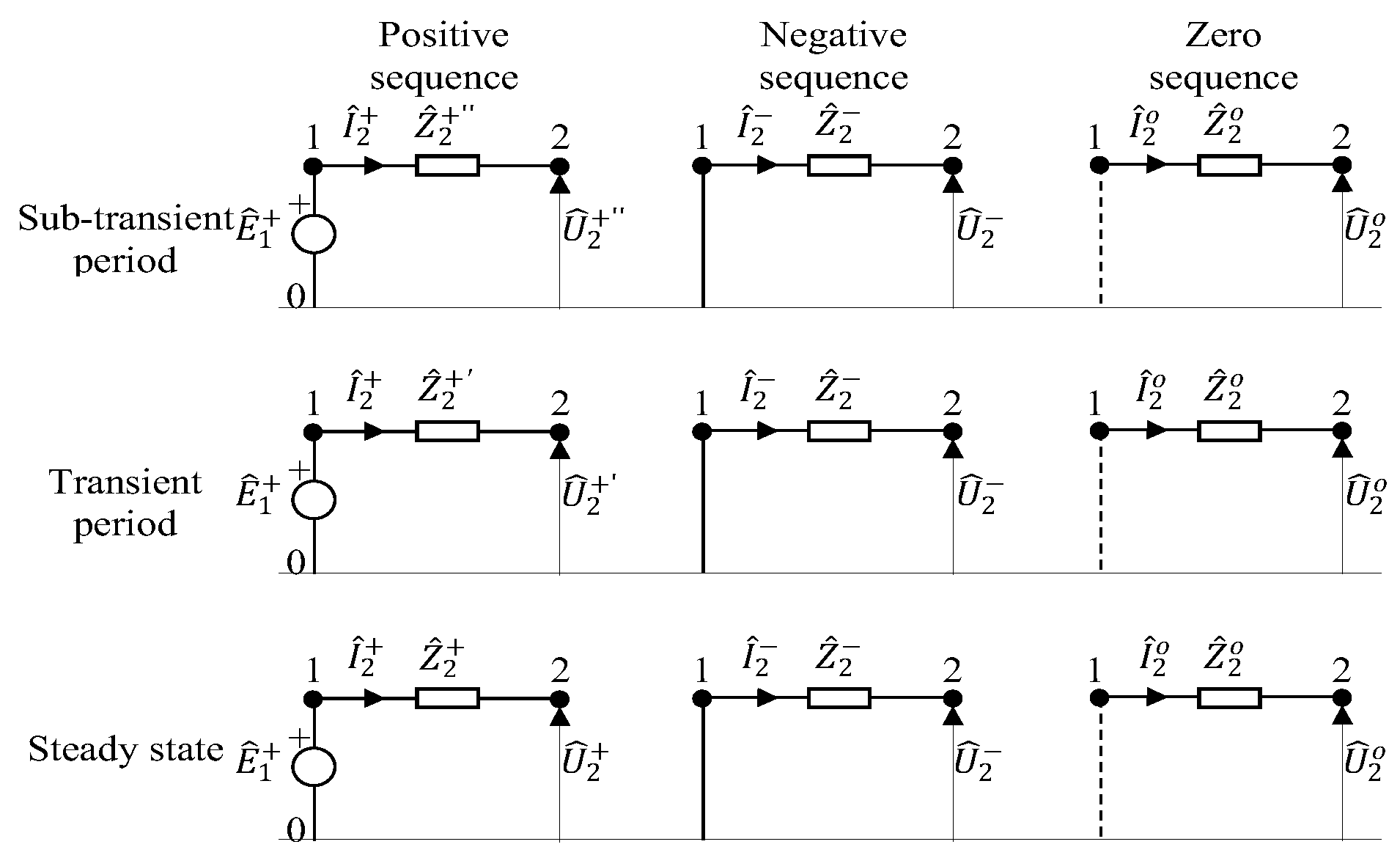

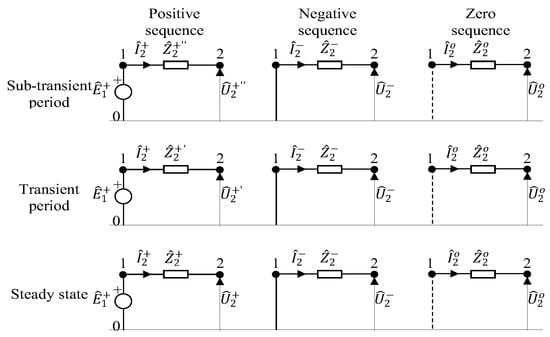

#### 3.1. Synchronous Machines Directly Connected to the Grid

#### 3.2. Induction Machines Directly Connected to the Grid

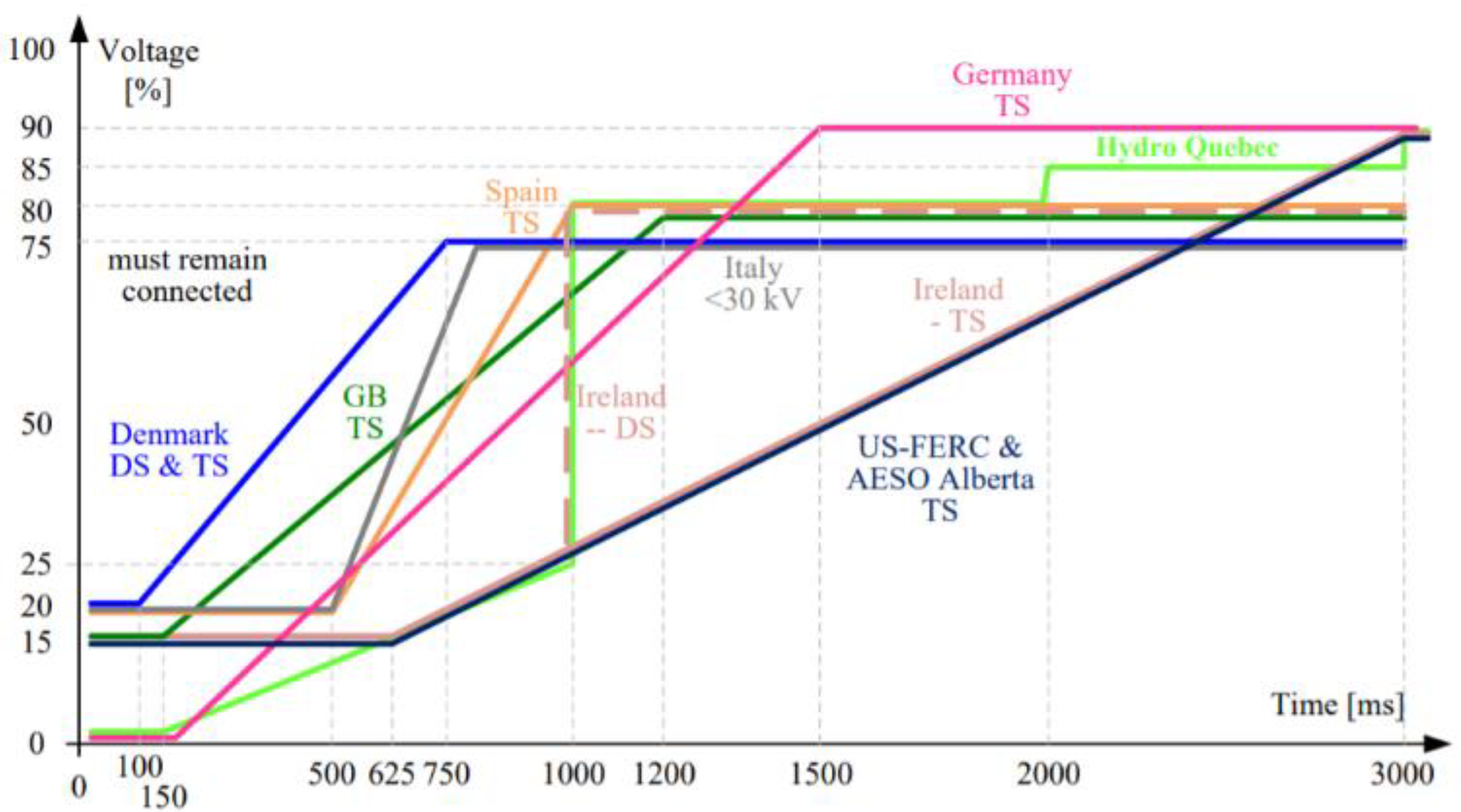

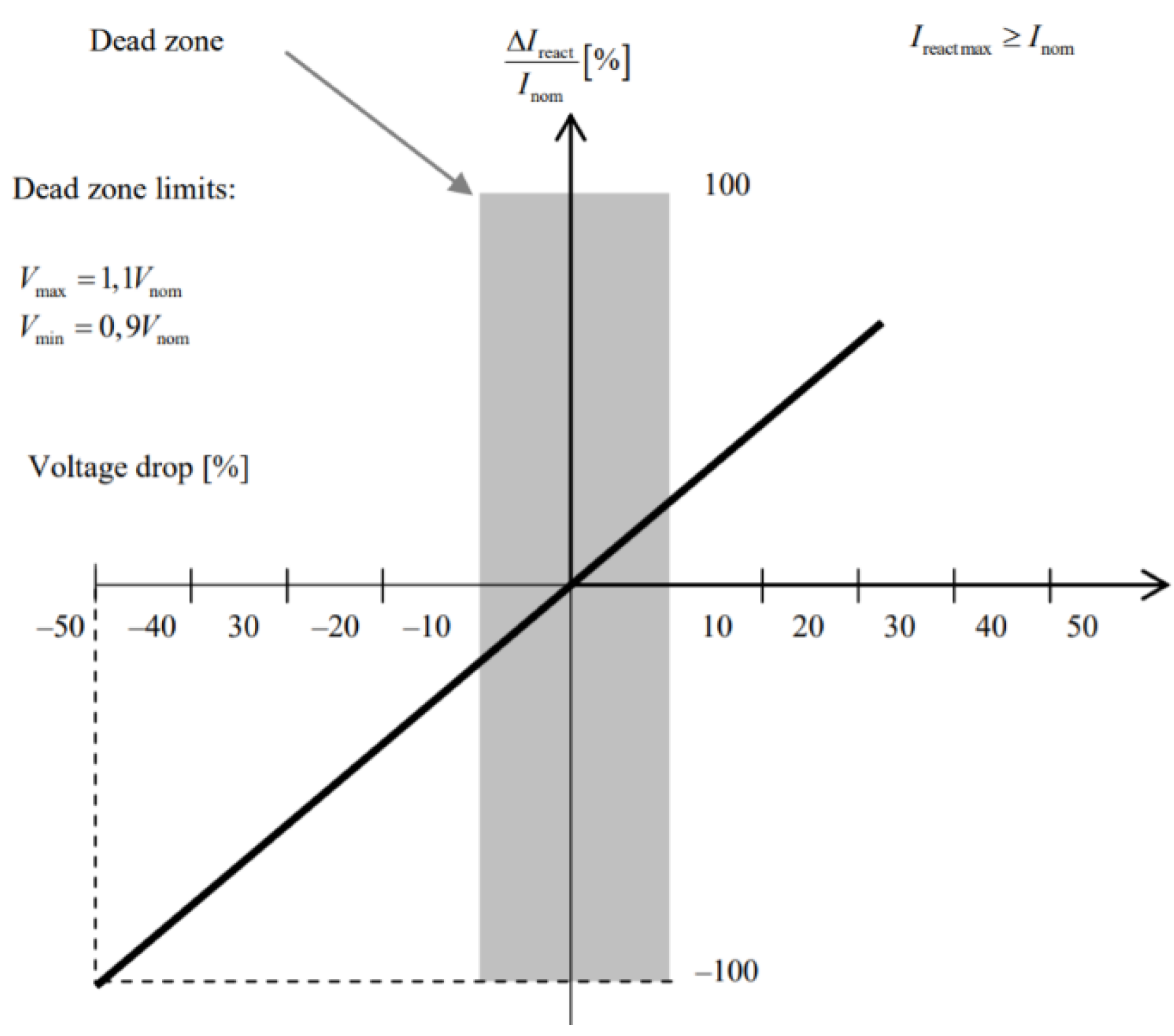

#### 3.3. Inverter-Based DERs

#### 3.4. Doubly-Fed Induction Machines

## 4. Short-Circuit Calculation Procedure

- ${\widehat{Z}}_{k}^{+}$, ${\widehat{Z}}_{k}^{-}$, ${\widehat{Z}}_{k}^{o}$ represent sequence domain Thévenin impedances seen from bus k
- ${\widehat{U}}_{ka}^{}$ is the known pre-fault phase a voltage at bus k.

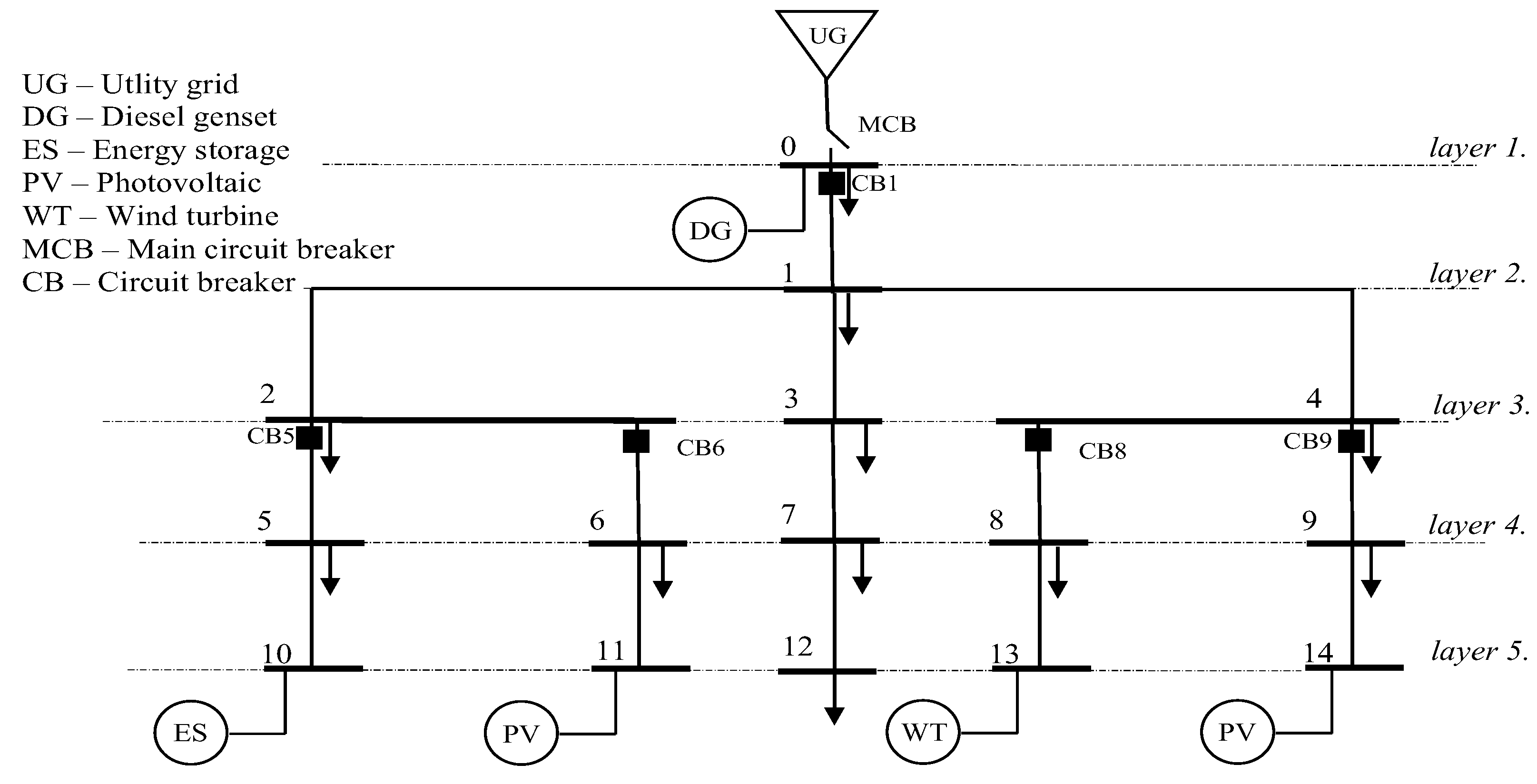

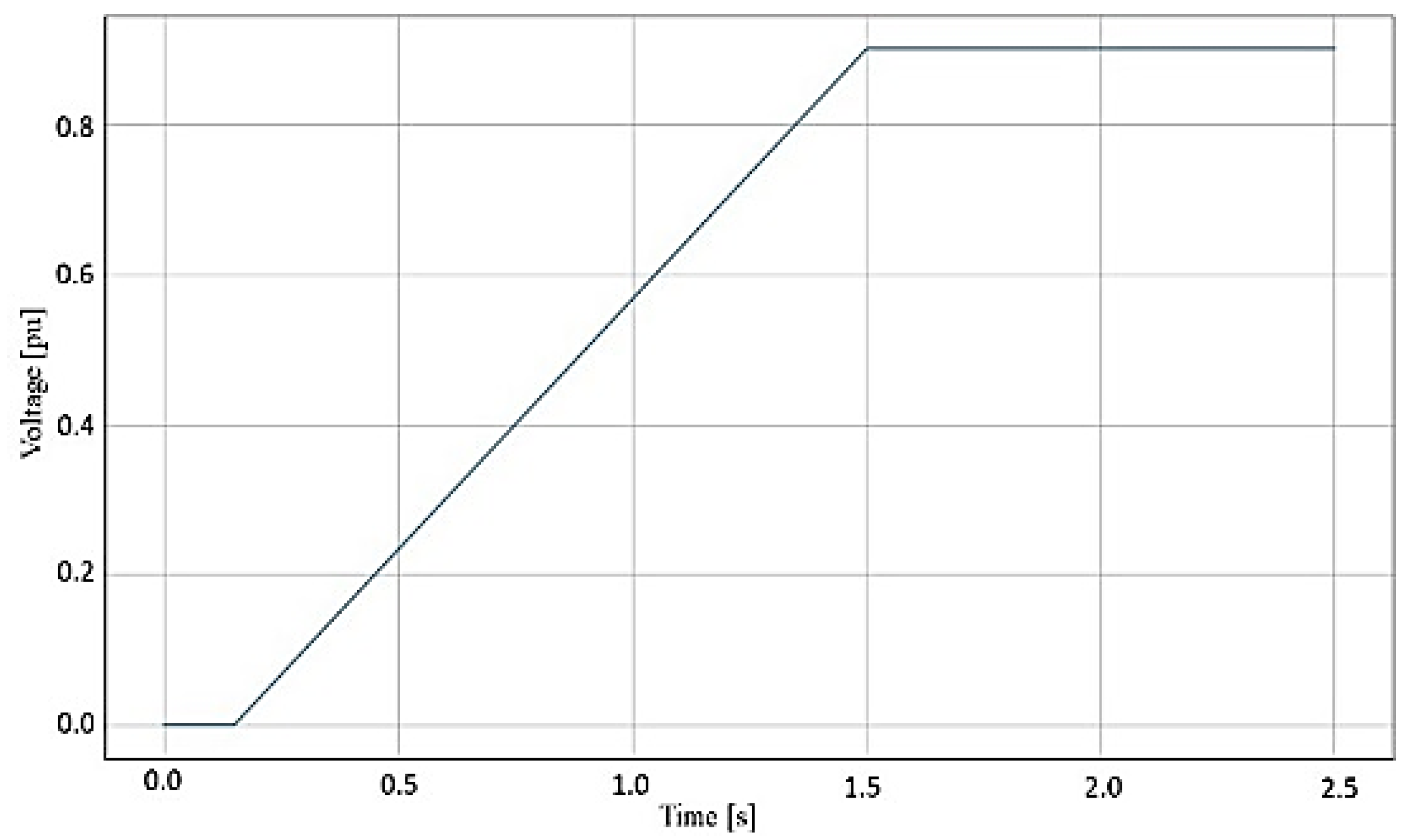

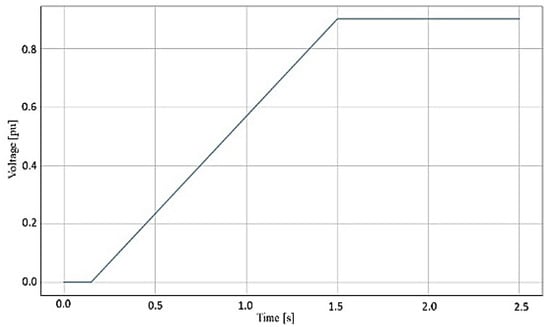

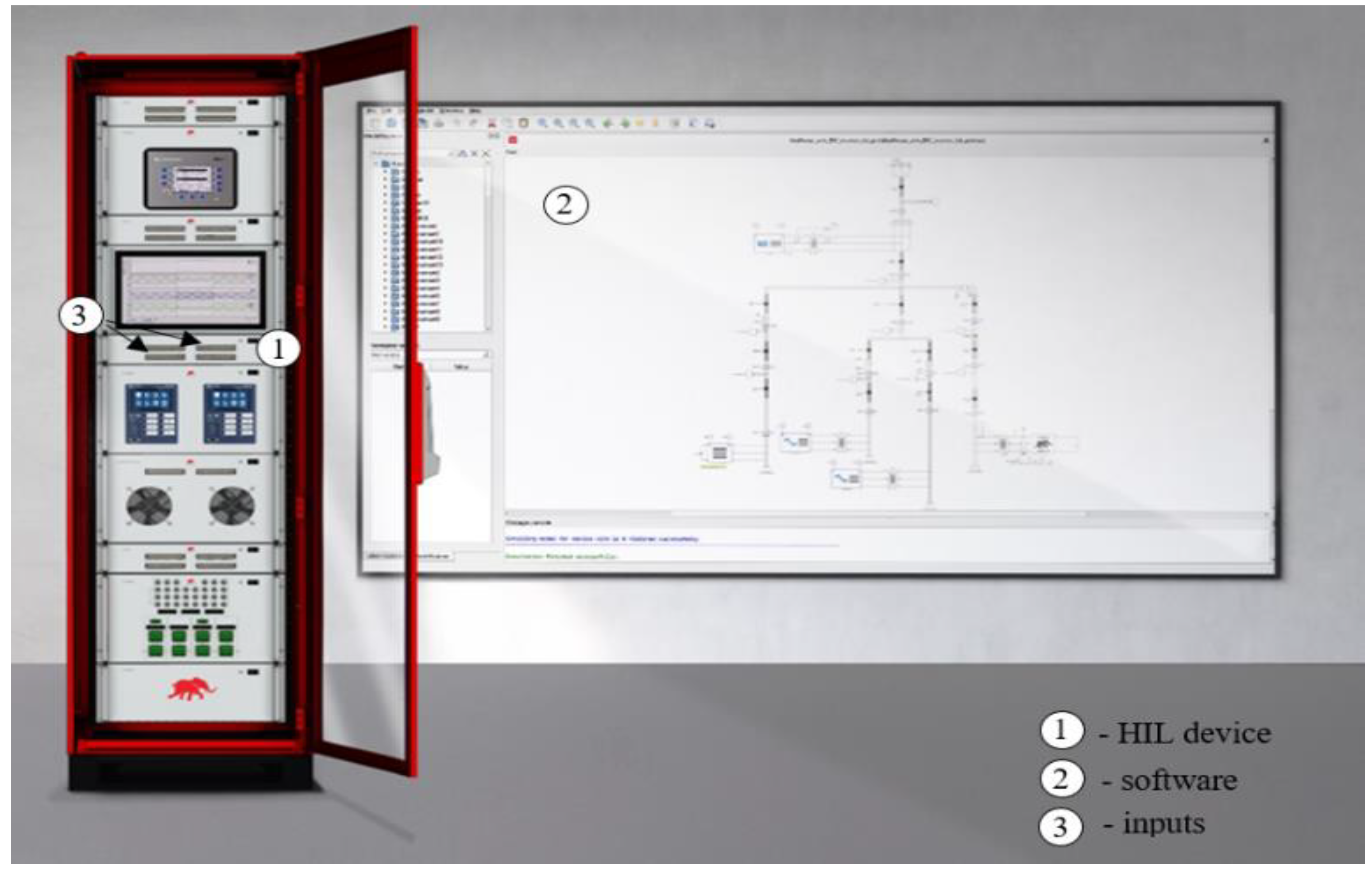

## 5. Results

## 6. Discussion

- From Table 3 and Table 4, the differences between fault currents for the 3LG fault, in grid-connected and islanded modes are huge. If we analyze the fault currents at the protective devices’ locations, it is obvious that their magnitudes differ widely, with the fault currents in grid-connected mode being up to 8.2 times higher than in the islanded mode.
- Based on the results from Table 3 and Table 4, it is obvious that standard “set and forget” relay protection methods cannot be used for microgrids aimed to operate in both, grid-connected and islanded modes. Rather, novel methods for adaptive relay protection shall emerge, that would monitor the grid conditions in real-time, and adapt the protective equipment settings based on the real-time data. This is one of the authors’ future research directions, derived from the results obtained during this research.
- Based on the results from Table 5, it can be concluded that the results for the grid-connected mode, obtained by in-house-developed software solution match well with the results from Typhoon HIL’s hardware-in-the-loop device. The differences are less than 2%. However, for the islanded mode, the differences in the obtained results are much higher and reach up to 15.36%. This is because the fault calculation procedure used for this research [10], is specially aimed for radial distribution networks, with one main power source (slack bus) and DERs that are much weaker than the main source. This works very-well for the grid-connected mode where the utility grid is the main source, but provides less accurate results for the islanded mode, where DERs share the entire load among themselves. Thus, a novel fault calculation procedure, that will work well and provide highly accurate results regardless of the operation mode, shall emerge. This is the second important future research direction that is derived from the results of the current research.
- Finally, the third direction for the future research will be focused on analyzing a short period immediately upon the fault occurrence, in which the fault currents of IBDERs are not limited. In addition, the influence of these currents on the protective equipment selection and planning process will be analyzed.

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Parhizi, S.P.; Lotfi, H.; Khodaei, A.; Bahramirad, S. State of the Art in Research on Microgrids: A Review. IEEE Access
**2007**, 3, 890–925. [Google Scholar] [CrossRef] - IEEE P2030.7/D10. IEEE Draft Standard for the Specification of Microgrid Controllers. 2017. Available online: https://ieeexplore.ieee.org/document/8031306 (accessed on 11 June 2021).
- Sarkar, S.K.; Roni, H.K.; Datta, D.; Das, S.K.; Pota, H.R. Improved Design of High-Performance Controller for Voltage Control of Islanded Microgrid. IEEE Syst. J.
**2019**, 13, 1786–1795. [Google Scholar] [CrossRef] - Sortomme, E.; Mapes, G.J.; Foster, B.A.; Venkata, S.S. Fault analysis and protection of a microgrid. In Proceedings of the 2008 40th North American Power Symposium, Institute of Electrical and Electronics Engineers (IEEE), Calgary, AB, Canada, 28–30 September 2008; pp. 1–6. [Google Scholar]
- Nikkhajoei, H.; Lasseter, R. Microgrid Fault Protection Based on Symmetrical and Differential Current Components; Public Interest Energy Research California Energy Commission: Sacramento, CA, USA, 2006. [Google Scholar]
- Brucoli, M.; Green, T.; McDonald, J.D.F. Modelling and Analysis of Fault Behaviour of Inverter Microgrids to Aid Future Fault Detection. In Proceedings of the 2007 IEEE International Conference on System of Systems Engineering, Institute of Electrical and Electronics Engineers (IEEE), San Antonio, TX, USA, 16–18 April 2007; pp. 1–6. [Google Scholar]
- Barra, P.H.A.; Coury, D.V.; Fernandes, R.A.S. A Survey on Adaptive Protection of Microgrids and Distribution Systems with Distributed Generators. Renew. Sustain. Energy Rev.
**2020**, 118, 109524. [Google Scholar] [CrossRef] - Dag, B.; Boynuegri, A.R.; Ates, Y.; Karakas, A.; Nadar, A.; Uzunoglu, M. Static Modeling of Microgrids for Load Flow and Fault Analysis. IEEE Trans. Power Syst.
**2016**, 32, 1990–2000. [Google Scholar] [CrossRef] - Strezoski, L.; Dumnic, B.; Popadic, B.; Prica, M.; Loparo, K. Novel Fault Models for Electronically Coupled Distributed Energy Resources and Their Laboratory Validation. IEEE Trans. Power Syst.
**2020**, 35, 1209–1217. [Google Scholar] [CrossRef] - Strezoski, L.; Prica, M.; Loparo, K. Generalized Δ-Circuit Concept for Integration of Distributed Generators in Online Short-Circuit Calculations. IEEE Trans. Power Syst.
**2016**, 32, 3237–3245. [Google Scholar] [CrossRef] - Reno, M.J.; Brahma, S.; Bidram, A.; Ropp, M.E. Influence of Inverter-Based Resources on Microgrid Protection: Part 1: Microgrids in Radial Distribution Systems. IEEE Power Energy Mag.
**2021**, 19, 36–46. [Google Scholar] [CrossRef] - Ropp, M.E.; Reno, M.J. Influence of Inverter-Based Resources on Microgrid Protection: Part 2: Secondary Networks and Microgrid Protection. IEEE Power Energy Mag.
**2021**, 19, 47–57. [Google Scholar] [CrossRef] - Gers, J.M.; Holmes, E.J. Protection of Electricity Distribution Networks; Institution of Engineering and Technology (IET): Stevenage, UK, 2011. [Google Scholar]
- Horowitz, S.H.; Phadke, A.G. Power System Relaying; Wiley: Hoboken, NJ, USA, 2008. [Google Scholar]
- Sitharthan, R.; Geethanjali, M.; Karpaga Senthil Pandy, T. Adaptive protection scheme for smart microgrid with electronically coupled distributed generations. Alexand. Eng. J.
**2016**, 55, 2539–2550. [Google Scholar] [CrossRef] [Green Version] - Najy, W.K.A.; Zeineldin, H.H.; Woon, W.L. Optimal Protection Coordination for Microgrids With Grid-Connected and Islanded Capability. IEEE Trans. Ind. Electron.
**2012**, 60, 1668–1677. [Google Scholar] [CrossRef] - Lagos, D.; Papaspiliotopoulos, V.; Korres, G.; Hatziargyriou, N. Microgrid Protection Against Internal Faults: Challenges in Islanded and Interconnected Operation. IEEE Power Energy Mag.
**2021**, 19, 20–35. [Google Scholar] [CrossRef] - Manson, S.; McCullough, E. Practical Microgrid Protection Solutions: Promises and Challenges. IEEE Power Energy Mag.
**2021**, 19, 58–69. [Google Scholar] [CrossRef] - Hameed, F.; Al Hosani, M.; Zeineldin, H.H. A Modified Backward/Forward Sweep Load Flow Method for Islanded Radial Microgrids. IEEE Trans. Smart Grid
**2019**, 10, 910–918. [Google Scholar] [CrossRef] - Wang, X.; Shahidehpour, M.; Jiang, C.; Tian, W.; Li, Z.; Yao, Y. Three-Phase Distribution Power Flow Calculation for Loop-Based Microgrids. IEEE Trans. Power Syst.
**2017**, 33, 3955–3967. [Google Scholar] [CrossRef] - Luka, S.; Simic, N.; Dumnic, B. Fault current study of microgrids in grid-connected and islanded modes of operation. In Proceedings of the 12th Mediterranean Conference on Power Generation, Transmission, Distribution and Energy Conversion (MEDPOWER 2020), Institution of Engineering and Technology, Paphos, Cyprus, 9–12 November 2021; pp. 372–377. [Google Scholar]
- Acosta, M.; Gonzalez-Longatt, F.; Topić, D.; Andrade, M. Optimal Microgrid–Interactive Reactive Power Management for Day–Ahead Operation. Energies
**2021**, 14, 1275. [Google Scholar] [CrossRef] - Che, L.; Khodayar, M.E.; Shahidehpour, M. Adaptive Protection System for Microgrids: Protection practices of a functional microgrid system. IEEE Electr. Mag.
**2014**, 2, 66–80. [Google Scholar] [CrossRef] - Selakov, A.; Bekut, D.; Sarić, A.T. A novel agent-based microgrid optimal control for grid-connected, planned island and emergency island operations. Int. Trans. Electr. Energy Syst.
**2016**, 26, 1999–2022. [Google Scholar] [CrossRef] - Klaić, Z.; Knežević, G.; Primorac, M.; Topić, D. Impact of photovoltaic and biogas power plant on harmonics in distribution network. IET Renew. Power Gener.
**2020**, 14, 110–117. [Google Scholar] [CrossRef] - Jabr, R.A.; Dzafic, I. A Fortescue Approach for Real-Time Short Circuit Computation in Multiphase Distribution Net-works. IEEE Trans. Power Syst.
**2015**, 30, 3276–3285. [Google Scholar] [CrossRef] - Bergen, R.; Vittal, V. Power System Analysis, 2nd ed.; Prentice Hall: Hoboken, NJ, USA, 2000. [Google Scholar]
- Strezoski, L.V.; Prica, M.D. Real-time short-circuit analysis of active distribution systems. In Proceedings of the 2016 IEEE Power and Energy Conference at Illinois (PECI), Institute of Electrical and Electronics Engineers (IEEE), Urbana, IL, USA, 19–20 February 2016; pp. 1–8. [Google Scholar]
- Čelanović, I.; Haessig, P.; Carroll, E.; Katić, V.; Čelanović, N. Real-Time Digital Simulation: Enabling Rapid Development of Power Electronics. Electronics
**2010**, 14, 15–19. [Google Scholar]

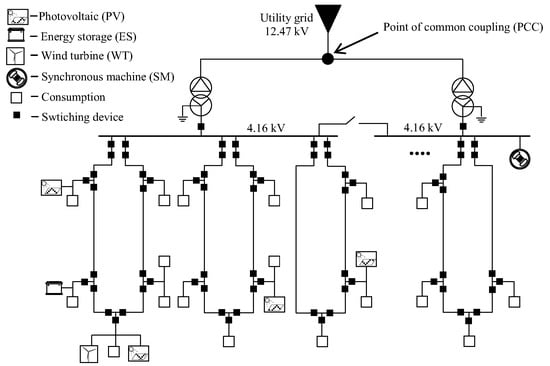

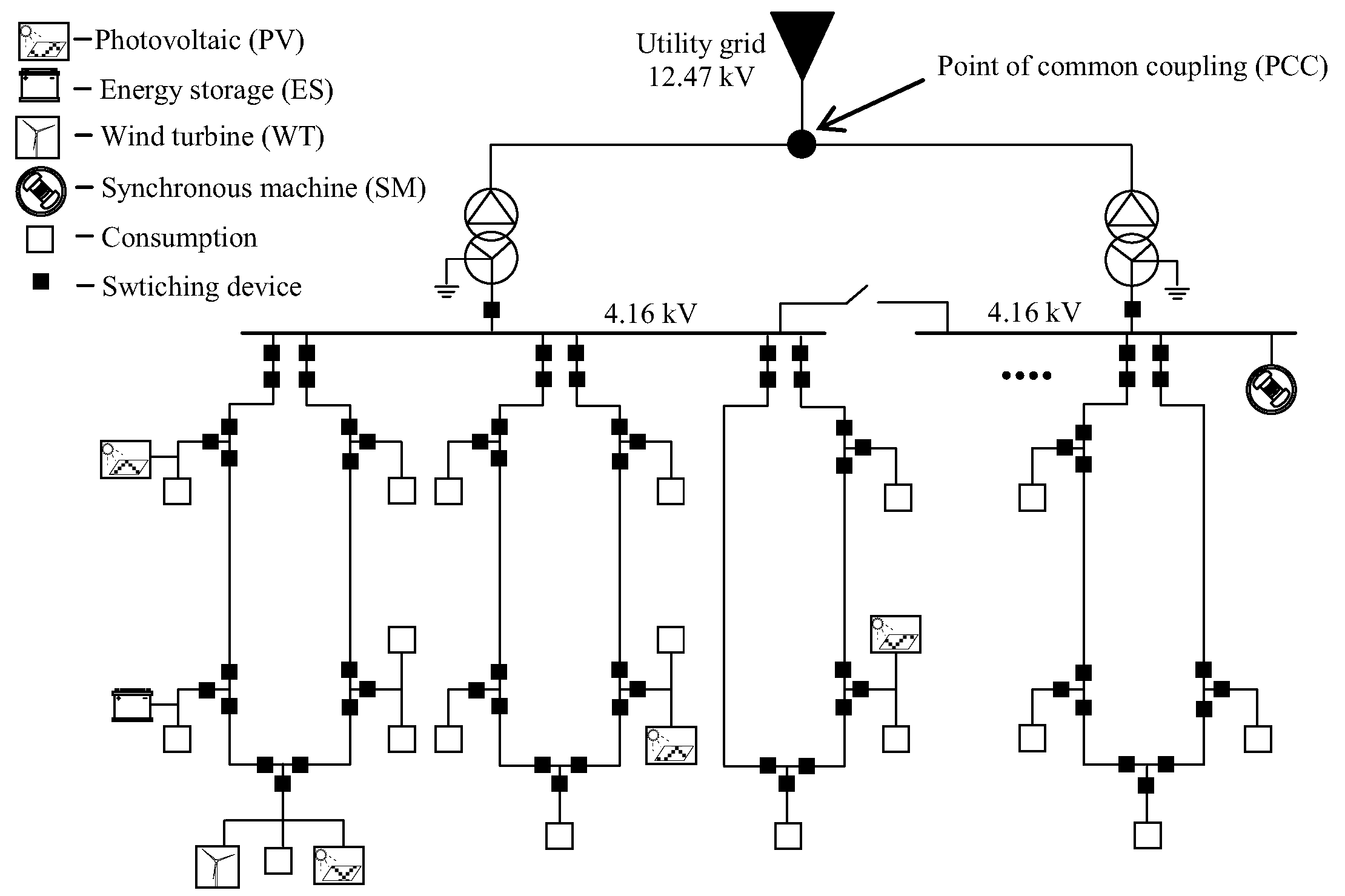

**Figure 1.**A real-life microgrid example [23].

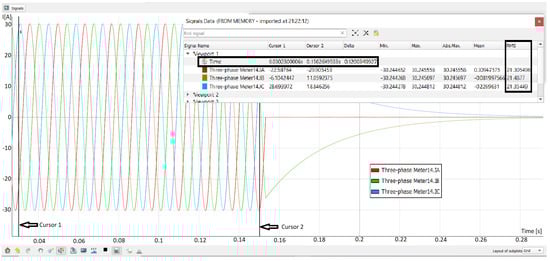

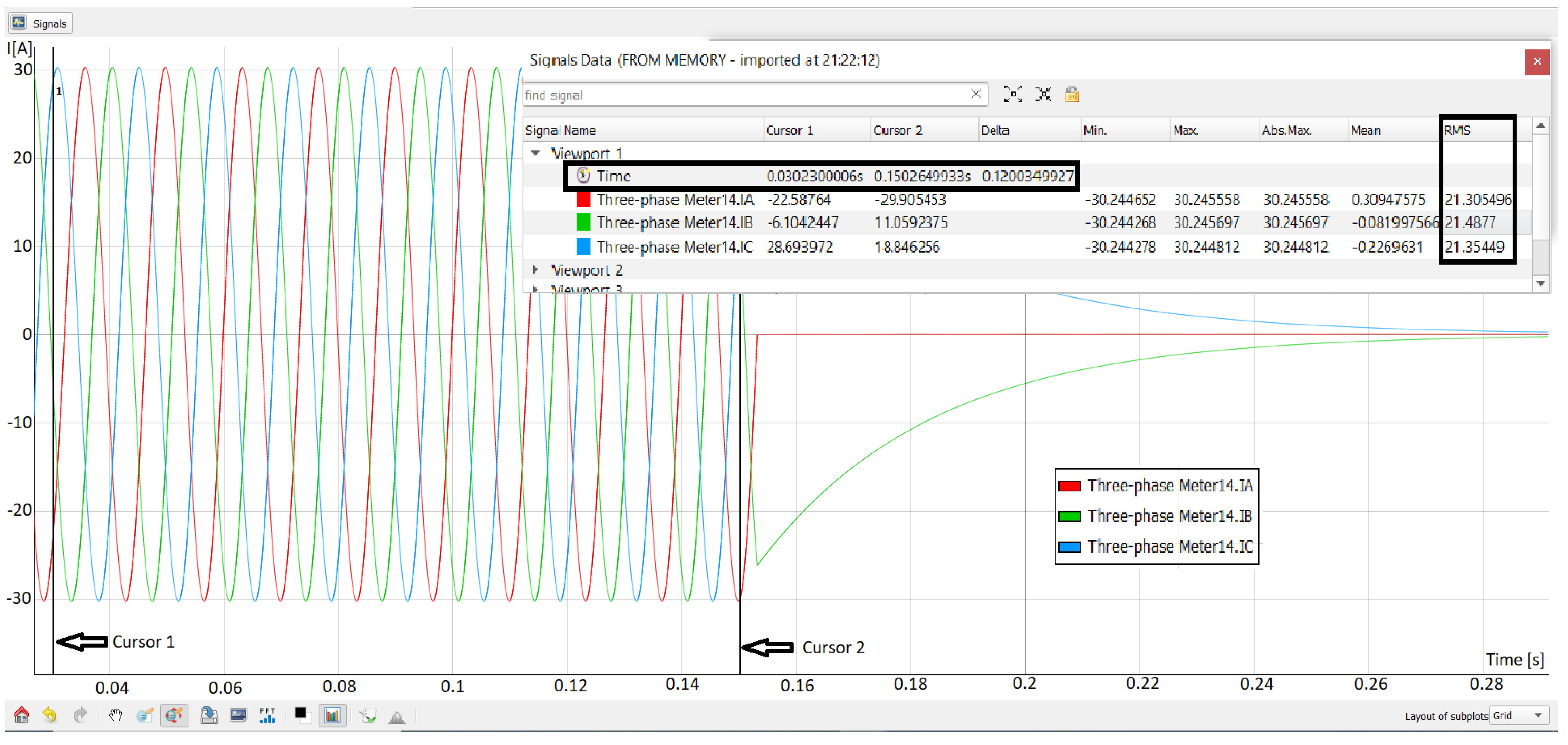

**Figure 7.**Fault current contribution response of IBDER connected to bus 14 during 3LG short-circuit at bus 9 in time domain obtained with Typhoon HIL setup.

L-G | L-L | L-L-G | L-L-L-G | |
---|---|---|---|---|

${\widehat{J}}_{k}^{+}$ | $\frac{{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}+{\widehat{Z}}_{k}^{-}+{\widehat{Z}}_{k}^{o}}$ | $\frac{{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}+{\widehat{Z}}_{k}^{-}}$ | $\frac{\left({\widehat{Z}}_{k}^{-}+{\widehat{Z}}_{k}^{o}\right){\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{-}+{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{o}+{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{o}}$ | $\frac{{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}}$ |

${\widehat{J}}_{k}^{-}$ | $\frac{{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}+{\widehat{Z}}_{k}^{-}+{\widehat{Z}}_{k}^{o}}$ | $-\frac{{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}+{\widehat{Z}}_{k}^{-}}$ | $\frac{-{\widehat{Z}}_{k}^{o}{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{-}+{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{o}+{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{o}}$ | 0 |

${\widehat{J}}_{k}^{0}$ | $\frac{{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}+{\widehat{Z}}_{k}^{-}+{\widehat{Z}}_{k}^{o}}$ | 0 | $\frac{-{\widehat{Z}}_{k}^{-}{\widehat{U}}_{ka}^{}}{{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{-}+{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{o}+{\widehat{Z}}_{k}^{+}{\widehat{Z}}_{k}^{o}}$ | 0 |

Phase | A | B | C |
---|---|---|---|

I1 [A]/angle[°] | 84.09/−0.33 | 84.09/−120.33 | 84.09/119.67 |

I2 [A]/angle[°] | 14.14/−0.31 | 14.14/−120.31 | 14.14/119.69 |

I3 [A]/angle[°] | 41.89/−0.39 | 41.89/−120.39 | 41.89/119.61 |

I4 [A]/angle[°] | 14.14/−0.31 | 14.14/−120.31 | 14.14/119.69 |

I5 [A]/angle[°] | 0.10/−4.50 | 0.10/−124.50 | 0.10/115.50 |

I6 [A]/angle[°] | 0.10/−4.50 | 0.10/−124.50 | 0.10/115.50 |

I7 [A]/angle[°] | 27.94/−0.42 | 27.94/−120.42 | 27.94/119.58 |

I8 [A]/angle[°] | 0.10/−4.50 | 0.10/−124.50 | 0.10/115.50 |

I9 [A]/angle[°] | 0.10/−4.50 | 0.10/−124.50 | 0.10/115.50 |

I10 [A]/angle[°] | 13.83/179.78 | 13.83/59.78 | 13.83/−60.22 |

I11 [A]/angle[°] | 13.83/179.78 | 13.83/59.78 | 13.83/−60.22 |

I12 [A]/angle[°] | 13.97/−0.44 | 13.97/−120.44 | 13.97/119.56 |

I13 [A]/angle[°] | 13.83/179.78 | 13.83/59.78 | 13.83/−60.22 |

I14 [A]/angle[°] | 13.83/179.78 | 13.83/59.78 | 13.83/−60.22 |

**Table 3.**The Fault Calculation Results for 3LG Fault at the Bus 9 in grid-connected mode of operation.

Phase | A | B | C |
---|---|---|---|

I1 [A]/angle[°] | 3527.39/−53.53 | 3527.39/−173.53 | 3527.39/66.47 |

I2 [A]/angle[°] | 33.43/−109.14 | 33.43/130.86 | 33.43/10.86 |

I3 [A]/angle[°] | 17.76/−4.84 | 17.76/−124.84 | 17.76/115.16 |

I4 [A]/angle[°] | 3492.92/−53.36 | 3492.92/−173.37 | 3492.92/66.64 |

I5 [A]/angle[°] | 17.69/−118.40 | 17.69/121.60 | 17.69/1.60 |

I6 [A]/angle[°] | 17.69/−118.40 | 17.69/121.60 | 17.69/1.60 |

I7 [A]/angle[°] | 11.84/−4.88 | 11.84/−124.88 | 11.84/115.12 |

I8 [A]/angle[°] | 21.02/−86.41 | 21.02/153.59 | 21.02/33.59 |

I9 [A]/angle[°] | 3473.37/−53.21 | 3473.37/−173.21 | 3473.37/66.79 |

I10 [A]/angle[°] | 20.80/−133.38 | 20.80/106.62 | 20.80/−13.38 |

I11 [A]/angle[°] | 20.80/−133.38 | 20.80/106.62 | 20.80/−13.38 |

I12 [A]/angle[°] | 5.92/−4.90 | 5.92/−124.90 | 5.92/115.10 |

I13 [A]/angle[°] | 20.81/−94.43 | 20.81/145.57 | 20.81/25.57 |

I14 [A]/angle[°] | 20.82/−90.04 | 20.82/149.96 | 20.82/29.96 |

Phase | A | B | C |
---|---|---|---|

I1 [A]/angle[°] | 487.81/−76.25 | 487.81/163.75 | 487.81/43.76 |

I2 [A]/angle[°] | 42.57/−87.51 | 42.57/152.49 | 42.57/32.49 |

I3 [A]/angle[°] | 2.21/−26.68 | 2.21/−146.68 | 2.21/93.33 |

I4 [A]/angle[°] | 444.19/−75.46 | 444.19/164.54 | 444.19/44.54 |

I5 [A]/angle[°] | 21.12/−88.35 | 21.12/151.64 | 21.12/31.65 |

I6 [A]/angle[°] | 21.12/−88.35 | 21.12/151.64 | 21.12/31.65 |

I7 [A]/angle[°] | 1.48/−26.74 | 1.48/−146.74 | 1.48/93.26 |

I8 [A]/angle[°] | 20.97/−89.17 | 20.97/150.83 | 20.97/30.83 |

I9 [A]/angle[°] | 423.61/−74.83 | 423.61/165.17 | 423.61/45.18 |

I10 [A]/angle[°] | 20.82/−90.02 | 20.82/149.98 | 20.82/29.98 |

I11 [A]/angle[°] | 20.82/−90.02 | 20.82/149.98 | 20.82/29.98 |

I12 [A]/angle[°] | 0.74/−26.75 | 0.74/−146.75 | 0.74/93.25 |

I13 [A]/angle[°] | 20.82/−90.02 | 20.82/149.98 | 20.82/29.98 |

I14 [A]/angle[°] | 20.82/−90.02 | 20.82/149.98 | 20.82/29.98 |

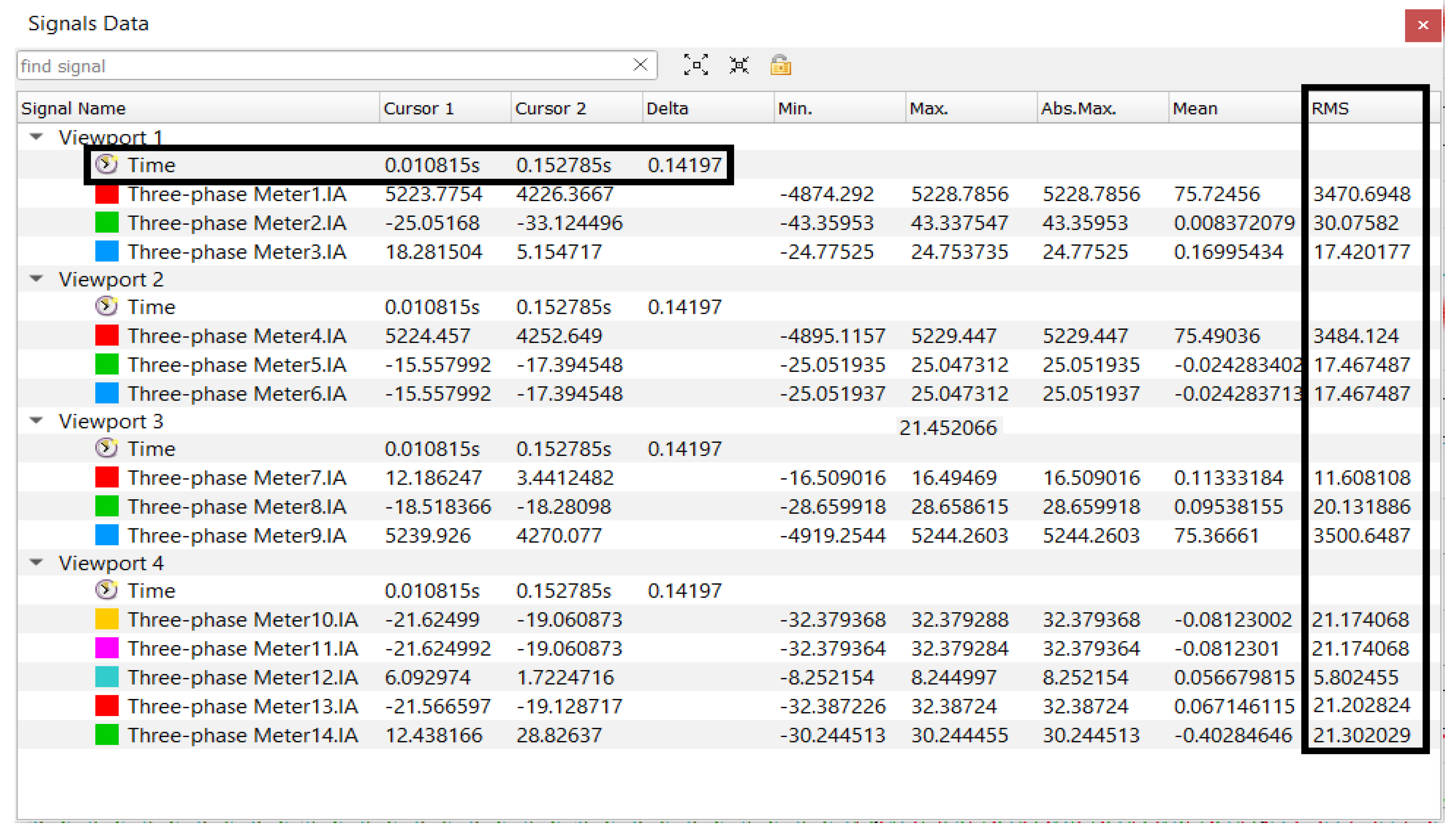

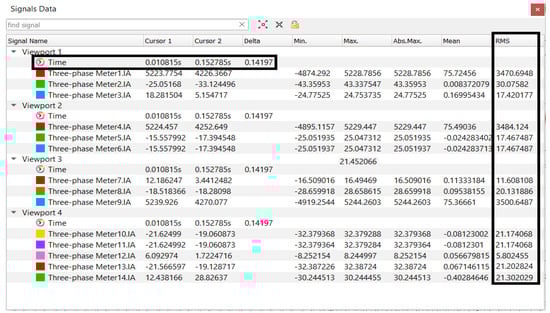

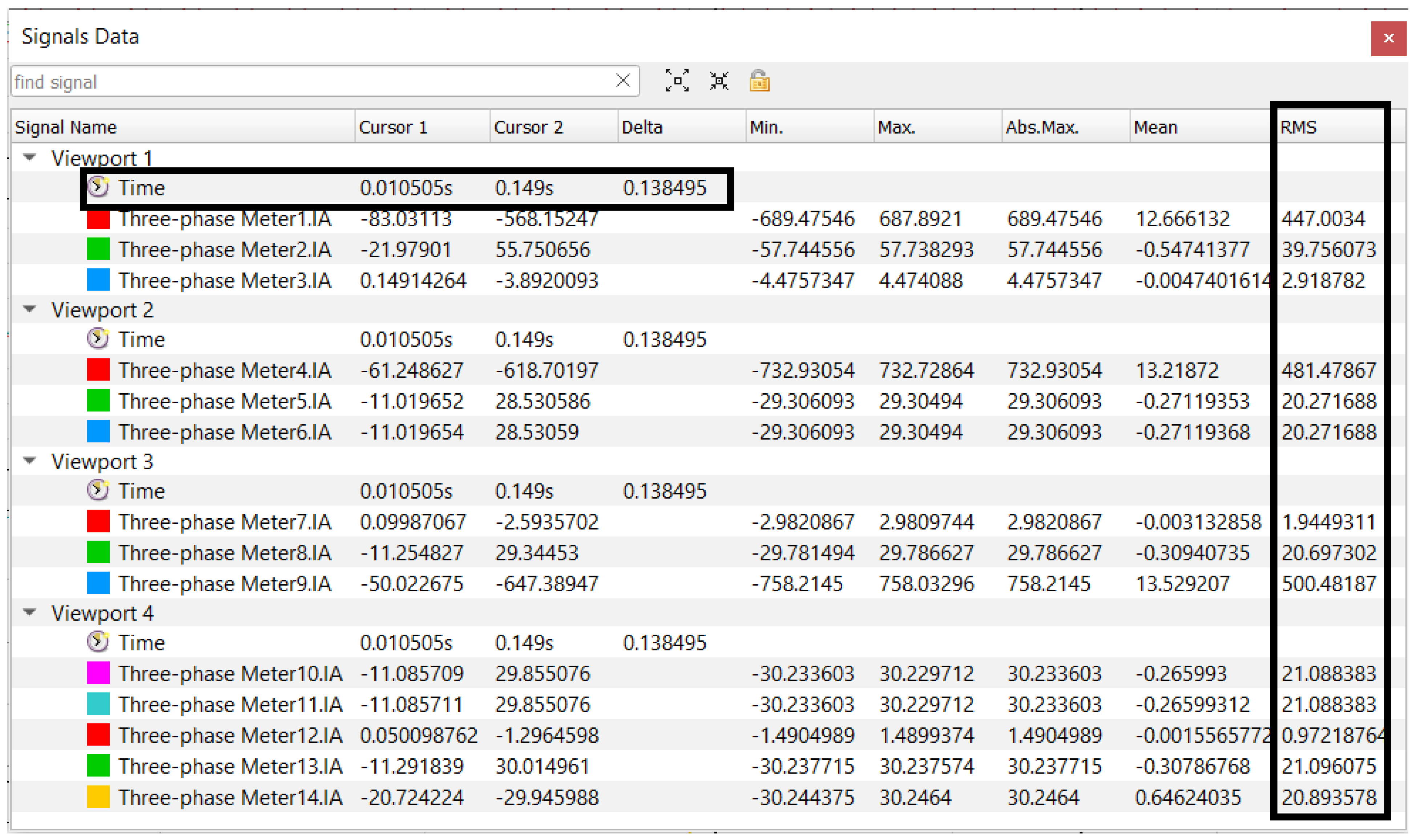

Fault type | 3LG | ||
---|---|---|---|

Operation mode | Grid-connected | Islanded | |

I1 [A] | Fortran | 3527.39 | 487.81 |

Typhoon HIL | 3470.69 | 447.00 | |

I5 [A] | Fortran | 17.69 | 21.12 |

Typhoon HIL | 17.47 | 20.27 | |

I6 [A] | Fortran | 17.69 | 21.12 |

Typhoon HIL | 17.47 | 20.27 | |

I8 [A] | Fortran | 21.02 | 20.97 |

Typhoon HIL | 20.13 | 20.70 | |

I9 [A] | Fortran | 3473.37 | 423.61 |

Typhoon HIL | 3500.65 | 500.48 | |

I14 [A] | Fortran | 20.82 | 20.82 |

Typhoon HIL | 21.30 | 20.89 |
