Modeling Long-Term Electricity Generation Planning to Reduce Carbon Dioxide Emissions in Nigeria
Abstract
:1. Introduction
2. Materials and Methods
2.1. First Scenario (No Carbon Dioxide Emission Constraints)
2.1.1. MESSAGE Input Data
- Fixed and variable operation and maintenance costs
2.1.2. SIMPACTS Input Data
2.2. Second Scenario (with Carbon Dioxide Emission Constraints)
2.2.1. MESSAGE Input Data
2.2.2. SIMPACT Input Data
3. Results and Discussion

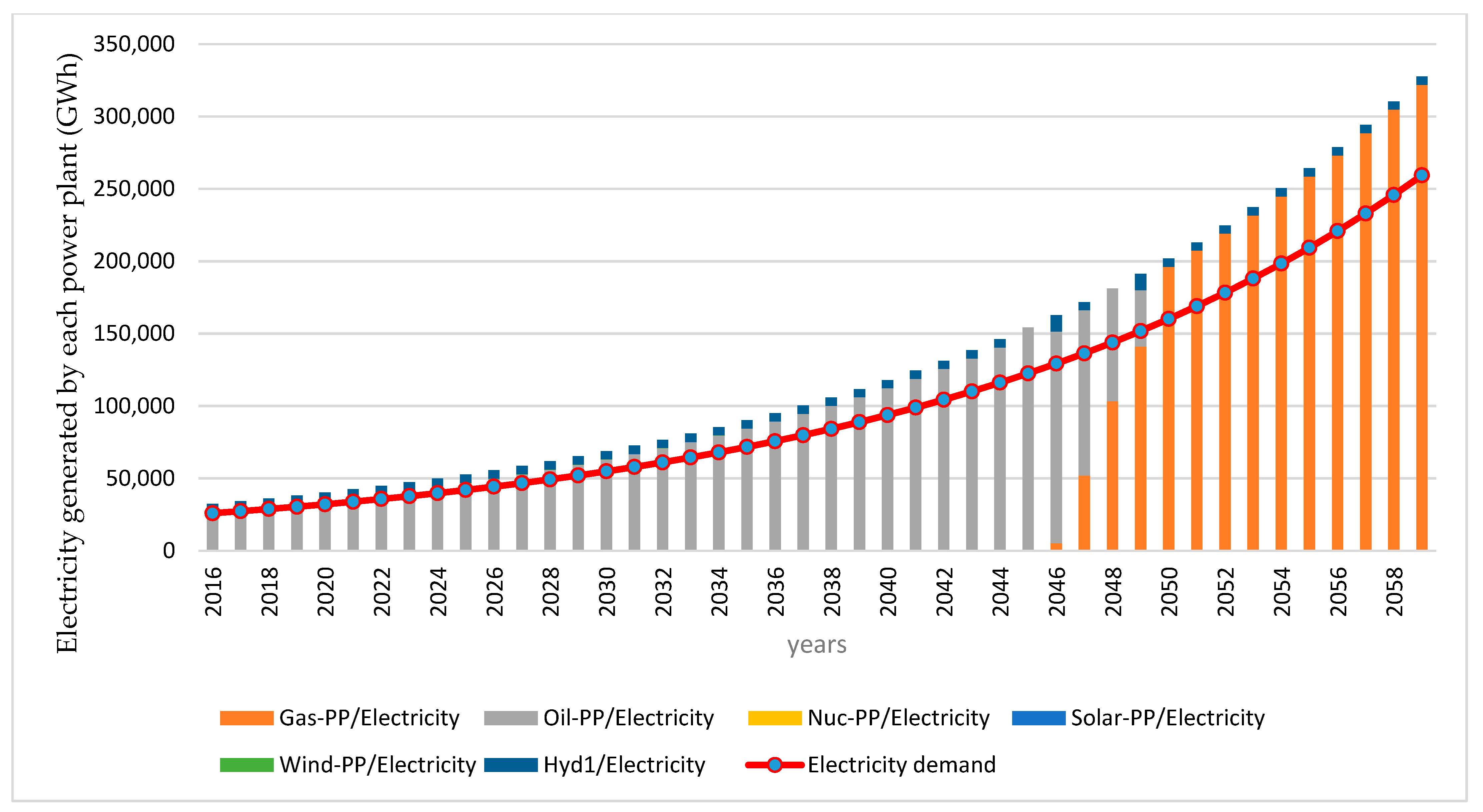

3.1. First Scenario (No Carbon Dioxide Emission Constraints)

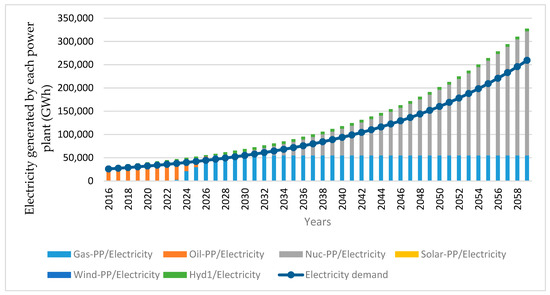

3.2. Second Scenario (with Carbon Dioxide Emission Constraints)
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Ministry of Energy. Country Report on Nigeria Energy System; Ministry of Energy: Asaba, Nigeria, 2015; pp. 1–34.
- Statista. Nigeria: Gross Domestic Product (GDP) in Current Prices from 1996 to 2026. Available online: https://www.statista.com/statistics/383118/gross-domestic-product-gdp-in-nigeria/ (accessed on 17 June 2021).
- Macrotrends. Nigeria GDP per Capita. 2019. Available online: https://www.macrotrends.net/countries/NGA/nigeria/gdp-per-capita (accessed on 17 June 2021).
- British Petroleum (BP) Statistical Review of World Energy, 70th ed.; Whitehouse Associate: London, UK, 2021; pp. 1–72.
- US Energy Information Administration. Country Analysis Executive Summary: Nigeria; Independent Statistics & Analysis: Washington, DC, USA, 2020; pp. 1–10.
- Climate Transparency. Nigeria’s Climate Action and Responses to the COVID-19 Crisis; Climate Transparency: Nigeria, 2020; pp. 1–20. Available online: https://www.climate-transparency.org/wp-content/uploads/2021/01/Nigeria-CT-2020.pdf (accessed on 17 June 2021).
- Sambo, A. Matching Electricity Supply with Demand in Nigeria; International Association of Energy Economics, 2008; pp. 32–36. Available online: https://www.iaee.org/documents/newsletterarticles/408sambo.pdf (accessed on 17 June 2021).
- Foundation, S.; Intellecap. Mapping the Off-Grid Solar Market in Nigeria; Intellecap: Nigeria, 2019; pp. 1–56. Available online: https://www.assets.signify.com/is/content/Signify/Assets/signify/global/20201105-mapping-the-off-grid-solar-market-in-nigeria-2019.pdf (accessed on 17 June 2021).
- Abdullahi, K.; Roh, M.-S. Long Term Energy Plan for Nigeria using Message Code for Energy Optimization. Int. J. Eng. Res. Technol. (IJERT) 2016, 5, 11. [Google Scholar] [CrossRef]
- Kichonge, B.; John, G.R.; Mkilaha, I.S. Modelling energy supply options for electricity generations in Tanzania. J. Energy S. Afr. 2015, 26, 41–57. [Google Scholar] [CrossRef]
- Batmunkh, T.; Roh, M.S. Long Term Energy Plan of Mongolian with Nuclear Power Plant Using Message Code; Korean Nuclear Society: Jeju, Korea, 2014. [Google Scholar]
- Liun, E.; Kuncoro, A.H.; Sartono, E. Environmental impacts assessment of Java’s electricity generation using SimPacts model. In Proceedings of the International Conference on Advances in Nuclear Science and Engineering in Conjunction with LKSTN; 2007. Available online: https://digilib.batan.go.id/e-prosiding/Icanse/article/D3.5-Edwaren_Environmental.pdf (accessed on 17 June 2021).
- Liun, E. Optimum Solution Expectation on Sumatra Electricity Expansion Planning Beyond 2030 Using WASP-IV Package. In Proceedings of the International Conference on Advances in Nuclear Science and Engineering in Conjunction with LKSTN; 2007. Available online: https://digilib.batan.go.id/e-prosiding/Icanse/article/D3.3-Edwaren_Optimum.pdf (accessed on 17 June 2021).
- Macías, P.; Islas, J. Damage costs produced by electric power plants: An externality valuation in the Mexico City Metropolitan Area. Sci. Total Environ. 2010, 408, 4511–4523. [Google Scholar] [CrossRef] [PubMed]
- Ali, H.; Alsamaoal, A.; Seif Aldin, S. Estimating the health damage costs of Syrian electricity generation system using impact pathway approach. Energy 2010, 35, 628–638. [Google Scholar]
- IAEA. Nuclear Power Reactors in the World; International Atomic Energy Agency: Vienna, Austria, 2021. [Google Scholar]
- Johan, A.B.C.; Davide, B.; Antonio, C.; Guglielmo, L.; Mario, M. Lattice Boltzmann Method Applied to Nuclear Reactors—A Systematic Literature Review. Sustainability 2020, 12, 7835. [Google Scholar]
- Ewim, D.R.E.; Oyewobi, S.S.; Dioha, M.O.; Daraojimba, C.E.; Oyakhire, S.O.; Huan, Z. Exploring the perception of Nigerians towards nuclear power generation. Afr. J. Sci. Technol. Innov. Dev. 2021, 1–12. [Google Scholar] [CrossRef]
- IAEA. Modelling Nuclear Energy Systems with MESSAGE: A User’s Guide; International Atomic Energy Agency: Vienna, Austria, 2016. [Google Scholar]
- International Institute for Applied Systems Analysis. MESSAGE Core Formulation. 2021. Available online: https://docs.messageix.org/en/stable/model/MESSAGE/model_core.html#constraints-on-resource-extraction (accessed on 26 July 2021).
- IAEA Agency. Model for Energy Supply Strategy Alternatives and Their General Environmental Impacts (User Manual); International Institute for Applied Systems Analysis: Laxenburg, Austria, 2017; pp. 1–346. [Google Scholar]
- Schrattenholzer, L. The Energy Supply Model MESSAGE; International Institute for Applied Systems Analysis: Laxenburg, Austria, 1981. [Google Scholar]
- Kelechi, O.; Iladare, O.; Ajienka, J.A.; Dosunmu, A.; Ibe, A.C. Estimating Fair Market Value of Nigerian Petroleum Assets: A Risk-Based Approach; OGEL, 2021; ISSN 1875-418X. Available online: https://www.ogel.org/journal-advance-publication-article.asp?key=672 (accessed on 26 July 2021).
- US Energy Information Administration. Nigeria Electricity Consumption. 2018. Available online: https://www.eia.gov/international/data/country/NGA/electricity/electricity-consumption?pd=2&p=0000002&u=0&f=A&v=mapbubble&a=-&i=none&vo=value&&t=C&g=none&l=249--157&s=315532800000&e=1546300800000 (accessed on 17 June 2021).
- US Energy Information Administration. Capital Cost and Performance Characteristic Estimates for Utility SCALE Electric Power Generating Technologies; US Energy Information Administration: Washington, DC, USA, 2020; pp. 1–12.
- Jorli, M.; Van Passel, S.; Sadeghi, H.; Nasseri, A.; Agheli, L. Estimating Human Health Impacts and Costs Due to Iranian Fossil Fuel Power Plant Emissions through the Impact Pathway Approach. Energies 2017, 10, 2136. [Google Scholar] [CrossRef] [Green Version]
- Francine, M.; Gaiane, S.; Rita de Cassia, M. Study of the Environmental Costs to Nuclear Power Plants Using the SIMPACTS Program. In Proceedings of the International Nuclear Atlantic Conference Nuclear Energy: New Jobs for a Better Life, Belo Horizonte, Brazil, 24–28 October 2011. [Google Scholar]
- Ikuobase, E.; Buliaminu, K.; Michael, K.A. Performance evaluation of Egbin thermal power station, Nigeria. In Proceedings of the World Congress on Engineering and Computer Science, San Francisco, CA, USA, 9–21 October 2011. [Google Scholar]
- Olukanni, D.O.; Adejumo, T.A.; Salami, A.W. Assessment of jebba hydropower dam operation for improved energy production and flood management. ARPN J. Eng. Appl. Sci. 2016, 11, 8450–8467. [Google Scholar]
- Adegboyega, G.A.; Odeyemi, K.O. Performance analysis of thermal power station: Case study of Egbin Power station Nigeria. Int. J. Electron. Electr. Eng. 2011, 4, 281–289. [Google Scholar]
- Mott MacDonald. Stack Height Determination Report; Mott MacDonald: Croydon, UK, 2018; pp. 1–31. [Google Scholar]
- Association, I.H. Mainstream Energy Solutions Limited. 2020. Available online: https://www.hydropower.org/our-members/mainstream-energy-solutions-limited (accessed on 17 June 2021).
- Adesanmi, A.J.; Badmos, S.A.; Gbadebo, O.A.; Sonibare, J.A. Emission inventory of elecricity generation from thermal power plants in nigeria. Glob. Sci. 2019, 7, 10. [Google Scholar]
- Population, C. Nigeria: Administrative Division. 1 January 2021. Available online: https://www.citypopulation.de/en/nigeria/admin/ (accessed on 17 June 2021).
- The World Bank Group. GDP per Capita (Current US$)-Nigeria. 2020. Available online: https://data.worldbank.org/indicator/NY.GDP.PCAP.CD?locations=NG (accessed on 17 June 2021).
- Ogieva, F.; Ike, A.; Anyaeji, C. Egbin power station generator availability and unit performance studies. Int. J. Phys. Sci. 2015, 10, 155–172. [Google Scholar]
- Chiromo, A.; Amu, O.C.; Otonglo, F.B. Kainji and Jebba Hydro Power Plant Rehabilitation Project; Archie Chiromo Consultant: Lagos, Nigeria, 2016; pp. 1–28. [Google Scholar]
- FAO. FAOSTAT. 2021. Available online: http://www.fao.org/faostat/en/#data/QC (accessed on 17 June 2021).
- U.S. Energy Information Administration. CO2 Emission of Nigeria. 2018. Available online: https://www.eia.gov/international/data/country/NGA/other-statistics/emissions-by-fuel?pd=40&p=0000000000000000000000000000000000000000000000000000000b0001&u=0&f=A&v=mapbubble&a=-&i=none&vo=value&&t=C&g=none&l=249--157&s=-662688000000&e=1546300800000 (accessed on 17 June 2021).
- Rogelj, J.; Alenxander, P.; Katherine, C.; Gunnar, L. Scenarios towards limiting global mean temperature increase below 1.5 C. Nat. Clim. Chang. 2018, 8, 325–332. [Google Scholar] [CrossRef]
- De Gouw, J.A.; Parrish, D.D.; Frost, G.J.; Trainer, M. Reduced emissions of CO2, NOx, and SO2 from US power plants owing to switch from coal to natural gas with combined cycle technology. Earth’s Future 2014, 2, 75–82. [Google Scholar] [CrossRef]
- Steen, N. Greenhouse Gas Emissions from Fossil Fuel Fired Power Generation Systems; European Commission JRC Publication; Institute for Advanced Materials, 2001; pp. 1–61. Available online: https://publications.jrc.ec.europa.eu/repository/handle/JRC21207 (accessed on 26 July 2021).
- Fennovoima. Environmental Impact Assessment Report for a Nuclear Power Plant; Fennovoima: Helsinki, Finland, 2014; pp. 1–288. Available online: https://tem.fi/documents/1410877/2818159/EIA+summary.pdf/dae4955e-3b55-4d15-9698-0bee40be892c/EIA+summary.pdf?t=1464950981000 (accessed on 17 June 2021).
- Aliyu, A.S.; Ramli, A.T.; Saleh, M.A. Assessment of potential human health and environmental impacts of a nuclear power plant (NPP) based on atmospheric dispersion modeling. Atmósfera 2015, 28, 13–26. [Google Scholar] [CrossRef]
- IAEA. Database on Discharges of Radionuclides to the Atmosphere and the Aquatic Environment. 2012. Available online: https://dirata.iaea.org/SearchDischarges.aspx (accessed on 17 June 2021).
Parameter | Input |
---|---|
Base Year | 2015 |
Modeling Period | 2015 to 2060 |
Discount Rate | 15% [23] |
Available Resources Used | Oil and Gas |
Energy Forms | Resources, Primary, Secondary, and Final |
Demand | Final Demand for Electricity |
Technology Name | Plant Capacity Factor | Plant Life (Years) | Investment Cost (USD/kW) [25] | Variable Cost (USD/MWh) [25] | Loss | Output Level in the Base Year (GWh) |
---|---|---|---|---|---|---|
Electricity distribution (Elect-TD) | N/A | 60 | 1000 | 10 | 20% | 25,941.97 |
Oil power plant (Oil-PP) | 0.3 | 35 | 1563 | 4.7 | 50% | 3764.277 |
Gas power plant (Gas-PP) | 0.3 | 40 | 1175 | 6.2 | 50% | 21,330.903 |
Solar power plant (Solar-PP) | 0.2 | 25 | 1313 | 0 | 0 | 24 |
Hydropower plant (Hydro) | 0.3 | 70 | 5316 | 0 | 0 | 3 |
Wind power plant | 0.15 | 20 | 1265 | 10 | 0 | 5663 |
Nuclear power plant (Nuc-PP) | 0.9 | 60 | 4800 | 2.37 | 10% | N/A |
Domain Data | ||
Domain Name | Egbin Fossil Power Station | |
Time Frame | Full year | |
Cell Size | 50 × 50 km | |
Latitude | 6.5635° | |
Longitude | −3.6151° | |
Emission and Dispersion | ||
Base elevation | 10 m | |
Stack Height [30] | 40 m | |
Stack Diameter | 8.3 m | |
Exit Temperature [31] | 541.15 °C | |
Exit Velocity [31] | 40.96 m/s | |

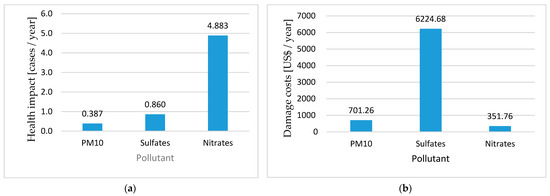

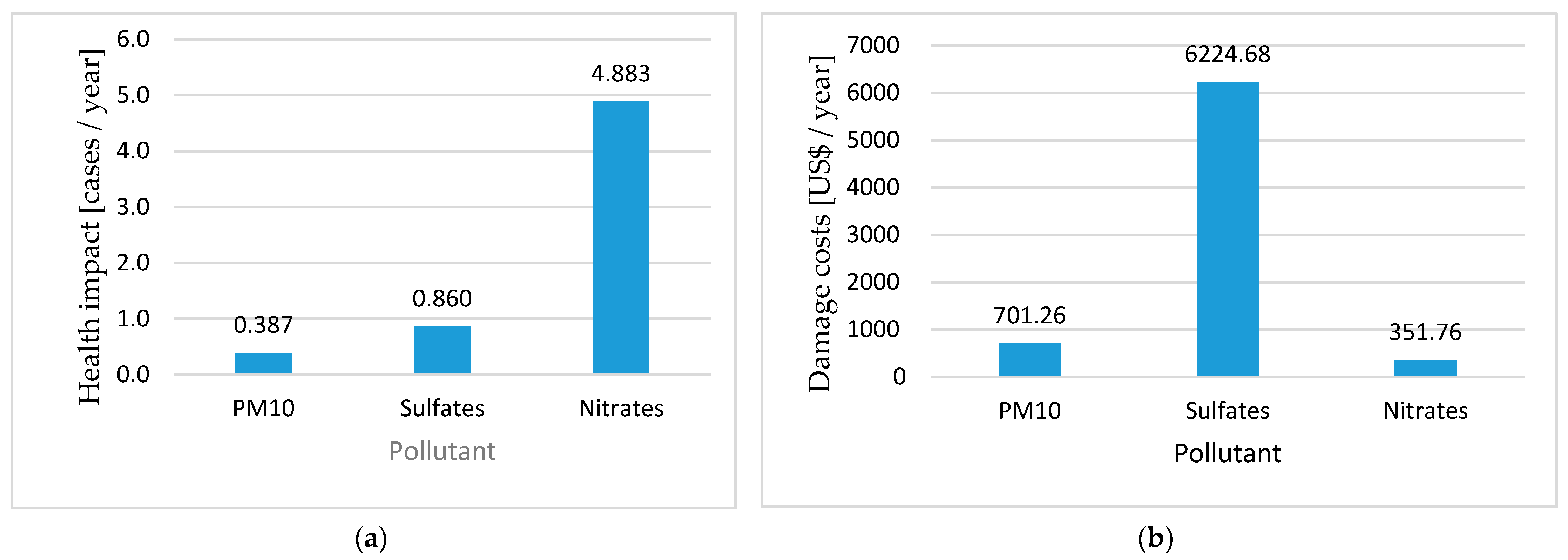

SO2 emissions [32] | 33.588 kg/h | |
NOx emissions [32] | 2928.6 kg/h | |
PM10 emissions [32] | 65.772 kg/h | |
Month | Ozone (O3) Concentration | Ammonia (NH3) Concentration |
All year | 80 ppb (default) | 10 ppb (default) |
Health Impacts | ||
Lagos | Ogun | |
Population Density = 3345/km2 [33] | Population Density = 311.3/km2 [33] |
Site Location and Cost Data | ||
Economic defaults from | NIGERIA | |
GDP per Capita [34] | $2097 per capita | |
Hydro Power Plant Data | ||
Plant Capacity [35] | 578.4 MW | |
Capacity Factor [36] | 83% | |
Lifetime | 50 years | |
Dam Data | ||
Reservoir inundated area [37] | 350 km2 | |
Average Dam failure rate (default) | 0.0001 fraction | |
Average accident warning time (default) | 1.5 h | |
Population Data | ||
Population displaced | 28,875 persons | |
Share of population resettled/compensated | 60% | |
Population at risk in the event of accident | 47,200 persons | |
Value of statistical life | $128,839.11 | |
Land Use Data (type) | ||
Region type | Tropical | |
Type of Terrain | Flatlands | |
Agricultural Products [38] | ||
Maize Corn | 2800 tons/year | 8 $/ton |
Beans | 4200 tons/year | 12 $/ton |
Onions | 3500 tons/year | 10 $/ton |
Rice | 5600 tons/year | 16 $/ton |
Domain Data | ||
Domain Name | Nigeria Nuclear Modeling | |
Time Frame | Full year | |
Cell Size | 50 × 50 km | |
Latitude | 49.3° | |
Longitude | −1.9° | |
Emission and Dispersion | ||
Base elevation | 20 m | |
Stack Height [43] | 100 m | |
Stack Diameter | 3 m | |
Exit Temperature | 177 °C | |
Exit Velocity [44] | 15 m/s | |
Emission cycle | Constant | |
Emission rate unit [45] | GBq/year | |
3H emissions | 3080 GBq/year | |
14C emissions | 1050 GBq/year | |
131I emissions | 0.342 GBq/year | |
133I emissions | 0.640 GBq/year | |
60Co emissions | 0.102 GBq/year | |
85Kr emissions | 6720 GBq/year | |
134Cs emissions | 0.080 GBq/year | |
137Cs emissions | 0.071 GBq/year | |
133Xe emissions | 18,666.7 GBq/year | |
Population Density [33] | ||
Population Density = 1129/km2 | ||

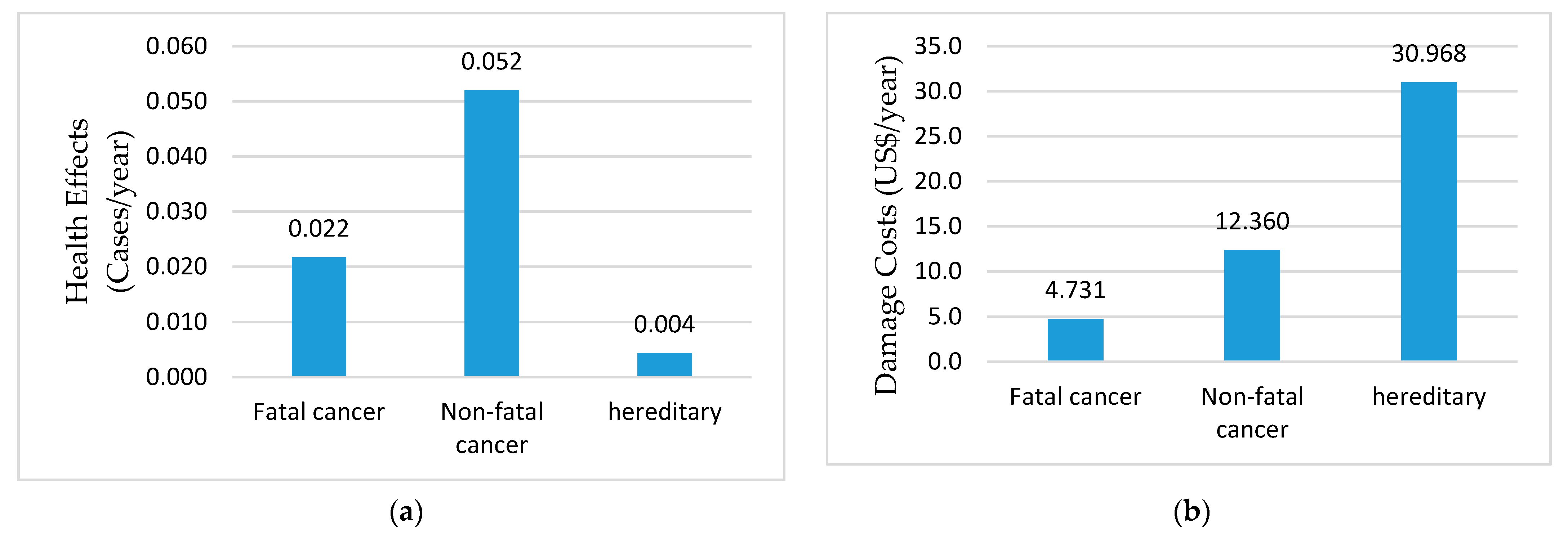

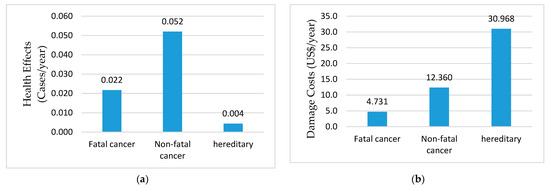

Impact | Specific risk factors [cases per man Sv] | Specific economic values [$] |
Fatal cancer | 0.05 | 218.26 |
Nonfatal cancer | 0.12 | 237.6 |
Specific hereditary effect | 0.01 | 7143.91 |
Food production [38] | ||
Food | Export share [%] | Production [tons/year] |
Beef | 0 | 1454.1 |
Chicken | 0 | 256.2 |
Parameter | Item | Values | Damage Cost ($/MWh) |
---|---|---|---|
Loss of Land (km2) | Forest | 311.5 | 846.6 |
Farmland | 35 | ||
Other land | 3.5 | ||
Total | 350 | ||
Displacement and Resettlement (persons) | Displaced persons | 28,875 | 782.8 |
Resettled persons | 17,325 | ||
Emissions (tons/year) | CH4 (Mean) | 6300 | 1587 |
CO2 (Mean) | 629,300 | ||
GHG (in carbon equivalent) | 207,709 |

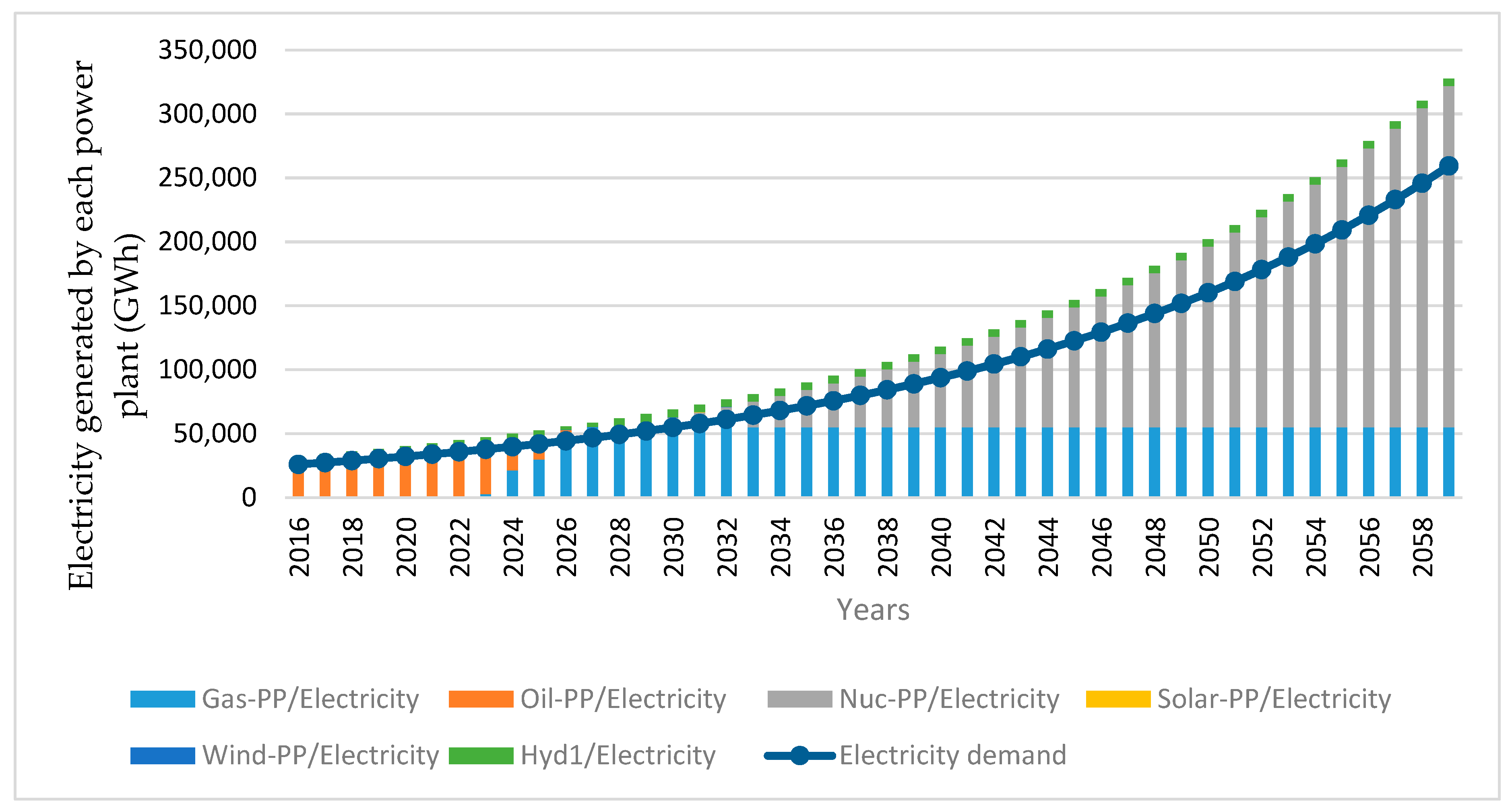

Year | Without CO2 Constraint (Scenario 1) | With CO2 Constraint (Scenario 2) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Gas-PP | Oil-PP | Nuc-PP | Solar-PP | Wind-PP | Hyd-pp | Gas-PP | Oil-PP | Nuc-PP | Solar-PP | Wind-PP | Hyd-pp | |
2016 | 0.00 | 81.11 | 0.00 | 0.34 | 1.09 | 17.46 | 0.00 | 81.11 | 0.00 | 0.34 | 1.09 | 17.46 |
2020 | 0.00 | 84.77 | 0.00 | 0.27 | 0.88 | 14.08 | 0.00 | 91.12 | 0.00 | 0.27 | 0.88 | 7.73 |
2025 | 0.00 | 88.51 | 0.00 | 0.21 | 0.52 | 10.76 | 56.63 | 31.89 | 0.00 | 0.21 | 0.52 | 10.76 |
2030 | 0.00 | 91.40 | 0.00 | 0.16 | 0.21 | 8.23 | 79.83 | 0.00 | 10.96 | 0.16 | 0.21 | 8.84 |
2035 | 0.00 | 93.59 | 0.00 | 0.12 | 0.00 | 6.29 | 61.01 | 0.00 | 32.59 | 0.12 | 0.00 | 6.29 |
2040 | 0.00 | 95.20 | 0.00 | 0.00 | 0.00 | 4.80 | 46.62 | 0.00 | 48.57 | 0.00 | 0.00 | 4.80 |
2045 | 0.00 | 100.0 | 0.00 | 0.00 | 0.00 | 0.00 | 35.63 | 0.00 | 60.70 | 0.00 | 0.00 | 3.67 |
2050 | 97.19 | 0.00 | 0.00 | 0.00 | 0.00 | 2.81 | 27.23 | 0.00 | 69.96 | 0.00 | 0.00 | 2.81 |
2055 | 97.86 | 0.00 | 0.00 | 0.00 | 0.00 | 2.14 | 20.81 | 0.00 | 77.05 | 0.00 | 0.00 | 2.14 |
2059 | 98.27 | 0.00 | 0.00 | 0.00 | 0.00 | 1.73 | 16.78 | 0.00 | 81.49 | 0.00 | 0.00 | 1.73 |
