# Short-Term Deterministic Solar Irradiance Forecasting Considering a Heuristics-Based, Operational Approach

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Statistical Forecasting Methods: Introduction and Challenges

#### 1.2. Emergence and Challenges of Artificial Intelligence as Forecasting Tool

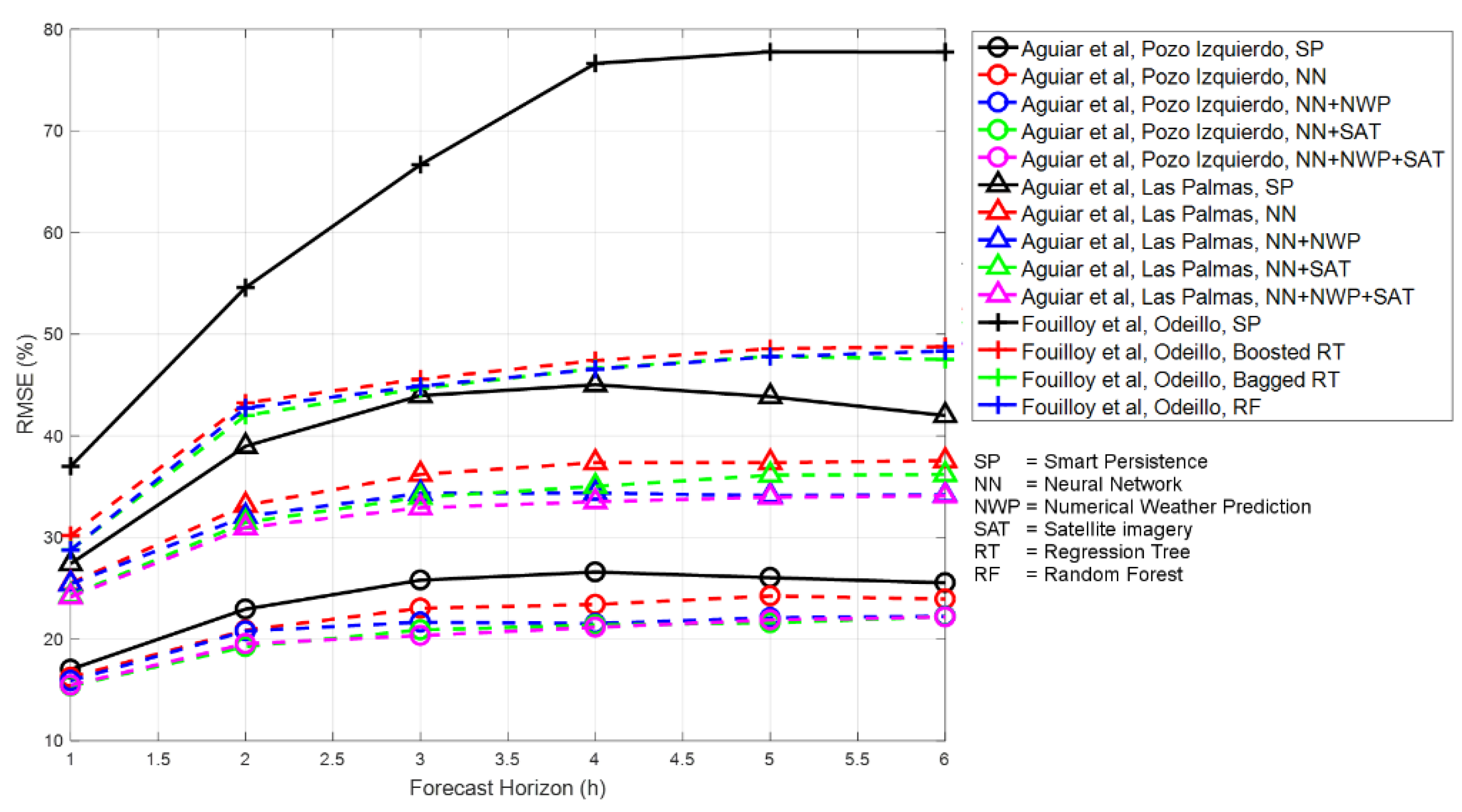

#### 1.3. Current State of the Art in Solar Power Forecasting Performance Assessment

#### 1.4. Present Work and Scientific Contributions

- A novel solar radiation forecasting method was developed based on pattern identification and classification, probability and heuristic methodology, considering operational needs of decision-making parties. The heuristic method developed for this application presents an intuitive, explainable, interpretable and effective way to forecast solar irradiance, by relying on concepts of probability, possibility and human reasoning, overcoming the limitation of complex mathematical abstraction and black-box characteristics of advanced state-of-the-art statistical and artificial intelligence methods.
- A generalized explicit irradiance pattern classification scheme was employed for performance assessment and forecasting, by classifying irradiance patterns through an analytical expression that yields similar results to clustering techniques, with the advantage of easy implementation across studies.
- A comprehensive performance assessment framework was developed to analyze not only how forecasting performance changes as a function of forecast horizon and lead time, but to evaluate the effect of data aggregation into the knowledge base has on forecasting skill, how quality control and/or data gaps affect performance assessment and how the forecaster performs under different objectively defined day types.

## 2. Data Sources and Methodology

_{t}-K-QS value to a certain irradiance class and Figure 6 presents the workflow for each variable, using QS as example. First, the variable is evaluated using Gaussian membership functions defined for each of the 20 defined classes presented in Figure 3 to determine the most similar class or origin state (Figure 6a). Then, the transition probability distribution corresponding to the origin state (Figure 6c) is extracted from the general transition matrix (Figure 6b). This distribution represents the probability of transition from the current origin state to the destination (or forecasted) state. Equation (8) presents the Gaussian membership function in which x refers to the variable to be tested, ${\mu}_{x}$ and ${\sigma}_{x}$ represent the mean and standard deviation of the set, respectively.

_{t}-K-QS space exists for a given $V{S}_{cdf}$ (Figure 7a) and the forecast output must belong to it. Since $V{S}_{cdf}$ is used to describe the intrahourly variability, has a wider distribution of values and has the least effect in QS compared to ${K}_{t}$ and K [33], for this work it has been assumed that the intrahourly variability is preserved across hours. With this $V{S}_{cdf}$ value, the K

_{t}-K-QS space is constructed (Figure 7b) and using the previously determined QS likelihood function (Figure 7c) the K

_{t}-K-QS space can be mapped into the QS likelihood function in the K

_{t}-K space (Figure 7d).

_{t}-K combinations violate physical irradiance limits, for which no forecast can be produced. Hence, there exists a binary plausibility space (Figure 7e) representing this (1 for plausible and 0 for implausible values), with ${K}_{t}$ and K limits being derived from the irradiance limits for GHI, DHI and direct normal irradiance (DNI) established by [47,48] calculated at the forecast’s corresponding α and ${I}_{o}$. The last space to consider is constructed from the likelihood functions of ${K}_{t}$ and K (Figure 7f). Finally, the product operator is used to aggregate the QS likelihood space, the combined ${K}_{t}$-K likelihood and the plausibility space, to obtain the overall combined likelihood in the ${K}_{t}$-K-QS space, representing the overall likelihood for the combination of variables. To obtain the crisp numerical ${K}_{t}$, K and QS values, a centroid defuzzification has been chosen, as this criterion considers the information of all the space and not just the maximum value.

## 3. Assessment Methodology

^{2}≅ 25 °C) and plants vary in capacity, it is reasonable to estimate electric power production as the product of the nominal production capacity by the irradiance on the module’s surface and reference the error metric to the nominal plant capacity ${C}_{nominal}$, following [32]. Therefore, the errors are calculated as follows: ${e}_{irr}$ for irradiance, while ${e}_{power}$ for power production at tilted plane cases. Only valid data points that passed quality control are considered for error calculation.

## 4. Results and Discussion

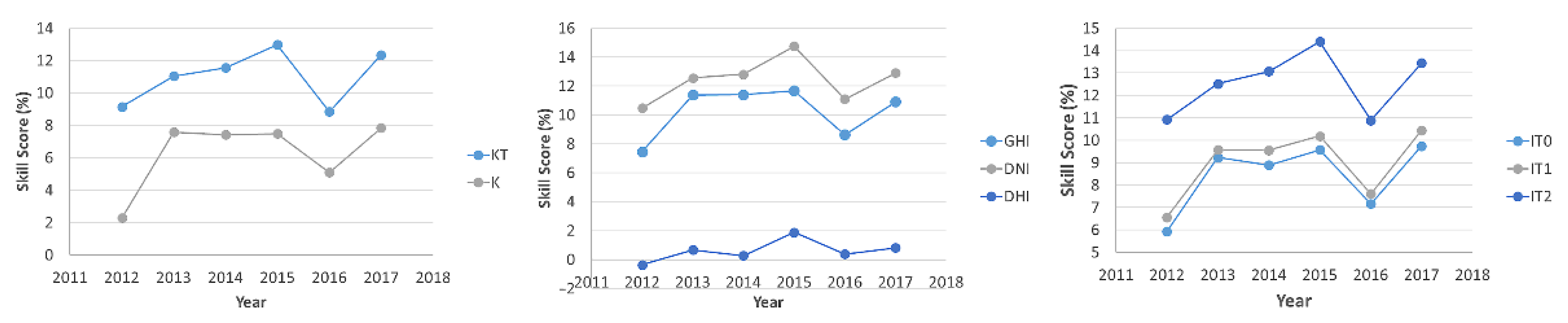

#### 4.1. Data Aggregation Effect on Forecasting Performance

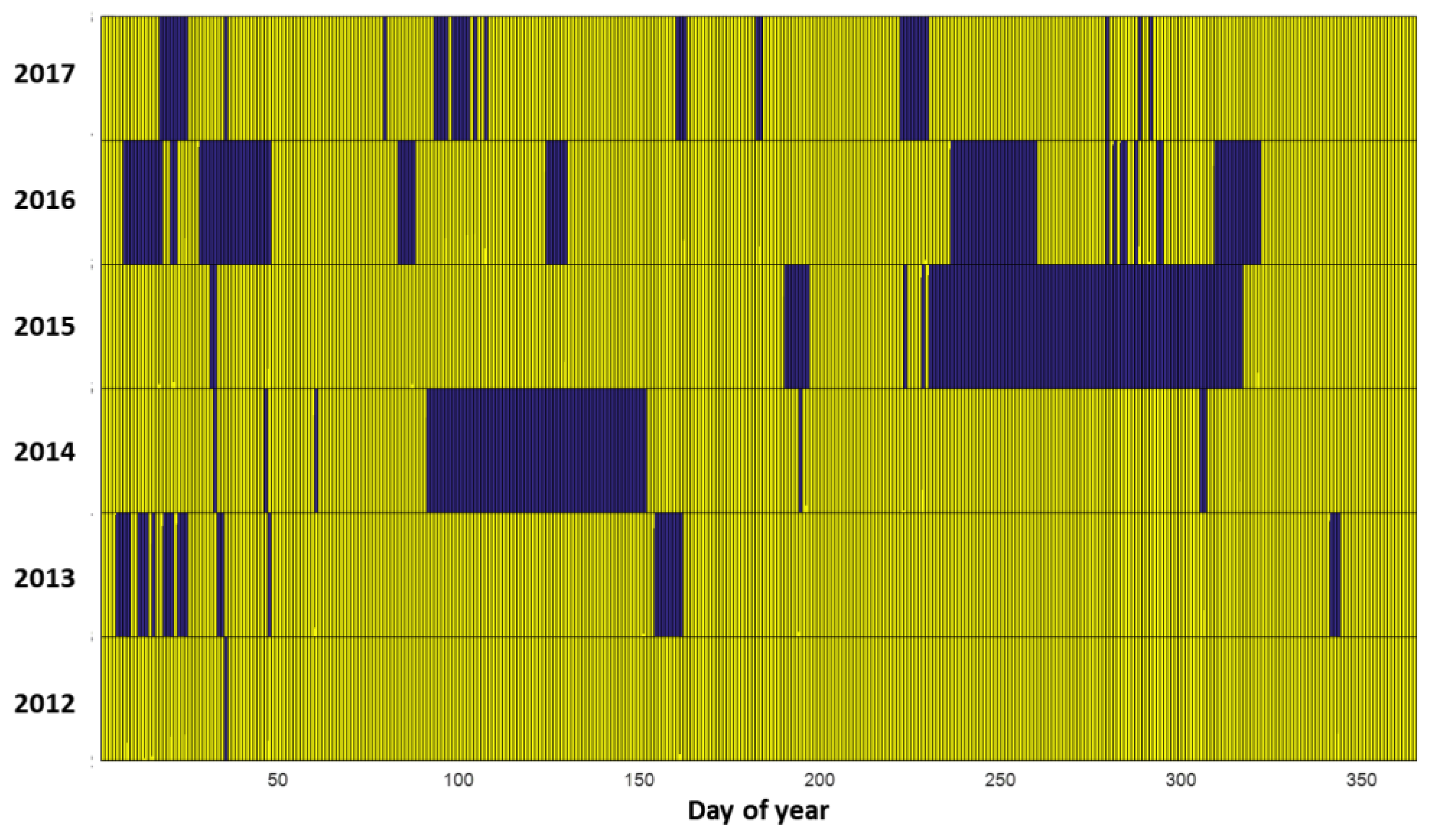

#### 4.2. Effect of Forecast Horizon and Lead Time in Forecasting Performance

#### 4.3. Forecast Performance Assessment as a Function of Day Type

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

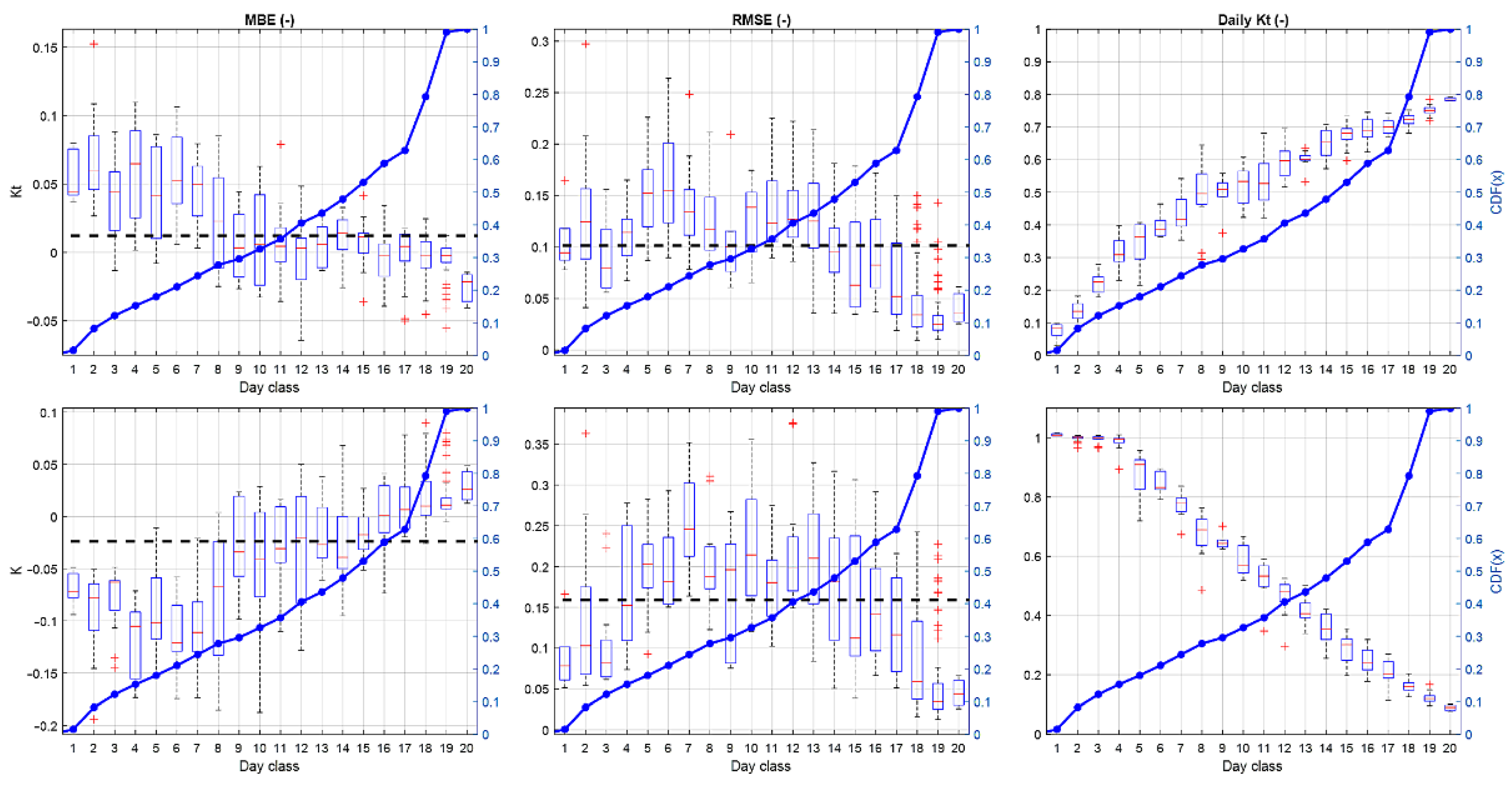

**Figure A1.**Error metrics for ${K}_{t}$(

**top row**) and K (

**bottom row**) as a function of day class. Dashed line represents yearly performance. Cumulative distribution of day types presented in secondary axis.

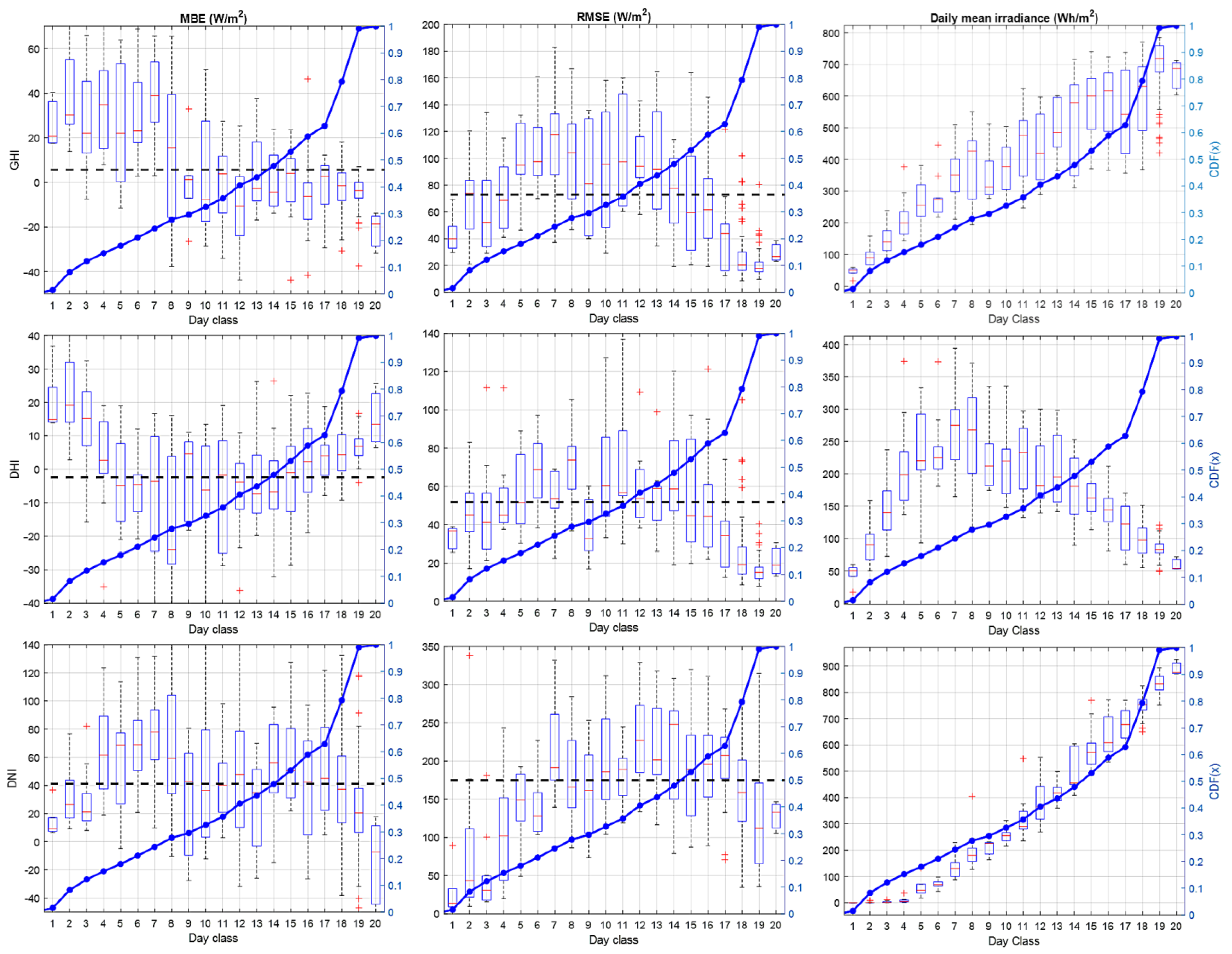

**Figure A2.**Error metrics for GHI (

**top row**), DHI (

**middle row**) and DNI (

**bottom row**) as a function of day class. Dashed line represents yearly performance. Cumulative distribution of day types presented in secondary axis.

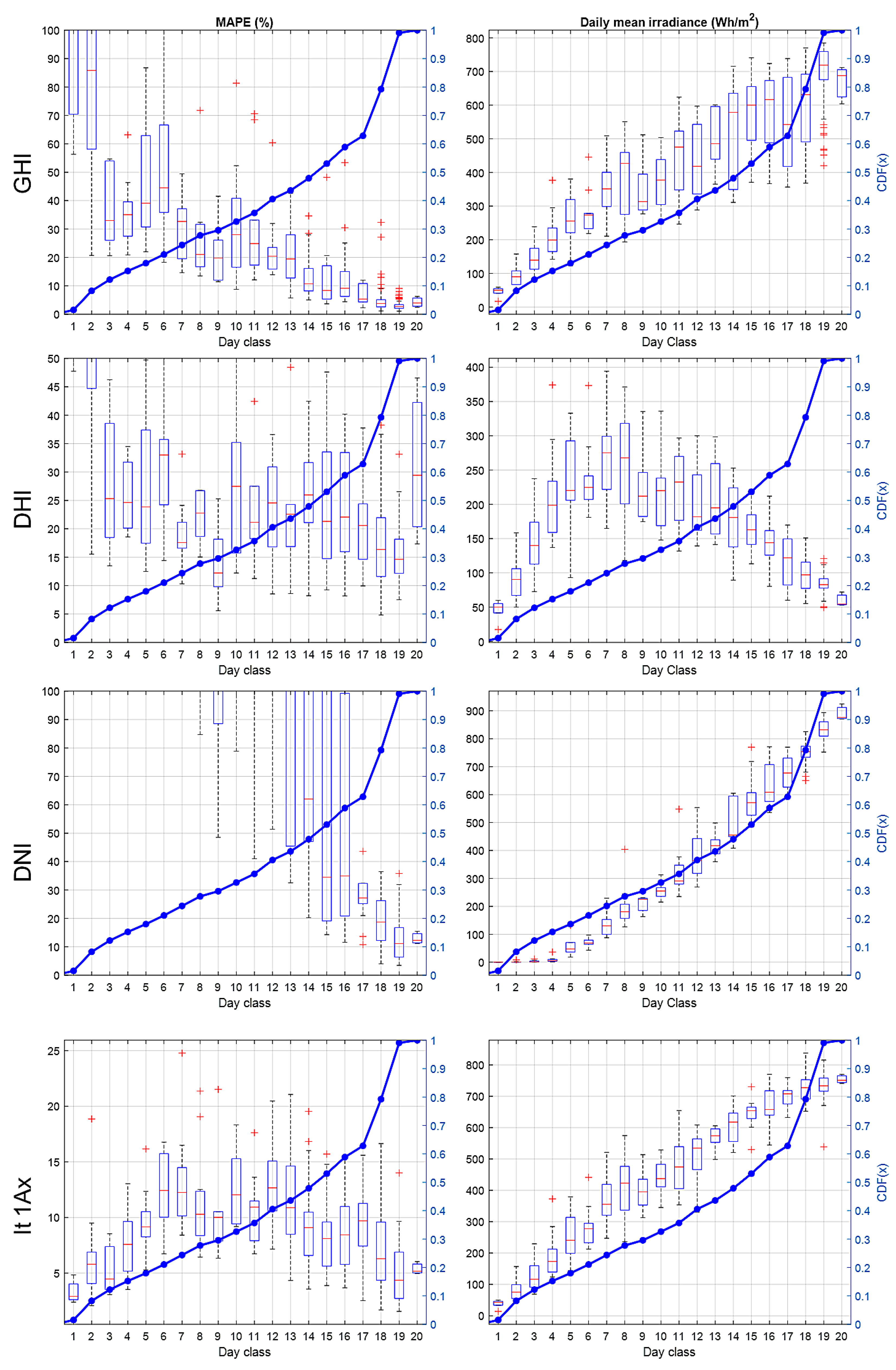

**Figure A3.**MAPE for irradiance forecasting as a function of day class. Cumulative distribution of day types presented in secondary axis.

## References

- Denholm, P.; Mai, T. Timescales of Energy Storage Needed for Reducing Renewable Energy Curtailment Timescales of Energy Storage Needed for Reducing Renewable Energy Curtailment; National Renewable Energy Laboratory (NREL): Golden, CO, USA, 2017.
- Denholm, P.; Margolis, R. The Potential for Energy Storage to Provide Peaking Capacity in California under Increased Penetration of Solar Photovoltaics; National Renewable Energy Laboratory (NREL): Golden, CO, USA, 2018.
- Diagne, M.; David, M.; Lauret, P.; Boland, J.; Schmutz, N. Review of solar irradiance forecasting methods and a proposition for small-scale insular grids. Renew. Sustain. Energy Rev.
**2013**, 27, 65–76. [Google Scholar] [CrossRef] [Green Version] - Antonanzas, J.; Osorio, N.; Escobar, R.; Urraca, R.; Martinez-de-Pison, F.J.; Antonanzas-Torres, F. Review of photovoltaic power forecasting. Sol. Energy
**2016**, 136, 78–111. [Google Scholar] [CrossRef] - Voyant, C.; Notton, G.; Kalogirou, S.; Nivet, M.-L.; Paoli, C.; Motte, F.; Fouilloy, A. Machine learning methods for solar radiation forecasting: A review. Renew. Energy
**2017**, 105, 569–582. [Google Scholar] [CrossRef] - Sobri, S.; Koohi-Kamali, S.; Rahim, N.A. Solar photovoltaic generation forecasting methods: A review. Energy Convers. Manag.
**2018**, 156, 459–497. [Google Scholar] [CrossRef] - Yang, D.; Kleissl, J.; Gueymard, C.A.; Pedro, H.T.C.; Coimbra, C.F.M. History and trends in solar irradiance and PV power forecasting: A preliminary assessment and review using text mining. Sol. Energy
**2018**, 168, 60–101. [Google Scholar] [CrossRef] - Guermoui, M.; Melgani, F.; Gairaa, K.; Mekhalfi, M.L. A comprehensive review of hybrid models for solar radiation forecasting. J. Clean. Prod.
**2020**, 258, 120357. [Google Scholar] [CrossRef] - Ljung, L. Identification: Theory for the User; Prentice Hall: Hoboken, NJ, USA, 1987. [Google Scholar]
- Box, G.E.P.; Jenkins, G.M.; Day, H. Time Series Analysis: Forecasting and Control; Holden-Day: San Francisco, CA, USA, 1976; ISBN 9780816211043. [Google Scholar]
- Alkhayat, G.; Mehmood, R. A Review and Taxonomy of Wind and Solar Energy Forecasting Methods Based on Deep Learning. Energy AI
**2021**, 4, 100060. [Google Scholar] [CrossRef] - Cai, M.; Pipattanasomporn, M.; Rahman, S. Day-ahead building-level load forecasts using deep learning vs. traditional time-series techniques. Appl. Energy
**2019**, 236, 1078–1088. [Google Scholar] [CrossRef] - Lan, H.; Zhang, C.; Hong, Y.Y.; He, Y.; Wen, S. Day-ahead spatiotemporal solar irradiation forecasting using frequency-based hybrid principal component analysis and neural network. Appl. Energy
**2019**, 247, 389–402. [Google Scholar] [CrossRef] - Theocharides, S.; Makrides, G.; Livera, A.; Theristis, M.; Kaimakis, P.; Georghiou, G.E. Day-ahead photovoltaic power production forecasting methodology based on machine learning and statistical post-processing. Appl. Energy
**2020**, 268, 115023. [Google Scholar] [CrossRef] - Du Plessis, A.A.; Strauss, J.M.; Rix, A.J. Short-term solar power forecasting: Investigating the ability of deep learning models to capture low-level utility-scale Photovoltaic system behaviour. Appl. Energy
**2021**, 285, 116395. [Google Scholar] [CrossRef] - Wang, H.; Cai, R.; Zhou, B.; Aziz, S.; Qin, B.; Voropai, N.; Gan, L.; Barakhtenko, E. Solar irradiance forecasting based on direct explainable neural network. Energy Convers. Manag.
**2020**, 226, 113487. [Google Scholar] [CrossRef] - Sethi, T.S.; Kantardzic, M. Data driven exploratory attacks on black box classifiers in adversarial domains. Neurocomputing
**2018**, 289, 129–143. [Google Scholar] [CrossRef] [Green Version] - Wang, F.; Xuan, Z.; Zhen, Z.; Li, K.; Wang, T.; Shi, M. A day-ahead PV power forecasting method based on LSTM-RNN model and time correlation modification under partial daily pattern prediction framework. Energy Convers. Manag.
**2020**, 212, 112766. [Google Scholar] [CrossRef] - Ahmed, R.; Sreeram, V.; Mishra, Y.; Arif, M.D. A review and evaluation of the state-of-the-art in PV solar power forecasting: Techniques and optimization. Renew. Sustain. Energy Rev.
**2020**, 124, 109792. [Google Scholar] [CrossRef] - Wang, F.; Zhang, Z.; Liu, C.; Yu, Y.; Pang, S.; Duić, N.; Shafie-khah, M.; Catalão, J.P.S. Generative adversarial networks and convolutional neural networks based weather classification model for day ahead short-term photovoltaic power forecasting. Energy Convers. Manag.
**2019**, 181, 443–462. [Google Scholar] [CrossRef] - Yang, D.; Alessandrini, S.; Antonanzas, J.; Antonanzas-Torres, F.; Badescu, V.; Beyer, H.G.; Blaga, R.; Boland, J.; Bright, J.M.; Coimbra, C.F.M.; et al. Verification of deterministic solar forecasts. Sol. Energy
**2020**, 210, 20–37. [Google Scholar] [CrossRef] - Yang, D. Making reference solar forecasts with climatology, persistence, and their optimal convex combination. Sol. Energy
**2019**, 193, 981–985. [Google Scholar] [CrossRef] - Paulescu, M.; Paulescu, E.; Badescu, V. Nowcasting solar irradiance for effective solar power plants operation and smart grid management. In Predictive Modelling for Energy Management and Power Systems Engineering; Elsevier: Amsterdam, The Netherlands, 2021; pp. 249–270. [Google Scholar]
- Coimbra, C.F.M.; Pedro, H.T.C. Stochastic-Learning Methods. In Solar Energy Forecasting and Resource Assessment; Elsevier: Amsterdam, The Netherlands, 2013; pp. 383–406. [Google Scholar]
- Notton, G.; Voyant, C. Forecasting of Intermittent Solar Energy Resource. In Advances in Renewable Energies and Power Technologies; Elsevier: Amsterdam, The Netherlands, 2018; pp. 77–114. [Google Scholar]
- Rodríguez-Benítez, F.J.; Arbizu-Barrena, C.; Huertas-Tato, J.; Aler-Mur, R.; Galván-León, I.; Pozo-Vázquez, D. A short-term solar radiation forecasting system for the Iberian Peninsula. Part 1: Models description and performance assessment. Sol. Energy
**2020**, 195, 396–412. [Google Scholar] [CrossRef] - Aguiar, L.M.; Pereira, B.; Lauret, P.; Díaz, F.; David, M. Combining solar irradiance measurements, satellite-derived data and a numerical weather prediction model to improve intra-day solar forecasting. Renew. Energy
**2016**, 97, 599–610. [Google Scholar] [CrossRef] [Green Version] - Fouilloy, A.; Voyant, C.; Notton, G.; Duchaud, J.-L. Regression trees and solar radiation forecasting: The boosting, bagging and ensemble learning cases. In Proceedings of the 2nd International Web Conference on Forecasting, Online, 15–17 October 2018. [Google Scholar]
- Heydari, A.; Astiaso Garcia, D.; Keynia, F.; Bisegna, F.; De Santoli, L. A novel composite neural network based method for wind and solar power forecasting in microgrids. Appl. Energy
**2019**, 251, 113353. [Google Scholar] [CrossRef] - Kumari, P.; Toshniwal, D. Extreme gradient boosting and deep neural network based ensemble learning approach to forecast hourly solar irradiance. J. Clean. Prod.
**2021**, 279, 123285. [Google Scholar] [CrossRef] - Rafati, A.; Joorabian, M.; Mashhour, E.; Shaker, H.R. High dimensional very short-term solar power forecasting based on a data-driven heuristic method. Energy
**2021**, 219, 119647. [Google Scholar] [CrossRef] - Betti, A.; Pierro, M.; Cornaro, C.; Moser, D.; Moschella, M.; Collino, E.; Ronzio, D.; van der Meer, D.; Visser, L.; Widen, J.; et al. Regional Solar Power Forecasting 2020; IEA-PVPS: Paris, France, 2020. [Google Scholar]
- Castillejo-Cuberos, A.; Escobar, R. Understanding solar resource variability: An in-depth analysis, using Chile as a case of study. Renew. Sustain. Energy Rev.
**2020**, 120, 109664. [Google Scholar] [CrossRef] - Yang, D.; Wu, E.; Kleissl, J. Operational solar forecasting for the real-time market. Int. J. Forecast.
**2019**, 35, 1499–1519. [Google Scholar] [CrossRef] - Castillejo-Cuberos, A.; Escobar, R. Detection and characterization of cloud enhancement events for solar irradiance using a model-independent, statistically-driven approach. Sol. Energy
**2020**, 209, 547–567. [Google Scholar] [CrossRef] - Rigollier, C.; Bauer, O.; Wald, L. On the clear sky model of the ESRA—European Solar Radiation Atlas—With respect to the heliosat method. Sol. Energy
**2000**, 68, 33–48. [Google Scholar] [CrossRef] [Green Version] - Ghimire, S.; Deo, R.C.; Raj, N.; Mi, J. Deep solar radiation forecasting with convolutional neural network and long short-term memory network algorithms. Appl. Energy
**2019**, 253, 113541. [Google Scholar] [CrossRef] - Bhardwaj, S.; Sharma, V.; Srivastava, S.; Sastry, O.S.; Bandyopadhyay, B.; Chandel, S.S.; Gupta, J.R.P. Estimation of solar radiation using a combination of Hidden Markov Model and generalized Fuzzy model. Sol. Energy
**2013**, 93, 43–54. [Google Scholar] [CrossRef] - Sanjari, M.J.; Gooi, H.B. Probabilistic Forecast of PV Power Generation Based on Higher Order Markov Chain. IEEE Trans. Power Syst.
**2017**, 32, 2942–2952. [Google Scholar] [CrossRef] - Lave, M.; Reno, M.J.; Broderick, R.J. Characterizing local high-frequency solar variability and its impact to distribution studies. Sol. Energy
**2015**, 118, 327–337. [Google Scholar] [CrossRef] - Zadeh, L.A. Fuzzy sets. Inf. Control
**1965**, 8, 338–353. [Google Scholar] [CrossRef] [Green Version] - Zadeh, L.A. Discussion: Probability Theory and Fuzzy Logic Are Complementary Rather Than Competitive. Technometrics
**1995**, 37, 271–276. [Google Scholar] [CrossRef] - Zadeh, L.A. Fuzzy sets as a basis for a theory of possibility. Fuzzy Sets Syst.
**1999**, 100, 9–34. [Google Scholar] [CrossRef] - Kovalerchuk, B. Relationships Between Probability and Possibility Theories. In Uncertainty Modeling; Springer: Cham, Switzerland, 2017; Volume 683, pp. 97–122. ISBN 9783319510514. [Google Scholar]
- Natvig, B. Possibility versus probability. Fuzzy Sets Syst.
**1983**, 10, 31–36. [Google Scholar] [CrossRef] - Barragán, A. Síntesis de Sistemas de Control Borroso Estables por Diseño. Ph.D. Thesis, Universidad de Huelva, Huelva, Spain, 2009. [Google Scholar]
- Long, C.; Shi, Y. The QCRad Value Added Product: Surface Radiation Measurement Quality Control Testing, Including Climatology Configurable Limits; U.S. Department of Energy, Office of Science Atmospheric Radiation Measurement Program: Washington, DC, USA, 2006.
- Journée, M.; Bertrand, C. Quality control of solar radiation data within the RMIB solar measurements network. Sol. Energy
**2011**, 85, 72–86. [Google Scholar] [CrossRef] - Duffie, J.A.; Beckman, W.A. Solar Engineering of Thermal Processes; Wiley: New York, NY, USA, 2013. [Google Scholar]
- Antonanzas-Torres, F.; Urraca, R.; Polo, J.; Perpiñán-Lamigueiro, O.; Escobar, R. Clear sky solar irradiance models: A review of seventy models. Renew. Sustain. Energy Rev.
**2019**, 107, 374–387. [Google Scholar] [CrossRef] - Polo, J.; Antonanzas-Torres, F.; Vindel, J.M.; Ramirez, L. Sensitivity of satellite-based methods for deriving solar radiation to different choice of aerosol input and models. Renew. Energy
**2014**, 68, 785–792. [Google Scholar] [CrossRef] - Beyer, H.; Martinez, J.P.; Suri, M.; Torres, J.; Lorenz, E.; Müller, S.; Hoyer-Klick, C.; Ineichen, P. Report on Benchmarking of Radiation Products; Management and Exploitation of Solar Resource Knowledge (MESOR): Cologne, Germany, 2009. [Google Scholar]
- Taylor, K.E. Summarizing multiple aspects of model performance in a single diagram. J. Geophys. Res. Atmos.
**2001**, 106, 7183–7192. [Google Scholar] [CrossRef]

**Figure 2.**Application of Box–Jenkins methodology to different irradiance patterns from overcast to clear sky. One-minute clear sky irradiance hourly patterns (

**top left**), with most representative time series of each set (

**top right**). Lower subfigures present autocorrelation (

**bottom left**) and partial autocorrelation functions (

**bottom right**) for each representative time series. Color bar in top-left subfigure represents probability of occurrence.

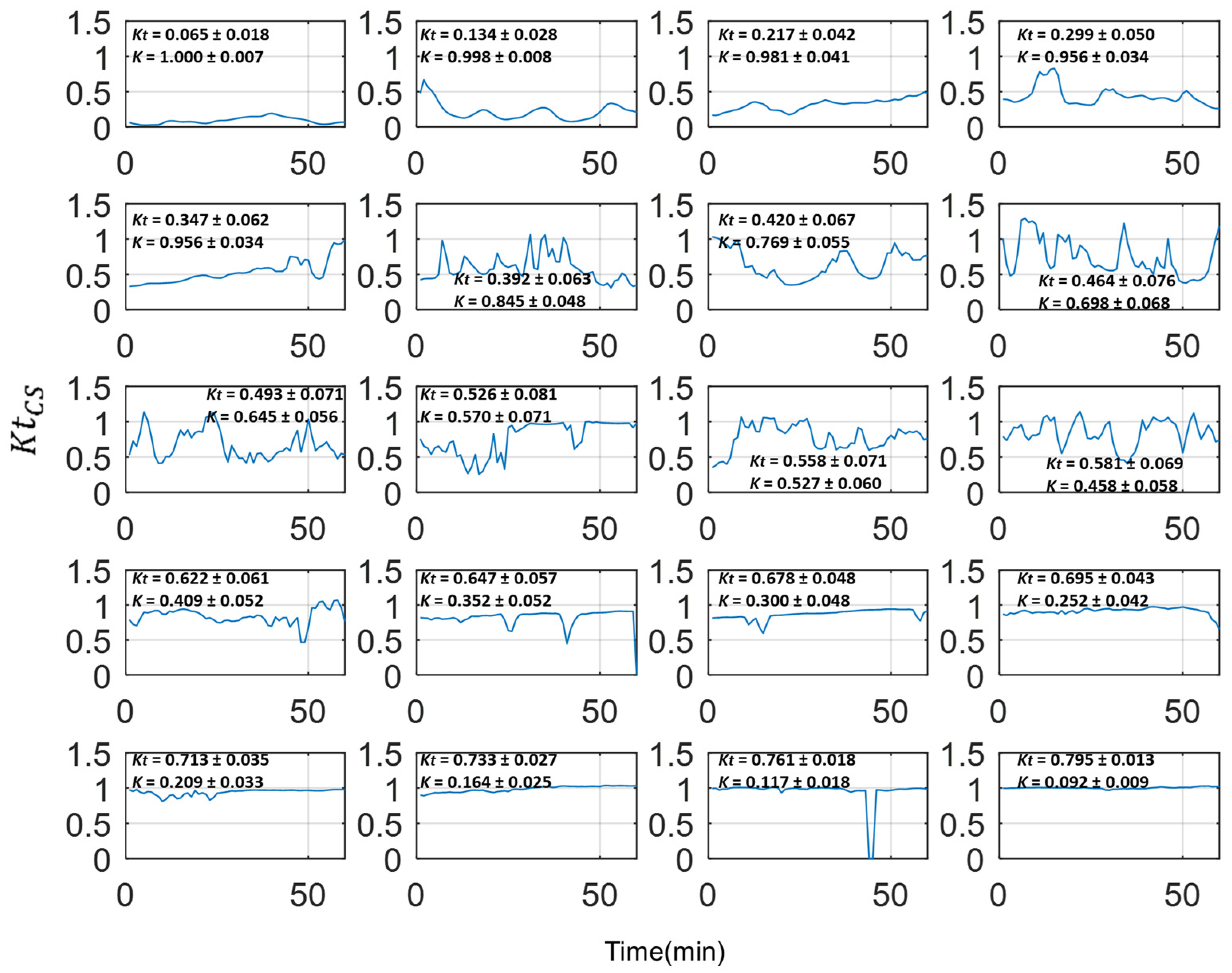

**Figure 3.**Typical one-minute clear sky clearness index time series for a representative hour for each irradiance class, with its corresponding ${K}_{t}$ and K value ranges, based on [33].

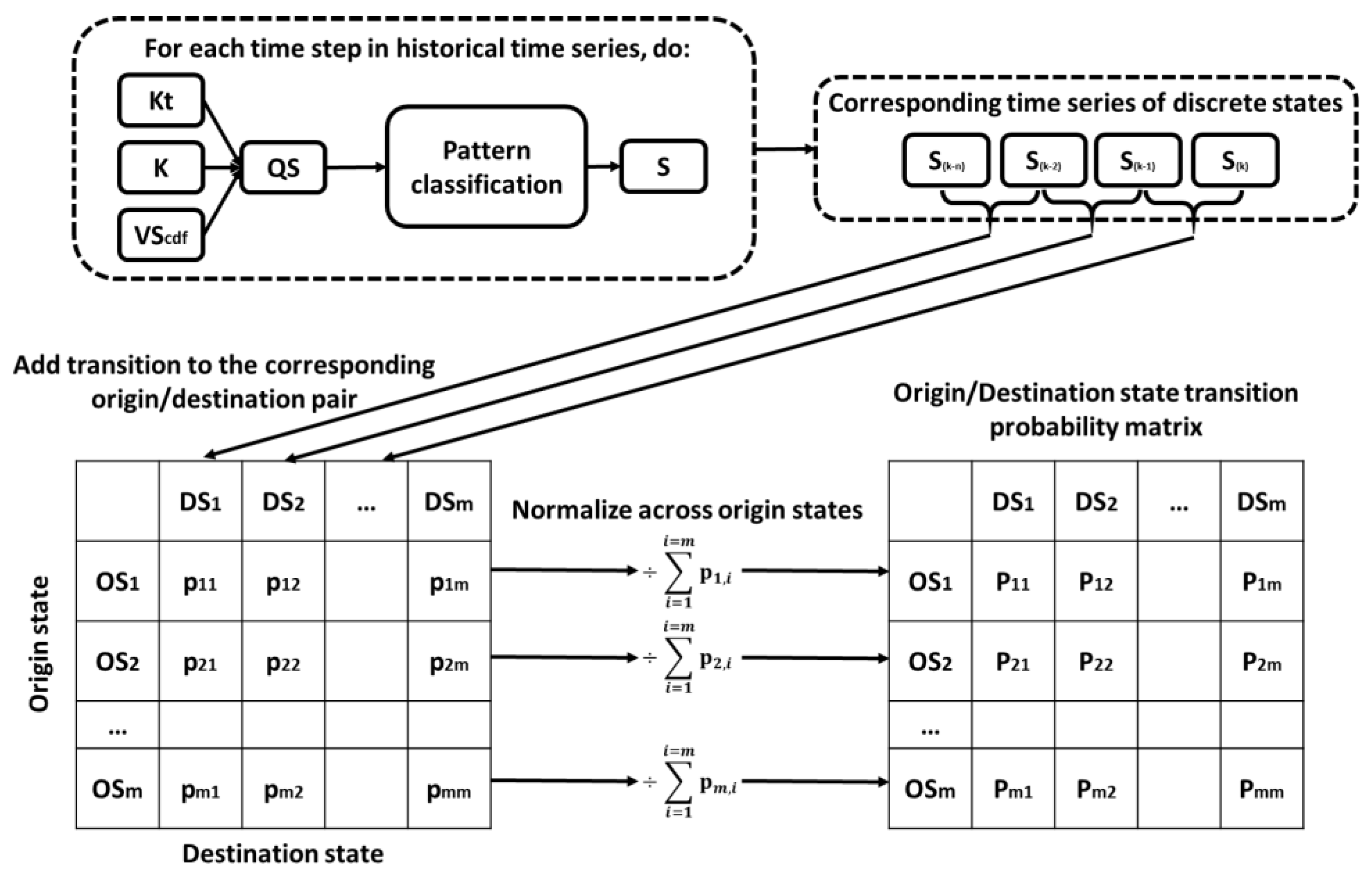

**Figure 4.**Workflow to construct transition probability matrixes after irradiance pattern classification has been performed.

**Figure 6.**Workflow to determine the likelihood function for QS on a test case with origin state: ${K}_{t}$ = 0.667, K = 0.333 and QS = 0.667. Membership function for QS (

**a**), state transition probability matrix (

**b**), future state probability of occurrence (

**c**), QS ranges for each destination state (

**d**), probability-weighed likelihood function for QS at each possible destination state (

**e**), likelihood function for QS (

**f**).

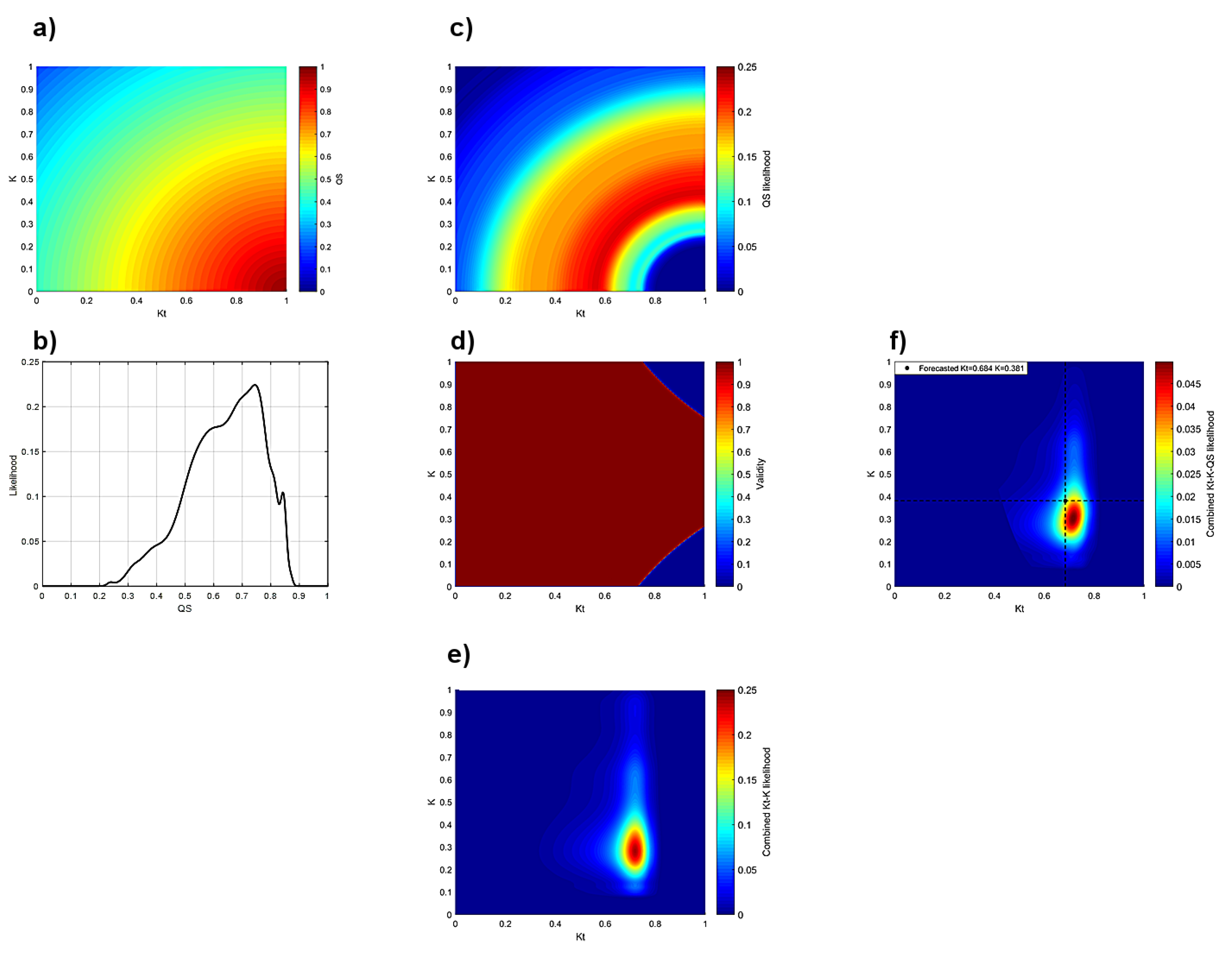

**Figure 7.**Workflow for the inference and de-fuzzification stages. Case with origin state: ${K}_{t}$ = 0.667, K = 0.333 and QS = 0.667. QS in the K

_{t}-K space at the likely $V{S}_{cdf}$ value (

**a**), QS likelihood function (

**b**), QS likelihood mapped to the K

_{t}-K space (

**c**), plausibility space (

**d**), combined K

_{t}-K likelihood (

**e**), overall likelihood function for a K

_{t}-K-QS triad, with the forecasted value at the centroid (

**f**).

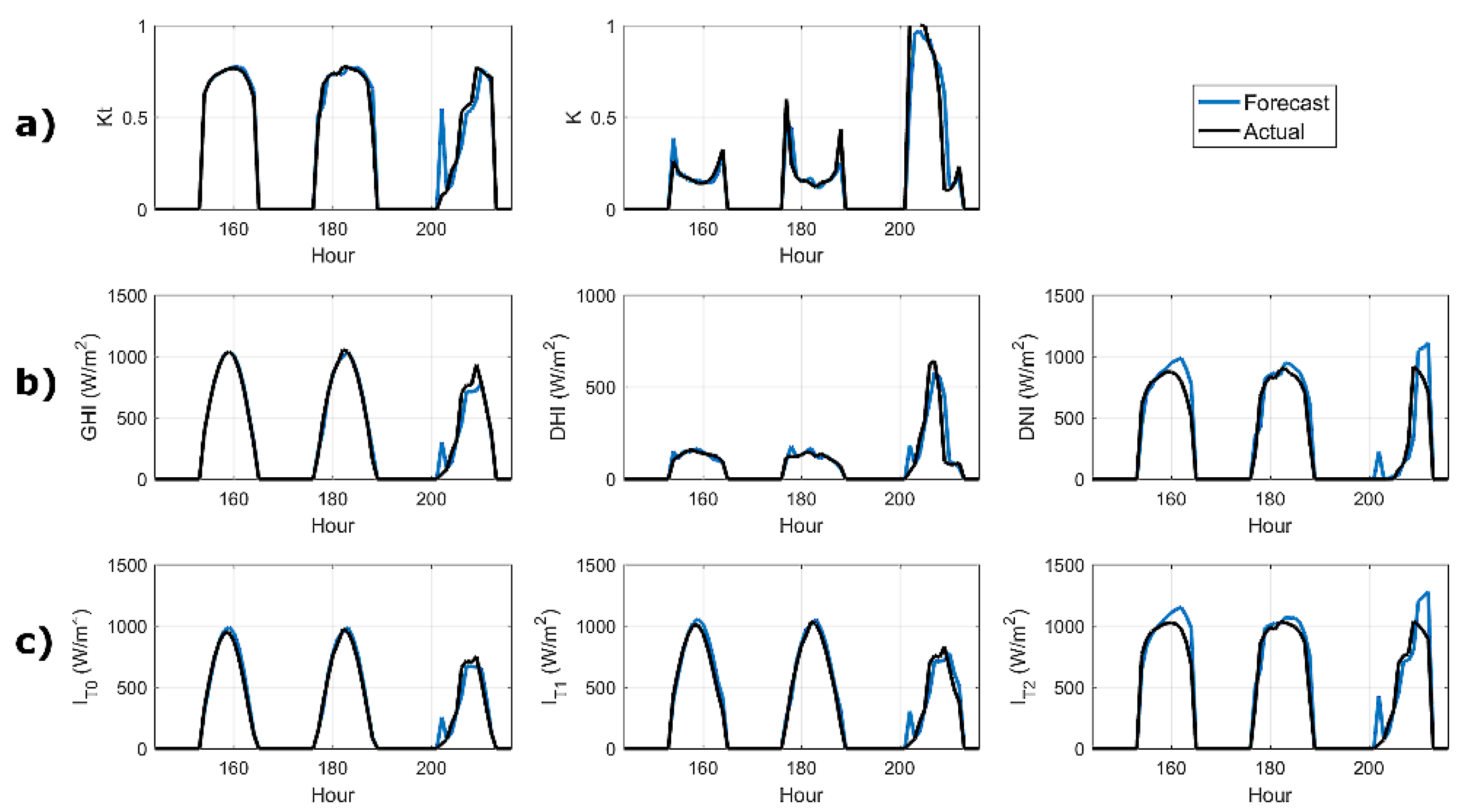

**Figure 9.**Example forecasting time series for the proposed method, showcasing completely clear (first), clear (second) and highly variable (third) days in the Santiago 2017 dataset: clearness index and diffuse fraction (

**a**), horizontally referenced irradiance (

**b**) and tilted plane irradiance (

**c**).

**Figure 10.**Forecasting skill performance for different forecast horizons and lead times (FLT), time units in hours: clearness index and diffuse fraction in the first row, horizontally referenced irradiance middle row and tilted plane irradiance bottom row.

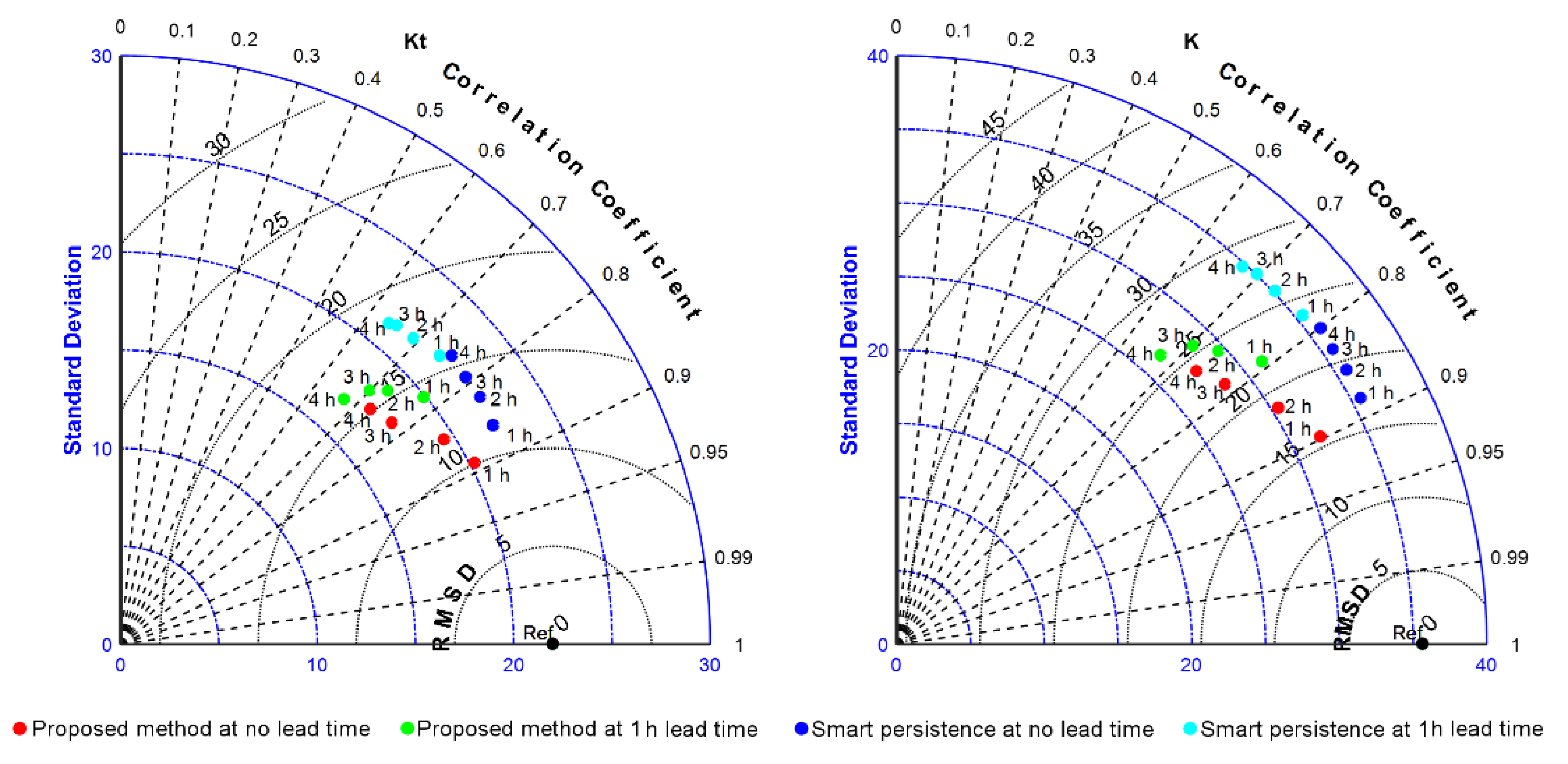

**Figure 11.**Taylor diagrams for Kt (

**left**) and K (

**right**) forecasting. Hours in the chart indicate forecast horizon. Standard deviation and RMSD are in percent.

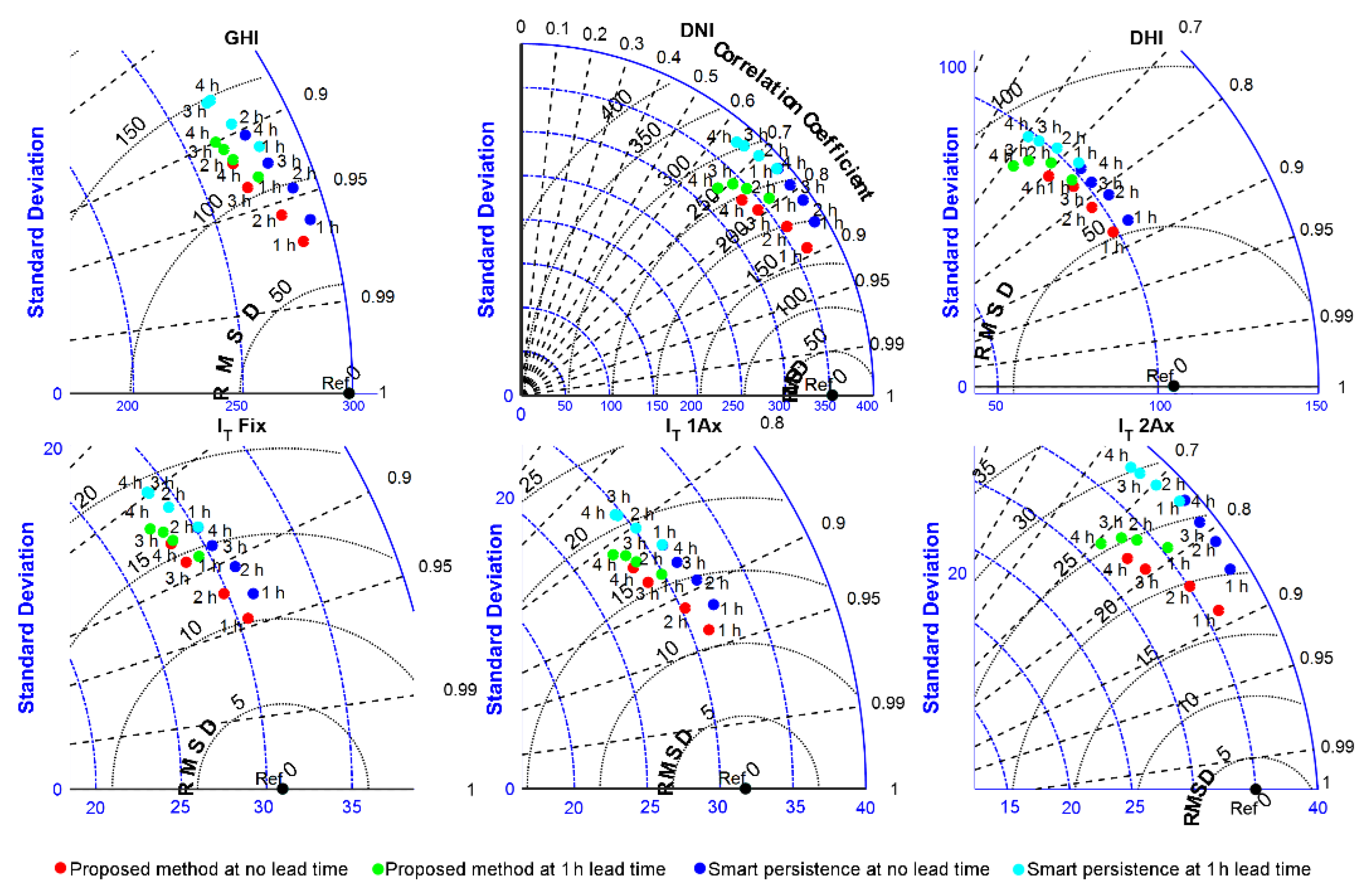

**Figure 12.**Taylor diagrams for irradiance forecasting. Hours in chart indicate forecast horizon, standard deviation and RMSD are in percent for tilted irradiance and in W/m
