Technical and Economic Evaluation of CO₂ Capture and Reinjection Process in the CO₂ EOR and Storage Project of Xinjiang Oilfield

Abstract

CO₂ capture and reinjection process (CCRP) can reduce the used CO₂ amount and improve the CO₂ storage efficiency in CO₂ EOR projects. To select the best CCRP is an important aspect. Based on the involved equipment units of the CCRP, a novel techno-economic model of CCRP for produced gas in CO₂ EOR and storage project was established. Five kinds of CO₂ capture processes are covered, including the chemical absorption using amine solution (MDEA), pressure swing adsorption (PSA), low-temperature fractionation (LTF), membrane separation (MS), and direct reinjection mixed with purchased CO₂ (DRM). The evaluation indicators of CCRP such as the cost, energy consumption, and CO₂ capture efficiency and purity can be calculated. Taking the pilot project of CO₂ EOR and storage in XinJiang oilfield China as an example, a sensitivity evaluation of CCRP was conducted based on the assumed gas production scale and the predicted yearly gas production. Finally, the DRM process was selected as the main CCRP associated with the PSA process as an assistant option. The established model of CCRP can be a useful tool to optimize the CO₂ recycling process and assess the CO₂ emission reduction performance of the CCUS project.

1. Introduction

CO₂ capture and storage (CCS) has been an effective measure to reduce CO₂ emissions into the atmosphere. Injecting CO₂ into oil reservoirs not only can store CO₂ underground, but also can achieve EOR (enhanced oil recovery). However, field experiences show that only less than 50% of the injected CO₂ can be stored if no recycling of the produced CO₂ is considered. A CO₂ capture and reinjection process (CCRP) should be taken to reduce the purchased CO₂ and increase the CO₂ storage efficiency [1]. In the United States and Canada, there have been a large number of CO₂ EOR and storage projects, such as the projects in Weyburn, Rangely, and Kelly-Snyder oil fields [2]. These projects have extensive sources of CO₂, which are captured from natural gas reservoirs or coal gasification plants, transported, and injected in a supercritical state on a large scale. In the earlier days, there were cases using membrane separation (MS) and chemical absorption (CA) methods to capture the CO₂ produced in wells [3,4,5,6]. At present, direct reinjection mixed with the necessary pure CO₂ (DRM) to improve the purity of injected gas is commonly adopted especially in the mid-late stage of the CO₂ EOR and storage project [7]. In China, some CO₂ EOR projects have also been conducted, but most of them are on a small scale using liquid CO₂ purchased from chemical plants [8,9]. Pressure swing adsorption (PSA) and low-temperature fractionation (LTF) processes are often used to capture CO₂ for recycling. In recent years, as more and more natural CO₂ gas reservoirs are discovered in China, the injection scale of CO₂ in oil reservoirs has increased gradually [10,11,12]. How to optimize a feasible CCRP is becoming more and more important, especially in the context that China is trying to be carbon neutral in the future [13].

At present, many studies have been carried out in the design of CO₂ capture and reinjection. Kwak et al. designed CO₂ recovery plants for EOR application. Four types of CO₂ recovery processes were assessed and a combination of amine, Selexol, and distillation processes were suggested for CO₂ separation [14]. Zhou researched the CA-MDEA (chemical absorption-methyldiethanolamine), LTF, and MS processes to separate CO₂ from the produced gas in the CO₂ EOR project in the Shengli oilfield, and the influences of different operating parameters on the system energy consumption were analyzed [15]. These design works are simulated by commercial softwares, such as Aspen Plus and Unisim, which are suitable for detailed industrial design. For a preliminary assessment, it needs more a convenient and fast-calculation techno-economic model for CO₂ capture. In recent years, Ciferno et al. conducted an economic scoping study for CO₂ capture from flue gas using aqueous ammonia [16]. Kleme et al. developed an overall techno-economic model to compare the CO₂ capture and storage options in coal-fired power plants in the UK, and the cost estimation relationships for the chosen options were calculated [17]. Tuinier et al. evaluated the technical and economic features of a novel cryogenic post-combustion CO₂ capture technology by comparison with the absorption and membrane technology [18]. Huang et al. surveyed the studies about the techno-economic analysis and optimization models for CCS [19]. Zhang assessed the techno-economic aspect of various CCS technologies in coal-fired power plants [20]. Zohrabian et al. calculated the techno-economic indicator of CO₂ capture in integrated hydrogen and powerco-generation system [21]. Zhai et al. evaluated the technical and economic indicators of carbon capture and storage combined with powerco-generation system utilization of deep saline water in the coal chemical project in Ordos, China, and discussed the economic feasibility of the large-scale application of CCS in water-scarce areas [22]. Hu and Zhai performed a systematic economic assessment of the addition of amine-based CCS to coal-fired power plants in China [23]. Liu et al. used the analogy method to establish an economic evaluation model for the entire process of CO₂ capture, utilization, and storage (CCUS), which is more dependent on the relevant economic and technical parameters of the reference target equipment [24]. Decardi-Nelson et al. proposed a novel model of considering the fluctuations in flue gas flow rate to analyze the economic performance in post-combustion CO₂ capture plants [25]. Yun et al. conducted a techno-economic assessment of a novel solvent absorption-based CO₂ capture process for coal-fired power plants [26].

In summary, at present, a lot of techno-economic evaluations and some model studies have been conducted, but most of them are related to CO₂ capture from flue gas and only evaluate the fixed process. Few studies are about the flexible and simple technical and economic evaluation model of CO₂ capture and reinjection in CO₂ EOR and storage project. Compared with the flue gas, the composition of the produced gas in CO₂ flooding is quite complex, and the evaluation of the reinjection process needs to be further considered. Besides, since the thermal power generation is major in China, the equivalent CO₂ emissions caused by equipment energy consumption in CCRP cannot be ignored, but this is rarely studied.

In this paper, a novel techno-economic evaluation model of CCRP for produced gas in CO₂ EOR and storage project was established based on the involved equipment units which can flexibly combine into any CCRPs. The evaluation indicators, including the cost, energy consumption, equivalent CO₂ emissions, CO₂ capture efficiency, and purity of CCRP, could be calculated. Then, the pilot project of CO₂ EOR and storage in XinJiang oilfield China was taken as an example to optimize the CCRP, which can verify the feasibility of the model. The results can guide the design of the CO₂ project in XinJiang oilfield.

2. Potential CCRPs in the CO₂ EOR and Storage Project in XinJiang Oilfield

In many oil fields in the world, CO₂ EOR and storage has been already a common technology, but this is still in its infancy in China. In XinJiang oilfield China, the pilot test of CO₂ EOR and storage has been conducted, but the disposal of produced gas in CO₂ flooding needs to be further studied.

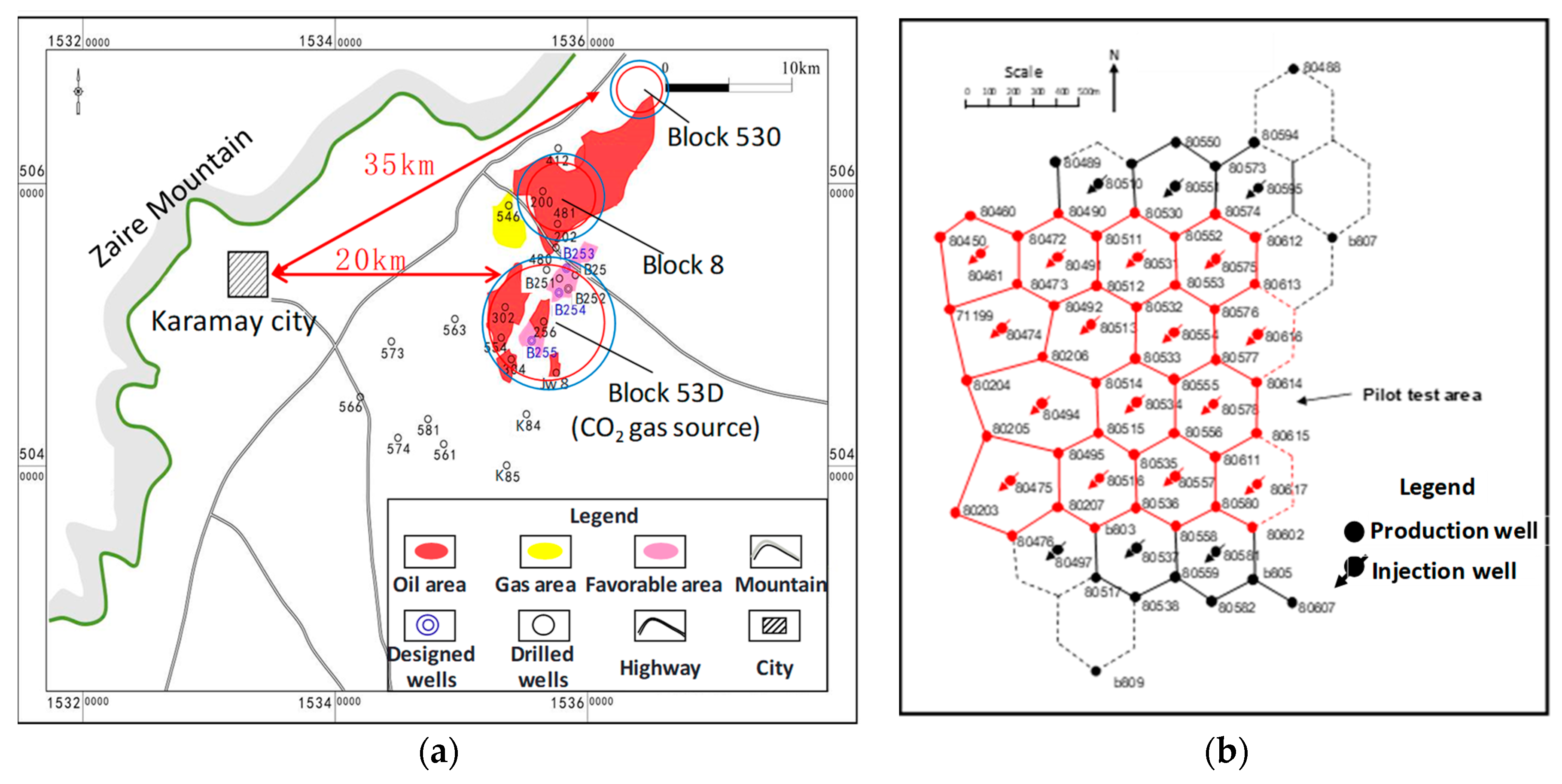

XinJiang oilfield is located in the Junggar Basin of China. The blocks 530 and 53D in XinJiang oilfield are the potential sites for CO₂ EOR and storage, which are about 35 km and 20 km away from XinJiang city, respectively, as shown in Figure 1. After a preliminary evaluation, the Kexia group of block 530 was selected as the target reservoir. This reservoir is a sandy conglomerate formation with a buried depth of 2400 m and a thickness of 18.6 m. The average porosity and permeability are 11.40% and 19.20 md, respectively. 79 wells were deployed in an inverted seven-spot pattern with a well spacing of 280 m × 395 m for water flooding. Due to the low permeability, hydraulic fracturing was conducted in wells. At present, there are 49 wells opened with a daily fluid of 253 t, a daily oil of 68 t, a water cut of 75.9%. 66.25 × 10⁴ t oil has been produced, and the current oil recovery degree is 26.72%.

For the disposal of produced gas in CO₂ flooding in block 530, many methods have been assessed. The schemes of direct reinjection mixed with pure CO₂ (DRM), combustion and flue gas reinjection (CFGR), and CO₂ capture and reinjection were analyzed. The study shows that: (1) the minimum miscible pressure between pure CO₂ and crude oil at the reservoir temperature of 64 °C is 21.25 MPa. Under the original formation pressure of 24 Mpa, if the CO₂ content in the produced gas mixed with necessary pure CO₂ is greater than 90 mol%, it can also achieve miscible flooding; (2) if the produced gas is used for combustion in a heating furnace or a gas turbine, its calorific value should be larger than 584 KJ/mol, and the CO₂ content in the produced gas cannot be higher than 40 mol%, besides, the flue gas produced by combustion can cause severe corrosion and explosion risk during reinjection, hence, the CFGR scheme is unattractive; (3) to purify the CO₂ in the produced gas for reinjection is a commonly used method to dispose of the produced gas, however, four types of CO₂ capture processes have different applicable conditions, thus the CO₂ capture process needs to be further evaluated and optimized according to the CO₂ content and scale of the produced gas.

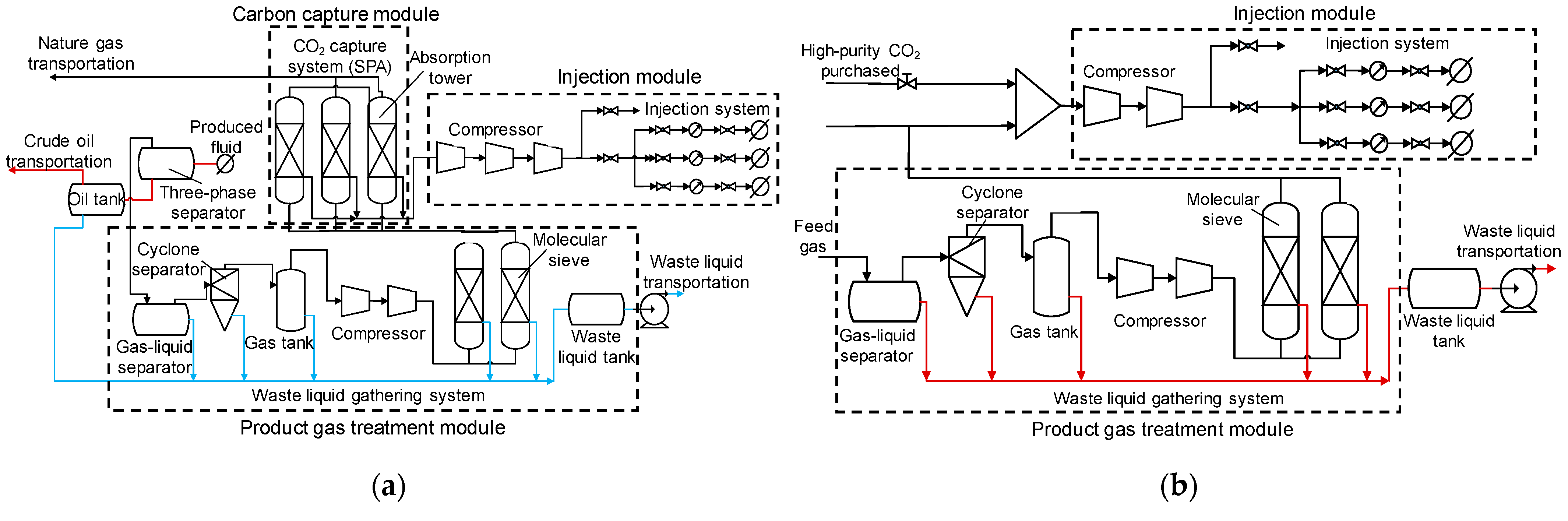

Therefore, based on the above analysis, five types of CCRPs were designed conceptually for the CO₂ EOR and storage project in block 530, namely the PSA, MS, LTF, CA-MDEA capture process, and DRM process. Overall, CCRP can be divided into the following three modules: product gas treatment module, carbon capture module, and injection module, and the carbon module is the key difference between the above five types of CCRPs. Hence, taking the PSA capture process as an example (Figure 2a), the detailed capture process is explained: at first, the produced gas is separated from the produced fluid by a three-phase separator, and the solid particles and liquid droplets in the gas are removed through the gas–liquid separator and cyclone separator; then, the produced gas is compressed and pass through the molecular sieve for deep dehydration, and further, the high-purity CO₂ is captured from the produced gas using the PSA system; finally, the captured CO₂ is reinjected back to the oil reservoir at 20 MPa and 40 °C by compressors. For the MS and CA-MDEA processes, they have the similar CCRPs to that of the PSA process except for the CO₂ capture system, while the CO₂ captured in the LTF process should be injected by booster pump at a liquid state under the condition of 20MPa and −20 °C [27,28,29]. When the DRM process is adopted (Figure 2b), the produced gas can be reinjected directly after being pretreated. If necessary, before reinjection, the produced gas should be mixed with pure CO₂ to reach the required gas amount and CO₂ purity.

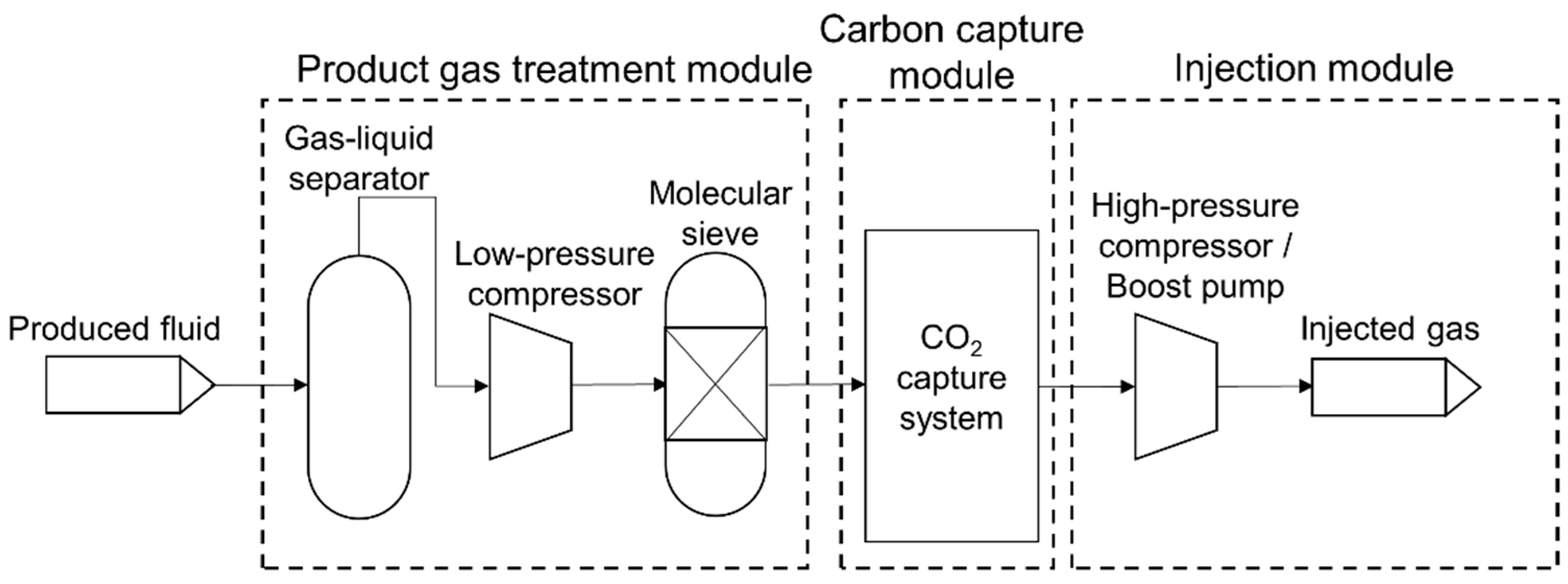

According to the function of each module, some necessary simplifications were carried out to unify the five types of CCRPs into one process for flexible technical and economic evaluation, as shown in Figure 3. In this simplified process, the main equipment units are gas–liquid separator, molecular sieve, compressor, boost pump, and carbon capture module. Among them, the gas–liquid separator and molecular sieve are units for dust removal and dehydration, compressor and boost pump are used to transport and inject liquid or gas CO₂, and carbon capture module is the critical unit for capture CO₂. Since the produced gas is processed on-site, the pipeline is not considered in this simplified process. The simplified process corresponding to each CCRP is shown in

Table 1. Main equipment units involved in the five types of CCRPs.

The Types of CCRPs	The 6 Main Equipment Units
SPA	Produced gas (0.5 MPa, 20 1 °C) → gas–liquid separator → low-pressure compressor → molecular sieve → SPA system → high-pressure compressor →reinjected gas (20 MPa, 40 °C)
MS	Produced gas (0.5 MPa, 20 °C) → gas–liquid separator → low-pressure compressor → molecular sieve → MS system → high-pressure compressor →reinjected gas (20 MPa, 40 °C)
LTF	Produced gas (0.5 MPa, 20 °C) → gas–liquid separator → low-pressure compressor → molecular sieve → LTF system → liquid CO2 storage tank → boost pump→ reinjected gas (20 MPa, −20 °C)
CA-MDEA	Produced gas (0.5 MPa, 20 °C) → gas–liquid separator → low-pressure compressor → molecular sieve → CA-MDEA → high-pressure compressor →reinjected gas (20 MPa, 40 °C)
DRM	Produced gas (0.5 MPa, 20 °C) → gas–liquid separator → low-pressure compressor → molecular sieve → high-pressure compressor →reinjected gas (20 MPa, 40 °C)

.

3. Establishment of Technical and Economic Evaluation Model of CCRP

To be used to flexibly calculate the process parameters, cost, energy consumption, and CO₂ capture efficiency for different CCRPs, the indicator calculation model for each possible involved equipment unit was established. Based on the equipment units, the indicators of the entire CCRP can be obtained.

3.1. Calculation Method of Capital Cost

Based on the main technical parameters of each equipment unit, the capital cost and the power can be estimated [30]. The main power/energy consumption units in CCRP include compressor, booster pump, and carbon capture module. For the no energy consumption units such as the gas–liquid separator and molecular sieve, their capital costs can be estimated by the analogy method.

3.1.1. Gas–Liquid Separator and Molecular Sieve

In CCRPs, both gas–liquid separator and molecular sieve have extremely low energy consumption in the process of dust removal and dehydration for produced gas, thus the analogy method is used to obtain their capital costs. According to the scale of the disposal gas, the capital cost can be calculated based on the following empirical formula [31]:

$${\mathrm{C}}_{\mathrm{sep}}={\mathsf{\alpha }}_{\mathrm{sep}1}\times {\left(\frac{{\mathrm{M}}_{\mathrm{train}}}{{10}^5}\right)}^{{\mathsf{\alpha }}_{\mathrm{sep}2}}$$

(1)

$${\mathrm{C}}_{\mathrm{mol}}={\mathsf{\alpha }}_{\mathrm{mol}1}\times {\left(\frac{{\mathrm{M}}_{\mathrm{train}}}{{10}^5}\right)}^{{\mathsf{\alpha }}_{\mathrm{mol}2}}$$

(2)

where C_sep is the capital cost of gas–liquid separator, US$; M_train is the mass flow rate of disposal gas, t/d; C_mol is the capital cost of molecular sieve, US$; α_sep1 and α_sep2 are the cost coefficients of gas–liquid separator, taking 11 US$ and 0.6, respectively; α_mol1 and α_mol2 are the cost coefficients of molecular sieve cost, taking 19 US$ and 0.6, respectively. The above cost coefficients are obtained based on the capital cost of the gas–liquid separator and molecular sieve in the Chinese oilfield [13,32,33].

3.1.2. Compressor

In oil fields, compressors and booster pumps are the most used equipment to increase fluid pressure. Compressors are suitable for CO₂ in gas and supercritical state, while pumps are suitable for liquid CO₂ or high-dense CO₂. For the capital cost of compressors, it can be estimated according to the CO₂ flow rate and the ratio of gas pressures at the outlet and inlet of the compressor. For the estimation of the compressor power, the physical properties of CO₂ gas and the multi-stage compression process with the optimal compression ratio for each stage should be considered.

(1) For the capital cost of the compressor [34],

$$\begin{array}{c}{\mathrm{C}}_{\mathrm{comp}}={\mathrm{m}}_{\mathrm{train}}{\mathrm{N}}_{\mathrm{train}}\left[\right({\mathsf{\alpha }}_{\mathrm{comp}1}{\left({\mathrm{m}}_{\mathrm{train}}\right)}^{{\mathsf{\alpha }}_{\mathrm{comp}2}}+\\ {\mathsf{\alpha }}_{\mathrm{comp}3}{\left({\mathrm{m}}_{\mathrm{train}}\right)}^{{\mathsf{\alpha }}_{\mathrm{comp}4}}\ln \left(\frac{{\mathrm{P}}_{\mathrm{out}-\mathrm{comp}}}{{\mathrm{P}}_{\mathrm{in}-\mathrm{comp}}}\right)\left)\right]\end{array}$$

(3)

$${\mathrm{m}}_{\mathrm{train}}=\raisebox{1ex}{$\left(1000\times {\mathrm{m}}_{{\mathrm{CO}}_2}\right)$}\!\left/ \!\raisebox{-1ex}{$\left(24\times 3600\times {\mathrm{N}}_{\mathrm{train}}\right)$}\right.$$

(4)

where C_comp is the total capital cost of compressor, US$; m_train is the mass flow rate of CO₂ gas in each compressor unit, kg/s; N_train is the number of parallel compressors, dimensionless; m_CO2 is the CO₂ mass flow rate, t/d; P_in-comp is the inlet pressure of compressor, MPa; P_out-comp is the outlet pressure of compressor, MPa; α_comp1, α_comp2, α_comp3 and α_comp4 are the cost coefficients of compressor, taking 0.12 × 10⁶ US$·kg⁻¹·s, −0.71, 1.32 × 10⁶ US$·kg⁻¹·s and −0.60, respectively, which are converted from € into US$ at the current exchange rate [34].

(2) For the compressor power [35],

$${\mathrm{W}}_{\mathrm{comp}}=\left(\frac{1000}{24\times 3600}\right)\left(\frac{{\mathrm{m}}_{{\mathrm{CO}}_2}{\mathrm{Z}}_{\mathrm{s}}{\mathrm{RT}}_{\mathrm{in}-\mathrm{comp}}}{{\mathrm{M}}_{{\mathrm{CO}}_2\mathrm{gas}}{\mathsf{\eta }}_{\mathrm{comp}}}\right)\left(\frac{{\mathrm{k}}_{\mathrm{s}}}{{\mathrm{k}}_{\mathrm{s}}-1}\right)\left[{\left(\mathrm{CR}\right)}^{\frac{{\mathrm{k}}_{\mathrm{s}}-1}{{\mathrm{k}}_{\mathrm{s}}}}-1\right]$$

(5)

$$\mathrm{CR}={\left(\frac{{\mathrm{P}}_{\mathrm{out}-\mathrm{comp}}}{{\mathrm{P}}_{\mathrm{in}-\mathrm{comp}}}\right)}^{\frac{1}{{\mathrm{N}}_{\mathrm{stage}}}}$$

(6)

where W_comp is the compressor power, kW; Z_s is the average compression factor of CO₂ at each stage, dimensionless; T_in-comp is the inlet temperature of compressor, K; R is the universal gas constant, 8.314 kJ/(kmol·K); M_CO2gas is the molar mass of CO₂ gas, if the CO₂ purity of gas is 100%, M_CO2gas = 44.01 kg/kmol; η_comp is the compressor efficiency, 0.75 is often used; k_s is the average heat capacity ratio of CO₂ at each stage, 1.391 is often used; CR is the optimal compression ratio, 2.4–3.0 is often used; N_stage is the number of compression stages. The maximum power of a single compressor was assumed to be 40MW. If the required compression power is greater than 40 MW, several parallel compressors will be used, and the N_train is W_comp/40.

3.1.3. Booster Pump

In the CCRP, after being purified and liquefied, the liquid CO₂ can be transported and injected into the subsequent processes using booster pumps. The capital cost of booster pumps mainly depends on the pump power, while the pump power is selected based on the flow rate and pressures of CO₂ at the inlet and outlet of the pump [36].

(1) For the capital cost of the pump,

$${\mathrm{C}}_{\mathrm{pump}}={\mathsf{\alpha }}_{\mathrm{pump}1}\times \left(\raisebox{1ex}{${\mathrm{W}}_{\mathrm{pump}}$}\!\left/ \!\raisebox{-1ex}{$1000$}\right.\right)+{\mathsf{\alpha }}_{\mathrm{pump}2}$$

(7)

(2) For the pump power,

$${\mathrm{W}}_{\mathrm{pump}}=\left(\frac{1000\times 10}{24\times 36}\right)\left[\frac{{\mathrm{m}}_{{\mathrm{CO}}_2}\left({\mathrm{P}}_{\mathrm{out}-\mathrm{pump}}-{\mathrm{P}}_{\mathrm{in}-\mathrm{pump}}\right)}{{\mathsf{\rho }}_{l-{\mathrm{CO}}_2}{\mathsf{\eta }}_{\mathrm{pump}}}\right]$$

(8)

where C_pump is the capital cost of booster pump, US$; W_pump is the booster pump power, kW; P_out-pump is the outlet pressure of booster pump, MPa; P_in-pump is the inlet pressure of booster pump, MPa; ρ_l-CO2 is the density of liquid CO₂, 1177 kg/m³; η_pump is the efficiency of booster pump, 0.75 was assumed; α_pump1 and α_pump2 are the cost coefficients of pump, taking 1.14 × 10⁶ US$·W⁻¹ and 0.07 × 10⁶ US$, respectively.

3.1.4. Carbon Capture Module

The commonly used CO₂ capture modules include pressure swing adsorption (PSA), membrane separation (MS), low-temperature fractionation (LTF), and chemical absorption (CA-MDEA).

(1) Pressure swing adsorption (PSA)

In the PSA module, according to the difference of adsorption characteristics of different kinds of gases in physical adsorbent with pressure, specific gas (e.g., CO₂) will be absorbed and desorbed through periodic pressure changes to achieve the purpose of gas separation and purification [37]. The capital cost of the PSA CO₂ capture module is mainly composed of three parts: the capital cost of adsorption towers, the purchase cost of adsorbent, and the capital cost of the compressor.

First, the mass of CO₂ adsorbent for PSA can be calculated based on the gas production, CO₂ content in produced gas, and the adsorption capacity of the adsorbent [38].

$${\mathrm{W}}_{\mathrm{PSA}-\mathrm{ad}}={\mathrm{Q}}_{\mathrm{PSA}-\mathrm{g}}\times {\mathrm{t}}_{\mathrm{PSA}-\mathrm{ad}}\times {\mathrm{y}}_{\mathrm{PSA}-{\mathrm{CO}}_2}/{\Delta \mathrm{q}}_{PSA}\times {\mathrm{n}}_{\mathrm{PSA}-\mathrm{bed}}$$

(9)

where W_PSA-ad is the mass of adsorbent in PSA module, kg; Q_PSA-g is the flow rate of the feed gas in the adsorption tower of PSA module, m³/s; t_PSA-ad is the adsorption time of single bed operation of the tower in PSA module, s; y_PSA-CO2 is the CO₂ mole fraction of the feed gas in PSA module, dimensionless; Δq_PSA is the adsorption capacity in PSA module which depends on the adsorbent, for silica 0.35–0.50 kg/kg is taken, for activated carbon 0.40–0.50 kg/kg is taken, and for molecular sieves, 0.22–0.26 kg/kg is taken [39]; n_PSA-bed is the number of beds for continuous adsorption in a single tower in PSA module, dimensionless.

Then, according to the mass of the adsorbent and the design requirements of the adsorption tower, the height, diameter, and number of the adsorption towers can be calculated [40].

$${\mathrm{H}}_{PSA}=\frac{{\mathrm{W}}_{\mathrm{PSA}-\mathrm{ad}}}{{\mathrm{n}}_{\mathrm{PSA}-\mathrm{tower}}{\mathsf{\rho }}_{\mathrm{PSA}-\mathrm{ad}}}\frac{{\mathrm{v}}_{\mathrm{PSA}-\mathrm{g}}}{{\mathrm{Q}}_{\mathrm{PSA}-\mathrm{g}}}$$

(10)

$${\mathrm{D}}_{PSA}={\mathrm{H}}_{PSA}/\left(5~8\right)$$

(11)

$${\mathrm{n}}_{\mathrm{PSA}-\mathrm{tower}}=\frac{{\mathrm{W}}_{\mathrm{PSA}-\mathrm{ad}}}{{\rho }_{\mathrm{PSA}-\mathrm{ad}}}\frac{4}{3.14{\mathrm{D}}_{\mathrm{PSA}}{}^2{\mathrm{H}}_{\mathrm{PSA}}}$$

(12)

where H_PSA is the height of the tower in PSA module, m; n_PSA-tower is the number of towers in PSA module dimensionless; ρ_PSA-ad is the adsorbent density in PSA module, for silica 0.70–0.82 kg/m³ is taken, for activated carbon 0.45–0.50 kg/m³ is taken, and for molecular sieves, 0.61–0.67 kg/m³ is taken; v_PSA-g is the gas flow speed in the tower, 0.05 m/s was assumed according to common design of CO₂ absorption tower [41]; D_PSA is the diameter of the tower in PSA module, m.

Finally, through the unit height capital cost of the tower and the sizes of the tower, the capital cost of adsorption towers can be obtained [41].

$${\mathrm{C}}_{\mathrm{PSA}-\mathrm{tower}}={\mathrm{C}}_{\mathrm{PSA}-\mathrm{pc}}\times {\mathrm{H}}_{PSA}\times {\mathrm{n}}_{\mathrm{PSA}-\mathrm{tower}}$$

(13)

$$\log {\mathrm{C}}_{\mathrm{PSA}-\mathrm{pc}}={\mathsf{\alpha }}_{\mathrm{PSA}1}\log {\mathrm{D}}_{PSA}+{\mathsf{\alpha }}_{\mathrm{PSA}2}$$

(14)

where C_PSA-tower is the capital cost of towers in PSA module, US$; C_PSA-pc is the unit height capital cost of the tower in PSA module, US$/m; α_PSA1 and α_PSA2 are the cost coefficients of PSA module, taking 1.34 and 4.27, respectively.

CO₂ adsorbent with excellent adsorption and desorption performance should be selected for PSA. The commonly used adsorbents can be classified into carbon-based adsorption materials (e.g., activated carbon) and zeolite adsorption materials (e.g., 13X molecular sieve). The 13X is often used because of its large pore volume, high adsorption capacity, and high separation coefficient. Hence, the purchase cost of adsorbent can be determined as follows [39]:

$${\mathrm{C}}_{\mathrm{PSA}-\mathrm{ad}}={\mathrm{P}}_{\mathrm{PSA}-\mathrm{ad}}\times {\mathrm{W}}_{\mathrm{PSA}-\mathrm{ad}}$$

(15)

where C_PSA-ad is the purchase cost of adsorbent in PSA module, US$; P_PSA-ad is the unit cost of adsorbent, for silica 1.58 US$/kg is taken, for activated carbon 0.47 US$/kg is taken, and for molecular sieves, 1.58 US$/kg is taken.

Based on the above, the capital cost of the PSA module can be calculated.

$${\mathrm{C}}_{\mathrm{PSA}}={\mathrm{C}}_{\mathrm{PSA}-\mathrm{tower}}+{\mathrm{C}}_{\mathrm{PSA}-\mathrm{ad}}+{\mathrm{C}}_{\mathrm{comp}}$$

(16)

where C_PSA is the capital cost of the PSA module, US$.

The power consumption in the PSA module mainly occurs when the feed gas is compressed to meet the adsorption pressure in towers, thus the power of the PSA module is equal to the power of the compressor.

$${\mathrm{W}}_{\mathrm{PSA}}={\mathrm{W}}_{\mathrm{comp}}$$

(17)

where W_PSA is the power of the PSA module, kW.

It should be noted that if the pressure of feed gas is high enough which can meet the requirement of adsorption pressure in towers, the compression process can be neglected in the PSA module, no power consumption is considered.

(2) Membrane separation (MS)

In the MS module, the penetrability difference of each component in feed gas through the polymer membrane under a certain pressure is used to separate the CO₂ from the hydrocarbon gas. The capital cost of the MS module mainly comes from the compressor and the MS device [42]. The capital cost of the MS device, which consists of membrane material and frame, is determined by the film type and film property. The components in feed gas can be divided into the high-speed group and the low-speed group according to their difference in permeation rate through the membrane. Hence, the film area can be estimated as follows [5]:

$${\mathrm{A}}_m=\frac{{\mathrm{Q}}_{\mathrm{MS}-\mathrm{p}}{\mathrm{Y}}_{\mathrm{MS}-1}}{\raisebox{1ex}{${\mathrm{R}}_{\mathrm{MS}-\mathrm{f}}\left({\mathrm{P}}_{\mathrm{MS}-2}\left(\frac{{\mathrm{Y}}_{\mathrm{MS}-\mathrm{F}}-{\mathrm{Y}}_{\mathrm{MS}-\mathrm{R}}}{\ln \left(\raisebox{1ex}{${\mathrm{Y}}_{\mathrm{MS}-\mathrm{F}}$}\!\left/ \!\raisebox{-1ex}{${\mathrm{Y}}_{\mathrm{MS}-\mathrm{R}}$}\right.\right)}\right)-{\mathrm{P}}_{\mathrm{MS}-1}{\mathrm{Y}}_{\mathrm{MS}-1}\right)$}\!\left/ \!\raisebox{-1ex}{$100$}\right.}$$

(18)

where A_m is the film area in MS module, m²; Y_MS-F is the mole fraction of high-speed group (CO₂) in feed gas in MS module, dimensionless; Y_MS-R is the mole fraction of the high-speed group in the nonpenetrating gas in MS module, dimensionless; Y_MS-1 is the mole fraction of the high-speed group in the permeation gas in MS module, dimensionless; Q_MS-P is the flow rate of permeation gas in MS module, kmol/s; R_MS-f is the weighted average permeation velocity of the high-speed group in MS module, m/s; P_MS-1 is the total pressure on the low-pressure side of the membrane in MS module, bar; and P_MS-2 is the total pressure on the high-pressure side of the membrane in MS module, bar.

The membranes used for CO₂ separation are mainly made of high molecular polymers, such as polydimethylsiloxane, cellulose acetate, polyimide, polysulfone, polycarbonate, etc. Due to the high permeation speed and excellent separation effect, polyimide has been widely used in China, and its hollow fiber membrane module has a low cost, high loading density, and adaptability to high pressure, which is often selected. [43] Hence, based on the film area and type, the capital cost of MS device can be estimated using the equations as follows [42]:

$${\mathrm{C}}_{\mathrm{M}}={\mathrm{I}}_{\mathrm{m}}+{\mathrm{I}}_{\mathrm{mf}}$$

(19)

$${\mathrm{I}}_{\mathrm{m}}={\mathrm{A}}_{\mathrm{m}}{\mathrm{K}}_{\mathrm{m}}$$

(20)

$${\mathrm{I}}_{\mathrm{mf}}={\left(\raisebox{1ex}{${\mathrm{A}}_{\mathrm{m}}$}\!\left/ \!\raisebox{-1ex}{${\mathsf{\alpha }}_{\mathrm{m}1}$}\right.\right)}^{{\mathsf{\alpha }}_{\mathrm{m}2}}{\mathrm{K}}_{\mathrm{mf}}$$

(21)

where C_M is the capital cost of MS device, US$; I_m is the cost of membrane material in MS device, US$; I_mf is the cost of membrane frame in MS device, US$; K_m is the membrane material cost of unit film area, 4.73–18.93 US$/m² for hollow fiber membrane module; K_mf is the membrane frame cost of unit film area, 315.46 US$/m², the above MS device costs of unit film area are from the price survey in China; and α_m1 and α_m2 are the cost coefficients of MS module, taking 2000 and 0.7, respectively.

Hence, based on the above, the capital cost of the MS carbon capture module can be obtained.

$${\mathrm{C}}_{\mathrm{MS}}={\mathrm{C}}_{\mathrm{M}}+{\mathrm{C}}_{\mathrm{comp}}$$

(22)

where C_MS is the capital cost of MS module, US$.

Similarly, the power consumption of the MS module mainly occurs when the feed gas is needed to be compressed to form a high-enough permeation pressure difference on both sides of the membrane, so the power of the MS module is equal to the power of the compressor.

$${\mathrm{W}}_{\mathrm{MS}}={\mathrm{W}}_{\mathrm{comp}}$$

(23)

where W_MS is the power of the MS module, kW.

(3) Low-temperature fractionation (LTF)

In the LTF module, the separation of CO₂ from feed gas is realized based on the difference in boiling temperature of each component in the feed gas. The pressurization effect of the compressor and the cooling effect of the heat exchanger is utilized to achieve the gas liquefaction. For the heat exchanger, after the structure is determined, the technical and economic model of the heat exchanger can be established based on the heat exchange area [15]. The heat exchange area can be determined by the parameters in the operating environment of the heat exchanger. When the heat exchanger recovers waste heat, it also needs to consume some power to overcome the flowing resistance of fluid passing through the heat exchanger and the cooler. This power consumption is the operating cost of the equipment [44].

$${\mathrm{C}}_{\mathrm{hx}}={\mathsf{\alpha }}_{\mathrm{hx}1}+{\mathsf{\alpha }}_{\mathrm{hx}2}{\mathrm{A}}_{\mathrm{hx}-\mathrm{p}}^{{\mathsf{\alpha }}_{\mathrm{hx}3}}$$

(24)

$${\mathrm{A}}_{\mathrm{hx}-\mathrm{p}}={\mathsf{\alpha }}_{\mathrm{hx}4}\frac{{\mathrm{Q}}_{\mathrm{hx}}}{{\mathrm{K}}_{\mathrm{hc}}\Delta {\mathrm{T}}_{\mathrm{m}}}$$

(25)

$${\mathrm{Q}}_{\mathrm{hx}}={\mathrm{m}}_{\mathrm{hf}}{\mathrm{C}}_{\mathrm{p}}\Delta {\mathrm{t}}_{\mathrm{hx}}$$

(26)

$$\Delta {\mathrm{T}}_{\mathrm{m}}=\frac{\left({\mathrm{T}}_{\mathrm{HI}}-{\mathrm{T}}_{\mathrm{CO}}\right)-\left({\mathrm{T}}_{\mathrm{HO}}-{\mathrm{T}}_{\mathrm{CI}}\right)}{\ln \frac{{\mathrm{T}}_{\mathrm{HI}}-{\mathrm{T}}_{\mathrm{CO}}}{{\mathrm{T}}_{\mathrm{HO}}-{\mathrm{T}}_{\mathrm{CI}}}}$$

(27)

$${\mathrm{W}}_{\mathrm{hx}}={\mathrm{A}}_{\mathrm{hx}-\mathrm{p}}·{\mathrm{K}}_{\mathrm{hc}}·\Delta {\mathrm{t}}_{\mathrm{hx}}/1000$$

(28)

where C_hx is the capital cost of the heat exchanger, US$; A_hx-p is the actual heat exchange area in heat exchanger, m²; α_hx1, α_hx2 and α_hx3 are the cost coefficients of heat exchanger, taking 9.41 × 10⁴ US$, 1.13 × 10³ US$ and 0.98, respectively; α_hx4 is the coefficients obtained by unit conversion, 0.28; Q_hx is the heat flow in heat exchanger, kJ/h; m_hf is the mass flow rate of hot fluid in heat exchanger, kg/h; C_p is the specific heat capacity of fluid in heat exchanger in heat exchanger, kJ·kg⁻¹·°C⁻¹; Δt_hx is the temperature change of hot fluid in heat exchanger, °C; ΔT_m is the logarithmic mean temperature changes of heat exchanger, °C; T_HI is the hot fluid temperature at the inlet of the heat exchanger, °C; T_HO is the hot fluid temperature at the outlet of the heat exchange, °C; T_CI is the cold fluid temperature at the inlet of the heat exchanger, °C; T_CO is the cold fluid temperature at the outlet of the heat exchanger, °C; W_hx is the power of heat exchanger, kW; and K_hc is the heat transfer coefficient between the hot fluid and the cold fluid, taking 1134 W/(m²·°C) (between liquid-phase fluids) or 279 W/(m²·°C) (between gas-phase fluids).

Hence, the capital cost of the LTF module is mainly composed of the capital costs of the compressor and heat exchanger [45]. Similarly, the power of LTF covers the powers of the compressor and heat exchanger.

$${\mathrm{C}}_{\mathrm{LTF}}={\mathrm{C}}_{\mathrm{comp}}+{\mathrm{C}}_{\mathrm{hx}}$$

(29)

$${\mathrm{W}}_{\mathrm{LTF}}={\mathrm{W}}_{\mathrm{comp}}+{\mathrm{W}}_{\mathrm{hx}}$$

(30)

where C_LTF is the capital cost of LTF module, US$; W_LTF is the power of LTF module, kW.

(4) Chemical absorption (CA-MDEA)

In the CA module, CO₂ is captured from the feed gas by a chemical reaction between alkaline solution and CO₂. CO₂ is absorbed by the alkaline solution at a low temperature and desorbed at a high temperature. The capital cost of the chemical absorption module includes the capital costs of solvent towers, booster pumps, heat exchangers, and the purchase cost of chemical absorption solution [14]. MDEA (methyldiethanolamine) is the often used solvent for CO₂ chemical absorption. Hence, the MDEA is taken as a typical example to establish the capital cost calculation model of CA.

The solvent towers mainly include the absorption tower and the desorption tower. For the absorption tower, firstly, the diameter of the tower can be determined according to feed gas flow; and then, the height of the tower can be estimated according to the tower diameter and CO₂ absorption capacity of MDEA; finally, based on the cost of unit height tower, the capital cost of absorption tower can be obtained [40,46,47,48].

$${\mathrm{D}}_{\mathrm{CA}-\mathrm{ab}}=\sqrt{\frac{4{\mathrm{V}}_{\mathrm{CA}-\mathrm{ab}}}{3600{\mathsf{\pi }\mathrm{v}}_{\mathrm{CA}-\mathrm{ab}}}}$$

(31)

$${\mathrm{H}}_{\mathrm{CA}-\mathrm{ab}}=\frac{{\mathrm{m}}_{\mathrm{CA}-{\mathrm{CO}}_2}/{\mathrm{M}}_{{\mathrm{CO}}_2\mathrm{gas}}}{{\mathrm{K}}_{\mathrm{Ga}}{\mathrm{A}}_{\mathrm{CA}-\mathrm{t}}\Delta {\mathrm{P}}_{\mathrm{CA}-\mathrm{m}}}ln\left(\frac{Y_{{\mathrm{CO}}_2-\mathrm{inab}}}{Y_{{\mathrm{CO}}_2-\mathrm{outab}}}\right)$$

(32)

$${\mathrm{A}}_{\mathrm{CA}-\mathrm{t}}=\raisebox{1ex}{${\mathsf{\pi }\mathrm{D}}_{\mathrm{CA}-\mathrm{ab}}{}^2$}\!\left/ \!\raisebox{-1ex}{$4$}\right.$$

(33)

$$\log {\mathrm{C}}_{\mathrm{CA}-\mathrm{ab}}={\mathsf{\alpha }}_{\mathrm{ab}1}\log {\mathrm{D}}_{\mathrm{CA}-\mathrm{ab}}+{\mathsf{\alpha }}_{\mathrm{ab}2}$$

(34)

$${\mathrm{C}}_{\mathrm{CA}-\mathrm{abt}}={\mathrm{C}}_{\mathrm{CA}-\mathrm{ab}}\times {\mathrm{H}}_{\mathrm{CA}-\mathrm{ab}}$$

(35)

where D_CA-ab is the diameter of absorption tower in CA module, m; V_CA-ab is the flow rate of feed gas in the absorption tower in the CA module, m³/h; v_CA-ab is the gas flow velocity in the adsorption tower which should make sure that the CO₂ in feed gas can fully combine with the MDEA solution, 0.722 m/s was used according to the common design for the chemical absorption tower [41]; H_CA-ab is the cumulative height of absorption towers in the CA module, m; m_CA-CO2 is the mass flow rate of CO₂ gas in CA module, kg/h; K_Ga is the mass transfer coefficient, 20 kmol/(m³·h·atm) was taken from the calculation process of Zhang [46]; Y_CO2-inab is the CO₂ content of inlet gas in the absorption tower, g/m³; Y_CO2-outab is the CO₂ content of outlet gas in the absorption tower, g/m³; A_CA-t is the cross-section area of absorption tower in CA module, m²; ∆P_CA-m is the driving pressure difference, the default value is 0.026 atm at the oilfield site; C_CA-ab is the cost of the unit height tower in the CA module, US$/m; C_CA-abt is the capital cost of the absorption tower in the CA module, US$; and α_ab1 and α_ab2 are the cost coefficients of the absorption tower in the CA module, taking 1.34 and 4.27, respectively, based on the data from the Chinese oilfield [12,32].

Similarly, the capital cost of desorption tower can be calculated using the following formulas [46,47]:

$${\mathrm{D}}_{\mathrm{CA}-\mathrm{de}}=\sqrt{\frac{4{\mathrm{V}}_{\mathrm{CA}-\mathrm{de}}}{3600{\mathsf{\pi }\mathrm{v}}_{\mathrm{CA}-\mathrm{de}}}}$$

(36)

$${\mathrm{N}}_{\mathrm{CA}-\mathrm{t}}={\mathrm{m}}_{\mathrm{CA}-{\mathrm{CO}}_2}/{\mathrm{M}}_{{\mathrm{CO}}_2\mathrm{gas}}/{\mathsf{\alpha }}_{\mathrm{de}1}$$

(37)

$$\log {\mathrm{C}}_{\mathrm{CA}-\mathrm{de}}={\mathsf{\alpha }}_{\mathrm{de}2}{\left(\log {\mathrm{D}}_{\mathrm{CA}-\mathrm{de}}\right)}^2+{\mathsf{\alpha }}_{\mathrm{de}3}\log {\mathrm{D}}_{\mathrm{CA}-\mathrm{de}}+{\mathsf{\alpha }}_{\mathrm{de}4}$$

(38)

$${\mathrm{C}}_{\mathrm{CA}-\det }={\mathrm{C}}_{\mathrm{CA}-\mathrm{de}}\times {\mathrm{N}}_{\mathrm{CA}-\mathrm{t}}$$

(39)

where D_CA-de is the diameter of the desorption tower in CA module, m; V_CA-de is the flow rate of feed gas in the desorption tower in the CA module, m³/h; v_CA-de is the gas flow velocity in the desorption tower which should make sure that the CO₂ can be effectively separated from the MDEA solution, 0.91 m/s was used according to the common design for chemical absorption tower [41]; N_CA-t is the total number of theoretical plates in the desorption tower in the CA module, dimensionless; C_CA-de is the tower cost of a single plate of the desorption towers in the CA module, US$; α_de1 is the mole flow rate which can be supported by one plate based on the common design of the desorption tower, 6.96 kmol/h is used [41]; α_de2, α_de3 and α_de4 are the cost coefficients of the desorption tower in the CA module, taking 0.56, 1.06 and 3.89, respectively, based on the data from Chinese oilfield [12,32]; and C_CA-det is the capital cost of the desorption tower in the CA module, US$.

The purchase cost of the MDEA solution can be calculated according to the required circulation amount of MDEA solution, which can be estimated based on the CO₂ absorption capacity of MDEA [48].

$${\mathrm{M}}_{\mathrm{MDEA}}={\mathsf{\alpha }}_{\mathrm{MDEA}}\times {\mathrm{m}}_{\mathrm{CA}-{\mathrm{CO}}_2}/{\mathrm{M}}_{{\mathrm{CO}}_2\mathrm{gas}}$$

(40)

$${\mathrm{C}}_{\mathrm{s}}={\mathrm{M}}_{\mathrm{MDEA}}\times {\mathrm{C}}_{\mathrm{us}}$$

(41)

where M_MDEA is the required circulation amount of the MDEA solution, t; C_s is the purchase cost of MEDA solution, US$; C_us is the unit cost of the MEDA solution, 2176.66 US$/t was referenced; and α_MDEA is the circulation amount of the MDEA solution which can be used to absorb the unit mole flow rate of CO₂ gas, based on the reaction mechanism between DMEA and CO₂ and the common design of the CO₂ absorption tower, 0.73 t·kmol⁻¹·h, is taken [49].

Based on the above analysis, the capital cost of the MEDA carbon capture module can be obtained.

$${\mathrm{C}}_{\mathrm{CA}}={\mathrm{C}}_{\mathrm{CA}-\mathrm{abt}}+{\mathrm{C}}_{\mathrm{CA}-\det }+{\mathrm{C}}_{\mathrm{s}}+{\mathrm{C}}_{\mathrm{pump}}+{\mathrm{C}}_{\mathrm{hx}}$$

(42)

Then, the power of the MEDA module can be calculated as follows.

$${\mathrm{W}}_{\mathrm{CA}}={\mathrm{W}}_{\mathrm{pump}}+{\mathrm{W}}_{\mathrm{hx}}$$

(43)

where C_CA is the capital cost of CA module, US$; W_CA is the power of CA module, kW.

3.2. Calculation Method of Running Cost

The running cost of each equipment unit mainly includes the maintenance cost and operating cost. Maintenance cost refers to the fees paid to maintain or restore the technical performance of the equipment. Operating cost is mainly the energy cost of the equipment, which is generally the electric charge calculated according to the equipment power. Hence, the running cost of the entire process can be obtained as follows.

$$\mathrm{O}\&M_{\mathrm{annual}}=\sum \left({\mathrm{C}}_{\mathrm{unit}}\times {\mathrm{M}}_{\mathrm{factor}}+{\mathrm{W}}_{\mathrm{unit}}\times 24\times 365\times {\mathrm{F}}_{\mathrm{elec}}\right)$$

(44)

where O&M_annual is the annual running cost of CCRP, US$; C_unit is the capital cost of equipment unit, US$; M_factor is the ratio of annual maintenance cost to total infrastructure cost, 0.05 is often used; W_unit is the power of equipment unit, kW; F_elec is the electricity price, generally 0.08 US$/kWh is taken in China.

3.3. Calculation Method of CO₂ Capture Parameters

In CCRP, the gas flow rate and CO₂ content will change, especially before and after the carbon capture module. Due to the limit of capture purity, part of CO₂ will be lost in the separated hydrocarbon gas. Moreover, China’s power generation is still dominated by thermal power using coal at present, thus the energy consumption of each equipment unit during operation is equivalent to an additional amount of CO₂ emissions. Therefore, the concepts of CO₂ flow, energy consumption equivalent CO₂ emissions, and CO₂ capture efficiency of basic equipment units were proposed.

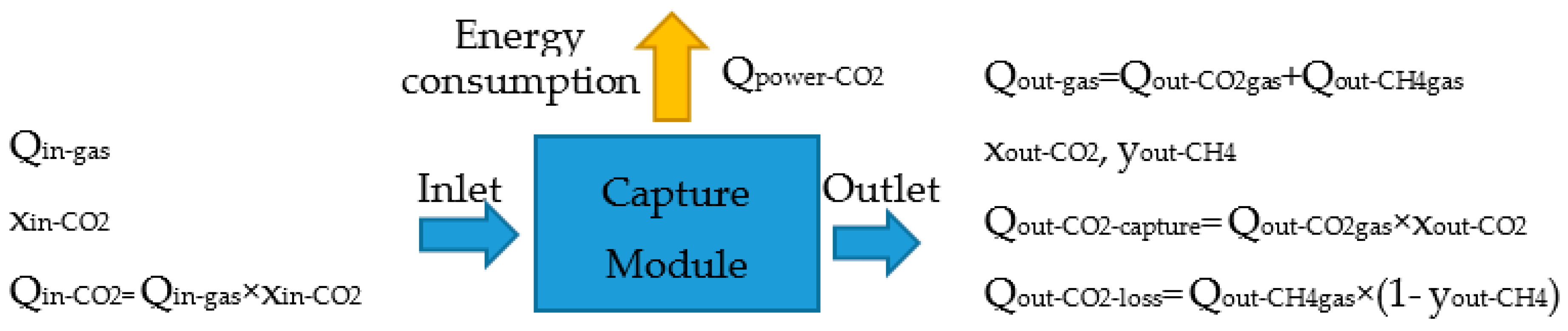

As shown in Figure 4, taking the CO₂ capture module as an example, the CO₂ flow should satisfy the material balance when the CO₂-contained gas flows through the capture equipment. If the gas flow rate and CO₂ content at the inlet are defined to be Q_in-gas and x_in-CO2, respectively, then the pure CO₂ gas flow rate at the inlet is Q_in-CO2 = Q_in-gas × x_in-CO2. For the gas flow at the outlet, Q_out-gas, it is divided into the CO₂ gas flow Q_out-CO2gas and the hydrocarbon gas flow Q_out-CH4gas; if their CO₂ and hydrocarbon gas purities are x_out-CO2 and y_out-CH4, respectively, then the captured pure CO₂ gas flow rate is Q_out-CO2 = Q_out-CO2gas × x_out-CO2, and the CO₂ lost in hydrocarbon gas is Q_out-CO2-loss = Q_out-CH4gas × (1 − y_out-CH4). Moreover, the additional CO₂ emission released by coal-fired power generation due to energy consumption during capture is Q_power-CO2, then the CO₂ capture efficiency of the capture module can be calculated to be η = (Q_out-CO2 − Q_power-CO2)/Q_in-CO2. Similarly, the CO₂ flow variation and CO₂ capture efficiency of other equipment units in CCRP can also be obtained, as shown in

Table 2. CO₂ flow variation and CO₂ capture efficiency of each equipment unit in CCRP.

Equipment Units	Gas Flow at the Outlet, m3/d	CO2 Purity at the Outlet, Fraction	CO2 Flow at the Outlet, m3/d	Additional CO2 Emission, m3	CO2 Capture Efficiency, Fraction
Compressor/Pump	Qout-gas = Qin-gas	xout-CO2 = xin-CO2	Qout-CO2 = Qout-gas × xout-CO2	Qpower-CO2	H = (Qout-CO2−Qpower-CO2)/Qin-CO2
Carbon Capture Module	Qout-CO2gas Qout-CH4gas Qin-gas = Qout-CO2gas + Qout-CH4gas	xout-CO2 yout-CH4 Qin-gas × xin-CO2 = Qout-CO2gas × xout-CO2 + Qout-CH4gas × (1 − yout-CH4)	Qout-CO2 = Qout-CO2gas × xout-CO2	Qpower-CO2	H = (Qout-CO2 − Qpower-CO2)/Qin-CO2

. Based on these equations, the indicators of the entire CCRP can be determined. For the CO₂ capture and reinjection efficiency (CCRE) of the CCRP, it can be calculated based on the total Q_power-CO2, Q_out-CO2, and Q_in-CO2 of the process, or calculated by multiplying the CO₂ capture efficiencies of all units in the process.

For the Q_power-CO2, it can be estimated based on the power of the equipment unit, coal consumption required for unit power generation, and the CO₂ emission per unit coal by burning, as follows [50]:

$${\mathrm{Q}}_{\mathrm{power}-{\mathrm{CO}}_2}={\mathrm{W}}_{\mathrm{unit}}\times {\mathrm{t}}_u\times {\mathrm{M}}_{\mathrm{coal}}\times {\mathrm{E}}_{{\mathrm{CO}}_2}/{\mathsf{\rho }}_{{\mathrm{CO}}_2}$$

(45)

where Q_power-CO2 is the energy consumption equivalent CO₂ emission of equipment unit, Sm³/d; t_u is the unit time, h; M_coal is the coal consumption required for unit power generation, 0.313 kg/kWh was taken; E_CO2 is the CO₂ emissions per unit coal by burning, generally 2.6 kg CO₂/kg coal is used; t_u is unit time, taking 24 h; and ρ_CO2 is the density of CO₂ gas, taking 1.98 kg/m³.

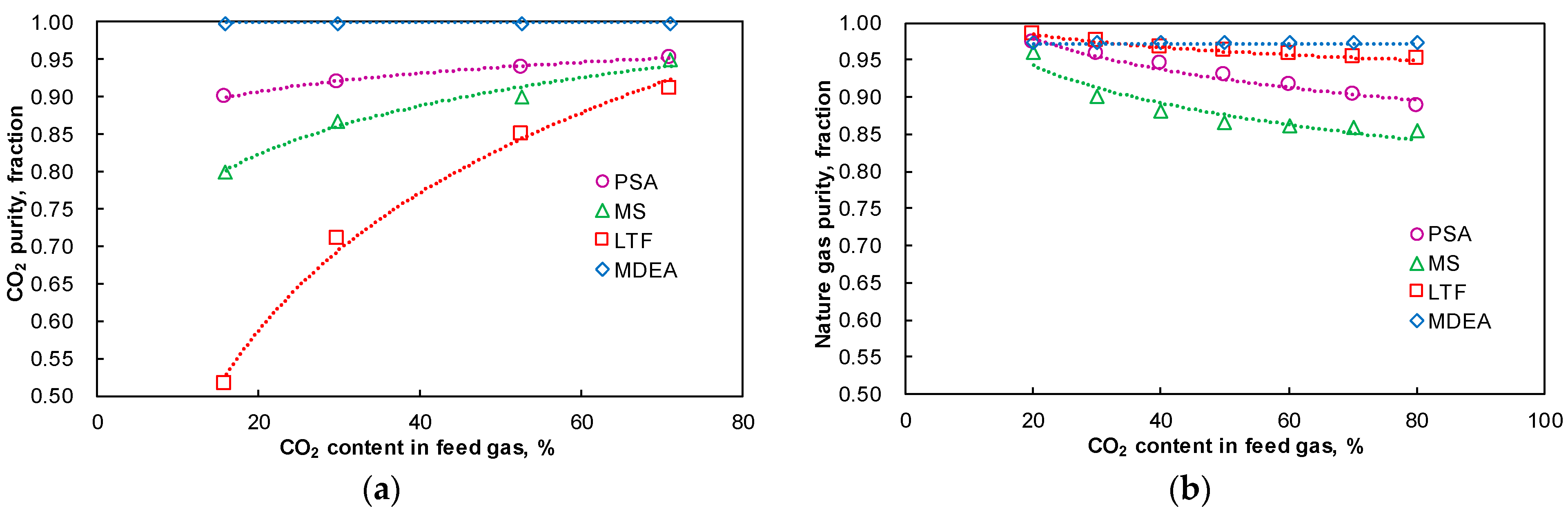

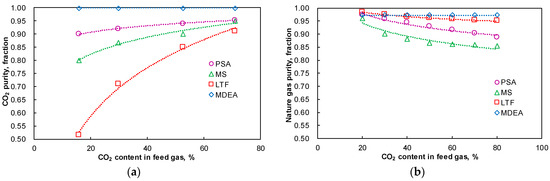

For the gas capture purity, we have conducted a sensitivity simulation for different kinds of carbon capture modules using the software Aspen Hysys 2006. The composition of feed gas referred to the associated gas in Block 530 in XinJiang oilfield, which has 84.98% C1, 7.21% C2, 3.04% C3, 1.23% C4, 0.54% C5, 2.60% N₂, and 0.4% CO₂. By mixing CO₂ with the associated gas, feed gases with different CO₂ contents and at different flow rates were input in the simulation models for calculation. The results show that the capture purity of gas is mainly determined by the CO₂ content in the feed gas. Hence, we regressed the relation equations of gas capture purity with CO₂ content in feed gas for usage in our models to calculate the CO₂ flow variation, as shown in Figure 5 and

Table 3. Regression formulas of gas capture purity for different CO₂ capture modules.

Gas Purity	Capture Type	Regression Formula	Correlation Coefficient R2
CO2 purity of captured CO2 gas	PSA	xout-CO2 = 0.036lnxin-CO2 + 0.8002	R2 = 0.9952
	MS	xout-CO2 = 0.094lnxin-CO2 + 0.5420	R2 = 0.9734
	LTF	xout-CO2 = 0.265lnxin-CO2 − 0.2061	R2 = 0.9934
	MDEA	xout-CO2 = 0.9997	R2 = 0
Hydrocarbon purity of captured natural gas	PSA	yout-CH4 = −0.060lnxin-CO2 + 1.1594	R2 = 0.9615
	MS	yout-CH4 = −0.072lnxin-CO2 + 1.1573	R2 = 0.8890
	LTF	yout-CH4 = −0.025lnxin-CO2 + 1.0597	R2 = 1
	MDEA	y = 0.9725	R2 = 0

. It can be seen that as the CO₂ content in feed gas increases, the CO₂ capture purity of PSA, MS, LTF modules gradually increases, while the CO₂ capture purity of the MDEA module is always high. When the CO₂ content in the feed gas is larger than 75 mol%, all the CO₂ capture purities of all capture modules can reach larger than 90 mol%. Overall, the ranking of CO₂ capture purity is MDEA > PSA > MS > LTF. The CO₂ capture purity of the LTF module is the lowest one, because a part of liquefied C2+ can mix into liquid CO₂ and hardly be separated. On the other side, the purity of natural gas ranks in an order of MDEA >LTF> PSA > MS.

3.4. Calculation Method of Unit Cost

The CO₂ capture and reinjection cost (CCRC) per unit volume of CO₂ gas can be calculated by the annual cost divided by the annual captured CO₂ gas. The annual cost includes two parts, namely the annual operating and maintenance cost, and the annual capital cost calculated by dividing the total capital cost equally over each year of the project [35]. The specific formulas are as follows. For comparison purposes, the unit CO₂ cost is expressed by the cost per 500 sm³ CO₂ gas which is about one ton pure CO₂.

$$C_{lev}=C_{tca}/Q_{out-{\mathrm{CO}}_2\mathrm{gas}}/365\times 500$$

(46)

$$C_{tca}=C_{annual}+O\&M_{annual}=\sum C_{unit}\times CRF+O\&M_{annual}$$

(47)

where C_lev is the CO₂ capture and reinjection cost per 500 Sm³ CO₂ gas, US$/500 Sm³; C_tca is the total annual cost of CCRP, US$; C_annual is the annual capital cost by dividing the total capital cost equally over each year of the project duration, US$; CRF is the discount factor, which can be calculated according to project duration and the interest rate, in this study, it is assumed that the project lasts for 15 years, and the interest rate is 12%, hence the CRF of 0.1827 was applied.

4. Evaluation of the CCRPs in the CO₂ EOR and Storage Project in XinJiang Oilfield

4.1. Evaluation of the CCRPs Based on the Assumed Gas Production and CO₂ Purity

A sensitivity evaluation on the CCRP of the CO₂ EOR and storage project in XinJiang oilfield was conducted according to the possible gas production scale and CO₂ purity. It was assumed that the project lasts for 15 years, the discount rate is 12%, and the gas is produced at a scale of (5–50) × 10⁴ Sm³/d with a CO₂ content varying in a range of 20–80 mol%. The unit cost, unit energy consumption, CCRE, and CO₂ capture purity of different CCRPs (as shown in Table 3) were calculated using the established evaluation model for CCRP, and the results are shown in Figure 6.

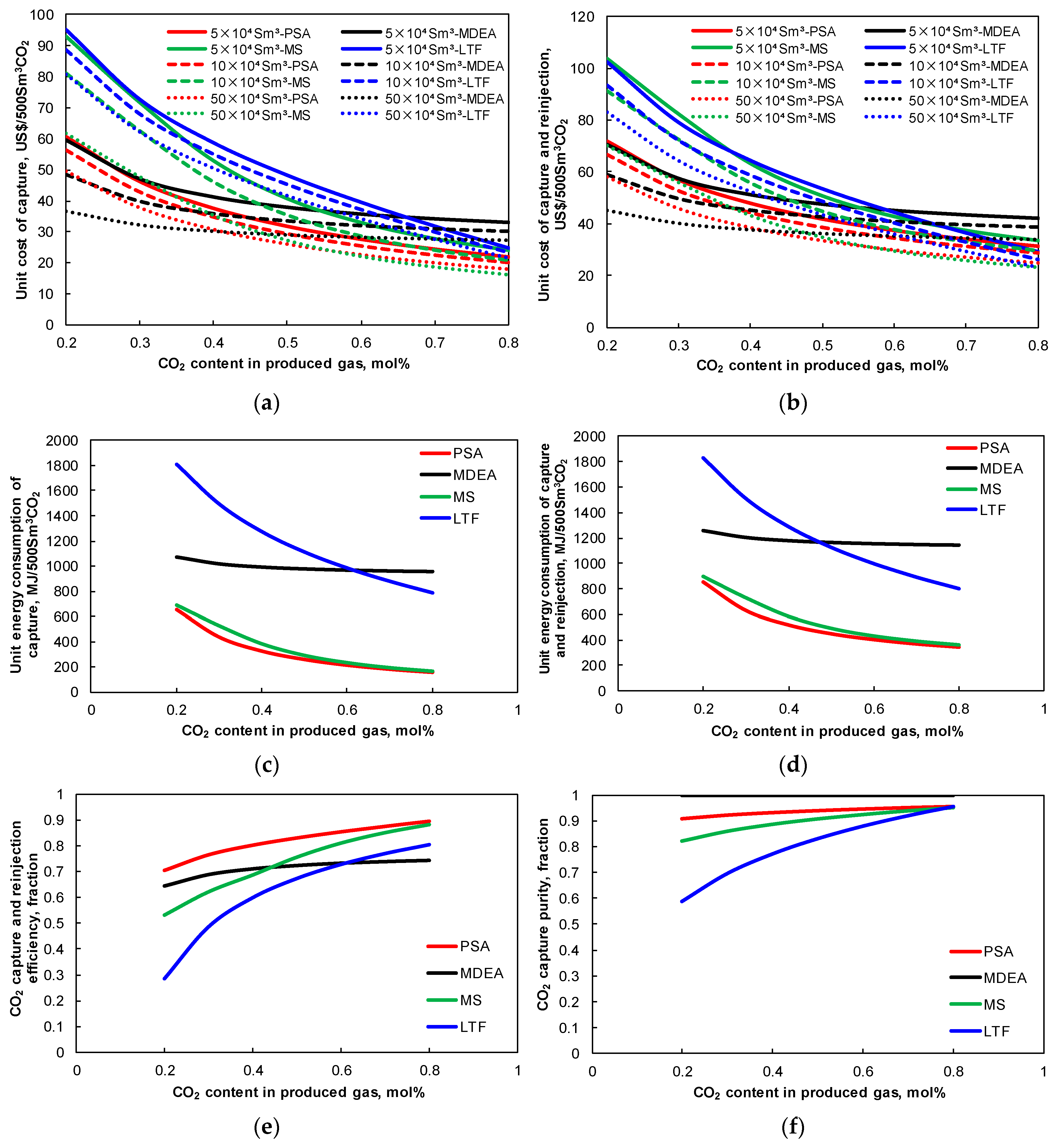

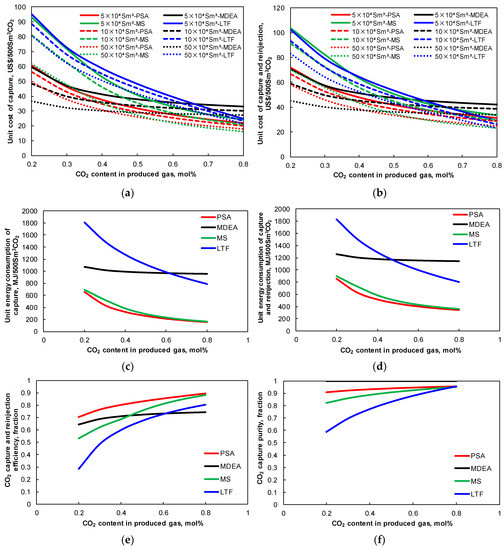

The calculated unit cost of CO₂ capture and unit cost of CO₂ capture and reinjection are shown in Figure 6a,b respectively, where the former covers the cost of equipment from the produced gas to the CO₂ capture system, while the latter further covers the cost of pressure boosting equipment for reinjection. It can be seen that both the unit capture cost and the unit capture and reinjection cost decrease with the increase of CO₂ content and gas production. The cost of capture accounts for the vast majority of the cost of the whole CCRP. By comparing these unit costs, the applicable CO₂ content of produced gas for different CCRPs can be obtained. The unit cost of the MDEA process is weakly sensitive to the CO₂ content in the produced gas, and it is economical at a low CO₂ content of 20–40 mol%. The unit cost of the SPA process is relatively low, and it has a large applicable CO₂ content range of 20−80 mol%. The unit costs of MS and LTF processes are high, but decrease rapidly with CO₂ content increase. These two CO₂ capture processes are suitable for the conditions when the produced gas CO₂ contents are larger than 50 mol% and 80 mol% respectively.

Figure 6c,d show the unit energy consumptions of different CCRPs. It can be seen that the unit energy consumption is mainly decided by the CO₂ content in the produced gas. The higher the CO₂ content, the smaller the unit energy consumption. Similarly, the CO₂ capture process consumes most of the power of the whole CCRP. By comparison, the unit energy consumptions of SPA and MS processes are much lower than those of the other two. The unit energy consumption of the MDEA process is weakly affected by the CO₂ content in the produced gas, while the unit energy consumption of the LTF process is the most sensitive to the CO₂ content. When the CO₂ content of produced gas is larger than 40–60mol%, with the CO₂ liquefaction efficiency increase, the unit energy consumption of the LTF process will be lower than that of MDEA.

As shown in Figure 6e, the CCRE of the whole CCRP is also mainly affected by the CO₂ content in the produced gas. The higher the CO₂ content is, the higher the CCRE is. Among the four types of the CO₂ capture process, the CCRE of the PSA process is the highest. The CCRE of the MS process is lower than that of the PSA process, but it increases quickly as the CO₂ content in the produced gas increases. At a low CO₂ content of 20–40 mol%, due to the low gas capture purity, a large part of CO₂ will be lost in the captured natural gas, resulting in a low CCRE of the MS process, even lower than that of the MDEA process. Relatively, the CCRE of the LTF process is low due to the high energy consumption and low CO₂ capture purity. At a low CO₂ content, the CCRE of the LTF process can be as low as 30%, while when the CO₂ content in the produced gas is larger than 60mol%, the CCRE of the LTF process can exceed that of the MDEA process. The CCRE of the MDEA process will be the lowest when the CO₂ content in the produced gas is above 60mol%.

Figure 6f shows the purity of CO₂ captured from the produced gas. The CO₂ purities captured by the MDEA and PSA processes all exceed 90 mol% when the CO₂ content in the produced gas is 20–80 mol%. However, for the MS and LTF processes, only when the CO₂ contents in the produced gas are more than 50 mol% and 70 mol%, respectively, the CO₂ capture purities can be larger than 90 mol%. The multi-stage membrane treatment can improve the CO₂ purity, while the heavy components liquefied with CO₂ are also conducive to miscible flooding.

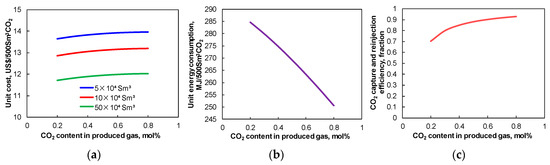

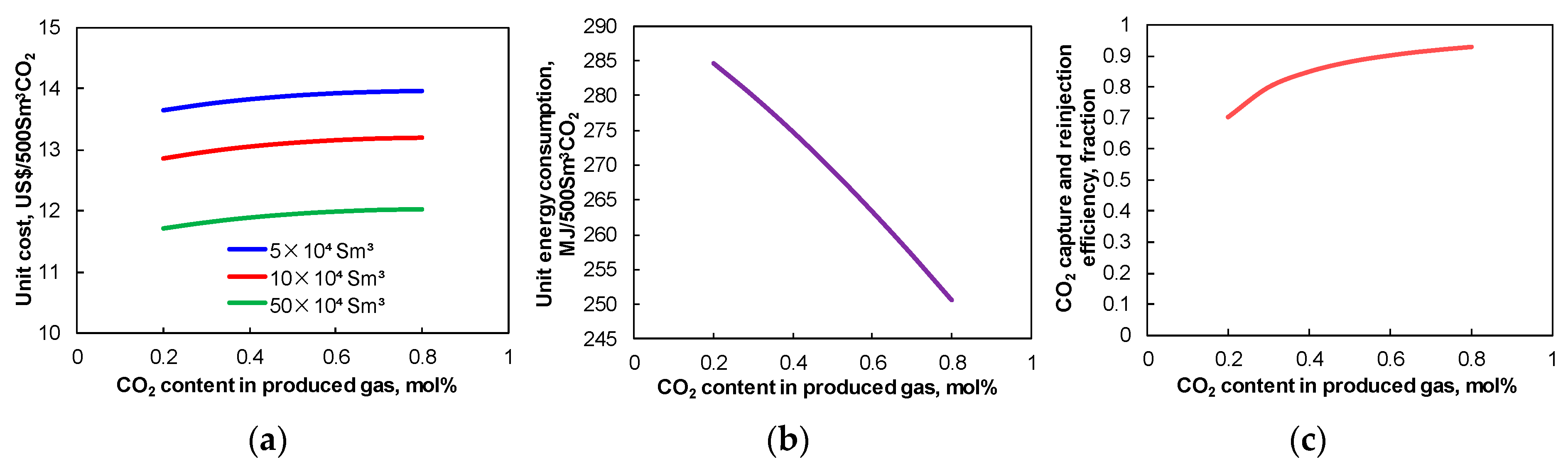

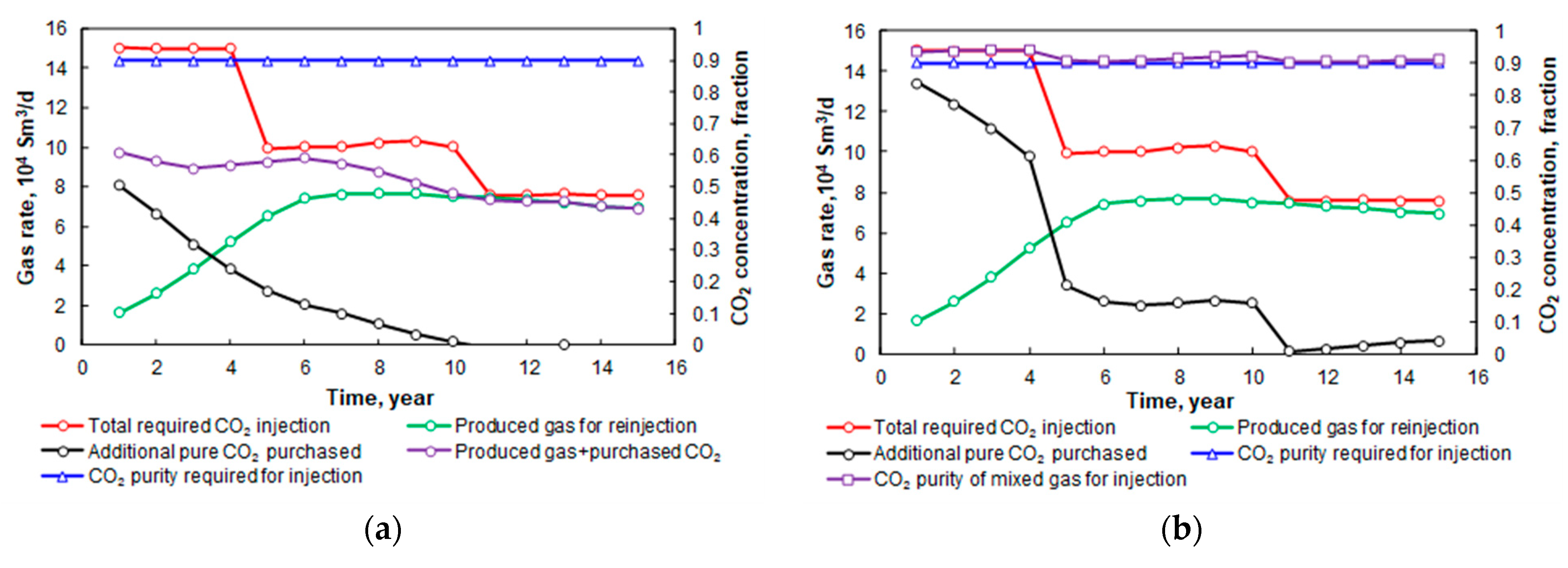

When the produced gas is reinjected directly with necessary purchased pure CO₂, the unit cost, unit energy consumption, and CCRE of the DRM process are shown in Figure 7. Due to the simple process of DRM, both the unit cost and unit energy consumption are much lower than those of other CCRPs. The CCRE of the DRM process can be up to 70–93%, also larger than that of any other CCRPs. The DRM process demonstrates a strong attraction. Moreover, the unit cost of the DRM process increases with CO₂ content rise because compressing CO₂ needs more energy than natural gas.

4.2. Evaluation of the CCRPs Based on the Designed CO₂ Flooding Schemes

In order to optimize the CO₂ EOR and storage scheme in block 530, four times of CO₂ flooding were predicted by reservoir numerical simulation. In this part, five types of CCRPs are assessed and compared according to the predicted gas production.

4.2.1. CO₂ Injection Schemes and Predicted Gas Production

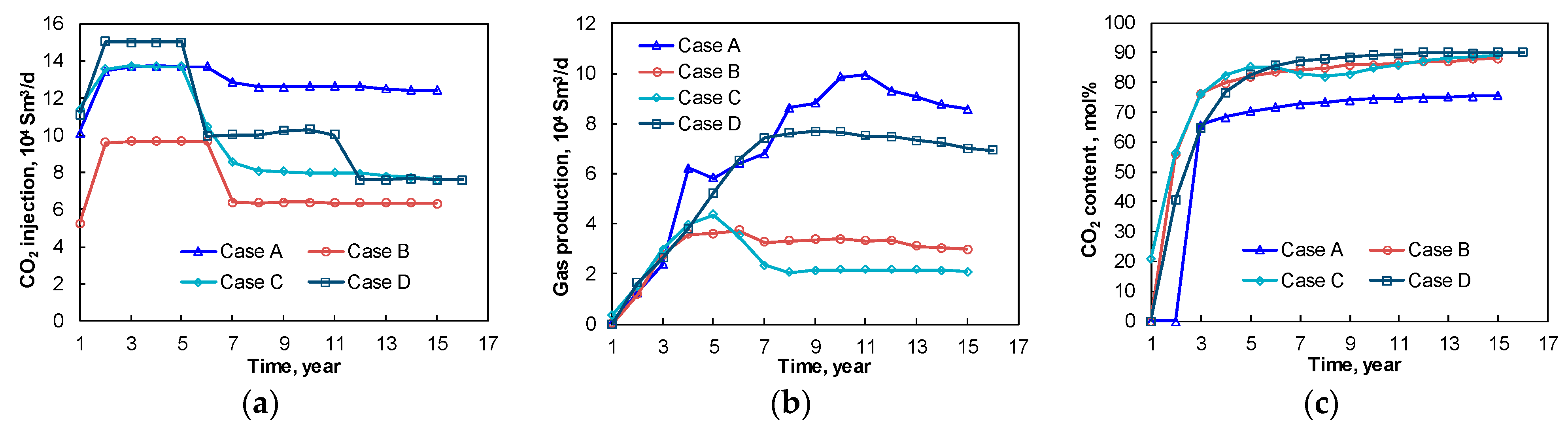

The CO₂ injection schemes and predicted gas productions in XinJiang oilfield are summarized in

Table 4. Predicted results of four CO₂ flooding schemes for CO₂ EOR and storage project in XinJiang oilfield.

Scheme	Case A	Case B	Case C	Case D
Total CO2 injection rate, 104 Sm3/d	10–14	5–10	8–14	8–15
Total gas production rate, 104 Sm3/d	0–10	0–3.7	0–4.5	0–7.8
CO2 content in produced gas, %	65–76	56–88	20–90	40–90
Cumulative CO2 injection, 104 t	139.93	80.83	108.22	123.93
Cumulative CO2 production, 104 t	54.04	26.93	21.81	54.70
Primary CO2 storage efficiency, %	61.38	66.68	79.85	55.86
Cumulative oil production, 104 t	41.60	26.04	33.17	49.49
Average CO2-oil ratio, t CO2/t oil	3.36	3.10	3.26	2.50
EOR, %	29.50	18.47	23.26	25.75
No of well group	9 injection wells	9 injection wells	15 injection wells	15 injection wells
Project period, year	15	15	15	15

Note: primary CO₂ storage efficiency refers to the ratio of the amount of stored CO₂ (=cumulative CO₂ injection—cumulative CO₂ production) and the cumulative CO₂ injection.

and Figure 8. In the simulation of CO₂ − EOR schemes, after CO₂ is injected into the ground, it interacts with formation water and crude oil, causing the composition and properties of liquid phase to be changed. Part of the injected CO₂ is dissolved in the oil underground and cannot be produced in gaseous form. CMG software was used to simulate the above process to obtain CO₂ − EOR simulation cases. The four CO₂ flooding schemes are marked as cases A, B, C, and D, respectively. The CO₂ injection undergoes three stages: pressure build-up for 0.5 years, continuous gas injection for 4.5 years, and water-alternating-gas (WAG) injection for 10 years.

In four cases, the simulation results are various. (1) In case A, 139.93 × 10⁴ t of CO₂ will be injected with a primary storage efficiency of 61.38%, and about 41.60 × 10⁴ t of crude oil will be produced out with a CO₂–oil ratio of 3.36 tCO₂/t oil. The maximum gas production rate is expected to be 10 × 10⁴ Sm³/d, while the CO₂ content in the produced gas will be maintained at 65–76 mol% after the CO₂ breaks through in the production wells in the third year. (2) Case B has lower cumulative CO₂ injection and cumulative oil production, only 26.04 × 10⁴ t and 26.93 × 10⁴ t, respectively. CO₂ breakthrough of the production well occurs in the second year, and then the CO₂ content in the produced gas will gradually rise to more than 80mol %. (3) In case C, 108.22 × 10⁴ t of CO₂ will be injected into 15 wells with a high storage efficiency of 79.85%, and 33.17 × 10⁴ t of crude oil will be produced out with a relatively higher CO₂–oil ratio of 3.26 tCO₂/t oil. CO₂ was produced in the first year, and the CO₂ content in produced gas can close to 90mol% after 5 years. (4) Case D has a similar CO₂ injection scale with case A, reaching 123.93 × 10⁴ t, but has greater oil production of 49.49 t. CO₂ breaks through in the second year, and the CO₂ content can also be close to 90 mol %.

Overall, case A has the largest CO₂ injection scale, while case D is the most attractive scheme because of the smallest CO₂–oil ratio and the little smaller gas production with the higher CO₂ content. For cases B and C, the CO₂ injection and gas production are small. Although their primary storage efficiencies are relatively high (66.68% and 79.85%, respectively), less amount of crude oil will be produced than that of cases A and D.

4.2.2. Comparison Analysis of the Different CCRPs

(1) Comparison between the different CCRPs

The best CO₂ injection scheme, case D, was taken as an example, and different CCRPs were compared and analyzed according to their technical and economic indicators calculated based on the predicted gas production of each year.

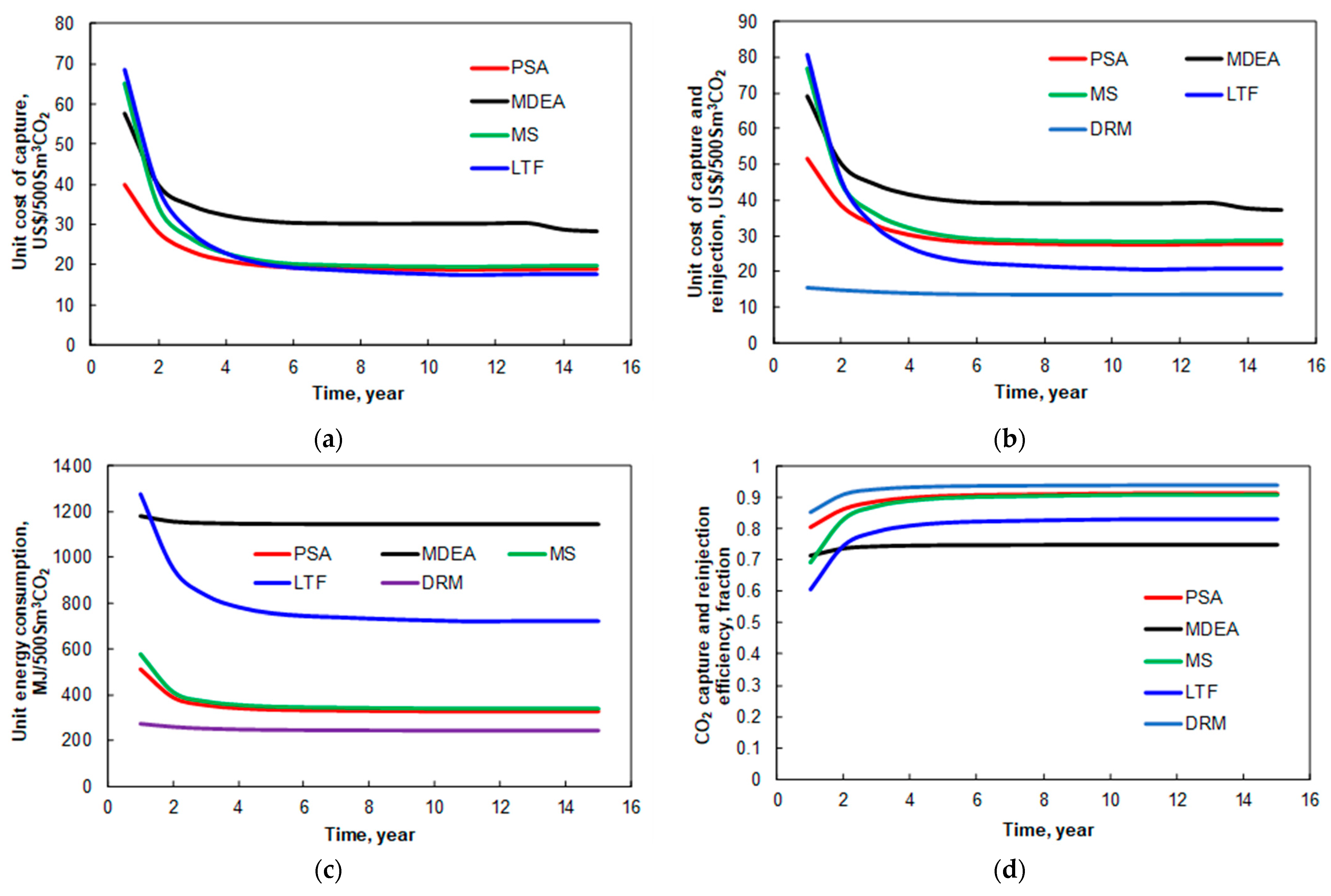

As shown in Figure 9a,b, as the CO₂ content in the produced gas increases with production, the unit CO₂ capture costs of different CCRPs decrease first and tend to be stable after a 5-year injection when the CO₂ content exceeds 80mol%. The unit CO₂ capture costs of PSA, MS, and LTF processes become close, varying in a range of 17.63–20.35 US$/500 Sm³CO₂, while the unit CO₂ capture cost of the MDEA process maintains at a high level of 28.46–31.17 US$/500 Sm³CO₂. When the cost of the injection process is further involved, the unit costs of CCRPs will increase by about 10 US$/500 Sm³ CO₂, except for the unit cost of the LTF process, which is only improved by 3–4 US$/500 Sm³CO₂ due to the low injection cost of liquid CO₂. However, the cheapest way to dispose of the produced gas is to reinject the produced gas directly. The unit cost of the DRM process is only 13.58–15.64 US$/500 Sm³ CO₂.

Figure 9c shows the unit energy consumptions of different CCRPs with time. The unit energy consumptions of PSA, MS, and LTF processes decrease quickly in the first 2–3 years and tend to be stable, while the unit energy consumptions of MDEA and DBM processes always remain stable. The order of unit energy consumptions of different CCRPs is MDEA > LTF > MS ≈ PSA > DRM (1143, 721, 342, 328, and 244 MJ/500 Sm³, respectively, after 15 years of injection). A high energy consumption usually means a large amount of additional CO₂ emissions and a low effective CO₂ capture efficiency; hence, the ranking of CCREs of different CCRPs is DRM > MS ≈ PSA > LTF > MDEA (93.97%, 91.48%, 90.96%, 83.10%, and 74.86%, respectively, 15 years later), as shown in Figure 9d.

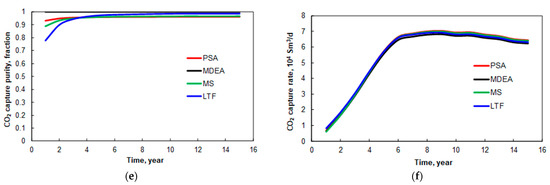

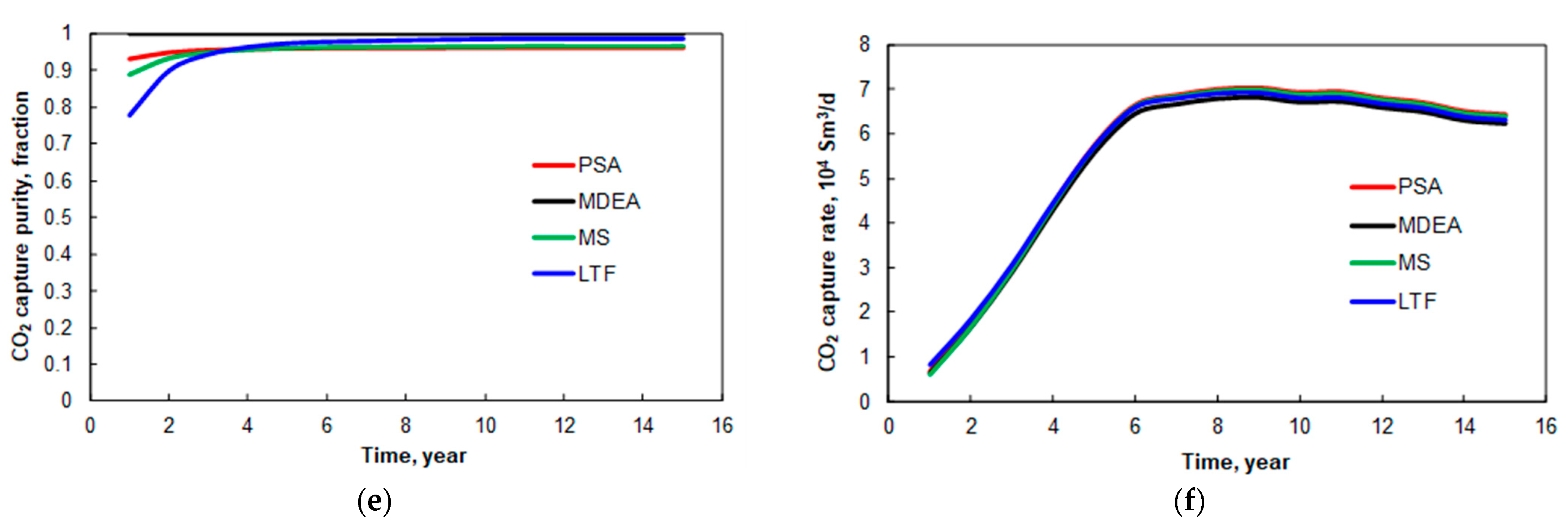

For the CO₂ capture purity, as shown in Figure 9e, only in the MDEA and PSA processes can it reach 90 mol% in the first 2 years, while the CO₂ capture purity of the LTF process is as low as 77.69% at the beginning. After 4 years of production, the CO₂ capture purities of different CCRPs become stable with an order of MDEA > LTF > PSA ≈ MS > 90 mol%. For the CO₂ capture rate, only a little difference is between different CCRPs because of the high CO₂ content in the produced gas, as shown in Figure 9f.

Based on the above analysis, it can be seen that the DRM process is the best way to deal with the produced gas. However, before reinjection, the produced gas should be mixed with the purchased pure CO₂ if necessary to meet CO₂ purity and injection amount requirements. As shown in Figure 10a, when the produced gas is mixed with the purchased pure CO₂ to meet the required CO₂ purity of 90 mol%, no more than 8 × 10⁴ Sm³/d of pure CO₂ is needed, and with the increase of gas production and decrease of required injection amount, no additional pure CO₂ will be needed 10 years later. However, when the produced gas is mixed with pure CO₂ according to the required CO₂ purity, the total amount of produced gas and pure CO₂ is still less than the designed amount. Hence, more purchased pure CO₂ is needed, which will make the CO₂ content in the mixed gas up to 91–95 mol%, as shown in Figure 10b.

(2) Comparison of CCRPs between the different cases

Besides case D, the other three cases of CO₂ flooding were also assessed to study the influence of gas production characteristics on selecting the optimal CCRP. The evaluation indicators of all CCRPs of all cases are summarized in

Table 5. Summary of evaluation indicators of all CCRPs of all cases.

CO2 Flooding Scheme	Type of CCRP	Unit Cost of Capture, US$/500 Sm3CO2	Unit Cost of Capture and Reinjection, US$/500 Sm3CO2	Unit Energy Consumption, MJ/500 Sm3CO2	CO2 Capture and Reinjection Efficiency, %	CO2 Capture Purity, %
Case A	SPA	21–25	30–36	358–386	87–89	95
	MDEA	31–41	39–51	1148–1154	74	99.97
	MS	23–35	31–45	375–409	84–87	93–95
	LTF	26–39	29–46	843–939	75–79	90–94
	DRM	7–9 *	13–15	253–260	91–93	80–94 **
Case B	SPA	21–34	31–46	332–422	84–91	94–96
	MDEA	33–55	43–67	1143–1161	73–75	99.97
	MS	24–48	34–60	345–454	79–91	92–96
	LTF	21–55	26–68	735–1049	71–83	86–98
	DRM	9–10 *	15–16	245–266	90–94	92–95 **
Case C	SPA	20–95	31–109	330–830	71–91	91–96
	MDEA	35–238	45–94	1142–1254	65–75	99.97
	MS	23–166	36–180	344–884	63–91	83–96
	LTF	21–182	28–243	727–1803	31–83	60–98
	DRM	8–14 *	15–20	244–284	70–94	95–97 **
Case D	SPA	19–40	28–51	328–513	80–91	93–96
	MDEA	28–58	37–69	1142–1180	71–75	99.97
	MS	19–65	28–77	341–575	69–91	89–96
	LTF	18–69	21–81	719–1276	61–83	78–99
	DRM	8–10 *	14–16	244–274	85–94	91–95 **

Note: the data marked by * are the pretreatment costs of the produced gas in the DRM process; the data marked by ** are the CO₂ contents of the produced gas after being mixed with the purchased pure CO₂ in the DRM process.

.

For case A, the order of different CCRPs is MDEA > MS ≈ PSA ≈ LTF > DRM according to the unit costs of CCRPs when the CO₂ content in the produced gas has reached stable after several years of production. Due to the stable CO₂ content of 65–76 mol% in the produced gas, the CO₂ capture purity, unit energy consumption, and CCRE are all kept stable during the project. However, it is not easy to design the DRM process. On the one side, the amount of mixed gas will be much larger than the required amount if the produced gas is mixed with the purchased pure CO₂ based on the required CO₂ purity. On the other side, the CO₂ purity of mixed gas will be lower than 90 mol% during most of the project time if the produced gas is mixed with the purchased pure CO₂ based on the required injection amount. For this case, the MS, PSA, or LTF process may be an assistant selection.

For case B, the unit costs of different CCRPs are in the order of MDEA > MS > PSA > LTF > DRM. The CO₂ content in the produced gas is 56–88 mol%, and after three years of production, the CO₂ content can maintain above 80 mol%. At such a high CO₂ content, the unit CO₂ capture cost of the LTF process is close to that of MS and PSA processes, while the total unit cost of the LTF process is lower than that of any other capture processes because of the low injection cost of liquid CO₂. Besides, the LTF process has the second-high CO₂ capture purity, although the unit energy consumption is high and the CCRE is as low as about 80%. This case is similar to case D. The DRM process is the most attractive option, and when the produced gas is mixed with pure CO₂ according to the required injection amount, the CO₂ content of the mixed gas can be high up to 92–95 mol%.

For case C, the unit costs of different CCRPs have the same order as that of case B. In this case, the injected CO₂ will breakthrough in the first year, and the CO₂ content in the produced gas is only 20 mol%; only in the fourth year will the CO₂ content exceed 80 mol%. Hence, in the early stage of the project, the unit cost of CO₂ capture will be very high. For the DRM process, a large amount of pure CO₂ should be purchased to mix with the produced gas, which will lead to a high CO₂ purity of mixed gas in a range of 95–98 mol%.

By comparing the four cases of CO₂ flooding, it can be seen that (1) the DRM process is the best selection, but if the gas production is large and has a low-medium CO₂ content, the DRM process may bring new issues such as more blocks are needed for gas injection or the CO₂ content of the mixed gas cannot meet the required CO₂ purity. (2) The MDEA process can be excluded because of its high cost and energy consumption during most project times. (3) When the CO₂ content in the produced gas is above 80 mol%, the LTF process is an attractive option, while when the CO₂ content is lower than 80 mol%, the PSA process is better than the MS process. Because of the considering of the probable adjustment of CO₂ injection during the project, a more flexible and applicable CCRP is recommended as the following: the DRM process is selected as the main CCRP, and the PSA process is chosen as an assistant option that has a wide range of applicable CO₂ content in the produced gas.

5. Conclusions

(1) For the CO₂ EOR and storage project in XinJiang oilfield, a technical and economic evaluation model of CCRP was established based on the basic equipment units involved in the process, which can be applicable for any flexibly designed CCRPs. The evaluation indicators such as unit cost, unit energy consumption, CO₂ capture efficiency, and CO₂ capture purity of each equipment unit and the whole process can be calculated and used as the basis for the optimization of CCRP.

(2) The results of sensitivity evaluation of CCRPs show that with the increase of gas production rate and CO₂ content in the produced gas, the unit cost and energy consumption of CCRP will decrease, while the CCRE and CO₂ capture purity will increase. The MDEA and LTF processes have large unit energy consumptions, while the PSA process has a large CCRE and a high CO₂ capture purity. In terms of the unit cost, the applicable CO₂ contents in the produced gas for the MDEA, PSA, MS, and LTF processes are <20–40 mol%, >20–80 mol%, >50 mol%, and >80 mol% respectively, which are consistent with published studies. The DRM process is the most attractive selection because of its simple process, low unit cost, and high CCRE.

(3) According to the designed CO₂ flooding schemes in XinJiang oilfield, different CCRPs were assessed. Different CCRPs have different advantages at different stages of the project. For the case of high gas injection and high gas production with a relatively low CO₂ content, the DRM process is hard to apply. All or part of the produced gas may need to be purified by PSA, MS, or LTF processes, of which the PSA process has the widest applicable CO₂ content range. For the case of high gas injection and low gas production with high CO₂ content, the DRM process can be applied by mixing the produced gas with pure CO₂ according to the required injection amount. Considering the probable adjustment of the CO₂ injection scheme, a flexible and applicable CCRP is recommended to select the DRM process as the main CCRP associated with the PSA process as an assistant option.

(4) In general, the implementation of CCS in the oil field is economically rewarding, and CO₂ can be stored permanently and safely. Besides, a large number of CO₂ flooding projects around the world have also proved that this is the most feasible commercialization model. Therefore, a reasonable CCRP after enough evaluation can provide a guarantee for the CO₂ EOR and storage project of XinJiang Oilfield. Furthermore, the success of the XinJiang oilfield provides a reference for the process optimization and environmental protection indicators of the CCS technology in China.
