The implementation of new forms of urban mobility is a fundamental challenge for improving the performance of city logistic systems in terms of efficiency and sustainability. For such purposes, the exploitation of electric vehicles is currently being investigated as an alternative to traditional internal combustion engines. In particular, the employment of lightweight electric cargo bikes is seen as an attractive possibility for designing improved city distribution systems. Such vehicles, however, present substantial limitations related to their endurance, speed, power, and recharging times; therefore, their configuration must be optimized considering the actual operational context and the specific characteristics of the service operated. This paper proposes the employment of modular electric cargo bikes for urban parcel delivery, with the possibility of customizing some features of the vehicle in order to optimize the performance of the system. This research initially focuses on the design of the modular vehicle and subsequently on the selection of the best configuration through a multi criteria decision method. A numerical application demonstrates the effectiveness of the approach proposed by analysing different design options and determining the most efficient solution in a specific context.

1. Introduction

Urban distribution systems are the most critical element of industrial supply chains, accounting for the highest share of delivery costs and originating significant externalities such as traffic congestion, energy waste, air pollution, and noise. In addition, in historic city centres, last mile delivery services are also a main cause of deterioration of the architectural and cultural heritage. The advent of e-mobility and the exploitation of electrical vehicles for the movement of goods represents, in this regard, a great opportunity to drastically reduce the polluting emissions, particularly in large city centres, where traffic congestion is a critical issue. The use of battery powered electric vehicles substantially reduces the environmental impact of urban delivery operations by centralizing the production of energy in distant and efficient power plants with advanced pollution abatement systems. For such reasons, interest towards the employment of electric vehicles in urban freight operations has significantly risen in the last decade, and the landscape of transport vehicles has been enriched with several innovative solutions including electric vans, e-cargo bikes, driverless carts, drones, etc. In such a variegated market, both scientists and practitioners are still debating the most efficient solution for future city logistic systems. For example, it is well known that some global market operators (e.g., Amazon) are investing in drone technology, while other companies are focusing on self-driving ground systems or more traditional lightweight e-vans.
From a scientific perspective, although several papers have comparatively analysed the performance of different vehicles, few researchers have actually addressed the issue of optimizing the configuration of the vehicle in relation to the needs of the service. The choice of an optimal means of transport, in fact, cannot be addressed solely from the perspective of the vehicle, but must be referred to the specific operational context, being influenced by several parameters such as the maximum operating range, the maximum payload, and the population density. In such regard, a flexible vehicle capable of adapting to a several operating contexts can be a more advantageous choice than a vehicle with a high performance in a limited operating range. In other words, the flexibility of the logistic system and its capability of operating several different services efficiently can actually be a more effective choice than a high-efficient solution in a narrow operating range.
In such regard, it must be considered that the proliferation of single day delivery (SDD) for the business to consumer (B2C) e-commerce market, in the last decade, has drastically changed the scenario of urban logistic and freight transportation systems, substantially increasing the segment of fast and cheap parcel delivery services compared with courier and express deliveries. In addition, the advent of e-commerce has also impacted the weight distribution of the parcels delivered, with the number of “mailers,” (0–3 kg) and “small parcels” (3–6 kg) increasing compared with “large deliveries” (more than 6 kg). Finally, the tightening of environmental regulations and the consequent traffic restrictions enforced by local administrations have significantly contributed to making traditional urban distribution systems inadequate for the new challenges of smart urban delivery.
City logistic systems based on e-cargo bikes, when properly designed, can arguably outperform many other vehicles in terms of flexibility, sustainability, and efficiency, and are therefore an ideal solution for the operators of last mile delivery services. Indeed, with the technological advances in energy storage systems and the development of lightweight electric motors and pedal assist systems, modern transport bikes are flexible vehicles with a high load capacity and are capable of travelling long distances, overcoming slopes, and operating in various territorial contexts. Such advantageous features, combined with the low cost of ownership, and with the possibility of overcoming traffic restrictions in city centres, have contributed to the spread of these vehicles in urban delivery systems. An additional advantage of e-cargo bikes, compared with traditional delivery trucks, is that as long as specific regulatory requirements are met, they do not require any type-approval, nor do they involve any obligation of insurance, road tax, driving license, and registration plate. With such features, their operational management is fairly simplified, while significant cost benefits can be achieved. To fully exploit the possible benefits of a delivery service based on e-cargo bikes, the design of the vehicles should be optimized design in order to maximize the overall performance of the logistic system considering the service requirements. Service providers are thus interested in selecting, among the solutions available on the market, the one that best fits the characteristics of the service operated and, in some cases, they have also undertaken specific activities for the design and development of their own customized vehicles. Such an example is the “City Hub” cargo bike created by DHL, featuring a custom trailer capable of transporting up to four small containers, with an overall volume of approximately one cubic meter (0.8 m × 1.2 m × 1 m) and an overall payload of 150 kg.
On the basis of these considerations, in this research, the issues related to designing a cargo e-bike, according to the criteria of modular design, are discussed, with the objective of obtaining a vehicle capable of operating effectively in a wide landscape of urban contexts. The aim of the research is to analyse the trade-off between the battery size and the available payload, considering the requirements of the service operated and the specific features of the operating context (e.g., density of delivery demand). On the one hand, increasing the capacity of the battery packs allows for longer delivery routes, but also reduces the available payload, therefore reducing the number of serviceable clients. In analysing such a trade-off, the paper ultimately aims to propose a modular approach to the design of a cargo e-bike and a decision methodology for selecting the most effective vehicle configuration in relation to the specific operational context and service requirements. The remainder of the paper illustrates the state of the art of the research in the first section, and discusses the methodology for the modular design of a cargo e-bike in the second section. The third section proposes the methodology for multi-criteria optimization, while the fourth section discusses the decision-making problem. Finally, the last section reports a discussion of the results and the conclusions, including the managerial insights and future developments.

2. Literature Review

The research proposed is related to the general framework of the optimization of urban logistics through the exploitation of innovative electric vehicles. While the recent technological advances in energy storage and propulsion systems have been a fundamental enabler of e-mobility applications for urban logistics, their spread has been mainly promoted by the necessity to cope with the renewed sensibility towards the environmental issues, and by the introduction of new business models in the context of the sharing economy. A clear example of this is the recent diffusion of “crowdshipping” as a more sustainable and cost-effective business model for urban logistic services, operated by occasional and non-professional actors, typically by means of small and low polluting vehicles. In such a context, urban delivery services based on cargo bikes have received substantial attention in the last decade. A consistent body of literature, focuses particularly on solving operational management problems aimed at optimizing cargo bike routes considering the service demand at the delivery points. The service demand can be estimated based on real-world observations from cargo bike trips using GPS devices installed in vehicles [1,2], from the data provided by service operators [3,4,5], or on the synthetic demand generated according to specific assumptions [6,7,8]. Based on such approaches, Lee et al. [9] found that up to three cargo bikes can replace a van in a dense area of Seoul (South Korea), also reducing costs by 14%. Similarly, Zhang et al. [10] reported reductions of up to 28% in costs and 22% in emissions when using cargo bicycles to replace nearly all van package deliveries in one scenario in Berlin (Germany). Anderluh et al. [8] also reported potential cost reductions by using cargo bicycles in combination with vans.
While the cost-effectiveness of cargo bikes is well-recognized in the scientific literature, some authors have also highlighted specific advantages compared with traditional transport vehicles, such as the ability to drive in narrower roads (due to their small size) [9], the reduction of direct emissions (with electric-assisted vehicles) [11], lower noise levels, and the ability to park closer to the end customer, thus reducing the walking distance. Contrarily, the drawbacks related to urban cargo-bike delivery that emerged in the previous studies are the limited operating range [12], slower travel speed, and reduced capacity compared with vans.
It must be pointed out, however, that the above-cited studies generally referred to logistic systems operated in specific operational contexts, assuming that proper facilities such as dedicated bike lanes and consolidation centres were available within the urban areas. Nevertheless, the variegated landscape of urban contexts with different morphological features and the wide range of logistic services required makes it difficult to generalize the obtained results. In such regard, Lenz and Riehle [11] identified the need to conduct further research on the spatial distribution of demand and the local spatial context of different cities, including customer locations and existing transport infrastructures. The availability of supportive infrastructures is actually a critical issue for the implementation of urban cargo bike delivery systems, as such systems typically require a dedicated distributed infrastructure constituted by micro depot areas with a high population density [11]. The traditional “single-tier” delivery schemes, based on extra-urban consolidation and distribution centres, which nowadays constitute the backbone of distribution systems, are in fact inadequate for the employment of short-range EVs for parcel delivery. Indeed, because of the limited endurance of EVs, the distribution chains must be re-designed with the introduction of an additional proximity tier operating direct delivery services to the customers at the city scale. Existing studies have also identified the essential prerequisites for the growth of cargo bike logistics, such as central deposits, called urban consolidation centres (UCCs) [13,14], urban distribution centres (UDCs) [15], and urban micro-consolidation centres (UMCs) [16]. Such infrastructures are supposed to operate in “two-tier” distribution schemes, recently proposed for city logistics based on EVs [17]. Such logistic systems involve extra-urban CDCs located at the outskirts of the urban zone for first level of consolidation activities, and a second set of infrastructures located inside the city for last mile distribution [16,18,19]. In order to minimize the nuisance effects on urban traffic, freight vehicles connecting external zones to urban depots can be canalized into appropriate corridors, while city-freighters move along the urban road network to perform the final deliveries (Figure 1).
In several cities where such infrastructures have been deployed, the employment of e-cargo bikes for parcel delivery has become a commercial service, and is nowadays recognized as an effective solution for the development of next generation city logistic systems. A recent study [20] reported that in European cities, potentially 42% of courier deliveries could be substituted by cargo bikes, while the results of the recent Cyclelogistics (2011–2014) and Cyclelogistics Ahead (2014–2017) projects (, accessed on 6 February 2021) indicate that, on average, 51% of all motorized journeys in European cities involving the transport of goods could easily be moved to bicycles or e-cargo bikes [21]. In addition, a recent survey executed within the EU-funded City Changer Cargo Bike project reported 17,800 sales of cargo bikes across Europe in 2018, 28,500 in 2019, and an expected target of 43,600 in 2020. Current studies, however, show an uneven geographical distribution of cargo bike services, with countries in Southern Europe still in the early stages of development, while UK and Northern Europe are more advanced, with commercial services regularly operating in some cities. In their quantitative analysis of operational and external costs, the authors of [22] suggest that such models are a viable solution to satisfy both public and private stakeholders. Similarly, Lenz, and Riehle [11] demonstrated that cargo e-bikes are positioned between bikes and cars in terms of cost, payload, and range, thus being suitable for specific logistic services, including food and courier deliveries, characterized by small and lightweight parcels. In terms of the decarbonisation of the urban logistics sector, a London-based case study found that the total distance travelled and CO2 emissions per package delivered decreased by 20% and 55%, respectively, as a result of delivery systems that used urban consolidation centres and small electric vehicles and cargo tricycles [13]. A Dutch study estimated possible annual fuel savings for the Netherlands of 8,500,000 litres of diesel or 21,000 tonnes of CO2 [23]. e-CBs have the greatest potential in urban areas because of their ability to bypass congestion and gain access to areas with environmental or delivery period limitations [11]. In addition, city regulations are nowadays oriented towards the increment of the direct and indirect costs of driving and parking in city centres, thus encouraging the adoption of cargo-bikes as a mode of transport [12,24].
Despite the relevance of the above-mentioned results, logistics services using e-CBs for urban freight are still often operated on a small scale, and are rarely connected vertically or horizontally with the existing distribution networks. Cargo bikes are thus rarely employed in same-day delivery services [23] required by the modern e-commerce distribution systems, therefore they are not significant enough to push suppliers to adopt them [22]. In addition, as Lenz and Riehle [11] point out, different modes of courier services compete in very similar markets, therefore fragmenting the overall demand. Such inefficiencies may ultimately hamper the establishment of an effective sustainable development strategy for urban delivery services. In addition, the optimized design of the supportive infrastructures has emerged a critical issue for the successful implementation of urban logistic systems based on cargo bikes. In such situations, logistic operators operating different services should have the possibility of deploying their own infrastructures, specifically designed for their service requirements. The coexistence of different infrastructures in the same urban context, however, is unpractical, while the involvement of the public sector in providing the required amenities would surely be advisable. Clearly, in such a case, the vehicles employed should be flexible enough to allow different operators to operate their services efficiently through common a supportive infrastructure. The role of public institutions thus becomes of paramount importance for fostering the development of effective urban delivery models through the deployment of shared urban infrastructures and the promotion of public−private cooperation [25].
According to the considerations reported above, the literature on urban delivery systems based on cargo bikes is focused on the design of logistic systems, while the issues related to the optimization of the design features of the vehicles are rarely discussed. This paper is, to the best of our knowledge, the first study that discusses the design of the vehicles for the specific operational context and service requirements, therefore covering this research gap. This research, in particular, focuses on the issues related to the optimization of the vehicle design for urban delivery operations, with the aim of proposing a flexible and modular e-CB capable of operating in different scenarios. Modularized product design is a modern approach allowing for the development of horizontally and vertically differentiated product lines based on the employment of a restricted number of interchangeable components. Such an approach allows manufacturing companies to best fulfil the preferences of a diversified target market, while achieving a good efficiency in their supply chain, through the exploitation of scope economies [26,27]. Modularized design has proven its effectiveness in the design of vehicles for the automobile industry [28,29], where modular platforms have become a fundamental driver of competitiveness in modern production networks. Analogously, the approach proposed here aims at designing an e-cargo bike that can be easily optimized for different service targets, taking advantage of a standardized platform and a customized set of components. It will be demonstrated that such an approach allows for determining the most suitable configuration in order to maximize the performance of the vehicle, considering the specific requirement of the service operated. The selection of the most effective configuration to maximize the performance of the vehicle is considered here at a strategic level, and will be carried out through a multi criteria decision process, taking into account different aspects such as cost, serviced area, and delivery time. The necessity of considering multiple objectives when planning a logistic service is well recognized, and derives from the conflicting interests of the several stakeholders involved. In general, in a multi-criteria problem, there is not a single solution that optimizes all the criteria at the same time, and therefore compromise solutions must be determined. In such a situation, the employment of a transparent multi-criteria decision analysis (MCDA) method is necessary for ensuring adequately reliable results. The literature on MCDA can be divided into three main groups, namely value-based methods, outranking methods, and distance-based methods. The value-based methods are probably the most widespread, and involve performance aggregation approaches, such as the multi-attribute value theory (MAVT), multi-attribute utility theory (MAUT) [30], and the analytic hierarchy process (AHP) [31]. Outranking methods involve preference aggregation approaches such as the Preference Ranking Organization and Method for Enrichment Evaluation (PROMETHEE) [32] and the Elimination and Choice Expressing Reality (ELECTRE) [33]. Finally, distance-based methods involve the calculation of the distance from the alternative with the worst or the ideal (best) solution, and the most common method used is the Technique for Order Preference by Similarity (TOPSIS) [34]. Such methods have been frequently employed in the selection of transport alternatives in logistic and distribution systems. In such regard, significant contributions were provided by Yedla and Shrestha [35], who employed AHP to evaluate six sustainable transport modes, and by Tsamboulas and Mikroudis [36], who presented a multi-criteria assessment framework of the environmental impacts and costs of transport initiatives. Finally, Awasthi and Omrani [37] presented a belief theory and AHP-based approach to evaluate sustainable transport solutions. In this research, TOPSIS was selected because of its capability of taking into account the preferences of the decision makers, while maintaining the solid logical structure the lean computational effort that characterizes strategic decision problems.

3. Vehicle Design and Optimization

The term electric cargo bike identifies a whole class of vehicles featuring two- to four- wheel frames, with several hours of endurance, capable of transporting payloads up to 400 kg and volumes up to 3 m3. In such situations, service operators are interested in choosing a vehicle that best fits the specific requirements of the service operated. Clearly, choosing a flexible solution that can easily adapt to different situations may represent a strategic choice in multiple or uncertain scenarios. Based on such premises, the design of a flexible e-CB is discussed in this section, highlighting the opportunities of modular design approach in order to obtain a vehicle capable of adopting different configurations, depending on the specific service operated.
A preliminary design requirement is the compliance with the European regulation (EU Directive 2002/24/EC) on e-bikes and pedelecs (cycles with pedal assistance that are equipped with an auxiliary electric motor), which defines the mandatory prescriptions for cycles equipped with an auxiliary electric motor to be legally considered a conventional bike. Such requirements are listed below:
  • 0.25 kW maximum engine power;
  • Assistance of the electric motor up to a speed of 25 km/h;
  • Interruption of assistance if the cyclist stops pedalling;
  • Maximum payload 500 kg.
Besides complying with such requirements, the other design parameters significantly impacting the performance of the vehicle are its technical features, transport capacity in terms of weight (payload) and volume, and the capacity of the battery pack. According to the modular design proposed, the basic structure of the vehicle involves a front-wheel drive and an aluminium tubular frame featuring four wheels with independent suspensions. The e-CB is then structured in two modular elements: a frontal technical module and a rear cargo module. The front module contains the cabin and all of the relevant mechanical systems required for manoeuvring, including the steering wheel and the steering box, the drive system, the battery pack, and the cockpit. The front-wheel drive develops from the crown of the pedal, which activates the integrated motor, and includes the centrifugal expansion clutch, connected to a transmission chain. Electrical assistance comes into action at low speeds, activating the drum where a second pulley transmits the movement of the wheels by means of a belt. The rear module is dedicated to the cargo and is designed to allow for the installation of different multipurpose interchangeable modules. In the case considered here, the e-CB will be employed for parcel delivery, therefore the rear module is constituted by a container. Alternatively, different modules can be installed for transporting, e.g., liquid or gaseous substances, or for passenger transportation, medical assistance/transport, food delivery, etc. The general schematic concept of the modular vehicle structure and its main components are given in Figure 2.
Coherently with the above-reported design requirements, the vehicle will be equipped with a 48 V, 250 W brushless electric central motor powered by a lithium-ion battery housed under the chair. Such mid-drive motor technology places the powertrain in the bottom bracket of the vehicle, between the pedals, thus lowering the centre of gravity and increasing the stability of the vehicle. The engine transfers the motion through the chain, exploiting all the gears of the front wheels by combining them with two front crowns—one for power and one for speed. Despite its great compactness, such an assembly ensures a surpassingly high reduction ratio of the engine, thus allowing for maintaining the rotation speed close to the point of maximum efficiency, with a consequent increase in performance, in terms of torque, drastically reducing battery consumption.
Another essential and innovative element is the centrifugal expansion clutch, which transfers the torque to the front wheels, exploiting the centrifugal force to engage or disengage automatically at fixed rotating speeds (see Figure 3). Considering the significant overall weight of the vehicle at full payload (500 kg), the clutch must be able to open at low revs in order to limit the recoil when starting the engine under load (starting jerk).
Finally, the mechanical brake system with jaws is developed on all four wheels, thus increasing safety in case of sudden braking. The front wheels have a diameter of 25 cm, while the rear wheels are smaller, with a diameter of 18 cm in order to lower the centre of gravity, thus allowing for better stability. Both wheels are fitted with reinforced R45 tires. A general overview of the vehicle is given in Figure 4.
In such a configuration, and considering the maximum allowable weight of 500 kg prescribed by the regulation, the power losses related to air resistance and rolling friction can be calculated according to Equations (1) and (2).
W r r = m × g × C r r × v
W x = 0.5 × ρ × C x × A f × v 3 ,
where m = mass of the vehicle, g = force of gravity, v = travelling speed, Crr = rolling resistance coefficient, ρ = air density, Cx = drag force coefficient, and Af = frontal area of the vehicle.
The corresponding calculations for a vehicle mass ranging from 300 kg to 500 kg, given in Table 1 demonstrate that, at maximum weight, the power required to overcome the air resistance and the rolling losses amounts to 205.75 W. A 250 W electric motor is thus sufficient to keep the vehicle moving at a full payload at a speed of 10 km/h. Clearly, this result should be accurately reconsidered when the vehicle operates in terrains with significant slopes.

4. Multi-Criteria Analysis

The effectiveness of the above-described modular e-CB in fulfilling the requirements of different operational scenarios is discussed in this section through a multi criteria approach, with the objective of determining the optimal configuration in relation to the requirements of different specific services. The problem is formulated according to the general multi criteria optimization framework, starting with the preliminary definition of the set of alternatives and with the establishment of the decision criteria. Subsequently, the best option will be determined by means of the TOPSIS methodology, considering different scenarios.

4.1. Design Alternatives

Referring to the structure of the modular e-CB discussed in the previous section, the components that can be customized are the battery pack and the dimensions of the load compartment. The capacity of the battery pack directly impacts the endurance and the weight of the vehicle, thus affecting its performance in terms of the maximum operating range, maximum allowable payload, and delivery cost. Assuming a maximum overall weight of 500 kg (including the vehicle, the biker, the battery, and the payload), a power consumption of 205.75 W (neglecting the additional power provided by the biker), and an operating speed of 10 km/h, the maximum range the vehicle can travel at full charge can be calculated through Equation (3).
d = E W × v
where E = energy stored (capacity of the battery pack), W = power consumption, and v = vehicle speed.
Considering such limitations, and the strategic level of the decision problem analysed, a rough estimation of the number of serviceable nodes in a circular area can be calculated by means of Equation (4), as a function of the population density (D) in the specific operating context, the area served (A), and the average number of deliveries per person per day (f). Concerning this last parameter, relevant information about the demand of parcel deliveries related to e-commerce B2C can be retrieved from a recent report from McKinsey [38], which analyses B2C ecommerce trends in 17 countries, focusing on the number of parcels being dispatched. The analysis is based on data from 2017 and reports the number of parcels per person per year as 24 and 22 in Germany and in the United Kingdom, respectively, followed by Ireland, Sweden, and Italy with 15, 6, and 2 parcels per person per year, respectively.
N = D × f × A
The route length required for a vehicle to visit a set of nodes randomly distributed in a service area can be calculated through a well-known approximated formula frequently used in the literature [39], given in Equation (5).
d k A × N
where k is a coefficient equal to 0.76 for the Euclidean metric [40] and to 0.97 for the Manhattan metric [41], A is the area to be served, and N indicates the nodes to be visited (equal to the packages to be delivered, assuming a single delivery per node).
By substituting Equations (3)–(5), the maximum number of serviceable nodes given for the maximum operating range of the vehicle can finally be determined, as well as the corresponding serviceable area. The theoretical volume required for the loading module and the payload to carry in each route can finally be calculated when knowing type of delivery service operated. Such a result is given in Table 2, which reports the average dimensions and weights of the parcels corresponding to the commercial categorization of the services operated in last mile delivery given in Table 3.
In order to generate a set of viable configuration alternatives for the quantitative multi-criteria analysis, a reference context of a high populated urban area has been considered with a density of 2615 inhabitants per square kilometre and a f factor of 0.055, approximately corresponding to 20 parcels per year per person or 137 deliveries per day per square kilometre. Based on such assumptions, and considering an overall maximum cargo volume of 1 m3, the endurance and maximum payload has been calculated for all the possible configurations corresponding to battery packs with storage capacities ranging from 6 to 60 Ah at 48V (see Table 2). The maximum payload is calculated considering an overall weight for the vehicle and the biker of 200 kg, and for Li-Po batteries with a weight of 9 kg/kWh. The theoretical operating time is thus obtained considering the number of packages that can be loaded in the cargo module, taking into account its maximum payload and volume, and an average delivery time of 5 min per parcel.
In order to cover a fixed city area, the choice of a configuration with a small endurance will result in subdividing the area into several delivery zones, thus increasing the number of bikers and urban consolidation centres, with a higher overall operating cost. On the other hand, such a solution achieves a reduced operating time, because several bikers are simultaneously involved in the delivery operations, travelling on short routes. The service operator, hence, faces a trade-off between reducing the annual cost of the system or reducing the time required to complete the delivery operations servicing all the clients. This latter issue can be of critical importance when restricted time windows are assigned by the local regulations.

4.2. Decision Criteria and Objective Functions

Determining the performance of a logistics system is a complex task that involves several criteria, such as economic profitability, service level, and robustness of solutions. In particular, the profitability of the service is one of the most relevant parameters for service operators, who generally evaluate their economic performance through specific indices such as the total annual operating cost, the unit cost of the delivery, or the total cost of transport per kilometre. The methodology proposed here takes into consideration two parameters, namely the overall annual cost of the system (which is directly linked to the cost of the logistic infrastructure including the fleet of vehicles, the number of drivers and the number of urban depots) and the service time required to complete the deliveries, with the objective of performing a multi-criteria quantitative analysis using the TOPSIS method. The specific formulations of the objective functions considered are discussed below.

4.2.1. Cost Efficiency of the Logistic System

This objective function refers to the cost efficiency of the city logistic system based on the employment of the e-CBs and the urban consolidation centres. In the analysis of a logistic system, the cost-effectiveness of the vehicle must always be evaluated through a cost model specifically tailored for the characteristics of the vehicles and the operating context considered. Recent research efforts in such a sense have been conducted by Tipagornwong and Figliozzi [7], who analysed the competitiveness of freight tricycle delivery services in urban areas, and by Choubassi et al. [42], who compared the cost of using different models of e-bikes in three locations with different population densities in the city of Austin (Texas). Similar to such approaches, in this section, a cost model is introduced to evaluate the efficiency of a generic urban delivery system based on e-CBs, opportunely parametrized to the specific operational context considered. The cost indicator selected for the optimization of the system is the overall per annual operating cost, which takes into account both the fixed annual costs of the infrastructures and the variable (per distance) costs related to the delivery operations.
C T = C P + C m + C s + C B + C E
The annual infrastructure ( C P ) cost is referred to the cost of the vehicles and the cost of the urban consolidation centres, and has been calculated assuming a vehicle purchase cost of €7000 and a useful life of 5 years (no interest rate was considered), while a cost of 1200 €/year has been considered for the depot. Such costs could be referred to as the service cost of a public infrastructure, coherently with the two-tier distribution scheme previously discussed. The purchase cost of the batteries ( C B ) is referred to as the configuration of the vehicle and is obtained by multiplying the capacity of the battery pack by a unit battery cost of 28 €/Ah, assuming two battery packs per vehicle (one mounted on the vehicle and one spare in charge) and a useful life of 2 years.
The direct (variable) costs are referred to as the salary of the biker ( C s ), the energy ( C E ) required for moving the vehicle, and the maintenance ( C m ) expenses. The energy cost is calculated assuming an energy consumption of 0.205 kW at a commercial speed of 10 km/h, and a unit energy cost equal to 0.056 €/kWh, as given in Equation (7a). The cost of the biker has been calculated assuming a cost per hour equal to 15 €/h (Equation (7b)), while the unit cost of the maintenance operations has been assumed equal to 0.1 €/km (Equation (7c)).
C E = 0.205 × 0.056 1000 × v × D T Y
C S = 15 × D T Y v
C m = 0.1 × D T Y
where v = 10 km/h is the commercial speed and DTY is the expected distance travelled per year in each configuration.
Finally, the number of e-CBs required to serve a pre-established area and operate the delivery service is obtained from the following formula:
N f = T o t a l   a r e a   t o   b e   s e r v e d   ( k m 2 ) A r e a   s e r v e d   b y   a   v e h i c l e   ( k m 2 )

4.2.2. Service Time

The second performance indicator chosen for the multi-criteria analysis is the time required to complete the daily delivery service (TS). This was calculated by multiplying the unit delivery time (td, assumed equal to 5 min, including auxiliary times) by the expected number of deliveries per day per bike (N), given by Equation (4). This parameter varies with the vehicle configuration, as reported in Table 2. Minimizing the overall service time is generally an objective of the service operator, particularly when urban regulations mandate fixed time windows for the delivery operations.
S T = t d × N

4.3. Evaluation of Alternatives

In this section, the decision problem related to the deployment of an appropriate infrastructure for e-CB-based delivery services is analysed. In particular, the design trade-off is referred to a highly decentralized infrastructure, involving several small consolidation depots and low-endurance vehicles, or, contrarily, a limited number of consolidation depots and high-endurance vehicles. A decentralized infrastructure involves several vehicles simultaneously operating the delivery services, allowing for the completion of the daily deliveries in a short time at a higher delivery cost. A centralized infrastructure, contrarily, can be more cost-efficient due to the economies of scale, but requires a longer time window to complete the delivery service. Such a situation is represented in Table 4 The objective of the analysis is to select the most appropriate centralization level and the corresponding optimized vehicle configuration, considering the trade-off between the overall annual cost of the delivery service and the time required to complete the daily deliveries. The case considered here referred to a realistic operating scenario of a big city with an overall delivery area of 120 km2 and a population density of 2615 inhabitants per square kilometre. The daily time window the for the delivery operations is assumed equal to 13 h. The overall area to be serviced is ideally subdivided into a set of circular distribution zones, each one operated by a cargo-bike delivering the parcels from a local depot located in the centre. The corresponding design alternatives and costs are reported in Table 4 and Table 5. Considering the conflicting nature of the objectives (see Figure 5), for the selection of the most efficient configuration according to the criteria discussed above, the multi criteria the Topsis method has been employed.
In order to determine the best compromise solution, the normalized score matrix of the alternatives (Table 6) is calculated, taking into account the results given in Table 4, by applying the normalization formula given in Equation (10), where s i , j is the score of alternative i towards criterion j.
r i j = s i j min j { s i , j } max j { s i j } min j { s i , j }
Subsequently, a weight is assigned to each criterion in order to reflect the decision maker’s preference. In the case considered here, the initial weights are set equal to 0.5 for the cost and 0.5 for the delivery time.
The weighted normalized matrix is thus created, multiplying the normalized value by the weight of each criterion (Equation (11)).
t i j = r i j × w j
The next step consists of the determination of the ideal (V+) and anti-ideal (V solutions. The ideal solution is determined considering, for each criterion, the best performance offered by the alternatives involved. The anti-ideal solution, on the other hand, is obtained by combining the worst performances of the alternatives with respect to each criterion. Subsequently, the Euclidean distance with respect to the best and worst solution are finally calculated through Equations (12) and (13).
S + = ( t i j V + ) 2
S = ( t i j V ) 2
The relative distances of the alternatives from the ideal solutions are then calculated through Equation (14).
C * = S S + + S
Finally, the alternatives are ranked according to the preference of the decision maker through the value Ci*. In particular, the solutions characterized by the highest Ci* value are preferred, and the final rank obtained is given in Table 7.
Once the final rank has been obtained, the best configuration alternative with respect to the specific service requirements can be obtained, as given in Table 8.

5. Discussion

The above results show how the performance of a city logistic system based on the employment of e-CBs can be optimized, taking advantage of a modularized vehicle design. Different configuration alternatives based on the capacity of the battery pack and maximum payload may achieve substantial differences in performance, considering the total annual cost and the overall service time required to complete the services. In such a sense, analysing the trade-off between the increase in the endurance (and consequently in the route length) consequent to the increase of the battery pack and the related reduction in the number of packs that can be carried by the vehicle as the payload reduces (due to the increase in the battery weight) also considering the overall duration of the delivery task is of fundamental importance for making an appropriate choice concerning the configuration of the vehicle.). The results, in particular, demonstrate that if increasing the capacity of the battery packs allows for longer delivery routes, it also reduces the available payload, therefore reducing the number of serviceable clients. In analysing such a trade-off, the paper ultimately aims to propose a modular approach to the design of a cargo e-bike and a decision methodology for selecting the most effective vehicle configuration in relation to the specific operational context and service requirements.
In particular, the results obtained show that although the maximum cost efficiency can be achieved with the maximum allowable vehicle endurance, a reduction in the overall time required for completing the service can be achieved by increasing the number of vehicles and urban depots. In such a case, an appropriate vehicle configuration achieves the best compromise solution. The adoption of different vehicle configurations has a substantial impact on the cost objective, in fact it can range from € 55114 up to € 107114 (+96%), and also on the delivery time, which varies between 4.56 and 12.16 h with a variation of 266%. Such results show that an appropriate choice of the battery pack can substantially impact the efficiency of the system. Clearly, the decision maker’s preferences in terms of cost efficiency or operating time will lead to the final choice.
Finally, in order to highlight the importance of the decision maker’s preference scheme and the robustness of the ranking obtained, the optimum ranking was recalculated by varying the weights representing the preferences of the decision maker. The corresponding results are given in Table 9.

6. Conclusions

The advent of electric mobility represents a great opportunity for improving urban logistic services in terms of flexibility, sustainability, and efficiency. From a scientific point of view, this situation has originated an animated debate on the most convenient vehicles to be used in urban delivery services in order to maximize the performance of the logistics system. In such a regard, e-CBs emerge as a viable option for urban package delivery services in densely populated areas. This research aims at contributing to this topic, proposing the use of a modular e-CB, offering the opportunity of customizing the configuration to the vehicle in order to best fulfil the specific needs of the service operated. The study shows how differently configured vehicles lead to a different overall performance of the system, impacting the centralization level of the logistic system. A multi-objective approach has been employed to evaluate the trade-offs in the overall system performance, considering two optimization criteria referred to the cost efficiency and the total delivery time. A numerical application referred to the provision of envelope, parcel, and box delivery services in an urban context with a population density of approximately 2500 inhabitants per square kilometre and 137 deliveries per day per square kilometre demonstrates the effectiveness of the methodology proposed, and shows how different optimal solutions can be found in the different scenarios considered. In particular, for the box service, the maximum payload constraint substantially affects the results, and the optimal configuration corresponds to short-ranged vehicles operating in a high decentralized infrastructure. For the delivery of envelopes and packs, a substantial reduction (approximately 50%) of the overall annual cost of the system can be achieved through a more centralized infrastructure involving long range vehicles. In such a situation, however, the delivery window required to complete the operations increases substantially to more than 12 h, while in the decentralized configuration it was approximately 5 h.
From a managerial point of view, the parametrized cost model and the methodology proposed can be effectively employed to support public decision makers and logistic operators in their strategic decision problems related to the design of optimized city logistic systems based on e-CBs. Further developments of the proposed methodology may involve the extension to tactical and operational management problems, including route optimization and vehicle scheduling.

Author Contributions

Conceptualization and methodology, G.A.; validation, A.C.; formal analysis, S.Q. and G.A.; investigation, S.Q.; data curation, S.Q.; writing—original draft preparation, S.Q.; writing—review and editing, G.A.; supervision, R.I. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Sheth, M.; Butrina, P.; Goodchild, A.; McCormack, E. Measuring delivery route cost trade-offs between electric-assist cargo bicycles and delivery trucks in dense urban areas. Eur. Transp. Res. Rev. 2019, 11, 1–12. [Google Scholar] [CrossRef] [Green Version]
  2. Gruber, J.; Narayanan, S. Travel Time Differences between Cargo Cycles and Cars in Commercial Transport Operations. Transp. Res. 2019, 2673, 623–637. [Google Scholar] [CrossRef] [Green Version]
  3. Niels, T.; Hof, M.T.; Bogenberger, K. Design and Operation of an Urban Electric Courier Cargo Bike System. In Proceedings of the 2018 21st International Conference on Intelligent Transportation Systems (ITSC), Maui, HI, USA, 4–7 November 2018; pp. 2531–2537. [Google Scholar]
  4. Arnold, F.; Cardenas, I.; Sörensen, K.; Dewulf, W. Simulation of B2C e-commerce distribution in Antwerp using cargo bikes and delivery points. Eur. Transp. Res. Rev. 2018, 10, 1–13. [Google Scholar] [CrossRef]
  5. Martins-Turner, K.; Nagel, K. How Driving Multiple Tours Affects the Results of Last Mile Delivery Vehicle Routing Problems. Procedia Comput. Sci. 2019, 151, 840–845. [Google Scholar] [CrossRef]
  6. Naumov, V.; Starczewski, J. Approach to Simulations of Goods Deliveries with the Use of Cargo Bicycles. Available online: (accessed on 20 February 2021).
  7. Tipagornwong, C.; Figliozzi, M. Analysis of Competitiveness of Freight Tricycle Delivery Services in Urban Areas. Transp. Res. Rec. 2014, 2410, 76–84. [Google Scholar] [CrossRef] [Green Version]
  8. Anderluh, A.; Hemmelmayr, V.C.; Nolz, P.C. Synchronizing vans and cargo bikes in a city distribution network. Cent. Eur. J. Oper. Res. 2017, 25, 345–376. [Google Scholar] [CrossRef] [Green Version]
  9. Lee, K.; Chae, J.; Kim, J.; Lee, K.; Chae, J.; Kim, J. A Courier Service with Electric Bicycles in an Urban Area: The Case in Seoul. Sustainability 2019, 11, 1255. [Google Scholar] [CrossRef] [Green Version]
  10. Zhang, L.; Matteis, T.; Thaller, C.; Liedtke, G. Simulationbased Assessment of Cargo Bicycle and Pick-up Point in Urban Parcel Delivery. Procedia Comput. Sci. 2018, 130, 18–25. [Google Scholar] [CrossRef]
  11. Lenz, B.; Riehle, E. Bikes for urban freight? Transp. Res. Rec. 2013, 2379, 39–45. [Google Scholar] [CrossRef]
  12. Gruber, J.; Kihm, A.; Lenz, B. A new vehicle for urban freight? An ex-ante evaluation of electric cargo bikes in courier services. Res. Transp. Bus. Manag. 2014, 11, 53–62. [Google Scholar] [CrossRef] [Green Version]
  13. Allen, J.; Browne, M.; Woodburn, A.; Leonardi, J. The role of urban consolidation centres in sustainable freight transport. Transp. Rev. 2012, 32, 473–490. [Google Scholar] [CrossRef]
  14. Browne, D.; Ryan, L. Comparative analysis of evaluation techniques for transport policies. Environ. Impact Assess. Rev. 2011, 31, 226–233. [Google Scholar] [CrossRef]
  15. Russo, F.; Comi, A. Measures for sustainable freight transportation at urban scale: Expected goals and tested results in Europe. J. Urban Plan. Dev. 2011, 137, 142–152. [Google Scholar] [CrossRef]
  16. Conway, A.; Fatisson, P.E.; Eickemeyer, P.; Cheng, J.; Peters, D. Urban micro-consolidation and last mile goods delivery by freight-tricycle in Manhattan: Opportunities and challenges. In Proceedings of the Transportation Research Board 91st Annual Meeting, Washington, DC, USA, 22–26 January 2012. [Google Scholar]
  17. Crainic, T.G.; Ricciardi, N.; Storchi, G. Advanced freight transportation systems for congested urban areas. Transp. Res. Part Emerg. Technol. 2004, 12, 119–137. [Google Scholar] [CrossRef]
  18. Morganti, E.; Dablanc, L.; Fortin, F. Final deliveries for online shopping: The deployment of pickup point networks in urban and suburban areas. Res. Transp. Bus. Man. 2014, 11, 23–31. [Google Scholar] [CrossRef] [Green Version]
  19. Aurambout, J.P.; Gkoumas, K.; Ciuffo, B. Last mile delivery by drones: An estimation of viable market potential and access to citizens across European cities. Eur. Transp. Res. Rev. 2019, 11, 1–21. [Google Scholar] [CrossRef] [Green Version]
  20. Koning, M.; Conway, A. The good impacts of biking for goods: Lessons from Paris city. Case Stud. Transp. Policy. 2016, 4, 259–268. [Google Scholar] [CrossRef]
  21. Wrighton, S.; Reiter, K. CycleLogistics—Moving Europe forward! Transp. Res. Proc. 2016, 12, 950–958. [Google Scholar] [CrossRef] [Green Version]
  22. Melo, S.; Baptista, P.; Costa, A. Comparing the Use of Small Sized Electric Vehicles with Diesel Vans on City Logistics. Proc. Soc. Behav. Sci. 2014, 111, 350–359. [Google Scholar] [CrossRef] [Green Version]
  23. Maes, J.; Vanelslander, T. The Use of Bicycle Messengers in the Logistics Chain, Concepts Further Revised. Proc. Soc. Behav. Sci. 2012, 39, 409–423. [Google Scholar] [CrossRef] [Green Version]
  24. Russo, F.; Comi, A. City Characteristics and Urban Goods Movements: A Way to Environmental Transportation System in a Sustainable City. Proc. Soc. Behav. Sci. 2012, 39, 61–73. [Google Scholar] [CrossRef]
  25. Taniguchi, E. Concepts of City Logistics for Sustainable and Liveable Cities. Proc. Soc. Behav. Sci. 2014, 151, 127–141. [Google Scholar] [CrossRef] [Green Version]
  26. Doran, D. Supply chain implications of modularization. Int. J. Oper. Prod. Manag. 2003, 23, 316–326. [Google Scholar] [CrossRef]
  27. Hu, S.J.; Ko, J.; Weyand, L.; ElMaraghy, H.A.; Kien, T.K.; Koren, Y.; Bley, H.; Chryssolouris, G.; Nasir, N.; Shpitalni, M. Assembly system design and operations for product variety. CIRP Ann. 2011, 60, 715–733. [Google Scholar] [CrossRef]
  28. Salerno, M. The Characteristics and the Role of Modularity in the Automotive Business. Int. J. Automot. Technol. Manag. 2001, 1, 92–107. [Google Scholar] [CrossRef]
  29. Batchelor, J. Modularisation and the Changing Nature of Automotive Design Capabilities. Int. J. Automot. Technol. Manag. 2006, 6, 276–297. [Google Scholar] [CrossRef]
  30. Keeney, R.L.; Raiffa, H. Decisions with Multiple Objectives: Preferences and Value Trade-Offs; Cambridge University Press: London, UK, 1993. [Google Scholar]
  31. Saaty, T.L. What is the Analytic Hierarchy Process? In Mathematical Models for Decision Support; Springer: Berlin/Heidelberg, Germany, 1988; pp. 109–121. [Google Scholar]
  32. Brans, J.P.; Vincke, P. A preference ranking organisation method: (The promethee method for multiple criteria decision-making). Man. Sci. 1985, 31, 647–656. [Google Scholar] [CrossRef] [Green Version]
  33. Roy, B. The outranking approach and the foundations of ELECTRE methods. Theory Decis. 1991, 31, 49–73. [Google Scholar] [CrossRef]
  34. Hwang, C.L.; Yoon, K. Methods for Multiple Attribute Decision Making. Multi attribute Decision Making: Methods and Applications; Springer: New York, NY, USA, 1981; pp. 58–191. [Google Scholar]
  35. Yedla, S.; Shrestha, R.M. Multi-criteria approach for the selection of alternative options for environmentally sustainable transport system in Delhi. Transp. Res. Part A Policy Pract. 2003, 37, 717–729. [Google Scholar] [CrossRef]
  36. Tsamboulas, D.; Mikroudis, G. EFECT—Evaluation framework of environmental impacts and costs of transport initiatives. Transp. Res. Part D Transp. Environ. 2000, 5, 283–303. [Google Scholar] [CrossRef]
  37. Awasthi, A.; Omrani, H.; Gerber, P. Investigating ideal-solution based multicriteria decision making techniques for sustainability evaluation of urban mobility projects. Transp. Res. Part A Policy Pract. 2018, 116, 247–259. [Google Scholar] [CrossRef]
  38. Briest, P.; Dragendorf, J.; Ecker, T.; Mohr, D.; Neuhaus, F. The Endgame for Postal Networks: How to Win in the Age of E-Commerce. [Online] Mckinsey. Available online: (accessed on 6 February 2021).
  39. Beardwood, J.; Halton, J.H.; Hammersley, J.M. The shortest path through many points. Math. Proc. Camb. Philos. Soc. 1959, 55, 299–327. [Google Scholar] [CrossRef]
  40. Stein, D. An asymptotic, probabilistic analysis of a routing problem. Math Oper Res. 1978, 3, 89–101. [Google Scholar] [CrossRef]
  41. Jaillet, P. A priori solution of a traveling salesman problem in which a random subset of the customers are visited. Oper. Res. 1988, 36, 929–936. [Google Scholar] [CrossRef] [Green Version]
  42. Choubassi, C.; Seedah, D.P.K.; Jiang, N.; Walton, C.M. Economic Analysis of Cargo Cycle for Urban Mail De-livery. Transp. Res. Rec. J. Transp. Res. Board. 2016, 2547, 102–110. [Google Scholar] [CrossRef]

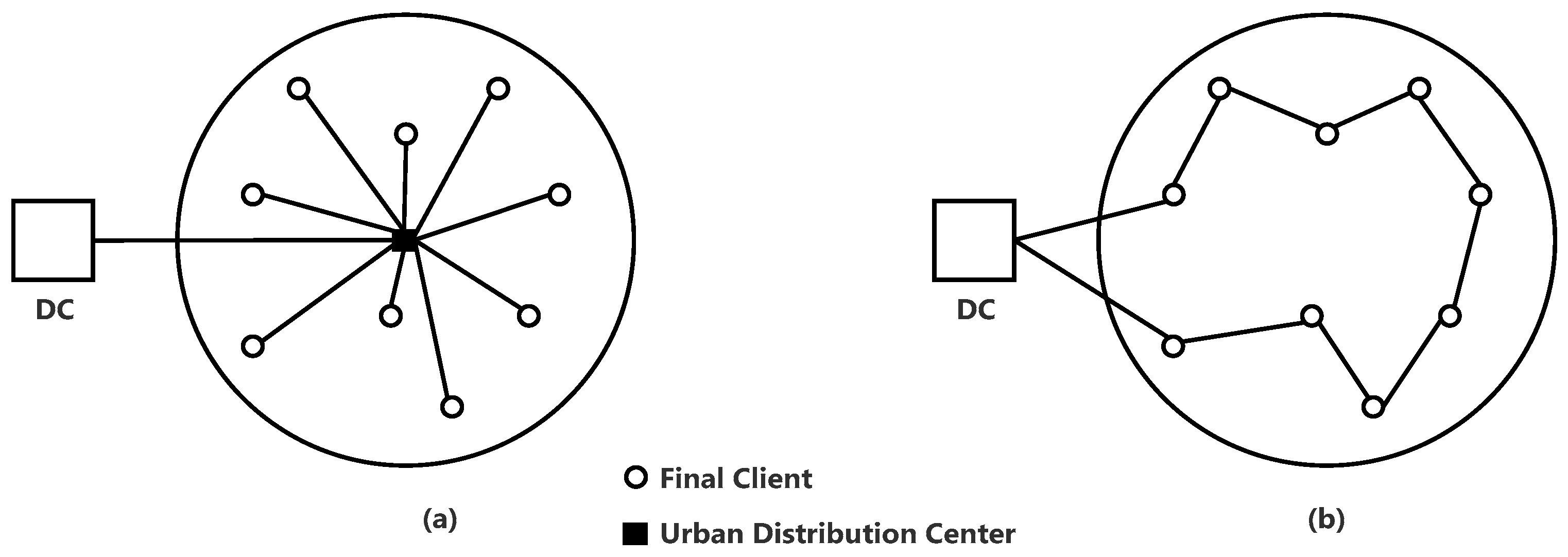

Figure 1. Schematic representation OF two-tier (a) and one-tier (b) distribution systems.
Figure 1. Schematic representation OF two-tier (a) and one-tier (b) distribution systems.
Energies 14 04672 g001

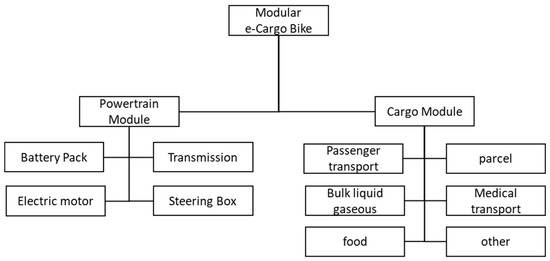

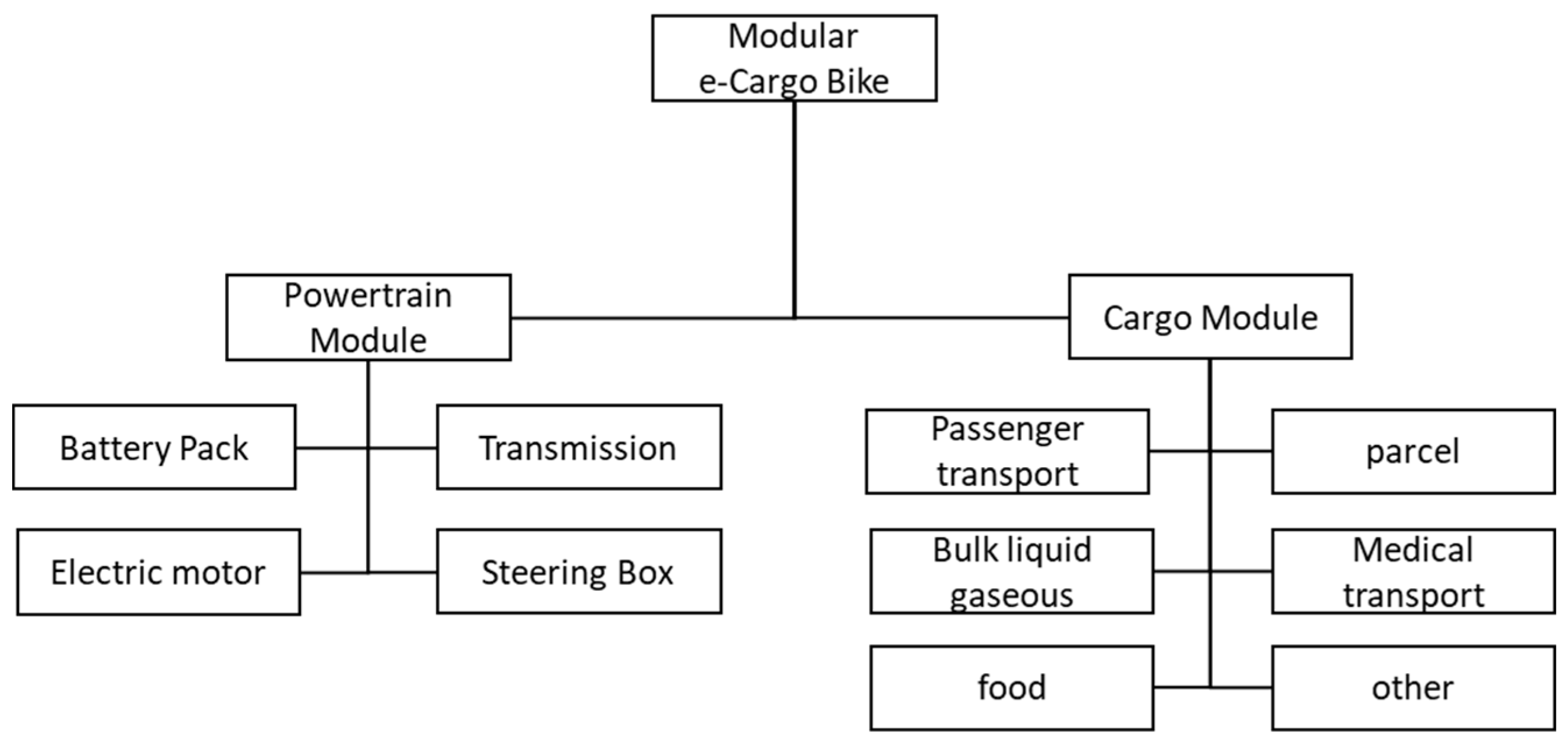

Figure 2. Breakdown structure of the modular e-CB.
Figure 2. Breakdown structure of the modular e-CB.
Energies 14 04672 g002

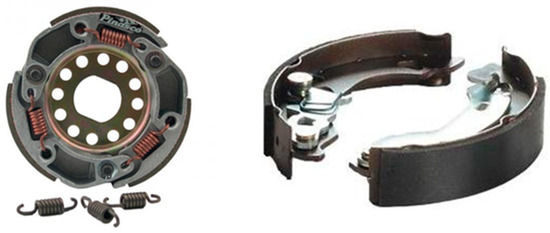

Figure 3. Expansion clutch and mechanical brake.
Figure 3. Expansion clutch and mechanical brake.
Energies 14 04672 g003

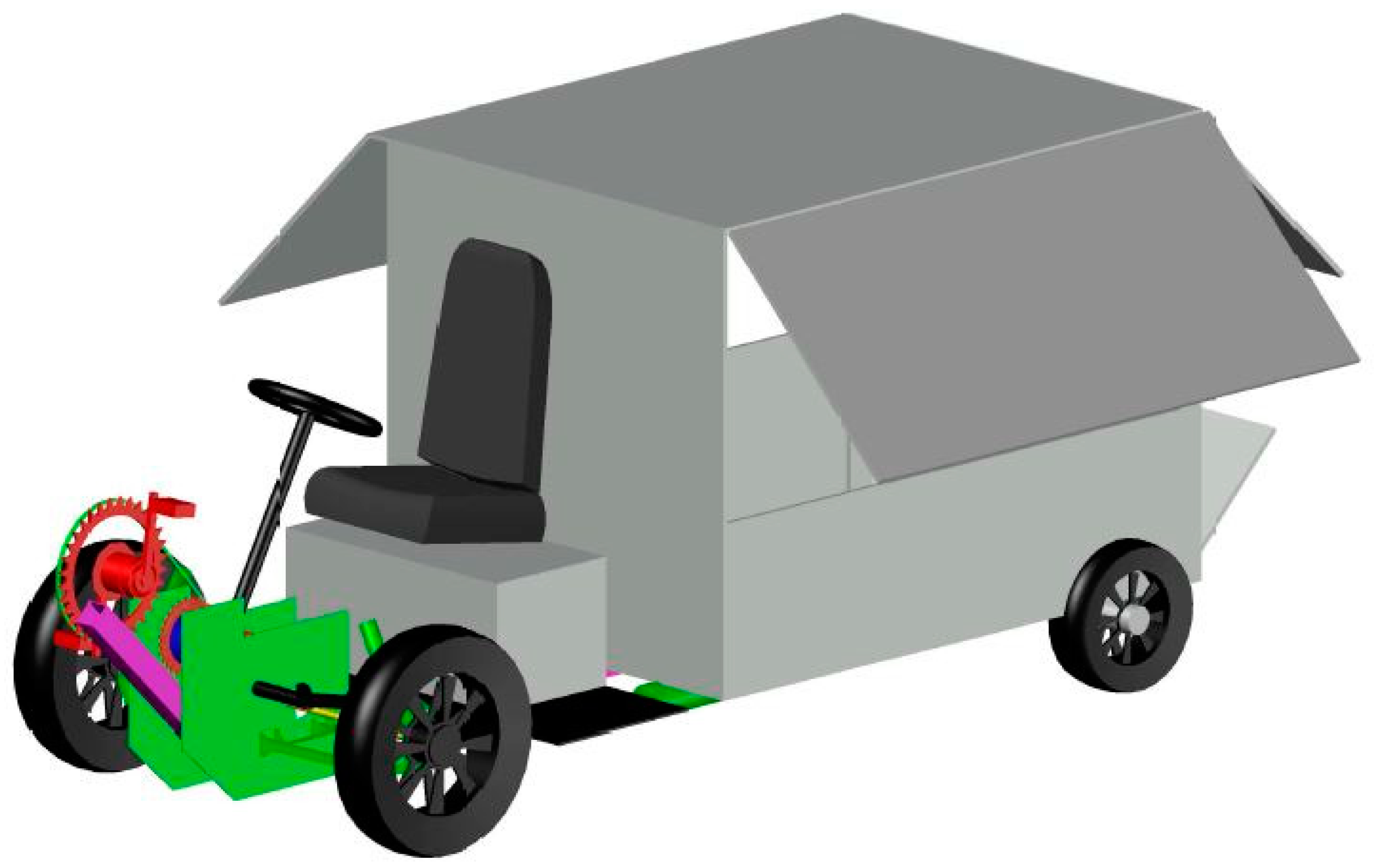

Figure 4. Modular Cargo Bike concept design.
Figure 4. Modular Cargo Bike concept design.
Energies 14 04672 g004

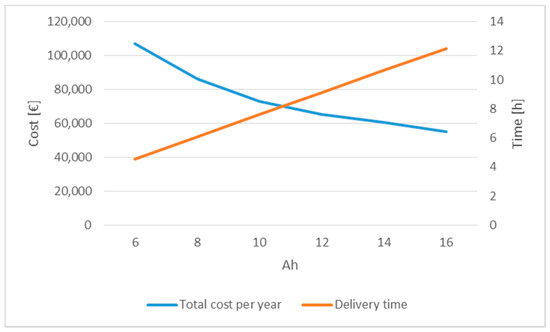

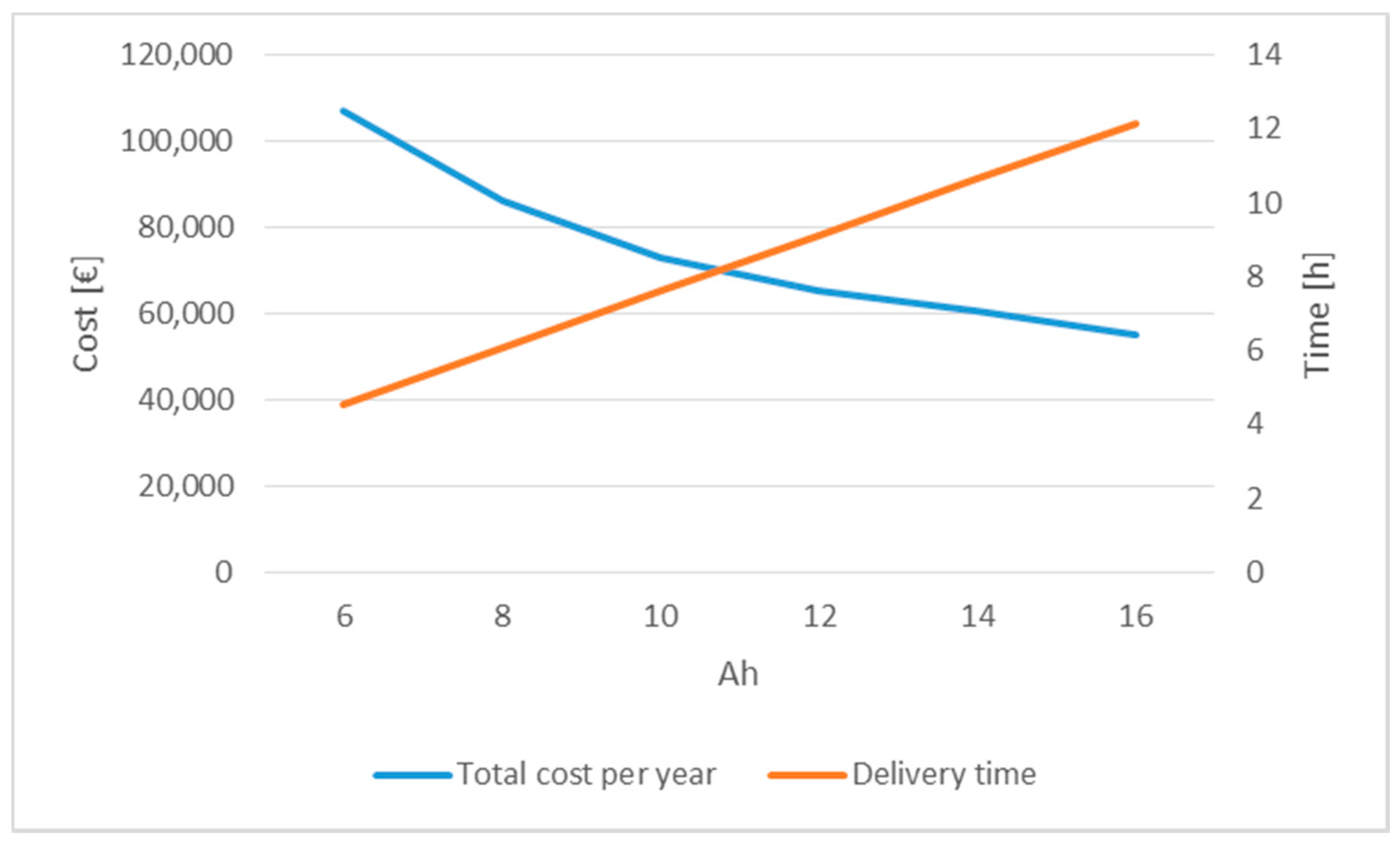

Figure 5. Objective functions.
Figure 5. Objective functions.
Energies 14 04672 g005
Table 1. Power losses as a function of the vehicle weight.
Table 1. Power losses as a function of the vehicle weight.
Cargo Weight
Air Density
Table 2. Total cost corresponding to the vehicle configurations (bold values indicate non-admissible solutions exceeding the maximum allowed payload of 300 kg or the maximum volume of 1 m3).
Table 2. Total cost corresponding to the vehicle configurations (bold values indicate non-admissible solutions exceeding the maximum allowed payload of 300 kg or the maximum volume of 1 m3).
#Energy Storage (Ah)Maximum Operating Time (h)Maximum Payload
Payload (kg)Volume (m3)
Table 3. Packages classification.
Table 3. Packages classification.
Type of Delivery ServiceParcel Dimensions (m)Parcel Weight (kg)
Envelope0.24 × 0.315 × 0.0250.5
Pack0.25 × 0.355 × 0.052
Box0.37 × 0.294 × 0.1285
Table 4. Design alternatives.
Table 4. Design alternatives.
Battery Pack
Max Serviceable Area per Bike
Number of e-CBs Exp. Route Length
Exp. Distance Travelled per Year (km)Daily Service Time
Table 5. Costs.
Table 5. Costs.
Battery Pack
Fixed Annual
Cost Year (€)
Exp. Variab. Cost
Exp. Total Cost per Year
Table 6. Normalized score matrix.
Table 6. Normalized score matrix.
AlternativeAhTotal Cost per YearDelivery Time
Table 7. Final ranking of the alternatives.
Table 7. Final ranking of the alternatives.
AlternativeAhTotal Cost per YearDelivery Time (h)S+SC*Rank
Table 8. Best alternatives with respect to service requirements.
Table 8. Best alternatives with respect to service requirements.
Package TypeOptimum ConfigurationBattery
Serviceable Area
Number of Customers Served per RouteTotal Exp. Transp. Cost per Year
Delivery Time
Table 9. Optimum rank corresponding to different weights of the optimization criteria.
Table 9. Optimum rank corresponding to different weights of the optimization criteria.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Aiello, G.; Quaranta, S.; Certa, A.; Inguanta, R. Optimization of Urban Delivery Systems Based on Electric Assisted Cargo Bikes with Modular Battery Size, Taking into Account the Service Requirements and the Specific Operational Context. Energies 2021, 14, 4672.

AMA Style

Aiello G, Quaranta S, Certa A, Inguanta R. Optimization of Urban Delivery Systems Based on Electric Assisted Cargo Bikes with Modular Battery Size, Taking into Account the Service Requirements and the Specific Operational Context. Energies. 2021; 14(15):4672.

Chicago/Turabian Style

Aiello, Giuseppe, Salvatore Quaranta, Antonella Certa, and Rosalinda Inguanta. 2021. "Optimization of Urban Delivery Systems Based on Electric Assisted Cargo Bikes with Modular Battery Size, Taking into Account the Service Requirements and the Specific Operational Context" Energies 14, no. 15: 4672.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
