Oxygen Transfer Effects in a Two-Phase System of an Aqueous Phase and Liquid Perfluorochemical Subjected to Continuous Wave-Assisted Agitation in Disposable Bioreactor

Abstract

Systems of two immiscible liquid phases—aqueous phase (i.e., distilled water (dH₂O) or phosphate-buffered saline (PBS)) and liquid perfluorochemical (i.e., perfluorodecalin (PFD))—were subjected to wave-assisted agitation, i.e., oscillatory rocked, in a disposable bag-like container in a ReadyToProcess WAVE^TM25 bioreactor, to recognize oxygen transfer effects and effectivity of the surface aeration. According to the DoE methodology, values of the volumetric liquid-side mass transfer (k_La) coefficient for dH₂O, PBS, dH₂O-PFD, and PBS-PFD systems were determined for the whole range of operating parameters of the WAVE 25 bioreactor. A significantly higher maximal value of k_La was found for waving dH₂O than for dH₂O-PFD (i.e., 0.00460 s⁻¹ vs. 0.00331 s⁻¹, respectively) compared to more equal maximal values of k_La reached for PBS and PBS-PFD (0.00355 s⁻¹ vs. 0.00341 s⁻¹, respectively). The interface development factor (f) depended on the interfacial area a, and the enhancement factor (E^PFD), depending on k_La, was introduced to quantitatively identify the mass transfer effects in the systems of waving two immiscible liquids. The phase of PFD was identified as the reservoir of oxygen. Dimensional correlations were proposed for the prediction of the k_La coefficient, in addition to the f and E^PFD factors. The presented correlations, and the set of k_La values, can be directly applied to predict oxygen transfer effects reached under continuous oscillatory rocked systems containing aqueous phase and liquid perfluorochemical.

1. Introduction

Synthetic liquid perfluorochemicals (PFCs; synonym: perfluorocarbons), which dissolve gases according to Henry’s Law, have been adopted in medicinal liquid ventilation procedures [1,2] and bioprocess engineering. PFCs have been repeatedly applied as biochemically inert liquid carriers of respiratory gases in many cell culture systems during the past three decades [3,4,5]. The gas transfer rate into PFCs increases linearly with the partial pressure of a component in the gaseous phase [6,7] in opposition to the sigmoid dissociation curve that is characteristic of biological oxygen carriers. The lack of chemical bonds between molecules of oxygen and PFC allows the efficient release of gas from layered or dispersed PFCs into the aqueous phase. Due to the physicochemical properties exhibited by liquid PFCs (i.e., immiscibility with aqueous media), some investigators recommend using them as efficient liquid gas carriers in bioprocesses with biomass of animal or plant cells/tissues performed in various bioreactor systems, as an additional liquid layer at the bottom of a bioreactor vessel [8,9,10], or as dispersed droplets of utilized PFC [11,12,13] in intensively agitated systems.

Currently, in addition to conventional stirred tank stainless steel bioreactors, disposable (i.e., single-use) bioreactors are recognized as suitable equipment for developing and scaling-up in vitro bioprocesses with animal cells maintained in both forms: suspended biomass and as biomass integrated with biomaterial-based constructs or microcarriers. The main systematic difference distinguishing disposable bioreactors from typical bioreactors is the pre-sterilized single-use container made of polymer-based multi-layer plastic, which is applied as a flexible-in-shape bag (i.e., pillow-like shape) for preparation of individual culture environment [14,15]. Shape and size (i.e., dimensions and volume) of the culture bag determine the possible mechanism of agitation, which may be applied for efficient mixing of liquid phase poured into such a pillow-shaped container.

Two independent systems of disposable bioreactors are recommended for performing and scaling-up cultures of fragile mammalian cells. The first is a group of single-use stirred tank bioreactors presenting similarity to conventional stirred tanks made of stainless steel typically applied in chemical engineering [16,17]. The second group is representing by mechanically driven oscillating systems characterized by mixing driven by sequential horizontal raising and lowering of the culture bag fixed on the oscillating platform of the bioreactor [18,19,20,21]. Depending on the intensity of the operational parameters (i.e., rocking angle and rate, filling volume, and fluid properties), the liquid phase closed inside the culture bag ripples, waves, or popples, which finally provides wave-induced mixing of the culture medium and its surface aeration [22,23].

The new and original bioprocessing concept enhances mass transfer effects inside the disposable culture bag by supplementing the waving culture system with a continuous layer of PFC-based oxygen carrier poured at the bottom of the disposable container. Accordingly, the primary aim of the study was to quantitatively recognize the oxygen transfer effects that occur under conditions of wave-assisted agitation in the system of aqueous phase supported with the perfluorinated gas carrier, which both were waved in a 2.0 liter disposable culture bag of a ReadyToProcess WAVE^TM 25 bioreactor (WAVE 25; Citiva, formerly GE Healthcare, US).

Pre-sterilized distilled water (dH₂O) and phosphate-buffered saline (PBS) were used as two independent aqueous phases, and pre-sterilized perfluorodecalin (PFD) was examined as a liquid PFC-based oxygen carrier. The detailed influences of operational parameters, such as angle (α) and frequency (ω) of oscillations, in addition to volumetric gas flow through a culture vessel (Q_G), on oxygen mass transfer effects, were identified according to a methodology based on Design of Experiments (DoE). Furthermore, values of the volumetric liquid-side mass transfer coefficient (k_La) obtained independently in dH₂O-PFD and PBS-PFD systems were also determined and mutually compared. Finally, the correlations predicting the relation of values of the k_La coefficient and presets of operation parameters in WAVE 25 for both of the studied aqueous phase-PFD systems were initially introduced.

2. Materials and Methods

2.1. Setup of Disposable Bioreactor Supporting Continuous Wave-Assisted Agitation

A ReadyToProcess WAVE^TM25 bioreactor system (WAVE 25, Citiva, formerly GE Healthcare, US) equipped with a 2.0 L disposable culture bag (Cellbag; Citiva, US) was used in the experiments. For online measurements of the value of dissolved oxygen (DO) in the aqueous phase, the miniaturized optical (i.e., spectrophotometric) single-use DO sensor integrated within the WAVE 25 system was used. The value of DO was measured with a sampling frequency of 1 Hz. The signals from the DO sensor were transferred by optical fiber to the central bioreactor control unit (CBCU, Citiva, US), which automatically integrated the signals and collected data from the DO sensor. All experiments were performed at 37 °C.

2.2. Operating Parameters of WAVE 25 System

Based on one of our previously published reports [22], the following operating parameters of WAVE 25 were taken into consideration as factors that significantly influence oxygen transfer effects in the studied system:

• α and ω, which commonly characterize the vertical movements of the Cellbag fixed to the rocking tray of WAVE 25, i.e., the parameters directly associated with waves mechanically generated on liquids inside the Cellbag;
• Q_G, which characterizes the gaseous phase flowing over the liquid phases in the Cellbag during continuous wave-assisted agitation.

2.3. Composition of Liquid Phases and Gas Mixture

dH₂O or PBS were independently used as aqueous phases. PFD, as an equimolar mixture of cis/trans isomers of PFD with ≥99% purity (abcr GmbH, DE), was applied as an additional liquid phase. Before each experiment, the Cellbag system containing two immiscible liquid phases, i.e., dH₂O-PFD and PBS-PFD, was aseptically deoxygenated in a continuously operating WAVE 25 by introducing pure N₂ into the disposable container until total removal of O₂ from both contacting liquid phases, which finally resulted in aqueous phase characterized by DO equal to the value of 0%.

In all experiments, a gas mixture containing 21% pure O₂ and 79% pure N₂ was applied for the oxygenation of the studied systems. CBCU provided automatic mixing of the defined gas mixture with specified partial pressures of O₂ (p_O2) and N₂ (p_N2) before introducing it into the Cellbag.

2.4. DoE

All experiments were planned and evaluated with STATISTICA Data Miner 13.0 (StatSoft, PL). The Box–Behnken design (BBD) employing three levels of varied factors (i.e., operating parameters) was applied to minimize the number of experimental runs required. The set of the operating parameters recognized as independent factors and employed in the DoE-aided experiments is presented in

Table 1. Values of the operating parameters are recognized as independent factors employed in DoE-aided analysis based on BBD.

Factor	Range of Parameter Accessible in WAVE 25	Value of Parameter Employed in BBD			Unit
		−1 (Minimal)	0 (Centre)	+1 (Maximal)
α	2–12	2	7	12	[°]
ω	0.033–0.667	0.033	0.350	0.667	[s−1]
QG	0.17 × 10−5–1.67 × 10−5	0.17 × 10−5	0.92 × 10−5	1.67 × 10−5	[m3 s−1]

. This represents the whole spectrum of operational parameter values that are accessible (and strictly defined) by the manufacturer of WAVE 25.

2.5. Determination of the k_La Coefficient

The scheme of the experimental system is introduced in Figure 1. The disposable Cellbag contained liquid phases, i.e., 0.3 dm³ dH₂O or PBS and 0.15 dm³ PFD, and the gas mixture flowed over the aqueous phase with the volumetric flow Q_G. The Cellbag was subjected to oscillatory-driven wave-induced agitation at defined values of α and ω. The oxygen transfer in the system between gas and liquid phases was a non-steady process of oxygen absorption from the gas mixture into the aqueous phase and from the aqueous phase into PFD. Due to the negligibility of the slight amount of oxygen absorbed in the aqueous phase, constant values of Q_G and p_O2 (at both inlet and outlet of the bag-like container) may be assumed. Similarly, the constant value of liquid phase volumes may be assumed according to the negligibility of the vaporization of distilled water in the culture bag and the perfect mixing of the liquid phases.

The k_La coefficient was determined based on the oxygen balance in the aqueous phase:

$$d{c}_{\mathrm{L}}\times d{t}^{-1}=k_{\mathrm{L}}a\times \left(c_{\mathrm{L}}^{*}-c_{\mathrm{L}}\right)$$

(1)

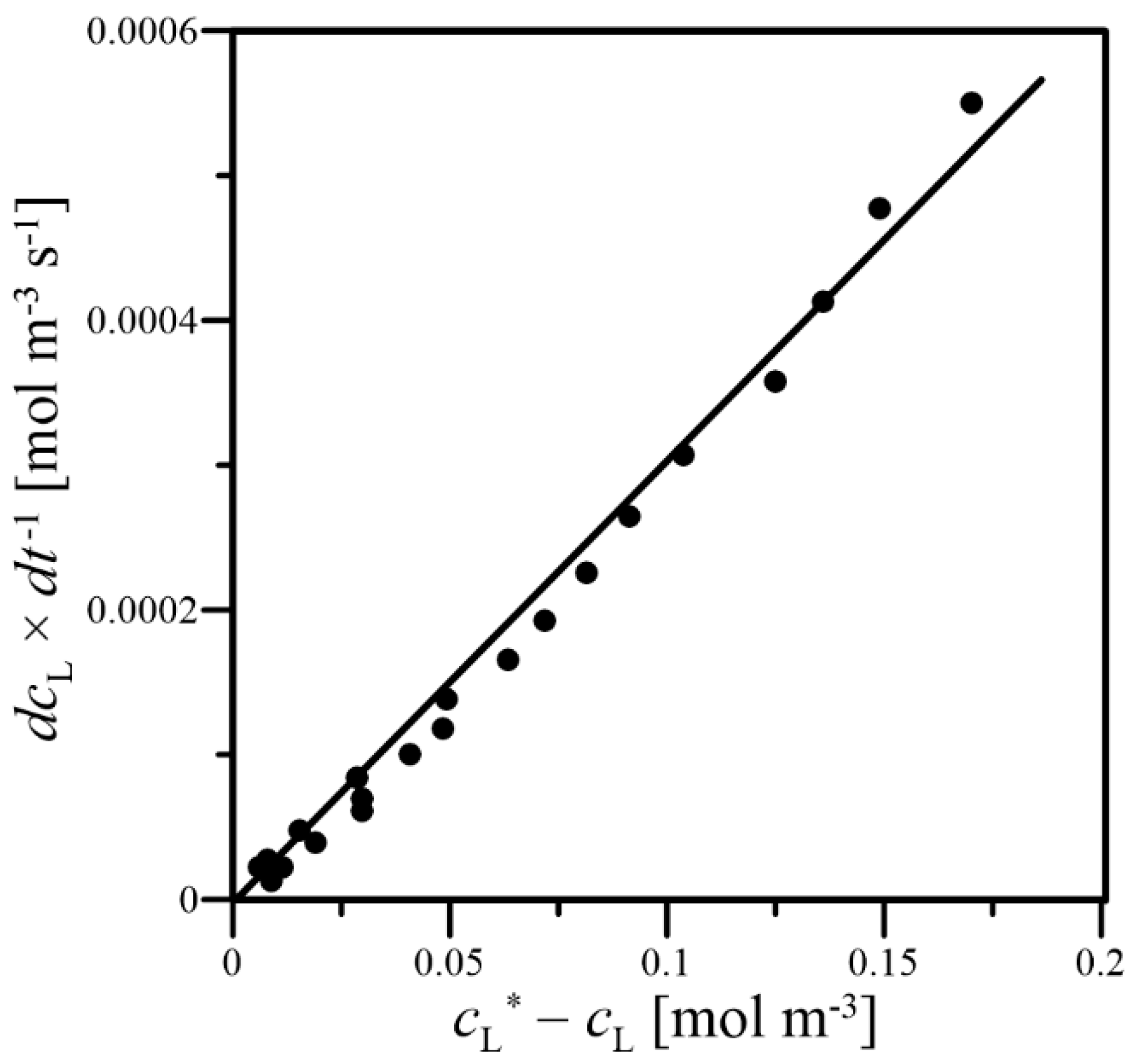

The graphical interpretation of Equation (1), in the form of the directly proportional relationship between the derivative $d{c}_{\mathrm{L}}\times d{t}^{-1}$ and the driving force (i.e., the difference $c_{\mathrm{L}}^{*}-c_{\mathrm{L}}$), simplifies the determination of the k_La coefficient, as presented in Figure 2.

3. Results

Based on the DoE-aided analysis introduced in Table 1, three operational parameters, i.e., α, ω and Q_G, were introduced in the BBD, as previously recognized parameters influencing significantly on oxygen transfer the studied systems. In total, 104 runs of experiments (i.e., 23 typical runs with three extra center point runs for four different studied systems) are presented in

Table 2. Variable levels were introduced to the BBD with three operation parameters (α, ω, Q_G) to determine the k_La coefficient for four independently studied gas-liquid(s) systems.

Run	Variable Levels			kLa Characterized Gas-Liquid(s) Systems
				${\mathit{k}}_{\mathbf{L}}{\mathit{a}}_{\mathbf{d}{\mathbf{H}}_2\mathbf{O}}$	${\mathit{k}}_{\mathbf{L}}{\mathit{a}}_{\mathbf{d}{\mathbf{H}}_2\mathbf{O}-\mathbf{PFD}}$	${\mathit{k}}_{\mathbf{L}}{\mathit{a}}_{\mathbf{PBS}}$	${\mathit{k}}_{\mathbf{L}}{\mathit{a}}_{\mathbf{PBS}-\mathbf{PFD}}$
	α	ω	QG	[s−1]	[s−1]	[s−1]	[s−1]
1	−1	0	−1	0.00055	0.00027	0.00056	0.00023
2	−1	0	0	0.00255	0.00036	0.00186	0.00030
3	−1	0	1	0.00319	0.00030	0.00101	0.00029
4	−1	1	−1	0.00058	0.00044	0.00057	0.00035
5	−1	1	0	0.00308	0.00073	0.00139	0.00079
6	−1	1	1	0.00458	0.00081	0.00156	0.00079
7	0	−1	−1	0.00048	0.00017	0.00041	0.00010
8	0	−1	0	0.00131	0.00013	0.00057	0.00010
9	0	−1	1	0.00150	0.00013	0.00102	0.00016
10	0	0	−1	0.00061	0.00051	0.00055	0.00050
11	0	0	0	0.00282	0.00107	0.00173	0.00108
12	0	0	1	0.00460	0.00126	0.00311	0.00092
13	0	1	−1	0.00057	0.00054	0.00057	0.00053
14	0	1	0	0.00285	0.00200	0.00178	0.00162
15	0	1	1	0.00456	0.00331	0.00325	0.00254
16	1	−1	−1	0.00032	0.00048	0.00028	0.00015
17	1	−1	0	0.00165	0.00017	0.00139	0.00018
18	1	−1	1	0.00184	0.00015	0.00176	0.00019
19	1	0	0	0.00279	0.00145	0.00203	0.00141
20	1	0	1	0.00432	0.00167	0.00160	0.00173
21	1	1	−1	0.00061	0.00057	0.00058	0.00051
22	1	1	0	0.00292	0.00251	0.00260	0.00228
23	1	1	1	0.00382	0.00295	0.00355	0.00341
24	0	0	0	0.00300	0.00094	0.00191	0.00107
25	0	0	0	0.00298	0.00138	0.00271	0.00101
26	0	0	0	0.00363	0.00153	0.00270	0.00098

, as the BBD devised to recognize the influence of operating parameters on the values of the k_La coefficient obtained for the studied systems under wave-induced mixing. According to this, k_La values were determined for the minimal, center, and maximal values (i.e., introduced in BBD as −1, 0, and +1, respectively) of α, ω, and Q_G, for four independent systems: dH₂O (i.e., $k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}}$), PBS (i.e., $k_{\mathrm{L}}{a}_{\mathrm{PBS}}$), dH₂O supplemented with PFD (i.e., $k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}-\mathrm{PFD}}$), and PBS supplemented with PFD (i.e., $k_{\mathrm{L}}{a}_{\mathrm{PBS}-\mathrm{PFD}}$).

As is commonly known, the k_La coefficient consists of two factors: the liquid side mass transfer coefficient (k_L) and the interfacial area of mass transfer (a). The k_L values can be approximated by the Higby penetration mass transfer model [20,23], which the following equation can represent:

$$k_{\mathrm{L}}=2\times {\left(D_{\mathrm{L}}\times {\pi }^{-1}\times {\tau }^{-1}\right)}^{0.5}$$

(2)

where: D_L is coefficient of oxygen diffusivity in liquid phase (i.e., D_L = 3.06 × 10⁻⁹ m² s⁻¹) and τ is contact time [s].

Based on the values of the k_La coefficient determined for dH₂O and PBS presented in Table 2, and values of k_L coefficient calculated from Equation (2), the value of a can be simply estimated from the following equation:

$$a=k_{\mathrm{L}}a\times k_{\mathrm{L}}^{-1}$$

(3)

The values of a estimated from Equation (3) represent the real interface for oxygen transfer from the gas phase into the liquid phase, which can be compared with the physical interfacial area (a’) estimated for non-mixed conditions. For example, based on the real geometry of the Cellbag, which contained 0.3 dm³ of liquid phase (please see Figure 1), the value of a’ can be calculated from the following equation:

$$a^{\prime }=F\times V_{\mathrm{L}}^{-1}$$

(4)

where: F is the interfacial area between gas and liquid (i.e., 0.043 m²), and V_L is the volume of the liquid phase (i.e., 3 × 10⁻⁴ m³).

To analyze the influence of operating parameters that characterize oscillatory-driven wave-type agitation in WAVE 25, i.e., α and ω, on the value of a, the interface development factor (f) was proposed. The values of f for both studied aqueous phases of dH₂O and PBS were calculated from the following equation:

$$f_{{\mathrm{dH}}_2\mathrm{O}}=a_{{\mathrm{dH}}_2\mathrm{O}}\times a^{\prime -1}$$

(5)

$$f_{\mathrm{PBS}}=a_{\mathrm{PBS}}\times a^{\prime -1}$$

(6)

Moreover, to quantitatively analyze the influence of PFD supplementation on the level of the k_La coefficient obtained in the studied two-liquid systems (i.e., dH₂O-PFD and PBS-PFD), the enhancement factors E_dH2O^PFD and E_PBS^PFD were introduced as follows:

$$E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}=k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}-\mathrm{PFD}}\times k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}}^{-1}$$

(7)

$$E_{\mathrm{PBS}}^{\mathrm{PFD}}=k_{\mathrm{L}}{a}_{\mathrm{PBS}-\mathrm{PFD}}\times k_{\mathrm{L}}{a}_{\mathrm{PBS}}^{-1}$$

(8)

analogously to enhancement factors for CO₂ absorption with chemical reaction and without chemical reaction previously defined by DeCoursey [24].

The values of four originally introduced factors—$f_{{\mathrm{dH}}_2\mathrm{O}}$, $f_{\mathrm{PBS}}$, $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$—calculated for all runs of the evaluated BBD are shown in

Table 3. The values of the interface development factors—$f_{{\mathrm{dH}}_2\mathrm{O}}$ ,$f_{\mathrm{PBS}}$ —and the enhancement factors — $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$, $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ — calculated for all runs of the evaluated BBD.

Run	Variable Levels			Factors Characterized Gas-Liquid(s) Systems
				${\mathit{f}}_{\mathbf{d}{\mathbf{H}}_2\mathbf{O}}$	${\mathit{f}}_{\mathbf{PBS}}$	${\mathit{E}}_{\mathbf{d}{\mathbf{H}}_2\mathbf{O}}^{\mathbf{PFD}}$	${\mathit{E}}_{\mathbf{PBS}}^{\mathbf{PFD}}$
	α	ω	QG	[-]	[-]	[-]	[-]
1	−1	0	−1	1.953	2.205	0.492	0.403
2	−1	0	0	3.876	3.129	0.140	0.163
3	−1	0	1	3.605	1.259	0.093	0.287
4	−1	1	−1	2.072	2.237	0.756	0.623
5	−1	1	0	4.687	2.338	0.237	0.572
6	−1	1	1	5.165	1.953	0.177	0.508
7	0	−1	−1	1.725	1.623	0.345	0.243
8	0	−1	0	1.986	0.963	0.100	0.180
9	0	−1	1	1.693	1.269	0.087	0.153
10	0	0	−1	2.181	2.172	0.841	0.914
11	0	0	0	4.294	2.904	0.378	0.628
12	0	0	1	5.194	3.878	0.274	0.295
13	0	1	−1	2.022	2.259	0.951	0.932
14	0	1	0	4.332	3.002	0.701	0.910
15	0	1	1	5.147	4.061	0.725	0.780
16	1	−1	−1	1.140	1.097	1.496	0.550
17	1	−1	0	2.506	2.343	0.105	0.128
18	1	−1	1	2.078	2.192	0.083	0.108
19	1	0	0	4.252	3.419	0.520	0.696
20	1	0	1	4.874	2.001	0.386	1.080
21	1	1	−1	2.161	2.281	0.945	0.875
22	1	1	0	4.438	4.373	0.861	0.879
23	1	1	1	4.313	4.432	0.773	0.961
24	0	0	0	4.569	3.208	0.314	0.560
25	0	0	0	4.526	4.569	0.463	0.373
26	0	0	0	5.520	4.550	0.421	0.362

.

The values of $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ estimated for the present systems reached values smaller than 1.0. It appears that supplementation of the aqueous phase with PFD resulted in lower values of the k_La coefficient than k_La noted for pure aqueous phases. A similar relationship was observed previously by Ju [25] for the emulsion system of water and perfluorocarbon. Ju [25] reported smaller values of k_La coefficient for water-perfluorocarbon emulsions than for the perfluorocarbon-free system.

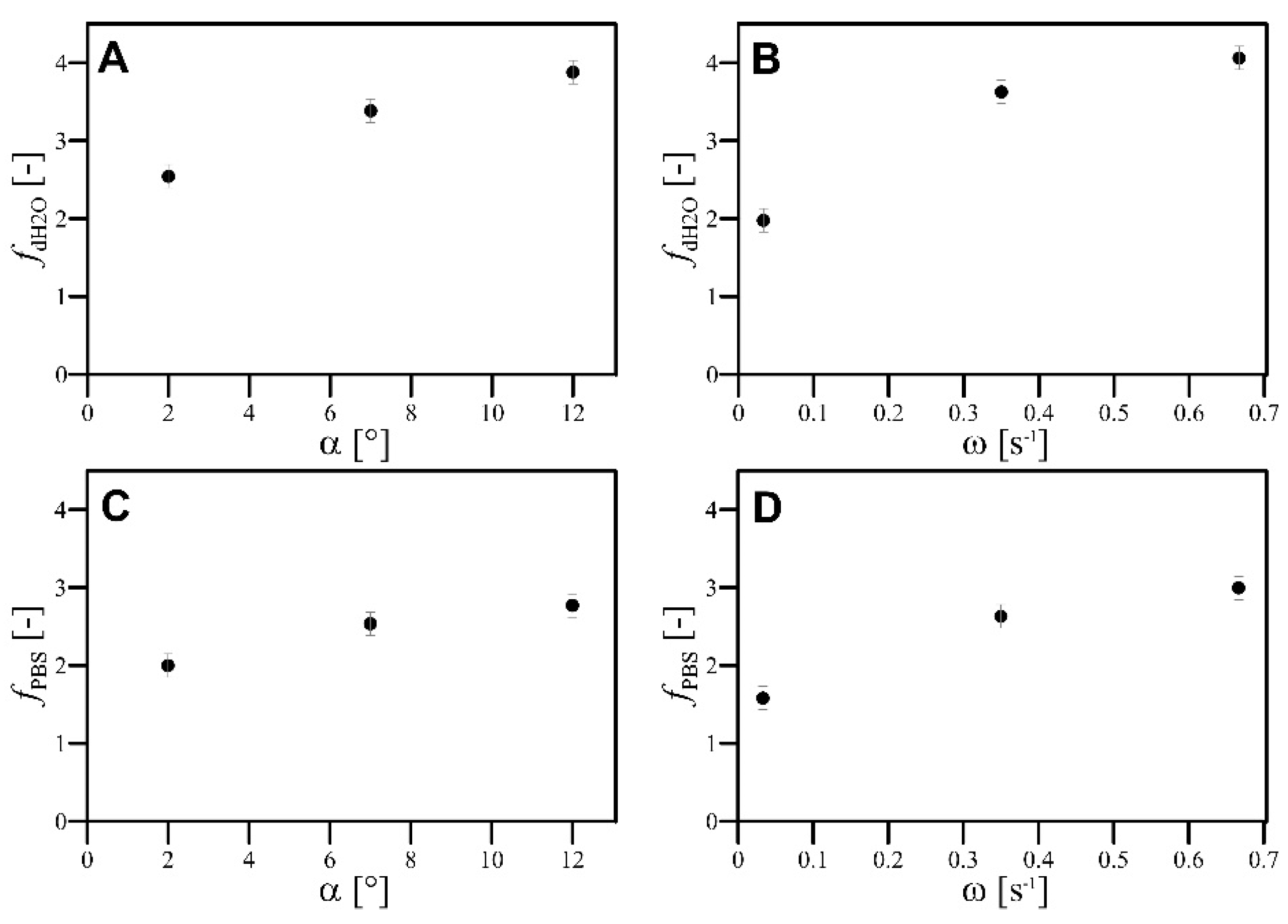

The relationships between values of the f factor calculated for dH₂O and PBS, and various values of α and ω, are graphically presented in Figure 3. It was found that the obtained values of both $f_{{\mathrm{dH}}_2\mathrm{O}}$ and $f_{\mathrm{PBS}}$ monotonically increased for higher values of α and ω. Additionally, the observed relationships between the experimentally determined values of $f_{{\mathrm{dH}}_2\mathrm{O}}$ against α and ω (Figure 3A,B) revealed very similar effects to predicted values of $f_{\mathrm{PBS}}$ (Figure 3C,D).

The relationships between values of the E^PFD factor calculated for dH₂O and PBS, and various values of α, ω, and Q_G are graphically presented in Figure 4. In the case of the influence of α and ω, the values of $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ increased monotonically according to the increase in these operating parameters. Otherwise, it was observed that the increase in the value of Q_G resulted in a monotonical decrease in the noted values of both $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$. Furthermore, the presented relationships between the values of $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ calculated for various values of α, ω, and Q_G, shown in Figure 4A–C, revealed very similar effects, resulting from the values of $E_{\mathrm{PBS}}^{\mathrm{PFD}}$, which are presented in Figure 4D–F.

4. Discussion

To date, liquid PFC-based oxygen carriers have been repeatedly applied in prototyped culture systems varying in the volume of vessels, i.e., from ca. 1.0 cm³ to 100 cm³. Some examples of two-liquid culture systems that integrated immiscible aqueous phases of culture media and liquid PFC in the forms of dispersed droplets or continuous layers are briefly presented in

Table 4. Examples of two-liquid culture systems integrating immiscible aqueous culture media and dispersed or layered liquid PFCs.

Type of Two Liquids System	Total Volume	Vessel	Biomass	Reference
Dispersion of PFC in aqueous phase	100 cm3	500 cm3 TubeSpin disposable bioreactor	Crypthecodinium cohnii	[27]
	5 cm3	T−75 (150 cm3) flasks on rocking platform	βTC-tet cells	[28]
	2 cm3	6-wells disposable plates, static culture	RINm5F β-cells	[29]
	0.3 cm3	1.0 cm3 cylindrical well, static culture	3T3-L1 and SV-T2 cells	[30]
Contacting continuous layers of PFC and aqueous phase	100 cm3	300 cm3 Erlenmeyer flasks on orbital shaker	Nicotiana tabacum BY-2	[10]
	35 cm3	250 cm3 Erlenmeyer flasks on orbital shaker	hairy roots of Taxus × media	[31]
	3 cm3	6-/24-wells disposable plates, static culture	human mesenchymal stem cells	[8]
	2 cm3	24-wells disposable plates, static culture	C2C12 cells	[32]
	1.5 cm3	1.5 cm3 centrifuging tubes, static cultures	B16 cells	[9]

. More examples have been frequently discussed, for example, in a number of previously published reviews [4,5,26].

From the perspective of mass transfer characteristics, systems of two liquids containing aqueous phase and liquid PFC have not been thoroughly described, probably due to the lack of simply-applied practical methods of measuring respiratory gas levels, i.e., O₂ and CO₂, in the liquid phase of PFD. Additionally, the rarely available literature data focused on such issues may be interpreted as incoherent.

The physical absorption of oxygen in aqueous media has been studied by measuring the values of k_La as the overall liquid-side mass transfer coefficient. Therefore, the mass transfer rate without chemical reaction was investigated. Both PBS and dH₂O are recommended media to investigate the physical absorption of oxygen, including in single-use bioreactors, and such systems are also suitable for practical approximation of culture conditions [33]. To widen the applicability of the results presented in the current study, all experiments were performed at 37 °C (t_C), according to the physiological requirements of most certified lines of mammalian cells, which are commonly in vitro cultured in submerged forms in disposable bioreactor systems. Such an assumption allowed comparison of the results reported in the present study with the data obtained for a range of in vitro cultures of isolated mammalian cells performed in a WAVE 25 system equipped with a Cellbag.

In our opinion, to fully recognize the oxygen transfer phenomena that occurred in the rocked system of two immiscible liquids, i.e., aqueous phase and liquid perfluorochemical, we propose the introduction of two factors: f, dependent on a; and E^PFD, dependent on k_La. These factors, i.e., f and E^PFD, are not typically applied in bioprocess engineering. However, analysis of their values obtained in the studied system facilitated the understanding of observed relationships between the level of the obtained k_La coefficient and operational parameters, i.e., α and ω, defining conditions of wave-assisted agitation.

In the case of the f factor, the dimensional exponential correlation methodology was proposed to generalize the obtained values of f that can possibly be obtained under wave-assisted agitation conditions, and not only those restricted to the WAVE 25 bioreactor. Two similar forms of dimensional exponential correlations, which depend only on α and ω, for both studied aqueous phases, i.e., dH₂O (Equation (9)) and PBS (Equation (10)), were proposed with the following forms:

$$f_{{\mathrm{dH}}_2\mathrm{O}}=8.588\times {\omega }^{0.259}\times {\left(sin\alpha \right)}^{0.275}$$

(9)

$$f_{\mathrm{PBS}}=8.066\times {\omega }^{0.344}\times {\left(sin\alpha \right)}^{0.376}$$

(10)

According to the multidimensional regression analysis, the values of all constants refining Equations (9) and (10) were found. The parity plots are shown in Figure 5 in order to verify the correctness of both correlations. As can be easily seen, the values of $f_{{\mathrm{dH}}_2\mathrm{O}}$ and $f_{\mathrm{PBS}}$ factors were predicted with the relative error at similar values, i.e., 23–24%, by the correlations (9) and (10).

Similarly, in the case of the E^PFD factor, the dimensional exponential correlation methodology was proposed for the generalized estimation of the values of E^PFD that can possibly be obtained under various conditions of wave-assisted agitation for a broader range of operating parameter values than those presented in Table 3. Two similar forms of dimensional exponential correlations, which analogously depend on three operational parameters that significantly influence the k_La level under wave-assisted agitation, i.e., α, ω, and Q_G, for both studied aqueous phases independently supplemented with PFD, i.e., for $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ (Equation (11)) and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ (Equation (12)), were proposed in the following forms:

$$E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}=0.185\times {\omega }^{0.669}\times {\left(sin\alpha \right)}^{0.183}\times Q_{\mathrm{G}}^{-0.169}$$

(11)

$$E_{\mathrm{PBS}}^{\mathrm{PFD}}=0.195\times {\omega }^{0.669}\times {\left(sin\alpha \right)}^{0.183}\times Q_{\mathrm{G}}^{-0.169}$$

(12)

with the values of all constants found according to the multidimensional regression analysis.

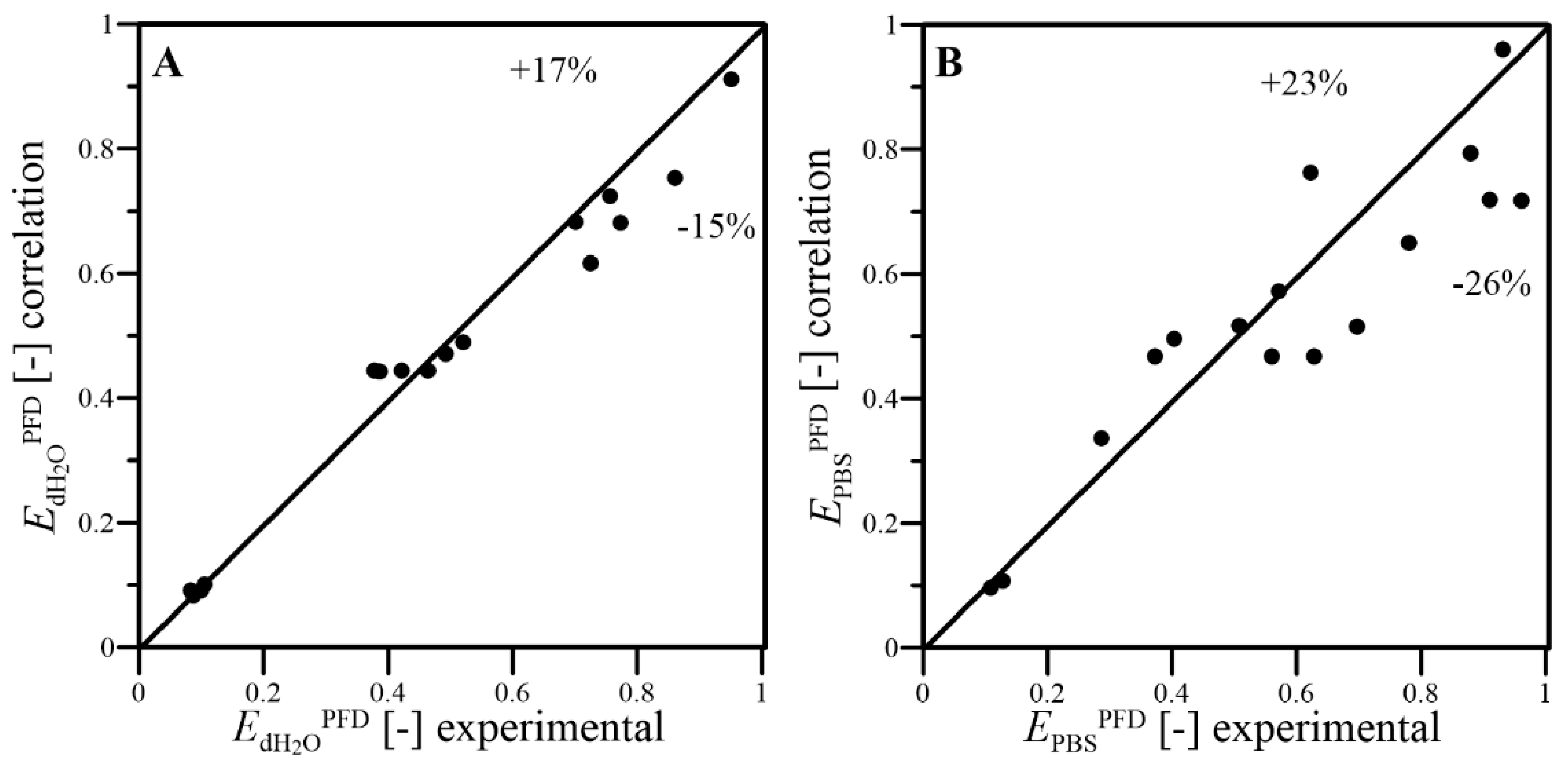

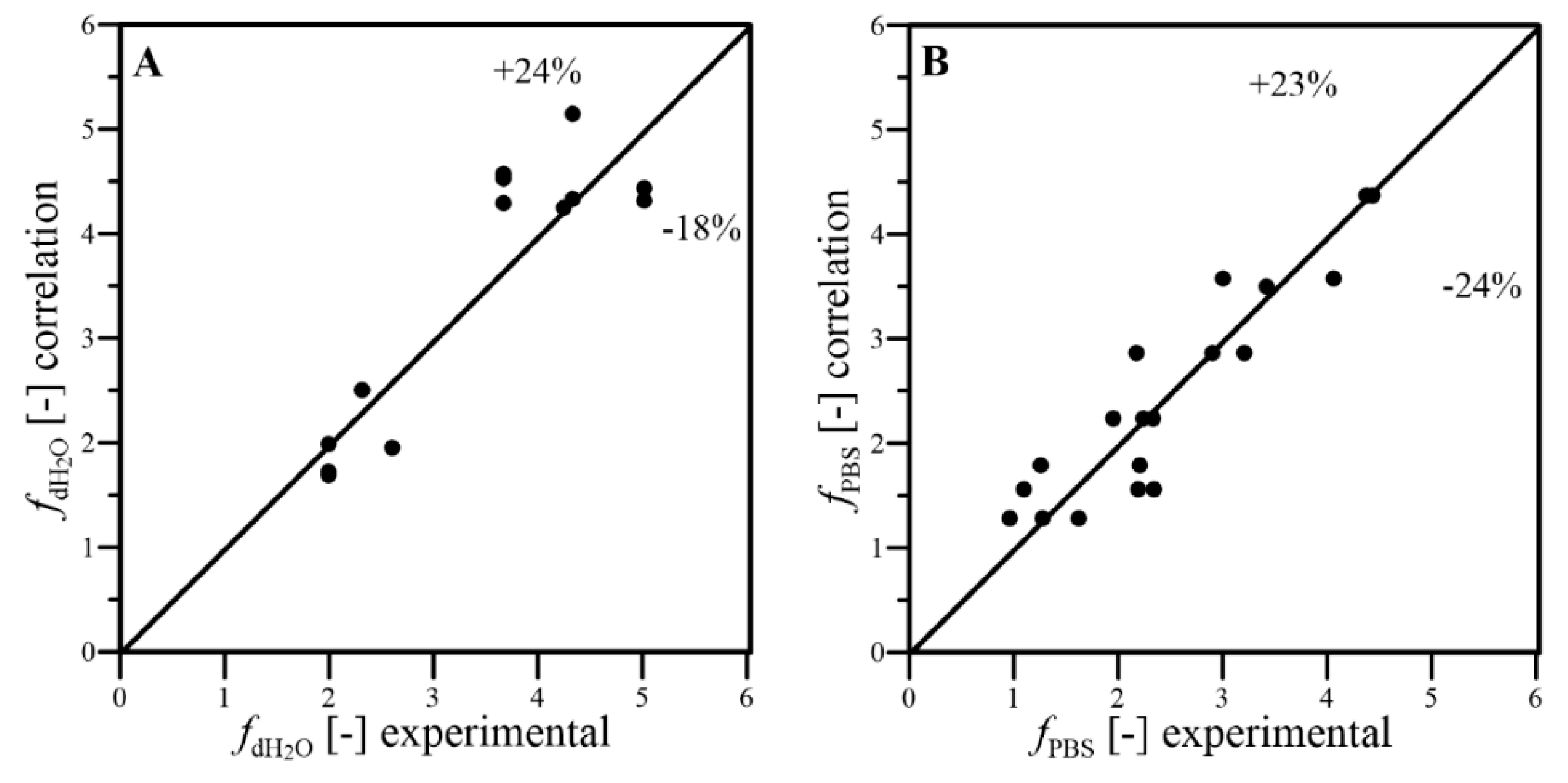

The parity plots are shown in Figure 6 to verify the correctness of both introduced dimensional correlations. As can be easily seen, the values of $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ factors were predicted by the correlations (11) and (12) with the relative errors of 15–17% and 23–26%, respectively.

Moreover, in the case of the $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ factors, it is worth noting that all levels of both factor values that were calculated and presented in Table 3 were less than 1. These indicate that the addition of PFD reduced the values of the k_La coefficient in comparison to values reached for aqueous phases (i.e., dH₂O or PBS) without PFD supplementation. Supposedly, supplementation of the studied systems with PFD hypothetically induced the changes in hydrodynamics inside the disposable bag-like container. The worsening of mass transfer in the two liquid systems was observed. This may be caused by the limitation of circulation in liquid phases at the interface of contacting immiscible dH₂O (or PBS) and PFD due to decreases in the local liquid velocity. Such a phenomenon might indicate that the investigated liquid phase was not mixed properly and that the oxygen transfer rate was limited in the total volume of the liquid phase. The waving two-liquid system containing aqueous phase (as the upper liquid phase) and PFD (as the lower liquid phase) is characterized by different hydrodynamics than the waving individual aqueous phase, i.e., dH₂O or PBS, without PFD. We hypothesize that in the case of PFD presence in the studied systems, the circulation of the aqueous phase was significantly less intensive. Similarly, the surface of the aqueous phase was renewed less intensively. These two effects may be interpreted as phenomena that have a strong negative influence on the k_La values reached for the waving two liquid phase dH₂O-PFD and PBS-PFD systems compared to waving dH₂O or PBS without PFD. Therefore, a decrease in the value of the k_La coefficient will not disturb oxygenation if oxygen is still available in a liquid PFD-based reservoir. Thus, all of this might hypothetically explain the values lower than 1, estimated for both $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$.

The correlations for E_dH2O^PFD and E_PBS^PFD introduced by Equations (11) and (12), respectively, are very similar in their forms. Only the value of the absolute term varied in proposed correlations, which may result from different values of the oxygen diffusion coefficient estimated for dH₂O and PBS, i.e., 3.06 × 10⁻⁹ m² s⁻¹ vs. 2.50 × 10⁻⁹ m² s⁻¹, respectively [34]. The exact values of the other constants refining both discussed dimensional correlations (i.e., Equations (11) and (12)) allowed us to hypothesize that the hydrodynamics of wave-type mixing concerning both studied systems of two liquids—aqueous phase (i.e., dH₂O or PBS) and PFD—were identical.

In our opinion, characterization of mass transfer effects based on such atypical factors as E^PFD may be challenging or problematic to interpret and further discuss, due to the lack of available data in the literature concerning processes of aeration/oxygenation or mixing of two-liquid systems integrating immiscible aqueous phase and PFD. Correlations for predicting the k_La values are significantly more appreciated and applicable due to commonly known quantitative characteristics of aeration conditions described by the k_La coefficient. Thus, in the case of the considered aqueous phases not supported with PFD, the dimensional exponential correlation methodology may also be applied for estimation of the values of the k_La coefficient that can be possibly obtained under various conditions of wave-assisted agitation defined by α and ω, and gas-phase flow characterized by Q_G, as follows:

$$k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}}=10.379\times {\omega }^{0.594}\times {\left(sin\alpha \right)}^{0.443}\times Q_{\mathrm{G}}^{0.592}$$

(13)

$$k_{\mathrm{L}}{a}_{\mathrm{PBS}}=7.503\times {\omega }^{0.594}\times {\left(sin\alpha \right)}^{0.443}\times Q_{\mathrm{G}}^{0.592}$$

(14)

Therefore, to verify the correctness of dimensional correlations for predicting the values of the $k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}}$ and $k_{\mathrm{L}}{a}_{\mathrm{PBS}}$ coefficients, the parity plots are presented in Figure 7. Values of $k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}}$ and $k_{\mathrm{L}}{a}_{\mathrm{PBS}}$ were predicted by the correlations (13) and (14) with similar relative error values not higher than 31% and 28%, respectively.

Finally, based on the above-presented correlations on the k_La coefficients and the E factors, i.e., Equations (11)–(14), respectively, dimension exponential correlation for prediction of values of the k_La coefficient that can possibly be obtained in two-liquid systems containing aqueous phase and PFD (i.e., dH₂O-PFD and PBS-PFD) waving according to the operational parameters in WAVE 25, were proposed in the following forms:

$$k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}-\mathrm{PFD}}=k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}}\times E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}=1.920\times {\omega }^{1.263}\times {\left(sin\alpha \right)}^{0.626}\times Q_{\mathrm{G}}^{0.422}$$

(15)

$$\begin{gathered} k_{\mathrm{L}}{a}_{\mathrm{PBS}-\mathrm{PFD}} = k_{\mathrm{L}}{a}_{\mathrm{PBS}} \times {E_{\mathrm{PBS}}}^{\mathrm{PFD}}=1.853 \times {\omega }^{1.263}\times (\sin \alpha {)}^{0.626} \times {Q_{\mathrm{G}}}^{0.422}{k}_{\mathrm{L}}{a}_{\mathrm{PBS}-\mathrm{PFD}}= \\ {k}_{\mathrm{L}}{a}_{\mathrm{PBS}}\times E_{\mathrm{PBS}}^{\mathrm{PFD}}=1.920\times {\omega }^{1.263}\times {\left(sin\alpha \right)}^{0.626}\times Q_{\mathrm{G}}^{0.422} \end{gathered}$$

(16)

The parity plots are shown in Figure 8. The values of $k_{\mathrm{L}}{a}_{{\mathrm{dH}}_2\mathrm{O}-\mathrm{PFD}}$ and $k_{\mathrm{L}}{a}_{\mathrm{PBS}-\mathrm{PFD}}$ were predicted with the relative errors of 23–31% and 27–34%, respectively.

The dimensional correlations (15) and (16) summarize the quantitative characterization of oxygen transfer effects in two-liquid systems of aqueous phase (i.e., dH₂O or PBS-buffer) containing PFD applied as the gas carrier, and mixed under conditions of wave-assisted agitation performed in a bag-like disposable container (e.g., Cellbag) of a single-use bioreactor.

5. Conclusions

Oxygen transfer effects in an aqueous and liquid perfluorochemical system subjected to wave-assisted agitation in a disposable bag-like container fixed in a single-use bioreactor were recognized and discussed in detail. Two originally introduced factors—f, dependent on a; and E^PFD, dependent on k_La—facilitated the quantitative identification of the mass transfer effects in the system of two contacted immiscible liquids: dH₂O or PBS and PFD, continuously subjected to oscillatory-driven wave-assisted agitation in a Cellbag fixed in a WAVE 25 bioreactor. The results presented in the study can be concluded as follows:

• Lower levels of the k_La coefficient noted for PBS-containing systems, i.e., PBS and PBS-PFD than for systems with dH₂O, i.e., dH₂O and dH₂O-PFD, resulted from the lower value of oxygen diffusion coefficient for dH₂O if compared to PBS (i.e., 3.06 × 10⁻⁹ m² s⁻¹ vs. 2.50 × 10⁻⁹ m² s⁻¹, respectively);
• The values of α and ω had monotonically increased influence on the value of the f factor;
• The values of both $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ factors increased monotonically according to the increase in α and ω, but the increase in the value of Q_G resulted in a monotonical decrease in values of both $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$;
• Supplementation of dH₂O with PFD caused the significant decrease in values of the k_La coefficient reached in the system of dH₂O-PFD in comparison to the k_La values reached for pure dH₂O, which resulted in values of $E_{{\mathrm{dH}}_2\mathrm{O}}^{\mathrm{PFD}}$ and $E_{\mathrm{PBS}}^{\mathrm{PFD}}$ of less than 1.0 for the majority of the studied variants;
• The waving two-liquid system containing aqueous phase (as the upper liquid phase) and PFD (as the lower liquid phase) is characterized by different hydrodynamics than that of the waving individual aqueous phase, i.e., dH₂O or PBS, without PFD;
• The dimensional correlations proposed for prediction of k_La coefficient, in addition to f and E^PFD factors, well fitted the experimental results with satisfactory levels of the relative errors; thus, they can be applied to predict the conditions of oxygen transfer effects reached under continuous wave-assisted agitation of systems containing aqueous phase and liquid PFC;
• Lower k_La values noted for PFD-supplemented systems may indicate hypoxia conditions affecting biomass maintained in the cell culture systems containing liquid PFC.
