Article

Molecular Dye-Sensitized Photocatalysis with Metal-Organic Framework and Metal Oxide Colloids for Fuel Production

by
Philip M. Stanley
and
Julien Warnan
*
Chair of Inorganic and Metal-Organic Chemistry, Department of Chemistry, Technical University of Munich, 85748 Garching, Germany
*
Author to whom correspondence should be addressed.
Energies 2021, 14(14), 4260; https://doi.org/10.3390/en14144260
Submission received: 8 June 2021 / Revised: 6 July 2021 / Accepted: 9 July 2021 / Published: 14 July 2021
(This article belongs to the Special Issue Advances in Molecular Artificial Photosynthesis)
Browse Figures
Versions Notes

Abstract

:
Colloidal dye-sensitized photocatalysis is a promising route toward efficient solar fuel production by merging properties of catalysis, support, light absorption, and electron mediation in one. Metal-organic frameworks (MOFs) are host materials with modular building principles allowing scaffold property tailoring. Herein, we combine these two fields and compare porous Zr-based MOFs UiO-66-NH2(Zr) and UiO-66(Zr) to monoclinic ZrO2 as model colloid hosts with co-immobilized molecular carbon dioxide reduction photocatalyst fac-ReBr(CO)3(4,4′-dcbpy) (dcbpy = dicarboxy-2,2′-bipyridine) and photosensitizer Ru(bpy)2(5,5′-dcbpy)Cl2 (bpy = 2,2′-bipyridine). These host-guest systems demonstrate selective CO2-to-CO reduction in acetonitrile in presence of an electron donor under visible light irradiation, with turnover numbers (TONs) increasing from ZrO2, to UiO-66, and to UiO-66-NH2 in turn. This is attributed to MOF hosts facilitating electron hopping and enhanced CO2 uptake due to their innate porosity. Both of these phenomena are pronounced for UiO-66-NH2(Zr), yielding TONs of 450 which are 2.5 times higher than under MOF-free homogeneous conditions, highlighting synergistic effects between supramolecular photosystem components in dye-sensitized MOFs.

Graphical Abstract

1. Introduction

Solar fuel production has emerged as a pertinent possibility on route to address growing energy challenges and shift fossil fuel dependency toward sustainable sources [1]. It aptly merges solar energy harvesting with subsequent energy conversion to form value-adding products [2]. At this cross-section, molecular coordination complexes can play a key role as discrete nature-mimicking photosystems combining light sensitizing and chemical reactivity [3]. Previous advances include molecular catalyst and dye engineering to improve catalytic parameters such as activity and selectivity on the one hand, as well as light harvesting and antenna effects on the other [4,5]. Additionally, immobilizing such species to host materials can yield beneficial sustained performance, with dye-sensitized photocatalysis (DSP) emerging as a selected approach with distinct advantages [6,7]. Specifically, this methodology bridges the fields of molecular (photo)catalysis and material chemistry by coupling a catalyst and a dye via co-anchoring onto a semiconductor particle—effectively employing the latter as a solid-state electron mediator and a scaffold [6]. While this working principle has been studied for several host particle compounds in colloidal DSP [8,9], applying metal-organic frameworks (MOFs) as the matrix component can provide similar benefits and is an area with burgeoning interest [10,11,12,13]. MOFs combine metal-based nodes with organic multitopic linkers to form porous coordination polymers, thus unlocking adjustable chemical properties, topologies, porosities, and molecular complex hosting capabilities [14]. Particularly regarding dye-sensitization possibilities, MOFs can substantially influence guest photophysics through approaches such as confinement effects as well as scaffold-directed photochromicity [15]. However, their organic/inorganic building principle can result in limited stability or conductivity [16]. This presents the question how dye-sensitized MOFs (DSMs) directly compare to their commonly used metal oxide-based particle counterparts in colloidal solar fuel production.
We devised a conceptual side-by-side model comparison of CO2 reducing DSP and DSM systems based on ZrO2 nanoparticles alongside the UiO-66(Zr) MOF composed of Zr6O4(OH)4 nodes, simulating the oxide support (Figure 1a,b) [17].
UiO-66 is well-studied due to its versatility and chemical stability [18]. Additionally, a few reports showed UiO-66(Zr)’s applicability in DSM using Pt nanoparticles for H2 evolution [19,20]. Functional group implementation through linker variation offers further advantages [18]. For example, UiO-66-NH2(Zr), constructed from 2-aminoterephthalic acid linkers, allows improved gas and molecular guest adsorption capabilities, as well as shifts the optical absorption through amine group incorporation [10,21]. Due to its small pore apertures and diameters, molecular species are typically loaded onto the MOFs’ surface [10,22]. ZrO2 has also been previously applied as a support for DSP primarily enabling so-called “on particle” electronic communication between PS and catalyst due to the high energy level of the conduction band [3,23].
We selected a molecular CO2 reduction catalyst (CRC) fac-ReBr(CO)3(4,4′-dcbpy) (dcbpy = dicarboxy-2,2′-bipyridine) (1) and the photosensitizer [Ru(bpy)2(5,5′-dcbpy)]Cl2 (bpy = 2,2′-bipyridine) (2) as a benchmark photosystem (Figure 1a). These have been studied together under homogeneous conditions in the presence of a sacrificial electron donor (SED) [10,24,25], as well as in DSP upon anchoring to semiconductor supports such as TiO2, SiO2, and SrTiO3, as well as to MOFs, often delivering moderate photoactivity with turnover numbers (TONs) in the range of 10–600 [10,11,26,27,28,29].
Ligands with carboxylic acid groups were chosen to enable outer surface anchoring to MOF nodes, free amines for UiO-66-NH2(Zr), as well as to ZrO2 surface hydroxyl groups (Figure 1b) [11,12,30]. This approach has previously yielded stable host-guest colloidal assemblies, allowing for photoinduced electron transfers from the SED to the sensitizing units and subsequently to vicinal catalysts for CO2 reduction [10,11,12,13,30]. Herein, we report the synthesis, thorough characterization, and photocatalytic CO2 reduction performance of DSM UiO-66-NH2(Zr) and UiO-66(Zr), in direct comparison to DSP with their metal oxide counterpart ZrO2. This revealed key working principles and considerations for selecting suitable hosts in solar DSP and DSM.

2. Materials and Methods

A detailed overview on analysis methods, step-by-step synthesis routes, and characterization techniques is available to the reader in the Supplementary Material (SM). The most relevant material syntheses are described here.
fac-ReBr(CO)3(4,4′-dcbpy) (1)
The synthesis was conducted according to a modified literature procedure [25]. ReBr(CO)5 (0.30 g, 0.74 mmol, 1.0 eq.) was dissolved in ethylene glycol dimethyl ether (20 mL) in an argon atmosphere. 4,4′-dicarboxyl-2,2′-bipyridine (0.18 g, 0.74 mmol, 1.0 eq.) was added to the solution and stirred at 90 °C overnight. After cooling, the solvent was removed in vacuo and the residue was dissolved in minimal amounts of ethylene glycol dimethyl ether and added to hexane (100 mL) at 0 °C. The solid was then isolated via centrifugation and dried to afford the product, matching literature characterizations [25].
1H NMR (400 MHz, 300 K, CD3CN): δ (ppm) = 9.20 (d, 3J = 5.7 Hz, 2H), 8.95 (s, 2H), 8.06 (d, 3J = 5.7 Hz, 2H); ATR-IR (Re(CO)3) = 1870, 1915 and 2021 cm−1
Ru(bpy)2(5,5′-dcbpy)Cl2 ∙ 6 H2O (2)
The synthesis was performed following a literature known procedure [31]. 5,5′-dicarboxyl-2,2′-bipyridine (0.064 g, 0.260 mmol, 1.27 eq.) and Ru(bpy)2Cl2 (0.10 g, 0.21 mmol, 1.00 eq.) and were dissolved in ethanol/water (15 mL, 1/1 v/v) and refluxed for 25 h in an Ar atmosphere. After cooling, the solvent was removed in vacuo. The resulting powder was dissolved in water, filtered, and the filtrate was evaporated to give the crystalline product (0.120 mg, 0.143 mmol, 70% yield), matching literature characterizations [31].
1H NMR (400 MHz, 300 K, DMSO-d6): δ (ppm) = 8.87 (m, 4H), 8.80 (d, 3J = 8.3 Hz, 2H), 8.37 (d, 3J = 8.1 Hz, 2H), 8.19 (m, 4H), 8.00 (s, 2H), 7.79 (d, 3J = 5.6 Hz, 2H), 7.77 (d, 3J = 5.6 Hz, 2H), 7.58 (t, 3J = 6.5 Hz, 2H), 7.53 (t, 3J = 6.5 Hz, 2H)
UiO-66-NH2(Zr)
The synthesis was modified from a literature procedure [32]. 2-aminoterephthalic acid (0.186 g, 1.03 mmol, 1.00 eq.) and ZrCl4 (0.240 g, 1.03 mmol, 1.00 eq.) were dissolved in anhydrous N,N-dimethylformamide (DMF, 60 mL). To the mixture deionized water (0.19 mL) was added. The mixture was stirred at r.t. for 10 min and then transferred to a 100 mL Teflon liner before heating at 120 °C for 24 h to yield a yellow solid. The latter was isolated by centrifugation, washed with DMF (3×) and methanol (3×), immersed in methanol for 2 days with solvent exchange (2×), and dried at 80 °C in vacuo to yield UiO-66-NH2(Zr) (0.244 g).
UiO-66(Zr)
The synthesis was modified from a literature procedure [33]. ZrCl4 (0.100 g, 0.43 mmol) was dissolved in DMF (25 mL) in a Teflon autoclave by sonication. Then terephthalic acid (71.3 mg, 0.43 mmol) and distilled water (0.033 mL, 1.71 mmol) were added to the solution. The solution was heated for 24 h at 120 °C. After cooling, the MOF nanoparticles were isolated by centrifugation washed with DMF (3×) and methanol (3×), immersed in methanol for 2 days with solvent exchange (2×), and dried at 80 °C in vacuo to yield UiO-66(Zr) (0.112 g).
ZrO2
Zirconium oxide nanoparticles (99.9%, 50 nm, monoclinic, nanopowder, 100 g) were purchased from GetNanoMaterials®.
Molecular Complex Immobilization
In a typical experiment, a 0.09 mM solution of 1 in acetonitrile (MeCN) and a 0.05 mM solution of 2 in MeCN (quantities for both varied according to the desired ratio, see SI, Table S1) were added simultaneously to the respective pristine host powder (10.0 mg). The supernatant was removed after 24 h, and the resulting powder was washed with pure MeCN (3 × 20 mL). Then the powder was dried at 80 °C overnight.

3. Results

3.1. Catalyst, Dye, and Host Characterization

The CRC 1 showed two characteristic UV-Vis absorption bands in MeCN, namely a π-π* transition at 310 nm as well as a metal to ligand charge transfer (MLCT) transition at 415 nm (molar absorption coefficient ε = ~1100 dm3 mol−1 cm−1, Figure S1) with a reduction potential E(1/1−) of −0.94 V vs saturated calomel electrode (VSCE) [24,34]. The molecular dye 2 displayed two predominant UV-Vis bands in MeCN, a π-π* transition at 288 nm and also a 1MLCT at 450 nm (ε = ~15000 dm3 mol−1 cm−1), allowing for strong visible light absorption (Figure S1). The latter yields the triplet excited state 3Ru(bpy)2(5,5′-dcbpy)* with an excited state reduction potential E(32*/2−) of 1.07 VSCE, enabling reductive quenching from a variety of sacrificial electron donors (SEDs) [35,36]. With E(2/2−) ≈ −1 VSCE, electron transfer from 2 to 1 is thermodynamically allowed in solution [37]. Besides, SED oxidation from the photoexcited CRC can also proceed to directly drive CO2 reduction with E(1*/1−) = 1.26 VSCE [36,38]. The synthesized MOFs, UiO-66(Zr) (66) and amine-modified UiO-66-NH2(Zr) (66-NH2), illustrated powder X-ray diffraction (PXRD) reflexes in close agreement with simulated patterns from single crystal structures. This was also the case for zirconium oxide monoclinic nanoparticles (ZrO2), highlighting crystallinity for all host systems (Figure 2a). N2 gas adsorption experiments revealed UiO’s characteristic permanent porosity, giving Brunauer-Emmett-Teller (BET) areas of 960 ± 4 (66-NH2), 965 ± 3 (66), 12 ± 1 (ZrO2) m2 g−1 (Figure S2). This striking discrepancy highlights the MOFs’ porosity compared to an inorganic bulk material. Particle imaging occurred with scanning electron microscopy (SEM), showing uniform topology and morphology within each sample (Figure 2b and Figures S3–S5). Importantly, analyzing particle sizes with histograms from SEM images gave average diameters of 55.2 ± 9.1 (66-NH2), 48.6 ± 7.0 (66), and 48.8 ± 6.2 nm (ZrO2) (Figure 2c). Such closely matching values enable studying intrinsic dye-sensitized host effects unbiased by size-induced discrepancies. The latter has been shown to have significant implications in heterogeneous colloidal catalysis [39], including MOF-based reactions [13,39], with smaller particles favoring reactant transport, increasing accessible active sites, and providing larger surface-to-volume ratio [39]. Further, particles in the ~50 nm size range are ideal as agglomeration was found to typically occur for pristine MOFs with <50 nm [39,40].
66-NH2 was isolated as a light-yellow powder, 66 and ZrO2 as white powders, and their corresponding solid-state UV-Vis spectra showed no light absorption at wavelengths above 440 nm in all cases (Figure 3a). Applying the Tauc formula for pristine hosts yielded direct optical bandgaps of 2.86 (66-NH2), 3.78 (66), and 5.19 eV (ZrO2), in-line with previously reported values, and suggesting exclusive dye excitation upon irradiation at higher wavelengths after dye sensitization (Figure S6) [21,41,42,43].

3.2. Host-Guest Photosystem Assembly

Following the pristine host characterization, we sensitized the materials with photocatalyst 1 and dye 2. This was achieved by soaking from a corresponding MeCN solution. The respective pristine host (10.0 mg in all cases) was immersed in a solution of 1 (and 2) in MeCN (quantities in Table S1) for 24 h, then washed with pure MeCN and dried. Molecular species are expected to load specifically at the surface for all materials, as the MOF pore sizes, channels, and windows (8.0 Å) are substantially smaller than both molecular diameters (1: 12.0 Å; 2: 14.5 Å) [10]. Surface anchoring was monitored via supernatant UV-Vis spectroscopy, showing an absorption decay over time for all hosts, with stable values reached after 24 h (Figure S7). While 66-NH2 and 66 provided comparable spectra, ZrO2 samples illustrated a smaller absorption decrease, suggesting a lower loading per mass of host. Further, measuring the washing solution after 8 h revealed no absorption in all cases, indicating no leaching and stable complex anchoring to the host surfaces (Figure S7).
Average maximum molecular surface loadings of ~58, ~58, and ~32 nmol mg−1 were obtained for 66-NH2, 66 and ZrO2-based assemblies, respectively, from inductively coupled plasma mass spectrometry (ICP-MS) measurements for Ru and Re content (see SM). The lower loading for ZrO2-based assembly is in-line with the reduced absorption decay in the sensitizing solution compared to MOFs (Figure S7) and is rationalized by the higher crystal density of monoclinic zirconium oxide compared to porous UiO samples. Calculating surface areas and maximum coverages from SEM particle sizes (Figure 2b,c) with DFT-optimized 1 and 2 gave values close to experimental ICP-MS results (SM, pages S4–S5), supporting that maximum surface coverage is attained by immobilization from solution. Exact metal contents further allowed molecular loading and photosensitizer to catalyst ratio calculations (R, Equation (1), Tables S1–S4). For each host in turn, assemblies with an R value of 0.5 and 2.1 were synthesized (Tables S1–S4), i.e., a sample with double the molar catalyst quantity compared to the dye, and vice versa.
R = n(2)/n(1) = n(Ru per mg host)/n(Re per mg host)
1-loaded, as well as 1- and 2-loaded assemblies, denoted as Re-Host and ReRu-host, respectively, were analyzed by PXRD, dynamic light scattering (DLS), attenuated total reflectance infrared (ATR-IR) spectroscopy, and solid-state UV-Vis spectroscopy to further assess the impact of molecular anchoring.
PXRD data of the functionalized hosts (R = 0.5) showed matching reflex positions as pristine hosts, suggesting retained sample crystallinity after the anchoring process (Figure 2a). Importantly, DLS distributions revealed comparable hydrodynamic diameters of pristine and loaded hosts (~158, ~201, and ~284 nm for 66-NH2, 66 and ZrO2-based samples), highlighting that MOFs and nanoparticles do not agglomerate in MeCN solution and during molecular complex immobilization (Figure S8). The received hydrodynamic diameters are larger than actual particle diameters determined by SEM (Figure 2b,c) due to the hydration shell additionally detected in DLS measurements.
Solid-state UV-Vis spectroscopy of complex-containing samples displayed additional bands between 250 and 600 nm not present in pristine host spectra, matching 1 and 2 (Figure 3a). Further, ATR-IR spectra for all 1-loaded assemblies showed additional bands at 1917 and 2025 cm−1, which are characteristic of the Re(CO)3 moiety (Figure 3b). These support retained molecular catalyst integrity upon anchoring [11,44].
Finally, N2 gas adsorption experiments were conducted to evaluate the porosity of the dye-sensitized MOF samples (Figure S2). ReRu-66-NH2(R 2.1) and ReRu-66(R 2.1) demonstrated a significant reduction in uptake in respect to their pristine counterparts, however, with a non-zero BET area of 338 ± 1 and 360 ± 1 m2 g−1, respectively. This is in-line with previous studies, which showed that surface-anchored molecules of this size partially block outer MOF pores [10]. As for ZrO2, ReRu-ZrO2(R 2.1) illustrated negligible nitrogen adsorption.

3.3. Photocatalytic Experiments

The assemblies’ light driven catalytic activity was studied to investigate host material and dye sensitization effects. Standard colloidal heterogeneous conditions were host-guest samples (~1 mg) in MeCN (4 mL) and 1,3-dimethyl-2-phenyl-2,3-dihydro-1H-benzo[d]-imidazole (BIH, 340 mg, 1.5 mmol) or triethanolamine (TEOA, 0.2 mL, 1.5 mmol) as the SED. Such a significant excess of SED-to-photocatalyst (molar ratio > 25,000) was chosen to ensure that the electron supply is not limiting.
BIH has been shown to give increased catalytic activity and stability compared to TEOA in homogeneous and heterogeneous photosystems [11,38,45]. The resulting suspension was first saturated with CO2 ([CO2] ≈ 0.28 mol L−1 for MeCN) [46], and then vigorously stirred under irradiation at 450 nm (Blue LED LXZ1 PR01 at 5.1 W). The potential evolution of H2 and CO was analyzed via micro gas chromatography (GC) via reaction headspace sampling.
As a benchmark, homogeneous samples with pure catalyst, as well as dye and catalyst (ratio 2.0), were examined with both SEDs. For TEOA-based experiments, a solution of 0.5 µmol pure 1 showed selective CO formation under irradiation that plateaued after 15 min reaching 11.2 ± 0.3 TONs per Re catalyst (Table S5, TON calculation in SM). Additionally, 0.5 µmol 1 with 1.0 µmol of 2 resulted in a longer activity of 1.5 h before deactivation, while affording similar TONs as the PS-free experiments (Table S5). A comparable trend with higher absolute performances was observed with BIH as the SED, with 0.5 µmol pure 1 reaching TONs of 173 ± 7 over 3 h, and 0.5 µmol 1 with 1.0 µmol 2 yielding 182 ± 15 over 10 h. Next, 1-loaded colloids were investigated. All three host materials showed limited activity with TONs below 5 and 100 for TEAO and BIH, respectively (Table S5). Subsequently, ReRu-host hybrid systems were examined (Figure 4a,b, Table S5). In all cases, the detected activity increased from ReRu-ZrO2, to ReRu-66, and finally to ReRu-66-NH2 samples. When using BIH all host-guest systems reached significantly higher TONs than under homogeneous conditions whereas TEOA afforded similar or lower activities. Additionally, higher TONs compared to R = 0.5 samples were obtained with R = 2.1 with the highest activity (TON = 450 ± 15; BIH) reached for ReRu-66-NH2(R = 2.1).
Control experiments performed without irradiation or a SED yielded no detectable product formation under homogeneous conditions as well as colloidal photocatalysis (Table S5). Furthermore, CO2 was confirmed as the sole source of CO as 13C-labelled CO2 produced only 13CO (Figure S9). Both experiments highlight the central role of each photosystem constituent in selective CO2 photoreduction.
The effectiveness of incident photon conversion to CO was determined with apparent quantum efficiency (AQE, Equation (2)) measurements under the best-performing conditions (BIH and R = 2.1) with details on formulas and measurements provided in the SM (Figure S10, Tables S6 and S7). AQEs of 2.2 ± 0.2% (ReRu-ZrO2(R 2.1)), 6.1 ± 0.2% (ReRu-66(R 2.1)), and 8.0 ± 0.2% (ReRu-66-NH2(R 2.1)) were obtained after the first 3.5 h of irradiation before decreasing reaction rates were observed, followed by deactivation.
AQE (%) = (Moles of CO generated per unit of time/Number of incident photons per unit of time) · (Number of required electrons) · 100%

4. Discussion

The obtained homogeneous photocatalysis data matches previous studies with pure 1 showing modest activity and fast deactivation with TEOA, illustrating its instability under photocatalytic conditions [47]. Upon adding 2, the apparent CO evolution rate decreases, while not yielding effective electron transfers to the catalyst, apparent from unchanged TONs. This is ascribed to a too large mean distance between the photosystem components, as shown previously where higher dye concentrations or multinuclear complexes were required [4]. BIH was the more effective electron source as it quenches the excited state 32* more efficiently and detrimental TEOA radicals limit molecular dye/catalyst stability [11,45,47].
Comparing homogeneous results with 1 to heterogeneous 1-loaded colloids reveals a drop in performance for the latter independent of the SED. Similar performance decreases have been previously observed upon immobilizing fac-[ReCl(CO)3(bpy)]-derivatives on SiO2 or TiO2 for photocatalysis and were assigned to reaction environment change and mass transport limitations [29,48]. This motivates dye-sensitization to drive efficient electron transfers to the catalyst units.
Upon providing surface proximity for 1 and 2, exergonic electron transfers from the photosensitizer to the catalyst can occur (relying on statistical molecular distribution), allowing rapid CO2 reduction and improved performance [10,34]. This working principle highlights the advantages of using dye-sensitized materials, as pure host-photocatalyst assemblies result in activity decreases. For all ReRu-host systems, an increased dye-to-catalyst ratio R yielded higher TONs as excess dye increases the probability of each CO2 reduction catalyst being in proximity to a photosensitizer [11]. Distinct differences were recorded between the three anchoring materials, with the performance increasing from ReRu-ZrO2 (TON ~331, R = 2.1, BIH), to ReRu-66 (~395), to ReRu-66-NH2 (~450) (Figure 4a,b). As all pristine host materials are photosilent at the irradiation wavelength of 450 nm, exhibit similar particle size, and bear similar dye-to-catalyst ratios, this activity trend does not stem from a discrepancy between direct host light absorption (Figure 2c, Figure 3a, Figure 4a,b and Figure S6).
To gain more insights into the difference in the catalytic performance, we examined the reduction and oxidation potentials of the ground and excited molecule states, as well as the Zr-based materials’ conduction band energy levels. Reductive quenching, i.e., photoreduction of the PS from the SED followed by electron transfer to the CRC, is the main electron pathway in DSP systems with non-conducting hosts. As the scaffolds’ conduction band (CB) edges were previously evaluated at −3.3 eV (66-NH2, −0.9 VSCE) [49], −3.1 eV (66, −1.1 VSCE) [50], and −2.1 eV (ZrO2, −2.1 VSCE) [51], the triplet state 32* (−3.1 eV, −1.1 VSCE) is potentially able to inject electrons into the CB of 66-NH2 through oxidative quenching, followed by regeneration from the SED. This could enable the MOF to act as a solid-state electron mediator, allowing electron hopping to distant catalyst units as E(1/1−) = −3.3 eV (−0.9 VSCE, Figure 5a,c). Electron hopping in MOFs is a topic of ongoing interest featuring reports of tailor-made MOFs with intrinsic conduction mechanisms and photoinduced electron injection by a Ru dye into a UiO material [52,53,54]. Although less thermodynamically favored, a similar electron cascade should also be possible with 66-based DSM especially as Ru dyes have been reported to perform electron injection from unrelaxed states [55]. The difference in band positions between 66-NH2 and 66 has been assigned to the amine-functionalized linkers, effecting a change of the sp2 bonding in the aromatic carbon ring [56]. In contrast, oxidative quenching is prevented for ZrO2-based DSP due to the high CB energy value (Figure 5a). This implies that the reductive quenching cascade is the sole viable electron cascade for catalysis, potentially limiting the final activity of the system in comparison to MOF-based systems [23].
As photocatalysis proceeds in colloidal solution, the local CO2 concentration available for catalyst centers could impact the final activity. Despite maximum molecular loading on the scaffolds’ surfaces, MOFs still provide a certain permanent porosity (Figure S2). To determine implications for photocatalysis, CO2 gas adsorption experiments at room temperature were conducted with the three hosts (Figure 5b). As a non-porous crystalline solid, ReRu-ZrO2 is not able to adsorb carbon dioxide within its structure and is therefore reliant on the diffusion of available CO2 in solution. This differs for MOFs, as their intrinsic porosity could allow gas uptake when the reaction solution is saturated with CO2 prior to irradiation. Noteworthy is that ReRu-66-NH2(R 2.1) shows markedly higher uptake than ReRu-66(R 2.1), despite comparable N2 adsorption isotherms (Figure 5b and Figure S2). This has been previously observed and attributed to interactions/reactions between the polar linkers’ amine groups and carbon dioxide (Figure 5c) [57,58].
Thus, 66-NH2 provides an increased local CO2 concentration available during the course of photocatalysis, thereby reducing diffusion limitations, as well as potentially activating CO2 [59]. This is potentially shown by increased turnover frequencies (TOFs) from ZrO2-based, to 66-based, to 66-NH2-based assemblies (Figure S10). Such reactant-host-guest synergies are a unique benefit of DSM over conventional DSP (Figure 5c), yielding higher performances. This increase in efficiency is also apparent from obtained AQEs which improve from 2.2 ± 0.2% for ReRu-ZrO2(R 2.1) to 8.0 ± 0.2% for ReRu-66-NH2(R 2.1) under ideal conditions (Tables S6 and S7), allowing incident photons to be converted more effectively to CO. The obtained performance and TONs for ReRu-66-NH2 are comparable to state-of-the-art dye-sensitized semiconductors with Re-based molecular catalysts. For instance, dye-sensitized TiO2 nanoparticles with ReCl(CO)3(bpy)-derivatives reached maximum TONs between 165 and 570 in DMF with BIH, depending on irradiation conditions [26,27]. This system showed an AQE of 2.1% at 436 nm [27], and a recent report with organosilica nanotubes and anchored 1 and 2 yielded AQEs between 0.4% and 15.1% at 450 nm, depending on reaction conditions [60]. Accordingly, our results are well within this benchmark range for DSP with colloidal host-guest systems.

5. Conclusions

Herein we designed a model study to compare dye-sensitized metal oxides to metal-organic frameworks for colloidal photocatalytic CO2 reduction. Thus, monoclinic ZrO2 was evaluated against Zr-based MOFs 66 and 66-NH2, all with surface co-immobilized molecular carbon dioxide reduction photocatalyst fac-ReBr(CO)3(4,4′-dcbpy) and photosensitizer Ru(bpy)2(5,5′-dcbpy)Cl2. Photocatalytic CO2-to-CO performance increased from ZrO2, to UiO-66, and UiO-66-NH2, respectively. While the former provides fixed proximity for the molecular photosystem constituents, the studied MOF scaffolds offer additional synergistic host properties. Particularly 66-NH2 could enable host-mediated electron hopping, paired with uniquely increased CO2 adsorption capacity from its permanent porosity and NH2-CO2 interaction. These combined phenomena enable an AQE of up to 8% for the studied DSM.
Overall, these findings highlight how DSM can combine multiple functionalities to drive photocatalysis and provide tunable material composites. Our results competitively position dye-sensitized MOFs as a hybrid material for efficient solar fuel production, which could be further exploited with alternative optimized components toward higher performance in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/en14144260/s1: Detailed overview on all synthetic procedures, the analytical instrumentation and characterization methods, supporting calculations, as well as additional measurement data.

Author Contributions

Conceptualization, P.M.S. and J.W.; methodology, P.M.S.; formal analysis, P.M.S.; investigation, P.M.S.; data curation, P.M.S.; writing—original draft preparation, P.M.S. and J.W.; writing—review and editing, P.M.S. and J.W.; visualization, P.M.S.; supervision, J.W.; funding acquisition, J.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the German Research Foundation (DFG), research grant MOFMOX (FI 502/43-1) and P.M.S. was supported by the Chemical Industry Fonds with a PhD stipend.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and Supporting Information. For more specific questions a request can be sent to the corresponding author.

Acknowledgments

We thank Katia Rodewald for SEM, as well as Alexander Urstöger and Michael Schuster for ICP-MS, and Johanna Haimerl for helpful discussions. Ladawan Pukdeejorhor’s and Johanna Haimerl’s help in proof reading is greatly appreciated.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. IEA. World Energy Outlook 2019; IEA: Paris, France, 2019. [Google Scholar]
  2. Kumaravel, V.; Bartlett, J.; Pillai, S.C. Photoelectrochemical Conversion of Carbon Dioxide (CO2) into Fuels and Value-Added Products. ACS Energy Lett. 2020, 5, 486–519. [Google Scholar] [CrossRef] [Green Version]
  3. Dalle, K.E.; Warnan, J.; Leung, J.J.; Reuillard, B.; Karmel, I.S.; Reisner, E. Electro- and Solar-Driven Fuel Synthesis with First Row Transition Metal Complexes. Chem. Rev. 2019, 119, 2752–2875. [Google Scholar] [CrossRef]
  4. Sahara, G.; Ishitani, O. Efficient Photocatalysts for CO2 Reduction. Inorg. Chem. 2015, 54, 5096–5104. [Google Scholar] [CrossRef]
  5. Zhang, B.; Sun, L. Artificial Photosynthesis: Opportunities and Challenges of Molecular Catalysts. Chem. Soc. Rev. 2019, 48, 2216–2264. [Google Scholar] [CrossRef] [Green Version]
  6. Willkomm, J.; Orchard, K.L.; Reynal, A.; Pastor, E.; Durrant, J.R.; Reisner, E. Dye-sensitised semiconductors modified with molecular catalysts for light-driven H2 production. Chem. Soc. Rev. 2016, 45, 9–23. [Google Scholar] [CrossRef] [Green Version]
  7. Hagfeldt, A.; Boschloo, G.; Sun, L.; Kloo, L.; Pettersson, H. Dye-sensitized solar cells. Chem. Rev. 2010, 110, 6595–6663. [Google Scholar] [CrossRef]
  8. Fabian, D.M.; Hu, S.; Singh, N.; Houle, F.A.; Hisatomi, T.; Domen, K.; Osterloh, F.E.; Ardo, S. Particle suspension reactors and materials for solar-driven water splitting. Energy Environ. Sci. 2015, 8, 2825–2850. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, Q.; Domen, K. Particulate Photocatalysts for Light-Driven Water Splitting: Mechanisms, Challenges, and Design Strategies. Chem. Rev. 2020, 120, 919–985. [Google Scholar] [CrossRef]
  10. Stanley, P.M.; Haimerl, J.; Thomas, C.; Urstoeger, A.; Schuster, M.; Shustova, N.B.; Casini, A.; Rieger, B.; Warnan, J.; Fischer, R.A. Host-Guest Interactions in Metal-Organic Framework Isoreticular Series for Molecular Photocatalytic CO2 Reduction. Angew. Chem. Int. Ed. 2021. [Google Scholar] [CrossRef]
  11. Stanley, P.M.; Thomas, C.; Thyrhaug, E.; Urstoeger, A.; Schuster, M.; Hauer, J.; Rieger, B.; Warnan, J.; Fischer, R.A. Entrapped Molecular Photocatalyst and Photosensitizer in Metal-Organic Framework Nanoreactors for Enhanced Solar CO2 Reduction. ACS Catal. 2021, 11, 871–882. [Google Scholar] [CrossRef]
  12. Wang, X.; Wisser, F.M.; Canivet, J.; Fontecave, M.; Mellot-Draznieks, C. Immobilization of a Full Photosystem in the Large-Pore MIL-101 Metal-Organic Framework for CO2 reduction. ChemSusChem 2018, 11, 3315–3322. [Google Scholar] [CrossRef]
  13. Stanley, P.M.; Parkulab, M.; Rieger, B.; Warnan, J.; Fischer, R.A. Understanding entrapped molecular photosystem and metal-organic framework synergy for improved solar fuel production. Faraday Discuss. 2021. [Google Scholar] [CrossRef]
  14. Furukawa, H.; Cordova, K.E.; O’Keeffe, M.; Yaghi, O.M. The chemistry and applications of metal-organic frameworks. Science 2013, 341, 1230444. [Google Scholar] [CrossRef] [Green Version]
  15. Leith, G.A.; Martin, C.R.; Mayers, J.M.; Kittikhunnatham, P.; Larsen, R.W.; Shustova, N.B. Confinement-guided photophysics in MOFs, COFs, and cages. Chem. Soc. Rev. 2021. [Google Scholar] [CrossRef]
  16. Hendon, C.H.; Tiana, D.; Walsh, A. Conductive metal-organic frameworks and networks: Fact or fantasy? Phys. Chem. Chem. Phys. 2012, 14, 13120–13132. [Google Scholar] [CrossRef] [Green Version]
  17. Cavka, J.H.; Jakobsen, S.; Olsbye, U.; Guillou, N.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. A new zirconium inorganic building brick forming metal organic frameworks with exceptional stability. J. Am. Chem. Soc. 2008, 130, 13850–13851. [Google Scholar] [CrossRef]
  18. Winarta, J.; Shan, B.; Mcintyre, S.M.; Ye, L.; Wang, C.; Liu, J.; Mu, B. A Decade of UiO-66 Research: A Historic Review of Dynamic Structure, Synthesis Mechanisms, and Characterization Techniques of an Archetypal Metal–Organic Framework. Cryst. Growth Des. 2019, 20, 1347–1362. [Google Scholar] [CrossRef]
  19. Chen, Y.-F.; Tan, L.-L.; Liu, J.-M.; Qin, S.; Xie, Z.-Q.; Huang, J.-F.; Xu, Y.-W.; Xiao, L.-M.; Su, C.-Y. Calix[4]arene based dye-sensitized Pt@UiO-66-NH2 metal-organic framework for efficient visible-light photocatalytic hydrogen production. Appl. Catal. B-Environ. 2017, 206, 426–433. [Google Scholar] [CrossRef]
  20. He, J.; Wang, J.; Chen, Y.; Zhang, J.; Duan, D.; Wang, Y.; Yan, Z. A dye-sensitized Pt@UiO-66(Zr) metal-organic framework for visible-light photocatalytic hydrogen production. Chem. Commun. 2014, 50, 7063–7066. [Google Scholar] [CrossRef]
  21. Hendrickx, K.; Vanpoucke, D.E.P.; Leus, K.; Lejaeghere, K.; van Yperen-De Deyne, A.; van Speybroeck, V.; Van Der Voort, P.; Hemelsoet, K. Understanding Intrinsic Light Absorption Properties of UiO-66 Frameworks: A Combined Theoretical and Experimental Study. Inorg. Chem. 2015, 54, 10701–10710. [Google Scholar] [CrossRef]
  22. Chen, Q.; He, Q.; Lv, M.; Xu, Y.; Yang, H.; Liu, X.; Wei, F. Selective adsorption of cationic dyes by UiO-66-NH2. Appl. Surf. Sci. 2015, 327, 77–85. [Google Scholar] [CrossRef]
  23. Gross, M.A.; Reynal, A.; Durrant, J.R.; Reisner, E. Versatile photocatalytic systems for H2 generation in water based on an efficient DuBois-type nickel catalyst. J. Am. Chem. Soc. 2014, 136, 356–366. [Google Scholar] [CrossRef]
  24. Hawecker, J.; Lehn, J.-M.; Ziessel, R. Efficient Photochemical Reduction of CO2 to CO by Visible Light Irradiation of Systems Containing Re(bipy)(CO)3X or Ru(bipy)32+ – Co2+ Combinations as Homogeneous Catalysts. J. Chem. Soc. Chem. Commun. 1983, 9, 536–538. [Google Scholar] [CrossRef]
  25. Pfennig, B.W.; Chen, P.; Meyer, T.J. Photophysics and Photochemistry of Chromophore−Quencher Assemblies on Glass and Powdered Silica. Inorg. Chem. 1996, 35, 2898–2901. [Google Scholar] [CrossRef]
  26. Ha, E.-G.; Chang, J.-A.; Byun, S.-M.; Pac, C.; Jang, D.-M.; Park, J.; Kang, S.O. High-turnover visible-light photoreduction of CO2 by a Re(I) complex stabilized on dye-sensitized TiO2. Chem. Commun. 2014, 50, 4462–4464. [Google Scholar] [CrossRef]
  27. Won, D.-I.; Lee, J.-S.; Ji, J.-M.; Jung, W.-J.; Son, H.-J.; Pac, C.; Kang, S.O. Highly Robust Hybrid Photocatalyst for Carbon Dioxide Reduction: Tuning and Optimization of Catalytic Activities of Dye/TiO2/Re(I) Organic-Inorganic Ternary Systems. J. Am. Chem. Soc. 2015, 137, 13679–13690. [Google Scholar] [CrossRef]
  28. Windle, C.D.; Pastor, E.; Reynal, A.; Whitwood, A.C.; Vaynzof, Y.; Durrant, J.R.; Perutz, R.N.; Reisner, E. Improving the photocatalytic reduction of CO2 to CO through immobilisation of a molecular Re catalyst on TiO2. Chem. Eur. J. 2015, 21, 3746–3754. [Google Scholar] [CrossRef] [Green Version]
  29. Liu, C.; Dubois, K.D.; Louis, M.E.; Vorushilov, A.S.; Li, G. Photocatalytic CO2 Reduction and Surface Immobilization of a Tricarbonyl Re(I) Compound Modified with Amide Groups. ACS Catal. 2013, 3, 655–662. [Google Scholar] [CrossRef]
  30. Kouva, S.; Honkala, K.; Lefferts, L.; Kanervo, J. Review: Monoclinic zirconia, its surface sites and their interaction with carbon monoxide. Catal. Sci. Technol. 2015, 5, 3473–3490. [Google Scholar] [CrossRef] [Green Version]
  31. Hou, C.-C.; Li, T.-T.; Cao, S.; Chen, Y.; Fu, W.-F. Incorporation of a [Ru(dcbpy)(bpy)2]2+ Photosensitizer and a Pt(dcbpy)Cl2 Catalyst into Metal–Organic Frameworks for Photocatalytic Hydrogen Evolution from Aqueous Solution. J. Mater. Chem. A 2015, 3, 10386–10394. [Google Scholar] [CrossRef]
  32. Sun, D.; Fu, Y.; Liu, W.; Ye, L.; Wang, D.; Yang, L.; Fu, X.; Li, Z. Studies on photocatalytic CO2 reduction over NH2-UiO-66(Zr) and its derivatives: Towards a better understanding of photocatalysis on metal-organic frameworks. Chem. Eur. J. 2013, 19, 14279–14285. [Google Scholar] [CrossRef]
  33. Hou, L.; Wang, L.; Zhang, N.; Xie, Z.; Dong, D. Polymer brushes on metal–organic frameworks by UV-induced photopolymerization. Polym. Chem. 2016, 7, 5828–5834. [Google Scholar] [CrossRef]
  34. Smieja, J.M.; Kubiak, C.P. Re(bipy-tBu)(CO)3Cl-improved Catalytic Activity for Reduction of Carbon Dioxide: IR-spectroelectrochemical and mechanistic studies. Inorg. Chem. 2010, 49, 9283–9289. [Google Scholar] [CrossRef]
  35. Sun, H.; Hoffman, M.Z. Reductive Quenching of the Excited States of Ruthenium(II) Complexes Containing 2,2′-Bipyridine, 2,2′-Bipyrazine, and 2,2′-Bipyrimidine Ligands. J. Phys. Chem. 1994, 98, 11719–11726. [Google Scholar] [CrossRef]
  36. Pellegrin, Y.; Odobel, F. Sacrificial Electron Donor Reagents for Solar Fuel Production. Cr. Chim. 2017, 20, 283–295. [Google Scholar] [CrossRef] [Green Version]
  37. Gholamkhass, B.; Mametsuka, H.; Koike, K.; Tanabe, T.; Furue, M.; Ishitani, O. Architecture of supramolecular metal complexes for photocatalytic CO2 reduction: Ruthenium-rhenium bi- and tetranuclear complexes. Inorg. Chem. 2005, 44, 2326–2336. [Google Scholar] [CrossRef]
  38. Tamaki, Y.; Ishitani, O. Supramolecular Photocatalysts for the Reduction of CO2. ACS Catal. 2017, 7, 3394–3409. [Google Scholar] [CrossRef]
  39. Semrau, A.L.; Stanley, P.M.; Urstoeger, A.; Schuster, M.; Cokoja, M.; Fischer, R.A. Substantial Turnover Frequency Enhancement of MOF Catalysts by Crystallite Downsizing Combined with Surface Anchoring. ACS Catal. 2020, 10, 3203–3211. [Google Scholar] [CrossRef]
  40. Semrau, A.L.; Pujari, S.P.; Stanley, P.M.; Wannapaiboon, S.; Albada, B.; Zuilhof, H.; Fischer, R.A. Selective Positioning of Nanosized Metal–Organic Framework Particles at Patterned Substrate Surfaces. Chem. Mater. 2020, 32, 9954–9963. [Google Scholar] [CrossRef]
  41. Tauc, J.; Grigorovici, R.; Vancu, A. Optical Properties and Electronic Structure of Amorphous Germanium. Phys. Stat. Sol. 1966, 15, 627–637. [Google Scholar] [CrossRef]
  42. Timofeeva, M.N.; Panchenko, V.N.; Jun, J.W.; Hasan, Z.; Matrosova, M.M.; Jhung, S.H. Effects of linker substitution on catalytic properties of porous zirconium terephthalate UiO-66 in acetalization of benzaldehyde with methanol. Appl. Catal. A Gen. 2014, 471, 91–97. [Google Scholar] [CrossRef]
  43. Horti, N.C.; Kamatagi, M.D.; Nataraj, S.K.; Wari, M.N.; Inamdar, S.R. Structural and optical properties of zirconium oxide (ZrO2) nanoparticles: Effect of calcination temperature. Nano Ex. 2020, 1, 10022. [Google Scholar] [CrossRef]
  44. Vlček, A. Ultrafast Excited-State Processes in Re(I) Carbonyl-Diimine Complexes: From Excitation to Photochemistry. In Photophysics of Organometallics; Lees, A.J., Castellano, F.N., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 115–158. ISBN 9783642047282. [Google Scholar]
  45. Tamaki, Y.; Koike, K.; Morimoto, T.; Ishitani, O. Substantial Improvement in the Efficiency and Durability of a Photocatalyst for Carbon Dioxide Reduction Using a Benzoimidazole Derivative as an Electron Donor. J. Catal. 2013, 304, 22–28. [Google Scholar] [CrossRef]
  46. Fujita, E.; Szalda, D.J.; Creutz, C.; Sutin, N. Carbon dioxide activation: Thermodynamics of carbon dioxide binding and the involvement of two cobalt centers in the reduction of carbon dioxide by a cobalt(I) macrocycle. J. Am. Chem. Soc. 1988, 110, 4870–4871. [Google Scholar] [CrossRef]
  47. Meister, S.; Reithmeier, R.O.; Tschurl, M.; Heiz, U.; Rieger, B. Unraveling Side Reactions in the Photocatalytic Reduction of CO2: Evidence for Light-Induced Deactivation Processes in Homogeneous Photocatalysis. ChemCatChem 2015, 7, 690–697. [Google Scholar] [CrossRef]
  48. Orchanian, N.M.; Hong, L.E.; Skrainka, J.A.; Esterhuizen, J.A.; Popov, D.A.; Marinescu, S.C. Surface-Immobilized Conjugated Polymers Incorporating Rhenium Bipyridine Motifs for Electrocatalytic and Photocatalytic CO2 Reduction. ACS Appl. Energy Mater. 2018, 2, 110–123. [Google Scholar] [CrossRef]
  49. Zhang, H.; Li, J.; He, X.; Liu, B. Preparation of a g-C3N4/UiO-66-NH2/CdS Photocatalyst with Enhanced Visible Light Photocatalytic Activity for Tetracycline Degradation. Nanomaterials 2020, 10, 1824. [Google Scholar] [CrossRef]
  50. Stojković, M.; Pašti, I.A. Strain Engineering for Tuning the Photocatalytic Activity of Metal-Organic Frameworks-Theoretical Study of the UiO-66 Case. Catalysts 2021, 11, 264. [Google Scholar] [CrossRef]
  51. Gritsenko, V.A.; Novikov, Y.N.; Perevalov, T.V.; Kruchinin, V.N.; Aliev, V.S.; Gerasimova, A.K.; Erenburg, S.B.; Trubina, S.V.; Kvashnina, K.O.; Prosvirin, I.P.; et al. Nanoscale Potential Fluctuations in Zirconium Oxide and the Flash Memory Based on Electron and Hole Localization. Adv. Electron. Mater. 2018, 4, 1700592. [Google Scholar] [CrossRef]
  52. Neumann, T.; Liu, J.; Wächter, T.; Friederich, P.; Symalla, F.; Welle, A.; Mugnaini, V.; Meded, V.; Zharnikov, M.; Wöll, C.; et al. Superexchange Charge Transport in Loaded Metal Organic Frameworks. ACS Nano 2016, 10, 7085–7093. [Google Scholar] [CrossRef]
  53. Hod, I.; Farha, O.K.; Hupp, J.T. Modulating the rate of charge transport in a metal-organic framework thin film using host:guest chemistry. Chem. Commun. 2016, 52, 1705–1708. [Google Scholar] [CrossRef]
  54. Santiago-Portillo, A.; Baldoví, H.G.; Carbonell, E.; Navalón, S.; Álvaro, M.; García, H.; Ferrer, B. Ruthenium(II) Tris(2,2′-bipyridyl) Complex Incorporated in UiO-67 as Photoredox Catalyst. J. Phys. Chem. C 2018, 122, 29190–29199. [Google Scholar] [CrossRef] [Green Version]
  55. Asbury, J.B.; Wang, Y.-Q.; Hao, E.; Ghosh, H.N.; Lian, T. Evidences of hot excited state electron injection from sensitizer molecules to TiO2 nanocrystalline thin films. Res. Chem. Intermed. 2001, 27, 393–406. [Google Scholar] [CrossRef]
  56. Musho, T.D.; Yasin, A.S. Ab-initio Study of the Electron Mobility in a Functionalized UiO-66 Metal Organic Framework. J. Electron. Mater. 2018, 47, 3692–3700. [Google Scholar] [CrossRef] [Green Version]
  57. Huang, Q.; Ding, J.; Huang, X.; Wei, X.; Wang, W. Experimental and Computational Investigation of CO2 Capture on Mix-ligand Metal-organic Framework UiO-66. Energy Procedia 2017, 105, 4395–4401. [Google Scholar] [CrossRef]
  58. Flaig, R.W.; Osborn Popp, T.M.; Fracaroli, A.M.; Kapustin, E.A.; Kalmutzki, M.J.; Altamimi, R.M.; Fathieh, F.; Reimer, J.A.; Yaghi, O.M. The Chemistry of CO2 Capture in an Amine-Functionalized Metal-Organic Framework under Dry and Humid Conditions. J. Am. Chem. Soc. 2017, 139, 12125–12128. [Google Scholar] [CrossRef] [Green Version]
  59. Jakobsen, J.B.; Rønne, M.H.; Daasbjerg, K.; Skrydstrup, T. Are Amines the Holy Grail for Facilitating CO2 Reduction? Angew. Chem. Int. Ed. 2021, 60, 9174–9179. [Google Scholar] [CrossRef]
  60. Waki, M.; Ikai, M.; Goto, Y.; Maegawa, Y.; Inagaki, S. Re(bpy)(CO)3Cl Immobilized on Bipyridine Organosilica Nanotubes for Photocatalytic CO2 Reduction. Eur. J. Inorg. Chem. 2021, 4, 1259. [Google Scholar] [CrossRef]
Energies 14 04260 g001 550

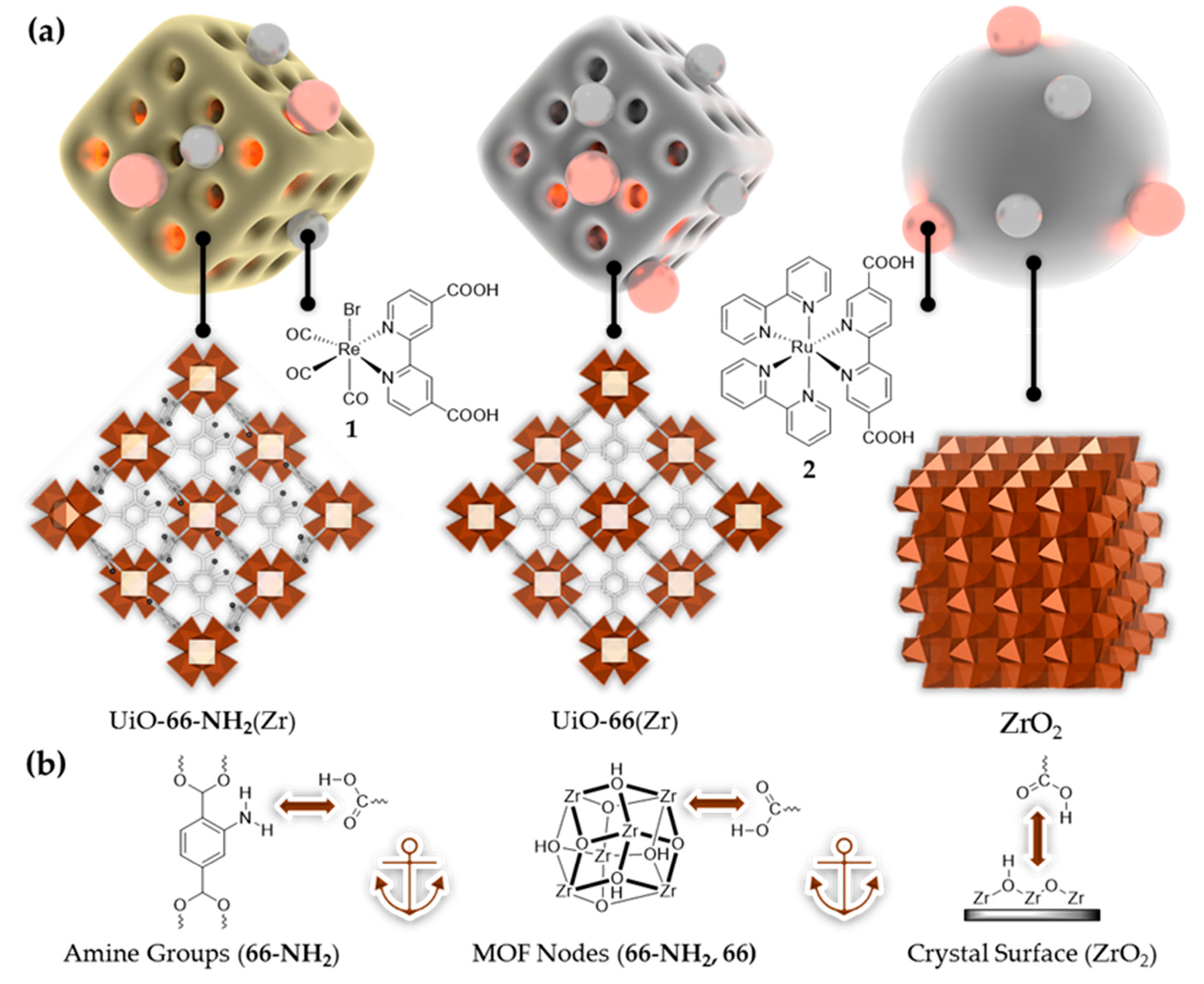

Figure 1. Schematic overview of the studied hosts and molecular complexes. (a) Representation of the porous MOF hosts UiO-66-NH2(Zr) (66-NH2) and UiO-66(Zr) (66), as well as monoclinic ZrO2 nanoparticles. Chemical structures of the molecular photocatalyst fac-ReBr(CO)3(4,4′-dcbpy) (1) and the [Ru(bpy)2(5,5′-dcbpy)]Cl2 photosensitizer (2). (b) Anchoring interactions between the molecular species 1 and 2 to 66, 66-NH2 and ZrO2, respectively.
Figure 1. Schematic overview of the studied hosts and molecular complexes. (a) Representation of the porous MOF hosts UiO-66-NH2(Zr) (66-NH2) and UiO-66(Zr) (66), as well as monoclinic ZrO2 nanoparticles. Chemical structures of the molecular photocatalyst fac-ReBr(CO)3(4,4′-dcbpy) (1) and the [Ru(bpy)2(5,5′-dcbpy)]Cl2 photosensitizer (2). (b) Anchoring interactions between the molecular species 1 and 2 to 66, 66-NH2 and ZrO2, respectively.
Energies 14 04260 g001
Energies 14 04260 g002 550
Figure 2. Characterization of 66-NH2-based (top), 66-based (middle), and ZrO2-based (bottom) assemblies. (a) Powder X-ray diffraction (PXRD) data with calculated reflexes (black) from single crystal data for each material, respectively. ReRu-Host samples are R = 0.5. (b) Representative SEM images for each pristine host. (c) Particle size distributions calculated from SEM images for unmodified host materials. Obtained from Figure 2b and Figures S3–S5.
Figure 2. Characterization of 66-NH2-based (top), 66-based (middle), and ZrO2-based (bottom) assemblies. (a) Powder X-ray diffraction (PXRD) data with calculated reflexes (black) from single crystal data for each material, respectively. ReRu-Host samples are R = 0.5. (b) Representative SEM images for each pristine host. (c) Particle size distributions calculated from SEM images for unmodified host materials. Obtained from Figure 2b and Figures S3–S5.
Energies 14 04260 g002
Energies 14 04260 g003 550
Figure 3. Solid-state UV-Vis and IR data for 66-NH2-based (top), 66-based (middle), and ZrO2-based (bottom) assemblies. (a) Normalized solid-state absorption spectra. (b) ATR-IR spectra, including pure catalyst 1 (black), and highlighting the Re(CO)3 band region between 1850 and 2100 cm−1. ReRu-host samples are R = 0.5.
Figure 3. Solid-state UV-Vis and IR data for 66-NH2-based (top), 66-based (middle), and ZrO2-based (bottom) assemblies. (a) Normalized solid-state absorption spectra. (b) ATR-IR spectra, including pure catalyst 1 (black), and highlighting the Re(CO)3 band region between 1850 and 2100 cm−1. ReRu-host samples are R = 0.5.
Energies 14 04260 g003
Energies 14 04260 g004 550
Figure 4. Photocatalytic CO2 reduction to CO with various host-guest assemblies with differing dye-to-catalyst ratios R and either TEOA or BIH as the electron source. Standard conditions: MeCN, 1.5 mmol SED, room temperature, 2.5 mg sample, irradiation at 450 nm. Homogeneous reference TON with pure 2 and 1 depicted as a horizontal black line with the respective error margins. (a) Experiments with TEOA, final TON attained after 5 h. (b) Experiments with BIH, final TON attained after 10 h.
Figure 4. Photocatalytic CO2 reduction to CO with various host-guest assemblies with differing dye-to-catalyst ratios R and either TEOA or BIH as the electron source. Standard conditions: MeCN, 1.5 mmol SED, room temperature, 2.5 mg sample, irradiation at 450 nm. Homogeneous reference TON with pure 2 and 1 depicted as a horizontal black line with the respective error margins. (a) Experiments with TEOA, final TON attained after 5 h. (b) Experiments with BIH, final TON attained after 10 h.
Energies 14 04260 g004
Energies 14 04260 g005 550

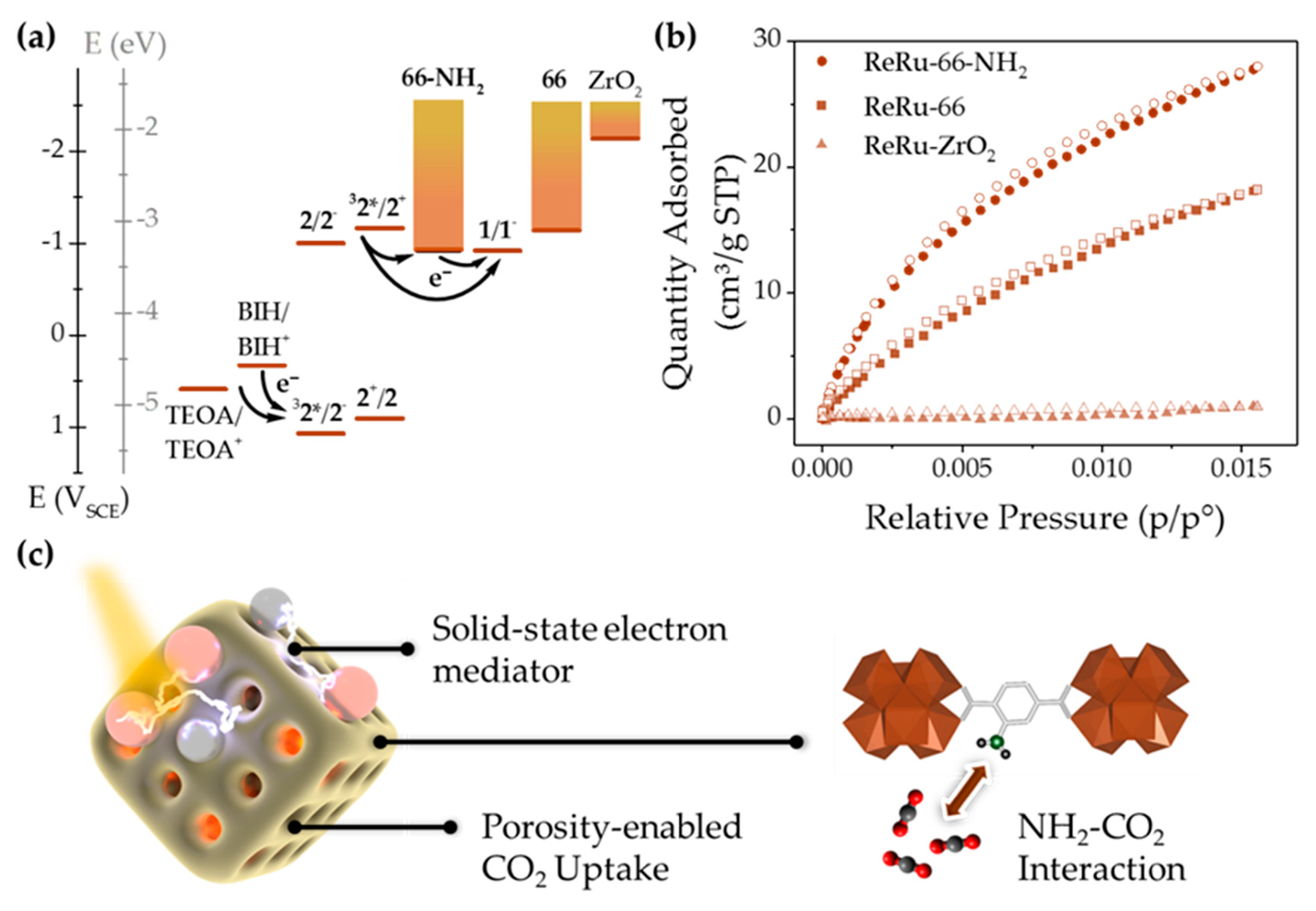

Figure 5. Proposed photocatalysis working principle showing advantages of dye-sensitized MOFs over ZrO2. (a) Electrochemical potential representation of TEOA, BIH, the dye 2, and the catalyst 1 to produce an efficient directional electron transfer. Conduction bands of 66-NH2, 66, and ZrO2, allowing for electron hopping for MOFs. Values given in V referenced to SCE and eV referenced to the vacuum level [49,50,51]. (b) CO2 adsorption isotherms at 298 K for ReRu-66-NH2(R 2.1), ReRu-66(R 2.1), and ReRu-ZrO2(R 2.1). (c) Schematic representation of dye- and catalyst-sensitized 66-NH2 under photocatalytic conditions, yielding increased performance due to electron hopping, intrinsic porosity-based CO2 uptake, and interactions between polar linker NH2 groups and CO2.
