Performance Analysis of a Printed Circuit Heat Exchanger with a Novel Mirror-Symmetric Channel Design
Abstract
:1. Introduction
2. Materials and Methods

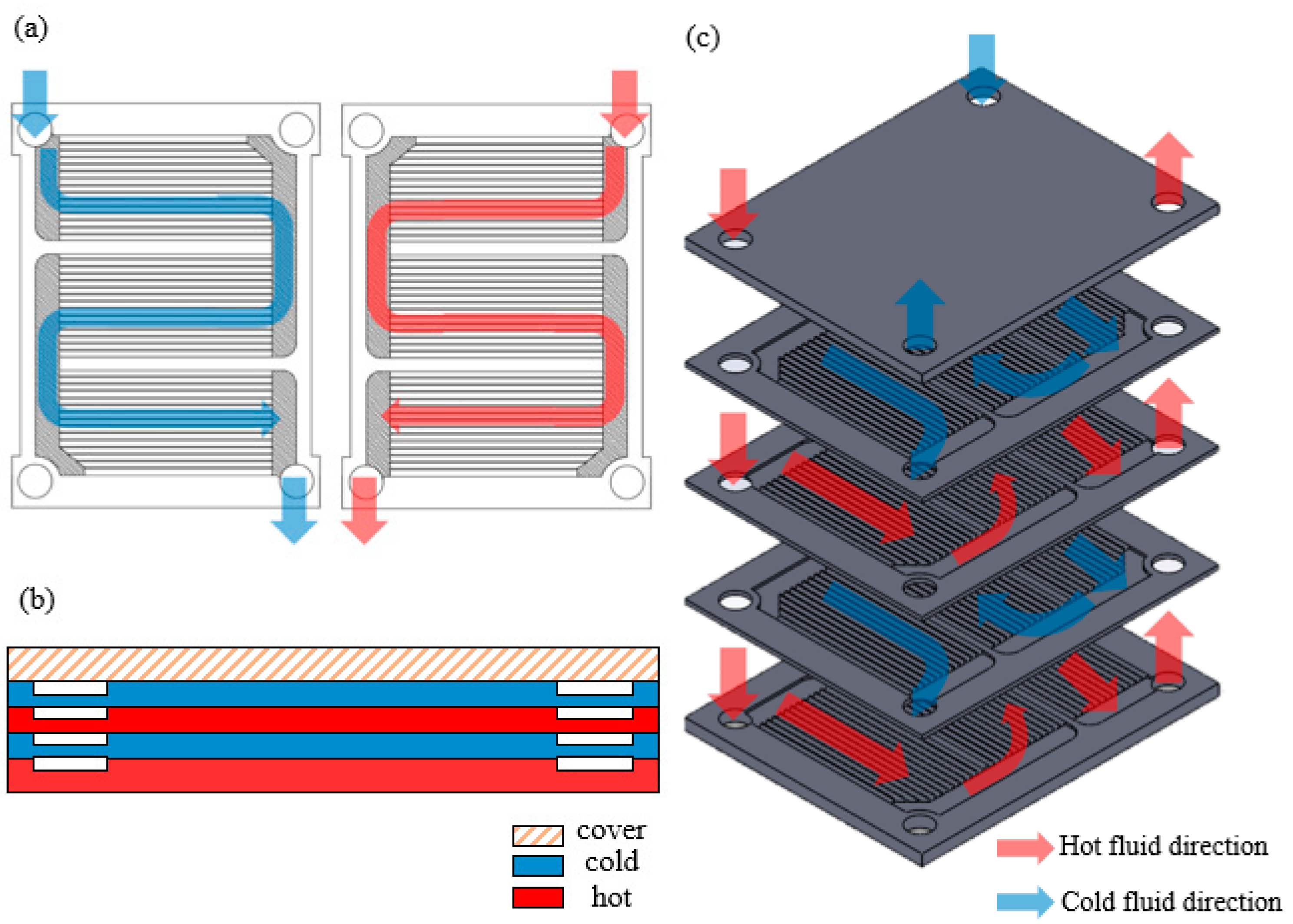

2.1. Design and Manufacture of PCHE
2.2. Experiment Setup
2.3. Operations and Data Analysis of Experimentations
2.4. Uncertainties Analysis
3. Results and Discussion

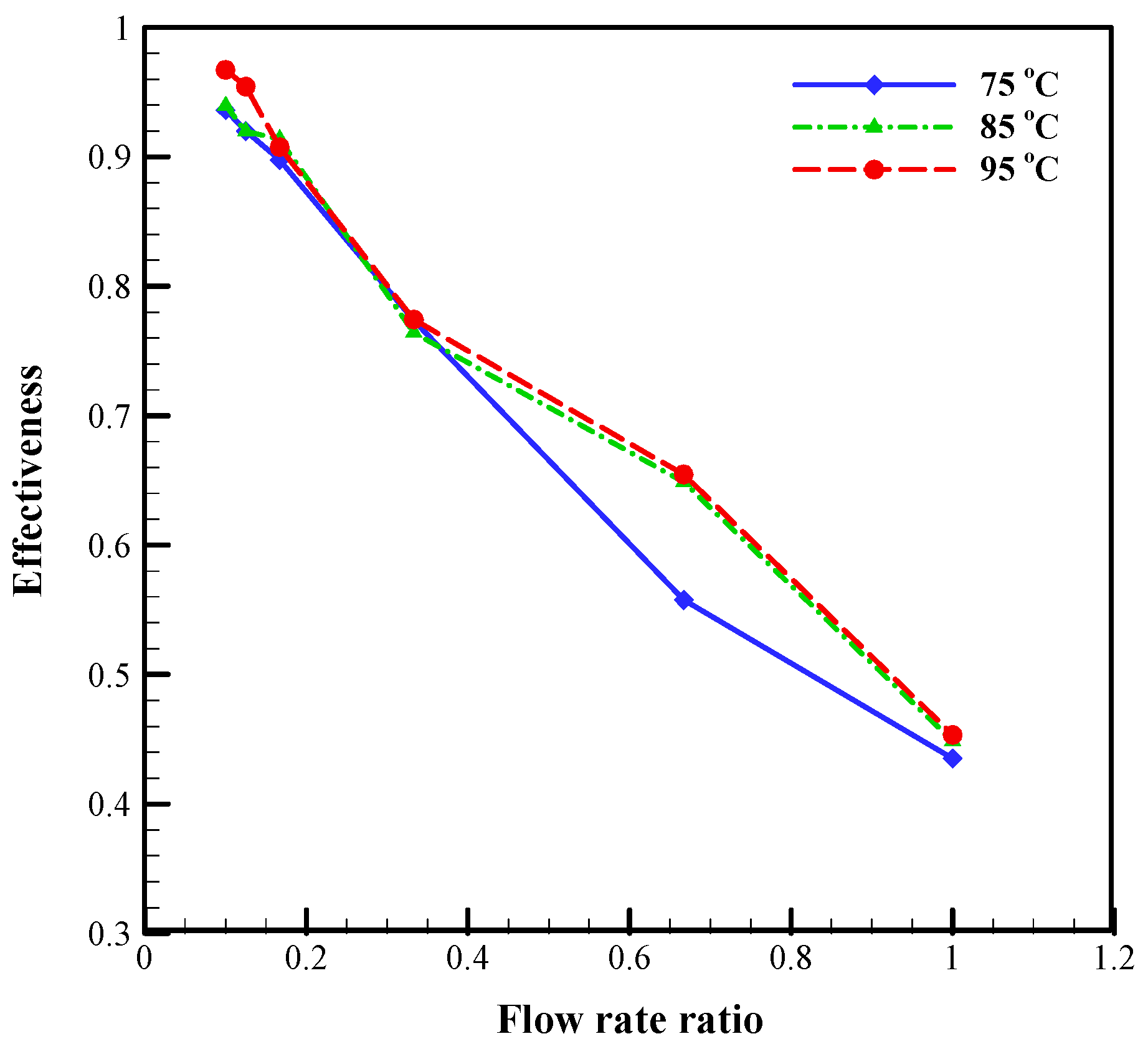

3.1. Effectiveness

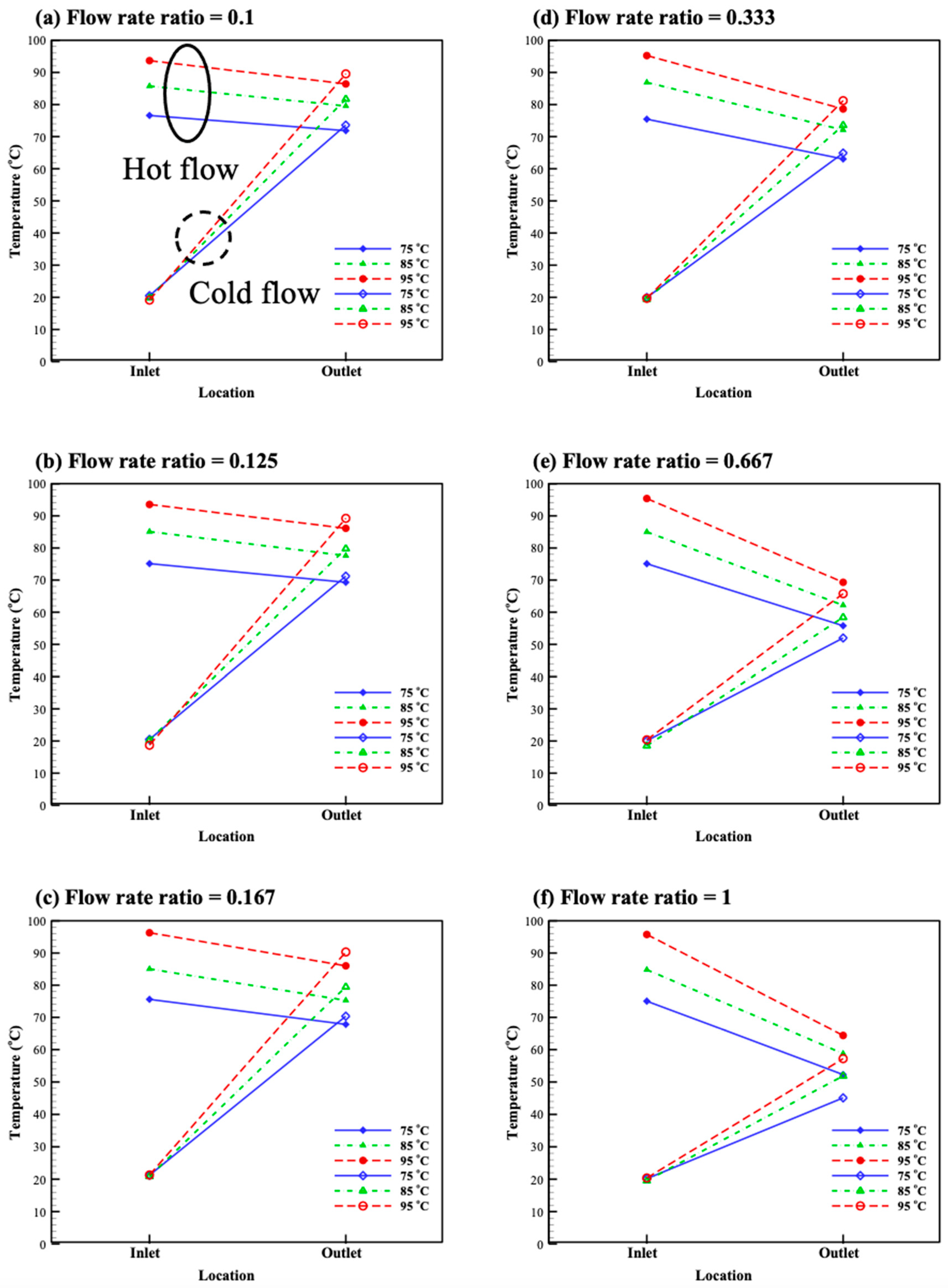

3.2. Temperature Distribution

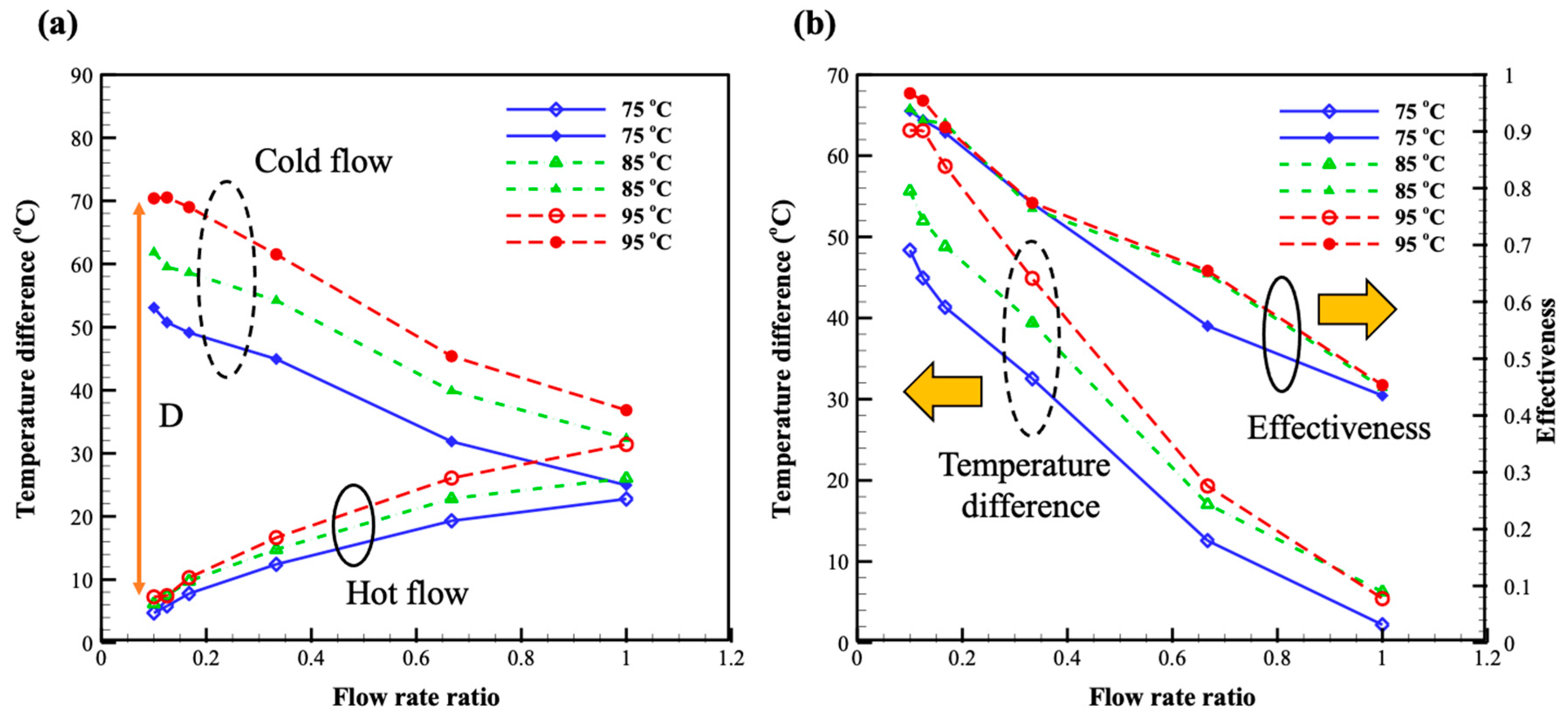

3.3. Temperature Difference and Effectiveness

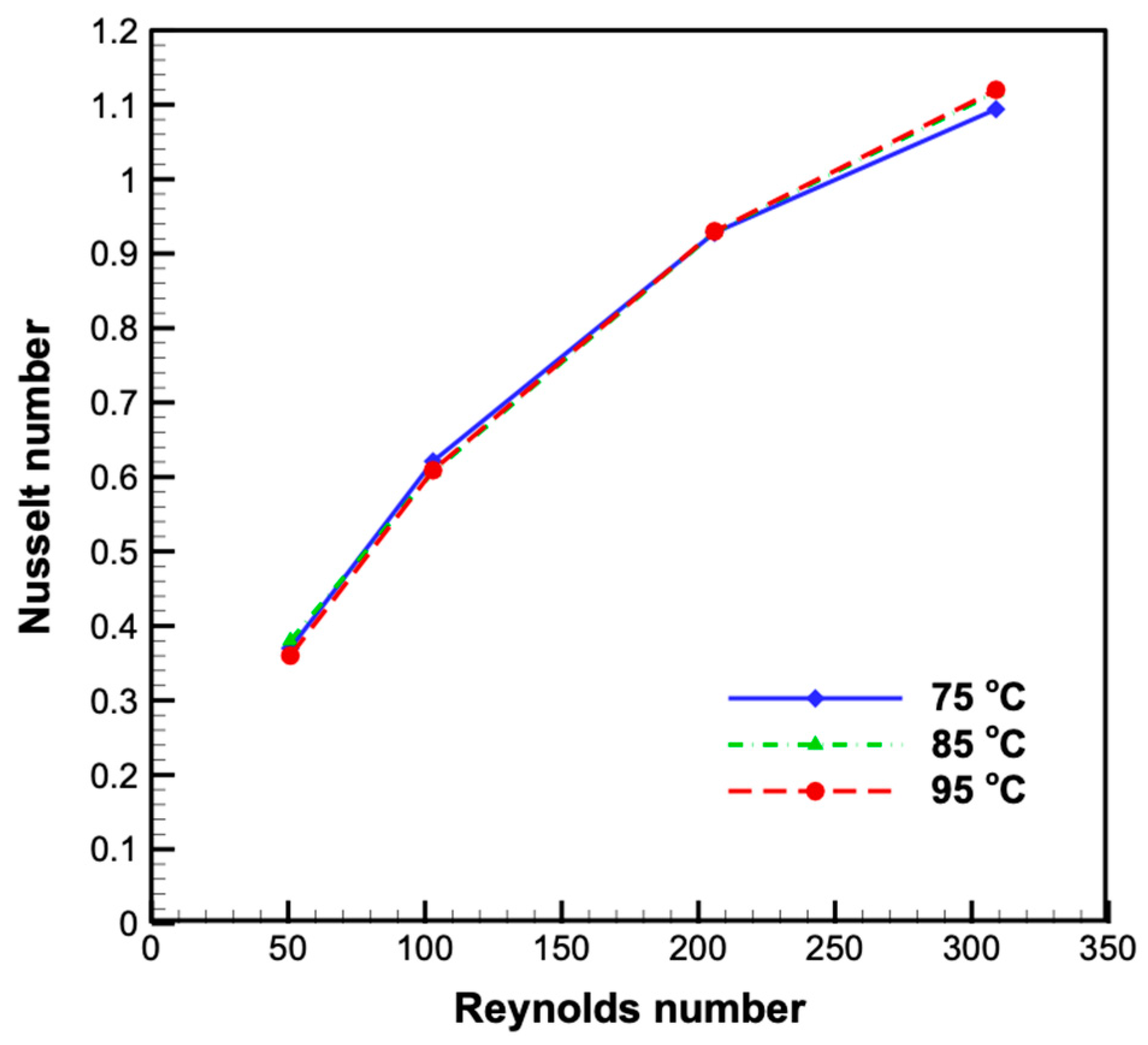

3.4. Characteristics of Heat Transfer Performance

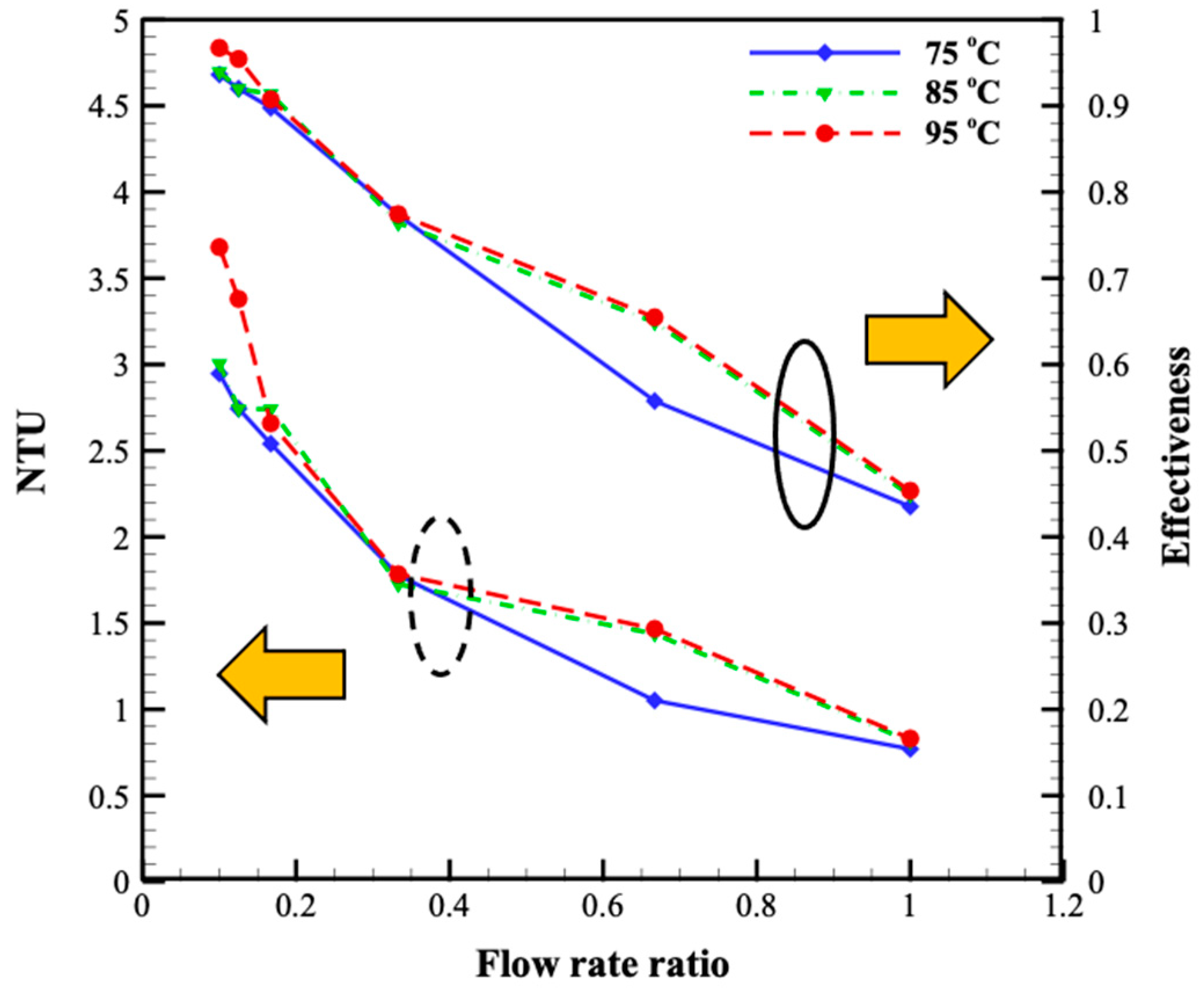

3.5. The Number of Transferred Unit Value (NTU)

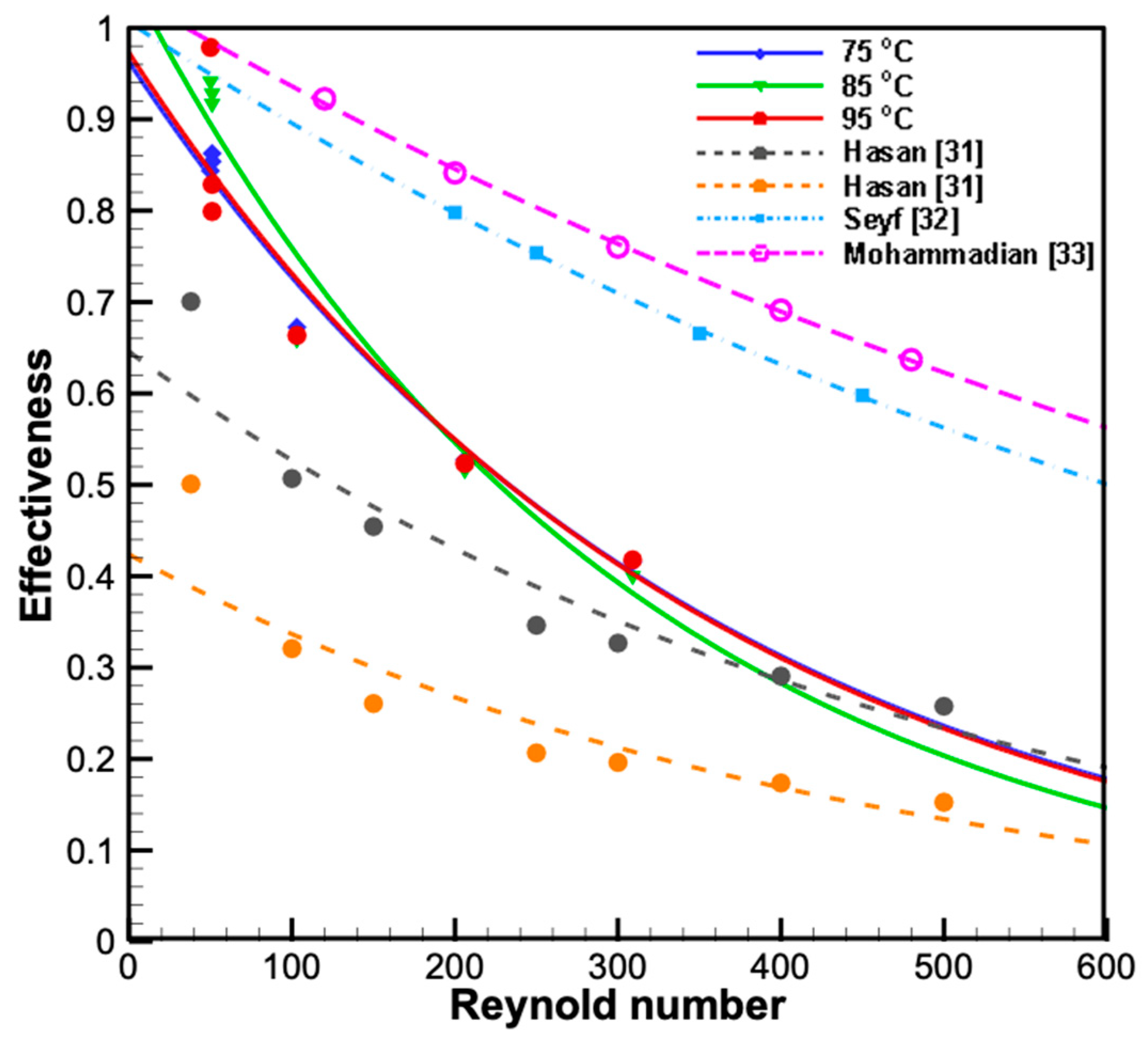

3.6. Comparison to Other Research
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Nomenclature
A | Area of heat transfer (m2) |
Cold work fluid’s heat capacity (J/kg °C) | |
Hot work fluid’s heat capacity (J/kg °C) | |
Smaller of the two heat capacity rates (J/kg °C) | |
Hot fluid’s heat capacity rates (J/kg °C) | |
Hydraulic diameter (m) | |
h | Convective heat transfer coefficient (W/m2⋅°C) |
k | Thermal conductivity (W/m °C) |
Nu | Nusselt number |
Q | Heat transfer rate (W) |
q | Heat flux (W/m2) |
Large of heat flux (W/m2) | |
Re | Reynold number (W/m2) |
T | Temperature (°C) |
Average temperature of hot fluid inlet (°C) | |
Hot fluid inlet temperature (°C) | |
Hot fluid outlet temperature (°C) | |
Cold fluid inlet temperature (°C) | |
Cold fluid outlet temperature (°C) | |
channel surface temperature (°C) | |
fluid temperature in channel (°C) | |
Temperature difference (°C) | |
V | Velocity (m/s) |
Mass flow (kg/s) | |
Greek letters | |
Effectiveness | |
Viscosity (Pa⋅s) | |
Density (kg/m3) | |
Subscripts | |
C | Cold fluid |
H | Hot fluid |
in | Inlet |
out | Outlet |
References
- Papapetrou, M.; Kosmadakis, G.; Cipollina, A.; La Commare, U.; Micale, G. Industrial waste heat: Estimation of the technically available resource in the EU per industrial sector, temperature level and country. Appl. Therm. Eng. 2018, 138, 207–216. [Google Scholar] [CrossRef]
- Hung, T.C.; Shai, T.Y.; Wang, S.K. A review of organic Rankine cycles (ORCs) for the recovery of low-grade waste heat. Energy 1997, 22, 661–667. [Google Scholar] [CrossRef]
- Zhou, N.J.; Wang, X.Y.; Chen, Z.; Wang, Z.Q. Experimental study on Organic Rankine Cycle for waste heat recovery from low-temperature flue gas. Energy 2013, 55, 216–225. [Google Scholar] [CrossRef]
- Xu, Z.Y.; Wang, R.Z.; Yang, C. Perspectives for low-temperature waste heat recovery. Energy 2019, 176, 1037–1043. [Google Scholar] [CrossRef]
- Baik, S.; Kim, S.G.; Lee, J.; Lee, J.I. Study on CO2–Water printed circuit heat exchanger performance operating under various CO2 phases for S-CO2 power cycle application. Appl. Therm. Eng. 2017, 113, 1536–1546. [Google Scholar] [CrossRef]
- Shi, H.-Y.; Li, M.-J.; Wang, W.-Q.; Qiu, Y.; Tao, W.-Q. Heat transfer and friction of molten salt and supercritical CO2 flowing in an airfoil channel of a printed circuit heat exchanger. Int. J. Heat Mass Transf. 2020, 150, 119006. [Google Scholar] [CrossRef]
- Orr, B.; Akbarzadeh, A.; Mochizuki, M.; Singh, R. A review of car waste heat recovery systems utilising thermoelectric generators and heat pipes. Appl. Therm. Eng. 2016, 101, 490–495. [Google Scholar] [CrossRef]
- Shen, Z.G.; Tian, L.L.; Liu, X. Automotive exhaust thermoelectric generators: Current status, challenges and future prospects. Energy Convers. Manag. 2019, 195, 1138–1173. [Google Scholar] [CrossRef]
- Thulukkanam, K. Heat Exchanger Design Handbook; CRC Press: Boca Raton, FL, USA, 2013. [Google Scholar]
- Han, D.H.; Lee, K.-J. Single-phase heat transfer and flow characteristics of micro-fin tubes. Appl. Therm. Eng. 2005, 25, 1657–1669. [Google Scholar] [CrossRef]
- Hosseini, R.; Hosseini-Ghaffar, A.; Soltani, M. Experimental determination of shell side heat transfer coefficient and pressure drop for an oil cooler shell-and-tube heat exchanger with three different tube bundles. Appl. Therm. Eng. 2007, 27, 1001–1008. [Google Scholar] [CrossRef]
- Southall, D.; Dewson, S.J. Innovative compact heat exchangers. Group 2010. 226, (212.6), 583.0. Available online: https://www.heatric.com/app/uploads/2018/04/Innovative-compact-heat-exchangers.pdf (accessed on 13 July 2021).
- Khan, M.G.; Fartaj, A. A review on microchannel heat exchangers and potential applications. Int. J. Energy Res. 2011, 35, 553–582. [Google Scholar] [CrossRef]
- Son, S.; Lee, Y.; Lee, J.I. Development of an advanced printed circuit heat exchanger analysis code for realistic flow path configurations near header regions. Int. J. Heat Mass Transf. 2015, 89, 242–250. [Google Scholar] [CrossRef]
- Gkountas, A.A.; Stamatelos, A.M.; Kalfas, A.I. Recuperators investigation for high temperature supercritical carbon dioxide power generation cycles. Appl. Therm. Eng. 2017, 125, 1094–1102. [Google Scholar] [CrossRef]
- Zhang, H.; Guo, J.; Cui, X.; Zhou, J.; Huai, X.; Zhang, H.; Cheng, K.; Han, Z. Experimental and numerical investigations of thermal-hydraulic characteristics in a novel airfoil fin heat exchanger. Int. J. Heat Mass Transf. 2021, 175, 121333. [Google Scholar] [CrossRef]
- Zhu, C.-Y.; Guo, Y.; Yang, H.-Q.; Ding, B.; Duan, X.-Y. Investigation of the flow and heat transfer characteristics of helium gas in printed circuit heat exchangers with asymmetrical airfoil fins. Appl. Therm. Eng. 2021, 186, 116478. [Google Scholar] [CrossRef]
- Hu, H.; Li, J.; Xie, Y.; Chen, Y. Experimental investigation on heat transfer characteristics of flow boiling in zigzag channels of printed circuit heat exchangers. Int. J. Heat Mass Transf. 2021, 165, 120712. [Google Scholar] [CrossRef]
- Gkountas, A.A.; Benos, T.L.; Nikas, K.-S.; Sarris, I.E. Heat transfer improvement by an Al2O3-water nanofluid coolant in printed-circuit heat exchangers of supercritical CO2 Brayton cycle. Therm. Sci. Eng. Prog. 2020, 20, 100694. [Google Scholar] [CrossRef]
- Gkountas, A.A.; Stamatelos, A.M.; Kalfas, A.I. Thermodynamic Modeling and Comparative Analysis of Supercritical Carbon Dioxide Brayton Cycle. ASME Turbo Expo 2017: Turbomachinery Technical Conference and Exposition, Charlotte, NC, USA, 26–30 June 2017; Available online: https://asmedigitalcollection.asme.org/GT/proceedings-abstract/GT2017/V003T06A017/242325 (accessed on 13 July 2021).
- Chen, M.; Sun, X.; Christensen, R.N.; Shi, S.; Skavdahl, I.; Utgikar, V.; Sabharwall, P. Experimental and numerical study of a printed circuit heat exchanger. Ann. Nucl. Energy 2016, 97, 221–231. [Google Scholar] [CrossRef] [Green Version]
- Kim, I.H.; No, H.C. Thermal–hydraulic physical models for a Printed Circuit Heat Exchanger covering He, He–CO2 mixture, and water fluids using experimental data and CFD. Exp. Therm. Fluid Sci. 2013, 48, 213–221. [Google Scholar] [CrossRef]
- Seo, J.-W.; Kim, Y.-H.; Kim, D.; Choi, Y.-D.; Lee, K.-J. Heat Transfer and Pressure Drop Characteristics in Straight Microchannel of Printed Circuit Heat Exchangers. Entropy 2015, 17, 3438–3457. [Google Scholar] [CrossRef]
- Meshram, A.; Jaiswal, A.K.; Khivsara, S.D.; Ortega, J.D.; Ho, C.; Bapat, R.; Dutta, P. Modeling and analysis of a printed circuit heat exchanger for supercritical CO2 power cycle applications. Appl. Therm. Eng. 2016, 109, 861–870. [Google Scholar] [CrossRef] [Green Version]
- Chen, M.; Sun, X.; Christensen, R.N.; Skavdahl, I.; Utgikar, V.; Sabharwall, P. Dynamic behavior of a high-temperature printed circuit heat exchanger: Numerical modeling and experimental investigation. Appl. Therm. Eng. 2018, 135, 246–256. [Google Scholar] [CrossRef]
- Yoon, S.-J.; O’Brien, J.; Chen, M.; Sabharwall, P.; Sun, X. Development and validation of Nusselt number and friction factor correlations for laminar flow in semi-circular zigzag channel of printed circuit heat exchanger. Appl. Therm. Eng. 2017, 123, 1327–1344. [Google Scholar] [CrossRef]
- Gkountas, A.A.; Benos, L.T.; Sofiadis, G.N.; Sarris, I.E. A printed-circuit heat exchanger consideration by exploiting an Al2O3-water nanofluid: Effect of the nanoparticles interfacial layer on heat transfer. Therm. Sci. Eng. Prog. 2021, 22, 100818. [Google Scholar] [CrossRef]
- Xu, H.; Duan, C.; Ding, H.; Li, W.; Zhang, Y.; Hong, G.; Gong, H. The optimization for the straight-channel PCHE size for supercritical CO2 Brayton cycle. Nucl. Eng. Technol. 2021, 53, 1786–1795. [Google Scholar] [CrossRef]
- Allen, B.; Gosselin, L. Optimal geometry and flow arrangement for minimizing the cost of shell-and-tube condensers. Int. J. Energy Res. 2008, 32, 958–969. [Google Scholar] [CrossRef]
- Kim, W.; Baik, Y.-J.; Jeon, S.; Jeon, D.; Byon, C. A mathematical correlation for predicting the thermal performance of cross, parallel, and counterflow PCHEs. Int. J. Heat Mass Transf. 2017, 106, 1294–1302. [Google Scholar] [CrossRef]
- Cowell, T. A general method for the comparison of compact heat transfer surfaces. J. Heat Transf. 1990, 112, 288–294. [Google Scholar] [CrossRef]
- Figley, J.; Sun, X.; Mylavarapu, S.K.; Hajek, B. Numerical study on thermal hydraulic performance of a Printed Circuit Heat Exchanger. Prog. Nucl. Energy 2013, 68, 89–96. [Google Scholar] [CrossRef]
- San, J.-Y.; Lin, G.-S.; Pai, K.-L. Performance of a serpentine heat exchanger: Part I—Effectiveness and heat transfer characteristics. Appl. Therm. Eng. 2009, 29, 3081–3087. [Google Scholar] [CrossRef]
- Chen, W.-H.; Liao, C.-Y.; Hung, C.-I.; Huang, W.-L. Experimental study on thermoelectric modules for power generation at various operating conditions. Energy 2012, 45, 874–881. [Google Scholar] [CrossRef]
- Attalla, M.; Maghrabie, H.M. Investigation of effectiveness and pumping power of plate heat exchanger with rough surface. Chem. Eng. Sci. 2020, 211, 115277. [Google Scholar] [CrossRef]
- Pourahmad, S.; Pesteei, S.M. Effectiveness-NTU analyses in a double tube heat exchanger equipped with wavy strip considering various angles. Energy Conv. Manag. 2016, 123, 462–469. [Google Scholar] [CrossRef]
- Magazoni, F.C.; Cabezas-Gómez, L.; Alvariño, P.F.; Sáiz-Jabardo, J.M. Closed form relationships of temperature effectiveness of cross-flow heat exchangers. Therm. Sci. Eng. Prog. 2019, 9, 110–120. [Google Scholar] [CrossRef]
- Yang, X.; Wei, L.; Cao, F.; Zhang, L.; Lu, Z.; Meng, X.; Jin, L. A parametric study of laminar convective heat transfer in fractal minichannels with hexagonal fins. Int. J. Energy Res. 2020, 44, 9382–9398. [Google Scholar] [CrossRef]
- Yan, S.-R.; Moria, H.; Pourhedayat, S.; Hashemian, M.; Asaadi, S.; Sadighi Dizaji, H.; Jermsittiparsert, K. A critique of effectiveness concept for heat exchangers; theoretical-experimental study. Int. J. Heat Mass Transf. 2020, 159, 120160. [Google Scholar] [CrossRef]
- Sammeta, H.; Ponnusamy, K.; Majid, M.A.; Dheenathayalan, K. Effectiveness charts for counter flow corrugated plate heat exchanger. Simul. Model. Pract. Theory 2011, 19, 777–784. [Google Scholar] [CrossRef]
- Jeter, S.M. Effectiveness and LMTD correction factor of the cross flow exchanger: A simplified and unified treatment. In Proceedings of the ASEE Southeast Section Conference, Tuscaloosa, AL, USA, 2–4 April 2006; pp. 1–10. [Google Scholar]
- Hasan, M.I.; Rageb, A.A.; Yaghoubi, M.; Homayoni, H. Influence of channel geometry on the performance of a counter flow microchannel heat exchanger. Int. J. Therm. Sci. 2009, 48, 1607–1618. [Google Scholar] [CrossRef]
- Seyf, H.R.; Keshavarz Mohammadian, S. Thermal and hydraulic performance of counterflow microchannel heat exchangers with and without nanofluids. J. Heat Transf. 2011, 133, 081801. [Google Scholar] [CrossRef]
- Mohammadian, S.K.; Reza Seyf, H.; Zhang, Y. Performance augmentation and optimization of aluminum oxide-water nanofluid flow in a two-fluid microchannel heat exchanger. J. Heat Transf. 2014, 136, 021701. [Google Scholar] [CrossRef] [Green Version]
Working Fluid | Shape of Channel | Correlations/Outcome | Reference | |
---|---|---|---|---|
Water | Straight | Nu = (0.01352 ± 0.0094) Re(0.80058 ± 0.0921) | 1200 < Re ≤ 1850 | [1] |
Nu = (3.6361 ± 0.0094) Re(1.2804 ± 0.0273) | 1850 < Re ≤ 2900 | |||
He-water | Zigzag | fP·Re = 15.78 + 0.0557 Re0.82 | 0 < Re < 3000 | [2] |
He-He & He-water | Nu = 4.089 + 0.00497 Re0.95·Pr0.55 | 0 < Re < 3000 0.66 < Pr < 13.41 | ||
He | Zigzag | Nu = 4.089 + 0.00365·Re·Pr0.58; fp·Re = 15.78 + 0.004868 Re0.8416 | 0 < Re < 2500 | [2] |
CO2 & Water | Zigzag | Nu = 0.8405·Re0.5704; f = 0.0758·Re−0.19 | 15,000 < Re < 85,000 | [3] |
Nu = 0.2829·Re0.6686; f = 6.9982·Re−0.766 | 50 < Re < 200 | |||
Water | Straight | Nuh = 0.7203 Re0.1775Pr1/3(μ/μ)0.14; f = 1.3383Re − 0.5003 | 100 < Re < 850 | [4] |
s-CO2 | Straight | Hot fluid (470K < Tb < 630K): Nu = 87.56−0.178()−0.9306; f = 0.0375−0.9639()−2.409 Cold fluid (400K < Tb < 520K): Nu = 85.95−0.171()−0.8912; f = 0.0395−0.9479()−2.239 | 5000 < Re < 32,000 | [5] |
Helium | Zigzag | Nu = (0.05516 ± 0.00160)·Re(0.69195 ± 0.00559) | 1400 ≤ Re ≤ 2200 | [6] |
Nu = (0.09221 ± 0.01397)·Re(0.62507 ± 0.01949) | 2200 ≤ Re ≤ 3558 | |||
Helium | Zigzag | Nu = 5.05 + (0.02 + 0.003)·Re·Pr0.6 Nu = (0.71+0.289) ·Pr0.56 Nu = (0.18+0.457) ·Pr0.58 | 100 ≤ Re ≤ 2000 Pr ≤ 1.0 | [7] |
s-CO2 & Al2O3-water nanofluid | Straight | Nu = | 2300 < Re < 0.5 < Pr < 2000 | [8] |
s-CO2 | Straight | Nu = | 2300 < Re < 5 0.5 < Pr < 2000 | [9] |
Water | S-type | Nu = 0.03428·Re0.6135 | 50 ≤ Re ≤ 310 | This paper |
Equipment Uncertainty | |||
---|---|---|---|
Equipment | Operating or Measuring Range | Resolution | Relative Uncertainly |
Heating system | 70–100 °C | 0.01 °C | 1.8% |
Cooling system | 20 °C | 0.01 °C | 1.7% |
Flowmeter | 10–100 L h−1 | 1 L h−1 | 2.4% |
