Tracing Ancient Carbon Dioxide Emission in the Larderello Area by Means of Historical Boric Acid Production Data

Enel Green Power S.p.a. (EGP) Operation & Maintenance, via Andrea Pisano 120, 56126 Pisa, Italy
RE&E, Rethinking Energy and Environment, 00184 Rome, Italy
Author to whom correspondence should be addressed.
Energies 2021, 14(14), 4101;
Submission received: 10 June 2021 / Revised: 29 June 2021 / Accepted: 30 June 2021 / Published: 7 July 2021
(This article belongs to the Special Issue CO2 Emission in Geothermal Systems and Resources)


The impact of natural CO2 emissions in the development of geothermal areas is presently gaining more attention than ever before. In Italian geothermal fields, a reduction in the natural CO2 emissions has been observed. This paper reviews and provides an analysis of the historical production data of boric acid from 1818 to 1867 used to calculate the natural emissions of CO2 associated with boric acid production that pre-dates the use of geothermal resources for power production, which started in 1913. Boric acid was already being extracted from the natural geothermal fluids in geysers and natural ponds emitting steam and gases. After 1827 the ‘lagone coperto’ (covered lake) equipment optimized production, and the drilling of shallow wells (20–30 m) starting in 1836, which further increased the quantity of its extraction. The first geothermal reservoir was developed at the turn of the century and the Larderello geothermal field began to grow. The use of deep wells, keeping pace with the power production, led to the gradual disappearance of the natural ponds and the ‘lagoni’ (lakes) in the historical area, so the residual natural emission of CO2 is presently restricted to diffuse soil emission. Comparisons of the ancient CO2 emissions with those of the Geothermal Power Plant (GPP) in the Larderello area show that both amounts are in the same order of magnitude, suggesting a balance between the depletion of natural emissions and geothermal activity.

1. Introduction

The question about CO2 emissions from geothermal power plants has become increasingly important as discussions on climate change have become more common. Historically, the emissions from geothermal energy utilization have been considered non-anthropogenic because they are natural source fluxes released into the atmosphere by natural surface venting.
Carbon dioxide is released to the atmosphere naturally from geothermal fields through: soil flux, steam vents, fractures, steam heated mud-pools, and thermal springs. CO2 can also be transported by groundwater flow, absorbing and releasing the carbon dioxide (in the geothermal reservoir) by mineral precipitation or degassing. Although soil emission of CO2 can occur in many ways, the emission rate strongly depends on the characteristics of the field and, thus, may vary greatly from one field to another.
The rate of natural emission can be altered by fluid extraction in the wells used for power production and district heating or, as has occurred in the past in the Larderello area, for boric acid production. In the Larderello area, natural emission from steam and gas vents progressively disappeared while the steam collection by wells grew, suggesting that the rate of natural soil emission depends on the interplay between the natural mechanism of gas emission from the soil and the utilization and extraction of steam in the geothermal field.
The sources commonly recognized as possible origins of CO2 in a hydrothermal system are hydrolysis of carbonate rocks, crustal magmatism, subcrustal magmatism following partial melting of mantel rocks and metamorphic processes [1].
A study by Bertani and Thain (2002) [2] revealed that emission factors vary in a very wide range between 4 and 740 gCO2/kWh, with a weighted average of 122 gCO2/kWh. Recently, figures as high as 1300 gCO2/kWh have been reported by Fridriksson (2017) for Turkish geothermal fields [3], while the emission from fossil fuel (natural gas, coal, oil), ranges from 350 to 1100 gCO2/kWh. In other fields, such as those in the USA, the rate is reported to fluctuate with different resource management, namely the reinjection of separated fluid is found to dilute the resource and lower the emission rate from the GPP. An example from GPP Krafla in Iceland shows how the emission fluctuates according to volcanic action in the specific field, with additional utilization, and also shows how it declines and stabilizes with further operation of the GPP. It is, therefore, safe to assume that, even though the emissions of geothermal power plants originate from natural sources, the utilization of the geothermal field can affect the emission rate. According to present studies, the emission rate from GPPs can be both higher and lower than the natural rate, and, over time, utilization can further lower the emission rate.
The emission factors, usually expressed as CO2 emission per kWh produced by a geothermal plant, or eventually as cumulative emission including methane, defined as the Carbon Dioxide Equivalent, only partially represent the contribution of a power plant to carbon dioxide emissions in the atmosphere; this is because the contribution of surrounding soil emission must be included in the total amount of emission, taking into consideration any depletion observed pre and post geothermal development. In any case, a detailed picture of soil emission in the field is required, and even though the CO2 emissions are found to be of a natural source, it is understood that it is important to measure the natural surface emissions, as well as those coming from the power plant, which is an integral part of the field being monitored.
However, it must be understood that the present knowledge of the impact of geothermal utilization on the carbon cycle is not sufficient to justify a global methodology.
The comparison of natural soil emission in geothermal areas with respect to pre-development soil emission can be an interesting starting point to evaluate eventual depletion effects on soil emission induced by geothermal utilization. On the other hand, most of the geothermally developed areas in operation today have never evaluated the natural soil emission before the initial extraction and utilization of the fluids. In these cases, a pre and post comparison is not possible; however, a correlation between current soil emission of developed geothermal areas and the emission rates in contiguous areas is achievable. In Table 1, a brief overview of soil emission in geothermally developed areas and other volcanic and non-volcanic areas is reported.
The large range in emission rate reported underlines the variability between different volcanic and non-volcanic areas in the world and how they impact on the amounts of gases emitted through the soil. Furthermore, the estimates are conducted by using different methodologies and many include only diffuse degassing, or soil and groundwater emission measurements, which may lead to difficulties in the testing of different areas. However, a few studies on the subject dealing with soil emission in geothermal productive areas do exist and, in some cases, either a qualitative or quantitative comparative testing with plant emission has been performed, e.g., for Iceland [4], Italy [2,14,17], and New Zealand [16]; each of these is a pioneering country for geothermal energy use. In the case of Italy, these studies conclude that central Italy is a significant carbon dioxide emission area, where the metamorphic CO2 emissions are believed to be significant [1].

1.1. CO2 Emissions in Geothermally Developed Areas

The operation of the geothermal reservoir can impact natural emissions. Although no additional CO2 is created where no combustion is involved, a change in the natural equilibrium of the carbon cycle can result in a modification in the rate of CO2 emissions from the soil (Holm, Jennejohn and Blodgett, 2012) [18], (Ármannsson, 2016) [19].
The growing interest in the reduction in anthropic contributions of CO2 through the use of geothermal fields has led to studies in some well-known geothermal areas. In many cases, soil emission decreases has been observed, as in the Italian case. In other cases, some authors have reported increased activity, such as those in Reykjanes, Iceland [4] and Wairakei and Ohaki, New Zealand (Fridriksson, Mateos, Audinet and Orucu, 2016) [20].

1.2. Iceland Case

Ármannsson et al., (2003) [4] reported natural emission and power plant emissions in several areas in an initial attempt to compare the two types of emission. According to their calculations, the Krafla area’s natural emission (Figure 1) corresponds to 200 g m−2 d−1. For the entire area covered by Iceland, the author estimates that the maximum possible CO2 flux from geothermal and volcanic systems to the atmosphere would be about 1.3 × 109 kg/year (148 t/h) (Ármannsson et al., (2005)) [5]. The same author estimated that emissions from the three major geothermal power stations in Iceland correspond to more than 8–16% of the maximum annual total emission estimated, and therefore suggests that geothermal emissions cannot be neglected in Iceland. Observations in Reykjanes and Svartsengi geothermal areas indicate an increase in diffuse emission from the geothermal field after the beginning of power production. In the case of the Svartsengi plant, an increase in the emission factors has been observed due to the formation of a steam cap in the mid-1980s with high concentrations of CO2. After this initial phenomenon, decreasing emissions have been observed as a result of a gradual decrease in the CO2 concentration in the steam cap [4]. In the Krafla geothermal power plant (Figure 1), the CO2 concentrations increased between 1975 and 1984 due to magmatic activity referred to as the Krafla fires. The increased emissions caused by a gas pulse due to magmatic intrusions increased the CO2 content drastically. In 1999, the emission spiked again but that was due to increased power output when a second 30 MW unit was added. Since 2005, the emission has been gradually decreased, which clearly shows that both natural and developing processes can impact changes in emission due to geothermal operations [5,21]. In the Reykjanes field, an analogous increase has been observed and could be due to the field evolution, since the commissioning of the 100 MW plant, in 2006, where the CO2 production from wells has indeed already started a slow decline (Fridriksson, Oladottir, Jonsson and Eyjolfsdottir, 2010) [22]. Other studies in Hengill and Krafla in Iceland indicate similar results where the emission increase is very small and only a negligible amount would be counted as added emissions [19].
It has been assumed that the impact of geothermal power plants may actually be near zero, as the CO2 discharge has been enhanced in the initial phases, which are immediately followed by a long period of relatively low gas output and, thereafter, left to function, permitting a natural equilibrium to be re-established (Holm, Jennejohn and Blodgett, (2012)) [18].
However, not many studies have been conducted with direct measurements of natural emissions, and this information rarely exists for currently operating power plants, as pointed out by, e.g., Ármannson et al., (2005) [5] and Fridriksson et al., (2016) [23].

1.3. New Zealand Case

Werner et al., (2006) [16] conducted a survey on CO2 fluxes from the Rotorua system in New Zealand, calculating a carbon dioxide emission of 620 t/d (26 t/h) in an 8.9 km2 area with a flow rate 69.66 t/d km2, and concluded that while diffuse emissions from the magmatic system could be considered fairly high (1000 t/d), they would, if normalized by land area, be comparable to all other volcanic and geothermal areas worldwide. However, Sheppard and Mroczek (2004) [24] suggest that a significant increase in diffuse CO2 emissions has come about in the Wairakei field in New Zealand due to exploitation, with this being of almost the same order as emissions from power production.

1.4. Italian Case

Bertani and Thain (2002) [2] showed that the natural emission of ‘lagoni’ (a local term used at Larderello for natural water, steam and mud pools derived from the condensation of steam escaping from the very shallow carbonatic, evaporitic geothermal reservoir) and the ‘fumaroles’ have undergone a substantial depletion since the industrial development of the Larderello area began causing the total disappearance of the ‘lagoni’ in 1922 [25]. They estimated that gas discharge from power production in Larderello is balanced by a reduction in natural emissions, and that the overall difference is insignificant.
For the Amiata area, Frondini et al., (2009) [17] showed that a calculated estimate of minimum CO2 emission due to natural soil emission (~14.5 t/h) was slightly higher than the direct measurements (~10.5 t/h), with a difference of approx. 4 t/h for the entire Amiata area. The authors suggest that this is probably caused by geothermal power production, which may have reduced natural emissions.
From the above-mentioned studies we can understand that the emissions can fluctuate substantially due to both natural changes and utilization, but some have speculated that the emissions may decrease over long periods of time as the production of fluid serves to degas the natural reservoir [18]. Very few studies have been conducted to estimate changes in natural emissions due to geothermal development and whether or not emissions from geothermal power plants should be considered natural or anthropogenic depends on the fields involved.

1.5. Depletion and Substitutive Emission

It has become evident that carbon dioxide emissions from volcanic and non-volcanic areas, regardless of whether they host geothermal fields, are part of the global carbon cycle and occur naturally. Obviously, definite conclusions regarding this topic need much more research. Until we can be absolutely certain about the precise nature of geothermal emissions, a field-based approach is advised.
In the Larderello area, a comparison of the current data for the geothermal power plant emissions with respect to ancient surface carbon dioxide emission data is not possible, due to the lack of registered information regarding the direct soil measurements that should have been taken during the initial phases of the utilization of the geothermal steam 200 years ago. Thus, an indirect method has been applied, based on the data of boric acid production, available since the start of industrial development in the Larderello area and its surrounding areas. Furthermore, thanks to some early data available on the steam composition, such as the Non-Condensable Gases (NCG) content and boric acid concentration in the steam, we can calculate steam flow rates and carbon dioxide emission as reported above.
From Bertani’s studies, we are able evaluate the amount of depletion of natural CO2 emission in the Larderello area according to an indirect evaluation of the steam and NCG emission associated with the industrial production of boric acid. The basic idea of this model is that geothermal development can induce a depletion of natural gas emission in the area hosting geothermal wells and plants. The degree of depletion, namely the differences of soil emission rates, expressed as flow rates per unit area (e.g., ton*day/km2), can be figured out by registering the natural emissions in a green field ( a r c h a i c ) and taking note of the same quantities after industrial development ( d e v e l o p e d ):
D e p l e t i o n = a r c h a i c d e v e l o p e d
When the data of a green field are not available, a comparison between developed areas and nearby non-developed areas (areas hosting non-developed fields or areas with already known high rates of CO2 soil emissions, not far from the reference areas and with analogous deep geological structures, in the order of no more than 10–20 km) can be calculated as:
D e p l e t i o n = n e a r b y   a r e a s d e v e l o p e d
In both cases, the degree of depletion represents the amount of natural emission that has been partially or totally replaced by plant emissions, according to a criteria of ‘substitutive emission’ (SE).
In this case, the SE is calculated as:
S E = a c t u a l   p l a n t   e m i s s i o n D e p l e t i o n × g e o t h e r m a l   f i e l d   a r e a
In this context, we have calculated the depletion of natural emission in the Larderello area that had been observed by Bertani et al., (2002) [2], all of which has been historically documented (Figure 2). In particular, all the early activities involved in boric acid extraction, in the area surrounding Larderello, as well as within itself, were conducted by extracting H3BO3 from condensed fluid present in the ‘lagoni’, accumulated in the form of mud or hot water ponds from which large amounts of steam were continuously and naturally emitted (Figure 3).
Some early compositional data from shallow wells were made available at the end of the 19th century (Table 2). Based on the aforementioned data regarding the ratio between the condensable phase and the NCG and boric acid concentration in condensates, the steam and the NCG flow emissions have been calculated by the amount of boric acid extracted in the production area.

1.6. Historical Background on the Larderello Area

Boron is one of the important constituents of geothermal fluids and can be observed as boric acid (H3BO3). Its concentration spans from few to hundreds of mg/L depending on water–rock interaction and potential deep magmatic inputs. Boric acid is naturally contained in Larderello geothermal steam, and due to its high affinity with the liquid phase, it reaches high levels of concentration in steam condensation (up to 600 mg/L).
In Italy, the extraction of boric acid, discovered in 1702 by G. Homberg [26], began at the end of the 18th century, following its discovery in the ‘Lagone Cerchiaio’ in Monterotondo Marittimo, a few kilometers south of Larderello, by Hubert Franz Hoefer [27]. Boric acid was, at the time, known as the sedative Homberg salt [28]. Boric acid was collected in natural ponds containing muds and mixtures (called ‘lagoni’) and from geysers, whilst natural fumaroles were initially used as an energy source to evaporate waters enriched with boric acid (Figure 4 and Figure 5). The ‘lagoni’ where first described by Italian naturalist Giovanni Targioni Tozzetti [29]; their size and dimension ranged from a few meters up to more than 30 m. It is probable that each ‘lagone’ was the result of steam rising from the deep geothermal reservoir and condensing in the very few meters below the surface to form a shallow pool (perched aquifer) hosted in the geothermal system cover, made up of flysch facies containing sandstone and carbonatic rocks.
With the introduction of industrial utilization of geothermal fluids, starting from 1818, the natural ‘lagoni’ were surrounded by a restricting wall and limited in order to enrich the descending saline waters. After the invention of a ‘lagone coperto’ (covered geothermal lake, Figure 6 and Figure 7) in 1827 by Francesco Larderel, the natural saline waters were evaporated by the steam entrapped by the concrete and brick dome-shaped lids, which give the pools the name ‘lagone coperto’. The geothermal fluid was collected and conducted into pipelines to use the steam as a source of energy and boric acid. In this sense, 1827 can be considered a milestone in the history of renewable energy sources, insomuch as it saw the first use of steam as an energy source.
After 1836–1838, some very shallow (20–30 m) [30] hand-driven drilling wells started to enhance the steam output from the natural ‘lagoni’ and their surrounding area. The first deep-drilling system used to reach steam in the first reservoir (200–700 m) started at the beginning of the 20th century, when the electrical use of steam was applied to machinery. With this modern drilling practice, the natural ‘lagoni’ underwent a progressive decline, and the last ‘lagone’ disappeared in 1922. In the Secolo Valley, the core of the Larderello field, also known as Devil’s Valley, no surface manifestation exists anymore. The last of the remaining natural manifestations can still be seen in the Sasso Pisano and Monterotondo areas.
A more detailed overview of the historical development can be found in Burgassi et al. [31].

2. Material and Methods

In the most recent studies, the ancient carbon dioxide emissions have needed to be virtually reconstructed using the indirect method to evaluate emissions ‘within the area’, based on the amount of boric acid collected in each mining site around the Larderello area.
The Tyrrenian margin of Italy is known to be affected by a large CO2 diffuse soil emission [13], linked to its geodynamical setting that gives rise to mantle upwelling, crustal thinning and subsequent extension and normal faulting. All of these characteristics are well highlighted and correlated in a recent paper by Vannoli et al., (2021) [32]. Larderello, one of the world’s rarest superheated, steam-dominated systems, is located in central-western Tuscany, a Tyrrenian region dominated by high heat flow, widespread hydrothermal features, and a large flux of deep CO2 [13]. The site was already known in Etruscan times due to its natural surface manifestations: thermal springs, steaming ground, hot pools, geysers, and fumaroles all related to the geothermal system at depth.
The upper reservoir of the Larderello geothermal field is composed of sedimentary rocks, carbonates, dolomites and anhydrides at shallow depth (from 300 m below ground level), while the second reservoir is hosted in metamorphic rocks such as phyllites, mica schists, schists and gneisses to a depth of 3500 m below ground level and other varying depths within the field. On the basis of δ13C and 3He, isotopic study on wells in Larderello Gherardi et al., (2005) [33] concludes that CO2 (>90%) is mainly of crustal origin, related to the large thermal anomaly affecting the area.
Boric acid is naturally contained in Larderello geothermal fluids, and it is quantitatively transferred into brine during steam condensation. This is the reason why it is still used to evaluate drift (droplets of condensable phase transported out of the cooling tower) through a simple mass balance.
The available data on ancient fluid composition have been used to calculate: (a) the amount of geothermal fluid flowing in the areas, calculated by dividing the yearly production of boric acid by boric acid concentrations in the fluid, (b) the amount of Non-Condensable Gases (NCG), calculated according to the ancient geo-fluid gas content data and, finally, (c) the carbon dioxide emissions, calculated using gas compositional data.
The available data include the annual boric acid ( Q H 3 B O 3 ) production of the ancient Larderello area industries that have been running since 1818 [34,35,36], as well as an analysis of production data up to 1867 [37], but data on boric acid production after 1900 are not available due to the beginning of electric power production and deep drilling [38]. By the value of measured [39] boric acid concentration in steam, [ H 3 B O 3 ] , and the oldest available data of gas content in steam ( G / V ) , the amount of gas and steam natural emission has been calculated. The production and boric acid concentration can be combined to calculate the amount of condensable fluid carrying boric acid with the following criteria:
Q c o n d . = Q H 3 B O 3 [ H 3 B O 3 ]
where Q c o n d . , Q H 3 B O 3 and [ H 3 B O 3 ] are, respectively, the condensable flow rate, the boric acid production and the boric acid concentration in the condensable phase. The total amount of fluid (condensable phase + NCG), Q f l u i d , including the non-condensable gases’ (NCG) flow rate, Q N C G , is then calculated.
Q f l u i d = Q c o n d . 1 1 G / V = Q H 3 B O 3 [ H 3 B O 3 ] 1 1 G / V
Q N C G = Q c o n d . G / V 1 G / V = Q H 3 B O 3 [ H 3 B O 3 ] G / V 1 G / V
The ratio (R) of the geothermal steam fluid rate and boric acid production rate is finally calculated as follows:
R f = Q f l u i d Q H 3 B O 3 = 1 [ H 3 B O 3 ] 1 1 G / V
Furthermore, the analogous ratio R N C G of NCG emissions to boric acid production is calculated using the following equation:
R N C G = Q N C G Q H 3 B O 3 = 1 [ H 3 B O 3 ] G / V 1 G / V
According to the definitions in equations 7 and 8, the Rf and RNCG are dimensionless expressions representing the amount of steam associated with the production of a given amount of the tracer adopted boric acid (annual production rate in the data Table 3, Table 4 and Table 5). In Table 2, the first steam characterization data of boric acid and gas content (G/V) for different wells from ref. [39] are reported and, from the average of the data, the Rf and RNCG values are calculated:
R f = 1153.2
R N C G = 82.9
The boric acid production data from several datasets, reported in Table 3, Table 4 and Table 5, have been used to calculate the flow rates of fluid and NCG in the 1818–1867 period (during which data were available). In particular, Table 3 contains the first list of boric acid production data reported by Francesco De Larderel in reference [34] and the data reported on the suitability of calculations in this study make it a document of very high historical importance.
Similar data have been calculated from Repetti [36] and are reported in Table 4.
While in Table 5 data from Meneghini [37] give a picture of distribution of the production according the existing fabrications in 1867.
In our calculation, we have assumed that the G/V data values—available since the end of the 1800s when Prof. Raffaello Nasini was charged [35] with implementing the early studies started by Payen [40] and the subsequent studies conducted by Meneghini [37], and performed the first complete and extensive chemical and physical characterization of Italian geothermal fluids—are comparable or have declined only slightly since the period covered in the earliest boric acid production data. In any case, the calculated NCG values are underestimated.

3. Results and Discussion

In Table 3, Table 4 and Table 5, the amounts of carbon dioxide in the NCG are reported, representing carbon dioxide emission as the average CO2 content in Italian geothermal fluids, with values ranging between 95 and 98%, calculated from boric acid production. Considering that H3BO3 was extracted from highly emitting ponds (‘lagoni’) and fumaroles, the calculated amounts are under-estimated, neglecting the contribution of the non-industrially exploited ponds and other sources. Moreover, the availability of chemical composition of steam was started only in 1841 by Payen, who first measured (Figure 8) only the gas portion of the vented steam (CO2 57.30%, H2S 1.32%, N2 34.81%, O2 6.57%). Nevertheless, although some contamination of air is present in these first studies, the original data can be corrected by air contamination, leading to a composition of 97.7% CO2 and 2.3%H2S. Data on boric acid concentration in steam and gas content are more recent. Even if the reported data are underestimated, they give an idea of the amount of carbon dioxide that progressively depleted at the surface with the development of the industrial use of steam for boric acid production and, since 1913, for electrical use. The emerging picture of steam and NCG emission calculated in the 1818–1867 period shows steam values continuously increasing during early geothermal development, starting at 6.6 t/h, and increasing to 215 t/h, and eventually reaching 236 t/h in 1867. The rates of NCG emission range between 0.47 t/h and 15.4 t/h up, reaching 17 t/h in 1867, with a ratio of about 7.2 tons of carbon dioxide (NCG) per 100 t/h of naturally emitted steam. These emissions from natural ‘lagoni’ have gradually depleted and are substituted by power plant emission. A comparison with current emission can be performed by considering an average performance of Italian Geothermal Power Plants currently running with turbine efficiencies of 7 to 8 tons of steam per MWh produced. The largest natural NCG emissions flux calculated in this work reaches 17 t/h, carried by 236 t/h of venting steam. This amount of steam is equivalent to about 30–34 MW of a standard geothermal power plant, representing a significant estimation of the degree of substitution of natural emission. Considering that in the Larderello area, a substantial depletion of gas content has been observed after the systematic application of condensate reinjection practice, by reducing the gas content in steam, in some cases to 2% or less, the same 17 t/h of ancient NCG emission would be equivalent to 850 t/h steam or about 106 to 121 MW power production. This calculated amount of steam represents a gas discharge through the soil that has progressively disappeared in the Larderello area (Depletion) during the geothermal development and can be adopted as a proof of the concept of ‘Substitutive Emission’ of a power plant. By this hypothesis, the observed Depletion of the natural soil emission is a consequence of the fluid extraction from the depth and its discharge through the power plant with an equivalent and balanced rate between soil emission depletion and plant NCG discharge to the atmosphere. The data are undoubtedly incomplete due to neglecting the contribution of steam emitted from non-productive sites, the portion of boric acid contained in the vapor phase, lost by discharge into the atmosphere through the ‘lagoni’, and the diffuse emission through the soil that covered very wide areas in Larderello and the surrounding productive areas at the time of the initial geothermal era. Nevertheless, we suggest that the current data can be a valid starting point to evaluate the soil emission depletion, e.g., the effective contribution to the atmosphere of geothermal power plants calculated by subtracting the emission depletion of the natural NCG gas flows from the soil from the actual plant emission rate, which is at the base of the concept of ‘Substitutive Emission’ for Italian Geothermal Power Plants.

4. Conclusions

The CO2 emitted from geothermal plants is part of the natural CO2 cycle and no new CO2 is being produced, as in the case of fossil fuel use as an energetic source. Furthermore, the CO2 is simply released by geothermal plants because it is associated with the geothermal fluids utilized in power generation. Thus, the CO2 is subtracted from the cycle in areas where vigorous surface degassing from natural manifestations took place. In this case, it is possible that the effective contribution to the atmosphere is negligible.
With Larderello being the oldest geothermal field in the world, exploited since the 19th century for boric acid production and for power generation since 1913, quantitative measurements of depletion of naturally occurring surface manifestations carrying carbon dioxide could not be calculated as defined in the above section. Even so, the detailed boric acid production data available since the industrial development of Larderello and surroundings areas, and early compositional data on the steam emitted from the field, has allowed a calculation of steam and NCG emissions in the area, which, although underestimated, are useful in evaluating the depletion rate in terms of steam (and associated NCG) that gradually and completely disappeared.
Our calculations indicate that about 236 t/h of venting steam, equivalent to about 30–34 MW of a standard geothermal power plant with 17 t/h of associated NGC, fed the ancient boric acid production factories, representing a significant estimation of the degree of substitution of natural emissions in the Larderello area.
Finally, the relationship between geothermal development and soil emission is a complex subject, even more so for very ancient fields where measurements before exploitation are missing. In such cases, a proxy, such as boric acid, can be used in order to obtain a rough but realistic estimation of surface emissions prior to development.
NOTE: all the data are expressed with dots (.) as a decimal separator.

Author Contributions

Conceptualization, A.L.; Data curation, M.P. and G.G.; Investigation, R.G. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.


We are grateful to Giorgio Simoni for the historical data provided, and to Laura Cappelli and Alessio Ricciardi for their valuable help in collecting and translating the historical documentation used for the present paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Gianelli, G.; Ruggieri, G.; Mussi, M. Isotopic and fluid inclusion study of hydrothermal and metamorphic carbonates in the Larderello geothermal field and surrounding areas, Italy. Geothermics 1997, 26, 393–417. [Google Scholar] [CrossRef]
  2. Bertain and Thain, IGA News 49. 2002, pp. 1–3. Available online: (accessed on 12 May 2021).
  3. Fridriksson, T.; Merino, A.M.; Orucu, A.Y.; Audinet, P. Greenhouse Gas Emissions from Geothermal Power Production. In Proceedings of the 42nd Workshop on Geothermal Reservoir Engineering—Stanford University, Stanford, CA, USA, 13–15 February 2017. [Google Scholar]
  4. Ármannsson, H. CO2 Emission from Geothermal Plants. In Proceedings of the International Geothermal Conference, Reykjavík, Iceland, 14–17 September 2003. Available online: (accessed on 12 May 2021).
  5. Ármannsson, H.; Fridriksson, T.; Kr*istjánsson, B.R. CO2 emissions from geothermal power plants and natural geothermal activity in Iceland. Geothermics 2005, 34, 286–296. [Google Scholar] [CrossRef]
  6. Chiodini, G.; Frondini, F.; Kerrick, D.; Rogie, J.; Parello, F.; Peruzzi, L.; Zanzari, A. Quantification of deep CO2 fluxes from Central Italy. Examples of carbon balance for regional aquifers and of soil diffuse degassing. Chem. Geol. 1999, 159, 205–222. [Google Scholar] [CrossRef]
  7. Rogie, J.D.; Kerrick, D.M.; Chiodini, G.; Frondini, F. Flux measurements of nonvolcanic CO2 emission from some vents in central Italy. J. Geophys. Res. Space Phys. 2000, 105, 8435–8445. [Google Scholar] [CrossRef]
  8. Kerrick, D.M. Present and past nonanthropogenic CO2 degassing from the solid earth. Rev. Geophys. 2001, 39, 565–585. [Google Scholar] [CrossRef]
  9. Carapezza, M.L.; Barberi, F.; Ranaldi, M.; Ricci, T.; Tarchini, L.; Barrancos, J.; Fischer, C.; Perez, N.; Weber, K.; di Piazza, A.; et al. Diffuse CO2 soil degassing and CO2 and H2S concentrations in air and related hazards at Vulcano Island. J. Volcanol. Geotherm. Res. 2011, 207, 130–144. [Google Scholar] [CrossRef]
  10. Sbrana, A.; Marianelli, P.; Belgiorno, M.; Sbrana, M.; Ciani, V. Natural CO2 degassing in the Mount Amiata volcanic–geothermal area. J. Volcanol. Geotherm. Res. 2020, 397, 106852. [Google Scholar] [CrossRef]
  11. Lenzi, A.; Caprai, A. Emissioni Naturali di Idrogeno Solforato Nell’area Amiantina Parte II: Misure, Proceedings of CODICE ARMONICO Congress: ETS, Editor; Pisa, Italy, 2016; pp. 210–217, ISBN 978-884674638-2. Available online:’area_amiantina_parte_II_misure/links/582c579608ae102f0726c6d6/Emissioni-naturali-di-idrogeno-solforato-nellarea-amiantina-parte-II-misure.pdf (accessed on 12 May 2021).
  12. Chiodini, G.; Cardellini, C.; Caliro, S.; Avino, R.; Donnini, M.; Granieri, D.; Morgantini, N.; Sorrenti, D.; Frondini, F. The hydrothermal system of Bagni San Filippo (Italy): Fluids circulation and CO2 degassing. Ital. J. Geosci. 2020, 139, 383–397. [Google Scholar]
  13. Chiodini, G.; Cardellini, C.; Amato, A.; Boschi, E.; Caliro, S.; Frondini, F.; Ventura, G. Carbon dioxide Earth degassing and seismogenesis in central and southern Italy. Geophys. Res. Lett. 2004, 31. [Google Scholar] [CrossRef]
  14. Gambardella, B.; Cardellini, C.; Chiodini, G.; Frondini, F.; Marini, L.; Ottonello, G.; Zuccolini, M.V. Fluxes of deep CO2 in the volcanic areas of central-southern Italy. J. Volcanol. Geotherm. Res. 2004, 136, 31–52. [Google Scholar] [CrossRef]
  15. Frondini, F.; Caliro, S.; Cardellini, C.; Chiodini, G. Carbon dioxide degassing from tuscany and northern lithium. Glob. Planet. Chang. 2008, 61, 89–102. [Google Scholar] [CrossRef]
  16. Werner, C.; Cardellini, C. Comparison of carbon dioxide emissions with fluid upflow, chemistry, and geologic structures at the Rotorua geothermal system, New Zealand. Geothermics 2006, 35, 221–238. [Google Scholar] [CrossRef]
  17. Frondini, F.; Caliro, S.; Cardellini, C.; Chiodini, G.; Morgantini, N. Carbon dioxide degassing and thermal energy release in the Monte Amiata volcanic-geothermal area (Italy). Appl. Geochem. 2009, 24, 860–875. [Google Scholar] [CrossRef]
  18. Holm, A.; Jennejohn, D.; Blodgett, L. Geothermal Energy and Greenhouse Gas Emissions; Geothermal Energy Association: Washington, DC, USA, 2012; pp. 1–14. [Google Scholar]
  19. Ármannsson, H. Carbon Dioxide Emissions from Icelandic Geothermal Areas. An Overview; Iceland GeoSurvey (ÍSOR): Landsvirkjun, Iceland, 2016. [Google Scholar]
  20. Fridriksson, T.; Mateos, A.; Audinet, P.; Orucu, Y. Greenhouse Gas Emission from Geothermal Power Production; The World Bank: Washington, DC, USA, 2016. [Google Scholar]
  21. Bertani, R. Geothermal power generation in the world 2010–2014 update report. Geothermics 2016, 60, 31–43. [Google Scholar] [CrossRef]
  22. Fridriksson, T.; Oladottir, A.A.; Jonsson, P.; Eyjolfsdottir, E.I. The Response of the Reykjanes Geothermal System to 100 MWe Power Production: Fluid Chemistry and Surface Activity. In Proceedings World Geothermal Congress; Iceland GeoSurvey: Bali, Indonesia, 2010; pp. 1–7. [Google Scholar]
  23. Fridriksson, T.; Mateos, A.; Audinet, P.; Orucu, Y. Greenhouse Gases from Geothermal Power Production. In Energy Sector Management Assistance Program (ESMAP) Technical Report 09/16; World Bank: Washington, DC, USA, 2016; Available online: (accessed on 12 May 2021).
  24. Sheppard, D.; Mroczek, E. Greenhouse gas emissions from the exploitation geothermal systems. IGA News 2004, 55, 11–13. Available online: (accessed on 12 May 2021).
  25. Giovanni Ginori Conti “I progressi scientifico tecnici realizzati a Larderello”; Tipografia Editrice Italiana: Rome, Italy, 1933; p. 48.
  26. Homberg, W. Mémoire de l’Academie Royale des Sciences; Paris, France. 1702, p. 51. Available online: (accessed on 12 May 2021).
  27. Uberto Francesco Hoefer, Memoria Sopra il Sale Sedativo Naturale Della Toscana e del Borace che con Quello si Compone Scoperto da Uberto Francesco Hoefer; Gaetano Cambiagi Stamperia Granducale: Florence, Italy, 1778.
  28. Berzelius, J.J. ‘Traité de Chimie’; Firmin Didot frères Libraires Éditeurs: Parsi, France, 1830. [Google Scholar]
  29. Giovanni Targioni Tozzetti. Viaggi Fatti in Diverse Parti Della Toscana per Osservare le Produzioni Naturali e gli Antichi Monumenti di Essa; Gaetano Cambiagi Stamperia Granducale: Florence, Italy, 1768. [Google Scholar]
  30. Larderello Spa Report. Brevi Note sui Soffioni Boraciferi Toscani e Sulla Loro Utilizzazione Industriale; Arti Grafiche S.p.A.: Bologna, Italy, 1952; p. 10. [Google Scholar]
  31. Burgassi, P.D.; Cataldi, R.; Donati, C. Scientific investigation and technological development in the Larderello region from XVI through XIX centuries. In Proceedings of the World Geothermal Congress, Florence, Italy, 18–31 May 1995. [Google Scholar]
  32. Vannoli, P.; Martinelli, G.; Valensise, G. The Seismotectonic Significance of Geofluids in Italy. Front. Earth Sci. 2021, 9, 25. [Google Scholar] [CrossRef]
  33. Gherardi, F.; Panichi, C.; Gonfiantini, R.; Magro, G.; Scandiffio, G. Isotope systematics of C-bearing gas compounds in the geothermal fluids of Larderello, Italy. Geothermics 2005, 34, 442–470. [Google Scholar] [CrossRef]
  34. De Larderel, F. Notice sur la Production de L‘acide Borique en Toscane par le Comte de Larderel; Typhographie de Jule Sardi: Livorno, Italy, 1858. [Google Scholar]
  35. Nasini, R. I Soffioni Boraficeri e la Industria Dell’acido Borico in Toscana Nota Sulla Produzione dell’acido Borico in Toscana; De Larderel, d.F., Ed.; VI Congresso Internazionale di Chimica Applicata: Roma, Italy, 1906. [Google Scholar]
  36. Repetti, E. Dizionario Geografico Fisico Storico Della Toscana Contenente la Descrizione di Tutti i Luoghi del Granducato, Ducato di Lucca, Garfagnana e Lunigiana; Tofani: Firenze, Italy, 1835. [Google Scholar]
  37. Meneghini, G. Sulla Produzione Dell’acido Borico dei Conti De Lardarel; Tipografia Nistri: Pisa, Italy, 1867. [Google Scholar]
  38. Ginori Conti, P. La Forza Motrice dei Soffioni Boraciferi Della Toscana, sua Utilizzazione ed Applicazione; Stab. Tipografico G. Ramella & C.: Florence, Italy, 1906. [Google Scholar]
  39. Nasini, R. I Soffioni e i Lagoni Della Toscana e la Industria Boracifera, Storia Studi e Ricerche Chimiche e Chimico Fisiche Eseguite Principalmente Nell’ultimo Venticinquennio; Tipografia Editrice Italia: Roma, Italy, 1930. [Google Scholar]
  40. Payen, F.A. Annales de Chimie et de Physique, III; Fortin Massonet Libraires: Paris, France, 1841; pp. 247–257. [Google Scholar]

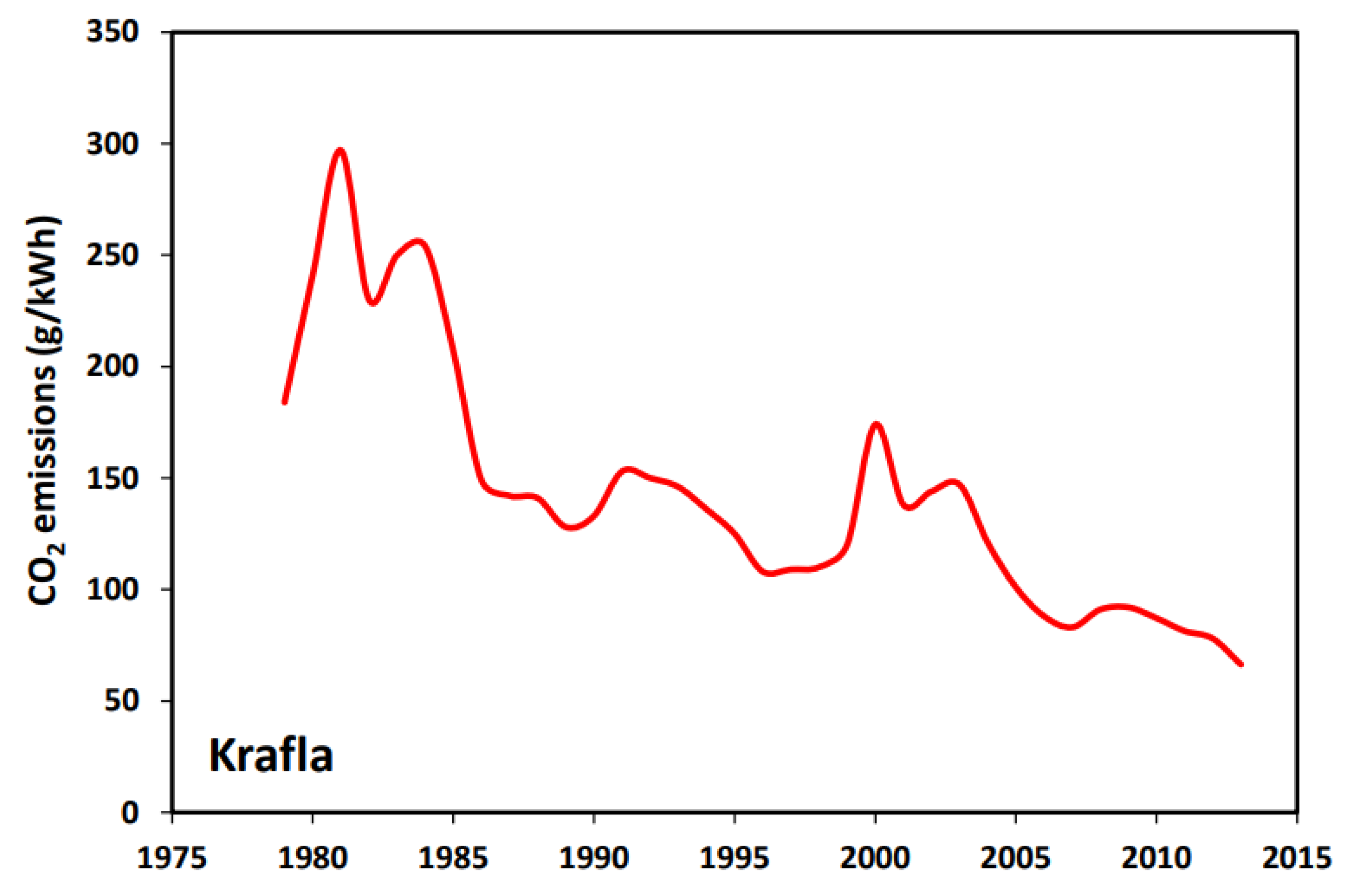

Figure 1. Evolution of CO2 emissions from Krafla geothermal power plant (after Fridriksson et al. [20]).
Figure 1. Evolution of CO2 emissions from Krafla geothermal power plant (after Fridriksson et al. [20]).
Energies 14 04101 g001

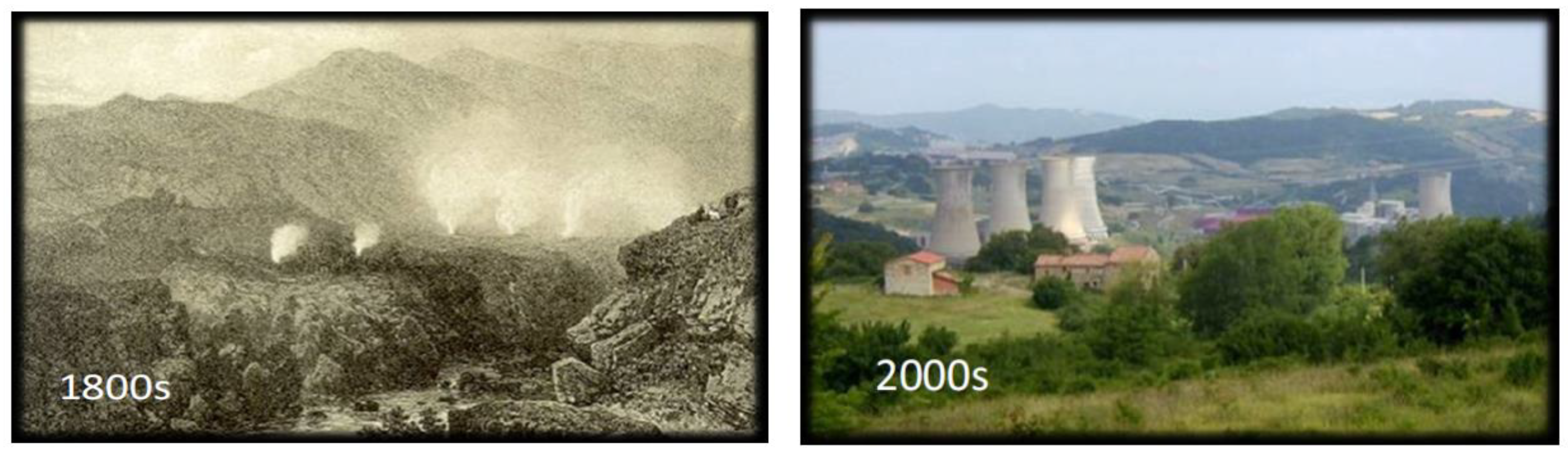

Figure 2. Picture of the Larderello area at different times.
Figure 2. Picture of the Larderello area at different times.
Energies 14 04101 g002
Figure 3. The first described ‘lagone’ called ‘lagone bizzarro’ (bizarre lake—left) from Targioni Tozzetti and a picture of the author (right).
Figure 3. The first described ‘lagone’ called ‘lagone bizzarro’ (bizarre lake—left) from Targioni Tozzetti and a picture of the author (right).
Energies 14 04101 g003

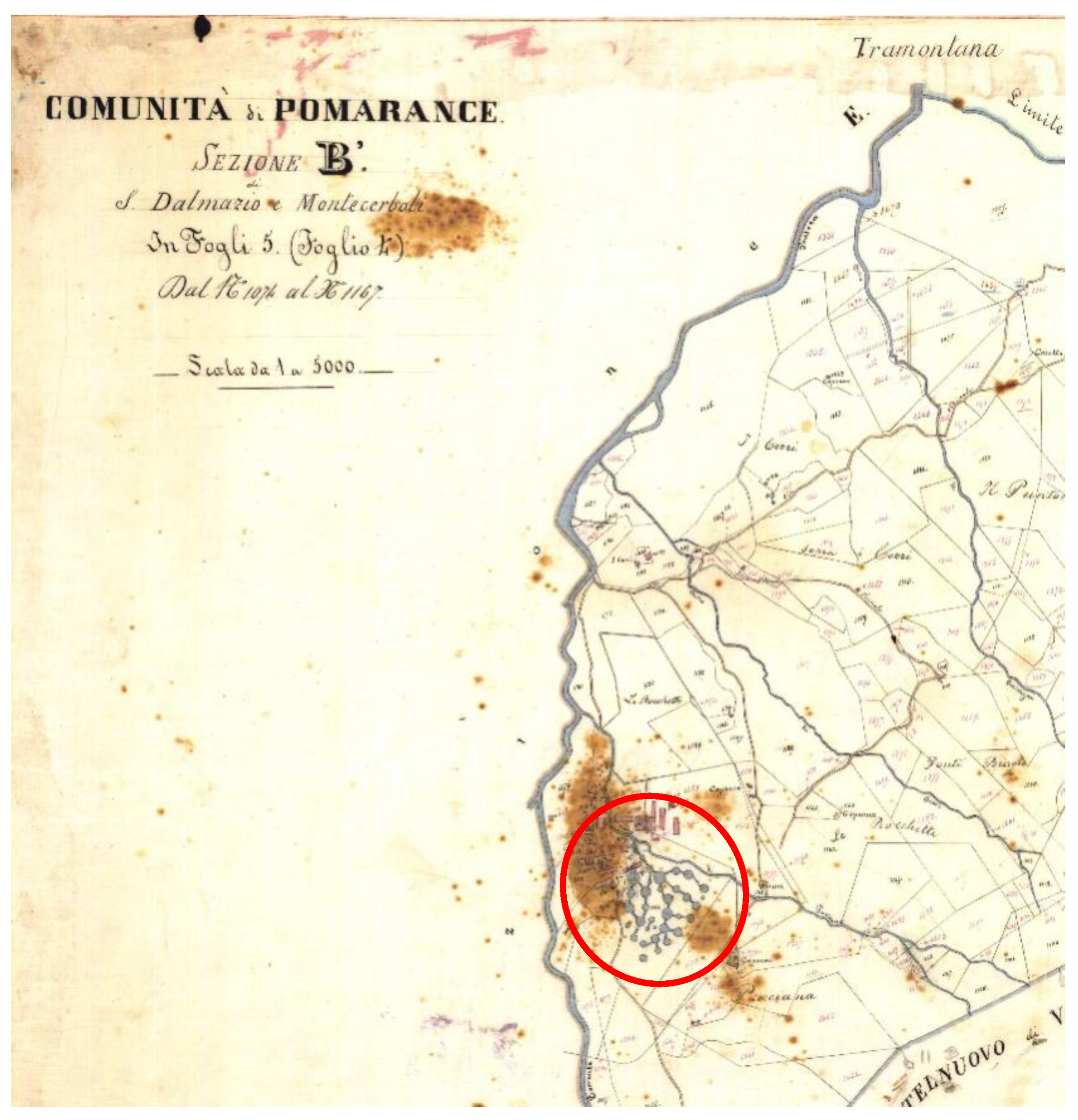

Figure 4. The ancient ‘lagoni’ in Larderello (outlined in circle) from a topographic map dated before 1827.
Figure 4. The ancient ‘lagoni’ in Larderello (outlined in circle) from a topographic map dated before 1827.
Energies 14 04101 g004

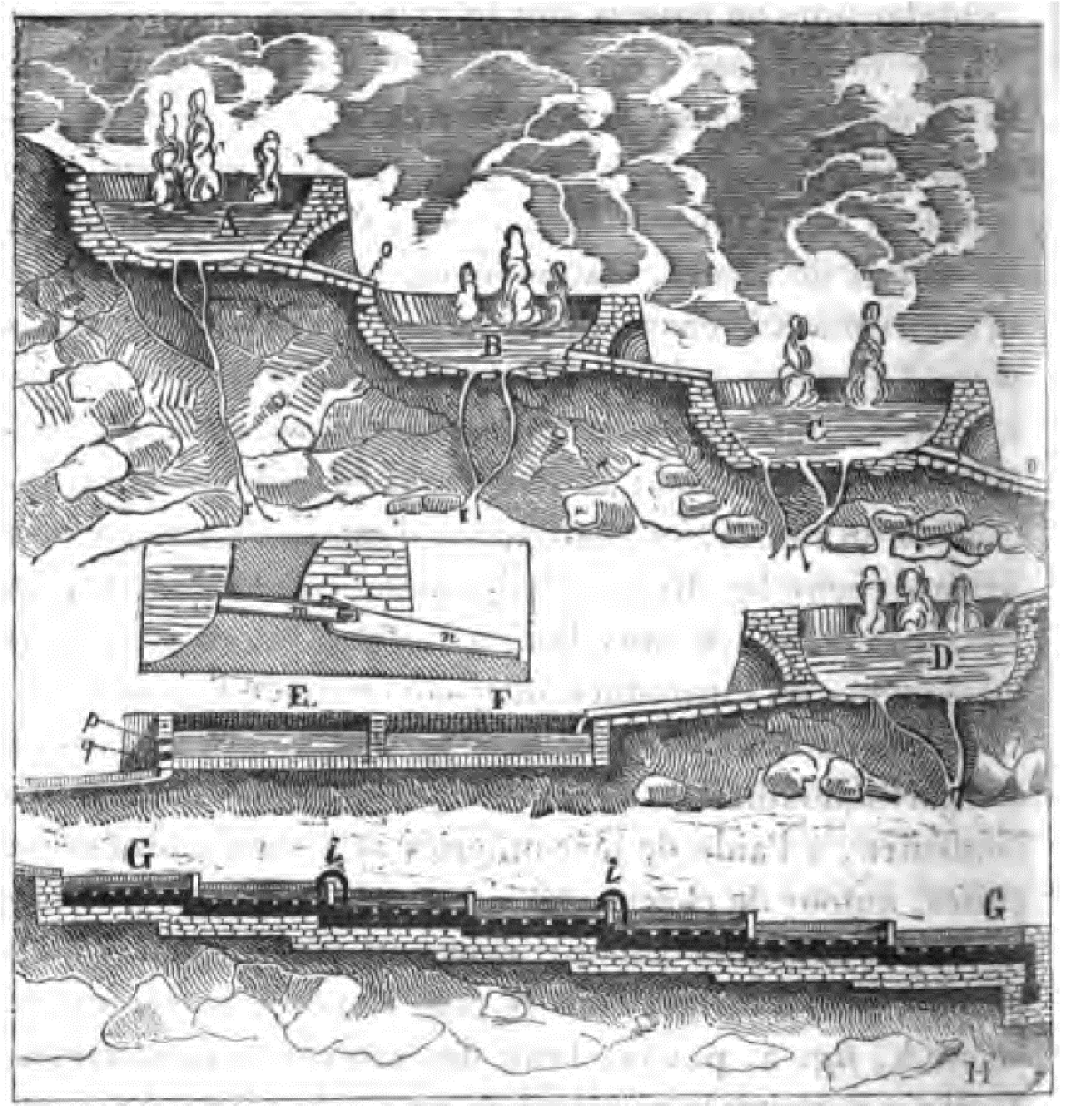

Figure 5. The first ‘lagoni’ (natural lakes and ponds) were limited and connected to allow brines to be collected for further evaporation.
Figure 5. The first ‘lagoni’ (natural lakes and ponds) were limited and connected to allow brines to be collected for further evaporation.
Energies 14 04101 g005

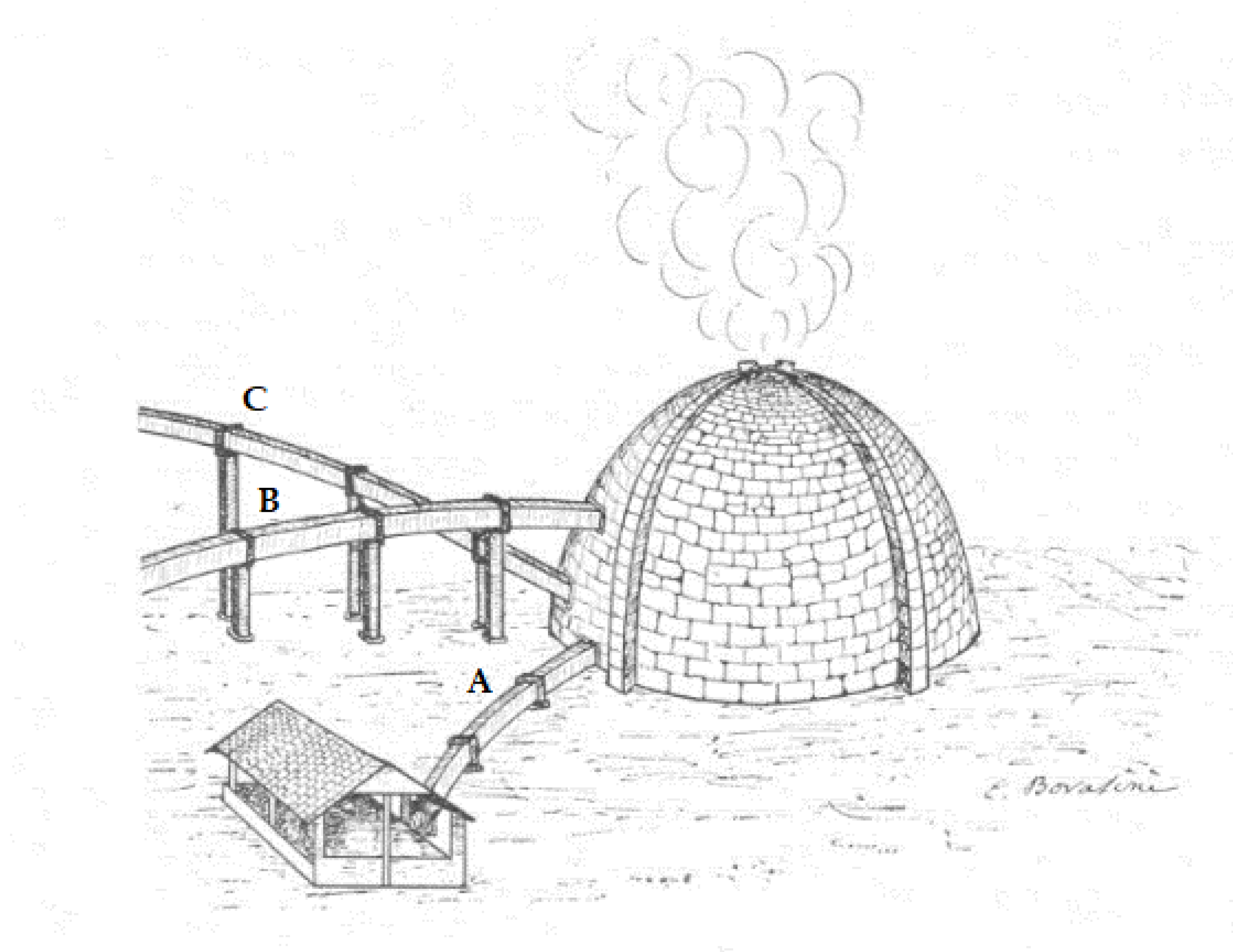

Figure 6. The ‘lagone coperto’ (covered lake) used to collect steam and hot waters containing boric acid. (A) boric water exit; (B) steam exit; (C) hot water inlet.
Figure 6. The ‘lagone coperto’ (covered lake) used to collect steam and hot waters containing boric acid. (A) boric water exit; (B) steam exit; (C) hot water inlet.
Energies 14 04101 g006

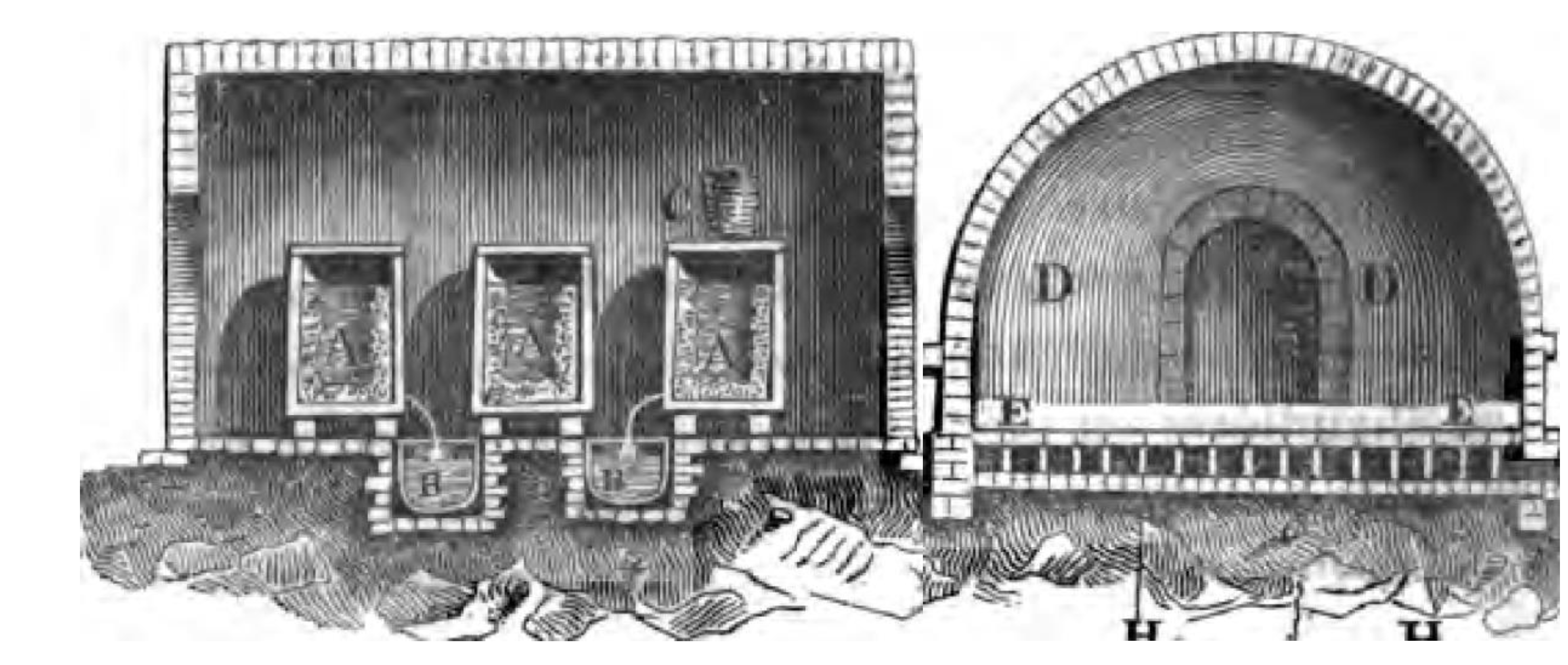

Figure 7. A section of the ‘lagone coperto’ (covered geothermal lake).
Figure 7. A section of the ‘lagone coperto’ (covered geothermal lake).
Energies 14 04101 g007
Figure 8. Francois Anselme Payen and his equipment that was used to perform the first analysis of geothermal gases.
Figure 8. Francois Anselme Payen and his equipment that was used to perform the first analysis of geothermal gases.
Energies 14 04101 g008
Table 1. CO2 emission in main volcanic and non-volcanic areas *.
Table 1. CO2 emission in main volcanic and non-volcanic areas *.
ReferenceArea of StudyData as Reported in the Original PaperData Expressed in t/h
Bertani and Thain 2002 [2]Global ranges for CO2 emission (GPP)4–740 gCO2/KWh
Fridriksson 2017 [3]Turkish geothermal fields400–1300 gCO2/KWh
Emissions of CO2 from fossil fuels350–1100 gCO2/KWh
Armansson 2003 [4]Natural emissions from Krafla, Iceland200 gCO2/d m2
Armansson 2005 [5]Estimated CO2 annual emissions from several geothermal and volcanic systems around the world0.01–1000 Mt/y1.14–144,077
Pantellleria Island0.39 Mt/y44.5
Mid-Ocean Volcanic system30–1000 Mt/y3422–144,077
New Zealand0.44–0.95 Mt/y50.2–108.4
Total estimated emission ranges200–1000 Mt/y22,815–144,077
Frondini et al. 1999 [6]CO2 fluxes from central Italy
Stifone 30
Clitunno 0.15
Rasiglia 0.11
Canino 0.7
Rogie, Kerrick, Chiodini and Frondini 2000 [7]Selvena 0.7
Central Italy acquifers1–3 × 1011 mol/y502–1506
Kerrick 2001 [8]Discharge from focused emission, Central Italy1 × 1010 mol/y50
Carapezza 2011 [9]Volcano Island1350 t/d56.3
Sbrana 2020 [10]Amiata Area (225 km2) emission shallow biogenic + deep origin carbon13,350 t/d556.3
Lenzi Caprai 2016 [11]Emission CO2 from sharp soil venters in Amiata area 6.8
Chiodini 2020 [12]Bagni San Filippo area (1.7 km2), combined soil emission end springs emission910 t/d37.9
Chiodini 2004 [13]Emission deep CO2 in Tuscan Roman Degassing Structure (TRDS) 703
Emission deep CO2 in Campanian Degassing Structure (CDS) 351
Gambardella 2004 [14]Flux of CO2 is released into the atmosphere in the entire anomalous area of Central Italy9.7–17 Mt/y1107–1940
Frondini et al. 2008 [15]Indirect estimation of CO2 flux from regional aquifers (tuscany and northen Latium)0.9 × 1011 mol/y452
Armansson 2005 [5]Maximum possible CO2 flux from geothermal and volcanic systems in Iceland1.3 × 109 kg/y148
Werner et al. 2006 [16]CO2 fluxes from the Rotorua system in New Zealand (8.9 km2)69.66 t/d km226
* In addition to the above mentioned data, for the Italian case, some databases have been developed, such as the MagaDB database ( (accessed on 12 May 2021)), which contains available data on the chemical composition, and sometimes the flow rates, of gas emitted from several types of gas sources.
Table 2. Early steam characterization data according to ref. [39].
Table 2. Early steam characterization data according to ref. [39].
STEAM FROM WELLSG/V (%wt/wt) (a)[H3BO3] (‰) (b) [H3BO3] (mg/L) (c)
Foro forte (del Capanno)5.000.58580
Foro dei Visconti (Piazza Anna)5.000.50500
Foro forte di Piazza Anna11.800.53530
Foro di S.Arturo in Piazza Anna10.300.47470
Foro Venella6.700.52520
Foro del Cancello6.000.16160
Foro dei lagoni6.000.42420
II° foro lagoni10.500.65650
Foro dell’ammoniaca5.800.35350
Foro dei tini6.000.48480
Foro del Terrazzo6.300.42420
Foro della turbine5.800.60600
Foro umido, debole, tra i lagoni0.822.802800
Foro umido di Piazza Anna14.604.604600
(a) Gas content expressed as a percentage of the total fluid (condensable phase + NCG), (b) boric acid concentration as part in each thousand in the condensable phase, (c) boric acid concentration as milligrams per liter in the condensable phase.
Table 3. Calculated steam flow rates and NCG flow rates from boric acid production data according to ref. [34].
Table 3. Calculated steam flow rates and NCG flow rates from boric acid production data according to ref. [34].
YearBoric Acid Production (Kg/y)Boric Acid Production (t/y)Steam Calculated from Rf (t/y)NCG Emission Calculated from RNCG (t/y)Average Steam Flow rate (t/h)Average NCG Flow Rate (t/h)
Table 4. Calculated steam flow rates and NCG flow rates from boric acid production data according to ref. [36].
Table 4. Calculated steam flow rates and NCG flow rates from boric acid production data according to ref. [36].
YearTuscan Libbra/yBoric Acid Production (Kg/y)Boric Acid Production (t/y)Steam Calculated from Rf (t/y)NCG Emission Calculated from RNCG (t/y)Average Steam Flow Rate (t/h)Average NCG Flow Rate (t/h)
Table 5. Calculated NCG emission from data from boric acid production data according to ref. [37] and their distribution in factories in 1867.
Table 5. Calculated NCG emission from data from boric acid production data according to ref. [37] and their distribution in factories in 1867.
Plant NameBoric acid Daily Production (kg/d)Boric Acid Production (Kg/y)Boric Acid Production (t/y)Steam Calculated from Rf (t/y)NCG Emission Calculated from RNCG (t/y)Average Steam Flow Rate (t/h)Average NCG Flow Rate (t/h)
Lago-Collacchia, S. Edoardo, S. Federigo1180430,931431496,95835,71756.74.1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lenzi, A.; Paci, M.; Giudetti, G.; Gambini, R. Tracing Ancient Carbon Dioxide Emission in the Larderello Area by Means of Historical Boric Acid Production Data. Energies 2021, 14, 4101.

AMA Style

Lenzi A, Paci M, Giudetti G, Gambini R. Tracing Ancient Carbon Dioxide Emission in the Larderello Area by Means of Historical Boric Acid Production Data. Energies. 2021; 14(14):4101.

Chicago/Turabian Style

Lenzi, Alessandro, Marco Paci, Geoffrey Giudetti, and Roberto Gambini. 2021. "Tracing Ancient Carbon Dioxide Emission in the Larderello Area by Means of Historical Boric Acid Production Data" Energies 14, no. 14: 4101.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
