Article

Mitigating the Energy Consumption and the Carbon Emission in the Building Structures by Optimization of the Construction Processes

by
Alireza Tabrizikahou
and
Piotr Nowotarski
*
Institute of Building, Poznan University of Technology, Piotrowo 5, 60-965 Poznan, Poland
*
Author to whom correspondence should be addressed.
Energies 2021, 14(11), 3287; https://doi.org/10.3390/en14113287
Submission received: 19 April 2021 / Revised: 23 May 2021 / Accepted: 1 June 2021 / Published: 4 June 2021
(This article belongs to the Special Issue Innovations-Sustainability-Modernity-Openness in Energy Research 2021)

Abstract

:
For decades, among other industries, the construction sector has accounted for high energy consumption and emissions. As the energy crisis and climate change have become a growing concern, mitigating energy usage is a significant issue. The operational and end of life phases are all included in the building life cycle stages. Although the operation stage accounts for more energy consumption with higher carbon emissions, the embodied stage occurs in a time-intensive manner. In this paper, an attempt has been made to review the existing methods, aiming to lower the consumption of energy and carbon emission in the construction buildings through optimizing the construction processes, especially with the lean construction approach. First, the energy consumption and emissions for primary construction materials and processes are introduced. It is followed by a review of the structural optimization and lean techniques that seek to improve the construction processes. Then, the influence of these methods on the reduction of energy consumption is discussed. Based on these methods, a general algorithm is proposed with the purpose of improving the construction processes’ performance. It includes structural optimization and lean and life cycle assessments, which are expected to influence the possible reduction of energy consumption and carbon emissions during the execution of construction works.

1. Introduction

The energy crisis and climate change have become some of the biggest challenges facing humanity, and carbon emissions are the most important causes of global warming [1,2]. With the rapid growth of global Gross Domestic Product (GDP) and population, the energy demand has become a considerable concern for different industries. Additionally, the consequences of global warming have seriously threatened lives on earth; thus, the reduction of energy consumption and carbon emissions has received international attention [3,4,5].
While construction is considered the pillar industry for the global economy [6], it consumes about 40% of the world’s energy, emitting about one-third of the total carbon globally and producing up to 25% solid waste each year [7,8,9] (see Figure 1).
The authors’ main goals were to develop an algorithm that should help with mitigating energy consumption as well as carbon emissions in the construction industry. The research was made based on the publication available in scientific databases and scientific journals. The examples provided are based on observations by authors across the world. The authors are aware that local practices may influence the results of using the proposed approach, but at the general level, the algorithm should be useful and serve its purpose regarding local practices, which will be further researched and confirmed in the future. What is more, the LCA approach seems to influence the final results, especially at the stage of planning and decision making, as those have a major impact on the final result of actions taken during operation and influence regarding emissions, since proper planning is key in the construction industry.

2. Background of the Study

The International Energy Agency (IEA) provided the information as illustrated in Figure 2 and Figure 3, showing that, from 1971 to 2018, the world total energy consumption increased by about 250%. It can be observed that the total energy consumption in China has significantly grown compared to other regions. Other regions with the highest final energy consumptions are the United States, India, Federation of Russia and Japan. The total energy consumption can be divided into different consumer sectors: industry, transport, residential, other industries and non-energy consumption applications. Figure 3 demonstrates the final energy consumption of each sector in the high-consumer regions. Industrial final consumption in China is substantially higher compared to other regions. While the transportation sector in the United States has rather higher energy consumption. Moreover, during the same period, the World CO2 emission from fuel combustion is almost doubled with notable growth in the region of China [11].
Since the operation stage of buildings contributes the largest proportion of both energy consumption and emission of carbon, most researchers have extensively paid attention to improving the energy consumption in this stage of a building’s life cycle [12,13,14,15]. Nonetheless, in the last years by improving the energy saving in buildings during their operation stage, the carbon emission ratio of the construction stage has been growing in proportion [16,17].The construction sector also has great potential in lowering energy consumption and carbon emissions [18]. Additionally, the operation stage lasts for decades while the construction stage is a shorter process in which carbon emission occurs in a short period of time [19]. The building sector is now considered one of the most significant energy consumption and waste generating sectors of the construction industry [20]. Therefore it is important and worthwhile to investigate the possibilities regarding reducing the emission of carbon during the construction stage.
The building Life Cycle (LC) consists of three stages: embodied, operation and end-of-life. At the embodied level, carbon emissions account for 14%–21% of net carbon dioxide emissions during the building life-cycle. However, the large scale construction of buildings causes significant embodied emissions in a time-intensive manner, which is another reason that demonstrates that urgent actions are required for emission reduction in the construction industry [21]. Furthermore, with the growing development of more energy efficient buildings, the relative proportion of embodied energy may increase [22,23,24].
Understanding the entire building phase is critical to lowering energy usage and carbon dioxide emissions. The construction process is divided into three stages: pre-construction, construction and service, which can also be divided into extraction, manufacturing, transportation, construction, maintenance and disposal. Numerous materials and equipment are used in buildings that consume energy and emit carbon dioxide throughout their LC. For the materials, these energies and emissions are regarded as embodied energy and embodied carbon. Performing the energy consumption reduction, the assessment of embodied energy and carbon emission for materials used in construction is one of the crucial steps that can enhance energy saving in the construction processes. Besides, with the purpose of reducing CO2 emissions, some useful papers provide more details about sustainable building materials [25,26,27,28].
Therefore, for the sustainability assessment perspective of a construction building, it is important to determine the primary building materials, which directly and/or indirectly have an impact on the total embodied energy and carbon emissions. Based on a study [21], Table 1 shows an overview of CO2 emissions and energy usage of building materials. The following formula was used to calculate carbon emissions during the manufacturing phase of primary building materials using the quota method:
Q C M g = i = 1 n C M r i × m i ,
where QC M g is the greenhouse gas emission equivalent generated during the processes of the production of construction material. CM r i stands for the carbon emission factor in the production process of the i-th building material without taking into account recycling. m i is the amount of i-th building material.
For energy consumption, the following formula was used:
Q E M e = i = 1 n E M r i × m i ,
where QE M e is the energy consumption for the i-th building material during the production process. EM r i is the energy factor of the i-th building material in the production process without taking into account recycling.
Table 1. Embodied carbon emissions and the energy consumption of primary building materials (Reproduced from [21], the name of the publisher: Elsevier).
Table 1. Embodied carbon emissions and the energy consumption of primary building materials (Reproduced from [21], the name of the publisher: Elsevier).
MaterialsCarbon Emissions a Energy Consumption
(kg CO2 e/m2)(MJ/m2)
Steel142.331415.8
Commercial Concrete123.94209.37
Mortar58.1223.69
PVC Pipes33.4416.96
Doors and Windows9.54112.12
Wall Material b 68.19260.29
Architectural ceramics12.1222.91
Water paints5.0319.82
Cooper core conductor cables2.5812.21
Wood1.45.88
Waterproof Rolls0.620.02
Stones0.473.63
Polystyrene extrusion boards21.2515.81
a By using the carbon emission per square meter as an evaluation indicator, the effect of diffident building sizes can be efficiently eliminated so that the evaluation results remain consistent and comparable [29]. b Building blocks and bricks.
Transportation of materials is another main aspect of energy consumption. The transportation distance may vary depending upon the location of construction activity, which can be in an urban or rural area. Transporting materials to the building site consumes a lot of resources, according to the data provided by Reddy and Jagadish [30] as shown in Table 2. It presented the diesel energy consumption during transportation and the production of the building materials. It is noted that the transportation energy required for materials, such as steel and cement, is negligible compared to their production energy.
In another study by Kaewunruen et al. [31], they determined the transportation energy consumption and carbon emissions of a railway tunnel construction (see Table 3). It is reported that the rails and fastening systems, due to their weight, shape, distance and the method of transportation together, account for the majority of the total value of the energy consumption.
Another life-cycle stage with considerable energy consumption is the maintenance of the buildings and infrastructures. The maintenance process performs the production facilities of high productivity, includes predicted and unpredicted practices aiming to maintain a physical asset for the adequate operating conditions [32].
Kaewunruen et al. [33] studied the energy consumption and CO2 emission of the Beijing-Shanghai high-speed railway and their results demonstrated that both emissions related to carbon and the consumption of energy during the operation and maintenance stage accounts for 31.60% and 35.32%, respectively, of the total values. In another study, Kaewunruen et al. [31] conducted the life cycle analysis of a railway tunnel construction. It is reported that around 55.2 per cent of the life-cycle energy is consumed by the maintenance process. Tunnel building consumes about 44.3 per cent of the total energy consumed (see Table 4). In the process of tunnel and rail, the energy consumption and emissions are based on the production and transportation of the materials. Their results show the importance of the maintenance stage in the consideration of the energy consumption of building structures.
By optimizing each of these stages in a construction process, energy consumption and emissions could decrease. One of the possible optimization methods is eliminating the wastes in a process. For example, by reducing the transportation distance, modifying the material production methods and avoiding unexpected events such as the repetition of a process, unpredicted destruction/rebuilt and over-generation of solid waste.
One of the waste elimination methods is the application of lean thinking in all activities between suppliers (construction executive) and customers (final users). The concept of lean in manufacturing refers to the efficient use of the available resources by terminating the Non-Value Added (NVA) activities or wastes [34]. Waste in lean manufacturing is represented as any processes that add cost to a product/service without adding value from a user’s perspective. Lean manufacturing introduced a collection of tools that perform together synergistically to make a simplified and high-quality system that manufactures final products at the same pace of the customer’s demand [35]. One of the wastes in a construction process could be the excessive energy consumption of a process, which can be eliminated through a lean management plan.
Conventional construction is a standard construction method, which usually involves using traditional materials and adhering to a specific set of parameters. In general, the conventional methods of production, transportation, operation and maintenance in the construction industry consume excessive energies, which is defined as a considerable amount of wasted energy. Due to the energy crisis and to obtain a more sustainable building structure, these over-consumed energies have to be eliminated. Numerous studies investigated the energy mitigation methods by different systems and manners.
The structure of a building or an infrastructure may be considered sustainable by proper response to the three main parameters of suitability: economic, social and environmental impacts [36]. In other words, it has to be resource-efficient without environmental impacts throughout its life cycle. Conventional design methods (for example masonry or wooden buildings) and materials, such as steel and concrete, have shown deficiencies after severe earthquakes. Bedsides the causalities and loss of economic value, in some cases, it can lead to consequential damages or collapsing of a building, which consequently arises the demand for repairing, replacement, additional transportation and waste disposal. Moreover, the energy consumption during the maintenance of buildings and infrastructures can be reduced by adopting the systems and methods that demand lower energies, particularly in the historical heritages, bridges and high-buildings that require ongoing monitoring and repairing.
That is why it is essential to enhance the structural performance of structures through an adaptive and flexible method and system. It could lead to more sustainable structures that can withstand hazardous events while minimizing the deflections, further repairs and causalities. Consequently, the energy consumption for repairing, monitoring and waste disposal could decrease.
Belleri and Marini [37] studied the significance of the seismic risk of the environmental impact of existing buildings, where the energy consumption is defined as a function of the building’s life cycle. Since the seismic event is uncertain, the seismic effect is interpreted as an estimated loss, expressed as annual energy consumption and emissions.
In its first scenario, it was assumed that a building energy retrofit intervention aims to deliver an almost zero energy building performance without any impact on the seismic behaviour. As a result, if a seismic event occurs during the life cycle of a building, there is additional energy associated with post-earthquake reconstruction, which reflects the actualization of the predicted seismic loss.
It also demonstrates that, based on the relationship between the annual energy consumption and the seismic risk, the total zero energy performance is only a theoretical fact while practical consumption could be higher. In the second scenario, it was assumed that both building energy and seismic retrofit intervention occur. Since the anticipated seismic failure is significantly reduced after the seismic retrofit, if a seismic incident occurs after the structural retrofit intervention, the increased energy consumption due to building repair is significantly lower than in the first scenario.
Mergos [38] indicated that the optimization of the seismic architecture of Reinforced Concrete (RC) frames was investigated in order to reduce embodied CO2 emissions. According to reports, the ductility ratio defined in earthquake-prone areas largely determined the minimum applicable CO2 emission of RC frames. It can emit up to 60% of CO2 as a seismic resistance structure with a moderate to high ductility ratio.
Moussavi and Akbarnezhad [39] investigated 15 different lateral force resisting mechanisms, including moment frames and shear walls, in moderate earthquake areas. The results demonstrated that the selection of the structural system has a significant impact on the LC environmental impacts (such as energy consumption and emissions). Yeo and Gabbai [40] investigated the optimum design of RC structures to minimize the embodied energy. The authors observed that minimum embodied energy design resulted in a reduction of about 10% in embodied energy while the relative cost of the minimum cost designs increased by 5%.
In this work, different studies that used lean techniques and seek to improve the construction process to reduce energy consumption are reviewed. There was also an attempt to investigate the feasibility of the application of structural optimization to integrate with lean techniques for maximizing the energy efficiency of the construction processes.

3. Materials and Methods

By introducing processes at the right time, with the right quantity, lean construction by waste reduction improves construction productivity by increasing resource utilization and reducing wasted process time [41]. Life Cycle Assessment (LCA) is a method of assessing the environmental impact of a building, including the extraction and processing of raw materials, manufacturing, transportation, construction, maintenance and disposal or recycling [42]. For reduction of energy consumption by the improvement of the construction-related processes, four lean techniques are reviewed.
Value Stream Mapping (VSM) is a technique that is related to lean manufacturing and was first adopted to create a map of production systems [43]. It is applied to analyze the current state, and to design a future state, of the series of processes that take a product or service from its beginning until it is delivered to the customer. Just In Time (JIT) is a methodology that mainly aims to reduce time taken in the production process as well as response times from suppliers to customers. Total Productive Maintenance (TPM) is another lean technique based on the improvement of the overall equipment effectiveness of plant equipment. TPM determines the causes for accelerated worsening and production losses while generating an adequate environment between operators and equipment to create ownership. Continuous flow is the effort of non-stop movement of a product through the production process from start to finish. In flawless continuous flow, the cycle time equals the lead time, as the product never waits to be processed.
The VSM was used by Rosenbaum et al. [44] during the phase of the production of a hospital in Chile to identify and quantify the source of waste with regard to the environment and proposed various methods to reduce waste and energy consumption. Heravi et al. [45] adopted four different lean production methods, using prefabricated steel frames to assess the environmental impact of an eight-storey residential building from the manufacturing, transportation and construction processes. Additionally, various studies proposed different methods and technologies that aim to decrease the environmental impacts of building structures (see Table 5).

3.1. Methodology

Lean methods that focus on waste disposal are suitable tools for reducing energy consumption and emissions in the construction process [64]. The focus of this research is to integrate manufacturing, transportation, execution and construction technologies through the use of VSM, JIT, continuous flow, TPM and structure optimization technologies. Using the life cycle assessment method, the environmental impact caused by the implementation of this general algorithm can be estimated.
The main goal is to create an accurate representation of the current state of the processes and to develop a diagnosis by evaluating the map and identifying the waste (NVA activities). Then, the environmental impact of production, transportation and construction processes are studied under the current and lean system. The current system includes conventional production, transportation and construction processes. Finally, a flawless future state of a construction process system is elaborated. Adopting a VSM map reduces or removes waste and maximizes value-added operations. Overproduction, inventories, mistakes and failures, waiting, motion and transportation, over-processing and under-utilized people are all examples of waste that VSM can systematically eliminate [65]. Some of the VSM ideas that were used in the studies are represented in Table 6.

3.1.1. First Case

The first case studied by Rosenbaum et al. [66] is a medical center with a total area of 35,000 m2 located in Santiago, Chile. The current map analysis is conducted only for wall elements’ production. The proposed VSM methodology in this study consists of seven steps:
  • Preliminary decisions
  • Data collection on-site
  • Data processing
  • Complexity of the current state map
  • Analysis and diagnosis of the current state
  • Elaboration of the future state maps
  • Recommendations for achieving the future state

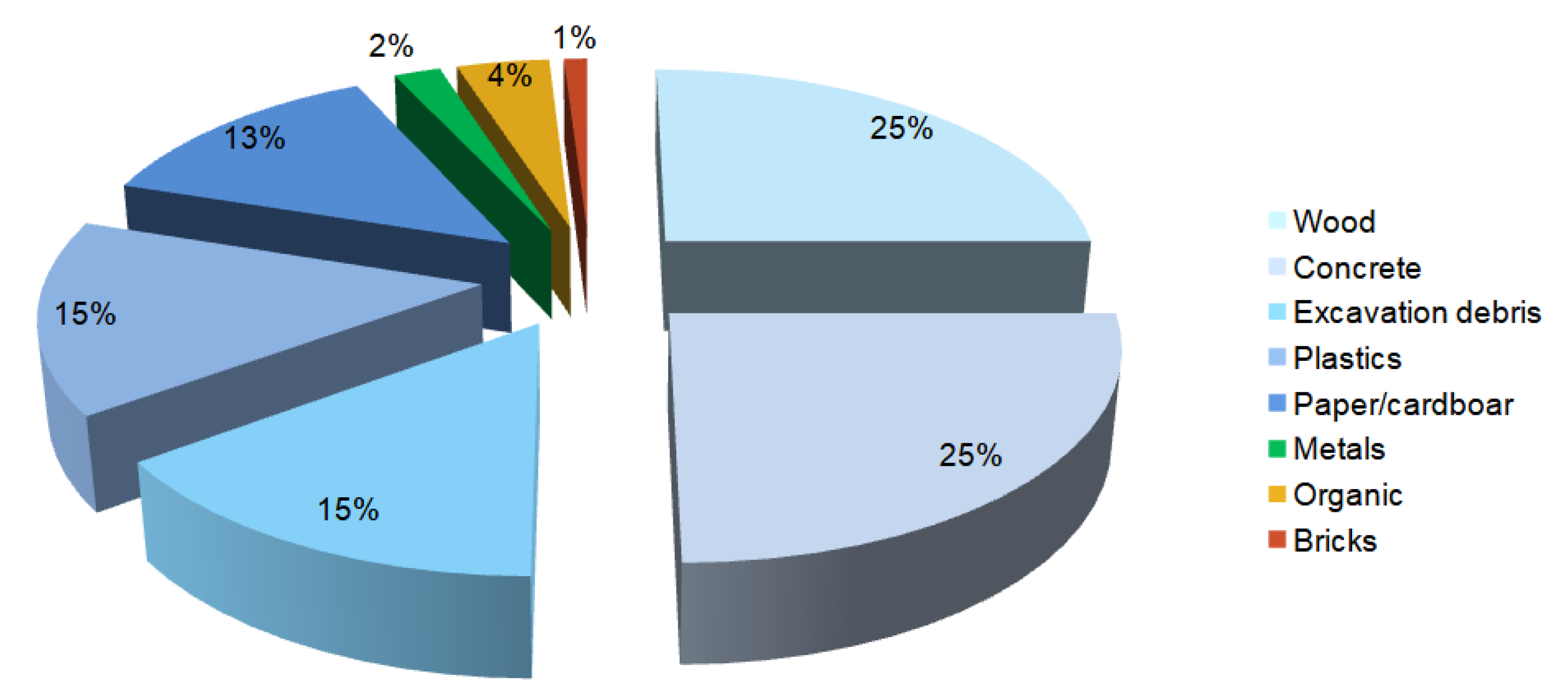

They evaluate the concrete waste by the comparison of the volume of concrete contained in a mixer truck and the volume of the elements to be filled with concrete. For metallic and wooden waste, the evaluation was conducted by visual inspection. The estimated waste was then measured as the amount of all discarded materials and was applied to the total material demand. Figure 4 depicts the classification of 249 average waste materials by number.
After collecting the data and indicating the invariants, the current state map was established, which is the base for further analysis and leads to the preparation of the future state map. The map’s findings were then evaluated to determine the existing status of the valuable sources for various building components. The following are some of the issues that were found.
  • Variability in the process: tasks that were performed in a random order took a significantly longer time and had a lower efficiency. For example, rebar construction took 19 min per square meter, but the findings revealed that only 62 per cent of that time was spent contributing to the project and the remaining time was idling.
  • Human resource management difficulties: The use of human resources by subcontractors was superior to that of the general contractor. As an example, the contributory work index value of rebar installation performed by the subcontractor and the concrete pouring performed by the general contractor are 85% and 65%, respectively.
  • Some activities resulted in significant inventory accumulation. For example, inventory for rebar spacers installation averaged 351 m 2 . It could lead to spreading out the materials in the site area, exposing them to damage by machinery, equipment and environment.
  • Value stream synchronization: A large tendency exists to accomplish activities later than scheduled. For example, the value of just in time percentage for concrete pouring shows that 94% of the process is completed later than scheduled.
  • Low value-adding percentage: It demonstrated that only 33% of the cycle time is used to add value to the final product. This mainly occurred due to the great waiting time of units in inventory to be processed.
  • Material resources supply: The unreliability of suppliers in meeting deadlines resulted in numerous delays and variability, leading to lower performance.
  • Reception of supplies: The loss of pieces and parts were frequently reported, although they came systematically labelled in accordance with each specific element.
  • Planning and control issues: Inadequate mid to long-term planning resulted in waste of materials and labour, as well as production delays.
  • Waste management: There was no re-use or recycling of products, and the Landfill Diversion (LD) value indicates 0% diversion, whereas the waste metrics indicate significant inefficiency in resource and energy consumption.
  • Site sustainability: High water usage and health issues due to inadequate piling up the excavation products.
Then the researchers established new indicators to achieve an adequate future state of the production system. For improving environmental impacts of the future implementations, they recommended some actions as follows:
  • Merging activities: To optimize value-adding time and minimize inventory, the installation of rebars and spacers is carried out as a single operation.
  • Work standardization: Work must be carried out in a continuous manner to ensure that all work obligations are met in full and that no projects are left unfinished.
  • Total quality control: All contractors should be in charge of maintaining quality throughout their operations and making the required repairs in order to meet product quality requirements and deadlines. It should be possible to achieve a target of 100 per cent the first time around.
  • FIFO lane: It is preferred for every activity since the construction method is on-site fabrication and supermarkets could not be implemented. when a product enters into a process, it must be the first one to leave it and when the FIFO lane is full, production of that product must stop and focus on other elements, which reduce the waiting time and inventories.
  • Ordering and reception of supplies: The supply routes (here, concrete and rebars) ensure sufficient order anticipation and a well-established delivery schedule.
  • VS synchronization: The future state value streams were tailored to relate to this rhythm with the capital and capacity available, and an appropriate Takt period for the output was calculated. It is done mainly by decreasing NVA times, which can help to tackle the schedule compliance problems of the current state.
  • Subcontractor relationships that are long-term: To strengthen cooperation between the parties, it is critical to develop a strong team and create a level playing field. As a result, the subcontractors will be able to keep their job obligations.
  • Waste management: A goal of 100% LD is defined for metals, organics, paper and cardboard waste because they can be easily recycled. For concrete residues, excavation rubble and bricks, a goal of 50% LD is established as they can be used in landscaping, refilling and drainage systems. A 100% LD goal is determined for wood waste as they can be easily recycled and also be used in other processes. Achieving these goals leads to an approximately diverted 70% of the total construction waste.
  • Site sustainability: Establishing cleaning stations outfitted with water tanks and also prevent water contamination by adequate management.

3.1.2. Second Case

The second case studied by Heravi et al. [45] is an eight-storey residential building in Tehran, Iran, with a total construction area of 3720 square meters in which lean techniques were used to improve the processes of production, transportation and assembly of pre-casted steel frame (PSF) elements related to energy consumption and emissions.
The effects of processing, transportation and assembly processes on the environment were investigated in current and lean modes. The current mode includes conventional processes of production, transportation and erection of PSF elements. While the lean mode consists of the results of using the VSM technique to draw the current state map to define the capabilities for future improvement. In the initial phase, the JIT technique is adopted to amalgamate the production and assembly processes. As there is a need for a combined flow to coordinate the capabilities of the production stage and the requirement of the assembly stage, JIT is implemented as the earliest lean stage. In the second phase, TPM and continuous flow techniques are used to improve the current state map based on the integrated flow generated after the first phase.
The lean phases implemented in this study are related to adopting few steps. In the beginning, the VSM technique is used to identify wastes; then, in the next two stages, first JIT technique is adopted. Later, the TPM and continuous flow techniques are applied while decreasing the process wastes of the production, transportation and assembly phases of the PSFs are combined.
In order to assess the impact of the using lean techniques on the energy consumption and emissions during the mentioned processes of PSFs by the Life Cycle Assessment (LCA) framework are evaluated as follows:
  • Life cycle inventory (LCI): In order to measure relevant inputs and outputs of a commodity system, inventory analysis necessitates collective and calculative behaviour [67].
  • Life cycle impact assessment (LCIA): The results of the LCI are used in this process to assess the importance of possible environmental impacts [67]. LCIA is used to assess the importance of possible environmental impacts of a product system based on LCI data. Both current and lean modes are tested at this point to see how effective lean strategies are at reducing energy consumption and emissions.
  • Interpretation: The aim of this phase is to review the inventory analysis and impact evaluation results together or just the inventory outcomes. The LCIA findings should be viewed in light of the study’s objectives and scope.
One supermarket has been placed between the processing and assembly stages subsequent to using the VSM technique in the first process. The justification for this was to combine these two phases and lead development forward depending on the demands of the construction site by implementing an automated pull production mechanism. The continuous flow and TPM methods were then used in the second step to execute some of the construction processes concurrently. In addition, building machinery is classified according to its purposes, reducing the amount of time that the construction stage processes are idle. Furthermore, by categorizing the assembly machines, the TPM strategy is used to minimize idle periods and optimize resource usage. Finally, continuous flow helps to shorten the development stage’s overall length.
TPM and continuous flow approaches have a major impact on construction methods. It uses the TPM technique to increase resource use and the continuous flow technique to enable certain building processes to be completed simultaneously. Table 7 displays the energy consumption of construction processes. It can be observed that adopting lean techniques considerably reduces the fuel consumption of the construction equipment. However, electricity consumption has been moderately increased.

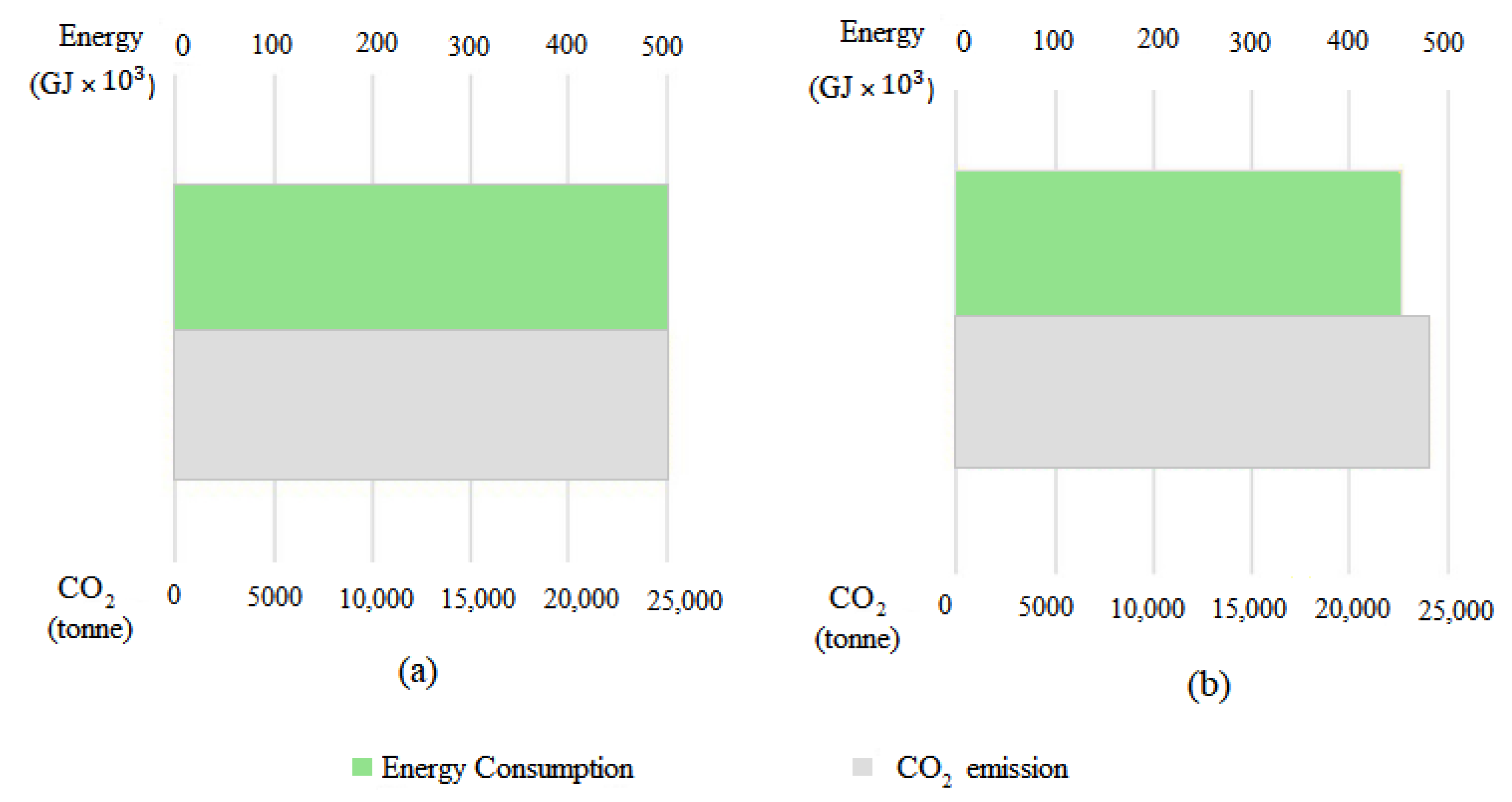

The environmental effect is calculated by measuring the energy usage of different processes. Table 8 shows the impact of lean techniques on the PSF production, transportation and assembly processes that reduce energy consumption. It can be seen that, after applying the lean methods, the standby power consumption is greatly reduced.
The average annual area of steel structures in Tehran is 2,804,550 square meters. Energy consumption and annual emissions are shown in Figure 5. It demonstrates the impact of using lean techniques on Tehran’s annual energy consumption and CO 2 emissions, reducing them by 45,988 GJ and 932 tons, respectively. Hence, It can be interpreted that applying lean techniques could efficiently reduce the environmental impacts of construction processes. The average annual number of constructed steel structure buildings.

3.2. Structural Optimization

3.2.1. Design Parameters

Yeo and Gabbai [40] investigated the potential benefit of structural optimization for embodied energy in RC structures. They proposed an objective function corresponding to the total embodied energy per unit length for an RC beam element as follows:
g ( b , h , A s , A v ) = ρ s ( A s + A v s ) E s + L ( b h A s A v s ) E c ,
where b and h are the width and height of the cross-section of the beam respectively. A s and A v also represent the area of longitudinal tension and area of shear reinforcement within distance s reinforcement respectively. s is the longitudinal spacing of shear reinforcement and ρ s is the specific mass of steel. E S is the embodied energy per kilogram of steel and E C is the embodied energy per cubic meter of concrete.
The results for the values of the embodied energy and cost indicated that the optimization of structural member design for embodied energy results in reduction by 10% in embodied energy at the expense of an increase by 5% in cost relative to a cost-optimized member.

3.2.2. Structural System

Moussavi-Nadoushani and Akbarnezhad [39] determined the environmental impacts of a set of 15 different steel and concrete structural systems designed for 3, 10 and 15 storey buildings. The carbon footprint of each design is calculated using a statistical approach that considers emissions during the resource extraction, shipping, building, service and end-of-life processes.
The findings establish the significance of the relationship between the structural material form and the structure’s carbon emissions at its end-of-life period. Concrete systems have approximately 50% higher end-of-life carbon emissions than steel structures, as seen in Table 9. It is mainly caused by considering lower daily outputs for the demolition of concrete buildings compared to steel buildings. In other words, it originated from the fact that the demolition of concrete buildings is more time consuming and energy-intensive than steel buildings.

3.2.3. Seismic Risk and Design

Belleri and Marini [37] studied the environmental impacts of the seismic risk analysis and proposed a framework to quantify the influence of seismic events on the environmental impact assessment of buildings. The framework, which is illustrated in Figure 6 consists of four steps:
  • Hazard analysis: A hazard curve is calculated based on the occurrence and form of faults, earthquake recurrence frequency, site distance, and soil conditions given a building and a site position
  • Structural analysis: It takes into account the construction of a finite element model that depicts the structural framework of the given structure.
  • Damage analysis: It enables the damage level of one or more damageable classes in relation to the systemic response to be established.
  • Loss analysis: It specifies the likelihood of exceeding the judgment element, such as the number of financial gains, downtime, or casualties.
In another study by Mergos [38], there was an attempt to define sufficient design practices that decrease the environmental impact of earthquake-resistant RC frames. The study develops different optimum seismic designs of an RC frame to minimize the embodied carbon emissions. Therefore, a computational framework is proposed based on genetic algorithms to respond to complex problems with discrete design variables. The main goal was to examine and define the efficient design practices that reduce the embodied carbon emissions of seismically designed RC frames. The computational framework is proposed as the following equation:
F ( x ) = F c ( x ) + F s ( x ) + F f ( x ) F ( x ) = V c . F c o + m s ( x ) . F s o + A f ( x ) . F f o ,
where F(x) is the objective function and x is the design solution vector that includes n independent design variables x i (i = 1 to n). Typically, F(x) is defined to be the material cost C(x) and the environmental impact E(x) is determined in terms of embodied CO 2 emissions. The cost/environmental impact is calculated as the total of concrete F c (x), formwork F f (x) and steel F s (x). V c (m 3 ) is the concrete volume, m s (kg) the mass of steel reinforcement and A f (m2) the area of the formwork. F c o , F s o and F f o are the unit prices of concrete, steel and formwork, respectively.
The process is related to the correct position of the reinforcement. When the appropriate reinforcement configuration is obtained, the design plan can be determined and the value of the objective function F(x) is returned to the optimizer. The penalty value is added to the objective function value.

4. Results and Discussion: Integrated Method

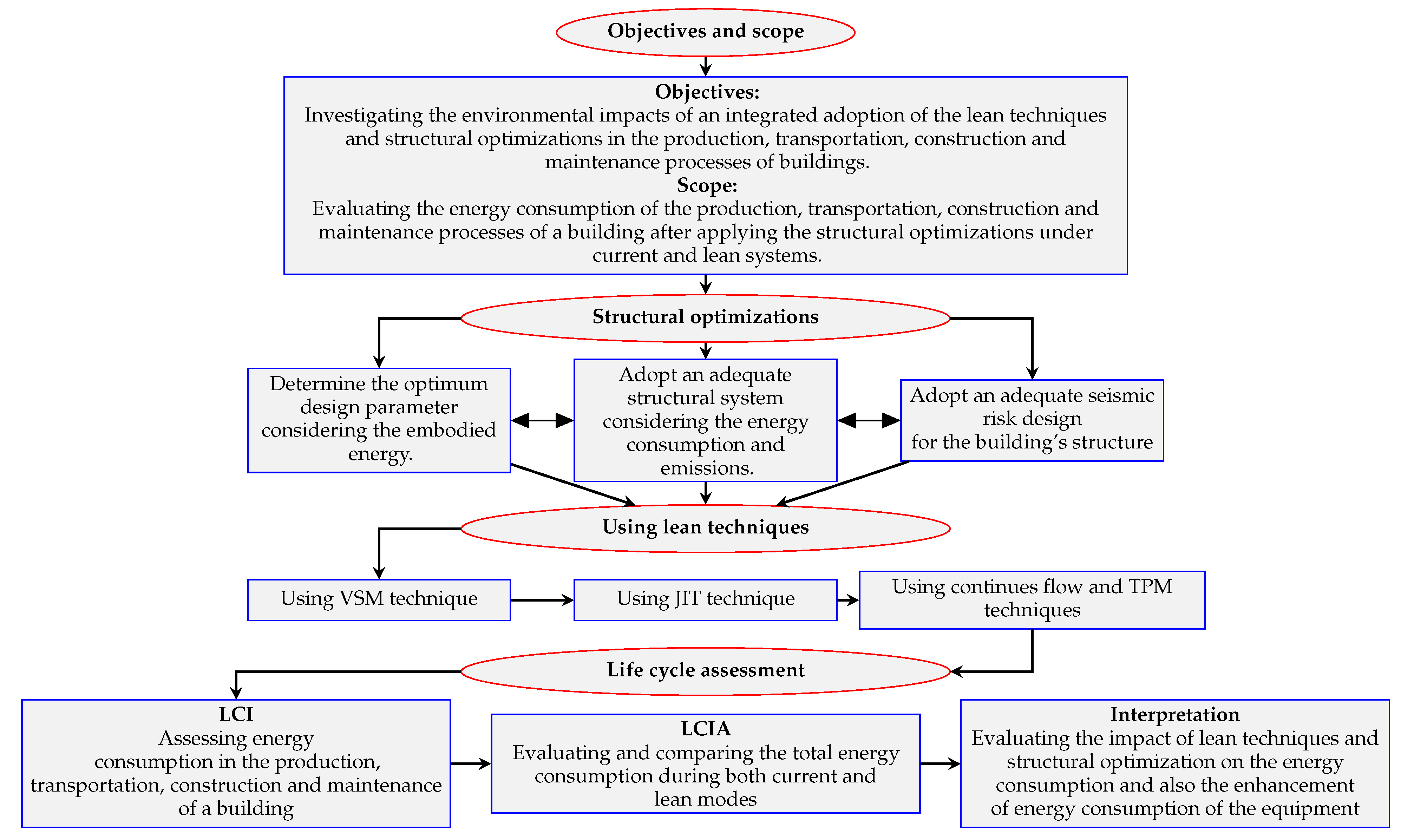

By analyzing the methods and outcomes of the previously mentioned studies, a general algorithm is proposed that aims to optimize the environmental impacts by reducing the energy consumption and carbon emissions of the construction processes. This algorithm includes four primary stages illustrated in Figure 7.
In the first stage regarding the project goals, the objectives and the scope are defined considering the reduction of energy consumption in different processes. The objectives are proposed to integrate the lean techniques and structural optimizations with the purpose of evaluating the improvement of the energy consumption of the project by adopting the techniques and methods assigned in the scope of the project.
The second stage consists of three structural optimization practices that aim to reduce the environmental impacts of the structural design. These optimizations should correspond to the defined scope of the project. Since optimum designs with reduced environmental impacts increase the final cost [40]. These three components correspond to each other at the same time, as any changes in design parameters should be considered in seismic analysis and environmental impacts.
After adopting structural optimizations, lean techniques are applied in order to improve the production, transportation, construction and maintenance processes’ performance. First, the VSM technique is applied in order to find the waste of each individual activities and assists to diagnose the issues and the drawbacks of the processes. The JIT technique is used to improve the production process as well as reducing waiting times and transport energy consumption and avoiding the over-production of components. In the last step of the lean phase, the continuous flow and TPM techniques are applied at the same time. This decreases the idle times and improves the efficiency of the resource and reduce the total duration of the construction stage.
Finally, the life cycle assessment phase is used to evaluate the efficiency of the previously applied methods on the environmental impacts of the processes. The energy consumption and CO2 emissions of each individual process and during the total life cycle should be calculated. Furthermore, this would improve the sustainability of the construction life cycle considering the energy usage, emissions and general health of the involved human resources.
In each phase, there are some practices that have to be fulfilled to obtain the expected outcomes. These practices and results are demonstrated in Table 10.

5. Conclusions

The authors in the study proposed an algorithm that helps to obtain an optimum environmental impact during the construction process. The algorithm is based on an in-depth literature review and will be further developed and investigated by the authors in different case studies particularly for optimization of the design parameters, which increases the project cost. In general, this algorithm could assist the construction engineers and managers to obtain a construction design and plan to decrease the energy consumption, which consequently might lead to sustainable construction with lower cost and emissions. Finally, this paper is related to an extensive research plan aiming to improve the structures’ sustainability by reducing the energy consumption and CO2 emissions by adopting different lean methods and structural improvements.
The authors in their research focused on the publications available in scientific databases and scientific journals. The examples provided are based on observations by researchers across the world. The authors are aware that local practices may influence the results of using the proposed approach, but at the general level, the algorithm should be useful and serve its purpose regarding local practices, which will be further researched and confirmed in the future.
Such a general approach, as a starting point, is needed, especially in the construction sector where huge potential is observed regarding the reduction of energy as well as a high influence on the global CO2 level, which was presented in detail and further efforts should be made to improve the global situation regarding raised issues.

Author Contributions

Conceptualization, A.T.; formal analysis, A.T. and P.N.; investigation, A.T.; supervision, P.N.; writing—original draft, A.T.; writing—review and editing, A.T. and P.N. All authors have read and agreed to the published version of the manuscript.

Funding

Research was funded from research project of Institute of Building Poznan University of Technology 0412/SBAD/0046.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this article are available on request of the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Giorgi, F. Climate Change: Key Conclusions from the IPCC Fourth assessment report (IPCC-AR4). In International Seminar on Nuclear War and Planetary Emergencies—38th Session; World Scientific: Singapore, 2008; p. 101. [Google Scholar]
  2. Sieminski, A. Annual Energy Outlook 2015; US Energy Information Administration: Washington, DC, USA, 2015.
  3. Erickson, L.E. Reducing greenhouse gas emissions and improving air quality: Two global challenges. Environ. Prog. Sustain. Energy 2017, 36, 982–988. [Google Scholar] [CrossRef] [Green Version]
  4. Quiros, D.C.; Smith, J.; Thiruvengadam, A.; Huai, T.; Hu, S. Greenhouse gas emissions from heavy-duty natural gas, hybrid, and conventional diesel on-road trucks during freight transport. Atmos. Environ. 2017, 168, 36–45. [Google Scholar] [CrossRef]
  5. Schaltegger, S.; Burritt, R.; Martinov-Bennie, N. Greenhouse gas emissions reporting and assurance: Reflections on the current state. Sustain. Account. Manag. Policy J. 2012. [Google Scholar] [CrossRef]
  6. Global Construction. A Global Forecast for the Construction Industry to 2030; Oxford Economics and Global Construction Perspectives: Londong, UK, 2015. [Google Scholar]
  7. United Nations Environment Programme. Buildings and Climate Change: Summary for Decision Makers; United Nations Environment Programme: Nairobi, Kenya, 2009. [Google Scholar]
  8. Lu, W.; Yuan, H. A framework for understanding waste management studies in construction. Waste Manag. 2011, 31, 1252–1260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Du, Q.; Li, Z.; Li, Y.; Bai, L.; Li, J.; Han, X. Rebound effect of energy efficiency in China’s construction industry: A general equilibrium analysis. Environ. Sci. Pollut. Res. 2019, 26, 12217–12226. [Google Scholar] [CrossRef]
  10. IEA. 2019 Global Status Report for Buildings and Construction; United Nations Environment Programme: Nairobi, Kenya, 2019. [Google Scholar]
  11. IEA. Key World Energy Statistics 2020. Int. Energy Agency 2020, 33, 4649. [Google Scholar]
  12. Peng, C. Calculation of a building’s life cycle carbon emissions based on Ecotect and building information modeling. J. Clean. Prod. 2016, 112, 453–465. [Google Scholar] [CrossRef]
  13. Pérez-Lombard, L.; Ortiz, J.; Pout, C. A review on buildings energy consumption information. Energy Build. 2008, 40, 394–398. [Google Scholar] [CrossRef]
  14. Hajdukiewicz, M.; Byrne, D.; Keane, M.M.; Goggins, J. Real-time monitoring framework to investigate the environmental and structural performance of buildings. Build. Environ. 2015, 86, 1–16. [Google Scholar] [CrossRef] [Green Version]
  15. Shiftehfar, R.; Golparvar-Fard, M.; Peña-Mora, F.; Karahalios, K.G.; Aziz, Z. The Application of Visualization for Construction Emission Monitoring. In Construction Research Congress 2010; American Society of Civil Engineers: Reston, VA, USA, 2010; pp. 1396–1405. [Google Scholar] [CrossRef]
  16. Dixit, M.K.; Culp, C.H.; Fernández-Solís, J.L. System boundary for embodied energy in buildings: A conceptual model for definition. Renew. Sustain. Energy Rev. 2013, 21, 153–164. [Google Scholar] [CrossRef]
  17. Moncaster, A.; Symons, K. A method and tool for ‘cradle to grave’ embodied carbon and energy impacts of UK buildings in compliance with the new TC350 standards. Energy Build. 2013, 66, 514–523. [Google Scholar] [CrossRef] [Green Version]
  18. Ürge-Vorsatz, D.; Danny Harvey, L.D.; Mirasgedis, S.; Levine, M.D. Mitigating CO2 emissions from energy use in the world’s buildings. Build. Res. Inf. 2007, 35, 379–398. [Google Scholar] [CrossRef]
  19. Sandanayake, M.; Zhang, G.; Setunge, S. Environmental emissions at foundation construction stage of buildings—Two case studies. Build. Environ. 2016, 95, 189–198. [Google Scholar] [CrossRef]
  20. Bilal, M.; Khan, K.I.A.; Thaheem, M.J.; Nasir, A.R. Current state and barriers to the circular economy in the building sector: Towards a mitigation framework. J. Clean. Prod. 2020, 276, 123250. [Google Scholar] [CrossRef]
  21. Cang, Y.; Yang, L.; Luo, Z.; Zhang, N. Prediction of embodied carbon emissions from residential buildings with different structural forms. Sustain. Cities Soc. 2020, 54, 101946. [Google Scholar] [CrossRef]
  22. Plank, R. The principles of sustainable construction. IES J. Part A Civ. Struct. Eng. 2008, 1, 301–307. [Google Scholar] [CrossRef]
  23. Perez Fernandez, N. The Influence of Construction Materials on Life-Cycle Energy Use and Carbon Dioxide Emissions of Medium Size Commercial Buildings. Master’s Thesis, Victoria University of Wellington, Wellington, New Zealand, 2008. [Google Scholar]
  24. Frey, P.; Anderson, P.; Andrews, M.; Wolf, C. Building Reuse: Finding a Place on American Climate Policy Agendas. 2008. Available online: https://www.semanticscholar.org/paper/Building-Reuse%3A-Finding-a-Place-on-American-Climate-Frey-Anderson/9c4847cfe21652cc13d1d74b6b80311274fcd2a5 (accessed on 3 June 2021).
  25. González, M.J.; García Navarro, J. Assessment of the decrease of CO2 emissions in the construction field through the selection of materials: Practical case study of three houses of low environmental impact. Build. Environ. 2006, 41, 902–909. [Google Scholar] [CrossRef]
  26. Chastas, P.; Theodosiou, T.; Kontoleon, K.J.; Bikas, D. Normalising and assessing carbon emissions in the building sector: A review on the embodied CO2 emissions of residential buildings. Build. Environ. 2018, 130, 212–226. [Google Scholar] [CrossRef]
  27. Kumanayake, R.; Luo, H.; Paulusz, N. Assessment of material related embodied carbon of an office building in Sri Lanka. Energy Build. 2018, 166, 250–257. [Google Scholar] [CrossRef]
  28. Robati, M.; Daly, D.; Kokogiannakis, G. A method of uncertainty analysis for whole-life embodied carbon emissions (CO2-e) of building materials of a net-zero energy building in Australia. J. Clean. Prod. 2019, 225, 541–553. [Google Scholar] [CrossRef]
  29. Shang, C.J.; Zhang, Z.H. Assessment of life-cycle carbon emission for buildings. J. Eng. Manag. 2010, 1, 24–38. [Google Scholar]
  30. Venkatarama Reddy, B.; Jagadish, K. Embodied energy of common and alternative building materials and technologies. Energy Build. 2003, 35, 129–137. [Google Scholar] [CrossRef]
  31. Kaewunruen, S.; Sresakoolchai, J.; Yu, S. Global Warming Potentials Due to Railway Tunnel Construction and Maintenance. Appl. Sci. 2020, 10, 6459. [Google Scholar] [CrossRef]
  32. Faccio, M.; Persona, A.; Sgarbossa, F.; Zanin, G. Industrial maintenance policy development: A quantitative framework. Int. J. Prod. Econ. 2014, 147, 85–93. [Google Scholar] [CrossRef]
  33. Kaewunruen, S.; Sresakoolchai, J.; Peng, J. Life Cycle Cost, Energy and Carbon Assessments of Beijing-Shanghai High-Speed Railway. Sustainability 2019, 12, 206. [Google Scholar] [CrossRef] [Green Version]
  34. Carrasqueira, M.; Machado, V.C. Strategic logistics: Re-designing companies in accordance with Lean Principles. Int. J. Manag. Sci. Eng. Manag. 2008, 3, 294–302. [Google Scholar] [CrossRef]
  35. Shah, R.; Ward, P.T. Defining and developing measures of lean production. J. Oper. Manag. 2007, 25, 785–805. [Google Scholar] [CrossRef]
  36. Elkington, J. Partnerships fromcannibals with forks: The triple bottom line of 21st-century business. Environ. Qual. Manag. 1998, 8, 37–51. [Google Scholar] [CrossRef]
  37. Belleri, A.; Marini, A. Does seismic risk affect the environmental impact of existing buildings? Energy Build. 2016, 110, 149–158. [Google Scholar] [CrossRef]
  38. Mergos, P.E. Seismic design of reinforced concrete frames for minimum embodied CO2 emissions. Energy Build. 2018, 162, 177–186. [Google Scholar] [CrossRef] [Green Version]
  39. Moussavi Nadoushani, Z.S.; Akbarnezhad, A. Effects of structural system on the life cycle carbon footprint of buildings. Energy Build. 2015, 102, 337–346. [Google Scholar] [CrossRef]
  40. Yeo, D.; Gabbai, R.D. Sustainable design of reinforced concrete structures through embodied energy optimization. Energy Build. 2011, 43, 2028–2033. [Google Scholar] [CrossRef]
  41. Heravi, G.; Firoozi, M. Production process improvement of buildings’ prefabricated steel frames using value stream mapping. Int. J. Adv. Manuf. Technol. 2017, 89, 3307–3321. [Google Scholar] [CrossRef]
  42. Li, L.; Chen, K. Quantitative assessment of carbon dioxide emissions in construction projects: A case study in Shenzhen. J. Clean. Prod. 2017. [Google Scholar] [CrossRef]
  43. Rother, M.; Shook, J. Learning to See: Value Stream Mapping to Add Value and Eliminate Muda; Lean Enterprise Institute: Cambridge, MA, USA, 2003. [Google Scholar]
  44. Rosenbaum, S.; Toledo, M.; Gonzalez, V. Green-lean approach for assessing environmental and production waste in construction. In Proceedings of the 20th Annual Conference of the IGLC, San Diego, CA, USA, 18–22 July 2012. [Google Scholar]
  45. Heravi, G.; Rostami, M.; Kebria, M.F. Energy consumption and carbon emissions assessment of integrated production and erection of buildings’ pre-fabricated steel frames using lean techniques. J. Clean. Prod. 2020, 253, 120045. [Google Scholar] [CrossRef]
  46. You, F.; Hu, D.; Zhang, H.; Guo, Z.; Zhao, Y.; Wang, B.; Yuan, Y. Carbon emissions in the life cycle of urban building system in China—A case study of residential buildings. Ecol. Complex. 2011, 8, 201–212. [Google Scholar] [CrossRef]
  47. Heravi, G.; Nafisi, T.; Mousavi, R. Evaluation of energy consumption during production and construction of concrete and steel frames of residential buildings. Energy Build. 2016, 130, 244–252. [Google Scholar] [CrossRef]
  48. Chae, C.U. Comparative study on the amount of CO2 emission of building matereals between reinforced concrete and steel strycture buildings using the input-output analysys. In Proceedings of the World Sustainable Building Conterence, Tokyo, Japan, 27–29 September 2005; Volume 9. [Google Scholar]
  49. Acquaye, A.; Duffy, A.; Basu, B. Embodied emissions abatement—A policy assessment using stochastic analysis. Energy Policy 2011, 39, 429–441. [Google Scholar] [CrossRef] [Green Version]
  50. Li, X.; Shen, G.Q.; Wu, P.; Yue, T. Integrating Building Information Modeling and Prefabrication Housing Production. Autom. Constr. 2019, 100, 46–60. [Google Scholar] [CrossRef]
  51. Intini, F.; Kühtz, S. Recycling in buildings: An LCA case study of a thermal insulation panel made of polyester fiber, recycled from post-consumer PET bottles. Int. J. Life Cycle Assess. 2011, 16, 306–315. [Google Scholar] [CrossRef]
  52. Chen, T.; Burnett, J.; Chau, C. Analysis of embodied energy use in the residential building of Hong Kong. Energy 2001, 26, 323–340. [Google Scholar] [CrossRef]
  53. Gao, W.; Ariyama, T.; Ojima, T.; Meier, A. Energy impacts of recycling disassembly material in residential buildings. Energy Build. 2001, 33, 553–562. [Google Scholar] [CrossRef]
  54. Crishna, N.; Banfill, P.; Goodsir, S. Embodied energy and CO2 in UK dimension stone. Resour. Conserv. Recycl. 2011, 55, 1265–1273. [Google Scholar] [CrossRef]
  55. Gursel, A.P.; Ostertag, C. Comparative life-cycle impact assessment of concrete manufacturing in Singapore. Int. J. Life Cycle Assess. 2017, 22, 237–255. [Google Scholar] [CrossRef]
  56. Morel, J.; Mesbah, A.; Oggero, M.; Walker, P. Building houses with local materials: Means to drastically reduce the environmental impact of construction. Build. Environ. 2001, 36, 1119–1126. [Google Scholar] [CrossRef]
  57. Akadiri, P.O.; Chinyio, E.A.; Olomolaiye, P.O. Design of A Sustainable Building: A Conceptual Framework for Implementing Sustainability in the Building Sector. Buildings 2012, 2, 126–152. [Google Scholar] [CrossRef] [Green Version]
  58. Mao, C.; Shen, Q.; Shen, L.; Tang, L. Comparative study of greenhouse gas emissions between off-site prefabrication and conventional construction methods: Two case studies of residential projects. Energy Build. 2013, 66, 165–176. [Google Scholar] [CrossRef] [Green Version]
  59. Abey, S.T.; Anand, K.B. Embodied Energy Comparison of Prefabricated and Conventional Building Construction. J. Inst. Eng. Ser. A 2019, 100, 777–790. [Google Scholar] [CrossRef] [Green Version]
  60. Lim, J.; Kim, S. Evaluation of CO2 emission reduction effect using in-situ production of precast concrete components. J. Asian Arch. Build. Eng. 2020, 19, 176–186. [Google Scholar] [CrossRef] [Green Version]
  61. Dong, L.; Wang, Y.; Li, H.; Jiang, B.; Al-Hussein, M. Carbon Reduction Measures-Based LCA of Prefabricated Temporary Housing with Renewable Energy Systems. Sustainability 2018, 10, 718. [Google Scholar] [CrossRef] [Green Version]
  62. Kong, A.; Kang, H.; He, S.; Li, N.; Wang, W. Study on the Carbon Emissions in the Whole Construction Process of Prefabricated Floor Slab. Appl. Sci. 2020, 10, 2326. [Google Scholar] [CrossRef] [Green Version]
  63. Qaemi, M.; Heravi, G. Sustainable Energy Performance Indicators of Green Building in Developing Countries. In Construction Research Congress 2012; American Society of Civil Engineers: Reston, VA, USA, 2012; pp. 1961–1970. [Google Scholar] [CrossRef] [Green Version]
  64. Nowotarski, P.; Pasławski, J.; Dallasega, P. Multi-Criteria Assessment of Lean Management Tools Selection in Construction. Arch. Civ. Eng. 2021, 67, 711–726. [Google Scholar]
  65. Ohno, T. Toyota Production System: Beyond Large-Scale Production; CRC Press: Boca Ration, FL, USA, 1988. [Google Scholar]
  66. Rosenbaum, S.; Toledo, M.; González, V. Improving Environmental and Production Performance in Construction Projects Using Value-Stream Mapping: Case Study. J. Constr. Eng. Manag. 2014, 140, 04013045. [Google Scholar] [CrossRef]
  67. ISO. 14040: Environmental Management–Life Cycle Assessment—Principles and Framework; ISO: Geneva, Switzerland, 2006. [Google Scholar]
Figure 1. Global share of buildings and construction final energy and emissions, 2018 (a) energy consumption (b) emissions [10].
Figure 1. Global share of buildings and construction final energy and emissions, 2018 (a) energy consumption (b) emissions [10].
Energies 14 03287 g001
Figure 2. World total energy consumption from 1971 to 2018 by region [11].
Figure 2. World total energy consumption from 1971 to 2018 by region [11].
Energies 14 03287 g002
Figure 3. Top five countries by total final energy consumption [11].
Figure 3. Top five countries by total final energy consumption [11].
Energies 14 03287 g003
Figure 4. Waste classification in the project [66].
Figure 4. Waste classification in the project [66].
Energies 14 03287 g004
Figure 5. The annual consumption of energy and carbon dioxide emissions of current and lean modes related to erected steel frame buildings (a) under current mode (b) under lean mode [45].
Figure 5. The annual consumption of energy and carbon dioxide emissions of current and lean modes related to erected steel frame buildings (a) under current mode (b) under lean mode [45].
Energies 14 03287 g005
Figure 6. It specifies the likelihood of exceeding the judgment element, such as the amount of financial gains, downtime, or casualties (Reproduced from [37], the name of the publisher: Elsevier).
Figure 6. It specifies the likelihood of exceeding the judgment element, such as the amount of financial gains, downtime, or casualties (Reproduced from [37], the name of the publisher: Elsevier).
Energies 14 03287 g006
Figure 7. Proposed construction processes algorithm to obtain an optimum environmental impact.
Figure 7. Proposed construction processes algorithm to obtain an optimum environmental impact.
Energies 14 03287 g007
Table 2. Energy in the production and transportation of building materials (Reproduced from [30], the name of the publisher: Elsevier).
Table 2. Energy in the production and transportation of building materials (Reproduced from [30], the name of the publisher: Elsevier).
MaterialEnergy (MJ)
Production Transportation
50 km100 km
Sand (m 3 )087.5175
Crushed aggregate (m 3 )20.587.5175
Burnt clay bricks (m 3 )2250100200
Portland cement (tonnes)585050100
Steel (tonnes)42,00050100
Table 3. Transportation characteristics and energy consumption for a railway tunnel construction [31].
Table 3. Transportation characteristics and energy consumption for a railway tunnel construction [31].
MaterialTransport Type, Distance and FuelEnergy Consumption
(×10 6 MJ)
Concrete5 Trucks; 300 km; 0.08 L/km0.0057
AcceleratorTruck; 400 km; 0.08 L/km0.0015
Waterproof rubber beltTruck; 300 km; 0.08 L/km0.0011
Rebar2 Trucks; 300 km; 0.08 L/km0.0023
BallastTrain; 50 km; 7.9 L/km0.019
SleepersTrain; 80 km; 7.9 L/km0.03
RailsTrain; 400 km; 7.9 L/km0.15
Fastening systemsTrain; 400 km; 7.9 L/km0.15
Table 4. Life-cycle energy consumption and CO 2 emissions of a railway tunnel construction [31].
Table 4. Life-cycle energy consumption and CO 2 emissions of a railway tunnel construction [31].
StageEnergy Consumption
(×10 6 MJ)
CO 2 Emissions
(tonne)
ConstructionTunnel 85948,038
Rail 101472
Maintenance10691472
Table 5. The methods presented in previous studies that aim to reduce the negative environmental impacts of construction processes.
Table 5. The methods presented in previous studies that aim to reduce the negative environmental impacts of construction processes.
MethodsResultsReferences
Use of low-energy materials.Reduction of energy consumption by 4.2% by using the steel and concrete structure instead of the masonry and concrete structure. [46]
Use of concrete constructions compared to steel constructionsReduction of environmental impacts by 27% by using concrete construction in the construction stage compared to steel constructions [47]
The energy consumption and carbon emission of steel-based structures are 40% higher than the other type of buildings [48]
Optimized designReduction of both direct and indirect energy use by 1.6% and 20% [49]
The carbon emission in lower ductile seismic design is 60% higher than ones with medium and high ductility [38]
Modern technologies and methodsThe use of tools, such as Building Information Model (BIM) and energy simulation software, create a balance between the embodied energy consumption and the operational energy used in the construction phase. [42,50]
Utilization of the recycled materialsReduction of environmental impacts by 46% by utilizing recycled materials [51]
Using recycled steel and aluminium reduce the embodied energy about 50% [52]
The reduction of energy consumption of 80% for aluminium products and 7% for wood products. [53]
The increasing use of local resourcesReduction of 10 to 34% of the environmental impacts and increase economic benefits [54,55]
A considerable reduction of 215% and 453% in the used energy in building and the impact of transportation [56]
Lowering the environmental and transport impacts leading to the reduction of emissions and energy consumption by vehicles and more suitable for the local climate conditions [57]
More usage of prefabricated elementsMore efficient construction processes method and a 3.2% decrease in emissions compared with conventional methods [58]
Higher energy efficiency in commercial buildings, as they typically have a lower amount of infill walls [59]
A reduction of 14.3% in CO 2 emission of in-situ pre-casted elements compared to the in-plant manufacturing [60]
A reduction in material embodied, assembly and operation emissions of 18%, 17.5% and 91.5%, respectively. [61]
A reduction of 35% in carbon emission by using pre-cast floor slabs compared to in-situ components [62]
More usage of renewable energySelf-supply-energy in order to reduce environmental impacts [63]
Table 6. VSM concepts [43].
Table 6. VSM concepts [43].
ConceptMeaning
Push flowA production mechanism in which each process strives to generate the greatest number of push flow units possible, moving its output downstream regardless of what its client process requires.
Pull flowA production method in which each process only generates what the next requires. Units are being pulled from upstream processing by the processes.
InventoryThe work in progress created by operation will be idle before downstream supply is in demand and ready.
FIFO laneA processing lane in which the first device to join the process often exits first. The FIFO lane has a maximum capacity for processed units in order to solve variability problems. When this ability is reached, production must come to a halt. For goods with a lot of variations, the FIFO lane is recommended.
Kaizen eventA concentrated effort to solve manufacturing issues and improve the supply chain.
Kanban cardsThe demand for supply or the withdrawal of units between operations is communicated by a symbol.
Supermarket (distributer unit)Work-in-progress storage that is both managed and visible. It enables a pull flow between two activities without attempting to forecast output demand by connecting the activities with a Kanban cards scheme.
Takt timeThe production rate that must be met in order to satisfy consumer demands.
Table 7. Consumption of the energy during the construction processes of PSFs [45].
Table 7. Consumption of the energy during the construction processes of PSFs [45].
EquipmentTime (h)Consumption of EnergyTotal Energy Consumption
WorkingIdleWorkingIdleElectricity (kWh)Fuel (L)Energy (GJ)
Current mode
Crane5582042 (L)297 (L)-233990.29
Elevator15141.46 (kWh)1.84 (kWh)43.3-0.468
Impact spanner755120.97 (kWh)2.30 (kWh)123.3-1.331
Overhead power39-23.4 (kWh)-23.4-0.252
Total18414--189.98233992.34
Lean mode
Crane446.41633 (L)237 (L)-187072.19
Elevator14.20.939.38 (kWh)1.64 (kWh)41-0.44
Impact spanner48.73.2157.26 (kWh)2.99 (kWh)160.3-1.73
Overhead power34.4-20.62 (kWh)-20.6-0.22
Total141.310.5--221.9187074.58
Table 8. Total consumption of energy and emission of carbon dioxide [45].
Table 8. Total consumption of energy and emission of carbon dioxide [45].
ProcessElectricity Consumption (kWh)Fuel Consumption (L)Total Energy (GJ)Total CO 2 -eq. GWP (kg)
WorkingIdleTotalWorkingIdleTotal
Current mode
Production 15,165184817,013---183.7311,845
Transportation ---269.48-269.4810.43.2
Erection 185.84.151902042297233992.34140
Total15,326185217,1782311.482972608.48286.511,988.2
Lean mode
Production 15,162105416,215---175.1211,289
Transportation ---269.48-269.4810.43.2
Erection 217.34.64221.91613237187074.58160.8
Total15,379.31058.616,436.91882.482372139.48260.111,453
Table 9. The cumulative life cycle CO 2 emissions correlated with various systemic structures per square meter (Reproduced from [39], the name of the publisher: Elsevier).
Table 9. The cumulative life cycle CO 2 emissions correlated with various systemic structures per square meter (Reproduced from [39], the name of the publisher: Elsevier).
StoriesStructure Type a Life Cycle Carbon Emission
(kg CO2-e/m 2 )
3S 3S MRF1992.1
S 3S BF1965.5
S 3S BF-MRF1973.8
C 3S MRF1839.9
C 3S SW1624.3
10S 10S MRF1878.5
S 10S BF1863.4
S 10S BF-MRF1862.6
C 10S MRF1531.2
C 10S SW1379.1
15S 15S MRF2498.6
S 15S BF2463.4
S 15S BF-MRF2487.1
C 15S MRF2076.5
C 15S SW1962.7
a First letter indicates the material (C: Concrete and S: Steel); middle term indicates the number of stories (3S, 10S and 15S); third term indicates the lateral load resisting system (MRF: Moment Resisting Frame, BF: Braced Frame, and SW: Shear Wall).
Table 10. The procedure and the expected outcome of the proposed algorithm aiming to reduce the energy consumption and carbon emissions in the processes of the construction of a building.
Table 10. The procedure and the expected outcome of the proposed algorithm aiming to reduce the energy consumption and carbon emissions in the processes of the construction of a building.
ProcedurePracticeOutcomesReference
Structural optimizations
Design parameterStructural optimization by adjusting design parameters10% reduction in the embodied energy [40]
Structural systemsAdopting an adequate optimum structural systemSelection should be based on the impacts of the structural system on the total life cycle effects rather than individual life cycle phases [39]
Seismic designApplying the optimum seismic design approachThe ratio between the expected annual CO 2 emission related to seismic risk and the annual operational CO 2 after the thermal refurbishment is 10% and 87% for the building located in a high seismicity region, with and without structural retrofit, respectively [37,38]
Lean techniques
VSMDrawing the current VSM of a construction process and then diagnose it in purpose to tackle the drawbacksImproved current construction processes by identifying the wastes and idle activities leading to lower energy consumption and other environmental impacts [44]
JITMaterials are only ordered and received as they are needed in the next processesImprovement of the production process as well as minimizing waiting times and transport fuel consumption and preventing over-production of components [45]
Continuous flow and TPMEvaluate the equipments working and energy consumption efficiencyReduction of idle times and maximize resource efficiency and reduce the total duration of the construction stage [45]
Life cycle assessment
LCIAssessing the energy consumption of the equipment used in different processes in idle and working modes ofRecognizing the high energy consumer types of equipment in different processes [45]
LCIAAssessing the environmental impact regarding to the reduction of energy consumptionFinding the environmental impacts in the different process which assists to diminish the idle times which consequently reduces the energy consumption [45]
Interpretation Evaluate the influence of the applied techniques and methods on the energy consumption Examining the impact of the applied techniques would help the construction processes to obtain the maximum energy efficiency in different processes [45]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tabrizikahou, A.; Nowotarski, P. Mitigating the Energy Consumption and the Carbon Emission in the Building Structures by Optimization of the Construction Processes. Energies 2021, 14, 3287. https://doi.org/10.3390/en14113287

AMA Style

Tabrizikahou A, Nowotarski P. Mitigating the Energy Consumption and the Carbon Emission in the Building Structures by Optimization of the Construction Processes. Energies. 2021; 14(11):3287. https://doi.org/10.3390/en14113287

Chicago/Turabian Style

Tabrizikahou, Alireza, and Piotr Nowotarski. 2021. "Mitigating the Energy Consumption and the Carbon Emission in the Building Structures by Optimization of the Construction Processes" Energies 14, no. 11: 3287. https://doi.org/10.3390/en14113287

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
