A Review of Antiviral and Antioxidant Activity of Bioactive Metabolite of Macroalgae within an Optimized Extraction Method

Abstract

Non-conventional extraction of bioactive metabolites could provide sustainable alternative techniques to preserve the potency of antioxidants and antiviral compounds extracted from macro-algae. In this paper, we first reviewed the antioxidant and antiviral potential of the active metabolites that exist in the three known macro-algae classes; Phaeophyceae, Rhodophyceae, and Chlorophyceae, and a comparison between their activities is discussed. Secondly, a review of conventional and non-conventional extraction methods is undertaken. The review then focused on identifying the optimal extraction method of sulphated polysaccharide from macro-algae that exhibits both antiviral and antioxidant activity. The review finds that species belonging to the Phaeophyceae and Rhodophceae classes are primarily potent against herpes simplex virus, followed by human immunodeficiency virus and influenza virus. At the same time, species belonging to Chlorophyceae class are recorded by most of the scholars to have antiviral activity against herpes simplex virus 1. Additionally, all three macro-algae classes exhibit antioxidant activity, the potency of which is a factor of the molecular structure of the bioactive metabolite as well as the extraction method applied.

1. Introduction

In 2004, the food and agriculture organization (FAO) introduced a taxa classification of macro-algae according to its pigmentation, brown (Phaeophyceae class), red (Rhodophyceae class), and green (Chlorophyceae class). Since then, different macro-algae classes have gained scholars’ attention for their ecological importance of supplying oxygen to the sea and usage in traditional medicine due to their perceived health benefits [1].

More recently, it has been claimed that macro-algae represent about 9% of biomedical compounds obtained from the sea [2]. Scholars explain that bioactive compounds of macro-algae such as polysaccharides have proven to have an effective antioxidant and antiviral activity. They argue that those polysaccharides have been developed as a chemical defense mechanism to the harsh environments in which they grow, such as variation in salinity, solar radiation and tidal waves, competition for space and nutrients [3,4].

Therefore, recent research argues that marine metabolites can shape the future of the bioeconomy [5] and might emerge as a new wave of promising drugs [6]. However, despite this claim, only a few studies have provided a systematic literature review on their antioxidant and antiviral activity along with their optimal extraction method. Therefore, this study fills a gap in the current literature by illustrating a comparative review of the antioxidant and antiviral activities of different macro-algae classes and identifying the active metabolite’s optimal extraction medium. Furthermore, the paper discusses the extraction methods of the active metabolites in macro-algae; specifically, the extraction of ulvan polysaccharide from the Ulva species to optimize their use in medicinal products.

2. Methodology

A review of literature conducted using a systematic search was employed. Articles were screened using a prior eligibility criterion of (macro-algae + antioxidant) and (macro-algae + antiviral) in the title, abstract, and full text for published research and studies with the interval publication years between 2000 and 2020.

We chose to follow a systematic literature review throughout this research in order to achieve the research main aim of comparative review for both the antioxidant and antiviral activities of different macroalgae classes. The systematic literature review was the preferable methodology to synthesize studies to draw broad theoretical conclusions about what literature means and linking all historical theories to evidence through various research and publications. In this study, tables and figures were developed to organize, clarify, and present a systematic review of qualitative information.

The three macroalgae classes, Phaeophyceae (brown algae), Chlorophyceae (green algae), and Rhodophyceae (red algae), were categorized and summarized in detail through the tables, including a review of antiviral activity, antioxidant activity, references, years searched, bioactive metabolites, and macroalgae species.

This research data was collected from the text, tables, and figures by searching google scholar from January 2020 to September 2020 using a combination of the following keywords: macroalgae, antioxidant, antiviral, conventional extraction, non-conventional extraction.

3. Discussion

3.1. Antiviral Activity of Macroalgae

The antiviral activity of macroalgae has been reported consistently early in the literature, for example, Gerber et al. [7] claimed the antiviral activity of macroalgae against influenza B and mumps virus. Similarly, Witvrouw et al. [8] reported that Aghardhiella tenera and Nothogenia fastigiata species of seaweed have antiviral activity towards human immunodeficiency virus (HIV), herpes simplex virus types 1 and 2 (HSV-1 and HSV-2), and respiratory syncytial virus (RSV). Moreover, Witvrouw and De Clercq [9] confirmed the inhibitory effect against the enveloped viral replication by the complex structures of sulphated polysaccharides in macroalgae. In the same line, authors report that carrageenan has a selective inhibitory effect against the enveloped virus and blocked the transmission of several viruses such as HIV, herpes simplex virus, human cytomegalovirus, and human rhinoviruses [10,11].

In the following decades, researchers confirmed the algal extract’s virucidal effect [12,13,14]. Scholars also confirmed that the low cytotoxicity, and successful use of antivirals from macroalgae in vaginal therapy had made its production for pharmaceutical use widely accepted. Similarly, Ono et al. [15] confirmed that sulphated polysaccharide extracted from macroalgae has anti-HIV activity and was able to inhibit flaviviruses such as dengue virus. Moreover, several researchers have confirmed the inhibitory effects of sulphated polysaccharides derived from macroalgae on the herpes simplex virus strains [16,17]. Additionally, Vo and Kim [18] as well as Jiao et al. [19], highlighted the association of sulphated polysaccharides from macroalgae with the antiviral activity. Similarly, Pati et al. [20] confirmed that sulphated polysaccharides such as carrageenan, fucoidans, and sulphated rhamno galactans successfully inhibited the enveloped viruses like HIV, and herbs.

Additionally, Grassauer and Prieschl-Grassauer [21] claimed that marine biomass such as carrageenan sulphated polysaccharide can facilitate the protection from the newly discovered coronavirus disease 2019 (COVID-19) which belongs to a family of enveloped viruses, or at least can be used as coating material for protective supplies such as masks and gloves. The same was confirmed by Zaporozhets et al. [22] who reported that the sulphated polysaccharides extracted from marine algae Saccharina japonica showed a significant antiviral activity against the coronavirus. Thus, a potential antiviral medicine can be developed from macroalgae biomass for augmenting the existing antivirals to combat emerging types and variants of enveloped viruses.

Table 1. A review of antiviral activity of macroalgae—Phaeophycea.

Macroalgae Taxa	Macroalgae Species	Bioactive Metabolites	Antiviral Activity	Reference
Phaeophyceae	Ecklonia cava	Phlorotannin (6,6′-Bieckol, 8,8′-bieckol)	Against HIV	[23,24]
	Dictyota caribaea horning & schnetter	Sulphated Fucans	Against HIV	[25]
	Ecklonia cava	Phlorotannin (Phloroglucinol, eckol, 7-Phloroeckol, phlorofucofuroeckol, dieckol)	Against Influenza	[26]
	Grateloupia filicina	Sulphated polysaccharides	Against HSV	[27]
	Grateloupia longifolia	Sulphated polysaccharides	Against HIV	[27]
	Adenocystis utricularis	Sulphated polysaccharides	Against HSV	[13]
	Cystoseira indica	Sulphated polysaccharides	Against HSV	[28]
	Dictyota mertensii	Sulphated polysaccharides	Against HIV	[29]
	Fucus vesiculosus	Sulphated polysaccharides	Against HIV	[29]
	Hydroclathrus clathratus	Sulphated polysaccharides	Against HSV	[27]
	Leathesia difformis	Sulphated polysaccharides	Against Influenza	[30]
	Lobophora variegate	Sulphated fucans	Against HIV	[29]
	Padina tetrastromatica	Sulphated polysaccharides	Against HSV	[31]
	Sphacelaria indica	Sulphated polysaccharides	Against HSV	[32]
	Spachnidium rugosum	Sulphated polysaccharides	Against HSV	[33]
	Spatoglossum schroederi	Sulphated polysaccharides	Against HIV	[29]
	Stoechodperumum magiatum	Sulphated polysaccharides	Against HSV	[34]
	Undaria pinnatifida	Sulphated polysaccharides	Against HSV	[29,35]
	Sargassum patens	Sulphated polysaccharides	Against HSV	[17]
	Undaria pinnatifida	Sulphated polysaccharides	Against HSV	[12]
	Callophyllis variegate	Sulphated galactans	Against HSV	[36]
	Undaria pinnatifida	Sulphated polysaccharides	Against HIV	[33]
	Adenocystis utricularis	Fucoidans	Against HSV	[37]

provides a comprehensive review of the literature for antiviral activity of different Phaeophyceae along with their active metabolite. The review indicates that species belonging to Phaeophyceae are primarily potent against HSV, followed by HIV and influenza virus.

Table 2. A review of antiviral activity of macroalgae—Rhodophyceae.

Macroalgae Taxa	Macroalgae Species	Bioactive Metabolites	Antiviral Activity	Reference
Rhodophyceae	Gigartina atropupurea	Sulphated Polysaccharides	Against HSV	[33]
	Chondria sulphated polysaccharides	Peptides (Condriamide A)	Against HSV	[38]
	Schizymenia binderi	Sulphated Galactan	Against HSV	[39]
	Plocamium cartilagineum	Sulphated Polysaccharides	Against HSV	[33]
	Gracilaria corticate	Sulphated Polysaccharides (Galactan Sulphates)	Against HSV	[40]
	Sebdeniia polydactyla	Sulphated Polysaccharides	Against Influenza, Herpes, HIV	[31]
	Nemalion helminthoides	Sulphated Polysaccharides	Against Influenza, Herpes, HIV	[41]
	Sphaerococcus coronopifolius	Sulphated Polysaccharides	Against Influenza, Herpes, HIV	[42]
	Boergeseniella thuyoides	Sulphated Polysaccharides	Against Influenza, Herpes, HIV	[42]
	_	Sulfated Xylomannan	Against HSV-1 & HSV-2	[43]
	Bryopsis sulphated polysaccharides	Cyclic Depsipeptide (Kahalalide F)	Against HIV	[44]
	Cryptonemia crenulate	Sulphated Polysaccharides	Against HSV-1	[45]
	Gelidium cartilagenium	Sulphated Polysaccharides	Against Influenza.	[46]
	Grateloupia filicina	Sulfated GA lactones	Against HIV	[27]
	Stenogramme interrupta	Carrageenans	Against HSV-1 & HSV-2	[11]
	Asparagopsis armata	Sulfated agaran	Against HSV-1	[47]
	Bostrychia montagnei	Sulfated agarans	Against HSV-1 & HSV-2	[48]
	Gymnogongrus torulosus	DL- hybrid galactans	Against HSV-2, dengue virus 2	[14]
	Gracilaria corticata	Sulfated agarans	Against HSV-1 & HSV-2	[40]
	Grateloupia longifolia	Sulfated Galactones	Against HIV	[27]
	Sphaerococcus coronopifolius	Sulphated Polysaccharides	Against HIV & HSV-1	[42]
	Boergeseniella boergesen	Sulphated Polysaccharides	Against HIV & HSV-1	[42]
	Schizymenia binderi	Sulfated Galactan	Against HSV	[39]

provides a comprehensive review of the literature for antiviral activity of different Rhodophyceae along with their active metabolite. The review indicates that species belonging to Rhodophyceae is potent against HIV and both types of HSV viruses.

Table 3. A review of antiviral activity of macroalgae—Chlorophyceae.

Macroalgae Taxa	Macroalgae Species	Bioactive Metabolites	Antiviral Activity	Reference
Chlorophyceae	Codium fragile	Polysaccharides	Against HSV-2	[16]
	Ulva sulphated polysaccharides	Peptides (Hexapeptide)	Against HSV	[49]
	Caulerpa racemose	Sulphated Polysaccharides	Against HSV-2	[50]
	Ulva fasciata	Sulphated Polysaccharides	Against Semliki Forest & Vaccinia Viruses	[51]
	Codium elongatum	Sulphated Polysaccharides	Against Semliki Forest & Vaccinia Viruses	[51]
	Caulerpa brachypus	Sulphated Polysaccharides	Against HSV-1	[52]
	Caulerpa scapelliformis	Sulphated Polysaccharides	Against HSV-1
	Caulerpa okamurai	Sulphated Polysaccharides	Against HSV-1
	Chaetomorpha crassa	Sulphated Polysaccharides	Against HSV-1
	Chaetomorpha spiralis	Sulphated Polysaccharides	Against HSV-1
	Monostroma nitidum,	Sulphated Polysaccharides	Against HSV-1
	Codium adhaerens	Sulphated Polysaccharides	Against HSV-1
	Codium latum	Sulphated Polysaccharides	Against HSV-1

provides a comprehensive review of the literature for antiviral activity of different Chlorophyceae along with their active metabolite. The data emphasize that species belonging to Chlorophyceae class are recorded by most of the scholars to have antiviral activity against HSV-1 and HSV-2.

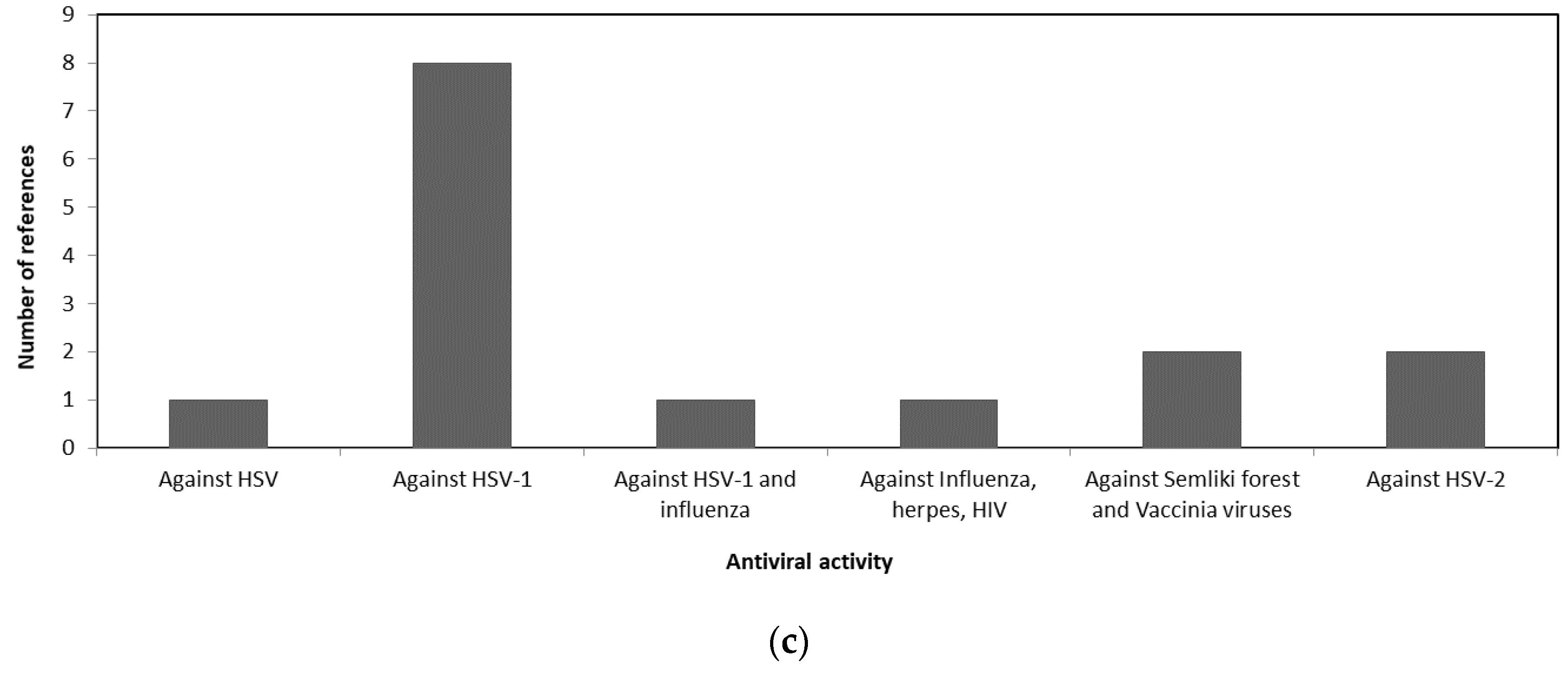

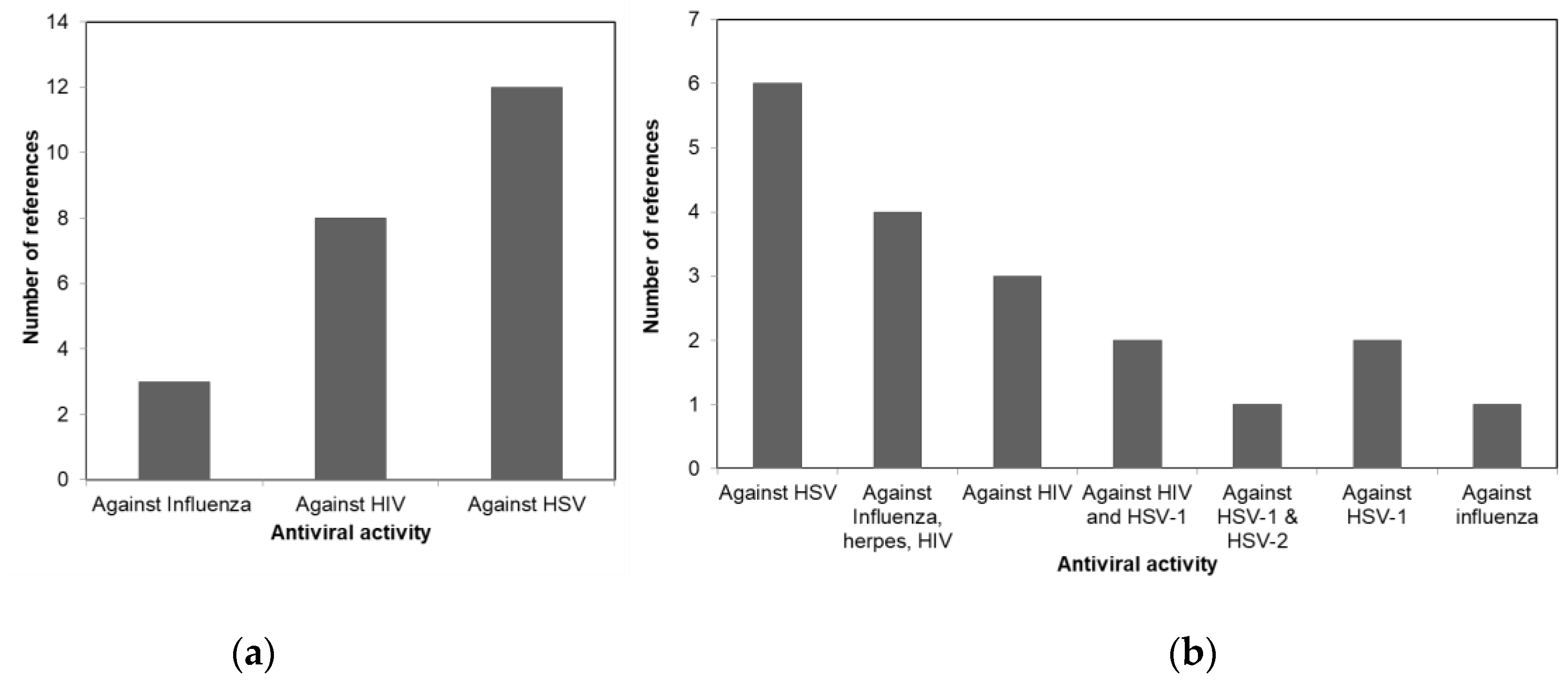

A comparison of the antiviral activity of the three taxa is shown in Figure 1 to illustrate the potential usage of different macroalgae for pharmaceutical purposes. Figure 1a shows that more than 50% of the review papers indicates the potency of Phaeophyceae against HSV. Whereas most of the Chlorophyceae species were reported to have antiviral activity against HSV-1 and HSV-2 as shown in Figure 1b. The antiviral activities of different Rhodophceae species are relatively equally distributed against HSV, HIV, HSV-1, HSV-2, and Influenza virus as shown in Figure 1c.

The mechanism of action of sulphated polysaccharides against viral infection is explained as one of three ways; the first is by obstructing the virus from entering the cell. The second is by exhibiting virucidal activity. The third is by slowing down the syncytia formation. The multi-nucleate enlarged cell formed by syncytia is a result from fusion of a virally infected cell with neighboring host cells [53].

A detailed explanation of the mechanism of action of sulphated polysaccharide as antivirals has been explained by Wang et al. [54] who identified five mechanisms of action against a virus. These mechanisms were (a) direct viricidal action through the formation of an irreversible viral–polysaccharide complex, (b) inhibition of the viral adsorption by the host cell, (c) inhibition of virus uncoating, (d) hindering virus transcription inside the host cell, and (e) improvement of the host antiviral immune response by stimulation of antiviral immune factors.

Recently, Hans et al. [55] elaborated on the antiviral mechanism of marine sulphated polysaccharides. They explained four different ways in which a virus infection to the host cell can be inhibited by a sulphated polysaccharide. The first mechanism is the inhibition of attachment of the virus surface to the host cell through interaction of the negatively charged sulphated polysaccharide with the positively charged virus surface instead of its interaction with the negatively charged host cell. The second mechanism involves the inhibition of viral penetration into the host cell through the interaction between the sulphated marine polysaccharides and the virus receptors. The third mechanism was explained by the inhibition of virus uncoating inside the host cell through binding to the viral capsid that is formed inside the host cell. The final mechanism involves inhibition of the viral transcription in the host cell in case it managed to become uncoated through the interference with the replication enzymes such as reverse transcriptase enzyme.

The potency of the antiviral activity of macroalgae is determined by several structural factors of the sulphated polysaccharide, first, the carbohydrate backbone: molecular weight, linearity, the flexibility of the carbohydrate chain, and the influence of hydrophobic sites. Second, the structure of the anionic groups: carboxyl or sulphate groups, degree of sulphation, and the distribution of sulphate groups in the carbohydrate backbone [56].

The same was confirmed by Adhikari et al. [34]. They claim that sulphated polysaccharide’s antiviral activity depends on its molecular weight, constituent sugar, and the sulphation degree where low or absent sulphation indicates weak or non-antiviral activity.

3.2. Antioxidant Activity of Macroalgae

The oxidation process is a chemical reaction that involves the transfer of hydrogen atoms or oxygen atoms or electrons. This oxidation process might damage lipid membrane, protein, and deoxyribonucleic acid molecules, causing tissue injury in organisms. The term antioxidant refers to any compound that stops the oxidation process by hindering the reaction of a substance with dioxygen or any compound that inhibits the free radical reaction [57].

Pharmaceutically, antioxidants were used to block oxidation reaction initiation using high-energy molecules [58]. Since most of the organisms have antioxidant activity to defend themselves against oxidative damages, the bioactive compounds that marine organisms produce could play an essential role in the pharmaceutical industry.

Kohen and Nyska [59] claim that the sulphated polysaccharides in the cell wall of macroalgae do not occur in land plants, and their antioxidant properties may play an essential role against various diseases such as aging processes, chronic inflammation, and cardiovascular disorders.

Macroalgae are rich in sulphated polysaccharides such as fucoidan in brown algae, ulvan in green algae, and carrageenan in red algae. The sulphated polysaccharides in the cell wall of macroalgae have antioxidant activities, and therefore pharmaceutical antioxidants can be derived from macroalgae [60,61].

The antioxidant capacity of sulphated polysaccharide derived from marine red algae Porphyra haitanensis has been observed in aging mice [62]. It has also been reported that some natural antioxidants precede synthetic ones in potency; for example, Kim et al. [63] concluded that the sulphated polysaccharides of Sargassum fulvellum (Phaeophyceae), is a more potent nitric oxide scavenger than commercial antioxidants such as butylated hydroxyanisole.

Additionally, De Souza et al. [64] observed sulphated polysaccharides antioxidant capacity, where fucoidan and Fucans polysaccharides from Fucus vesiculosus and Padina gymnospora, respectively, had inhibitory effects on hydroxy radical and superoxide radical formation. The same was emphasized by Rocha de Souza et al. [65], who demonstrated a positive correlation between sulphated polysaccharide content and the antioxidant activity of macroalgae.

A positive correlation has been reported for sulphate content and superoxide radical scavenging activity in fucoidan fractions obtained from a brown alga Laminaria japonica [66]. Therefore, the pharmaceutical industry had shown a great interest in developing antioxidants from natural sources to waive the health hazards associated with synthetic antioxidants

Carrageenans antioxidant activity extracted from macroalgae has been studied with Alpha Carrageenan exhibiting antioxidant and free radical scavenging activity [67]. Macroalgae exhibit antioxidant properties that play an essential role in fighting cancer, chronic inflammation, and several other diseases. This finding provides a basis for further experiments on identifying sulphated polysaccharides with relatively high antioxidant activities [67].

The antioxidant potency of a sulphated polysaccharide was related to its chemical structure. For example, Zhang et al. [62] argue that sulphated polysaccharides antioxidant activity depends on their structural features such as the degree of sulphation, molecular weight, type of the major sugar, and glycosidic branching.

Qi et al. [68] have prepared different molecular weight ulvan from Ulva pertusua (Chlorophyceae) by hydrogen peroxide degradation and their antioxidant activities were investigated. Their results showed that low molecular weight ulvan have potent antioxidant activity. This is because low molecular weight sulphated polysaccharides may incorporate into the cells more efficiently and donate protons effectively compared to high molecular weight sulphated polysaccharides. Similarly, Sun et al. [69] and Chattopadhyay et al. [70] confirmed experimentally that low molecular weight sulphated polysaccharides have shown potent antioxidant activity compared to high molecular-weight sulphated polysaccharides.

In addition to the polysaccharides, authors claim that polyphenols, bromophenols, and mycosporine-like amino acids extracted from macroalgae also exhibit antioxidant properties [71,72]. Polyphenols are classified into distinct groups based on their structure, such as the flavonoids, phenolic acids, stilbenes, and lignans [73]. For example, Zubia et al. [74] demonstrated the antioxidant properties of Lobophora variegata due to its bromophenols and phenols content. Similarly, in brown algae, phlorotannins, a group of polyphenols that consists of polymers of phloroglucinol was reported to have radical scavenging capabilities [75].

The antioxidant activity of polyphenols in macroalgae was further confirmed by Tierney et al. [4]. Macroalgae exhibit antioxidant properties due to their possession of polyphenols, alkaloids, halogenated compounds. However, researchers also argue that alkaloids and halogenated compounds are more potent antimicrobial agents than antioxidants [76]. A synergy in antioxidant activity can only occur due to the coexistence of alkaloids and polyphenols in a macroalgae bioactive extract [77]. The same was confirmed by Abdel-Karim et al. [78] who concluded that the antioxidant capacity of bioactive compounds such as alkaloids and polyphenols extracted from macroalgae was mainly correlated to their phenolic content.

Table 4. A review of antioxidant properties of different macroalgae species.

Macroalgae Taxa	Macroalgae Species	Bioactive Metabolites	Reference
Phaeophyceae	Eisenia bicyclis	Polyphenols	[71,79]
Rhodophyceae	Martensia fragilis	Alkaloids	[80]
Phaeophyceae	Laminaria species	Phenolic compounds	[81]
Phaeophyceae	Ecklonia cava	Phlorotannin (2,7-Phloroglucinol, 6,6′-bieckol)	[23,82]
Phaeophyceae	E. kurome	Phlortotannin (dieckol)	[23]
Phaeophyceae	Padina perindusiata Thivy	Sulphated Fucans	[65]
Phaeophyceae	Ecklonia stolonifera	Phlorotannin (Phlorofucofuroeckol A, dieckol, dioxinodehydroeckol)	[75]
Phaeophyceae	Ecklonia stolonifera	Phlorotannin (Phloroglucinol)	[23]
Phaeophyceae	Lobophora	bromophenols and phenols	[74]
Phaeophyceae	Ecklonia stolonifera	Phlorotannin (2 Phloroeckol, eckol, phlorofucofuroeckol B, 6,6′-bieckol)	[83]
Phaeophyceae	Fucus vesiculosus	Phlorotannin (Fucophlorethol A, tetrafucol A, trifucodiphlorethol A)	[84]
Phaeophyceae	Eisenia bicyclis	Phlorotannin (Triphlorethol A, 8,8′-Bieckol, phlorofucofuroeckol A, eckol, dieckol)	[85]
Phaeophyceae	Ishige okamurae	Phlorotannin (Diphloroethohydroxycarmalol	[86]
Phaeophyceae	Sargassum pallidum	Sulphated Polysaccharides	[87]
Phaeophyceae	Laminaria japonica	Sulphated Polysaccharides	[62,88]
Phaeophyceae	Turbinaria ornata	Sulphated Polysaccharides	[89]
Rhodophyceae	Gigartina skottsbergi	Sulphated Polysaccharides	[90]
Rhodophyceae	Gracilaria verrucose	Sulphated Polysaccharides	[91]
Rhodophyceae	Gracilaria opuntia	Azocinylmorpholinone	[92]
Chlorophyceae	Ulva pertusa	Sulphated Polysaccharides (ulvans)	[93]
Chlorophyceae	Ulva lactuca	Monounsaturated fatty acids (MUFA) derivatives	[94]

provides a comprehensive review of the literature for antioxidant activity of different Phaeophyceae, Rhodophyceae, and Chlorophyceae species along with the active metabolite corresponding to the antioxidant activity.

3.3. Macroalgae Active Metabolites and Their Assay Methods

Scholars agree that sulphated polysaccharide such as fucidan, ulvan, and galactan have proven to be potent antioxidants and antivirals [27,28,65,95]. Thus, this paper will focus on the extraction method of sulphated polysaccharides from macroalgae. More specifically, from green algae because they were claimed to have large amounts of unique sulphated polysaccharides [96] such as ulvan in Ulva species, sulphated rhamnan in Monostroma species and galactan in Codium species [97].

Moreover, green algae have also been claimed to have high exploitable biochemical profiles [98], high growth rates and productivities [99]. However, this potential was explored in the literature dominantly for agriculture use rather than pharmaceutical use [100], and the available literature on the application of ulvan is limited. Thus, there is a need for research that explores it for diverse applications [99].

The most used assays for antioxidant activity are 1,1-diphenyl-2-picryl hydrazil (DPPH) radical scavenging, an organic chemical compound containing stable free radical molecules; deoxyribose assay, which is a reactivation of tannins toward hydroxyl radicals. Ferric-reducing antioxidant power (FRAP) assay determines the antioxidant power and ferric-reducing ability. Other methods include nitric oxide (NO) scavenging, 2,2′-azino-bis-3-ethylbenzothiazoline-6-sulfonic acid (ABTS) radical scavenging, lipid peroxide inhibition superoxide radical, and hydroxyl radical scavenging assays.

On the other hand, the antiviral activity of sulphated polysaccharides has been determined by identifying infectivity or radiolabeled particles binding, flow cytometry, radioimmunoassay, enzyme-linked immunosorbent assay (ELISA assays) [56].

All the assays mentioned above require prior extraction of the active metabolite. Those extraction methods usually affect the potency of bioactive metabolites. For example, the sulphated polysaccharides fraction obtained by acid hydrolysis (0.1 M hydrochloric acid (HCl) at 37 °C) of Fucus vesiculosus has shown the highest potential to be used as antioxidants by the FRAP assay, followed by the alkali- (2 M KOH, 37 °C) and water-soluble fractions. Therefore, selecting the appropriate extraction method is critical for the pharmaceutical effectiveness of macroalgae sulphated polysaccharide.

Ulvan is a cell wall polysaccharide that contributes from 9% to 36% dry weight of Ulva’s biomass and is mainly composed of units of mono or disaccharides such as sulphated rhamnose, sulphated xylose, and uronic acids (glucuronic acid and iduronic acid) whereas the remaining sulphated polysaccharides in the Ulva species (cellulose, xyloglucan, and glucuronan) makes only 9% of its biomass [101]. The most repeated structures of ulvan are shown in Figure 2 and Figure 3.

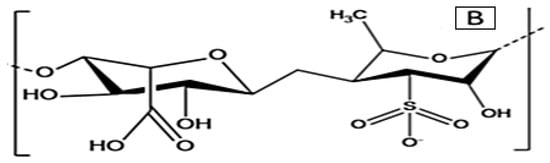

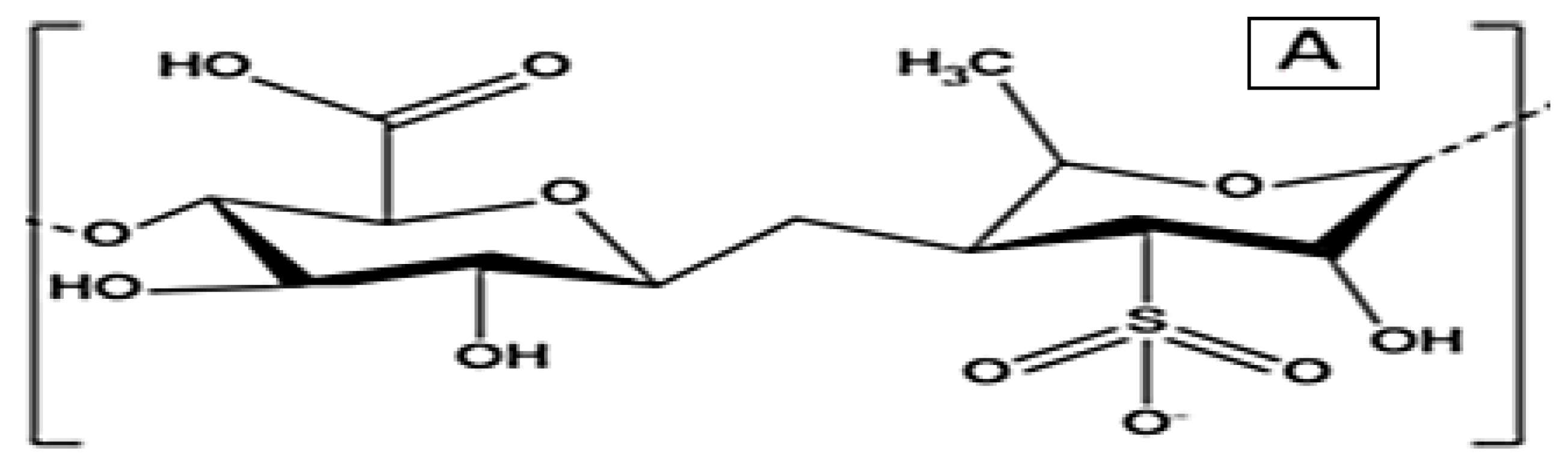

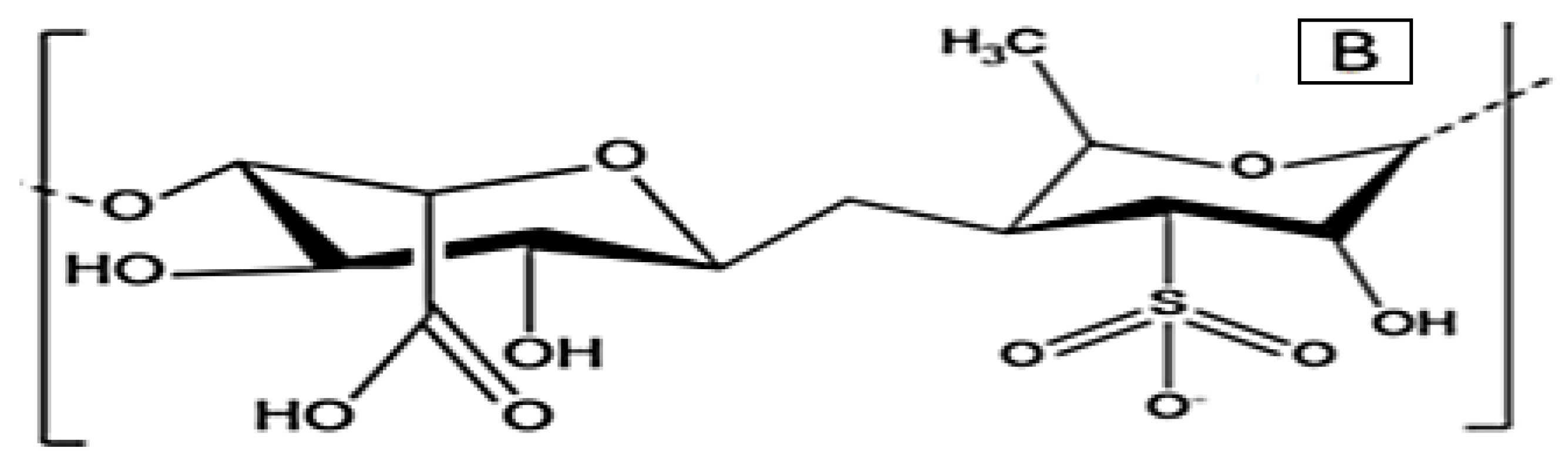

Ulvan polysaccharides are polyanionic heteropolysaccharides with sugar compositions that are predominantly rhamnose (45.0 mol%), glucuronic acid (22.5 mol%), xylose (9.6 mol%), and iduronic acid (5.0 mol%).

However, the ulvan polysaccharide composition varies widely with variation in the storage methods of collected biomass, pre-extraction processing, the source of the species, extraction method, and the processing procedure of the ulvan, which in turn affects the quantitative yield and the quality of the extracted ulvan [102,103]. Authors argue that the physicochemical properties of the ulvan molecule such as low solubility in aqueous solution and interaction with cell wall components like divalent cations (e.g., calcium ion), borate, hydrogen bonding, and entanglement, affect the choice of the extraction methods [102].

3.4. Extraction Methods of Macroalgae Active Metabolites

The literature provided an overview of conventional and non-conventional extraction methods of bioactive metabolites from macroalgae. According to Roselló-Soto, E. et al. [104], the conventional extraction methods usually include the use of water or organic solvents and may results in the obvious degradation of the components. Whereas, the non-conventional methods involve enzyme-assisted extraction, pulsed electric fields, ultrasounds, microwaves, subcritical and supercritical fluid extraction for recovery of valuable compounds.

Conventionally, solvent extraction was used in extracting the bioactive compounds of macroalgae. In this extraction method, authors attempt to identify the optimal extractant, temperature, and potential of hydrogen (pH) of extraction medium as well as the pre-treatment steps to maximize the yield of the active metabolite [102]. Reducing salt in macroalgae pre-treatment by warm water enhances the extraction efficiency of ulvan by lowering the aggregation properties of ulvan and increasing the exposure of cell wall components to the extractant. Drying the biomass and fine milling after pre-treatment will positively impact the yield. Furthermore, the selectivity of ulvan, its degradation, and yield in the extraction process is a factor of the type of extractant, pH of extractant, and the extraction temperature. This was confirmed by Kidgell et al. [100]. They argue that the polysaccharide yield is affected by many factors such as extraction temperature, extractants, extractant to biomass ratio, duration of extraction, and biomass particle size and treatment.

For the extractant, despite the solubility of ulvan in an aqueous solution, water extraction has a low extraction yield due to the interaction of ulvan with other components of the cell wall. Therefore, using oxalates and ethylenediaminetetraacetic acid (EDTA) as extractant is preferable than water since oxalates remove divalent cations (e.g., calcium ion) from the ulvan which promote the cross-linking of ulvan in the cell wall [102]. Despite the claimed low cost of EDTA, the lack of biodegradability raises environmental concerns [105].

Regarding the temperature of extraction, temperature in the range of 80–90 °C usually enhances the extraction process due to increase in the solubility of the bioactive metabolite with pH of the extractant optimally around 4.5. At such low pH, the selectivity of ulvan over other macromolecules and the dispersion of ulvan aggregates are improved and therefore, the yield of the extraction process is high. Thus, hydrochloric acid (HCL) as an extractant is recommended over the use of oxalate salts [106].

Despite the benefits of acidic extractants in yield and selectivity of ulvan, a very low pH (1.3–1.5) caused degradation of ulvan by depolymerization or desulphation, which render the ulvan polysaccharide less active in terms of antioxidant or antiviral activity. Similarly, a longer extraction period can have the same degradative effect on the ulvan molecule. Therefore, in the literature, it is recommended that in conventional extraction of ulvan, the extraction medium should be capped to pH from 2–4.5, a temperature of 80–90 °C for a maximum of 1 to 3 h duration period of extraction [100].

Scholars introduced non-conventional extraction methods to overcome the drawbacks of a conventional solvent extraction method, such as capped temperature, controlled acidic medium, limited extraction time, and environmental hazards of solvents other than water [107,108,109].

Non-conventional methods include microwave-assisted extraction (MAE), ultrasound-assisted extraction (UAE), supercritical fluid extraction (SFE), pressurized liquid extraction (PLE), pulsed electric field, enzyme-assisted extraction (EAE) and subcritical water extraction (SWE). These novel methods were claimed to improve the extraction efficiency, preserve the extracted metabolite’s quality, and present a more environmentally friendly extraction process [110].

Out of the above-mentioned new technologies, the MAE, UAE, SFE, and SWE are the mostly applied ones in the isolation of bioactive compounds from marine macroalgae and, therefore, will be explored in detail in this paper for the extraction of sulphated polysaccharides from Ulva species.

The microwave-assisted extraction is based on non-ionizing electromagnetic waves in the frequency band of 300 MHz to 300 GHz [111]. In MAE, the microwave radiation causes absorption of energy by the polar molecules of the solvent which in turn disrupts the hydrogen bonds in the cell wall of the biomass which facilitate the penetration of the solvent into the biomass and increases the extraction of targeted compounds [112]. MAE can occur in open vessels at atmospheric pressure or closed vessels that operate at higher pressure, however operating in open vessels is considered more effective and safer than closed vessels. One parameter that can increase the rate of diffusion of the target analytes from the solid sample to the solvent is the temperature: the higher the temperature, the faster the diffusion rate. Another parameter that affects the efficacy of bioactive metabolite using MAE is the type of solvent, according to [113], solvents with high dielectric constant such as water have a higher ability to absorb microwave energy than non-polar solvents and are, therefore, a better choice for MAE. It has been also reported by Mäki-Arvela et al. [114] that the microwave power, frequency, and the time of extraction plays a critical role in the extraction of active metabolites form macroalgae. The technology has the advantage of being fast, energy-efficient, can be applied directly to fresh biomass, available on an industrial scale, and does not involve chemical. Several researchers applied microwave-assisted extraction on green algae who claim that the yield of sulphated polysaccharide using this technology surpassed the yield of hot water extraction, hot water reflux extraction, and ultrasound-assisted extraction [54].

Another type of non-conventional technology is the ultrasound assisted extraction in which ultrasound waves with a frequency above 20 kHz to 100 kHz is applied. The waves create bubbles and zones of high and low pressure which lead to the collapse of the bubbles near the solid-liquid interface and leads to the breakdown of particles and mass transfer from the biological matrix [112]. Two different types of UAE are commonly used, the first is the ultrasonic bath in which the sample is immersed, and the waves operate at a frequency of 40 kHz to 50 kHz. The second type is the ultrasound probe which is inserted into the sample and operates at a maximum frequency of 20 KHz [115]. Duarte et al. [48] argue that UAE is a fast and inexpensive method for the extraction of active metabolites from macroalgae. Wu [116] also recommended UAE to extract sulphated polysaccharide from green algae for being clean, fast, and energy-efficient technology. Anon [117] reported the extraction of sulphated polysaccharide with antioxidant activity from green seaweed using ultrasound technology. The literature suggested that the polyphenols represent most of the extracted compounds using UAE technology.

Another non-conventional extraction method is the SFE in which extraction fluids in their supercritical conditions are used. At the supercritical condition, the solvent exhibits the characteristics of both liquid and gas, the fluid density is similar to the values of liquid whereas the viscosity is similar to that of gases [118]. Carbon dioxide is the solvent most used because of its safety and availability. However, being a non-polar solvent, its ability to extract polar compounds is limited and can only be enhanced with the addition of polar co-solvents such as ethanol [113].

Like the UAE, the SFE was commonly reported in the literature to extract polyphenols and carotenoids rather than sulphated polysaccharides.

A commonly used non-conventional extraction method for sulphated polysaccharide is the SWE. SWE is also known as pressurized hot water extraction or superheated water extraction. SWE was claimed to improve the mass transfer rate and preserves the biological potency of the extracts and overcome the drawbacks of conventional methods such as consumption of large quantities of solvent, poor selectivity of the active metabolite, and the risk of decomposition of thermolabile active metabolites.

The SWE process involves applying water at temperatures higher than its boiling point under high pressure to keep the water in its liquid state. The high temperature and high pressure decrease the water viscosity and surface tension, while increasing its diffusivity and, therefore, enhancing the extraction efficiency [119]. At high pressure and a temperature of 200 °C, the dielectric constant of water decreases from 80 at room temperature to 33, a value like organic solvents. Thus, at such conditions, sub-critical water can be an alternative to organic solvents such as ethanol and methanol to extract non-polar compounds. Moreover, the application of high pressure in SWE allows for limiting the extraction time to only five to 20 min which in turn helps protect the thermolabile metabolites from degradation caused by longer extraction period at high temperature in conventional extraction methods [107,108].

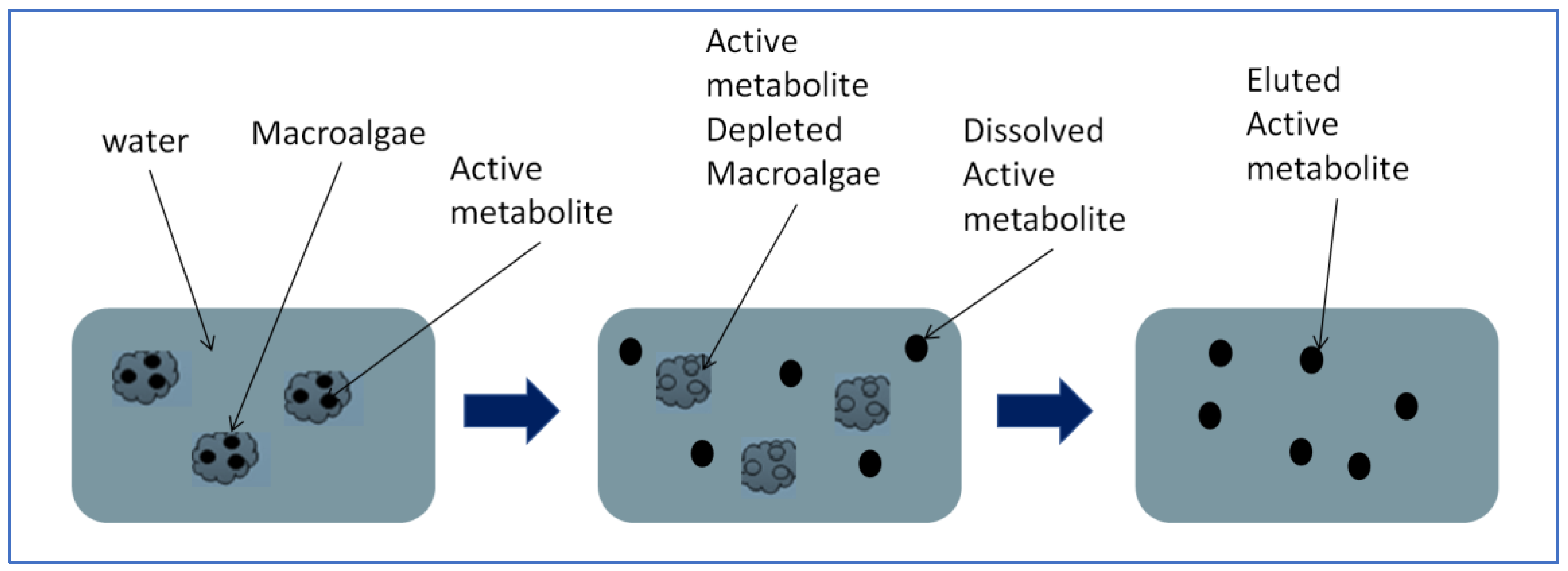

The process of SWE involves three sequential steps, as shown in Figure 4. The first step consists of the active metabolite diffusion to the cell surface; and the second step is where the active metabolite is transferred into the solvent. Finally, in the third step the active metabolite is eluted from the extraction column.

The extraction time of active metabolites is remarkably shorter in the SWE compared to conventional extraction methods. Therefore, the chances of active metabolite degradation are lower than other conventional techniques [120].

Several authors reported a high yield and potency of extracted polysaccharides from macroalgae using SWE. Plaza et al. [121] claim that new compounds are formed during SWE of active metabolites from macroalgae, which increases the antioxidant activity. Similarly, Santoyo et al. [122,123,124] claimed that the extracted polysaccharide from macroalgae using SWE effectively inhibited HSV-1 intracellular replication and disrupted the attachment step. Rodriguez-Meizoso et al. [125] also proved that the extraction yield and the antioxidant activity of bioactive metabolites from Haematococcus pluvialis, a species belonging to the Chlorophyceae class of macroalgae using SWE at 200 °C was higher than that extracted at lower temperatures in conventional methods. Yuan et al. [126] concluded that a higher yield (168.80 ± 0.59 mg/g) and a higher level of metabolite activity was obtained by the polysaccharide-rich fraction isolated from macroalgae using SWE compared to the conventional water extraction method. Similarly, Wu [116] reported an 8.3% crude yield of sulphated polysaccharide extracted from brown algae using SWE technology which demonstrated satisfactory bioactivity.

SWE has been proposed as an alternative for isolating algal polysaccharides since it could be used alone or in combination with an enzymatic treatment inside the extraction vessel [107].

Finally, Herrero et al. [127] and Anaëlle et al. [128] agree that SWE is the most promising engineering non-conventional technique for the extraction of bioactive compounds. Along the same lines, Zakaria et al. [108] claim that the SWE technique improves the mass transfer rate and preserves the extracts’ biological potency and could be the most suitable engineering extraction approach.

Additionally, Zollmann et al. [109] argue that the quest for green solvents such as sub-critical water has become crucial for any green process. Therefore, the subcritical water extraction that uses water as a solvent is recommended by them for being environmentally benign. Based on the aforementioned literature, it could be optimal to employ SWE for the extraction of ulvan from macroalgae.

4. Conclusions

The three macroalgae classes, Chlorophyceae, Phaeophyceae, and Rhodophyceae, have been reported in the literature to have effective antioxidant and antiviral activities, and their potency as active metabolite is influenced by their extraction method. Thus, conventionally, authors recommended using acidic extractant with pH from 2–4.5, at a temperature of 80–90 °C for 1 to 3 h duration of extraction to extract the active metabolite, sulphated polysaccharide. In comparison, non-conventional extraction techniques such as microwave-assisted extraction, ultrasound-assisted extraction, and subcritical water extraction have surpassed the conventional methods in terms of extraction efficiency, the potency of the active metabolite, as well as environmental preservation.

The literature proves that species belonging to the Phaeophyceae and Rhodophceae classes are primarily potent against HSV, followed by HIV and influenza virus. At the same time, species belonging to the Chlorophyceae class are recorded by most of the scholars to have antiviral activity against HSV-1 and HSV-2. Additionally, all three macroalgae classes exhibit antioxidant activity, the potency of which is a factor of the molecular structure of the bioactive metabolite.

Capitalizing on the novel smart technologies for extraction of macroalgae-active metabolite, scholars recommend the use of non-conventional extraction methods such as SWE, MAE and UAE for the extraction of sulphated polysaccharide for their environmental merits and their ability to preserve the active metabolite. Therefore, future research should focus on implementing those technologies and assessing the potency of their yields.
