Thermal Characterization and Modelling of AlGaN-GaN Multilayer Structures for HEMT Applications ^†

Abstract

To optimize the thermal design of AlGaN-GaN high-electron-mobility transistors (HEMTs), which incorporate high power densities, an accurate prediction of the underlying thermal transport mechanisms is crucial. Here, a HEMT-structure (Al_0.17Ga_0.83N, GaN, Al_0.32Ga_0.68N and AlN on a Si substrate) was investigated using a time-domain thermoreflectance (TDTR) setup. The different scattering contributions were investigated in the framework of phonon transport models (Callaway, Holland and Born-von-Karman). The thermal conductivities of all layers were found to decrease with a temperature between 300 K and 773 K, due to Umklapp scattering. The measurement showed that the AlN and GaN thermal conductivities were a magnitude higher than the thermal conductivity of Al_0.32Ga_0.68N and Al_0.17Ga_0.83N due to defect scattering. The layer thicknesses of the HEMT structure are in the length scale of the phonon mean free path, causing a reduction of their intrinsic thermal conductivity. The size-effect of the cross-plane thermal conductivity was investigated, which showed that the phonon transport model is a critical factor. At 300 K, we obtained a thermal conductivity of (130 ± 38) Wm⁻¹K⁻¹ for the (167 ± 7) nm thick AlN, (220 ± 38) Wm⁻¹K⁻¹ for the (1065 ± 7) nm thick GaN, (11.2 ± 0.7) Wm⁻¹K⁻¹ for the (423 ± 5) nm thick Al_0.32Ga_0.68N, and (9.7 ± 0.6) Wm⁻¹K⁻¹ for the (65 ± 5) nm thick Al_0.17Ga_0.83N. Respectively, these conductivity values were found to be 24%, 90%, 28% and 16% of the bulk values, using the Born-von-Karman model together with the Hua–Minnich suppression function approach. The thermal interface conductance as extracted from the TDTR measurements was compared to results given by the diffuse mismatch model and the phonon radiation limit, suggesting contributions from inelastic phonon-scattering processes at the interface. The knowledge of the individual thermal transport mechanisms is essential for understanding the thermal characteristics of the HEMT, and it is useful for improving the thermal management of HEMTs and their reliability.

1. Introduction

The ability of gallium nitride (GaN) to form heterojunctions can be used to fabricate high-electron-mobility transistors (HEMTs). Aluminium gallium nitride (AlGaN)-GaN-based HEMTs offer high carrier concentration (~1013 cm⁻² [1]) and high electron mobility (2000 cm²/Vs [2]), resulting in a high current density and a low channel resistance. These properties offer great potential in the power amplifier technology due to their high-power and high-frequency performance. Thus, these devices are attractive for communication, radar and space applications [3]. The high output power density in the AlGaN-GaN-HEMT also allows further miniaturization of the device with gate lengths down to 80 nm [4]. However, this high-power density leads to significant self-heating, which decreases the device performance. Thus, to have reliable and long-lasting devices, a thorough thermal management is becoming increasingly relevant [5,6,7]. Therefore, thermal characterization and modelling are essential in order to guarantee an efficient heat removal from the heterojunction. Thermal bottlenecks that have to be considered in GaN-based HEMTs are: (i) the reduced thermal conductance of transition layers (here: AlGaN) [8], (ii) the heat transport across interfaces [9], and (iii) the reduced thermal conductivity due to phonon-scattering processes [10,11].

The information gained by this study allows thermal engineering of GaN-based HEMTs and, hence, consequent improvement in thermal management to achieve reliable and long-lasting devices. The paper has three major topics:

Firstly, we systematically investigated a material stack of a high-electron-mobility transistor (HEMT) on a silicon (Si) substrate. Both the thermal properties of the constituent materials and their thermal interface conductance were obtained simultaneously by using a time-domain thermoreflectance (TDTR) measurement setup. In literature, the thermal investigations of the individual materials of the HEMT stack can be found. For example, Chen et al. measured the intrinsic thermal conductivity of AlN [12]. Park and Bayram [13] were investigating GaN grown on different substrates to extract the influence of dislocations on the thermal behaviour. Lui and Balandin [14] did thermal investigations on Al_xGa_1-xN alloys. Other studies investigated the whole device and reported on the temperature field, such as Chatterjee et al. [15]. Lundh et al. [16] used Raman spectroscopy and thermoreflectance thermal imaging to experimentally obtain the lateral and vertical steady-state operating temperature of an AlGaN-GaN HEMT. In this study, we demonstrate a thermal investigation of the holistic HEMT stack, including the thermal conductivities of each layer and the interfaces.

Secondly, the intrinsic thermal conductivity and the mean free path of the phonons were extracted by TDTR measurements at different temperatures. Three different phonon transport models obtained the different phonon scattering mechanisms: the Callaway, Holland, and Born-von-Karman (BvK) models. We describe the significant differences and assumptions of these models. Recently, it was recognised that the cumulative sum over all phonon contributions from the smallest mean free paths up to infinity constitutes a complete description of the bulk thermal conductivity but is particularly powerful when size effects are being investigated. For instance, Yang and Dames [17] analysed phonon transport models for bulk Si and Si nanowires. Regner et al. [18] were also determining the effect of different phonon transport models in terms of accumulated thermal conductivity. In our work, we evaluated the phonon scattering times within the said phonon transport models on the materials of the HEMT stack, based on our temperature-dependent experimental results. We show that the availability of temperature-dependent data is crucial for the analysis of the different scattering contributions.

Thirdly, we revised the calculation of the size effect of the layers with three different approaches: first, with a suppression function approach as introduced by Hua and Minnich [19]. Second, by a common approach using the accumulation of thermal conductivity over the boundary scattering [20]. Third, we determined the size effect via a phonon hydrodynamic equation as proposed by Gua and Wang [21]. All three approaches are compared for predicting the size-dependent cross-plane thermal conductivity.

2. Materials and Methods

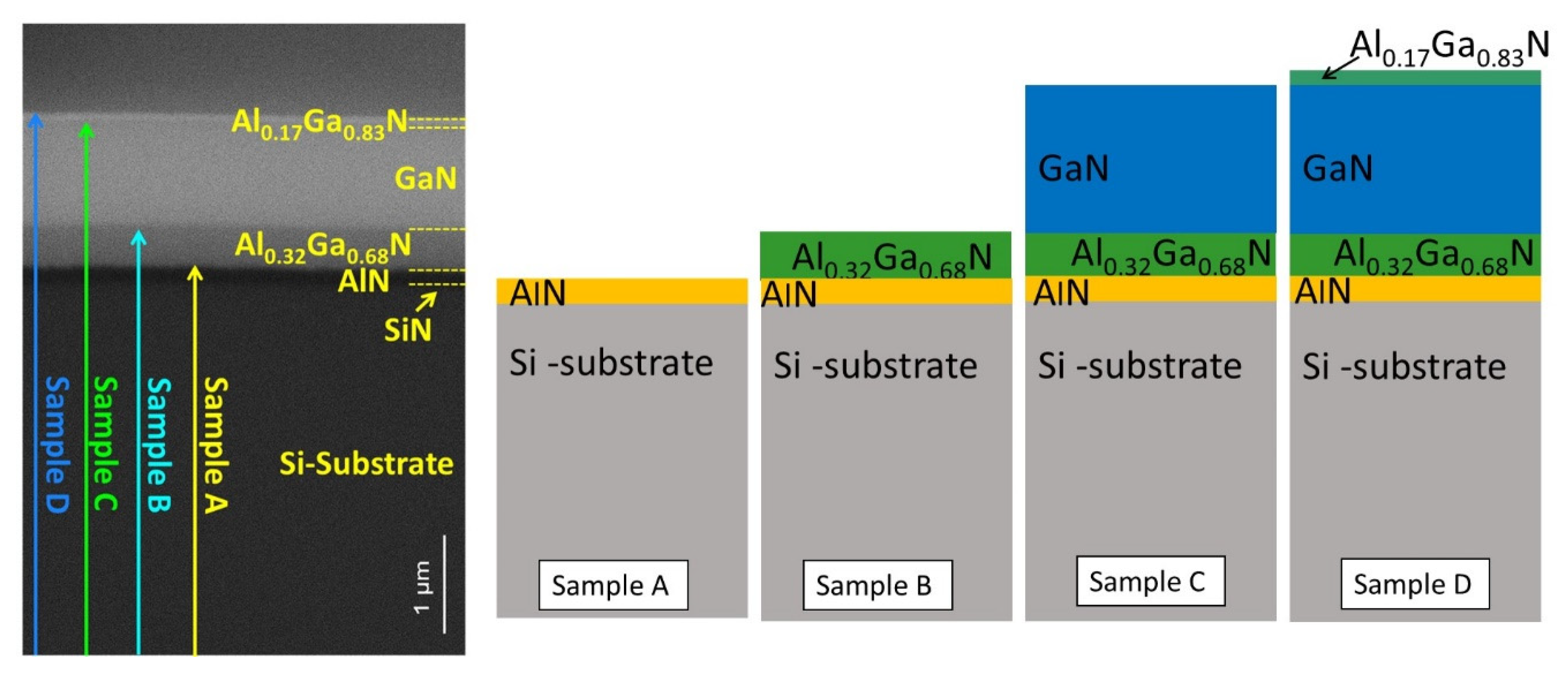

The investigated device was an ungated GaN-based HEMT consisting of an AlGaN-GaN heterostructure. The layers were produced by a metal-organic chemical vapour deposition (MOCVD) process [22]. The AlGaN-GaN heterostructure includes a Si (111) substrate, a 2 nm thick silicon nitride layer, a (167 ± 7) nm thick aluminium nitride (AlN) nucleation layer, a (423 ± 5) nm thick Al_0.32Ga₀.₆₈N transition layer, a (1065 ± 7) nm thick GaN buffer layer, and a (65 ± 5) nm thick Al_0.17Ga₀.₈₃N top barrier layer. A cross-sectional scanning electron microscope (SEM) investigation determined the thickness of all layers (see Figure 1—right-hand side). The Al_xGa_1-xN layer composition was analysed via X-ray diffraction [22]. At the interface between the buffer and top barrier layer, lies the heterojunction of the HEMT, where the two-dimensional electron gas channel is formed. To gain an in-depth knowledge of the heat transport mechanisms within HEMTs, four samples, encompassing different number of sublayers of the overall heterostructure (see Figure 1 Samples A–D), were produced and thermally characterized.

The cross-plane thermal characterization of the four samples A to D was accomplished with a TDTR measurement (PicoTR, Netzsch [23]), which was also used in previous experiments [24]. An integrated oven with a continuous nitrogen flow allowed the measurements to be performed in the range of 300 K to 773 K. The samples A–D were investigated subsequently (see Figure 1). A 100 nm-thick platinum (Pt) layer covered all samples as a transducer. The TDTR setup used was a pump-probe technique, where the pump beam had a wavelength of 1550 nm, a spot radius of 45 µm and a pulse energy of 25 mW. The pump beam and the probe beam had a pulse width of 0.5 ps. For the purpose of lock-in detection, the pump beam was modulated at 200 kHz. The pump beam was focused on the top face of the Pt-layer, and the probe beam was focused on the same position. The temperature change caused by the pump beam was monitored by the probe beam, with a wavelength of 775 nm, by using the two-colour thermoreflectance principle. The probe beam was electrically time delayed to the pump beam with a picosecond time resolution. This time resolution allowed an analysis of both the thermal conductivity of the individual layers and the thermal interface conductance. These thermal properties were determined by fitting the phase delay to an analytical heat conduction model [25]. The phase signal over time showed a max. noise of 1° and the uncertainty of the measurements were calculated according to Yang et al. [26].

3. Results

The thermal conductivity (κ) of the constituent materials and thermal interface conductance were measured by the TDTR. The phase signal of the lock-in amplifier of the TDTR was analysed by using the analytical heat flow model of the multi-layered structures as proposed by Cahill [25]. The thickness (see Figure 1) and the volumetric heat capacity of all materials and κ of the Si substrate were used as input for the calculations. All temperature-dependent thermophysical properties of Si were taken from the literature [27,28]. The heat capacity of AlN and GaN at 300 K was 2.67 MJm⁻³K⁻¹ and 2.63 MJm⁻³K⁻¹. These values and their temperature dependency were taken from [29] and [30], respectively. By using the rule of mixture, the heat capacity of 2.65 MJm⁻³K⁻¹ for Al_0.32Ga₀.₆₈N was calculated. A 4-point probe measurement captured the electrical sheet resistance of the Pt-transducer layer. The thermal conductivity (κ) of the Pt transducer was determined to be 14 W/mK according to the Wiedemann–Franz law.

Starting from Sample A, κ of the AlN layer (${\kappa }_{AlN}$) and the thermal interface conductance between Pt and AlN were measured via TDTR. These values were used as input parameters for Sample B, which provided the κ for the alloy Al_0.32Ga₀.₆₈N and the corresponding thermal interface conductance. Consequently, for the analysis of Sample C we used the results from Sample B. The same procedure was applied for Sample D, using the results obtained from Sample C. [31]

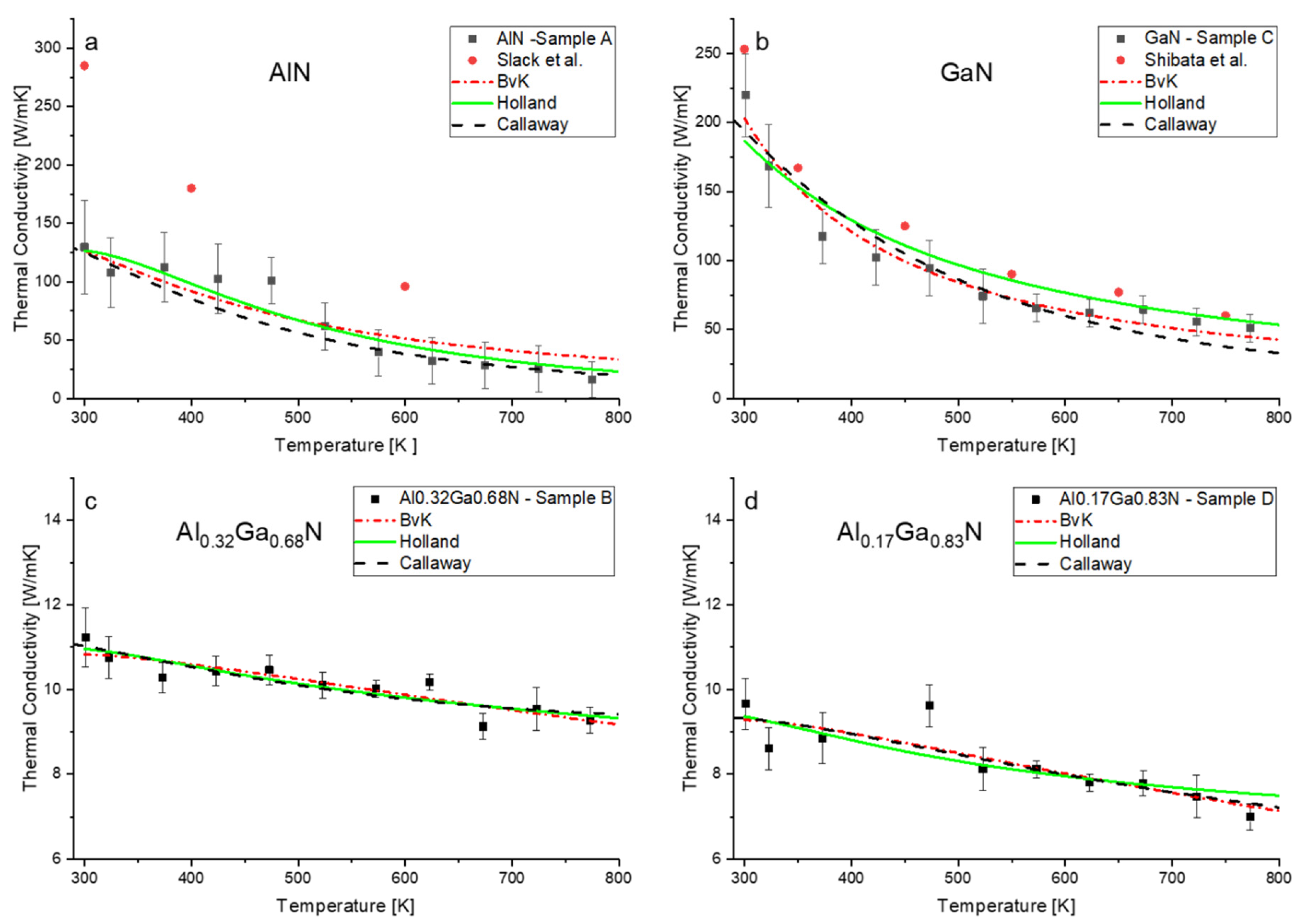

The temperature-dependence of ${\kappa }_{AlN}$ for the (167 ± 7) nm thick AlN of Sample A is presented in Figure 2a. ${\kappa }_{AlN}$ decreased from (130 ± 38) Wm⁻¹K⁻¹ at 300 K to (16 ± 13) Wm⁻¹K⁻¹ at 773 K. Our results, as can be seen, are half of the values reported by Slack et al. [32]. Such a difference potentially can be explained by size effects (as investigated in more detail below) and different defect densities, stemming from different growth processes, which might reduce the thermal conductivity. Slack et al. [32] investigated a single AlN crystal with a thickness of 3 mm, grown from high-purity AlN powder by vapour-phase transport.

Figure 2c shows the cross-plane thermal conductivity of the (423 ± 5) nm Al_0.32Ga_0.68N (obtained from the measurements on Sample B). The previous results of ${\kappa }_{AlN}$ (obtained from Sample A) served as an input parameter. The Al_0.32Ga_0.68N layer had a thermal conductivity of (11.2 ± 0.7) Wm⁻¹K⁻¹ at 300 K. $\kappa$ of Al_0.32Ga₀.₆₈N was one order of magnitude smaller than ${\kappa }_{AlN}$, due to the phonon scattering processes from defects/ alloying elements [33]. The thermal conductivity of the (65 ± 7) nm Al_0.17Ga_0.83N of Sample D was (9.7 ± 0.6) Wm⁻¹K⁻¹ at 300 K and decreased to (7.0 ± 0.3) Wm⁻¹K⁻¹ at 773 K (see Figure 2d). In our case, the thermal conductivity of Al_0.17Ga₀.₈₃N was even lower than that of Al_0.32Ga₀.₆₈N, explainable by their difference in layer thickness (enhanced boundary scattering). The temperature-dependence of the thermal conductivity of these alloys was much weaker than that obtained for ${\kappa }_{AlN}$. This behavior was in agreement with the results reported by Daly [34], who investigated Al_0.18Ga_0.82N, Al_0.20Ga_0.80N, and Al_0.44Ga_0.56N.

Figure 2c shows the thermal conductivity of the GaN film (${\kappa }_{GaN}$) from Sample C. ${\kappa }_{GaN}$ decreases from (220 ± 38) Wm⁻¹K⁻¹ at 300 K to (51 ± 9) Wm⁻¹K⁻¹ at 773 K. This value was similar to the findings reported by Shibata et al. [35] for a GaN film grown by a hydride-vapour phase epitaxy process (here, the MOCVD process).

This work aims to clarify the origin of the reduced thermal conductivity of all those layers, within the HEMT layer stack, by applying different phonon transport and boundary models (see below).

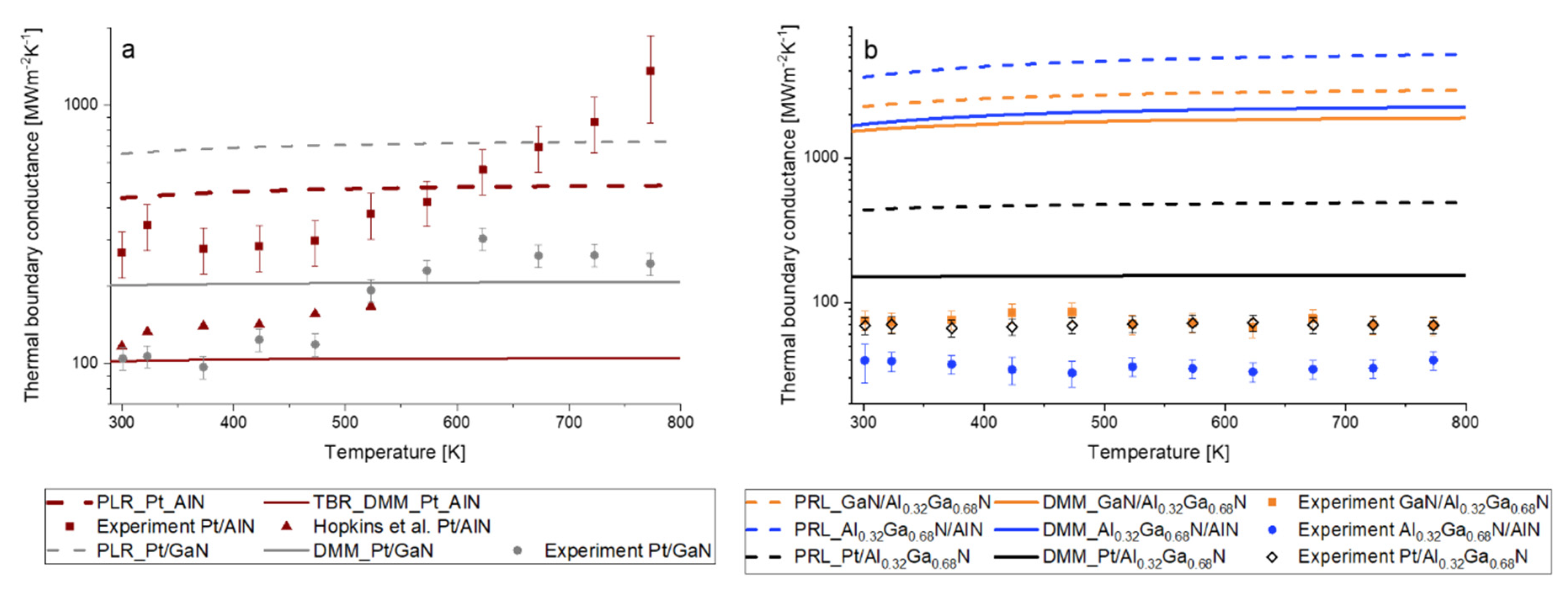

The thermal interface conductance between Pt and AlN (obtained from the TDTR measurements of Sample A) increased with temperature (red squares in Figure 3a). Above the Debye temperature of Pt (240 K [36]), this increase indicates a dominating inelastic scattering of phonons at the interface [37]. The temperature dependence of the thermal boundary conductance is also in line with results obtained from ab-initio molecular dynamics simulations [38], which showed an increase of the thermal conductivity with temperature due to the increase of available spatially localized modes at the interface. In the range of temperatures between 300 K and 523 K, the value increased from (269 ± 54) MWm⁻²K⁻¹ to (380 ± 76) MWm⁻²K⁻¹. A similar change of the thermal interface conductance was previously reported by [37]. The difference between their results (red triangles in Figure 3a) and our data can be explained by differences in the interface itself, e.g., different levels of roughness, disorder or mixing. Regarding the thermal interface conductance between Pt and GaN of Sample C, it increased with temperature until reaching 623 K, similar to the thermal conductance of the Pt/AlN interface (Figure 3a—grey circles). Above that temperature, the thermal interface conductance showed a constant value of ~3.8 m²K/GW. This constant value is in agreement with the analysis published by Hopkins et al. [39]. There it was reported that above the Debye temperature of both materials at the interface (Pt: 240 K and GaN: 655 K), the inelastic scattering became temperature-independent.

Concerning the thermal interface conductance across Pt/Al_0.32Ga_0.68N of Sample B (Figure 3b), it was an order of magnitude lower than that across Pt/AlN of Sample A. It did not feature a significant change with temperature in the measured range (300 K–773 K). Similar behaviour was obtained for the thermal interface conductance between Al_0.32Ga_0.68N/AlN and GaN/Al_0.32Ga_0.68N (Figure 3b), which were comparable to the results of a GaSb/GaAs interface published in [40].

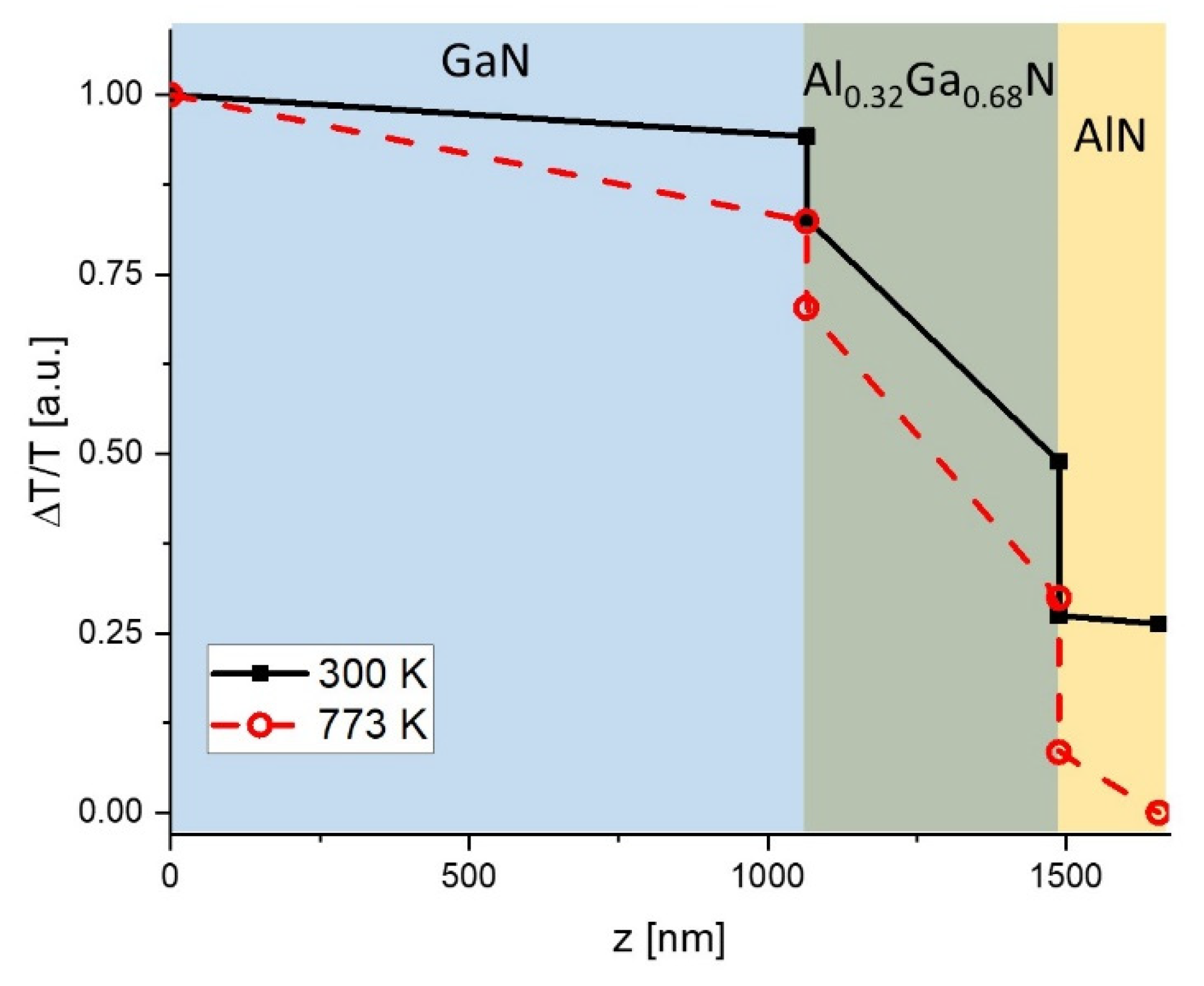

To visualise the relative contribution and the importance of the interface conductance in the HEMT layer stack, we visualised the normalized temperature profile from the GaN to the bottom of the AlN, for the system at 300 K and 773 K (Figure 4). The Al_0.32Ga_0.68N showed the highest temperature gradient. However, the temperature jump at Al_0.32Ga_0.68N/AlN interface is two-third of the temperature decrease in the Al_0.32Ga_0.68N layer and the GaN/Al_0.32Ga_0.68N one-third. It can also be seen that the temperature gradient in the GaN and AlN layer increases significantly from 300 K to 775 K. Note that we did not visualise the leftmost layer since its interface conductance cannot be resolved.

4. Modelling Methodology and Discussion

4.1. Thermal Interface Conductance

The thermal interface conductance from phonon scattering was modelled with the diffuse mismatch model (DMM—Equation (1)) [41] and the phonon radiation limit (PRL—Equation (2)) [42]. The DMM and the PRL models assume both elastic scattering of the phonons at the interface. Both models predict a constant thermal interface conductance in the high-temperature limit, at temperatures well above the Debye temperature. The DMM uses a transmission coefficient ($a$), which is a function of the phonon frequency ($\omega$). $a$ was computed from the group velocities and density of states (DOS) of both materials at the interface [42]. The behaviour in the high-temperature limit comes from the fact that in the DMM, the only temperature-dependent quantity is the phonon population on the hot side of the interface. In this model, the phonon population is given by the change of the Bose–Einstein distribution function with temperature ($\frac{\delta f\left(\omega ,T\right)}{\delta T}$) multiplied by the DOS of the material in the hot side $(D_{hot,i})$. Thus we obtain:

$$h_{BD,DMM}=\frac{1}{4}{{\displaystyle \sum }}_i{v}_{hot,i}{{\displaystyle \int }}_0^{{\omega }_{hot,max,i}}a\left(\omega \right)\hslash \omega D_{hot,i}\left(\omega \right)\frac{\delta f\left(\omega ,T\right)}{\delta T}d\omega ,$$

(1)

where $\hslash$ is the Planck constant, $v_{hot,i}$ is the phonon velocity of the acoustic phonon mode (i) in the hot side material and ${\omega }_{hot,max,i}$ the corresponding cut-off frequency.

For the PRL model, the transmission coefficient is assumed to be one, and a cut-off frequency is given by the highest frequency of the material on the hot side. Besides that, the only temperature-dependent quantity in the PRL model is $\frac{\delta f\left(\omega ,T\right)}{\delta T}$ multiplied by the DOS of the material on the cold ($D_{cold,i}$) side. This gives the equation:

$$h_{BD,PRL}=\frac{1}{4}{{\displaystyle \sum }}_i{v}_{cold,i}{{\displaystyle \int }}_0^{{\omega }_{hot,max,i}}\hslash \omega D_{cold,i}\left(\omega \right)\frac{\delta f\left(\omega ,T\right)}{\delta T}d\omega .$$

(2)

The PRL always gives a higher value than the DMM, since it represents the upper limit of the elastic contribution to the thermal transport [43].

In the high-temperature limit: if the material on the hot side has a much lower Debye temperature than that on the cold side, the phonon population in the integrated frequency window (between zero and ${\omega }_{hot,max,i}$) does not change with temperature on both sides of the interface. Thus, the high-temperature limit of the interface conductance is always set by the material on the hot side, either by the DOS in the DMM or by introducing a cut-off in the PRL. If the Debye temperature of the material on the hot side is much higher than that of the cold side, the material from the hot side is still responsible for the temperature behaviour of the thermal interface conductance according to the DMM. In the PRL model, conversely, the material in the cold side is determining the temperature dependence of the thermal interface conductance.

The experimental thermal interface conductance of both Pt/AlN and Pt/GaN increased both with temperature (see Figure 3a). Conversely, as the Debye temperature of Pt is 240 K [36], the values calculated from the DMM and PRL do not show a significant increase with temperature. Hopkins et al. [37] also reported an increasing Pt/GaN interface conductance with temperature. They suggested that this temperature-dependent behaviour results from an inelastic phonon-scattering processes at the interface. This inelastic scattering affects the conductance, offering more channels for transport than the DMM and the PRL. In these models, the transmission coefficient is independent of temperature at high temperatures.

Concerning the thermal interface conductance involving AlGaN alloys (Figure 3b), both the DMM and PRL predicted a lower thermal interface conductance for the Pt/Al_0.32Ga_0.68N than for the Al_0.32Ga_0.68N/AlN and the GaN/Al_0.32Ga_0.68N interfaces. This is reasonable, as the Pt/Al_0.32Ga_0.68N has the highest mismatch in their sound velocities, which determines the transmission coefficient. For all interfaces, the PRL and the DMM overestimate the thermal interface conductance. These models, however, do not account for scattering mechanisms from defects at the interface, changes in the interatomic bonds near the interface or interfacial disorder (especially in well-matched materials) [44], that results in a reduction of the thermal conductance [43].

4.2. Models for Phonon Scattering

To provide insight into the thermal transport in a HEMT device, $\kappa$ of the constituent materials were also modelled by using analytical scattering models for phonons: Callaway [45], Holland [46] and Born-von-Karman (BvK) [47,48]. All analytical models have as a starting point the formula for the lattice thermal conductivity ($\kappa$), having its origin in kinetic theory and being derived from the Peierls–Boltzmann transport equation. $\kappa$ can be expressed as a function of the phonon frequency ($\omega$) and the temperature (T), including the summation over the phonon modes ($i$):

$$\kappa =\frac{1}{3}{{\displaystyle \sum }}_i{\displaystyle \int }C\left(\omega ,T\right)v_g{}^2\left(\omega \right){\tau }_{eff}\left(\omega ,T\right)d\omega ,$$

(3)

where $C$ is the volumetric specific heat capacity, $v_g$ is the phonon group velocity and ${\tau }_{eff}$ is the total relaxation time. ${\tau }_{eff}$ depends on the phonon scattering mechanisms. $v_g=\delta \omega /\delta k$ and $C\left(\omega ,T\right)=\hslash \omega D\left(\omega \right)\left(\frac{\delta f_{BE}}{\delta T}\right)={\left(\frac{\hslash \omega }{T}\right)}^{2}D\left(\omega \right)e^{\frac{\hslash \omega }{k_{B}T}}{\displaystyle /}\left(k_B{\left(e^{\frac{\hslash \omega }{k_{B}T}}-1\right)}^2\right)$ are determined by the phonon dispersion relation. Here, $k$ is the wavenumber, $\hslash$ is the Planck constant, $k_B$ the Boltzmann constant, $D\left(\omega \right)$ the phonon DOS and $f_{BE}$ is the Bose–Einstein distribution.

The Callaway model is based on a linear dispersion relation (Debye model), while the BvK model uses a sine-type dispersion, capturing the increased DOS near the Brillouin zone edge. Details about the analytical models used are given in Appendix A. The models only consider heat transport by acoustic phonons (i.e., the heat transport by optical phonons were neglected).

Following Matthiessens’s rule, ${\tau }_{eff}$ can be expressed in terms of the relaxation times of different scattering processes as:

$${\tau }_{eff}^{-1}={\tau }_U^{-1}+{\tau }_{PD}^{-1}+{\tau }_B^{-1}$$

(4)

${\tau }_U,{\tau }_{PD},{\tau }_B$ are associated with Umklapp scattering [49], point-defect scattering [50], and the boundary scattering [51], respectively. These relaxation times have different dependencies on temperature and frequency [52].

$${\tau }_U^{-1}\left(\omega ,T\right)=\frac{2k_B\delta {\gamma }^2}{{\left(6{\pi }^2\right)}^{1/3}M{v}_p^2{v}_g}{\omega }^{2}T{e}^{-\frac{\theta }{bT}}$$

(5)

$${\tau }_{PD}^{-1}\left(\omega ,T\right)=\frac{{\delta }^3}{4\pi v_p^2{v}_g}{\omega }^4\Gamma$$

(6)

$${\tau }_B^{-1}=\frac{v_g}{\alpha L}$$

(7)

Here, $\gamma$ denotes the Grüneisen parameter and $\delta$ the characteristic length scale of the lattice (i.e., cubic root of the atomic volume). The atomic volume was calculated by dividing the atomic molar mass (M_Mol) by the density. M is the average mass of an atom in the crystal (M_Mol divided by the number of atoms in the unit cell). $b$ is a constant characteristic of the vibrational spectrum of the material, $\alpha$ is a specularity factor, $v_P$ is the phonon phase velocity and L is the characteristic size of the material. In the case of the Debye model, $v_g$ and $v_p$ were both approximated as the speed of sound $v_s$.

In Equation (6), $\Gamma$ denotes the phonon-scattering parameter. For a single element, $\Gamma$ describes the scattering by point defects ($\Gamma ={\Gamma }_{imp}$), which is influenced by the doping density and the growth method [14]. For alloys, the scattering parameter also includes the scattering caused by alloying (${\Gamma }_{alloy}$), $\Gamma ={\Gamma }_{imp}+{\Gamma }_{alloy}$ [33]. ${\Gamma }_{alloy}$ is related to the difference in mass and strain-field (the lattice constants) between two constituents of an alloy [53].

The material parameters used in our calculations are summarized in

Table 1. Material parameters used for the theoretical models of the lattice thermal conductivity.

Materials	$\mathit{\gamma }$	${\mathit{v}}_{\mathit{L}}[\mathbf{m}/\mathbf{s}]$	${\mathit{v}}_{\mathit{T}1}[\mathbf{m}/\mathbf{s}]$	${\mathit{v}}_{\mathit{T}2}$ [m/s]	n [Å−3]	M [kg]	$\mathit{\rho }$ [kg/m³]
AlN	1.77	10,751	6027	6406	0.0941	3.48 × 10−26	3201
GaN	2.05	7538	4022	4566	0.0852	6.95 × 10−26	5923
Al0.32Ga0.68N	1.91	8962	4783	5322	0.0916	5.82 × 10−26	5136
Al0.17Ga0.83N	1.91	8962	4783	5322	0.0916	6.35 × 10−26	5510

$\gamma$ Grüneisen parameter; $v_L$ longitudinal acoustic phonon velocities; $v_T$ transverse acoustic phonon velocities; n number of atoms per volume in the unit cell; M average mass of an atom in the crystal; $\rho$ density.

; $\gamma ,v,$ n and $\rho$ were obtained from ab-initio calculations, using ThermElpy [54] and Vienna Ab-initio Simulation Package (VASP) [55]. Here, $\gamma$ is the high-temperature limit of the Grüneisen parameter, obtained by fitting Birch-Murnaghan equation of states and extracting the pressure derivative of the bulk modulus. For the AlGaN alloys, these values were extracted from an Al_0.5Ga_0.5N alloy. The values $M$ and $\rho$ of the alloys were calculated by the relation ${\displaystyle \sum }_i{f}_i\times z$, where $f_i$ is the mass fraction of the component and z stands for the parameter either $M$ or $\rho$.

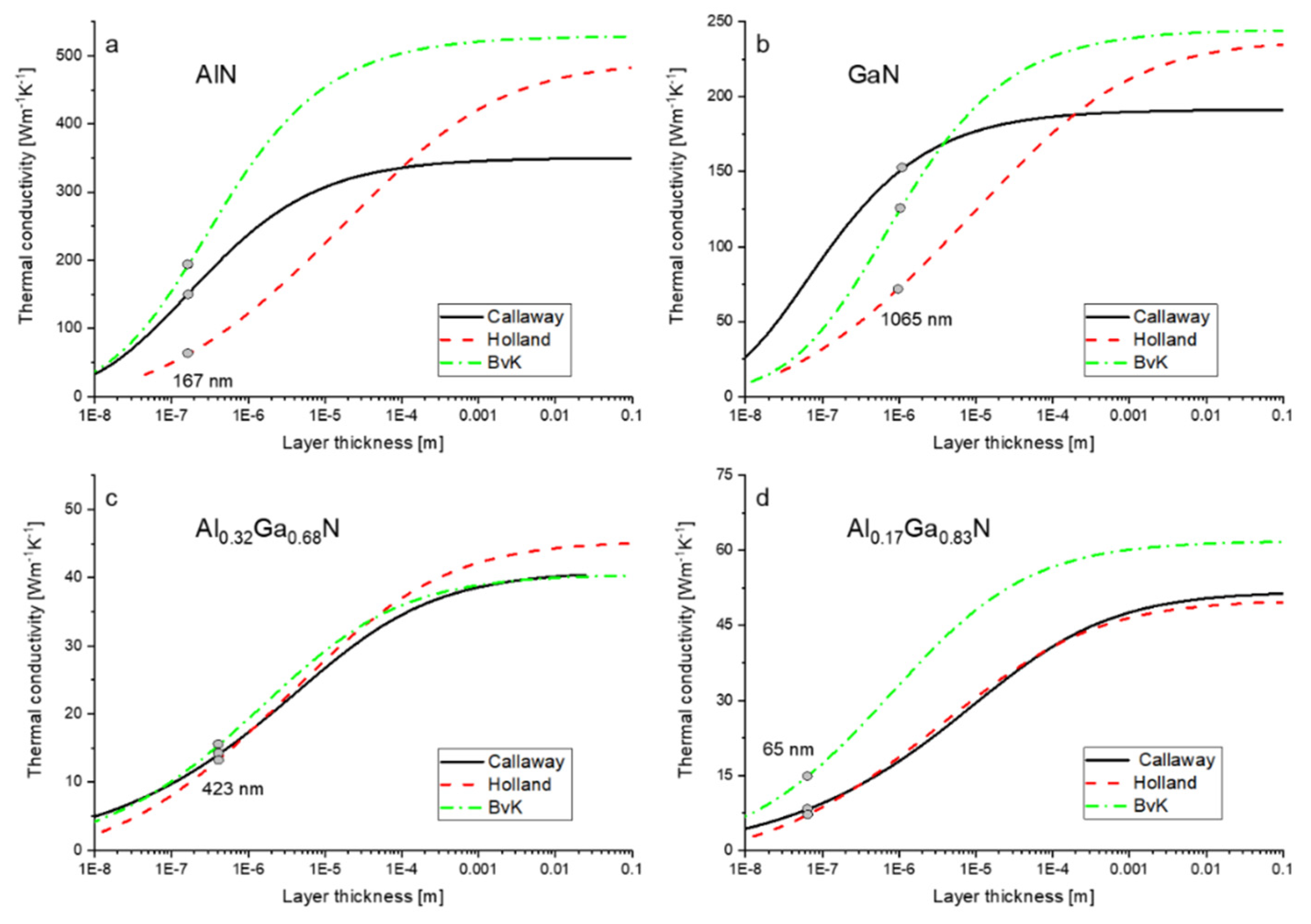

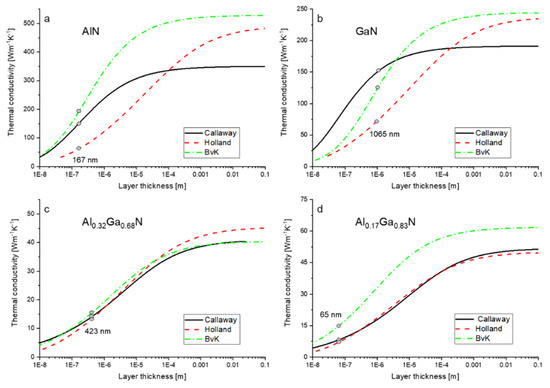

The determination of the thermal conductivity trend was limited by the temperature-dependence of the aforementioned scattering mechanisms. For the three models considered (Equations (5)–(7)), $b,\Gamma$ and $\alpha$ were determined by fitting the modelled thermal conductivity to the experimental one (Figure 2). The values of the fitting parameters are listed in

Table 2. Fitting parameters of several phonon scattering mechanisms used in the three models.

Materials	Callaway			Holland			BvK
	b	$\Gamma$	$\mathit{\alpha }$	b	$\Gamma$	$\mathit{\alpha }$	b	$\Gamma$	$\mathit{\alpha }$
AlN	3	3 × 10−4	0.3	3	0.0021	0.87	3	8 × 10−5	0.3
GaN	3	2 × 10−4	1	1.6	0.0026	0.29	0.85	9 × 10−5	1
Al0.32Ga0.68N	3	0.056	1	3	0.0988	0.19	3	0.4	1
Al0.17Ga0.83N	3	0.030	0.85	3	0.0854	0.11	3	0.2	0.96

.

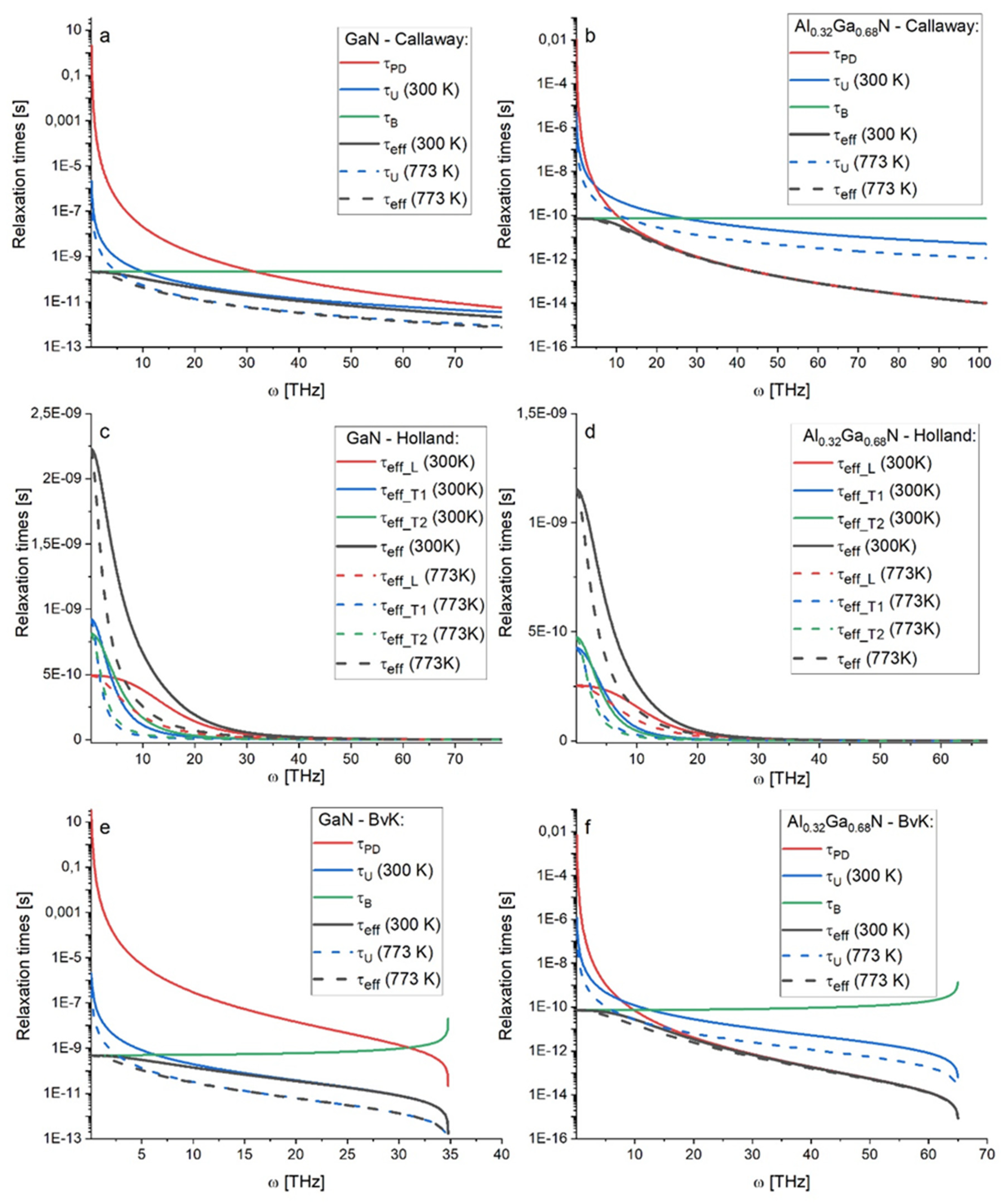

The frequency dependence of the different scattering mechanisms (Equations (5)–(7)) is shown in Figure 5. As can be seen in Equations (5)–(7) only ${\tau }_U$ features a temperature dependence. To show the effect of temperature on ${\tau }_U$ and hence ${\tau }_{eff}$, these values were plotted at 300 K and at 773 K (see Figure 5: solid vs. dashed lines). In all models ${\tau }_B$ dominates the phonon scattering at low ω (e.g., <3 THz at 773 K in the BvK model). At higher frequencies and high temperature (773 K) ${\tau }_U$ dictates the heat transport. For frequencies >10 THz, ${\tau }_{PD}$ is the main scattering mechanism for Al_0.32Ga_0.68N (Figure 5b,f) in contrast to GaN (Figure 5a,e). This behaviour of the relaxation times explains why the thermal conductivity of Al_0.32Ga_0.68N is less affected by temperature. In contrast to the Callaway and Holland models, which use the Debye dispersion, the BvK model shows a frequency-dependent ${\tau }_B.$ In the BvK model, ${\tau }_B$ increases with frequency and ${\tau }_U$ dominates at low frequencies in GaN and in Al_0.32Ga_0.68N at 773 K. The Holland model offers insight into the scattering mechanisms of each phonon branch (Figure 5c,d). The two transverse phonon branches dominate the low-frequency range while the longitudinal phonon branch becomes dominant at higher frequencies (>5 THz).

4.3. Models for the Size Effect in Cross-Plane Thermal Transport

We have tested three different approaches to predict the size effect on cross-plane transport given by layer thickness variations:

• A suppression function-based approach as proposed by Hua and Minnich [19].
• A model using simply the boundary scattering law as given in Equation (3) [56]. In the following it is referred to as the “simple model”.
• A model derived from the phonon hydrodynamic equations by Guo and Wang [21].

In our work, all three models were compared to the BvK model. In the first approach, we used the thickness-dependent thermal conductivity according to the Hua and Minnich suppression function approach [19], that uses a model analogous to the Fuchs–Sondheimer [57] expression for the thermal conductivity. Accordingly, the calculation of the thickness-dependent thermal conductivity can be written as:

$$\kappa \left(L\right)={\int }_0^{{\omega }_{max}}\frac{1}{3}C\left(\omega \right)v_g\Lambda \left(\omega \right)\mathrm{S}\left(\mathrm{Kn}\left(\omega \right),L\right)d\omega ,$$

(8)

where $\Lambda \left(\omega \right)$ is the bulk phonon mean free path and Kn is the Knudsen number. $S\left(\mathrm{Kn}\left(\omega \right),L\right)=1+3\mathrm{Kn}\left(\omega \right)·(E_5\left({\mathrm{Kn}}^{-1}\left(\omega \right)\right)-0.25)$ is a layer thickness (L) dependent suppression function. $\Lambda \left(\omega \right)=v_g{\tau }_{ef{f}_{mat}}\left(\omega \right)$ was calculated by using the aforementioned fitted models. ${\tau }_{ef{f}_{mat}}$ is similar to ${\tau }_{eff}$ in Equation (4) without ${\tau }_B$. By using the fit parameters in Table 2, ${\tau }_{ef{f}_{mat}}$ of all three transport models ((Callaway, Holland and BvK)) was calculated and used in Equation (8). Figure 6 shows the thickness-dependent thermal conductivity for the four materials at 300 K. The Holland model for AlN and GaN predicted lower thermal conductivities at a small thickness (<10⁻⁴ m) compared with the other models. The size-dependence extracted from the Holland model did not agree well with the experimental values; it predicts thermal conductivity for AlN and GaN that is too low. The thermal conductivity of AlN and GaN showed strong thickness dependence. The BvK model showed the highest bulk thermal conductivity while the Callaway model the smallest. E.g., the 167 nm thick AlN showed a reduction by 41% for the Callaway model and 36% for the BvK model compared the corresponding bulk value. The $\kappa \left(L\right)$ of GaN at 1065 nm resulted in 78% of the corresponding bulk value for the Callaway model and 52% for the BvK model, which was also reported by [58]. The values predicted by the BvK model of $\kappa (L)$ for GaN (green dashed-dotted line Figure 6b) were in agreement with the results reported in [59]. Comparing the three transport models for the alloys, there was a difference of 10% for Al_0.32Ga_0.68N and 18% for Al_0.17Ga_0.83N in their size-dependencies. For example, the thermal conductivity of the 65 nm thick Al_0.17Ga_0.83N showed 9% of the bulk thermal conductivity in the BvK model (Figure 6d).

The second approach used to compute the size effect on the cross-plane thermal conductivity takes into account boundary scattering by using the thickness-dependent boundary relaxation time (Equation (7)) to calculate the total relaxation time. The thermal conductivity is computed according to Equation (3) [56]. The results of this model are shown as dashed lines in Figure 7.

The third approach to calculate size effects uses the formula derived from Guo and Wang [21]:

$$\frac{\kappa \left(L,\omega \right)}{{\kappa }_{bulk}\left(\omega \right)}={\left(1+\frac{\left(1+s\right)}{\left(1-s\right)}\frac{4}{3}{\mathrm{Kn}}_L\left(\omega \right)\right)}^{-1}$$

(9)

where ${\kappa }_{bulk}\left(\omega \right)$ is the spectral thermal conductivity as given in Equation (3), without integrating over ω. The Knudsen number is given as ${\mathrm{Kn}}_L\left(\omega \right)$ = Λ(ω)/L, where Λ(ω) is the mean free path spectrum. The term (1 + s)/(1 − s) accounts for the specularity factor 1/α (see Table 2). For instance, for perfectly diffuse boundary scattering s = 0 and α = 1. For boundaries with specular scattering contribution s > 0, approaching 1 for fully specular reflection and α < 1, approaching 0, respectively. Thus, the effective thermal conductivity becomes smaller with increasing specular scattering at the boundary for the cross-plane case. Note, this is the opposite of the in-plane case. A detailed discussion of the cross-plane and in-plane effective thermal conductivity is given by Guo and Wang [21]. The effective cross-plane thermal conductivity was calculated by integrating over ω, analogous to Equation (8), by inserting Equation (9) instead of $S\left(\mathrm{Kn}\left(\omega \right), L\right)$ (see dotted lines in Figure 7).

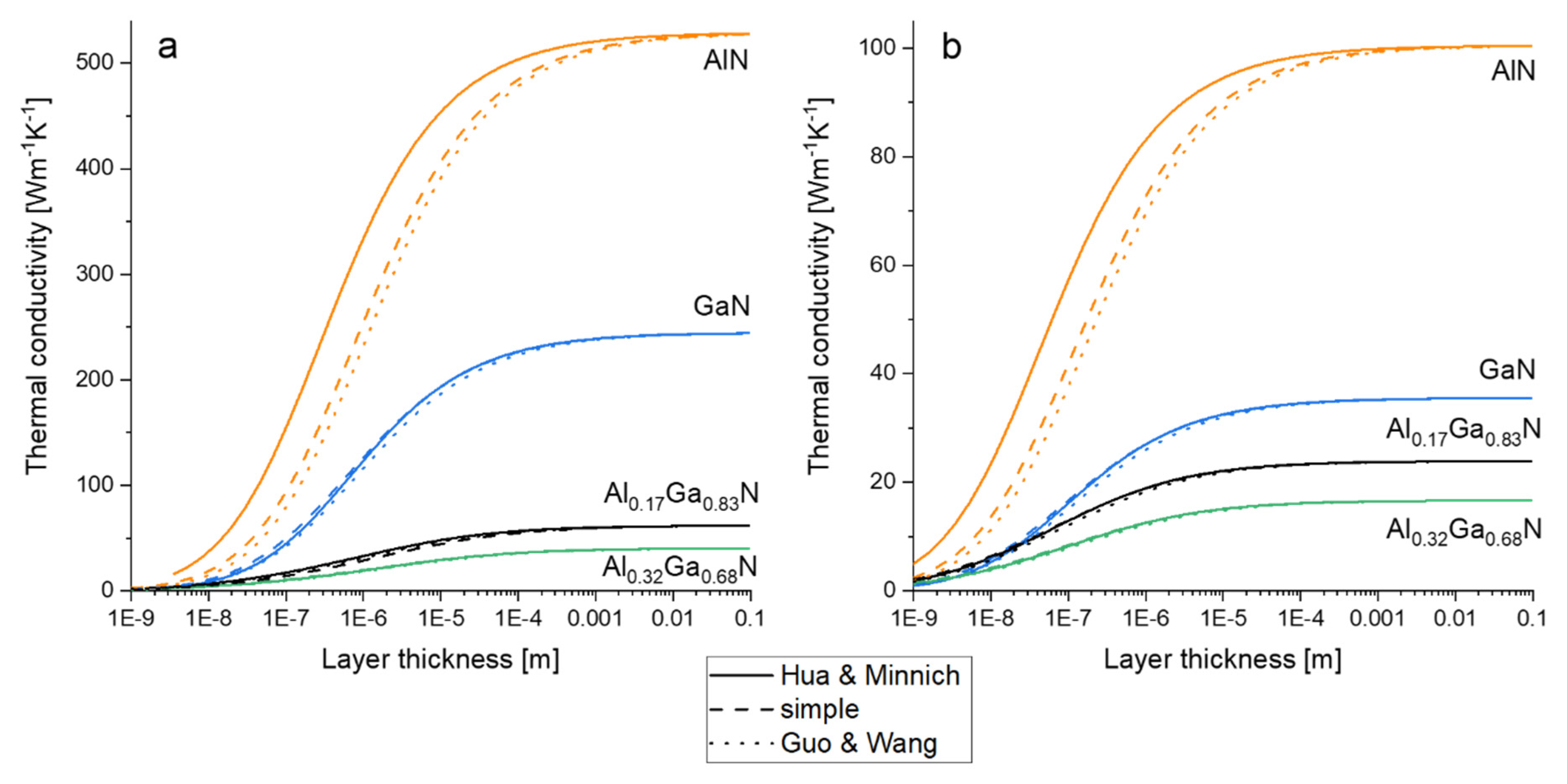

Figure 7 shows the size-dependent thermal conductivity of the three models at (a) 300 K and (b) 773 K. Comparing the size effect at 300 K and 773 K, the convergence to the bulk thermal conductivity (e.g., 90% of ${\kappa }_{GaN}(L=\infty ))$ happens at smaller thicknesses at 773 K. At higher temperatures, the phonon-phonon scattering increases, and hence the mean free path of the phonons contributing to the thermal conductivity is shorter for 773 K than for 300 K.

All three models for predicting the size effect agree very well when the specularity parameter α is close to one or equal to one (see Table 2). In the AlN, where α is 0.3, the simple model and the model of Gua and Wang showed similar results. For AlN, both models predict a lower thermal conductivity than the Hua and Minnich model for layer thicknesses <0.001 m, the convergence of $\kappa (L)$ is also broader.

5. Conclusions

The constituent materials of an AlGaN-GaN-based HEMT, and the interfaces between them were investigated by a TDTR measurement setup. The measured thermal interface conductance was compared to the values calculated in the framework of the DMM and the PRL models. In contrast to the elastic DMM and PRL models, the measured interface conductance showed a stronger increase with temperature. This observation suggests a contribution of inelastic scattering processes. The Pt/AlN thermal interface conductance increased with temperature from (269 ± 54) MW/m²K at 300 K to (1358 ± 503) MW/m²K at 773 K. The Pt/GaN thermal interface conductance increased from (105 ± 11) MW/m²K at 300 K until reaching a plateau of 3·10⁸ W/m²KW at 600 K. The thermal interface conductance with Al_0.32Ga_0.68N showed no significant temperature-dependence.

The thermal conductivities of the (167 ± 7) nm AlN and (1065 ± 7) nm GaN at 300 K (${\kappa }_{AlN}$ = (130 ± 38) Wm⁻¹K⁻¹ and ${\kappa }_{GaN}$ = (220 ± 38) Wm⁻¹K⁻¹) were found to be an order of magnitude higher than that of the alloy. The $\kappa$ of (423 ± 5) nm Al_0.32Ga_0.68N layer was found to be (11.2 ± 0.7) Wm⁻¹K⁻¹ and that of the of (65 ± 5) nm Al_0.17Ga_0.83N layer was (9.7 ± 0.6) Wm⁻¹K⁻¹. As expected, their thermal conductivities decreased with increasing temperature in the range of 300 to 773 K. From the analysis of the relaxation times, it has been shown that besides boundary scattering, the Umklapp scattering was dominant for the thermal conductivity in pure AlN and pure GaN. Point-defect scattering, conversely, dictated the thermal conductivity of the alloys.

The investigated material layers with nanometer to micrometre thicknesses generally showed a reduced thermal conductivity relative to the bulk. The size effect for the cross-plane phonon transport was calculated by using three different models: the suppression function-based approach, the approach taking into account the boundary scattering, and the approach based on phonon hydrodynamic equations. The last two models include specular phonon scattering effects at the boundary. In contrast, the suppression function-based approach assumes perfectly diffusive scattering. To apply this for the AlGaN-GaN-based HEMT layer stack can be content of future work. We observed an agreement between the three boundary models, in the prediction of size-dependent cross-plane thermal conductivity (see Figure 7). The uncertainty, which is introduced by the transport model (Callaway, Holland, BvK) was much higher than for the boundary model (compare Figure 6 and Figure 7).

The categorical low thermal conductivity of the AlGaN layers in the HEMT structure hinders the heat dissipation from the junction to the substrate and can lead to hot spots. This increases the importance of the GaN-layer as a heat spreader for efficient heat transport from the junction to the substrate. Our work highlights the role of interfaces and size effects; these features lessen the thermal conductance in HEMTs. It also designates that a significant contribution of the phonons that transport heat in GaN have long MFPs in the range of the involved layer thicknesses. This fact should be considered for a better exploitation of the intrinsic thermal conductivity of the materials used in microelectronic devices as HEMTs. Overall, the reported thermal transport results can be used to evaluate self-heating effects in AlGaN-GaN HEMT heterostructure and might serve as a guide for advanced optimization, taking thermal considerations into account.
