# Experimental Assessment of Flow, Performance, and Loads for Tidal Turbines in a Closely-Spaced Array

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Previous Studies of Tidal Stream Turbine Arrays

#### 1.2. Other Studies Using the Supergen UKCMER Tidal Turbines

## 2. Experimental Set-Up and Methods

#### 2.1. The FloWave Ocean Energy Research Facility

^{2}region of relatively straight uniform flow ($\pm 10\%$) in the tank centre. Baseline turbulence characterisation of the tank’s test area was conducted by Sutherland et al. [26]. Turbulence intensity ${I}_{U}$ at $0.8$ m/s is 5–10% and integral lengthscale ${\ell}_{U}$ is typically in the range 0.1 m to 0.5 m. At the primary turbine location these values are approximately 8% and $0.3$ m.

#### 2.2. Turbines and Instrumentation

#### 2.3. Array Configurations

#### 2.4. Flow Measurements

## 3. Influence of Turbine Arrays on Flow Conditions

#### 3.1. Spatial Analysis of Flow Variation

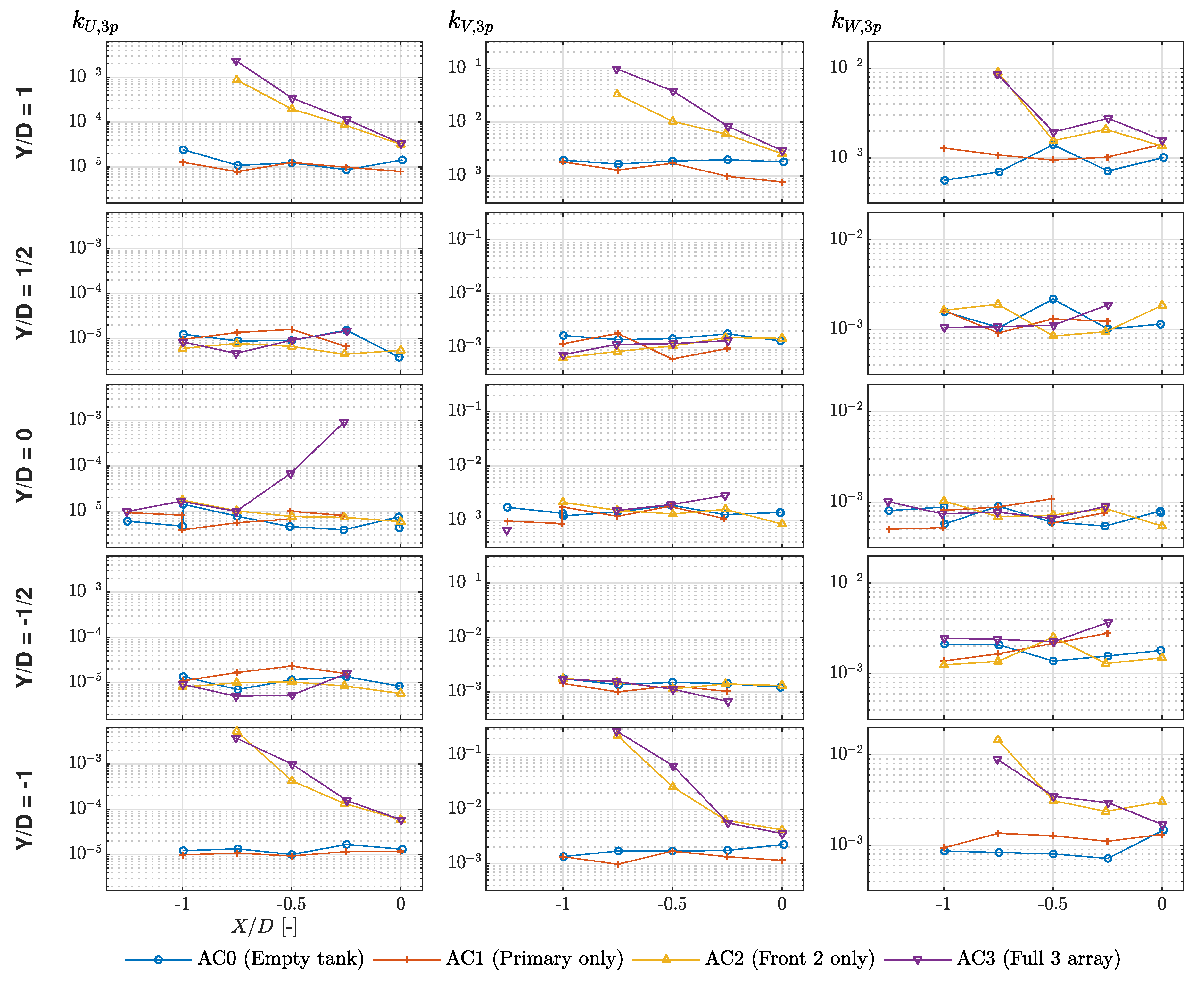

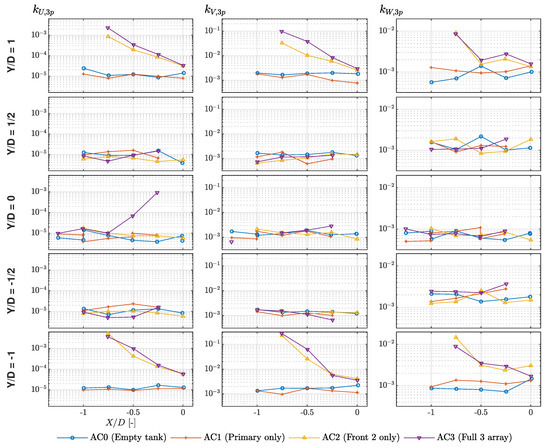

#### 3.2. Frequency Domain Analysis of Spatial Flow Variation

## 4. Influence of Turbine Array on Loading and Power

#### 4.1. Time-Domain Turbine Response

#### 4.2. Frequency-Domain Turbine Response

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

AC | Array Configuration |

ADV | Acoustic Doppler Velocimeter/Velocimetry |

FFT | Fast Fourier Transform |

RBM | Root Bending Moment |

TSR | Tip-Speed Ratio |

## References

- SIMEC Atlantis Energy. The MeyGen Tidal Scheme Project. Available online: https://simecatlantis.com/projects/meygen/ (accessed on 15 April 2019).
- Nova Innovation. Bluemull Sound, Shetland. Available online: https://www.novainnovation.com/bluemull-sound (accessed on 4 February 2019).
- Vennell, R.; Funke, S.W.; Draper, S.; Stevens, C.; Divett, T. Designing large arrays of tidal turbines: A synthesis and review. Renew. Sustain. Energy Rev.
**2015**, 41, 454–472. [Google Scholar] [CrossRef] - Myers, L.; Bahaj, A. An experimental investigation simulating flow effects in first generation marine current energy converter arrays. Renew. Energy
**2012**, 37, 28–36. [Google Scholar] [CrossRef] [Green Version] - Draper, S.; Stallard, T.J.; Stansby, P.K.; Way, S.; Adcock, T.A.A. Laboratory scale experiments and preliminary modelling to investigate basin scale tidal stream energy extraction. In Proceedings of the 10th European Wave and Tidal Energy Conference (EWTEC2013), Aalborg, Denmark, 2–5 September 2013. [Google Scholar]
- Cooke, S.C.; Willden, R.H.J.; Byrne, B.W.; Stallard, T.; Olczak, A. Experimental Investigation of Thrust and Power on a Partial Fence Array of Tidal Turbines. In Proceedings of the 11th European Wave and Tidal Energy Conference, Nantes, France, 6–11 September 2015; pp. 1–10. [Google Scholar]
- Stallard, T.; Collings, R.; Feng, T.; Whelan, J. Interactions between tidal turbine wakes: Experimental study of a group of three-bladed rotors. Philos. Trans. Ser. A Math. Phys. Eng. Sci.
**2013**, 371, 20120159. [Google Scholar] [CrossRef] - Dhomé, D.; Piriou, L.; Cazenave, T. Array Configuration Testing—SABELLA; Technical Report; Marine Renewables Infrastructure Network (MARINET): Brussels, Belgium, 2015. [Google Scholar]
- Ordonez-Sanchez, S.; Sutherland, D.; Payne, G.S.; Bruce, T.; Gebreslassie, M.; Belmont, M.R.; Moon, I. Experimental evaluation of the wake characteristics of cross flow turbine arrays. Ocean Eng.
**2017**, 141, 215–226. [Google Scholar] [CrossRef] [Green Version] - Sutherland, D.; Ordonez-Sanchez, S.; Belmont, M.R.; Moon, I.; Steynor, J.; Davey, T.A.D.; Bruce, T. Experimental optimisation of power for large arrays of cross-flow tidal turbines. Renew. Energy
**2018**, 116, 685–696. [Google Scholar] [CrossRef] [Green Version] - Mycek, P.; Gaurier, B.; Germain, G.; Pinon, G.; Rivoalen, E. Numerical and experimental study of the interaction between two marine current turbines. Int. J. Mar. Energy
**2013**, 1, 70–83. [Google Scholar] [CrossRef] [Green Version] - Mycek, P.; Gaurier, B.; Germain, G.; Pinon, G.; Rivoalen, E. Experimental study of the turbulence intensity effects on marine current turbines behaviour. Part II: Two interacting turbines. Renew. Energy
**2014**, 68, 876–892. [Google Scholar] [CrossRef] [Green Version] - Gaurier, B.; Carlier, C.; Germain, G.; Pinon, G.; Rivoalen, E. Three tidal turbines in interaction: An experimental study of turbulence intensity effects on wakes and turbine performance. Renew. Energy
**2019**, 148, 1150–1164. [Google Scholar] [CrossRef] - McNaughton, J.; Cao, B.; Vogel, C.R.; Willden, R.H.J. Model scale testing of multi-rotor arrays designed to exploit constructive interference effects. In Proceedings of the 13th European Wave and Tidal Energy Conference, Napoli, Italy, 1–6 September 2019; pp. 1–8. [Google Scholar]
- Whelan, J.I.; Graham, J.M.; Peiró, J. A free-surface and blockage correction for tidal turbines. J. Fluid Mech.
**2009**, 624, 281–291. [Google Scholar] [CrossRef] - Payne, G.S.; Stallard, T.; Martinez, R.; Bruce, T. Variation of loads on a three-bladed horizontal axis tidal turbine with frequency and blade position. J. Fluids Struct.
**2018**, 83, 156–170. [Google Scholar] [CrossRef] - Payne, G.S.; Stallard, T.; Martinez, R. Design and manufacture of a bed supported tidal turbine model for blade and shaft load measurement in turbulent flow and waves. Renew. Energy
**2017**, 107, 312–326. [Google Scholar] [CrossRef] - Martinez, R.; Payne, G.; Bruce, T. Preliminary results on the effects of oblique current and waves on the loadings and performance of tidal turbines. In Proceedings of the 12th European Wave and Tidal Energy Conference (EWTEC2017), Cork, Ireland, 27 August–1 September 2017. [Google Scholar]
- Draycott, S.; Payne, G.; Steynor, J.; Nambiar, A.; Sellar, B.; Venugopal, V. An experimental investigation into non-linear wave loading on horizontal axis tidal turbines. J. Fluids Struct.
**2019**, 84, 199–217. [Google Scholar] [CrossRef] - Draycott, S.; Nambiar, A.; Sellar, B.; Davey, T.; Venugopal, V. Assessing extreme loads on a tidal turbine using focused wave groups in energetic currents. Renew. Energy
**2019**, 135, 1013–1024. [Google Scholar] [CrossRef] [Green Version] - Draycott, S.; Steynor, J.; Nambiar, A.; Sellar, B.; Venugopal, V. Experimental assessment of tidal turbine loading from irregular waves over a tidal cycle. J. Ocean Eng. Mar. Energy
**2019**, 5, 173–187. [Google Scholar] [CrossRef] [Green Version] - Ingram, D.M.; Wallace, A.R.; Robinson, A.; Bryden, I.G. The design and commissioning of the first, circular, combined current and wave test basin. In Proceedings of the Oceans 2014 MTS/IEEE, Taipei, Taiwan, 7–10 April 2014. [Google Scholar]
- Robinson, A.; Ingram, D.M.; Bryden, I.G.; Bruce, T. The generation of 3D flows in a combined current and wave tank. Ocean Eng.
**2015**, 93, 1–10. [Google Scholar] [CrossRef] - Robinson, A.; Ingram, D.M.; Bryden, I.G.; Bruce, T. The effect of inlet design on the flow within a combined waves and current flumes, test tank and basins. Coast. Eng.
**2015**, 95, 117–129. [Google Scholar] [CrossRef] - Noble, D.R.; Davey, T.A.D.; Smith, H.C.M.; Kaklis, P.; Robinson, A.; Bruce, T. Spatial variation in currents generated in the FloWave Ocean Energy Research Facility. In Proceedings of the 11th European Wave and Tidal Energy Conference (EWTEC2015), Nantes, France, 6–11 September 2015. [Google Scholar]
- Sutherland, D.R.; Noble, D.R.; Steynor, J.; Davey, T.A.D.; Bruce, T. Characterisation of current and turbulence in the FloWave Ocean Energy Research Facility. Ocean Eng.
**2017**, 139, 103–115. [Google Scholar] [CrossRef] - Parkinson, S.G.; Collier, W.J. Model validation of hydrodynamic loads and performance of a full-scale tidal turbine using Tidal Bladed. Int. J. Mar. Energy
**2016**, 16, 279–297. [Google Scholar] [CrossRef] - ABB Motion Control. User’s Manual MotiFlex e180 Servo Drive; Technical Report; ABB: Zürich, Switzerland, 2016. [Google Scholar]
- Pacific Northwest National Laboratory. MeyGen Tidal Energy Project—Phase I. Available online: https://tethys.pnnl.gov/annex-iv-sites/meygen-tidal-energy-project-phase-i (accessed on 20 May 2019).
- SIMEC Atlantis Energy. AR1500 Tidal Turbine. Available online: https://www.atlantisresourcesltd.com/wp/wp-content/uploads/2016/08/AR1500-Brochure-Final-1.pdf (accessed on 20 May 2019).
- Nortek. Vectrino Profiler Technical Specification; Nortek: Providence, RI, USA, 2013. [Google Scholar]
- Mori, T.; Naganuma, K.; Kimoto, R.; Yakushiji, R.; Nagaya, S. Hydrodynamic and hydroacoustic characteristics of the Flow Noise Simulator. In Proceedings of the 5th ASME-JSME Joint Fluids Engineering Conference, San Diego, CA, USA, 30 July–2 August 2007; pp. 121–127. [Google Scholar] [CrossRef]
- Goring, D.G.; Nikora, V.I. Despiking Acoustic Doppler Velocimeter Data. J. Hydraul. Eng.
**2002**, 128, 117–126. [Google Scholar] [CrossRef] [Green Version] - Malki, R.; Masters, I.; Williams, A.J.; Nick Croft, T. Planning tidal stream turbine array layouts using a coupled blade element momentum—Computational fluid dynamics model. Renew. Energy
**2014**, 63, 46–54. [Google Scholar] [CrossRef] [Green Version] - Noble, D.R.; Draycott, S.; Nambiar, A.; Sellar, B.; Steynor, J.; Lennon, M.; Davey, T.; Kiprakis, A. Flow Data Around Three Supergen UKCMER Tidal Turbines in a Closely Spaced Staggered Array at FloWave; Edinburgh DataShare: Edinburgh, UK, 2020. [Google Scholar]
- Noble, D.R.; Draycott, S.; Nambiar, A.; Sellar, B.; Steynor, J.; Lennon, M.; Davey, T.; Kiprakis, A. Turbine Loading and Performance Data for Three Supergen UKCMER Tidal Turbines in a Closely Spaced Staggered Array at FloWave; Edinburgh DataShare: Edinburgh, UK, 2020. [Google Scholar]

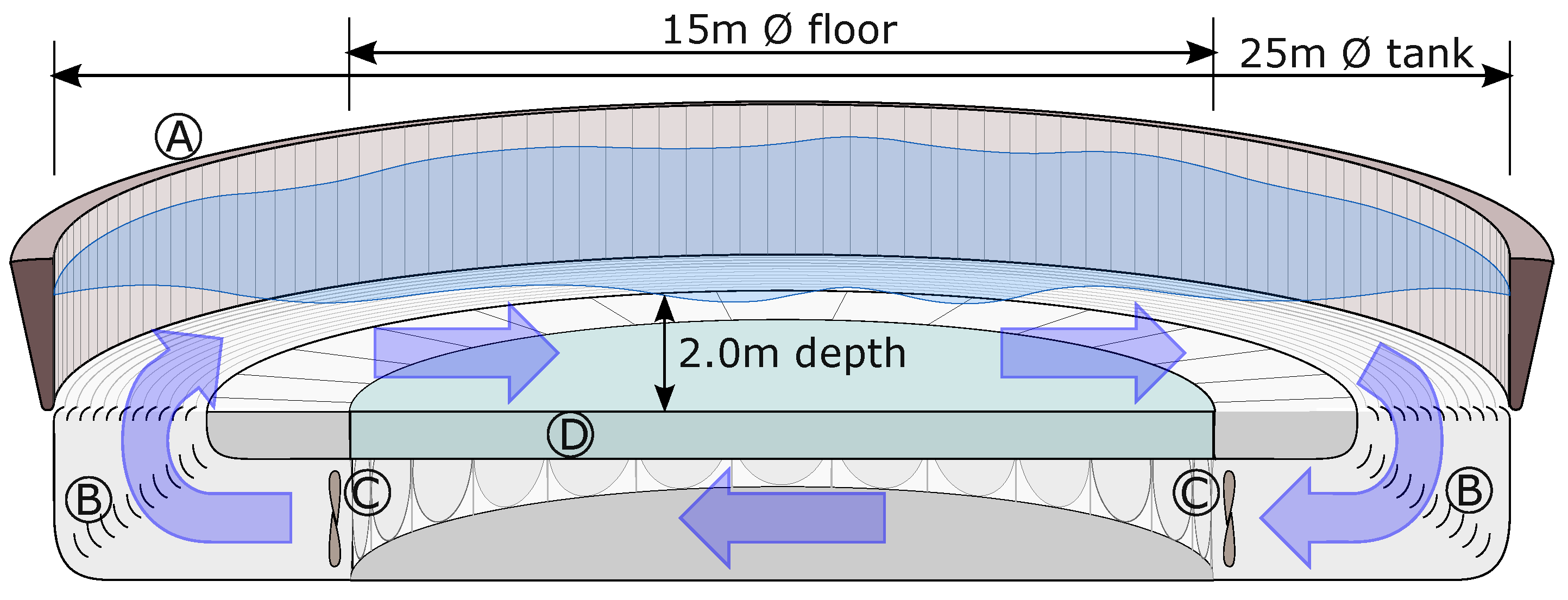

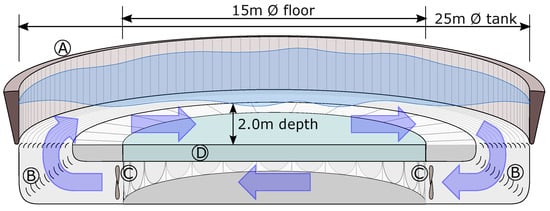

**Figure 1.**Sectional schematic of FloWave basin showing: (

**A**) wavemaker paddles around circumference; (

**B**) turning vanes and flow conditioning filters; (

**C**) current drive impeller units; (

**D**) buoyant raisable floor ( 15 mØ) below test area [25].

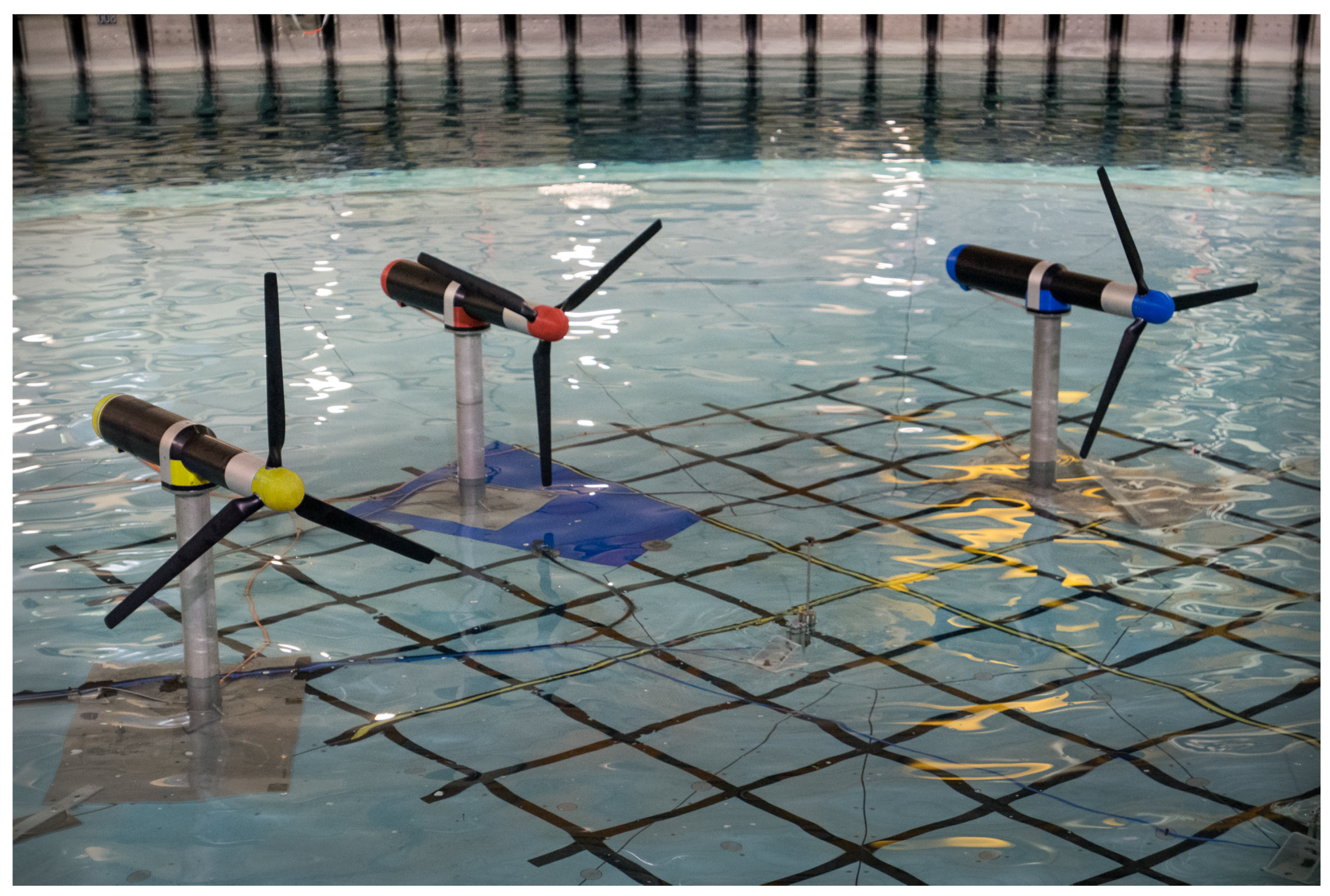

**Figure 2.**Turbine array installed in FloWave, as the floor descends after installation. Fully instrumented primary turbine (red fairing) in the centre between front turbines (yellow and blue). Array layout and configurations tested are shown in Figure 3. Grid on tank floor relative to tank centre, with 0.5 m spacing.

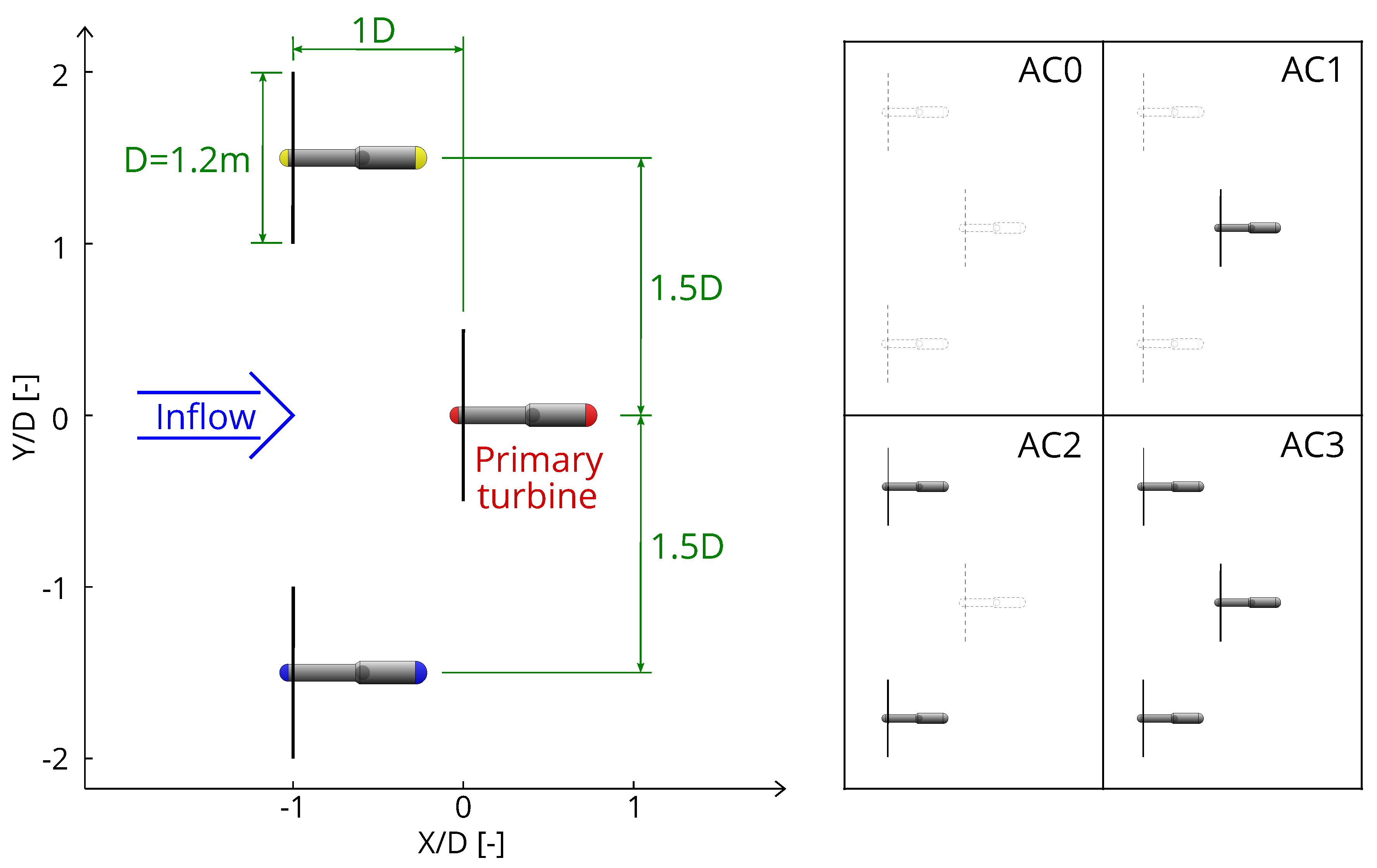

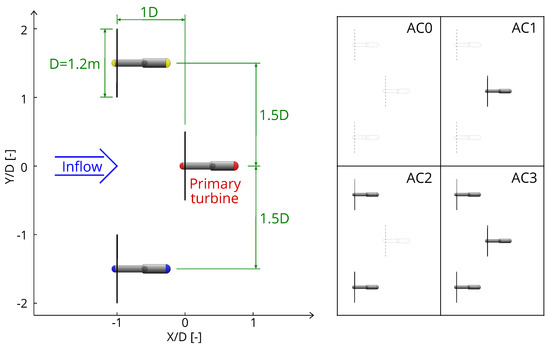

**Figure 3.**(

**left**) Three turbine array layout, and (

**right**) four configurations tested: AC0 empty tank, AC1 primary turbine only, AC2 upstream turbines only, and AC3 full array.

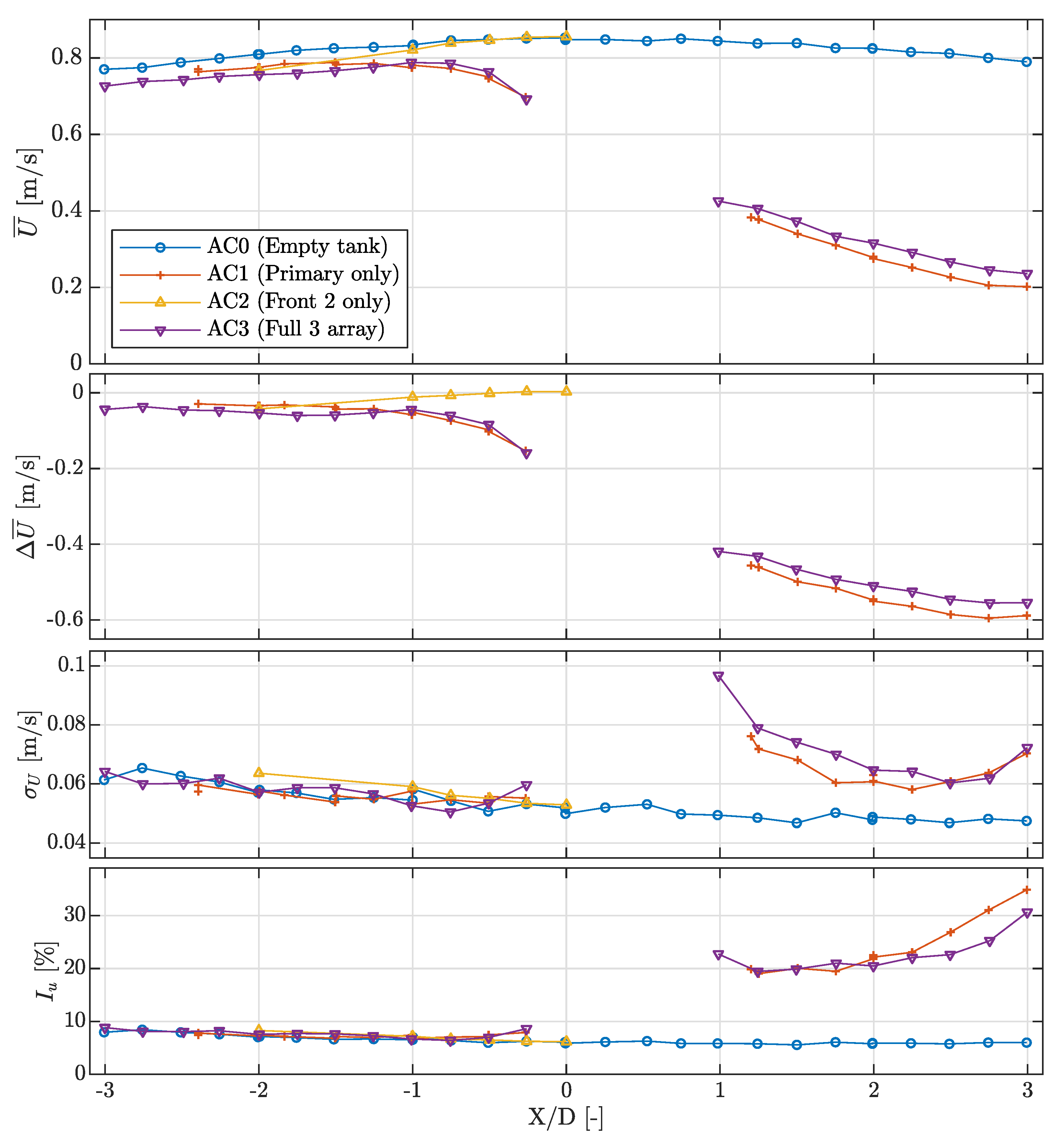

**Figure 4.**Transect along centreline of array ($Y\phantom{\rule{-1.111pt}{0ex}}/\phantom{\rule{-0.55542pt}{0ex}}D=0$) at hub height. Sub-panels show mean velocity $\overline{U}$, mean velocity relative to empty tank $\Delta \overline{U}$, standard-deviation ${\sigma}_{U}$, and turbulence intensity ${I}_{U}$.

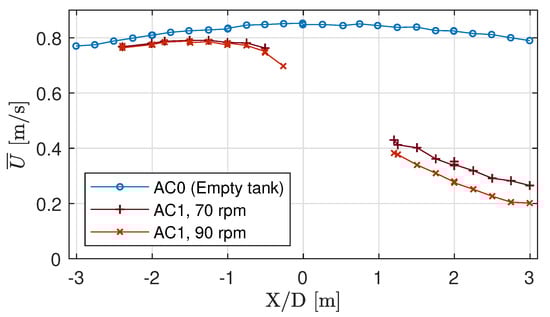

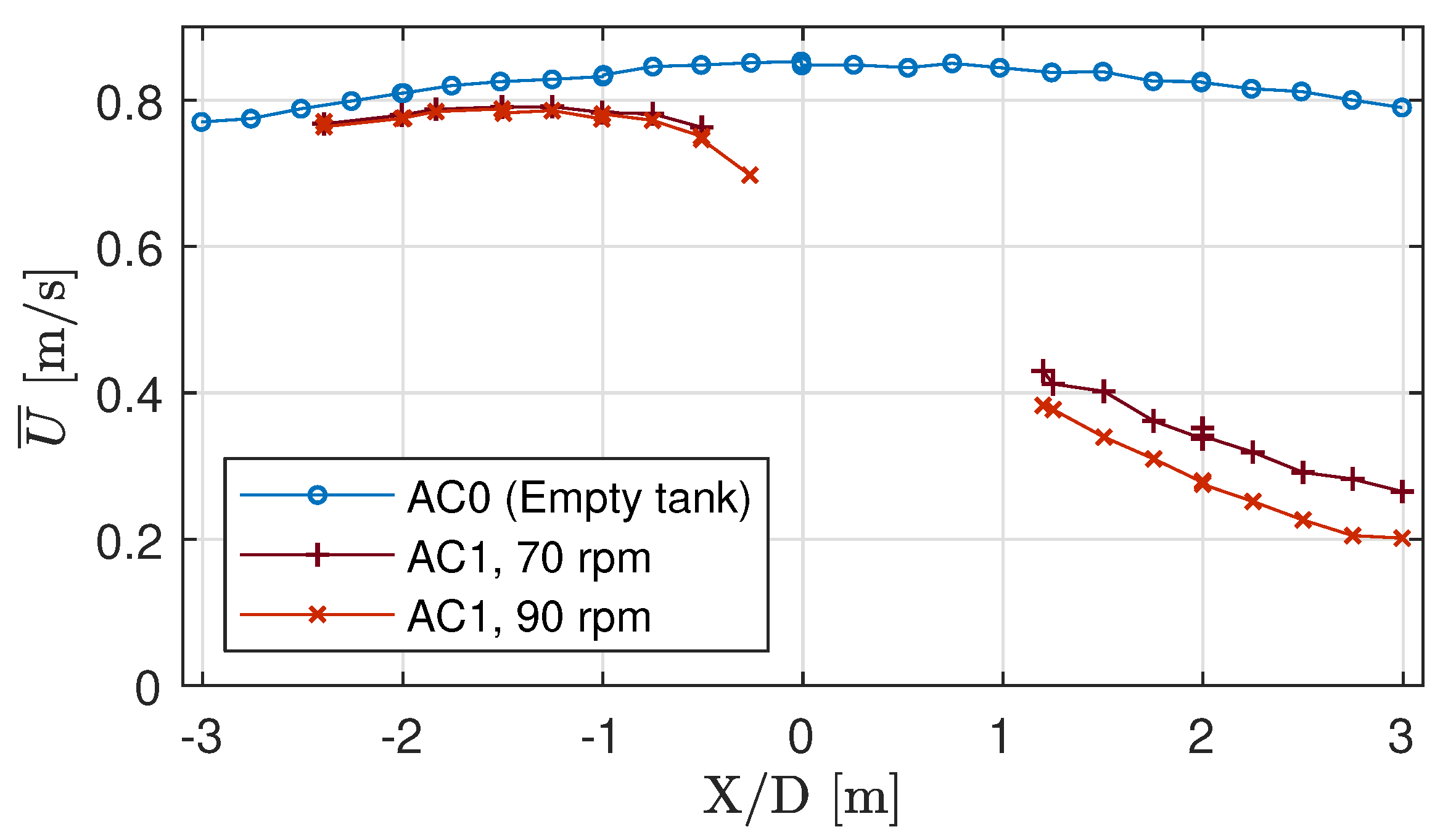

**Figure 5.**Transect along primary turbine centreline ($Y\phantom{\rule{-1.111pt}{0ex}}/\phantom{\rule{-0.55542pt}{0ex}}D=0$), showing inflow and wake at varying rotational speed for configuration AC1, with AC0 for comparison.

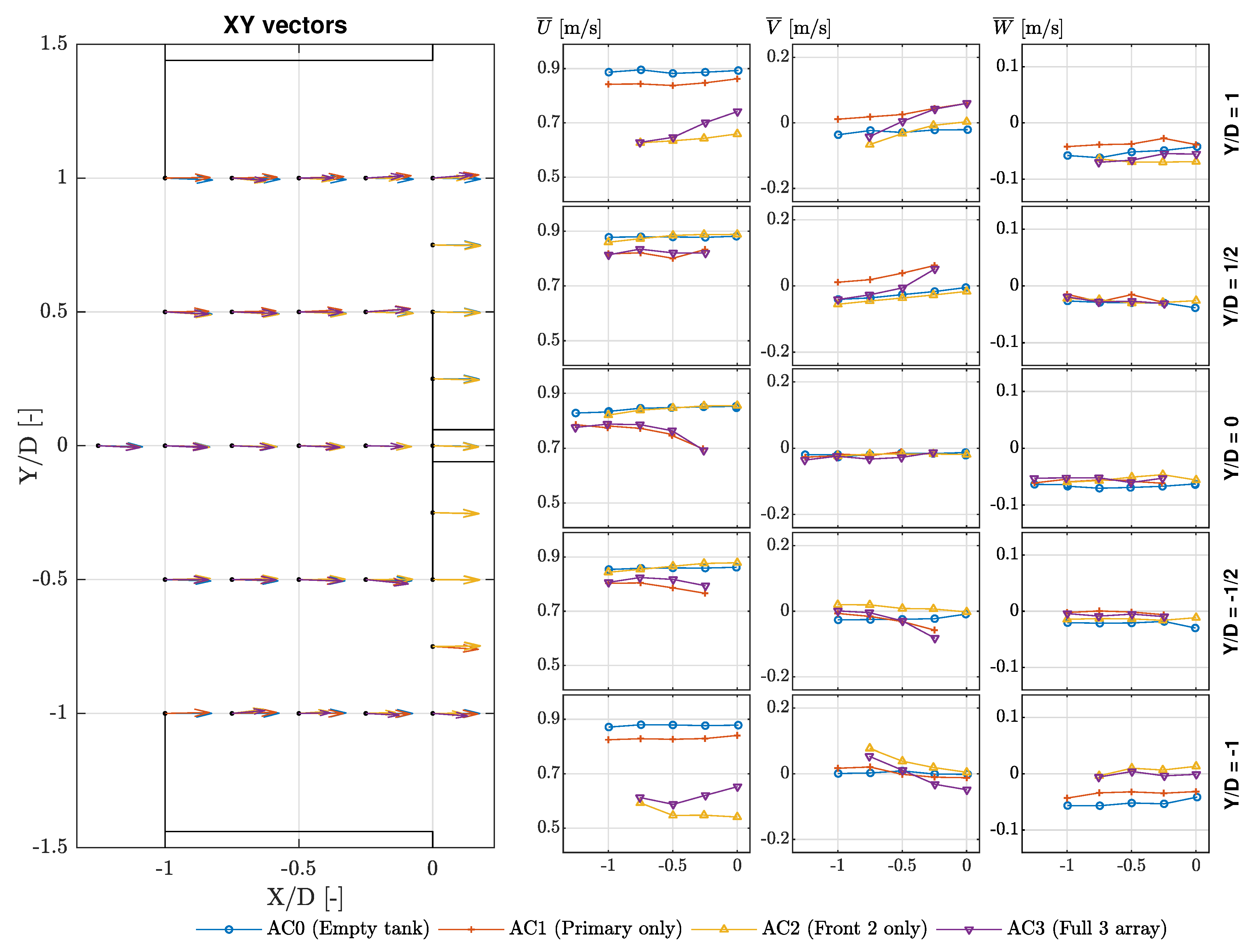

**Figure 6.**Variation of flow between turbine locations. Subplots show (left) X–Y velocity vectors relative to turbine/blade positions, and (right) $\overline{U}$$\overline{V}$$\overline{W}$ at points on five streamwise transects. For details of array layout and configurations tested see Figure 3.

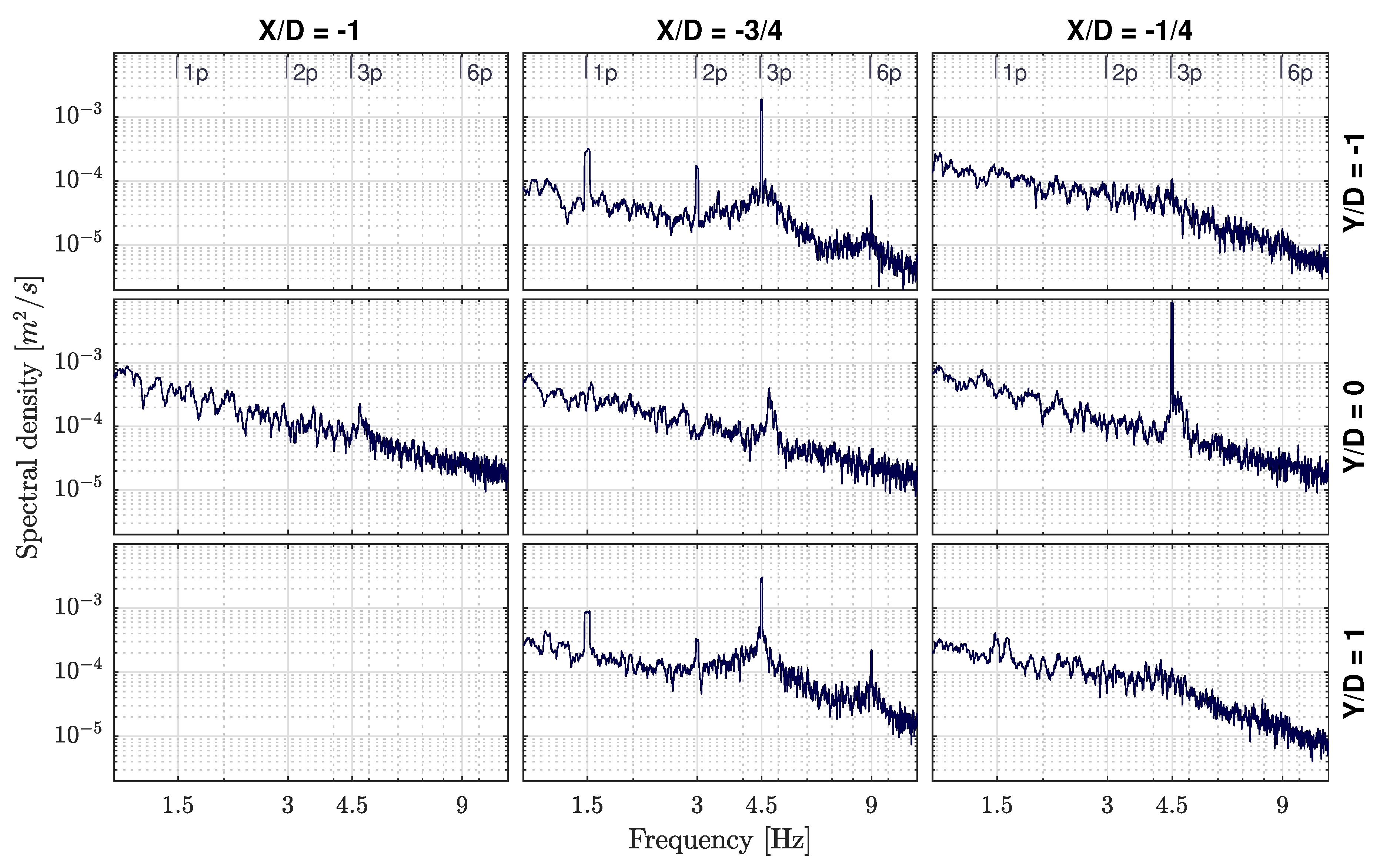

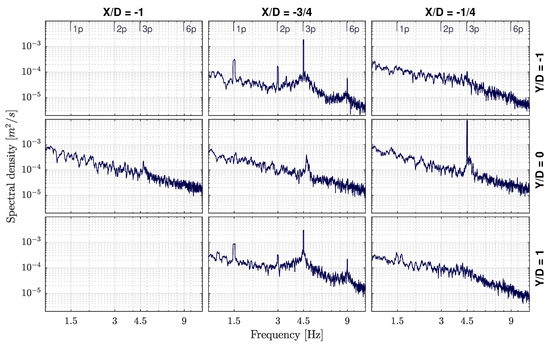

**Figure 7.**Example spectral density plots for streamwise velocity component U at seven positions for configuration AC3 with all three turbines operating at 90 rpm.

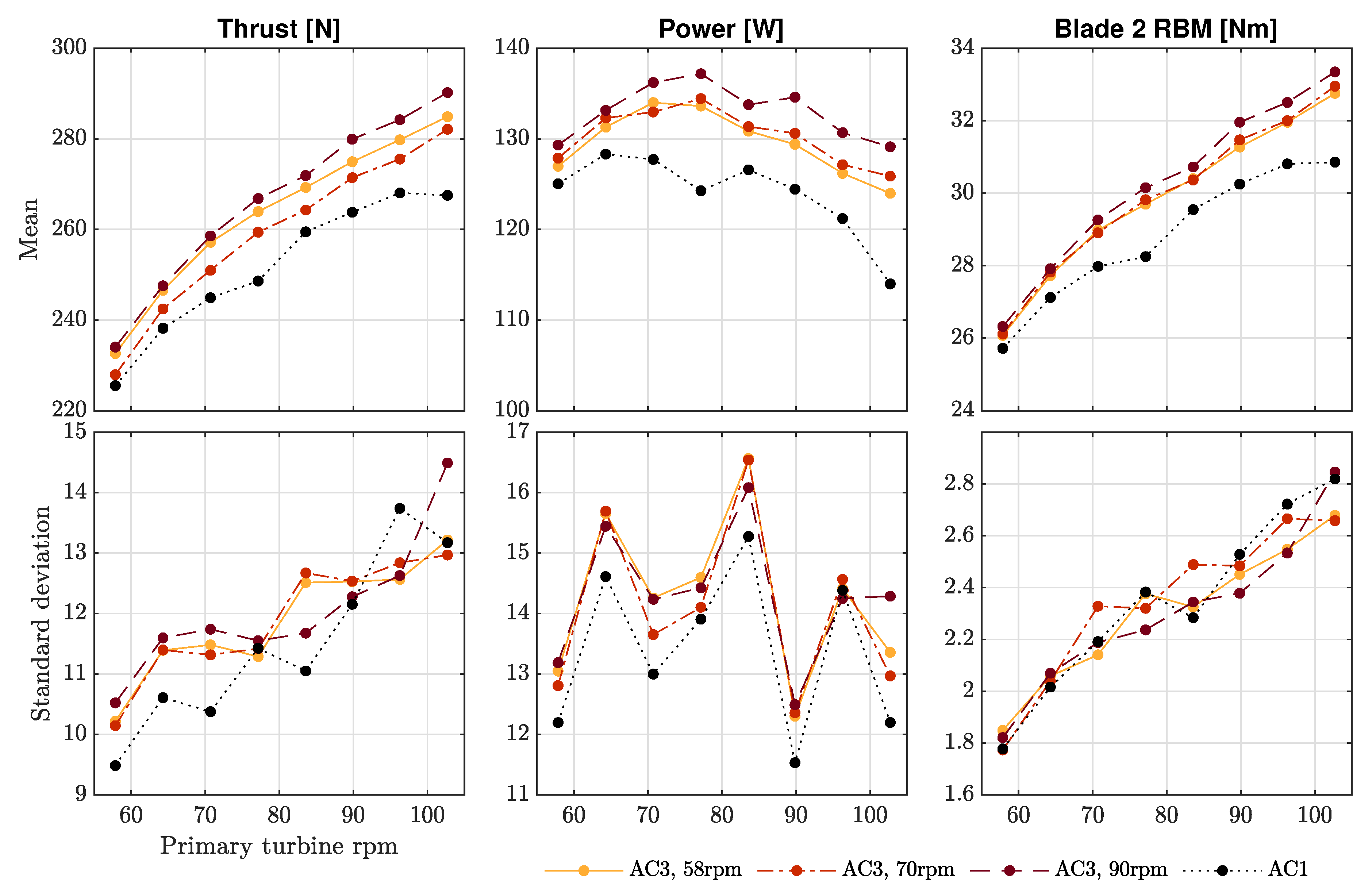

**Figure 9.**Average and standard deviation of thrust and power of the turbine plus root bending moment of a blade all as a function of rotational speed. Each plot shows these forces/moments for the primary turbine with the front two turbines operating at three different rotational speeds (AC3) and also shows the comparable single turbine case (AC1).

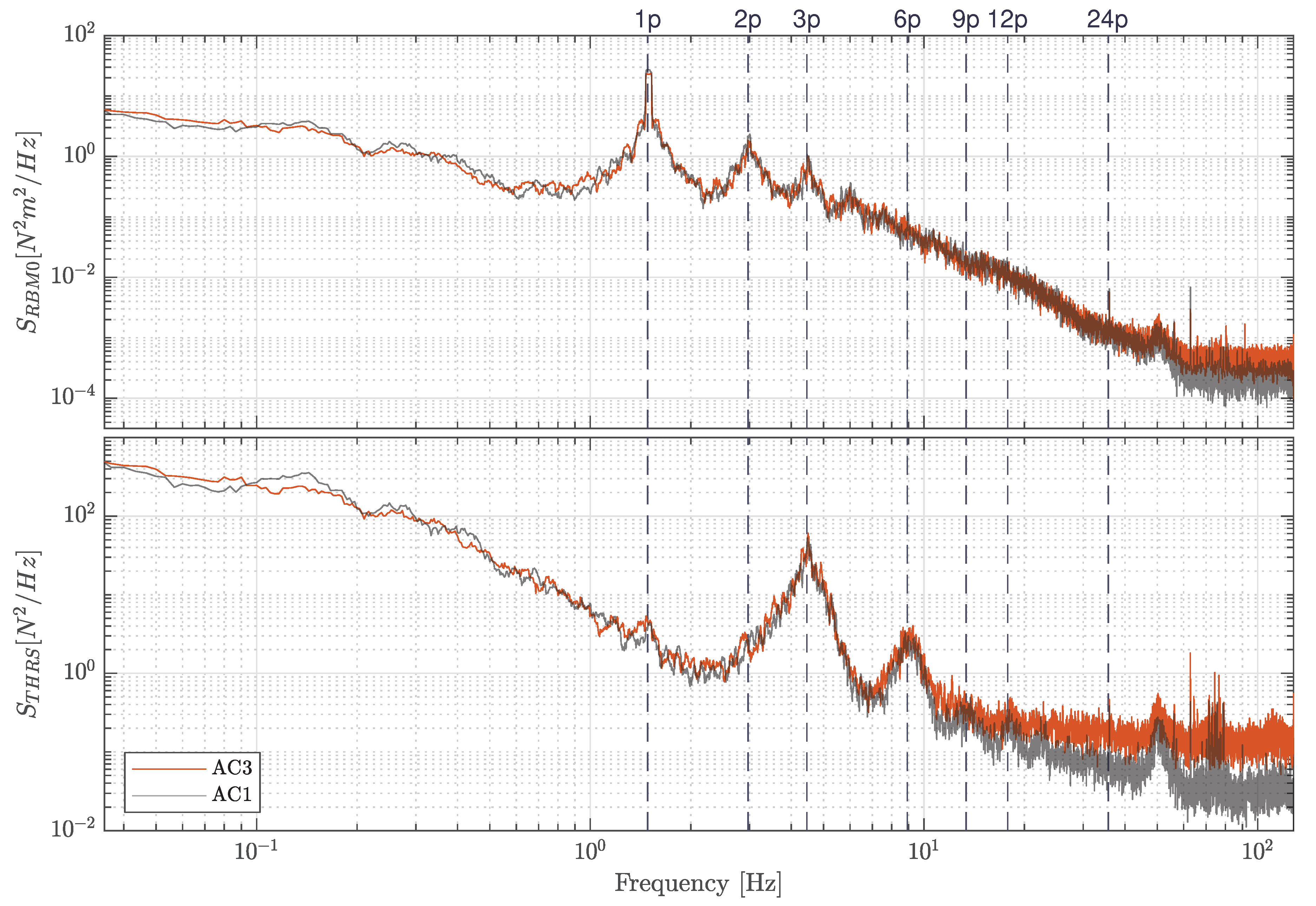

**Figure 10.**Spectral density plots of the thrust and the blade root bending moment experienced by the primary turbine, with the front two turbines (AC3) and from the single turbine case (AC1). All turbines operating at 90 rpm.

**Table 1.**Key turbine dimension (from [17]).

Rotor diameter (mm) | 1200 | ($1D$) | |
---|---|---|---|

Nacelle length (mm) | 1030 | ||

Nacelle diameter (mm) | hub to tower | 120 | |

beyond tower | 160 | ||

Hub height (mm) | 1000 | ($0.83D$) | |

Tower diameter (mm) | 102 | ||

Distance from rotor plane to tower axis (mm) | 486 | ($0.4D$) |

Instrumentation | Variables Measured | Sample Rate [Hz] |
---|---|---|

Vectrino Profiler ADV | Velocity components, U, V, W. | 100 |

Bespoke TST Instrumentation | Torque, T, | 256 |

Thrust, Q, | ||

Streamwise root bending moment, $RBM$, | ||

Rotational position, $\theta $. |

**Table 3.**Thrust and power of the turbine plus root bending moment of a blade for selected rotational speeds. Values given for model scale and full scale equivalent.

Measured Model Scale (0.8 m/s) | Full Scale Equivalent (3.1 m/s) | |||||||
---|---|---|---|---|---|---|---|---|

Array Config. | Front Turbines rpm | Primary Turbine rpm | Thrust [N] | Power [W] | Blade RBM [Nm] | Thrust [kN] | Power [MW] | Blade RBM [MNm] |

AC1 | — | 58 | 225.5 | 125.0 | 25.72 | 761.1 | 1.635 | 1.302 |

AC1 | — | 70 | 244.9 | 127.7 | 27.98 | 826.6 | 1.670 | 1.417 |

AC1 | — | 90 | 263.8 | 124.4 | 30.25 | 890.3 | 1.626 | 1.531 |

AC1 | — | 104 | 267.5 | 114.0 | 30.86 | 902.9 | 1.490 | 1.562 |

AC3 | 58 | 90 | 274.9 | 129.4 | 31.27 | 927.9 | 1.691 | 1.583 |

AC3 | 70 | 90 | 271.4 | 130.6 | 31.47 | 916.1 | 1.707 | 1.593 |

AC3 | 90 | 58 | 234.0 | 129.3 | 26.32 | 789.9 | 1.690 | 1.333 |

AC3 | 90 | 70 | 258.6 | 136.2 | 29.27 | 872.7 | 1.780 | 1.482 |

AC3 | 90 | 90 | 279.9 | 134.6 | 31.96 | 944.7 | 1.759 | 1.618 |

AC3 | 90 | 104 | 290.2 | 129.1 | 33.35 | 979.5 | 1.688 | 1.688 |
