Catalytic Steam Reforming of Toluene: Understanding the Influence of the Main Reaction Parameters over a Reference Catalyst

Abstract

Identifying the suitable reaction conditions is key to achieve high performance and economic efficiency in any catalytic process. In this study, the catalytic performance of a Ni/Al₂O₃ catalyst, a benchmark system—was investigated in steam reforming of toluene as a biomass gasification tar model compound to explore the effect of reforming temperature, steam to carbon (S/C) ratio and residence time on toluene conversion and gas products. An S/C molar ratio range from one to three and temperature range from 700 to 900 °C was selected according to thermodynamic equilibrium calculations, and gas hourly space velocity (GHSV) was varied from 30,600 to 122,400 h⁻¹ based on previous work. The results suggest that 800 °C, GHSV 61,200 h⁻¹ and S/C ratio 3 provide favourable operating conditions for steam reforming of toluene in order to get high toluene conversion and hydrogen productivity, achieving a toluene to gas conversion of 94% and H₂ production of 13 mol/mol toluene.

1. Introduction

Greenhouse gas (GHG) emissions from fossil fuel combustion for power generation represent a major contribution to climate change. For this very reason, a switch from conventional to renewable power resources, i.e., solar, wind, hydroelectric energy and biomass is necessary [1].

Biomass can consistently provide energy and fuels and has an advantage over other renewable energies sources as it is more homogeneously distributed over the earth and is an abundant resource [2]. International Energy Outlook 2017 reported that biomass could provide over 14% of the world’s primary energy consumption, which is the highest among renewable energy resource, and it will contribute a quarter or third of the global primary energy supply by 2050 [3].

For all the above and as a consequence of unstable oil prices and the alarming climate change, biomass gasification has increasingly received interest [4]. Indeed, this is a versatile and interesting way to re-use different wastes (e.g., agricultural and urban wastes, energy crops, food and industrial processing residues) to produce bio-syngas, which can be used for electrical power generation (fuel cells, gas turbine or engine), or as feedstock for the synthesis of liquid fuels and chemicals such as methanol [5]. Furthermore, the necessary technology for this process can be adapted from old coal gasification units [6]. However, one of the most critical technical challenges in biomass gasification is the formation of tars. Tar condensation can cause serious risks to downstream equipment. Therefore, tars should be removed from the effluent stream of biomass gasification [7].

Existing techniques for tar removal after a gasifier include separation either by physical (mechanical) methods, using ceramic candle filters or wet scrubbers, or thermochemical conversion methods using high temperature thermal or catalytic cracking to convert tar into syngas [8]. Physical separation methods would cause secondary pollution since they only remove tar from gas products, resulting in a waste stream that needs treatment. Conversely, thermal cracking has received increasing attention because tar can be converted into useful gas products and increases the overall efficiency of the gasification process [9]. Thermal cracking without catalysts operates at high temperature (>1000 °C) to decompose the tars in smaller non-condensable molecules. The high energy consumption makes this process less interesting. By contrast, catalytic cracking of tars can be carried out at lower temperatures converting tars into useful gases in a more efficient manner and is being widely studied as a principal method for tar removal [10]. As a steam reforming reaction, the proposed reaction could remove tar by a catalytic process and produce fuel H₂ and CO at relatively low temperatures. At the same time, tar steam reforming poses some challenges that must be addressed related to the reaction conditions. Reforming catalysts can lose activity over time due to carbon deposition and sintering over the active phases [5]. These problems can be minimised with optimal operating conditions in the presence of the right catalyst. Real tar composition is highly complex and most studies use model tar compounds such as toluene, benzene or naphthalene to ascertain the catalytic mechanism [11,12,13]. However, previous studies have shown that these compounds represent a worst-case scenario in the tendency of the system to form carbon deposits [14,15].

Noble metals and Ni are most widely active phases used in reforming catalysts. Noble metal catalysts including Pt, Rh and Ru are known for their exceptionally good activity and stability in tar steam reforming. However, these catalysts have had limited use due to their high costs [16].

Nowadays, the aim is to develop an economically viable material, ideally not containing noble metals, which produces the same high levels of conversion and reaction performance as the noble ones. Ni is an attractive choice as steam reforming catalytic metal thanks to its good performance in the conversion of different types of hydrocarbons [16], being, for instance, the most popular active phase in methane steam reforming [17,18]. In particular, Ni/Al₂O₃ catalysts are considered as the state-of-the-art materials for steam reforming processes. Furthermore, the high surface area of alumina and its mechanical properties result in an excellent choice as support for nickel nanoparticles [19].

Under these premises, this work showcases the application of a Ni/Al₂O₃ catalyst in the steam reforming of toluene (C₇H₈) as a tar model compound in a fixed bed reactor. Until now, the catalytic performance in the steam reforming of toluene has been mainly evaluated as a function of catalyst design variables, such as the nature of the support [20,21,22] and metal [23,24], but little attention has been paid to the reaction conditions, especially for this benchmark catalytic formulation [25]. Identification and optimisation of the reaction parameters in the presence of a commercial-like catalyst (Ni/Al₂O₃) are vital to achieving the best catalytic performance. However, few studies involving parameter screening have been carried out [8].

Herein we analyse the influence of reforming temperature, steam to carbon molar ratio (S/C) and gas hourly space velocity (GHSV) on the toluene reforming performance. These are considered the key parameters to fine-tune the reaction and maximise the overall performance.

Parallel reactions in this system can be numerous. The main reactions that can occur during toluene steam reforming are represented as follows:

Toluene steam reforming

C₇H₈ + 14 H₂O → 7CO₂ + 18 H₂

(1)

C₇H₈ + 7 H₂O → 7CO + 11 H₂

(2)

Water–gas shift

CO + H₂O ↔ CO₂ + H₂

(3)

Hydrodealkylation

C₇H₈ + H₂ → C₆H₆ + CH₄

(4)

Methane steam reforming

CH₄ + H₂O ↔ CO + 3H₂

(5)

Boudouard reaction

2CO ↔ CO₂ + C

(6)

Steam reforming of toluene is irreversible and Reactions (1) and (2) are dependent on the S/C ratio used. CH₄ is produced from hydroalkylation (Reaction (4)) and pyrolysis of toluene. Methane reforming followed by a water–gas shift reaction converts the produced CO with steam to H₂ and CO₂. A Boudouard reaction is an exothermic reaction that produces C from CO. All of these reactions are heavily conditioned by the temperature, space velocity and reactants ratio [26,27,28]. Hence, a careful assessment of the impact of these parameters will allow us to identify the optimum conditions towards the generation of added value products.

For all the above, this work fills an essential gap in tar reforming literature via the systematic study of key reaction parameters using a state-of-the-art catalyst to reveal the optimum process conditions.

2. Experimental

2.1. Catalyst Preparation

The nickel-based catalyst was prepared following a wet impregnation method. The necessary amount of Ni(NO₃)₂·6H₂O (≥97.0%, Sigma-Aldrich) to obtain 20 wt.% NiO was dissolved in an excess of acetone (≥99.8%, Sigma Aldrich). Then, the support γ- Al₂O₃ (≥98.0% purity, Sasol) was added into the solution and, after stirring for 2 h, the solvent was removed under vacuum at 60 °C by using a rotating evaporator. The remaining mixture was dried overnight at 110 °C. Finally, the solid was calcined at 600 °C with a ramping rate of 2 °C·min⁻¹ for 4 hours. It has been reported that Ni/Al₂O₃ catalysts are stable under reaction conditions despite the calcination temperature being lower than those of the experiments [29,30]. Lower calcination temperatures have been shown to lead to better catalytic performance in steam reforming [31]. The obtained sample was labelled Ni/Al₂O₃. The Ni content assuming complete reduction from NiO to Ni is 16.4 wt.%.

2.2. Characterisation

Thermogravimetric analysis (TGA) was carried out to investigate the coke deposition on the catalyst in a Pyris 1 thermogravimetric analyser from PerkinElmer (Waltham, MA, USA). The samples were ramped from room temperature to 900 °C at a rate of 10 °C·min⁻¹ in air.

N₂-adsorption-desorption analysis was conducted in a TriStar 3000 V6.07 A analyser from Micromeritics (Norcross, GA, USA). Before the analysis, the catalyst was degassed at 150 °C for 4 h in a vacuum. The Brunauer–Emmett–Teller (BET) method was used to calculate the surface area of the catalyst.

2.3. Catalytic Toluene Steam Reforming Tests

Toluene steam reforming was carried out in a fixed bed reactor used in previous bio-oil reforming work [24]. Before the reaction, the reactor was purged with N₂ to remove air. The catalyst was reduced under 50 mL·min⁻¹ of H₂ up to 700 °C for 1 hour before each test.

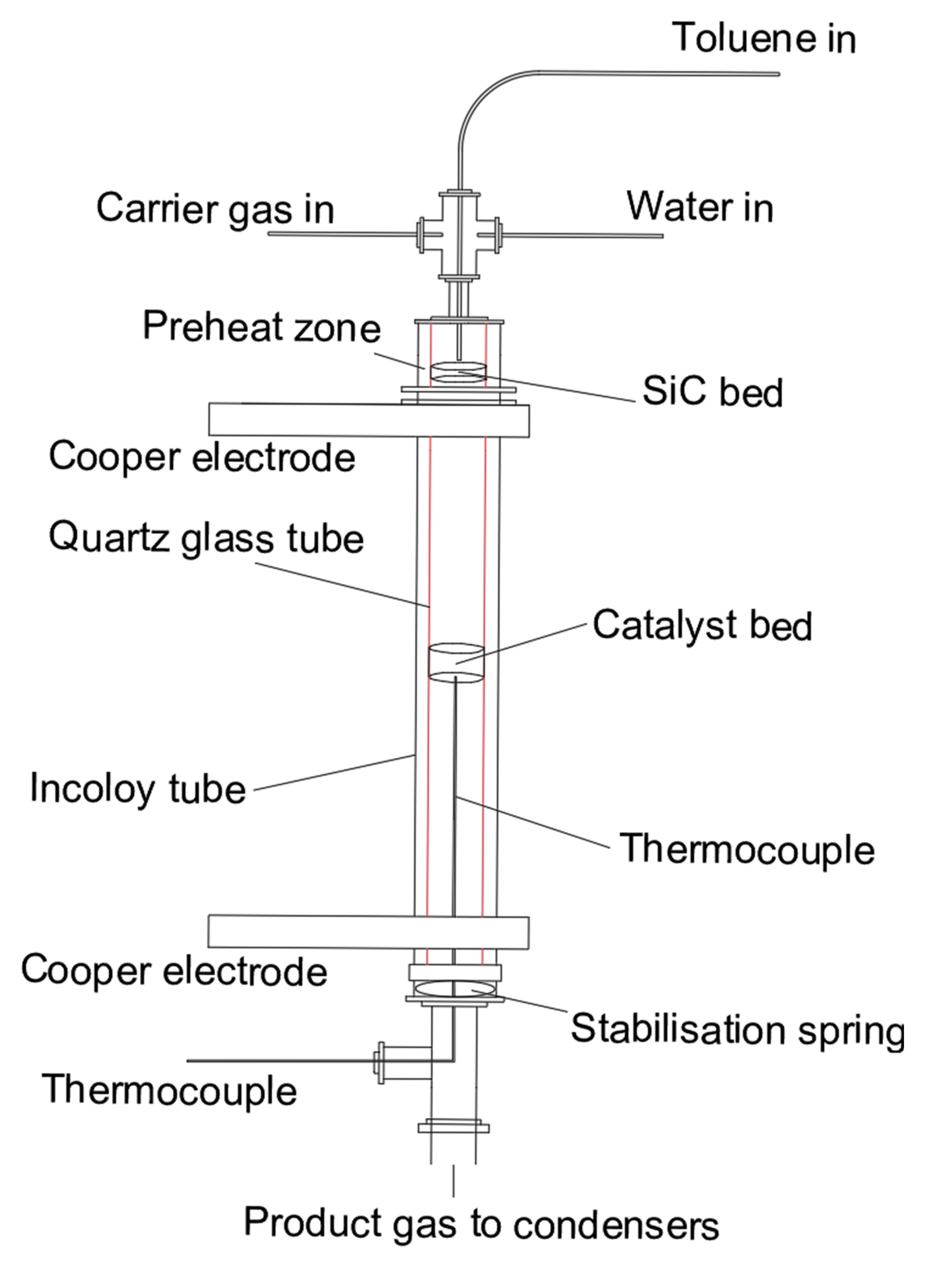

Figure 1 shows the schematic diagram of the experimental reaction set-up, and the reaction zone is shown in Figure 2. The reactor was heated up by two copper electrodes; toluene and steam were injected by two syringe pumps from the top of the reactor and preheated at 200 °C to the vapour phase in a preheating chamber. Toluene was carried by N₂ with a fixed concentration of 100 g Nm⁻³. Then the reactant stream entered an incoloy alloy 625 tube (12 mm i.d., 2 mm thick, 253 mm long), equipped with an inner quartz tube (9 mm i.d., 1 mm thick, 300 mm long) to prevent any contact between the reactant gas stream and the incoloy internal surface. 500 mg of Ni/Al₂O₃ catalyst with a particle size in the range of 250–500 μm was placed right in the middle of the quartz tube. A K-type thermocouple was used to determine the catalytic bed temperature.

The product gases after reaction pass through two condensers in series to collect any liquid product as well as unreacted toluene and water. Ice and dry ice were used as coolant in the two condensers, respectively. The products identified in the gas phase were H₂, CH₄, CO₂ and CO. Two on-line gas analysers were used to determine the product gas compositions: an MGA3000 Multi-Gas infrared analyser (ADC Gas Analysis, Herts, UK) for CO₂, CH₄ and CO, followed by a K1550 thermal conductivity H₂ analyser (Hitech Instruments, Luton, UK).

The performance of catalysts was evaluated by the conversion into gaseous products (based on a carbon balance between the inlet and the outlet stream of the reactor), selectivity to main products (where ‘‘i” is CO₂, CO and CH₄ in moles) and hydrogen yield, which were defined as follows:

$$\%\mathrm{Carbon}\mathrm{Conversion}=\frac{\mathrm{C}\mathrm{in}\mathrm{the}\mathrm{gas}\mathrm{product}}{\mathrm{C}\mathrm{fed}\mathrm{into}\mathrm{reactor}}\ast {100}_{}$$

(7)

$$\%“\mathrm{i}”\mathrm{selectivity}=\frac{“\mathrm{i}”\mathrm{produced}\mathrm{in}\mathrm{moles}}{\mathrm{C}\mathrm{atoms}\mathrm{in}\mathrm{the}\mathrm{gas}\mathrm{products}}\ast 100$$

(8)

$$\mathrm{Hydrogen}\mathrm{yield}=\frac{\mathrm{total}\mathrm{Hydrogen}\mathrm{production}\mathrm{in}\mathrm{moles}}{\mathrm{toluene}\mathrm{fed}\mathrm{into}\mathrm{reactor}\mathrm{in}\mathrm{moles}}$$

(9)

The experimental error in toluene conversion, gas selectivity and gas yield is ±2%. Toluene conversion and H₂ production could be influenced by experiment conditions and parameters. Reforming temperature, S/C ratio and residence time are reported to be the key factors that would affect the total conversion and H₂ yield. In this paper S/C ratios of 1, 2 and 3; temperatures of 700, 800 and 900 °C, and GHSV of 30,600, 61,200, 91,800 and 122,400 h⁻¹ were investigated.

2.4. Thermodynamic Simulation

The ASPEN software package (AspenTech, Bedford, MA, USA) was used to determine the thermodynamic equilibrium of the toluene reforming reactions over the different reaction conditions. An ideal property method, an RGIBBS reactor (based on Gibbs free energy minimisation) was selected to investigate the thermodynamic equilibrium. Material flows into the reactor are identical to those from the corresponding experiment. The influence and effects of experimental parameters, including reforming the temperature and S/C ratio on the toluene conversion, the yield of main light gases and the carbon deposition was investigated.

3. Results and Discussion

3.1. Textural Properties of the Synthetised Catalyst

The N₂ adsorption-desorption isotherm of the calcined Ni/Al₂O₃ catalyst is shown in Figure 3, which shows a type IV isotherm with a characteristic hysteresis loop for mesoporous materials. The adsorption average pore width was 9.1 nm, the total pore volume was 0.35 cm³·g⁻¹ and BET Surface Area was 153 m²·g⁻¹. The BET surface area, pore volume and pore width of the original Al₂O₃ was 230 m²·g⁻¹, 0.5 cm³·g⁻¹ and 10 nm respectively. Textural properties are actually governed by the primary support gamma-alumina, which provides mechanical and thermal stability as well as high surface area.

3.2. Influence of Temperature on Toluene Steam Reforming

The steam reforming temperature was concluded to have a significant influence on toluene conversion since higher temperatures could increase syngas production and conversion from toluene to gas products [32]. When reforming is envisaged as a downstream tar upgrading unit after gasification, the most interesting temperature interval for atmospheric reforming is between 600 and 900 °C, since the gasification effluent temperature will normally be lower than 900 °C [33]. Research also suggested that high temperature might reduce H₂ yield as the reverse water–gas shift reaction is favoured due to its endothermic nature [34,35,36]. The experiments were conducted at different temperatures to investigate the most suitable conditions for toluene conversion and H₂ production. Catalytic performance tests were performed at 700, 800 and 900 °C, with a fixed S/C ratio of 3 and a GHSV of 61,200 h⁻¹ (corresponding to a N₂ flow rate of 300 mL·min⁻¹) for 5 hours.

Figure 3 shows the toluene conversion and CO₂/CO selectivity (based on conversion to C-containing gases) at the three different temperatures in a steady state within the five hours of reaction and compares with equilibrium selectivity. CO and CO₂ were the main gases. The experimental selectivity of CH₄ at all temperatures was under 0.1%. Conversion and selectivity of the gases approached that of thermodynamic equilibrium as temperature increased. Thermodynamic equilibrium predicts total toluene conversion at 700 °C or higher temperatures. At 700 °C, the thermodynamic equilibrium indicated a CH₄ selectivity of 1.1%, and for higher temperatures only CO and CO₂ were predicted as C-containing gas products. Experimental toluene conversions ranged from 84% to 96% and approached equilibrium with the temperature increase from 700 to 900 °C. Coke formation only accounted for less than 1% of toluene conversion, the rest being to gas phase products. Unreacted toluene was condensed in the cooling trap, which enabled closing the mass balance within 98%. The high conversions of toluene achieved for the three temperatures highlight once again the good performance of this commercial-like catalyst (Ni/Al₂O₃). Both experimental and equilibrium selectivity showed that the CO/CO₂ ratio increases as temperature increases. This is likely dominated by a reverse water–gas shift reaction in the high-temperature area (Reaction (3), as the increasing temperature would favour the endothermic direction, and nickel contents would also promote the reaction at high temperatures [11].

Table 1. Product yields for the gaseous products at the three different temperatures (S/C:3, GHSV:61,200 h⁻¹).

Temperature (°C)	CO2 (mol/mol Toluene)	CO (mol/mol Toluene)	H2 (mol/mol Toluene)	CH4 (mol/mol Toluene)
700	2.1	3.8	10.3	0
(equilibrium)	(3.7)	(3.2)	(14.5)	(0.1)
800	2.2	4.5	13.0	0
(equilibrium)	(3.2)	(3.8)	(14.3)	(0)
900	2.1	4.7	11.8	0
(equilibrium)	(2.8)	(4.2)	(13.8)	(0)

shows the gaseous product yields including CO, CO₂, H₂ and CH₄. The yields of CO and CO₂ have similar trends to selectivity. However, for H₂ yield the maximum was achieved at 800 °C with a H₂ production of 13.0 mol/mol toluene, while the highest H₂ production in equilibrium conditions was predicted at 700 °C. This can be due to, in the experimental test at 700 °C, the lowest toluene conversion into gases was obtained. Toluene conversion to gas stayed over 94% at 800 °C or above, while a higher temperature would lead to a slight decrease in the content of H₂ in gaseous products due to the presence of the reverse water–gas shift reaction as discussed above. It is interesting to remark that only at 700 °C the undesirable CH₄ side product was obtained and it was only in a small amount. The absence of CH₄ at higher temperatures can be due to the methane reforming to CO and other parallel processes consuming methane as suggested by the equilibrium results.

Thermogravimetric analysis was conducted on the catalysts after a five-hour reaction to estimate the coke formation during the three different temperatures reaction tests. It has been reported that coke deposition on Ni/Al₂O₃ catalysts is the main cause for deactivation and high nickel contents could also favour coke formation. Although coke deposition is thermodynamically unfavourable at high temperatures (>600 °C), methane decomposition in the high temperature range could lead to the production of solid carbon [37].

Table 2. Toluene conversion to coke and fraction of coke deposited on the catalyst at different reforming temperatures (S/C:3, GHSV:61,200 h⁻¹, 5-hour test).

Reforming Temperature	700 °C	800 °C	900 °C
Coke/C in toluene	0.43%	0.61%	0.77%
Coke/Catalyst (gC/gcat)	0.118	0.167	0.211

shows the carbon conversion from toluene to coke and the fraction of coke on the catalyst as a function of temperature. As the temperature increased, the conversion to carbon deposits was slightly higher. It is likely that carbon at the higher temperatures was formed from the reforming of CH₄ observed at lower temperatures, as CH₄ is known to favour coke formation on Ni-based catalysts [27]. Notwithstanding coke formation at these temperatures, the amount of coke is very low, and the catalyst remains stable during the whole experiment.

Based on the results presented above, 800 °C was considered the most suitable reforming temperature due to the highest H₂ production, an excellent overall conversion (94%) and acceptable coke deposition levels. On the contrary, despite the 900 °C experiment showing a slightly higher toluene conversion, lower H₂ production, greater coke deposition and lower energy efficiency made this temperature not preferable with the 800 °C test.

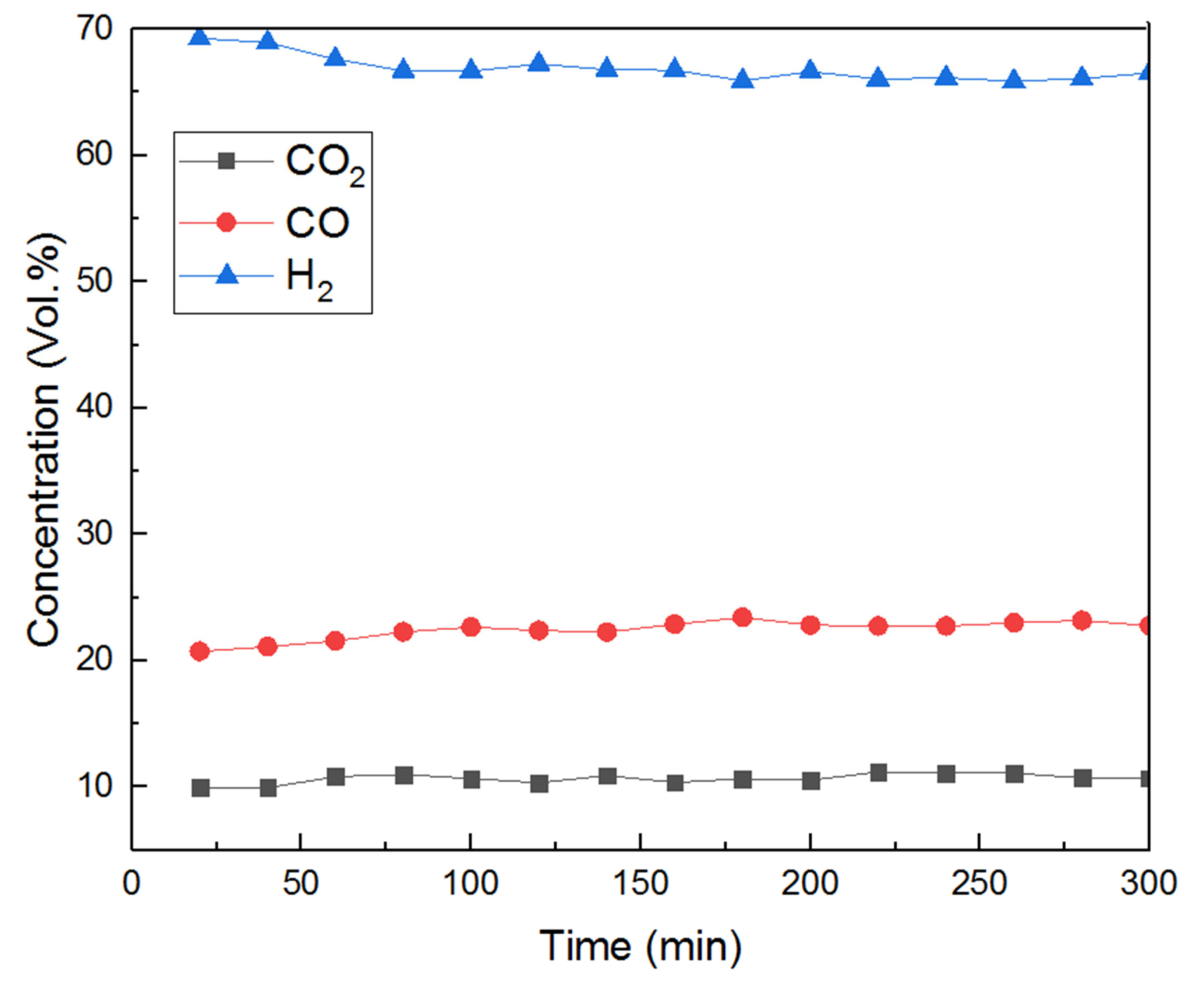

Gas analysis as a function of time on stream at the chosen temperature is shown in Figure 4 for a five-hour test. There was no CH₄ detected throughout the test and CO, CO₂ and H₂ concentration stayed stable ca 11%, 23% and 66% (figures corrected from N₂ dilution), respectively, during the whole experiment. Furthermore, no obvious change in the CO/CO₂ ratio, or drop in H₂ yields and catalyst deactivation were observed in this test.

3.3. Influence of GHSV in Toluene Steam Reforming

In view of the results obtained in the temperature screening, a temperature of 800 °C was chosen to study the effect of GHSV to elucidate the suitable residence time for a complete conversion of toluene. High GHSV, or lower residence time, might inhibit toluene conversion and H₂ production. Literature suggests that suitable GHSVs for steam reforming were mostly between 10,000 and 70,000 h⁻¹ [38,39] over different catalysts. For our benchmark catalyst, tests were carried out with 500 mg of catalyst, and a fixed temperature (800 °C) and S/C ratio of three during 5 h of reaction. The feeding rates of toluene, steam and N₂ were changed according to the desired GHSV. The GHSV studied were 30,600, 61,200, 91,800 and 122,400 h⁻¹. Some of the space velocities selected in this study are indeed over the standard ranges mentioned above. In fact, high space velocities normally involve lower reactor volumes, thus decreasing the capital cost of the reformer.

Figure 5 shows the toluene conversion and CO₂/CO selectivity (based on conversion to C-containing gases) at the four different GHSVs in a steady state within the five hours of reaction and compares them with equilibrium selectivity. Toluene conversion decreased from 96% to 86% when GHSVs increased from 30,600 to 122,400 h⁻¹. When GHSV was 91,800 h⁻¹ or lower, toluene conversion to gas remained higher than 90%, without notorious differences for the two lowest GHSV studied (30,600 h⁻¹ or 61,200 h⁻¹), which showed a stabilised conversion at around 95%. The selectivity of CO and CO₂ approached the equilibrium results slowly when GHSV decreased. It could be seen that toluene conversion and CO₂ selectivity declined with the increasing of GHSV, as a result of shorter residence time and reaction period. It is interesting to note that the selectivity is less affected by the residence time than the conversion. Negligible or no methane was detected in the product gas, which was in line with literature that suggested that at temperatures higher than 750 °C very small amounts of CH₄ are produced [11].

The gas product CO₂, CO and H₂ yields are shown in

Table 3. Product yields for the gaseous products at different GHSV (S/C:3, 800 °C).

GHSV (h−1)	CO2 (mol/mol Toluene)	CO (mol/mol Toluene)	H2 (mol/mol Toluene)
30,600	2.4	4.3	13.2
61,200	2.2	4.5	13.0
91,800	2.1	4.2	12.8
122,400	2.1	3.9	10.8
(Equilibrium)	(3.2)	(3.8)	(14.3)

. As expected, GHSV 30,600 h⁻¹ led to the highest H₂ production (13.2 mol/mol toluene). As a trend, CO, CO₂ and H₂ yields dropped when GHSV increased. This decrease in yields for all gas products at high GHSV is linked with the drop in conversion as the residence time became shorter. An exception occurred at 61,200 h⁻¹ GHSV as the reverse water–gas shift reaction could cause a small increase in CO. Previous studies suggest that some tar model compounds (naphthalene) had no apparent trends for the hydrogen yields or selectivity, as the product was affected by the equilibrium of the water–gas shift reaction and other side reactions [40]. In this work, hydrogen yield and total conversion showed a slightly increasing trend in conversion and yields with the decrease of residence time, but this trend was more remarkable in the conversion of toluene than in selectivities.

Table 4. Toluene conversion to coke deposited on the catalyst with different GHSV (S/C:3, 800 °C, five-hour test).

GHSV(h−1)	30,600	61,200	91,800	122,400
Coke/C in toluene	0.38%	0.31%	0.23%	0.22%
Coke/Catalyst (gC/gcat)	0.105	0.167	0.188	0.242

shows the carbon conversion from toluene to coke with different GHSVs. This data led us to a better understanding of the coke deposition. The reactant toluene and steam feeding rate increased three times when GHSV increased from 30,600 to 122,400 h⁻¹; however, the coke conversion reduced from 0.38% to 0.22%. This means that the higher GHSV used resulted in a higher coke amount deposited but lower conversion rate. This result is the balance between the higher feed of toluene used and the decrease in conversion due to the high GHSV used.

Although the lower space velocity leads to higher conversion, greater selectivity and the lower net amount of carbon deposits, for practical applications (i.e. manufacturing cost savings) higher space velocities are desired. In this sense, 61,200 h⁻¹ yields very similar conversion and selectivity levels, low net coking and lower conversion to coke. Hence, this space velocity was selected to optimise the next reaction parameter.

3.4. Influence of S/C Ratio in Toluene Steam Reforming

Steam, as a principal reactant in catalytic steam reforming, is widely recognised to have a strong influence on H₂ production. Steam is involved in most of the relevant reactions in the toluene reforming and therefore the steam to carbon ratio was chosen as a key variable to study. A high steam partial pressure improves gasification reactions and moves the water–gas shift equilibrium towards hydrogen production, while the partial pressure of toluene in the gas stream is lower due to dilution as the S/C ratio rises [37]. Suitable S/C ratios to investigate the catalyst performance were mostly between one and four in the literature [16,41]. Although steam is the main reactant in a reforming process, a large excess of water in these experiments could condense into ice in the cooling trap and block the system. It is also reported that the saturation of the catalyst surface by steam at a high S/C ratio would not favour the conversion of toluene or H₂ production [5].

In this study, the catalytic performance tests were performed at three different S/C ratios of 1, 2, 3, at 800 °C, 500 mg of samples and a GHSV of 61,200 h⁻¹ for five hours.

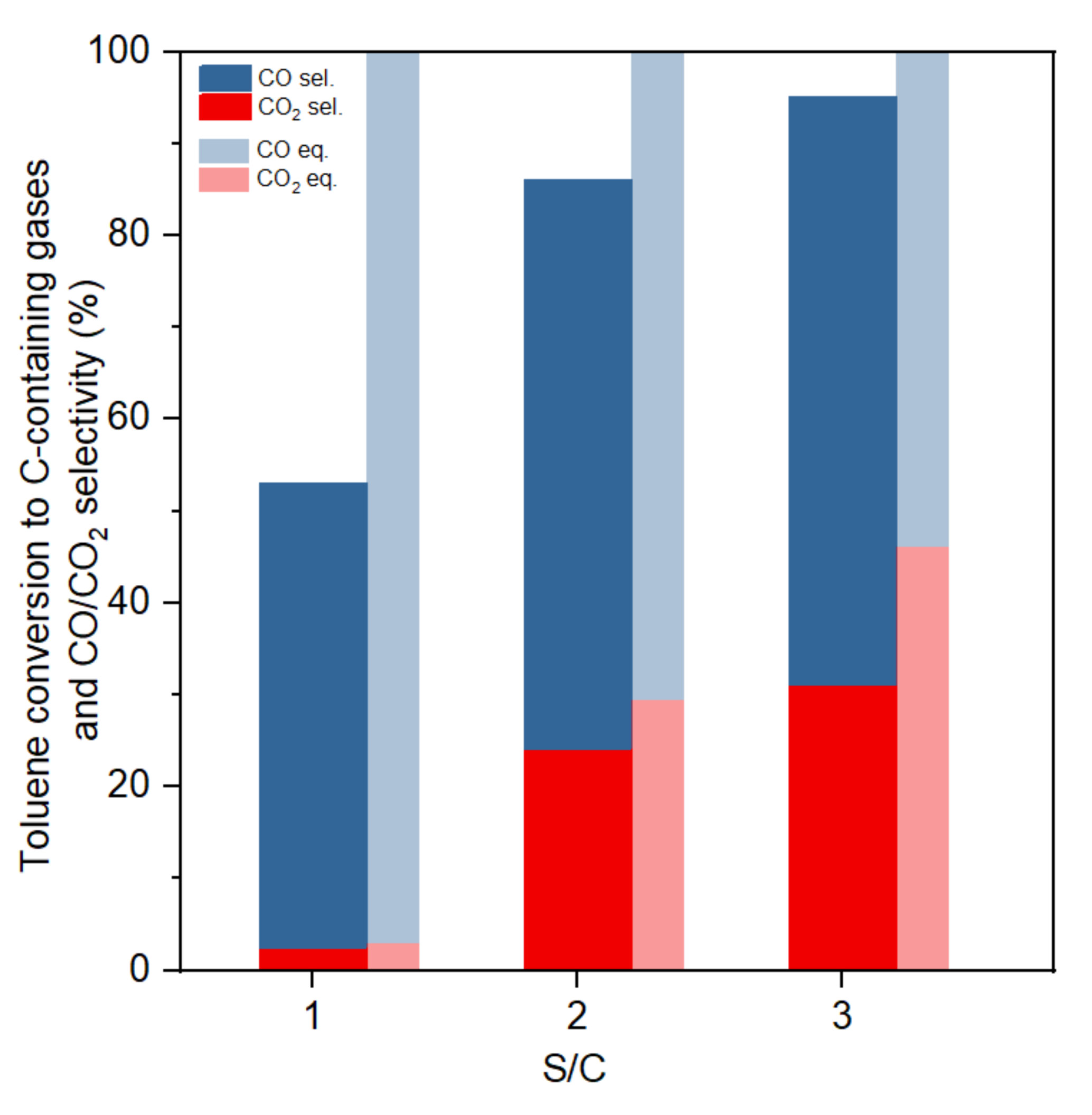

Figure 6 shows the influence of the S/C ratio on the selectivity of carbon containing products. Both experimental and equilibrium results showed that an increment in S/C ratio results in a large improvement of CO₂ selectivity and toluene conversion. In the experimental tests, toluene to gas conversion increased from 53% to 94% when the S/C ratio increased from one to three. Equilibrium results indicated that a higher S/C ratio always increases the H₂ production, as the excess steam would promote the water–gas shift reaction. A higher S/C ratio also increased toluene conversion to gas. Some researchers suggested that the most suitable S/C ratio was mostly between 2.5 and 3.5, because more excess steam would not increase toluene conversion or H₂ production, causing a drop in toluene partial pressure [26].

Table 5. Product yields for the gaseous products under different S/C ratios (GHSV:61,200 h⁻¹, 800 °C).

S/C ratio	CO2 (mol/mol Toluene)	CO (mol/mol Toluene)	H2 (mol/mol Toluene)
1	0.2	3.5	5.1
(Equilibrium)	(0.2)	(6.8)	(9.8)
2	1.7	4.3	10.5
(Equilibrium)	(2.1)	(4.9)	(13.0)
3	2.2	4.5	13.0
(Equilibrium)	(3.2)	(3.8)	(14.3)

compares the product yields of CO, CO₂ and H₂ with different S/C ratios. Equilibrium simulation and experiments both showed large increases in CO₂ and H₂ production with the S/C ratio. Experimental H₂ yield increased from 5.1 to 13.0 mol/mol toluene when the S/C ratio raised from one to three. The opposite equilibrium trend is expected for CO, but this did not happen in the experiments. Instead, the CO yield was observed to increase with the amount of steam as the trend was dominated by the higher conversion achieved at higher S/C ratios. Despite the experimental CO yield showing a slight increase, in general the CO/CO₂ ratio decreased with the increase of the S/C ratio in line with the equilibrium results.

The coke weight on the spent catalyst with S/C ratio 1, 2, 3 is 0.289, 0.222, 0.167 g_C/g_cat, respectively. As expected, the higher S/C ratio promoted carbon gasification avoiding coke formation [42].

Table 6. Toluene conversion to coke deposited on the catalyst at different S/C ratios.

S/C ratio	1	2	3
Coke/C in toluene	1.07%	0.82%	0.61%
Coke/Catalyst (gC/gcat)	0.289	0.222	0.167

shows the carbon conversion from toluene to coke for the three different S/C ratio studied. As discussed above, it can be seen that the excess of steam inhibited, but did not suppress, the formation of coke. For all the above, the better choice is to use a S/C ratios of three since it permits the highest H₂ production and toluene conversion and the lowest coke amount.

4. Conclusions

To remove tar produced from biomass gasification, catalytic steam reforming was conducted for toluene as a model tar compound. Simulations of a thermodynamic equilibrium based on Gibbs free energy minimisation and experiments in a fixed bed reactor using a Ni/Al₂O₃ catalyst were carried out. The effect of reforming temperature, S/C ratio and GHSV on toluene conversion and product distribution was studied.

Increasing the temperature from 700 to 900 °C increased total conversion, with a potential risk of higher coke deposition. A temperature of 800 °C observed the highest H₂ production, high toluene conversion (>94%) and relatively lower coke deposition.

The Ni/Al₂O₃ catalyst only requires a very short residence time (GHSV < 91,800 h⁻¹) for toluene reforming with this catalyst and effectively removes low density toluene in a mixed gas stream. H₂ yield and toluene conversion increased slightly and approached simulated thermodynamic equilibrium results when GHSV decreased. Coke deposition increased at a lower rate as GHSV increased.

A high S/C ratio would greatly increase total conversion, hydrogen production and reduce the coke formation on the catalyst. The presence of excess steam could shift the equilibrium of the water–gas shift reaction to produce more H₂.

A temperature of 800 °C, GHSV of 61,200 h⁻¹ and S/C ratio of three provided the most suitable reaction conditions for toluene conversion and H₂ production in steam reforming of toluene, obtained a steady state of a toluene to gas conversion over 94%, a H₂ production of 141.6 mol/mol toluene in a five-hour test, with no obvious deactivation observed in five hours. Based on these results, this condition would be suitable for tar model compound removal.
