Estimating the Optimum Tilt Angles for South-Facing Surfaces in Palestine
Abstract
:1. Introduction
1.1. Physical Characteristics of Palestine
1.2. The Situation of Electric Energy in Palestine and Net-Metering Regulations
2. Methodology

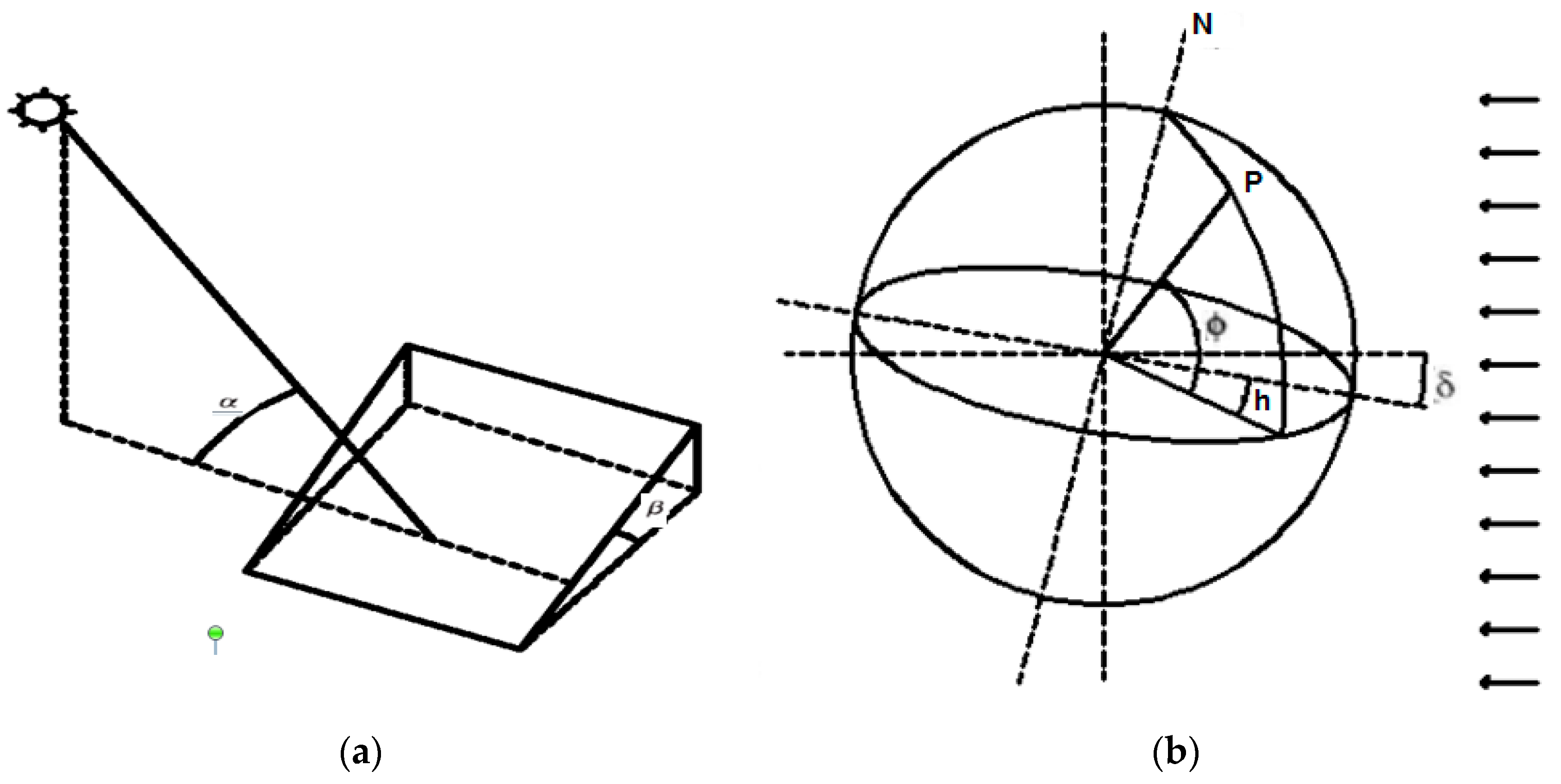

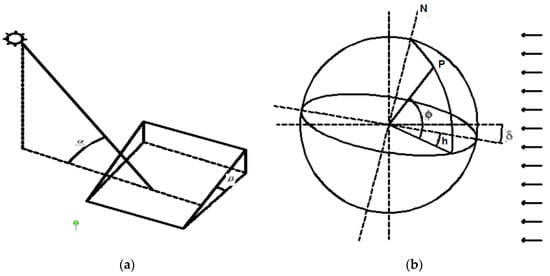

Solar Angles
3. Literature Review
4. Results and Discussion
4.1. Part One: Mathematical Model Results

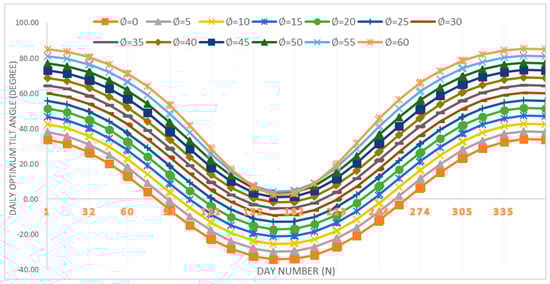

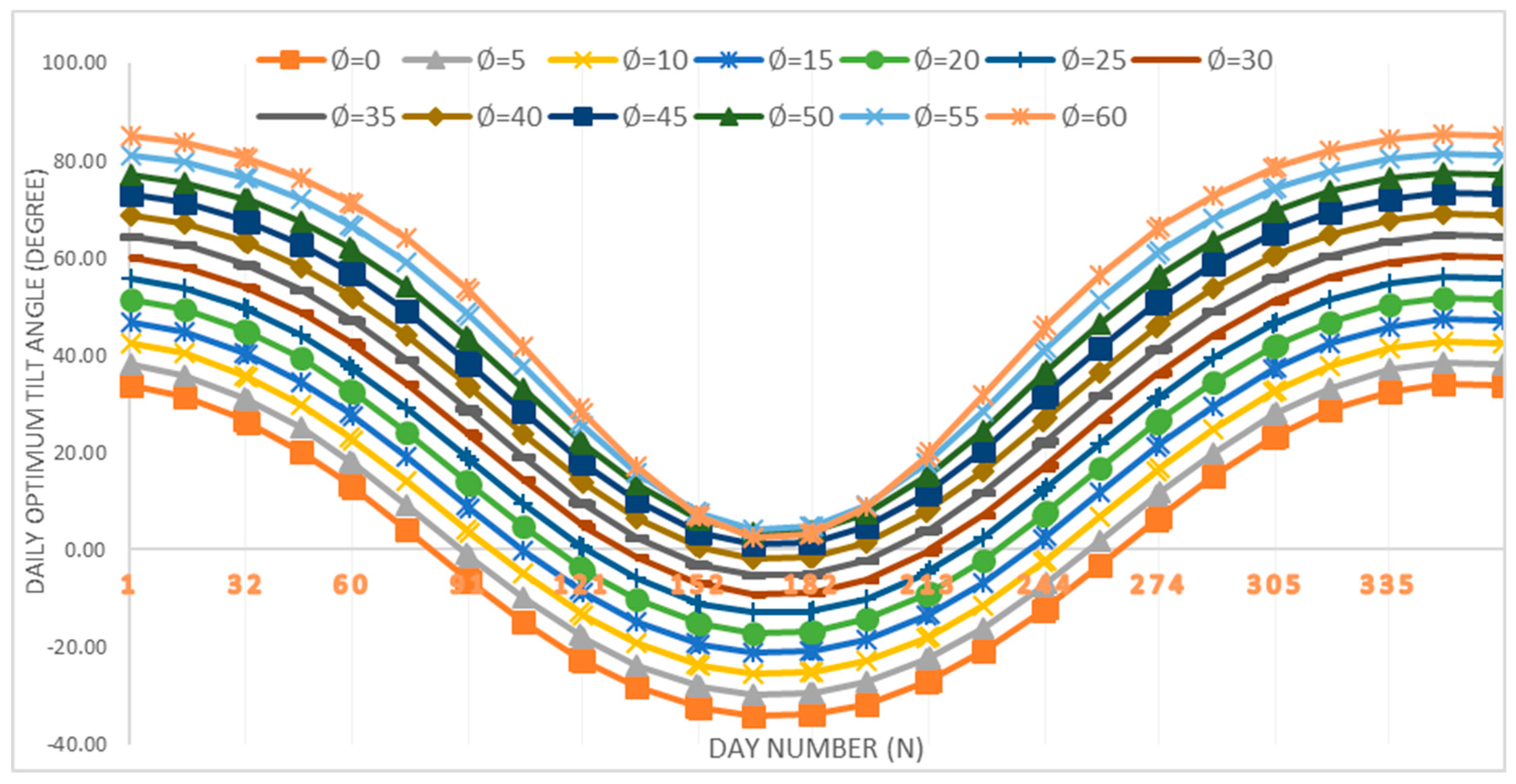

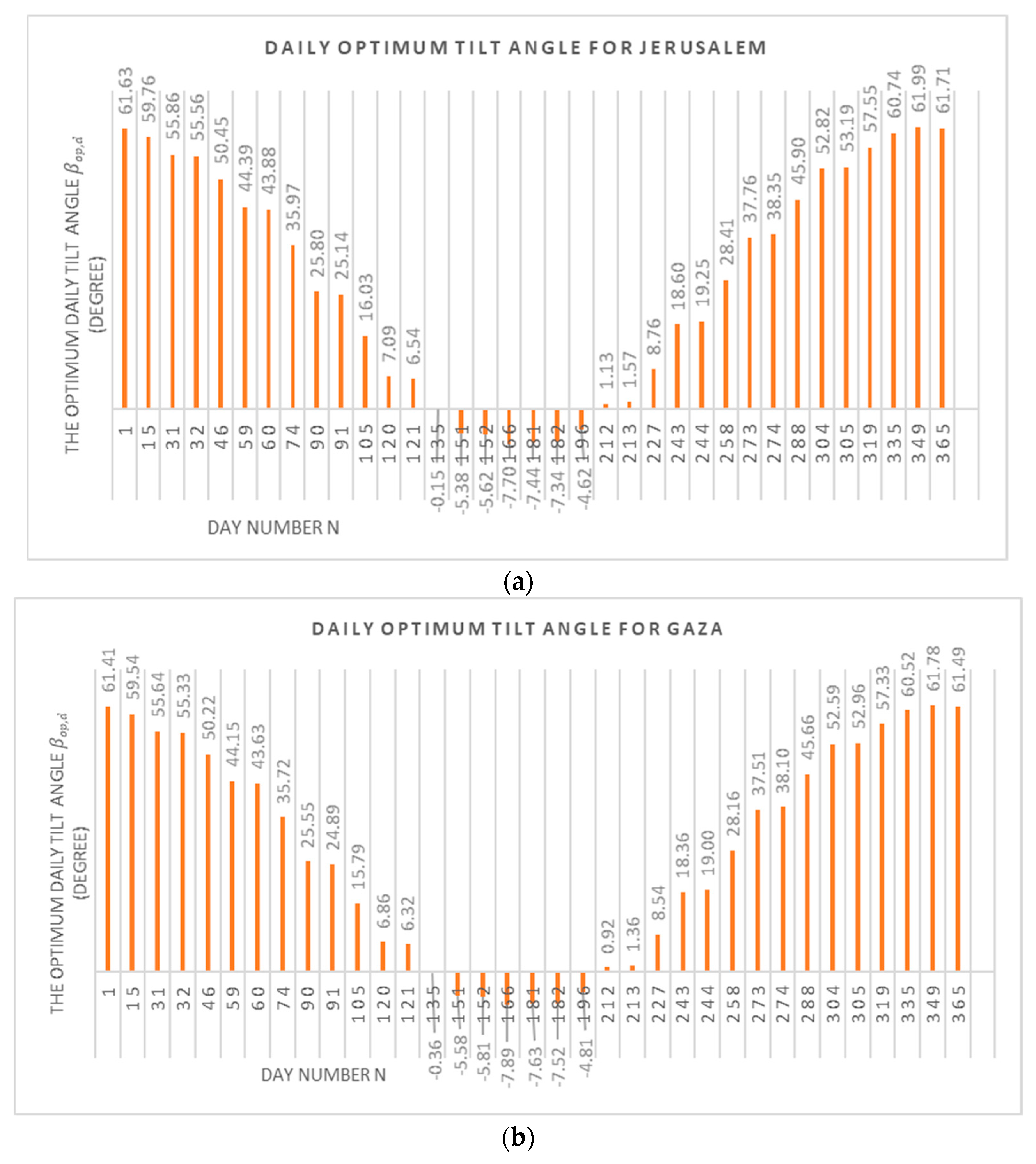

4.1.1. Daily Optimum Tilt Angle

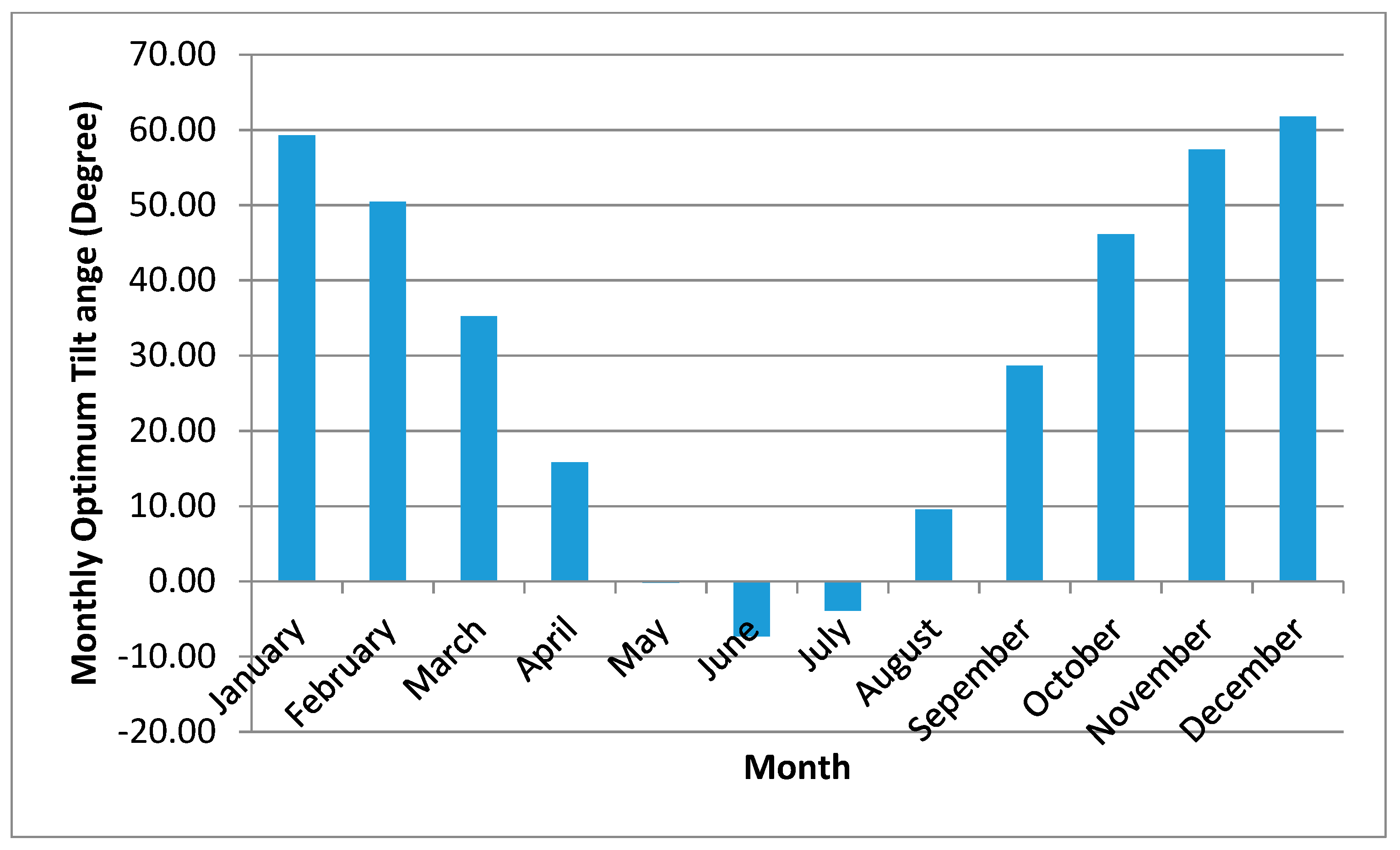

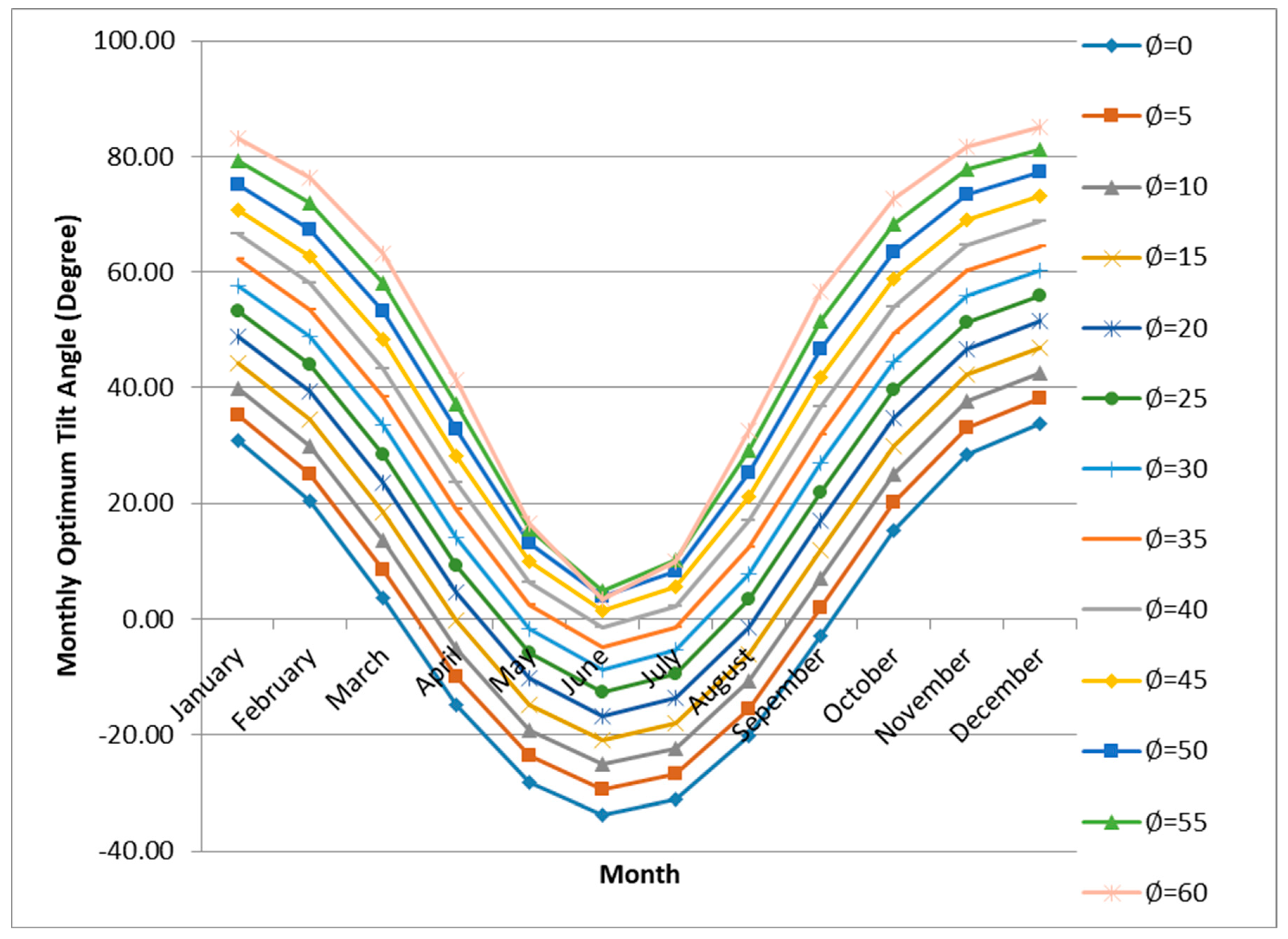

4.1.2. Monthly Optimum Tilt Angle

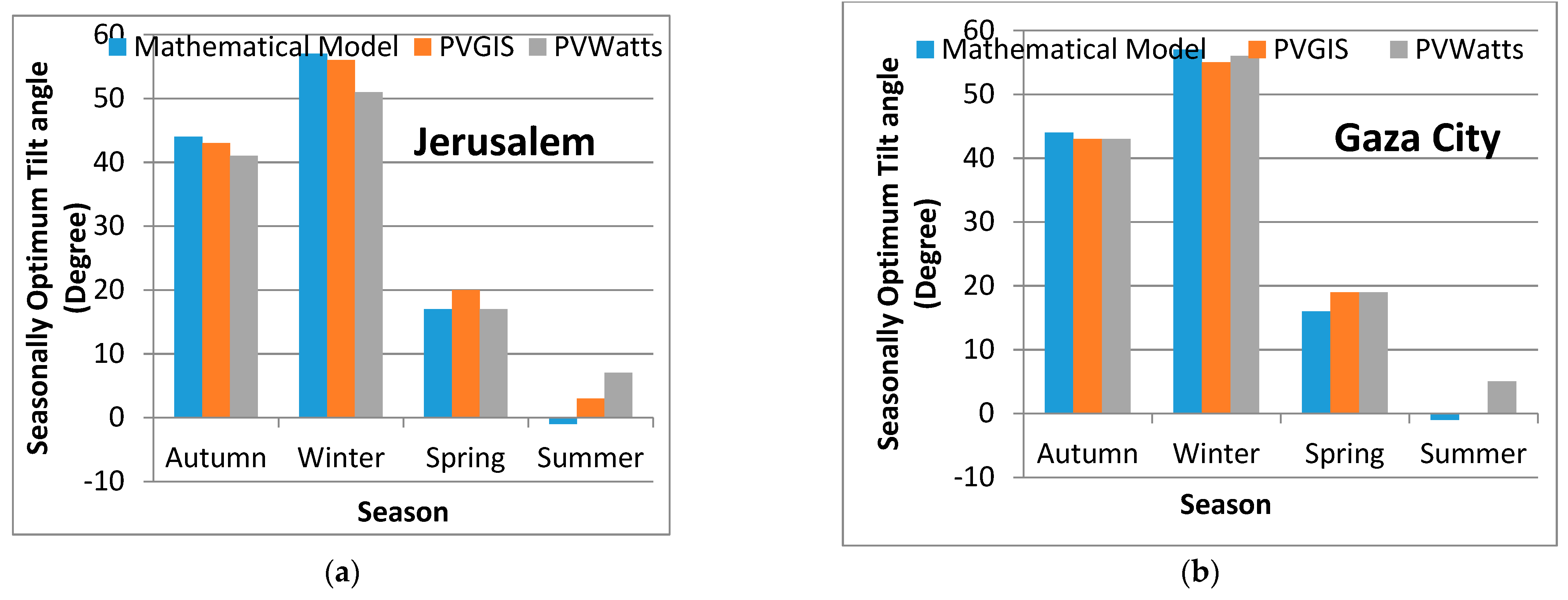

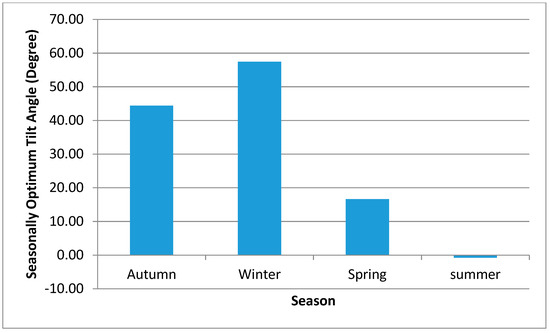

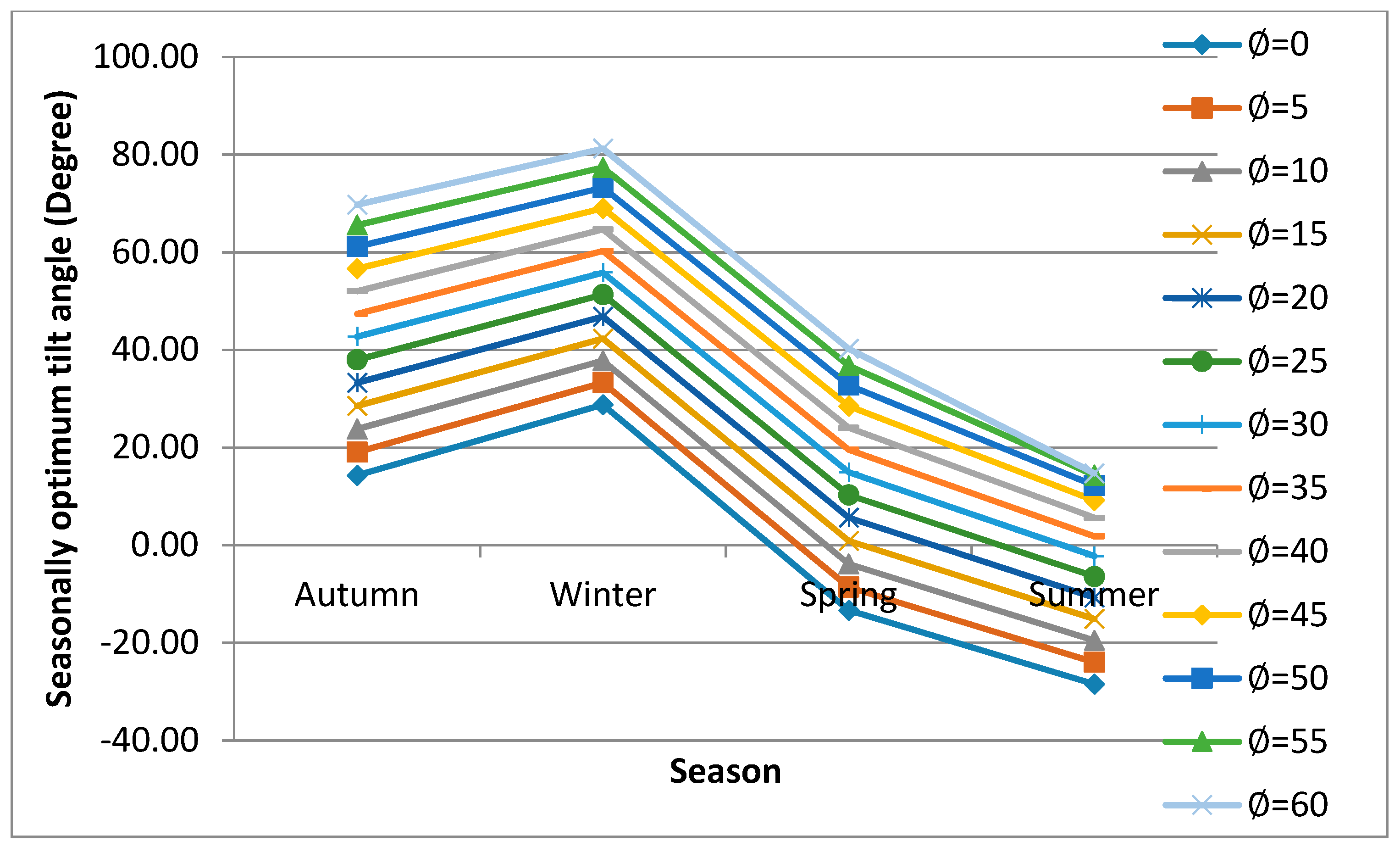

4.1.3. Seasonal Optimum Tilt Angle
4.1.4. Semi-annually Optimum Tilt Angle
4.1.5. Annually Optimum Tilt Angle

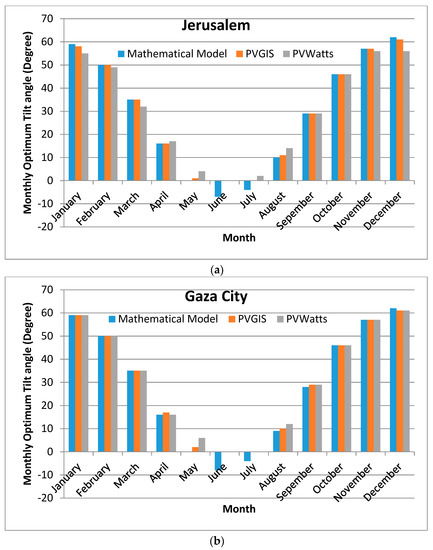

4.2. Part Two: Results Based on PVWatts and PVGIS

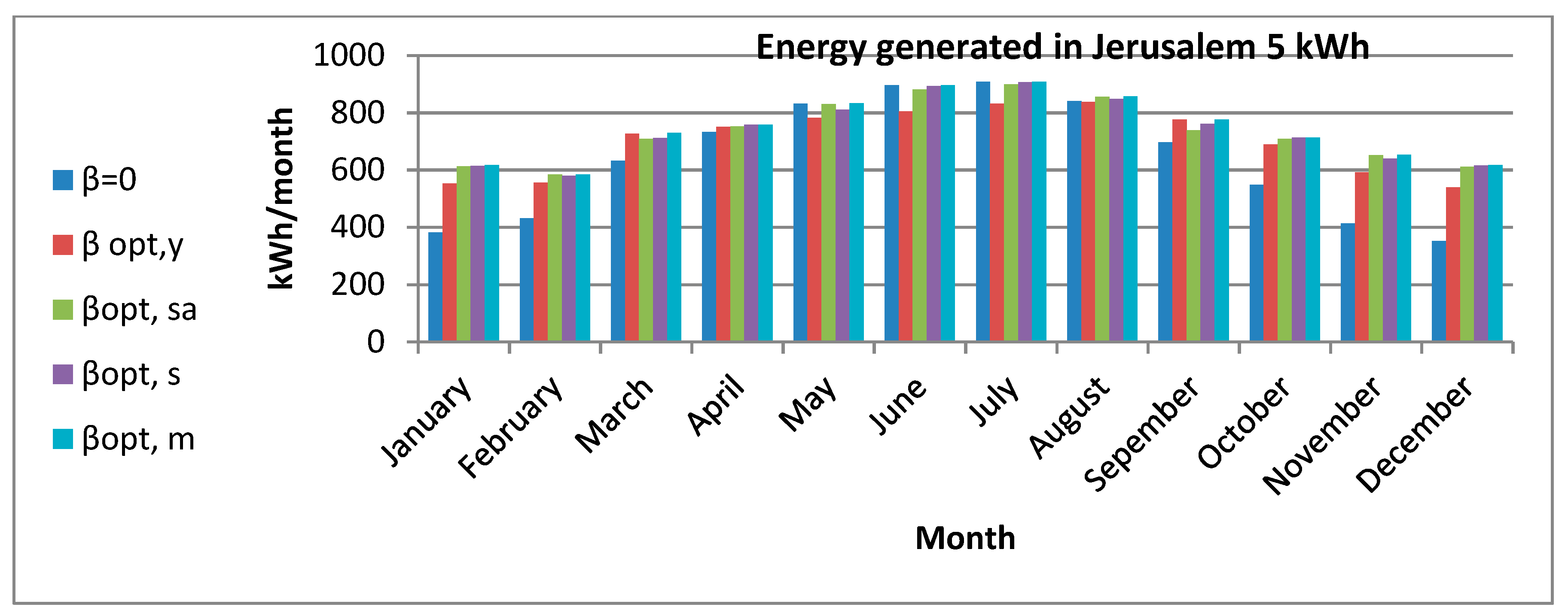

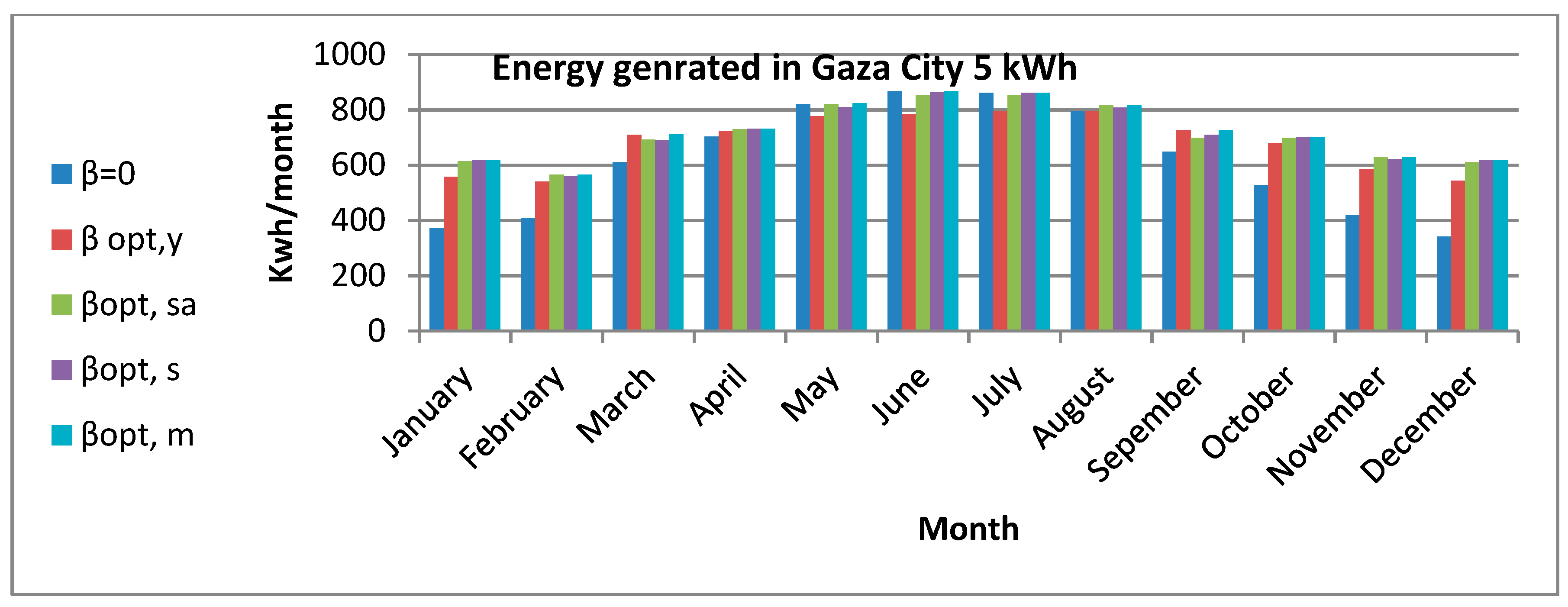

5. Case Studies of two Palestinian Cities

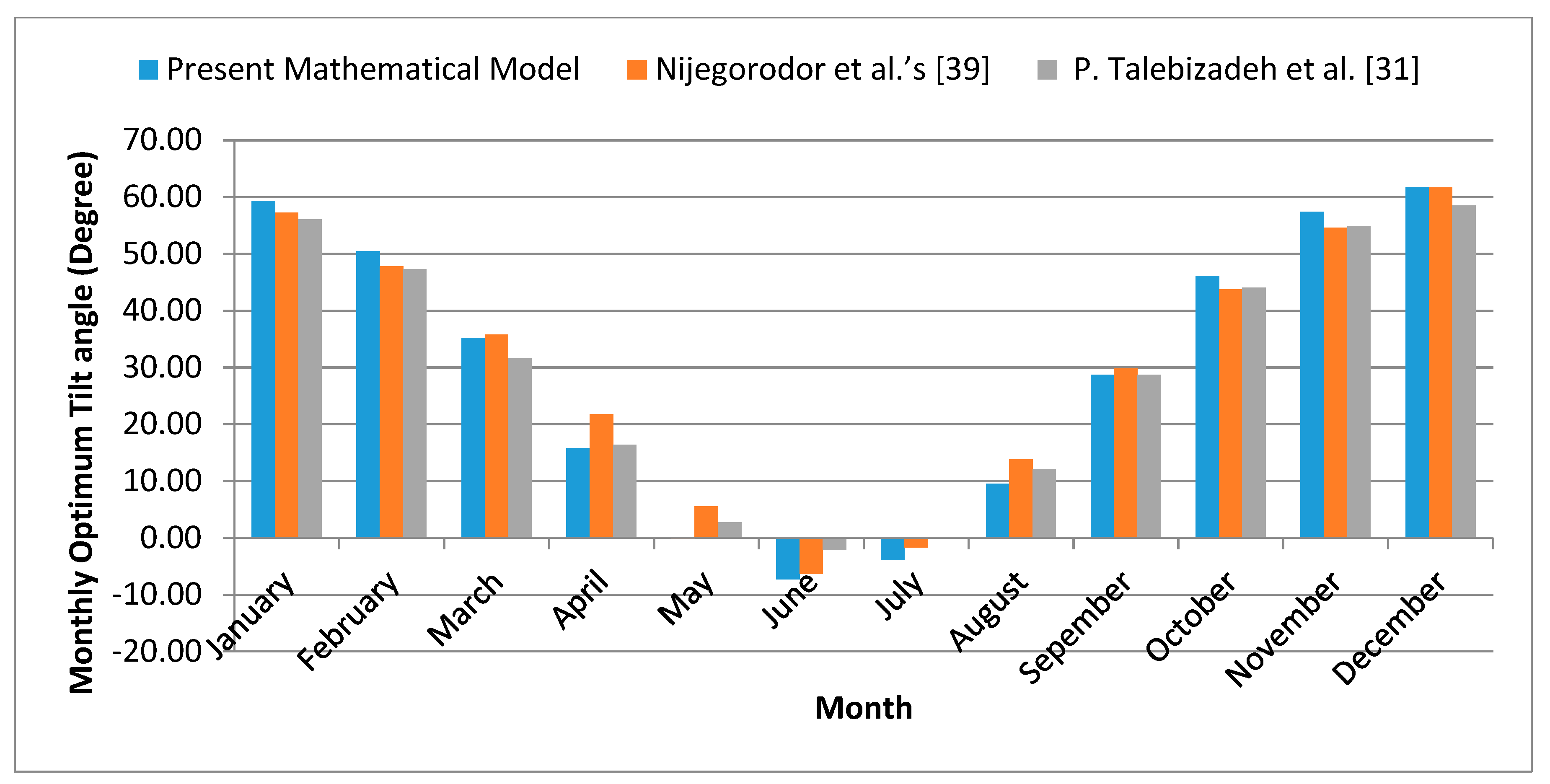

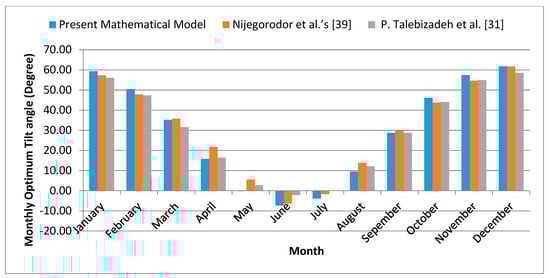

6. Comparison of the Present Work with Previously Published Papers
7. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Abbreviations
δ | Declination angle |
n | The day number |
Latitude angle | |
h | Hour angle |
α | The altitude angle |
hs | The hour angles at sunrise and sunset |
β | The tilt angle |
ASHRAE | American Society of Heating, Refrigerating and Air-Conditioning Engineers |
Id | Daily extraterrestrial radiation |
Ip | Extraterrestrial radiation for a particular period |
PV | Photovoltaic |
βopt,d | Daily optimum tilt angle |
βopt,m | Monthly optimum tilt angle |
Im | Monthly total extraterrestrial radiation |
F | The tilt factor |
βopt,s | Seasonally optimum tilt angle |
Is | Seasonal extraterrestrial radiation |
βopt,sa | Semi-annual optimum angle |
Isa | Semi-annal extraterrestrial radiation |
Iy | The yearly extra-terrestrial radiation |
βopt,y | The annual optimum tilt angle |
PEA | Palestinian Energy Authority |
PCBS | Palestinian Central Bureau of Statistics |
NREL | National Renewable Energy Laboratory -USA |
References
- Juaidi, A.; Montoya, F.G.; Ibrik, I.H.; Manzano-Agugliaro, F. An overview of renewable energy potential in Palestine. Renew. Sust. Energ. Rev. 2016, 65, 943–960. [Google Scholar] [CrossRef]
- Mohammed, M. (Palestine Investment Fund, Palestine). Palestine’s Oil and Gas Resources: Prospects and Challenges. 2014. Available online: http://thisweekinpalestine.com/wp-content/uploads/2014/07/Palestine%E2%80%99s-Oil-and-Gas.pdf (accessed on 28 January 2020).
- European Joint Strategy in Support of Palestine. Towards a Democratic and Accountable Palestinian state (2017–2020)—European Joint Programming; European Union: Brussels, Belgium; p. 64. Available online: https://eeas.europa.eu/sites/eeas/files/final_-_european_joint_strategy_english.pdf (accessed on 28 January 2020).
- West Bank and Gaza Energy Efficiency Action Plan 2020–2030. Final Report, ACS19044; World Bank Group: Energy and Extractives. Energy Sector Management Program (ESMAP): Gaza, Palestine, 2016; p. 67. Available online: http://documents.worldbank.org/curated/en/851371475046203328/pdf/ACS19044-REPLACEMENT-PUBLIC-FINAL-REPORT-P147961-WBGaza-Energy-Efficiency-Action-Plan.pdf (accessed on 30 January 2020).
- Ibrik, I.H.; Mahmoud, M.M. Energy efficiency improvement procedures and audit results of electrical, thermal and solar applications in Palestine. Energy Policy 2005, 33, 651–658. [Google Scholar] [CrossRef]
- Hamed, T.A.; Flamm, H.; Azraq, M. Renewable energy in the Palestinian Territories: Opportunities and challenges. Renew. Sust. Energ. Rev. 2012, 16, 1082–1088. [Google Scholar] [CrossRef]
- Ismail, M.S.; Moghavvemi, M.; Mahlia, T.M.I. Design of an optimized photovoltaic and microturbine hybrid power system for a remote small community: Case study of Palestine. Energy Convers. Manag. 2013, 75, 271–281. [Google Scholar] [CrossRef]
- Status of The Environment in The State of Palestine 2015; Applied Research Institute Jerusalem (ARIJ); Swiss Agency for Development and Cooperation SDC, 2015; p. 189. Available online: http://www.arij.org/ (accessed on 28 January 2020).
- Palestinian Central Bureau of Statistics (PCBS). Available online: http://www.pcbs.gov.ps/ (accessed on 28 January 2020).
- Palestinian National Plan 2011–13; Energy Sector Strategy; Ministry of Planning an Administrative Development Palestine: Ramallah, Palestine, 2011. Available online: https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=4&ved=2ahUKEwim8rWjtqjnAhXR4KQKHel6A10QFjADegQIAhAB&url=http%3A%2F%2Fwww.lacs.ps%2FdocumentsShow.aspx%3FATT_ID%3D4799&usg=AOvVaw0ih44V_42LHzdNHvQp57_l (accessed on 30 January 2020).
- El-Kassaby, M.M. Monthly and daily optimum tilt angle for south facing solar collectors; theoretical model, experimental and empirical correlations. Sol. Wind Technol. 1998, 5, 589–596. [Google Scholar] [CrossRef]
- Duffie, J.A.; Beckman, W.A. Solar Engineering of Thermal Processes, 2nd ed.; John Wiley and Sons: New York, NY, USA, 1991; p. 919. [Google Scholar]
- Lunde, P.J. Solar Thermal Engineering; John Wiley and Sons: New York, NY, USA, 1980; p. 635. [Google Scholar]
- Jafarkazemi, F.; Saadabadi, S.A. Optimum tilt angle and orientation of solar surfaces in Abu Dhabi, UAE. Renew. Energy 2013, 56, 44–49. [Google Scholar] [CrossRef]
- Pavlović, T.; Pavlović, Z.; Pantić, L.; Kostić, L. Determining optimum tilt angles and orientations of photovoltaic panels in niš, Serbia. Contemp. Mater. I 2010, 151–156. [Google Scholar] [CrossRef] [Green Version]
- Omar, M.A.; Mahmoud, M.M. Grid connected PV-home systems in Palestine: A review on technical performance, effects and economic feasibility. Renew. Sust. Energy Rev. 2018, 82, 2490–2497. [Google Scholar] [CrossRef]
- National Renewable Energy Laboratory (NREL). PV Watts Calculator. Available online: https://pvwatts.nrel.gov/ (accessed on 30 January 2020).
- Photovoltaic Geographical Information System. European Commission. PVGIS. Available online: https://re.jrc.ec.europa.eu/pvg_tools/en/tools.html (accessed on 28 January 2020).
- Berisha, X.; Zeqiri, A.; Meha, D. Solar Radiation—The Estimation of the Optimum Tilt Angles for South-Facing Surfaces in Pristina. Preprints 2017, 13. [Google Scholar] [CrossRef]
- Racharla, S.; Rajan, K. Solar tracking system—A review. Int. J. Sustain. Eng. 2017, 10, 72–81. [Google Scholar]
- Mousazadeh, H.; Keyhani, A.; Javadi, A.; Mobli, H.; Abrinia, K.; Sharifi, A. A review of principle and sun-tracking methods for maximizing solar systems output. Renew. Sust. Energ. Rev. 2009, 13, 1800–1818. [Google Scholar] [CrossRef]
- Ahmad, M.J.; Tiwari, G.N. Optimization of tilt angle for solar collectors to receive maximum radiation. Open Renew. Energy J. 2009, 2, 19–24. [Google Scholar]
- Abdulsalam, H.S.; Alibaba, H.Z. Optimum Tilt Angle for Photovoltaic Panels in Famagusta, Cyprus. IJSSHR 2019, 7, 29–35. [Google Scholar]
- Jiménez-Torres, M.; Rus-Casas, C.; Lemus-Zúiga, L.; Hontoria, L. The Importance of Accurate Solar Data for Designing Solar Photovoltaic Systems—Case Studies in Spain. Sustainability 2017, 9, 247. [Google Scholar]
- Mousavi Maleki, S.A.; Hizam, H.; Gomes, C. Estimation of hourly, daily and monthly global solar radiation on inclined surfaces: Models re-visited. Energies 2017, 10, 134. [Google Scholar] [CrossRef] [Green Version]
- Skeiker, K. Optimum tilt angle and orientation for solar collectors in Syria. Energy Convers. Manag. 2009, 50, 2439–2448. [Google Scholar] [CrossRef]
- Khasawneh, Q.A.; Damra, Q.A.; Salman, B.; Husni, O. Determining the Optimum Tilt Angle for Solar Applications in Northern Jordan. JJMIE 2015, 9, 187–193. [Google Scholar]
- Hartner, M.; Ortner, A.; Hiesl, A.; Haas, R. East to west—The optimal tilt angle and orientation of photovoltaic panels from an electricity system perspective. Appl. Energy 2015, 160, 94–107. [Google Scholar] [CrossRef]
- Safdarian, F.; Nazari, M.E. Optimal tilt angle and orientation for solar collectors in Iran. In Proceedings of the IEEE 10th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives (SDEMPED), Guarda, Portugal, 1–4 September 2015; IEEE: Guarda, Portugal, 2015; pp. 494–500. [Google Scholar]
- Jacobson, M.Z.; Jadhav, V. World estimates of PV optimal tilt angles and ratios of sunlight incident upon tilted and tracked PV panels relative to horizontal panels. Sol. Energy 2018, 169, 55–66. [Google Scholar] [CrossRef]
- Talebizadeh, P.; Mehrabian, M.A.; Abdolzadeh, M. Determination of optimum slope angles of solar collectors based on new correlations. Energy Sources Part A Recovery Util. Environ. Eff. 2011, 33, 1567–1580. [Google Scholar] [CrossRef]
- Morcos, V.H. Optimum tilt angle and orientation for solar collectors in Assiut, Egypt. Renew. Energy 1994, 4, 291–298. [Google Scholar] [CrossRef]
- Hartley, L.E.; Martínez-Lozano, J.A.; Utrillas, M.P.; Tena, F.; Pedros, R. The optimisation of the angle of inclination of a solar collector to maximise the incident solar radiation. Renew. Energy 1999, 17, 291–309. [Google Scholar] [CrossRef] [Green Version]
- Yakup, M.A.B.H.M.; Malik, A.Q. Optimum tilt angle and orientation for solar collector in Brunei Darussalam. Renew. Energy 2001, 24, 223–234. [Google Scholar] [CrossRef]
- Tang, R.; Wu, T. Optimal tilt-angles for solar collectors used in China. Appl. Energy 2004, 79, 239–248. [Google Scholar] [CrossRef]
- Ulgen, K. Optimum tilt angle for solar collectors. Energy Sources Part A Recovery Util. Environ. Eff. 2006, 28, 1171–1180. [Google Scholar] [CrossRef]
- Darhmaoui, H.; Lahjouji, D. Latitude based model for tilt angle optimization for solar collectors in the Mediterranean region. Energy Procedia 2013, 42, 426–435. [Google Scholar] [CrossRef] [Green Version]
- Guo, M.; Zang, H.; Gao, S.; Chen, T.; Xiao, J.; Cheng, L.; Sun, G. Optimal tilt angle and orientation of photovoltaic modules using HS algorithm in different climates of China. Appl. Sci. 2017, 7, 1028. [Google Scholar] [CrossRef] [Green Version]
- Nijegorodov, N.; Devan, K.R.S.; Jain, P.K.; Carlsson, S. Atmospheric transmittance models and an analytical method to predict the optimum slope of an absorber plate, variously oriented at any latitude. Renew. Energy 1994, 4, 529–543. [Google Scholar] [CrossRef]
Location | Tilt Angle (Optimum in Degree) | Latitude | Reference |
---|---|---|---|
Damascus | 30.56° | 33.5° | [26] |
Northern Jordan | 30° Average 10° Summer 50° Winter | 32.5° | [27] |
Austria | 30° | 47.5° | [28] |
Germany | 45° | 51.2° | [28] |
Tehran | 35.7° | 35.7° | [29] |
Isfahan | 32° | 36.5° | [29] |
Shiraz | 29.4° | 29.6° | [29] |
Mashhad | 36.2° | 36.3° | [29] |
Tabriz | 38° | 38.1° | [29] |
Pristina | 8.9° Summer 25.7° Spring 50.9° Autumn 62.1° Winter 34.7° Average | 42.7° | [19] |
Cyprus | 20° Summer 50° Winter | 35.1° | [23] |
Montreal | 37° | 45.5° | [30] |
Bordeaux | 33° | 44.8° | [30] |
Cologne | 32° | 50.9° | [30] |
Hong Kong | 20° | 22.4° | [30] |
Rajko | 24° | 42.1° | [30] |
Zahedan | 26.70° | 29.5° | [30] |
Birjand | 29.93° | 32.9° | [31] |
Shraz | 25.88° | 52.9° | [31] |
Tabas | 30.16° | 33.6° | [31] |
Yazd | 29.05° | 31.9° | [31] |
Kerman | 23.95° | 36.7° | [31] |
Assiut | 27° | 27.2° | [32] |
Valencia | 31° | 39° | [33] |
Darussalam | 3.3° | 4.5° | [34] |
Beijing | 39.2° | 39.9° | [35] |
Kunming | 27.9° | 24.9° | [35] |
Shanghai | 28° | 31.2° | [35] |
Guangzhou | 22° | 23.1° | [35] |
Chengdu | 23° | 30.6° | [35] |
Xi’an | 30.1° | 34.3° | [35] |
Yinchuang | 38.3° | 38.5° | [35] |
Shenyang | 40.3° | 41.8° | [35] |
Izmir | 0° June 61° December | 38.4° | [36] |
Gaza Strip | 32.1° | 31.5° | [37] |
Damascus | 33.7° | 33.5° | [37] |
Beirut | 33.8° | 33.9° | [37] |
Tunis | 35.2° | 33.9° | [37] |
Seville | 36.6° | 37.4° | [37] |
Milan | 41.8° | 45.5° | [37] |
Mu’tah | 28.5° | 31.7° | [11] |
Sanya | −18.1° June 49.9° December | −11.5° | [38] |
Shanghai | −7.6° June 61.4° December | 31.2° | [38] |
Zhengzhou | 5.5° June 64.3° December | 34.7° | [38] |
Harbin | 12.6° June 73.7° December | 45.8° | [38] |
Mohe | 16.6° June 80.0° December | 52.9° | [38] |
Lhasa | −8.9° June 59.9° December | 29.7° | [38] |
Date | Day Number (n) | Latitude (°) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||
17 Jan. | 17 | 30.92 | 35.39 | 39.88 | 44.37 | 48.86 | 53.34 | 57.80 | 62.23 | 66.61 | 70.94 | 75.19 | 79.34 | 83.33 |
16 Febr. | 47 | 19.74 | 24.51 | 29.29 | 34.06 | 38.83 | 43.59 | 48.34 | 53.08 | 57.79 | 62.46 | 67.09 | 71.66 | 76.15 |
16 Mar. | 75 | 3.64 | 8.63 | 13.62 | 18.61 | 23.60 | 28.59 | 33.58 | 38.57 | 43.56 | 48.55 | 53.53 | 58.51 | 63.48 |
15 April | 105 | −14.74 | −9.87 | −5.01 | −0.16 | 4.69 | 9.52 | 14.33 | 19.11 | 23.85 | 28.54 | 33.15 | 37.64 | 41.92 |
15 May | 135 | −28.21 | −23.67 | −19.16 | −14.68 | −10.26 | −5.90 | −1.64 | 2.49 | 6.44 | 10.12 | 13.36 | 15.87 | 16.98 |
11 June | 162 | −33.83 | −29.47 | −25.15 | −20.89 | −16.71 | −12.63 | −8.69 | −4.96 | −1.51 | 1.50 | 3.81 | 4.86 | 3.32 |
17 July | 198 | −31.27 | −26.83 | −22.43 | −18.07 | −13.77 | −9.56 | −5.47 | −1.54 | 2.15 | 5.47 | 8.23 | 10.00 | 9.80 |
16 Aug. | 228 | −20.48 | −15.73 | −10.99 | −6.27 | −1.58 | 3.09 | 7.71 | 12.27 | 16.74 | 21.10 | 25.27 | 29.15 | 32.50 |
15 Sept. | 258 | −3.32 | 1.67 | 6.66 | 11.66 | 16.65 | 21.64 | 26.63 | 31.62 | 36.61 | 41.60 | 46.58 | 51.56 | 56.54 |
15 Oct. | 288 | 15.02 | 19.88 | 24.75 | 29.61 | 34.47 | 39.33 | 44.18 | 49.01 | 53.83 | 58.63 | 63.40 | 68.13 | 72.80 |
14 Nov. | 318 | 28.37 | 32.92 | 37.48 | 42.04 | 46.60 | 51.15 | 55.68 | 60.19 | 64.65 | 69.06 | 73.41 | 77.65 | 81.76 |
10 Dec. | 344 | 33.78 | 38.17 | 42.57 | 46.98 | 51.39 | 55.78 | 60.16 | 64.50 | 68.79 | 73.03 | 77.17 | 81.20 | 85.06 |
Date | City | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Day Number (n) | Jenin | Tulkarm | Nablus | Ramallh | Jerusalem | Hebron | Jerico | Gaza | Rafah | |
17 Jan. | 17 | 59.98 | 59.85 | 59.77 | 59.49 | 59.38 | 59.46 | 59.16 | 59.16 | 58.95 |
16 Febr. | 47 | 50.68 | 50.53 | 50.45 | 50.14 | 50.03 | 50.12 | 49.79 | 49.79 | 49.57 |
16 Mar. | 75 | 36.04 | 35.89 | 35.80 | 35.48 | 35.36 | 35.45 | 35.11 | 35.11 | 34.87 |
15 April | 105 | 16.68 | 16.54 | 16.45 | 16.15 | 16.03 | 16.12 | 15.79 | 15.79 | 15.56 |
15 May | 135 | 0.41 | 0.29 | 0.21 | −0.05 | −0.15 | −0.08 | −0.36 | −0.36 | −0.56 |
11 June | 162 | −6.82 | −6.94 | −7.00 | −7.25 | −7.34 | −7.27 | −7.52 | −7.52 | −7.71 |
17 July | 198 | −3.51 | −3.63 | −3.70 | −3.95 | −4.05 | −3.98 | −4.25 | −4.25 | −4.44 |
16 Aug. | 228 | 9.96 | 9.82 | 9.74 | 9.45 | 9.34 | 9.42 | 9.11 | 9.11 | 8.89 |
15 Sept. | 258 | 29.09 | 28.94 | 28.85 | 28.53 | 28.41 | 28.50 | 28.16 | 28.16 | 27.92 |
15 Oct. | 288 | 46.56 | 46.41 | 46.33 | 46.02 | 45.90 | 45.99 | 45.66 | 45.66 | 45.43 |
14 Nov. | 318 | 57.90 | 57.77 | 57.69 | 57.40 | 57.29 | 57.37 | 57.06 | 57.06 | 56.85 |
10 Dec. | 344 | 62.30 | 62.17 | 62.09 | 61.81 | 61.71 | 61.79 | 61.49 | 61.49 | 61.28 |
Month | Latitude | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||
January | βopt,m | 30.83 | 35.31 | 39.79 | 44.28 | 48.77 | 53.25 | 57.70 | 62.13 | 66.51 | 70.84 | 75.08 | 79.21 | 83.17 |
Im | 363.69 | 361.52 | 359.03 | 356.17 | 352.82 | 348.86 | 344.07 | 338.15 | 330.63 | 320.73 | 307.07 | 287.01 | 254.55 | |
February | βopt,m | 20.30 | 25.05 | 29.80 | 34.55 | 39.30 | 44.04 | 48.76 | 53.47 | 58.15 | 62.79 | 67.38 | 71.90 | 76.32 |
Im | 310.38 | 309.81 | 309.11 | 308.27 | 307.24 | 305.99 | 304.45 | 302.51 | 300.01 | 296.71 | 292.17 | 285.62 | 275.49 | |
March | βopt,m | 3.62 | 8.59 | 13.57 | 18.54 | 23.51 | 28.48 | 33.44 | 38.41 | 43.36 | 48.32 | 53.26 | 58.19 | 63.10 |
Im | 326.49 | 326.48 | 326.45 | 326.40 | 326.33 | 326.25 | 326.13 | 325.98 | 325.77 | 325.48 | 325.08 | 324.50 | 323.59 | |
April | βopt,m | −14.83 | −9.98 | −5.14 | −0.30 | 4.52 | 9.33 | 14.11 | 18.87 | 23.57 | 28.22 | 32.78 | 37.19 | 41.35 |
Im | 316.49 | 316.67 | 316.79 | 316.83 | 316.79 | 316.66 | 316.41 | 316.01 | 315.38 | 314.44 | 312.99 | 310.74 | 307.03 | |
Im (negative values of βopt,m are considered zero) | 305.95 | 311.88 | 315.51 | 316.82 | 316.79 | 316.66 | 316.41 | 316.01 | 315.38 | 314.44 | 312.99 | 310.74 | 307.03 | |
May | βopt,m | −28.21 | −23.68 | −19.18 | −14.71 | −10.29 | −5.95 | −1.70 | 2.42 | 6.35 | 10.00 | 13.21 | 15.66 | 16.63 |
Im | 339.30 | 340.66 | 341.82 | 342.78 | 343.56 | 344.11 | 344.41 | 344.37 | 343.87 | 342.69 | 340.47 | 336.54 | 329.67 | |
Im (negative values of βopt,m are considered zero) | 299.00 | 311.97 | 322.85 | 331.55 | 338.03 | 342.26 | 344.26 | 344.37 | 343.87 | 342.69 | 340.47 | 336.54 | 329.67 | |
June | βopt,m | −33.80 | −29.45 | −25.13 | −20.87 | −16.69 | −12.61 | −8.67 | −4.93 | −1.48 | 1.54 | 3.84 | 4.90 | 3.36 |
Im | 335.61 | 337.94 | 340.02 | 341.89 | 343.54 | 344.98 | 346.18 | 347.08 | 347.59 | 347.56 | 346.75 | 344.86 | 341.86 | |
Im (negative values of βopt,m are considered zero) | 278.87 | 294.28 | 307.83 | 319.46 | 329.08 | 336.67 | 342.22 | 345.79 | 347.47 | 347.56 | 346.75 | 344.86 | 341.86 | |
July | βopt,m | −31.17 | −26.72 | −22.32 | −17.96 | −13.66 | −9.45 | −5.36 | −1.43 | 2.26 | 5.58 | 8.34 | 10.10 | 9.85 |
Im | 341.46 | 343.31 | 344.93 | 346.34 | 347.54 | 348.52 | 349.23 | 349.61 | 349.54 | 348.82 | 347.13 | 343.89 | 338.27 | |
Im (negative values of βopt,m are considered zero) | 292.18 | 306.63 | 319.09 | 329.47 | 337.71 | 343.79 | 347.71 | 349.50 | 349.54 | 348.82 | 347.13 | 343.89 | 338.27 | |
August | βopt,m | −20.23 | −15.49 | −10.76 | −6.05 | −1.36 | 3.29 | 7.90 | 12.45 | 16.91 | 21.24 | 25.38 | 29.21 | 32.49 |
Im | 327.47 | 327.95 | 328.31 | 328.55 | 328.67 | 328.63 | 328.41 | 327.94 | 327.13 | 325.81 | 323.70 | 320.29 | 314.53 | |
Im (negative values of βopt,m are considered zero) | 307.27 | 316.04 | 322.54 | 326.72 | 328.58 | 328.63 | 328.41 | 327.94 | 327.13 | 325.81 | 323.70 | 320.29 | 314.53 | |
September | βopt,m | −2.95 | 2.03 | 7.00 | 11.98 | 16.95 | 21.93 | 26.89 | 31.86 | 36.82 | 41.77 | 46.72 | 51.65 | 56.56 |
Im | 310.24 | 310.24 | 310.23 | 310.21 | 310.17 | 310.11 | 310.04 | 309.93 | 309.79 | 309.58 | 309.29 | 308.85 | 308.16 | |
Im (negative values of βopt,m are considered zero) | 309.83 | 310.24 | 310.23 | 310.21 | 310.17 | 310.11 | 310.04 | 309.93 | 309.79 | 309.58 | 309.29 | 308.85 | 308.16 | |
October | βopt,m | 15.41 | 20.26 | 25.10 | 29.94 | 34.78 | 39.61 | 44.43 | 49.24 | 54.03 | 58.79 | 63.52 | 68.19 | 72.79 |
Im | 333.11 | 332.82 | 332.44 | 331.96 | 331.36 | 330.62 | 329.70 | 328.52 | 326.98 | 324.94 | 322.12 | 318.04 | 311.76 | |
November | βopt,m | 28.56 | 33.10 | 37.65 | 42.20 | 46.75 | 51.29 | 55.81 | 60.30 | 64.75 | 69.14 | 73.46 | 77.68 | 81.74 |
Im | 344.87 | 343.21 | 341.30 | 339.07 | 336.46 | 333.34 | 329.56 | 324.87 | 318.91 | 311.06 | 300.26 | 284.49 | 259.38 | |
December | βopt,m | 33.83 | 38.21 | 42.61 | 47.02 | 51.43 | 55.82 | 60.19 | 64.53 | 68.83 | 73.06 | 77.20 | 81.22 | 85.08 |
370.09 | 367.20 | 363.94 | 360.22 | 355.91 | 350.83 | 344.73 | 337.21 | 327.66 | 315.07 | 297.63 | 271.71 | 228.61 | ||
Total | 4019.18 | 4017.79 | 4014.36 | 4008.69 | 4000.40 | 3988.92 | 3973.31 | 3952.18 | 3923.26 | 3882.89 | 3824.65 | 3736.52 | 3592.91 | |
Total Im (negative values of βopt,m are considered zero) | 3841.70 | 3892.07 | 3930.32 | 3956.31 | 3970.48 | 3974.02 | 3967.68 | 3950.78 | 3923.15 | 3882.89 | 3824.65 | 3736.52 | 3592.91 |
Month | City | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Jenin | Tulkarm | Nablus | Ramallah | Jerusalem | Jericho | Hebron | Ghaza | Rafah | ||
January | βopt,m | 59.89 | 59.75 | 59.67 | 59.39 | 59.28 | 59.36 | 59.06 | 59.06 | 58.85 |
Im | 341.32 | 341.50 | 341.60 | 341.97 | 342.11 | 342.01 | 342.40 | 342.40 | 342.67 | |
February | βopt,m | 51.08 | 50.94 | 50.85 | 50.55 | 50.44 | 50.52 | 50.20 | 50.20 | 49.98 |
Im | 303.55 | 303.61 | 303.65 | 303.77 | 303.81 | 303.78 | 303.90 | 303.90 | 303.99 | |
March | βopt,m | 35.89 | 35.74 | 35.65 | 35.33 | 35.21 | 35.30 | 34.96 | 34.96 | 34.72 |
Im | 314.66 | 314.65 | 314.66 | 314.64 | 314.63 | 314.64 | 314.62 | 314.62 | 314.60 | |
April | βopt,m | 16.46 | 16.31 | 16.23 | 15.92 | 15.81 | 15.89 | 15.57 | 15.57 | 15.34 |
Im | 316.24 | 316.25 | 316.25 | 316.28 | 316.29 | 316.28 | 316.31 | 316.31 | 316.32 | |
May | βopt,m | 0.35 | 0.23 | 0.15 | −0.11 | −0.21 | −0.14 | −0.42 | −0.42 | −0.62 |
Im | 344.44 | 344.44 | 344.44 | 344.44 | 344.44 | 344.44 | 344.44 | 344.44 | 344.44 | |
Im (negative values of βopt,m are considered zero) | 344.44 | 344.44 | 344.44 | 344.44 | 344.44 | 344.44 | 344.43 | 344.43 | 344.42 | |
June | βopt,m | −6.80 | −6.91 | −6.98 | −7.22 | −7.31 | −7.24 | −7.50 | −7.50 | −7.68 |
Im | 346.66 | 346.63 | 346.62 | 346.56 | 346.53 | 346.55 | 346.49 | 346.49 | 346.44 | |
Im (negative values of βopt,m are considered zero) | 344.22 | 344.11 | 344.05 | 343.81 | 343.72 | 343.79 | 343.52 | 343.52 | 343.33 | |
July | βopt,m | −3.40 | −3.52 | −3.59 | −3.84 | −3.94 | −3.87 | −4.14 | −4.14 | −4.33 |
Im | 349.47 | 349.45 | 349.45 | 349.42 | 349.41 | 349.42 | 349.39 | 349.39 | 349.37 | |
Im (negative values of βopt,m are considered zero) | 348.85 | 348.80 | 348.76 | 348.63 | 348.58 | 348.62 | 348.48 | 348.48 | 348.37 | |
August | βopt,m | 10.15 | 10.01 | 9.93 | 9.64 | 9.53 | 9.61 | 9.30 | 9.30 | 9.08 |
Im | 328.22 | 328.23 | 328.24 | 328.27 | 328.28 | 328.27 | 328.30 | 328.30 | 328.32 | |
September | βopt,m | 29.34 | 29.19 | 29.10 | 28.78 | 28.66 | 28.75 | 28.41 | 28.41 | 28.18 |
Im | 320.26 | 320.26 | 320.27 | 320.27 | 320.27 | 320.27 | 320.28 | 320.28 | 320.28 | |
October | βopt,m | 46.80 | 46.66 | 46.57 | 46.26 | 46.15 | 46.23 | 45.91 | 45.91 | 45.68 |
Im | 329.15 | 329.19 | 329.21 | 329.28 | 329.31 | 329.29 | 329.37 | 329.37 | 329.42 | |
November | βopt,m | 58.02 | 57.89 | 57.80 | 57.52 | 57.41 | 57.49 | 57.18 | 57.18 | 56.97 |
Im | 327.39 | 327.52 | 327.61 | 327.90 | 328.01 | 327.93 | 328.23 | 328.23 | 328.45 | |
December | βopt,m | 62.33 | 62.20 | 62.13 | 61.85 | 61.74 | 61.82 | 61.53 | 61.53 | 61.32 |
Im | 341.24 | 341.46 | 341.60 | 342.07 | 342.24 | 342.11 | 342.60 | 342.60 | 342.95 | |
Total | 3962.59 | 3963.21 | 3963.58 | 3964.86 | 3965.34 | 3964.99 | 3966.32 | 3966.32 | 3967.24 | |
Total (negative values of βopt,m are considered zero) | 3959.54 | 3960.03 | 3960.33 | 3961.33 | 3961.69 | 3961.43 | 3962.44 | 3962.44 | 3963.12 |
Latitude | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||
β = 0 | I | 3653.77 | 3637.62 | 3596.30 | 3530.22 | 3440.05 | 3326.73 | 3191.50 | 3035.91 | 2861.94 | 2672.05 | 2469.50 | 2258.81 | 2047.02 |
βopt,d | I | 4027.36 | 4025.97 | 4022.56 | 4016.93 | 4008.71 | 3997.32 | 3981.83 | 3960.87 | 3932.20 | 3892.18 | 3834.50 | 3747.30 | 3605.51 |
F | 1.1022 | 1.1068 | 1.1185 | 1.1379 | 1.1653 | 1.2016 | 1.2476 | 1.3047 | 1.3740 | 1.4566 | 1.5527 | 1.6590 | 1.7613 | |
βopt,m | I | 4019.18 | 4017.79 | 4014.36 | 4008.69 | 4000.40 | 3988.92 | 3973.31 | 3952.18 | 3923.26 | 3882.89 | 3824.65 | 3736.52 | 3592.91 |
F | 1.1000 | 1.1045 | 1.1162 | 1.1355 | 1.1629 | 1.1990 | 1.2450 | 1.3018 | 1.3708 | 1.4531 | 1.5488 | 1.6542 | 1.7552 | |
βopt,s | I | 3958.60 | 3957.14 | 3953.53 | 3947.57 | 3938.80 | 3926.72 | 3910.22 | 3887.86 | 3857.20 | 3814.27 | 3752.10 | 3657.37 | 3501.03 |
F | 1.0834 | 1.0878 | 1.0993 | 1.1182 | 1.1450 | 1.1804 | 1.2252 | 1.2806 | 1.3478 | 1.4275 | 1.5194 | 1.6192 | 1.7103 | |
βopt,sa | I | 3952.82 | 3951.37 | 3947.71 | 3941.62 | 3932.68 | 3920.26 | 3903.33 | 3880.34 | 3848.79 | 3804.52 | 3740.23 | 3641.86 | 3478.27 |
F | 1.0818 | 1.0863 | 1.0977 | 1.1165 | 1.1432 | 1.1784 | 1.2230 | 1.2781 | 1.3448 | 1.4238 | 1.5146 | 1.6123 | 1.6992 | |
βopt,y | I | 3653.99 | 3652.54 | 3648.73 | 3642.33 | 3632.91 | 3619.77 | 3601.84 | 3577.44 | 3543.91 | 3496.82 | 3428.34 | 3323.42 | 3148.68 |
F | 1.0001 | 1.0041 | 1.0146 | 1.0318 | 1.0561 | 1.0881 | 1.1286 | 1.1784 | 1.2383 | 1.3087 | 1.3883 | 1.4713 | 1.5382 |
City | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Jenin | Tulkarm | Nablus | Ramallah | Jerusalem | Jericho | Hebron | Gaza | Rafah | ||
β = 0 | I | 3117.38 | 3122.04 | 3124.83 | 3134.68 | 3138.35 | 3135.60 | 3145.97 | 3145.97 | 3153.24 |
βopt,d | I | 3972.32 | 3972.94 | 3973.31 | 3974.61 | 3975.09 | 3974.73 | 3976.08 | 3976.08 | 3977.02 |
F | 1.2742 | 1.2725 | 1.2715 | 1.2679 | 1.2666 | 1.2676 | 1.2639 | 1.2639 | 1.2613 | |
βopt,m | I | 3962.59 | 3963.21 | 3963.58 | 3964.86 | 3965.34 | 3964.99 | 3966.32 | 3966.32 | 3967.24 |
F | 1.2711 | 1.2694 | 1.2684 | 1.2648 | 1.2635 | 1.2645 | 1.2608 | 1.2608 | 1.2581 | |
βopt,s | I | 3900.08 | 3900.74 | 3901.14 | 3902.22 | 3903.04 | 3902.66 | 3904.09 | 3904.09 | 3905.09 |
F | 1.2511 | 1.2494 | 1.2484 | 1.2449 | 1.2437 | 1.2446 | 1.2410 | 1.2410 | 1.2384 | |
βopt,sa | I | 3892.90 | 3893.59 | 3893.99 | 3895.42 | 3895.95 | 3895.55 | 3897.04 | 3897.04 | 3898.06 |
F | 1.2488 | 1.2471 | 1.2461 | 1.2427 | 1.2414 | 1.2424 | 1.2387 | 1.2387 | 1.2362 | |
βopt,y | I | 3590.777454 | 3591.50 | 3591.93 | 3593.44 | 3594.00 | 3593.58 | 3595.16 | 3595.16 | 3596.25 |
F | 1.1519 | 1.1504 | 1.1495 | 1.1464 | 1.1452 | 1.1461 | 1.1428 | 1.1428 | 1.1405 |
Season | Latitude | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||
Autumn | βopt,s | 14.27 | 19.02 | 23.78 | 28.53 | 33.27 | 38.00 | 42.72 | 47.40 | 52.05 | 56.65 | 61.17 | 65.56 | 69.76 |
Is | 963.57 | 962.33 | 960.72 | 958.67 | 956.11 | 952.89 | 948.83 | 943.63 | 936.81 | 927.61 | 914.72 | 895.64 | 865.08 | |
Winter | βopt,s | 28.77 | 33.28 | 37.80 | 42.32 | 46.84 | 51.35 | 55.83 | 60.28 | 64.69 | 69.03 | 73.28 | 77.39 | 81.26 |
Is | 1039.09 | 1033.75 | 1027.58 | 1020.41 | 1011.95 | 1001.94 | 989.75 | 974.63 | 955.33 | 929.81 | 894.47 | 842.27 | 756.98 | |
Spring | βopt,s | −13.34 | −8.59 | −3.84 | 0.90 | 5.62 | 10.31 | 14.96 | 19.56 | 24.09 | 28.50 | 32.76 | 36.74 | 40.22 |
Is | 956.61 | 957.39 | 957.84 | 957.95 | 957.68 | 956.95 | 955.64 | 953.56 | 950.40 | 945.63 | 938.33 | 926.76 | 907.23 | |
Is (negative values of βopt,s are considered zero) | 930.78 | 946.66 | 955.70 | 957.95 | 957.68 | 956.95 | 955.64 | 953.56 | 950.40 | 945.63 | 938.33 | 926.76 | 907.23 | |
Summer | βopt,s | −28.49 | −23.99 | −19.52 | −15.10 | −10.73 | −6.43 | −2.24 | 1.81 | 5.65 | 9.18 | 12.20 | 14.35 | 14.72 |
Is | 999.32 | 1003.66 | 1007.39 | 1010.53 | 1013.06 | 1014.93 | 1016.00 | 1016.04 | 1014.66 | 1011.22 | 1004.58 | 992.69 | 971.75 | |
Is (negative values of βopt,s are considered zero) | 878.32 | 916.95 | 949.46 | 975.65 | 995.37 | 1008.55 | 1015.22 | 1016.04 | 1014.66 | 1011.22 | 1004.58 | 992.69 | 971.75 | |
Total | 3958.60 | 3957.14 | 3953.53 | 3947.57 | 3938.80 | 3926.72 | 3910.22 | 3887.86 | 3857.20 | 3814.27 | 3752.10 | 3657.37 | 3501.03 | |
Total (negative values of βopt,s are considered zero) | 3811.76 | 3859.69 | 3893.46 | 3912.69 | 3921.11 | 3920.33 | 3909.45 | 3887.86 | 3857.20 | 3814.27 | 3752.10 | 3657.37 | 3501.03 |
Season | City | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Jenin | Tulkarm | Nablus | Ramallah | Jerusalem | Jericho | Hebron | Gaza | Rafah | ||
Autumn | βopt,s | 45.03 | 44.88 | 44.80 | 44.50 | 44.39 | 44.47 | 44.15 | 44.15 | 43.93 |
Is | 946.44 | 946.59 | 946.68 | 947.01 | 947.13 | 947.04 | 947.38 | 947.38 | 947.61 | |
Winter | βopt,s | 58.03 | 57.89 | 57.81 | 57.53 | 57.42 | 57.50 | 57.20 | 57.20 | 56.98 |
Is | 982.74 | 983.19 | 983.46 | 984.10 | 984.76 | 984.50 | 985.48 | 985.48 | 986.17 | |
Spring | βopt,s | 17.23 | 17.09 | 17.01 | 16.71 | 16.60 | 16.69 | 16.37 | 16.37 | 16.15 |
Is | 954.73 | 954.79 | 954.83 | 954.96 | 955.00 | 954.97 | 955.10 | 955.10 | 955.19 | |
summer | βopt,s | −0.22 | −0.34 | −0.42 | −0.68 | −0.78 | −0.70 | −0.98 | −0.98 | −1.18 |
Is | 1016.17 | 1016.16 | 1016.16 | 1016.15 | 1016.15 | 1016.15 | 1016.13 | 1016.13 | 1016.12 | |
Is (negative values of βopt,s are considered zero) | 1016.16 | 1016.15 | 1016.13 | 1016.08 | 1016.05 | 1016.07 | 1015.99 | 1015.99 | 1015.91 | |
Total | 3900.08 | 3900.74 | 3901.14 | 3902.22 | 3903.04 | 3902.66 | 3904.09 | 3904.09 | 3905.09 | |
Total (negative values of βopt,s are considered zero) | 3900.07 | 3900.72 | 3901.11 | 3902.15 | 3902.95 | 3902.58 | 3903.94 | 3903.94 | 3904.88 |
Period | Latitude | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||
Warm period (April to September) | βopt,sa | −22.26 | −17.65 | −13.05 | −8.48 | −3.95 | 0.52 | 4.93 | 9.23 | 13.40 | 17.34 | 20.95 | 23.97 | 25.82 |
Isa | 1937.51 | 1942.25 | 1946.01 | 1948.80 | 1950.53 | 1951.05 | 1950.06 | 1947.10 | 1941.36 | 1931.50 | 1915.14 | 1887.75 | 1839.69 | |
Isa (negative values of βopt,sa are considered zero) | 1793.09 | 1850.84 | 1895.74 | 1927.47 | 1945.89 | 1951.05 | 1950.06 | 1947.10 | 1941.36 | 1931.50 | 1915.14 | 1887.75 | 1839.69 | |
Cold period (October to March) | βopt,sa | 22.59 | 27.21 | 31.84 | 36.46 | 41.08 | 45.68 | 50.26 | 54.81 | 59.31 | 63.75 | 68.09 | 72.28 | 76.20 |
Isa | 2015.31 | 2009.12 | 2001.70 | 1992.82 | 1982.15 | 1969.21 | 1953.27 | 1933.24 | 1907.43 | 1873.02 | 1825.09 | 1754.11 | 1638.58 | |
Total | 3952.82 | 3951.37 | 3947.71 | 3941.62 | 3932.68 | 3920.26 | 3903.33 | 3880.34 | 3848.79 | 3804.52 | 3740.23 | 3641.86 | 3478.27 | |
Total (negative values of βopt,sa are considered zero) | 3808.40 | 3859.96 | 3897.44 | 3920.29 | 3928.04 | 3920.26 | 3903.33 | 3880.34 | 3848.79 | 3804.52 | 3740.23 | 3641.86 | 3478.27 |
Period | City | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Jenin | Tulkarm | Nablus | Ramallah | Jerusalem | Jericho | Hebron | Gaza | Rafah | ||
Warm period (April to September) | βopt,sa | 7.06 | 6.93 | 6.86 | 6.58 | 6.48 | 6.55 | 6.26 | 6.26 | 6.05 |
Isa | 1948.89 | 1948.98 | 1949.03 | 1949.20 | 1949.27 | 1949.22 | 1949.40 | 1949.40 | 1949.51 | |
Cold period (October to March) | βopt,sa | 52.51 | 52.37 | 52.29 | 52.00 | 51.89 | 51.97 | 51.66 | 51.66 | 51.44 |
Isa | 1944.01 | 1944.61 | 1944.96 | 1946.22 | 1946.68 | 1946.33 | 1947.64 | 1947.64 | 1948.55 | |
Total | 3892.90 | 3893.59 | 3893.99 | 3895.42 | 3895.95 | 3895.55 | 3897.04 | 3897.04 | 3898.06 |
Latitude | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | |
βopt,y | 0.63 | 5.18 | 9.73 | 14.25 | 18.75 | 23.21 | 27.62 | 31.94 | 36.14 | 40.17 | 43.92 | 47.18 | 49.45 |
Iy | 3653.99 | 3652.54 | 3648.73 | 3642.33 | 3632.91 | 3619.77 | 3601.84 | 3577.44 | 3543.91 | 3496.82 | 3428.34 | 3323.42 | 3148.68 |
City | |||||||||
---|---|---|---|---|---|---|---|---|---|
Jenin | Tulkarm | Nablus | Ramallah | Jerusalem | Jericho | Hebron | Gaza | Rafah | |
βopt,y | 29.75 | 29.62 | 29.55 | 29.27 | 29.17 | 29.24 | 28.95 | 28.95 | 28.74 |
Iy | 3590.78 | 3591.50 | 3591.93 | 3593.44 | 3594.00 | 3593.58 | 3595.16 | 3595.16 | 3596.25 |
Jerusalem | Gaza City | |||||
---|---|---|---|---|---|---|
Period | Yearly Optimum Tilt Angle | |||||
Mathematical Model | PVGIS | PVWatts | Mathematical Model | PVGIS | PVWatts | |
29 | 28 | 26 | 29 | 28 | 29 | |
Semi-annual optimum tilt angle | ||||||
Warm period (April to September) | 6 | 9 | 11 | 6 | 9 | 12 |
Cold period (October to March) | 52 | 51 | 46 | 52 | 50 | 50 |
Seasonal optimum tilt angle | ||||||
Autumn | 44 | 43 | 41 | 44 | 43 | 43 |
Winter | 57 | 56 | 51 | 57 | 55 | 56 |
Spring | 17 | 20 | 17 | 16 | 19 | 19 |
Summer | −1 | 3 | 7 | −1 | 0 | 5 |
Monthly optimum tilt angle | ||||||
January | 59 | 58 | 55 | 59 | 59 | 59 |
February | 50 | 50 | 49 | 50 | 50 | 50 |
March | 35 | 35 | 32 | 35 | 35 | 35 |
April | 16 | 16 | 17 | 16 | 17 | 16 |
May | 0 | 1 | 4 | 0 | 2 | 6 |
June | −7 | 0 | 0 | −8 | 0 | 0 |
July | −4 | 0 | 2 | −4 | 0 | 0 |
August | 10 | 11 | 14 | 9 | 10 | 12 |
September | 29 | 29 | 29 | 28 | 29 | 29 |
October | 46 | 46 | 46 | 46 | 46 | 46 |
November | 57 | 57 | 56 | 57 | 57 | 57 |
December | 62 | 61 | 56 | 62 | 61 | 61 |
Months | Monthly Average Radiation (kWh/m2/day) for Jerusalem | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PVGIS | PVWatts | |||||||||||
β (0°) | β (28°) | β (29°) | β (30°) | β (60°) | β (90°) | β (0°) | β (26°) | β (29°) | β (30°) | β (60°) | β (90°) | |
January | 3.07 | 4.35 | 4.39 | 4.42 | 4.84 | 4.16 | 2.68 | 3.57 | 3.64 | 3.66 | 3.88 | 3.27 |
February | 3.86 | 4.96 | 4.96 | 5.00 | 5.11 | 4.11 | 3.57 | 4.49 | 4.56 | 4.57 | 4.61 | 3.66 |
March | 5.19 | 6.00 | 6.00 | 6.00 | 5.58 | 3.97 | 4.81 | 5.43 | 5.45 | 5.45 | 4.95 | 3.44 |
April | 6.40 | 6.60 | 6.57 | 6.57 | 5.43 | 3.20 | 6.13 | 6.37 | 6.33 | 6.32 | 5.16 | 2.98 |
May | 7.19 | 6.81 | 6.77 | 6.74 | 4.97 | 2.36 | 7.17 | 6.93 | 6.83 | 6.79 | 5.01 | 2.43 |
June | 8.17 | 7.40 | 7.33 | 7.27 | 5.00 | 1.91 | 8.07 | 7.53 | 7.38 | 7.33 | 5.03 | 2.08 |
July | 8.06 | 7.42 | 7.39 | 7.32 | 5.16 | 2.12 | 8.01 | 7.61 | 7.47 | 7.43 | 5.22 | 2.23 |
August | 7.39 | 7.39 | 7.35 | 7.35 | 5.74 | 2.98 | 7.28 | 7.45 | 7.39 | 7.36 | 5.79 | 3.04 |
September | 6.20 | 6.97 | 6.97 | 6.97 | 6.20 | 4.07 | 6.26 | 7.08 | 7.1 | 7.1 | 6.32 | 4.13 |
October | 4.65 | 5.84 | 5.87 | 5.90 | 5.87 | 4.52 | 4.69 | 5.86 | 5.94 | 5.96 | 5.88 | 4.49 |
November | 3.53 | 4.97 | 5.00 | 5.03 | 5.47 | 4.63 | 3.34 | 4.54 | 4.63 | 4.66 | 4.94 | 4.12 |
December | 2.86 | 4.26 | 4.29 | 4.32 | 4.87 | 4.29 | 2.45 | 3.38 | 3.46 | 3.48 | 3.77 | 3.24 |
Annual Average | 5.55 | 6.08 | 6.07 | 6.07 | 5.35 | 3.53 | 5.37 | 5.85 | 5.85 | 5.84 | 5.05 | 3.26 |
Months | Monthly Average Radiation (kWh/m2/day) for Gaza city | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
PVGIS | PVWatts | ||||||||||
β (0°) | β (28°) | β (29°) | β (30°) | β (60°) | β (90°) | β (0°) | β (29°) | β (30°) | β (60°) | β (90°) | |
January | 3.02 | 4.29 | 4.32 | 4.35 | 4.77 | 4.10 | 3.05 | 4.53 | 4.57 | 5.04 | 4.34 |
February | 3.96 | 5.11 | 5.14 | 5.18 | 5.29 | 4.25 | 3.72 | 4.93 | 4.96 | 5.07 | 4.04 |
March | 5.32 | 6.19 | 6.19 | 6.19 | 5.77 | 4.06 | 4.97 | 5.8 | 5.81 | 5.37 | 3.76 |
April | 6.53 | 6.77 | 6.73 | 6.73 | 5.53 | 3.22 | 6.19 | 6.4 | 6.39 | 5.21 | 3.01 |
May | 7.29 | 6.90 | 6.87 | 6.84 | 5.03 | 2.33 | 7.08 | 6.74 | 6.7 | 4.93 | 2.39 |
June | 8.07 | 7.30 | 7.23 | 7.20 | 4.90 | 1.86 | 7.84 | 7.11 | 7.06 | 4.85 | 2.04 |
July | 7.94 | 7.32 | 7.26 | 7.23 | 5.06 | 2.07 | 7.55 | 7.00 | 6.95 | 4.93 | 2.2 |
August | 7.32 | 7.32 | 7.29 | 7.26 | 5.68 | 2.92 | 7.03 | 7.06 | 7.03 | 5.51 | 2.92 |
September | 6.17 | 6.90 | 6.93 | 6.93 | 6.17 | 4.03 | 5.84 | 6.58 | 6.58 | 5.84 | 3.82 |
October | 4.81 | 6.10 | 6.13 | 6.13 | 6.13 | 4.71 | 4.56 | 5.89 | 5.91 | 5.91 | 4.54 |
November | 3.50 | 4.97 | 5.00 | 5.03 | 5.47 | 4.63 | 3.63 | 5.08 | 5.11 | 5.44 | 4.54 |
December | 2.89 | 4.32 | 4.39 | 4.42 | 4.97 | 4.35 | 2.84 | 4.43 | 4.47 | 5.05 | 4.44 |
Annual Average | 5.57 | 6.12 | 6.12 | 6.12 | 5.40 | 3.55 | 5.36 | 5.96 | 5.96 | 5.26 | 3.50 |
Months | Monthly Energy Generated (kWh) For Jerusalem | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
PVGIS | PVWatts | |||||||||
β = 0 | βopt,y | βopt, sa | βopt, s | βopt, m | β = 0 | βopt,y | βopt, sa | βopt, s | βopt, m | |
January | 382 | 553 | 612 | 614 | 617 | 339 | 457 | 496 | 498 | 498 |
February | 431 | 556 | 584 | 580 | 584 | 410 | 517 | 540 | 539 | 540 |
March | 632 | 726 | 708 | 712 | 730 | 602 | 676 | 663 | 663 | 679 |
April | 732 | 751 | 752 | 758 | 758 | 721 | 746 | 746 | 751 | 751 |
May | 832 | 782 | 830 | 810 | 833 | 844 | 813 | 847 | 838 | 848 |
June | 896 | 804 | 881 | 893 | 896 | 918 | 853 | 909 | 915 | 918 |
July | 908 | 832 | 899 | 907 | 908 | 933 | 883 | 931 | 935 | 935 |
August | 841 | 837 | 856 | 848 | 857 | 845 | 861 | 869 | 864 | 872 |
September | 697 | 776 | 738 | 761 | 776 | 706 | 793 | 759 | 784 | 795 |
October | 548 | 689 | 709 | 713 | 713 | 557 | 692 | 718 | 718 | 718 |
November | 413 | 592 | 651 | 640 | 653 | 393 | 534 | 580 | 573 | 582 |
December | 352 | 539 | 611 | 616 | 617 | 306 | 426 | 469 | 473 | 474 |
Annual Sum | 7664 | 8437 | 8831 | 8852 | 8942 | 7574 | 8251 | 8527 | 8551 | 8610 |
Percentage gain with respect to a horizontal plane (%) | 10.1 | 15.2 | 15.5 | 16.7 | 8.9 | 12.6 | 12.9 | 13.7 |
Months | Monthly Energy Generated (kWh) for Gaza City | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
PVGIS | PVWatts | |||||||||
β = 0 | β opt,y | βopt, sa | βopt, s | βopt, m | β = 0 | βopt,y | βopt, sa | βopt, s | βopt, m | |
January | 369 | 535 | 592 | 594 | 594 | 371 | 557 | 614 | 618 | 618 |
February | 438 | 571 | 601 | 598 | 601 | 408 | 540 | 565 | 561 | 565 |
March | 656 | 758 | 743 | 740 | 763 | 610 | 709 | 692 | 691 | 712 |
April | 771 | 794 | 793 | 801 | 801 | 703 | 723 | 729 | 732 | 732 |
May | 879 | 827 | 878 | 859 | 880 | 820 | 776 | 821 | 809 | 824 |
June | 926 | 833 | 912 | 926 | 926 | 867 | 784 | 852 | 864 | 867 |
July | 935 | 857 | 926 | 935 | 935 | 861 | 795 | 853 | 861 | 861 |
August | 857 | 851 | 871 | 857 | 872 | 796 | 796 | 816 | 808 | 816 |
September | 704 | 785 | 745 | 769 | 785 | 648 | 726 | 698 | 710 | 726 |
October | 568 | 722 | 747 | 749 | 749 | 527 | 679 | 699 | 701 | 701 |
November | 406 | 583 | 641 | 631 | 644 | 418 | 586 | 629 | 622 | 629 |
December | 347 | 536 | 608 | 614 | 615 | 342 | 543 | 610 | 617 | 618 |
Annual Sum | 7856 | 8652 | 9057 | 9073 | 9165 | 7371 | 8214 | 8578 | 8594 | 8669 |
Percentage gain with respect to a horizontal plane (%) | 10.1 | 15.3 | 15.5 | 16.7 | 11.4 | 16.4 | 16.6 | 17.6 |
Month | Present Mathematical Model | Nijegorodor et al. [39] | P. Talebizadeh et al. [31] | |
---|---|---|---|---|
January | βopt,m | 59.28 | 57.28 | 56.10 |
February | βopt,m | 50.44 | 47.83 | 47.30 |
March | βopt,m | 35.21 | 35.78 | 31.59 |
April | βopt,m | 15.81 | 21.78 | 16.40 |
May | βopt,m | −0.21 | 5.56 | 2.74 |
June | βopt,m | −7.31 | −6.35 | −2.17 |
July | βopt,m | −3.94 | −1.72 | 0.16 |
August | βopt,m | 9.53 | 13.83 | 12.09 |
September | βopt,m | 28.66 | 29.78 | 28.70 |
October | βopt,m | 46.15 | 43.78 | 44.03 |
November | βopt,m | 57.41 | 54.56 | 54.89 |
December | βopt,m | 61.74 | 61.65 | 58.54 |
year | βopt,m | 29.17 | 30.31 | 28.83 |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Abdallah, R.; Juaidi, A.; Abdel-Fattah, S.; Manzano-Agugliaro, F. Estimating the Optimum Tilt Angles for South-Facing Surfaces in Palestine. Energies 2020, 13, 623. https://doi.org/10.3390/en13030623
Abdallah R, Juaidi A, Abdel-Fattah S, Manzano-Agugliaro F. Estimating the Optimum Tilt Angles for South-Facing Surfaces in Palestine. Energies. 2020; 13(3):623. https://doi.org/10.3390/en13030623
Chicago/Turabian StyleAbdallah, Ramez, Adel Juaidi, Salameh Abdel-Fattah, and Francisco Manzano-Agugliaro. 2020. "Estimating the Optimum Tilt Angles for South-Facing Surfaces in Palestine" Energies 13, no. 3: 623. https://doi.org/10.3390/en13030623
APA StyleAbdallah, R., Juaidi, A., Abdel-Fattah, S., & Manzano-Agugliaro, F. (2020). Estimating the Optimum Tilt Angles for South-Facing Surfaces in Palestine. Energies, 13(3), 623. https://doi.org/10.3390/en13030623
