The potential of renewable energy in Mexico is well known due to the great variety of natural resources and climates in this country. One of these resources is solar radiation, which, according to several satellite models [1
] and studies from international agencies such as National Aeronautics and Space Administration (NASA) or Global Solar Atlas (SOLARGIS), is abundant in Mexico [2
]. A high solar potential region is presented in the northwest of the country, where Sonora state is located. An advantage of Sonora for solar power development is its proximity to the US which allows technological and economic interchange. This could prompt an international renewable network collaboration. The state is mainly a desert and presents extremely high and low temperatures during the year. In addition, the promotion of solar harvesting projects for energy production would reduce greenhouse gas emissions (GHGs) in the region, where electricity production represents the majority of the state CO2
emissions, with 12.2 million metric tons forecasted for the year 2020 [4
]. This sector represented 34.5% of the total GHGs in Sonora in 2005 and maintains a tendency of growing each year, according to the Commission of Ecology and Sustainable Development of the State of Sonora (CEDES) and the Center for Climate Strategies (CCS) [4
]. This fact, together with the potential of the region for solar energy, promotes the expansion of solar harvesting projects for energy production as an economic and ecological way of development and municipal energy planning. A key point to the design and installation of successful solar power projects in the region is to utilize a reliable source of data to illustrate the solar resource availability in the territory.
For many years, a national network for solar measurement has been promoted by the government and several institutions such as the World Meteorological Organization (WMO), the National Autonomous University of Mexico (UNAM), the Mexican Center of Innovation in Solar Energy (CEMIE-SOL), the National Council for Science and Technology (CONACYT), the Secretary of Energy (SENER), and the Mexican National Weather Service (SMN) [5
]. The national network consists of meteorological stations distributed throughout the national territory, which measure solar radiation, using devices like pyranometers and pyrheliometers. These weather stations are classified into two types: automatic meteorological stations (EMAs) and synoptic meteorological stations (ESIMEs). EMAs consist of a system of electrical and mechanical sensors that automatically measure, record, and transmit weather variables (wind speed and direction, atmospheric pressure, temperature, relative humidity, solar radiation, and precipitation). These measurements are taken every ten minutes, and the records are transmitted every one to three hours to the national weather system. On the other hand, ESIMEs utilize electrical sensors that automatically measure the same weather variables as EMAs, but also visibility and temperature ten centimeters above ground level. In addition, ESIMEs create and send synoptic report records to the national meteorological system every three hours. Both types of weather stations of the SMN use Coordinated Universal Time (UTC) and cover a representative area of five kilometers [7
]. The main weakness of the Mexican national weather network is the limited number of meteorological stations nationwide (less than 300) [7
]. This leaves several locations in the country without coverage. Furthermore, these stations require constant monitoring and maintenance in order to obtain reliable data. This requires a constant supply of qualified experts and financial resources [8

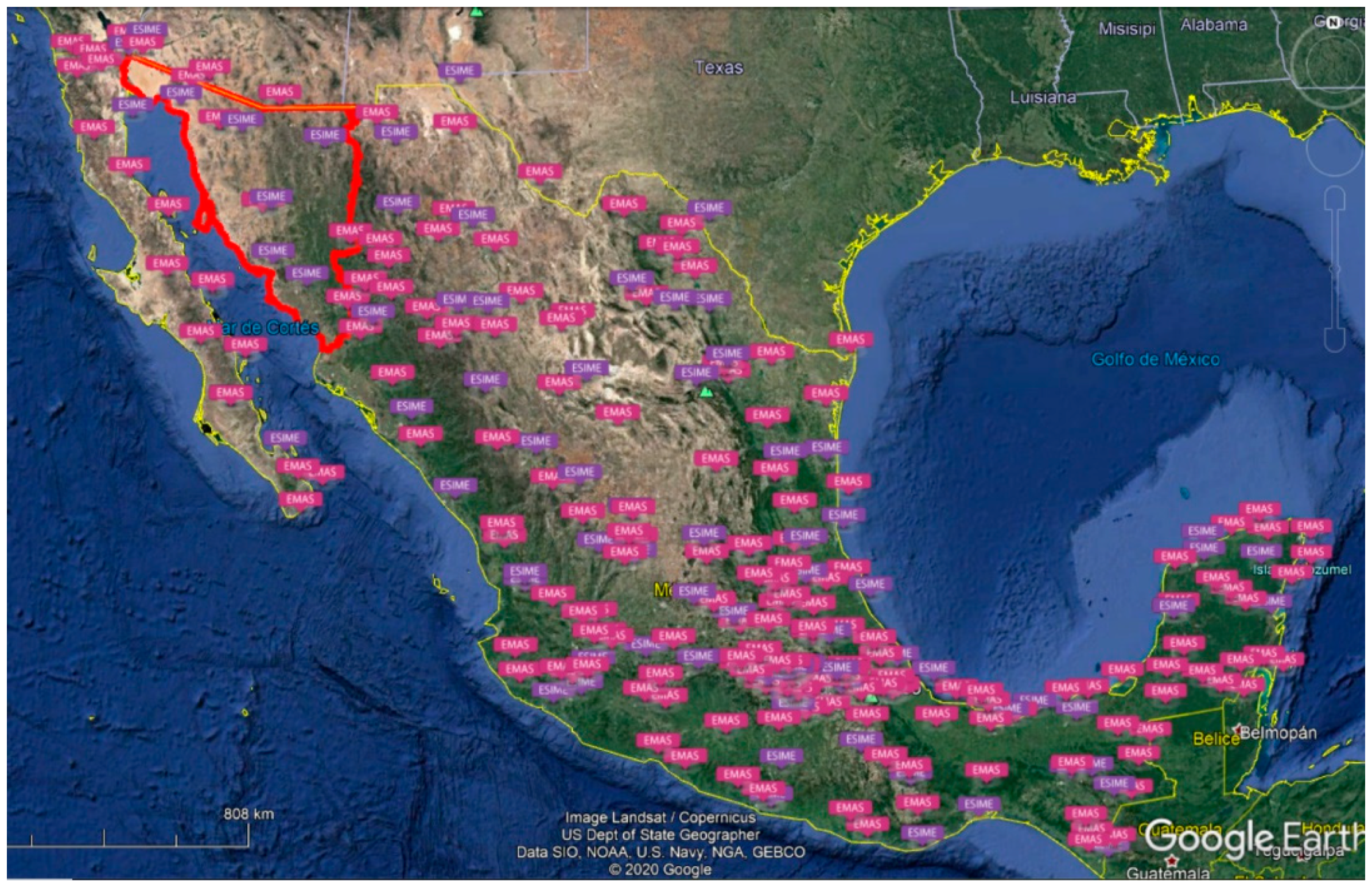

Currently, according to the SMN, there are 15 meteorological stations in the state of Sonora [7
], which are not enough to cover several regions of the state for solar radiation measurement. Therefore, these stations provide a general view of the solar resource in the state, but not specific data for every point in the whole territory. The Mexican network of meteorological stations of the SMN is shown in Figure 1
Solar power plants require specific and reliable long-term data to know their viability of implementation and success of including them into the electric grid. Examples of parameters required to implement solar projects are temperature, measurements of solar radiation, geographical analysis, humidity, and meteorological data. This implies solar energy is a variable power source affected by climate, daily weather, and the day–night cycle. This illustrates the importance of specific data according to the geographical location of the intended solar power system [11
]. An alternative to the use of meteorological stations is the use of mathematical models based on climatological and geographical data. These models offer a low-cost alternative compared to field stations. Moreover, mathematical models provide a good level of reliability and accuracy in results.
In recent decades, countries have researched and implemented mathematical models to predict solar radiation using different approaches. For example, a cloud observation-based model research in Gothenburg, Sweden [12
], calculated global solar radiation based on the Oktas cloud scale. According to [12
], this model can be used without any geographical restriction and no previous local radiation values are needed. However, this model presented limitations in resolution, which depends on long-term cloud observation records and a constant cloud observation system for higher resolution. Another case is the research conducted in Chad [13
] calculating solar radiation of several cities located in different climatic zones in the country. In this study, models based on meteorological and astronomical parameters were used. These models are the Angstrom–Prescott model, the Allen model, and the Sabbagh model. These models were compared to data from the General Directorate of the National Meteorology of Chad to determine their performance and accuracy using a series of statistical metrics. The results obtained were discussed and evaluated to determine the model which predicts the best solar radiation for each city. Another interesting analysis is [14
], which presented several solar radiation models developed for specific conditions in several countries and tested them in several cities of India. The results were then compared with local measurements of solar irradiance to determine which of the models has better performance in India.
The review presented in [9
] analyzed several empirical models based on various approaches calculating global monthly solar radiation using meteorological parameters (sunlight, clouds, temperature, and other variables). These models were tested in the city of Yazd, Iran. The sunlight models, according to the statistical analysis in [9
], were the most accurate to predict solar radiation in Iran. However, this approach requires sunlight records which are not always available. They concluded that other approaches like cloud-based or temperature can be used instead with acceptable accuracy. According to [9
], the advantages of these approaches are inputs easily available everywhere. Other interesting research studies were presented in [15
], where various mathematical models were compared to determine the optimal tilt angles to capture solar radiation on tilt surfaces for several locations worldwide. The performance of these models was analyzed for several latitudes and parameters to determine a tilt angle that provides the best performance for solar radiation for inclined surfaces. According to [16
], the Koronakis and Liu–Jordan models were among the most accurate models to determine optimal surface inclination angles throughout the year. These studies are important for solar projects, which are searching for the best performance possible in their solar power installations.
A different approach to calculate daily solar radiation was presented by [17
], where a model based on trigonometrical correlations was presented. This model was examined using statistical metrics against three existing models implemented on nine meteorological stations in China as reference data. Then, the proposed model was compared against 70 other meteorological stations in China to determine its errors and performance. According to [17
], the proposed model resulted as simple, effective, and reliable to determine daily solar radiation in China. A similar research was presented by [18
], where a series of new daily and monthly solar radiation models were presented. These models were examined in six cities in Iran against four existing models for several parameters to determine the accuracy of the new models using statistical metrics. Further, four extra cities in other countries were used to prove the accuracy of the new proposed models in latitudes worldwide. According to [18
], the new models presented excellent results in general for all calculations. In addition, a highlight finding was that the new models presented a general better performance than the existing reference models.
A cloud cover model developed for Yakutia, Russia, was presented by [19
], where solar radiation on tilt and horizontal surfaces was analyzed for production of hot water in permafrost regions in the Russian Arctic. The model utilized a five-year database of cloudiness in the city of Yakutsk. Hourly, daily, monthly, and annual radiations were calculated using the model. The results were compared against field testing measures in the region. In addition, the results obtained from the cloud cover model were analyzed for hot water production and storage using performance models for solar thermal systems. The objective was determining the cost efficiency of these systems throughout the year in Yakutia. The conclusion of [19
] was that the information provided by the research in the permafrost region of Russia can be used to develop efficient thermal solar systems for reducing the carbon footprint of the region by using solar energy for water heating.
The review of cases provided in the previous paragraphs demonstrates the reliability and economic viability of mathematical models for the prediction of solar radiation worldwide. For the current inquiry, a model developed by the University of Tomsk [20
] calculating solar global radiation on tilt surfaces was used as a base. This model was adapted to determine global solar radiation on a horizontal surface (ground-level solar radiation) in the state of Sonora in Mexico. This model was originally designed for high latitudes in Russia (over 55° N), hence a performance analysis at local latitudes in Sonora is required to ensure its accuracy. The main intention of the current research is to provide a wide distribution view of solar radiation in the state. This research work proposes this model as a useful tool to provide specific, low-cost, and reliable data for a wide and detailed view of solar radiation available in the state. Furthermore, it complements field measures from meteorological stations and satellite sources to guide the implementation of future solar power projects and promote the carbon footprint reduction due to electricity generation in the region.
The remainder of this paper is organized as follows. Section 2
presents the data sources utilized for calculations and for the determination of the accuracy in the model results. In addition, the criterion of the selection of field data is explained. Section 3
explains the methodology of the model and the strategies utilized to determine its performance. This section also describes a proposal of a geographic view of the results obtained from the model for later analysis and discussion. In Section 4
, the results obtained are analyzed and discussed. Additionally, the utility, opportunities, and performance of the results in future solar projects are highlighted. Finally, Section 5
is the conclusion, where the main points of the research are presented. This section provides a global view of findings, key ideas, scopes, limitations, and suggestions about the current research work. In addition, a brief suggestion for future research is provided.
4. Results and Discussion
The total solar irradiance in kWh/m2
is presented and analyzed for three data sources (the results calculated by the proposed model, the on-site measurements from the stations of the Mexican meteorological network “SMN”, and the satellite measurements from the solar irradiance records from the NASA SSE database) for each of the five stations selected. In addition, the statistical metrics previously described in Section 3
were calculated for each station to determine the performance among the data. Among these statistical metrics, namely mean absolute and bias errors (MAE and MBE), together with root mean square error (RMSE), the smaller their value, the better the performance. For the mean and relative percentage errors (MPE and RPE), the acceptable range is
. The correlation coefficient (r
) establishes the linear correlation of the data (0 = no correlation, and −1 or +1 as negative or positive linear correlations, respectively). The coefficient of determination (R2
) indicates the proximity between the calculated and reference values analyzed. In this metric, the closer to 1, the better. For the last statistic metric, the t-Student distribution test (t
), the smaller, the better, and it must respect the rule of being smaller than the critical value selected for the analysis to be statistically significant. In this research, a critical value of 4.025 was taken for a confidence level of 99% (0.001) and 11 degrees of freedom. Three comparisons were made between the data sources to show the statistical behavior analysis (NASA SSE-Model, SMN-Model, and SMN-NASA SSE).
4.1. NASA SSE-Model
This comparison tests the accuracy of the proposed model with respect to the solar irradiance records of NASA SSE used as reliable reference data. In this case, the results showed acceptable values for
. All of them were close to 0, with a slightly higher value in Yécora station. For
, all the values were acceptable (in the range of
). The metric
showed a positive linear correlation in all the stations. For
, the values were considerably close to 1, which means good performance in the series of the analyzed values. This metric was slightly lower in the case of Yécora. According to the selected t-Student critical value (4.025), all the stations presented a statistical significance, except for Yécora station. With these results, a notably accurate approximation was shown between the NASA SSE and the model values. A slightly higher difference was shown in the case of Yécora station which resulted in a t
-test parameter out of tolerance. The results of this analysis are presented in Table 4
The analysis in this comparison examines the proposed model against the on-site measurements of the stations in the Mexican meteorological network (SMN) utilized as valid data references in this case. In this comparison, the model showed good results for
in the cases of Hermosillo and Yécora, and higher errors for the other stations, with El Pinacate as the worst of the analyzed stations. For
, Hermosillo and Yécora were acceptable in all their values. Yécora had a better average performance than Hermosillo. On the other hand, the rest of the stations showed several months out of tolerance (less than −10%) for
value was out of tolerance for the El Pinacate case, but acceptable in the cases of Caborca and Nogales. All the stations showed a positive linear correlation according to the
parameter. The metric
exhibited good performance for Hemosillo and Yécora, slightly less for Caborca and Nogales, and the worst for El Pinacate. For the t
-test, just Hermosillo and Yécora were statistically significant, and the rest of the stations were not. The statistical metrics exhibited a good approximation between the values of the SMN and the model in the cases of Hermosillo and Yécora. On the other hand, Caborca and Nogales had a less accurate performance. The highest error was found in El Pinacate. Table 5
provides the results of the statistical analysis.
4.3. SMN-NASA SSE
The last comparison evaluates the two data references used in the two previous comparisons (the on-site measures from the meteorological stations of the SMN and the satellite solar irradiance records in the NASA SSE database). The comparison between the two references seeks to clarify and find discrepancies in the results of the previous two cases, where they were compared against the proposed model. The results presented in this comparison were good for the
values for Hermosillo and Yécora, with slightly higher errors in Caborca and Nogales, and the highest error in El Pinacate. For
, Caborca, Hermosillo, and Yécora showed a good performance, except for November in Hermosillo and August in Caborca, which were slightly out of tolerance. The rest of the stations presented several months with unacceptable values, with El Pinacate as the worst on average. The
was acceptable for four of the stations and just El Pinacate was out of tolerance. The parameter
revealed a linear correlation in all the cases.
showed a slightly acceptable dispersion in four of the stations but showed a higher dispersion in the case of El Pinacate. The t
-test exhibited statistical significance for Hermosillo and Yécora, but not for the rest of the stations. The results of this comparative analysis are shown in Table 6
4.4. General Discussion and Analysis
The results obtained reveal a close approximation in all the cases for the comparison between the model and the NASA SSE values. This means a good performance and small errors involved between both. On the other hand, the analysis also reveals slight errors in the cases of Hermosillo and Yécora for the comparisons SMN-Model and SMN-NASA SSE, with slightly wider errors in the cases of Caborca and Nogales for certain months, and the worst of the cases was El Pinacate with several months with wider errors. Further, in El Pinacate, the difference was consistent and may mean a perturbation in the values obtained from the station. However, further research of the station equipment is recommended to provide a more precise explanation. The previous trends were consistent for both comparisons, which means a significant difference between the model and the NASA SEE with respect to the SMN.
4.4.1. Visualization of Performance and Accuracy

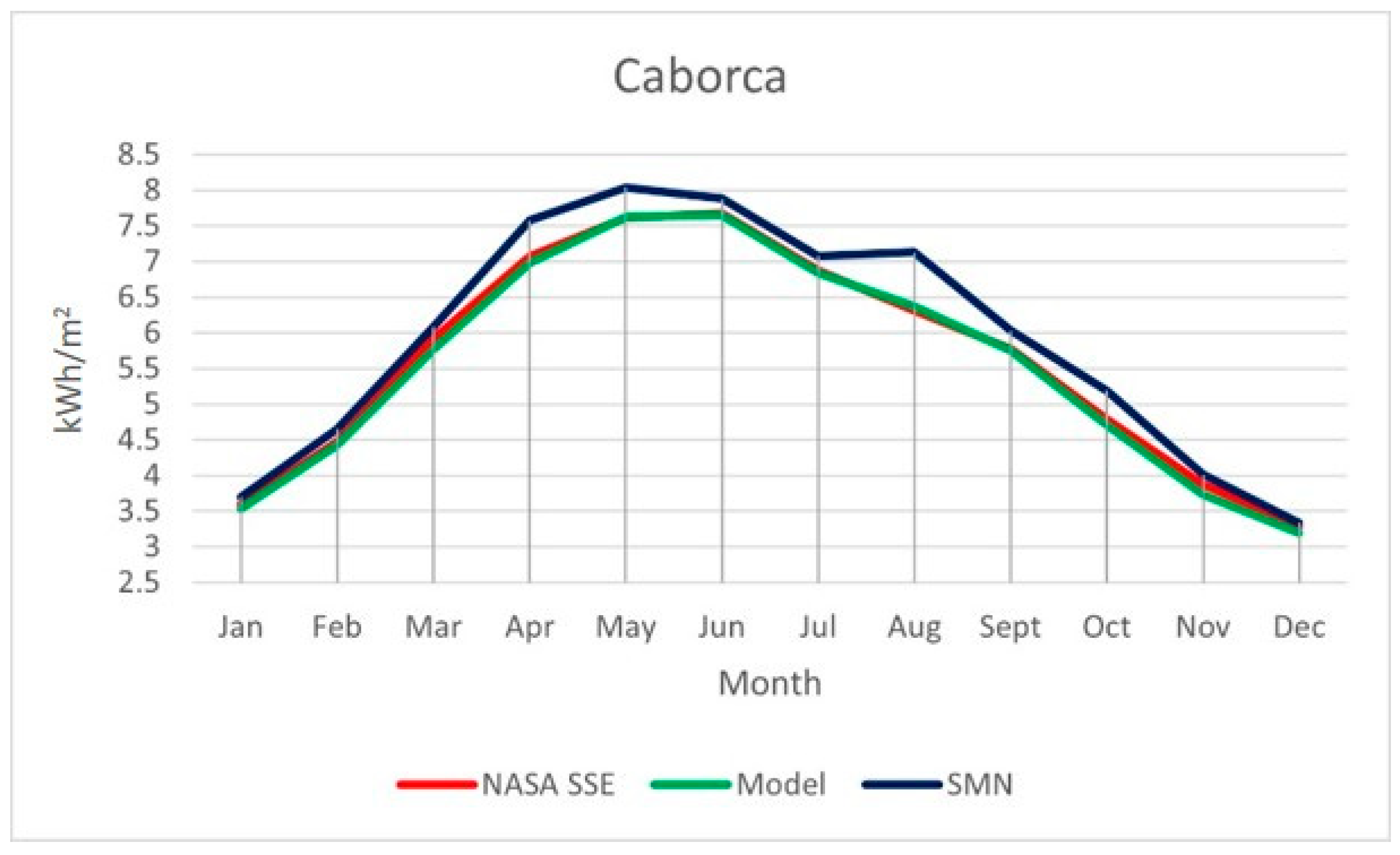

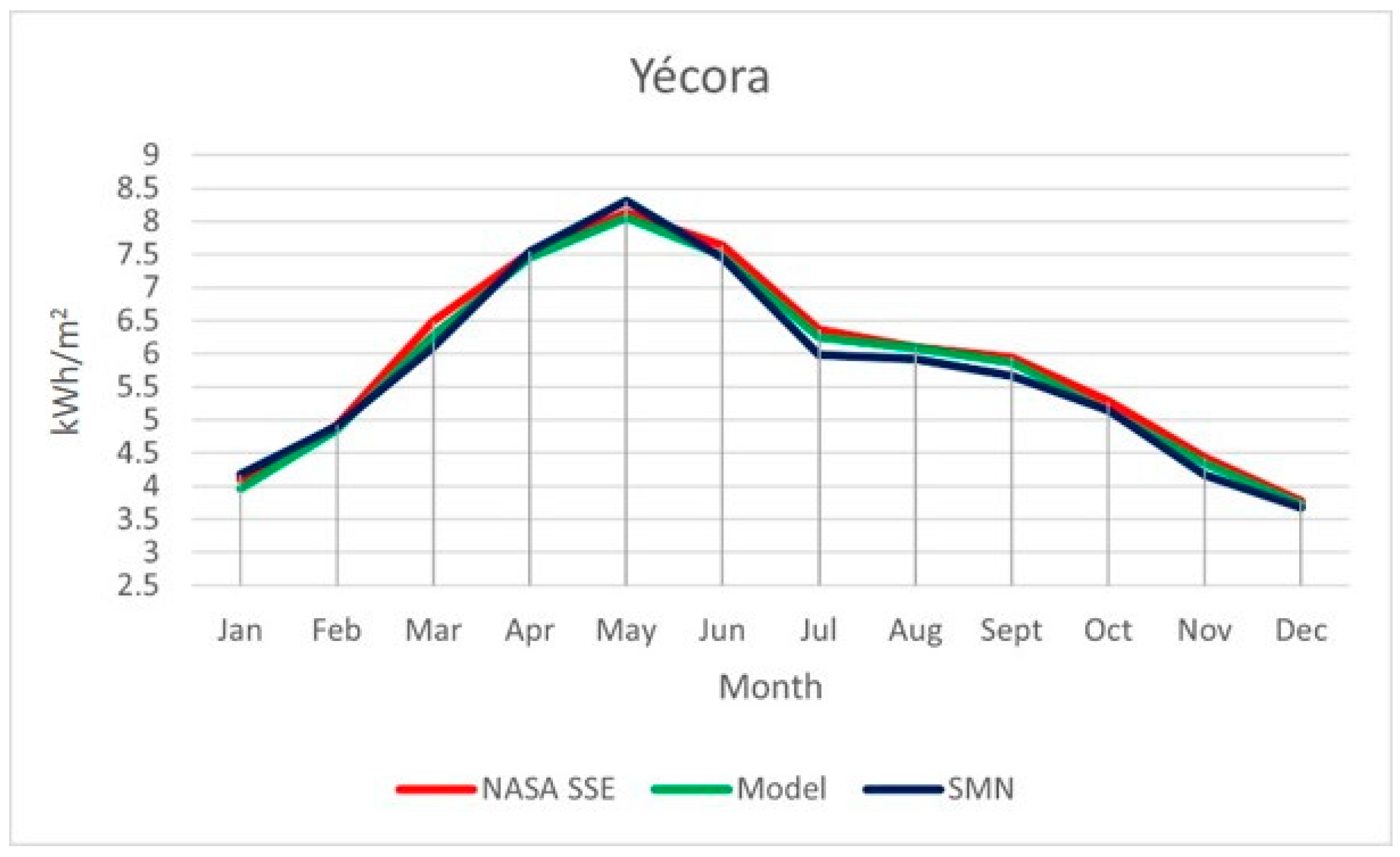

The performance of the model is presented utilizing a visual comparison of the data obtained for solar irradiance in kWh/m2
from each data source (the SMN, the NASA SSE, and the model) for each meteorological station analyzed. Figure 2
, Figure 3
, Figure 4
, Figure 5
and Figure 6
present this analysis.

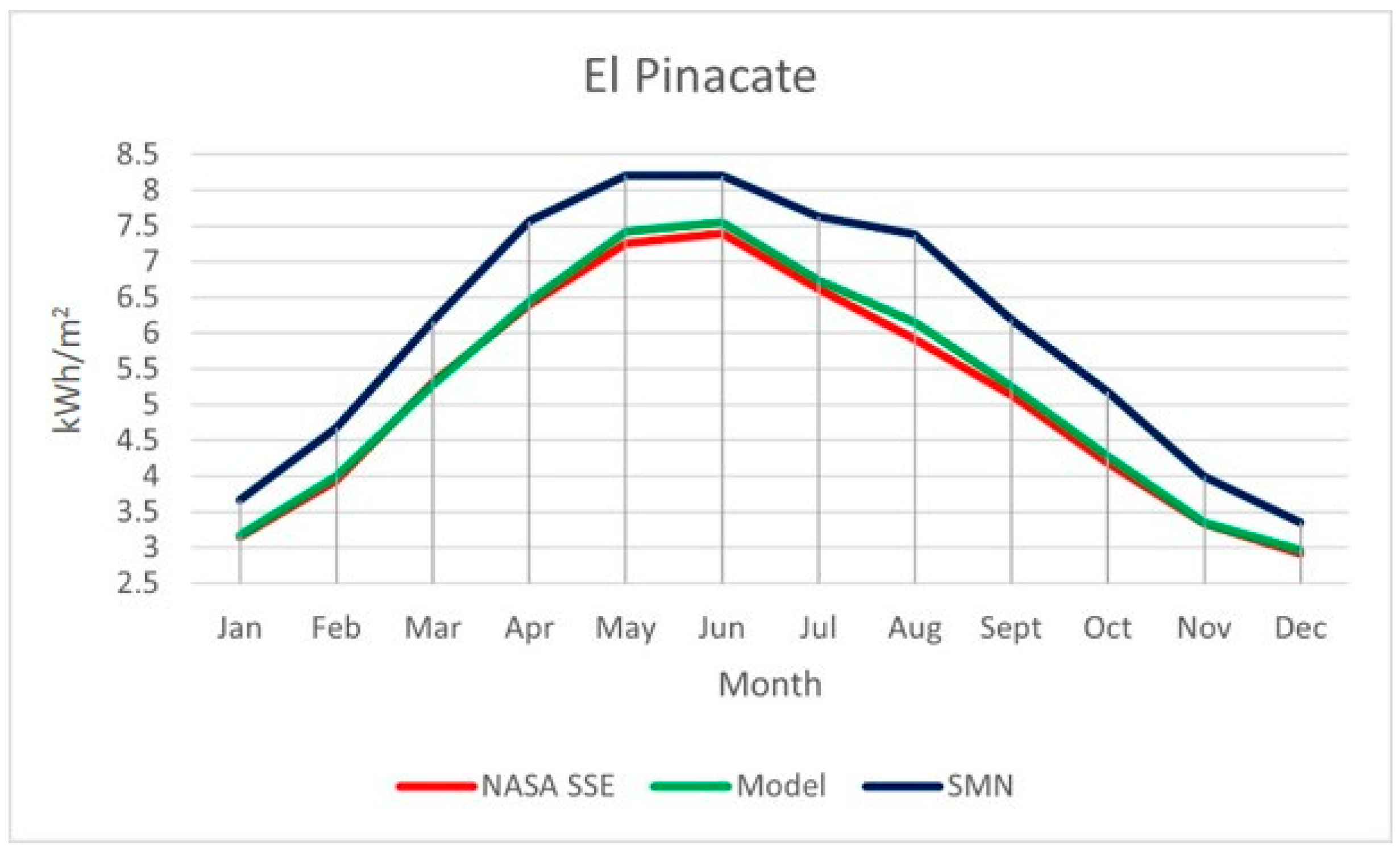

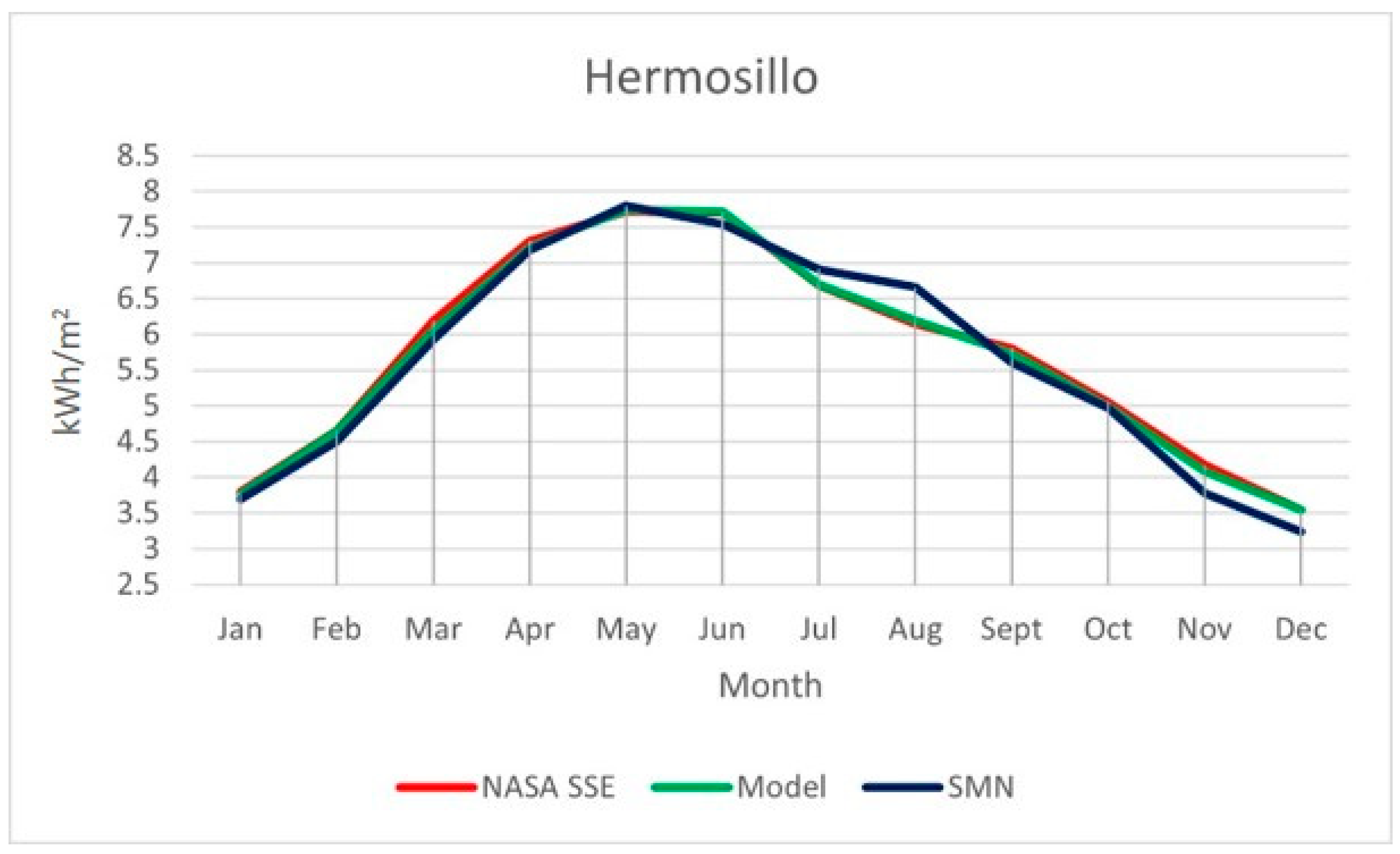

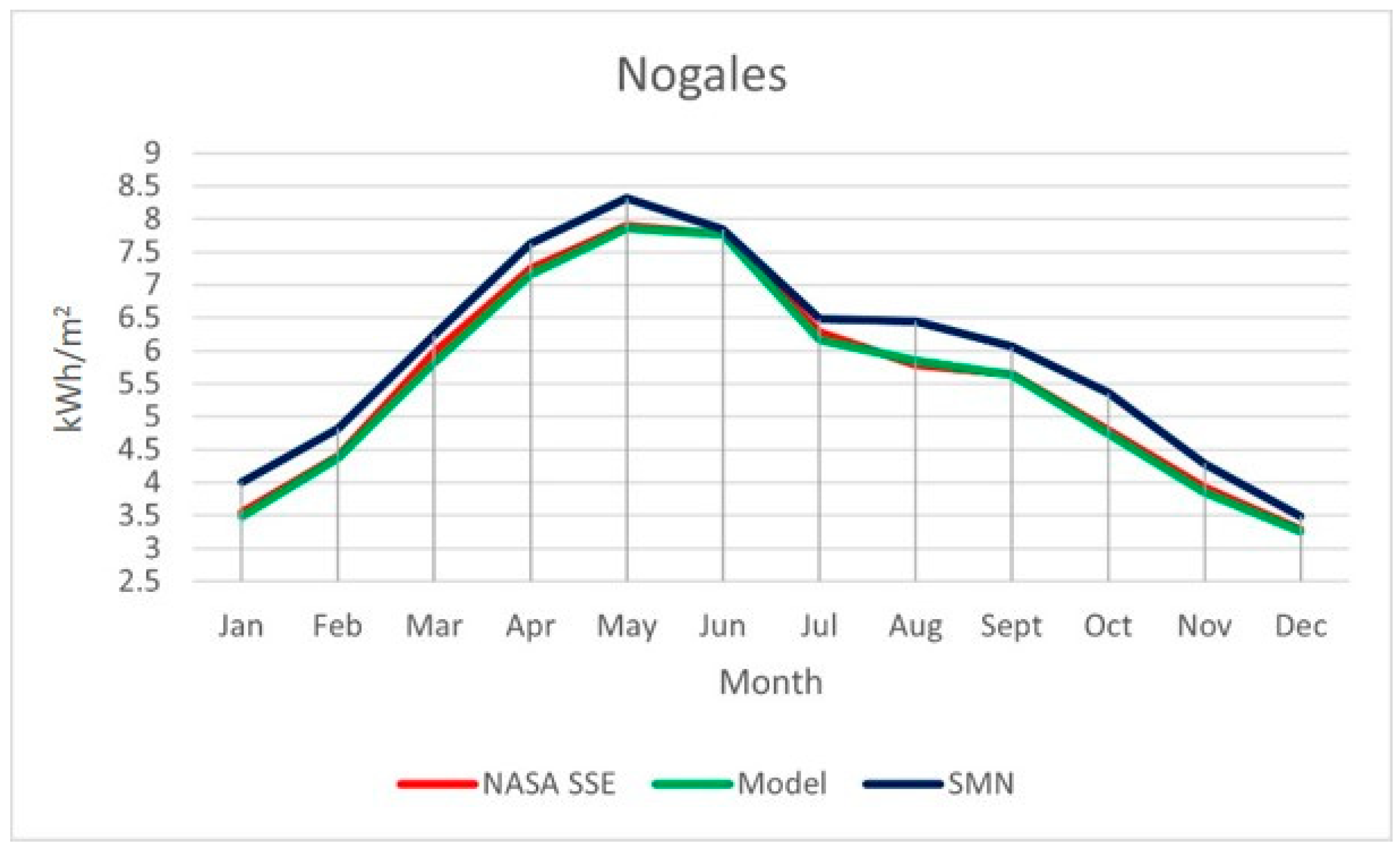

In Figure 2
, Figure 3
, Figure 4
, Figure 5
and Figure 6
, the statement described by the statistical analysis was visually reinforced. A close trajectory for the values of NASA SSE (red) and the model (green) is visible in all the stations. However, the SMN (blue) maintains a close trajectory with small errors for the stations of Hermosillo and Yécora. These were the two stations with better performance in the model approximation for the other two references (NASA SSE and SMN). In the graphs, it can be seen in the case of Yécora that the model is closer to the SMN than NASA SEE. This explains why, in this case, the statistical metrics presented a better performance of the model with respect to the SMN compared to NASA SSE. The errors were wider in the case of Caborca and Nogales, with significant gaps between the red and green lines with respect to the blue line. The highest error was in El Pinacate with separate trajectories between the SMN and the other two sources of data. This means a significant standard deviation between NASA SSE and the model with respect to the SMN values in this station. Additionally, it merits noticing that the errors described by
in the statistical analysis described the direction of the error and magnitude for each month, where the SMN was taken as the reference for both. When the NASA SSE or the model values were smaller than the SMN,
were negatives, otherwise, they were positives. The magnitude of these parameters represents the gaps between the trajectories of the three data sources.
As a result of the obtained values in the comparative analysis, it can be stated that the model was quite accurate as an approximation of the values obtained from the NASA SSE database for latitudes of 32–26° N. The model had originally been tested at high latitudes in Russia at over 50° N. These results may imply that the model can be applied to any geographical point and obtain a close approximation of the total solar radiation available. However, more research in other world regions for latitudes further south is needed to ensure this statement.
4.4.2. Geographical Overview of Solar Resource and Opportunities of Solar Power in Sonora
A geographical information system (GIS) comparison analysis between solar total radiation calculated from the model and temperatures (maximum/minimum) for all municipalities in Sonora based on a series of heat maps is presented as a visualization tool of solar potential in Figure 7
, Figure 8
, Figure 9
, Figure 10
, Figure 11
, Figure 12
, Figure 13
, Figure 14
, Figure 15
, Figure 16
, Figure 17
and Figure 18

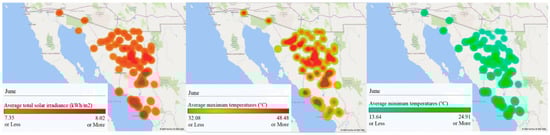

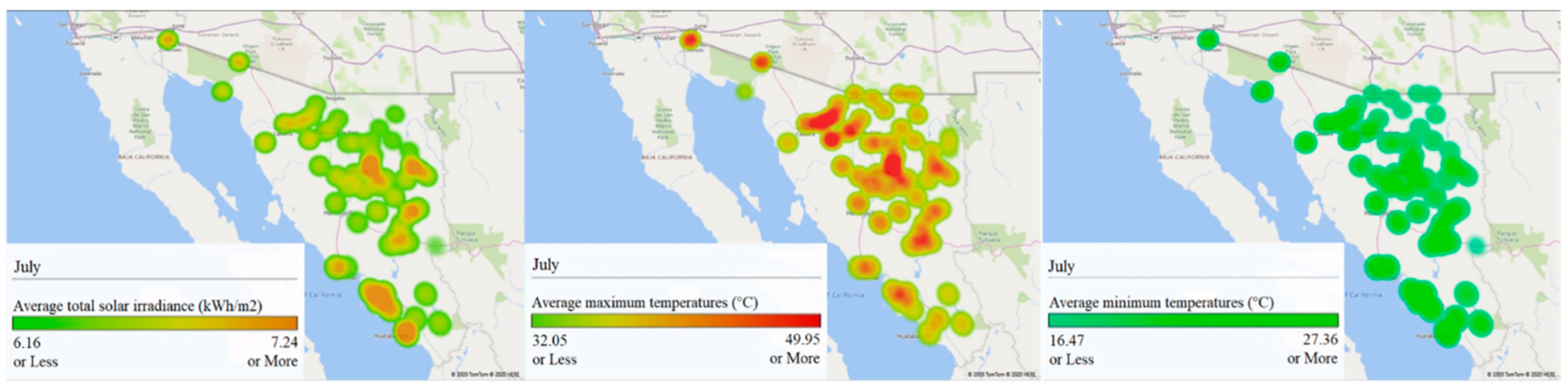

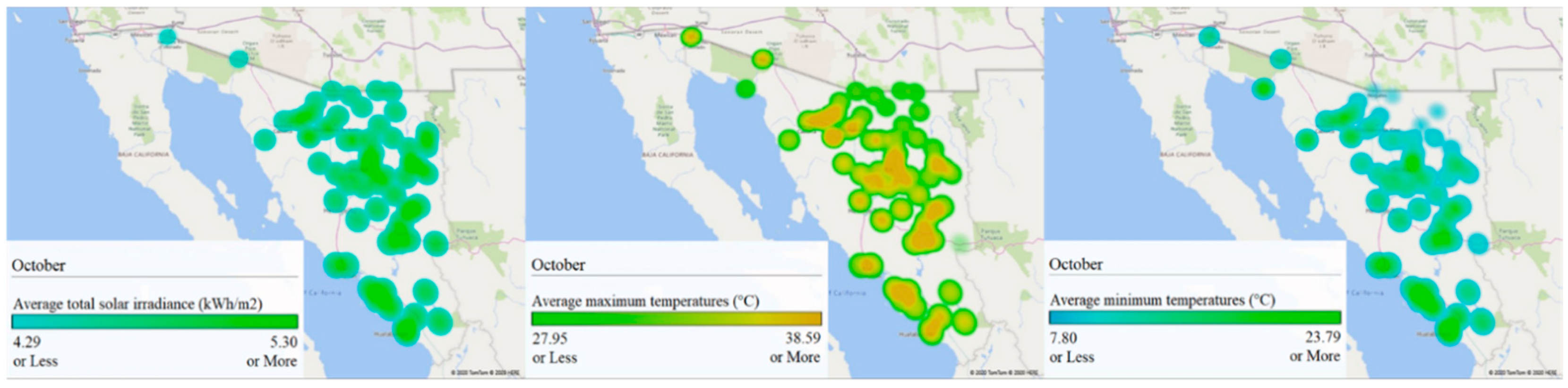

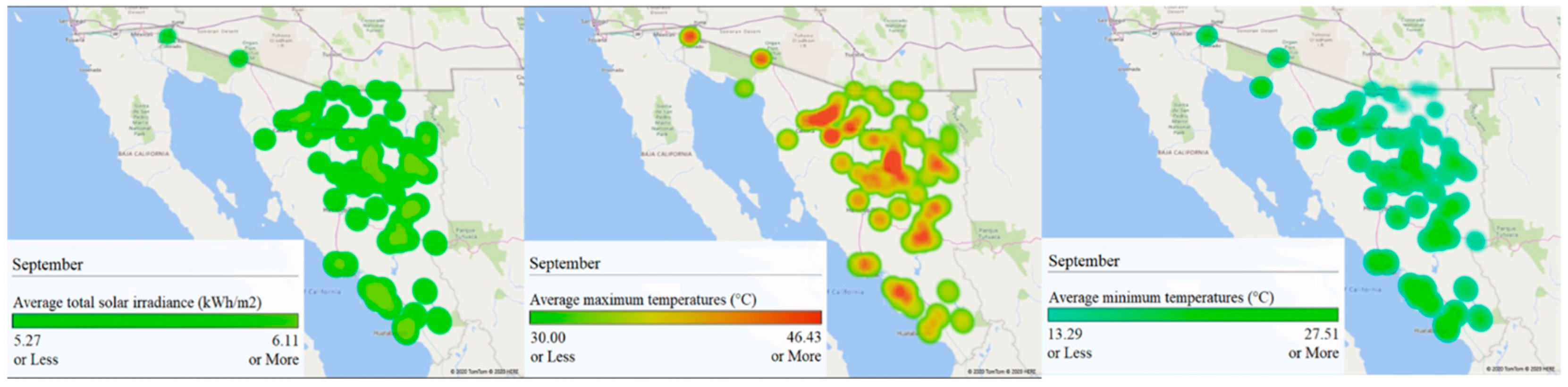

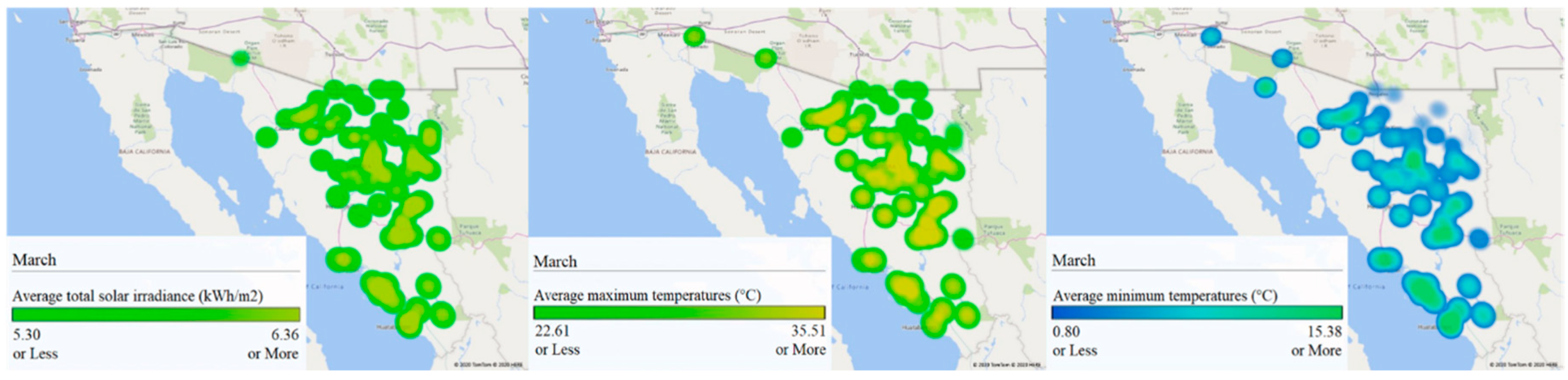

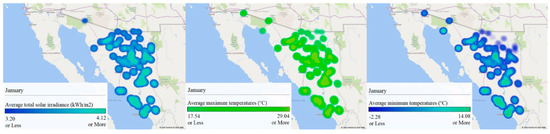

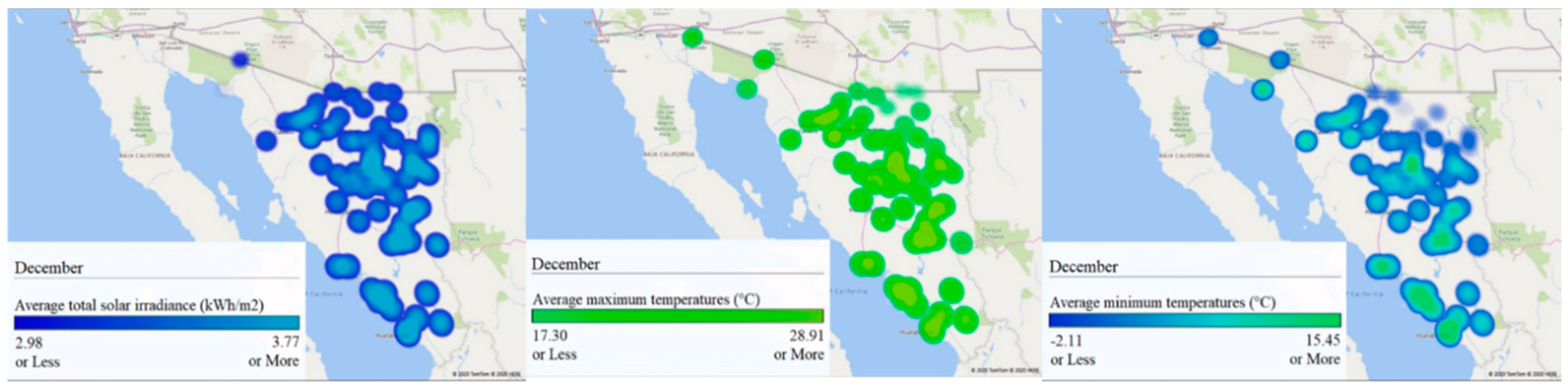

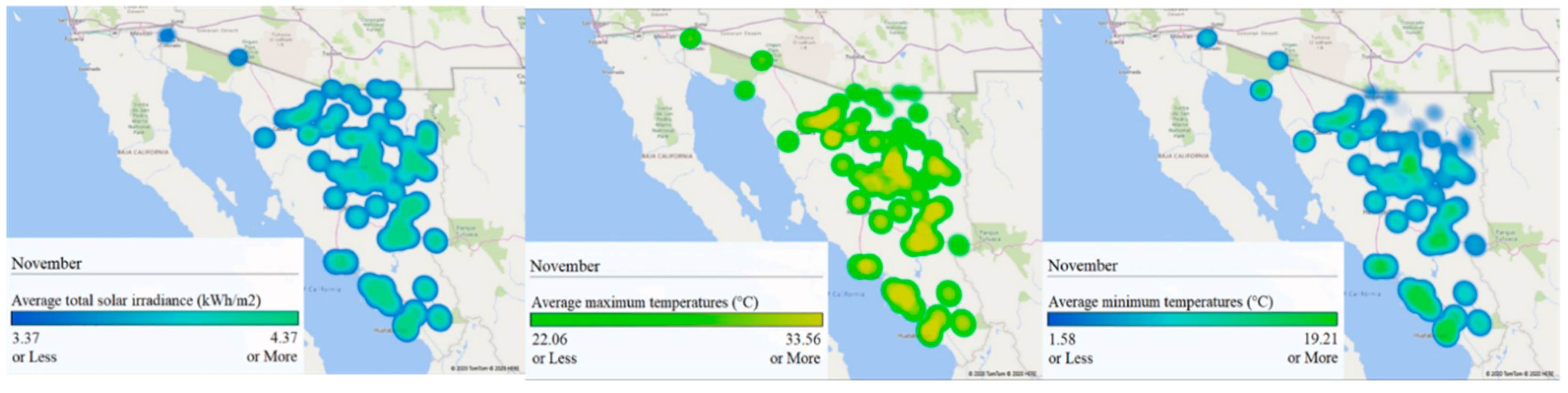

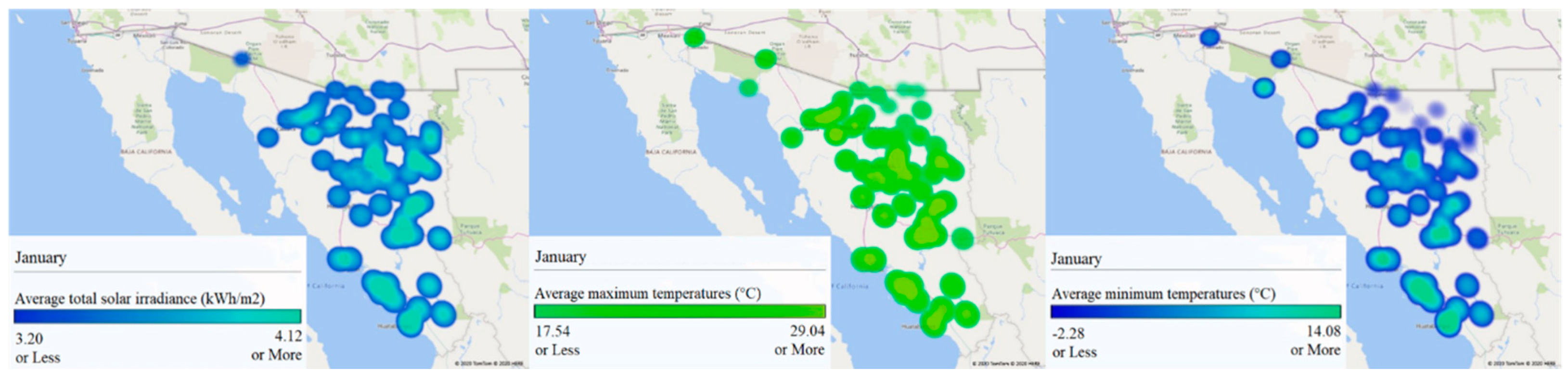

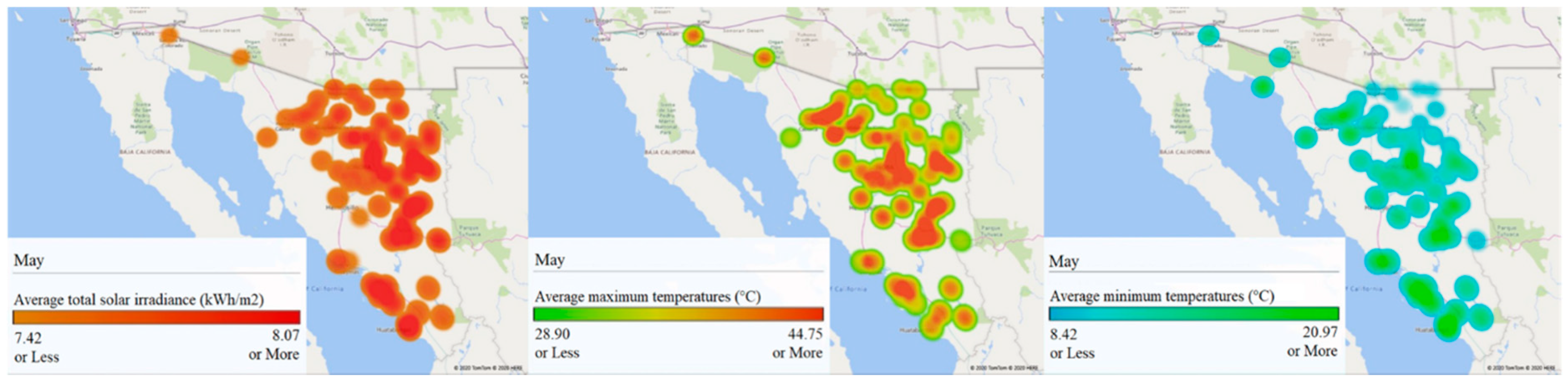

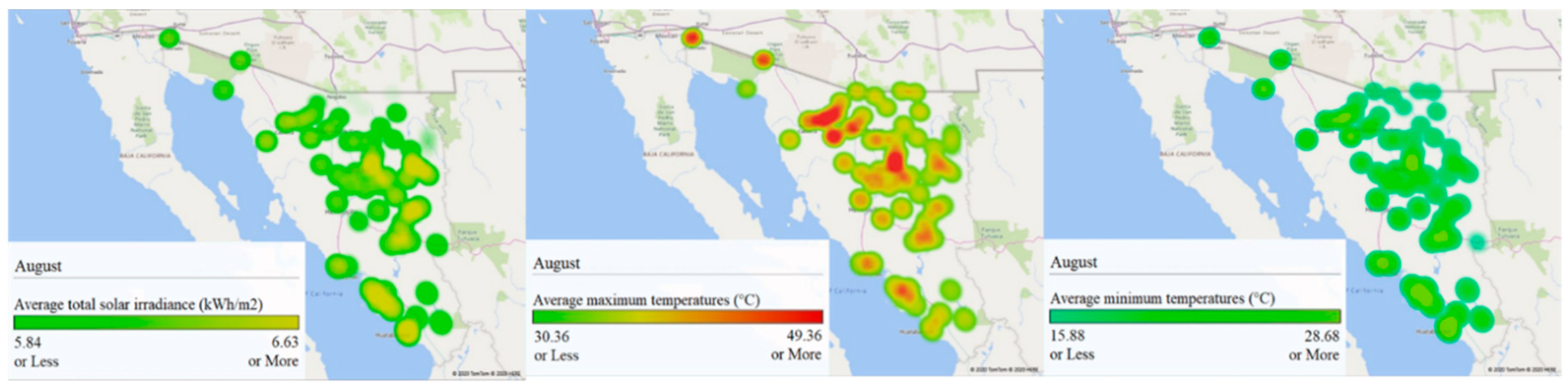

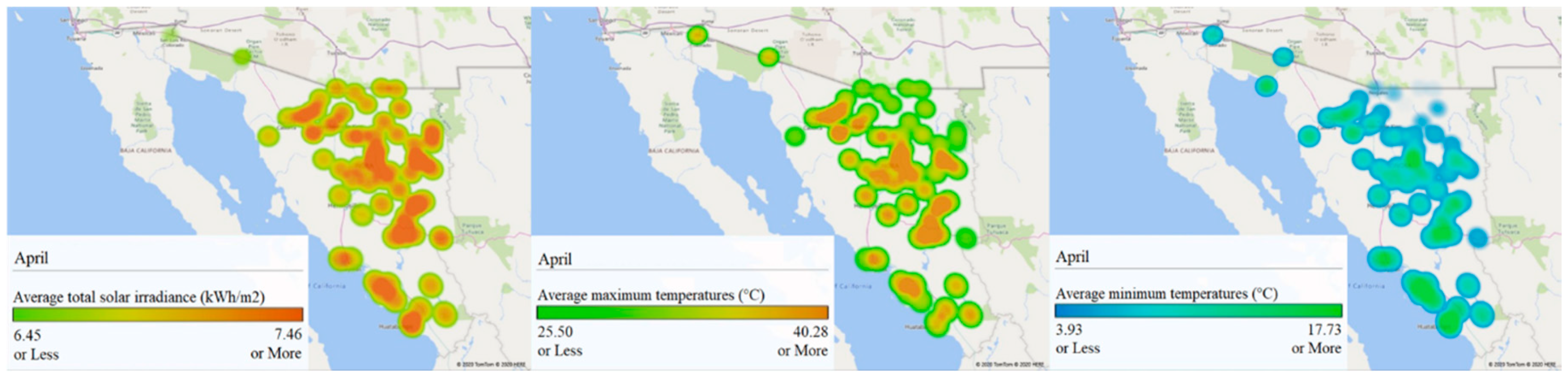

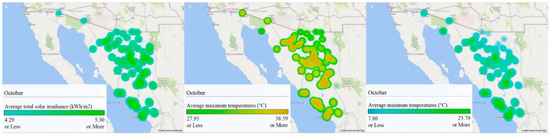

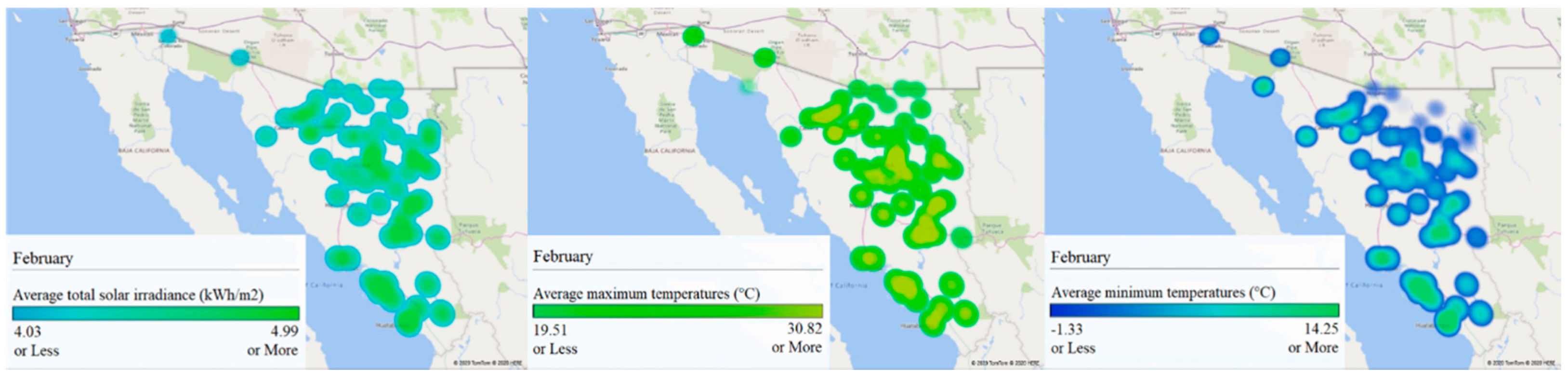

. In these figures, the months of the year are represented in order from January to December, where Figure 7
represents January, Figure 8
represents February, and following this format until Figure 18
representing December. Further, each of the figures is separated into three GIS representations of the state of Sonora, where the first to the left is the average solar irradiance (kWh/m2
), calculated by the model. The central heat map represents the average maximum temperatures (°C). Finally, the heat map on the right of each figure illustrates the average minimum temperatures (°C). A scale of colors was utilized to represent the values for each municipality in each GIS representation in Figure 7
, Figure 8
, Figure 9
, Figure 10
, Figure 11
, Figure 12
, Figure 13
, Figure 14
, Figure 15
, Figure 16
, Figure 17
and Figure 18
. The coordinates together with the results of solar irradiance calculated by the model and from the NASA SSE database (for comparison), temperatures, surface albedo, and transparency index throughout the year for each municipality in the state can be found in Appendix A
The geographical analysis showed high solar irradiance in Sonora throughout the year, with values over 2.99 kWh/m2 on average. The regions with constant higher values were the north-central, central, east, and southern regions of the state. However, some of these areas were also the hottest with average maximum temperatures over 40 °C during April–September, which may mean a significant economic cost due to the need for more modules or cooling systems to compensate for the loss of efficiency due to high temperatures. On the other hand, average minimum temperatures under 0 °C were presented in the northeast and eastern regions during December–February. This represents a good potential for solar development in the eastern region of the state because of less severe maximum temperatures and good solar irradiance on average. However, extreme average minimum temperatures must be considered during the design and sizing of solar photovoltaic projects. The main problem in the eastern region is the mountainous terrain, where any solar project must be carefully analyzed due to the space required. Finally, the western and northwest regions of the state were also worth consideration because, even though there are fewer solar resources compared to the central region, the solar irradiance in these regions is still high on average and the terrain is flatter than in other regions of the state, which facilitates the planning and installation of large-scale solar harvesting projects. Temperatures are also not so extreme, so better efficiency values in photovoltaic energy production are expected.
The results obtained in this GIS analysis provide a view and perspective of a great zone of opportunity in the northwest territory of Mexico for energy production based on the abundant solar resource available. This may represent a tremendous potential of local development of municipalities in the region and their decarbonization for electricity and heating production, which may mean a big reduction in its carbon footprint. This would imply a great economic development and possible energy exportation out of the region either to the United States or other regions of Mexico.
The accuracy of the model for the latitudes of the state of Sonora was proved and analyzed under several statistical metrics comparing it against real-time measurements from the stations of the Mexican meteorological network (SMN) and the satellite solar irradiance records from the NASA SSE database. The SMN meteorological stations available for a comparative analysis in the state were only 33.3% of the total. The rest of the stations presented important data gaps for the period 2015–2019 which discarded them as reliable reference sources. The performance obtained in the statistical analysis demonstrated satisfactory accuracy of the model for latitudes of 32–26° N. However, some differences were observed between NASA SSE and the model compared to real-time data from the SMN for certain meteorological stations. This may imply measurement errors or a need for calibration, but more research of equipment in the SMN stations must be conducted to ensure this statement.
A series of heat maps was utilized for comparing solar radiation against maximum and minimum temperatures in the municipalities in Sonora state. This geographical analysis highlighted that Sonora is a region with high radiation values in a range from 2.99 kWh/m2 to 8.07 kW/m2 during the year for all the municipalities calculated. The advantages and disadvantages were discussed and identified based on the range of annual temperatures for each region in the state. This analysis revealed regions of opportunities for decision-makers and stakeholders in different organizations, both public and private, interested in reducing the carbon footprint, providing an acceptable and wide vision for planning photovoltaic power projects in the region.
The extensive set of tests and results remark the non-complexity nature and accuracy of the applied mathematical model. It requires three inputs (surface albedo, clearness index, and geographical coordinates) for the calculation of solar radiation in a convenient and economically viable way. This research work concludes that the applied model could be used as a support or reference for the calculation of solar resources in a county, a state, or large areas of countries for decision making related to sustainable development policies aimed at solar energy harvesting systems and carbon footprint reduction.
Finally, as future work, it is proposed to continue calculating the amount of solar radiation, but in other latitudes of the planet to validate the model and the herein results. The outcomes of this work reinforce the potential of this approach as a tool to be applied during solar energy planning by local governments.
