A Multi-Level World Comprehensive Neural Network Model for Maximum Annual Solar Irradiation on a Flat Surface

by
Ramez Abdallah
1,
Emad Natsheh
2,
Adel Juaidi
1,*,
Sufyan Samara
2 and
Francisco Manzano-Agugliaro
3,*
1
Department of Mechanical Engineering, Faculty of Engineering & Information Technology, An-Najah National University, P.O. Box 7, Nablus, Palestine
2
Department of Computer Engineering, Faculty of Engineering & Information Technology, An-Najah National University, P.O. Box 7, Nablus, Palestine
3
Department of Engineering, University of Almeria, ceiA3, 04120 Almeria, Spain
*
Authors to whom correspondence should be addressed.
Energies 2020, 13(23), 6422; https://doi.org/10.3390/en13236422
Submission received: 31 October 2020 / Revised: 29 November 2020 / Accepted: 2 December 2020 / Published: 4 December 2020
(This article belongs to the Special Issue The Sustainable City: Advances in Renewable Energy and Energy Saving Systems)
Browse Figures
Versions Notes

Abstract

:
With the growing demand for clean and economically feasible renewable energy, solar photovoltaic (PV) system usage has increased. Among many factors, the tilt and azimuth angles are of great importance and influence in determining the photovoltaic panel’s efficiency to generate electricity. Although much research was conducted related to solar PV panels’ performance, this work critically determined the tilt and azimuth angles for PV panels in all countries worldwide. The optimum tilt and azimuth angles are estimated worldwide by the photovoltaic geographic information system (PVGIS). Also, annual and average daily solar irradiation incident on the tilted and oriented plate optimally (AR1 and DR1) are calculated. Besides, annual and average daily solar irradiation incident on plate tilt optimally and oriented because of the south in the northern hemisphere and because of the north in the southern hemisphere (AR2 and DR2) are estimated. PVGIS is also used to calculate the annual and average daily solar irradiation incident on the horizontal plate (AR3 and DR3). The data collected from PVGIS are used to develop an efficient and accurate artificial neural network model based on feed-forward neural network approach. This model is an essential subpart that can be used in an embedded system or an online system for further PV system analysis and optimization. The developed neural model reflected very high accuracy in predicting the PV panels’ optimal tilt and azimuth angles worldwide. The benefit of tilting is generally increased by increasing the latitude. As the latitude increases, the tilt factor (F) increases because of the increase in the optimum tilt angle by increasing the latitude. The optimal orientation is due to the north in the southern hemisphere and due to the south in the northern hemisphere for most cities worldwide. In sum, it can be concluded that the optimum tilt angle is equal to or greater than the latitude until the latitude 30°. The optimum tilt angle becomes less than the latitude, and the difference is increased until it reaches more than 20°. Hence in this study the aim is to develop a simple neural network model which can accurately predict the annual radiation and optimum tilt and azimuth angle in any region of the world and can be easily implemented in a low-cost microcontroller.

1. Introduction

Solar energy is considered as an original and unlimited source of energy and it also works to enhance energy security and sustainability, and this in turn leads to reducing pollution; also, to keep the prices of fossil fuels lower than others. It also reduces the cost of mitigating climate change [1,2]. Thus, according to IRENE [3], the production of solar photovoltaic (PV) energy is increasing annually. For example, the existing solar PV energy production increased more than 27 times from the production ten years ago; in 2009, it was less than 23 gigawatts. The solar PV installation capacity reached 627 gigawatts in 2019 compared to 512 in 2018 [3].
Because of rapid technological progress and reduce costs, solar PV will have an essential role in reaching the sustainable development goals (SDGs) by 2030 [4], increase the share of renewable energy in the universal electricity sector, in addition to the provision of electricity for remote areas [5,6,7,8,9].
The amount of solar energy produced by a solar PV panel can be determined based on the local insolation. However, it is affected by the solar PV panels’ tilt and orientation angles [10,11,12,13]. Thus, an appropriate tilt and orientation angle must be applied to achieve the maximum produced energy for a specific location [14,15,16,17]. Although one can use a solar tracking system that follows the sun to receive the maximum amount of daily energy, on the other hand, solar tracking systems are expensive and additional energy is needed for its operation [2].
Thus, it is commonly convenient to fix the solar PV on an optimum orientation and tilt angle [18,19,20]. Therefore, solar PV panels are recommended to be placed at the optimum tilt and orientation angle to obtain the yearly maximum energy production [10,11].
Many authors have attempted various analytical, simulations, and experimental work to obtain the optimum angles [21,22]. A general approximate rule for optimizing angles is that a given location’s tilt angle is approximately equal to its latitude. The orientation angle should be south for Northern Hemisphere and north for Southern Hemisphere [23].
The present study used data from the Photovoltaic Geographical Information System (PVGIS), 2019 [24] for estimating optimum angles. The PVGIS gives solar irradiation on a horizontal surface and a surface tilted from horizontal or oriented because of the south. Moreover, the PVGIS provides an optimum tilt and azimuth angle that give the maximum yearly solar irradiation. The PVGIS is employing irradiation data based on satellite images. Based on satellite images, all databases provide hourly solar irradiation estimates. This means that PVGIS can be employed for any place, no matter how far from particular meteorological stations.
This study aims to find an artificial neural network model that can calculate an optimum tilt and azimuth angle in any world region. This model can be used inside an embedded system or as an online service. For an artificial neural network to be constructed and trained, it is required to obtain data from many locations worldwide.
The used data are obtained by PVGIS. First, the optimum tilt angles that give the maximum yearly solar irradiation for surfaces directed because of the south in the northern hemisphere and north in the southern hemisphere are calculated. Second, the optimum azimuth angles accompanying the optimum tilt angle are also calculated. Third, the annual and average daily irradiation in different regions all over the world is calculated for surfaces tilted with optimum tilt angles and directed because of the south in the northern hemisphere and because of north in the southern hemisphere (AR2 and DR2) and surfaces tilted with optimum tilt angle and oriented with optimum azimuth angles (AR1 and DR1). Fourth, the annual and average daily irradiations for horizontal surfaces are calculated (AR3 and DR3). Lastly, the tilt fact (F), which can be defined as the ratio of the irradiation collected by a tilted surface to the irradiation collected by a horizontal surface, is calculated.
Although one can use mathematical or statistical modules to calculate that based on some rules or conditions, these approaches tend to be very difficult and inaccurate when such conditions are hard to predict, has a non-linear form, or with a pattern that is hard to find [25]. Adding to that, for their hardware implementation they require expensive microcontrollers.
The best output energy of a PV panel depends mainly on the maximum vertical amount of solar radiation that hits the PV panel surface. This maximum vertical solar irradiation changes according to the tilt and azimuth angles. Artificial intelligence can help increase this amount of solar irradiation by finding optimum tilt and azimuth angles, which is challenging to model accurately using mathematical or statistical modules, even for a single location [26].
Neural networks are characterized by being capable to learn by themselves and produce an output that is not limited to the input provided to them. Moreover, even if a neuron is not responding or a piece of information is missing, the network can detect the fault and still produce the output. Hence in this study, the aim is to develop a simple neural network model that can accurately predict the annual irradiation and optimum tilt and azimuth angle in any region of the world and can be easily implemented in a low-cost microcontroller.

2. Literature Review

Obtaining the photovoltaic system’s optimum tilt angle is a significant issue because it helps to effectively transform the amount of sunlight received into energy [27]. Numerous studies have used various research approaches to find a tilt angle that maximizes the amount of irradiation received by the solar panel [27]. Such models include Hay’s model, PVsyst simulation, PV-Simulation model, Nijegorodov equations, Harmony search meta-heuristic algorithm, PVWatts program, PVGIS program, particle swarm optimization (PSO) estimator, analytical method, MATLAB software, Oracle Crystal Ball software, and Gradient Boosting Algorithm. Table 1 summarizes these methods.
Kim Gi et al. [11] used a machine learning approach to find the optimum tilt angle of a PV panel to maximize the energy obtained from the PV panel. Although the analysis was conducted in a single area, and all PV panels shared similar geometric attributes, the optimal angles varied to certain degrees.
Artificial intelligence techniques can be employed in many problems. Their importance is realized in the ability to learning and adapt to new variations efficiently. This ability makes these techniques a promising solution in finding optimum tilt and azimuth angles for PV panels worldwide with high accuracy. While some attempts to explore the benefits these techniques offer [26,27], there is insufficient research in this field for such techniques.
This research provides an estimate of optimum tilt angles for (PV) panels for all countries worldwide.

3. Methodology

In this work, an artificial neural network is used to find the optimum tilt and azimuth angles that yield maximum energy from PV panels in any worldwide location. To effectively build such neural networks, training data is sampled from many locations worldwide using PVGIS (Photovoltaic Geographical Information System, 2019) [24]. PVGIS provides solar irradiation on a horizontal surface and a surface tilted from horizontal or oriented because of the south. Moreover, the PVGIS provides an optimum tilt and azimuth angle that gives the maximum yearly solar irradiation. The PVGIS employs irradiation data based on satellite images. Satellite images are used to collect solar irradiation data. The different satellites available in PVGIS are:
  • PVGIS-SARAH: CM SAF [51] and the PVGIS [24] team have calculated these data covering Europe, Africa, most of Asia, and parts of South America.
  • PVGIS-NSRDB: These data have been supplied by the National Renewable Energy Laboratory (NREL) [52] and is part of the National Solar Irradiation Database.
  • PVGIS-CMSAF: CM SAF collaboration [51] have calculated these data covering Europe, Africa, and parts of South America.
  • PVGIS uses two more satellites to cover high-latitude areas not covered by previous satellites.
  • PVGIS-ERA5: This new re-analysis product is obtained from ECMWF [53]. It covers all over the world on an hourly basis and is used by PVGIS for Europe.
  • PVGIS-COSMO: COSMO-REA6 is a regional re-analysis product, covering Europe at hourly time resolution.
Based on the satellite images, all databases provide hourly solar irradiation estimates. This means that PVGIS can be employed for any place, no matter how far from particular meteorological stations.
The PVGIS is used to obtain data for training and validating the developed artificial neural network model. Figure 1 shows the locations around the world used to gather training data.
In Figure 1, the locations are highlighted by colored circles. The circles’ color is separated to give the figure more detail, and they do not mean anything else.

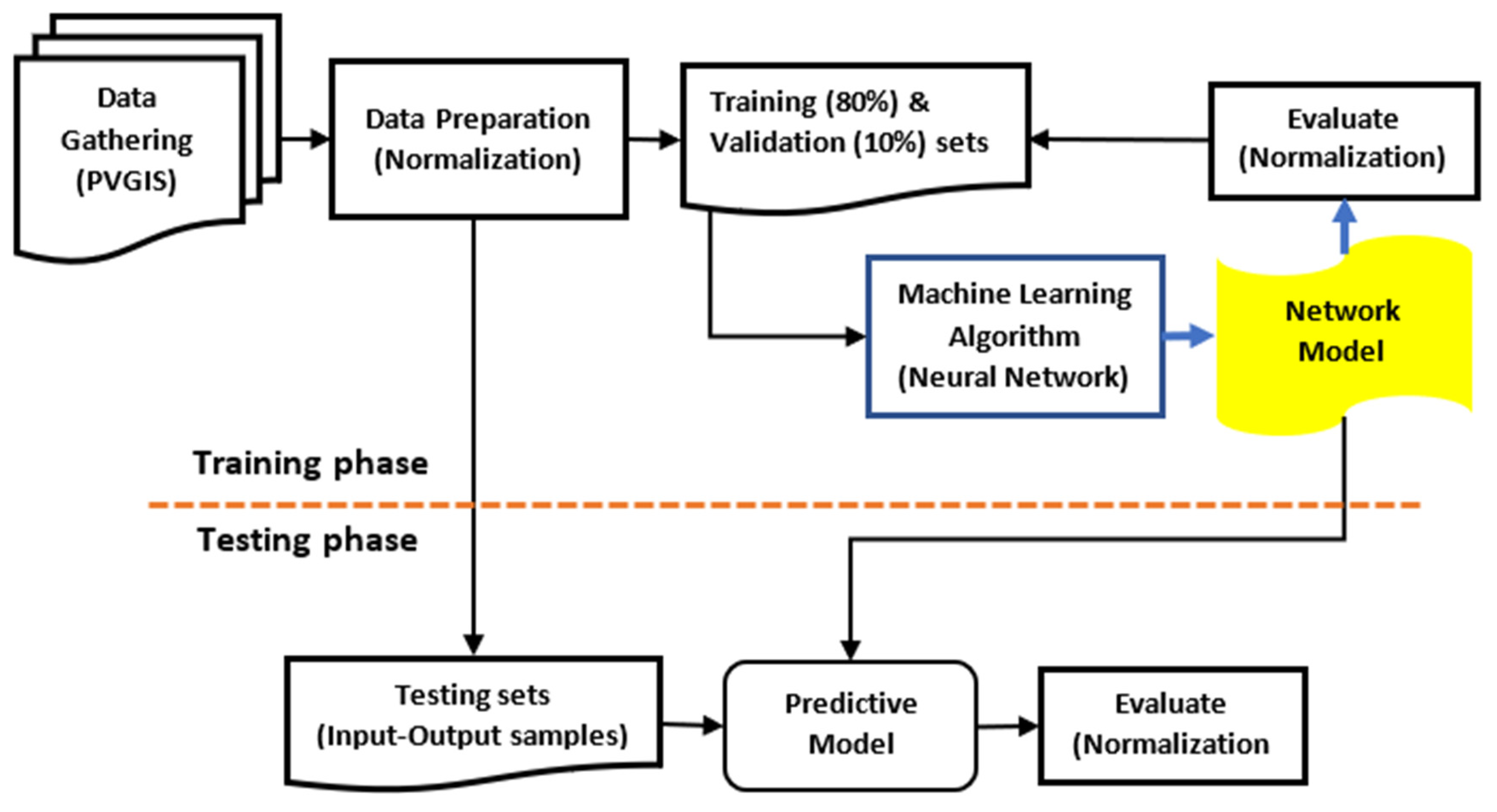

The development of the artificial neural network model is carried out using feed-forward neural networks (FFNN). The development process is divided into the training phase and the testing phase. Figure 2 shows the methodology used to develop the FFNN model.
The data collected were normalized and divided into two sets after the correct validation using the PVGIS method. One was used at the development stage of the neural model, representing 90% of the data collected, and one was used at the neural model test stage, representing around 10%. The testing phase aims to evaluate the neural network model developed in the training phase. The 90% of the gathered data used in the training phase was further divided into a neural network model training set, about 80% of the gathered data, and a neural network model validating set, which is about 10% of the gathered data. After the training phase, a multi-level FFNN model was developed. The developed multi-level FFNN model is discussed in the subsequent section.

Multi-Level Neural Network Model

Feed-forward neural network (FFNN) is a supervised learning algorithm that learns, by training on a dataset, a function f ( . ) :   R n → R o . Where o is the number of dimensions for output, and n is the number of dimensions for inputs. Given a set of features X = { x 1 ,   x 2 , … , x n } and targets Y = { y 1 ,   y 2 ,   … ,   y o } , it can learn a non-linear function approximator for either regression or classification problems. In this work, FFNN is used as a regression model, and this differs from logistic regression, as there are one or more non-linear layers, called the hidden layer, which lies between the input and output layers. Figure 3 shows one hidden layer FFNN.

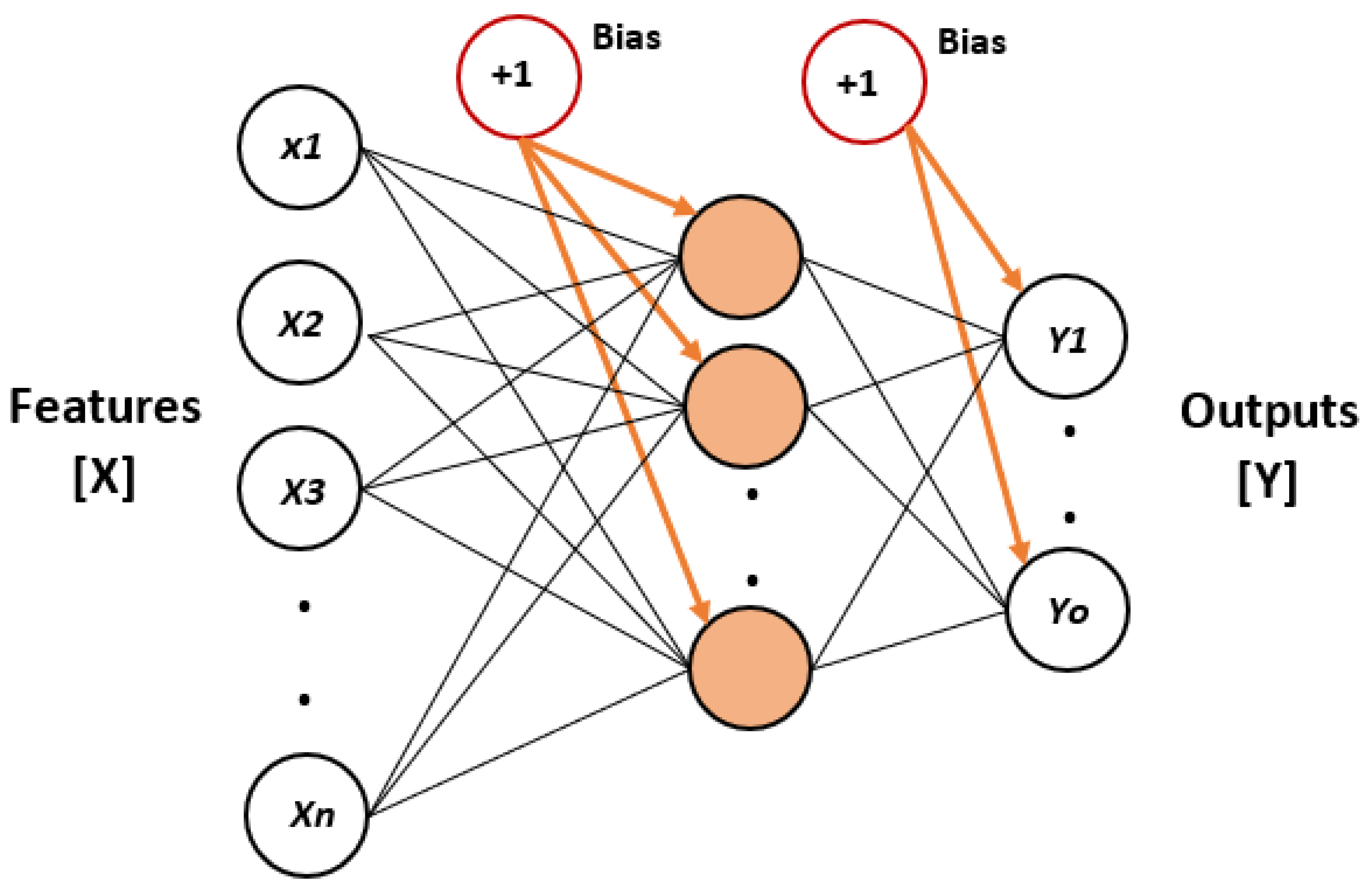

The leftmost layer, known as the input layer, consists of neurons expressing the input patterns, as shown in Figure 3. With a weighted linear summation ∑ i = 1 n x i w i j , each neuron in the hidden layer transforms the previous layer’s values, which are then evaluated using activation function [54]. Where wij is the weight relation between the ith neuron in the input layer and the jth neuron in the hidden layer, xi is the value of ith neuron in the input layer. The values are propagated to the neurons of the output layer to generate the output patterns.

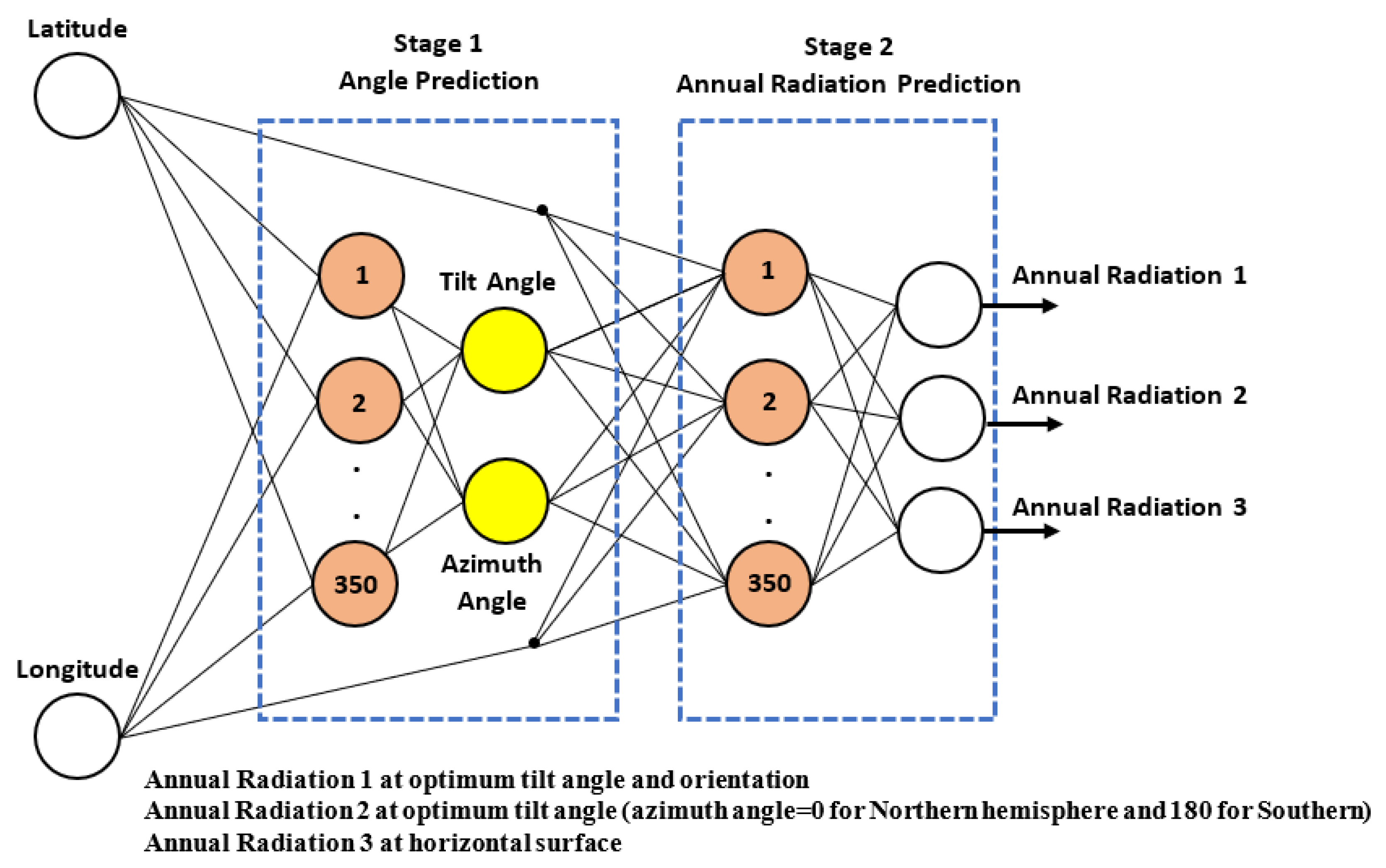

Figure 4 shows the topology of the proposed model. The proposed network model predicts the PV’s optimum tilt and azimuth angle of annual irradiation in various regions worldwide.
The proposed model is composed of two phases, as shown in Figure 4. The model consists of three layers in the first stage: Input, Hidden, and Output. Two nodes form the input layer: longitude (deg.) and latitude (deg.). Three hundred fifty nodes compose the hidden layer, each of which uses the activation function of the hyperbolic tangent sigmoid. The output layer consists of two nodes that evaluate the optimal PV’s tilt and azimuth angles.
The second stage’s input layer is composed of four nodes, two of them are the outputs of the first stage (tilt and azimuth angles), and the others are the Latitude and the Longitude. The hidden layer is like the first stage; it has 350 nodes with tanh activation function. At the same time, the output layer has three nodes, which are the annual irradiation under (1) optimum tilt angle and orientation (2) optimum tilt angle (azimuth angle = 0 for the Northern hemisphere and 180 for Southern) (3) horizontal surface. The output nodes in the two stages use an activation function of linear type [49].
Min-Max normalization method is used on all data to improve the qualified network’s efficiency [55]. The data are then used to trained the network to understand the relationships between the input patterns.
I N = ( I − I m i n ) [ N m a x − N m i n I m a x − I m i n ] + N m i n
O = ( O N − N m i n ) [ O m a x − O m i n N m a x − N m i n ] + O m i n
where Nmin and Nmax are the Min-Max normalize range, Omax and Omin are the maximum and minima values for the O output vector, ON and IN are the normalized training output and input values, Imax and Imin are the maximum and minima values for the input vector I, and I and O are the non-normalized training input and output values. For this work, Nmin = −1 and Nmax = 1 [56].
Different types of FFNN’s trained algorithms were developed [55,57,58]. These include the Gradient descent with momentum approach, the Levenberg-Marquardt (LM) backpropagation, the Gradient descent backpropagation, and the adaptive learning rate resilient scaled conjugate gradient backpropagation. The LM training algorithm has been chosen for this work for the training of the proposed network model. Since the less responsive approach to local converges, the LM teaching method offers a more robust learning training approach. It also offers a healthy trade-off between the pace of preparation and stability [55].

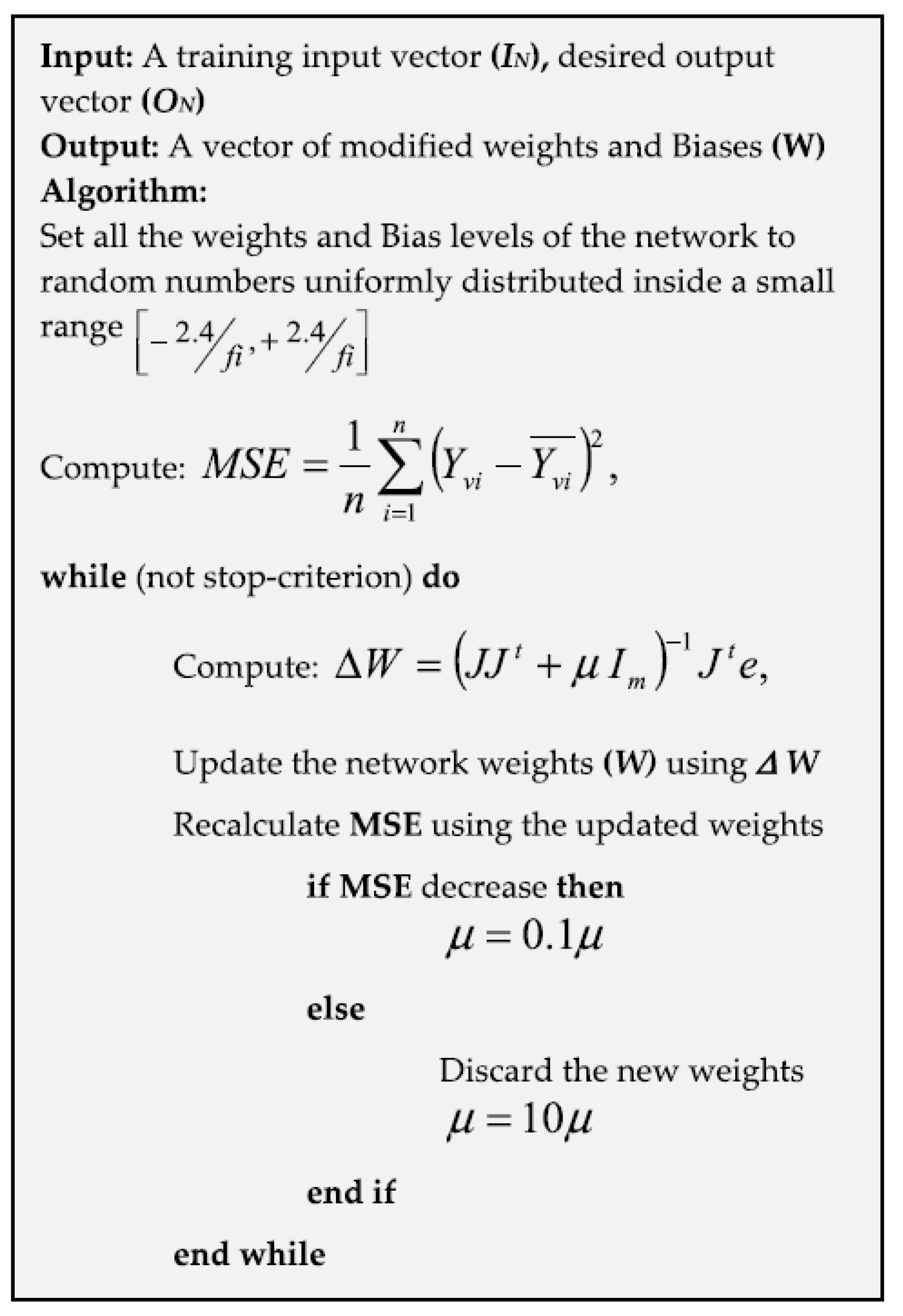

Figure 5 displays the pseudocode for the training algorithm. The goal is to minimize as much as possible, the mean square error (MSE) by tuning the parameter (μ) as follows:
  • μ × 0.1 when the MSE is equal or less to the previous one.
  • μ × 10 when the current epoch MSE exceeds the previous value.

4. Results and Discussion

4.1. Results Obtained by PVGIS

In the first part of the paper, PVGIS was used to obtain the results and tabulated in Table A1 (Appendix A). The optimum tilt angles, optimum azimuth angle, AR1, DR1, AR2, DR2, AR3, DR3, and F, are calculated for the different regions worldwide.
It can be concluded that the tilt angle is equal to or greater than the latitude until the latitude of 30°, then the tilt angle becomes less than the latitude until the difference between them reaches more than 20°. The relation between them is not linear for all the latitudes because the linear relationship does not take into account the air pollution and cloud cover. As the cloud cover increases, the optimum tilt angle decreases because the cloud cover scatters the solar irradiation. The solar PV is closer to the horizontal as it receives more of the diffuse solar irradiation that is scattered by the cloud cover. Besides, the direct solar irradiation, which mainly depends on the tilt angle, is mostly blocked by clouds, so the diffuse irradiation becomes more critical in the overcast latitudes. The azimuth or orientation of the solar PV is measured from the south, meaning that if it is directed to the south, then the azimuth angle is 0°, while if it is directed to the north, then the azimuth angle is 180°. For the east, the azimuth is −90 degrees, and for the west, it is 90 degrees. It can be concluded that the optimum azimuth angle for most cities in the northern hemisphere and southern hemisphere is close to 0° and 180°, respectively. Even cities with an optimum azimuth angle further from 0° and 180° gain a little extra annual solar irradiation (AR1-AR2). This means that the solar PV can be directed toward the south in the northern hemisphere and toward the north in the southern hemisphere.
Table 1 shows that the annual solar irradiation increases as it moves away from the equator until it reaches the maximum point (25–30°) for latitude and then begins to decrease. It can also be noticed that the tilt factor (F) increases with increasing latitude because of the increase in the optimum tilt angle with latitude.
The results obtained from PVGIS are compared with many previous studies and the results are very close [59,60].

4.2. Evaluation of the Proposed Nural Network Model

Several experiments have been performed to determine the best composition of the neural network. The decisions were made based on two main features: the activation function for each layer and the neurons’ number in the hidden layer. Table 2 shows the attributes of the selected configurations.
Another important feature that has been studied to complete the neural network structures is the number of nodes in each hidden layer. Table 3 compares the mean square error (MSE) results in various hidden layer numbers for both network stages.
The best-obtained configuration for models’ stages 1 and 2 is 350 neurons the hidden layer, seen in Table 3. MSE for both first stage preparation, checking, and validation is 0.0253, 0.041, and 0.00117, respectively, and for the second stage is 0.0074, 0.0063, and 0.00016, respectively. However, the results did not get any higher, while the sophistication grew as we went to the deep neural network.
Once the network configuration was chosen and before the simulation started, the dataset of 573 cities was split into three sections: training (459 cases), validation (57 cases), and testing (57 cases) (57 cases). The dataset has been chosen in a way that covers the maximum possible area, according to the map shown in Figure 1. Using the early stop technique and the validation set [61], the overfitting was reduced. Figure 6 demonstrates the consequences of both systems during training and validation.

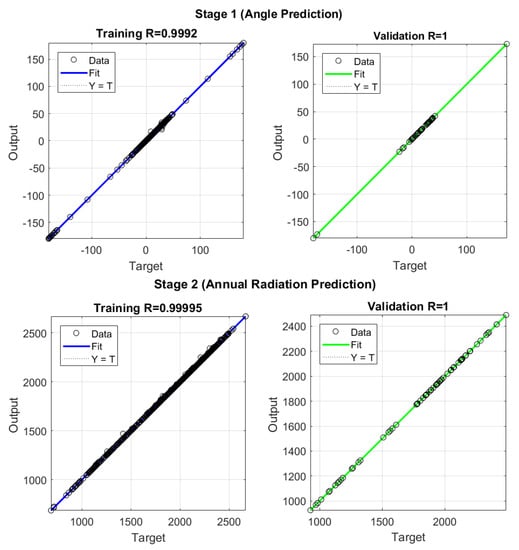

As shown Figure 6, the linear regression for the training and validation of both models exactly matches the data sets, which means that the decision coefficient (R2) is very similar to 1.
The testing dataset portion was used to assess the model, and then measure the output after the training stage is finished.
Table A2 (Appendix A) shows a comparison between the calculated model using PVGIS and the proposed model. The comparison has been made regarding 40 cities (30 in-sample and ten out-of-sample). As shown in Table A2 (Appendix A), the residual average difference (between the calculated and proposed model) for the tilt angle, azimuth angle, and the three annual irradiations (see Figure 4) is 0.0234, −0.0224, 0.136, 1.41, 0.264, respectively. That comparison demonstrates the effectiveness of the proposed model.

5. Conclusions

The solar energy incident on a PV depends of the tilt angle and orientation. Therefore, they considered a vital factor to obtain maximum solar radiation. It can be concluded that in most cases in the northern hemisphere, solar PV must be directed toward the south, this means that the azimuth angle is equal to zero. Whereas for the southern hemisphere, the solar panels must be directed toward the north, which means that the azimuth angle is equal to 180. So AR1 and AR2 are almost the same for most cities. In general, as the latitude of a specific city increases, it benefits from tilting increases, So the tilt factor increases with increasing latitude.
Neural networks are distinguished by being able to learn and generate an output of their own that is not limited to the feedback they receive. In addition, the network will detect the fault and still generate the output, even though a neuron is not responding, or a piece of information is missing. Therefore, the purpose of this research is to create a simple neural network model that can reliably predict the annual radiation and optimum tilt and azimuth angle in any area of the world and can be easily implemented in a low-cost microcontroller.
It can be concluded that the tilt angle is about or greater than the latitude until the latitude of 30°, then it becomes less than the latitude until the difference between them reaches more than 20°. The relation between them is not linear for all the latitudes.
Moreover, this study presents a multi-level world comprehensive neural network model for annual irradiation and PV optimum azimuth and tilt angles. Several simulations were carried out with different evaluation criteria to select the best network topology.
The proposed network topology is composed of two stages. The first stage is to predict the PV optimum tilt and azimuth angle, and the second stage is to predict the AR1, AR2, and AR3. The simulation result shows that the proposed module exhibits excellent performance with an average training MSE of 0.01635. This proposed model can be used in an embedded system or an online system for further PV system analysis and optimization.

Author Contributions

Conceptualization, R.A. A.J. E.N., and S.S.; methodology, R.A., A.J., E.N., and S.S.; software, R.A. and E.N.; validation, A.J., R.A., E.N., and S.S.; formal analysis, E.N. and A.J.; investigation, R.A., A.J., and F.M.-A; writing—original draft preparation, R.A., A.J., E.N., and S.S.; writing—review and editing, F.M.-A., A.J., and S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors would like to acknowledge the: An-Najah National University and the University of Almeria for facilitating this research.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AR1Annual Irradiation (kWh/m2) at optimum tilt angle and orientation
AR2Annual Irradiation (kWh/m2) at optimum tilt angle (azimuth angle = 0° for Northern hemisphere and 180° for Southern)
AR3Annual Irradiation (kWh/m2) at horizontal surface
CMSAFClimate Monitoring Satellite Application Facility
DR1Daily Average Irradiation (kWh/m2/day) at optimum tilt angle and orientation
DR2Daily Average Irradiation (kWh/m2/day) at optimum tilt angle (azimuth angle = 0° for Northern hemisphere and 180° for Southern)
DR3Daily Average Irradiation (kWh/m2/day) at horizontal surface
ECMWFEuropean Centre for Medium-Range Weather Forecasts
FThe tilt factor
MSEMean Square Error
NRELNational Solar Irradiation Database
PSOParticle Swarm Optimization
PVPhotovoltaic
PVGISPhotovoltaic Geographical Information System
SDGsSustainable Development Goals
βTilt angle (Degrees)
FFNNFeed-Forward Neural Networks
LMLevenberg-Marquardt
AR1Annual Irradiation (kWh/m2) at optimum tilt angle and orientation
AR2Annual Irradiation (kWh/m2) at optimum tilt angle (azimuth angle = 0 for Northern hemisphere and 180 for Southern)
AR3Annual Irradiation (kWh/m2) at horizontal surface
DR1 Daily Average Irradiation (kWh/m2/day) at optimum tilt angle and orientation
DR2Daily Average Irradiation (kWh/m2/day) at optimum tilt angle (azimuth angle = 0 for Northern hemisphere and 180 for Southern)
DR3Daily Average Irradiation (kWh/m2/day) at horizontal surface.

Appendix A

Table
Table A1. Optimum tilt and azimuth angles for PV panels, AR1, AR2, AR3, DR1, DR2, and DR3 for all countries of the world.
Table A1. Optimum tilt and azimuth angles for PV panels, AR1, AR2, AR3, DR1, DR2, and DR3 for all countries of the world.
CountryCityLatitude (deg.)Longitude (deg.)Optimum Tilt Angle
(deg.)		Azimuth Angle
(deg.)		AR1
(kWh/m2)		DR1
(kWh/m2)		AR2
(kWh/m2)		DR2
(kWh/m2)		AR3
(kWh/m2)		DR3
(kWh/m2)		F
(Tilt Factor)
IcelandReykjavík64.15−21.944901093.002.991093.002.99839.152.301.30
AfghanistanKandahar31.6365.7430−22418.446.632418.296.632166.785.941.12
AfghanistanKabul34.5669.2131−82228.346.112226.446.101981.055.431.12
AlbaniaTirana41.3319.8235−21835.595.031835.375.031581.864.331.16
AlbaniaSarande39.8720.003321939.225.311939.005.311694.534.641.14
AlgeriaAlgiers36.753.0631−42014.215.522013.715.521788.614.901.13
AndorraAndorra La Vella42.511.5235 (34)−181644.994.511627.004.461418.103.891.15
AngolaLuanda−8.8413.299−1791988.585.451988.575.451972.005.401.01
Antigua and BarbudaSt. Johns17.12−61.8419(18)−172164.315.932158.435.912080.395.701.04
ArgentinaEntre Rios−32.23−58.6930−1691896.285.201895.305.191721.984.721.10
ArgentinaSanta Fe−29.77−60.5128−1691917.105.251915.265.251760.644.821.09
ArmeniaYerevan40.1944.5233−61826.765.001826.365.001611.184.411.13
AustraliaPerth−31.95115.8629−1762165.875.932165.505.931965.625.391.10
AustraliaGeraldton−28.78114.6128−1802301.106.302301.106.302092.135.731.10
AustraliaKarratha−20.73116.8423−1802490.056.822490.056.822343.496.421.06
AustriaVienna48.2116.373801430.943.921430.943.921224.673.361.17
AustriaGraz47.0715.4439−21503.004.121502.854.121270.513.481.18
AzerbaijanBaku40.4149.873251663.834.561663.054.561495.814.101.11
AzerbaijanLankaran38.7548.853121678.764.601678.554.601514.724.151.11
BahamasNassau25.05−77.3625−52104.475.772104.425.771958.655.371.07
BahrainManama26.2250.5926−12404.046.592404.006.592230.986.111.08
BahrainRiffa26.1350.5426−12416.546.622416.486.622245.626.151.08
BangladeshDhaka23.8190.412841916.265.251915.325.251759.414.821.09
BangladeshChittagong22.3691.782782036.815.582034.055.571872.395.131.09
BarbadosBridgetown13.11−59.6115−272107.365.772098.295.752058.165.641.02
BelgiumBrussels50.854.353901258.113.451258.113.451076.912.951.17
BelgiumSaint Hubert50.035.373601198.903.281198.903.281049.612.881.14
BelizeBelmopan17.25−88.761771907.615.231906.685.221850.785.071.03
BelizeBelize City17.50−88.201842056.075.632055.635.631983.435.431.04
BeninPort Novo6.502.6311271932.305.291927.885.281906.395.221.01
BhutanThimphu27.4789.6331−151913.665.241902.285.211704.454.671.12
BoliviaSucre−19.04−65.2623−1802433.176.672433.176.672280.766.251.07
BoliviaLa Paz−16.49−68.1221−1802285.576.262285.576.262165.625.931.06
Bosnia HerzegovinaSarajevo43.8618.4134−51431.113.921430.053.921258.743.451.14
Bosnia HerzegovinaBanja Luka44.7717.1935−41458.173.991457.453.991274.613.491.14
BotswanaGaborone−24.6325.9229−1802352.156.442352.156.442135.015.851.10
BrazilBrasilia−15.83−47.9223−1802112.595.792112.595.791997.215.471.06
BrazilRio De Janeiro−22.91−43.1724−1801872.955.131872.955.131755.274.811.07
BrazilManaus−3.12−60.027−1801780.184.881780.184.881772.994.861.00
Brunei DarussalamBandar Seri Begawan4.90114.945471849.175.071845.305.061841.855.051.00
BulgariaSofia42.7023.3235−41605.334.401605.164.401404.103.851.14
BulgariaPlovdiv42.1424.753501701.224.661701.224.661479.084.051.15
Burkina FasoOuagadougou12.37−1.521602356.426.462356.426.462282.116.251.03
Burkina FasoBanfora10.64−4.761512274.346.232274.076.232214.976.071.03
BurundiGitega−3.4329.927−1801903.715.221903.715.221893.345.191.01
BurundiBujumbura−3.3629.368−1801982.065.431982.065.431970.435.401.01
Cabo VerdePraia15.00−23.511532263.186.202262.906.202205.966.041.03
CambodiaPhnom Penh11.56104.931401932.875.301932.875.301893.755.191.02
CameroonYaounde3.8511.507351882.095.161877.845.141867.715.121.01
CameroonDouala4.059.7712431784.624.891772.884.861762.264.831.01
CanadaOttawa45.42−75.703701563.564.281563.564.281325.333.631.18
CanadaMontreal45.50−73.573751535.224.211533.934.201302.973.571.18
CanadaCalgary51.04−114.0743−41592.944.361592.134.361268.463.481.26
CanadaVancouver49.28−123.123861403.443.851401.303.841186.433.251.18
Central Afr. RepublicBangui4.3918.568212037.035.582034.985.582021.715.541.01
Central Afr. RepublicCarnot4.9415.8810252073.255.682069.335.672051.335.621.01
ChadN’Djamena12.1315.061722402.556.582402.166.582323.506.371.03
ChileArica−18.48−70.3118−1802274.326.232274.326.232193.166.011.04
ChinaGuigang23.11109.6019171400.073.841396.453.831354.503.711.03
ChinaKashgar39.4775.993622009.225.502008.935.501720.534.711.17
ChinaLhasa29.6591.1435−42305.736.322304.286.311992.225.461.16
ChinaKunming25.02102.682841745.824.781745.044.781605.724.401.09
ColombiaBogota4.71−74.07601684.994.621684.994.621678.454.601.00
ColombiaMedellin6.254−75.5765−81896.075.191895.955.191890.185.181.00
ComorosMoroni−11.7243.2513−1401892.525.181877.105.141846.075.061.02
Republic of the CongoBrazzaville−4.2715.284−1801877.585.141877.585.141874.815.141.00
Republic of the CongoOwando−0.4815.890−1801924.805.271924.805.271924.805.271.00
Democratic Republic of the CongoKinshasa−4.4415.275−1801841.025.041841.025.041837.455.031.00
Democratic Republic of the CongoLubumbashi−11.6927.5019−1802286.656.262286.656.262195.556.021.04
Costa-RicaSan José9.93−84.0914−451933.005.301908.085.231875.875.141.02
CroatiaZagreb45.8215.983521511.784.141511.634.141311.443.591.15
CroatiaZadar44.1215.233721801.184.931801.084.931530.994.191.18
CubaHavana23.11−82.3723−112094.015.742089.255.721965.965.391.06
CubaSancti Spiritus21.93−79.4423−192113.435.792102.925.761982.225.431.06
CyprusNicosia35.1933.3831−22167.725.942167.365.941928.195.281.12
CyprusLarnaca34.9033.623112164.185.932164.125.931929.965.291.12
Czech RepublicPrague50.0814.4437−11317.923.611317.883.611132.383.101.16
Czech RepublicOstrava49.8218.2638−11292.843.541292.753.541105.963.031.17
DenmarkCopenhagen55.6912.594021261.853.461261.653.461050.722.881.20
DjiboutiDjibouti City11.5743.1514112383.116.532381.316.522333.556.391.02
DominicaRoseau15.31−61.381521915.785.251915.715.251875.465.141.02
Dominican RepublicSanto Domingo18.49−69.9320−132084.805.712080.375.701989.935.451.05
Dutch-AntillesWillemstad12.11−68.931272208.676.052208.216.052171.925.951.02
EcuadorQuito−0.18−78.473−1081959.695.371952.435.351950.985.351.00
EgyptCairo30.0431.242872417.656.622416.136.622197.436.021.10
EgyptPort Said31.2632.312932316.736.352314.476.342093.575.741.11
EgyptAswan24.0932.902542669.997.322669.077.312471.276.771.08
EgyptMarsa Matruh31.3527.242762351.086.442348.956.442150.145.891.09
El SalvadorSan Salvador13.69−89.2218−182242.276.142235.026.122160.755.921.03
Equatorial GuineaMalabo3.768.788191676.424.591675.384.591664.014.561.01
EritreaAsmara15.3338.932002339.856.412339.856.412236.936.131.05
EstoniaTallinn59.4424.754111119.413.071119.313.07932.402.551.20
EstoniaTartu58.3826.734101124.623.081124.623.08943.572.591.19
EthiopiaAddis Ababa8.9738.7315−22173.715.962173.625.962118.915.811.03
EthiopiaGondar12.6037.4519−262145.845.882130.395.842054.755.631.04
FinlandHelsinki60.1724.944231125.273.081124.863.08925.592.541.22
FranceParis48.852.3538−31381.323.781380.653.781181.093.241.17
FranceLyon45.764.843711578.764.331578.744.331348.053.691.17
FranceRennes48.114−1.6693801413.593.871413.593.871210.023.321.17
FranceBordeaux44.84−0.583731608.954.411608.444.411374.993.771.17
GabonLibreville0.419.473481804.254.941802.804.941801.524.941.00
GabonFranceville−1.6213.600−1801790.854.911790.854.911790.854.911.00
GambiaBanjul13.45−16.591642288.496.272288.156.272226.596.101.03
GeorgiaTbilisi41.7044.823541737.144.761736.144.761509.044.131.15
GermanyBerlin52.5213.3838−41261.693.461261.223.461077.302.951.17
GermanyCologne50.946.9638−21257.923.451257.793.451072.062.941.17
GermanyMunich48.1411.583811372.503.761372.463.761169.593.201.17
GermanyHamburg53.559.9938−11185.433.251185.343.251011.992.771.17
GhanaAccra5.60−0.199282131.695.842126.795.832109.185.781.01
GibraltarCatalan Bay36.14−5.3431−271884.425.161845.215.061654.384.531.12
GreeceAthens37.9823.733222055.375.632055.215.631818.834.981.13
GuatemalaGuatemala City14.63−90.5118−22007.605.502007.565.501939.685.311.03
GuineaKindia10.04−12.861592135.685.852134.465.852085.935.711.02
GuineaKankan10.38−9.311592256.016.182254.546.182202.556.031.02
Guinea-BissauBissau11.86−15.581452223.356.092222.896.092169.365.941.02
GuyanaGeorgetown6.80−58.167−142004.885.492004.095.491993.375.461.01
HaitiPort-Au-Prince18.55−72.3421−162244.586.152235.806.132124.325.821.05
HondurasTegucigalpa14.07−87.171611956.365.361956.345.361905.885.221.03
HondurasCatacamas14.84−85.8814−71886.465.171885.785.171845.845.061.02
Hong KongHong Kong22.42114.1620131523.234.171520.244.171463.194.011.04
HungaryBudapest47.5019.0437−51512.044.141510.814.141298.573.561.16
HungaryDebrecen47.5321.633701502.574.121502.574.121288.643.531.17
IndiaNew Delhi28.6177.213132138.185.862137.845.861921.335.261.11
IndiaRajkot22.3070.8027−12300.666.302300.646.302108.295.781.09
IndiaJodhpur26.29373.0343002324.876.372324.876.372098.015.751.11
IndiaChennai13.0880.271532137.985.862137.875.862088.665.721.02
IndiaNagercoil8.1877.41912166.945.942166.925.942143.625.871.01
IndonesiaJakarta−6.17106.8310−1801852.985.081852.985.081835.415.031.01
IndonesiaBalikpapan−1.24116.8541141685.954.621678.054.601675.834.591.00
IranTehran35.6951.4232−22083.705.712083.355.711850.425.071.13
IranTabriz38.0946.2732−102025.045.552023.065.541795.774.921.13
IranYazd31.9054.3631−32453.826.722453.186.722183.475.981.12
IraqBaghdad33.3244.373112280.206.252280.206.252038.035.581.12
IraqMosul36.3543.153202178.965.972178.965.971928.695.281.13
IraqBasrah30.5247.802902324.756.372324.756.372117.195.801.10
IrelandDublin53.35−6.2740−31144.433.141144.213.13968.592.651.18
IrelandKilkenny52.65−7.2538−11129.483.091129.443.09973.432.671.16
IsraelHaifa32.7934.992962167.675.942165.425.931958.535.371.11
IsraelEilat29.5634.952932526.586.922525.826.922280.236.251.11
ItalyRome41.9012.503621935.185.301935.055.301653.954.531.17
ItalyCatania37.5115.0833−42049.025.612047.785.611804.484.941.13
Ivory CoastYamoussoukro6.83−5.2910362001.015.481991.395.461970.585.401.01
JamaicaKingston18.02−76.8019−242020.665.542007.255.501933.035.301.04
JordanAmman31.9535.912842313.666.342312.826.342102.645.761.10
JordanZarqa32.06336.092822315.946.352315.576.342101.665.761.10
JordanIrbid32.5635.85972268.956.222266.166.212049.045.611.11
KazakhstanNur-Sultan51.1671.4738−51442.673.951442.493.951231.443.371.17
KazakhstanZhezqazghan47.8067.7036−31646.434.511645.544.511416.893.881.16
KenyaNairobi−1.2936.82001998.165.471998.165.471998.165.471.00
KosovoPrishtina42.6621.173001613.384.421613.384.421419.473.891.14
KuwaitKuwait City29.3847.9828−12380.386.522380.376.522173.165.951.10
Kyrgyz RepublicBishkek42.8774.5735−11782.394.881782.304.881550.764.251.15
Kyrgyz RepublicJalal-Abad40.9372.9833.0021882.075.161881.775.161656.304.541.14
LaosVientiane17.98102.6323.00111961.045.371956.945.361852.995.081.06
LatviaRiga56.9524.1140−11170.303.211170.293.21982.952.691.19
LatviaDaugavpils55.8726.543801154.603.161154.603.16982.602.691.18
LebanonBeirut33.8935.5029−12113.955.792113.945.791909.465.231.11
LesothoMaseru−29.3227.4932−1782289.046.272288.996.272026.685.551.13
LiberiaMonrovia6.3210.8111251907.175.231903.235.211881.635.161.01
Libyan Arab JamahiriyaTripoli32.8913.183062267.006.212264.806.202036.145.581.11
LiechtensteinVaduz47.149.523751326.213.631324.963.631138.423.121.16
LithuaniaVilnius54.6925.2838−11150.503.151150.413.15985.762.701.17
LithuaniaKaunas54.9023.8903801180.463.231180.463.231007.242.761.17
LuxembourgLuxembourg49.616.133601282.813.511282.813.511120.823.071.14
MacedoniaSkopje42.0021.4434−21663.284.561663.144.561461.894.011.14
MacedoniaBitola41.0321.3332−61630.954.471629.714.461456.763.991.12
MalaysiaKuala Lumpur3.14101.692−661802.554.941799.804.931799.194.931.00
MalaysiaKangar6.44100.207−311945.975.331942.295.321932.415.291.01
MaliBamako12.64−8.001722332.236.392332.186.392261.856.201.03
MaltaValletta35.9014.513182098.645.752097.525.751875.205.141.12
MauritaniaNouakchott18.07−15.961962456.656.732456.086.732360.036.471.04
MauritiusPort Louis−20.1657.5020−1652079.815.702076.195.691987.615.451.04
MexicoMexico City19.43−99.1322−182211.226.062199.606.032082.585.711.06
MexicoMerida20.97−89.5921−162063.705.652056.685.631960.025.371.05
MexicoCiudad Juárez31.69−106.423102484.946.812484.946.812190.486.001.13
Moldova RepublicChisinau47.0128.8633501508.854.131508.854.131310.203.591.15
MonacoMonte Carlo43.747.4338−11895.715.191895.645.191579.614.331.20
MongoliaMandalgovi45.76106.274201895.975.191895.975.191534.754.201.24
MongoliaUlgii48.9789.97042−61751.264.801749.854.791412.413.871.24
MontenegroPodgorica42.4319.263611854.695.081854.665.081581.324.331.17
MoroccoRabat34.02−6.843172196.626.022192.836.011947.565.341.13
MoroccoCasablanca33.57−7.593262216.546.072213.906.071963.285.381.13
MozambiqueMaputo−25.9732.57291682082.815.712074.425.681884.705.161.10
MozambiqueLichinga−13.3035.2517−1641996.185.471992.875.461933.835.301.03
MyanmarNaypyitaw19.7696.142652180.175.972179.515.972019.555.531.08
Myanmar‘Yangon16.8096.1624−21975.385.411975.275.411852.945.081.07
NamibiaWindhoek−22.5717.0827−1732473.436.782471.356.772266.396.211.09
NepalKathmandu27.7285.3232−22083.445.712083.185.711855.305.081.12
NetherlandsAmsterdam52.374.893841245.273.411244.873.411064.772.921.17
NetherlandsMaastricht50.855.693801265.563.471265.563.471079.982.961.17
NicaraguaManagua12.15−86.2816−122202.596.032199.976.032139.885.861.03
NicaraguaRivas11.44−85.831412113.395.792113.385.792066.005.661.02
NigerNiamey13.522.131862414.856.622413.946.612331.026.391.04
NigeriaAbuja9.067.4915122110.165.782107.845.772053.465.631.03
NigeriaLagos6.453.4011301943.485.321937.035.311915.625.251.01
NorwayOslo59.9110.754311130.683.101130.573.10910.762.501.24
NorwayTromsø69.6518.96499906.422.48905.732.48713.851.961.27
OmanMuscat23.6058.5425−12495.076.842494.986.842321.496.361.07
OmanSalalah17.0254.102142383.356.532382.766.532258.856.191.05
PakistanIslamabad33.6973.063322099.785.752099.365.751847.455.061.14
PakistanKarachi24.8667.012842377.526.512376.656.512168.845.941.10
PalestineJerusalem31.7835.312822275.056.232274.886.232076.645.691.10
PalestineGaza31.5334.4628102299.916.302294.366.292079.075.701.10
PanamaPanama City8.98−79.5211−351747.424.791739.504.771718.604.711.01
ParaguayAsuncion−25.29−57.6223−1701890.385.181887.575.171778.814.871.06
PeruLima−12.0577.04101551761.394.831757.434.811741.464.771.01
PolandWarsaw52.2321.0138−31273.843.491273.693.491086.432.981.17
PolandBielsko-Biala49.8219.0638−21255.063.441254.913.441073.012.941.17
PolandGdynia54.5218.554001249.853.421249.853.421051.692.881.19
PortugalLisbon38.72−9.143351994.315.461992.695.461751.204.801.14
QatarDoha25.2951.532502431.346.662431.346.662266.096.211.07
RomaniaBucharest44.4326.103451610.984.411610.024.411406.153.851.14
RomaniaCraiova44.31523.8283541642.534.501641.274.501431.193.921.15
RomaniaBotoșani47.7426.673221451.103.981450.933.981252.323.431.16
RussiaSaint Petersburg59.9430.324131076.882.951076.412.95897.412.461.20
RussiaOmsk54.9973.3640−31326.813.641326.343.631105.673.031.20
RussiaBarnaul53.3583.7840−11355.123.711355.103.711136.973.111.19
RussiaMurmansk68.9733.0947−5866.532.37865.442.37684.001.871.27
RwandaKigali−1.9430.064−1671930.065.291929.855.291926.685.281.00
Saint Kitts And NevisBasseterre17.30−62.7219−162136.255.852130.805.842051.045.621.04
Saint LuciaCastries14.01−60.9915−192104.185.762098.575.752046.025.611.03
San MarinoSan Marino43.9412.453491592.044.361587.174.351394.673.821.14
Sao Tome & PrincipeSao Tome0.346.73101908.005.231908.005.231907.915.231.00
Saudi ArabiaRiyadh24.6346.722512493.586.832493.486.832318.876.351.08
Saudi ArabiaJeddah21.5839.1722152488.386.822479.296.792344.206.421.06
Saudi ArabiaJazan16.8942.571902394.386.562394.386.562300.996.301.04
Saudi ArabiaArar30.9841.022902456.956.732456.956.732212.616.061.11
SenegalDakar14.72−17.471722322.376.362322.266.362252.596.171.03
SerbiaBelgrade44.8220.473601579.564.331579.564.331366.203.741.16
SeychellesVictoria48.43−123.373751547.904.241546.054.241317.543.611.17
Sierra LeoneKoidu8.62−10.9613262068.935.672063.045.652027.235.551.02
SingaporeSingapore1.29103.84001733.094.751733.094.751733.094.751.00
SlovakiaBratislava48.1517.113701466.304.021466.304.021256.993.441.17
SlovakiaŽilina49.2218.7437−21286.533.521286.413.521108.483.041.16
SloveniaLjubljana46.0514.5134121428.333.911420.873.891247.253.421.14
SomaliaMogadishu2.0545.323142427.886.652427.646.652423.506.641.00
SomaliaBorama9.9443.1814−242459.726.742450.996.722397.806.571.02
South SudanJuba4.8531.598162165.235.932163.935.932147.555.881.01
South SudanRenk11.7532.81118132325.216.372320.936.362240.346.141.04
South AfricaJohannesburg−26.2028.05301802256.506.182256.506.182020.485.541.12
South AfricaDurban−29.85530.985331781923.655.271922.635.271694.334.641.13
South AfricaCape Town−33.9318.42301732160.455.922157.755.911944.015.331.11
SpainMadrid40.42−3.703632099.175.752098.865.751788.134.901.17
SpainBarcelona41.392.173721972.305.401971.635.401662.814.561.19
SpainMálaga36.72−4.433452142.655.872141.035.871869.345.121.15
Sri-LankaColombo6.9379.868−92109.745.782109.315.782094.875.741.01
Sri-LankaJaffna9.6680.038−82153.395.902153.055.902138.775.861.01
St. Vincent/GrenadinesKingstown13.16−61.2314−172083.325.712079.135.702035.395.581.02
SudanKhartoum15.5932.541942543.616.972542.196.962435.336.671.04
SudanEl Obeid13.1830.221862458.616.742457.596.732367.666.491.04
SurinameParamaribo5.85−55.206−531946.845.331937.575.311930.375.291.00
SwazilandMbabane−26.3131.14311771928.835.281927.795.281724.974.731.12
SwedenStockholm59.3318.074311172.533.211172.503.21961.012.631.22
SwedenLuleå65.5822.1648−31188.993.261188.743.26908.702.491.31
SwitzerlandBern46.957.454121592.634.361592.594.361291.083.541.23
Syrian Arab RepublicDamascus33.5136.2831−82335.496.402334.016.392073.875.681.13
Syrian Arab RepublicHoms34.7336.7163072190.916.002187.955.991964.105.381.11
Syrian Arab RepublicAleppo36.2037.1333−62160.635.922160.105.921894.685.191.14
TajikistanDushanbe38.5668.7931−41867.175.121866.305.111665.904.561.12
TanzaniaDodoma−6.1635.7581602365.456.482362.996.472346.136.431.01
TanzaniaSongea−10.6535.64121682025.615.552024.035.551994.465.461.01
ThailandBangkok13.76100.501701994.135.461994.135.461935.705.301.03
ThailandMueang Chiang Rai19.9199.842592009.075.502006.425.501880.235.151.07
TogoLome6.131.239202135.785.852133.335.842112.995.791.01
TogoDapaong10.870.201652271.336.222270.776.222207.946.051.03
Trinidad and TobagoPort of Spain10.66−61.5111−371973.875.411961.975.381938.355.311.01
TunisiaTunis36.8110.183222055.495.632054.985.631824.575.001.13
TurkeyAnkara39.9332.8632−41856.345.091855.515.081642.724.501.13
Turkeyİstanbul41.0128.9732111746.384.781741.664.771551.904.251.12
TurkeyHakkâri37.5843.7429−51896.315.201895.595.191722.174.721.10
TurkmenistanAshgabat37.9458.393201975.895.411975.895.411752.514.801.13
UgandaKampala0.3532.581741955.525.361953.955.351953.695.351.00
UkraineKyiv50.4530.523611357.973.721357.933.721173.623.221.16
UkraineLviv49.84824.0333711304.113.571304.033.571123.403.081.16
UkraineOdessa46.4830.723541574.724.311574.144.311366.413.741.15
United StatesWashington, D.C38.91−77.043511763.084.831762.924.831525.774.181.16
United StatesMinot, ND48.23−101.294251674.014.591673.384.581359.813.731.23
United StatesSan Antonio, TX29.42−98.492872023.095.542020.545.541851.565.071.09
United StatesLos Angeles, CA34.05−118.2432122247.356.162238.746.131966.445.391.14
United Arab EmiratesAbu Dhabi24.4354.652512481.466.802481.386.802309.426.331.07
United Arab EmiratesDubai25.2755.302512457.386.732457.366.732277.896.241.08
United KingdomLondon51.507−0.12839−31227.623.361227.423.361046.302.871.17
United KingdomYork53.96−1.08740−11142.403.131142.343.13967.712.651.18
United KingdomTruro50.26−5.053761269.163.481268.193.471097.533.011.16
UruguayMontevideo−34.91−56.1930−1771802.714.941801.844.941622.854.451.11
UruguayTacuarembo−31.711−55.96429−1761814.574.971814.474.971664.214.561.09
UzbekistanTashkent41.3069.243301924.705.271924.705.271692.184.641.14
Vatican CityVatican City41.9012.453621935.255.301935.145.301653.964.531.17
VenezuelaCaracas10.48−66.9011−171952.145.351949.935.341927.485.281.01
VenezuelaAmazonas2.81−65.10401998.585.481998.585.481995.505.471.00
VietnamHanoi21.03105.8316281483.034.061475.954.041446.403.961.02
VietnamCà Mau9.18105.1511−251849.865.071845.965.061826.085.001.01
YemenSana’A15.3744.1919−232384.736.532370.256.492275.926.241.04
YemenAden12.7945.021552430.156.662429.766.662365.056.481.03
ZambiaLusaka−15.4228.2922−1762252.386.172252.056.172137.475.861.05
ZimbabweHarare−17.8331.0324−1742270.506.222269.356.222131.285.841.06
Table
Table A2. In-sample and out-of-sample proposed model performance.
Table A2. In-sample and out-of-sample proposed model performance.
Location CoordinatesCalculated Model Using PVGIS Proposed Model Using Neural Network
CountryCityLatitude (deg.)Longitude (deg.)Optimum Tilt Angle
(deg.)		Azimuth Angle
(deg.)		AR1
(kWh/m2)		AR2
(kWh/m2)		AR3
(kWh/m2)		Optimum Tilt Angle
(deg.)		Azimuth Angle
(deg.)		AR1
(kWh/m2)		AR2
(kWh/m2) 		AR3
(kWh/m2)
In-Sample Testing Set
SwedenLuleå65.5822.1648−31188.991188.74908.748.03−3.13812191219925.5
AustraliaGeraldton−28.78114.6128−1802301.12301.12092.1328−180230123012092
NorwayTromsø69.6518.96499906.42905.73713.8548.8210.86848.8860.8703.4
RwandaKigali−1.9430.064−1671930.061929.851926.684.059−167.3194019331916
BrazilRio De Janeiro−22.91−43.1724−1801872.951872.951755.2724−180187318731755
BurundiBujumbura−3.3629.368−1801982.061982.061970.437.978−179.9197419731964
IraqMosul36.3543.153202178.962178.961928.6932−0.1384218821881936
SpainMálaga36.72−4.433452142.652141.031869.34344.687215621571870
ChileArica−18.48−70.3118−1802274.322274.322193.1618.08−180223722412161
FinlandHelsinki60.1724.944231125.271124.86925.5941.923.34211401141927.7
SomaliaMogadishu2.0545.323142427.882427.642423.52.82714.29240523822381
MalaysiaKuala Lumpur3.14101.692−661802.551799.81799.191.942−65.99178317851773
SurinameParamaribo5.85−55.206−531946.841937.571930.376.055−53.1190718941894
BeninPort Novo6.502.6311271932.31927.881906.3911.0527.2192319181897
IndiaNagercoil8.1877.41912166.942166.922143.628.9861.572212321332108
Sri-LankaJaffna9.6680.038−82153.392153.052138.778.038−8.211217321652157
ChinaGuigang23.11109.6019171400.071396.451354.518.9917.11139213891347
Lebanon Beirut33.8935.5029−12113.952113.941909.4629.07−1.031211821181912
Malta Valletta35.9014.513182098.642097.521875.231.037.936210521041883
United StatesWashington, D.C38.91−77.043511763.081762.921525.7734.850.6785171216891552
ItalyRome41.9012.503621935.181935.051653.9536.132.23192519241645
CroatiaZadar44.1215.233721801.181801.081530.9936.992.03179917991530
CanadaOttawa45.42−75.703701563.561563.561325.3336.950.0682156315601341
LiechtensteinVaduz47.149.523751326.211324.961138.42374.99132613251139
GermanyMunich48.1411.583811372.51372.461169.5937.991.023137313731170
BelizeBelmopan17.25−88.761771907.611906.681850.78177.008190719061850
BhutanThimphu27.4789.6331−151913.661902.281704.4531.06−15.16192619131711
AustraliaKarratha−20.73116.8423−1802490.052490.052343.4922.99−180.9252024942339
South AfricaJohannesburg−26.2028.05301802256.52256.52020.4829.94179.8226222652026
NamibiaWindhoek−22.5717.0827−1732473.432471.352266.3926.99−173.1246624682256
Out-of-Sample Testing Set
EgyptPort Said31.26332.3082932316.732314.472093.5728.983231523132093
JordanZarqa32.06336.092822315.942315.572101.6627.322.042247424772226
Syrian Arab RepublicHoms34.7336.7163072190.912187.951964.1306.999219121881964
RomaniaCraiova44.31523.8283541642.531641.271431.19354.001164316411431
UkraineLviv49.84824.0333711304.111304.031123.4371130413041123
South AfricaDurban−29.85530.985331781923.651922.631694.3333178192419231694
FranceRennes48.114−1.6693801413.591413.591210.02380.00012141414141210
ColombiaMedellin6.254−75.5765−81896.071895.951890.185−8189618961890
IndiaJodhpur26.29373.0343002324.872324.872098.01300.0005232523252098
UruguayTacuarembo−31.711−55.96429−1761814.571814.471664.2129−176181518141664
AR1: annual irradiation (kWh/m2) at optimum tilt angle and orientation. AR2: annual irradiation (kWh/m2) at optimum tilt angle (azimuth angle = 0 for Northern Hemisphere and 180 for Southern). AR3: annual irradiation (kWh/m2) at horizontal surface. DR1: daily average irradiation (kWh/m2/day) at optimum tilt angle and orientation. DR2: daily average irradiation (kWh/m2/day) at optimum tilt angle (azimuth angle = 0 for Northern Hemisphere and 180 for Southern). DR3: daily average irradiation (kWh/m2/day) at horizontal surface.

References

  1. Hernandez-Escobedo, Q.; Rodriguez-Garcia, E.; Saldaña-Flores, R.; Fernández-García, A.; Manzano-Agugliaro, F. Solar energy resource assessment in Mexican states along the Gulf of Mexico. Renew. Sustain. Energy Rev. 2015, 43, 216–238. [Google Scholar] [CrossRef]
  2. Hailu, G.; Fung, A.S. Optimum tilt angle and orientation of photovoltaic thermal system for application in greater Toronto area, Canada. Sustainability 2019, 11, 6443. [Google Scholar] [CrossRef] [Green Version]
  3. REN21. Renewables 2020 Global Status Report. Paris: REN21 Secretariat. 2020. Available online: https://www.ren21.net/wp-content/uploads/2019/05/gsr_2020_full_report_en.pdf (accessed on 1 December 2020).
  4. United Nations General Assembly. Transforming our World: The 2030 Agenda for Sustainable Development; Division for Sustainable Development Goals: New York, NY, USA, 2015; pp. 1–35. [Google Scholar]
  5. Dholakia, H.H. Solar powered healthcare in developing countries. Nat. Energy 2018, 3, 705–707. [Google Scholar] [CrossRef]
  6. Green, M.A.; Dunlop, E.D.; Levi, D.H.; Hohl-Ebinger, J.; Yoshita, M.; Ho-Baillie, A.W. Solar cell efficiency tables (version 56). Prog. Photovolt. Res. Appl. 2020, 28, 629–638. [Google Scholar] [CrossRef]
  7. Salameh, T.; Tawalbeh, M.; Juaidi, A.; Abdallah, R.; Issa, S.; Alami, A.H. A novel numerical simulation model for the PVT water system in the GCC region. In Proceedings of the 2020 Advances in Science and Engineering Technology International Conferences (ASET), Rome, Italy, 10–11 December 2020; pp. 1–5. [Google Scholar]
  8. Abdallah, R.; Juaidi, A.; Assad, M.; Salameh, T.; Manzano-Agugliaro, F. Energy Recovery from Waste Tires Using Pyrolysis: Palestine as Case of Study. Energies 2020, 13, 1817. [Google Scholar] [CrossRef] [Green Version]
  9. Salameh, T.; Tawalbeh, M.; Juaidi, A.; Abdallah, R.; Hamid, A.-K. A novel three-dimensional numerical model for PV/T water system in hot climate region. Renew. Energy 2020, 164, 1320–1333. [Google Scholar] [CrossRef]
  10. Hafez, A.; Soliman, A.; El-Metwally, K.; Ismail, I. Tilt and azimuth angles in solar energy applications—A review. Renew. Sustain. Energy Rev. 2017, 77, 147–168. [Google Scholar] [CrossRef]
  11. Despotovic, M.; Nedic, V. Comparison of optimum tilt angles of solar collectors determined at yearly, seasonal and monthly levels. Energy Convers. Manag. 2015, 97, 121–131. [Google Scholar] [CrossRef]
  12. Juaidi, A.; Montoya, F.G.; Ibrik, I.H.; Manzano-Agugliaro, F. An overview of renewable energy potential in Palestine. Renew. Sustain. Energy Rev. 2016, 65, 943–960. [Google Scholar] [CrossRef]
  13. Juaidi, A.; Montoya, F.G.; Gázquez, J.A.; Manzano-Agugliaro, F. An overview of energy balance compared to sustainable energy in United Arab Emirates. Renew. Sustain. Energy Rev. 2016, 55, 1195–1209. [Google Scholar] [CrossRef]
  14. Chen, X.M.; Li, Y.; Zhao, B.Y.; Wang, R.Z. Are the optimum angles of photovoltaic systems so important? Renew. Sustain. Energy Rev. 2020, 124, 109791. [Google Scholar] [CrossRef]
  15. Castellano, N.N.; Parra, J.A.G.; Valls-Guirado, J.; Manzano-Agugliaro, F. Optimal displacement of photovoltaic array’s rows using a novel shading model. Appl. Energy 2015, 144, 1–9. [Google Scholar] [CrossRef]
  16. Takilalte, A.; Harrouni, S.; Yaiche, M.R.; Mora-López, L. New approach to estimate 5-min global solar irradiation data on tilted planes from horizontal measurement. Renew. Energy 2020, 145, 2477–2488. [Google Scholar] [CrossRef]
  17. Novas, N.; Fernández-García, A.; Manzano-Agugliaro, F. A Simplified Method to Avoid Shadows at Parabolic-Trough Solar Collectors Facilities. Symmetry 2020, 12, 278. [Google Scholar] [CrossRef] [Green Version]
  18. Racharla, S.; Rajan, K. Solar tracking system—A review. Int. J. Sustain. Eng. 2017, 10, 72–81. [Google Scholar]
  19. Mousazadeh, H.; Keyhani, A.; Javadi, A.; Mobli, H.; Abrinia, K.; Sharifi, A. A review of principle and sun-tracking methods for maximizing solar systems output. Renew. Sustain. Energy Rev. 2009, 13, 1800–1818. [Google Scholar] [CrossRef]
  20. Abdallah, R.; Juaidi, A.; Abdel-Fattah, S.; Manzano-Agugliaro, F. Estimating the Optimum Tilt Angles for South-Facing Surfaces in Palestine. Energies 2020, 13, 623. [Google Scholar] [CrossRef] [Green Version]
  21. Smith, C.J.; Forster, P.M.; Crook, R. An all-sky radiative transfer method to predict optimal tilt and azimuth angle of a solar collector. Sol. Energy 2016, 123, 88–101. [Google Scholar] [CrossRef] [Green Version]
  22. Le Roux, W.G. Optimum tilt and azimuth angles for fixed solar collectors in South Africa using measured data. Renew. Energy 2016, 96, 603–612. [Google Scholar] [CrossRef] [Green Version]
  23. Fouad, M.; Shihata, L.A.; Morgan, E.I. An integrated review of factors influencing the performance of photovoltaic panels. Renew. Sustain. Energy Rev. 2017, 80, 1499–1511. [Google Scholar] [CrossRef]
  24. Photovoltaic Geographical Information System. European Commission. PVGIS (2019). Available online: https://re.jrc.ec.europa.eu/pvg_tools/en/tools.html (accessed on 1 December 2020).
  25. Mira, J. Symbols versus connections: 50 years of artificial intelligence. Neurocomputing 2008, 71, 671–680. [Google Scholar] [CrossRef]
  26. Jyothi, J.; Veena, M.B. An Efficient and Smart Control of Solar Panel Orientation using Machine Learning. In Proceedings of the 2019 Global Conference for Advancement in Technology (GCAT), Bangalore, India, 18–20 October 2019; pp. 1–5. [Google Scholar]
  27. Kim, G.Y.; Han, D.S.; Lee, Z. Solar Panel Tilt Angle Optimization Using Machine Learning Model: A Case Study of Daegu City, South Korea. Energies 2020, 13, 529. [Google Scholar] [CrossRef] [Green Version]
  28. El-Kassaby, M. Monthly and daily optimum tilt angle for south facing solar collectors; theoretical model, experimental and empirical correlations. Sol. Wind. Technol. 1988, 5, 589–596. [Google Scholar] [CrossRef]
  29. Morcos, V. Optimum tilt angle and orientation for solar collectors in Assiut, Egypt. Renew. Energy 1994, 4, 291–298. [Google Scholar] [CrossRef]
  30. Hartley, L.E.; Lozano, J.A.M.; Utrillas, M.; Tena, F.; Pedrós, R. The optimisation of the angle of inclination of a solar collector to maximise the incident solar radiation. Renew. Energy 1999, 17, 291–309. [Google Scholar] [CrossRef] [Green Version]
  31. Yakup, M.A.B.H.M.; Malik, A. Optimum tilt angle and orientation for solar collector in Brunei Darussalam. Renew. Energy 2001, 24, 223–234. [Google Scholar] [CrossRef]
  32. Tang, R.; Wu, T. Optimal tilt-angles for solar collectors used in China. Appl. Energy 2004, 79, 239–248. [Google Scholar] [CrossRef]
  33. Ulgen, K. Optimum tilt angle for solar collectors. Energy Sources Part A Recovery Util. Environ. Eff. 2006, 28, 1171–1180. [Google Scholar] [CrossRef]
  34. Skeiker, K. Optimum tilt angle and orientation for solar collectors in Syria. Energy Convers. Manag. 2009, 50, 2439–2448. [Google Scholar] [CrossRef]
  35. Talebizadeh, P.; Mehrabian, M.A.; Abdolzadeh, M. Determination of Optimum Slope Angles of Solar Collectors Based on New Correlations. Energy Sources Part A Recovery Util. Environ. Eff. 2011, 33, 1567–1580. [Google Scholar] [CrossRef]
  36. Darhmaoui, H.; Lahjouji, D. Latitude Based Model for Tilt Angle Optimization for Solar Collectors in the Mediterranean Region. Energy Procedia 2013, 42, 426–435. [Google Scholar] [CrossRef] [Green Version]
  37. Khasawneh, Q.A.; Damra, Q.A.; Salman, B.; Husni, O. Determining the Optimum Tilt Angle for Solar Applications in Northern Jordan. Jordan J. Mech. Ind. Eng. 2015, 9, 187–193. [Google Scholar]
  38. Hartner, M.; Ortner, A.; Hiesl, A.; Haas, R. East to west—The optimal tilt angle and orientation of photovoltaic panels from an electricity system perspective. Appl. Energy 2015, 160, 94–107. [Google Scholar] [CrossRef]
  39. Safdarian, F.; Nazari, M.E. Optimal tilt angle and orientation for solar collectors in Iran. In Proceedings of the 2015 IEEE 10th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives (SDEMPED), Guarda, Portugal, 1–4 September 2015; pp. 494–500. [Google Scholar]
  40. Berisha, X.; Zeqiri, A.; Meha, D. Solar Radiation–The Estimation of the Optimum Tilt Angles for South-Facing Surfaces in Pristina. 2017. Available online: https://www.google.com.hk/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&ved=2ahUKEwjZoeyVo7PtAhUOA4gKHWNoBC0QFjAEegQIAhAC&url=https%3A%2F%2Fwww.preprints.org%2Fmanuscript%2F201708.0010%2Fv1%2Fdownload&usg=AOvVaw3wBnBGjwMOe3yc41wJimo6 (accessed on 1 December 2020).
  41. Guo, M.; Zang, H.; Gao, S.; Chen, T.; Xiao, J.; Cheng, L.; Wei, Z.; Sun, G. Optimal Tilt Angle and Orientation of Photovoltaic Modules Using HS Algorithm in Different Climates of China. Appl. Sci. 2017, 7, 1028. [Google Scholar] [CrossRef] [Green Version]
  42. Jacobson, M.Z.; Jadhav, V. World estimates of PV optimal tilt angles and ratios of sunlight incident upon tilted and tracked PV panels relative to horizontal panels. Sol. Energy 2018, 169, 55–66. [Google Scholar] [CrossRef]
  43. Abdulsalam, H.S.; Alibaba, H.Z. Optimum Tilt Angle for Photovoltaic Panels in Famagusta, Cyprus. IJSSHR 2019, 7, 29–35. [Google Scholar]
  44. Sahu, S.K.; Tripathi, N.; Tripathi, S. A model driven optimization approach to determine tilt angle of solar collector in India. Int. J. Adv. Res. Eng. Technol. 2019, 10, 2019. [Google Scholar] [CrossRef]
  45. Adu, T.F.; Anto, E.K.; Ramde, E.; Mensah, L.D. Determination of Optimum Tilt Angle for Rooftop Solar Photovoltaic System Installation for KikuKinderhaus in Kumasi. Int. J. Energy Environ. Sci. 2020, 5, 7. [Google Scholar] [CrossRef]
  46. Kallioğlu, M.A.; Durmuş, A.; Karakaya, H.; Yılmaz, A. Empirical calculation of the optimal tilt angle for solar collectors in northern hemisphere. Energy Sources Part A Recovery Util. Environ. Eff. 2020, 42, 1335–1358. [Google Scholar] [CrossRef]
  47. Pourfayaz, F.; Shirmohammadi, R.; Maleki, A.; Kasaeian, A. Improvement of solar flat-plate collector performance by optimum tilt angle and minimizing top heat loss coefficient using particle swarm optimization. Energy Sci. Eng. 2020, 8, 2771–2783. [Google Scholar] [CrossRef] [Green Version]
  48. Sugirianta, I.B.K.; Sunaya, I.; Saputra, I. Optimization of tilt angle on-grid 300Wp PV plant model at Bukit Jimbaran Bali. J. Phys. Conf. Ser. 2020, 1450, 012135. [Google Scholar] [CrossRef] [Green Version]
  49. Alyami, F.H.; Gomez, P. Semi-Seasonally Optimized Tilt Angles for Design of Utility-Scale Photovoltaic Generation Station. In Proceedings of the 2020 IEEE Texas Power and Energy Conference (TPEC), College Station, TX, USA, 6–7 February 2020; pp. 1–5. [Google Scholar]
  50. Schuster, C.S. The quest for the optimum angular-tilt of terrestrial solar panels or their angle-resolved annual insolation. Renew. Energy 2020, 152, 1186–1191. [Google Scholar] [CrossRef]
  51. CM SAF: Climate Monitoring Satellite Application Facility. Available online: https://www.cmsaf.eu/EN/Home/home_node.html (accessed on 1 December 2020).
  52. NREL: National Solar Radiation Database. Available online: https://nsrdb.nrel.gov/data-sets/archives.html (accessed on 1 December 2020).
  53. ECMWF: European Centre for Medium-Range Weather Forecasts. Available online: https://www.ecmwf.int/en/forecasts/documentation-and-support/medium-range-forecasts (accessed on 1 December 2020).
  54. Negnevitsky, M. Artificial Intelligence: A Guide to Intelligent Systems; Addison-Wesley: Boston, MA, USA, 2004. [Google Scholar]
  55. Yu, H.; Wilamowski, B.M. Levenberg–Marquardt Training. In The Industrial Electronics Handbook, 2nd ed.; Intelligent Systems; CRC Press: Boca Raton, FL, USA, 2011; Volume 5, Available online: http://www.eng.auburn.edu/~{}wilambm/pap/2011/K10149_C012.pdf (accessed on 1 December 2020).
  56. Jayalakshmi, T.; Santhakumaran, A. Statistical normalization and back propagation for classification. Int. J. Comput. Theory Eng. 2011, 3, 1793–8201. [Google Scholar]
  57. Cömert, Z.; Kocamaz, A.F. A Study of Artificial Neural Network Training Algorithms for Classification of Cardiotocography Signals. Bitlis Eren Univ. J. Sci. Technol. 2017, 7, 93–103. [Google Scholar] [CrossRef]
  58. Samara, S.; Natsheh, E. Intelligent Real-Time Photovoltaic Panel Monitoring System Using Artificial Neural Networks. IEEE Access 2019, 7, 50287–50299. [Google Scholar] [CrossRef]
  59. Breyer, C.; Schmid, J. Global Distribution of optimal Tilt Angles for fixed tilted PV Systems. In Proceedings of the 25th European Photovoltaic Solar Energy Conference/WCPEC-5, Valencia, Spain, 6–10 September 2010. [Google Scholar]
  60. Zsiborács, H.; Bai, A.; Popp, J.; Gabnai, Z.; Pályi, B.; Farkas, I.; Baranyai, N.H.; Veszelka, M.; Zentkó, L.; Pintér, G. Change of Real and Simulated Energy Production of Certain Photovoltaic Technologies in Relation to Orientation, Tilt Angle and Dual-Axis Sun-Tracking. A Case Study in Hungary. Sustainability 2018, 10, 1394. [Google Scholar] [CrossRef] [Green Version]
  61. Raskutti, G.; Wainwright, M.J.; Yu, B. Early stopping for non-parametric regression: An optimal data-dependent stopping rule. In Proceedings of the 2011 49th Annual Allerton Conference on Communication, Control, and Computing (Allerton), Monticello, IL, USA, 28–30 September 2011; pp. 1318–1325. [Google Scholar]
Energies 13 06422 g001 550
Figure 1. The places where the training data are collected.
Figure 1. The places where the training data are collected.
Energies 13 06422 g001
Energies 13 06422 g002 550
Figure 2. Methodology used to develop the feed-forward neural networks (FFNN) model.
Figure 2. Methodology used to develop the feed-forward neural networks (FFNN) model.
Energies 13 06422 g002
Energies 13 06422 g003 550
Figure 3. One hidden layer neural network structure.
Figure 3. One hidden layer neural network structure.
Energies 13 06422 g003
Energies 13 06422 g004 550
Figure 4. The developed neural network topology.
Figure 4. The developed neural network topology.
Energies 13 06422 g004
Energies 13 06422 g005 550
Figure 5. Levenberg Marquardt algorithm.
Figure 5. Levenberg Marquardt algorithm.
Energies 13 06422 g005
Energies 13 06422 g006 550
Figure 6. Regression of error for both stage 1 and 2 networks model.
Figure 6. Regression of error for both stage 1 and 2 networks model.
Energies 13 06422 g006
Table
Table 1. Shows the optimum tilt angles using different methods for several countries worldwide from 1988 to 2020.
Table 1. Shows the optimum tilt angles using different methods for several countries worldwide from 1988 to 2020.
Country or RegionCityLatitude (φ)
(°)		Optimum Tilt Angle (β) (°) AnnuallyReference
JordanMu’tah31.728.5A mathematical model is developed [28].
EgyptAssiut27.227Moncos (1994) developed a mathematical model [29].
SpainValencia28.531The Hay model was used to assess the hourly variance of the optimal tilt angle for a solar collector facing south and to measure the annual average of this angle [30].
DarussalamBrunei4.53.3A mathematical model was used [31].
ChinaBeijing39.939.2A mathematical model is developed [32].
Kunming24.927.9
Shanghai31.228
Guangzhou23.122
Chengdu30.623
Xi’an34.330.1
Yinchuang38.538.3
Shenyang41.840.3
TurkeyIzmir38.4June: 0
December: 61		A mathematical model is developed [33].
SyriaDamascus 33.530.56A mathematical model is used [34].
IranZahedan 29.526.70A more precise equation than the Nijegorodov one is formed to measure the monthly optimum tilt angle using a new correlation for each month [35].
Birjand 32.929.93
Shraz 52.925.88
Tabas 33.630.16
Yazd 31.929.05
Kerman 36.723.95
Mediterranean RegionGaza Strip (Palestine)31.532.1As a function of the tilt angle, a mathematical model is used to measure the solar radiation on a tilted surface [36].
Damascus (Syria)33.533.7
Beirut (Lebanon)33.933.8
Tunis (Tunisia)33.935.2
Seville (Spain)37.436.6
Milan (Italy)45.541.8
Summer: β = φ − 15°
Winter: β = φ + 15°
JordanNorthern Jordan32.5°30
Summer: 10
Winter: 50		Based on the results of the PVsyst simulation for Northern Jordan [37].
Austria and GermanyGermany 51.230–45A PV-simulation model is provided for the measurement of angle-dependent PV performance.
For Germany and Austria, a linear power and simplified dispatch model was calibrated and used [38].
Austria47.530–45
IranTehran35.735.7For measuring solar radiation on a tilted surface, a mathematical model is suggested.
The maximum angle of incidence is detected using the Gravitational Search Algorithm (GSA) [39].
Isfahan36.532
Shiraz 29.629.4
Mashhad36.336.2
Tabriz38.138
KosovoPristina42.734.7
Summer: 8.9
Spring: 25.7
Autumn: 50.9
Winter: 62.1		Based on isotropic sky analysis models, namely Liu and Jordan models, the incident plane’s solar radiation is calculated [40].
ChinaSanya11.5−18 (June) to 49.9 (Dec.)The algorithm Harmony (meta-heuristic) determines the azimuth angle and optimum tilt [41]. The findings are built on the ergodic mechanism [41].
Shanghai31.2−7.6 (June) to 61.4 (Dec.)
Zhengzhou34.75.5 (June) to 64.3 (Dec.)
Harbin45.812.6 (June) to 73.7 (Dec.)
Mohe52.916.6 (June) to 80.0 (Dec.)
Lhasa29.7−8.9 (June) to 59.9 (Dec.)
All
Countries Worldwide		Canada (Montreal)45.537This study uses the PVWatts program to calculate the optimal tilt angles for all countries worldwide [42].
Bordeaux (France)44.833
Cologne (Germany)50.932
Hong Kong22.420
Rajko (India)42.124
Beek (Netherlands)50.934
Castellón (Spain)39.136
Austin, TX (United States)30.328
London (United Kingdom)51.534
Jerusalem (Palestine)31.828
Casablanca (Morocco)33.628
Beirut (Lebanon)33.928
Kuwait City (Kuwait)29.326
Amman (Jordan)31.928
Tehran (Iran)35.6831
Aswan (Egypt)24.124
Abu Dhabi (United Arab Emirates)24.525
CyprusFamagusta35.128 to 30
Summer: 20
Winter: 50		PV simulation software will be used to determine the average solar radiation on different tilt. From this, to assess an optimal tilt angle, the peak annual average solar radiation shall be obtained on various tilted surfaces [43].
PalestineWest Bank
Gaza Strip		31.9291. For determining the optimum tilt angle, a mathematical model is used [20].
2. PVWatts3. PVGIS
India AnalyticalPSO Estimator1. To find an optimal tilt angle, a model-driven optimization focus has been proposed, such as a particle swarm optimization (PSO) estimator [44]
2. Analytical method
Minicoy8.311.0010.51
Ahmadabad23.026.0025.83
New Delhi28.627.0026.92
GhanaKumasi6.710System simulation RETScreen 4.
For all the three systems’ orientation, the electrical energy output produced by the solar module was calculated [45].
TurkeyAntalya36.9Winter: β = φ + 17°
Spring: β = φ – 18°
Summer: β = φ – 34°
Autumn: β = φ + 7°
Annual: β = φ – 7°		For the Northern Hemisphere and sample provinces, various mathematical models have been developed. PVGIS, NASA, and other approaches [46].
Kayseri38.7
Trabzon41.0
IranBandar Abbas27.1318.84The optimal tilt angle is calculated using a distributed software developed on MATLAB. Based on particle swarm optimization (PSO) approach [47].
Yazd 31.5421.47
Isfahan 32.5722.04
Tehran 35.4123.59
Urmia 37.3223.27
β = 0.4663φ + 6.5489°
IndonesiaBukit Jimbaran Bali5.4φ from 12–18 in the azimuth of 0.
(Apr. to Sep.): 32
(Oct. to Mar.): 24		Simulations found that for fixed solar panels in a year. Data of solar radiation and the simulation of PV system are from Metronome 7.2 [48].
USAEaton County, Michigan39.742.7Oracle Crystal Ball program using Microsoft Excel (OptQuest Solver Engine) was used to calculate optimal tilt angles [49].
South KoreaDaegu City35.9 1 to 29Optimization model using machine learning algorithms: Gradient Boosting Algorithm [27].
NorwayTrondheim63.452A proposed approach to use real historical solar spectra to test a panel’s tilt at a given location rigorously [50].
FranceParis48.943
EgyptCairo30.029
KenyaNairobi−1.33
Table
Table 2. The parameters of the proposed network models’ structures.
Table 2. The parameters of the proposed network models’ structures.
Stage 1 Structure
(Angle Prediction)		Stage 2 Structure
(Annual Irradiation Prediction)
AttributeChoiceAttributeChoice
Number of inputs2Number of inputs4
Number of outputs2Number of outputs3
The hidden layer activation functionHyperbolic TangentThe hidden layer activation functionHyperbolic Tangent
Output layer activation functionLinear
(Regression)		Output layer activation functionLinear
(Regression)
Normalization interval of the dataset[−1, 1]Normalization interval of the dataset[−1, 1]
Training approachLevenberg-MarquardtTraining approachLevenberg-Marquardt
ErrorMean Squared ErrorErrorMean Squared Error
Table
Table 3. The hidden layers number of neurons vs. best-obtained results.
Table 3. The hidden layers number of neurons vs. best-obtained results.
Stage 1 Structure(Angle Prediction)Stage 2 Structure(Annual Irradiation Prediction)
NodesMSE TrainMSE ValidationMSE TestNumber of NodesMSE TrainMSE ValidationMSE Test
10012.51698.329617.86110050.6192150.9851212.771
1507.86412.019111.21815013.871233.816441.831
2004.01271.17296.0712002.11763.81557.981
2503.810 × 10−14.72635.2912506.1839 × 10−11.00694.441
3006.211 × 10−22.1058 × 10−18.16 × 10−13002.0174 × 10−25.9816 × 10−27.97 × 10−1
3502.527 × 10−21.1688 × 10−34.0 × 10−23507.3972 × 10−31.5783 × 10−46.26 × 10−3
4008.875 × 10−24.6688 × 10−21.94 × 10−14002.9261 × 10−37.2705 × 10−37.91 × 10−2
300 × 3002.1197 × 10−28.9912 × 10−11.368300 × 3004.2281 × 10−12.8861 × 10−11.891
350 × 3507.9712 × 10−19.1862 × 10−12.261350 × 3508.6691 × 10−27.6331 × 10−13.225
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Abdallah, R.; Natsheh, E.; Juaidi, A.; Samara, S.; Manzano-Agugliaro, F. A Multi-Level World Comprehensive Neural Network Model for Maximum Annual Solar Irradiation on a Flat Surface. Energies 2020, 13, 6422. https://doi.org/10.3390/en13236422

AMA Style

Abdallah R, Natsheh E, Juaidi A, Samara S, Manzano-Agugliaro F. A Multi-Level World Comprehensive Neural Network Model for Maximum Annual Solar Irradiation on a Flat Surface. Energies. 2020; 13(23):6422. https://doi.org/10.3390/en13236422

Chicago/Turabian Style

Abdallah, Ramez, Emad Natsheh, Adel Juaidi, Sufyan Samara, and Francisco Manzano-Agugliaro. 2020. "A Multi-Level World Comprehensive Neural Network Model for Maximum Annual Solar Irradiation on a Flat Surface" Energies 13, no. 23: 6422. https://doi.org/10.3390/en13236422

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
