Recent Advances in Thermochemical Energy Storage via Solid–Gas Reversible Reactions at High Temperature

Laurie André
1 and
Stéphane Abanades
Institut de Chimie Moléculaire de l’Université de Bourgogne, UMR 6302, CNRS, Univ. Bourgogne Franche-Comté, 9, Avenue Alain Savary, 21000 Dijon, France
Processes, Materials and Solar Energy Laboratory, PROMES-CNRS, 7 Rue du Four Solaire, 66120 Font-Romeu, France
Author to whom correspondence should be addressed.
Energies 2020, 13(22), 5859;
Submission received: 12 October 2020 / Revised: 5 November 2020 / Accepted: 6 November 2020 / Published: 10 November 2020
(This article belongs to the Special Issue Development in Thermochemical Energy Storage)


The exploitation of solar energy, an unlimited and renewable energy resource, is of prime interest to support the replacement of fossil fuels by renewable energy alternatives. Solar energy can be used via concentrated solar power (CSP) combined with thermochemical energy storage (TCES) for the conversion and storage of concentrated solar energy via reversible solid–gas reactions, thus enabling round the clock operation and continuous production. Research is on-going on efficient and economically attractive TCES systems at high temperatures with long-term durability and performance stability. Indeed, the cycling stability with reduced or no loss in capacity over many cycles of heat charge and discharge of the material is pursued. The main thermochemical systems currently investigated are encompassing metal oxide redox pairs (MOx/MOx−1), non-stoichiometric perovskites (ABO3/ABO3−δ), alkaline earth metal carbonates and hydroxides (MCO3/MO, M(OH)2/MO with M = Ca, Sr, Ba). The metal oxides/perovskites can operate in open loop with air as the heat transfer fluid, while carbonates and hydroxides generally require closed loop operation with storage of the fluid (H2O or CO2). Alternative sources of natural components are also attracting interest, such as abundant and low-cost ore minerals or recycling waste. For example, limestone and dolomite are being studied to provide for one of the most promising systems, CaCO3/CaO. Systems based on hydroxides are also progressing, although most of the recent works focused on Ca(OH)2/CaO. Mixed metal oxides and perovskites are also largely developed and attractive materials, thanks to the possible tuning of both their operating temperature and energy storage capacity. The shape of the material and its stabilization are critical to adapt the material for their integration in reactors, such as packed bed and fluidized bed reactors, and assure a smooth transition for commercial use and development. The recent advances in TCES systems since 2016 are reviewed, and their integration in solar processes for continuous operation is particularly emphasized.

1. Introduction

The enthalpy of solid-gas chemical reactions stored in chemical materials can be used to generate heat when necessary via endothermal/exothermal reversible reactions. The stored and released heat can be used for example to run power cycles or more generally in industrial processes operating at high temperatures and thus requiring high amounts of energy that are usually provided by fossil fuel combustion. Thus, thermochemical energy storage (TCES) has potential to lower fossil fuel consumption and related greenhouse gas emissions [1]. A high potential also exists in the combination of TCES systems with renewable energy systems. Thermal energy storage is indeed particularly suitable for being combined with concentrated solar energy that relies on an intermittent resource, with the aim to operate the process continuously (day and night as well as stable operation during fluctuating solar energy input) (Figure 1). Indeed, solar energy is variable and can fluctuate a lot in nature due to clouds and weather conditions, thus requiring a storage system for smooth and stable operation under fluctuating solar irradiation conditions. TCES is thus attractive since continuous operation allows a strong increase in the capacity factor of the solar plant, while it can further contribute to eliminating transient effects due to start-up/shutdown periods and unstable/variable solar conditions. The possible envisioned applications are pertaining to electricity production by concentrated solar power (CSP) plants or more generally high temperature chemical processes requiring an external energy input as the process heat supply (e.g., cement and concrete production, minerals calcination, metallurgical processes, fuel production processes or chemical industrial processes). Most industrial energy-intensive processes require a high temperature heat source generally provided by fossil fuel burning. In such high temperature processes, the required high temperature heat for running power cycles or driving endothermal reactions can be generated with solar concentrating systems (parabolic dish, trough, linear Fresnel systems or solar tower receivers with heliostat field). This is the case of CSP plants for electricity generation and solar thermochemical processes for fuels (syngas production via reforming, gasification of carbonaceous feedstocks, H2O and CO2 splitting via thermochemical cycles, etc.) or chemical commodity production (cement, metals, etc.). Thus, the interest in TCES integration in such processes for continuous operation is constantly growing. Another possible application is the utilization of TCES for the recovery and storage of waste heat of various energy and industrial processes at different temperature levels in order to increase process efficiencies or to produce additional extra heat/electricity.

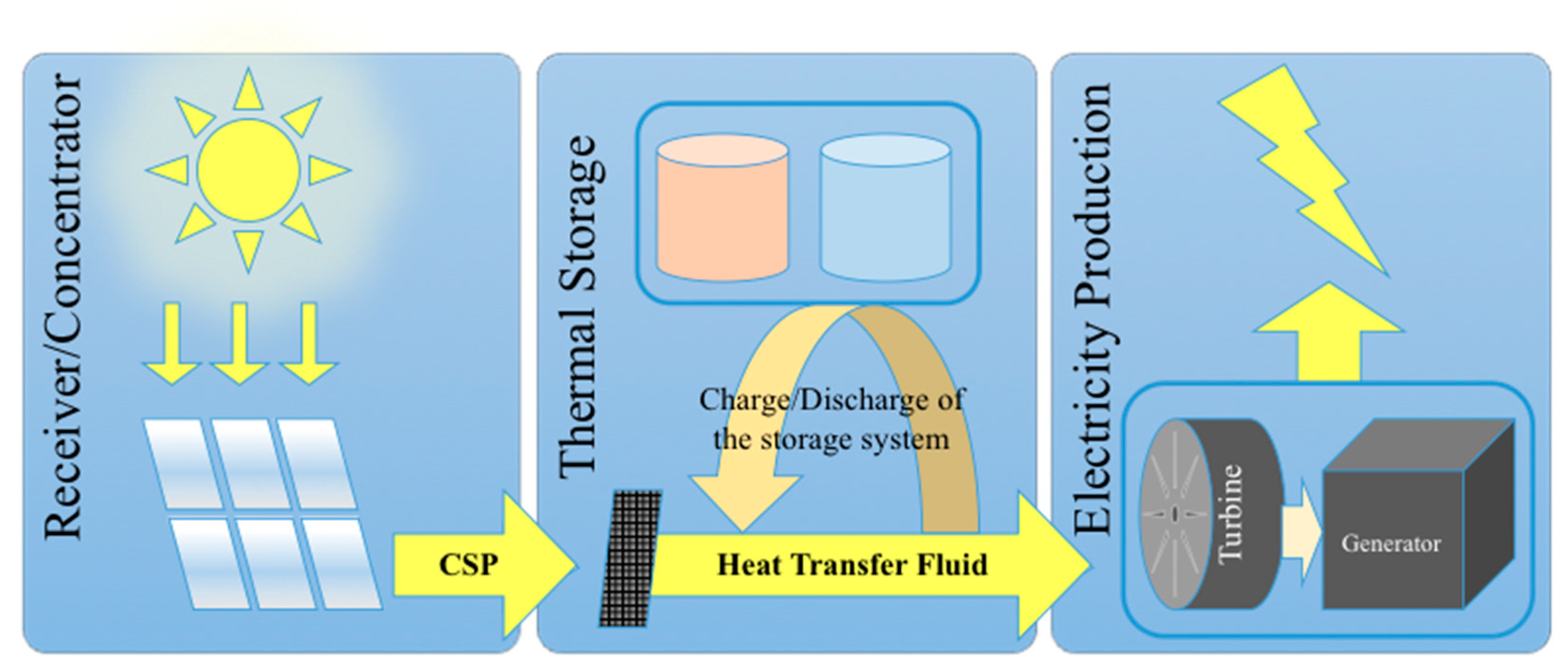

The TCES integration within a solar power plant implies the utilization of a heat transfer fluid (HTF) (Figure 2). During on-sun hours, the HTF flows inside the solar receiver and is used to store heat in the TCES system (heat charge, endothermal). The TCES system can be combined with or integrated into the solar receiver (direct storage) or separated (indirect storage). The exiting HTF is then used to run the turbine of the power block. During off-sun hours, the HTF directly flows through the TCES system for heat recovery (discharge step, exothermal) in order to increase its temperature and provide heat to the downstream process, thereby enabling continuous operation.
In contrast to other energy storage systems including sensible and/or latent energy storage, thermochemical storage offers the possibility of high energy densities in the form of chemical bonds as well as long-term storage and long-range transport in the form of stable and safe materials (Table 1). In addition, the operating conditions can be tuned in a wide range of temperatures and pressures depending on the used TCES system and involved chemical reactions, thus offering the possibility of being combined with various processes. In contrast to sensible or latent heat storage systems that have been developed and optimized, and are even commercially available and applied at large scale, thermochemical energy storage is a new research area in which many aspects are still unknown and are still to be discovered [2]. Research advances are thus needed for potential industrial implementation, while also taking into account the energy consumption by auxiliary equipment and feedstock cost that impact the system capital cost [3]. The main fields in which strong efforts are necessary to develop practical TCES systems and bridge the gap from fundamental research to application are the discovery of cost effective, abundant and affordable chemical materials with high energy densities, cycle stability and fast kinetics for heat storage and release [1]. Furthermore, additional research and technological developments are needed in the optimal design of heat storage-chemical reactor systems for maximum heat transfer between the storage medium and the high temperature solar process, and the complete system integration in large scale plants (optimization of heat and mass flows, dynamic simulation during transient events and fluctuating solar conditions, techno-economics, etc.) [4,5].
This study reviews the most advanced and potentially attractive TCES systems currently under development (including hydroxides, carbonates, metals oxides redox pairs, perovskites) with emphasis on their characteristics for practical implementation, and on their suitability for potential application and integration in solar processes for continuous operation. A comprehensive screening of TCES systems based on solid–gas reversible reactions for high temperature solar thermal energy storage was published by the authors in 2016 [8]. Since this date, much effort has been provided in this research field to investigate thermochemical systems for concentrated solar energy applications. Special attention is paid in this work to the active research developed in the most recent years by focusing on the latest advances in the field.

2. TCES Systems Based on Hydroxides

Ca(OH)2/CaO has been demonstrated to date to be the most interesting studied thermochemical energy storage system based on metal hydroxides and has prompted tests in lab-scale reactors and thermogravimetry analysis (TGA) (Equation (1), Figure 3) [3,7,9,10,11,12,13]. However, the enhancement of material stability is required to reduce the sintering effect. Ca(OH)2 particles were shown to agglomerate faster than CaO particles in the presence of H2O, and the presence of H2O would accelerate the agglomeration of CaO particles [14].
CaO(s) + H2O(g) ⇄ Ca(OH)2(s)
(ΔH° = −109.2 kJ/mol)
The rehydration step is slower than the dehydration step [15], and the hydration of CaO agglomerated lump proved to be more difficult than that of fresh particles, which hindered the cycling stability of the material. Due to particle agglomeration, CaO/Ca(OH)2 powder bed and pellets used in packed bed reactors suffer from a loss in reactivity and a change in bulk volume. Powdered Ca(OH)2/CaO was recently evaluated under reactor conditions [16]. During the hydration/dehydration cycles, the temperature was uneven between the middle of the packed bed and the outside. During the first part of the heating, the outside of the packed bed remained at a higher temperature than the middle for at least one hour (70 min). Afterwards, the opposite was observed, with the outer part of the packed bed being at a lower temperature than the center. Under experimental conditions, the highest temperature reached was 475 °C. In fact, the study underlines the unevenness of the heat release rate and the poor thermal conductivity as main issues. To address the improvement of heat transfer through CaO/Ca(OH)2 in a packed bed reactor, a composite material using silicon carbide/silicon (SiC/Si) foam to support CaO/Ca(OH)2 in its pores (400 µm) was investigated [17]. Over ten cycles, the composite material retained a high reactivity and good stability of the bulk volume during dehydration/hydration reactions. A study was recently accomplished on CaO/Ca(OH)2 supported on ceramic honeycomb composed of silicon carbide and silicon (SiC-Si) [18]. The pellets of composite material were tested in a lab-scale packed bed reactor and were shown to enhance the heat transfer through the reaction bed. The inert honeycomb support did not form any side product during the tests; however, cracks and deformations appeared over the course of ten cycles. This approach is promising for the dispersion and shaping of packed beds using hydroxides for TCES. A CaO/Ca(OH)2/Na2CaSiO4 composite was synthesized using sodium silicate to bind CaO/Ca(OH)2 fine particles for fluidized or fixed beds [19]. This work noted the effect of the anisotropic expansion of Ca(OH)2 being the cause of the reduction in the crushing strength of the pellets.
The adaptation/integration of powdered material systems to CSP irradiated reactors such as fluidized bed is necessary for an effective exploitation of the TCES system in a continuous flow over time. To this end, calcium hydroxide was modified with nanostructured flow agents such as nanostructured silicon and/or aluminum oxide [20]. The study focused on the modification of calcium hydroxide powder using nanostructured agents, in order to enhance the flowability of the material in dynamic energy storage systems. However, the mixtures all presented lower flowability than pure Ca(OH)2/CaO powder, as the agglomeration of the pure particles led to bigger particles with better flowability. In addition, the samples from the mixture generated side products such as calcium silicate and aluminate phases which contributed to the reduction in the total heat release measured for the material. With this conclusion, it is recommended to rather improve the stability of moderately bigger particles of pure material rather than mix them with additives as a means to enhance the flowability of the material. As the low thermal conductivity and cohesiveness of powder bulk material are ill-suited for moving bed reactors, studies usually aim for granular materials for such application. To answer this issue, a recent study investigated the effect of the encapsulation of CaO granules in ceramic and of Ca(OH)2 granules coated with Al2O3 nanostructured particles [21]. Both encapsulated materials could retain their shape after six hydration/dehydration cycles, but the ceramic shell of CaO was sometimes cracked or lost. On the one hand, the reaction performances of Ca(OH)2 encapsulated in Al2O3 proved to be similar to that of unmodified Ca(OH)2 granules, but the expansion of the material during the hydration step tended to clog the reactor tubes. On the other hand, CaO granules encapsulated in ceramic flowed freely through the reactor, but their reaction performances were reduced and they could not reach full conversion. As a maneuver to answer industrial requirements—e.g., for a moving bed reactor, with appropriate material size and stability, a composite based on calcium oxide was synthesized for TCES application, using the CaO/Ca(OH)2 system [22] mixed with carboxymethyl cellulose sodium (CMC) and vermiculite. When compared to the performances of pure Ca(OH)2 tablets, the composite tablets better retained their structural integrity over several hydration/dehydration cycles. Within the material, vermiculite provided enough space for the CaO/Ca(OH)2 reaction, with an average pore diameter between 11 and 16 nm depending on the synthesis conditions for the composite material. In addition, the backbone structure of the composite possessed abundant micropores and mesopores for the gas transport during the cycles. Furthermore, the decomposition temperature of Ca(OH)2 within the composite material was reduced, which is attributed to the generation of activated carbon during the carbonization of CMC. Finally, the gravimetric storage density of the granular composite material was reduced (71% of the value obtained for pure Ca(OH)2), while the volumetric storage density was higher than that of Ca(OH)2 powder.
The enhancement of the reaction properties of the Ca(OH)2/CaO system was studied via KNO3 addition to Ca(OH)2, which reduced the dehydration reaction duration and decreased the dehydration temperature of the system due to a nitrate–hydroxide interaction as KNO3 melts during the dehydration step [23]. The influence of the amount of added KNO3 on the reaction temperature was then investigated and showed that the minimum dehydration onset temperature (459 °C, instead of 494 °C for pure Ca(OH)2) was reached with 5 wt% of KNO3 added, with the material losing only 7% of its energy storage capacity, down to 1280 kJ/kg. Additional information on the system is available, as a kinetic study of the effect of KNO3 addition to Ca(OH)2/CaO was conducted [24]. The optimum amount of KNO3 was determined to be around 10 wt% to reduce the charging temperature to 428.49 °C and accelerate the reaction with little loss in energy storage density. The cycling stability of the mixture was tested under air and under nitrogen atmosphere. The KNO3-doped calcium hydroxide fared poorly under air, due to the presence of CO2 and carbonation of the sample, but results revealed a good cycling stability under nitrogen atmosphere. SEM observations showed that within the Ca(OH)2/10 wt% KNO3 mixture, the once dehydrated material changes to a flower-like structure when rehydrated. When dehydrated again, the flower-like structure shrinks back into a blocky structure. This modification of the material morphology is attributed to the addition of KNO3 and contributes to enhancing the mass transfer during the storage cycles. Another example of reaction enhancement via doping is the improvement of reduction kinetics of Ca(OH)2 via Li doping [25]. The enhancement of the Ca(OH)2/CaO system was also approached via a modification of the structure of the material, for example with the synthesis of hexagonal boron nitride (HBN)-doped calcium hydroxide composite [26]. The material was tested in TGA/DSC (thermogravimetry analysis/differential scanning calorimetry) and showed better cycling stability than pure calcium hydroxide, showing 67% rehydration after ten dehydration/hydration cycles, with an optimum amount of HBN added at 15 wt%, and the dehydration kinetics were also enhanced. In addition, the composite material exhibited higher thermal conductivity and reaction enthalpy as compared to pure calcium hydroxide. Another studied approach to modify the properties of the system is the modification of the structure of the pure material. Ca(OH)2 nanomaterials with spindle and hexagonal structure were synthesized by a deposition-precipitation method and compared to commercial nanoparticles [27]. The spindle-shaped Ca(OH)2 demonstrated the highest specific surface area in BET and the energy storage density among the tested nanomaterials. In addition, the dehydration/hydration kinetics were improved with the spindle-shaped material and it presented the best cycling stability over ten cycles, as it retained a conversion rate above 70%.
Mg(OH)2/MgO is another potential system for TCES which is currently getting attention. Mg(OH)2 was considered at reactor scale, and an economical study was conducted [28]. However, the material suffers from slow and incomplete rehydration, as stated by Müller et al. (2019) [29]. The authors recently studied the rehydration mechanism of MgO and of natural magnesite in order to assess the effect of impurities on the reaction. The enhancement of the TCES system consisting of MgO/Mg(OH)2 was studied via the addition of LiNO3 with 1, 3, 6 and 10 wt% added [30]. The dehydration temperature of the LiNO3-Mg(OH)2 composites was lower, from 289 down to 269 °C for 1 wt% and 10 wt% doping, respectively, than that of pure Mg(OH)2 which was measured at 325 °C. The dehydration temperature of the LiNO3-Mg(OH)2 composite may then be tuned via the addition of an adequate amount of LiNO3, and the composite materials could sustain more than ten dehydration/rehydration cycles without losing thermal efficiency. In addition, the calculated dehydration rate constant was higher with LiNO3 doping, but the composite material presented lower released heat from the reaction. The mixture LiNO3/Mg(OH)2 was also studied explicitly for TCES at a lower temperature (<300 °C) since the addition of LiNO3 to Mg(OH)2 decreases the dehydration temperature of Mg-based system (76 °C difference) [31,32].

3. TCES Systems Based on Carbonates

Metal carbonates present the advantage of being cheap and largely available materials. Several of them have demonstrated attractive performances for TCES application, such as CaO/CaCO3, SrO/SrCO3 or BaO/BaCO3 [33]. Calcium-Looping (CaL) technology in particular, coupled with CSP, is being thoroughly studied for adaptation to TCES power plant (Equation (2)) [3,12,34,35,36,37,38]. This reversible cycle requires operating temperatures between 850 and 950 °C.
CaO(s) + CO2(g) ⇄ CaCO3(s)
(ΔH° = −178.2 kJ/mol)
However, due to sintering, the material gradually loses its porosity and facility for the reactive gas to access the active sites within the material [39,40]. To address this issue, the addition of an inert material for structure stabilization and sintering inhibition is a proven approach (Figure 4). For example, CaO/SiO2 composites were synthesized using rice husk as support [41]. The composites containing 70 and 90% CaO retained the morphology of rice husk and showed enhanced conversion, as compared to limestone, and decreased pore-plugging effect. Pure CaO and nano silica doped systems (molar ratio 1:1) were compared, and a shift in reaction temperature was observed [42]. The pure material performed better between 750 and 925 °C, while for the silica-doped samples the decarbonation happened at lower temperatures, between 700 and 800 °C. Al2O3 has been demonstrated to efficiently stabilize CaO/CaCO3 [43]. Thanks to using a space-confined chemical vapor deposition (CVD) method, Han et al. [43] presented a new way to synthesize a Al2O3 (5 mol%)-CaO composite which demonstrated high stability over 50 calcination/carbonation cycles as compared to samples using SiO2 or TiO2 as inert additives. The space-confined CVD method allowed CaO crystalline grains to be coated with inert oxide nanoparticles, as high contribution to thermal stability of the composite material. Further work was carried out by the same team on CaO-based materials, using the same method, and resulted in the synthesis of dense CaO grains using calcium formate as precursor, with Al2O3 deposited on the surface [44]. The resultant composite, optimized with 10 mol% Al, presented high volumetric energy storage density (2.07 GJ/m3) after 20 cycles. The properties of the Al2O3-doped CaO system were compared to CeO2-doped CaO and to a novel Al2O3/CeO2 co-doping [45]. The Al2O3/CeO2 co-doped CaO-based material was synthesized via a wet-mixing method and comprised a mixture of CaO, Ca12Al14O33 and CeO2. Co-doping of CaO using 5 wt% of Al2O3 and 5 wt% of CeO2 gave the best results in terms of energy storage capacity, and the material proved to retain a good stability over 30 cycles with 7% conversion rate loss. The Al2O3/CeO2 co-doping of CaO/CaCO3 then also showed the benefit of enhancing the carbonation reactivity of the material, attributed to the presence of Ce3+ ions on its surface. ZrO2 was also considered as a stabilizing agent and compared to Al2O3 [46]. CaCO3 doped, via ball-milling, with ZrO2 (40 wt%) or Al2O3 (20 wt%) both presented excellent cyclic stability. The CaCO3-Al2O3 system managed to retain more than 80% of its cyclic stability over the course of 500 calcination/carbonation cycles. SiO2 also proved to be an interesting dopant to stabilize CaCO3 as it improved the system’s energy storage capacity, enhanced the calcination kinetics and stabilized CaCO3 over TCES cycles [47]. The stabilization of CaO/CaCO3 was also attempted via the synthesis of composites composed of CaCO3 nanoparticles and antioxidative graphite nanosheets [48]. Graphite nanosheets impregnated in H3BO3 showed higher antioxidant property. The porous structure of the composite helped to enhance CO2 transportation within the material and to obtain a higher thermal conductivity. With only a 3 wt% graphite nanosheet, the composite was capable of cycling for 50 cycles under CO2 and of maintaining a high heat storage capacity (1333 kJ/kgcomposite), while pure CaCO3 was deactivated after 50 cycles and the released heat decreased (down to 452 kJ/kgCaCO3). The stabilization of CaO was also studied through the use of sodium sulphate covering the surface of CaO particles at high temperatures. The molten salt was used to form a performant screen on the surface of reactive particles to prevent sintering during TCES cycles [49]. Another approach to hinder the agglomeration of CaO powder was proposed by Raganati et al. (2020) [50] who presented a sound-assisted fluidization method of the reactive powder bed. Fine natural limestone (<50 µm) was used in a lab-scale fluidized bed reactor and the effect of sound-assisted fluidization on the carbonation conversion of the material was studied for TCES using CSP conditions. The acoustic perturbations applied to the fine limestone particles proved to hinder the agglomeration of the particles and enhanced the carbonation performances of the material. The fluidization quality was enhanced together with a better solid–gas contact. In addition, the acoustic perturbation decreased the deactivation rate.
The solar absorption efficiency of the reactive material itself was recently questioned. An innovative approach using the CaO/CaCO3 system proposed to use dark calcium carbonate particles, instead of the naturally white material, by doping the material with Cu, Fe, Co or Cr via a sol-gel method [51,52]. The energy storage density of the material was significantly increased by the binary doping using Cu and Mn, reaching 1952 kJ/kg, while the energy storage density of pure CaO/CaCO3 is around 1061 kJ/kg. A variation in the solar absorptance of the material was noted depending on the doping metal. For example, when doped with Cu only, the CaCO3 particles had a higher solar absorptance in the visible range while a full-spectrum absorption of solar energy was achieved with Cr doping. An impact on the cycling stability of the material was also observed, as it was enhanced via Mn and Al doping, but reduced with the addition of Cr. The solar absorption capacity of CaCO3 was also addressed via the doping of the system with Mn-Fe oxides [53]. Porous CaCO3 was synthesized using calcium gluconate (Ca(C6H11O7)2), and it was doped with Mn-Fe using two different methods—wet grinding using MnFe2O4 powder with ethanol, and adding Fe3+ (Fe(NO3)3) and Mn2+ (Mn(NO3)2) to Ca(C6H11O7)2 in solution to produce Ca-Mn-Fe oxides (Ca:Mn:Fe mole ratio: 100:2:4, 100:4:8 and 100:6:12). The best results were obtained with the mixed oxide containing Ca:Mn:Fe = 100:6:12 mole ratio, which demonstrated a solar absorptance of 90.15% against 11.23% for pure CaCO3. This material also retained above 93% of its heat release capacity over 60 cycles, with over 1438 kJ/kg energy storage density. A similar study also recently reported the synthesis of Ca2FeMnO5/CaCO3 to improve the direct solar energy absorption of the material [54]. The material presented excellent cycling stability and high energy density (2.51 MJ/kg after 20 cycles) and improved the optical absorption up to seven times higher than pure CaCO3.
Cheaper sources of calcium carbonate are being researched along with ways to improve their efficiency, in order to recycle waste and provide a cheap source of material for TCES based on calcium looping (CaL). For example, limestone was used for the development of new models of fluidized bed reactors for TCES application at high temperatures, reaching a maximum stable temperature state at 1175 °C [55]. Other natural CaCO3 minerals were also evaluated for TCES such as chalk and marble [56]. The various materials possess similar composition but present different cycling stability in CaL-CSP conditions, which is attributed to differences in particle size and microstructure. However, pure CaCO3/CaO material suffers from pore-plugging and the addition of an inert material has proved to help reduce the sintering effect. As an example, the cycling stability of CaO derived from limestone and from pure CaCO3 both suffers from pore-plugging mechanism, but the reaction of CaO derived from dolomite is not limited by this mechanism due to the presence of inert MgO which helps with the diffusion of CO2 into the material [57]. The durability of CaO pellets synthesized from CaO powder with MgO added and from the mixture of limestone and dolomite were compared. Porous CaO powder stabilized with MgO was synthesized, using citric acid as sacrificial template, starting from a solution of calcium and magnesium nitrates [58]. The porous CaO powder showed optimum stability over 20 cycles of calcination/carbonation with 10 mol% of MgO added, greatly enhancing the resistance of the material to sintering. The other synthesis approach using dry mixing of citric acid with limestone–dolomite mixtures was used to make MgO-stabilized CaO porous pellets. The pellets demonstrated negligible capacity losses over the course of 20 cycles as compared to pure CaO powder. However, the pellets made from the limestone–dolomite mixture presented a slightly lower initial thermal energy released than MgO-stabilized CaO powder made from the nitrates reagents, and this difference was attributed to the sintering of impurities present in the limestone–dolomite mixtures. Well-dispersed MgO nanoparticle coating CaO/CaCO3 grains were obtained using calcium and magnesium acetate as precursors [59]. The obtained porous material presented an enhanced resistance to pore-plugging and sintering, together with long-term effective conversion after 30 calcination/carbonation cycles. Samples originating from mined dolomite were also studied, and they demonstrated good qualities as energy storage materials, because they contain impurities, such as quartz, which prevents the grain agglomeration during the calcination/carbonation cycles [60]. The mined samples also had a high porosity which favors gas transport within the material. In this study, the dolomite samples, commercial with and without impurities and mined dolomite, were mixed with molten salt, NaCl:MgCl2 mixture, which was considered to serve as catalyst. The studied mixtures of dolomite and molten salt could sustain over 10 cycles at around 50% capacity between 450 and 550 °C without further loss in capacity. A different cheap and renewable option presented recently is the use of biomineralized CaCO3 from waste [61]. Eggshell and snailshell from food waste were investigated as potential precursors for CaL applications. The study revealed that the results obtained on the multicyclic conversion of the biomineralized CaCO3 were comparable to the results reported for limestone, with the precision that biomineralized CaCO3 required a lower temperature than limestone to reach full calcination. Again, in comparison to limestone, the shells presented better carbonation performances and faster decarbonation. Another waste material, carbide slag, was studied and compared to limestone [62]. The measured optimum carbonation temperature range for energy storage using carbide slag carbonated under 1.3 MPa was 800–850 °C, against slightly higher temperature for limestone, 850–900 °C. Under these operating conditions, the carbonation conversion of carbide slag was slower than that of limestone. However, the carbonated carbide slag showed higher cyclic stability than limestone, under high pressure. Oil shale ash was also proposed to be repurposed for TCES, as their main components are calcium, magnesium and silica, but it presented little potential for TCES [63]. The disposal of fly ash, a hazardous material resulting from solid waste incineration and containing CaO, was considered for its use in TCES application [64]. The analysis of the material revealed the presence of different heavy metals, and fly ash particles would agglomerate and be subjected to sintering when heated to 1150 °C. The fly ash particles could store energy, and one of the samples could release the stored energy (240 kJ/kg) (when compared to two other fly ash samples, it contained a higher amount of SiO2, but less Na2O and Cl). Another work aimed to investigate the physical and chemical characterization of six fly ash samples obtained from different municipal solid waste incinerators, namely grate furnaces, rotary kiln and fluidized bed reactor, to determine their potential for CO2 storage and TCES [65]. Other materials such as a calcium-rich steel and blast furnace slags, treated with acetic acid, were considered and compared to limestone [66]. The various studied CaO-based samples featured a complex elemental composition including Si, Al, Fe, Mg, Mn and Cr. The study revealed the attractiveness of calcium and calcium magnesium acetates. However, the presence of Si was reported to enhance the mesoporosity of the sample after calcination, and to promote pore plugging. Moreover, the presence of Al was also reported to hinder the performance of the blast furnace slag samples due to leading to the formation of calcium aluminates.
Among metal carbonates, strontium carbonate is also a very attractive material and is also considered for implementation in solar power plants (Equation (3)) [67,68]. A recent kinetic study focused on the investigation of the degree of the reaction, reaction rate constant, activation energy and diffusion coefficient of carbon dioxide through a series of experiments conducted between 800 and 1000 °C and under a CO2 concentration of 5–40 vol% [69]. The stability of the material over several cycles was improved by the addition of inert materials such as MgO (Figure 4). The stability of the SrCO3/SrO system was also enhanced through the addition of Al2O3 (34 to 50 wt%), inhibiting the sintering of the material as well as enhancing the flow of particles, and it was studied in a lab-scale fluidized bed reactor [70]. The optimal amount of 34 wt% of Al2O3 to SrCO3 was determined to limit the sintering. The dispersion of SrO particles before carbonation using polymorphic spacers such as CaSO4 and Sr3(PO4)2 was used in order to answer the issue of sintering in the SrO/SrCO3 system [67]. When using Sr3(PO4)2 contents between 25 and 50 wt% the system could go through multiple TCES cycles (10 to 30) with a stable energy storage density around 500 kJ/kg. While both calcium sulfate and strontium phosphate seemed to hinder sintering, strontium phosphate proved to be superior to calcium sulfate, showing higher gravimetric energy density at similar weight percentage added. The addition of MgO to SrCO3/SrO proved to greatly enhance the cycling stability performances [33]. MgO was used to stabilize SrO-based materials using different synthesis methods: co-precipitation, sol–gel, wet-mixing and dry-mixing [71]. The wet-mixing method, using strontium acetate hemilydrate and porous magnesium oxide as precursors, produced the sample showing the highest performances between 1000 and 1100 °C. From this method, the sample containing 40 wt% SrO exhibited a high cycling stability (100 cycles), at 1000 °C with a gravimetric energy density of 0.81 MJ/kg.
SrO(s) + CO2(g) ⇄ SrCO3(s)
(ΔH° = −241.5 kJ/mol)
A new concept of composite material based on BaO/BaCO3 was recently introduced for application in TCES (Equations (4) and (5)) [72]. The study focused on the destabilization of BaCO3 (which is thermally stable up to high temperatures, 1150–1400 °C), for using this system at lower temperatures (700–1000 °C). The material was synthesized from a BaCO3-BaSiO3 mixture and could be reduced at a temperature 350 °C lower than pure BaCO3 while retaining about 60% of the energy storage capacity. Furthermore, the material benefited from the addition of a catalytic amount of CaCO3 which improved the reaction kinetics through the formation of Ba2−xCaxSiO4 intermediate compounds. Indeed, this improvement was attributed to the formation of Ba2−xCaxSiO4 facilitating Ba2+ and O2− mobility through induced crystal defects. Due to the part of inactive material, the conversion rate of BaCO3-BaSiO3 mixture with CaCO3 was about 60%, which closely relates to the expected amount of active material.
BaO(s) + CO2(g) ⇄ BaCO3(s)
(ΔH° = −272.5 kJ/mol)
BaCO3(s) + BaSiO3(s) ⇄ Ba2SiO4(s) + CO2(g)
(ΔH850 °C = 126.9 kJ/mol)
Application of lithium silicate for TCES at high temperatures was proposed by Takasu et al. [73]. The carbonation/decarbonation of the system (Equation (6)) was tested in TGA under various CO2 pressures and presented a gravimetric energy density of 780 kJ/kg at around 400–700 °C, under 100% CO2, with good durability over the course of 5 cycles.
Li4SiO4(s) + CO2(g) ⇄ Li2CO3(s) + Li2SiO3(s) + ΔHr
(ΔHr = −94 kJ/mol)
The carbonation of transition metals was also considered to provide new materials for TCES at temperatures below 500 °C [74]. The carbonation of CoO, MnO, PbO and ZnO was studied, to obtain CoCO3, MnCO3, PbCO3 and ZnCO3, respectively, under high CO2 pressure (8–50 bar), along with the effect of moisture and temperature (25–500 °C). Among these, only ZnCO3 could not be obtained. At temperatures between 50 and 500 °C, in the presence of moisture under 8 bar CO2, the corresponding ternary oxides of CoO and MnO were obtained. In the same conditions, PbO reacted to give both PbCO3.PbO and PbCO3.2PbO, and the latter was successfully cycled by varying the pressure between 8 and 2 bar. The carbonation of MnO and PbO was also observed in a reactor, under 50 bar in the presence of water.

4. TCES systems Based on Metal Oxides

Metal oxide based TCES systems are especially attractive as they permit working with an open cycle, using air (Equation (7), Figure 5). For this reason, the study of metal oxide systems in similar conditions with control of oxygen partial pressure (pO2) is important. As a common trend, it can be observed that the reduction temperature decreases together with lower partial pressure of the reactive gas (O2). The variation of the temperature as a function of pO2 was illustrated using a Van’t Hoff diagram for several metal oxide pairs (Figure 6).
MOred(s) + O2(g) ⇄ MOox(s) + ΔHr
The potential of CuO/Cu2O, Co3O4/CoO, Mn2O3/Mn3O4 and Pb3O4/PbO was investigated under isotherms while varying pO2 between 0.5 and 0.8 bar [75]. The copper and cobalt oxides showed good reversibility, but manganese oxide showed a beginning of sintering and lead oxide was eliminated as it showed no potential under these operating conditions. The Cu2O/CuO system is also interesting as it possesses high reaction enthalpy and reacts at high temperatures [76]. This system was studied between 800 and 930 °C and focused on the effect of partial pressure variation on the reaction kinetics with pO2 = 0.1, 0.2, 0.5 and 1.0 bar. The Avrami-Erofeev’s two-dimensional nucleation model (A2) was determined as the best fitting conversion model and gave an activation energy of 233 kJ/mol, with a frequency factor of 5 × 109 1/s. The potential of liquid multivalent metal oxides was tested in liquid chemical looping thermal energy storage (LCL-TES) [77]. The free Gibbs energy of PbO/Pb, MnO2/Mn and BaO2/Ba, were determined using the Ellingham diagram, and these oxides were eliminated for TES application as their ΔG° were found to be positive. Conversely, the negative ΔG° of PbO2/PbO, PbO2/Pb3O4, Pb3O4/PbO, CuO/Cu2O and Sb2O5/Sb2O3 validated them as potential candidates. CuO/Cu2O presented the highest total enthalpy of 404.67 kJ/mol, but formation of the molten phase occurred at very high temperatures (~1200 °C), and the corrosiveness of the system when molten would make the implementation difficult. Pb oxides were noted as easier to implement since lead’s melting temperature is below 1000 °C even though the associated total reaction enthalpy is lower (250.09 kJ/mol) and toxicity may be a barrier. The integration of CuO/Cu2O to TCES processes was considered, and the reaction kinetics and stability of the material was studied in a fixed-bed reactor [78]. Kinetic models were derived for the charging and discharging steps using isokinetic and isothermal measurement. The cycling of Fe2O3/Fe3O4 was studied using pressure-swing by performing the reduction under vacuum and the re-oxidation using compressed air stream [79]. The study of BaO2/BaO revealed its capacity to undergo several redox cycles without deactivation (Equation (8)), using a thermal pre-treatment at high temperatures to enhance the oxidation conversion of the material [80]. Since the high temperature pre-treatment eliminated impurities in the sample, it is speculated that a high purity of BaO2 would show better redox performances.
2BaO(s) + O2(g) ⇄ 2BaO2(s)
(ΔH° = −86.3 kJ/mol BaO)
Moreover, it was demonstrated that mixed metal oxides (e.g., Mn-Fe-O) can exhibit higher reaction enthalpy and cycling durability than the related pure metal oxide (Mn2O3) [81,82,83]. Other parameters can be tuned via metal oxide doping, such as the reaction kinetics and the gap in temperature between the charging and discharging steps of the system, and the cost of the energy storage material must also be taken into account for future system implementation [8,84,85,86,87,88]. In addition, for specific systems, such as Co-Fe-O, a linear correlation between the variation of the oxygen mass loss/gain and the reaction enthalpy was observed (Figure 5) [84]. Several mixed oxide systems were reported for their high potential for TCES by several studies, such as cobalt oxide/iron oxide, copper oxide/cobalt oxide, copper oxide/manganese oxide and manganese oxide/iron oxide [82,84,85,86].
Mn2O3/Mn3O4 is a largely studied redox system for TCES application (MnO2 was eliminated because of no reversibility [8]), due to the relatively high gravimetric energy storage density of the material and its availability, low toxicity and cost. However, the stability of this system decreases greatly over several oxidation/reduction cycles due to sintering and to the formation of the hausmannite phase which decreases the reversibility [84]. The doping of Mn2O3 with silicon oxides is a recently investigated option to answer the reversibility issues of manganese oxide-based TCES systems. The reactivity and stability of Mn/Si particles were studied in a packed-bed reactor using 2 to 10 wt% added silica, with an interest for Si-doping potential to help spontaneous O2 release and increase the stability of the material over several reduction/oxidation cycles [89]. In both TGA and packed-bed reactor, the sample composed of 6 wt% SiO2 and 94 wt% Mn3O4 presented the highest amount of oxygen release. In addition, MnSiO3 particles demonstrated a good physical stability under air at high temperatures. The effect of Si4+ doping to Mn2O3 on the reactivity and stability of the Mn2O3/Mn3O4 system was also studied, over 40 reduction/oxidation cycles [90]. The re-oxidation of Mn3O4 was improved with the introduction of Si cations, especially for a sample synthesized via a sol-gel method using 1 mol% Si-doping. The segregation of Si4+ on Mn2O3 grain surfaces was observed and proved to help control and reduce the diffusivity at the grain boundaries. A method based on a combination of drop calorimetry and acid-solution calorimetry was used to measure the total enthalpy and standard enthalpy of materials forming at high temperatures, Mn-Mg oxides, involving tin (II) chloride as a reducing agent to increase their dissolution rate [91,92]. With this method, the chemical energy storage found for Mn-Mg-O systems (1000–1500 °C, pO2 = 0.2 atm) with different molar ratios of Mn/Mg (2/1, 1/1, and 2/3) was 565.3 ± 54.8, 586.3 ± 55.0 and 590.9 ± 62.5 kJ/kg, respectively. The volumetric energy density of the 1/1 composition under pO2 = 0.2 atm was measured at 1813 ± 175 MJ/m3 during the reduction [93]. The study concludes that the manganese ratio should not be raised above 2/1. The study also investigated further doping of the manganese-magnesium oxide system with cobalt, iron, zinc or nickel oxides, which did not improve the reactivity, energy density nor stability of the system. Among the investigated metal doping for the enhancement of manganese oxide cycling performances, the addition of iron was demonstrated to yield especially good results. A study focusing on the mixed oxide (Mn0.7Fe0.3)2O3 investigated the improvement of the particle stability via the addition of either 20 wt% TiO2, ZrO2 or CeO2 [94]. All the tested additives permitted an improvement against the manganese oxide particle agglomeration. However, the addition of TiO2 showed to have a negative effect on the chemical reactivity of the oxide, while the addition of ZrO2 brought the best enhancement towards increasing the attrition resistance of the particles. The effect of the addition of Al2O3, Fe2O3 and ZrO2 to manganese oxide spray-dried particles on their energy storage capacity, flowability and physical and chemical stability was studied [95]. The samples mixed with zirconia and alumina allowed the individual particles to better retain their structure; however, the sample containing iron performed better during redox cycles. A reaction enthalpy of 175.7 kJ/kg was measured for the mixture with Mn2O3 and 67 wt% Fe2O3 prepared by intensive mixing, which then performed better than the spray-dried sample with similar composition (contaminated with sodium). The formation of a spinel MnFe2O4 was obtained through the reduction of a mixture of 2:1 Fe2O3:Mn2O3. The reaction of re-oxidation was described through two reaction mechanisms, starting with a diffusion-controlled reaction mechanism with no phase change, and followed by a nucleation-growth reaction mechanism, with activation energies of 192 and 181 kJ/mol for each reaction, respectively. A similar mixed oxide with Fe/Mn (2:1) was studied in a packed-bed reactor using small particles (0.5–1.0 mm) of iron-manganese oxide [96]. This work also presents a model comparing heat transfer, mass transfer and the thermochemical reaction with experimental data. Tests in a lab-scale tube reactor, between 800 and 1040 °C in air, were conducted on a previously validated Fe/Mn 1/3 granular mixture which showed no degradation over the course of 17 cycles [97,98]. The experiment demonstrated the presence of characteristic temperature profiles along the bed height, which were shown to be dependent on the thermodynamic properties and kinetic behavior of the redox reaction. The tuning of the reaction temperatures of oxides is very important to optimize the system energy storage since the gap in temperature between both charge and discharge steps can be reduced. Co-doping, using Fe and Cu, on manganese oxide was used to reduce this gap in temperature [83]. Indeed, the incorporation of Fe to the system was used to increase oxidation temperature, and Cu addition was used to reduce the reduction temperature. The gap in temperature was decreased from 225 °C for pure manganese oxide, to 81 °C for a composition with 20 mol% Fe and 5 mol% Cu. However, the addition of Cu induced a decrease in the reduction rate and a gradual decrease in the oxidation rate, which was attributed to the formation of segregated mixed Mn–Cu spinel.
Cobalt oxide based TCES systems have demonstrated the best performances among pure metal oxides, with high enthalpy and excellent cycling stability (Figure 7a), and are attracting attention for pilot scale tests [99]. However, this still leaves room for improvement and attempts to reduce the material cost and toxicity via the synthesis of mixed oxides [81,85,86,87,100]. In addition, the temperature gap between the reduction and oxidation step could be reduced with the same approach (Figure 7b). Storage material made from inert honeycomb supports (cordierite) and coated with cobalt oxide was studied at pilot-scale [99]. A large amount of redox material (88 kg) was cycled for 22 charging/discharging cycles with absence of degradation. The Co-Mn-O system demonstrated good reversibility for low amounts of manganese, and an increase in temperature compared to the pure oxides [81]. The reaction temperature of various Co-Mn mixed oxides, Co3−xMnxO4 (0 ≤ x ≤ 3), was investigated between 850 and 1700 °C [101,102]. The measured reaction temperatures for Co2.5Mn0.5O4, Co2MnO4, Co1.5Mn1.5O4, CoMn2O4 and Co0.5Mn2.5O4 were (red-ox) 980–910, 1129–1050, 1230–1162, 1320–1260 and 1428–1410°C, respectively. The phase transition from the cubic-to-tetragonal phase within 1.2 < x < 1.9 was thoroughly examined. The mixed oxides presented higher enthalpies than the respective pure oxides, with the Co1.5Mn1.5O4 sample showing the highest enthalpy (1264 kJ/kg). The mixed oxides have higher reduction temperatures than pure Co3O4, reaching up to 1428 °C for Co0.5Mn2.5O4.

5. TCES Systems Based on Perovskites

Perovskites have also been considered as an innovative option for TCES application. Taking advantage of oxygen vacancies in perovskites structures and their oxygen ion conducting properties, ABO3 perovskites can be used to store energy via O2 exchange (Equation (9)). Some perovskites offer the interesting ability to store and release oxygen in a continuous way following the variation in temperature [103] (Figure 8). Different perovskites with Fe, Co or Mn on the B site were studied, and Co-based perovskites showed the highest O2 exchange capacity together with high reaction enthalpies [103]. The enhancement of O2 exchange capacity in these systems was achieved with the presence of Ba on the A site (BaCoO3, BaFeO3 and Ba0.5Sr0.5CoO3), as compared to the presence of Sr. However, only BaCoO3 could be re-oxidized completely under 20% O2 atmosphere.
ABO3−δ ⇄ ABO3-δ-Δδ + 1/2 ΔδO2
The BaySr1−yCoO3−δ system was also studied, along with LaxSr1−x (Mn, Fe, Co)O3−δ, by Gokon et al. [104]. The study concluded on the suitability of Ba0.3Sr0.7CoO3−δ and Ba0.7Sr0.3CoO3−δ for TCES above 600 °C in air stream. It was noted that no direct correlation was observed between the oxygen storage capacity and the tendency of the heat storage capacity for these systems. For comparison, it is mentioned that the charging/discharging capacity of Ba0.3Sr0.7CoO3−δ is higher than that of Fe-doped manganese oxides, which have been shown to be a promising system for TCES. The LaxSr1−x(Mn, Fe, Co)O3−δ system was studied further with focus on the LaxSr1−xCoyMn1−yO3−δ (LSCM) and LaxSr1-xCoyFe1−yO3−δ (LSCF) series [105,106]. TGA and structural investigation revealed that the systems with low La content presented the highest redox activity, with an optimum reached for x = 0.3, while the perovskites adopted a cubic structure, or tetragonal structure for LSCM. Higher La content led to a higher distortion in the perovskite structure, related to a decrease in redox activity. Among all the systems studied, the LSCM3791 composition presented the highest gravimetric energy density (250 kJ/kg-ABO3). Very recently, dual-phase La0.65Sr0.35MnO3−xCeO2 composites (with x = 0, 5, 10, 20, 50, and 100%) were investigated for oxygen exchange and CO2 splitting, via thermochemical redox reactions, for the purpose of fuel production [107]. This work demonstrated the enhancement in oxygen exchange obtained for the La0.65Sr0.35MnO3 type perovskite material using the addition of ceria. The composite material presented higher oxygen release and high CO2 conversion for solar-to-fuel production. Another Co-based perovskite, YBaCo4O7+δ, was recently investigated for its suitability for thermochemical cycles and solar thermochemical fuel production, although at medium temperature (275–400 °C) [108]. The material, studied with TGA and within a small-scale vacuum test, presented low kinetics at low pO2 level. Along with the influence of pO2, the temperature and the particle size also showed an impact on the oxygen uptake capacity and kinetics of YBaCo4O7+δ.
The Ca-Mn-based perovskite system has also attracted strong attention for TCES, for example with the doped calcium manganite CaBxMn1−xO3−δ (with x = 0.2 and B = Al or Ti) [109]. This class of perovskite offers the highest reaction enthalpy (390 kJ/kg) among perovskites systems studied for this application. When compared to La0.3Sr0.7Co0.9Mn0.1O3−δ, the materials require a higher reduction temperature and then present a higher reaction enthalpy for the reduction step. In addition, CaBxMn1−xO3−δ possesses a reduced molecular weight (35% less), reducing the cost of potential implementation as the storage capacity is increased per mass of material, and reaction enthalpy extraction can be carried out at up to 1250 °C (pO2 = 0.001 atm). Systems such as Ca1−xSrxMnO3−δ have also demonstrated interesting properties while being studied for TCES [110,111,112]. Similar variations were observed among different compositions for Sr-doped CaMnO3−δ materials—e.g., Ca0.9Sr0.1MnO3−δ—such as an improved conversion efficiency (solar-to-electric) with higher reduction temperature and higher pO2, during the reduction and with no reduction in the specific energy storage capacity [111]. A thorough screening of A-site doped Ca1−xSrxMnO3−δ and B-site doped CaMeyMn1−yO3−δ (with Me = Cr, Ti, and Fe and y ≤ 0.1) was conducted. The study investigated the oxygen non-stoichiometry (δ) of the various systems according to temperature and pO2 [113]. The compositions Ca1−xSrxMnO3−δ (x = 0.05 and 0.10) and CaCryMn1−yO3−δ (y = 0.05 and 0.10) were selected for further characterization. Among them, the Sr-doped Ca1−xSrxMnO3−δ compositions exhibited the highest specific energy storage capacity with a thermodynamic limit of ≈700 kJ·kg−1 (900 °C, pO2 = 10−4 bar). The CaCr0.1Mn0.9O3−δ composition also showed good potential for TCES, with close performances to CaMnO3−δ in terms of oxidation temperature, mass-change and reaction enthalpy, and in addition, the B-site chromium doping raised cycling durability of the perovskite material [114]. Recently, CaMnO3−δ and CaCr0.1Mn0.9O3−δ were identified as the most promising compositions out of different Ca-Mn-based perovskites studied for oxygen atmosphere control in solar thermochemical processes [115]. Aluminum-doped calcium manganite CaAl0.2Mn0.8O3−δ particles were synthesized and tested in a 5 kWth scale (seven-lamp high-flux solar simulator) reactor under vacuum for TCES via reversible point defect reactions [116,117]. The material was introduced to the reactor in the form of particle flow using temperatures up to 900 °C to avoid particle agglomeration. The performances of the reactor were assessed for particle flow varying between 230 and 300 g/min, reactor inclination angle from 31° to 35° and radiative heat flux of 4.3 to 5.2 kWth. The study of the Cu-doped perovskite system SrFeO3−δ, SrFe1-xCuxO3−δ, demonstrated that with x = 0.05 both Cu and Fe are reduced, while for x = 0.15, the reduction occurs with a change in Fe oxidation state [118]. The re-oxidation of the material is fast around 150 °C, and the system is considered for oxygen storage application.

6. Conclusions

The most developed TCES systems were reviewed as this energy storage approach offers interesting prospects in view of future integration in solar processes for the aim of continuous round-the-clock operation. The relevant solar processes for high temperature energy storage application are the power production via thermodynamic cycles in CSP plants, but also the thermochemical processes requiring high temperature process heat to drive endothermal reactions (such as industrial processes for cement or iron/steel production, as well as chemical and fuel production processes). The main benefits of thermochemical energy storage over the other commonly-used and more developed storage systems (sensible or latent) are the possible long-term storage in the form of stable chemical materials, the high energy storage densities accessible and the heat storage at high temperatures in a wide range (from 400 to above 1000 °C). The main targeted benefits offered by TCES are the possible 24/7 operation and continuous production under fluctuating and intermittent solar irradiation conditions. This review shows that research is currently active in the fields of hydroxides and carbonates (mainly Ca-based), but also metal oxides and perovskites that allow operating in open loop under air as both the heat transfer fluid and the gaseous reactant (oxygen) during the heat charge/discharge steps. Strong research efforts and strategies are deployed to optimize the materials reactivity/stability over multiple cycles and avoid any loss in performance. Alternative materials are also being searched, such as abundant and low-cost ore minerals, residues from industrial wastes or side products for their potential use as TCES material. The materials’ shaping and integration in reactor systems for heat storage and release are also another area of interest that requires the design and optimization of suitable reactor and heat exchanger concepts. Further investigations in the area of TCES should also focus on the kinetic investigations of the charge/discharge steps for practical implementation of TCES systems. Finally, systems analysis (heat and mass flow optimization, dynamic simulation for investigating impact of transient effects, energy/exergy performance analysis), process flowsheets and techno-economic analysis of the integrated system are also necessary to demonstrate the beneficial impacts of thermochemical energy storage on increasing the capacity factor of the solar plant thanks to continuous operation and on enhancing the viability of the whole solar process.

Author Contributions

Conceptualization, L.A. and S.A.; methodology, L.A. and S.A.; investigation, L.A. and S.A.; writing—original draft preparation, L.A. and S.A.; writing—review and editing, L.A. and S.A. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Yan, Y.; Wang, K.; Clough, P.T.; Anthony, E.J. Developments in calcium/chemical looping and metal oxide redox cycles for high-temperature thermochemical energy storage: A review. Fuel Process. Technol. 2020, 199, 106280. [Google Scholar] [CrossRef]
  2. Chen, X.; Zhang, Z.; Qi, C.; Ling, X.; Peng, H. State of the art on the high-temperature thermochemical energy storage systems. Energy Convers. Manag. 2018, 177, 792–815. [Google Scholar] [CrossRef]
  3. Bayon, A.; Bader, R.; Jafarian, M.; Fedunik-Hofman, L.; Sun, Y.; Hinkley, J.; Miller, S.; Lipiński, W. Techno-economic assessment of solid–gas thermochemical energy storage systems for solar thermal power applications. Energy 2018, 149, 473–484. [Google Scholar] [CrossRef]
  4. Pan, Z.H.; Zhao, C.Y. Gas–solid thermochemical heat storage reactors for high-temperature applications. Energy 2017, 130, 155–173. [Google Scholar] [CrossRef]
  5. Zsembinszki, G.; Solé, A.; Barreneche, C.; Prieto, C.; Fernández, A.; Cabeza, L. Review of Reactors with Potential Use in Thermochemical Energy Storage in Concentrated Solar Power Plants. Energies 2018, 11, 2358. [Google Scholar] [CrossRef] [Green Version]
  6. Pardo, P.; Deydier, A.; Anxionnaz-Minvielle, Z.; Rougé, S.; Cabassud, M.; Cognet, P. A review on high temperature thermochemical heat energy storage. Renew. Sustain. Energy Rev. 2014, 32, 591–610. [Google Scholar] [CrossRef] [Green Version]
  7. Sunku Prasad, J.; Muthukumar, P.; Desai, F.; Basu, D.N.; Rahman, M.M. A critical review of high-temperature reversible thermochemical energy storage systems. Appl. Energy 2019, 254, 113733. [Google Scholar] [CrossRef]
  8. André, L.; Abanades, S.; Flamant, G. Screening of thermochemical systems based on solid-gas reversible reactions for high temperature solar thermal energy storage. Renew. Sustain. Energy Rev. 2016, 64, 703–715. [Google Scholar] [CrossRef]
  9. André, L.; Abanades, S. Investigation of metal oxides, mixed oxides, perovskites and alkaline earth carbonates/hydroxides as suitable candidate materials for high-temperature thermochemical energy storage using reversible solid-gas reactions. Mater. Today Energy 2018, 10, 48–61. [Google Scholar] [CrossRef]
  10. Schmidt, M.; Gutierrez, A.; Linder, M. Thermochemical energy storage with CaO/Ca(OH)2—Experimental investigation of the thermal capability at low vapor pressures in a lab scale reactor. Appl. Energy 2017, 188, 672–681. [Google Scholar] [CrossRef]
  11. Rougé, S.; Criado, Y.A.; Soriano, O.; Abanades, J.C. Continuous CaO/Ca(OH)2 Fluidized Bed Reactor for Energy Storage: First Experimental Results and Reactor Model Validation. Ind. Eng. Chem. Res. 2017, 56, 844–852. [Google Scholar] [CrossRef] [Green Version]
  12. Yuan, Y.; Li, Y.; Zhao, J. Development on Thermochemical Energy Storage Based on CaO-Based Materials: A Review. Sustainability 2018, 10, 2660. [Google Scholar] [CrossRef] [Green Version]
  13. Funayama, S.; Takasu, H.; Zamengo, M.; Kariya, J.; Kim, S.T.; Kato, Y. Performance of thermochemical energy storage of a packed bed of calcium hydroxide pellets. Energy Storage 2019, 1, e40. [Google Scholar] [CrossRef] [Green Version]
  14. Xu, M.; Huai, X.; Cai, J. Agglomeration Behavior of Calcium Hydroxide/Calcium Oxide as Thermochemical Heat Storage Material: A Reactive Molecular Dynamics Study. J. Phys. Chem. C 2017, 121, 3025–3033. [Google Scholar] [CrossRef]
  15. Criado, Y.A.; Huille, A.; Rougé, S.; Abanades, J.C. Experimental investigation and model validation of a CaO/Ca(OH)2 fluidized bed reactor for thermochemical energy storage applications. Chem. Eng. J. 2017, 313, 1194–1205. [Google Scholar] [CrossRef] [Green Version]
  16. Dai, L.; Long, X.-F.; Lou, B.; Wu, J. Thermal cycling stability of thermochemical energy storage system Ca(OH)2/CaO. Appl. Therm. Eng. 2018, 133, 261–268. [Google Scholar] [CrossRef]
  17. Funayama, S.; Takasu, H.; Zamengo, M.; Kariya, J.; Kim, S.T.; Kato, Y. Composite material for high-temperature thermochemical energy storage using calcium hydroxide and ceramic foam. Energy Storage 2019, 1, e53. [Google Scholar] [CrossRef] [Green Version]
  18. Funayama, S.; Takasu, H.; Kim, S.T.; Kato, Y. Thermochemical storage performance of a packed bed of calcium hydroxide composite with a silicon-based ceramic honeycomb support. Energy 2020, 201, 117673. [Google Scholar] [CrossRef]
  19. Criado, Y.A.; Alonso, M.; Abanades, J.C. Enhancement of a CaO/Ca(OH)2 based material for thermochemical energy storage. Sol. Energy 2016, 135, 800–809. [Google Scholar] [CrossRef] [Green Version]
  20. Gollsch, M.; Afflerbach, S.; Angadi, B.V.; Linder, M. Investigation of calcium hydroxide powder for thermochemical storage modified with nanostructured flow agents. Sol. Energy 2020, 201, 810–818. [Google Scholar] [CrossRef]
  21. Cosquillo Mejia, A.; Afflerbach, S.; Linder, M.; Schmidt, M. Experimental analysis of encapsulated CaO/Ca(OH)2 granules as thermochemical storage in a novel moving bed reactor. Appl. Therm. Eng. 2020, 169, 114961. [Google Scholar] [CrossRef]
  22. Xia, B.Q.; Zhao, C.Y.; Yan, J.; Khosa, A.A. Development of granular thermochemical heat storage composite based on calcium oxide. Renew. Energy 2020, 147, 969–978. [Google Scholar] [CrossRef]
  23. Shkatulov, A.; Aristov, Y. Calcium hydroxide doped by KNO3 as a promising candidate for thermochemical storage of solar heat. RSC Adv. 2017, 7, 42929–42939. [Google Scholar] [CrossRef] [Green Version]
  24. Wang, T.; Zhao, C.Y.; Yan, J. Investigation on the Ca(OH)2/CaO thermochemical energy storage system with potassium nitrate addition. Sol. Energy Mater. Sol. Cells 2020, 215, 110646. [Google Scholar] [CrossRef]
  25. Yan, J.; Zhao, C.Y. Experimental study of CaO/Ca(OH)2 in a fixed-bed reactor for thermochemical heat storage. Appl. Energy 2016, 175, 277–284. [Google Scholar] [CrossRef]
  26. Huang, C.; Xu, M.; Huai, X. Experimental investigation on thermodynamic and kinetic of calcium hydroxide dehydration with hexagonal boron nitride doping for thermochemical energy storage. Chem. Eng. Sci. 2019, 206, 518–526. [Google Scholar] [CrossRef]
  27. Huang, C.; Xu, M.; Huai, X. Synthesis and performances evaluation of the spindle-shaped calcium hydroxide nanomaterials for thermochemical energy storage. J. Nanopart. Res. 2019, 21, 262. [Google Scholar] [CrossRef]
  28. Flegkas, S.; Birkelbach, F.; Winter, F.; Groenewold, H.; Werner, A. Profitability Analysis and Capital Cost Estimation of a Thermochemical Energy Storage System Utilizing Fluidized Bed Reactors and the Reaction System MgO/Mg(OH)2. Energies 2019, 12, 4788. [Google Scholar] [CrossRef] [Green Version]
  29. Müller, D.; Knoll, C.; Gravogl, G.; Artner, W.; Welch, J.M.; Eitenberger, E.; Friedbacher, G.; Schreiner, M.; Harasek, M.; Hradil, K.; et al. Tuning the performance of MgO for thermochemical energy storage by dehydration—From fundamentals to phase impurities. Appl. Energy 2019, 253, 113562. [Google Scholar] [CrossRef]
  30. Li, S.; Liu, J.; Tan, T.; Nie, J.; Zhang, H. Optimization of LiNO3–Mg(OH)2 composites as thermo-chemical energy storage materials. J. Environ. Manag. 2020, 262, 110258. [Google Scholar] [CrossRef]
  31. Shkatulov, A.I.; Aristov, Y. Thermochemical Energy Storage using LiNO3-Doped Mg(OH)2: A Dehydration Study. Energy Technol. 2018, 6, 1844–1851. [Google Scholar] [CrossRef]
  32. Shkatulov, A.; Takasu, H.; Kato, Y.; Aristov, Y. Thermochemical energy storage by LiNO3-doped Mg(OH)2: Rehydration study. J. Energy Storage 2019, 22, 302–310. [Google Scholar] [CrossRef]
  33. André, L.; Abanades, S. Evaluation and performances comparison of calcium, strontium and barium carbonates during calcination/carbonation reactions for solar thermochemical energy storage. J. Energy Storage 2017, 13, 193–205. [Google Scholar] [CrossRef]
  34. Abanades, S.; André, L. Design and demonstration of a high temperature solar-heated rotary tube reactor for continuous particles calcination. Appl. Energy 2018, 212, 1310–1320. [Google Scholar] [CrossRef]
  35. Ortiz, C.; Romano, M.C.; Valverde, J.M.; Binotti, M.; Chacartegui, R. Process integration of Calcium-Looping thermochemical energy storage system in concentrating solar power plants. Energy 2018, 155, 535–551. [Google Scholar] [CrossRef]
  36. Ortiz, C.; Valverde, J.M.; Chacartegui, R.; Perez-Maqueda, L.A.; Giménez, P. The Calcium-Looping (CaCO3/CaO) process for thermochemical energy storage in Concentrating Solar Power plants. Renew. Sustain. Energy Rev. 2019, 113, 109252. [Google Scholar] [CrossRef]
  37. Astolfi, M.; De Lena, E.; Romano, M.C. Improved flexibility and economics of Calcium Looping power plants by thermochemical energy storage. Int. J. Greenh. Gas Control 2019, 83, 140–155. [Google Scholar] [CrossRef]
  38. Cannone, S.F.; Stendardo, S.; Lanzini, A. Solar-Powered Rankine Cycle Assisted by an Innovative Calcium Looping Process as an Energy Storage System. Ind. Eng. Chem. Res. 2020, 59, 6977–6993. [Google Scholar] [CrossRef]
  39. Durán-Martín, J.D.; Sánchez Jimenez, P.E.; Valverde, J.M.; Perejón, A.; Arcenegui-Troya, J.; García Triñanes, P.; Pérez Maqueda, L.A. Role of particle size on the multicycle calcium looping activity of limestone for thermochemical energy storage. J. Adv. Res. 2020, 22, 67–76. [Google Scholar] [CrossRef]
  40. Fedunik-Hofman, L.; Bayon, A.; Donne, S.W. Kinetics of Solid-Gas Reactions and Their Application to Carbonate Looping Systems. Energies 2019, 12, 2981. [Google Scholar] [CrossRef] [Green Version]
  41. Benitez-Guerrero, M.; Valverde, J.M.; Perejon, A.; Sanchez-Jimenez, P.E.; Perez-Maqueda, L.A. Low-cost Ca-based composites synthesized by biotemplate method for thermochemical energy storage of concentrated solar power. Appl. Energy 2018, 210, 108–116. [Google Scholar] [CrossRef]
  42. Khosa, A.A.; Zhao, C.Y. Heat storage and release performance analysis of CaCO3/CaO thermal energy storage system after doping nano silica. Sol. Energy 2019, 188, 619–630. [Google Scholar] [CrossRef]
  43. Han, R.; Gao, J.; Wei, S.; Su, Y.; Su, C.; Li, J.; Liu, Q.; Qin, Y. High-performance CaO-based composites synthesized using a space-confined chemical vapor deposition strategy for thermochemical energy storage. Sol. Energy Mater. Sol. Cells 2020, 206, 110346. [Google Scholar] [CrossRef]
  44. Han, R.; Gao, J.; Wei, S.; Sun, F.; Liu, Q.; Qin, Y. Development of dense Ca-based, Al-stabilized composites with high volumetric energy density for thermochemical energy storage of concentrated solar power. Energy Convers. Manag. 2020, 221, 113201. [Google Scholar] [CrossRef]
  45. Sun, H.; Li, Y.; Yan, X.; Zhao, J.; Wang, Z. Thermochemical energy storage performance of Al2O3/CeO2 co-doped CaO-based material under high carbonation pressure. Appl. Energy 2020, 263, 114650. [Google Scholar] [CrossRef]
  46. Møller, K.T.; Ibrahim, A.; Buckley, C.E.; Paskevicius, M. Inexpensive thermochemical energy storage utilising additive enhanced limestone. J. Mater. Chem. A 2020, 8, 9646–9653. [Google Scholar] [CrossRef]
  47. Chen, X.; Jin, X.; Liu, Z.; Ling, X.; Wang, Y. Experimental investigation on the CaO/CaCO3 thermochemical energy storage with SiO2 doping. Energy 2018, 155, 128–138. [Google Scholar] [CrossRef]
  48. Han, R.; Gao, J.; Wei, S.; Su, Y.; Sun, F.; Zhao, G.; Qin, Y. Strongly coupled calcium carbonate/antioxidative graphite nanosheets composites with high cycling stability for thermochemical energy storage. Appl. Energy 2018, 231, 412–422. [Google Scholar] [CrossRef]
  49. Chen, Q.; Zhang, Y.; Ding, Y. Wettability of molten sodium sulfate salt on nanoscale calcium oxide surface in high-temperature thermochemical energy storage. Appl. Surf. Sci. 2020, 505, 144550. [Google Scholar] [CrossRef]
  50. Raganati, F.; Chirone, R.; Ammendola, P. Calcium-looping for thermochemical energy storage in concentrating solar power applications: Evaluation of the effect of acoustic perturbation on the fluidized bed carbonation. Chem. Eng. J. 2020, 392, 123658. [Google Scholar] [CrossRef]
  51. Da, Y.; Xuan, Y.; Teng, L.; Zhang, K.; Liu, X.; Ding, Y. Calcium-based composites for direct solar-thermal conversion and thermochemical energy storage. Chem. Eng. J. 2020, 382, 122815. [Google Scholar] [CrossRef]
  52. Zheng, H.; Song, C.; Bao, C.; Liu, X.; Xuan, Y.; Li, Y.; Ding, Y. Dark calcium carbonate particles for simultaneous full-spectrum solar thermal conversion and large-capacity thermochemical energy storage. Sol. Energy Mater. Sol. Cells 2020, 207, 110364. [Google Scholar] [CrossRef]
  53. Teng, L.; Xuan, Y.; Da, Y.; Liu, X.; Ding, Y. Modified Ca-Looping materials for directly capturing solar energy and high-temperature storage. Energy Storage Mater. 2020, 25, 836–845. [Google Scholar] [CrossRef]
  54. Yang, L.; Huang, Z.; Huang, G. Fe- and Mn-Doped Ca-Based Materials for Thermochemical Energy Storage Systems. Energy Fuels 2020, 34, 11479–11488. [Google Scholar] [CrossRef]
  55. Tregambi, C.; Padula, S.; Galbusieri, M.; Coppola, G.; Montagnaro, F.; Salatino, P.; Troiano, M.; Solimene, R. Directly irradiated fluidized bed reactor for thermochemical energy storage and solar fuels production. Powder Technol. 2020, 366, 460–469. [Google Scholar] [CrossRef]
  56. Benitez-Guerrero, M.; Valverde, J.M.; Sanchez-Jimenez, P.E.; Perejon, A.; Perez-Maqueda, L.A. Multicycle activity of natural CaCO3 minerals for thermochemical energy storage in Concentrated Solar Power plants. Sol. Energy 2017, 153, 188–199. [Google Scholar] [CrossRef]
  57. Benitez-Guerrero, M.; Sarrion, B.; Perejon, A.; Sanchez-Jimenez, P.E.; Perez-Maqueda, L.A.; Manuel Valverde, J. Large-scale high-temperature solar energy storage using natural minerals. Sol. Energy Mater. Sol. Cells 2017, 168, 14–21. [Google Scholar] [CrossRef]
  58. Wang, K.; Gu, F.; Clough, P.T.; Zhao, P.; Anthony, E.J. Porous MgO-stabilized CaO-based powders/pellets via a citric acid-based carbon template for thermochemical energy storage in concentrated solar power plants. Chem. Eng. J. 2020, 390, 124163. [Google Scholar] [CrossRef]
  59. Sánchez Jiménez, P.E.; Perejón, A.; Benítez Guerrero, M.; Valverde, J.M.; Ortiz, C.; Pérez Maqueda, L.A. High-performance and low-cost macroporous calcium oxide based materials for thermochemical energy storage in concentrated solar power plants. Appl. Energy 2019, 235, 543–552. [Google Scholar] [CrossRef]
  60. Humphries, T.D.; Møller, K.T.; Rickard, W.D.A.; Sofianos, M.V.; Liu, S.; Buckley, C.E.; Paskevicius, M. Dolomite: A low cost thermochemical energy storage material. J. Mater. Chem. A 2019, 7, 1206–1215. [Google Scholar] [CrossRef] [Green Version]
  61. Arcenegui-Troya, J.; Sánchez-Jiménez, P.E.; Perejón, A.; Valverde, J.M.; Chacartegui, R.; Pérez-Maqueda, L.A. Calcium-Looping Performance of Biomineralized CaCO3 for CO2 Capture and Thermochemical Energy Storage. Ind. Eng. Chem. Res. 2020, 59, 12924–12933. [Google Scholar] [CrossRef]
  62. Sun, H.; Li, Y.; Bian, Z.; Yan, X.; Wang, Z.; Liu, W. Thermochemical energy storage performances of Ca-based natural and waste materials under high pressure during CaO/CaCO3 cycles. Energy Convers. Manag. 2019, 197, 111885. [Google Scholar] [CrossRef]
  63. Maaten, B.; Konist, A.; Siirde, A. Potential of solid residues from power plants as thermochemical energy storage materials. J. Anal. Calorim. 2020. [Google Scholar] [CrossRef]
  64. Setoodeh Jahromy, S.; Jordan, C.; Azam, M.; Werner, A.; Harasek, M.; Winter, F. Fly Ash from Municipal Solid Waste Incineration as a Potential Thermochemical Energy Storage Material. Energy Fuels 2019, 33, 5810–5819. [Google Scholar] [CrossRef]
  65. Setoodeh Jahromy, S.; Azam, M.; Huber, F.; Jordan, C.; Wesenauer, F.; Huber, C.; Naghdi, S.; Schwendtner, K.; Neuwirth, E.; Laminger, T.; et al. Comparing Fly Ash Samples from Different Types of Incinerators for Their Potential as Storage Materials for Thermochemical Energy and CO2. Materials 2019, 12, 3358. [Google Scholar] [CrossRef] [Green Version]
  66. Valverde, J.M.; Miranda-Pizarro, J.; Perejón, A.; Sánchez-Jiménez, P.E.; Pérez-Maqueda, L.A. Calcium-Looping performance of steel and blast furnace slags for thermochemical energy storage in concentrated solar power plants. J. CO2 Util. 2017, 22, 143–154. [Google Scholar] [CrossRef]
  67. Bagherisereshki, E.; Tran, J.; Lei, F.; AuYeung, N. Investigation into SrO/SrCO3 for high temperature thermochemical energy storage. Sol. Energy 2018, 160, 85–93. [Google Scholar] [CrossRef]
  68. Meroueh, L.; Yenduru, K.; Dasgupta, A.; Jiang, D.; AuYeung, N. Energy storage based on SrCO3 and Sorbents—A probabilistic analysis towards realizing solar thermochemical power plants. Renew. Energy 2019, 133, 770–786. [Google Scholar] [CrossRef]
  69. Zare Ghorbaei, S.; Ale Ebrahim, H. Carbonation reaction of strontium oxide for thermochemical energy storage and CO2 removal applications: Kinetic study and reactor performance prediction. Appl. Energy 2020, 277, 115604. [Google Scholar] [CrossRef]
  70. Ammendola, P.; Raganati, F.; Miccio, F.; Murri, A.N.; Landi, E. Insights into utilization of strontium carbonate for thermochemical energy storage. Renew. Energy 2020, 157, 769–781. [Google Scholar] [CrossRef]
  71. Gigantino, M.; Kiwic, D.; Steinfeld, A. Thermochemical energy storage via isothermal carbonation-calcination cycles of MgO-stabilized SrO in the range of 1000–1100 °C. Sol. Energy 2019, 188, 720–729. [Google Scholar] [CrossRef]
  72. Møller, K.T.; Williamson, K.; Buckley, C.E.; Paskevicius, M. Thermochemical energy storage properties of a barium based reactive carbonate composite. J. Mater. Chem. A 2020, 8, 10935–10942. [Google Scholar] [CrossRef]
  73. Takasu, H.; Ryu, J.; Kato, Y. Application of lithium orthosilicate for high-temperature thermochemical energy storage. Appl. Energy 2017, 193, 74–83. [Google Scholar] [CrossRef]
  74. Gravogl, G.; Knoll, C.; Artner, W.; Welch, J.M.; Eitenberger, E.; Friedbacher, G.; Harasek, M.; Hradil, K.; Werner, A.; Weinberger, P.; et al. Pressure effects on the carbonation of MeO (Me = Co, Mn, Pb, Zn) for thermochemical energy storage. Appl. Energy 2019, 252, 113451. [Google Scholar] [CrossRef]
  75. Silakhori, M.; Jafarian, M.; Arjomandi, M.; Nathan, G.J. Thermogravimetric analysis of Cu, Mn, Co, and Pb oxides for thermochemical energy storage. J. Energy Storage 2019, 23, 138–147. [Google Scholar] [CrossRef]
  76. Setoodeh Jahromy, S.; Birkelbach, F.; Jordan, C.; Huber, C.; Harasek, M.; Werner, A.; Winter, F. Impact of Partial Pressure, Conversion, and Temperature on the Oxidation Reaction Kinetics of Cu2O to CuO in Thermochemical Energy Storage. Energies 2019, 12, 508. [Google Scholar] [CrossRef] [Green Version]
  77. Silakhori, M.; Jafarian, M.; Arjomandi, M.; Nathan, G.J. Comparing the thermodynamic potential of alternative liquid metal oxides for the storage of solar thermal energy. Sol. Energy 2017, 157, 251–258. [Google Scholar] [CrossRef]
  78. Deutsch, M.; Horvath, F.; Knoll, C.; Lager, D.; Gierl-Mayer, C.; Weinberger, P.; Winter, F. High-Temperature Energy Storage: Kinetic Investigations of the CuO/Cu2O Reaction Cycle. Energy Fuels 2017, 31, 2324–2334. [Google Scholar] [CrossRef]
  79. Bush, H.E.; Loutzenhiser, P.G. Solar electricity via an Air Brayton cycle with an integrated two-step thermochemical cycle for heat storage based on Fe2O3/Fe3O4 redox reactions: Thermodynamic and kinetic analyses. Sol. Energy 2018, 174, 617–627. [Google Scholar] [CrossRef]
  80. Carrillo, A.J.; Sastre, D.; Serrano, D.P.; Pizarro, P.; Coronado, J.M. Revisiting the BaO2/BaO redox cycle for solar thermochemical energy storage. Phys. Chem. Chem. Phys. 2016, 18, 8039–8048. [Google Scholar] [CrossRef]
  81. André, L.; Abanades, S.; Cassayre, L. Experimental Investigation of Co–Cu, Mn–Co, and Mn–Cu Redox Materials Applied to Solar Thermochemical Energy Storage. ACS Appl. Energy Mater. 2018, 1, 3385–3395. [Google Scholar] [CrossRef]
  82. Block, T.; Schmücker, M. Metal oxides for thermochemical energy storage: A comparison of several metal oxide systems. Sol. Energy 2016, 126, 195–207. [Google Scholar] [CrossRef]
  83. Carrillo, A.J.; Serrano, D.P.; Pizarro, P.; Coronado, J.M. Manganese oxide-based thermochemical energy storage: Modulating temperatures of redox cycles by Fe–Cu co-doping. J. Energy Storage 2016, 5, 169–176. [Google Scholar] [CrossRef]
  84. André, L.; Abanades, S.; Cassayre, L. Mixed Metal Oxide Systems Applied to Thermochemical Storage of Solar Energy: Benefits of Secondary Metal Addition in Co and Mn Oxides and Contribution of Thermodynamics. Appl. Sci. 2018, 8, 2618. [Google Scholar] [CrossRef] [Green Version]
  85. Dizaji, H.B.; Hosseini, H. A review of material screening in pure and mixed-metal oxide thermochemical energy storage (TCES) systems for concentrated solar power (CSP) applications. Renew. Sustain. Energy Rev. 2018, 98, 9–26. [Google Scholar] [CrossRef]
  86. Wu, S.; Zhou, C.; Doroodchi, E.; Nellore, R.; Moghtaderi, B. A review on high-temperature thermochemical energy storage based on metal oxides redox cycle. Energy Convers. Manag. 2018, 168, 421–453. [Google Scholar] [CrossRef]
  87. Liu, J.; Baeyens, J.; Deng, Y.; Wang, X.; Zhang, H. High temperature Mn2O3/Mn3O4 and Co3O4/CoO systems for thermo-chemical energy storage. J. Environ. Manag. 2020, 267, 110582. [Google Scholar] [CrossRef] [PubMed]
  88. Müller, D.; Knoll, C.; Artner, W.; Harasek, M.; Gierl-Mayer, C.; Welch, J.M.; Werner, A.; Weinberger, P. Combining in-situ X-ray diffraction with thermogravimetry and differential scanning calorimetry—An investigation of Co3O4, MnO2 and PbO2 for thermochemical energy storage. Sol. Energy 2017, 153, 11–24. [Google Scholar] [CrossRef]
  89. Yilmaz, D.; Darwish, E.; Leion, H. Investigation of the combined Mn-Si oxide system for thermochemical energy storage applications. J. Energy Storage 2020, 28, 101180. [Google Scholar] [CrossRef]
  90. Bielsa, D.; Zaki, A.; Arias, P.L.; Faik, A. Improving the redox performance of Mn2O3/Mn3O4 pair by Si doping to be used as thermochemical energy storage for concentrated solar power plants. Sol. Energy 2020, 204, 144–154. [Google Scholar] [CrossRef]
  91. King, K.; Randhir, K.; Klausner, J. Calorimetric method for determining the thermochemical energy storage capacities of redox metal oxides. Thermochim. Acta 2019, 673, 105–118. [Google Scholar] [CrossRef]
  92. Randhir, K.; King, K.; Rhodes, N.; Li, L.; Hahn, D.; Mei, R.; AuYeung, N.; Klausner, J. Magnesium-manganese oxides for high temperature thermochemical energy storage. J. Energy Storage 2019, 21, 599–610. [Google Scholar] [CrossRef]
  93. King, K.; Randhir, K.; Petrasch, J.; Klausner, J. Enhancing thermochemical energy storage density of magnesium-manganese oxides. Energy Storage 2019, 1, e83. [Google Scholar] [CrossRef] [Green Version]
  94. Preisner, N.C.; Block, T.; Linder, M.; Leion, H. Stabilizing Particles of Manganese-Iron Oxide with Additives for Thermochemical Energy Storage. Energy Technol. 2018, 6, 2154–2165. [Google Scholar] [CrossRef]
  95. Al-Shankiti, I.A.; Ehrhart, B.D.; Ward, B.J.; Bayon, A.; Wallace, M.A.; Bader, R.; Kreider, P.; Weimer, A.W. Particle design and oxidation kinetics of iron-manganese oxide redox materials for thermochemical energy storage. Sol. Energy 2019, 183, 17–29. [Google Scholar] [CrossRef]
  96. Hamidi, M.; Wheeler, V.M.; Gao, X.; Pye, J.; Catchpole, K.; Weimer, A.W. Reduction of iron–manganese oxide particles in a lab-scale packed-bed reactor for thermochemical energy storage. Chem. Eng. Sci. 2020, 221, 115700. [Google Scholar] [CrossRef]
  97. Wokon, M.; Kohzer, A.; Linder, M. Investigations on thermochemical energy storage based on technical grade manganese-iron oxide in a lab-scale packed bed reactor. Sol. Energy 2017, 153, 200–214. [Google Scholar] [CrossRef]
  98. Wokon, M.; Block, T.; Nicolai, S.; Linder, M.; Schmücker, M. Thermodynamic and kinetic investigation of a technical grade manganese-iron binary oxide for thermochemical energy storage. Sol. Energy 2017, 153, 471–485. [Google Scholar] [CrossRef]
  99. Tescari, S.; Singh, A.; Agrafiotis, C.; de Oliveira, L.; Breuer, S.; Schlögl-Knothe, B.; Roeb, M.; Sattler, C. Experimental evaluation of a pilot-scale thermochemical storage system for a concentrated solar power plant. Appl. Energy 2017, 189, 66–75. [Google Scholar] [CrossRef]
  100. Zhou, X.; Mahmood, M.; Chen, J.; Yang, T.; Xiao, G.; Ferrari, M.L. Validated model of thermochemical energy storage based on cobalt oxides. Appl. Therm. Eng. 2019, 159, 113965. [Google Scholar] [CrossRef]
  101. Zaki, A.; Bielsa, D.; Faik, A. Development of a continuous solid solution with extended Red-Ox temperature range and unexpected high reaction enthalpies for thermochemical energy storage. AIP Conf. Proc. 2019, 2126, 210010. [Google Scholar] [CrossRef]
  102. Zaki, A.; Carrasco, J.; Bielsa, D.; Faik, A. Tunable Redox Temperature of a Co3−xMnxO4 (0 ≤ x ≤ 3) Continuous Solid Solution for Thermochemical Energy Storage. ACS Appl. Mater. Interfaces 2020, 12, 7010–7020. [Google Scholar] [CrossRef] [PubMed]
  103. Zhang, Z.; Andre, L.; Abanades, S. Experimental assessment of oxygen exchange capacity and thermochemical redox cycle behavior of Ba and Sr series perovskites for solar energy storage. Sol. Energy 2016, 134, 494–502. [Google Scholar] [CrossRef]
  104. Gokon, N.; Yawata, T.; Bellan, S.; Kodama, T.; Cho, H.-S. Thermochemical behavior of perovskite oxides based on LaxSr1-x(Mn, Fe, Co)O3-δ and BaySr1-yCoO3-δ redox system for thermochemical energy storage at high temperatures. Energy 2019, 171, 971–980. [Google Scholar] [CrossRef]
  105. Babiniec, S.M.; Coker, E.N.; Miller, J.E.; Ambrosini, A. Investigation of LaxSr1−xCoyM1−yO3−δ (M = Mn, Fe) perovskite materials as thermochemical energy storage media. Sol. Energy 2015, 118, 451–459. [Google Scholar] [CrossRef] [Green Version]
  106. Babiniec, S.M.; Coker, E.N.; Ambrosini, A.; Miller, J.E. ABO3 (A = La, Ba, Sr, K; B = Co, Mn, Fe) perovskites for thermochemical energy storage. AIP Conf. Proc. 2016, 1734, 050006. [Google Scholar] [CrossRef] [Green Version]
  107. Bork, A.H.; Carrillo, A.J.; Hood, Z.D.; Yildiz, B.; Rupp, J.L.M. Oxygen Exchange in Dual-Phase La0.65Sr0.35MnO3–CeO2 Composites for Solar Thermochemical Fuel Production. ACS Appl. Mater. Interfaces 2020, 12, 32622–32632. [Google Scholar] [CrossRef]
  108. Xu, M.; Ermanoski, I.; Stechel, E.B.; Deng, S. Oxygen pumping characteristics of YBaCo4O7+δ for solar thermochemical cycles. Chem. Eng. J. 2020, 389, 124026. [Google Scholar] [CrossRef]
  109. Babiniec, S.M.; Coker, E.N.; Miller, J.E.; Ambrosini, A. Doped calcium manganites for advanced high-temperature thermochemical energy storage. Int. J. Energy Res. 2016, 40, 280–284. [Google Scholar] [CrossRef]
  110. Albrecht, K.J.; Jackson, G.S.; Braun, R.J. Thermodynamically consistent modeling of redox-stable perovskite oxides for thermochemical energy conversion and storage. Appl. Energy 2016, 165, 285–296. [Google Scholar] [CrossRef] [Green Version]
  111. Albrecht, K.J.; Jackson, G.S.; Braun, R.J. Evaluating thermodynamic performance limits of thermochemical energy storage subsystems using reactive perovskite oxide particles for concentrating solar power. Sol. Energy 2018, 167, 179–193. [Google Scholar] [CrossRef]
  112. Imponenti, L.; Albrecht, K.J.; Wands, J.W.; Sanders, M.D.; Jackson, G.S. Thermochemical energy storage in strontium-doped calcium manganites for concentrating solar power applications. Sol. Energy 2017, 151, 1–13. [Google Scholar] [CrossRef]
  113. Imponenti, L.; Albrecht, K.J.; Kharait, R.; Sanders, M.D.; Jackson, G.S. Redox cycles with doped calcium manganites for thermochemical energy storage to 1000 °C. Appl. Energy 2018, 230, 1–18. [Google Scholar] [CrossRef]
  114. Lucio, B.; Romero, M.; González-Aguilar, J. Analysis of solid-state reaction in the performance of doped calcium manganites for thermal storage. Solid State Ion. 2019, 338, 47–57. [Google Scholar] [CrossRef]
  115. Pein, M.; Agrafiotis, C.; Vieten, J.; Giasafaki, D.; Brendelberger, S.; Roeb, M.; Sattler, C. Redox thermochemistry of Ca-Mn-based perovskites for oxygen atmosphere control in solar-thermochemical processes. Sol. Energy 2020, 198, 612–622. [Google Scholar] [CrossRef]
  116. Schrader, A.J.; Schieber, G.L.; Ambrosini, A.; Loutzenhiser, P.G. Experimental demonstration of a 5 kWth granular-flow reactor for solar thermochemical energy storage with aluminum-doped calcium manganite particles. Appl. Therm. Eng. 2020, 173, 115257. [Google Scholar] [CrossRef]
  117. Schrader, A.J.; Bush, H.E.; Ranjan, D.; Loutzenhiser, P.G. Aluminum-doped calcium manganite particles for solar thermochemical energy storage: Reactor design, particle characterization, and heat and mass transfer modeling. Int. J. Heat Mass Transf. 2020, 152, 119461. [Google Scholar] [CrossRef]
  118. Vieten, J.; Bulfin, B.; Starr, D.E.; Hariki, A.; de Groot, F.M.F.; Azarpira, A.; Zachäus, C.; Hävecker, M.; Skorupska, K.; Knoblauch, N.; et al. Redox Behavior of Solid Solutions in the SrFe1-xCuxO3-δ System for Application in Thermochemical Oxygen Storage and Air Separation. Energy Technol. 2019, 7, 131–139. [Google Scholar] [CrossRef] [Green Version]

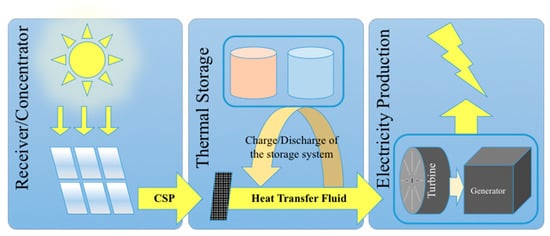

Figure 1. Scheme of the solar power plant main components integrating buffer thermal energy storage system.
Figure 1. Scheme of the solar power plant main components integrating buffer thermal energy storage system.
Energies 13 05859 g001

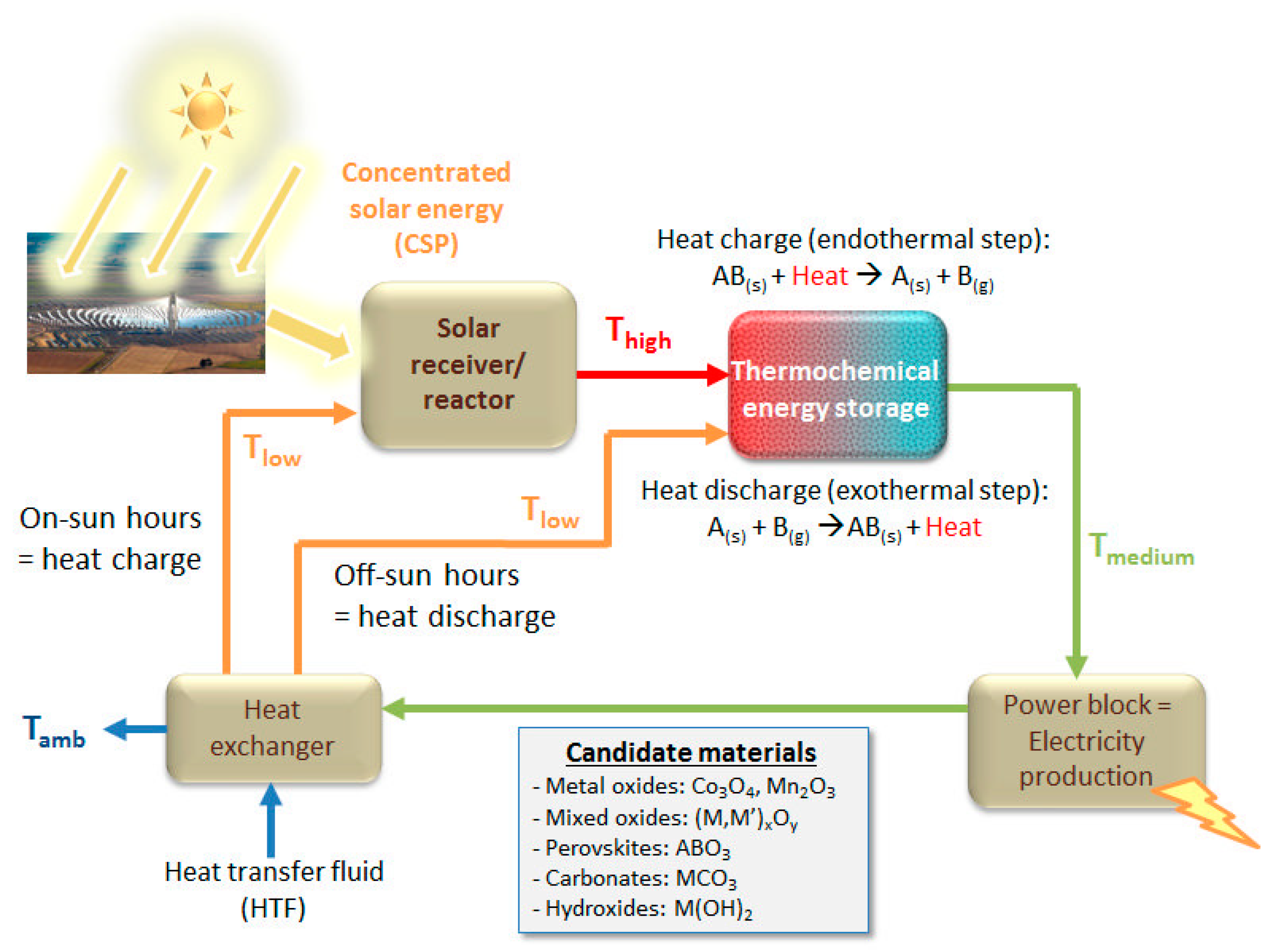

Figure 2. Flow diagram and operating principle of thermochemical energy storage system integrated with solar thermal power plant for continuous power production.
Figure 2. Flow diagram and operating principle of thermochemical energy storage system integrated with solar thermal power plant for continuous power production.
Energies 13 05859 g002

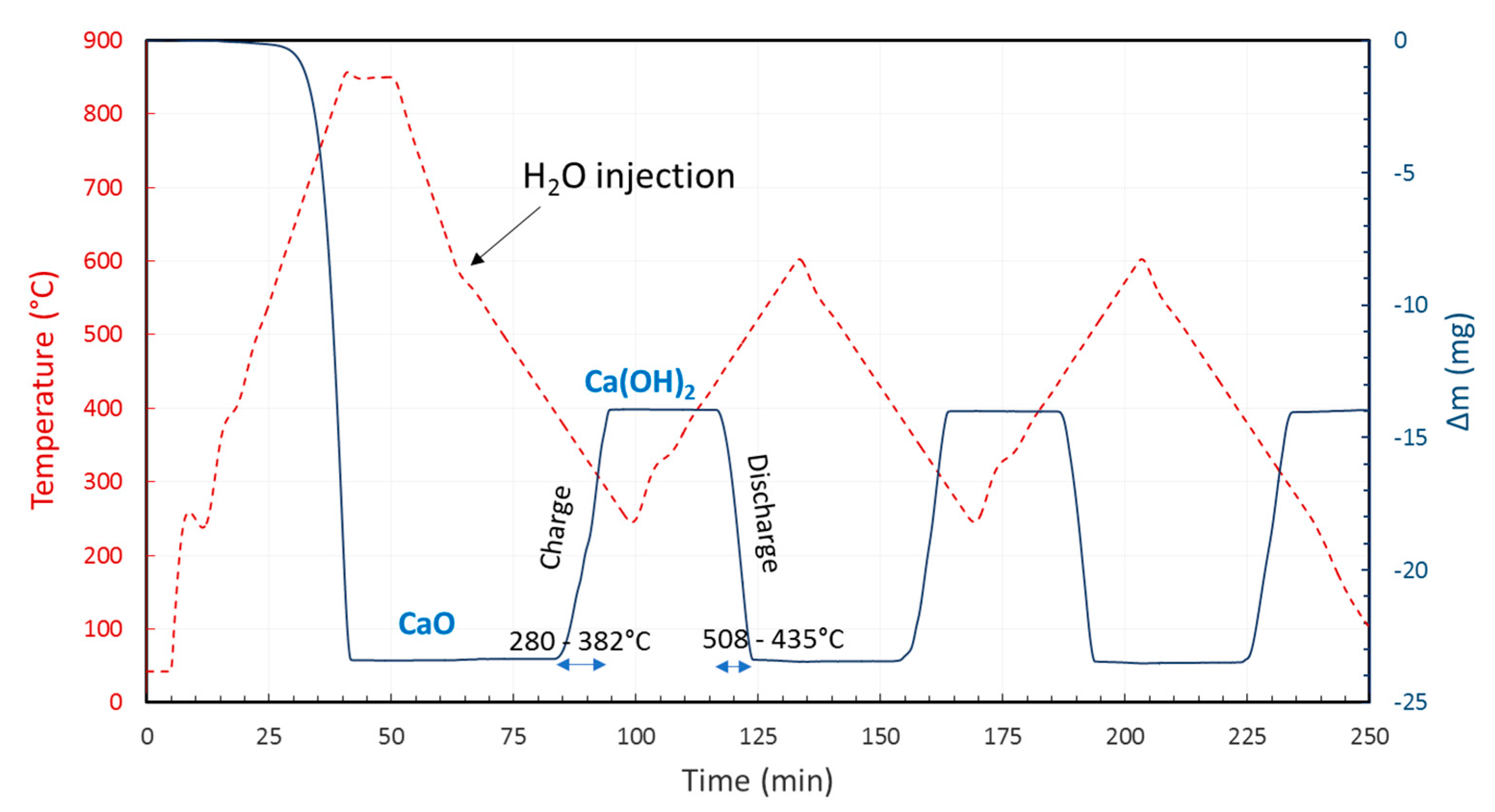

Figure 3. TGA of CaO/Ca(OH)2 showing excellent reversibility during charge/discharge cycles under 21 mol% H2O(g). CaO was first obtained from calcination of commercial CaCO3 to CaO at 850 °C under pure Ar.
Figure 3. TGA of CaO/Ca(OH)2 showing excellent reversibility during charge/discharge cycles under 21 mol% H2O(g). CaO was first obtained from calcination of commercial CaCO3 to CaO at 850 °C under pure Ar.
Energies 13 05859 g003
Figure 4. Thermogravimetry (TG) analysis of SrCO3/SrO and BaCO3/BaO showing cycling stability improvement of carbonates via the addition of MgO as inert additive [33]. (a) SrCO3/SrO (a. commercial SrCO3, b. commercial SrCO3 with 20 wt% MgO, c. SrCO3 synthesized with 20 wt% MgO, d. commercial SrCO3 with 32 wt% MgO), and (b) BaCO3/BaO (a. commercial BaCO3 with 44 wt% MgO, b. synthesized BaCO3 with 30 wt% MgO, c. 30 wt% MgO presenting low porosity, d. 30 wt% MgO presenting high porosity).
Figure 4. Thermogravimetry (TG) analysis of SrCO3/SrO and BaCO3/BaO showing cycling stability improvement of carbonates via the addition of MgO as inert additive [33]. (a) SrCO3/SrO (a. commercial SrCO3, b. commercial SrCO3 with 20 wt% MgO, c. SrCO3 synthesized with 20 wt% MgO, d. commercial SrCO3 with 32 wt% MgO), and (b) BaCO3/BaO (a. commercial BaCO3 with 44 wt% MgO, b. synthesized BaCO3 with 30 wt% MgO, c. 30 wt% MgO presenting low porosity, d. 30 wt% MgO presenting high porosity).
Energies 13 05859 g004

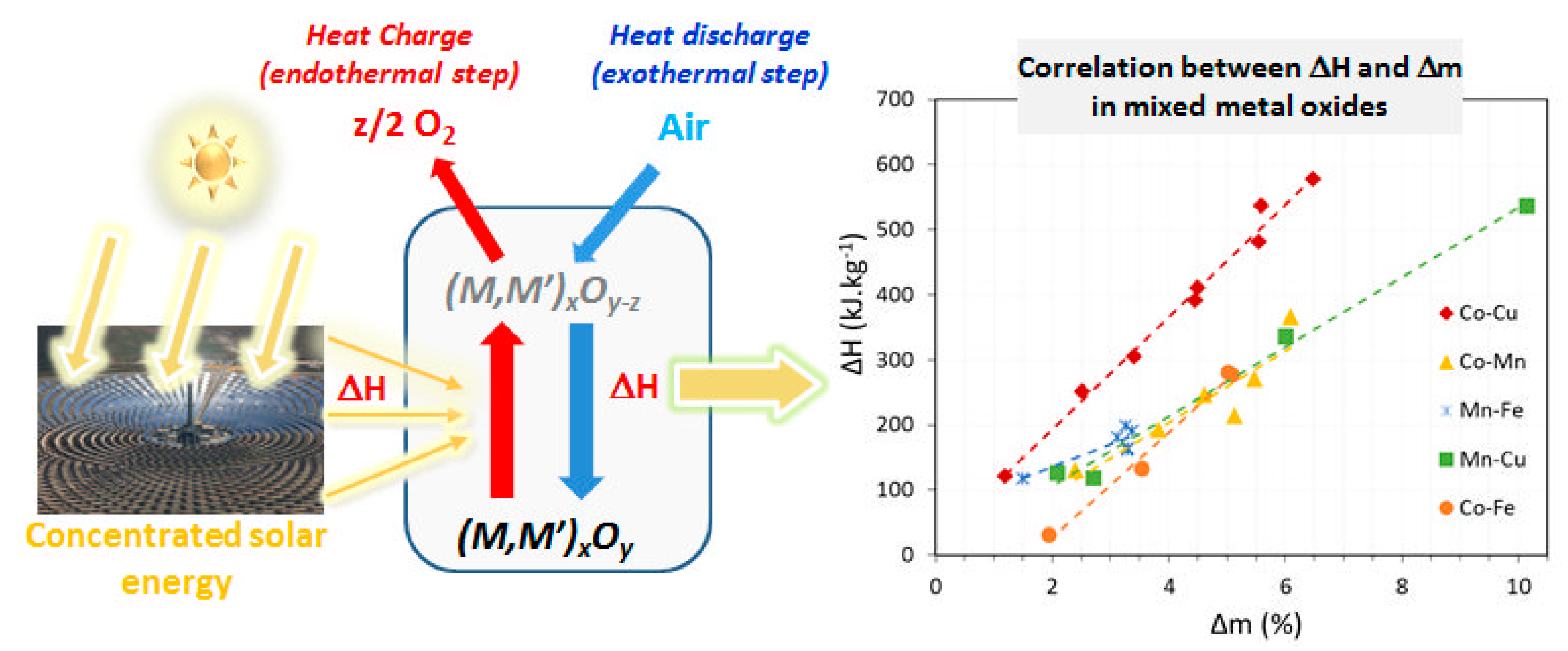

Figure 5. Principle of open loop operation with metal oxides and correlation between enthalpy and oxygen mass exchange in mixed metal oxides.
Figure 5. Principle of open loop operation with metal oxides and correlation between enthalpy and oxygen mass exchange in mixed metal oxides.
Energies 13 05859 g005

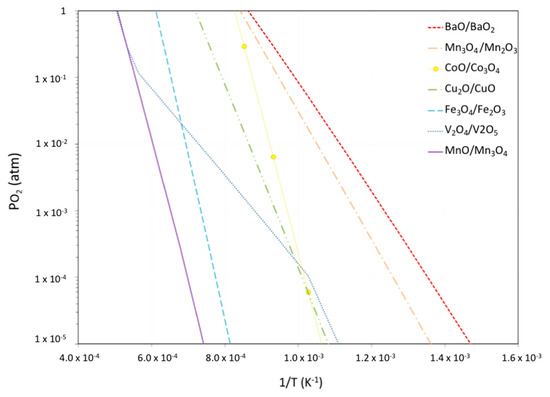

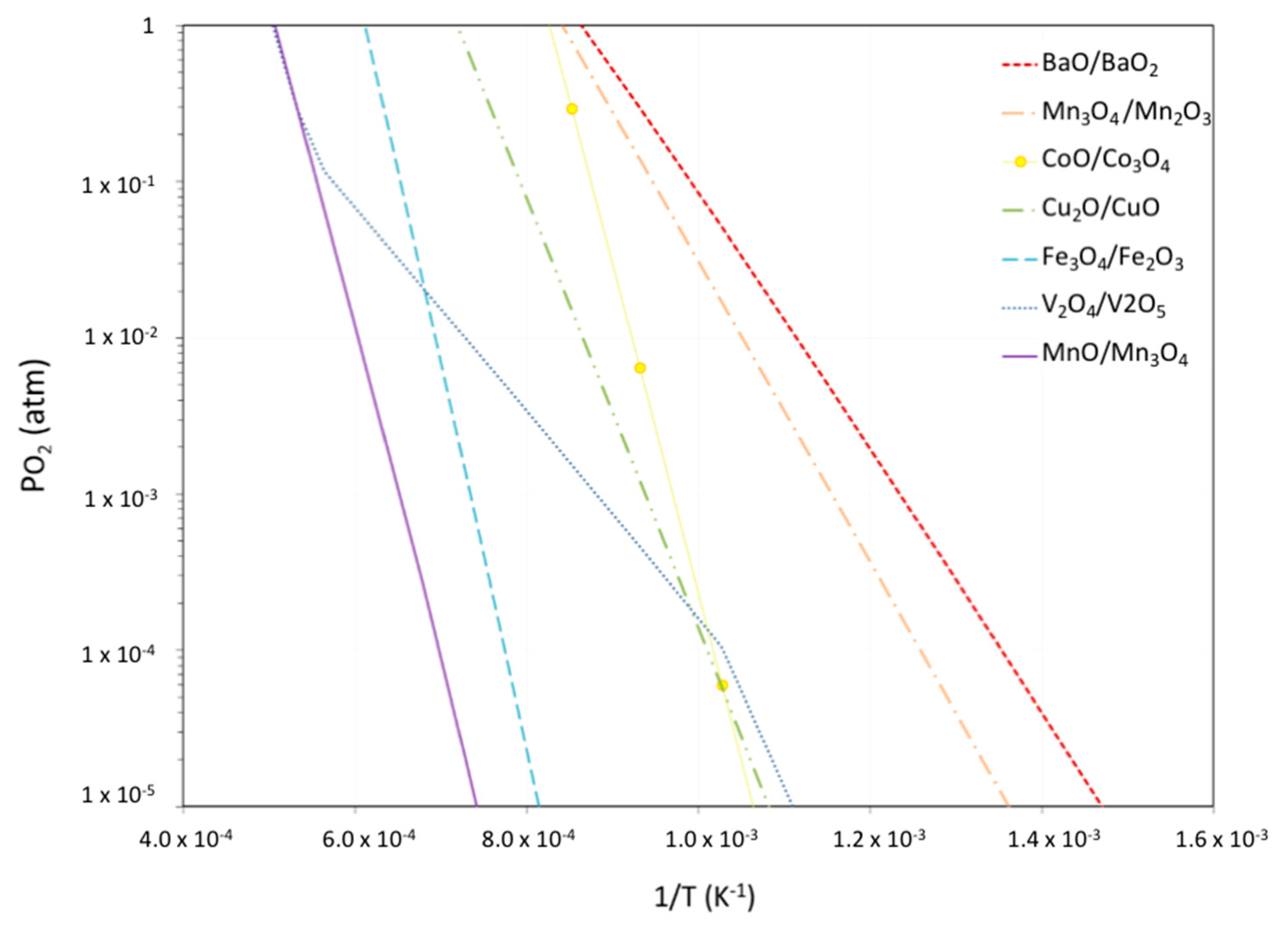

Figure 6. Transition temperature variation (1/T) as a function of pO2 for a selection of metal oxides represented through Van’t Hoff diagram.
Figure 6. Transition temperature variation (1/T) as a function of pO2 for a selection of metal oxides represented through Van’t Hoff diagram.
Energies 13 05859 g006

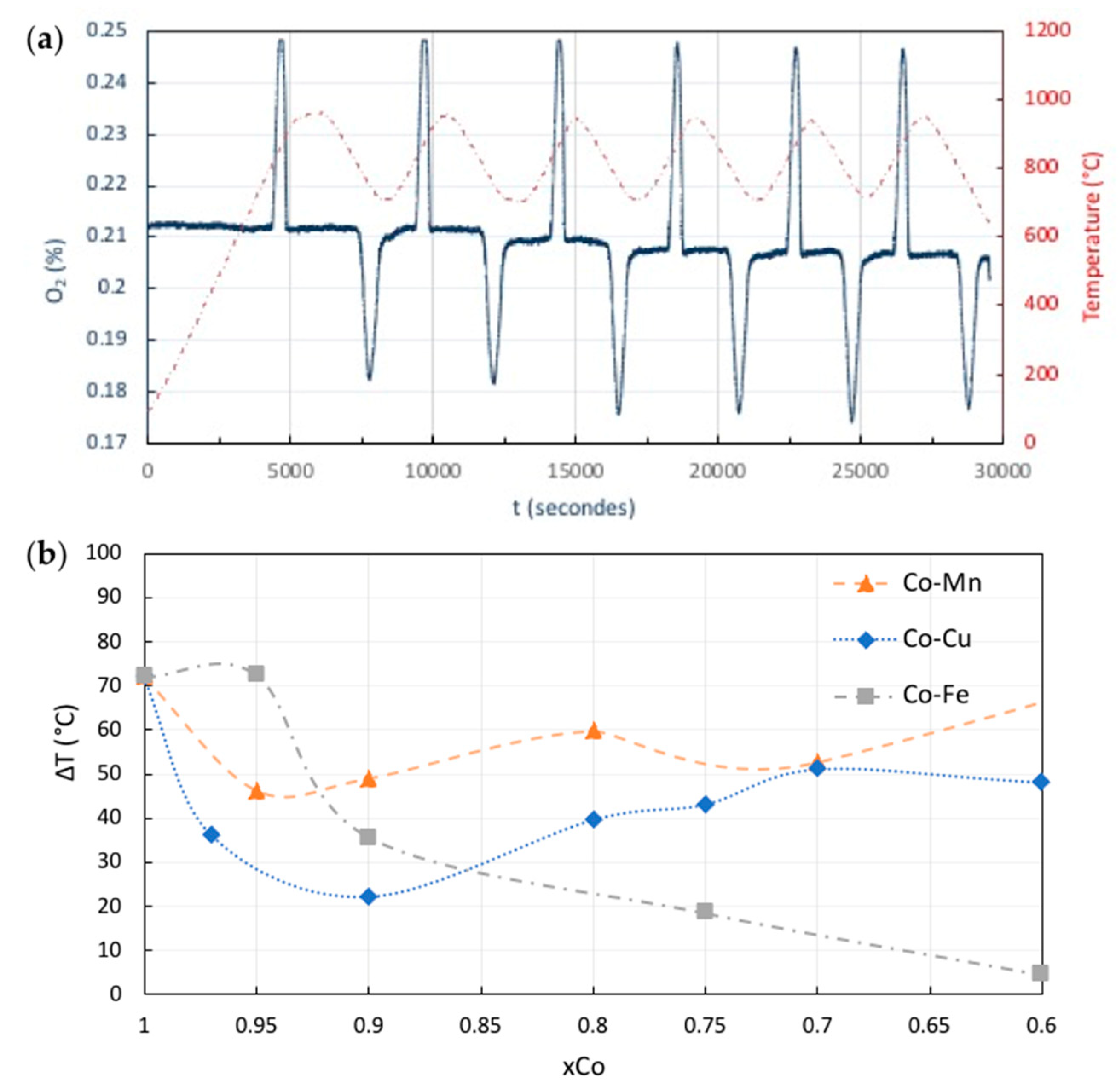

Figure 7. (a) Redox activity of Co3O4/CoO foam made from commercial Co3O4, (b) variation of the temperature gap between the reduction and oxidation step of Co3O4/CoO depending on the doping composition.
Figure 7. (a) Redox activity of Co3O4/CoO foam made from commercial Co3O4, (b) variation of the temperature gap between the reduction and oxidation step of Co3O4/CoO depending on the doping composition.
Energies 13 05859 g007

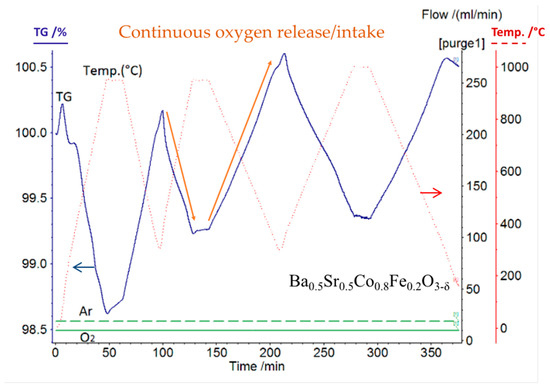

Figure 8. Thermogravimetry (TG) analysis of Ba0.5Sr0.5Co0.8Fe0.2O3−δ perovskite during redox cycles showing a continuous release and intake of oxygen under a dynamic heating program in 20% O2/Ar.
Figure 8. Thermogravimetry (TG) analysis of Ba0.5Sr0.5Co0.8Fe0.2O3−δ perovskite during redox cycles showing a continuous release and intake of oxygen under a dynamic heating program in 20% O2/Ar.
Energies 13 05859 g008
Table 1. Comparison of the main options for thermal energy storage using concentrated solar power (CSP), adapted with permission from [6,7], Elsevier, 2020.
Table 1. Comparison of the main options for thermal energy storage using concentrated solar power (CSP), adapted with permission from [6,7], Elsevier, 2020.
Storage TypeSensible Heat Storage (SHS)Latent Heat Storage (LHT)Thermochemical Energy Storage (TCES)
Gravimetric energy density~0.02–0.03 kWh/kg~0.05–0.1 kWh/kg~0.5–1 kWh/kg
Volumetric energy density~50 kWh/m3~100 kWh/m3~500 kWh/m3
Storage temperatureCharging step temperatureCharging step temperatureRoom temperature
Technology developmentIndustrial scalePilot scaleLaboratory and pilot scale
Energy storage periodLimited (Thermal loss)Limited (Thermal loss)Theoretically unlimited
Theoretical energy transportVery short distanceVery short distanceVery long distance (>100 km)
Technology complexitySimpleMediumComplex
DrawbacksImportant thermal losses over time Large quantity of storage material requiredImportant thermal losses over time Corrosive materials Low heat conductivityExpensive investment cost Complex technique
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

André, L.; Abanades, S. Recent Advances in Thermochemical Energy Storage via Solid–Gas Reversible Reactions at High Temperature. Energies 2020, 13, 5859.

AMA Style

André L, Abanades S. Recent Advances in Thermochemical Energy Storage via Solid–Gas Reversible Reactions at High Temperature. Energies. 2020; 13(22):5859.

Chicago/Turabian Style

André, Laurie, and Stéphane Abanades. 2020. "Recent Advances in Thermochemical Energy Storage via Solid–Gas Reversible Reactions at High Temperature" Energies 13, no. 22: 5859.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
