Investigation of the Emission Characteristics of Light-Duty Diesel Vehicles in Korea Based on EURO-VI Standards According to Type of After-Treatment System

Abstract

This study analyzed the characteristics and distribution of emissions from diesel vehicles that are sold in Korea and satisfy the Euro-6 standards, according to after-treatment systems. To identify the emission distribution of diesel vehicles according to after-treatment systems, results of the certification tests conducted on 266 vehicle models were examined. Results of the certification tests on 86 vehicle models that were manufactured based on the standards for RDE after 2017 were examined according to the engine displacement and power. The emission characteristics of six vehicle models equipped with different types of after-treatment systems were verified through certification tests in the New European Driving Cycle and Worldwide Harmonized Light Vehicle Test Procedure modes and RDE tests, according to the after-treatment systems. Specifically, a chassis dynamometer and an emission analyzer were used in the certification test modes; a portable emissions measurement system was used in the RDE test. The results indicated that the amount of NO_x emissions from diesel vehicles has been constantly decreasing since 2017 due to the implementation of standards for RDE and advancements in after-treatment systems. Furthermore, it was found that selective catalyst reduction systems must be installed in vehicles to satisfy Euro-6 standards for permissible emissions on real-roads.

1. Introduction

The Ministry of Land, Infrastructure and Transport (MOLIT) has stated that 23.68 million vehicles have been registered in South Korea as of December 2019, and has projected this number to exceed 24 million by 2020 [1], which is approximately 2.2 times the number of vehicles in 1999, i.e., 11 million. The number of registered hybrid, electric, and hydrogen-powered fuel cell vehicles, which are classified as environmentally friendly vehicles, is increasing. However, this number is insignificant, because it accounts for only 1.7% of all registered vehicles. On the other hand, the number of diesel vehicles registered as of the end of 2019 was 9,957,543, which was approximately 42% of the total number of registered vehicles. In comparison, the number of diesel vehicles registered as of 2012 constituted 37% of the total number of registered vehicles. These data clearly show that the number of diesel vehicles has been constantly increasing.

Recently, environmental issues caused by the emissions of diesel vehicles have been emphasized. In 2015, the Volkswagen emissions scandal, also known as “Dieselgate”, was revealed, and Volkswagen subsequently admitted to having manipulated two types of programs in the electric control units (ECUs) of certain models of its vehicles manufactured in accordance with the Euro 5 standards, to deceptively show that the exhaust gas recirculation (EGR) systems of these vehicles operated normally during vehicle emissions certification tests. However, the on-road performance of the EGR systems of these vehicles was substantially lower than that demonstrated in the emission tests, resulting in the emission of excessive amounts of pollutants. Following this, the European Union (EU) proposed tests and evaluation measures according to its guidelines on manipulation evaluation in January 2017, as well as evaluation standards for the operation of engine preheating, repetition of certification test modes, and Real Driving Emission (RDE) tests. Since then, the EU has been constantly strengthening the relevant standards, as shown in the Real Driving Emissions–Light-Duty Vehicles (RDE–LDV) evaluation measures, in which the conditions for cold start and the particulate number (PN) were additionally applied [2]. Korea has adopted the Euro 6 standards for permissible emissions on light-duty diesel vehicles since September 2014. The Euro 6 standards for RDE were adopted in September 2017, and have since been applied to certified vehicles in Korea. The Worldwide Harmonized Light Vehicle Test Procedure (WLTP), a reinforced test mode in which the conditions of driving time and maximum speed increased compared to those of previous New European Driving Cycle (NEDC) certification test mode, has been implemented since October 2017 [3,4]. With the implementation of standards for PN, the standards for RDE have also been reinforced; for example, the previously permissible emission amount of 0.168 g/km has been revised to 0.12 g/km in 2020.

Compliance tests for manipulation inspection are being conducted on certain vehicle models in accordance with the EU evaluation guidelines. Moreover, administrative actions against uncovered cases involving manipulation have been effected since 2015. In addition, it was alleged that some international vehicle manufacturers manipulated not only the EGR systems in their vehicles to conceal the status of decrease in the operating ratio of the EGR system under low temperature conditions, but also the control logic on the injection quantity of diesel exhaust fluid (DEF), which is used as a catalyst for the selective catalytic reduction (SCR) system. To handle these manipulation cases, compliance tests are being conducted on suspected cases involving the same vehicle models imported in Korea. As such, various systems for reducing NO_x emissions are being installed in diesel vehicles since the implementation of Euro 5 standards. Accordingly, the number of variables and factors associated with the ECUs used to control these systems has also been increasing. In particular, dosing control units (DCUs) of SCR systems are used to regulate the injection of DEF. Recently, certification tests in laboratories and the RDE standards implemented in October 2017 are being used to identify the status of satisfaction of standards for permissible emissions; additionally, relevant studies are being actively conducted [5,6,7,8,9,10].

Ko et al. [5] investigated the NO_x emission characteristics of heavy-duty diesel vehicle under real-road driving conditions. They have demonstrated that the tightening of emissions regulations also has a significant effect on reducing vehicle emissions on real-roads. It was also reported that the measurement of emissions on the real-road requires a review of the test method (or procedure) taking into account the cold start conditions and engine power. O’Driscoll et al. [11] analyzed the results of real road tests conducted on 149 models of passenger cars to which the Euro 5 or Euro 6 standards were applied according to the fuel type. Based on their analysis, they reported that NO_x emissions from passenger cars manufactured in accordance with the Euro 5 standards were higher by 3.5–4 times (in urban areas) than that of the passenger cars manufactured in accordance with the Euro 6 standards. They also stated that the NO_x emission from diesel cars was 86–96% less than that from gasoline cars. Huang et al. [12] compared the pollutants emitted by gasoline and diesel vehicles based on the portable emissions measurement system (PEMS). Mera et al. [13] examined the amount of NO_x emitted from vehicles manufactured in compliance with the Euro 6 standards during real road driving, according to various NO_x reduction systems such as EGR, lean NO_x trap (LNT), and SCR. In particular, several studies [14,15,16,17] have been conducted through in-lab and real road driving tests to examine the properties of emissions generated from diesel vehicles that comply with the Euro 6 standards and have LNT systems installed in them. Myung et al. [16] published a research paper on the real-time NO_x reduction characteristics of Euro-6 diesel vehicles equipped with LNT in various vehicle emission certification cycles. They reported 1.5 to 6.6 times more NO_x emissions in WLTC, FTP, and US06 cycle modes than in NEDC mode. The cause of this was attributed to frequent purges of LNT and high engine-out NO_x emissions, according to the analysis. In particular, the DPF regeneration section in WLTC mode reported an increase of more than 8.8 times, indicating the need for optimization of the operation strategy and the after-treatment control strategy following DPF regeneration and frequent LNT purge of diesel vehicles under real-road driving conditions. Moreover, various domestic and international studies [18,19,20] have examined the amount of CO₂ and NO_x emissions generated from diesel vehicles that comply with the Euro 6 standards, during real road driving, through experiments and analysis of results.

Accordingly, the amount of emissions generated from vehicles in Korea that were manufactured in compliance with the Euro 6 standards and use various after-treatment systems should be analyzed through tests on certification modes and real road driving tests. In this study, the amount of NO_x emissions generated from light-duty diesel vehicles that were manufactured after 2015 in accordance with the Euro 6 standards for permissible emissions was analyzed based on the results of certification tests, inspection for the certification of conformity, and occasional compliance tests conducted on the vehicles. An RDE test was conducted to evaluate the amount of NO_x emissions generated from diesel vehicles equipped with PEMS. Moreover, the results of tests conducted on 266 vehicle models sold in Korea under the conditions of certification modes and those of RDE tests on 83 vehicle models were analyzed. Furthermore, the effects of displacement and power on various after-treatment systems were investigated. In addition, two vehicles for each after-treatment system were selected from among the vehicles certified based on the Euro 6 standards to analyze the effects of after-treatment systems on emissions through tests based on certification modes and RDE tests.

2. Analysis of Certification Results, Experimental Set-Up, and Procedure

2.1. Analysis of Certification Results

The Euro-6 standards for permissible emissions were first adopted for light-duty diesel vehicles in September 2014 in Korea. Consequently, the permitted level of NO_x emissions for diesel vehicles was reduced from 0.18 g/km (Euro 5 standards) to 0.08 g/km. This study analyzed the amount of NO_x emissions generated from 266 models of vehicles, which were certified to comply with the Euro 6 standards from 2015 and 2018, based on the results of the certification tests conducted on these vehicles. The vehicles were classified into two groups for analysis: 62 vehicle models that were produced and sold in Korea and 204 vehicle models that were imported and sold in Korea. Further, the RDE test results obtained by vehicle manufacturers are verified based on documents. To confirm the correspondence between the test and the practical results, the National Institute of Environmental Research (NIER) inspects the certification of conformity of certain vehicle models. Additionally, it conducts RDE tests to identify manipulation on certain vehicle models in occasional compliance tests. Considering this, the results obtained by NIER were also used in this study. The RDE tests for compliance, as well as inspection of certification of conformity, were conducted on 83 vehicle models. Specifically, 20 vehicle models were examined for compliance tests and 63 models for inspection for certification of conformity. The relevant details are listed in

Table 1. Number of car models considered in the analysis of emission characteristics.

Vehicle Origin		Domestic Vehicle			Imported Vehicle			Total
Displacement		~1.6 L	1.6~2.5 L	~2.5 L	~1.6 L	1.6–2.5 L	~2.5 L
Certification test		11	39	12	18	121	65	266
Compliance test		9	20	2	6	15	11	63
Real Driving Emission (RDE) test	Certification of Conformity	6	6	-	1	5	2	20
Total of RDE test		15	26	2	7	20	13	83

.

Vehicles with a displacement of 1.6–2.5 L accounted for the highest proportion of all vehicles considered in the RDE tests, which includes 39 vehicle models manufactured in Korea and 121 imported vehicles. The number of imported and domestic car models with a displacement of 2.5 L or higher was found to be 65 and 12, respectively.

To verify the emission characteristics of the 266 vehicle models that were certified and sold according to after-treatment systems, the status of application of after-treatment systems required to satisfy the Euro 6 standards for permissible NO_x emissions was confirmed based on the documents submitted for the application of certification. It is known that LNT and SCR systems are mainly used for reducing NO_x emissions. In recent years, both these systems are simultaneously installed to satisfy the standards for RDEs. It was found that both the LNT and SCR systems were applied in 31 domestic vehicle models. On the other hand, imported vehicle models mainly had only SCR systems, and the number of imported vehicle models equipped with both LNT and SCR systems was 28. The EGR or LNT system was applied in vehicle models that were manufactured in compliance with the Euro 6 standards between 2014 and 2015. The details of the status of after-treatment systems installed in vehicle models are listed in

Table 2. Types of after-treatment system in certification vehicles. EGR—exhaust gas recirculation, LNT—lean NO_x trap, SCR—selective catalytic reduction.

Vehicle Origin	Domestic Vehicle				Imported Vehicle				Total
After-Treatment System	EGR	LNT	SCR	LNT+SCR	EGR	LNT	SCR	LNT+SCR
Number of cars	-	22	9	31	15	44	117	28	266

.

2.2. Experimental Set-Up and Procedure

2.2.1. Test Vehicles

In this study, diesel vehicles that comply with the Euro 6 standards were selected, and experiments were conducted on them to identify the effects of various after-treatment systems (such as LNT, SCR, and the combination of LNT and SCR). To compare the test vehicles based on the after-treatment systems equipped with them, only vehicles with a displacement of ~2 L (1900 to 2200 cc) were selected.

Table 3. Specifications of test vehicles.

Test Vehicle	Max Power (ps)	Displacement (cc)	After-Treatment System
Veh. 1	150	1997	EGR + LNT
Veh. 2	170	1956	EGR + LNT
Veh. 3	170	2143	EGR + SCR
Veh. 4	150	1968	EGR + SCR
Veh. 5	190	1995	EGR + LNT + SCR
Veh. 6	186	1995	EGR + LNT + SCR

lists the particulars of the test vehicles.

2.2.2. Experimental Setup

Experimental Apparatus (Chassis Dynamometer and Emission Analyzer)

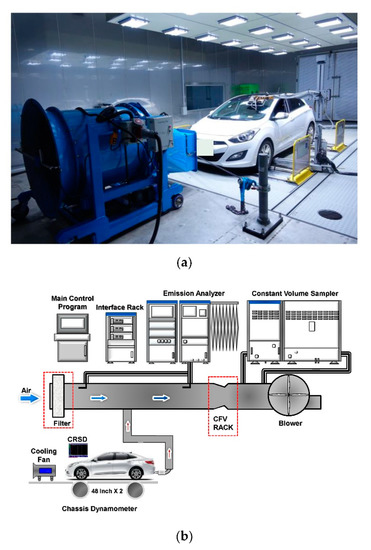

As shown in Figure 1, a vehicle emission measurement equipment consists of a chassis dynamometer, emission analyzer, constant volume sampler (CVS), particulate matter (PM) measurement device, and PN counter for indoor tests. The chassis dynamometer was used to reproduce the patterns and level of drag observed during real road driving tests in laboratories. Through a coast-down test in which the drag coefficients and test weight according to the vehicle model were input to represent the data of drag and conditions of real roads, the chassis dynamometer similarly reproduces the amount of emissions generated during real road driving based on rolling resistance, gradient, and wind resistance from the surface. The detailed specifications of the dynamometer are listed in

Table 4. Specifications of test dynamometer.

Item	Specification
Power Absorption	AC motor (150 kW)
Roller	48 “INLINE 4 × 2
Vmax Dyno	200 km/h
Min Inertia	800 kg
Max Inertia	5448 kg
Maximum calibration force	10,200 N
Fan	Vehicle proportional type

.

The emission analyzer examines the emissions generated from vehicles through sampling using the CVS, and can be used to investigate CO, CO₂, NO_x, and HC emissions. Analytic methods vary according to the type of gas being analyzed. The HC emissions were analyzed using a heated flame ionization detector (HFID) based on the principle that the electrical conductivity of a gas is directly proportional to the concentration of charged particles in it. Further, CO and CO₂ were analyzed based on the principle that non-dispersive infrared (NDIR) gaseous matter exhibits certain absorption spectra depending on infrared light, which is used to calculate the concentration of a specific component. The NO_x emission was analyzed via chemi-luminescent detection (CLD). Chemiluminescence is a chemical reaction generated by the emission of visible light. Activated NO₂ is formed when NO is oxidized in the presence of ozone and low pressure; subsequently, activated molecules return to the ground state and emit light due to chemiluminescence. Because ozone is maintained in excess amounts in a furnace, the concentration of NO in a sample is determined by the amount of emitted light. The detailed specifications of the gas analyzer are listed in

Table 5. Specifications of the test gas analyzer.

Item	Specification
Component	CO	CO2	HC	NOx
Measuring principle	NDIR	NDIR	HFID	CLD
Measuring concentration range	50, 100, 200, 1000 ppm	1, 2, 3, 6%	10, 20, 50, 200 ppm	10, 20, 50, 1000 ppm
Repeatability	With ±1% of fuel scale per 8 h (at an ambient temperature difference of 5 °C)
Zero drift	With ±1% of fuel scale per 8 h (at an ambient temperature difference of 5 °C)
Span drift	With ±1% of fuel scale per 8 h (at an ambient temperature difference of 5 °C)

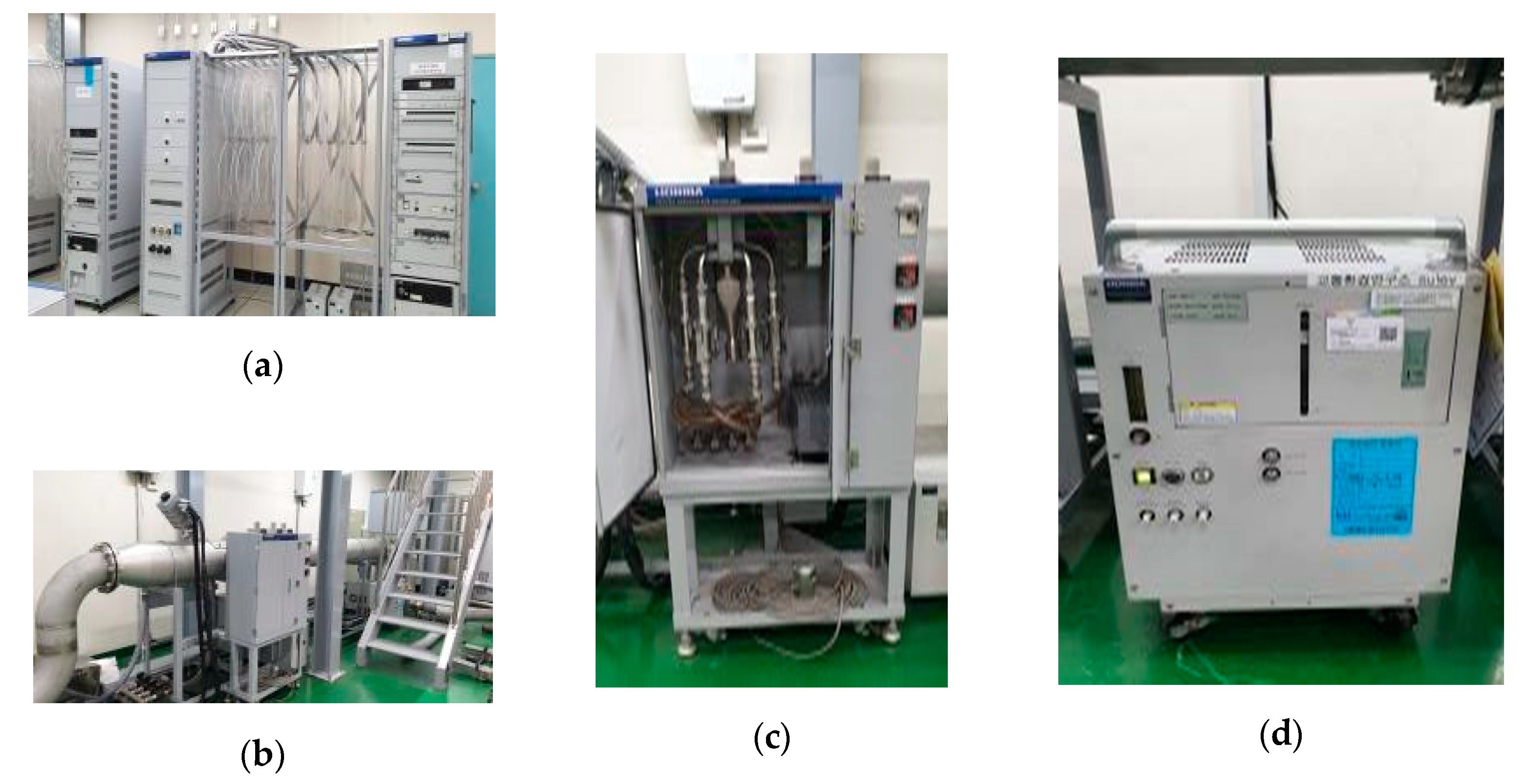

. Figure 2 shows the pictures of each experimental devices.

The CVS dilutes the emissions generated from a test vehicle driven on the roller of the chassis dynamometer by using a certain amount of air in an exhaust pipe, and collects them in a sample collection bag. The PM measuring device has sufficient flow, and a heat exchanger is used to maintain the temperature of the diluted sample gas at 52 °C during the collection of PM sample. The particle collection system of the PN measuring device comprises dilution tunnels, a particle collection probe, volatile particle reduction device located at the entrance, and a particle transfer tube. The point of particle collection is located between the dilution tunnels.

Experimental Apparatus (PEMS)

The PEMS was used to conduct the RDE–LDV test. To measure the amount of emissions generated during real road driving, the PEMS consists of an exhaust gas concentration analyzer, exhaust gas flow measuring device, global positioning system (GPS) for measuring the location, altitude, and speed of vehicle, sensors for measuring the atmospheric temperature, relative humidity, atmospheric pressure, and vehicle speed, and a power supply unit. Specifically, the PEMS for light-duty vehicles, which was developed by Sensors, Inc. (USA), was used to conduct the RDE–LDV test in this study.

Table 6. Specifications of portable emissions measurement system (PEMS) used in this study.

Item	Principle	Range
CO	Heated non-dispersive infrared (NDIR)	0–8 vol%
CO2	Heated NDIR	0–18 vol%
NO, NOx	NDUV	0–3000 ppm
Exhaust flow	Pilot flow meter	0–670 kg/h
Standard signal measurement	Ambient pressure, temperature, humidity Exhaust temperature and pressure, global positioning system (GPS)

lists the specifications of the PEMS used in this study.

2.2.3. Experimental Procedure

Test Mode (Chassis Dynamometer)

The tests on diesel vehicles were conducted in the certification test mode and real road driving test mode. As for indoor tests, the modes of NEDC and WLTC were used, which are certification test modes for diesel vehicles. As shown in Figure 3, the NEDC driving mode consists of an urban driving mode (Part 1), including four basic urban driving modes and an additional urban driving mode (Part 2) [3].

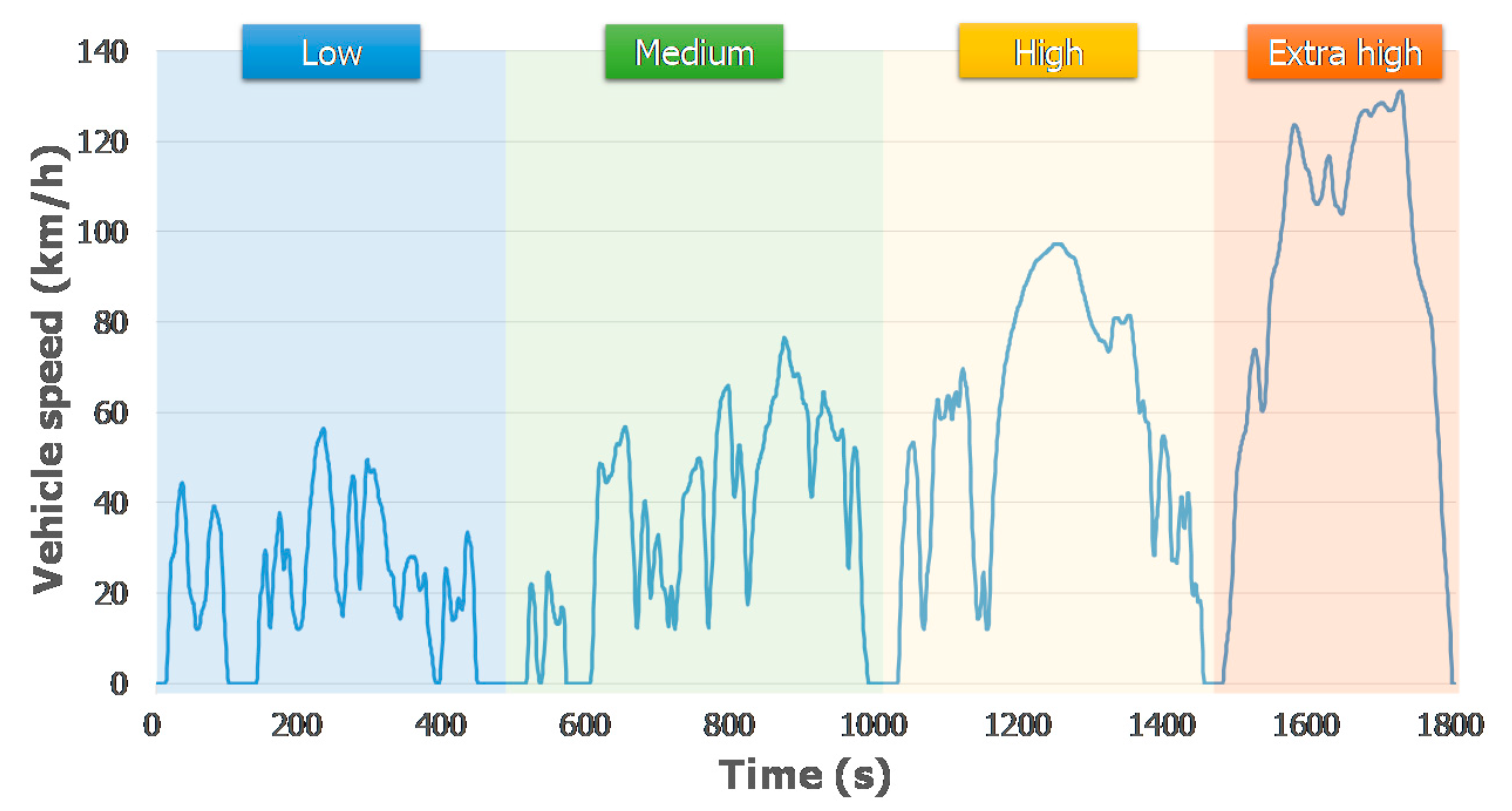

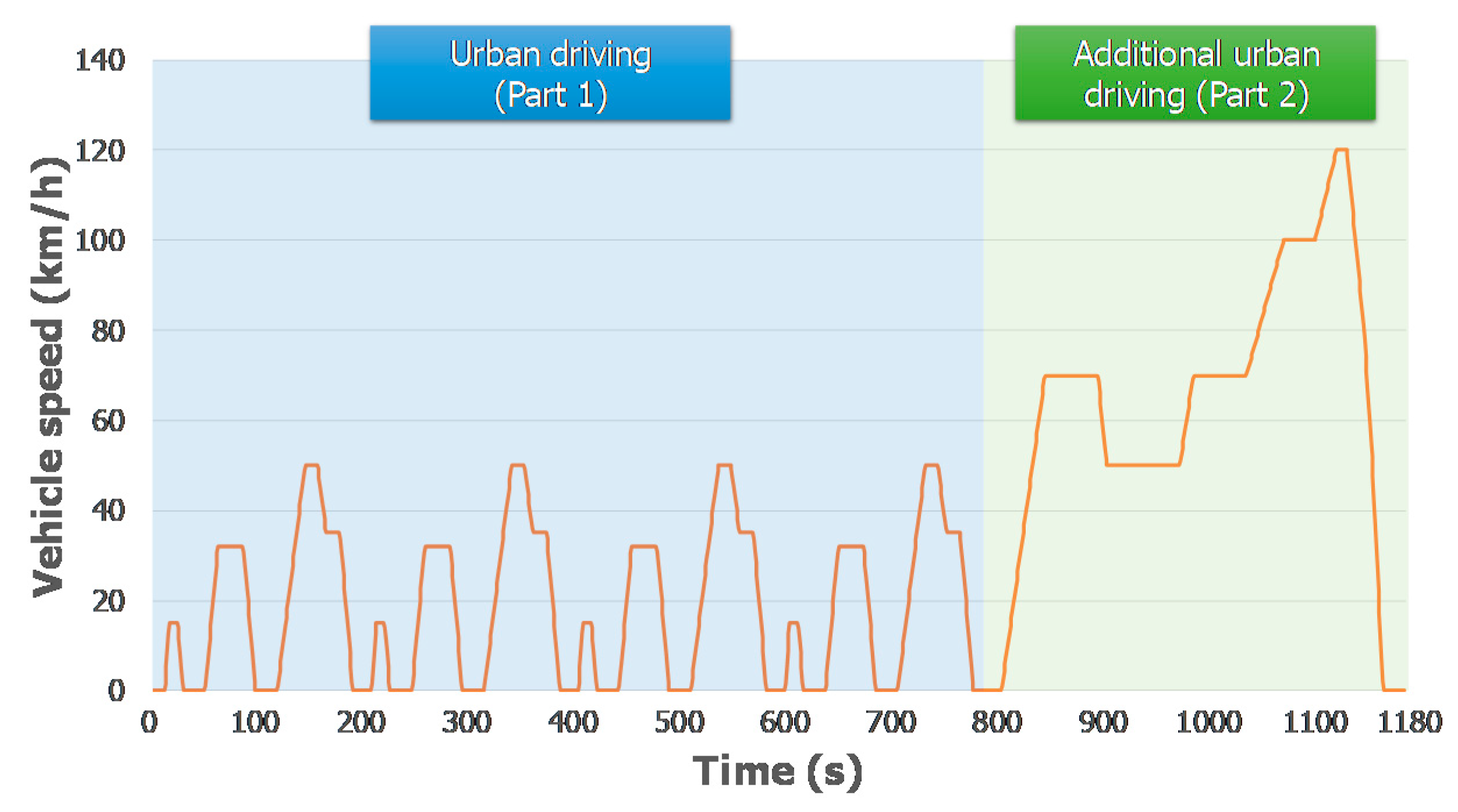

Figure 4 shows the vehicle speed profile for the time. The WLTC mode was developed by the World Forum for Harmonization of Vehicle Regulations (WP.29) in the United Nations Economic Commission for Europe (UNECE) based on the driving data obtained from different countries to overcome the problems with the NEDC mode, which failed to sufficiently reflect the real road driving characteristics. The characteristics of the WLTC mode, which are different from those of the NEDC mode, include longer driving distance, less idle time, and a higher frequency of occurrence of acceleration and deceleration, which are found during real road driving. The WLTC test cycles are classified according to the maximum speed of the test vehicle and its rated power (PMR) relative to its curb mass, including the weight of a driver equivalent to 75 kg. A comparison of the NEDC and WLTC test modes is presented in

Table 7. Comparison of NEDC and WLTC test modes.

Test Mode	NEDC	WLTC
Driving time	1180 s	1800 s
Driving distance	11 km	23.26 km
Maximum speed	120 km/h	131.3 km/h
Average speed	33.6 km/h	46.5 km/h

.

Test Method (RDE)

The RDE test should be conducted in consideration of general driving patterns, driving conditions, and intake weight. Moreover, appropriate test routes for the driving conditions of urban areas, rural areas, and motorways should be selected. Road types are determined based on a topographic map. Regarding urban driving, roads supporting a maximum speed of 60 km/h or lower should be selected. Although the maximum speed exceeds 60 km/h in certain sections, it should be maintained at 60 km/h or lower in the RDE tests. If the performance of a test vehicle and the amount of emissions generated from it are affected in the process of data collection by the ECU, the vehicle is determined to have been manipulated and considered inappropriate. The RDE tests should be conducted under both cold- and hot-start conditions.

The duration of a cold-start RDE test is 5 min after the initial operation of an engine. The measurement of cold-start driving is terminated when the temperature of the coolant reaches 70 °C. Moreover, the mean vehicle speed should be maintained between 15–40 km/h, and the maximum speed should be limited to 60 km/h or lower. The routes for cold start driving include an urban route of ~28 km from the NIER to the Pyeongri field, a rural route of ~32 km from the Pyeongri field to the Sinpyeong interchange (IC), and a motorway route from the Gangmae IC to the Geumsan IC (Figure 5).

The routes for hot-start driving include an urban route of ~23 km from the Neunggok crossroad to the Seogang Bridge, a rural route of ~21 km from the Seogang Bridge to the Gangmae IC, and a motorway route of ~30 km from the Gangmae IC to the Geumsan IC. The satellite images of the test routes are shown in Figure 6.

The driving route conditions for the RDE tests are as follows. First, driving was performed on the routes in the order of urban, rural, and motorway routes. The proportion of driving performed on urban, rural, and motorway routes was approximately 34%, 33%, and 33%, respectively. The allowable error was set as ±10%, and the proportion of driving on the urban route was maintained to account for 29% or higher. The minimum driving distance for each route was set as 16 km and driving time was set as 90–120 min. A summary of cold- and hot-start conditions for RDE is presented in

Table 8. Revised road test routes for representativeness.

Route	Link	Road Type	Distance (km)
Cold start condition	NIER–(Gimpo) Bukbyeon Crossroad–Pyeongri Field	Urban	28	90
	Pyeongri Field–Gaehwa IC–Hyeoncheon IC–Sinpyeong IC	Rural	32
	(Incheon Airport) Gangmae IC–Geumsan IC	Motorway	30
Hot start condition	(Ilsan) Neunggok Crossroad–Gwanghawmun Three-way Intersection–Seogang Bridge	Urban	23	74
	Seogang Bridge–Gangmae IC–Neunggok IC–Gangmae IC	Rural	21
	(Incheon Airport) Gangmae IC–Geumsan IC	Motorway	30

.

3. Results and Discussion

3.1. Analysis of NO_x Emission from Certification Results in Korea

3.1.1. NO_x Emission According to the Year of Certification

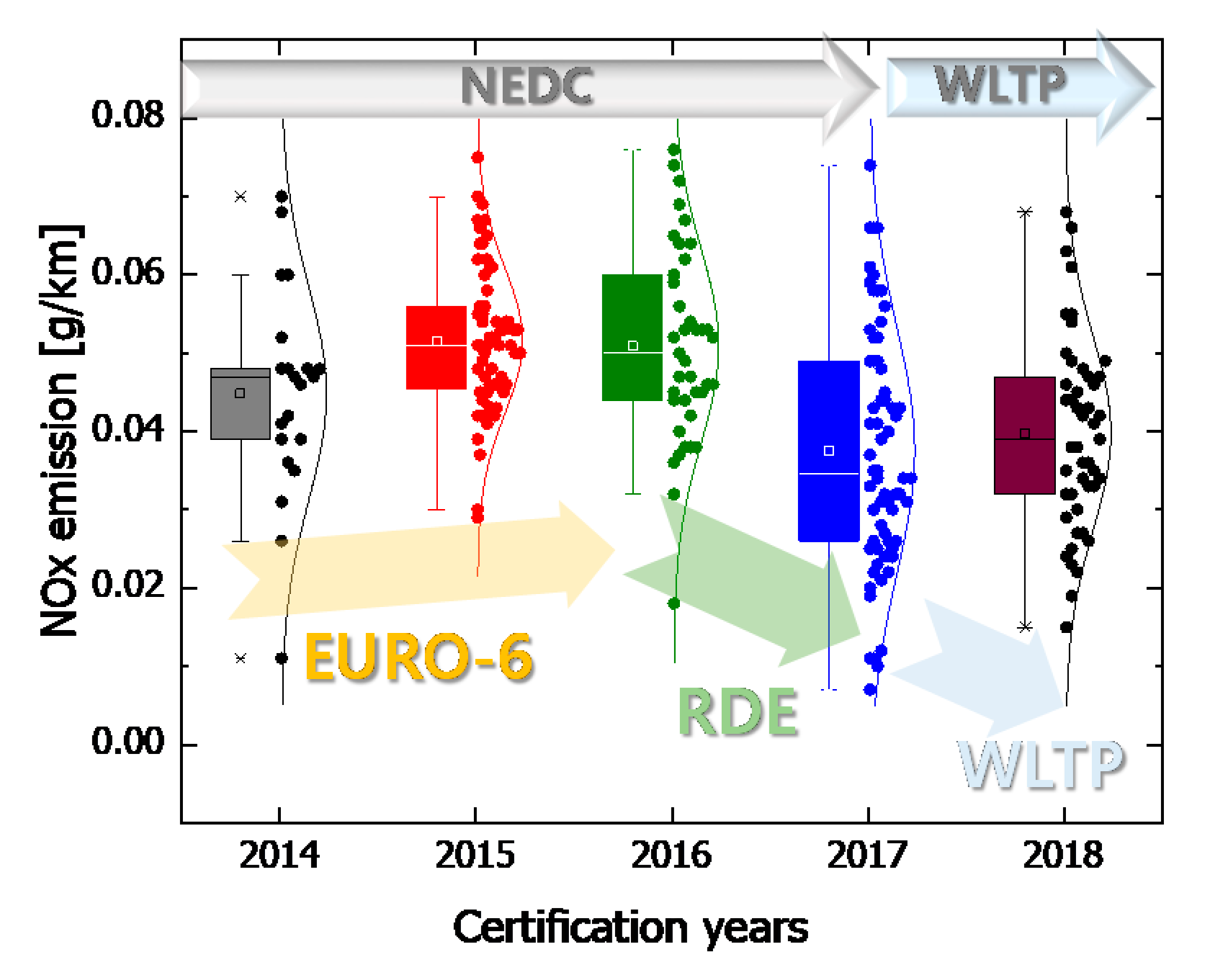

The standards for permissible levels of emissions from light-duty diesel vehicles were adopted in 2014 in Korea, and diesel vehicles certified to satisfy the Euro 6 standards are being sold since September 2014. In this study, the characteristics of NO_x emissions, which were generated from diesel vehicles certified to comply with the Euro 6 standards, were examined based on the results of the certification tests performed on 266 vehicle models. Among the vehicle models, 62 vehicle models were certified by Korean vehicle manufacturers, accounting for 23% of the entire vehicle models certified. A total of 204 vehicle models were certified by foreign vehicle manufacturers before being imported to Korea. The number of imported vehicle models accounted for 77% of all certified vehicles, approximately three times the number of vehicle models certified by Korean vehicle manufacturers. The test results on NO_x emissions, which were obtained in certification test modes and submitted by the vehicle manufacturers for verification of certification, were analyzed in this study. Figure 7 presents the plots representing a change in the distribution of NO_x emissions according to the year of certification. The result of the distribution of NO_x emissions according to the certification year indicates that the amount of NO_x emissions was lower than that permissible by the Euro 6 standards (i.e., 0.08 g/km), and that it was mostly between 0.04–0.07 g/km from 2014 to 2016. Lower NO_x emissions were increasingly observed in the distribution after 2017, which indicates that the amount of NO_x emissions constantly decreased due to the implementation of standards for RDE and the advancements in after-treatment systems. Moreover, the amount of NO_x emissions in 2018 was measured in the WLTP mode. Although a direct comparison is difficult, it is estimated that the amount of NO_x emissions obtained in the WLTP mode is less than that obtained in the existing NEDC mode, because the conditions of the former mode were strengthened with the application of increased driving distance and maximum speed.

3.1.2. NO_x Emission According to Vehicle Power and Displacement

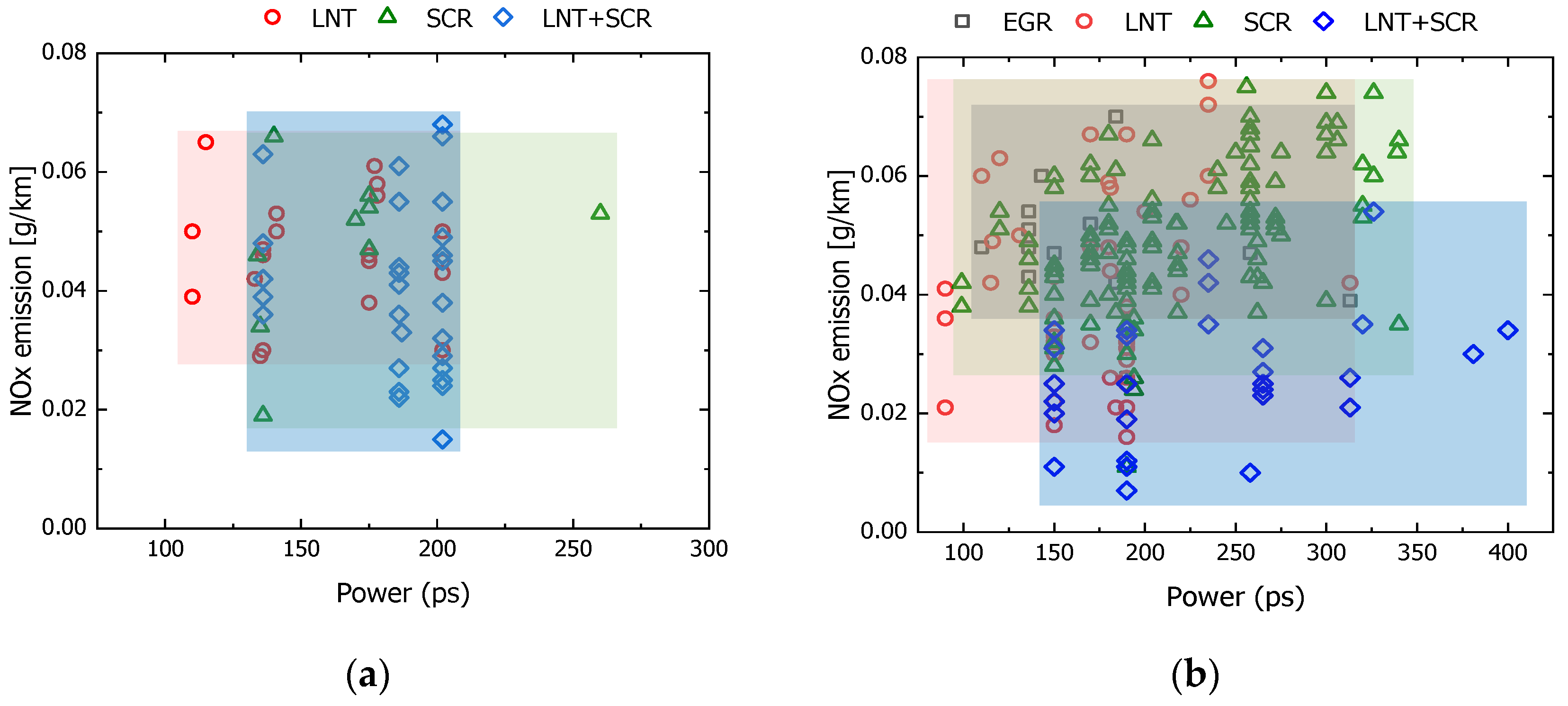

The amount of NO_x emissions generated from 62 domestic vehicle models and 204 imported vehicle models, which were obtained through certification tests, were analyzed. In addition, the details of after-treatment systems for reducing NO_x emissions, which were reported in the documents related to certification, were examined according to the vehicle models. Further, the characteristics of emissions by after-treatment systems of domestic and imported vehicle models according to power and displacement were examined (Figure 8 and Figure 9). Figure 8 shows the characteristics of emissions according to power, and Figure 10 shows those according to displacement. As shown in Figure 8, the range of power of domestic vehicle models was 100–250 ps. Contrarily, imported vehicle models had a broader range of power, i.e., 90–400 ps. It was also found that the number of Korean vehicle manufacturers was five and the number of foreign vehicle manufacturers whose vehicle models were imported to Korea was 15 or higher. From this result, it can be inferred that a large number of vehicles manufactured with high power in other countries had been imported to Korea to satisfy the requirements of consumers. The results of this analysis indicate that the LNT system was installed in both domestic and imported vehicle models having a power of 100–250 ps, and the SCR system was installed in vehicle models having a power of 200 ps or higher. A combination of LNT and SCR systems, which satisfies the standards for RDE, was widely applied in vehicle models having a power of 150 ps or higher. It was also confirmed that the amount of NO_x emissions generated from imported vehicle models tends to be low.

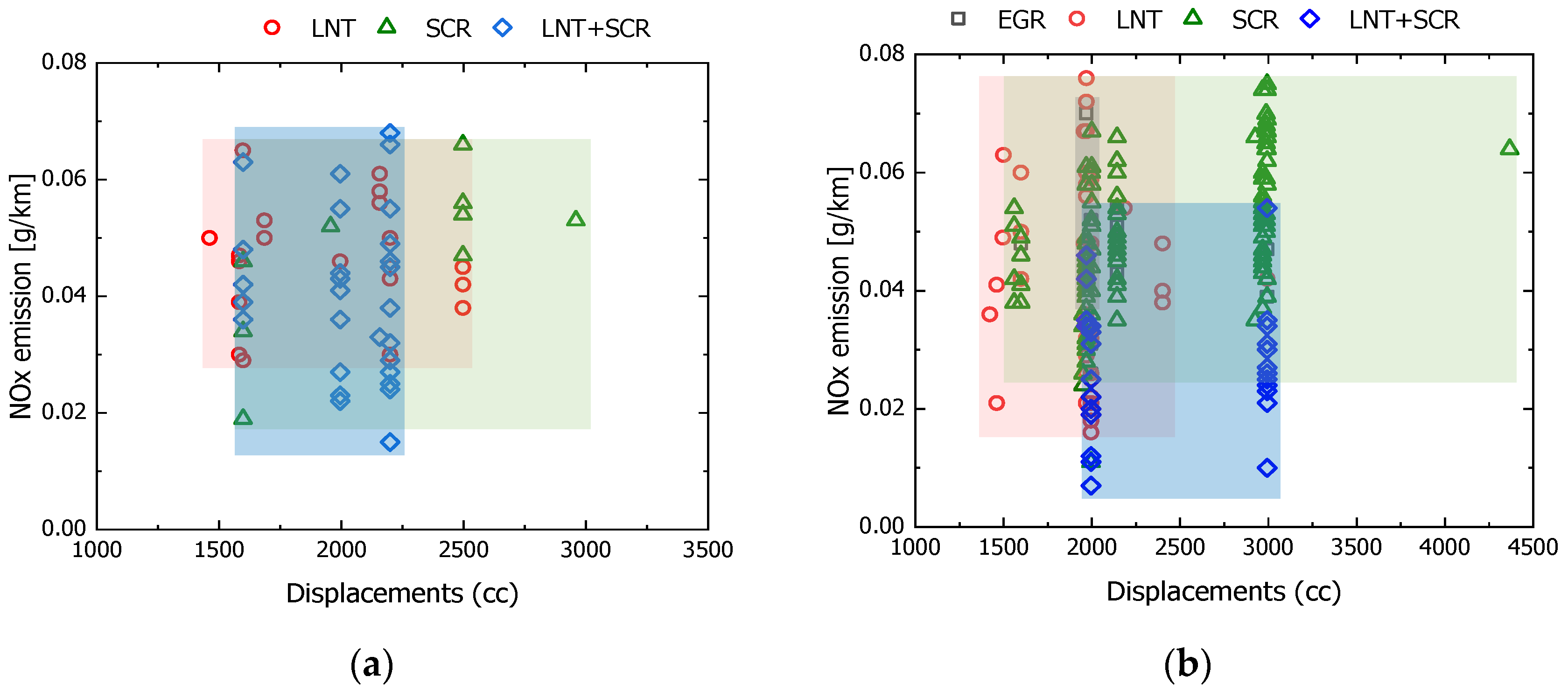

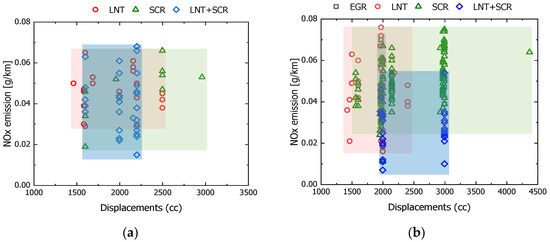

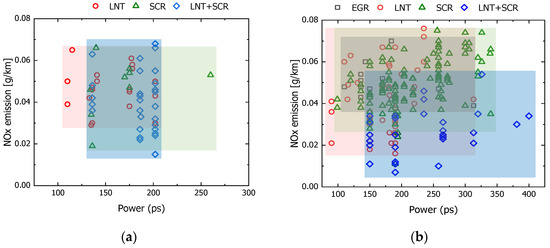

Figure 9 shows the amount of NO_x emissions by after-treatment systems according to displacement. All vehicle models, except one imported vehicle model, had a displacement of 1.5–3.0 L. As indicated by this result, diesel vehicles are unlikely to be manufactured with high displacement because the power relative to displacement of diesel vehicles is greater than that of gasoline vehicles. The application of EGR or LNT systems was limited to domestic and imported vehicle models with a displacement of 2500 cc or less. The SCR system was found to be widely installed in all vehicle models regardless of the displacement. This result indicates that a combination of LNT and SCR systems was applied in vehicle models regardless of power and displacement, and the amount of NO_x emissions generated through such a combination was low. Based on these results, it can be concluded that the LNT system is appropriate for vehicle models with low power and displacement for reducing NO_x emissions, and the SCR system is applicable to all vehicle models regardless of displacement. Furthermore, it is verified that the combination of LNT and SCR systems is more effective than the other systems.

3.1.3. NO_x After-Treatment Systems

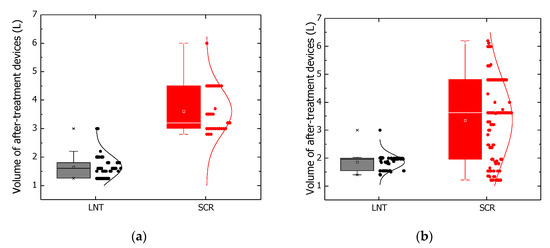

An analysis of the after-treatment systems installed in 266 vehicle models sold in Korea indicated that the SCR system was installed in 126 vehicle models, accounting for ~47% of all vehicle models. Since the implementation of the standards for RDE in 2017, the number of vehicle models equipped with the combination of LNT and SCR systems was found to be increasing—both the LNT and SCR systems were simultaneously applied in 59 vehicle models. The LNT system was installed in 26 vehicle models; however, it is estimated that the number of vehicles with the LNT system will decrease rapidly. The capacity of the LNT system applied in both domestic and imported vehicle models was 1–2 L, because most vehicle models with the LNT system had a low displacement of 1.5–2 L and a similar capacity of the emission deduction system (Figure 10). However, the capacity of the SCR system installed in domestic vehicle models was 3–5 L. On the other hand, the capacity of the SCR system applied in imported vehicle models was greater, being 1–6 L. It is inferred that the capacity of SCR systems installed in domestic and imported vehicle models varies because the power and displacement vary with every vehicle model and the type of SCR control logic differs with each vehicle manufacturer.

3.1.4. NO_x Emission Characteristics of RDE Test Results

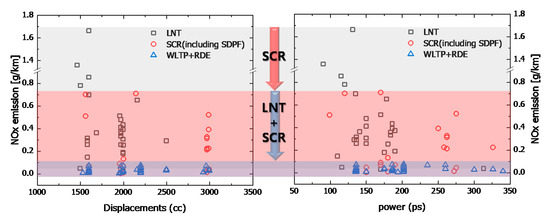

The standards for RDE for light-duty diesel vehicles have been adopted since September 2017 in Korea. The currently permissible standard for NO_x emissions is 0.168 g/km, which is 2.1 times lower than that in certification tests, and is expected to decrease to 0.12 g/km after 2020. Moreover, the SCR coated diesel particulate filter (SDPF) system, a complex device in which an SCR catalyst is coated on the PM filter, is also being used to solve the spatial problem caused in the application process of the SCR system. Since October 2017, it has been required to satisfy both standards for permissible emissions and emission regulations on real roads in the WLTP mode during certification tests. In this study, the results of measurement of RDE generated from 83 vehicle models that were certified to comply with the Euro 6 standards through certification of conformity and compliance tests were examined for each after-treatment system. Figure 11 shows the results of the RDE measured according to power and displacement. These results indicate that the vehicle models equipped with the LNT system produced NO_x emissions of 0.03–1.67 g/km during real road driving. This indicates that the amount of NO_x emissions was as great as the deviation of the amount of NO_x emissions according to vehicle models. This result was obtained because some vehicle models equipped with the LNT system did not comply with the standards for RDE. Moreover, the limited reduction capacity of the LNT system also affected the test results. The thus obtained result of great deviation indicates that the amount of NO_x emissions observed in the certification tests is significantly different from that observed during real road driving. Moreover, it was determined that vehicle models equipped with the SCR system generated NO_x emissions of 0.003–0.711 g/km. Thus, these vehicle models generate lower NO_x emissions than those equipped with the LNT system. In addition, the combination of LNT and SCR (SDPF) systems was found to be applied in the vehicle models manufactured in compliance with the standards for the WLTP mode and RDE. The amount of NO_x emissions generated from these vehicle models was 0.009–0.075 g/km, which satisfactorily meets the standards for permissible emissions in certification tests. Therefore, it can be concluded that both LNT and SCR systems should be simultaneously applied in vehicles to satisfy both the standards for permissible emissions in certification tests and the standards for RDE.

3.2. Emission Characteristics According to the After-Treatment System

3.2.1. Emission Characteristics by Chassis Dynamometer According to After-Treatment System

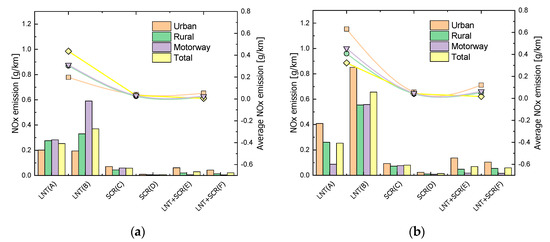

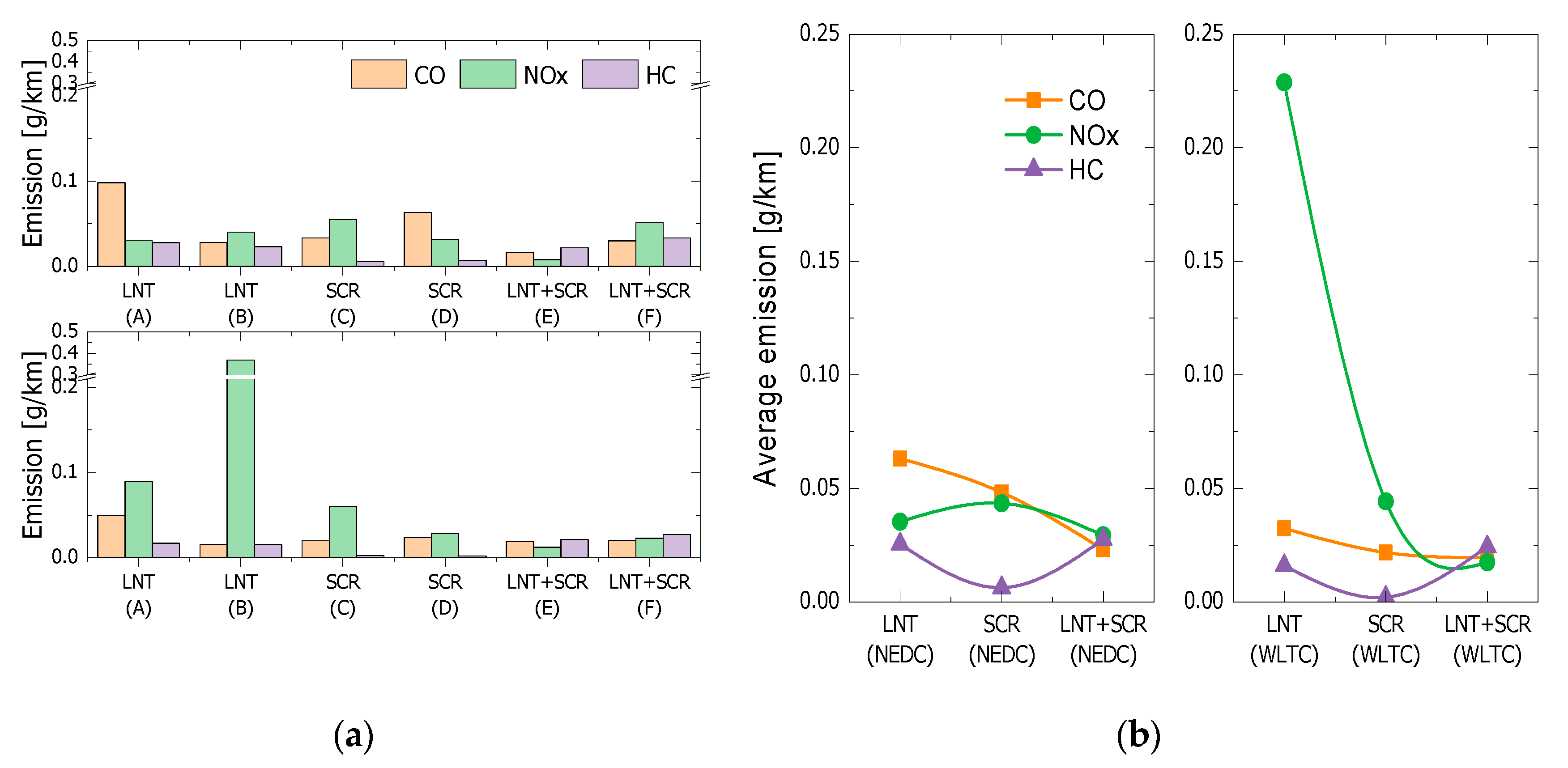

Figure 12 shows the emission characteristics according to after-treatment systems, which were obtained from the vehicle models that comply with the Euro 6 standards under the conditions of NEDC and WLTP modes. The top panel of Figure 12a shows the amount of emissions measured in the NEDC mode. This figure shows the amount of CO, NO_x, and HC emissions was low, at 0.1 g/km or less. Moreover, significant changes in patterns according to after-treatment systems were not observed. However, the amount of NO_x emissions generated from vehicle models equipped with the LNT system increased rapidly in the WLTP mode. This result was obtained because the emission reduction performance of the LNT system decreased because of the larger number of acceleration and deceleration sections and greater maximum speed in the WLTP mode, compared with those in the NEDC mode. Since WLTP mode has harsher conditions than NEDC mode, it is reported that regeneration of after-treatment device such as LNT occurs more frequently and NO_x emissions increase [20,21]. It was reported that tin this case the fuel economy of the vehicle would also deteriorate [22]. In contrast, the amount of NO_x emissions generated from vehicle models equipped with the SCR system tended to be similar or decreased in the WLTP mode [19]. It was found that changes in the amount of CO and HC emissions according to after-treatment systems or driving modes were insignificant. The graphs in Figure 12b indicate the tendency of the average amount of emissions generated from the two vehicle models according to after-treatment systems. It was found that the amount of emissions according to after-treatment systems was insignificant in the NEDC mode, and the application of both LNT and SCR systems in vehicle models resulted in better emission reduction performance. In the WLTP mode, the average amount of NO_x emissions from vehicle models equipped with the LNT system was high. Contrarily, the average amount of NO_x emissions from vehicle models equipped with the SCR system was low. This result indicates that the SCR system should be installed in vehicles to satisfy the WLTP standard, which is a reinforced test method. The amount of CO and HC emissions in the WLTP mode was found to be less than that in the NEDC mode, because it was affected by combustion activation due to increased temperature of exhaust gas caused by an increase in driving distance and the number of acceleration and deceleration sections.

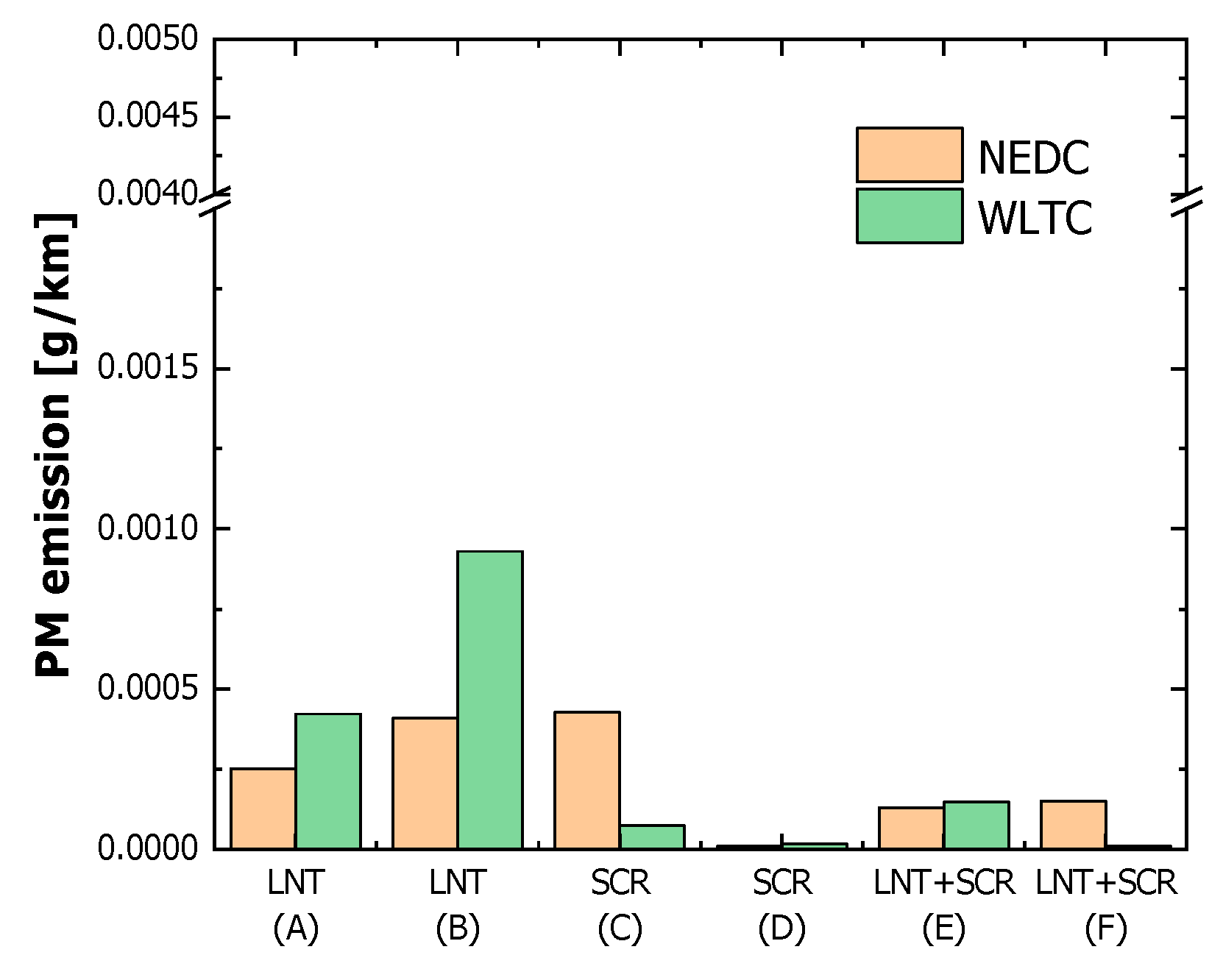

Figure 13 shows the characteristics of PM emissions generated from test vehicle models in different driving modes according to the after-treatment systems. Based on the Euro 6 standards for permissible emissions, the amount of permissible PM emissions was set as 0.0045 g/km. It was found that the amount of PM emissions generated from test vehicle models was 0.001 g/km or lower, which is lower than the permissible amount in the Euro 6 standards. This result was obtained because the DPF, which is a PM deduction system, was applied in all test vehicle models. Furthermore, a variation in tendency according to the test modes and after-treatment systems for NO_x emissions was not found.

3.2.2. Emission Characteristics by PEMS According to After-Treatment System

To analyze the emission characteristics according to the after-treatment system during real road driving, in addition to those obtained through a certification test under the conditions of different driving modes, RDE tests on each group of two vehicle models according to the after-treatment systems were conducted under the conditions of cold- and hot-starting modes, respectively. The RDE tests were conducted in three sections, namely, urban, rural, and motorway routes, and the amount of NO_x emissions among the gaseous contaminants was measured. Driving was performed on the routes in the order of urban, rural, and motorway routes, and the proportion of driving distance was maintained at 29% or higher in the urban route. An error of ±10% was permitted during driving. The amount of NO_x emissions was measured using the moving average window (MAW) method. Figure 14 shows the test results, with bar graphs representing the amount of NO_x emissions according to the routes and dotted line graphs shown above the bar graphs representing the average amount of NO_x emissions generated from the test vehicle models according to the after-treatment systems. These results indicate that the amount of NO_x emissions increased during hot-start driving, and increased significantly during driving on the urban route. This result was obtained because more regions with heavy traffic have an urban route in the hot-start condition compared with the urban route in the cold-start condition. Therefore, the exhaust temperature for the operation of after-treatment systems decreased due to the decreased vehicle speed and increased number of stop sections. It was also observed that vehicle models equipped with the LNT system generated greater amounts of NO_x emissions than those with the SCR system or the combination of LNT and SCR systems. As indicated by the test results shown in Figure 14 obtained in the NEDC and WLTP modes, after-treatment systems exhibited limited performance during real road driving. In particular, their performance significantly decreased at the sections of deceleration and stoppage on the urban route in the hot-start condition. The LNT system requires a certain level of driving speed owing to its regeneration characteristics. Furthermore, NO_x slip occurred as smooth regeneration was interrupted at the deceleration sections, thereby decreasing the performance of the LNT system. These results conclusively indicate that the SCR system should be installed in vehicles to satisfy the Euro 6 standards for permissible emissions for real road driving [21]. As indicated by the results of analysis of the average amount of NO_x emissions, vehicle models equipped with the SCR system or the combination of LNT and SCR systems generated NO_x emissions of 0.1 g/km or less on average owing to the stable emission reduction performance of these systems. It was found that vehicle models equipped with the combination of LNT and SCR systems did not always exhibit a significantly improved performance in emission reduction, compared with those equipped only with the SCR system. This result was obtained because vehicle manufacturers set the operating area and emission reduction performance of LNT and SCR systems based on different emission control strategies.

4. Conclusions

This study examined the emission characteristics of diesel vehicles, which passed compliance tests and inspection on certification of conformity and complied with the Euro 6 standards, based on the power, displacement, and characteristics of NO_x emissions according to the year of certification. Moreover, vehicles classified according to after-treatment systems were placed on a chassis dynamometer for the emission test. Further, an RDE test using the PEMS was conducted to identify the characteristics of emissions generated during real-road driving and compare the amount of emissions. The test results are as follows:

(1)

The amount of NO_x emissions has been decreasing since the implementation of RDE standards in 2017 and the advancements in after-treatment systems. It was found that the application of EGR and LNT systems tends to be limited to domestic and imported vehicle models with low displacement, and the SCR system is applied in all vehicle models regardless of displacement. It was also determined that the combination of LNT and SCR systems can be applied in vehicle models regardless of the power and displacement, and that it decreases the emissions.

(2)

The results of analysis of the status of NO_x after-treatment systems installed in 266 vehicle models sold in Korea indicate that the SCR system accounts for ~47% of all after-treatment systems installed in the test vehicle models, thus constituting the highest proportion. The number of vehicle models equipped with both LNT and SCR systems has been increasing since the implementation of standards for RDE in 2017. Moreover, the measurement results of the RDE of 83 vehicle models that comply with the Euro 6 standards, which were obtained through compliance tests and inspection on certification of conformity, were analyzed according to after-treatment systems. Based on the obtained results, it was verified that both LNT and SCR systems should be simultaneously applied in vehicles to satisfy the standards for permissible emissions for certification and the acceptable level of emissions generated during real road driving.

(3)

The test results obtained according to the driving modes and after-treatment systems indicate that the amount of CO, NO_x, and HC emissions generated in the NEDC driving mode was low, at ≤0.1 g/km. In addition, significant changes in patterns according to after-treatment systems were not observed. It was also found that the amount of NO_x emissions generated from vehicles equipped with the SCR system displayed insignificant changes and tended to decrease.

(4)

An analysis of NO_x emissions from real-road in Euro-6 light-duty diesel vehicle equipped with after-treatment devices operating in Korea showed that vehicles equipped with SCRs had lower emissions than those equipped with LNT. From these findings, it is believed that SCR fitment would be more advantageous to meet future emissions reduction of light-duty diesel vehicles on real-roads and enhanced emissions regulations above Euro-6.
