Model Reference Adaptive System with FiniteSet for Encoderless Control of PMSGs in MicroGrid Systems
Abstract
:1. Introduction

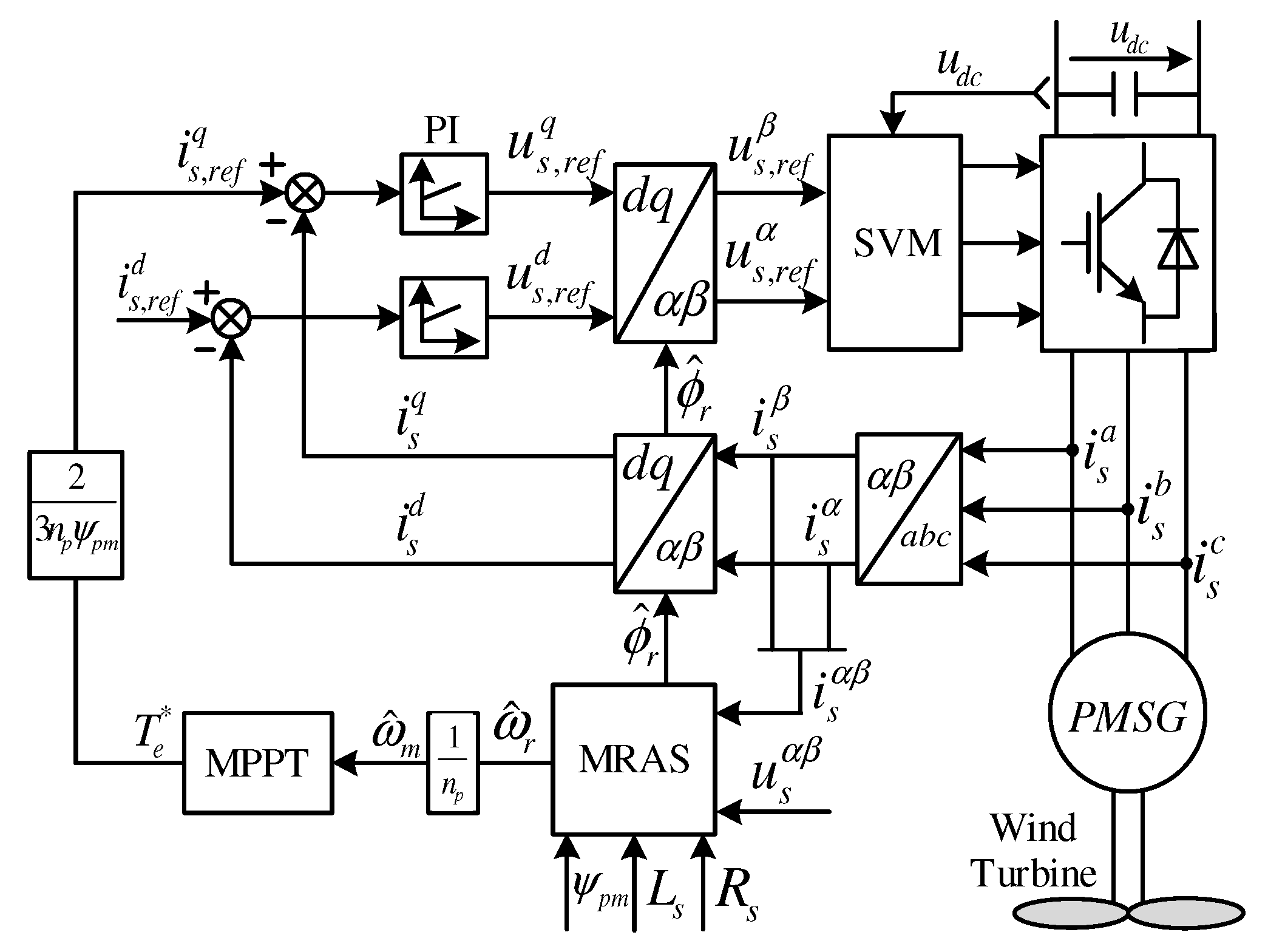

2. Modeling and Control of the SMPMSG

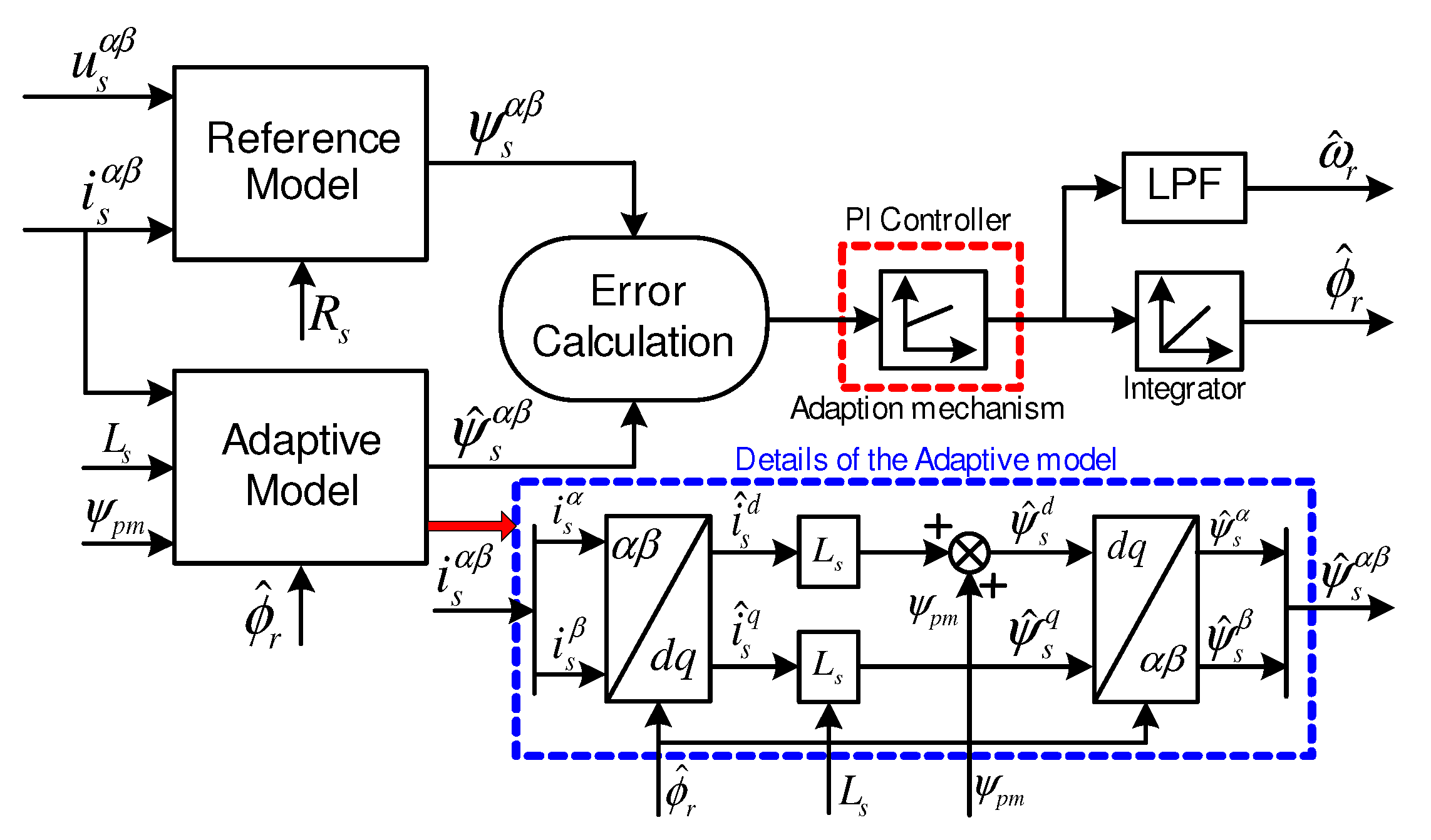

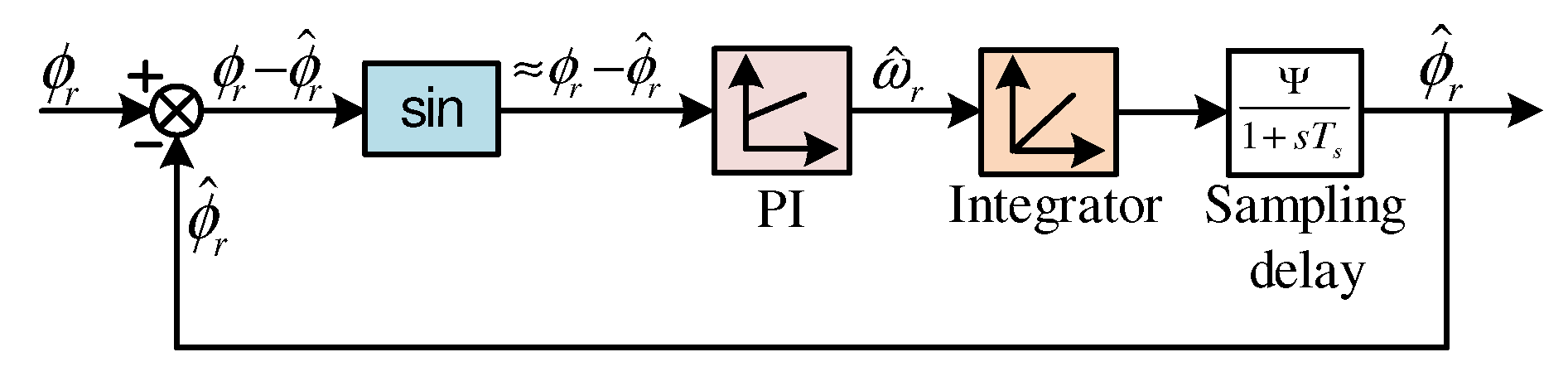

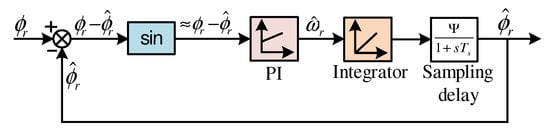

3. Classical MRAS Observer for SMPMSGs

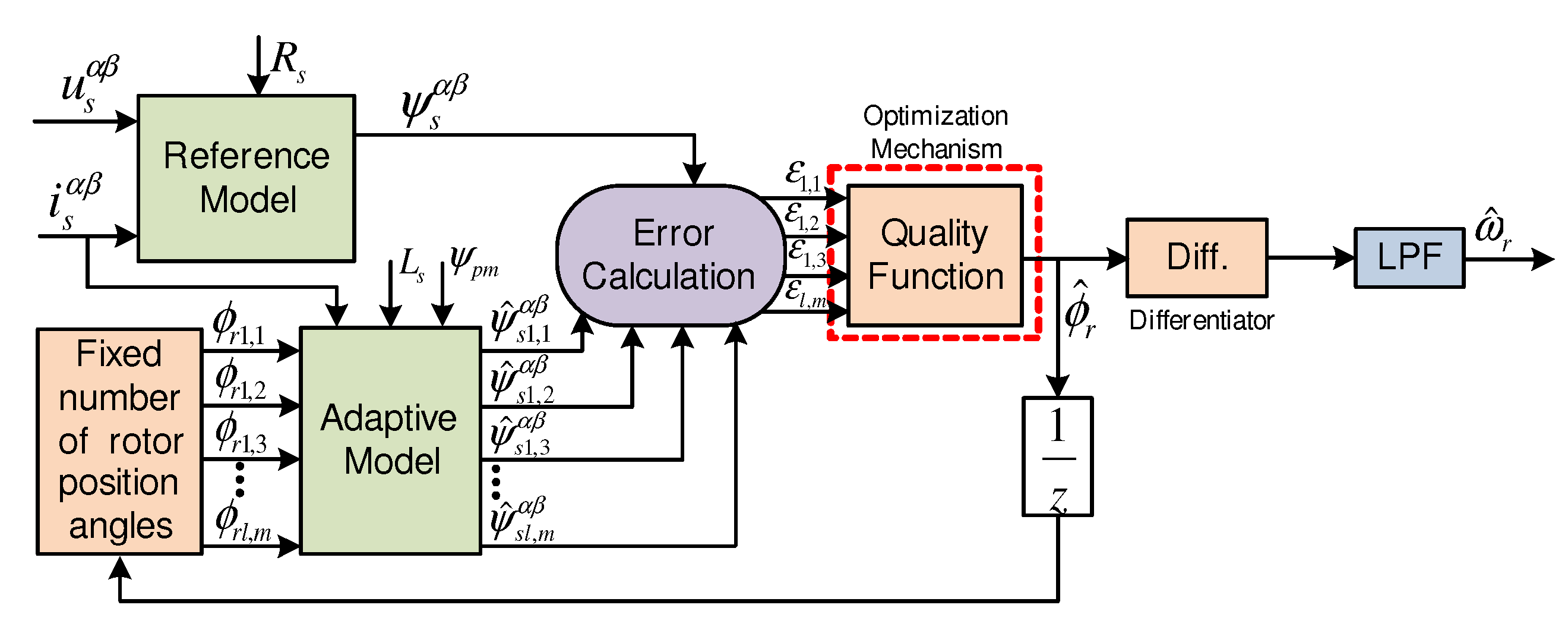

4. Proposed MRAS with FiniteSet Observer for SMPMSGs
Algorithm 1 MRASFS Observer for SMPMSGs

Advantages and Disadvantages of the Proposed MRASFS Observer
 no gains to tune, i.e., the effort and time consumed in the tuning of the fixed gain PI regulator in the conventional MRAS observer are avoided in the proposed MRASFS observer;
 the dynamics of the presented MRASFS observer are better than the traditional dynamics due to the use of FCSMPC principles in the design of the suggested MRASFS observer;
 the suggested algorithm is not complicated and can be used in other types of machines with only small modifications.
 based on Algorithm 1, 64 iterations were essential for estimating the optimal angle of the rotor position of the SMPMSG, in other words, the calculation burden of the suggested MRASFS observer is high. However, the current digital signal processors (DSPs) have a high calculation power, and accordingly, execution of such advanced observers can be easily realized.

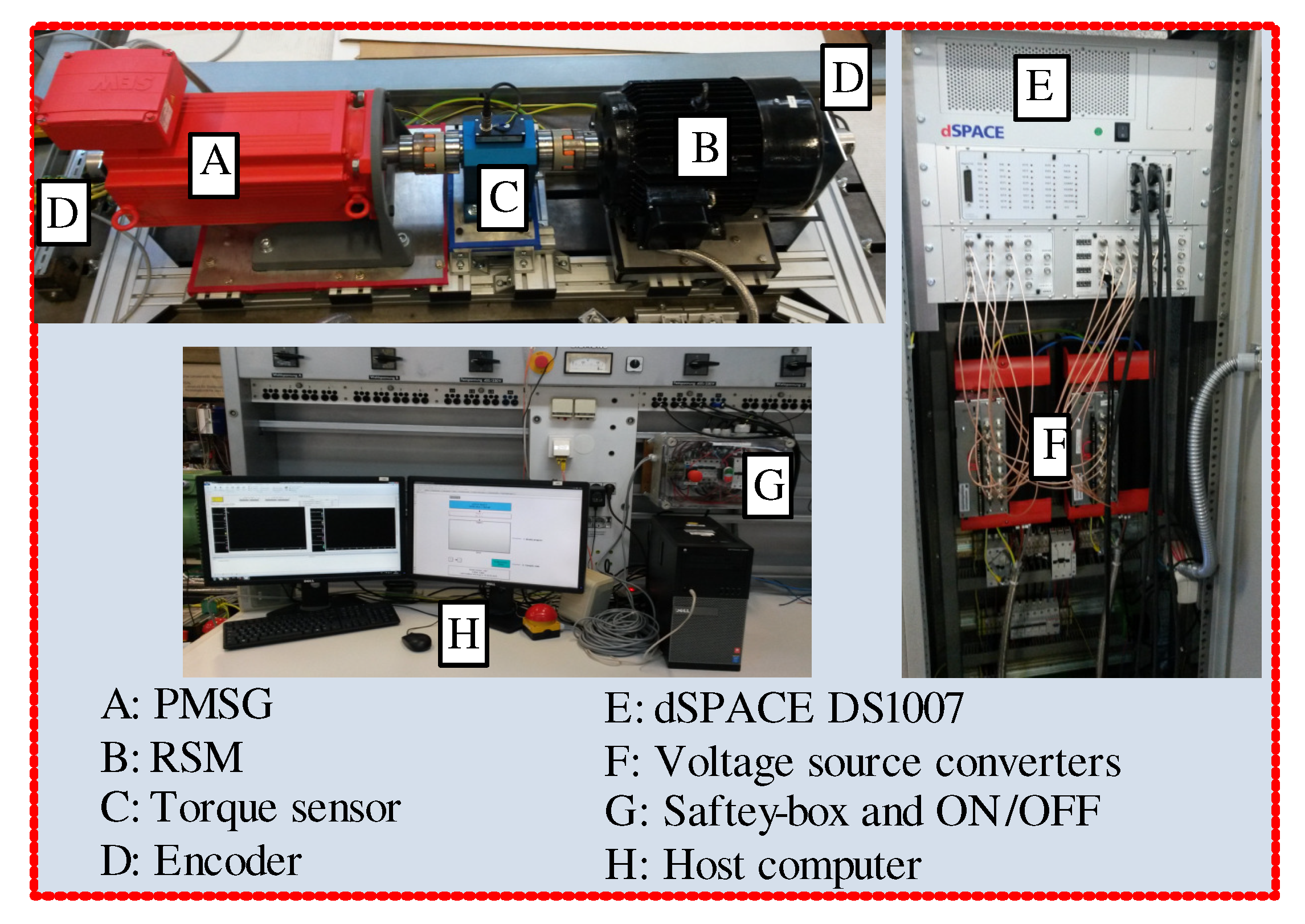

5. Description of the Laboratory Setup
6. Experimental Results
6.1. Dynamic Performance

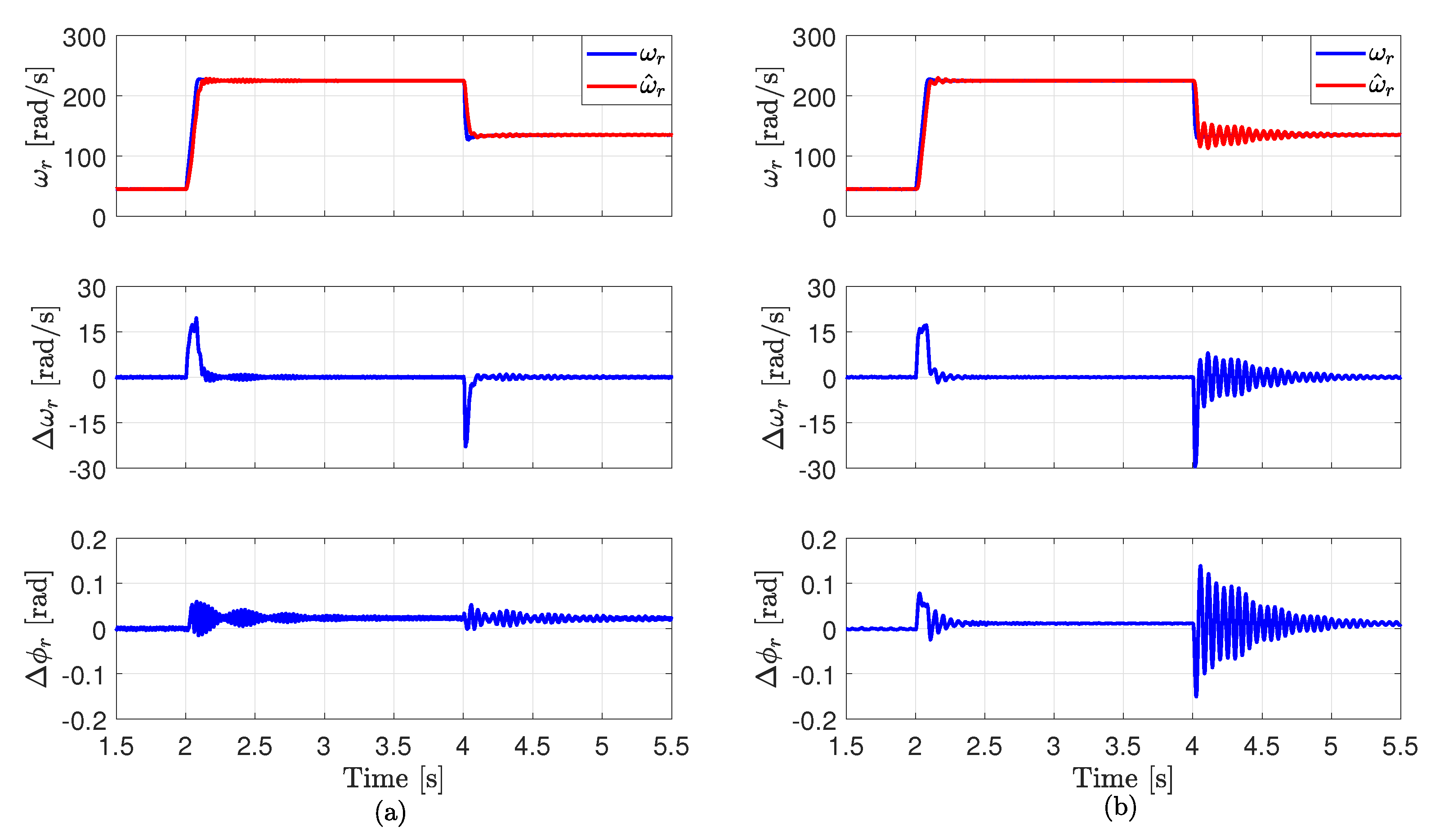

 In Figure 6, step changes in the reference value of the mechanical angular speed ${\omega}_{m,ref}$ from $15\mathrm{rad}/\mathrm{s}$ to $75\mathrm{rad}/\mathrm{s}$ and then back to $45\mathrm{rad}/\mathrm{s}$ were applied to the RSM control system, respectively. The reference electromagnetic torque ${T}_{e}^{\ast}$ is regulated to be fixed at $20\mathrm{N}\mathrm{m}$ by the control algorithm of the SMPMSG.

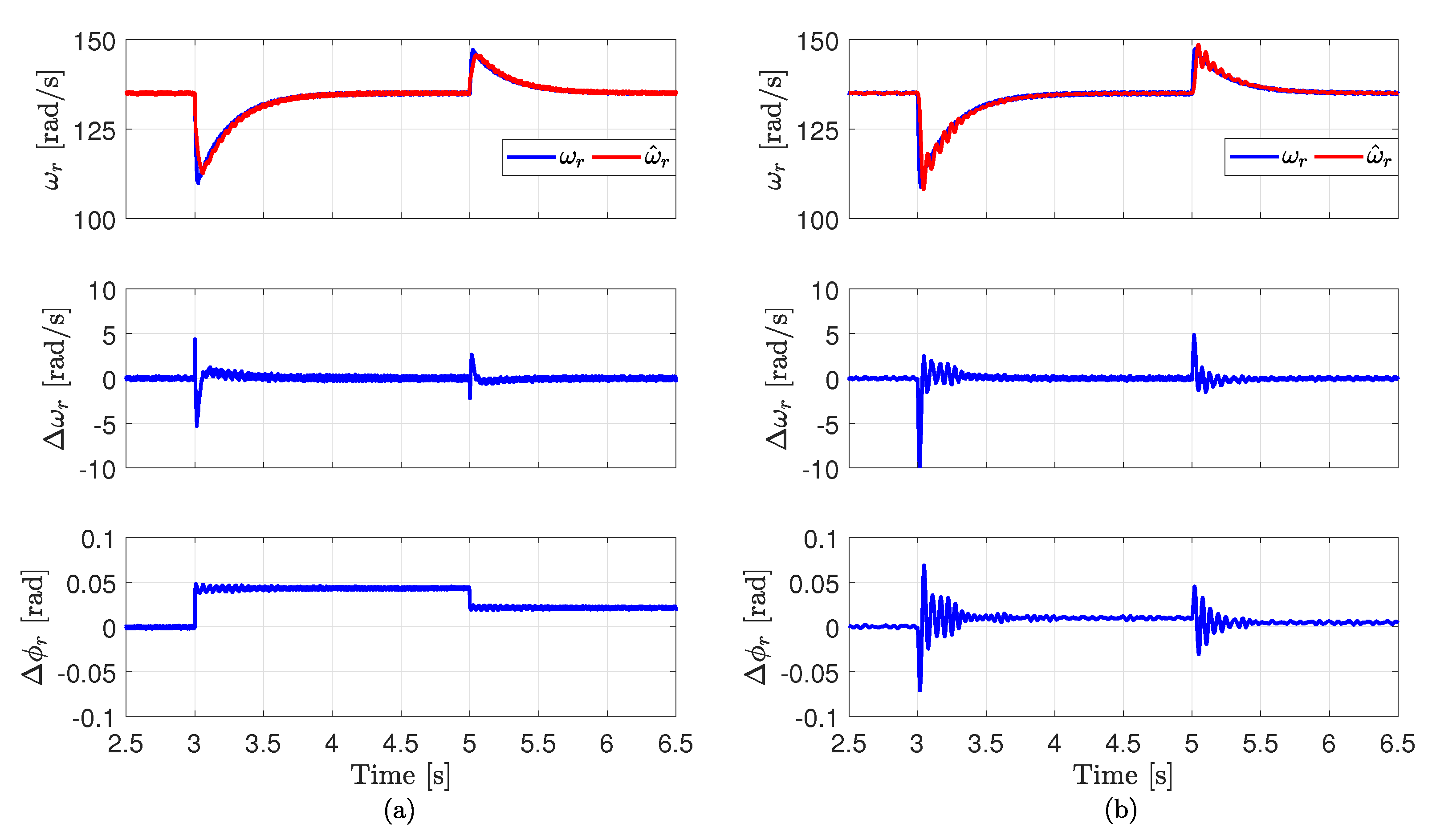

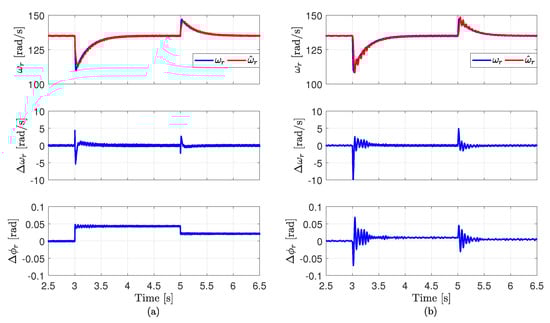

 In Figure 7, the rotor reference mechanical angular speed ${\omega}_{m,ref}$ is controlled to be constant at $45\mathrm{rad}/\mathrm{s}$ by the RSM. Step changes in the reference electromagnetic torque ${T}_{e}^{\ast}$ from $10\mathrm{N}\mathrm{m}$ to $40\mathrm{N}\mathrm{m}$ and then back to $25\mathrm{N}\mathrm{m}$ were applied to the SMPMSG control scheme, respectively.
6.2. SteadyState Performance

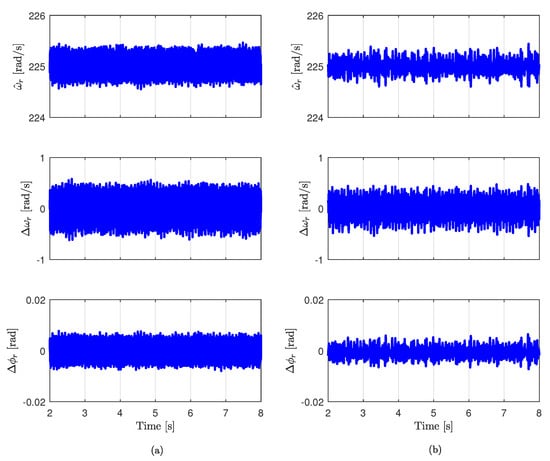

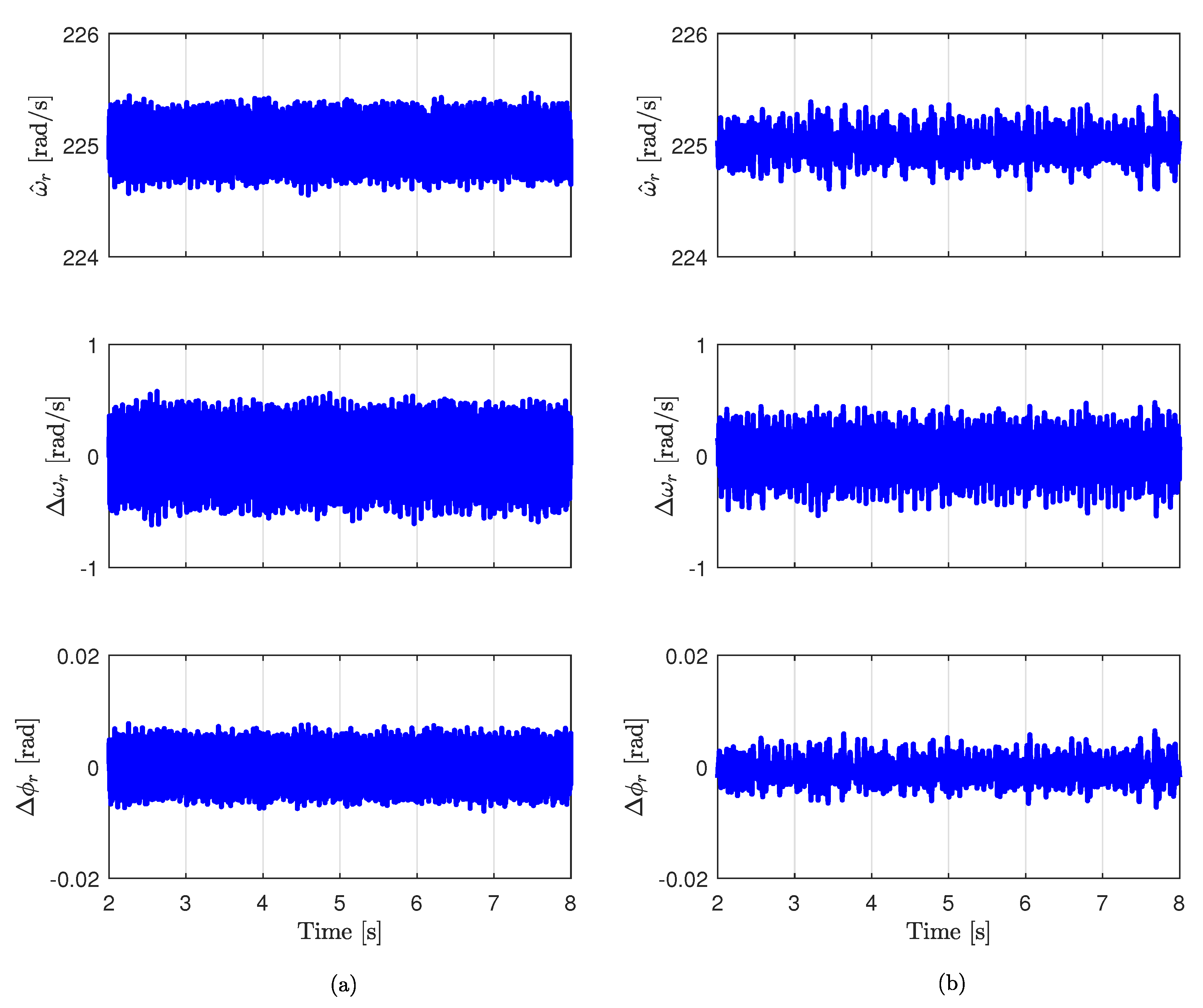

 the rotor reference mechanical angular speed ${\omega}_{m,ref}$ is regulated to $75\mathrm{rad}/\mathrm{s}$ using the RSM, and the reference electromagnetic torque ${T}_{e}^{\ast}$ is regulated to be constant at $30\mathrm{N}\mathrm{m}$ by the control algorithm of the SMPMSG.
6.3. Performance at Variations of the SMPMSG Parameters

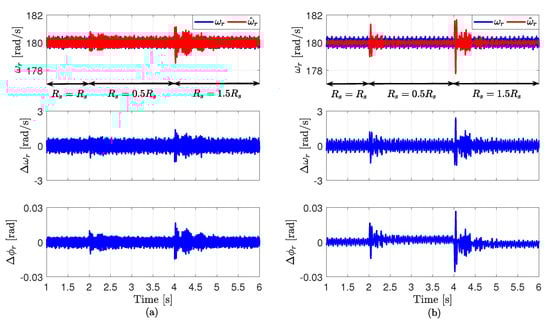

 in Figure 9, the reference mechanical angular speed ${\omega}_{m,ref}$ of the rotor is set to $60\mathrm{rad}/\mathrm{s}$ by the RSM control strategy, and the reference electromagnetic torque ${T}_{e}^{\ast}$ is regulated to be constant at $35\mathrm{N}\mathrm{m}$ by the control algorithm of the SMPMSG. The stator resistance ${R}_{s}$ is changed $\mp 50\%$ below/above its nominal value in the realtime model (i.e., within the software model);

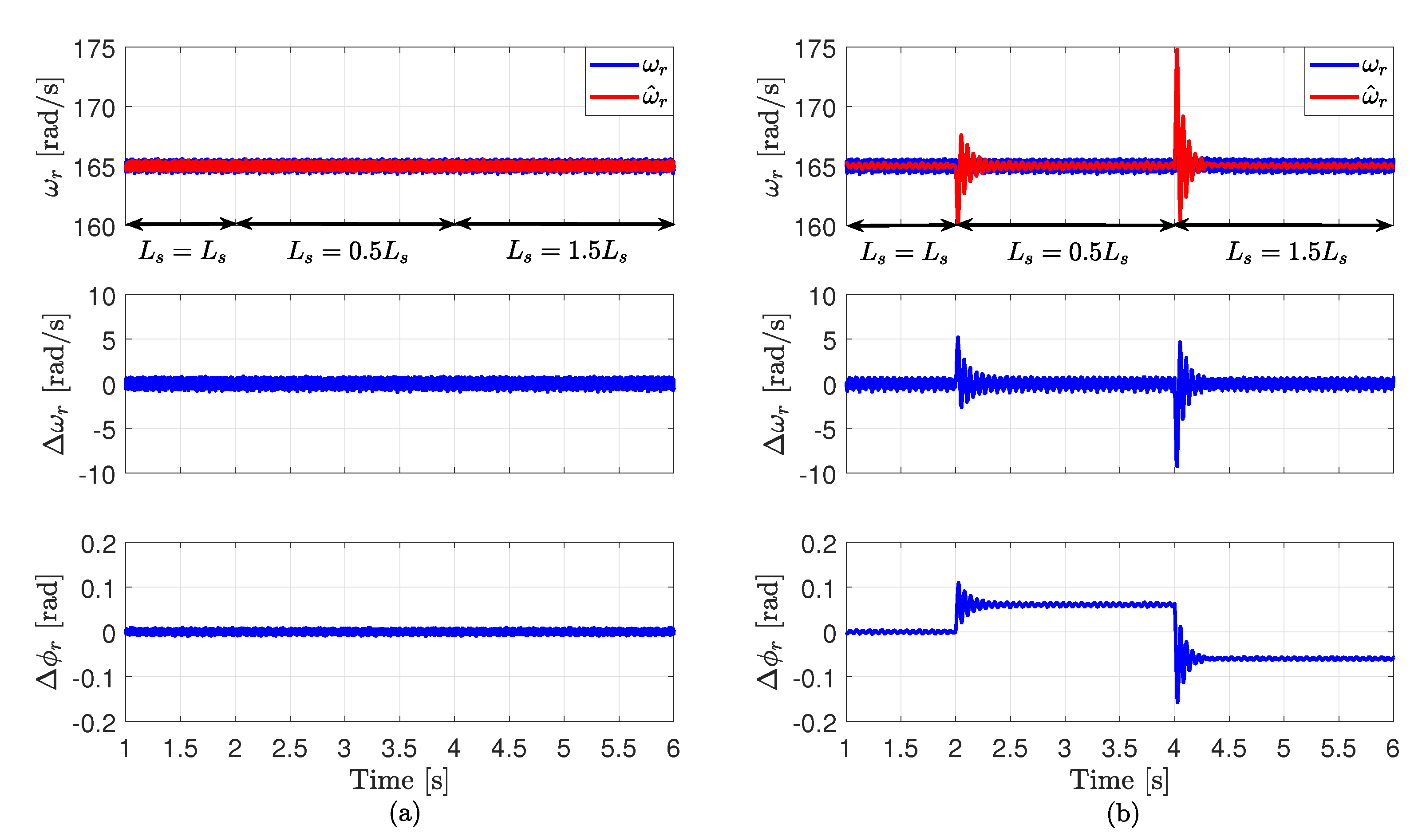

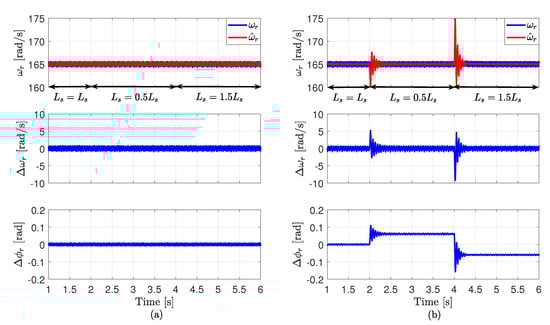

 in Figure 10, the reference mechanical angular speed ${\omega}_{m,ref}$ of the rotor is set to $55\mathrm{rad}/\mathrm{s}$ by the RSM control strategy, and the reference electromagnetic torque ${T}_{e}^{\ast}$ is regulated to be constant at $28\mathrm{N}\mathrm{m}$ by the control algorithm of the SMPMSG.The stator inductance ${L}_{s}$ is changed $\mp 50\%$ below/above its nominal value in the realtime model (i.e., within the software model).
7. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Nomenclature
${u}_{s}^{\alpha}$, ${u}_{s}^{\beta}$, ${u}_{s}^{d}$, ${u}_{s}^{q}$  Stator voltages  SMPMSG  Surfacemounted permanentmagnet synchronous generator
${i}_{s}^{\alpha}$, ${i}_{s}^{\beta}$, ${i}_{s}^{d}$, ${i}_{s}^{q}$  Stator currents  VSWGS  Variablespeed wind generation system
${\psi}_{s}^{\alpha}$, ${\psi}_{s}^{\beta}$, ${\psi}_{s}^{d}$, ${\psi}_{s}^{q}$  Stator fluxes  MRASFS  Model reference adaptive system with finiteset
${R}_{s}$  Stator resistance  DMPC  Directmodel predictive control
${L}_{s}$  Stator inductance  DGS  Distributed generation system
${\psi}_{pm}$  PM fluxlinkage  RES  Renewable energy system
${\omega}_{r}$  Rotor electrical speed  DFIG  Doublyfed induction generator
${\varphi}_{r}$  Rotor electrical position  BTB  Backtoback
${T}_{e}$  Electromagnetic torque  WECS  Wind energy conversion system
${T}_{m}$  Mechanical torque  PI  Proportionalintegral
References
 Dasgupta, S.; Mohan, S.N.; Sahoo, S.K.; Panda, S.K. A Plug and Play Operational Approach for Implementation of an AutonomousMicroGrid System. IEEE Trans. Ind. Inform. 2012, 8, 615–629. [Google Scholar] [CrossRef]
 Kohn, W.; Zabinsky, Z.B.; Nerode, A. A MicroGrid Distributed Intelligent Control and Management System. IEEE Trans. Smart Grid 2015, 6, 2964–2974. [Google Scholar] [CrossRef]
 Subramaniam, U.; Vavilapalli, S.; Padmanaban, S.; Blaabjerg, F.; HolmNielsen, J.B.; Almakhles, D. A Hybrid PVBattery System for ONGrid and OFFGrid Applications—ControllerInLoop Simulation Validation. Energies 2020, 13, 755. [Google Scholar] [CrossRef] [Green Version]
 Wind Energy in Europe in 2018, Annual Report. Available online: WindEurope.org (accessed on 7 September 2020).
 Datta, R.; Ranganathan, V.T. Variablespeed wind power generation using doubly fed wound rotor induction machinea comparison with alternative schemes. IEEE Trans. Energy Convers. 2002, 17, 414–421. [Google Scholar] [CrossRef]
 Polinder, H.; van der Pijl, F.; de Vilder, G.; Tavner, P. Comparison of directdrive and geared generator concepts for wind turbines. IEEE Trans. Energy Convers. 2006, 21, 725–733. [Google Scholar] [CrossRef] [Green Version]
 Li, H.; Chen, Z. Overview of different wind generator systems and their comparisons. IET Renew. Power Gener. 2008, 2, 123–138. [Google Scholar] [CrossRef] [Green Version]
 Polinder, H.; Ferreira, J.A.; Jensen, B.B.; Abrahamsen, A.B.; Atallah, K.; McMahon, R.A. Trends in Wind Turbine Generator Systems. IEEE J. Emerg. Sel. Top. Power Electron. 2013, 1, 174–185. [Google Scholar] [CrossRef]
 Chinchilla, M.; Arnaltes, S.; Burgos, J.C. Control of permanent magnet generators applied to variablespeed windenergy systems connected to the grid. IEEE Trans. Energy Convers. 2006, 21, 130–135. [Google Scholar] [CrossRef] [Green Version]
 Li, S.; Haskew, T.A.; Swatloski, R.P.; Gathings, W. Optimal and DirectCurrent Vector Control of DirectDriven PMSG Wind Turbines. IEEE Trans. Power Electron. 2012, 27, 2325–2337. [Google Scholar] [CrossRef]
 Cardenas, R.; Pena, R.; Alepuz, S.; Asher, G. Overview of Control Systems for the Operation of DFIGs in Wind Energy Applications. IEEE Trans. Ind. Electron. 2013, 60, 2776–2798. [Google Scholar] [CrossRef]
 Zhao, Y.; Wei, C.; Zhang, Z.; Qiao, W. A Review on Position/Speed Sensorless Control for PermanentMagnet Synchronous MachineBased Wind Energy Conversion Systems. IEEE J. Emerg. Sel. Top. Power Electron. 2013, 1, 203–216. [Google Scholar] [CrossRef]
 Tong, L.; Zou, X.; Feng, S.; Chen, Y.; Kang, Y.; Huang, Q.; Huang, Y. An SRFPLLBased Sensorless Vector Control Using the Predictive Deadbeat Algorithm for the DirectDriven Permanent Magnet Synchronous Generator. IEEE Trans. Power Electron. 2014, 29, 2837–2849. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Kennel, R. Implementation and experimental investigation of a sensorless fieldoriented control scheme for permanentmagnet synchronous generators. Electr. Eng. 2018, 100, 849–856. [Google Scholar] [CrossRef]
 Mwinyiwiwa, B.; Zhang, Y.; Shen, B.; Ooi, B. Rotor Position PhaseLocked Loop for Decoupled PQ Control of DFIG for Wind Power Generation. IEEE Trans. Energy Convers. 2009, 24, 758–765. [Google Scholar] [CrossRef]
 Uddin, M.N.; Patel, N. Maximum Power Point Tracking Control of IPMSG Incorporating Loss Minimization and Speed Sensorless Schemes for Wind Energy System. IEEE Trans. Ind. Appl. 2016, 52, 1902–1912. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Kennel, R. Model Predictive Control of Permanent Magnet Synchronous Generators in VariableSpeed Wind Turbine Systems. In Proceedings of the Power and Energy Student Summit (PESS 2016), Aachen, Germany, 19–20 January 2016. [Google Scholar]
 Cardenas, R.; Pena, R.; Clare, J.; Asher, G.; Proboste, J. MRAS observers for sensorless control of doublyfed induction generators. IEEE Trans. Power Electron. 2008, 23, 1075–1084. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Kennel, R. Encoderless Model Predictive Control of DoublyFed Induction Generators in VariableSpeed Wind Turbine Systems. J. Phys. Conf. Ser. 2016, 753, 1–10. [Google Scholar] [CrossRef] [Green Version]
 Abdelrahem, M.; Hackl, C.; Farhan, A.; Kennel, R. FiniteSet MRAS Observer for Encoderless Control of PMSGs in Wind Turbine Applications. In Proceedings of the IEEE Conference on Power Electronics and Renewable Energy (CPERE), Aswan City, Egypt, 23–25 October 2019; pp. 431–436. [Google Scholar]
 Abdelrahem, M.; Hackl, C.; Kennel, R. A Robust Encoderless Predictive Current Control Using Novel MRAS Observer for SurfaceMounted PermanentMagnet Synchronous Generators. In Proceedings of the International Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management (PCIM), Nuremberg, Germany, 16–18 May 2017; pp. 113–120. [Google Scholar]
 Abdelrahem, M.; Hackl, C.; Dal, M.; Kennel, R.; Rodriguez, J. Efficient FinitePositionSet MRAS Observer for Encoderless Control of DFIGs. In Proceedings of the IEEE International Symposium on Predictive Control of Electrical Drives and Power Electronics (PRECEDE), Quanzhou, China, 31 May–2 June 2019; pp. 1–6. [Google Scholar]
 Zhang, Z.; Zhao, Y.; Qiao, W.; Qu, L. A SpaceVectorModulated Sensorless DirectTorque Control for DirectDrive PMSG Wind Turbines. IEEE Trans. Ind. Appl. 2014, 50, 2331–2341. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Catterfeld, P.; Hackl, C.; Kennel, R. A SlidingModeObserver for Encoderless Direct Model Predictive Control of PMSGs. In Proceedings of the International Exhibition and Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management (PCIM), Nuremberg, Germany, 5–7 June 2018; pp. 1–8. [Google Scholar]
 Mbukani, M.W.K.; Gule, N. Comparison of highorder and secondorder sliding mode observer based estimators for speed sensorless control of rotortied DFIG systems. IET Power Electron. 2019, 12, 3231–3241. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Zhang, Z.; Kennel, R. Robust Predictive Control for DirectDriven SurfaceMounted PermanentMagnet Synchronous Generators Without Mechanical Sensors. IEEE Trans. Energy Convers. 2018, 33, 179–189. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Kennel, R. Simplified Model Predictive Current Control without Mechanical Sensors for VariableSpeed Wind Energy Conversion Systems. Electr. Eng. 2017, 99, 367–377. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Kennel, R. Sensorless Control of DoublyFed Induction Generators in VariableSpeed Wind Turbine Systems. In Proceedings of the 5th International Conference on Clean Electrical Power (ICCEP), Taormina, Italy, 16–18 June 2015; pp. 406–413. [Google Scholar]
 Afrasiabi, S.; Afrasiabi, M.; Rastegar, M.; Mohammadi, M.; Parang, B.; Ferdowsi, F. Ensemble Kalman Filter based Dynamic State Estimation of PMSGbased Wind Turbine. In Proceedings of the IEEE Texas Power and Energy Conference (TPEC), College Station, TX, USA, 7–8 February 2019; pp. 1–4. [Google Scholar]
 Azad, S.P.; Tate, J.E. Parameter estimation of doubly fed induction generator driven by wind turbine. In Proceedings of the IEEE/PES Power Systems Conference and Exposition, Phoenix, AZ, USA, 20–23 March 2011; pp. 1–8. [Google Scholar]
 Prajapat, G.P.; Bhui, P.; Kumar, P.; Varma, S. Estimation based Maximum Power Point Control of DFIG based Wind Turbine Systems. In Proceedings of the IEEE PES GTD Grand International Conference and Exposition Asia (GTD Asia), Bangkok, Thailand, 19–23 March 2019; pp. 673–678. [Google Scholar]
 Elbuluk, M.; Tong, L.; Husain, I. Neuralnetworkbased model reference adaptive systems for highperformance motor drives and motion controls. IEEE Trans. Ind. Appl. 2002, 38, 879–886. [Google Scholar] [CrossRef]
 Cirrincione, M.; Pucci, M. An MRASbased sensorless highperformance induction motor drive with a predictive adaptive model. IEEE Trans. Ind. Electron. 2005, 52, 532–551. [Google Scholar] [CrossRef]
 Maiti, S.; Verma, V.; Chakraborty, C.; Hori, Y. An Adaptive Speed Sensorless Induction Motor Drive with Artificial Neural Network for Stability Enhancement. IEEE Trans. Ind. Inform. 2012, 8, 757–766. [Google Scholar] [CrossRef]
 Gadoue, S.M.; Giaouris, D.; Finch, J.W. A new fuzzy logic based adaptation mechanism for MRAS sensorless vector control induction motor drives. In Proceedings of the IET Conference on Power Electronics, Machines and Drives (PEMD), York, UK, 2–4 April 2008; pp. 179–183. [Google Scholar]
 Samat, A.; Ishak, D.; Iqbal, S.; Tajudin, A. Implementation of Sugeno FIS in model reference adaptive system adaptation scheme for speed sensorless control of PMSM. In Proceedings of the IEEE International Conference on Control System, Computing and Engineering (ICCSCE), Batu Ferringhi, Malaysia, 28–30 November 2014; pp. 652–657. [Google Scholar]
 Gadoue, S.M.; Giaouris, D.; Finch, J.W. MRAS Sensorless Vector Control of an Induction Motor Using New SlidingMode and FuzzyLogic Adaptation Mechanisms. IEEE Trans. Energy Convers. 2010, 25, 394–402. [Google Scholar] [CrossRef]
 Azza, H.B.; Zaidi, N.; Jemli, M.; Boussak, M. Development and Experimental Evaluation of a Sensorless Speed Control of SPIM Using Adaptive Sliding ModeMRAS Strategy. IEEE J. Emerg. Sel. Top. Power Electron. 2014, 2, 319–328. [Google Scholar] [CrossRef]
 Yan, J.; Lin, H.; Feng, Y.; Guo, X.; Huang, Y.; Zhu, Z.Q. Improved sliding mode model reference adaptive system speed observer for fuzzy control of directdrive permanent magnet synchronous generator wind power generation system. IET Renew. Power Gener. 2013, 7, 28–35. [Google Scholar] [CrossRef]
 Vazquez, S.; Leon, J.; Franquelo, L.; Rodriguez, J.; Young, H.; Marquez, A.; Zanchetta, P. Model Predictive Control: A Review of Its Applications in Power Electronics. IEEE Ind. Electron. Mag. 2014, 8, 16–31. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Kennel, R.; Rodriguez, J. Efficient DirectModel Predictive Control with DiscreteTime Integral Action for PMSGs. IEEE Trans. Energy Convers. 2019, 34, 1063–1072. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Kennel, R. Efficient Direct Model Predictive Control for DoublyFed Induction Generators. Electr. Power Compon. Syst. 2017, 45, 574–587. [Google Scholar] [CrossRef]
 Abdelrahem, M.; Hackl, C.; Kennel, R. Finite set model predictive control with online parameter estimation for active frondend converters. Electr. Eng. 2018, 100, 1497–1507. [Google Scholar]
 Abdelrahem, M.; Hackl, C.; Kennel, R. Finite Position SetPhase Locked Loop for Sensorless Control of DirectDriven PermanentMagnet Synchronous Generators. IEEE Trans. Power Electron. 2018, 33, 3097–3105. [Google Scholar]
 Schauder, C. Adaptive speed identification for vector control of induction motors without rotational transducers. IEEE Trans. Ind. Appl. 1992, 28, 1054–1061. [Google Scholar]
 Andreescu, G.D. Position and Speed Sensorless Control of PMSM Drives Based on Adaptive Observer. In Proceedings of the 8th European Conference on Power Electronics and Applications (EPE ’99), Lausanne, Switzerland, 7–9 September 1999; pp. 1–10. [Google Scholar]
Name  Symbol  Value

Nominal power  ${p}_{rated}$  $14.5\mathrm{k}\mathrm{W}$
Nominal lineline voltage of the SMPMSG stator  ${u}_{s,rated}$  $400\mathrm{V}$
Rated voltage of the DClink  ${u}_{dc}$  $560\mathrm{V}$
Nominal mechanical angular speed of the rotor  ${\omega}_{m,rated}$  $209\mathrm{rad}/\mathrm{s}$
Resistance of the SMPMSG stator  ${R}_{s}$  $0.15\mathsf{\Omega}$
Inductance of the SMPMSG stator  ${L}_{s}$  $3.4\mathrm{m}\mathrm{H}$
Permanentmagnet flux linkage  ${\psi}_{pm}$  $0.3753\mathrm{Wb}$
Number of pole pairs  ${n}_{p}$  3
