# The Spectrum of Proactive, Resilient Multi-Microgrid Scheduling: A Systematic Literature Review

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Work Related to a Resilient and Economic Multi-Microgrid Operation

#### 2.1. Failure Modes and Resilience Metrics

#### 2.2. Resilience-Aware Microgrid Scheduling

#### 2.3. Multi-Microgrid Forming

#### 2.4. Resilience-Aware Multi-Microgrid Scheduling

#### 2.5. Related Reviews

#### 2.6. Contributions of This Paper

## 3. Systematic Review Method

#### 3.1. Definitions

#### 3.2. Research Questions

Which types of resilience-oriented scheduling functions for multi-microgrids do exist and how do they differ from one another?

- Which aspects were modeled in SotA approaches? Such aspects include the type of DERs and their models, topological assumptions, failure modes, as well as the formulation of the objective functions. Additionally, sources and representations of uncertainty that are covered by presented models are addressed.
- Which type of proactive actions and fault mitigation techniques are considered to increase resilience and efficiency? For instance, shiftable loads and controllable generation may be scheduled such that certain types of faults can be tolerated. Other actions may include grid-reconfiguration measures and in case of post-fault actions various islanding schemes [3].
- How are these functions tested and evaluated? Which methodology is used to evaluate given approaches? Which input conditions (e.g., test networks, load and DER profiles) are used and do they differ in the degree of detail from the models used for optimization? Is there a common set of benchmarks? Which types of metrics are used to evaluate the performance of scheduling algorithms?

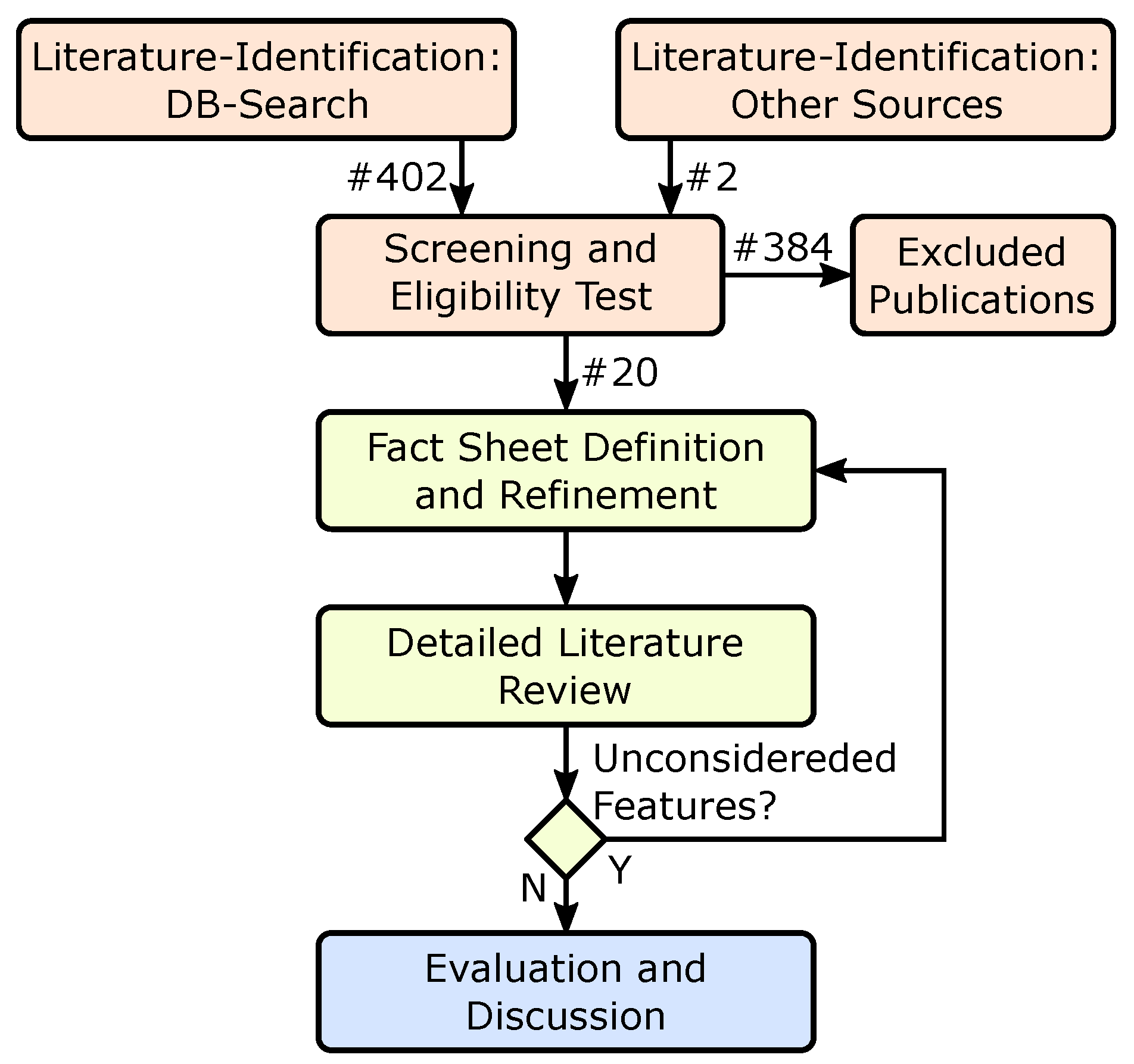

#### 3.3. Literature Identification and Screening

- Full-Text Availability: One of the basic formal criteria for including the paper in the systematic study is its availability. A paper was included if and only if the full content is available in English or German language. Six papers out of 404 were excluded due to their availability.
- Scheduling Algorithm Available: For further evaluation, a scheduling algorithm which covers essential technical details must be given. Scheduling algorithm is thereby understood as an algorithm which computes the set-points of controllable assets such as gensets, battery storage, and controllable loads in advance. Algorithms and papers which focus on long-term resource planning or placement, e.g., for optimizing strategic investment, and therefore not only consider set-points but also asset variations are considered to be out of scope. In the screening step, 140 papers were excluded because they do not describe a scheduling algorithm.
- Focus on Normal Operation: By definition, a microgrid or multi-microgrid is considered to be in normal operation if it is connected to the main grid. Hence, algorithms which solely cover an islanded or emergency operation were rejected for review. Additionally, if an approach focuses on resilience parameters such as critical load supply only, without considering operation metrics such as costs relevant in normal operation, it is not considered for review. In total, 75 papers were excluded because they focus on emergency operation only.
- Resilience Aspects Covered: To answer the research question on resilient scheduling, only approaches which tackle resilience aspects need to be covered. Work is herein considered in case one failure mode during normal operation is taken into account in a way that tolerance of this failure mode is ensured (i.e., robustness) or the impact of these failures is minimized (i.e., resilience). Such failure modes include (main-)grid failures, communication failures, or generation faults. An approach is not considered to be resilient scheduling, in case it does not actively shape resilience and only operates on static security margins without deriving them form the microgrid properties or validating them in an independent simulation. Such static margins include spinning reserve requirements are not actively adapted to the microgrid state. While screening, 98 papers were found to neglect resilience aspects considerably.
- Covered Technology: To guarantee a broad applicability of the reviewed approaches and to be able to compare several detailed aspects, a minimum set of modeled assets is defined [30,31]. In particular, each approach must at least be able to handle a schedulable energy storage, non-schedulable, stochastic loads, stochastic generation, and in accordance with the microgrid definition, an interruptible connection to the main grid. In particular, non-schedulable generation covers a wide range of RES which can be subsumed under this term [2]. In total, 46 papers do not cover the required technology and are therefore not considered for further review.
- MG Topology and Topological Constraints: A distribution system, which connects multiple, coordinated microgrids or which forms multiple, coordinated islands may not be able to handle every configuration without voltage and current violations [26]. It is, therefore, expected that network constraints such as topological constraints gain an increasing importance in multi-microgrids, compared to geographically contained single microgrids. Even if an algorithm does not actively alter the network topology, controls and scheduling decisions can have a considerable impact on a reliable operation [47].Since the study focuses on a resilient operation of multi-microgrids, it is decided that included work must take topological constraints into account. In particular, power-flow limits and the topology of the microgrid or multi-microgrid must be taken into account. An algorithm which assumes a single-bus microgrid is not considered to be multi-microgrid scheduling, even if power transfer constraints to the main grid are modeled. From the initial set of identified publications, 31 papers do not consider network constraints at all and 15 papers only model a single-bus microgrid with limited transfer capabilities to the main grid. Similarly, four papers were excluded because they only model Alternating Current (AC)/Direct Current (DC) converter assets without considering transmission constraints within the network.

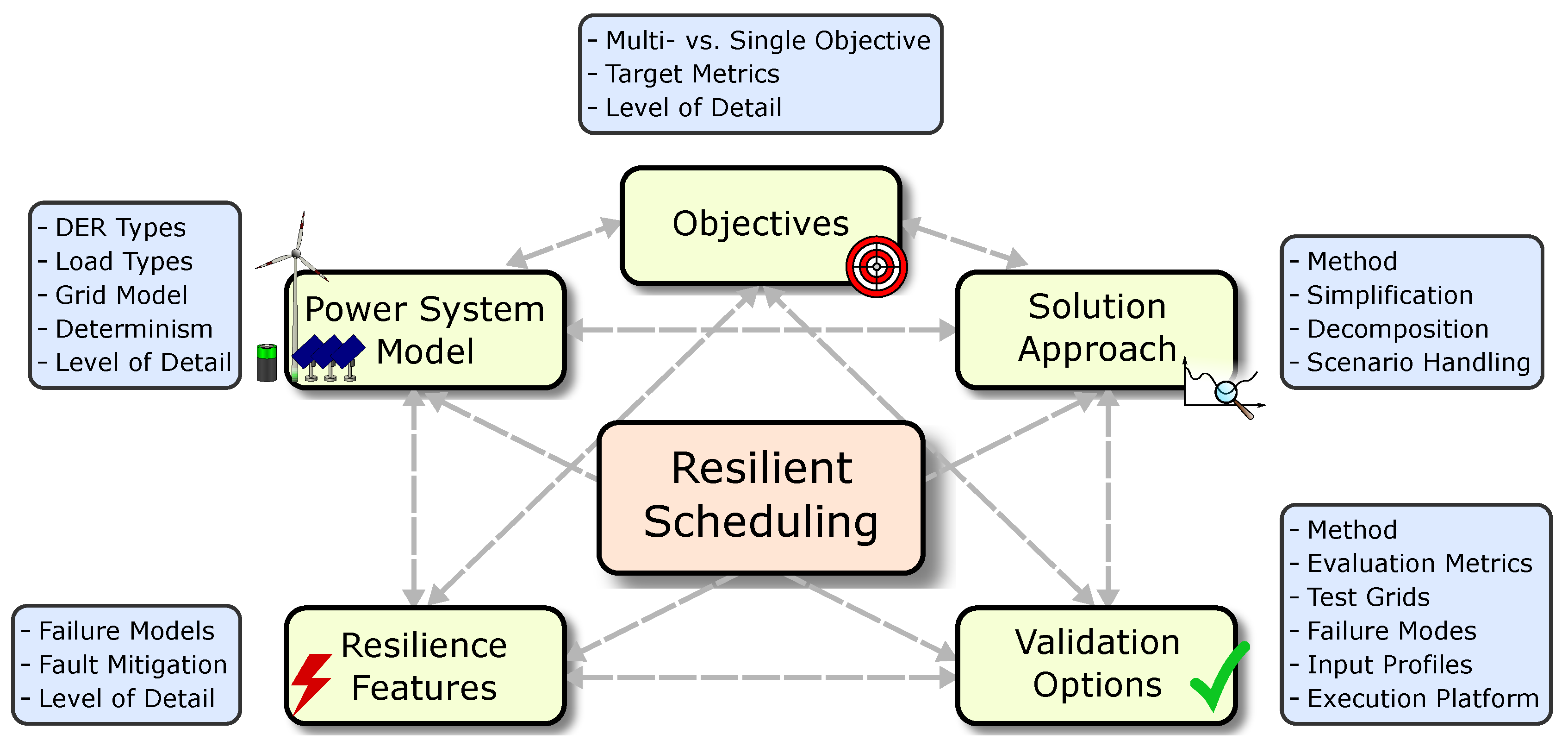

#### 3.4. Fact Sheet and Feature Extraction

## 4. Results and Discussion of the Systematic Review

#### 4.1. Selected Literature

#### 4.2. Modeling Approaches and Modeled Assets

#### 4.3. Optimization Objective and Methods

#### 4.4. Resilience Features

#### 4.5. Validation Approaches

## 5. Future Perspectives

#### 5.1. Modeling Approaches and Modeled Assets

- Level of Abstraction: Most assets such as loads, generation and grid facilities were modeled by different levels of abstraction. For instance, some papers consider a graph model and active power-flow constraints, only [54], while others include a detailed grid model [20] that considers reactive and apparent power flows, as well. Choosing the right level of abstraction may drastically influence the system performance [56], but few papers present the impact of simplification on a resilient schedule in detail.
- Hidden Aspects: To get a concise view on the required level of abstractions, several aspects, that are usually not modeled but that may impact an algorithm, should be considered. For instance, storage losses are commonly modeled via constant efficiencies. However, battery storage systems including their power electronics converters show various non-linear effects that strongly depend on the point of operation [89,90]. A more detailed model may cover system effects that potentially hamper supply security in critical part-load situations [3]. Similarly, few papers consider the effects and reserve requirements of low-level controls such as Q-of-U and P-of-f droop curves that may implement short-term power sharing and voltage control [17].
- Stochastic Effects: Following one of the eligibility criteria, all key contributions trivially consider stochastic effects such as volatile load and RESs. Some of these contributions directly use stochastic models of meteorological observables and forecasting deviations. On a common basis, errors and the observables themselves are assumed to be independently distributed as concerns points in time, i.e., one sample does not depend on previous samples. Such assumptions may be valid for yearly assessments, but may fail at short-term horizons [70] of scheduling problems. Work [91] studies forecasting errors and indicates that a commonly assumed normal distribution does not fit either. Some research is needed to quantify the effects on the performance of a resilient scheduling algorithm and to study alternative models.
- Robustness of the Asset Models: Asset models may be subject to parameter deviations and degradation. For RESs and loads, such phenomena are commonly considered, but for controlled assets, the effects of parameter deviations such as EES capacities are hardly covered. Future work may tackle the robustness of asset models by studying the effects of inevitable parameter deviations. A feedback mechanism may be included to assure a sufficient model quality [92] and further insights regarding the impact of inaccuracies may be gained.
- Covered Assets: Current scheduling algorithms focus on a specific set of assets such as generic DER, EES, and constant power loads. Other components such as transformers that are equipped with On-Load Tap Changers (OLTCs) are not included in the key contributions. However, these assets may impact the system performance and may even be actively controlled by the scheduling algorithms, e.g., to support voltage control via OLTCs [93]. In case specific plant types such as hydro turbines and hydrogen-based EES may be subsumed by generic models, the eligibility of these models needs to be assessed as well.
- Engineering Aspects: One open point that is beyond the scope of all key contributions is the efficient engineering of scheduling approaches. All approaches require a large amount of input information such as network and DER parameters that may not be easily available. Methods that inherently include a system and model identification process such as reinforcement learning [94], as well as common data sources and engineering support systems [95] may be used to assist practical implementation.

#### 5.2. Optimization Objectives and Methods

- Distributed Optimization: Out of 20 contributions, only a single one followed a fully distributed approach [63]. Most other publications implemented a centralized approach that requires extensive knowledge of the assets of various microgrids. Future work may include resilience aspects in distributed scheduling approaches more often [34] or may distribute centralized algorithms to tackle privacy, fault tolerance, and governance issues [35].
- Hybrid Optimization: Traditionally, optimization approaches either use mathematical programming or heuristics to obtain a feasible and possibly optimal solution [73]. However, there is a class of algorithms called hybrid optimization that tries to combine several complementary methods, for instance both mathematical programming and heuristic procedures. Some key contributions already successfully use hybrid approaches, e.g., for problem decomposition [27,53] or to interface external solvers [51,57]. Future work may improve the interaction between different solvers and study the application of hybrid optimization methods in detail. A particular focus may be put on the integration of detailed models that are solved by external tools.
- Scalability: Some papers such as [53] indicate that techniques to improve the performance are needed, but as listed in Table 9, few publications actually assess the execution time. Furthermore, no systematic scalability study is given that relates the execution time to the system size and complexity. It is still open to assess the scalability of scheduling approaches and to document the performance limits with respect to practical systems. A fine-grained evaluation may highlight performance trade-offs and assist future engineering work.
- Regulatory Frameworks: Although the key contributions include a wide variety of cost terms, including resilience and operating costs, few references to regulatory regimes that imply certain cost structures are given. Such frameworks may dictate when price information is available, how prices are determined and whether a market can be accessed [96]. Furthermore, energy transfer and trading within multi-microgrids or local energy communities may be restricted by various regulations that need to be considered in the design and operating phase. Some key contributions already consider regulatory measures by assuming certain market price structures [20,62], but a broad discussion is missing.

#### 5.3. Resilience Features

- Extended Failure Modes: In most key contributions, only a few failure classes that must be withstood are considered. Typically, main-grid faults [27,52] and line tripping events [28,64] are tackled. Few papers also include other modes such as short-circuit failures [57] and no paper directly considers faulty DER set-points, invalid switching actions, or load disconnections. Open research includes the systematic identification of relevant failure modes that need to be considered in the scheduling problem. Additionally, the flexibility of algorithms in considering new and previously unknown failures may be assessed. Future work may further rely on the integration of external simulation tools to tackle both flexibility and the level of detail.
- Generic Failure Modes: Some failure modes may be subsumed by another class. For instance, main grid failures may be covered by a fault in the line that connects the point of common coupling [28,55]. However, a systematic study of prototypical failure modes in scheduling problems is still open. In particular when increasing the number of considered failure modes, a proper generalization may be needed to contain the computational effort of finding an optimal solution.
- Effects of Low-Level Controls: Low-level controls such as voltage and frequency control that are installed to provide immediate action in terms of disturbances [5] are commonly beyond the scope of key contributions. However, a high-level schedule may impact the feasibility of certain control actions, e.g., in case a generator is already close to a limit, and may hamper a successful mitigation action. Some emergency actions such as fault rerouting can also be implemented by a dedicated controller to guarantee a fast response. Future work may focus on the interaction of low-level controls and the scheduling algorithm to ensure a consistent behavior and a valid emergency response. Insights into the proper abstractions of low-level controls may decrease the complexity of the scheduler without impacting the resilience of the system.
- Fault Mitigation Techniques: The key contributions deploy three different classes of fault mitigation techniques: Main-grid disconnection [27], rerouting [48], and grid splitting [28]. However, practical issues such as protection, inertia, grid-forming, and legal requirements [36] are hardly considered on assessing mitigation options. Some work may be conducted to increase the knowledge of feasibility aspects of mitigation techniques and to explore further options such as mobile generators and batteries that may quickly replace other units [97].

#### 5.4. Validation Approaches

- Common Benchmark System: All key contributions include a simulation-based validation, but each of them uses different benchmark systems or diverging configurations to demonstrate their approaches. One of the most common test feeders is the Baran test feeder [77]. However, to demonstrate the algorithms, several independent modifications were introduced to account for DERs that were not considered in the original test feeder. Consequently, results from different papers cannot be directly compared. Existing benchmark systems [31] such as SimBench [98,99] and IEEE test feeders [100] may be evaluated and refined towards a unified multi-microgrid scheduling test bed. In addition to common typologies, a wide variety of assets, unified input profiles, and detailed DER parameters may reduce the need for custom modifications.
- Common Metrics: To be able to compare results from different studies, common metrics are required. While most papers provide operating costs, resilience-based metrics such as energy not supplied, are less common. Future work may profit from an increased focus on unified resilience metrics [48] and may intensify the discussion on their significance.
- Independent Validation: Rising from the need for comparable results, a fine-grained assessment of multiple algorithms may be conducted. In addition to common benchmark systems that are used by multiple authors, more detailed insights may be gained. A common execution platform may, for instance, enable detailed assessments on the computational performance. Some publications including [56,64] already compare their methods to a reference, but future implementations may profit from a more extensive study.
- Readiness and Practical Implementation: Although the first multi-microgrid test sites are already implemented [9], only one key contribution demonstrated the practical implementation of resilient scheduling [59] and no one went beyond laboratory experiments. Hence, considerable effort is needed until the approaches can demonstrate practical use in real-world situations [101]. Future testing and validation work may highly profit from previous experiences [9,31,102] and structured testing methodologies such as holistic testing [101,103].
- Resilience Assessment in the Field: One particular challenge towards a safe deployment is the resilience assessment in productive operation. Unlike in laboratory-based setups, testing the resilience may impact the overall performance of the grid. However, undiscovered failures in the control strategies may have fatal consequences as well [30]. Future work may include save strategies to verify resilience against low probability, high impact events in operation.

## 6. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

AC | Alternating Current |

CHP | Combined Heat and Power |

CSA | Clonal Selection Algorithm |

DC | Direct Current |

DER | Distributed Energy Resource |

DR | Demand Response |

EES | Electrical Energy Storage |

EMA | Exchange Market Algorithm |

PaCcET | Pareto Concavity Elimination Transformation |

EV | Electric Vehicle |

FA | Firefly Algorithm |

ICA | Imperialist Competitive Algorithm |

MILP | Mixed Integer Linear Programming |

MIP | Mixed Integer Programming |

MT | Micro Turbine |

OLTC | On-Load Tap Changer |

PCC | Point of Common Coupling |

PV | Photovoltaics |

PRISMA | Preferred Reporting Items for Systematic Reviews and Meta-Analyses |

PSO | Particle Swarm Optimization |

RES | Renewable Energy Sources |

SoC | State of Charge |

SotA | State-of-the-Art |

SRQ | Sub-Research Question |

V2G | Vehicle to Grid |

WT | Wind Turbine |
