1. Introduction
There are currently many driving forces to incentivize increasing energy efficiency in industry. For example, the European Union’s Energy Efficiency Directive [
1] has resulted in national laws requiring large companies to perform energy audits to identify measures for energy efficiency. Environmental legislation, various incentives, and policy support programs for energy efficiency, as well as economic and environmental concerns from customers and business partners, all motivate a stronger focus on energy efficiency in process industry companies.
However, technical, economical, and organizational barriers often hinder implementation of energy efficiency measures. Fleiter et al. [
2] stress the importance of distinguishing between different types of energy efficiency measures when discussing barriers for energy efficiency. For example, the risk of production disruption is one of the most important barriers when the energy efficiency measures can affect the core process. Dieperink et al. [
3] discussed difficulties associated with implementing energy efficiency measures that affect the core process for selected industrial sites in the Netherlands. Rhodin et al. [
4] presented an example from the Swedish foundry industry where technical risks such as production disruptions was the second largest barrier for implement energy efficiency measures. Thollander and Ottosson [
5] discussed an example from the Swedish pulp and paper industry in which technical difficulties were also ranked as a large obstacle for implementing energy efficiency measures. Cagno and Trianni [
6] also addressed the importance of considering barriers for specific energy efficiency measures, rather than assuming that barriers are the same for all types of measure. This implies that research is needed that addresses a variety of industrial sectors, as well as different types of energy efficiency measures, in order to thoroughly evaluate and investigate which factors affect the implementation potential. Much research has been conducted concerning drivers and barriers in small and medium-sized enterprises. Johansson and Thollander [
7] discussed drivers and barriers and suggested recommendations for in-house energy management procedures for several industrial sectors in Sweden, including both small and medium-sized enterprises and energy-intensive industry. Cagno et al. [
8] presented a framework for assessing non-energy benefits and non-energy losses that is targeted at industrial decision-makers and covers both technical and management perspectives. However, only a few studies have focused on large energy-intensive industrial plants, such as the Swedish pulp and paper industry [
5], the Swedish iron and steel industry [
9], and the German steel industry [
10], and the lack of studies from the petrochemical process industry is noteworthy.
Changes to an industrial process can have major effects on process operability. It is therefore imperative that operational issues are considered when planning such changes. Process operability includes different operational aspects such as flexibility, controllability, reliability, availability, and start-up and shutdown of the process [
11]. For example, if a process is not flexible it cannot adapt to different operating conditions, such as varying feedstock, change of product specifications and/or product mix, and varying ambient conditions. Equipment reliability/availability issues can cause expected and unexpected operational disruptions and controllability problems can lead to major safety issues and production disruptions. Therefore, it is important to investigate how energy efficiency can affect operability. Furthermore, energy efficiency measures can also improve operability, for example by reducing the load on a process capacity-limiting furnace, leading to valuable non-energy benefits for the process. Non-energy benefits refer to benefits other than the direct energy cost savings from the energy efficiency improvement, e.g., reduced carbon dioxide emissions, increased production, and better work environment [
12].
Although there are several options to increase energy efficiency in industry, thermal energy is used in large quantities in chemical process plants and heat recovery is therefore one important option to improve energy efficiency in such plants. In previous research, many case studies have identified large techno-economic potentials for energy savings by heat integration in existing industrial plants. To evaluate feasibility of new processes and increased energy efficiency through increased heat recovery, a better estimation of the techno-economic potentials of process heat integration measures is necessary as well as a better understanding of the drivers and barriers affecting the implementation potential. Rebuilding an existing industrial plant to increase heat integration affects the process in several ways. In particular, the number of interdependencies between different parts of the process increases. In previous studies it has been repeatedly discussed that the risk for operability or control problems is strongly connected to the number of interdependencies and interconnections within a process. Subramanian and Georgakis [
13] investigated plant-wide steady-state operability issues for an integrated process plant. Setiawan and Bao also discussed the connection between an integrated process and operability issues, both in a study considering interactions between process units [
14] and in a study that investigates interaction effects connected to operability [
15]. Such operability problems may lead to production disruptions, which must be avoided since they are extremely costly. This underlines the importance of considering operability of heat integration measures at an early stage when investigating retrofits of industrial energy systems.
Heat integration analysis can be based on mathematical programming or graphical insights (e.g., pinch analysis) (see e.g., [
16]). A wide variety of case studies have shown a large potential for increased energy efficiency through retrofitting of heat exchanger networks (HENs) at different industrial process sites. There are many different methodologies to identify HEN retrofit designs that achieve high energy savings at low cost, each of which has their own benefits and drawbacks (see e.g., [
17] for a review of HEN retrofit methodologies and applications). It is common that several HEN designs can be identified that achieve approximately the same energy saving at similar costs. However, such HEN designs can vary significantly regarding network complexity, placement of new heat exchangers, as well as utility heaters and coolers for target temperature control, etc. It is thus clear that technical and operational factors need to be considered together with investment cost and fuel cost savings when investigating HEN retrofit options.
In the existing literature, there are many studies presenting methods for accounting for specific practical considerations and associated costs in HEN retrofit studies. For example, Becker and Maréchal [
18] presented a method to consider heat exchange restrictions using mixed integer linear programming, and Cerda and Westerburg [
19] presented a study of HEN synthesis with restricted stream matches. Polley and Kumana [
20] suggested dividing larger networks into a number of smaller networks to deal with large heat integration projects. Practical considerations and associated costs are especially important when considering integration at large sites or even across company boundaries, which is the case, for example, for piping and pressure drops. To include plant-specific factors such as piping costs, pressure drop, and heat losses, Bütün et al. [
21] proposed a mixed integer linear programming framework. Hiete et al. [
22] also included piping costs when considering energy integration between industrial plants with different owners. Jegla and Freisleben [
23] also considered pressure drops in their practical method for energy retrofit, but in addition they also considered available heat exchanger space. Reddy et al. [
24] presented an optimization method for retrofits of cooling water systems including pressure drops, cooling tower operation, and piping costs. Hackl and Harvey [
25] developed a methodology for identifying cost-effective retrofit measures in a chemical cluster adopting a total site perspective. Nemet et al. [
26] developed methods for included piping costs, pressure drops, and temperature drops in total site analyses.
Other methods have also been proposed to account for certain specific operability considerations such as flexibility and controllability in network design. Escobar et al. [
27] suggested a method to include flexibility and controllability consideration in HEN synthesis. Another method for including operability and observability in HEN design was recently proposed by Leitod et al. [
28]. Andiappan and Ng [
29] presented a methodology to consider energy systems operability, feasibility and debottlenecking opportunities connected to retrofit design. Abu Bakar et al. [
30] suggested including operability in addition to investment and utility cost savings in the choice of ΔT
min for HEN design. Several authors have used mixed-integer programming for multi-period optimization to consider flexibility in process integration problems, for example, for integration of utility systems [
31], flexible HEN design [
32], and integration of biomass and bioenergy supply networks [
33]. Bütün et al. [
34] presented an approach for including multiple investment periods for a longer time horizon for energy integration.
Although many studies have focused on specific individual aspects of process operability, there is, to the best of our knowledge, no scientific literature that provides a comprehensive overview of the wide variety of process operability issues and that systematically investigates their impact on decision processes related to implementation of HEN retrofit measures. Furthermore, operability issues are traditionally not considered at the early conceptual design stage for techno-economic ranking of alternative heat integration measures. One common approach in HEN retrofit studies is to identify pinch rules violations in the existing HEN, and thereafter attempt to remove or reduce such violations starting with the largest violation. At this early design stage, it is unusual to consider costs other than heat exchanger and utility costs. Operability issues are usually not included until the pre-feasibility or feasibility study phases of the decision-making process for heat integration projects, see

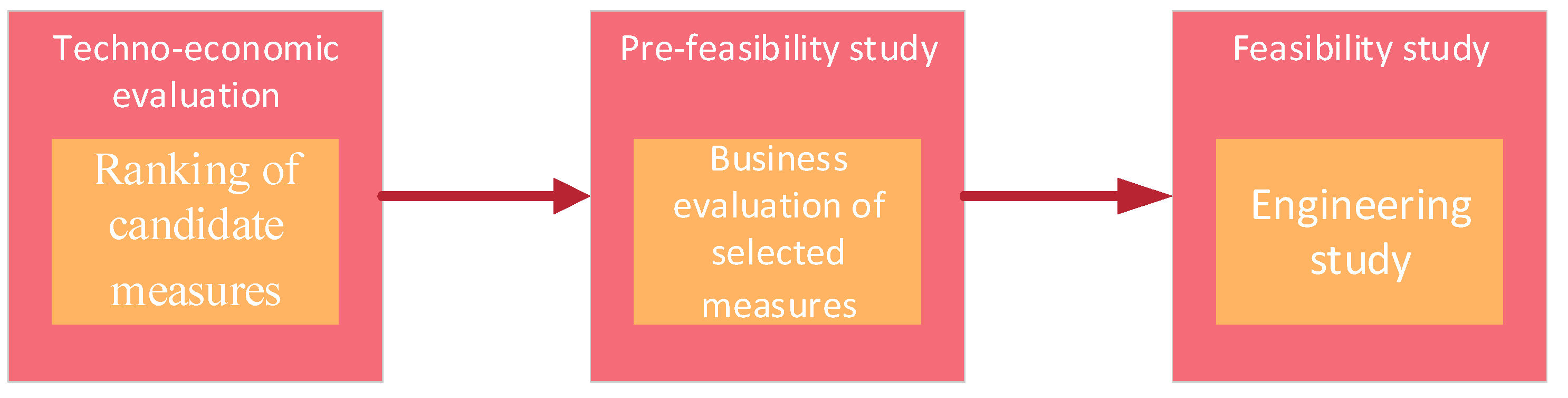

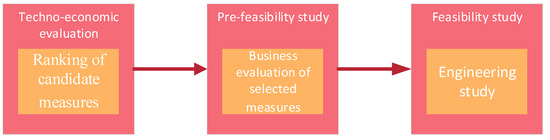

Figure 1. However, since energy efficiency measures for increased heat integration are closely connected to the core process of industrial plants, technical aspects can be assumed to be important barriers for their implementation. By considering possible technical barriers and operability issues at an earlier stage of the screening process of energy efficiency options, it could be possible to avoid spending resources on detailed design and feasibility studies of projects that are highly unlikely to be implemented. This is crucial to enable a rapid and relevant screening process of energy efficiency measures and to be able to estimate accurate technical and economical potentials of heat integration. To enable more explicit consideration of operability issues earlier in the screening process, it is, however, important to know which operability factors are most important to consider in the techno-economic evaluation.
The aim of this paper is to present a comprehensive overview of operability and technical implementation issues related to heat integration measures by mapping, discussing and clarifying how such measures relate to a comprehensive set of key operability factors. This approach differs from previous studies that have primarily investigated these issues individually. The work was conducted in the form of an interview study at a large oil refinery in Sweden, and as such suggests a new approach for inclusion of operability considerations at an early stage of screening of alternative heat integration options. The paper aims to present an in-depth discussion of the theoretical definitions of operability and the practical considerations of heat integration by investigating its relevance in a real industrial process plant. The case study contributes to expanding the knowledge base for operability and practical implementation issues related to heat integration retrofits.
3. Industrial Case Study Plant
To thoroughly discuss operability of heat integration measures, a single plant was considered in the case study, which gave the opportunity to design and evaluate retrofit proposals based on real process data. Large industrial plants include many interconnected process units and extensive utility systems. A comprehensive data collection and analysis is thus essential to obtain the details necessary to identify candidate HEN retrofit measures and related operability aspects. In this work, a single process plant was investigated in detail, which provided the opportunity to design HEN retrofits (see
Section 4.2) that include many of the aforementioned operability aspects and discuss the proposed retrofit measures in detail with refinery staff. This level of detail would not have been possible if several plants were included in the study.
The case study was conducted at one of the most modern and energy efficient complex oil refineries in Europe, with a crude oil capacity of 11.5 million tons per year and total CO
2 emissions of 1.6 million tons in 2017 [
35]. The main products are petrol, diesel, propane, propylene, butane, and bunker oil.

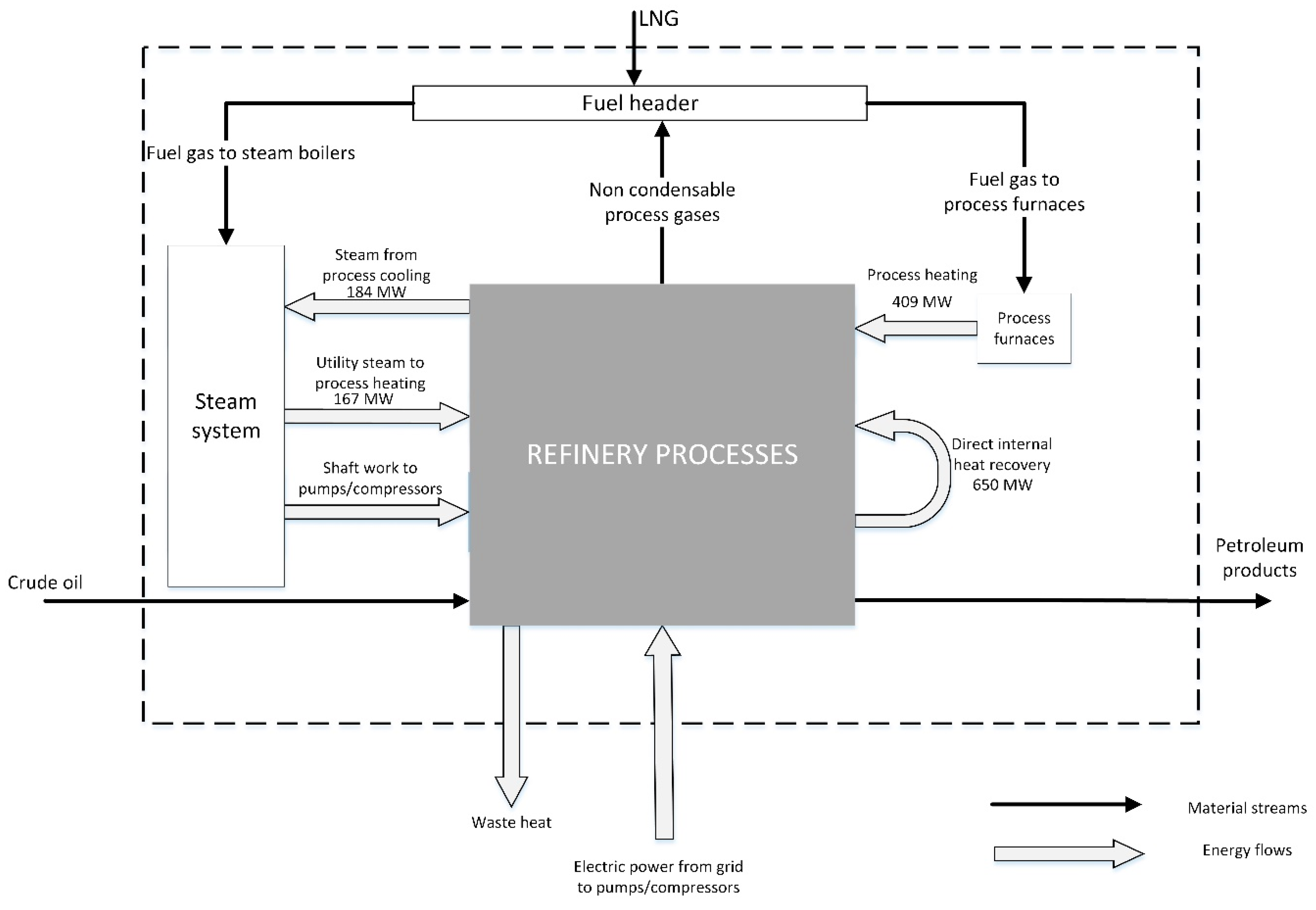

The heat demand of the refinery is satisfied mainly by direct fired process furnaces and by steam that is produced in steam boilers, flue-gas heat recovery boilers and process coolers. The process furnaces and steam boilers are fired by fuel gas that consists mainly of non-condensable gases from the refinery distillation columns. Liquefied Natural Gas (LNG) is used as make-up fuel when the non-condensable gas fuel stream is insufficient. An overview of the main material and energy flows is presented in
Figure 2.
The refinery steam network consists of four main pressure headers, which are connected by let-down valves and turbines. The turbines are used in direct drive configuration to operate compressors and pumps, a number of which can be switched to electric motor drive. There is no electrical power generation on site. The refinery regularly has an excess of low-pressure steam. During 25% of the year, the excess of low-pressure steam is particularly high due to an excess of non-condensable gases from the refinery processes. Flaring is strictly regulated, and the refinery has no storage capacity for the non-condensable gases, thus excess gas is combusted in the steam boilers, leading to an excess of steam that is vented.
In connection to earlier research projects, energy targeting [
37] and retrofit studies [
38] have been carried out for the case study refinery. In this work, stream temperature and heat load data were collected for the majority of the refinery heat exchangers. Process stream data was collected 23 April 2010 from production data control room screen shots and data logs. The date was chosen in collaboration with refinery engineers to represent stable full capacity operation. For these operating conditions, the process hot utility demand that was covered by process furnaces was determined to be 409 MW [
37]. Minimum utility requirements were determined for the different process units using pinch analysis. Details about the results of this energy targeting are presented in
Section 4.2.
4. Methodology
In this section, the framework for the interview study is described as well as the methods used for the interviews and HEN retrofit design.
Although scientific literature is scarce on the subject of operability related to heat integration measures, many experienced engineers and operators in industry possess a deep knowledge and understanding of their processes and the way they operate under various conditions. To be able to tap into this extensive knowledge base, a case study approach based on interviews was adopted. As discussed by Sovacool in references [
39,
40], this approach provides a broader and more detailed perspective of process operation compared to simulation using a computer model which includes only known parameters and variables. Since limited research is available on the operability aspects that are most important to consider in a HEN retrofit study, a mapping is needed which can thereafter provide guidance for future HEN retrofit evaluations.

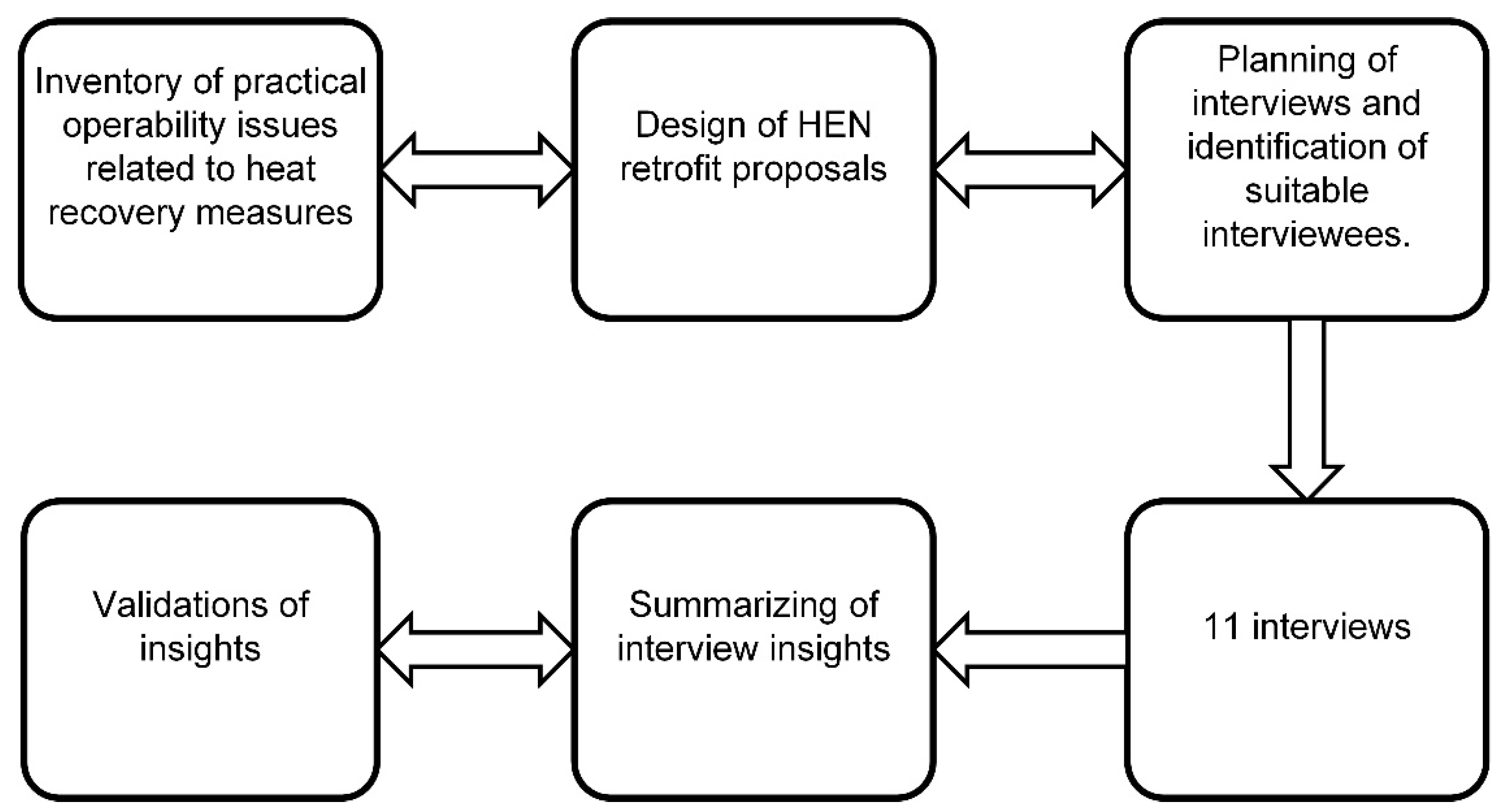

An overview of the methodology used for the interview study is shown in
Figure 3. As the figure shows, HEN retrofit proposals were designed specifically for the case study process (see
Section 4.2), based on a literature review of operability issues related to heat integration measures [
10]. The process data for the retrofit proposals were taken from a previous energy targeting study at the refinery [
37]. The proposals were discussed with refinery experts in eleven interviews (see
Section 4.3). The results were then summarized and presented to the refinery experts again for confirmation and further discussion at a validation seminar.
4.1. Inventory of Possible Process Operability Implications Related to Heat Integration Measures
Implementation of new heat recovery measures involves many changes to the process equipment and operation, ranging from new and modified heat exchanger units to changes in pressures, steam balances and interactions between different parts of the process. In this paper, we refer to these changes as “process implications”.
In order to discuss different aspects of operability during the interviews, a number of heat integration retrofit proposals were designed that cover different process implications related to operability. To ensure an exhaustive coverage of process implications and operability aspects, a list of potential process implications was compiled based on literature examples and experience from previous process integration projects. The implications included on the list were matched with the operability aspects that were most likely to be affected (see
Table 1). After the first round of interviews with plant staff, the list of possible implications was extended if new process implications were identified.
Table 1 was also used to design the list of questions to be addressed during the interviews, as described in
Section 4.3.
4.2. Design of Retrofit Proposals
Nine HEN retrofit proposals were designed for discussion during the interviews. The proposals were designed to include specific process implications connected to operability and technical implementation aspects. The proposed HEN retrofits were designed within selected process units at the refinery, using a pinch technology approach [
41] based on stream data representing normal operating conditions and information about the current placement of heat exchangers.
Previous studies at the refinery, also based on pinch analysis, showed that five process units account for 90% of the current hot utility use and also have the greatest potentials for utility savings [
38]. One of these units has been rebuilt since the data was collected and pinch analysis targeting was conducted. Therefore, the remaining four units were chosen for this study. To be able to investigate operability aspects of heat integration between process units, two units located close to each other were grouped together. Current hot utility usage and theoretical minimum heat demand for the chosen units are listed in
Table 2. The analysis and design were conducted for a single operating point which represents normal refinery operation. It should be noted, however, that process operation and ambient conditions vary over time. Although the study includes a single operating point, flexible operation for other process conditions was discussed in the interviews.
The design of retrofit proposals was based on the list of implications presented in
Section 4.1. Each retrofit proposal was designed to investigate the effect of some of the specific implications. The retrofit proposals were also designed so that all implications are covered, which can be seen in

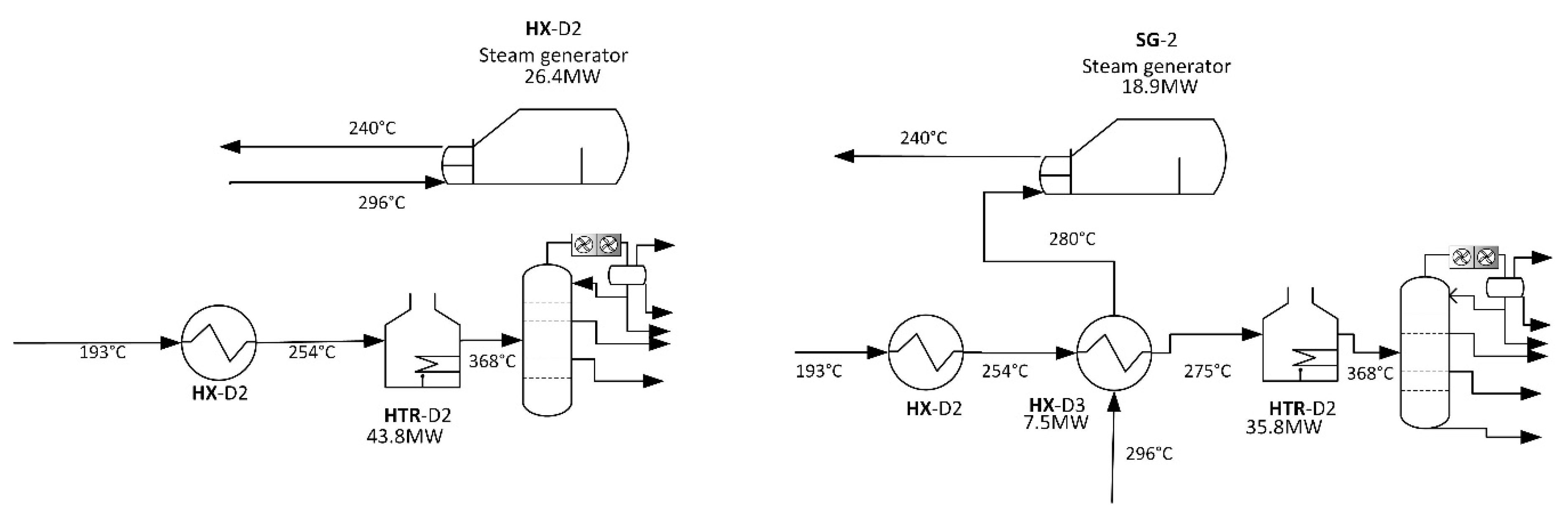

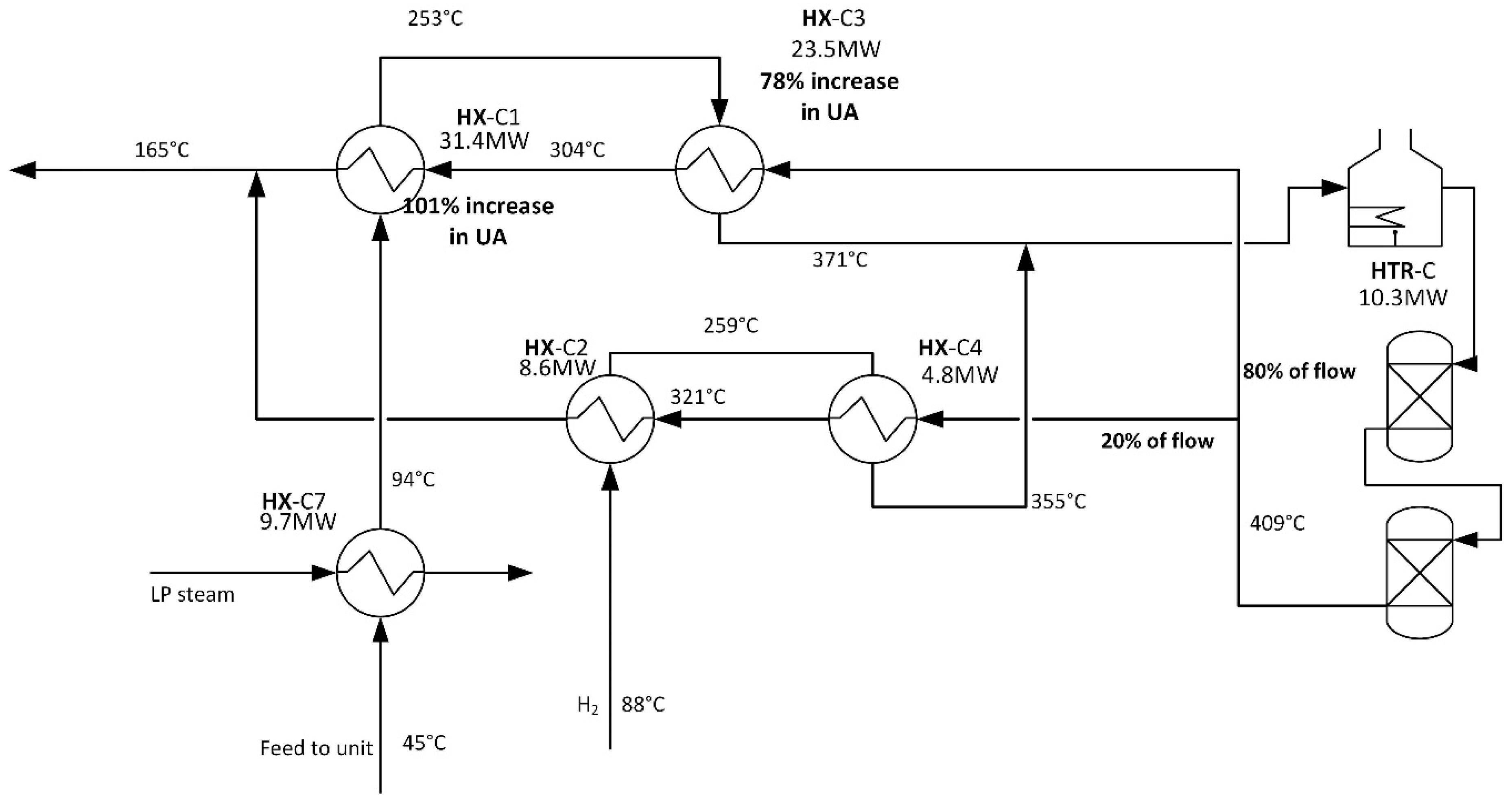

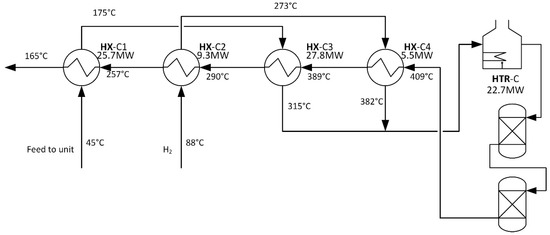

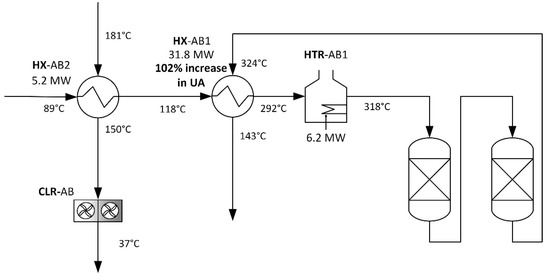

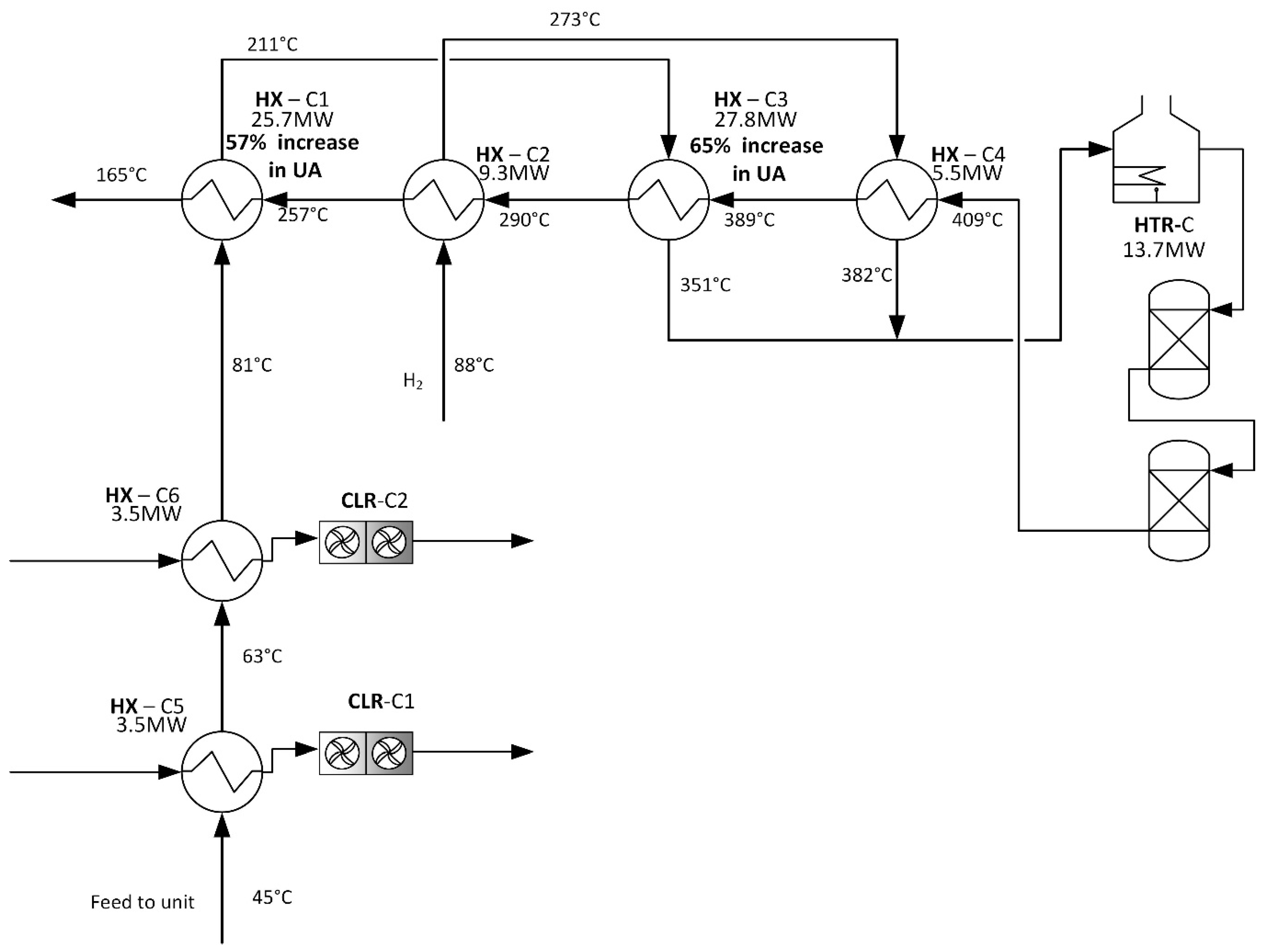

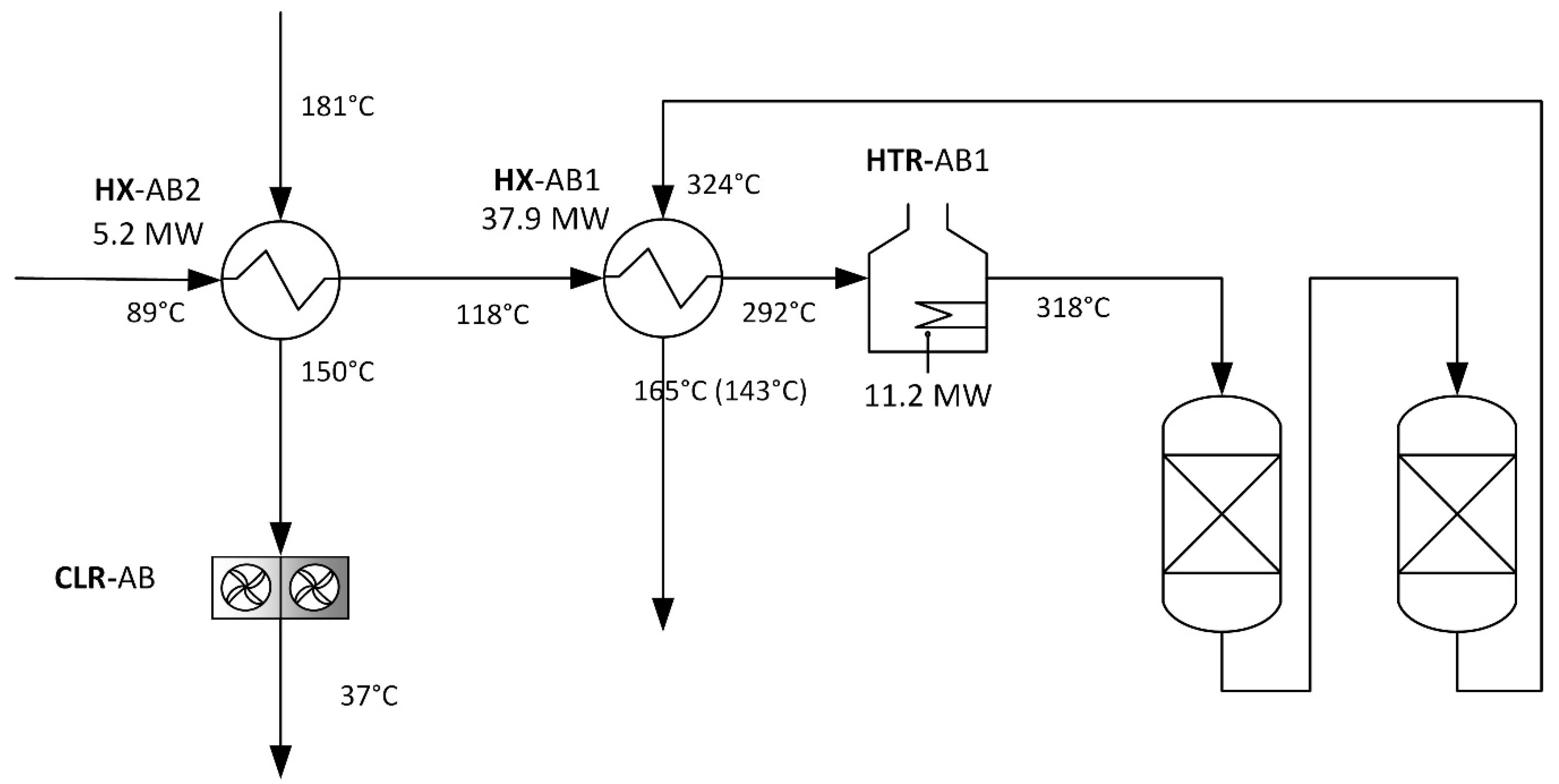

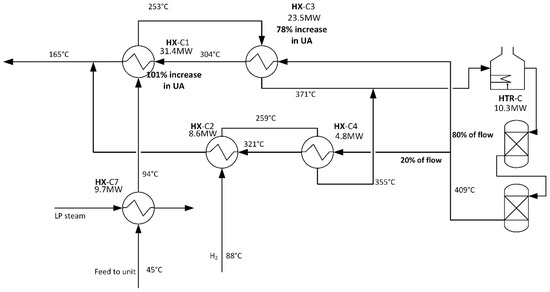

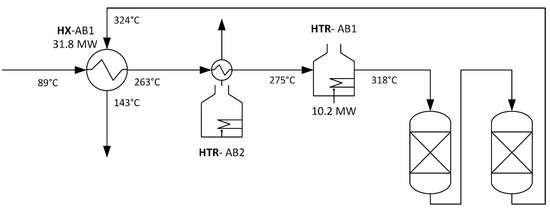

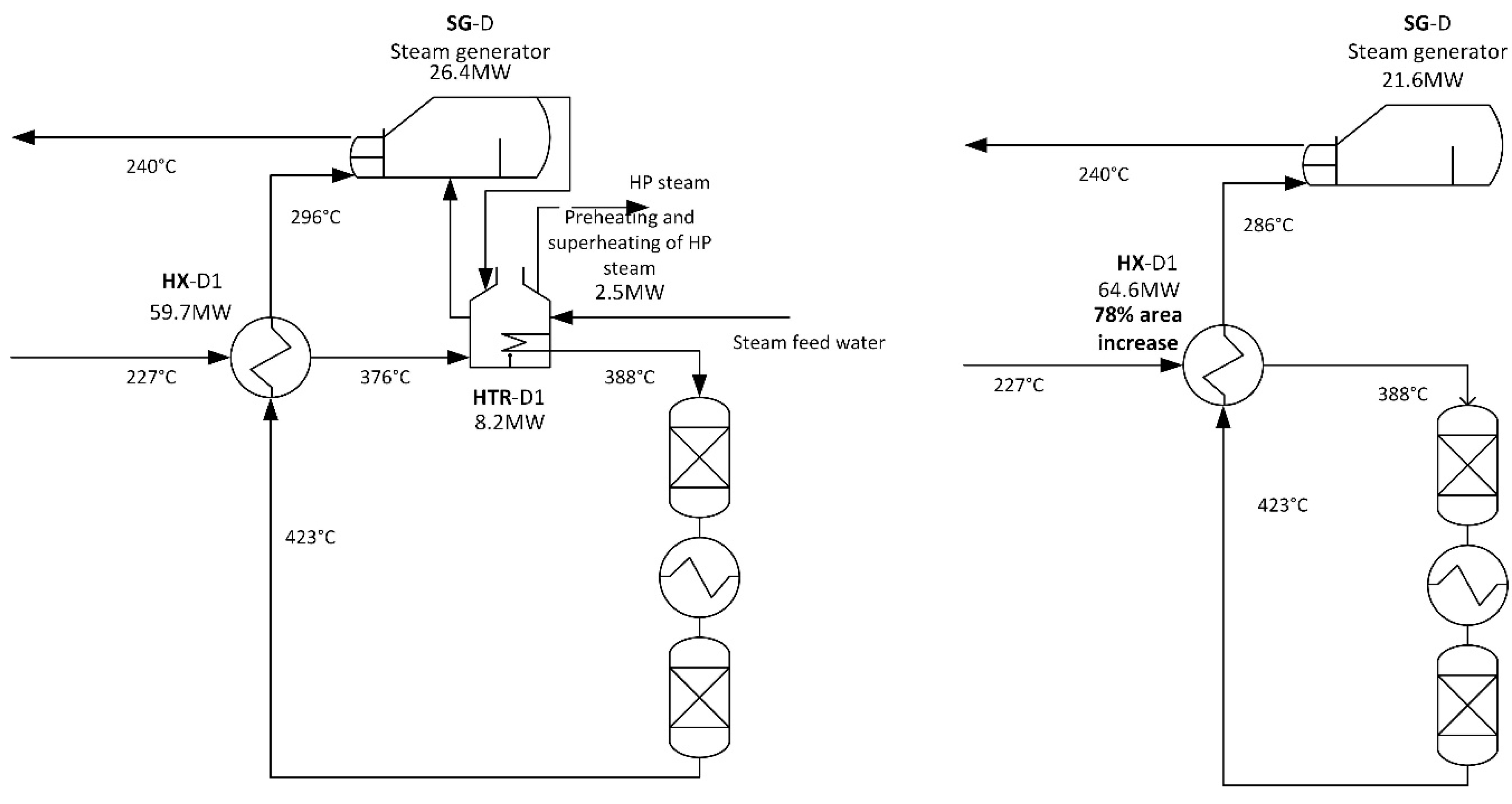

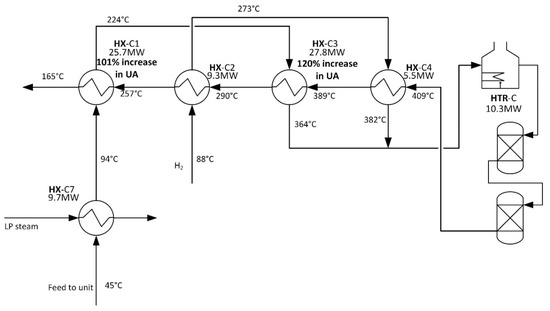

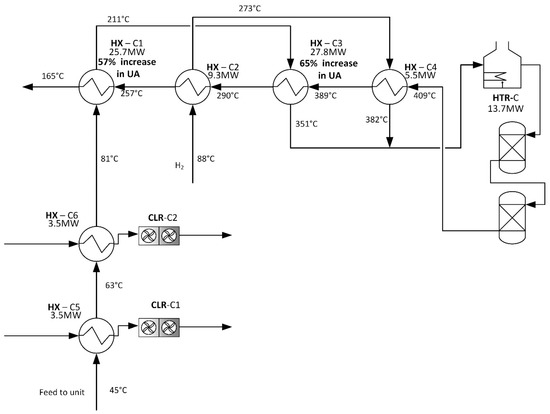

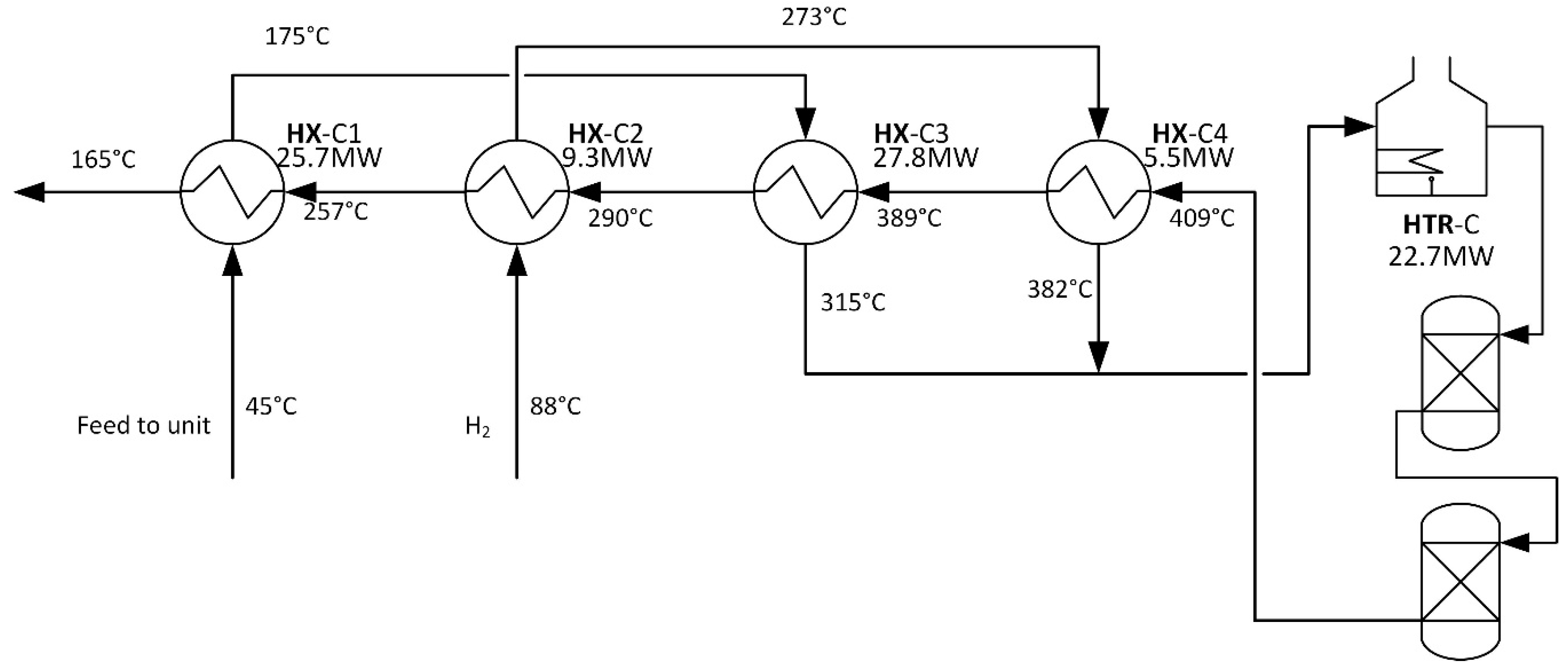

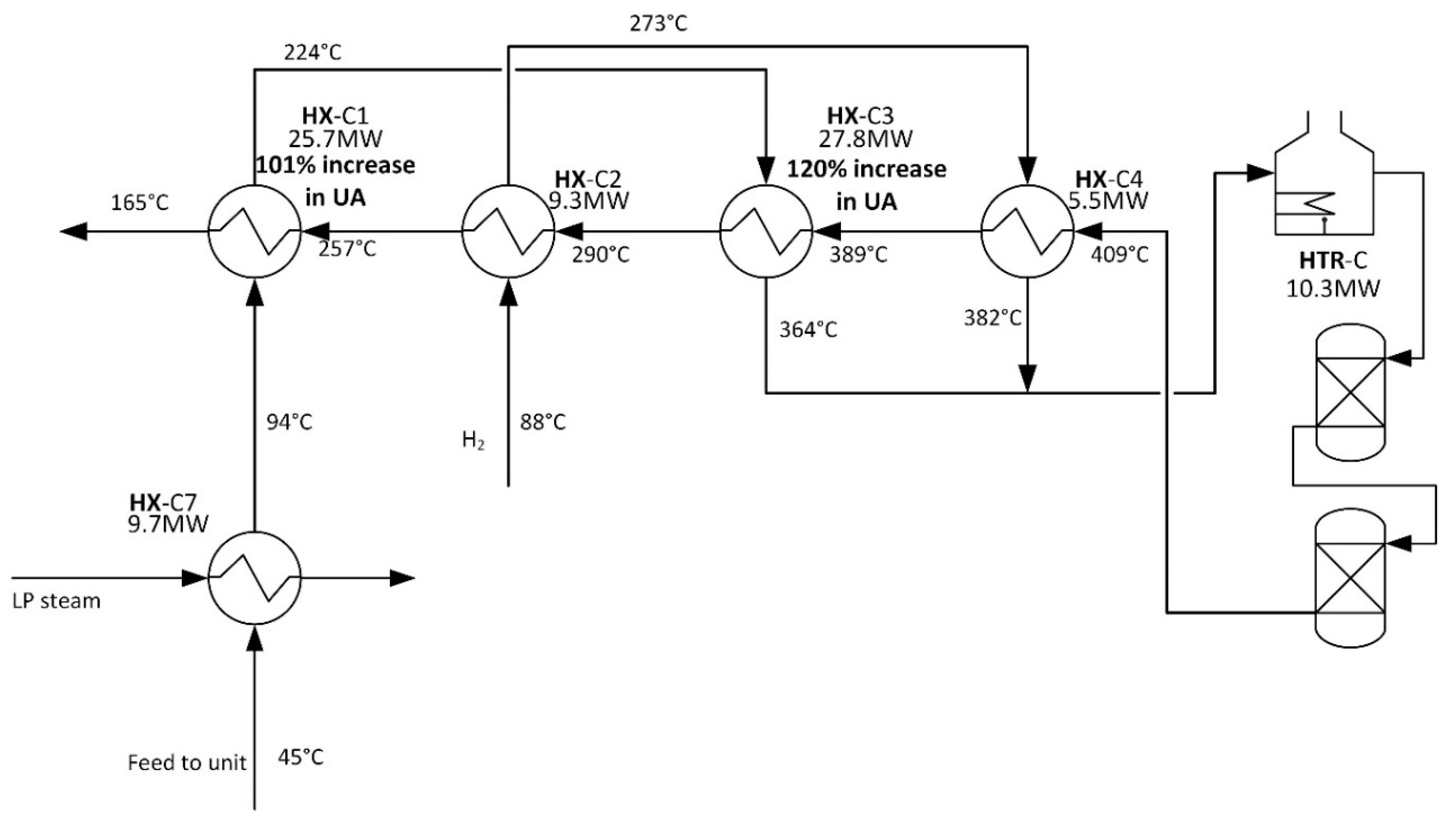

Table 3. All retrofit proposals are described in detail in
Appendix A.

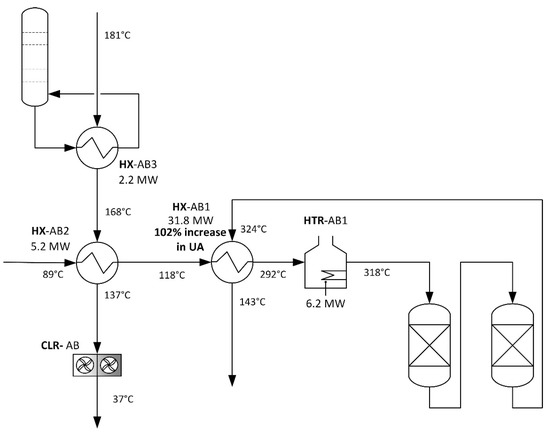

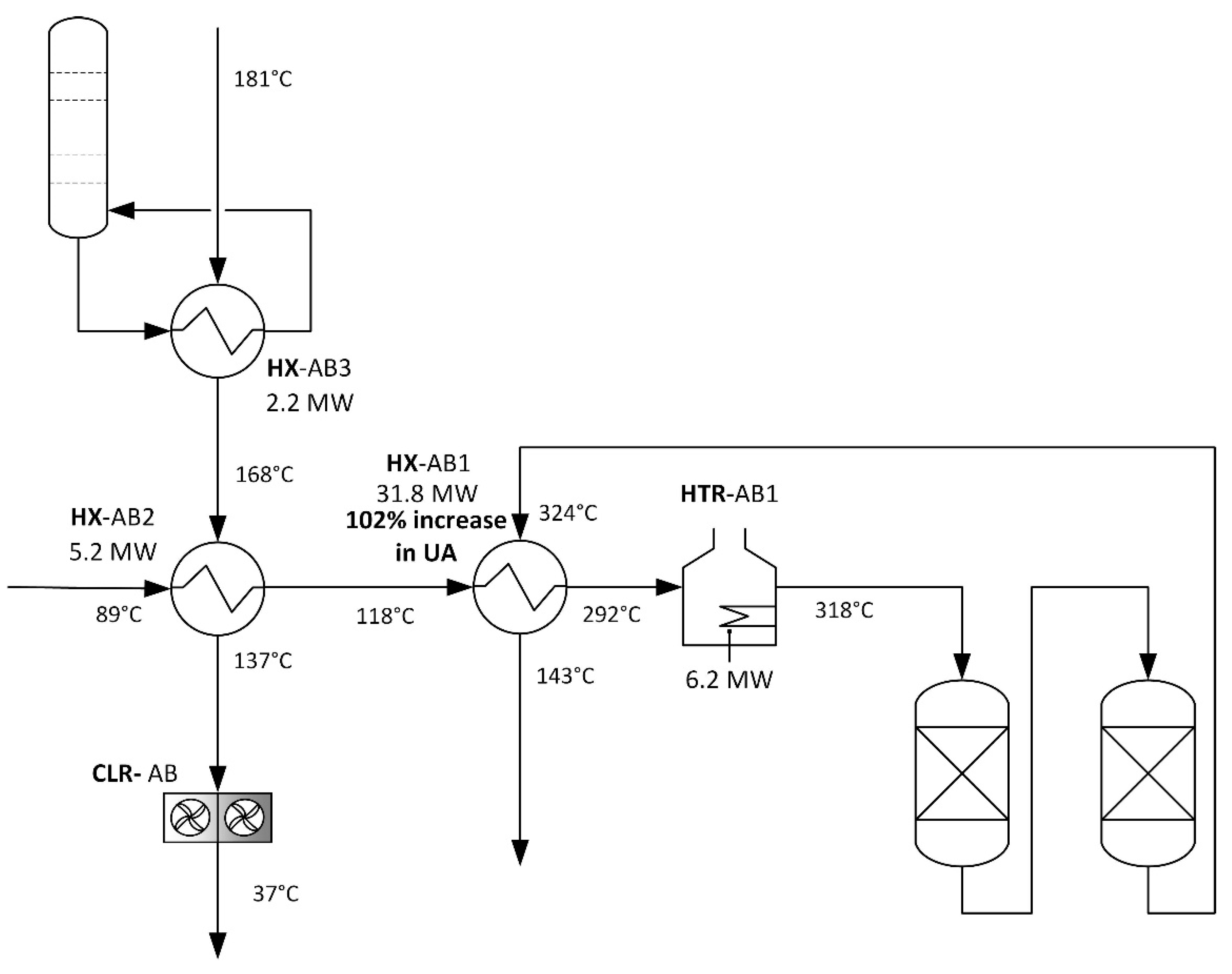

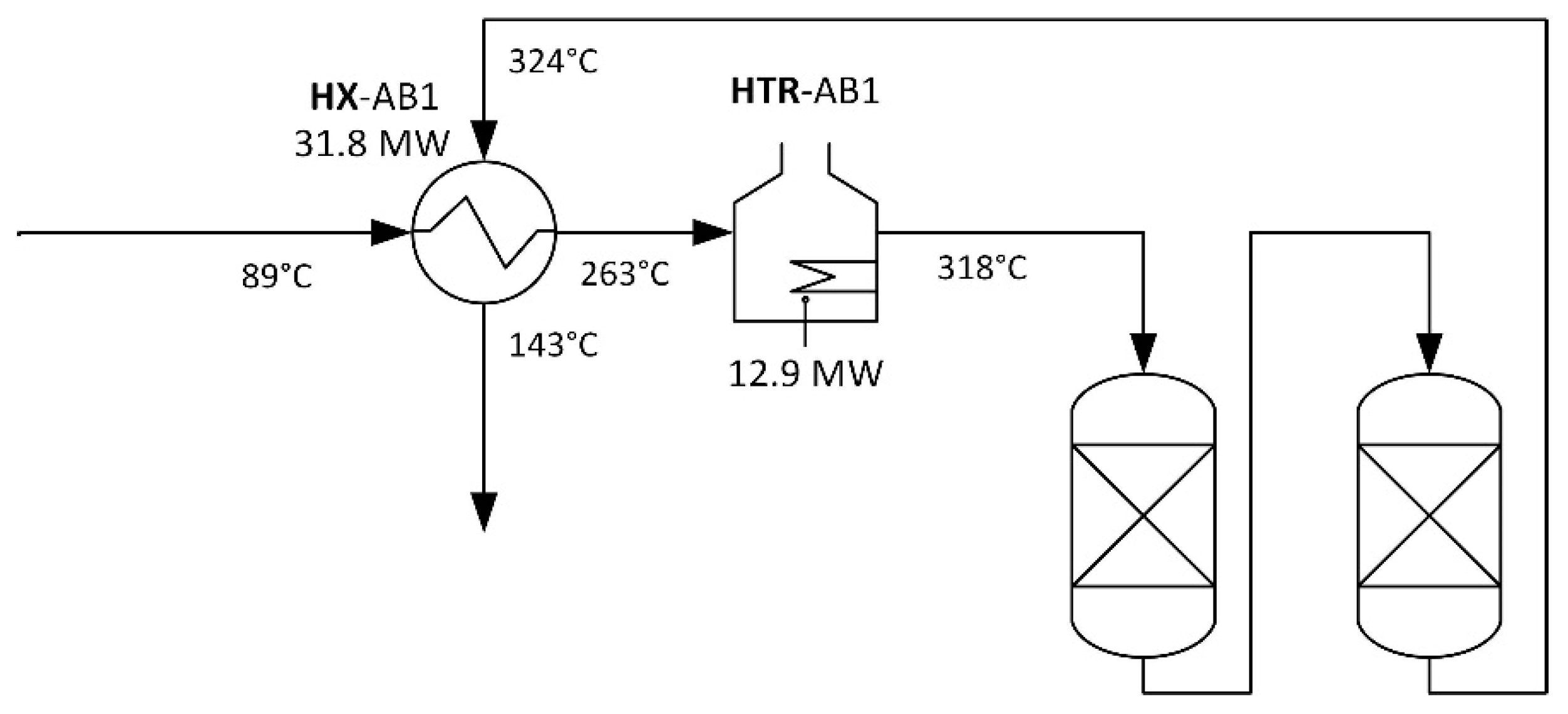

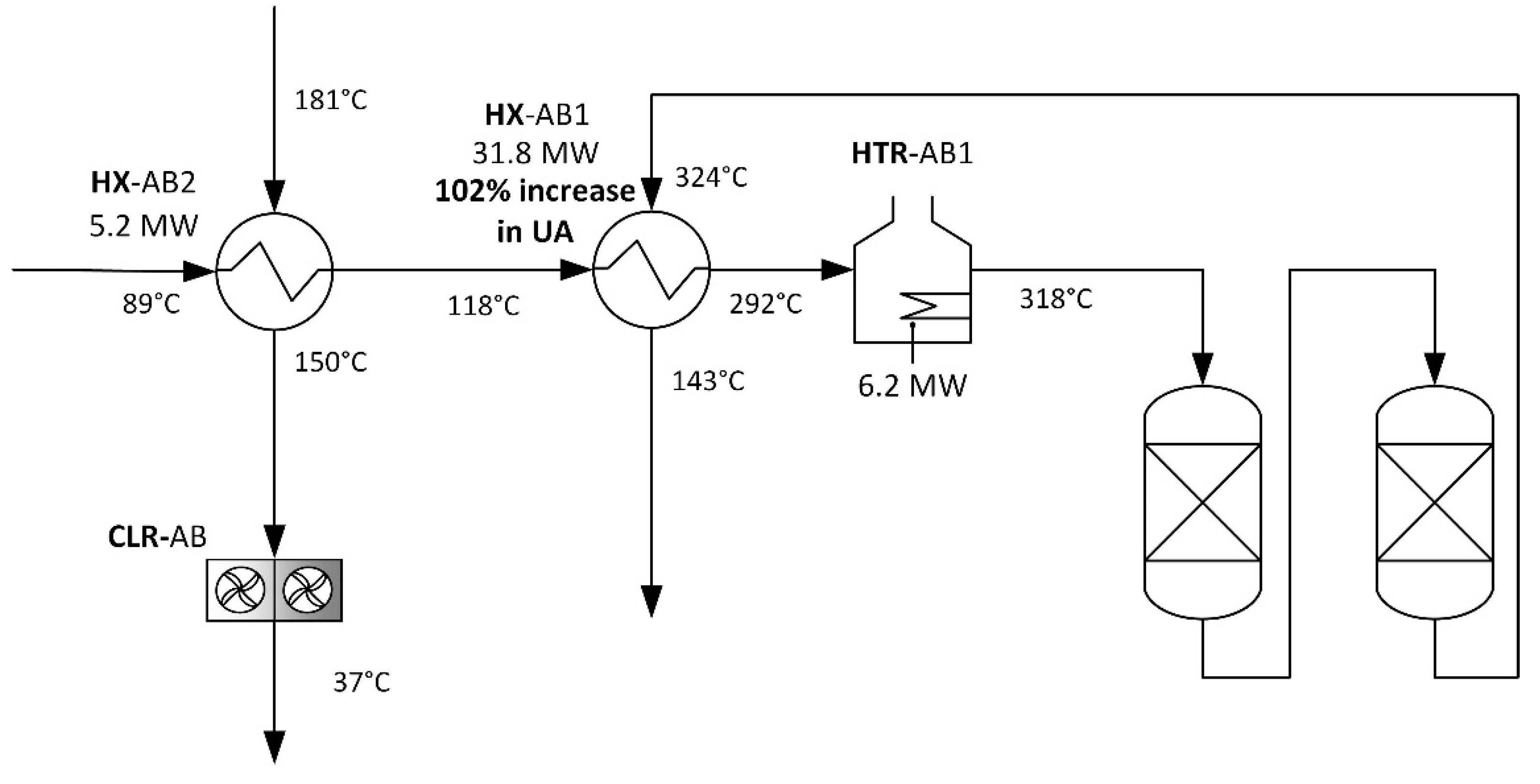

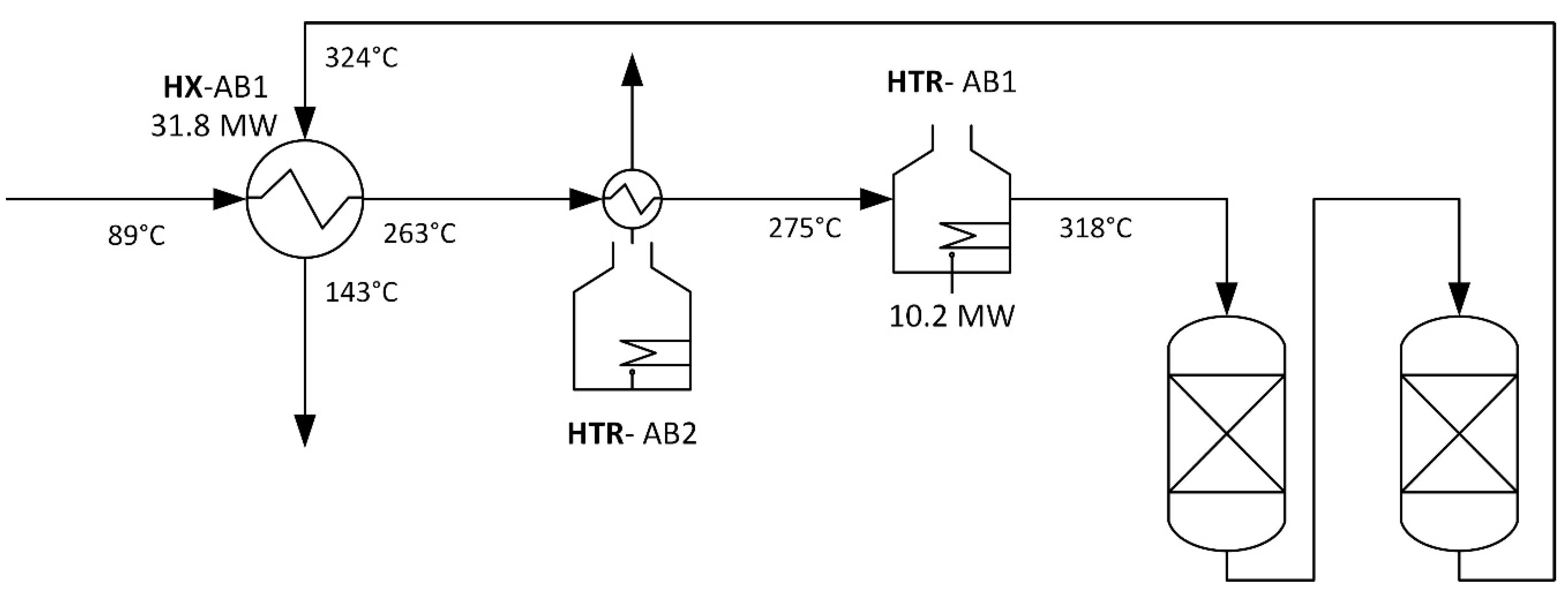

For Unit A + B, the main objective was to include heat exchange between two process units (Implication #9) in the retrofit proposals (Retrofit proposal 1A–C and 2). All proposals for Unit A + B include reduced load on the same furnace, but with different paths for stream pre-heating. The stream pre-heating configurations differ with respect to complexity, additional heat exchanger area requirements, and heat source (hot process streams or hot flue gases). Another aspect included in Retrofit proposal 1B is the replacement of steam heating in a distillation column reboiler by heating by internal heat exchange within the process units. For Unit C, three different ways of increasing the pre-heating before a process furnace were considered. The first retrofit proposal, 4A, involves heat recovery from other process streams currently cooled with overhead air fans. An excess of low-pressure (LP) steam is available at the refinery during most of the year. In Retrofit proposal 4B, excess LP steam is used for the pre-heating, decreasing the number of process interconnections. Retrofit proposal 4C also uses LP steam for pre-heating, but the proposal includes a stream split. For unit D, two retrofit proposals were designed. The retrofit proposals for unit D involve heat savings in two different process furnaces that also result in a reduction in high-pressure steam production. The furnace in Retrofit proposal 5 is placed prior to an exothermic reactor and is suggested to be taken out of operation. Both retrofit proposals in unit D also include process streams with high pressures and heat exchangers with large pressure differences between the process streams.
4.3. Interview Procedure
All interviews in the study were semi-structured interviews that were conducted face-to-face. This enabled good communication as well as the possibility to discuss printouts of flow charts in detail. In addition, semi-structured interviews enable a good combination of structure as well as flexibility with respect to opportunities for follow-up questions and discussion during the interviews [
42]. To our knowledge, this method has not been used before for discussing and investigating technical aspects related to implementation of heat integration retrofit measures. The interviews were conducted with technical staff with significant knowledge about operational and technical aspects of the refinery. Most interviews were about one hour long, but there was no time limit. The interviews were conducted in Swedish and all material was transcribed afterwards.
The interview procedure was the same for all technical staff responsible for the process units included in the study. HEN retrofit proposals were shared in advance to give the interviewees an opportunity to prepare for questions and check anything uncertain about the affected part of the process unit. The same set-up of open questions was used to discuss all retrofit proposals. Firstly, open questions were asked about the interviewee’s thoughts about potential consequences of implementing the retrofit proposal. For all issues that were identified, solution suggestions were requested and discussed. Following the open questions, more specific questions were asked about operability aspects considered in the design phase of the retrofit proposal. To conclude, the interviewee was asked to list the top three obstacles and grade the retrofit proposals implementation potential from one (low) to four (high). The interviews with mechanical engineers, control engineers, and the process utility system engineer started with a general discussion about their expertise related to process integration. Retrofit proposals that were discussed were sent beforehand. This allowed the interviewees to collect necessary information about the processes affected by the proposals and less experienced engineers could discuss the proposals with more experienced engineers beforehand. The interviews with mechanical engineers, control engineers, and the process utility system engineer also provided an opportunity to verify anything unclear brought up in the previous interviews with operations and process engineers regarding equipment, utility systems, or control systems.
Table 4 lists the content discussed in each interview.
Finally, results from the interviews were summarized and presented at a validation seminar which was attended by several of the interviewed engineers as well as managers responsible for process development. The results and main conclusions from the interviews were presented to the refinery experts involved in the study. The refinery experts confirmed and clarified the results. Consequently, a comprehensive and systematic in-depth coverage of the included topics was achieved.
6. Discussion
Many of the insights presented in
Section 5 have been highlighted in previous research. However, previous studies have only investigated the related aspects individually and separately and have not presented a comprehensive overview of operability and practical implementation issues. Lundberg et al. [
43] identified the positive effects of de-bottlenecking the recovery boiler at a Kraft pulp mill if heat integration measures are implemented simultaneously when rebuilding the plant. Dhole and Buckingham [
44] proposed a methodology to simultaneously consider pinch analysis and column targeting (modification of column design to fit thermodynamic profiles obtained from pinch analysis) for a refinery, in order to achieve de-bottlenecking without increasing the existing furnace load. See also Li et al. [
45] for a description of combining de-bottlenecking and pinch analysis in oil refining industry. These examples indicate that the importance of de-bottlenecking highlighted in the interview study is applicable for other cases than the selected oil refinery. Similar comparisons can be made for technical difficulties such as controllability or flexibility. Although it has previously been shown that non-energy benefits and technical and practical difficulties will have an impact on decision making process for selecting new projects to implement, the results in this paper present a wider perspective. The results show these aspects together rather than separately which enables a discussion of their relative importance. For example, the results indicate that non-energy benefits can outweigh the negative effects of technical and practical difficulties for heat integration retrofit proposals. Economic considerations are included in traditional pinch analysis based design but were not in focus in the retrofit proposals in this work. In traditional pinch design, the profitability of heat integration rebuilds is assumed to depend primarily on the energy cost savings and the investment cost for new heat exchangers. Operability considerations are likely to affect both the operating and investment costs for heat integration retrofit measures. Traditional pinch analysis is conducted for steady-state operation. In order to achieve good dynamic operability, additional equipment might be required, such as advanced control systems and/or over-capacity or back-up systems for flexible production. Additionally, if flexibility is considered, the heat savings can vary for different operating scenarios which change the expected heat savings, affecting the cash flows and the expected profitability. Non-energy benefits also affect the profitability of the heat integration retrofit proposals by increasing the revenues or decreasing the capital costs.
Practical issues discussed during the interviews indicate that spatial limitations should be considered earlier in the screening of alternative investment options. It is usually only the investment cost for a new heat exchanger or for extension of an existing heat exchanger that is included in the analysis. Since practical issues, especially spatial restrictions, were a major part of the issues discussed during the interviews, this is an important parameter to include in the early energy targeting analysis. One way to take this into account is to include spatial restrictions in the choice of ΔT
min. The optimal ΔT
min value is affected by investment and operating costs as well as operability considerations [
30]. For retrofit studies where space is limited, spatial restrictions should be reflected by a higher value of ΔT
min in the screening phase.
Steam balances were discussed in several of the interviews. At large refineries, and other chemical industrial plants, utility systems are often large and complicated. The fuel balances at the studied refinery vary during the year, and during 25% of the year the refinery has an excess of fuel gas for the steam boilers and process furnaces. As a consequence, the studied refinery often has an excess of low-pressure steam, which is considered as free. For steam at higher pressure levels it is more difficult to know how the overall steam and fuel balances are affected by changes. Since it is not obvious how changes in steam production and consumption affect the overall steam and fuel balances at the refinery, a steam model for the refinery was developed after the interview study and applied to the retrofits that included the steam system (see [
36]).
7. Conclusions
This paper presented the results of a comprehensive inventory of potential technical barriers and process operability constraints related to the implementation of heat recovery measures in industrial process plants. Unlike previous studies, which mainly focus on single implementation barriers or operability aspects of heat integration measures, we presented a complete inventory of such technical constraints including aspects related to flexibility, controllability, start-up/shutdown, reliability/availability, and other practical considerations related to the implementation of measures.
We also suggested a mapping of these potential technical issues to certain design characteristics that may appear in HEN retrofit designs. This mapping could be used to identify the issues that are most likely to be of importance when evaluating a certain heat recovery design. As such, it was proposed to support a new approach for investigating operability and implementation constraints in the early-stage screening of candidate heat recovery measures in industrial process plants. The approach is based on qualitative analysis by means of an interview study, in which operability and technical implementation issues related to specific heat recovery projects are identified, characterized and described with respect to their impact on implementation potential.
The results from interviews at a large oil refinery used as a case study indicated that technical and practical constraints in the plant have a major influence on how the potential for implementation of the heat integration retrofits are ranked. The process considerations that were highlighted most often in the interview study were spatial limitations and maintenance requirements. Another conclusion from the interviews is that non-energy benefits of an energy-saving project can be far more important than the energy savings as such and may also outweigh potential technical difficulties. An example of this is when the heat savings create an opportunity to remove a production bottleneck.
Based on the ranked importance of technical constraints and productivity benefits, it can be concluded that it would be valuable to take such process aspects into consideration at an earlier design stage than usual when constructing HEN retrofits for increased heat integration. If operability, non-energy benefits and practical implementation issues were considered in earlier-stage techno-economic assessments and screenings of heat recovery measures, several issues could be avoided, and large process benefits could be achieved. The inclusion of those factors would also lead to a better estimation of techno-economic potentials for heat integration measures and thereby a more accurate screening process for different energy efficiency and climate mitigation options.
Future work including additional case studies is needed to further confirm the impacts of operability and other technical constraints on the feasibility and cost-efficiency of HEN retrofit measures, prior to suggesting ways to include the effect of these at an earlier design stage and better quantify their values. It would also be of great value to study how these aspects have affected the evaluation of previously implemented and rejected heat integration measures.
