Time-Splitting Coupling of WaveDyn with OpenFOAM by Fidelity Limit Identified from a WEC in Extreme Waves

1
School of Engineering, Computing and Mathematics, University of Plymouth, Plymouth PL4 8AA, UK
2
DNV-GL, One Linear Park, Avon Street, Bristol BS2 0PS, UK
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Energies 2020, 13(13), 3431; https://doi.org/10.3390/en13133431
Received: 8 June 2020 / Revised: 28 June 2020 / Accepted: 29 June 2020 / Published: 3 July 2020
(This article belongs to the Special Issue Computational Modelling of Wave Energy Converters)

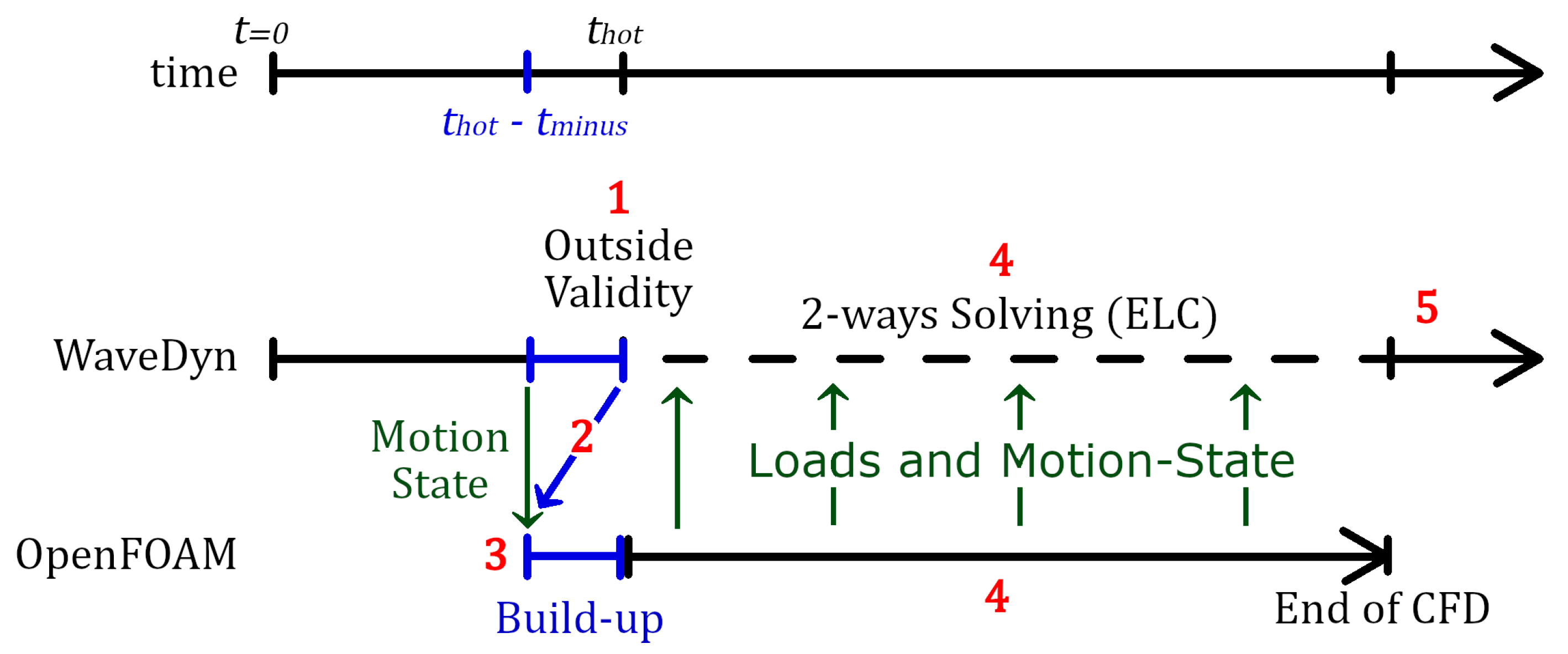

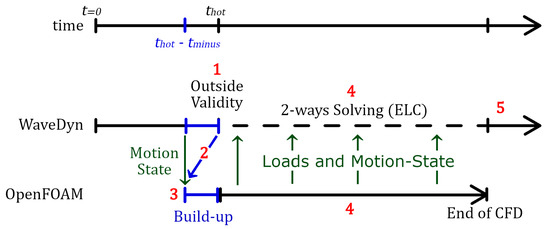

Survivability assessment is the complexity compromising Wave energy development. The present study develops a hybrid model aiming to reduce computational power while maintaining accuracy for survivability assessment of a Point-Absorber (PA) Wave Energy Converter (WEC) in extreme Wave Structure Interaction (WSI). This method couples the fast inviscid linear potential flow time-domain model WaveDyn (1.2, DNV-GL, Bristol, UK) with the fully nonlinear viscous Navier–Stokes Computational Fluid Dynamics (CFD) code OpenFOAM (4.2, OpenFOAM.org, London, UK). The coupling technique enables the simulation to change between codes, depending on an indicator relating to wave steepness identified as a function of the confidence in the linear model solution. During the CFD part of the simulation, the OpenFOAM solution is returned to WaveDyn via an additional load term, thus including viscous effects. Developments ensure a satisfactory initialisation of CFD simulation to be achieved from a ‘hot-start’ time, where the wave-field is developed and the device is in motion. The coupled model successfully overcomes identified inaccuracies in the WaveDyn code due to the inviscid assumption and the high computational cost of the OpenFOAM code. Experimental data of a PA response under extreme deterministic events (NewWave) are used to assess WaveDyn’s validity limit as a function of wave steepness, in order to validate CFD code and develop the coupling. The hybrid code demonstrates the applicability of WaveDyn validity limit and shows promising results for long irregular sea-state applications. View Full-Text
Keywords: hybrid code; numerical limit; computational fluid dynamics; cummins equation; extreme waves and responses; wave steepness hybrid code; numerical limit; computational fluid dynamics; cummins equation; extreme waves and responses; wave steepness
