Comparative Analysis of On-Board Methane and Methanol Reforming Systems Combined with HT-PEM Fuel Cell and CO₂ Capture/Liquefaction System for Hydrogen Fueled Ship Application

Abstract

This study performs energetic and exergetic comparisons between the steam methane reforming and steam methanol reforming technologies combined with HT-PEMFC and a carbon capture/liquefaction system for use in hydrogen-fueled ships. The required space for the primary fuel and captured/liquefied CO₂ and the fuel cost have also been investigated to find the more advantageous system for ship application. For the comparison, the steam methane reforming-based system fed by LNG and the steam methanol reforming-based system fed by methanol have been modeled in an Aspen HYSYS environment. All the simulations have been conducted at a fixed W_net, _electrical (475 kW) to meet the average shaft power of the reference ship. Results show that at the base condition, the energy and exergy efficiencies of the methanol-based system are 7.99% and 1.89% higher than those of the methane-based system, respectively. The cogeneration efficiency of the methane-based system is 7.13% higher than that of the methanol-based system. The comparison of space for fuel and CO₂ storage reveals that the methanol-based system requires a space 1.1 times larger than that of the methane-based system for the total voyage time, although the methanol-based system has higher electrical efficiency. In addition, the methanol-based system has a fuel cost 2.2 times higher than that of the methane-based system to generate 475 kW net of electricity for the total voyage time.

1. Introduction

The International Maritime Organization assessed that international shipping accounted for about 2.2% of total carbon dioxide emissions in 2012, which is approximately 796 million tonnes of CO₂, and forecasted that this amount will increase between 50% and 250% in the period to 2050 under a business-as-usual scenario [1]. However, when the Paris Agreement on climate change mitigation was adopted in 2015 to deal with the global-warming concerns, shipping was not included [2]. Instead, in April 2018, the IMO established a strategy to reduce the total amount of annual greenhouse gas (GHG) emissions from shipping by at least 50% by 2050 compared to 2008 [3]. To achieve this, several technical and operational measures that improve energy efficiency and reduce CO₂ emissions in the shipping industry should be introduced, such as increasing energy efficiency of engines, adopting waste heat recovery systems, improving the hull form, implementing speed reduction and alternative sea routes [4]. In addition to the above measures, using different propulsion systems, such as fuel cells, are also considered possible alternatives [5]. Hydrogen fuel cells emit no direct GHGs, but the emissions generated during hydrogen production should be considered. The emissions from hydrogen production are highly dependent on feedstock and primary energy sources [6]. In the shipping industry, fuel cell power generation can eliminate NOx, Sox, and particulate material (PM) emissions, and reduce CO₂ emission compared to emissions from conventional diesel engines [2]. The advantage of fuel cells for maritime applications is the reduction of noise, vibrations, and infra-red signatures, along with their modular and flexible design, water generation, etc., although they may be application specific [5]. Seven fuel cell types were evaluated from the perspectives of relative cost, module power level, lifetime, tolerance for cycling, flexibility towards type of fuel, technological maturity, size, sensitivity to fuel impurities, emissions, safety, and efficiency. As a result of the evaluation, the low temperature proton exchange membrane (PEM) fuel cell and the high temperature PEM fuel cell (HT-PEMFC) received, respectively, the first and second highest score in the ranking, and this implied that those technologies are the most promising for marine use [7]. An LT-PEMFC has relatively higher power density than an HT-PEMFC; however, the HT-PEMFC has several other advantages [8]. The operating temperature of LT-PEMFCs is between 50 and 90 °C and that for HT-PEMFCs is between 120 and 200 °C. The lower operational temperature of LT-PEMFCs results in limited tolerance to fuel impurities such as sulfur and carbon monoxide (CO), which reduce its performance drastically. To be specific, LT-PEMFCs require fuels containing less than 30 ppm of CO and less than 1 ppm of sulfur, whereas HT-PEMFCs can work with concentrations of up to 3% of CO and 20 ppm of sulfur in the fuel without permanent degradation [7]. This higher tolerance to impurities of HT-PEMFC makes it possible to develop a simpler fuel reforming system [8]. Additionally, the water management of HT-PEMFCs is easier because the water produced in the fuel cell is in vapor, and the waste heat from HT-PEMFCs can be recovered and used for steam or hot water generation [9].

Since the gravimetric energy density of hydrogen is approximately 120 MJ/kg, 2.47 times higher than natural gas and 2.8 times higher than diesel, hydrogen provides higher gravimetric energy than other fossil fuels. However, volumetric energy density of liquid hydrogen is approximately 8.51 GJ/m³, which corresponds to 40.8% of natural gas and 23.7% of diesel [10]. The lower volumetric energy density could be a drawback for some vessels in those applications that cannot support a large volume of storage or higher frequency of refueling [11]. To overcome this, several maritime fuel cell studies have considered on-board reforming of methane and methanol to hydrogen, although the applied fuel cell types are different [5,12,13,14,15,16,17,18,19,20]. This is because methane and methanol stored at liquid state have higher volumetric energy density than hydrogen [10], and the operation expenditure (OPEX) can be reduced owing to the lower price of both fuels compared to that of hydrogen. In addition, the bunkering infrastructure for methane and methanol is not an issue, unlike that for hydrogen. The bunkering infrastructure for methane (namely LNG) is rapidly expanding, and that for methanol requires minimal modification from the existing conventional infrastructure [5,12].

There are several technologies for reforming carbon-based fuels to hydrogen, which include steam reforming, partial oxidation, and auto-thermal steam reforming. Among these processes, steam reforming provides higher efficiency, higher production yield, and lower rate of side reactions [21].

Steam methane reforming is one of the most proven and commercially available technologies for hydrogen production [22], and at present, 80% to 85% of global hydrogen production is derived via this technology [23,24]. Steam methane reforming technology has been widely investigated from the energy and exergy efficiency and economic and environmental perspectives in the past decades.

Simpson et al. evaluated the performance of steam methane reforming system using an exergy analysis. The results revealed that irreversibility of chemical reactions results in the largest amount of exergy destruction, and exergy loss through the exhaust gas stream was significant. Results of a parametric study show that the highest exergy efficiencies of 62.73% was achieved at operating temperatures of 974 K. The highest exergy efficiencies of 62.85% was attained at an operating pressure of 6.8 atm. The effect of steam carbon ratio (S/C ratio) was also investigated, and the result revealed that the highest efficiencies were achieved at an S/C ratio of approximately 3.2 [23]. Welaya et al. evaluated the partial oxidation and steam reforming process to convert a carbon-based marine fuel, such as natural gas, gasoline, and diesel, into hydrogen-rich gases suitable for application to the PEMFCs on board ships. Among several options evaluated, the natural gas steam reforming system showed the highest fuel processing efficiency [14]. Authayanun et al. investigated the theoretical performance of an HT-PEMFC integrated with the steam reformer using various primary fuels, i.e., methane, methanol, ethanol, and glycerol. Results revealed that for the steam methane reforming, CO fraction lower than the acceptable limit for the HT-PEMFC can be attained with higher S/C ratios and lower temperature. For S/C ratios (3–6), operating temperature lower than 1000 K should be maintained in order to keep the CO fraction at an acceptable level for an HT-PEMFC or a water–gas shift (WGS) reactor should be included. Steam methanol reforming produces the lowest CO fraction among the studied fuels and can be directly fed to the HT-PEMFC for all of the studied cases (S/C ratio: 1–3, reformer temperature: 423–523 K). The steam methanol reforming system without a WGS reactor and steam methane reforming with a WGS reactor achieved the highest system efficiency, approximately 50%, among several options in the study [25]. Nerem et al. evaluated hydrogen, LNG, or methanol as PEMFC fuel on a cruise vessel, based on the space required on board, environmental impact, and life cycle cost (LCC) aspects. An external reformer other than hydrogen fuel was considered. Results show that the LNG system requires the smallest dimensions, whereas hydrogen and methanol require equal dimensions. From the perspective of environmental impact, LNG is a better solution than methanol for use in fuel cells. Further, LNG achieved the lowest LCC, 1.10 times higher than heavy fuel oil (HFO), while hydrogen and methanol are 1.14 and 1.15 times more expensive than HFO [12]. Arsalis et al. evaluated a micro combined heat and power system integrated with HT-PEMFC and steam methane reformer. They reported that the cogeneration and electrical efficiencies of the system are 55.46% and 27.62%, respectively [26].

Methanol is an advantageous fuel for mobile fuel cell applications since it has low boiling temperature (65 °C). Therefore, it can be stored in a liquid state at atmospheric pressure and normal environment temperature, unlike liquefied methane (−163 °C) [27,28]. In addition, as no carbon–carbon bond exists, methanol can be converted to hydrogen at lower temperature (150–350 °C) than other carbon-based fuels, and it can be activated at lower temperature than methane [28]. With these advantages, methanol steam reforming has been widely developed. Faungnawakij et al. has investigated the effect of varying S/C ratio (0–10), reforming temperatures (25–1000 °C), and pressures (0.5–3 atm) on the steam methanol reforming process. Results show that the optimized operating condition based on efficiency was the temperature range of 100–225 °C, S/C range of 1.5–3, and pressure at 1 atm. In addition, an operating temperature higher than approximately 150 °C and operating pressure varying from 0.5 to 3 atm did not affect the methanol conversion and hydrogen yield [21]. Herdem et al. modeled the methanol steam reforming system to produce power using a HT-PEMFC for portable power generation and examined performance variation of the HT-PEMFC with varying composition of reformate gas. The result reveals that lower S/C ratio and higher reforming temperature increase CO mole fraction in the reformed gas. However, higher fuel cell temperatures decrease the effect of CO mole fraction on the HT-PEMFC performance [27]. Mousavi Ehteshami and Chan analyzed the steam reforming of methanol, ethanol, and diesel in a technical and economical point of view. It was found that steam methanol reforming showed the easy conversion and the highest energy efficiency. Therefore, methanol is considered to be one of the promising fuels for hydrogen production by using steam reforming. However, the model used in the study did not take into account heat recovery and heat integration in the system. Therefore, it is possible that the efficiencies of fuels with higher reforming temperature than methanol can be increased when heat recovery and integration are applied [29]. Romero-Pascual and Soler investigated an HT-PEMFC-based CHP system integrated with a methanol steam reformer. The result reveals that 24% of system power efficiency and a CHP efficiency over 87% were achieved [9].

Table 1. Simulation parameters about steam methane and steam methanol reforming from the open literature.

Ref.	Primary Fuels	S/C Ratio	Pref >(Bar)	Tref >(°C)	Notes
[23]	Methane	3.2	10	700	Purpose of paper was to evaluate performance of hydrogen production via steam methane reforming.
[30]		4	25	900	Steam methane reforming system was modeled and reformer in simulation was developed using a Gibbs equilibrium model in Aspen Plus. For CO2 capture, MEA scrubbing process was applied as black box model.
[31]		3	1	700	Steam methane reforming system integrated with HT-PEMFC was simulated and performance was evaluated by exergy analysis.
[32]	Methanol	1.2	-	350	Steam methanol reforming system integrated with PEMFC was simulated and performance was evaluated by exergy analysis.
[33]		1.5	3.8	260	Steam methanol reforming system was experimented and the obtained results were used for simulation of power train integrated system.
[34]		1–2	-	240–300	Steam methanol reforming system integrated with HT-PEMFC was simulated. Parametric study with varying S/C ratio, Tref, reformate composition, etc. were implemented.

summarizes the simulation parameters about steam methane and steam methanol reforming system from other works.

Although steam reforming of methane and methanol on board ships offers several advantages as aforementioned, CO₂ emission will be unavoidable because these are carbon-based fuels [15]. One of the future options for carbon-based fuels could be to install carbon capture and storage (CCS) systems on board ships [2]. If hydrogen production by reforming a carbon-based fuel is applied on board ships, the resulting CO₂ can be captured by using a CCS, and then the produced hydrogen can be considered as a zero-emission fuel at the ship level [2]. The use of CCSs on board ships was investigated in an Eurostar project. On-board chemical capture, CO₂ liquefaction, and a temporary storage system for ships were developed. The result shows that the concept is technically feasible and capable and can reduce CO₂ emissions by 65% [35].

There are several technologies for CO₂ capture in hydrogen production, which include adsorption, absorption, use of membranes, and cryogenic/low temperature processes [36,37]. Among them, the absorption process using monoethanolamine (MEA) is the most mature and promising process for CO₂ capture [38,39]. Many authors have presented hydrogen production processes associated with the MEA absorption process [30,40,41]. The MEA absorption process comprises two major stages: Absorption of CO₂ in the absorber and desorption of CO₂ in the stripper to regenerate the amine solvent. One of the drawbacks of this process is the large amount of heat required to regenerate the amine solvent [42,43]. Typically, regeneration occurs at an elevated temperature (100–140 °C) and pressure not much higher than the atmospheric [38,44,45]. The heat required for regeneration is supplied to the re-boiler by a separate steam cycle [43].

The challenge in the marine environment is the handling and storage of any captured CO₂. Storage of CO₂ in gaseous form requires a huge space, whereas the storage of CO₂ in liquid form requires a large amount of power consumption for its liquefaction. Considering the limited space of the vessel, the captured CO₂ should be stored in a liquid form even if the energy consumption for liquefaction is high. The pressure and temperature of the liquid CO₂ for storage should be higher than the triple-point pressure (5.2 bar) and lower than the critical-point temperature (31 °C). In the published reports, the pressure of liquid CO₂ for shipping is mainly in the range from 6 to 20 bar, and in this range of pressure the temperature varies form −52 to −20 °C [46]. Feenstra et al. conducted a technical and economic evaluation of ship-based carbon capture on diesel or LNG fueled ships. For the LNG fueled ships, the cooling energy from evaporation of the LNG was used for liquefying the captured CO₂. For diesel fueled ships, the ammonia-based refrigeration cycle was used for liquefaction of CO₂ [47]. Berstad et al. evaluated the energy consumption and CO₂ liquefaction ratio for CO₂ phase separation from the flue gas. The result reveals that the specific power consumption and CO₂ liquefaction ratio are significantly affected by CO₂ concentration in flue gas. To maximize the CO₂ capture ratio by liquefaction, the concentration of gases other than CO₂ in the flue gas should be minimum and pressure should be as high as practically possible [48].

The authors of this study consider that to achieve zero emission from shipping alternative fuels such as green hydrogen from renewable energy should be applied. However, the storage volume for hydrogen, lack of infrastructure for hydrogen bunkering, and high cost of hydrogen, among other factors, are challenging at the current level of technology. Therefore, on-board methane and methanol steam reforming with CO₂ capture could be one of the transition solutions.

Therefore, in this study, we present on-board methane and methanol steam reforming systems integrated with an HT-PEMFC system for power generation, along with a CO₂ capture/liquefaction system for storage of the captured CO₂ on board. The performance of the integrated systems was evaluated through an exergy and energy analysis. In addition, the spaces required for the captured CO₂ and primary fuel storage were also compared. Those evaluations were carried out for a reference ship. The following features distinguish this study from previous works:

(1)

Steam reforming, HT-PEMFC, and CO₂ capture/liquefaction systems are simultaneously considered. Heat integration and recovery were implemented for practical comparison. Excess heat from the HT-PEMFC and steam reforming system were used in the CO₂ capture system.

(2)

For the steam methane reforming-based system, liquefied natural gas (LNG) was used as primary fuel because it is the most cost effective for ship storage of natural gas and has been well proved in LNG fueled-ship applications.

(3)

For CO₂ liquefaction, the steam methane reforming-based system used the cold energy of LNG, whereas the steam methanol reforming-based system has a separate refrigeration cycle.

The main objectives of this study are as follows:

(1)

To develop methane and methanol steam reforming systems combined with HT-PEMFC and CO₂ capture/liquefaction systems suitable for the reference ship.

(2)

To carry out exergy and energy analyses for the developed integrated systems to assess the energy efficiency, exergy efficiency, and exergy destruction of components within each system.

(3)

To evaluate the overall fuel cost and overall space required for storage of the liquefied CO₂ and primary fuels.

(4)

To carry out parametric studies with varying operating conditions, such as the S/C ratio, operating temperature of the reforming process, and CO₂ capture ratio.

2. System Description

2.1. Reference Ship Description

A general cargo ship with main engine power of 3800 kW is chosen as the reference ship for integrating the steam reforming, HT-PEMFC and CO₂ capture/liquefaction systems. Although the operational engine load depends on the ship design, in general, it can be much smaller than the engine total capacity [48]. Therefore, in this study, the systems are designed based on the average shaft power. This approach allows a more precise evaluation of the amount of CO₂ emissions and energy consumption for CO₂ capture/liquefaction on board. To calculate the average shaft power, a load factor that indicates the fraction of power needed by the engine to navigate at the average speed was calculated by using the average and maximum speeds. The product of load factor and total installed engine power (MCR) provides the average shaft power. The formulas for load factor and average shaft power are presented in the equations below. The detailed specifications of the reference ship, including the calculated load factor and average shaft power, are presented in

Table 2. Specification of the reference ship.

Specifications	Values
Type	General Cargo
Overall length	120 m
Beam	13 m
Deadweight	3000 tonnage
Main engine power	3800 kW
Maximum speed	14 knots
Average speed	7 knots
Total voyage time	209 h
Load factor	0.125
Average shaft power	475 kW

[49].

$$\mathrm{Load}\mathrm{factor}={\left(\frac{\mathrm{Average}\mathrm{Speed}}{\mathrm{Max}\mathrm{Speed}}\right)}^3$$

(1)

$$\mathrm{Average}\mathrm{shaft}\mathrm{power}\left[\mathrm{kW}\right]=\mathrm{Load}\mathrm{factor}·\mathrm{MCR}\left[\mathrm{kW}\right]$$

(2)

In the present study, for simplicity of system design, we only considered the power required for propulsion excluding other hotel powers.

2.2. Description of Steam Methane Reforming-Based System

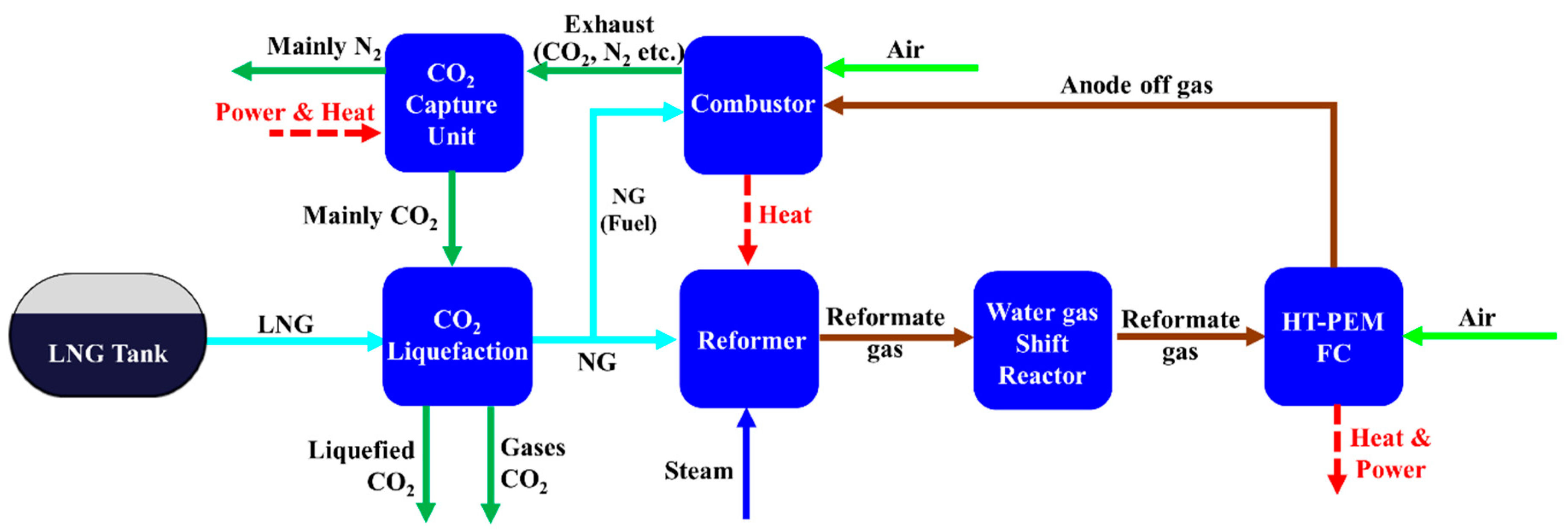

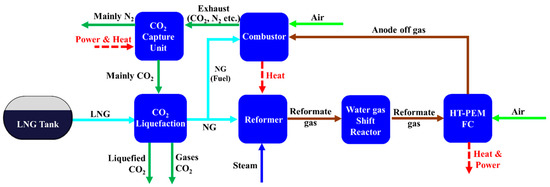

Figure 1 shows the block diagram of the steam methane reforming system combined with HT-PEMFC and CCS on board ships. The integrated system consists of six main unit/systems: Reformer for producing reformate gas, combustor for providing heat to reformer, WGS reactor for conversion of CO to CO₂, HT-PEMFC for power generation, CO₂ capture unit, and CO₂ liquefaction system for storage.

Natural gas is normally used as feedstock for steam methane reforming and it normally contains small amounts of sulfur compounds, which must be removed to avoid contamination of the catalyst in the reformer and low temperature shift reactor [50]. However, in the proposed system, LNG was considered as feedstock for reforming. As an industry practice, prior to liquefaction, natural gas is further treated to remove sulfur compounds along with water and any residual CO₂ to avoid freezing [51]. Therefore, a desulfurization unit was not included in this study. As shown in Figure 2, liquefied from an on-board storage tank is pumped and vaporized by heat exchange with the captured CO₂ in HEX-1. Then, the vaporized CH₄ is divided into two streams: One as feedstock for reforming (stream F4), the other as fuel for the combustor (stream F7). The CH₄ used as feedstock is mixed with high temperature steam (stream W3) and further preheated by heat exchange with the reformate gas stream from the reformer at HEX-2. Then, the steam methane mixture (stream F6) is supplied to the reformer, where the reforming reaction occurs as expressed in Equations (4) and (5), and converted to H₂, CO, and CO₂. The steam methane reforming reaction is highly endothermic; therefore, a large amount of heat must be supplied by the combustor by burning supplemental methane as fuel and by burning off-gas (mostly unreacted CH₄ and unused H₂) from the fuel cell. The operating temperature and pressure for the steam methane reformer in this model were set as 700 °C and 3 bar, respectively. The steam to carbon molar ratio (S/C) of 3:1 was applied to avoid coke formation.

$${\mathrm{CH}}_4+{\mathrm{H}}_2\mathrm{O}=\mathrm{CO}+3{\mathrm{H}}_2\Delta {\mathrm{H}}_{298}=206.3{\mathrm{kJ}\mathrm{mol}}^{-1}$$

(3)

$${\mathrm{CH}}_4+2{\mathrm{H}}_2\mathrm{O}={\mathrm{CO}}_2+4{\mathrm{H}}_2\Delta {\mathrm{H}}_{298}=165{\mathrm{kJ}\mathrm{mol}}^{-1}$$

(4)

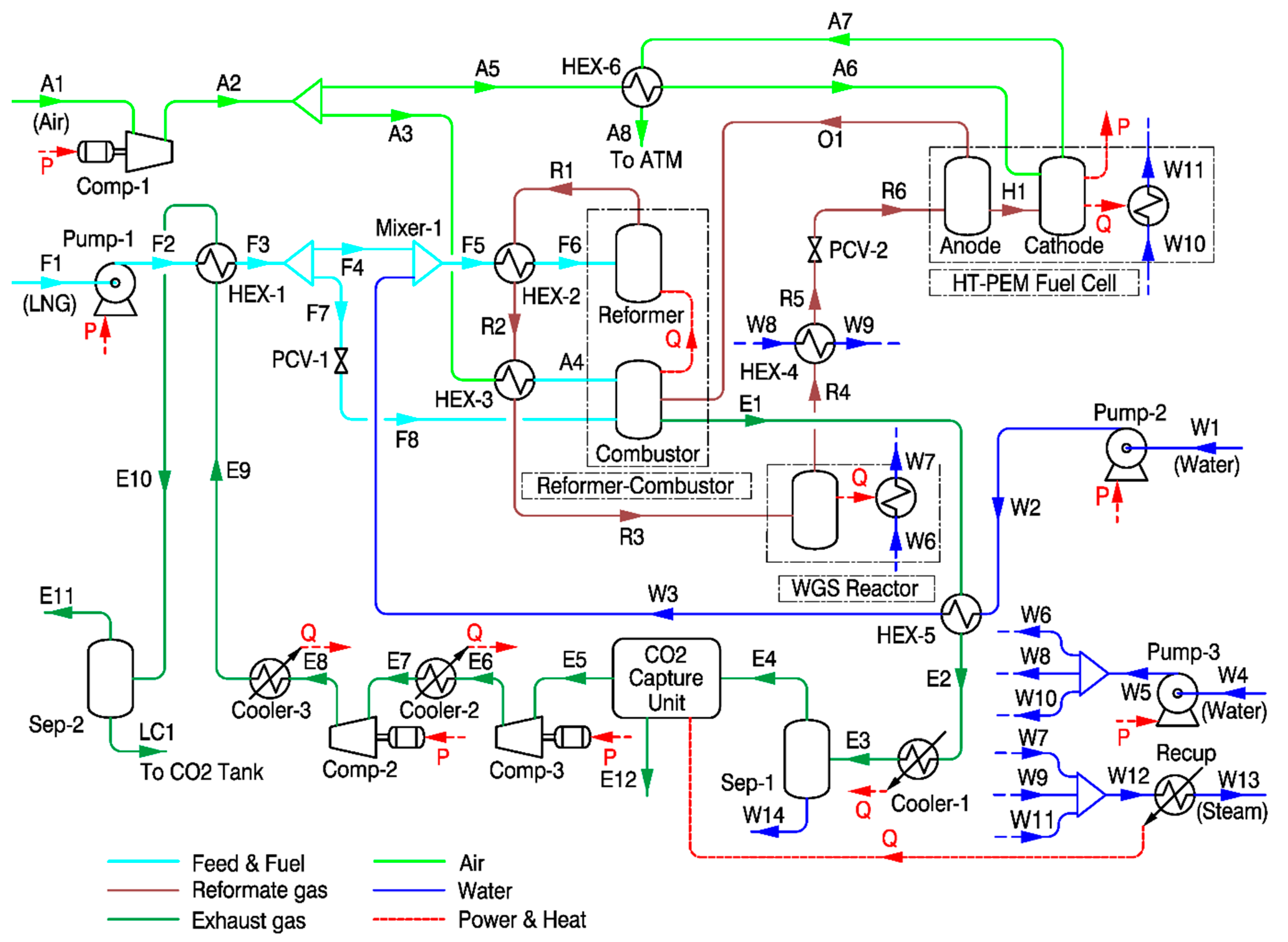

The reformate gas exiting HEX-2 (stream R2) is further used to preheat air entering to the combustor, and then enters the WGS reactor. The WGS reaction is moderately exothermic and it converts undesired CO in reformate gas to CO₂ and H₂, as shown in Equation (6). The WGS reactor is modeled as a single stage, and the reaction occurs at 250 °C. The heat produced during the WGS reaction is used for steam generation.

$$\mathrm{CO}+{\mathrm{H}}_2\mathrm{O}={\mathrm{CO}}_2+{\mathrm{H}}_2\Delta {\mathrm{H}}_{298}=-41{\mathrm{kJ}\mathrm{mol}}^{-1}$$

(5)

The reformate gas leaving the WGS rector (stream R4), which has an acceptable level of CO content (<1%) for the HT-PEMFC, is firstly cooled down to 160 °C and then supplied to the anode side of the HT-PEMFC. Dry air is supplied to the cathode side and used for the fuel cell reaction, converting the chemical energy of hydrogen to electricity. Unreacted hydrogen is supplied to the combustor for heat generation. The exhaust gas from the combustor preheats the water supplied to the reformer and then is cooled down to 40 °C when exiting Cooler-1. After removing the condensed water at Sep-1, the exhaust gas stream (E4) enters the post combustion CO₂ capture unit using aqueous MEA as solvent. As large quantities of heat are required to regenerate the solvent within the MEA CO₂ capture process, the fractions of heat produced from the WGS reactor, HT-PEMFC, and HEX-4 are supplied to the CO₂ capture unit. The MEA CO₂ capture unit is modeled as a “black box” in the present study. The detailed explanation for the black box model of the MEA process is provided in the next section. Then, the captured CO₂ is compressed to 7 bar by two stage compressors with cooling in between and then partially liquefied by heat exchange with the LNG feedstock at HEX-1. The liquefied CO₂ is separated in Sep-2 and stored at 7 bar, −48.5 °C in a temporary tank on board the ship. Noteworthy, although CO₂ capture by using low temperature and vapor–liquid phase separation could be advantageous from the perspective of CO₂ liquefaction, the capture ratio is significantly affected by concentration of other gases. Therefore, in this study, the MEA CO₂ capture unit and CO₂ liquefaction system are modeled separately.

2.3. Description of Steam Methanol Reforming-Based System

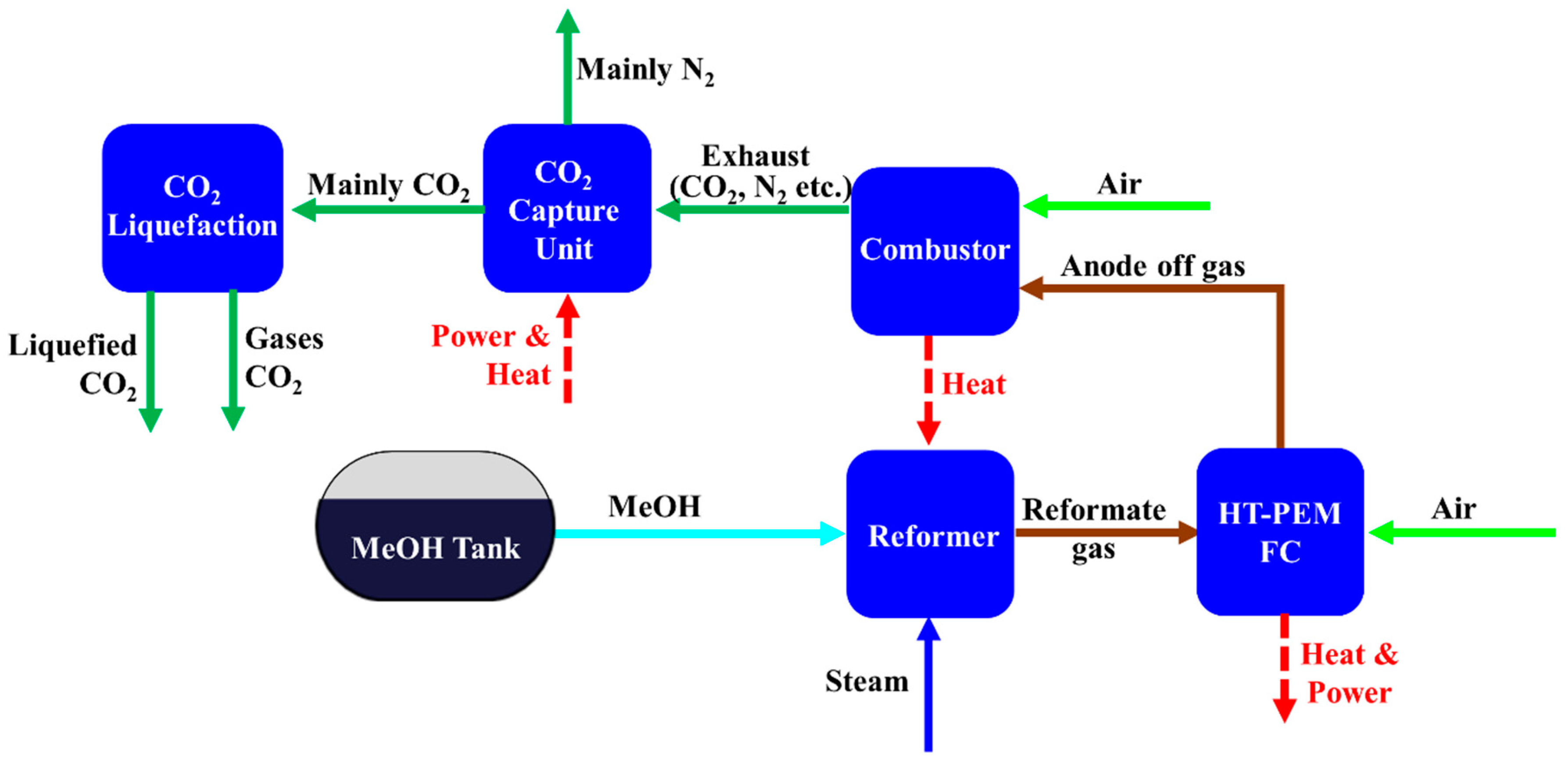

Figure 3 shows the block diagram of the steam methanol reforming system combined with HT-PEMFC and CCS on board a ship. The integrated system consists of five main unit/sub-systems: Reformer for producing reformate gas, combustor for providing heat to the reformer, HT-PEMFC for power generation, CO₂ capture unit, and CO₂ liquefaction system for storage. Unlike the steam methane reforming system, the WGS reactor is not added because the hydrogen rich gas produced in steam methanol reforming includes CO contents tolerable to the HT-PEMFC in this study.

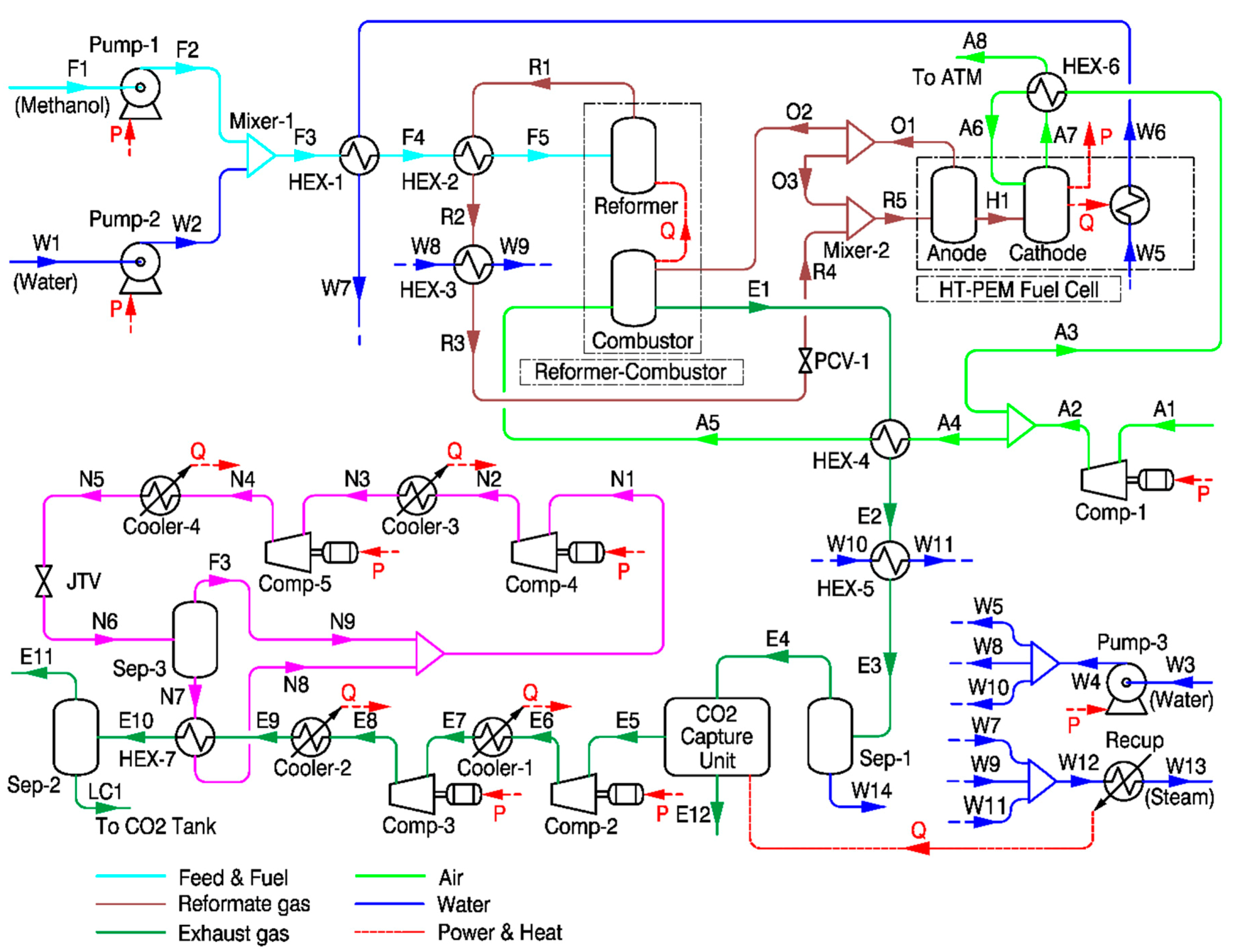

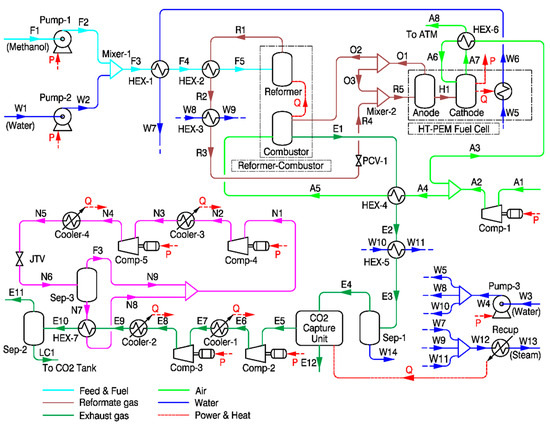

As shown in Figure 4, methanol and water are mixed at 25 °C. The water and methanol mixture is preheated by the steam generated at the HT-PEMFC at HEX-1 and further vaporized by the reformate gas stream (stream R1) from the reformer at HEX-2. Then, H₂ rich reformate gas is produced in the reformer. The main reactions that take place in the reformer are as follows [52]:

$${\mathrm{CH}}_3\mathrm{OH}+{\mathrm{H}}_2\mathrm{O}={\mathrm{CO}}_2+3{\mathrm{H}}_2\Delta {\mathrm{H}}_{298}=+49.7{\mathrm{kJ}\mathrm{mol}}^{-1}$$

(6)

$$\mathrm{CO}+{\mathrm{H}}_2\mathrm{O}={\mathrm{CO}}_2+{\mathrm{H}}_2\Delta {\mathrm{H}}_{298}=-41{\mathrm{kJ}\mathrm{mol}}^{-1}$$

(7)

$${\mathrm{CH}}_3\mathrm{OH}=\mathrm{CO}+2{\mathrm{H}}_2\Delta {\mathrm{H}}_{298}=+90.7{\mathrm{kJ}\mathrm{mol}}^{-1}$$

(8)

Equation (6) represents the steam methanol reforming reaction, Equation (7) represents the water gas shift reaction, and Equation (8) represents the methanol decomposition reaction. Only the WGS reaction is exothermic and the other two are endothermic. The operating temperature and pressure for the steam methanol reformer in this model are 200 °C and 3 bar, respectively. A S/C ratio of 1.5:1 was selected based on literature reviews [27,33]. Reformate gases containing H₂, CO₂, CO, and CH₃OH exiting HEX-2 are further adjusted to 160 °C at HEX-3 and 1.1 bar by PCV-1. Then, the reformate gas is fed to the anode side of the HT-PEMFC for power generation. As off-gas (stream O1) from the fuel cell contains H₂ unreacted in the fuel cell and CH₃OH unconverted in the reformer, the fraction of these is supplied to the combustor to produce heat. The remaining is recycled to the anode inlet stream. The exhaust gas stream (E1) from the combustor preheat air is supplied to the combustor, and the remaining heat in the exhaust gas is recovered in HEX-5. The exhaust gas stream (E4), from which most water is removed in Sep-1, is fed to the CO₂ capture unit, which is modeled as a “black box,” in the same way as the steam methane reforming system.

The captured CO₂ stream (E5) is compressed to 14 bar by Comp-1, -2, and liquefied passing through HEX-7. Unlike the steam methane reforming system, a separate liquefaction cycle using ammonia as refrigerant was modeled. The liquefied CO₂ is separated in Sep-2 and stored in a temporary tank on board the ship. The operating and design parameters of the steam methane and methanol reforming system combined with HT-PEMFC, CO₂ capture, and liquefaction systems are presented in

Table 3. Base condition of simulations.

Unit Name	Parameter	Values
		Steam Methane Reforming-Based System	Steam Methanol Reforming-Based System
Steam reformer	Operating temperature	700 °C [23,31]	200 °C [34]
	Operating pressure	3 bar	3 bar
	S/C ratio	3 [31,53]	1.5 [27]
WGS reactor	Operating temperature	250 °C [54]	−
	Operating pressure	1.1 bar	−
Combustor	Operating temperature	800 °C	300 °C
	Operating pressure	1.1 bar	1.1 bar
	Air-fuel ratio	1.05 [30,41]	1.05 [27]
HT-PEMFC	Fuel utilization factor	0.83 [31,55]
	Cathode stoichiometric ratio	2 [31,55]
	Operating temperature	160 °C [31]
	Operating pressure	1.1 bar
	Output voltage per cell	0.637 V [56]
	Current density	0.2 A cm−2 [56]
CO2 capture unit [38]	Solvent	MEA
	Feed gas temperature	40 °C
	Steam temperature	130 °C
	Specific reboiler duty	5112 kJ/kg CO2
	CO2 Capture ratio	90%
CO2 Liquefaction system	Refrigerant	LNG	NH3
	Liquefaction condition	−8.5 °C at 7 bar	−29.75 °C at 14 bar
	Total emitted CO2 to ATM (Stream E11 and E12)	55.83 kg/h
Compressors	Polytropic efficiency	75%
Pump	Adiabatic efficiency	85%
Converter	Efficiency	98% [57]
Heat exchangers	Min. temperature approach	Heat exchangers for CO2 liquefaction: 3 °C [46] Other heat exchangers: 10 °C [41]
Net electrical power (AC)		475 (±0.2) kW

Note: For comparison purpose, the mass flow rate of total emitted CO₂ of the steam methanol reforming-based system is adjusted to have the same value as that of the steam methane reforming-based system.

.

3. System Simulation and Assumptions

The process simulation and heat and mass balance calculations were carried out using the ASPEN HYSYS process simulator. The heat and mass balances obtained from the converged simulation are utilized for exergy and energy calculations in a separate spreadsheet. The Peng–Robinson equation of state is used for different units/sub-systems including steam reforming, HT-PEMFC, and CO₂ liquefaction system [29,58]. A “Gibbs reactor” model, which considers the condition of the Gibbs free energy of the reacting system being at a minimum at equilibrium to calculate the product mixture composition [59], is used to simulate the reformer and WGS reactor, whereas the “conversion reactor” model is used to simulate the combustor [50]. There is no separate module to simulate a fuel cell in ASPEN HYSYS. Therefore, in the present study, the HT-PEMFC is modeled as a “conversion reactor” and a “splitter,” which attain a conversion ratio equal to the hydrogen utilization factor [8,9]. For simplicity, the carbon capture unit using MEA is modeled as a “splitter” in ASPEN HYSYS, which can be considered as a black box assumption. In a black box assumption, the complex process for capturing CO₂ is modeled by one single box, which has two outlet streams of differing composition from a single inlet stream. Although the black box model enables estimating the minimum work or heat required for CO₂ capture, the calculated value for capture is generally a little different from the actual work and heat reported in the literature [30,41]. The concept for the black box model of the CO₂ capture has been used in several studies [30,41,60]. To obtain information about the energy and exergy consumption per kg of captured CO₂, the values reported in reference [37] are used in the present work.

The concentration of H₂, CO₂, and CO in the anode inlet stream can affect performance of HT-PEMFC. Andreasen et al. investigated the variation of HT-PEMFC performance by the feeding mixture of H₂, CO (0%, 0.15%, 0.25%, 0.5%, 1%), CO₂ (0%, 25%) to emulate methanol or methane reformate gas. Results reveal that increasing both CO and CO₂ concentration decreases output voltage. In total, eight cases of experiments, 1% CO and 25% CO₂ case and 0.5% CO and 25% CO₂ case show the first and second lowest output voltage, approximately 0.645 and 0.652 V, respectively, at 0.2 A cm⁻² and operating temperature of 160 °C [61]. Other experimental studies show similar results. Devrim et al. evaluated the combined effect of CO and CO₂ in anode inlet stream and results show that no significant performance degrade due to the addition of only CO₂ into H₂, however addition of CO in H₂ and CO₂ mixture increase degrade of performance. H₂, CO₂, CO (75%, 24%, 3% and 75%, 24%, 1%) mixtures show output voltage of approximately 0.629 and 0.634 V at 0.2 A cm⁻² and operating temperature of 160 °C [62]. It was reported that the impact of the CO presence (up to 2.0%) at higher operating temperature (160 °C and above) and lower current densities (below 0.3 A cm⁻²) is very low [63,64]. Therefore, in this study, the performance degrade due to CO contents is neglected and output voltage of HT-PEMFC is fixed as 0.637 V [56].

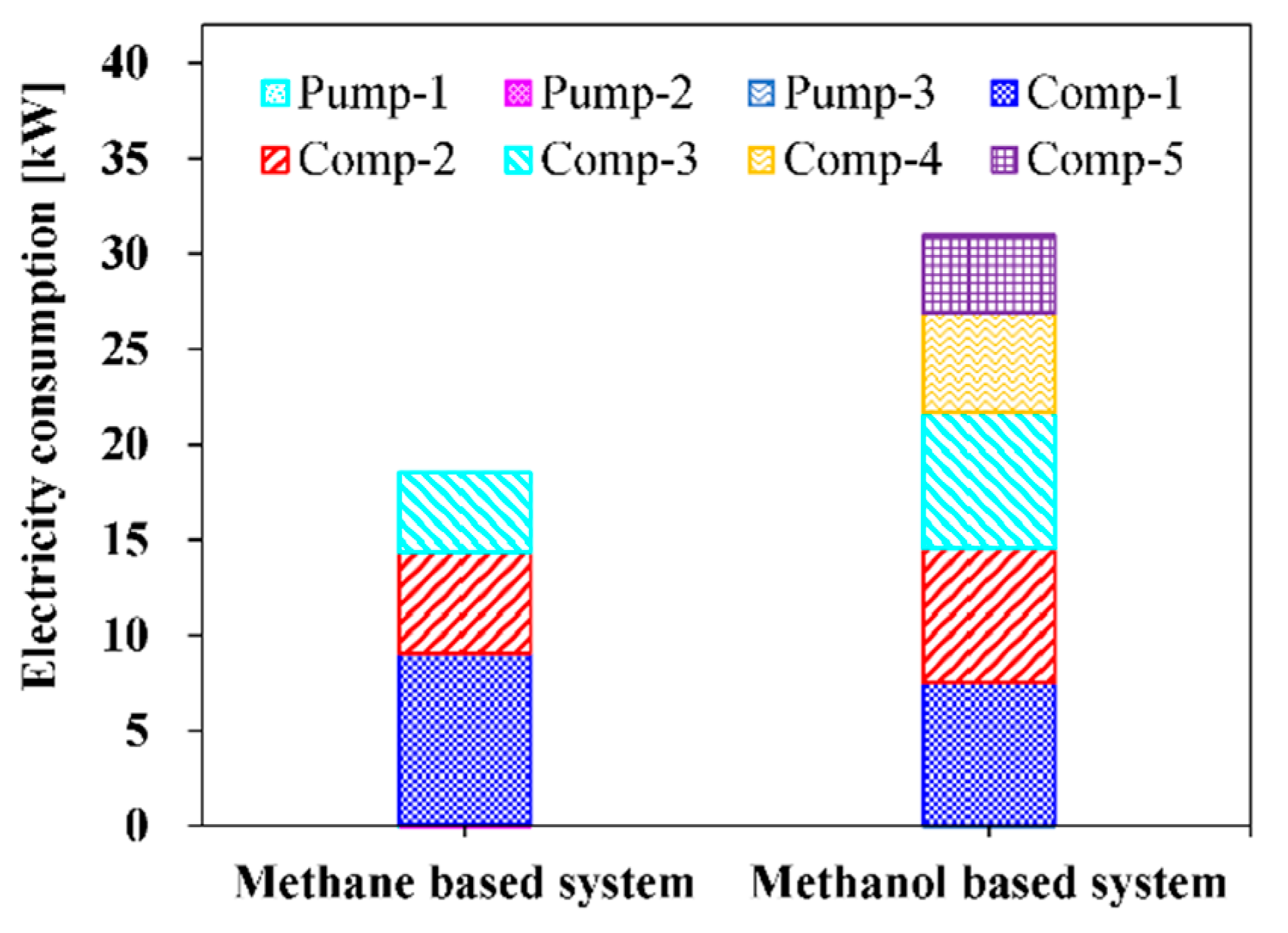

Since the amount of electricity consumption vary with several operation modes of ship, it is assumed that the target ship operates with constant average shaft power, namely 475 kW for simplicity. Further, a current density of 0.2 A cm⁻² is assumed for constant power generation. Noteworthy, lower current densities lead to higher electrical efficiency, and require a larger cell area. However, considering the feasibility check and comparison for ship application of the methane-, methanol-based system is main purpose of this study, the above assumptions are deemed reasonable.

The general assumptions used in the modeling of the integrated energy system are as follows:

• The simulations are implemented in a steady state and are not suitable for start-up operations.
• The composition of air is considered to be 79% N₂ and 21% O₂ on a mole basis.
• For simplicity, LNG is represented by pure, liquefied CH₄.
• The reaction time is considered long enough to achieve phase and chemical equilibrium.
• The reformate gases exiting the reformer are at the reformer temperature.
• Heat and pressure losses are assumed to be negligible in all operational units.
• Complete fuel oxidation is assumed in the combustor.
• In the CO₂ capture unit, only heat consumption is considered because the power consumption at cooling pumps, solvent pumps, and other devices is relatively small.
• The heat ejected from coolers is not recovered.

4. Performance Evaluation

To conduct a comparative analysis between the steam methane reforming-based system and the steam methanol reforming-based system, energy, exergy efficiency, and exergy destruction are used along with the carbon capture storage ratio and the required volumes of both fuels and captured CO₂ during navigation.

4.1. Energy Analysis of the Integrated Systems

The objective functions that are used in the energy analysis for system performance evaluation are electrical efficiency (η_{en,sys,electrical}) and cogeneration efficiency (η_cogen). The electrical efficiency of the systems is defined as the ratio of the net electrical power output of the system to the lower heating value of the feed and fuel entering the system, as expressed in Equation (9) for the steam methane reforming-based system and in Equation (10) for the steam methanol reforming-based system [27,54].

$${\mathsf{\eta }}_{\mathrm{en},\mathrm{CH}4,\mathrm{electrical}}=\frac{{\mathrm{P}}_{\mathrm{net},\mathrm{electrical}}}{\left({\dot{\mathrm{n}}}_{\mathrm{feed},{\mathrm{CH}}_4}+{\dot{\mathrm{n}}}_{\mathrm{fuel},{\mathrm{CH}}_4}\right)·{\mathrm{LHV}}_{{\mathrm{CH}}_4}}$$

(9)

where LHV_CH4 is the lower heating value of CH₄. The net electrical power (P_{net,electrical}) is calculated by subtracting the power consumed in the system (P_pump−1 + P_pump−2 + P_pump−3 + P_comp−1 + P_comp−2 + P_comp−3) from the power generated in the HT-PEMFC (P_HT-PEMFC,AC).

$${\mathsf{\eta }}_{\mathrm{en},{\mathrm{CH}}_3\mathrm{OH},\mathrm{electrical}}=\frac{{\mathrm{P}}_{\mathrm{net},\mathrm{electrical}}}{{\dot{\mathrm{n}}}_{\mathrm{feed},{\mathrm{CH}}_3\mathrm{OH},}·{\mathrm{LHV}}_{{\mathrm{CH}}_3\mathrm{OH}}}$$

(10)

where LHV_CH3OH is the lower heating value of CH₃OH. The net electrical power (P_{net,electrical}) is calculated by subtracting the power consumed in the system (P_pump−1 + P_pump−2 + P_pump−3 + P_comp−1 + P_comp−2 + P_comp−3 + P_comp−4 + P_comp−5) from the power generated in the HT-PEMFC (P_{HT-PEMFC, AC}).

The electrical power generated by HT-PEMFC (P_{HT-PEMFC, AC}) can be calculated as follows [65]:

$${\mathrm{P}}_{\mathrm{HT}-\mathrm{PEMFC},\mathrm{AC}}={\mathsf{\eta }}_{\mathrm{HT}-\mathrm{PEMFC}}·{\dot{\mathrm{n}}}_{{\mathrm{H}}_2}·{\mathrm{LHV}}_{{\mathrm{H}}_2}·{\mathsf{\eta }}_{\mathrm{Converter}}$$

(11)

where ${\dot{\mathrm{n}}}_{\mathrm{H}2}$ is the molar flow rate of hydrogen that reacts in the HT-PEMFC, LHV_H2 is the lower heating value of hydrogen, η_HT-PEMFC is the electrical efficiency of the HT-PEMFC, and η_Converter is the efficiency of the converter.

The efficiency of HT-PEMFC (η_HT-PEMFC) can be found from [65]

$${\mathsf{\eta }}_{\mathrm{HT}-\mathrm{PEMFC}}={\mathsf{\mu }}_{\mathrm{f}}·\frac{{\mathrm{V}}_{\mathrm{c}}}{{\mathrm{EMF}}_{\max }}·100$$

(12)

where μ_f is the fuel utilization factor, V_c is the produced voltage of the cell, and EMF_max is the electromotive force when all the energy from the hydrogen fuel cell, the heating value or enthalpy of formation, was converted to electrical energy. Fuel utilization factor, μ_f and EMF_max can be determined as follows:

$${\mathsf{\mu }}_{\mathrm{f}}=\frac{{\mathrm{H}}_{2,\mathrm{consumed}}}{{\mathrm{H}}_{2,\mathrm{supplied}}}$$

(13)

$${\mathrm{EMF}}_{\max }=-\frac{\Delta {\mathrm{h}}_{\mathrm{f}}}{2\mathrm{F}}$$

(14)

The heat produced in the fuel cell stack can be determined from [66]

$${\dot{\mathrm{Q}}}_{\mathrm{heat},\mathrm{HT}-\mathrm{PEMFC}}={\displaystyle \sum }({\mathrm{h}}_{\mathrm{in},\mathrm{c}}·{\dot{\mathrm{n}}}_{\mathrm{in},\mathrm{c}})-{\displaystyle \sum }({\mathrm{h}}_{\mathrm{out},\mathrm{c}}·{\dot{\mathrm{n}}}_{\mathrm{out},\mathrm{c}})+{\displaystyle \sum }({\mathrm{h}}_{\mathrm{in},\mathrm{a}}·{\dot{\mathrm{n}}}_{\mathrm{in},\mathrm{a}})-{\displaystyle \sum }({\mathrm{h}}_{\mathrm{out},\mathrm{a}}·{\dot{\mathrm{n}}}_{\mathrm{out},\mathrm{a}})-{\mathrm{P}}_{\mathrm{HT}-\mathrm{PEMFC},\mathrm{DC}}$$

(15)

The cogeneration efficiency of the system (η_en,sys,cogen) is defined as the ratio between the summation of the rate of available heat output and the net electrical power to the lower heating value of the fuel and feed entering the system, as expressed in Equation (16) for the steam methane reforming-based system and in Equation (17) for the steam methanol reforming-based system [54].

$${\mathsf{\eta }}_{\mathrm{en},{\mathrm{CH}}_4,\mathrm{cogen}}=\frac{{\mathrm{P}}_{\mathrm{net},\mathrm{electrical}}+{\mathrm{Q}}_{\mathrm{net}}}{\left({\dot{\mathrm{n}}}_{{\mathrm{CH}}_4,\mathrm{feed}}+{\dot{\mathrm{n}}}_{{\mathrm{CH}}_4,\mathrm{fuel}}\right)·{\mathrm{LHV}}_{{\mathrm{CH}}_4}}$$

(16)

$${\mathsf{\eta }}_{\mathrm{en},{\mathrm{CH}}_3\mathrm{OH},\mathrm{cogen}}=\frac{{\mathrm{P}}_{\mathrm{net},\mathrm{electrical}}+{\mathrm{Q}}_{\mathrm{net}}}{\left({\dot{\mathrm{n}}}_{{\mathrm{CH}}_3\mathrm{OH},\mathrm{feed}}\right)·{\mathrm{LHV}}_{{\mathrm{CH}}_3\mathrm{OH}}}$$

(17)

where

$${\mathrm{Q}}_{\mathrm{net}}={\mathrm{Q}}_{\mathrm{hot}\mathrm{water}\left(\mathrm{W}13\right)}-{\mathrm{Q}}_{\mathrm{water}\left(\mathrm{W}3\right)}$$

(18)

4.2. Exergy Analysis of the Integrated Systems

Exergy is defined as the maximum amount of useful energy that can be obtained from a stream when it reaches an equilibrium condition with the reference environment while interacting only with this environment [67]. The exergy analysis is applied to measure the exergy destruction and exergy efficiency for each component of the system proposed in this study. The equation of exergy destruction for each component can be derived from the equation of exergy balance. Considering a control volume at steady state, the general form of exergy balance can be written as follows:

$${\displaystyle \sum }{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{Q}}-{\displaystyle \sum }{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{w}}+{\displaystyle \sum }{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{flow},\mathrm{in}}-{\displaystyle \sum }{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{flow},\mathrm{out}}-{\displaystyle \sum }{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}=0$$

(19)

where ${\mathrm{Ex}}_{\mathrm{Q}}$ represents the rate of exergy transfer due to heat exchange with the environment, ${\mathrm{Ex}}_{\mathrm{w}}$ is the rate of exergy transfer related to work, ${\mathrm{Ex}}_{\mathrm{dest}}$ represents exergy destruction, and ${\mathrm{Ex}}_{\mathrm{flow}}$ corresponds to the exergy transfer rate associated with the flow of the stream. $\dot{\mathrm{E}}\mathrm{x}$ represents the stream exergy, which can be expressed as follows [68]:

$$\dot{\mathrm{E}}\mathrm{x}=\mathrm{F}·({\mathrm{Ex}}_{\mathrm{chem}}+{\mathrm{Ex}}_{\mathrm{phys}}+{\Delta }_{\mathrm{mix}}\mathrm{Ex})$$

(20)

F, ${\mathrm{Ex}}_{\mathrm{chem}}$, ${\mathrm{Ex}}_{\mathrm{phys}}$, and ${\Delta }_{\mathrm{mix}}\mathrm{Ex}$ denote the molar flow rate and the physical, chemical, and mixing exergy of the stream.

The chemical exergy of the stream, accounting for phases and their composition at the reference condition, is given by Equation (21), as follows [68]:

$${\mathrm{Ex}}_{\mathrm{chem}}={\mathrm{L}}_0·{\displaystyle \sum }{\mathrm{x}}_{0,i}·{\mathrm{Ex}}_{\mathrm{chem},i}^{0l}+{\mathrm{V}}_0·{\displaystyle \sum }{\mathrm{y}}_{0,i}·{\mathrm{Ex}}_{\mathrm{chem},i}^{0v}$$

(21)

L₀ and V₀ are the liquid and vapor mole fraction of the stream at the reference condition, respectively. x_i and y_i are the mole fraction of species i in the liquid and vapor phases, respectively. ${\mathrm{Ex}}_{\mathrm{chem},i}^{0l}$ and ${\mathrm{Ex}}_{\mathrm{chem},i}^{0v}$ denote the standard chemical exergy of component i in the liquid and vapor phases, respectively. The superscripts l and v denote liquid and vapor phases, respectively, and subscript 0 refers to the reference conditions. The reference conditions, T₀ and P₀, are set to 25 °C and 101.325 kPa in this work.

The physical exergy of the stream can be calculated from the enthalpies and entropies of the pure components, the amount of each phase, and their respective compositions, as follows [68]:

$${\mathrm{Ex}}_{\mathrm{phys}}=\left[\mathrm{L}·{\displaystyle \sum }\left({\mathrm{x}}_i·{\mathrm{H}}_i^l-{\mathrm{T}}_0·{\displaystyle \sum }{\mathrm{x}}_i·{\mathrm{S}}_i^l\right)+\mathrm{V}·{\displaystyle \sum }\left(y_i·{\mathrm{H}}_i^v-{\mathrm{T}}_0·{\displaystyle \sum }{y}_i·{\mathrm{S}}_i^v\right){]}_{\mathrm{actual}\mathrm{T},\mathrm{P}}-\right[{\mathrm{L}}_0·{\displaystyle \sum }\left({\mathrm{x}}_i·{\mathrm{H}}_i^l-{\mathrm{T}}_0·{\displaystyle \sum }{\mathrm{x}}_i·{\mathrm{S}}_i^l\right)+{\mathrm{V}}_0·{\displaystyle \sum }\left(y_i·{\mathrm{H}}_i^v-{\mathrm{T}}_0·{\displaystyle \sum }{y}_i·{\mathrm{S}}_i^v\right){]}_{{\mathrm{T}}_0,{\mathrm{P}}_0}$$

(22)

Hi and Si are the molar enthalpy and molar entropy of pure component i, respectively.

The mixing exergy, which has always a negative value, can be found from [68]:

$${\Delta }_{\mathrm{mix}}\mathrm{Ex}={\Delta }_{\mathrm{mix}}\mathrm{H}-{\mathrm{T}}_0·{\Delta }_{\mathrm{mix}}\mathrm{S}$$

(23)

where

$${\Delta }_{\mathrm{mix}}\mathrm{M}=\mathrm{L}·\left({\mathrm{M}}^l-{\displaystyle \sum }{\mathrm{x}}_i·{\mathrm{M}}^l\right)+\mathrm{V}·\left({\mathrm{M}}^v-{\displaystyle \sum }{y}_i·{\mathrm{M}}^v\right)$$

(24)

in which M is any thermodynamic property of the mixture and pure component i, respectively. The detailed methodology of exergy calculation of the stream can be referred from reference [68]. The equations for the exergy destruction of each component are summarized in

Table 4. Equation of exergy destruction and efficiency of the components.

Components	Exergy Destruction
Compressors [53]	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}{=\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}{+\mathrm{P}}_{\mathrm{in},\mathrm{comp}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}$
Pumps [53]	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}{=\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}{+\mathrm{P}}_{\mathrm{in},\mathrm{pump}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}$
Heat exchangers [53]	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}=\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}-\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}$ = $\sum {\dot{(\mathrm{Ex}}}_{\mathrm{in}}-{\dot{\mathrm{Ex}}}_{\mathrm{out}}{)}_{\mathrm{hot}}+\sum {\dot{(\mathrm{Ex}}}_{\mathrm{in}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}{)}_{\mathrm{cold}}$
Reformer-Combustor [53]	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}=\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}-\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}={\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{feed}}+{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{fuel}}+{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{off}\mathrm{gas}\mathrm{from}\mathrm{HT}-\mathrm{PEMFC}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out},\mathrm{reformate}\mathrm{gas}\mathrm{from}\mathrm{reformer}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out},\mathrm{exhaust}\mathrm{gas}}$
WGS [53]	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}=\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}-\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}={\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{reformate}\mathrm{gas}\mathrm{from}\mathrm{reformer}}+{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{cooling}\mathrm{water}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out},\mathrm{reformate}\mathrm{gas}\mathrm{to}\mathrm{HT}-\mathrm{PEMFC}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out},\mathrm{cooling}\mathrm{water}}$
Separators	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}={\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}$
HT-PEM fuel cell [69,70]	$\begin{array}{cc}\hfill {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}=\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}& -\sum {\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}\hfill \\ & ={\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{reformate}\mathrm{gas}\mathrm{from}\mathrm{WGS}}+{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{air}}\hfill \\ & +{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in},\mathrm{cooling}\mathrm{water}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out},\mathrm{air}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out},\mathrm{cooling}\mathrm{water}}\hfill \\ & -{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out},\mathrm{off}\mathrm{gas}}-{\mathrm{P}}_{\mathrm{out},\mathrm{electrical}}\hfill \end{array}$
Coolers [53]	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}={\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}$
Valves	${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{dest}}={\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{in}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{out}}$

.

To define exergy efficiency, the input and output of the system should be defined. In these integrated systems, output is the summation of the net electrical power generated and stream exergy change of the available hot water, whereas input is the summation of chemical exergy of the feed and fuel entering the system. The exergy efficiencies of the systems are expressed as follows [54]:

$${\mathsf{\eta }}_{\mathrm{ex},{\mathrm{CH}}_4,\mathrm{sys}}=\frac{{\mathrm{P}}_{\mathrm{net},\mathrm{electrical}}+{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{net},\mathrm{hotwater}}}{{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{feed},{\mathrm{CH}}_4}+{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{fuel},{\mathrm{CH}}_4}}$$

(25)

$${\mathsf{\eta }}_{\mathrm{ex},{\mathrm{CH}}_4,\mathrm{sys}}=\frac{{\mathrm{P}}_{\mathrm{net},\mathrm{electrical}}+{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{net},\mathrm{hotwater}}}{{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{feed},{\mathrm{CH}}_3\mathrm{OH}}}$$

(26)

$${\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{net},\mathrm{steam}}={\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{hot}\mathrm{water}\mathrm{generated}}-{\dot{\mathrm{E}}\mathrm{x}}_{\mathrm{water}\mathrm{supplied}}$$

(27)

5. Results and Discussion

5.1. Energy and Exergy Analyses

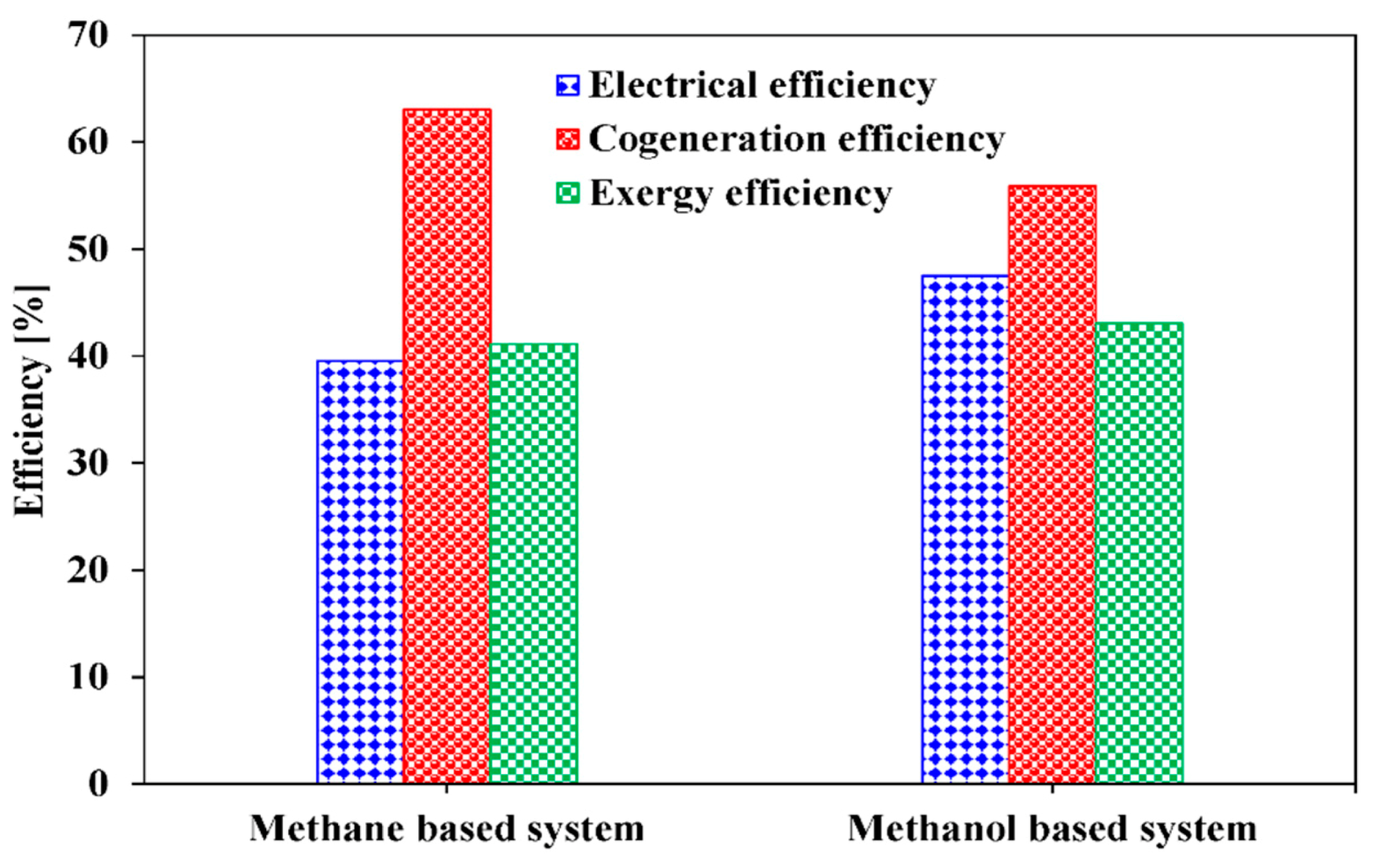

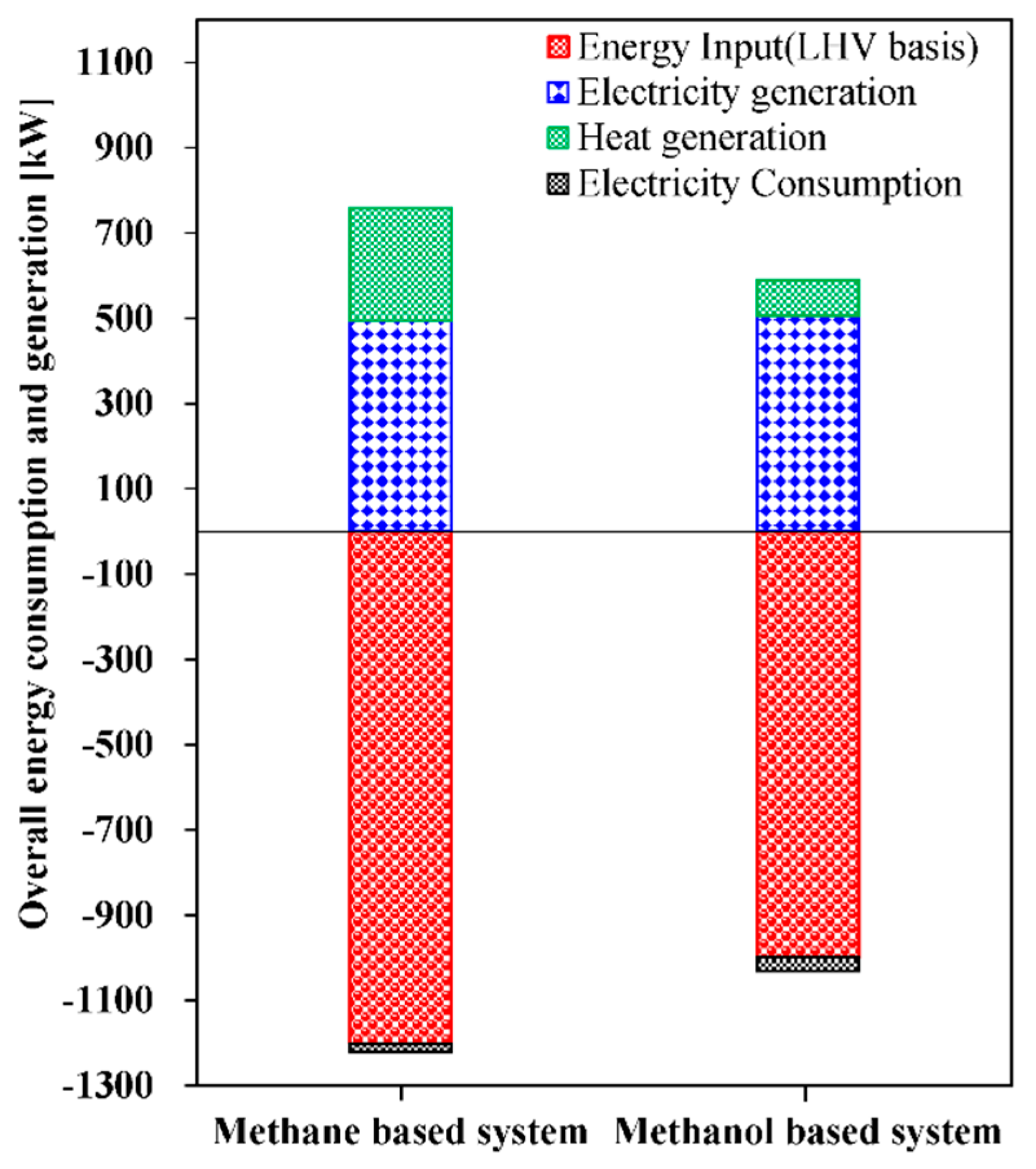

The steam reforming systems presented in this study are evaluated in terms of energy, exergy efficiency of the overall systems, and exergy destruction rate of each component. For the energy efficiency, electrical and cogeneration efficiencies are utilized. Electrical efficiency, cogeneration efficiency, and exergy efficiency at the base condition presented in Table 3 for the methane-based and methanol-based systems are compared in Figure 5. Electrical efficiencies of 39.53% for the methane-based system and 47.53% for the methanol-based system are obtained. It can be interpreted that the methanol-based system uses the feed energy input (LHV basis) more efficiently than the methane-based system for 475 kW of net electricity generation. Noteworthy, the overall electricity consumption of the methane-based and methanol-based systems are 18.51 and 30.97 kW, respectively, as indicated in Figure 6. The higher electricity consumption in the methanol-based system is mainly attributed to electricity consumption of the compressors (Comp-4 and -5) in the ammonia refrigerant cycle, whereas the methane-based system, which uses the cold energy of LNG for CO₂ liquefaction, does not consume additional electricity. Regarding the cogeneration efficiency, the methane-based system has higher value, 63%, than that of the methanol-based system, 55.86%, and this can be explained by Figure 7. As can be observed in Figure 7, the methane-based system consumes a higher amount of overall energy (LHV basis) than the methanol-based system and generates more available heat for 475 kW of net electricity generation. The higher value of heat generated can be explained by the fact that the steam methane reforming reaction is more endothermic than the steam methanol reforming reaction.

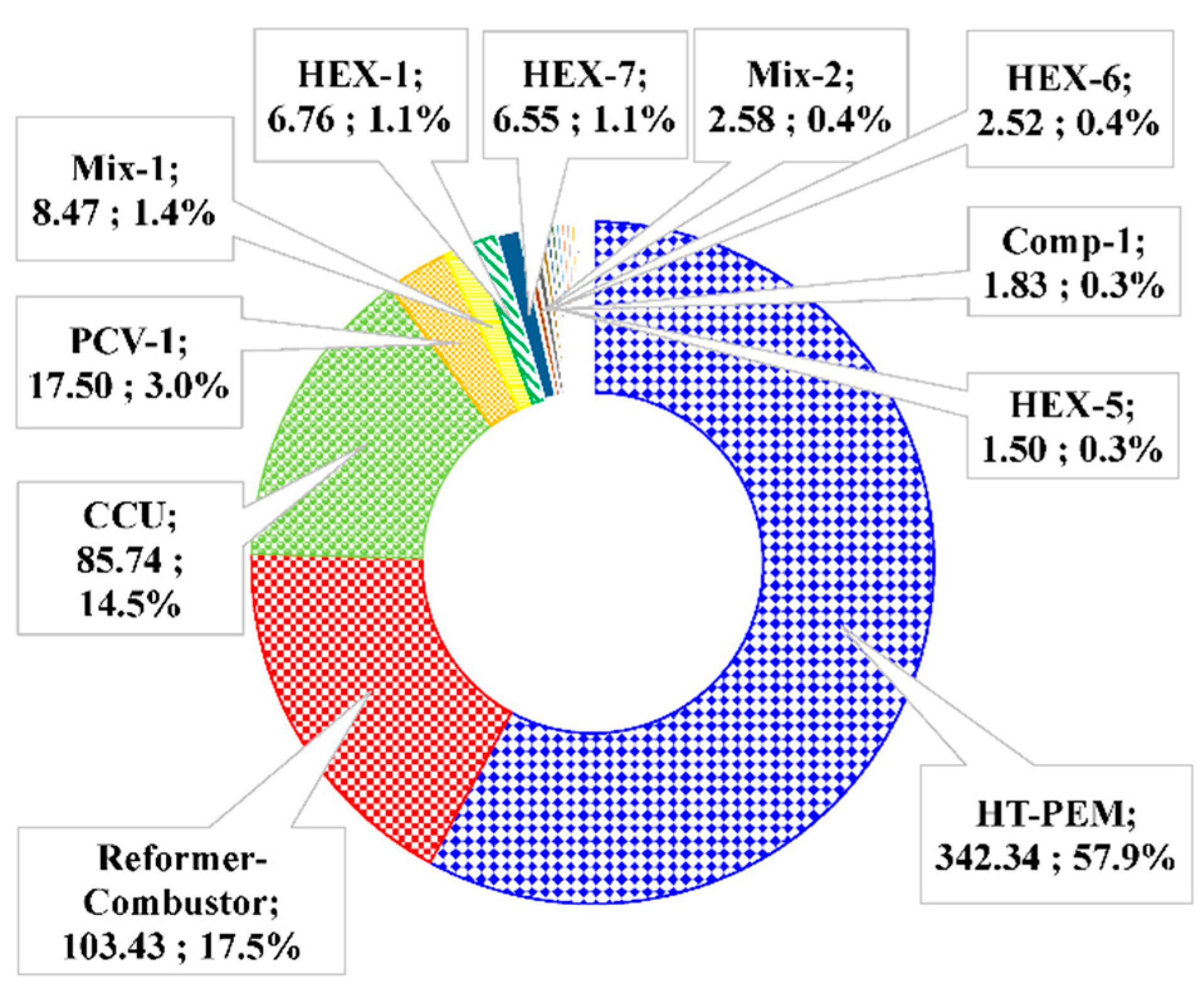

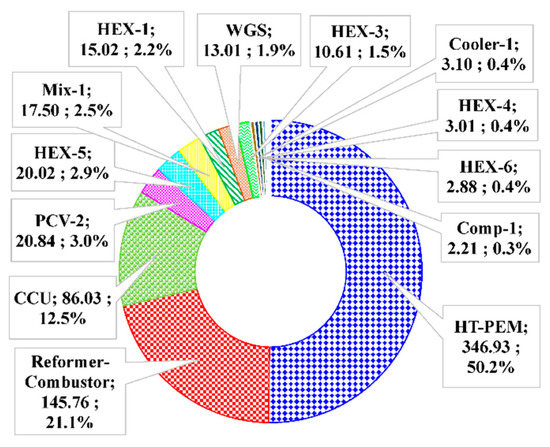

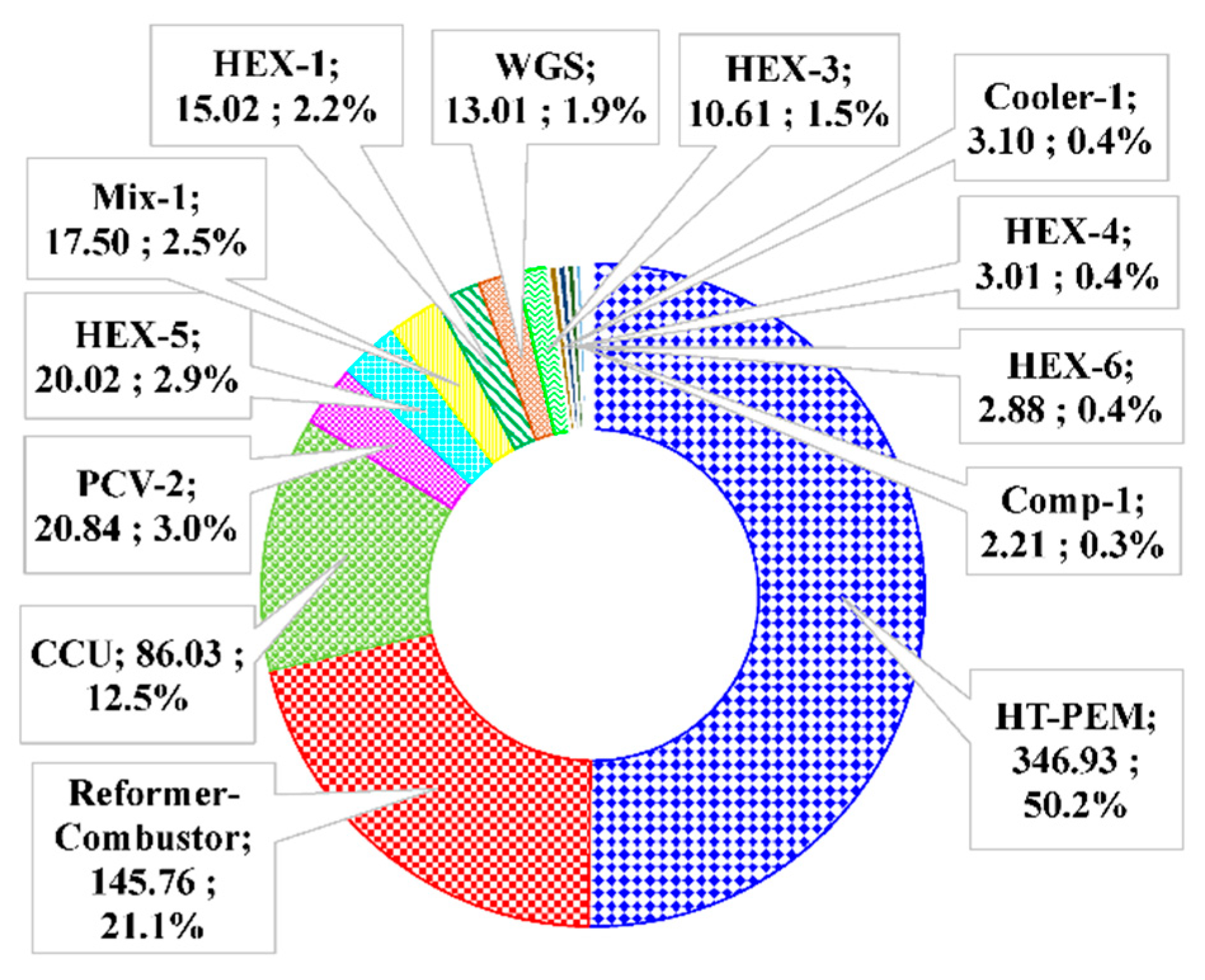

To evaluate the performance of the components, the exergy destructions of each component in the methane-based and methanol-based systems at the base condition provided in Table 3 are calculated. It is observed that there is a total exergy destruction of 690.68 kW for the methane-based system and 591.16 kW for the methanol-based system. The exergy destructions in each system are broken down to the component level and the results are presented in Figure 8 and Figure 9. The HT-PEMFC, reformer-combustor, and CCU have the largest percentages of total exergy destruction. For the methane-based system, the HT-PEMFC is the component having the highest exergy destruction with 365.5 kW (51.5%), followed by the reformer-combustor with 145.76 kW (20.6%) and CCU with 86.03 kW (14.0%). The exergy destructions in the methanol-based system follow a similar trend, having the highest exergy destruction in the HT-PEMFC with 342.34 kW (57.9%), reformer-combustor with 145.76 kW (20.6%), and CCU with 85.74 kW (14.5%). Exergy destruction of the HT-PEMFC and reformer-combustor mainly results from high irreversibility of the chemical reaction [54]. Exergy destructions of CCUs are calculated by assuming 1529 kW/kg CO₂ [37], which are caused by the unavoidable heat exergy required for MEA regeneration, and therefore, are dependent on the amount of generated CO₂ in the overall process. The larger total exergy destruction in the methane-based system is mainly attributed to the larger exergy destruction in the reformer-combustor. This relies on the fact that the steam methane reforming reaction is operated at a higher temperature condition of 700 °C (combustion temperature of 800 °C) instead of 200 °C (combustion temperature of 300 °C) in the steam methanol reforming reaction.

The other reasons explaining why the total exergy destruction is higher in methane-based systems than in methanol-based systems is that higher exergy destruction occurs in the heat exchangers (mainly HEX-1, HEX-3, and HEX-5), Mixer-1. For the heat exchangers, the larger exergy destruction derives from the larger temperature difference between cold and hot streams. This is because fuel in cryogenic temperature (LNG) is supplied in the methane-based system and streams from the reformer and combustor have inherent temperature. For Mix-1, more exergy destruction in the methane-based system than that in the methanol-based system is generated from mixing of streams with larger temperature difference. Therefore, reducing the temperature differences in these heat exchangers and Mix-1 by optimization can effectively reduce the system exergy destruction [71]. The exergy destruction generated in the WGS reactor, which is additionally equipped for the methane-based system to lower the CO fraction, is another reason.

5.1.1. Effect of Varying Reforming Temperature

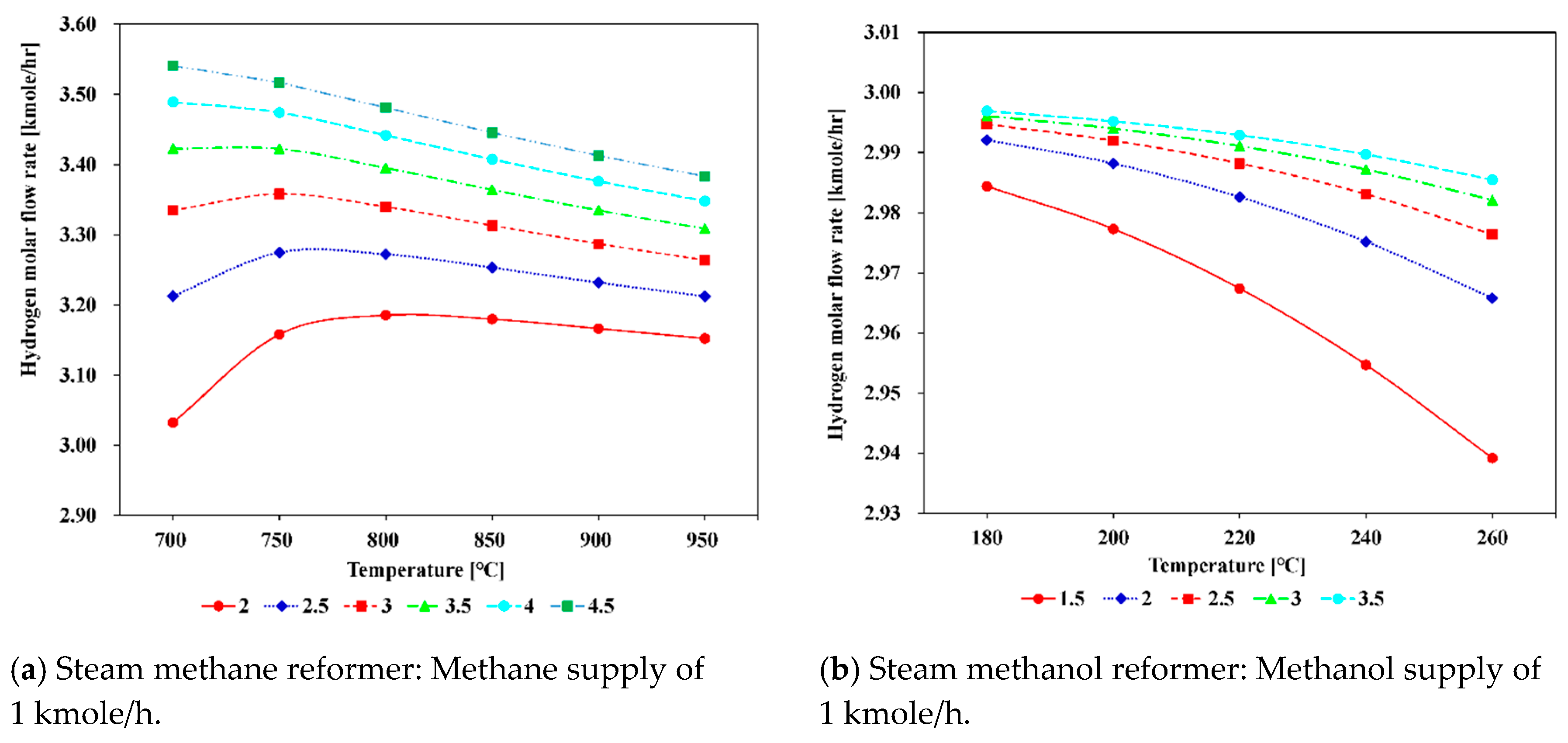

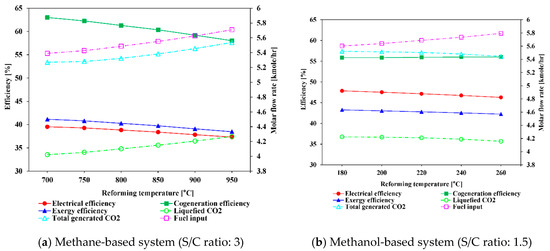

The variation of H₂ molar flow rate at the outlet of the steam methane and steam methanol reformers in thermodynamic equilibrium with varying reforming temperature and S/C ratio was derived to understand the system behavior. As can be observed in Figure 10a, the methane steam reformer shows the tendency that at S/C ratios below 3.5, the hydrogen flow rate increases when the reforming temperature increases up to 750 °C. After then, the H₂ molar flow rate decreases as the reforming temperature increases. At S/C ratios above 3.5, the H₂ molar flow rate continuously decreases as the reforming temperature increases. The steam methanol reformer shows a trend that as the reforming temperature increases from 180 to 260 °C, the molar flow rate of H₂ continuously decreases, although the decrease rates are different, as shown in Figure 10b. Figure 10a,b represent the behavior of each reformer and can be used for interpretation of each system in the next section. The effects of varying the reforming temperature on the efficiencies and molar flow rate of CO₂ in the methane-based and methanol-based systems were studied and illustrated in Figure 11.

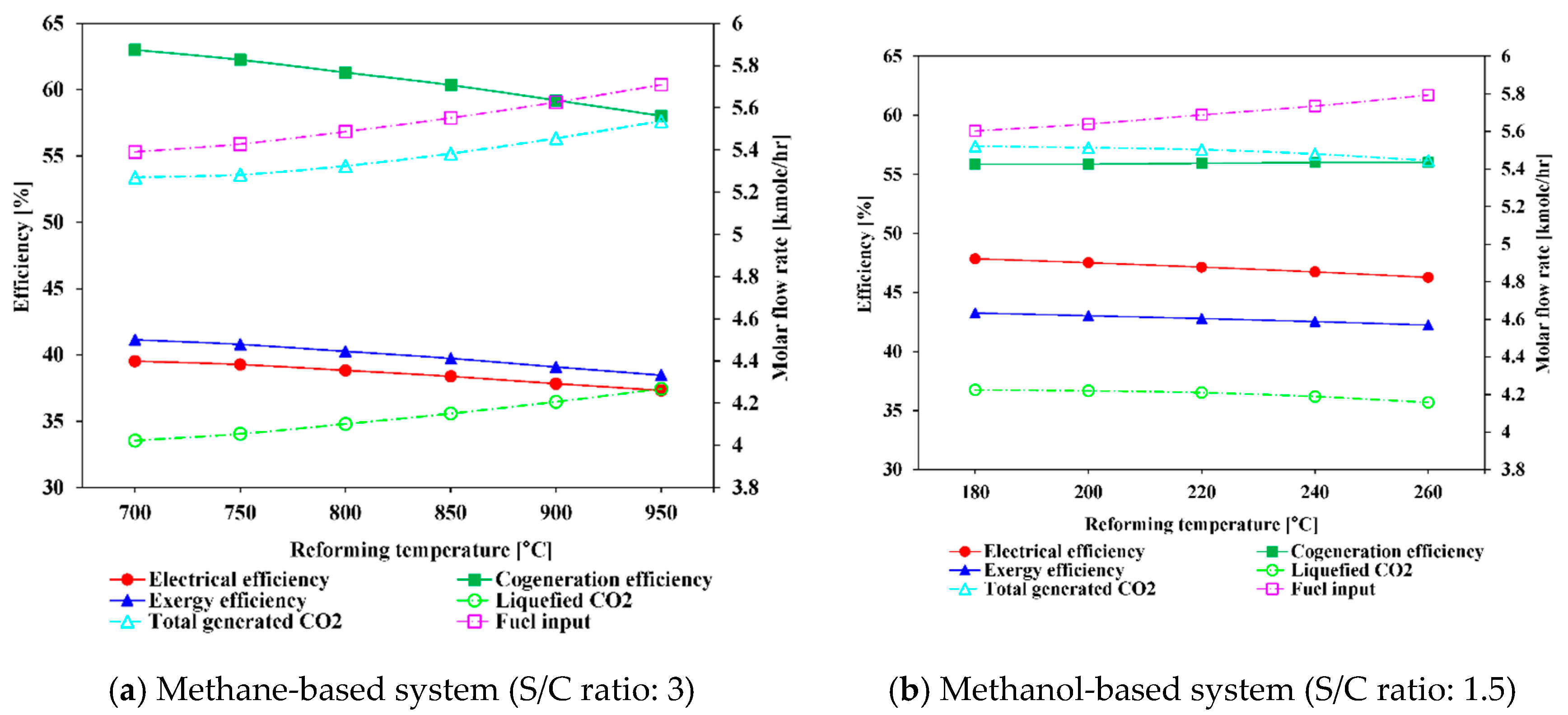

As can be observed in Figure 11a, for the methane-based system, as the reforming temperature increases from 700 to 950 °C, the electrical, cogeneration, and exergy efficiency continuously decrease, from 39.53%, 63%, and 41.14% to 37.92%, 58.03%, and 38.47%, respectively. This trend occurs because as the reforming temperature increases, the amount of additional fuel needed for the reformer and combustor increases by 5.8% and leads to a decrease in efficiencies of the system. It can be noticed that the slope of the efficiency curves between 700 and 750 °C is less steep than that at other temperature ranges. The reason for this is that the amount of hydrogen produced increases when the temperature is increased from 700 to 750 °C; after then, the amount of hydrogen produced starts to decrease, as shown in Figure 10a. In addition, the slope of the cogeneration efficiency curve is a little steeper than that of the electrical and exergy efficiencies as the amount of the produced CO₂ increases; accordingly, the heat required to capture CO₂ in the CCU increases. The methanol-based system shows a similar behavior to that of the methane-based system, as shown in Figure 11b. As the reforming temperature increases from 180 to 260 °C, the electrical and exergy efficiencies decrease from 47.85% and 43.25% to 46.27% and 42.23%, respectively, whereas the cogeneration efficiency stays almost constant. Noteworthy, unlike the methane-based system, as the reforming temperature increases above 200 °C, the amount of produced CO₂ decreases. This happens because an increase in the reforming temperature above 200 °C will favor the CO formation and the increase in CO content will decrease the production of H₂ and CO₂. Therefore, the heat required for CO₂ capture increases and this results in a slight increase in cogeneration efficiency as the reforming temperature increases.

5.1.2. Effect of Varying Steam to Carbon Ratio

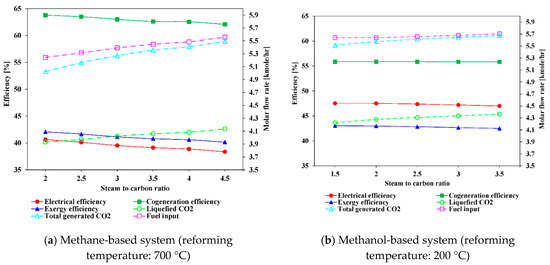

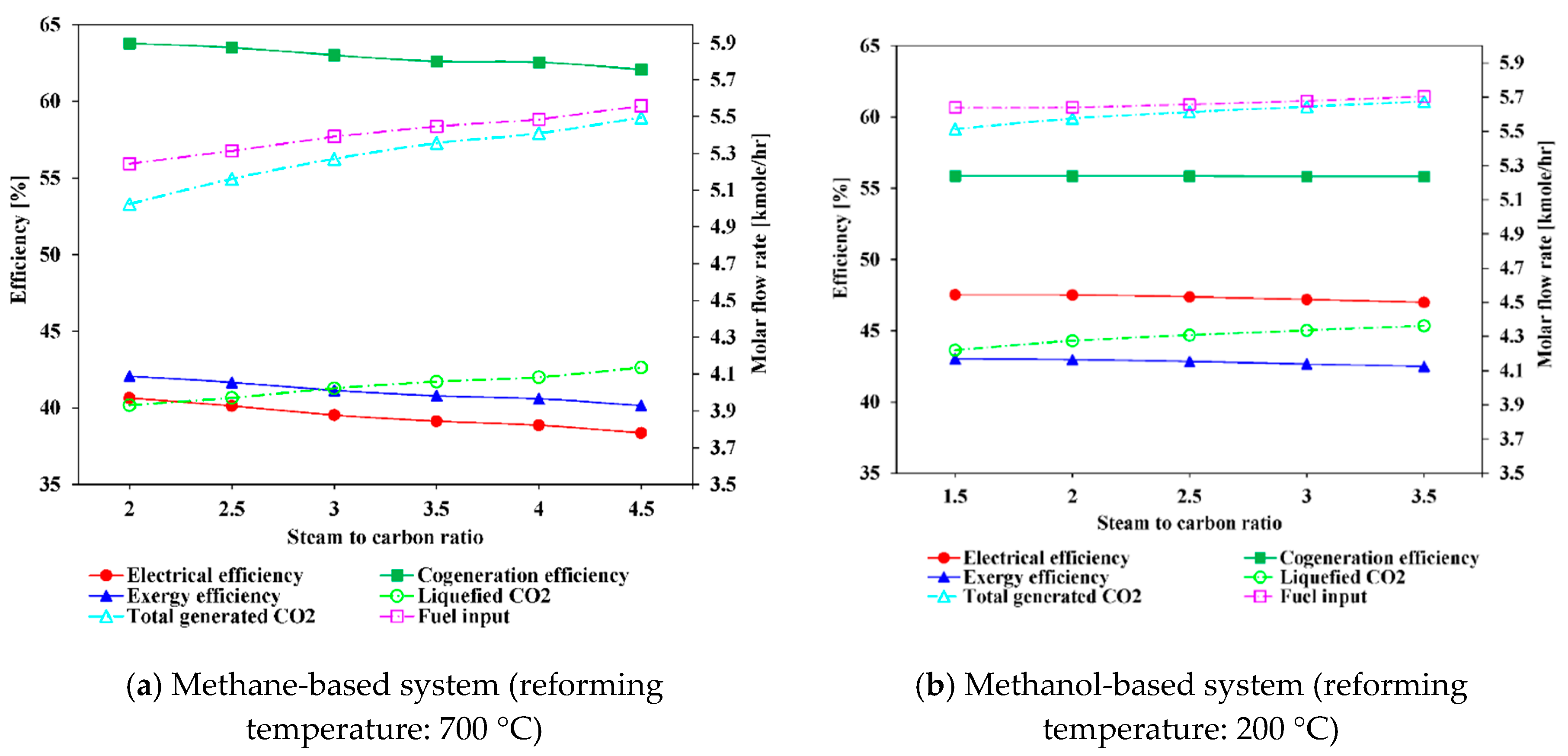

Figure 12 shows the change in the electrical, cogeneration, and exergy efficiencies with varying S/C ratio. For the steam methane-based system, when the S/C ratio is increased from 2 to 4.5, the electrical efficiency, exergy efficiency, and cogeneration efficiency decrease from 46.64%, 63.77%, and 42.06% to 38.36%, 62.07%, and 40.14%, respectively. This tendency occurs because a higher S/C ratio requires a considerable amount of heat to produce steam, resulting in more fuel consumption in the combustor, as can be observed in Figure 13a. The increase in parasitic power consumption for the pump and CO₂ compressor is another reason for the decrease in electrical and exergy efficiencies. Regarding the cogeneration efficiency, the increased heat consumption in the CCU due to increased CO₂ generation is one of the reasons. Noteworthy, when the S/C ratio increases, H₂ contents in the product gas is increased, although this increase rate becomes slower, as depicted in Figure 10a. This effect compensates slightly the required fuel consumption. Nevertheless, the efficiencies decrease with S/C ratio because the increase rate of additional fuel is greater than the increase rate of hydrogen production. For the methanol-based system, the efficiencies profiles are relatively flat with increasing S/C ratio from 1.5 to 3.5, as shown in Figure 12b. This trend is attributable to the lower reforming temperature and combustion temperature in the methanol-based system, which can be confirmed by the slight increase in fuel consumption. This trend can also be due to the trade-off between the increase in hydrogen production and the increase in parasitic power consumption with increasing S/C ratio.

5.1.3. Effect of Varying CO₂ Capture Ratio

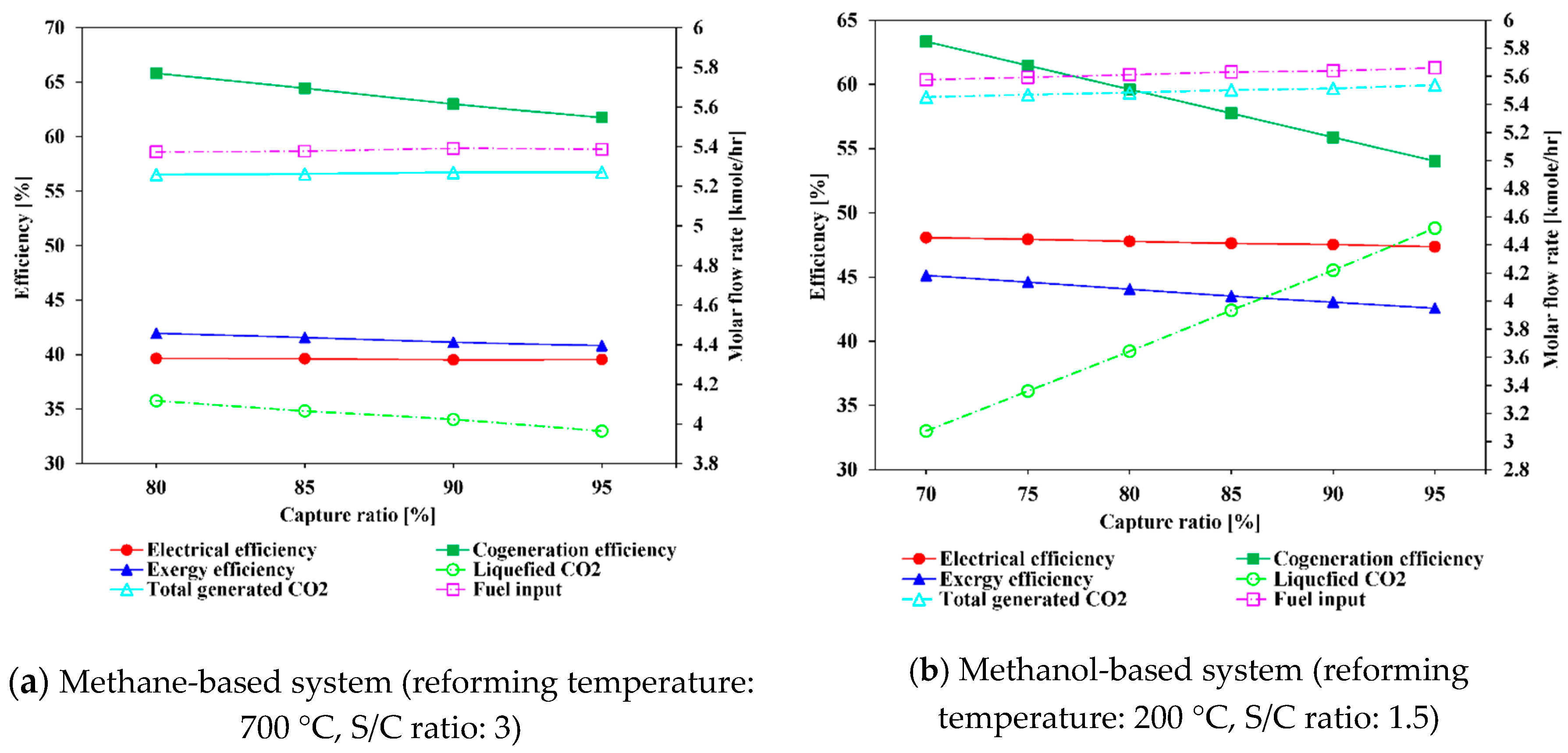

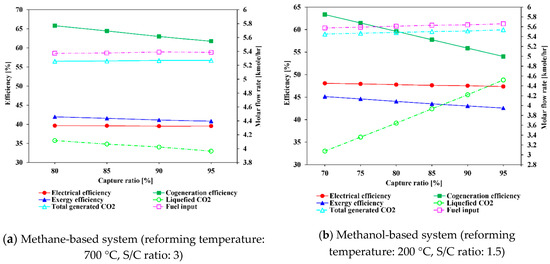

Figure 13 shows the change of the electrical, cogeneration, and exergy efficiencies with carbon capture ratio. For the steam methane-based system, the profile of electrical efficiency is almost flat, whereas the exergy and cogeneration efficiency continuously decrease with increasing capture ratio from 80% to 95%. The exergy efficiency is reduced by 1.1% and the cogeneration efficiency by 4.06%. This trend is attributed to the fact that as the capture ratio decreased, heat consumption in the CCU decreased, leading to exergy and cogeneration efficiency. Note that a CO₂ capture ratio below 80% in the methane-based system causes the formation of dry ice due to the lower temperature of LNG. Although the formation of dry ice can be managed by temperature control, it is not considered in this study. In the case of the methanol-based system, the electrical efficiency, cogeneration efficiency, and exergy efficiency decrease from 48.06%, 63.32%, and 45.12% to 47.35%, 54.03%, and 42.56%, respectively, with increasing carbon capture ratio from 70% to 95%. The higher decrease rate of electrical efficiency in the methanol-based system than that in the methane-based system is mainly attributed to the increase in power consumption of the CO₂ compressor and NH₃ compressors for CO₂ liquefaction. In addition, as the capture ratio increases, the liquefied CO₂ ratio proportionally increases because the total emitted CO₂ is fixed, as presented in Table 3. In methanol-based systems, the amount of available heat is relatively small compared to that in the methane-based systems, and thus, fuel consumption increases faster than in the methane-based systems as capture rates increase.

5.2. Space and Operational Cost

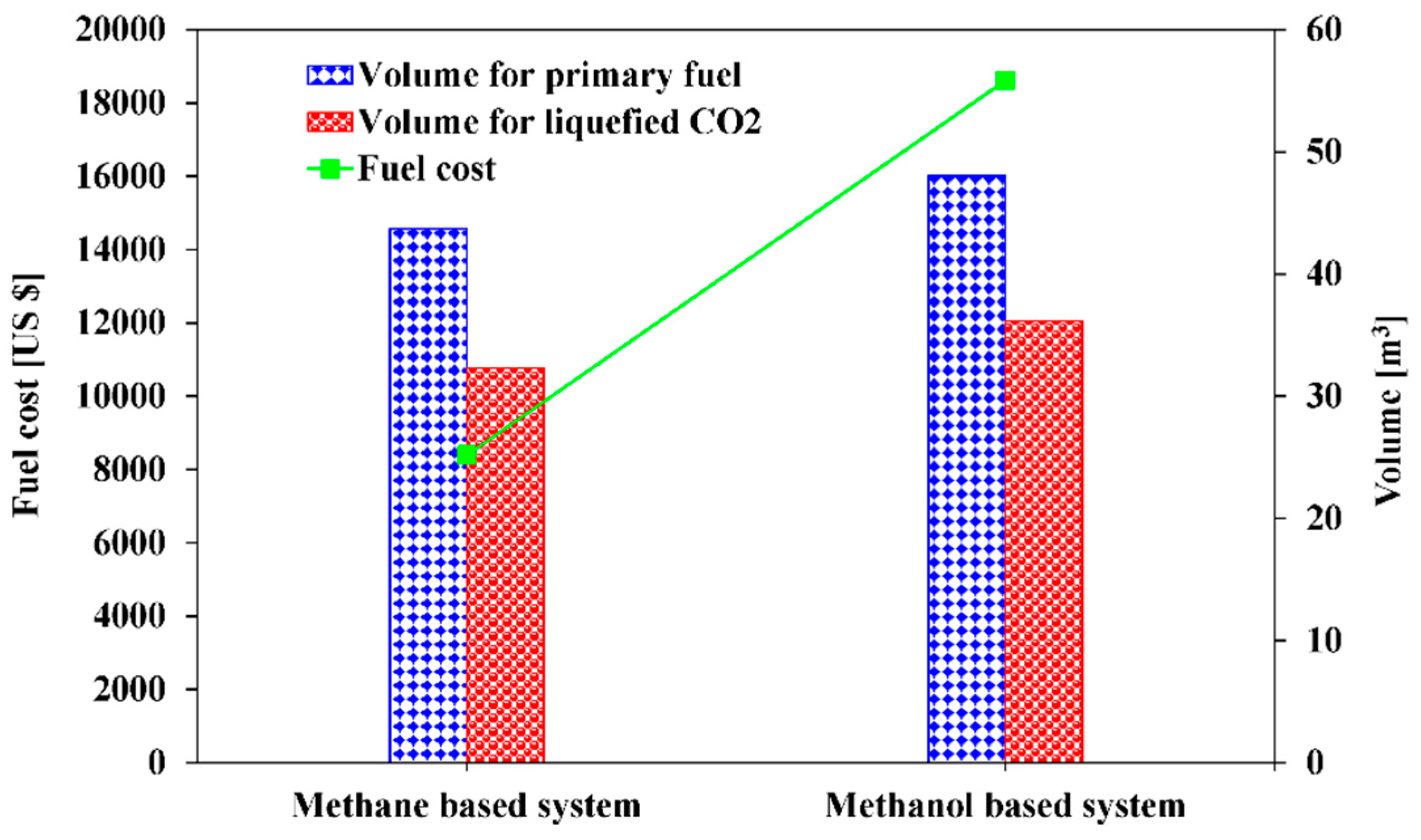

Figure 14 illustrates the volume for storage of the fuel and liquefied CO₂ along with the cost of fuels for the methane-based and methanol-based systems, which are required for 475 kW of net electricity generation during the total navigation time. A specific fuel cost of 9.76 USD/mmBtu for LNG [72] and 26.08 USD/mmBtu [73] for methanol are used, and both are the average cost in 2018 in the references. The result shows that that methane-based system requires 43.69 m³ for LNG storage and 32.30 m³ for the liquefied CO₂ storage, whereas the methanol-based system requires 48.03 m³ for methanol and 36.17 m³ for the liquefied CO₂. Accordingly, the methanol-based system needs approximately 1.1 times the volume (equivalent to 8 m³ more) for fuel and liquefied CO₂ storage. In other words, the methanol-based system consumes a higher amount of methanol as fuel and generate a higher amount of CO₂. Regarding the fuel cost, the methanol-based system has a 2.2 times higher fuel cost than the methane-based system for 475 kW of net electricity generation during the total navigation time. Therefore, the methane-based system is more competitive than the methanol-based system from the economic point of view, when only the fuel cost and volume are taken into account. However, note that the overall investment cost for both systems, which is beyond the scope of the current study, may also be an important factor in the selection of system.

6. Conclusions

In this work, the authors have performed a comparison between the steam methane reforming and steam methanol reforming technologies combined with HT-PEMFC and carbon capture systems for hydrogen-fueled ship applications. To find the most suitable technologies, an energy/exergy analysis, along with a space and fuel cost investigation, have been conducted. All the simulations have been conducted at a fixed W_{net, electrical} (475 kW).

It is shown that, at the base condition, the energy and exergy efficiencies of the methanol-based system are 7.99% and 1.89% higher than those of the methane-based system, respectively. The different efficiencies between systems mainly arises from the reforming temperature difference. For fuel and CO₂ storage, the methanol-based system requires a space 1.1 times larger than that of the methane-based system for the total navigation time, although the methanol-based system has higher electrical efficiency. Accordingly, the methanol-based system has 2.2 times higher fuel cost than the methane-based system for 475 kW of net electricity generation during the total navigation time. In the parametric study, both systems show a similar trend, in which with increasing reforming temperature and S/C ratio, the electrical, exergy, and cogeneration efficiencies gradually decreased.

The comparative analysis reveals that the methanol-based system has many technological advantages directly related to its low reforming temperature, which leads to better integration to the HT-PEMFC. However, the methane-based system showed economic advantages from the perspective of fuel cost and better availability in the maritime sector.

Furthermore, this work shows the feasibility of combining reforming, HT-PEMFC, CO₂ capture, and liquefaction systems for both methanol and methane fuels in heat and power integration point of view. Excessive heat from HT-PEMFC and reformer in both methane-, methanol-based system are enough for CO₂ capture unit, which require a large amount of heat to regenerate the amine solvent. In addition, for the methane based-system, cold energy of LNG, which should be vaporized, can be utilized for CO₂ liquefaction, therefore power consumption for compressors can be reduced. Although separate ammonia refrigerant cycle is required for CO₂ liquefaction for methanol based-system and power consumptions for compressors are slightly high, methanol based-system has still higher efficiency.

Several limitations were identified for consideration in the future study. In the present study, constant current density of 0.2 A cm⁻² was assumed and resulted in a little higher electrical efficiency. More simulations in several current density within the operating window of HT-PEMFC are required in the future study. In addition, future study should use output voltage with real reformate gas for the detailed assessment. Present study compared two systems in the process simulation level, however, future study should include sizing and on-board arrangement of systems for reforming, CO₂ capture, and liquefaction systems since those systems may take large spaces and lead to different results. Furthermore, other fuels such as ethanol and liquefied petroleum gas (LPG) which is getting attention together with methanol and LNG in maritime industry should be assessed in the future study. Although the present study has some limitations, the concepts suggested in this study can give other perspectives on applying hydrogen fuel cell on board and can be a good reference for the further development of hydrogen fuel cell ship.
