Techno-Economic Analysis (TEA) of Different Pretreatment and Product Separation Technologies for Cellulosic Butanol Production from Oil Palm Frond

Abstract

Among the driving factors for the high production cost of cellulosic butanol lies the pretreatment and product separation sections, which often demand high amounts of energy, chemicals, and water. In this study, techno-economic analysis of several pretreatments and product separation technologies were conducted and compared. Among the pretreatment technologies evaluated, low-moisture anhydrous ammonia (LMAA) pretreatment has shown notable potential with a pretreatment cost of $0.16/L butanol. Other pretreatment technologies evaluated were autohydrolysis, soaking in aqueous ammonia (SAA), and soaking in sodium hydroxide solution (NaOH) with pretreatment costs of $1.98/L, $3.77/L, and $0.61/L, respectively. Evaluation of different product separation technologies for acetone-butanol-ethanol (ABE) fermentation process have shown that in situ stripping has the lowest separation cost, which was $0.21/L. Other product separation technologies tested were dual extraction, adsorption, and membrane pervaporation, with the separation costs of $0.38/L, $2.25/L, and $0.45/L, respectively. The evaluations have shown that production of cellulosic butanol using combined LMAA pretreatment and in situ stripping or with dual extraction recorded among the lowest butanol production cost. However, dual extraction model has a total solvent productivity of approximately 6% higher than those of in situ stripping model.

1. Introduction

The potential of large-scale cellulosic butanol production is limited by the low efficiency of the pretreatment process as well as the extensive downstream processing requirement. Studies have revealed both operations as potentially driving the production cost of cellulosic butanol [1,2,3,4]. Pretreatment is essential to reduce the recalcitrant structure of lignocellulosic materials and therefore results in better sugar yield after the enzyme hydrolysis process [5]. Nevertheless, the process often requires harsh processing conditions (high temperature and pressure) as well as a high amount of chemical and water [6], which makes it unfeasible for commercial application.

Similarly, downstream processing in biobutanol production also entails considerable cost because of low productivity of the fermentation process (acetone-butanol-ethanol (ABE) fermentation) due to the toxic and inhibition effect given by the fermentation products to the microorganisms used. The known approach, capable of solving this problem, is to use the inline separation method which reduces the product concentration in the fermentation broth through the external loop (also called slipstream) of cell separation and recycling throughout the fermentation [7,8]. A more efficient approach is the in situ product separation process, which enables the product to be separated and removed from the fermentation system as soon as it is produced, avoiding microorganism inhibition.

Inline and in situ product separation methods have successfully increased ABE production from the concentration of <2 wt.% to 46 wt.% [9]. Several potential product separation approaches employing different principles including membrane-based, gas–liquid equilibrium, and liquid–liquid equilibrium are investigated in this study, which includes integrated fermentation–membrane pervaporation, integrated fermentation–adsorption technology, extractive fermentation, and integrated fermentation–in situ gas stripping [10]. Among the appealing characteristics of these approaches is the low energy requirement associated with the process through the application of mild reaction conditions compared to the conventional separation method (distillation), which is a crucial consideration when designing an industrial-scale separation process.

Various pretreatment and product separation approaches were developed to solve the problem. Researchers have been highlighting the issue of the current technologies and discussing the potential manipulation that could be conducted in terms of design, technical, and process parameters to achieve optimum separation from the selected process. For example, reducing total liquid requirement in a pretreatment process, controlling bubble size in the gas stripping process, searching for novel extractant and design improvement using membrane for solvent extraction process, development of stable adsorbent for adsorption process, and substitution of sweep gas by low vapor pressure for pervaporation process, as well as better preconditioning step prior to each mentioned technology [5,7,8,11,12,13,14] have all been considered.

For commercial application, optimum performance must not be attenuated by adverse economic features. Other than capital cost, operating cost that involves mainly the energy cost is an important cost factor of a process. Previous work has revealed that conducting a separation at a higher temperature would likely increase its rate; however, it will also likely increase the cost of operation and harm the cell for an in situ separation approach [4]. Other expenditures such as purchasing the extractant, adsorbent, solvent, or other required chemical are similarly crucial in choosing a process for a commercial application. It is related to the loss that might be incurred, which will require many years for a production plant to break even. Hence, techno-economic analysis (TEA) of these processes is an essential key factor in determining the best method.

Between steam explosion, dilute sulfuric acid, ammonia fiber explosion (AFEX), and biological pretreatment, Baral & Shah [15] concluded that steam explosion and dilute sulfuric acid pretreatment require the least cost mainly because of the high productivity of the process at low capital and energy requirement. AFEX pretreatment, although recording higher productivity, also required higher energy, therefore has a higher cost. It indicates that other than having a high amount of exposed carbohydrate after the pretreatment, the total energy required for the process was equally important. Also, a high capital process would only be feasible if the yield is high enough to compensate for the cost. This study focused on low-moisture anhydrous ammonia (LMAA) pretreatment, a process with potentially low energy, chemical, and liquid requirement, as well as production of no inhibitory compounds [16,17]. Several other pretreatments including alkali pretreatment were chosen to serve as a comparison for LMAA pretreatment.

Díaz & Tost [18] has compared the extraction-based product separation method for biobutanol production. They found that extractive fermentation had significantly lower production cost than those of separate extraction systems, primarily due to the extensive requirement of high-pressure steam in the external extraction. Nevertheless, to model extractive fermentation is a challenge due to the complexity of the reaction. Therefore, work on the separate extraction approach is continued using various novel solvents in varying set-ups and the application of an on-site steam-generation system which would likely reduce the economic effect of high steam cost. For the adsorption process, Qureshi et al. [19] concluded that silicalite adsorbent possesses significant attraction over activated carbon (AC) adsorbent due to complete desorption of the products. Further study by Abdehagh et al. [20] concluded the contrary, where AC adsorbent was better than silicalite in terms of adsorption rate, adsorption capacity, and selectivity towards butanol. Their subsequent study confirmed that AC F-400 could achieve between 80–90% butanol desorption [21].

Recent studies on pervaporation-based product separation suggested that this process potentially gives a better result by the development of a closed reactor–pervaporation membrane coupled system, which enables continuous in situ fermentation and product separation [22,23,24]. Polydimethylsiloxane (PDMS) membrane is of interest for this purpose primarily due to its stability and low price. Works on separate pervaporations showed that silicalite and silicone membranes, which were more readily available, could give promising yields [25,26]. Another interesting approach in product separation from the fermenter is the in situ stripping process [9,27,28]. Among benefits provided by this method were the indirect agitation effect given by the sparged stripping gas that reduced impeller works, the use of non-toxic separation medium, and relatively simple equipment set-up.

Several available works compared the energy performance of the product separation process [1,4,8,10,13]. However, researchers have agreed that direct comparison among the available literature is hard due to the various operating conditions and system assumptions used [18]. Despite that, studies related to the overall economic impact on specific technologies applied in the biobutanol production plant are still lacking. For instance, it is not necessarily that the process with the lowest energy consumption will have the lowest production cost if the consumables (extractant, adsorbent, and membrane) are expensive. Therefore, in this study, techno-economic analysis of different pretreatment and product separation technologies were conducted for butanol production from oil palm frond (OPF).

2. Materials and Methods

2.1. Software Tools

The butanol production plant simulation and cost modeling analyses were conducted using SuperPro Designer V.9.0 (Intelligen, Inc., Scotch Plains, NJ, USA).

2.2. Techno-Economic Analysis (TEA)

The economic evaluation of butanol production from OPF was conducted based on 95.34 × 10⁶ L butanol/y production plant capacity. Different pretreatment and product separation approaches were simulated. Figure 1 highlights the pretreatment and product separation stages in the modeled cellulosic butanol plant. All models were simulated in a continuous mode of operation with independent cycle time for most of the unit operation. It was assumed that the production plant is located in Pahang, Malaysia, where approximately 732,052 hectares of oil palm plantation area are available [29]. All analysis was done based on a functional unit of 1 L butanol.

2.3. Pretreatment Approaches

The simulation was started at the point the pre-milled OPF arrived at the production facility. The OPF was assumed to have been pre-milled and cleaned by the supplier. The assumption was applied to reduce the extensive milling requirement that must be incurred by the processing plant due to the morphology of OPF. Only rough milling by hammer mill was conducted before the pretreatment process. Different pretreatment approaches were selected based on available literature on the pretreatment of OPF, which includes LMAA pretreatment, autohydrolysis pretreatment, soaking in aqueous ammonia (SAA) pretreatment, and soaking in sodium hydroxide (NaOH) pretreatment. For every pretreatment model simulated, the same enzyme hydrolysis and in situ stripping product separation processes were applied. The untreated OPF was assumed to have 51% cellulose, 17% hemicellulose, and 26% lignin.

2.3.1. Low-Moisture Anhydrous Ammonia (LMAA) Pretreatment

The moisture content of OPF was adjusted to 50% (dry basis) by mixing with water. Ammoniation was conducted by introducing 0.18 g NH₃/g biomass into the reactor for 1 h, after which it was incubated at 75 °C for 24 h. All selected process parameters were from previous works and have been validated in the laboratory [30,31,32]. Continuous stirred tank reactors (CSTR) were used to simulate the ammoniation process, while the incubation process was simulated using heated storage tanks. A 90% recycle NH₃ was achieved through a compressor unit installed at each of the ammoniation and incubation tanks [16]. The pretreatment recorded a 17.6% increase in cellulose, a 27.4% reduction in hemicellulose, and a 58.9% reduction in lignin contents.

2.3.2. Autohydrolysis Pretreatment

Autohydrolysis pretreatment was conducted according to [33]. OPF with water added at a ratio of 1:10 was heated at 121 °C and 15 psi for 1 h. CSTR was used to simulate the autohydrolysis pretreatment process, after which the OPF slurry was cooled and fed to the rotary filtration unit to reduce the water content. The process was reported to recover 75% of insoluble solids, with the total cellulose, hemicellulose, and lignin contents reduced by 1.3%, 61.9%, and 12.3%, respectively, from those of the untreated sample.

2.3.3. Soaking in Aqueous Ammonia (SAA) Pretreatment

SAA pretreatment was conducted according to [34]. In a reaction tank, 7% aqueous NH₃ and OPF at 1:12 (S/L ratio) were added and left to react at 80 °C for 20 h. CSTR was used to simulate the SAA pretreatment process, after which the OPF slurry was cooled and fed to the rotary filtration unit with a water washing stream for detoxification. The process was reported to recover 81.7% of insoluble solids, with the total cellulose, hemicellulose, and lignin contents reduced by 9.4%, 31.4%, and 24.6%, respectively, from those of the untreated sample.

2.3.4. Soaking in Sodium Hydroxide (NaOH) Pretreatment

NaOH pretreatment was conducted according to [35]. OPF was soaked in 4.42% sodium hydroxide (NaOH) solution at 100 °C for ~1 h. CSTR was used to simulate the NaOH pretreatment process, after which the OPF slurry was cooled and fed to the rotary filtration unit with a water washing stream for detoxification. The treated OPF was reported as having an increase of 46.7% and 22.7% in cellulose and hemicellulose, respectively, as well as 30.8% decrease in lignin content.

2.4. Enzyme Hydrolysis and ABE Fermentation

The treated OPF was hydrolyzed using cellulase enzyme according to [36]. The substrate concentration in the hydrolysis process was 15% (wt. OPF/v. water). Validation in the laboratory has shown that glucose yield after the hydrolysis process was about 0.33 g/g treated OPF [32]. The hydrolysate mixture was separated from the fiber residue to ease the subsequent in situ product separation process. Full separation of sugars was obtained by cake washing with 3.0 v/v (water/cake) during the filtration process. The fiber-free solution was brought to the closed fermenter, where the required nutrients and microorganisms were supplied. Growth nutrients include yeast extract, potassium salts, and diammonium phosphate [37,38]. No added water was supplied to the fermenter because the cake-washing process has provided enough water for the reaction. The glucose concentration in the fermenter was 60 g/L. The ABE fermentation was conducted using Clostridium beijerinckii at 35 °C for 72 h [37,39]. Product yields were estimated according to the stoichiometric reactions Equations (1)–(5) [38]. Xylose conversion into products was not considered in the simulation due to lack of data. Three hydrolysis reactors (CSTR) and four fermenters were used in sequence to ensure continuous processing.

Acetone C₆H₁₂O₆ + H₂O → CH₃COCH₃ + 3CO₂ + 4H₂,

(1)

Butanol C₆H₁₂O₆ → C₄H₉OH + 2CO₂ + H₂O,

(2)

Ethanol C₆H₁₂O₆ → 2C₂H₅OH + 2CO₂,

(3)

Acetic acid C₆H₁₂O₆ + 2H₂O → 2CH₃COOH + 2CO₂ + 4H₂,

(4)

Butyric acid C₆H₁₂O₆ → C₃H₇COOH + 2CO₂ + 2H_2.

(5)

2.5. Product Separation Approaches and Downstream Processing

The fermented mixture was processed using several in situ and inline product separation technologies, namely in situ stripping, dual extraction, membrane pervaporation, and adsorption. In each simulation comparing different product separation technologies, LMAA was used in the pretreatment section. Except for in situ stripping process, the fermentation broth from fermenter underwent filtration before the product separation process to allow recycling of the cells. The density of butanol, acetone, and ethanol was 810 kg/m³, 783 kg/m³, and 789 kg/m³, respectively [40]. The downstream processing part in the simulation was according to [41] with modification depending on the stream compositions.

2.5.1. In Situ Stripping

In situ stripping was conducted according to [9,42]. This process involves the use of fermentation gases (CO₂ and H₂) to separate products from the fermentation broth. Fermentation gases were compressed and heated to 35 °C before purged into the bottom of the fermenter. As these gases move upwards, the fermenter will be stripping out the solvent products from the fermentation broth. A vacuum pump was used to facilitate gas exit from the upper part of the fermenter. The solvents were then condensed while the gases were recycled back to the fermenter.

According to [42], in situ stripping was capable of removing ~81% acetone, ~88% butanol, and ~80% ethanol from the modeled ABE solutions. With an in situ stripping process, no product inhibition was assumed to occur, thus allowing maximum reactions where all acetic acid and butyric acid were converted to solvents [9]. The stripping cycle runs continuously throughout the fermentation, and the stripping gases were released to the environment once the fermentation was completed. The retired fermentation broth containing unstripped products underwent beer distillation following work by [14], for separation of the remaining products. The mixture of products was then processed in a series of distillation columns to separate and purify acetone, ethanol, and butanol. A decanter unit was used before the butanol distillation column to separate most of the water. The light phase from the decanter unit underwent butanol distillation column, while the heavy phase which mostly water was recycled throughout the processing.

2.5.2. Dual Extraction

This process was selected due to its simplicity and straightforward simulation approach. Although [18] reported the high cost of high-pressure steam associated with this process, employment of the combined heat and power (CHP) system in this study would considerably reduce the cost. The simulation was conducted according to [3]. The fermentation broth was entering extraction-1 where most of the acetone, butanol, and ethanol will be separated. The organic stream proceeds to the regeneration column to recover the extractant-1. The aqueous phase from extraction-1 proceeded to extraction-2, where the remaining extractant-1 was removed before recycling the broth back to the fermenter. Both extraction processes were conducted at 37 °C and 1 bar.

Extractants used were 2-methyl-1-hexanol (non-biocompatible) and cyclopentane (biocompatible) for extraction-1 and extraction-2, respectively. The distribution coefficients for water, acetone, butanol, ethanol, acetic acid, butyric acid, and 2-methyl-1-hexanol in extractant-1 were 0.06, 2.45, 12.6, 3.89, 0.94, 10.2, and 150, respectively. The distribution coefficients for water, acetone, butanol, ethanol, acetic acid, butyric acid, 2-methyl-1-hexanol, and cyclopentane in extractant-2 were 0.0002, 0.37, 1.47, 1.00, 0.15, 0.79, 664, and 8313, respectively. The mixture of products from the regeneration column underwent distillation where lowest boiling-point components (acetone and ethanol) were separated from the butanol–water mixture. The acetone–ethanol mixture then underwent distillation to purify both the acetone and ethanol. Because of high water content in the water–butanol mixture, a decanter was used to generate phase 2 in which the lighter phase (butanol) proceeded to distillation for purification.

2.5.3. Adsorption

ABE fermentation product separation using adsorption technology was based on work from [21,43]. AC F-400 was used as the adsorbent. Fermentation broth from the fermenter underwent filtration to allow recycling of the cell. The cell-free mixture was loaded into the adsorption column which is selective towards butanol and acetone. An optimistic condition was assumed (99% recovery). Hot air (150 °C) was purged into the adsorption column to desorb the acetone and butanol, and regenerate the adsorbent. The stripped air containing acetone and butanol was condensed before going through a series of distillations. Column equilibration was conducted using water at room temperature before the next cycle of the adsorption process. The butanol- and acetone-depleted solution from the adsorption column proceeded to the ethanol distillation.

2.5.4. Membrane Pervaporation

The external pervaporation (PV) process was simulated following work from [26]. A silicone membrane was used with the assumed shelf-life of 100 cycles. The product-containing fermentation broth was heated to 80 °C before being fed to the PV unit. The silicone membrane was reported to be able to separate acetone, butanol, ethanol, butyric acid, and acetic acid from the fermentation broth with varied selectivities [26]. In this simulation, an optimistic condition was assumed on the PV membrane, where it could achieve ~99% separation efficiency for all products. Compressed air was introduced to remove diffused products from the membrane surface. The product-free broth was then recycled to the fermenter. The mixture of products was processed in a series of distillation columns to separate and purify acetone, ethanol, and butanol.

2.6. Power, Heating, and Cooling Requirement

The remaining lignin and other solid residues (undigested cellulose and hemicellulose) separated from the fermentable sugar after enzyme hydrolysis were used as a fuel for the CHP generation system. It was dried to approximately 10% moisture content before fed to the CHP system. The CHP system was also supplemented with natural gas because burning only waste fibers did not generate enough steam for the entire production plant. The actual Rankine Cycle consisting of a boiler unit, and a multistage steam turbine was used and simulated using SuperPro built-in expansion models. The generator was assumed to be 90% efficient.

The compositions of the waste fibers were lignin (~18%), undigested cellulose (~58%), hemicellulose (~11%), and the rest were moisture and ash. The elemental compositions for lignin, cellulose, hemicellulose, and natural gas used in the simulation were summarized in

Table 1. Elemental compositions of fuels used for the boiler.

Elements	Lignin (%) [44]	Cellulose (%) [45]	Hemicellulose (%) [45]	Natural Gas (%) [46]
Carbon	58.45	44.40	45.50	75.85
Hydrogen	6.80	6.20	6.10	24.15
Nitrogen	1.12	-	-	-
Oxygen	33.63	49.40	48.40	-

. Air and water at a pressure of 1 bar and 11 bar, respectively, and atmospheric temperature entered the boiler at a rate calculated by the software. The generated high-pressure and high-temperature steam (45 bar, 257.44 °C) was expanded in a multistage steam turbine to produce electricity as well as steam with specific pressures. The cooling and chilled water requirement for the process were fulfilled by the on-site cooling tower and electric cooling, respectively.

2.7. Sensitivity Analysis

The sensitivity of selected processes at ±20% parameter values were conducted to address any possibility for uncertainty. Among parameters included were costs of pretreatment agents, membrane cost (pervaporation), extractant cost (dual extraction), the presence of xylose, hydrolysis yield, pretreatment yield, and land cost. For the presence of xylose, 20% xylose content was assumed to be obtained from the conversion of hemicellulose that was recovered after each pretreatment process. Only those simulations with promising butanol production cost (less than $2.50/L) were subjected to this study. Sensitivity analysis was also conducted on the profit of the simulated plant. The biobutanol selling price of $1.73/kg was applied [47].

2.8. Assumptions and Limitations of the Study

The techno-economic analysis was conducted with the assumption that the plant was built in Malaysia (location factor, LF = 1.14) [48]. Capital expenditures (CapEx), operating expenditures (OpEx), and production costs per unit of butanol were calculated based on assumptions in

Table 2. Key assumptions used for the techno-economic analysis, adapted from [49,50].

Capital Cost
Installation	39% × Ep
Instrument and Control	26% × Ep
Piping	10% × Ep
Electrical System	31% × Ep
Building	29% × Ep
Yard Improvement	12% × Ep
Service	55% × Ep
Total Installed Equipment Cost (TIEC)
Engineering	32% × Ep
Construction	34% × Ep
Legal and Contractor Fees	23% × Ep
Total Indirect Cost (TIC)
Contingency	10% × (TIEC + TIC)
Fixed Capital Investment (FCI)	(TIEC + TIC + contingency) × LF
Working Capital (WC)	15% × FCI
Land	6% × Ep
Total Project Investment (TPI)	FCI + WC + Land
Operating Cost
Maintenance and Repairs	1% × TPI
Materials	Unit cost of each materials × Total unit used
Labor Cost	Wage rate × No. of operator × Working hours
Utilities	Electricity cost + Heat cost + Cooling cost
Total Direct Operating Cost
Overhead	50% × (labor + maintenance and repairs)
Taxes	2% × TPI
Insurance	0.46% × TPI
Depreciation (D)	Straight line
Total Indirect Operating Cost
Salvage	15%
Capital Charges (CC)	TPI × i(1 + i)n/((1 + i)n − 1)
Annual Operating Cost	Total direct and indirect operating cost + CC + D
By-Product Credit	Amount by-product generated × Unit selling price
Net Annual Operating Cost	Annual operating cost—By-product credit
Unit Production Cost	Net annual operating cost/annual product

Ep = equipment purchased cost; LF = location factor; Total direct operating cost = all variable operating cost; Total indirect operating cost = all fixed operating cost; i = annual interest rate of the loan; n = loan payment period.

. Based on the level of detail of the modeled plant, small equipment that were not considered explicitly were assumed to be 10% and 20% from the equipment purchased cost for upstream and downstream processing stages, respectively [49]. Professional and management labor costs were not included in the assessment.

No heat loss, leakage, or any accidents were assumed to happen throughout the processing year. Transportation cost was not included in the assessment. The C. beijerinckii was cultivated and maintained in the plant facility, thus purchase cost was not included. Nutrient costs were assumed at $200/t each. Water was recycled throughout the production. Wastewater treatment cost, which might also include the neutralization process, was assumed to be $0.53/m³ [49]. By-product credit of $1.04/L ethanol price and $1.28/kg acetone price, and butanol price of $1.73/kg were applied [47].

Table 3. Other assumptions used for the techno-economic analysis.

Assumptions
Annual Working Hours	7920
OPF Price	$0.032/kg [51]
Cellulase Price	$5/kg [38]
Ammonia Solution Price	$300/t [38]
Anhydrous Ammonia Price	$512/t [52]
Sodium Hydroxide Price	$450/t [53]
2-Methyl-1-Hexanol Price	~$1900/t [3] *
Cyclopentane Price	~$1150/t [3] *
Activated Carbon Price	$2000/t [54]
Silicone Membrane Price	$250/m2
Electricity Price (to grid)	$0.08/kWh [55]
Water Price	$0.21/m3 [56]
Natural Gas Price	$0.004/ft3
Annual Interest Rate	0.08% [57]
Operator Wage Rate	$2.26/h [58]
Interest Year	20 y
Equipment Lifetime	20 y

* Currency exchange—1 GBP = 1.27 USD (January 2018).

summarizes other assumptions used in the study. Costs for OPF and utilities were with reference to the prices in Malaysia, considering an exchange rate of $1.00 = MYR 4.10 (January 2018).

3. Results and Discussions

The overall process flow diagram applied in this study is shown in Figure 1. Different pretreatment and product separation models used in this study are shown in Figure 2 and Figure 3, respectively. Simulations of different pretreatments were conducted using the same product separation approach, which was in situ stripping. Meanwhile, simulations of different product separation technologies applied the same pretreatment method, which was LMAA pretreatment.

3.1. Comparison of Different Pretreatment Technologies

3.1.1. Production Costs of Butanol

The previous simulation on ABE fermentation of LMAA-treated OPF [59] showed that 1.09 × 10⁶ t of OPF was required annually to produce 95.34 × 10⁶ L butanol. When the same amount of OPF was subjected to different pretreatment technologies, different yields of butanol were recorded in each model simulation (see Figure 4). NaOH pretreatment model was the most efficient in giving high fermentation products, followed by LMAA, autohydrolysis, and SAA pretreatment models. For further analysis, plant scale of 95.34 × 10⁶ L butanol/y was applied. To produce the desired butanol output, 1.29 × 10⁶ t, 1.40 × 10⁶ t, and 0.85 × 10⁶ t of OPF were required annually by autohydrolysis, SAA, and NaOH pretreatment model, respectively. These values are equivalent to 10.52 kg/L butanol, 14.71 kg/L butanol, 17.45 kg/L butanol, and 6.72 kg/L butanol, or, 6.93 kg/L ABE, 9.68 kg/L ABE, 11.49 kg/L ABE, and 4.43 kg/L ABE of feedstocks required for LMAA, autohydrolysis, SAA, and NaOH pretreatment models, respectively.

Figure 5 shows the butanol production costs from the different pretreatment approaches simulated. Butanol production from SAA-treated OPF has the highest production cost ($5.28/L), while those produced from LMAA-treated OPF has the lowest production cost ($1.58/L) compared to the other pretreatments evaluated. The CapEx of all models simulated were almost similar. In contrast, there was considerable variation in OpEx between each model. Because the difference in each simulation was only in the pretreatment part, it could initially be deduced that different trends in OpEx were primarily caused by the specific pretreatment technologies applied.

The OpEx components for each pretreatment technologies in Figure 6, as well as results in Figure 7, justified the statement. For all models, other than the capital charges, utility costs, material costs, maintenance and repairs costs, and tax were among the largest cost contributors. Capital charges are the annual payments of loans (usually secured for CapEx) [50]. Therefore, it can be seen that the trends for capital charges were similar to those of CapEx. Utility costs involve the expense of purchasing natural gas and water for the CHP system as well as water for the cooling tower. Utility costs were observed to be directly related to the energy requirements of the process (see Figure 7). Autohydrolysis pretreatment model required more energy than the other models, which led to its high utility costs that were at least five times higher than those of other pretreatment models.

Material costs (see Figure 6) involved the expense of feedstocks, pretreatment agents, growth nutrients, water used in the process, and other chemicals. Autohydrolysis pretreatment model recorded the lowest material costs primarily due to the use of only water as the pretreatment agent. Variation of material costs in other pretreatment models was due to different prices of each pretreatment agent and the ability to recycle it during the process.

LMAA pretreatment model required a low total amount of water, which was 3.9 × 10⁶ m³/y in comparison to 8.2 × 10⁶ m³/y, 10.8 × 10⁶ m³/y, and 7.4 × 10⁶ m³/y of water for autohydrolysis, SAA, and NaOH pretreatment, respectively. Nevertheless, this had not led to the lowest material costs in the LMAA pretreatment model, which could indicate that the cost contribution from purchasing water is not critical in assessing the butanol production cost. Other materials, such as pretreatment agents, have a more considerable contribution to the butanol production cost. For instance, in autohydrolysis pretreatment, more water was required than those in LMAA pretreatment. However, it has lower material costs due to no chemical pretreatment agent used.

Labor, wastewater treatment, overhead, and insurance costs were less important and almost similar for all pretreatment technologies simulated. LMAA pretreatment model recorded the lowest butanol production cost, followed by those of NaOH pretreatment model ($1.79/L). With a substantial reduction in the price of pretreatment agent and conducted at a lower temperature, NaOH pretreatment potentially gives better butanol production costs.

By contrast, SAA pretreatment simulated in this study used a high solid-to-liquid (S/L) ratio, which led to the high material cost (see Figure 6), and eventually high butanol production cost. The butanol production cost recorded by LMAA pretreatment model, although the lowest compared to those of other simulated models, was higher than ethanol production cost from LMAA-treated corn stover reported by [60], which was ~1.30/L. It is known that butanol fermentation has lower productivity than ethanol fermentation. Therefore, a more significant reduction in butanol production cost might be achieved through better fermentation yield rather than pretreatment yield.

3.1.2. Energy Requirements

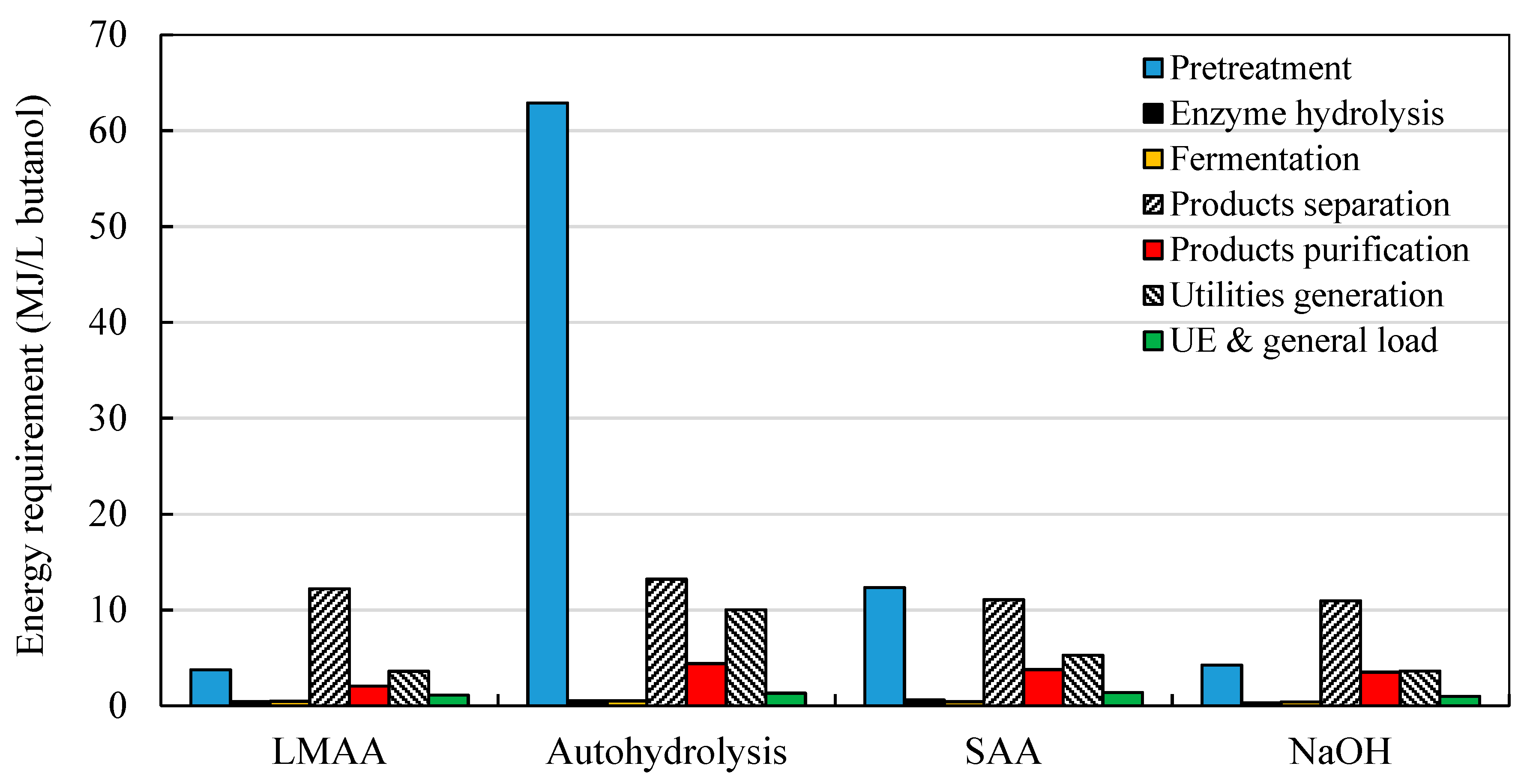

Figure 7 shows the total energies required (electricity and steam) by each processing stage. In agreement with the earlier statement, a considerable variation of energy usage was coming from the pretreatment stage with autohydrolysis pretreatment model recording the highest energy consumption. In addition to that, all other processing stages in the autohydrolysis model also consumed the highest energy per liter of butanol (although not far different) compared to the same processing stages in other pretreatment models. Autohydrolysis pretreatment has among the lowest efficiency (in recovering more cellulose during the pretreatment process), as well as conducted at high temperature and water loading than the other pretreatments, which eventually affected the subsequent processing stages in the production plant. Product separation and purification stages were the most affected with total energy consumption between 2.8–3.3 MJ/L higher than downstream processing stages in other simulation models.

Pretreatment stage in the LMAA pretreatment model consumed the lowest energy; however, this was not the case for most of the rest of the processing stages. In general, except for the pretreatment stage, all other processing stages of each model had a similar trend of energy consumption with mostly small variations between each. Most of these variations were due to the slightly different stream compositions throughout the processing and different final product yields. For instance, a higher content of water in the purification unit demanded more energy for distillation, and higher fiber content in the hydrolysis reactor demanded higher power for agitation. LMAA pretreatment consumed in total the lowest energy per unit butanol produced followed by NaOH, SAA, and autohydrolysis pretreatments, with the amount of 23.75 MJ/L, 24.13 MJ/L, 34.97 MJ/L, and 92.93 MJ/L, respectively.

Figure 8 illustrates the utility cost fractions for each pretreatment technology with an on-site energy generation system fueled by fiber residues only (a) and a combination of fiber residues and natural gas (b). The use of natural gas in addition to the fiber residues as fuels for the CHP generation system in all models has demanded slightly higher capital cost (not shown) as well as costs for purchasing natural gas and water, compared to the expense required for outsourcing the steam.

However, the CHP system also generated an excessive amount of electricity, which is sold to the grid for an additional income. By burning only waste fibers in the CHP system, only 44%, 18%, 46%, and 53% of steam needs could be fulfilled in LMAA, autohydrolysis, SAA, and NaOH pretreatment models, respectively. In general, for each technology, high requirement of heating was followed by high demand for cooling (i.e., those with the highest heating works will require the highest amount of cooling water). Reduction of the extent of heating and cooling could be achieved through better heat integration, which allows better heat recovery to be used in process streams requiring less critical heat. Optimization of this aspect was not conducted in this study.

As mentioned before, fiber residues and natural gas were used as fuels in the CHP system. For the autohydrolysis model, which required a considerably larger amount of heat, more natural gas was needed as compared to other simulated models. Approximately 68.89 × 10⁹ ft³ natural gas was needed annually by the autohydrolysis pretreatment model. In comparison, LMAA, SAA, and NaOH pretreatment model required an annual natural gas amount of around 9.15 × 10⁹ ft³, 14.37 × 10⁹ ft³, and 9.11 × 10⁹ ft³, respectively. Approximately only 0.1% of cooling water increased was recorded for all models when the CHP generation system was the sole energy source. This value reflects the amount of cooling required by the condenser in the CHP system, which needed to allow for water recycling.

3.2. Comparison of Different Product Recovery Technologies

3.2.1. Production Costs of Butanol

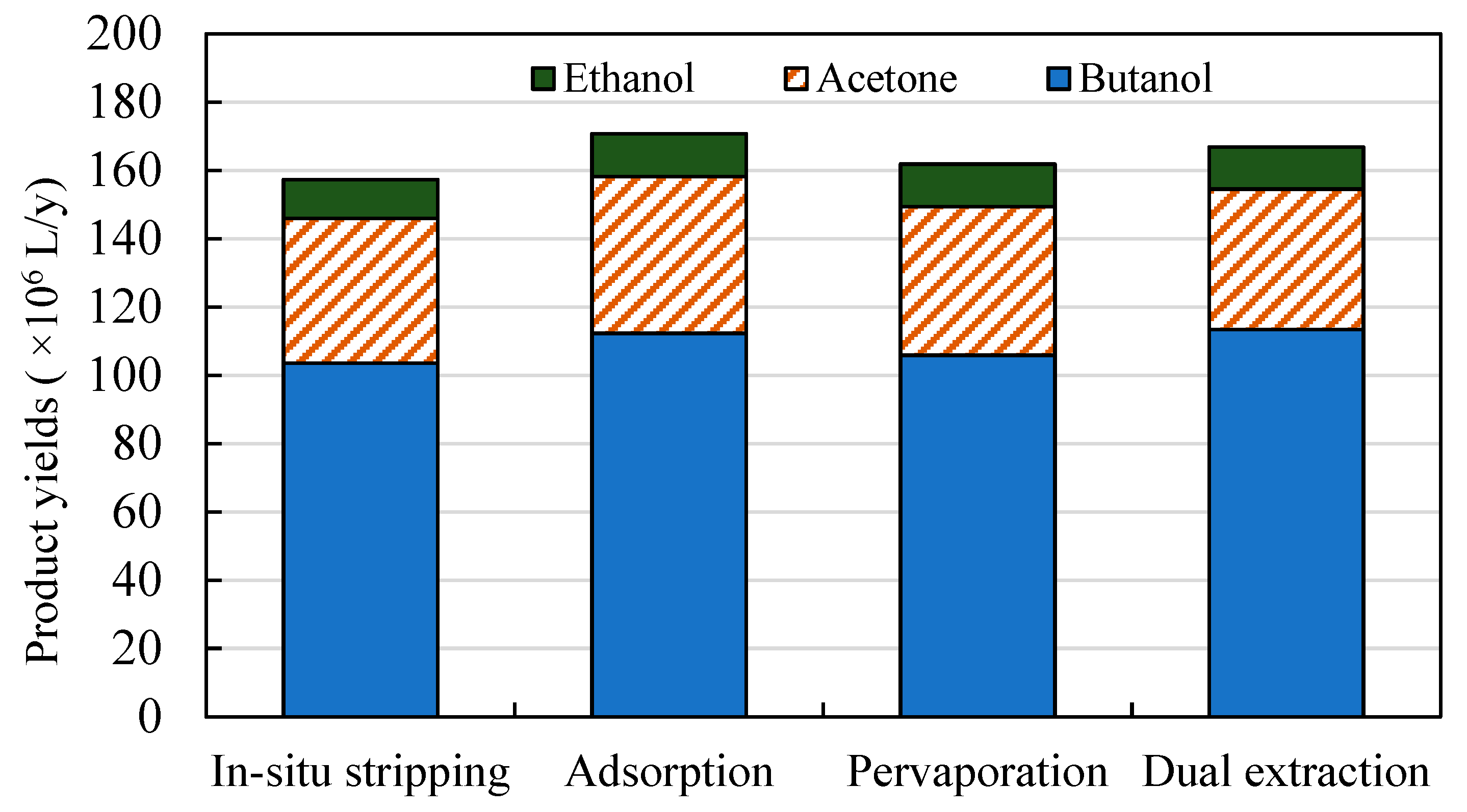

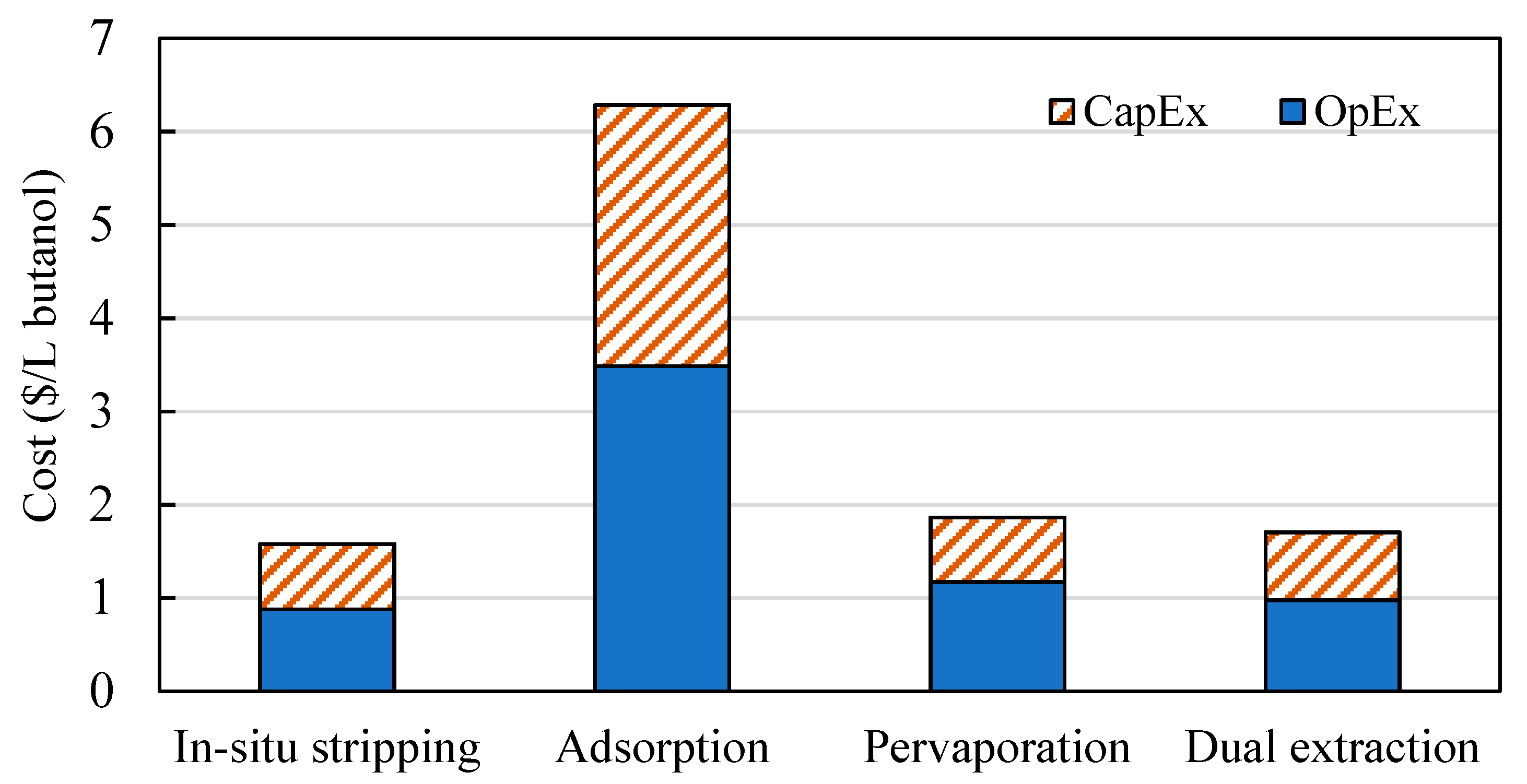

In the study of comparison of different product separation technologies for the butanol production plant, 1.09 × 10⁶ t of OPF was used annually in all models. The adsorption model recorded the highest total product yields, followed by dual extraction, pervaporation, and in situ stripping models (see Figure 9). Nevertheless, focusing only on butanol yield, dual extraction process gave the highest yield followed by adsorption, pervaporation, and in situ stripping process. Despite that, the lowest butanol production cost (see Figure 10) was given by in situ stripping ($1.58/L), while pervaporation and dual extraction model gave a slightly higher butanol production cost of $1.86/L and $1.70/L respectively. The butanol production cost recorded by adsorption model was the highest ($6.29/L), due to a high amount of both CapEx and OpEx.

In the simulation, maximum product separation (~99%) was assumed for the adsorption and pervaporation model. Nevertheless, the changes in butanol production cost if the recoveries are 80% and 90% were also calculated (see Figure 11). When the recoveries percentages were reduced to 80% and 90%, adsorption model was observed to give higher butanol production cost increase than that for pervaporation model.

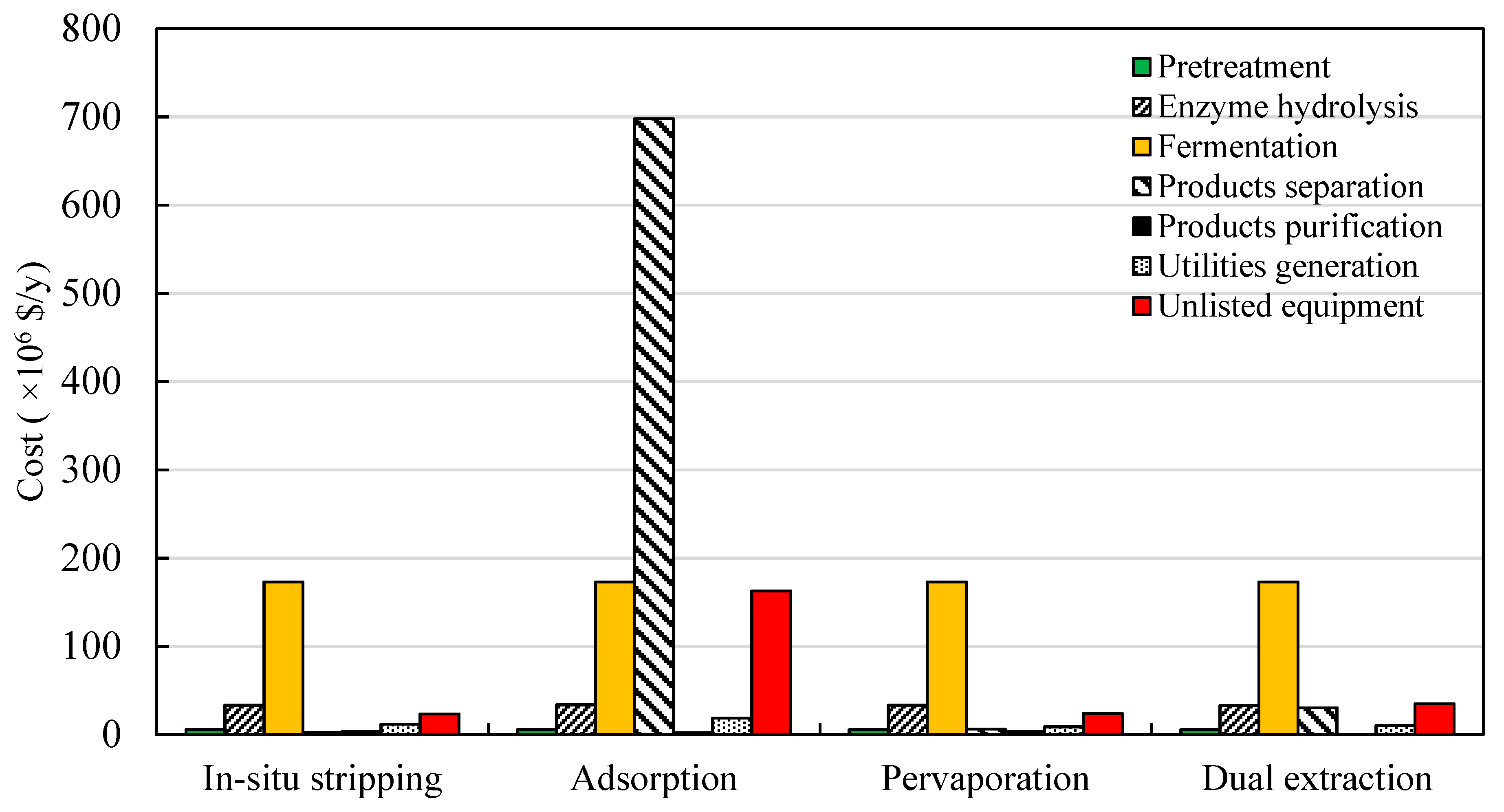

A considerably large fraction of CapEx was contributed by the product separation stage in adsorption model, which was not the case in the other models (see Figure 12). The CapEx for all other technologies was not far different between each, with the value in the range of ~$0.69–0.73/L. A similar trend was observed for the OpEx, where in situ stripping, dual extraction, and pervaporation model recorded a cost in the range of $0.88–1.17/L, while those of adsorption model was substantially higher ($3.49/L).

The OpEx cost components in Figure 13 presents the variation in cost spent by each processing stage. Each cost component in the adsorption model was higher than those recorded in the other models. The material and consumable costs in this model were not far different than those of the pervaporation model; however, because of the substantially high CapEx contribution in adsorption model (see Figure 12), the maintenance and repair costs, overhead cost, taxes, and insurance incurred in this model as compared to the other models was also considerably increased.

Reduction in butanol production cost in pervaporation model could be achieved mainly through a lower pervaporation membrane cost. By contrast, to reduce the butanol production cost in the adsorption model, several strategies must be applied primarily by getting a lower price for adsorption set-up and having lower adsorbent cost at the same or better separation efficiencies. For dual extraction model, the use of two different solvents at the simulated extraction conditions led to butanol production cost that was higher than those of in situ stripping model.

3.2.2. Energy Requirements

Figure 14 illustrates the energy consumption distribution in each simulated model of different product separation technologies. Note that the energy requirements were assessed from the simulation data. The reduction of energy requirement by subtracting the energy content of the products (net energy value) was not conducted. The most critical processing stages were product separation and purification (downstream processing) with a notable variation of energy required between each model. The highest energy consumption was recorded by the adsorption model (see Figure 13). It was primarily contributed by the product purification section (20.42 MJ/L), while its product separation stage used 0.37 MJ/L. The same trend was recorded by pervaporation model with the energy requirement of the product purification stage (9.36 MJ/L) was multiple degrees higher than those of product separation stage (1.71 MJ/L).

The in situ stripping and dual extraction model recorded contrary results with product separation stage requiring the highest energy. Oudshoorn et al. [13] had calculated the energy requirement of butanol separation at various conditions. They assessed gas stripping, pervaporation, extraction, and adsorption technologies and obtained an energy requirement (at ideal conditions) that was similar to those recorded in this work.

In the in situ stripping process, the vacuum pump that facilitated the exit of purged CO₂, as well as the purging mechanism itself, consumed a substantial amount of electricity. Other than that, beer distillation that was installed to recover the unstripped products in the retired fermentation broth used substantial amounts of energy due to the high volume of the fermentation broth. In addition to that, beer distillation only managed to moderately reduce the water content, resulting in moderately high energy requirement in the subsequent acetone, ethanol, and butanol distillation processes.

In the dual extraction process, the regeneration column, a series of the flash columns, as well as cooling and heating processes, have led to the high energy requirement of this process. The further product purification stage, however, required low energy because most of the water and extractants have been separated in the product separation stage.

In the adsorption process, the column heating required lower energy than those needed by the series of distillation in the product purification stage. In addition to that, the hydrophobic adsorbent only has selectivities towards acetone and butanol. There was no water removal stream from the adsorption column because the stream that escaped from the adsorbent contains ethanol, which eventually increased subsequent distillation work. Similarly, in the pervaporation process, stream heating in the product separation stage was a lot less than those required in the following distillation processes.

The total energy requirement for butanol production modeled using in situ stripping, adsorption, pervaporation, and dual extraction product separation technologies were 23.75 MJ/L, 30.11 MJ/L, 19.43 MJ/L, and 21.51 MJ/L, respectively. Comparing only between product separation stages, those recording the lowest energy consumption were the adsorption technology. However, for the overall downstream section, the pervaporation process was the lowest energy method for ABE fermentation, followed by dual extraction, in situ stripping, and adsorption technologies with the energy requirement of 11.06 MJ/L, 13.08 MJ/L, 14.29 MJ/L, and 20.79 MJ/L, respectively. Dual extraction possesses high potential in further cost reduction by using more efficient extractants that could give better separation efficiencies. It is also worth highlighting that pervaporation technology possesses huge potential due to its low energy consumption and high product yields.

Available works from others recorded energy requirements in the range of 50–79 MJ/kg (41–64 MJ/L) for conventional distillation product purification in ABE fermentation process [13,61]. Energy requirements recorded by modern technologies assessed in this study were lower than those conventional methods. Nevertheless, considering the energy content of butanol (~28 MJ/L), the adsorption model with the conditions evaluated in this study was regarded as an energy sink and, therefore, unfeasible for commercialization.

Figure 15 shows the comparison of utility cost requirement by application of partial CHP system (fueled by waste fibers only) and full CHP system (fueled by waste fibers and natural gas). The latter CHP system aimed to generate the steam needed for the processing and eliminate the need for outsourcing it. A substantial amount of electricity produced in the process used to power the plant and the excess portion was sold to the grid as income and counted as the by-product credit. Because adsorption technology required the highest amount of heat, it also generated the highest amount of excess electricity to be sold, and vice versa for the dual extraction model. Nevertheless, a high amount of electricity sold in the adsorption model was not able to compensate for the high CapEx and OpEx of this model.

3.3. Production Costs Distributions

Production cost distributions at each stage of the butanol production processes, modeled at different pretreatment and product separation technologies, are shown in

Table 4. Production cost distributions from different pretreatment models.

Production Stages	Production Costs ($/L)
	LMAA	Autohydrolysis	SAA	NaOH
Pretreatment	0.16	1.98	3.77	0.61
Enzyme Hydrolysis	0.11	0.11	0.11	0.10
Fermentation	0.53	0.54	0.50	0.49
Product Separation	0.21	0.42	0.20	0.19
Product Purification	0.04	0.15	0.08	0.07
CHP System	0.06	0.31	0.09	0.06
Other	1.09	1.42	1.34	1.02
By-Product Credit	0.63	1.77	0.81	0.74
Net cost	1.58	3.15	5.28	1.79

LMAA—low-moisture anhydrous ammonia; SAA—soaking in aqueous ammonia; NaOH—soaking in sodium hydroxide solution; CHP—combined heat and power.

and

Table 5. Production cost distributions from different product separation models.

Production Stages	Production Costs ($/L)
	In situ Stripping	Adsorption	Pervaporation	Dual Extraction
Pretreatment	0.16	0.15	0.15	0.15
Enzyme Hydrolysis	0.11	0.11	0.10	0.10
Fermentation	0.53	0.50	0.51	0.48
Product Separation	0.21	2.25	0.45	0.38
Product Purification	0.04	0.48	0.14	0.01
CHP System	0.06	0.09	0.04	0.05
Other	1.09	3.47	1.07	1.10
By-Product Credit	0.63	0.76	0.61	0.58
Net cost	1.58	6.29	1.86	1.70

CHP—combined heat and power.

, respectively. The contributions of production cost at each stage of processing were from the materials/chemicals, consumables, natural gas used for heat and power generation, and water used for cooling purposes.

Simulation of different pretreatment technologies resulted in varying pretreatment cost distributions between models. This condition was due to distinct efficiencies of each pretreatment, thus requiring a specific amount of feedstock to produce the same amount of cellulose for the subsequent process (hydrolysis). It was also due to the different processing conditions applied in each model. LMAA pretreatment was the cheapest pretreatment method with the cost of $0.16/L, followed by NaOH, autohydrolysis, and SAA pretreatments with values of $0.61/L, $1.98/L, and $3.77/L, respectively. Some authors presented the pretreatment cost in combination with hydrolysis cost [15]. When applying this approach, the pretreatment costs were approximately 17%, 40%, 66%, and 73% from the total butanol production costs for LMAA, NaOH, autohydrolysis, and SAA models, respectively. The pretreatment costs obtained in this work were in the range of those recorded by Baral & Shah [15]. Although the evaluated pretreatment technologies in their work were different from those assessed in this study, it suggests a baseline value on how much a pretreatment should cost.

Despite that, Adom et al. [2] mentioned that a pretreatment cost which takes more than 18% of the biofuel production cost as capital intensive. Considering this view, only the LMAA model possesses a potential for commercialization. Nevertheless, soaking in alkali pretreatment (SAA and NaOH) could show a similar potential through improvement in processing conditions, i.e., running at a lower temperature and S/L ratio than simulated in this work, or through reduction of pretreatment agents purchasing cost.

On the other hand, when different product separation technologies were simulated, considerable variation in production cost distribution was observed, starting from the product separation stage throughout the subsequent processes (see Table 5). The adsorption model recorded the highest separation cost followed by pervaporation, dual extraction, and in situ stripping with values of $2.25/L, $0.45/L, $0.38/L, and $0.21/L, respectively. These values are equivalent to 36%, 24%, 22%, and 13% of the butanol production cost, for adsorption, pervaporation, dual extraction, and in situ stripping, respectively. As explained before, adsorption and pervaporation technologies did not remove any water in the product separation stage, which caused high energy consumption in the product purification stage. This situation was demonstrated by relatively high product purification costs in the adsorption and pervaporation models compared to the other two processes.

Among all product separation approaches modeled, adsorption technology required the highest energy (heat and power), which was shown by its high CHP cost as compared to the other models. Adsorption technology gave the highest by-product credit per liter of butanol produced. However, it could not compensate for the high CapEx and OpEx, which led to high butanol production cost. Among the lowest butanol production costs were recorded by in situ stripping and dual extraction model, which was due to different reasons. In the dual extraction model, the obtained butanol production cost was because of the low expenses of the product purification stage. In the in situ stripping model, the low butanol production cost was mainly on account of its low product separation cost and considerably high by-product credit.

3.4. Uncertainties in the Simulated Models

The presence of xylose gave the most substantial reduction in butanol production cost, except in the NaOH pretreatment model (see Figure 16). The cost reduction of around 26%, 13%, 19%, and 21% were recorded for LMAA pretreatment/in situ stripping, NaOH pretreatment, pervaporation, and dual extraction models, respectively, when 20% xylose was assumed to be present in the treated OPF. Other important parameters affecting the butanol production costs were pretreatment and hydrolysis yields. In NaOH pretreatment model, the 20% higher pretreatment and hydrolysis yields recorded higher cost reduction than those mentioned above, with the value of 23% and 25% reduction from the baseline value, respectively. The prices of pretreatment agents, extractant, adsorbent, and land costs did not result in substantial effects on butanol production cost compared to the baseline value for all models.

Similarly, the presence of xylose resulted in the most substantial increase in the annual profit compared to those of other parameters (see Figure 17). However, the only profit recorded was from LMAA pretreatment/in situ stripping and dual extraction model in positive values, which were $29 × 10⁶ and $9 × 10⁶ annually, respectively. NaOH pretreatment model recorded positive profit of $7 × 10⁶ and $3 × 10⁶ annually when there was a 20% increase hydrolysis yield and pretreatment yield, respectively. The pervaporation model, on the other hand, did not record any positive profit at any case simulated due to the high OpEx from consumables. It seems that all simulated models produced a profit when the butanol production cost was lower than $1.40/L.

3.5. Limitations and Future Scope for Research

This study provided preliminary economic data on butanol production from OPF. The exclusion of xylose in the simulation was done due to lack of data on the amount of xylose after each pretreatment process. Sensitivity analysis showed that xylose content did contribute to considerable cost reduction. However, due to no available data, the sensitivity analysis failed to include important components such as the information of enzymes (i.e., type, concentration, reaction conditions, and reaction yield) used to catalyze the reaction. Therefore, more detail information on xylose conversion from hemicellulose could benefit the assessments and, therefore, should be the focus of future work.

Certain modeled processes were determined to have higher butanol production costs than the others, e.g., the adsorption process, which was determined to have high butanol production costs due to the high OpEx and energy requirement, and SAA pretreatment, which has high pretreatment agent costs. Attempts to reduce the production cost of these processes could not be conducted due to unknown relationships to the yield, i.e., simply reducing liquid ratio in SAA pretreatment or reducing the adsorbent regeneration temperature in the adsorption process will affect yields to an unknown degree. Other than that, future studies should also focus on cash flow analysis to give a better idea of the economic performance of butanol production from OPF.

4. Conclusions

In this study, the economic performance of cellulosic butanol production was analyzed using different pretreatment and product separation technologies. LMAA pretreatment, in combination with the in situ product separation approach, recorded the lowest butanol production cost ($1.58/L). LMAA pretreatment has the benefit of the ability to recycle the pretreatment agent, which led to low material cost and waste treatment cost compared to the other pretreatment models. Even though the NaOH pretreatment model was capable of giving better product yields than the LMAA pretreatment, high material cost required by this process resulted in a higher butanol production cost ($1.79/L). This study has validated the efficiency of LMAA pretreatment compared to the most similar pretreatment approach, SAA pretreatment, which used the same type of pretreatment agent. Energy consumption has been determined to be the most critical factor in giving the obtained result. Although the use of gaseous ammonia as the pretreatment agent and at lower feedstock moisture content did not notably affect the butanol production cost in LMAA pretreatment, elimination of high-temperature processing was able to substantially reduce the cost as compared to the other pretreatments modeled. When different product separation technologies were evaluated, following the butanol production cost that was given by in situ stripping technology was that from dual extraction approach ($1.70/L). Energy and specific requirements of each model (i.e., adsorbent, extractant, and membrane) were the most critical factor, while product yields of each technology were the second factor affected by the butanol production cost. The LMAA pretreatment in situ stripping model recorded high profit when a 20% increase in value of several parameters was applied to the simulation, which was not the case for other models.
