Mechanism of Capacity Fading in the LiNi0.8Co0.1Mn0.1O2 Cathode Material for Lithium-Ion Batteries

by
Yong-keon Ahn
1,†,
Yong Nam Jo
2,†,
Woosuk Cho
2,
Ji-Sang Yu
2 and
Ki Jae Kim
1,*
1
Department of Energy Engineering, Konkuk University, 120 Neungdong-ro, Gwangjin-gu, Seoul 05029, Korea
2
Advanced Batteries Research Center, Korea Electronics Technology Institute, 25, Saenari-ro, Bundang-gu, Seongnam, Gyeonggi-do 13509, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Energies 2019, 12(9), 1638; https://doi.org/10.3390/en12091638
Submission received: 29 March 2019 / Revised: 26 April 2019 / Accepted: 26 April 2019 / Published: 29 April 2019
(This article belongs to the Special Issue Advanced Battery Technologies for Energy Storage Devices)
Browse Figures
Versions Notes

Abstract

:
Understanding the capacity fading mechanism of the LiNi0.8Co0.1Mn0.1O2 (NCM811) cathode materials is crucial for achieving long-lasting lithium-ion batteries with high energy densities. In this study, we investigated the factors affecting the capacity fading of NCM811 during repeated cycling at high temperatures. We found that the change in the c-axis length during charging and discharging is the main cause of the formation and propagation of microcracks in the primary particles of NCM811. In addition, the electrolyte is decomposed on the microcrack surfaces and, consequently, by-products are formed on the particle surface, increasing the impedance and resulting in poor electronic and ionic connectivity between the primary particles of NCM811. In addition, the transition metals in the NCM811 cathode material are dissolved in the electrolyte from the newly formed microcrack surface between primary particles. Therefore, the electrolyte decomposition and transition metal dissolution on the newly formed surface are the major deteriorative effects behind the capacity fading in NCM811.

1. Introduction

Thanks to growing concerns about global climate change, the development of environmentally sustainable energy technology is necessary [1,2,3,4,5]. The utilization of smart-grid systems and long-range electric vehicles (EVs), for instance, has become popular with regard to their efficient energy consumption; thus, the need for large-scale energy storage systems for electricity provision and control has increased significantly [6,7,8,9]. To meet these demands, batteries with high energy and power densities are a crucial prerequisite. Lithium-ion batteries (LIBs) are considered the most promising candidates owing to their high capacities, low self-discharging rates, and high operating potentials compared with other electrochemical energy storage devices [10,11,12].
To improve the energy density of LIBs, many researchers have focused on the development of cathode materials with high capacities, because the capacity limitation is related to the cathode in most LIB systems. Among the many cathode materials, nickel rich LiNixCoyMnzO2 (NCM, where x + y + z = 1, x ≥ 0.8) has been spotlighted as one of the most feasible candidates for next-generation LIBs because of its high discharge capacity (~200 mAh g−1), low cost, and low toxicity [13,14]. Although increasing the Ni content in NCM increases the specific discharge capacity, Ni-rich NCM shows significant performance degradation, which is mostly attributed to cation mixing, surface side reactions, and intrinsic structural instability originating from the large volume changes during repeated cycling. Many solutions to overcome the poor cycle performance have been proposed, including surface coating, morphology control, and elemental doping [15,16,17,18,19,20]. Although cation mixing and surface side reactions can be inhibited by employing the above-mentioned solutions, the microcracks formed between primary particles, which is one of the main reasons for the poor cycle properties during repeated cycles at high temperature, remain problematic [21,22,23,24,25]. Many studies related to the effects of microcracks on the electrochemical performance of LiNi0.85Co0.1Al0.05O2 (lithium nickel cobalt aluminum oxide, NCA) or NCM have been reported, but the deteriorative effect of the microcracks on the electrochemical performance of Ni-rich NCM has not been adequately addressed. Therefore, understanding the negative effects of the microcracks is crucial to improving the cycling performance of Ni-rich NCM cathode materials.
Thus, we have focused on how the formation of microcracks between the primary particles affects the capacity fading of NCM811 during repeated charge cycling at high temperatures [26,27]. To understand the deteriorative effect of the microcracks in the secondary particles, a pouch-type full cell employing Ni-rich NCM cathode materials was prepared, and this cell was galvanostatically charged and discharged for 600 cycles at 45 °C. After 600 cycles, the pouch-type full cell was disassembled, and the structurally unstable Ni-rich NCM cathode materials were thoroughly analyzed. Finally, based on the experimental findings, the negative effects of the microcracks in the secondary particles on the electrochemical performance were identified.

2. Materials and Methods

Materials NCM811 (L&F, Korea) were used as the cathode material without further treatment. The shape and surface morphology of the NCM811 particles were examined using focused ion beam environmental scanning electron microscopy (FIB-ESEM, Quanta 3D FEG, FEI), and X-ray diffraction (XRD, Empyrean, PANalytical) was used for structural analysis. The cross-sectional specimens for transmission electron microscopy (TEM) measurements were prepared by ion milling (Ion slicer, JEOL, EM-09100 IS). The specimens were prepared by epoxy embedding, followed by mechanical milling, and ion milling. TEM (ARM-200F, JEOL) measurements, with a probe Cs aberration corrector (CEOS GmBH) and energy dispersive spectroscopy (EDS, X-MaxN80TLE, Oxford), were conducted to analyze the formation of microcracks in the NCM811 particles after cycling.
The electrochemical properties of NCM811 were tested in a pouch-type full cell and a coin-half cell. The cathode was prepared by casting slurries containing the active material (92 wt%), a conductive agent (Super P, 4 wt%), and a binder (polyvinylidene difluoride (PVdF), 4 wt%) in N-methylpyrrolidine (NMP) on an Al foil (15 µm) for both the pouch full cell and coin-half cell. The residual NMP was removed by drying under vacuum for 12 h at 120 °C. A natural graphite anode and a porous polyethylene membrane were used for full cell fabrication and a lithium metal was used as an anode for the coin-half cell. In addition, 1.0 M LiPF6 dissolved in ethylene carbonate (EC)/ethyl methyl carbonate (EMC) (1:2 vol., PANAX Etec Co., Ltd., Nonsan, Korea) containing 3 wt% vinylene carbonate (VC) was used as the electrolyte for both the full cell and the coin-half cell. The cyclability of the full cell was tested in a voltage range from 3.0 to 4.2 V under a constant current at 1 C rate and 45 °C, and the coin cell was galvanostatically charged and discharged in a voltage range from 3.0 to 4.3 V (vs. Li/Li+) to measure the reversible capacity and coulombic efficiency.

3. Results and Discussion

Before the high-temperature cycling tests, the morphology of the NCM811 cathode material was examined using FIB-ESEM. On the basis of the FIB-ESEM images (Figure 1a), the bare NCM811 particles have a typical spherical shape with an average size of 7 μm (Figure 1a inset) and were formed by the agglomeration of primary particles with a size of approximately 500 nm. To investigate the structure of the pristine NCM811, XRD measurements were performed, and the results are shown in Figure 1b. We observed noticeably separated (006)/(102) and (108)/(110) peaks, which are consistent with the typical patterns of an ordered layered structure. Consequently, the pristine NCM811 cathode materials have the typical α-NaFeO2 layered structure without any structural deformation or defects with a hexagonal crystal structure in the R-3m space group, as illustrated in the schematic of the NCM811 crystal structure [28,29,30,31,32].
To understand the effect of the microcracks formed between primary particles on the capacity fading of the NCM811 cathode material during high-temperature cycling tests, a pouch-type full cell containing the NCM811 cathode material was prepared and galvanostatically charged and discharged for 600 cycles at 45 °C. As expected, the pouch-type full cell employing NCM811 showed poor cycle performance with a capacity retention of 73.2% of the initial discharge capacity after 600 galvanostatic cycles at 45 °C (Figure 1c). To understand the poor cycle life of NCM811, the pouch-type full cell was disassembled after 600 cycles, and the cycled NCM811 was analyzed by scanning transmission electron microscopy (STEM). Figure 2a shows a TEM image of cross-sectioned sample of NCM811 before cycling tests at 45 °C. Clearly, the primary particles are densely packed, and there are grain boundaries between the primary particles. In addition, there are no defects and microcracks. On the other hand, many cracks are formed and have propagated along the grain boundaries between the primary particles of the NCM811 cathode material particles after 600 cycles at 45 °C, as shown in Figure 2b, resulting in the poor cycle performance of NCM811.
To clarify the main cause of the microcracks between the primary particles of NCM811, in situ XRD observation was conducted with different cut-off voltages in the charge process. Figure 3a summarizes the changes in the c-axis with the degree of delithiation. The c-axis had its maximum value at around x = 0.5 and gradually decreased after x > 0.5. In particular, we found that the length of c-axis drastically decreased in the voltage range between 4.05 and 4.5 V versus Li/Li+. The change in the length of the c-axis seems to affect the formation of microcracks [33,34,35,36,37]. From the featured diffraction patterns of NCM811 in the charge process (Figure 3b), (003) reflection was adopted to ensure the structural variation in the Figure 3c. During Li+ desertion, peak shift tendency verifies the phase transition of NCM811 from hexagonal to monoclinic and then back to hexagonal, which was in good agreement with previous studies [38,39]. To confirm this, coin cells assembled with NCM811 were galvanostatically charged and discharged for 50 cycles under different charge cut-off voltages of 4.05, 4.30, and 4.50 V versus Li/Li+, respectively. The coin cells were disassembled after the cycling tests, and the cycled NCM811 cathode materials were analyzed by STEM (Figure 4). A small number of microcracks were observed on the NCM811 cathode materials that had been charged and discharged for 50 cycles at a cut-off voltage of 4.05 V, because the length of the c-axis is not significantly changed on the application of these charging cut-off voltages. On the other hand, many microcracks appeared on the NCM811 cathode materials that had been charged and discharged for 50 cycles at a cut-off voltage of 4.50 V, because the length of the c-axis was affected by these charging cut-off conditions. This result implies that the change in the length of the c-axis strongly affects the formation of microcracks in the NCM811 cathode materials. Consequently, we believe that the change in the c-axis during charging and discharging is one of the main causes of the formation of microcracks in the primary particles of NCM811 [22,25,33,34,35].
To confirm the effects of the formation and propagation of microcracks on the capacity fading of NCM811 during repeated cycling, the chemical component of the surface microcracks was analyzed using EDS measurements for the cycled cathode. As displayed in Figure 5, fluorine was detected on the surface formed by the propagation of microcracks between the primary particles. The fluorine seems to originate from the decomposition of the lithium hexafluorophosphate (LiPF6) salt in the liquid electrolyte that penetrated the newly formed microcracks between primary particles during repeated cycling, indicating that the new microcrack surface can promote the decomposition of the liquid electrolyte. It is well known that the by-products formed on the surface of cathode materials by the decomposition of the liquid electrolyte result in poor ionic and electronic connectivity in the primary particle subsurface [35,36]. Therefore, we believe that the by-products formed on the subsurface exposed by the propagation of the microcracks between primary particles would give rise to increased impedance and poor electronic and ionic connectivity between the primary particles of NCM811, leading to serious capacity fading.
Generally, transition metal dissolution from cathode materials can be confirmed by comparison of the contrast differences in the STEM images. In addition, it is possible to make a relative quantitative analysis of the transition metal dissolution by comparison of the degree of contrast because the ion beam is scattered from the prepared sample in dark-field STEM mode [40,41]. To clarify the effects of the exposure of the subsurface by microcrack propagation on the dissolution of transition metal from the cathode materials, the subsurface microcracks were analyzed by STEM. Figure 6 shows STEM images of the surface of the pristine primary particles and the surface formed by microcrack propagation. Compared with the surface of the pristine primary particles, the atomic column contrast was not uniform along the microcrack surface, indicating transition metal dissolution from the cycled NCM811. Figure 7 shows the brightness profile at the surface of the pristine primary particles and the microcracks based on the STEM observation. As expected, the contrast values obtained from the STEM analysis of the surface of the pristine primary particles are much more uniform, whereas the contrast values obtained from the newly formed surfaces by the microcrack propagation fluctuate significantly. Interestingly, such significant differences were obviously observed in the atomic column from the surface to ninth atomic inner layer. This result reveals that the transition metals in the cathode materials are dissolved into the electrolyte from the newly formed microcrack surface between the primary particles. Therefore, the electrolyte decomposition and transition metal dissolution on the surface formed by microcrack propagation between the primary particles is the main cause of NCM811 capacity fading.

4. Conclusions

The factors affecting the capacity fading of the NCM811 cathode material were investigated. We found that there was a significant change in the c-axis length during charging and discharging, and this is one of the main causes of the formation and propagation of microcracks between the primary particles of NCM811. The formation and propagation of microcracks continuously produces new surfaces on the surface and interior of the NCM811 cathode material.
In addition, the electrolyte was decomposed on the microcrack surfaces, and the by-products from electrolyte decomposition form on this surface, leading to an increase in the impedance and resulting in poor electronic and ionic connectivity between the primary particles of NCM811. In addition, transition metals in the NCM811 cathode materials are dissolved into the electrolyte from the microcrack surfaces between primary particles. As a result, the electrolyte decomposition and transition metal dissolution on the newly formed surface are the main causes of NCM811 capacity fading.
We have shown that microcracks were formed between the primary particles during cycling, and the organic liquid electrolyte eventually penetrated and was decomposed at the newly formed surfaces of the primary particles. This side reaction resulted in an increase in the internal resistance and additional transition metal dissolution from the interior of the active material particles. In addition, we have demonstrated the main reason for the formation of microcracks was the change in the c-axis lattice parameter of NCM811 during de-lithiation, particularly the rapid change after the extraction of 0.5 Li+. These detrimental and complex effects have a significant influence on the electrochemical capability of NCM811. Consequently, to obtain better performance and a long battery life of Ni-rich NCM, the interparticle strength and structural stability must be improved.

Author Contributions

Conceptualization, Y.N.J., W.C., and J.-S.Y.; Methodology, Y.-k.A., Y.N.J., and W.C.; Software, W.C.; Validation, Y.-k.A., Y.N.J., K.J.K., and W.C.; Formal Analysis, Y.-k.A., Y.N.J., and W.C.; Investigation, J.-S.Y. and K.J.K.; Data Curation, Y.-k.A., Y.N.J., and W.C.; Writing-Original Draft Preparation, Y.-k.A., Y.N.J., and K.J.K.; Writing-Review & Editing, Y.-k.A., Y.N.J., W.C., and K.J.K.; Visualization, Y.-k.A., Y.N.J., and W.C.; Supervision, J.-S.Y. and K.J.K.; Project Administration, J.-S.Y. and K.J.K.; Funding Acquisition, J.-S.Y. and K.J.K.

Funding

This paper was supported by National Research Foundation of Korea grants (2018M1A2A2063354 and 2019R1A2C1004694). This work was also supported by a grant from the Fundamental R&D Program for Technology of World Premier Materials (10037919).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Whittingham, M.S. Lithium batteries and cathode materials. Chem. Rev. 2004, 104, 4271–4302. [Google Scholar] [CrossRef] [PubMed]
  2. Liu, W.; Oh, P.; Liu, X.; Lee, M.-J.; Cho, W.; Chae, S.; Kim, Y.; Cho, J. Nickel-rich layered lithium transition-metal oxide for high-energy lithium-ion batteries. Angew. Chem. Int. Ed. 2015, 54, 4440–4457. [Google Scholar] [CrossRef]
  3. Manthiram, A.; Knight, J.C.; Myung, S.-T.; Oh, S.-M.; Sun, Y.-K. Nickel-rich and lithium-rich layered oxide cathodes: Progress and perspectives. Adv. Energy Mater. 2016, 6, 1501010. [Google Scholar] [CrossRef]
  4. Rozier, P.; Tarascon, J.M. Review-Li-rich layered oxide cathodes for next-generation Li-ion batteries: Chances and challenges. J. Electrochem. Soc. 2015, 162, A2490–A2499. [Google Scholar] [CrossRef]
  5. Ahn, Y.-K.; Park, J.W.; Shin, D.W.; Cho, S.H.; Park, S.Y.; Kim, H.J.; Piao, Y.; Yoo, J.Y.; Kim, Y.S. Enhanced electrochemical capabilities of lithium ion batteries by structurally ideal AAO separator. J. Mater. Chem. A 2015, 3, 10715–10719. [Google Scholar] [CrossRef]
  6. Noh, H.-J.; Youn, S.; Yoon, C.S.; Sun, Y.-K. Comparison of the structural and electrochemical properties of layered Li[NixCoyMnz]O2 (x = 1/3, 0.5, 0.6, 0.7, 0.8 and 0.85) cathode material for lithium-ion batteries. J. Power Sources 2013, 233, 121–130. [Google Scholar] [CrossRef]
  7. Schipper, F.; Erickson, E.M.; Erk, C.; Shin, J.-Y.; Chesneau, F.F.; Aurbach, D. Review-recent advances and remaining challenges for lithium ion battery cathodes: I. nickel-rich, LiNixCoyMnzO2. J. Electrochem. Soc. 2017, 164, A6220–A6228. [Google Scholar] [CrossRef]
  8. Kojima, T.; Ishizu, T.; Horiba, T.; Yoshikawa, M. Development of lithium-ion battery for fuel cell hybrid electric vehicle application. J. Power Sources 2009, 189, 859–863. [Google Scholar] [CrossRef]
  9. Darcovich, K.; Henquin, E.R.; Kenney, B.; Davidson, I.J.; Saldanha, N.; Beausoleil-Morrison, I. Higher-capacity lithium ion battery chemistries for improved residential energy storage with micro-cogeneration. Appl. Energy 2013, 111, 853–861. [Google Scholar] [CrossRef] [Green Version]
  10. Sun, Y.K.; Kang, H.B.; Myung, S.T.; Prakash, J. Effect of manganese content on the electrochemical and thermal stabilities of Li [Ni0.58Co0.28-xMn0.14+x]O2 cathode materials for lithium-ion batteries. J. Electrochem. Soc. 2010, 157, A1335–A1340. [Google Scholar] [CrossRef]
  11. Lee, B.R.; Noh, H.J.; Myung, S.T.; Amine, K.; Sun, Y.K. High-voltage performance of Li[Ni0.55Co0.15Mn0.30]O2 positive electrode material for rechargeable Li-ion batteries. J. Electrochem. Soc. 2011, 158, A180–A186. [Google Scholar] [CrossRef]
  12. Manthiram, A.; Song, B.; Li, W. A perspective on nickel-rich layered oxide cathodes for lithium-ion batteries. Energy Storage Mater. 2017, 6, 125–139. [Google Scholar] [CrossRef]
  13. Eom, J.; Kim, M.G.; Cho, J. Storage characteristics of LiNi0.8Co0.1+xMn0.1−xO2 (x=0, 0.03, and 0.06) cathode materials for lithium batteries. J. Electrochem. Soc. 2008, 155, A239–A245. [Google Scholar] [CrossRef]
  14. Li, X.; Zhang, K.; Wang, M.; Liu, Y.; Qu, M.; Zhao, W.; Zheng, J. Dual functions of zirconium modification on improving the electrochemical performance of Ni-rich LiNi0.8Co0.1Mn0.1O2. Sustain Energy Fuel. 2018, 413–421. [Google Scholar] [CrossRef]
  15. Liu, S.; Xiong, L.; He, C. Long cycle life lithium ion battery with lithium nickel cobalt manganese oxide (NCM) cathode. J. Power Sources 2014, 261, 285–291. [Google Scholar] [CrossRef]
  16. Song, H.J.; Jang, S.H.; Ahn, J.; Oh, S.H.; Yim, T. Artificial cathode-electrolyte interphases on nickel-rich cathode materials modified by silyl functional group. J. Power Sources 2019, 416, 1–8. [Google Scholar] [CrossRef]
  17. Kim, K.M.; Ly, N.V.; Won, J.H.; Lee, Y.G.; Cho, W.I.; Ko, J.M.; Kaner, R.B. Improvement of lithium-ion battery performance at low temperature by adopting polydimethylsiloxane-based electrolyte additives. Electrochim. Acta 2014, 136, 182–188. [Google Scholar] [CrossRef]
  18. Li, B.; Xu, M.; Li, T.; Li, W.; Hu, S. Prop-1-ene-1, 3-sultone as SEI formation additive in propylene carbonate-based electrolyte for lithium ion batteries. Electrochem. Commun. 2012, 17, 92–95. [Google Scholar] [CrossRef]
  19. Kim, H.; Kim, M.G.; Jeong, H.Y.; Nam, H.; Cho, J. A new coating method for alleviating surface degradation of LiNi0.6Co0.2Mn0.2O2 cathode material: Nanoscale surface treatment of primary particles. Nano Lett. 2015, 15, 2111–2119. [Google Scholar] [CrossRef]
  20. Schipper, F.; Bouzaglo, H.; Dixit, M.; Erickson, E.M.; Weigel, T.; Talianker, M.; Grinblat, J.; Burstein, L.; Schmidt, M.; Lampert, J.; et al. From Surface ZrO2 coating to bulk Zr doping by high temperature annealing of nickel-rich lithiated oxides and their enhanced electrochemical performance in lithium ion batteries. Adv. Energy Mater. 2018, 8, 1701682. [Google Scholar] [CrossRef]
  21. Park, K.J.; Choi, M.J.; Maglia, F.; Kim, S.J.; Kim, K.H.; Yoon, C.S.; Sun, Y.K. High-capacity concentration gradient Li[Ni0.865Co0.120Al0.015]O2 cathode for lithium-ion batteries. Adv. Energy Mater. 2018, 8, 1703612. [Google Scholar] [CrossRef]
  22. Sun, H.H.; Manthiram, A. Impact of microcrack generation and surface degradation on a nickel-rich layered Li [Ni0.9Co0.05Mn0.05]O2 cathode for lithium-ion batteries. Chem. Mater. 2017, 29, 8486–8493. [Google Scholar] [CrossRef]
  23. Lim, J.M.; Hwang, T.; Kim, D.; Park, M.S.; Cho, K.; Cho, M. Intrinsic origins of crack generation in Ni-rich LiNi0.8Co0.1Mn0.1O2 layered oxide cathode material. Sci. Rep. 2017, 7, 39669. [Google Scholar] [CrossRef] [PubMed]
  24. Zheng, S.; Huang, R.; Makimura, Y.; Ukyo, Y.; Fisher, C.A.; Hirayama, T.; Ikuhara, Y. Microstructural changes in LiNi0.8Co0.15Al0.05O2 positive electrode material during the first cycle. J. Electrochem. Soc. 2011, 158, A357–A362. [Google Scholar] [CrossRef]
  25. Miller, D.J.; Proff, C.; Wen, J.G.; Abraham, D.P.; Bareño, J. Observation of microstructural evolution in Li battery cathode oxide particles by in situ electron microscopy. Adv. Energy Mater. 2013, 3, 1098–1103. [Google Scholar] [CrossRef]
  26. Kang, K.S.; Choi, S.; Song, J.H.; Woo, S.G.; Jo, Y.N.; Chow, J.; Yim, T.; Yu, J.S.; Kim, Y. Effect of additives on electrochemical performance of lithium nickel cobalt manganese oxide at high temperature. J. Power Sources 2014, 253, 48–54. [Google Scholar] [CrossRef]
  27. Liu, T.; Garsuch, A.; Chesneau, F.; Lucht, B.L. Surface phenomena of high energy Li(Ni1/3Co1/3Mn1/3)O2/graphite cells at high temperature and high cutoff voltages. J. Power Sources 2014, 269, 920–926. [Google Scholar] [CrossRef]
  28. Chen, H.; Hu, Q.; Huang, Z.; He, Z.; Wang, Z.; Guo, H.; Li, X. Synthesis and electrochemical study of Zr-doped Li[Li0.2Mn0.54Ni0.13Co0.13]O2 as cathode material for Li-ion battery. Ceram. Int. 2016, 42, 263–269. [Google Scholar] [CrossRef]
  29. Xi, Y.; Liu, Y.; Zhang, D.; Jin, S.; Zhang, R.; Jin, M. Comparative study of the electrochemical performance of LiNi0.5Co0.2Mn0.3O2 and LiNi0.8Co0.1Mn0.1O2 cathode materials for lithium ion batteries. Solid State Ion. 2018, 327, 27–31. [Google Scholar] [CrossRef]
  30. Lu, Z.; Beaulieu, L.Y.; Donaberger, R.A.; Thomas, C.L.; Dahn, J.R. Synthesis, structure, and electrochemical behavior of Li [NixLi1/3−2x/3Mn2/3−x/3]O2. J. Electrochem. Soc. 2002, 149, A778–A791. [Google Scholar] [CrossRef]
  31. Zhang, Z.; Chen, D.; Chang, C. Improved electrochemical performance of LiNi0.8Co0.1Mn0.1O2 cathode materials via incorporation of rubidium cations into the original Li sites. RSC Adv. 2017, 7, 51721–51728. [Google Scholar] [CrossRef]
  32. Wang, M.; Zhang, R.; Gong, Y.; Su, Y.; Xiang, D.; Chen, L.; Chen, Y.; Luo, M.; Chu, M. Improved electrochemical performance of the LiNi0.8Co0.1Mn0.1O2 material with lithium-ion conductor coating for lithium-ion batteries. Solid State Ion. 2017, 312, 53–60. [Google Scholar] [CrossRef]
  33. Kim, U.H.; Lee, E.J.; Yoon, C.S.; Myung, S.T.; Sun, Y.K. Compositionally graded cathode material with long-term cycling stability for electric vehicles application. Adv. Energy Mater. 2016, 6, 1601417. [Google Scholar] [CrossRef]
  34. Kondrakov, A.O.; Schmidt, A.; Xu, J.; Geßwein, H.; Mönig, R.; Hartmann, P.; Sommer, H.; Brezesinski, T.; Janek, J. Anisotropic lattice strain and mechanical degradation of high-and low-nickel NCM cathode materials for Li-ion batteries. J. Phys. Chem. C 2017, 121, 3286–3294. [Google Scholar] [CrossRef]
  35. Ryu, H.H.; Park, K.J.; Yoon, C.S.; Sun, Y.K. Capacity fading of Ni-rich Li [NixCoyMn1–x–y]O2 (0.6 ≤ x ≤ 0.95) cathodes for high-energy-density lithium-ion batteries: Bulk or surface degradation? Chem. Mater. 2018, 30, 1155–1163. [Google Scholar] [CrossRef]
  36. Kim, J.H.; Woo, S.C.; Park, M.S.; Kim, K.J.; Yim, T.; Kim, J.S.; Kim, Y.J. Capacity fading mechanism of LiFePO4-based lithium secondary batteries for stationary energy storage. J. Power Sources 2013, 229, 190–197. [Google Scholar] [CrossRef]
  37. Woo, S.G.; Kim, J.H.; Kim, H.R.; Cho, W.; Yu, J.S. Failure mechanism analysis of LiNi0.88Co0.09Mn0.03O2 cathodes in Li-ion full cells. J. Electroanal. Chem. 2017, 799, 315–320. [Google Scholar] [CrossRef]
  38. Li, J.; Downie, L.E.; Ma, L.; Qiu, W.; Dahn, J.R. Study of the failure mechanisms of LiNi0.8Mn0.1Co0.1O2 cathode material for lithium ion batteries. J. Electrochem. Soc. 2015, 162, A1401–A1408. [Google Scholar] [CrossRef]
  39. Kim, H.R.; Woo, S.G.; Kim, J.H.; Cho, W.; Kim, Y.J. Capacity fading behavior of Ni-rich layered cathode materials in Li-ion full cells. J. Electroanal. Chem. 2016, 782, 168–173. [Google Scholar] [CrossRef]
  40. LeBeau, J.M.; Findlay, S.D.; Allen, L.J.; Stemmer, S. Standardless atom counting in scanning transmission electron microscopy. Nano Lett. 2010, 10, 4405–4408. [Google Scholar] [CrossRef] [PubMed]
  41. Lee, S.; Oshima, Y.; Sawada, H.; Hosokawa, F.; Okunishi, E.; Kaneyama, T.; Kondo, Y.; Takagi, H.; Tanishiro, Y.; Takayanagi, K. Counting lithium ions in the diffusion channel of an LiV2O4 crystal. J. Appl. Phys. 2011, 109, 113530. [Google Scholar] [CrossRef]
Energies 12 01638 g001 550

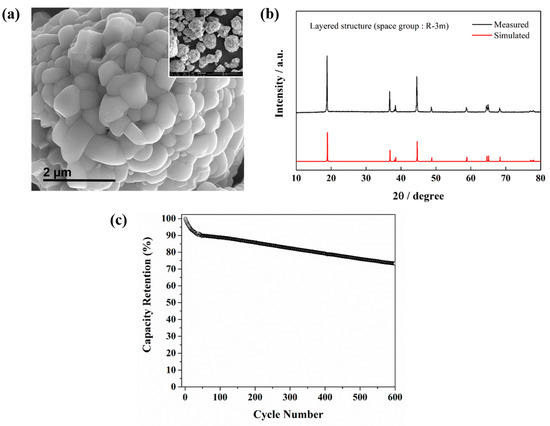

Figure 1. The morphology, structural, and electrochemical characteristics of the LiNi0.8Co0.1Mn0.1O2 (NCM811) cathode material. (a) Focused ion beam environmental scanning electron microscopy (FIB-ESEM) image of NCM811 secondary particles in which primary particles agglomerated into spheres. (b) X-ray diffraction (XRD) patterns indicating that NCM811 has a layered structure in the R-3m space group. (c) Electrochemical performance over 600 cycles at 45 °C tested in a pouch-type full cell.
Figure 1. The morphology, structural, and electrochemical characteristics of the LiNi0.8Co0.1Mn0.1O2 (NCM811) cathode material. (a) Focused ion beam environmental scanning electron microscopy (FIB-ESEM) image of NCM811 secondary particles in which primary particles agglomerated into spheres. (b) X-ray diffraction (XRD) patterns indicating that NCM811 has a layered structure in the R-3m space group. (c) Electrochemical performance over 600 cycles at 45 °C tested in a pouch-type full cell.
Energies 12 01638 g001
Energies 12 01638 g002 550

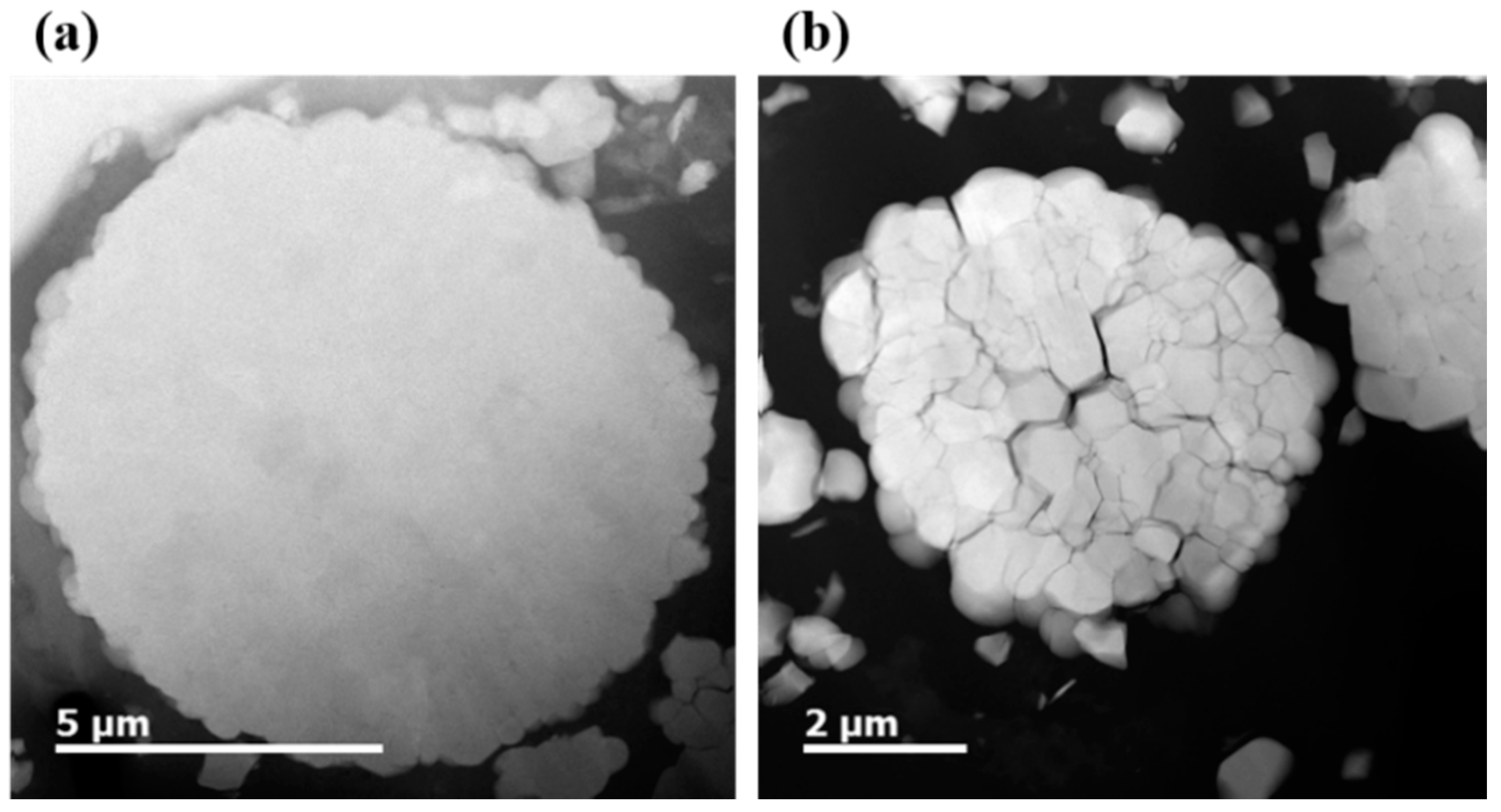

Figure 2. Cross-sectional scanning transmission electron microscopy (STEM) images for NCM811 (a) before cycling (bare) and (b) after 600 cycles at 45 °C.
Figure 2. Cross-sectional scanning transmission electron microscopy (STEM) images for NCM811 (a) before cycling (bare) and (b) after 600 cycles at 45 °C.
Energies 12 01638 g002
Energies 12 01638 g003 550

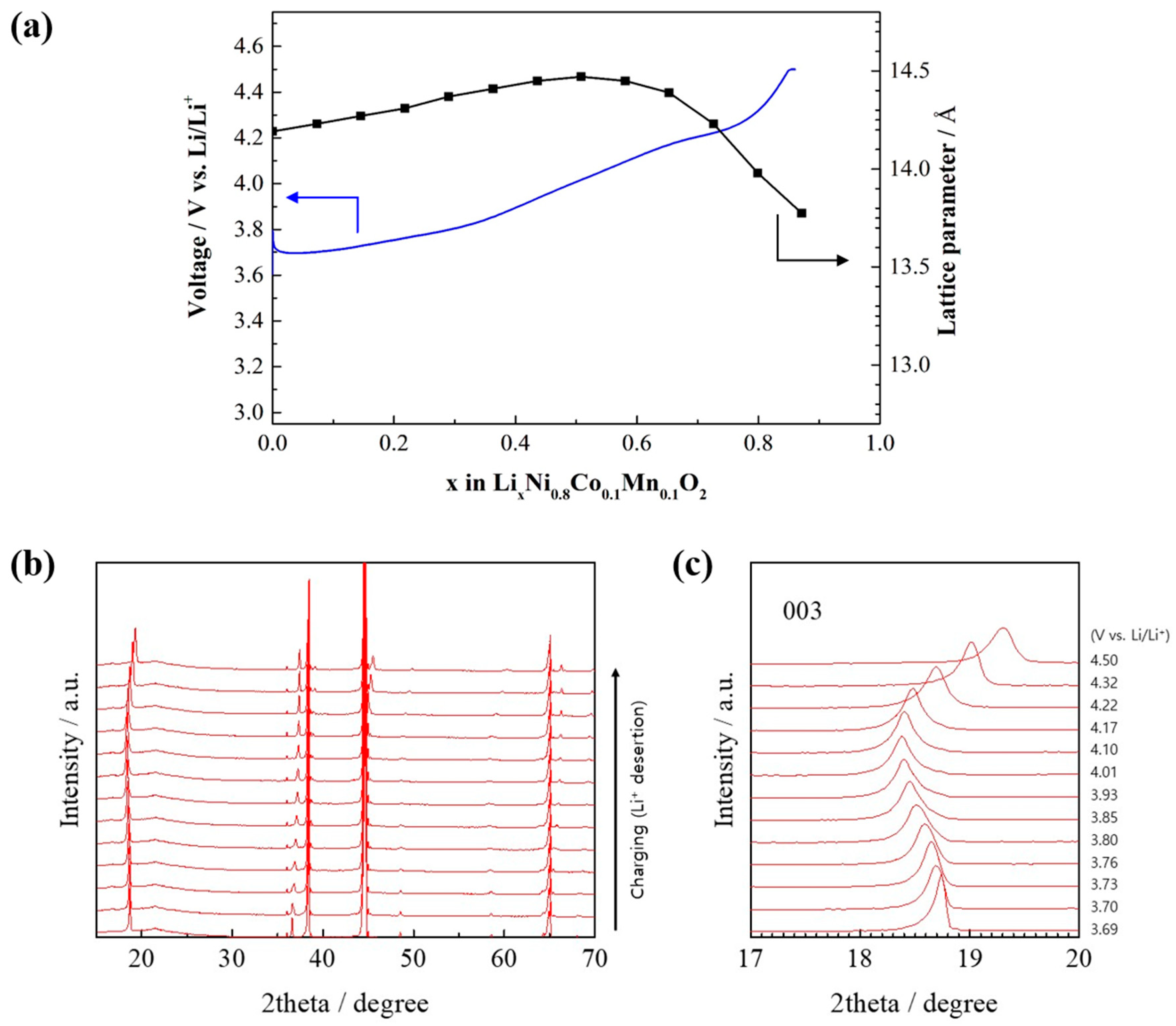

Figure 3. In situ XRD results of (a) the NCM811 crystal lattice variation during Li+ extraction (charged state), (b) diffraction patterns, and (c) 003 reflection.
Figure 3. In situ XRD results of (a) the NCM811 crystal lattice variation during Li+ extraction (charged state), (b) diffraction patterns, and (c) 003 reflection.
Energies 12 01638 g003
Energies 12 01638 g004 550

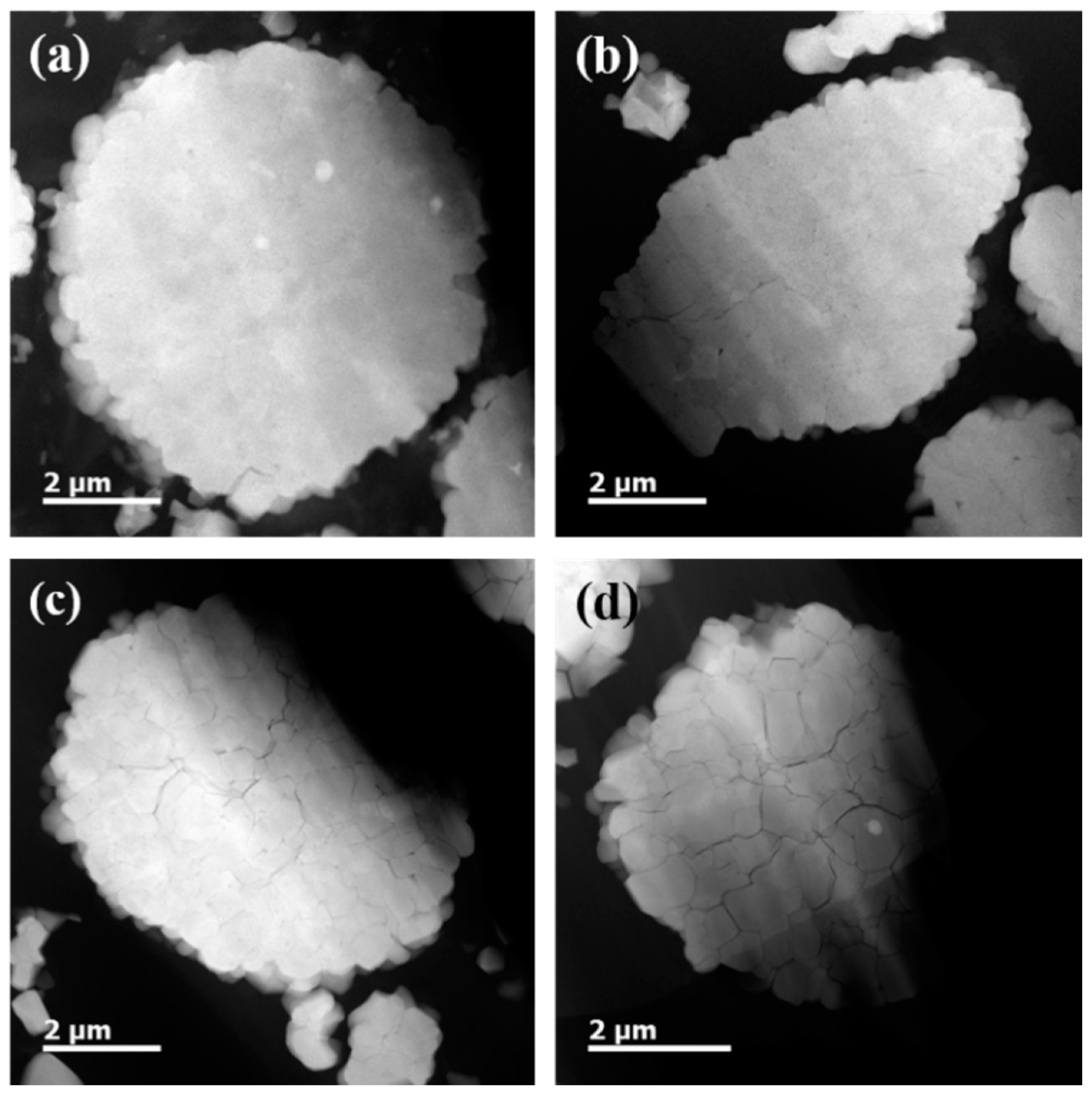

Figure 4. Cross-sectional STEM images of NCM811 after 50 cycles depending on the charging voltage: (a) before cycling at the open-circuit voltage (OCV), (b) 4.05 V, (c) 4.3 V, and (d) 4.5 V versus Li/Li+.
Figure 4. Cross-sectional STEM images of NCM811 after 50 cycles depending on the charging voltage: (a) before cycling at the open-circuit voltage (OCV), (b) 4.05 V, (c) 4.3 V, and (d) 4.5 V versus Li/Li+.
Energies 12 01638 g004
Energies 12 01638 g005 550

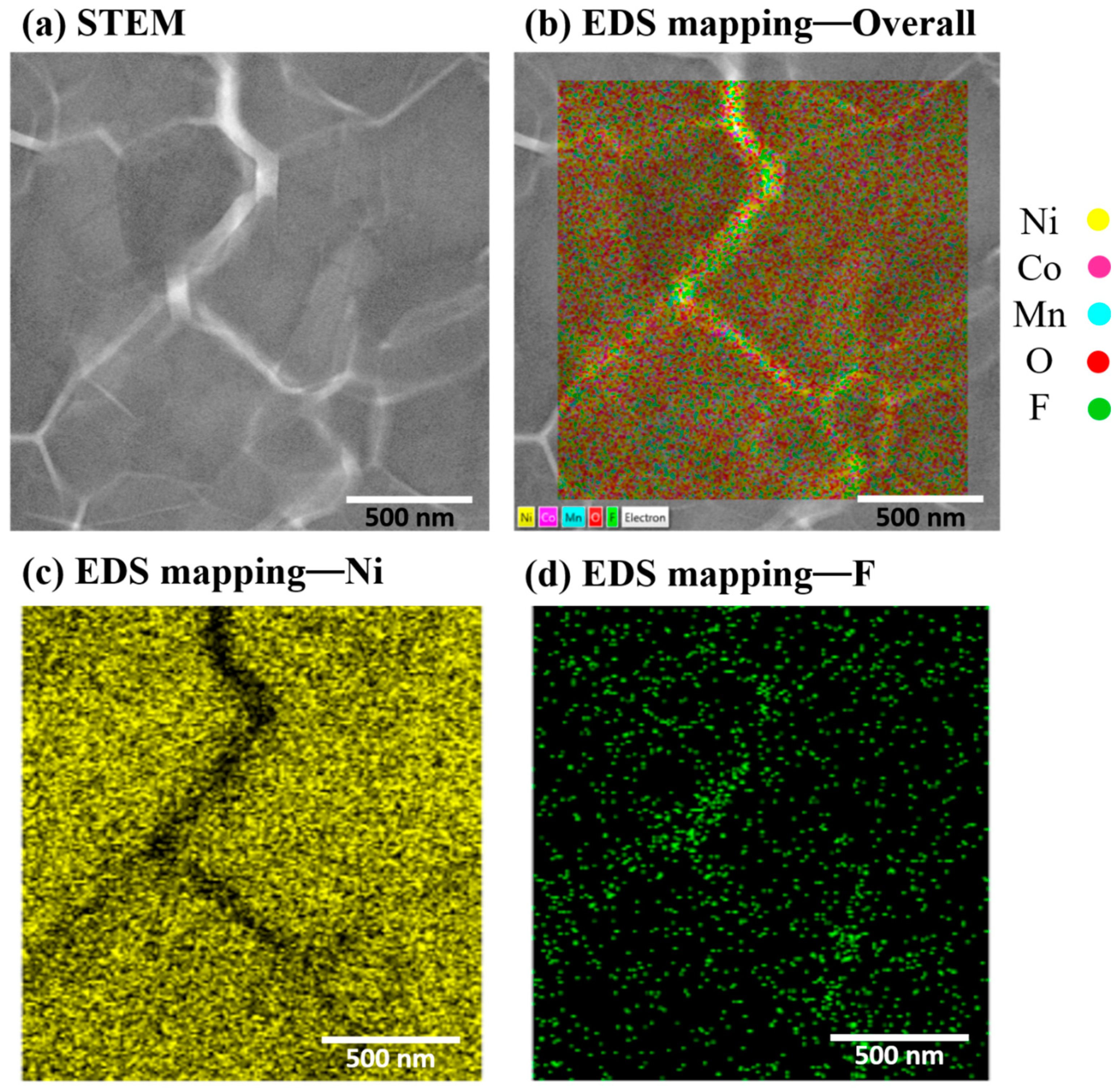

Figure 5. STEM images and the corresponding energy dispersive spectroscopy (EDS) mapping results for NCM811 after 600 cycles at 45 °C: (a) STEM image of the microcracks, and EDS mapping images of (b) overall, (c) Ni, and (d) F species.
Figure 5. STEM images and the corresponding energy dispersive spectroscopy (EDS) mapping results for NCM811 after 600 cycles at 45 °C: (a) STEM image of the microcracks, and EDS mapping images of (b) overall, (c) Ni, and (d) F species.
Energies 12 01638 g005
Energies 12 01638 g006 550

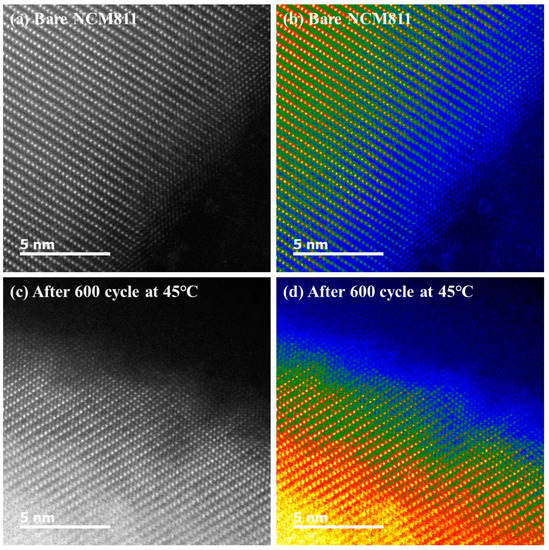

Figure 6. STEM images of the NCM811 surfaces: bare NCM811 (a,b) and after 600 cycles at 45 °C (c,d). (a) and (c) are the original STEM images, and (b) and (d) are converted from gray scale into color using Digital Micrograph.
Figure 6. STEM images of the NCM811 surfaces: bare NCM811 (a,b) and after 600 cycles at 45 °C (c,d). (a) and (c) are the original STEM images, and (b) and (d) are converted from gray scale into color using Digital Micrograph.
Energies 12 01638 g006
Energies 12 01638 g007 550

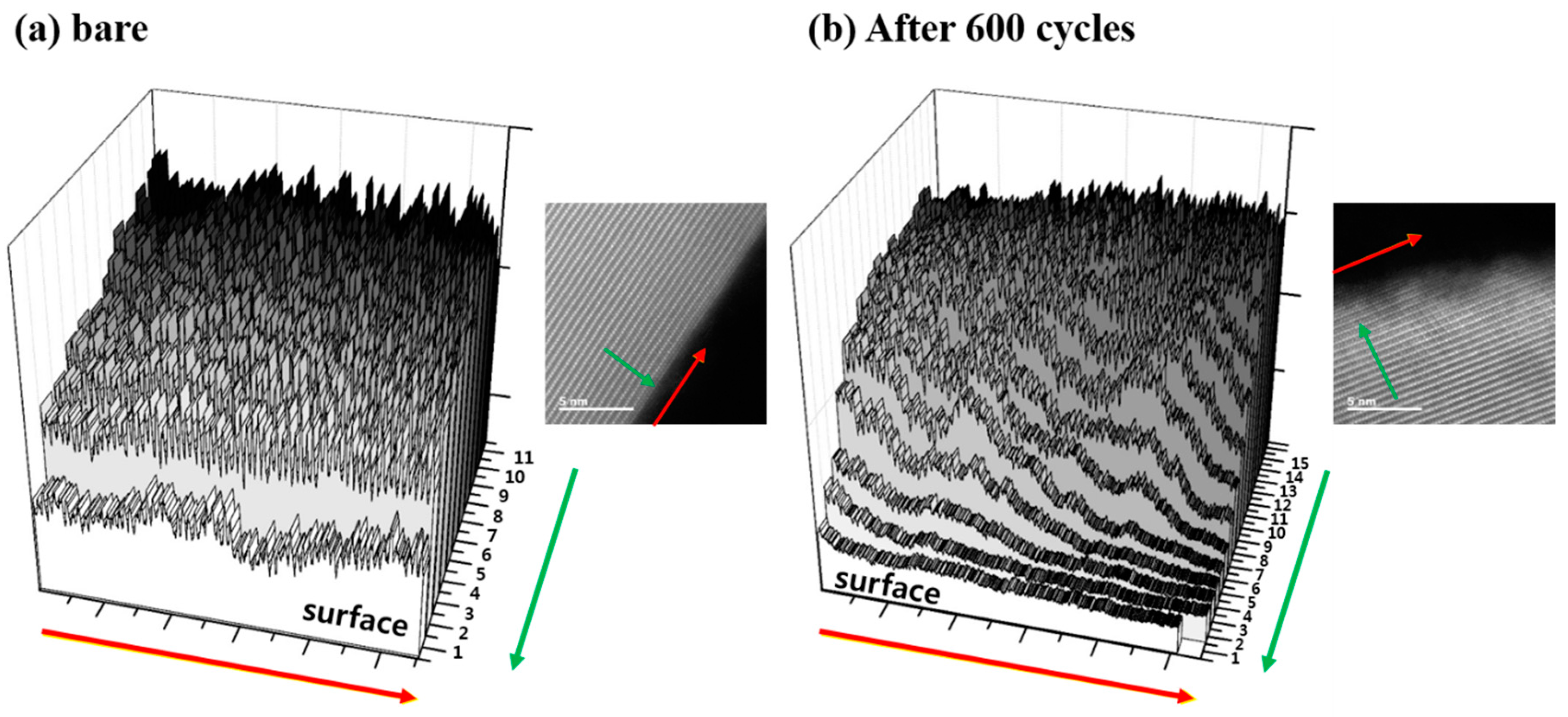

Figure 7. Brightness profile of the NCM811 STEM images: (a) bare and (b) after 600 cycles at 45 °C.
