Energies 2019, 12(6), 969; https://doi.org/10.3390/en12060969

FPGA Based Real-Time Emulation System for Power Electronics Converters

Faculty of Electrical Engineering and Computer Science, University of Maribor, Koroška cesta 46, 2000 Maribor, Slovenia
*
Author to whom correspondence should be addressed.
Received: 29 January 2019 / Revised: 20 February 2019 / Accepted: 10 March 2019 / Published: 13 March 2019
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [2965 KB, uploaded 13 March 2019]   |

Abstract

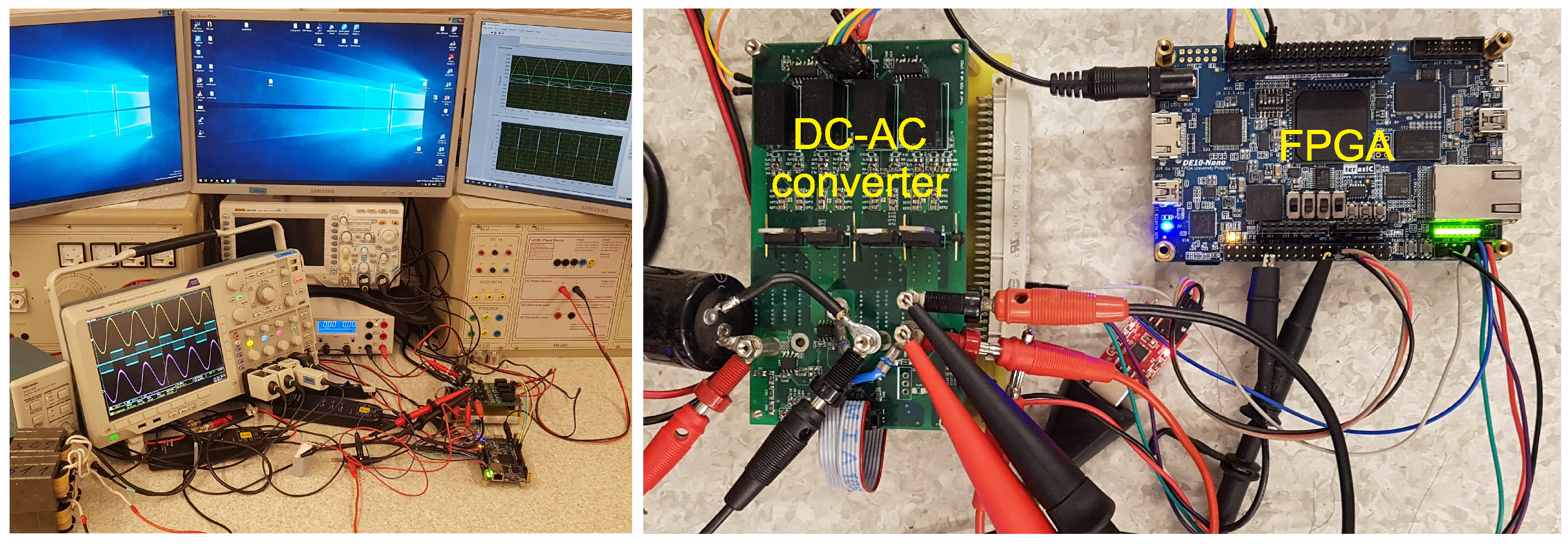

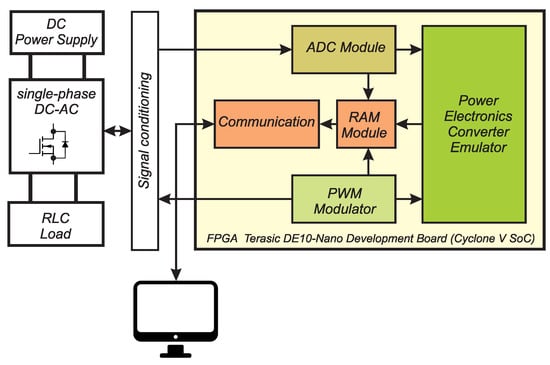

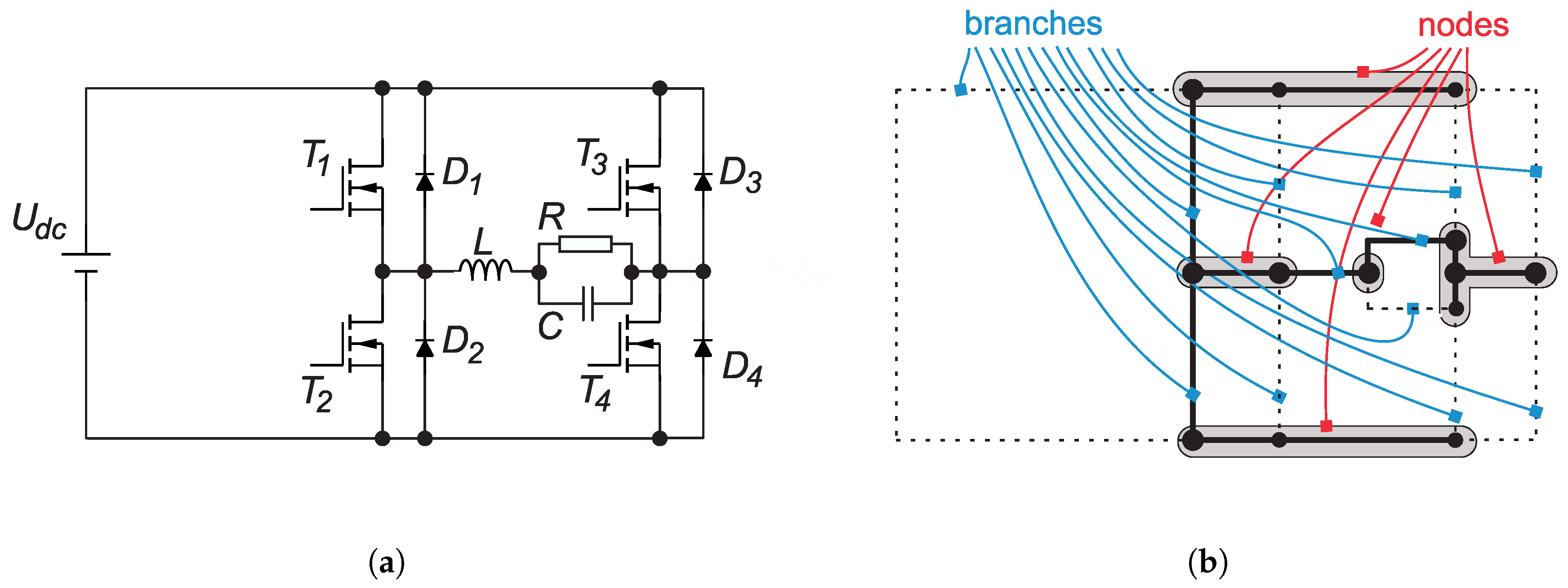

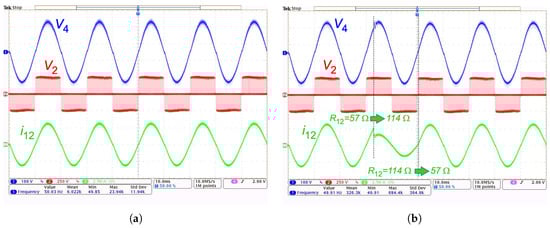

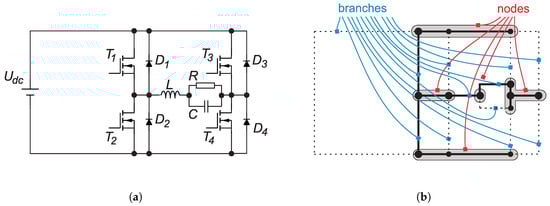

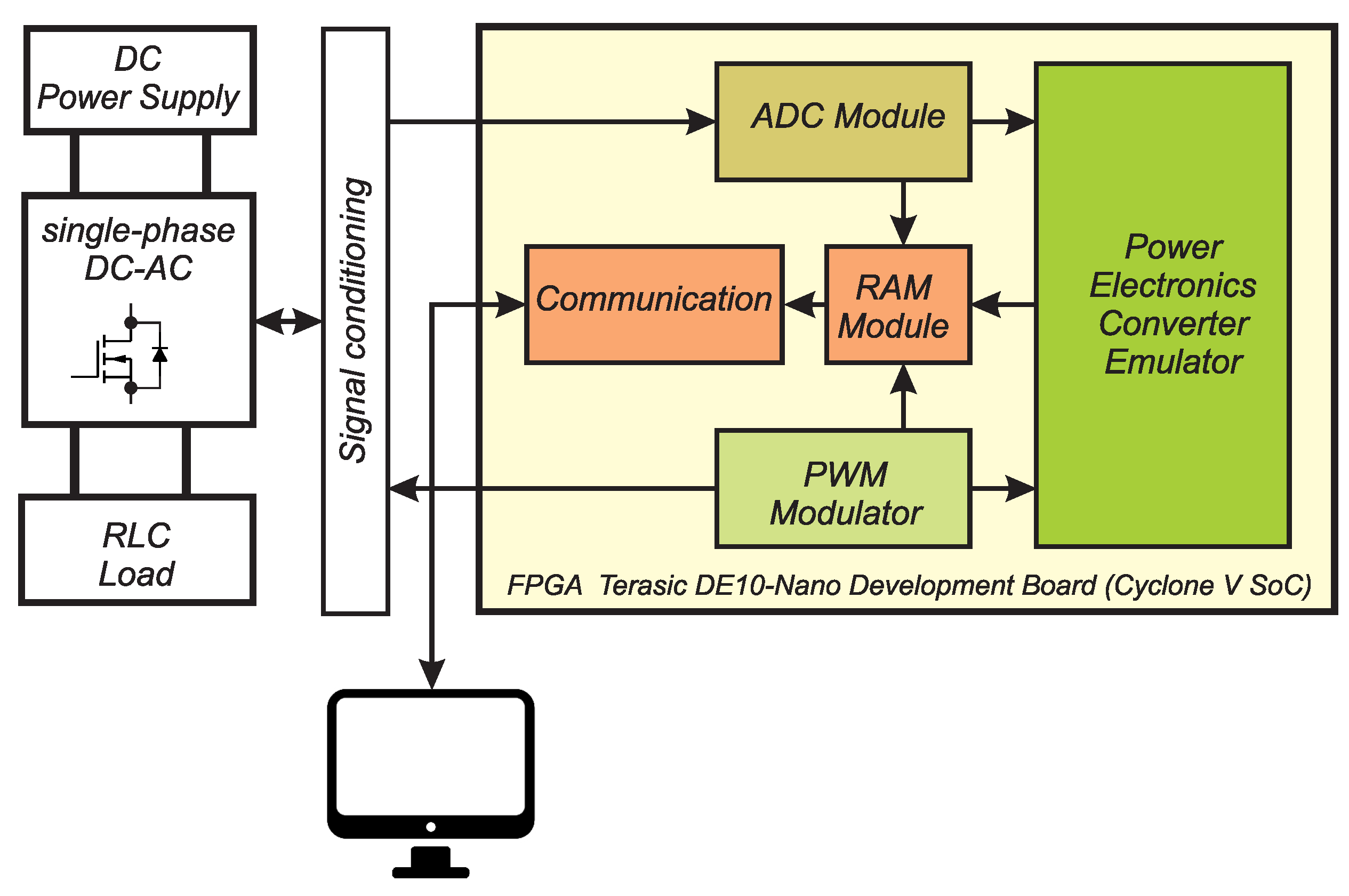

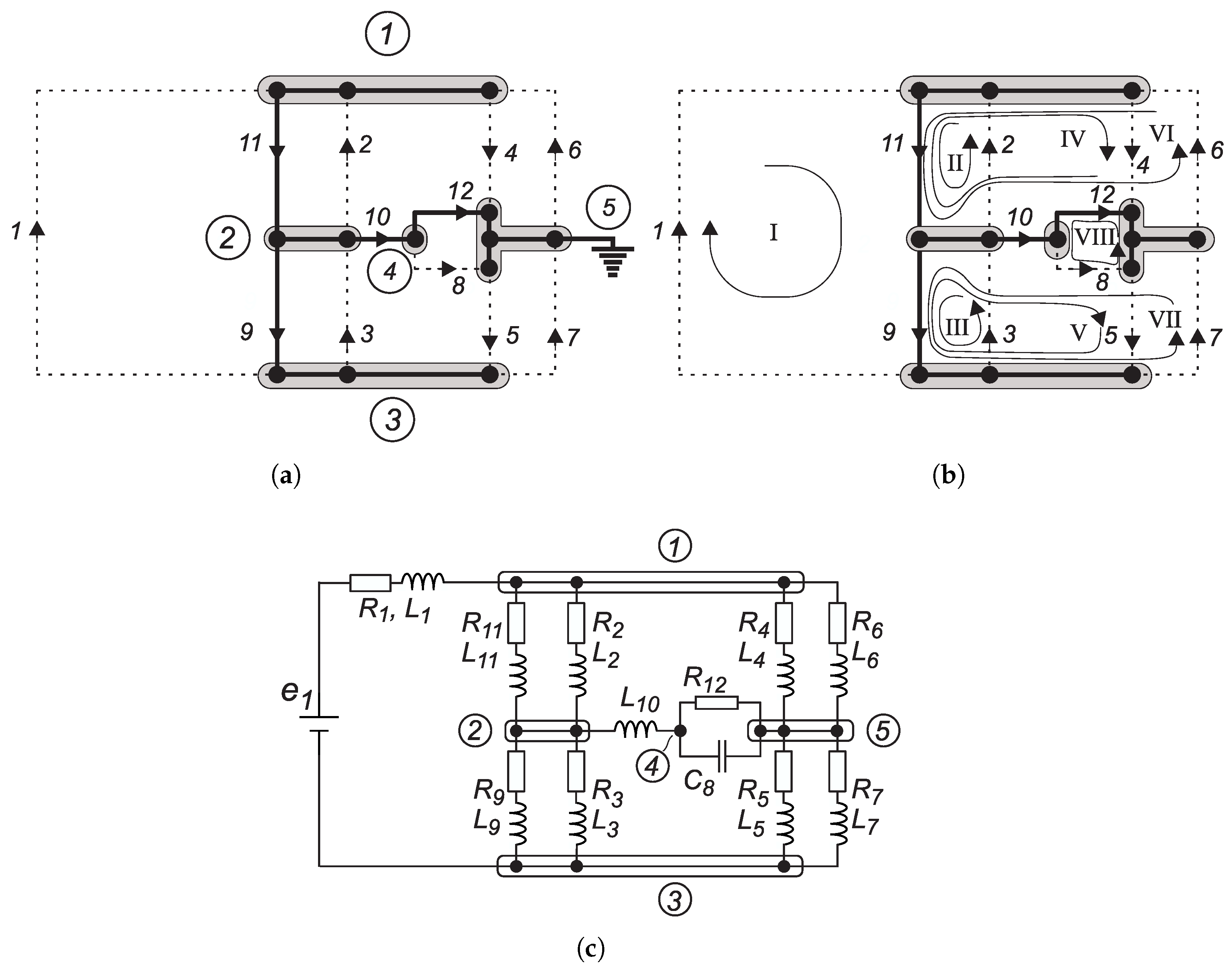

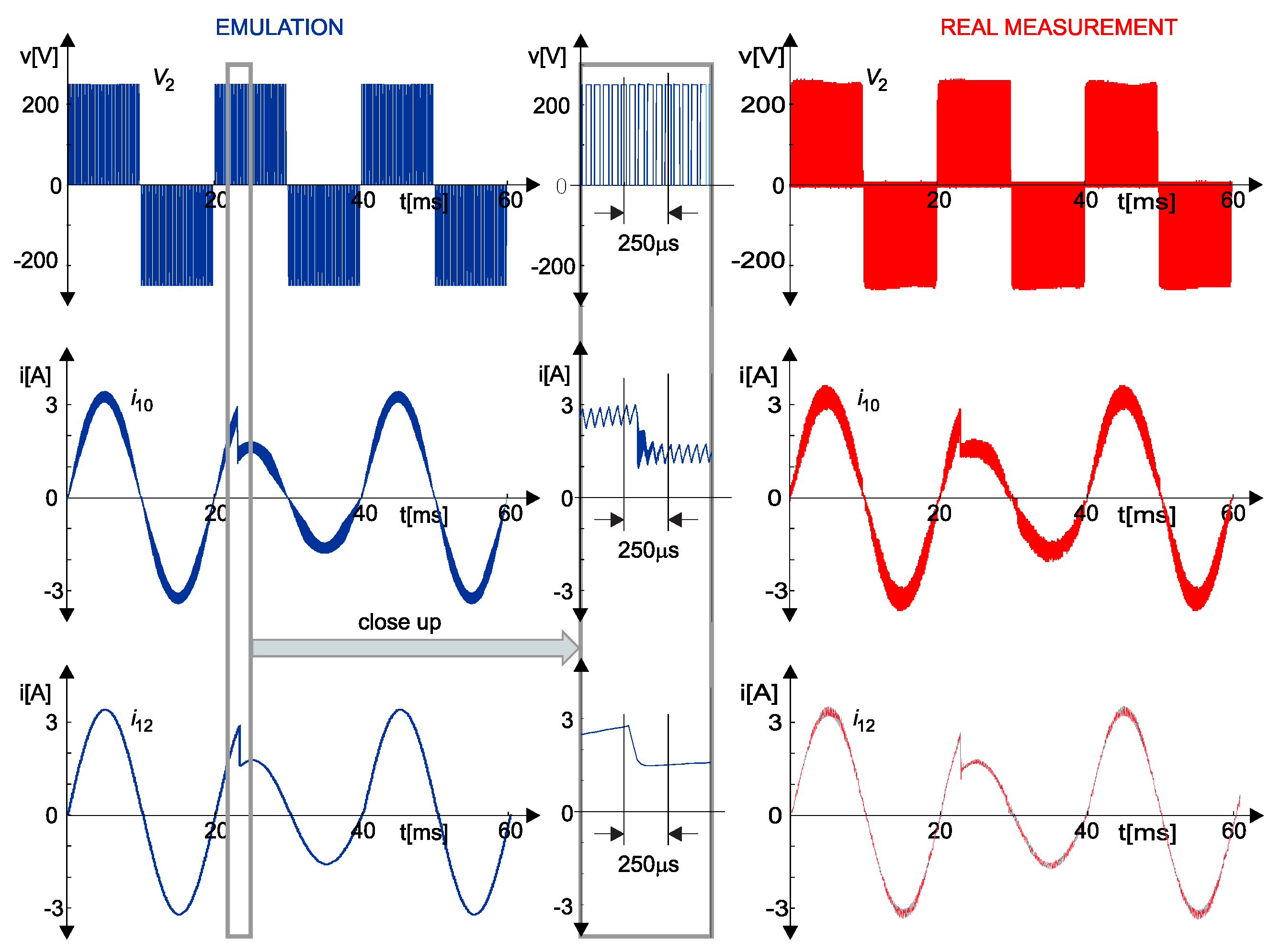

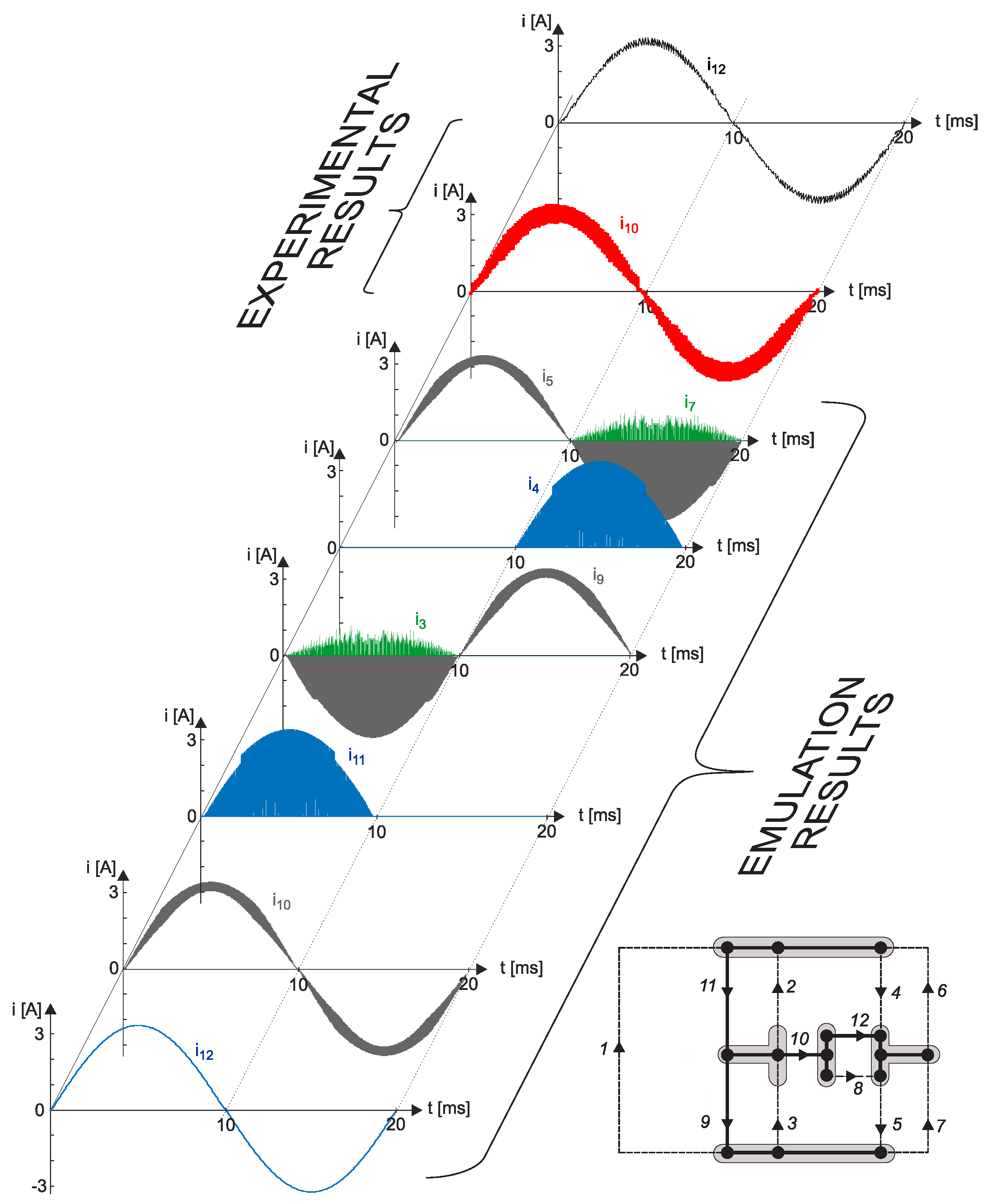

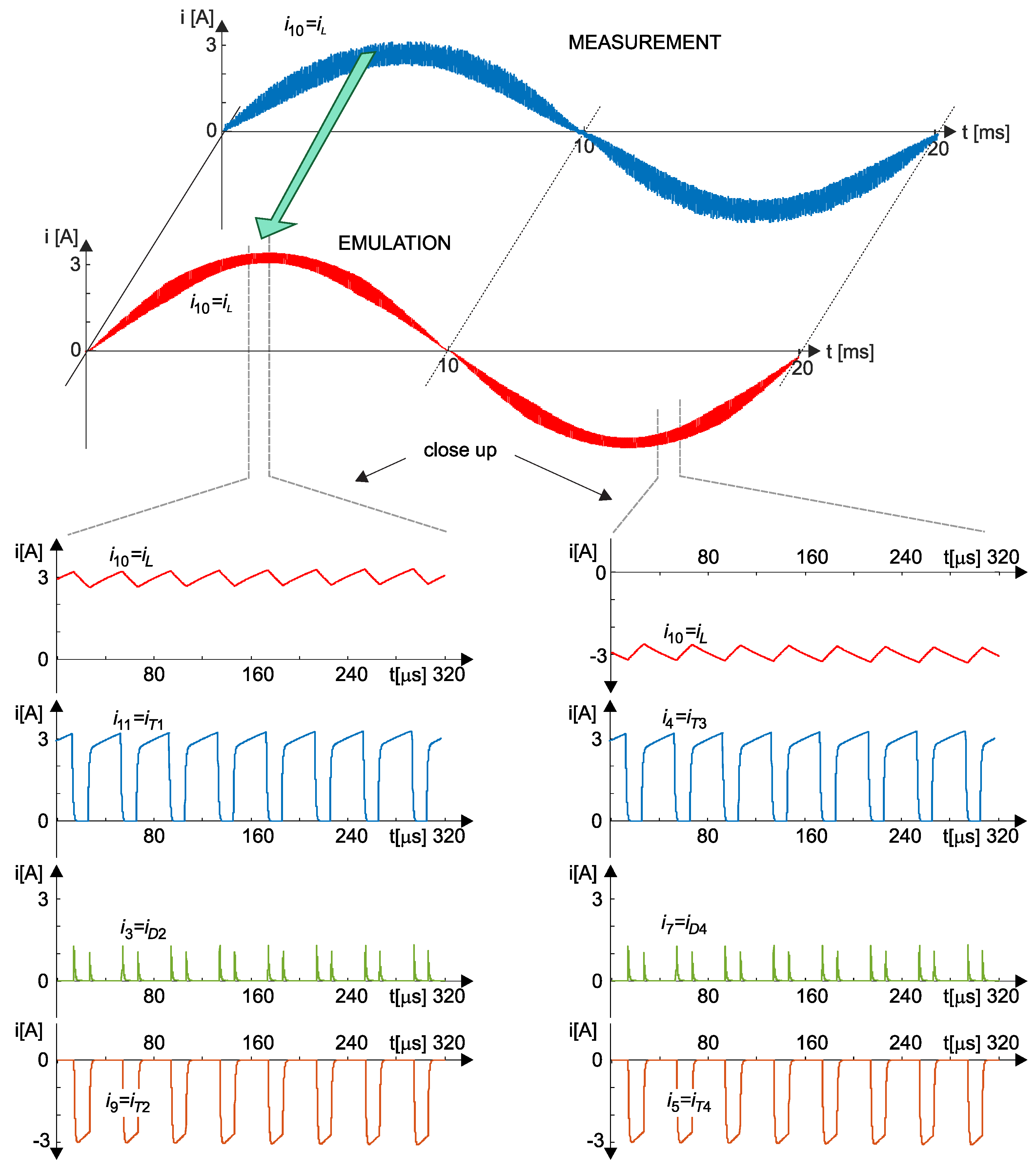

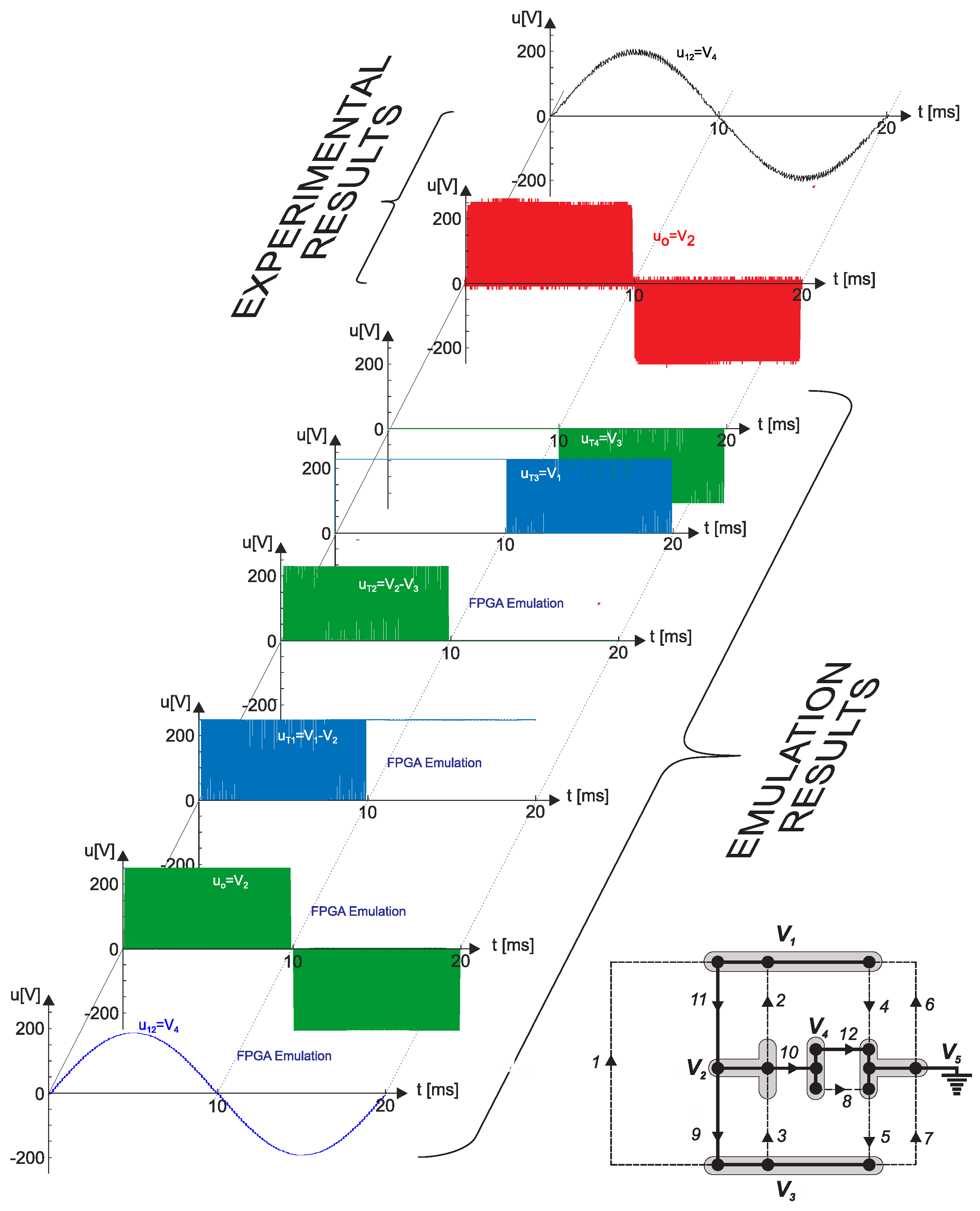

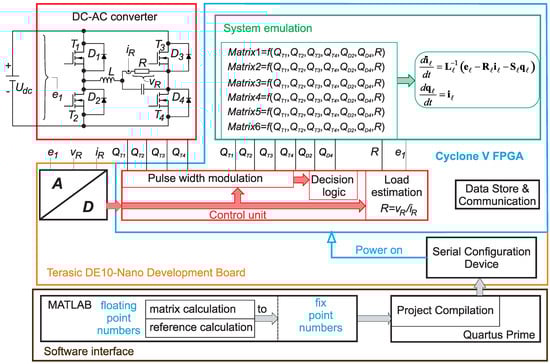

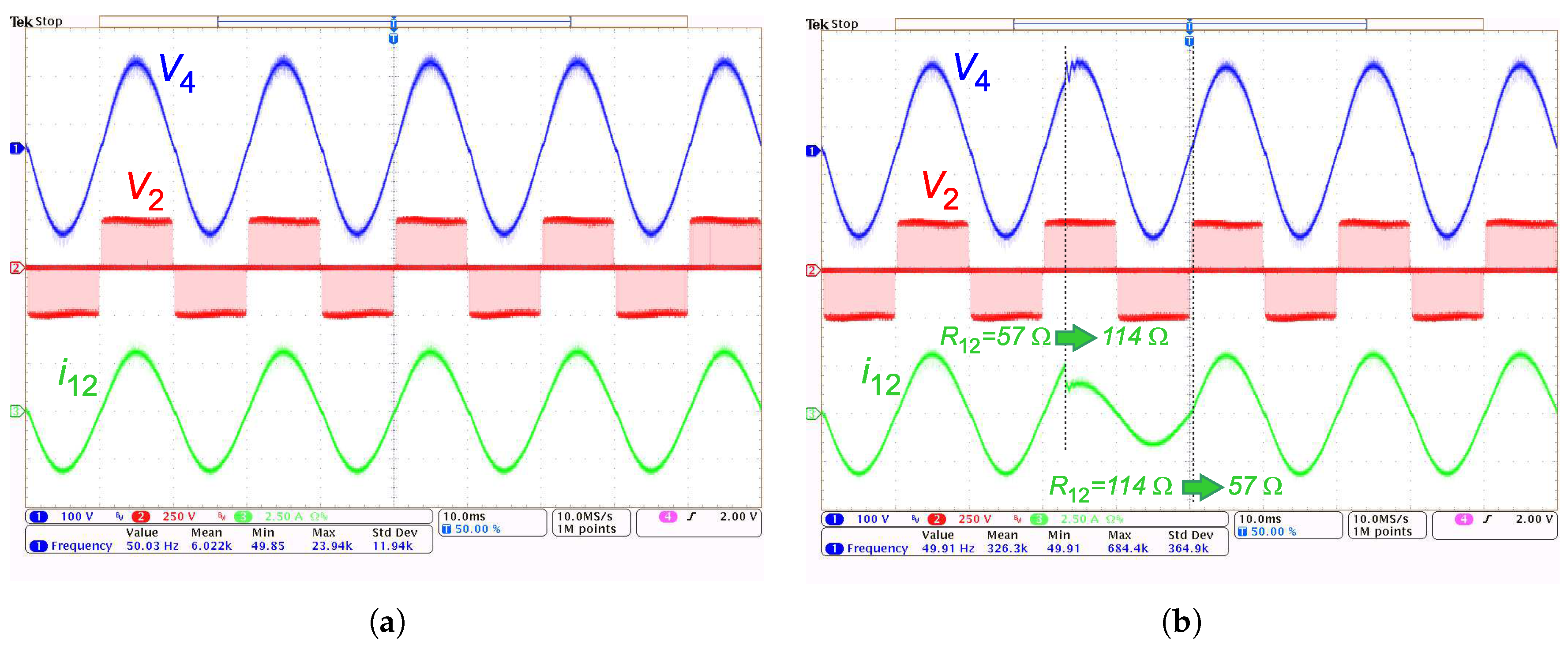

This paper deals with an emulation system for Power Electronics Converters (PEC). The emulation of PECs is performed on a Field-Programmable Gate Array (FPGA) capable of hard real-time operation. To obtain such a system, the converter operation is described using a differential equations-based model designed with the graph theory. Differential equation coefficients are changed according to the type of converter and pulse-width modulation (PWM) signals. The tie-set and incidence matrix approach for the converter modelling is performed to describe the converter operation in a general way. Such approach enables that any type of PECs can be described appropriately. The emulator was verified experimentally by synchronous operation with a real DC-AC converter built for this purposes. View Full-Text
Keywords: power electronics; modelling; network theory; emulation; FPGA power electronics; modelling; network theory; emulation; FPGA
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Marguč, J.; Truntič, M.; Rodič, M.; Milanovič, M. FPGA Based Real-Time Emulation System for Power Electronics Converters. Energies 2019, 12, 969.
