Comparison of Open Source Power Grid Models—Combining a Mathematical, Visual and Electrical Analysis in an Open Source Tool

DLR Institute of Networked Energy Systems, Carl-von-Ossietzky-Str. 15, 26129 Oldenburg, Germany
*
Author to whom correspondence should be addressed.
Energies 2019, 12(24), 4728; https://doi.org/10.3390/en12244728
Received: 16 October 2019 / Revised: 5 December 2019 / Accepted: 7 December 2019 / Published: 11 December 2019
(This article belongs to the Section Electrical Power and Energy System)
Power grid models are important in relation to several topics and applications, especially the modelling, optimisation and extension of electrical grids. The significance of grid models is heightened by the increase in renewable energy generation and the challenges associated with its integration into the power grid. However, despite their crucial importance, grid models have generally not been made publicly available for scientific studies or technical analyses. Little information has been published about either the details and methods used in the derivation of these models, or their input and output data. Recently, several projects were initiated in an effort to address this by developing open source grid models and associated data. These projects used different approaches and methods, but most are based on the OpenStreetMap database. The goal of this paper is to compare the different available grid models on the basis of the structure and derivation methods used. Therefore, a novel combination of a graph-theoretical, Geographic Information System (GIS)-based and power-related comparison level is introduced using the open source tool AutoGridComp, which was developed by the authors. The grid models considered in this study are the Scientific Grid Model (SciGRID), GridKit and open street map Transmission Grid Model (osmTGmod) models for Germany. View Full-Text
Keywords: grid models; open source; comparison; characterisation; GIS; network criteria; visualisation; power-related completeness grid models; open source; comparison; characterisation; GIS; network criteria; visualisation; power-related completeness

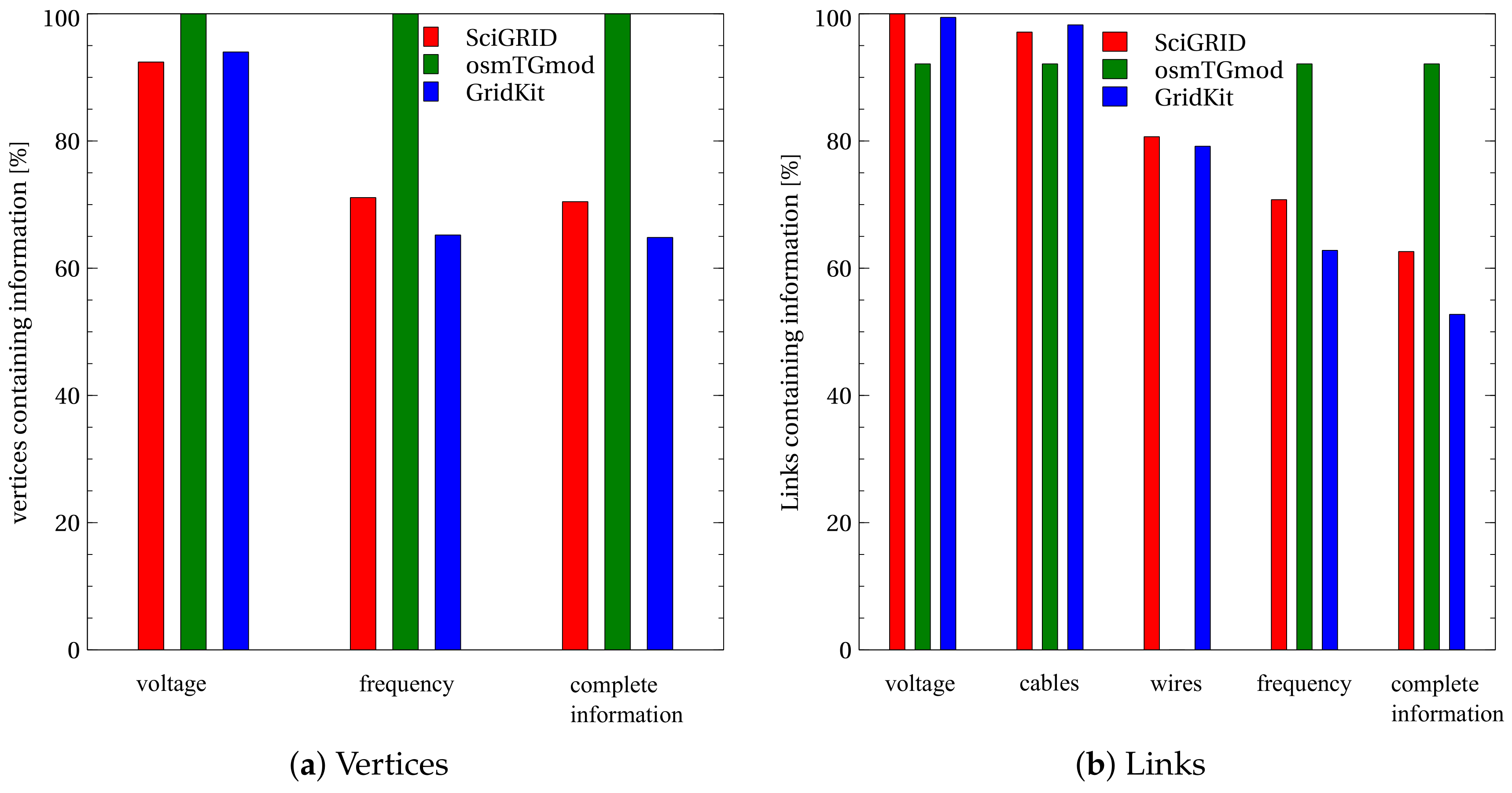

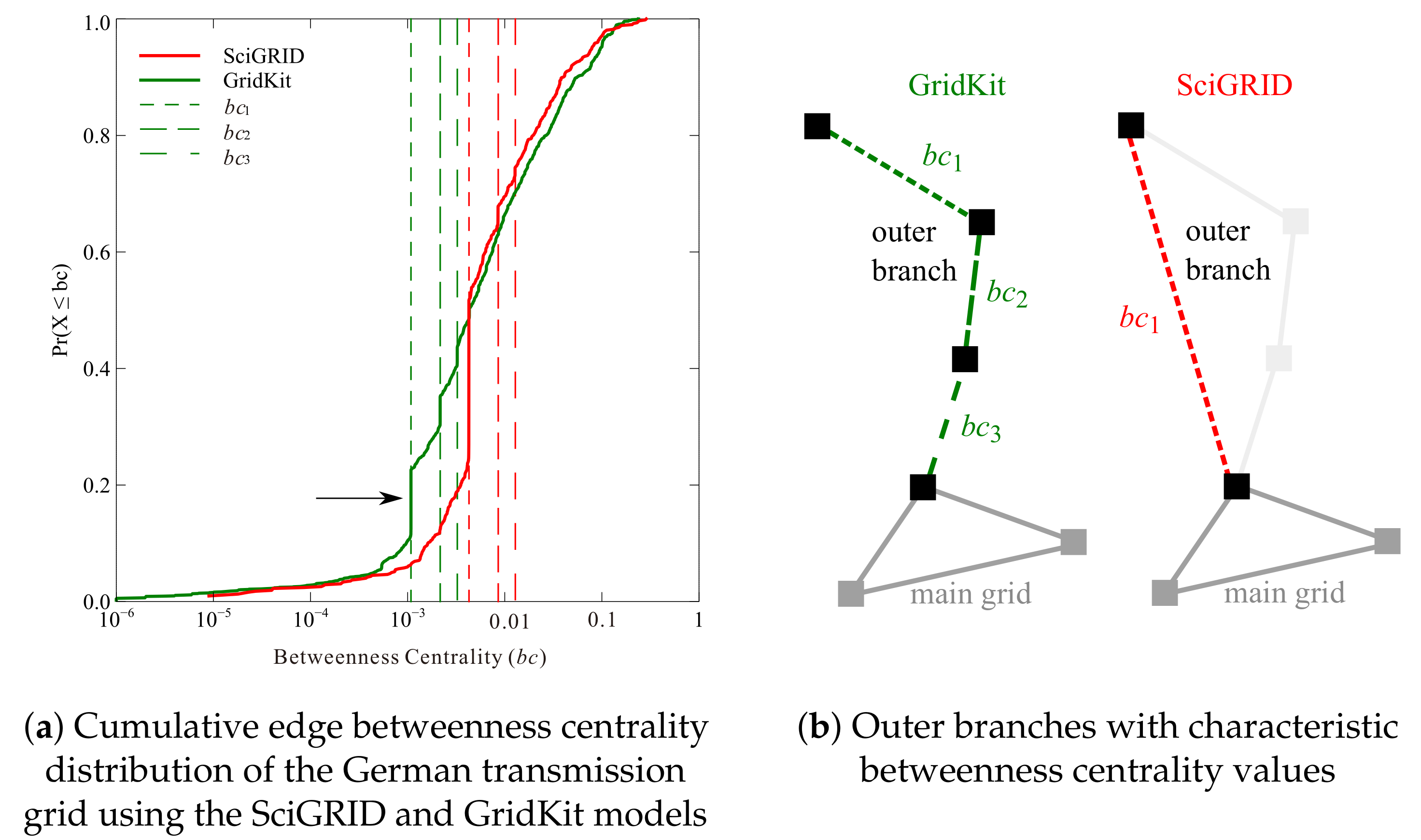

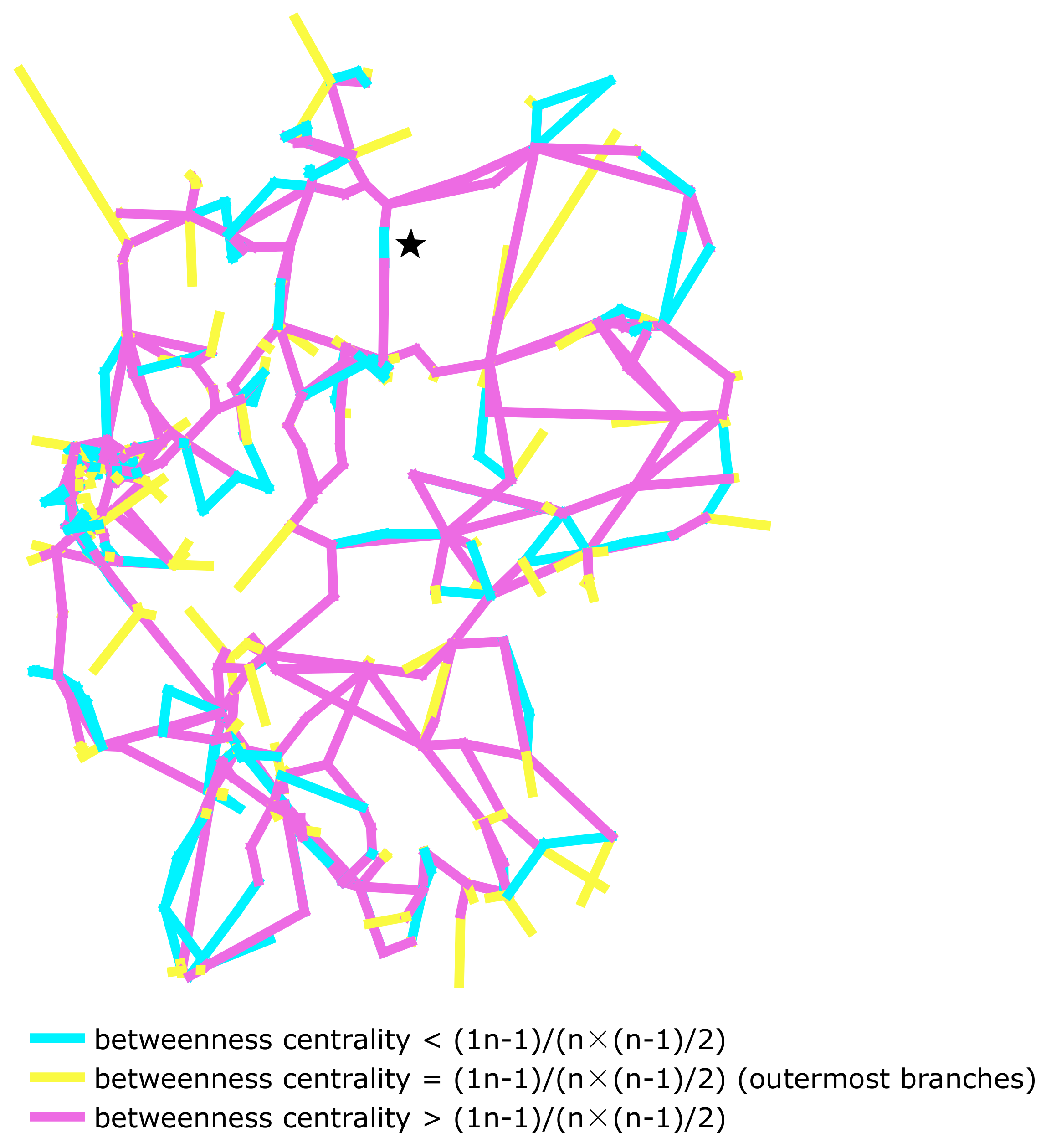

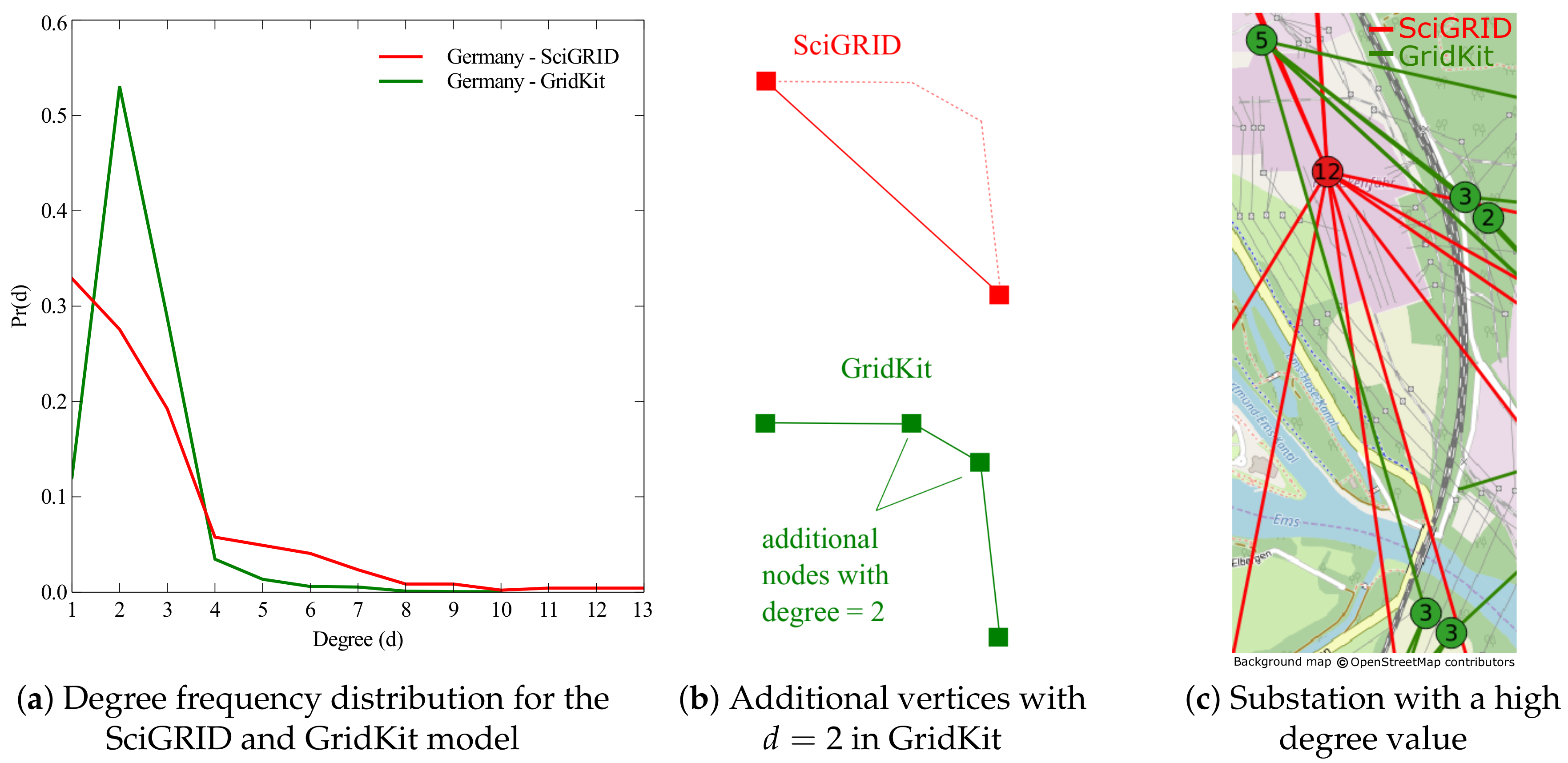

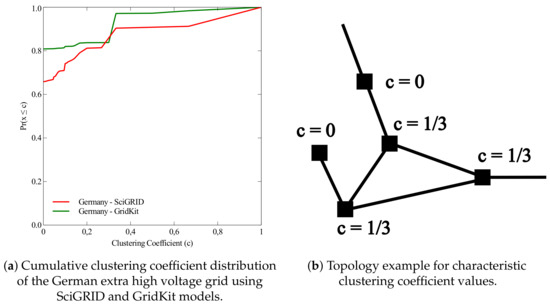

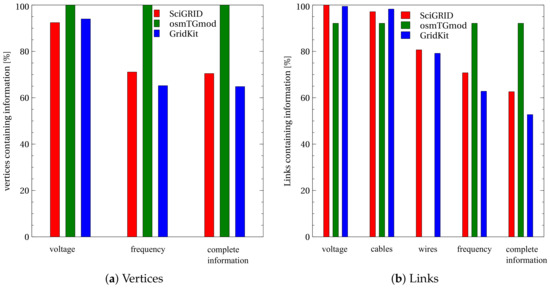

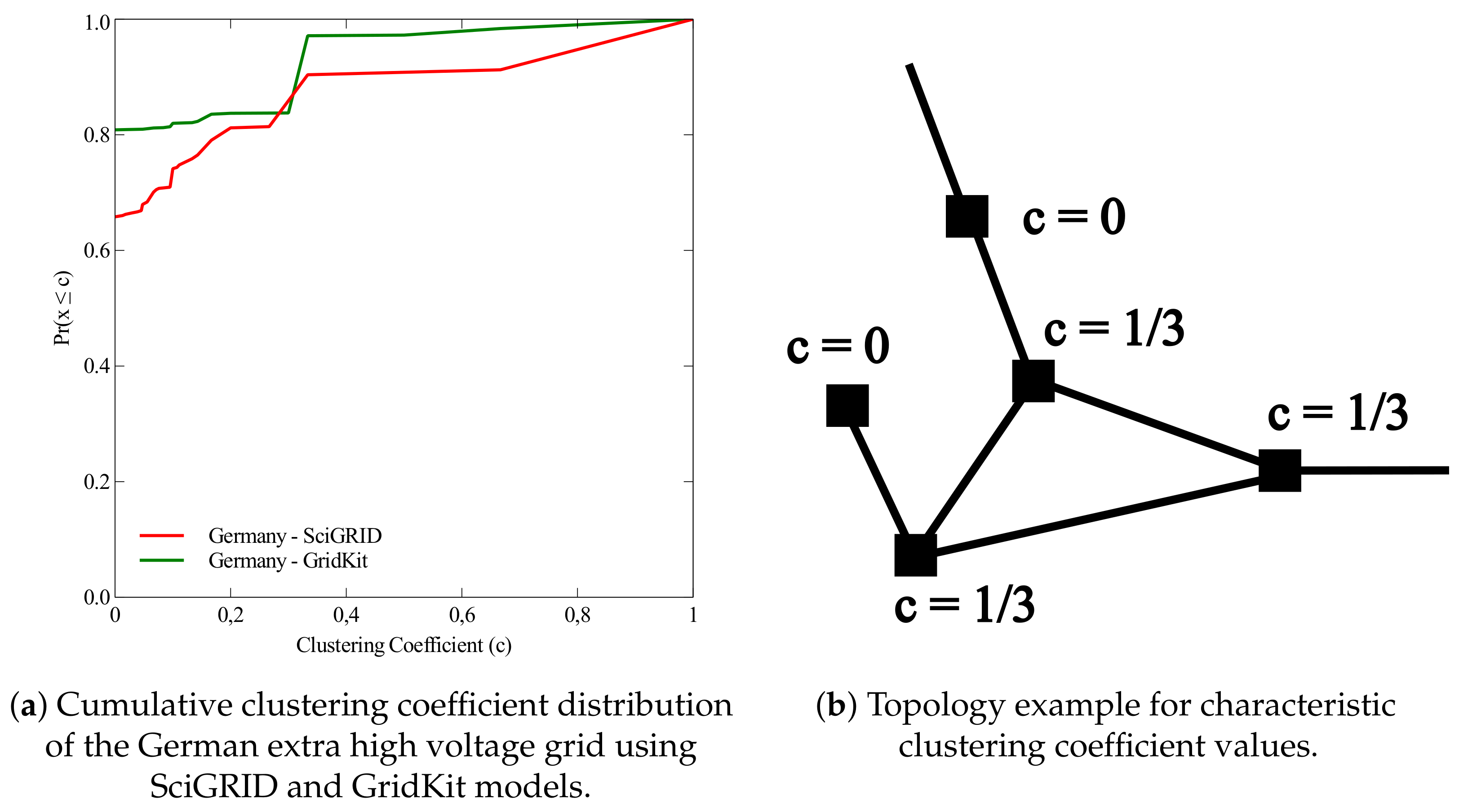

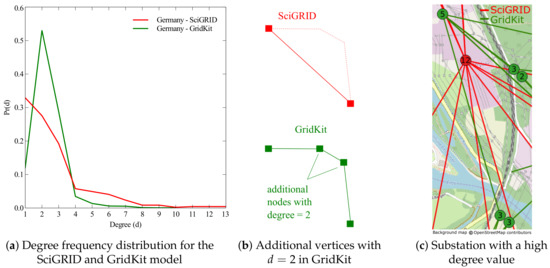

Show Figures

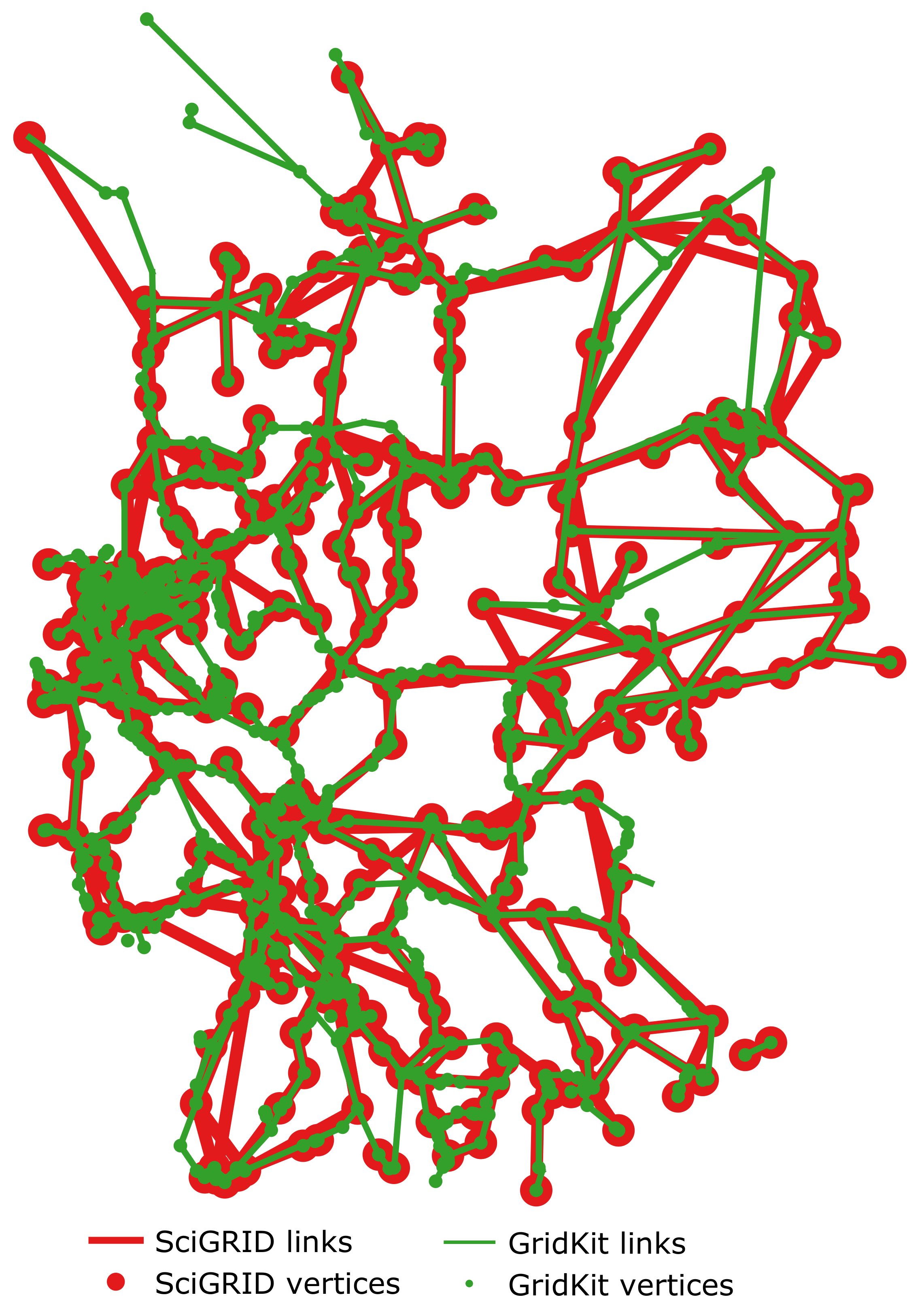

Graphical abstract

  • Externally hosted supplementary file 1
    Link: https://github.com/wheitkoetter/AutoGridComp

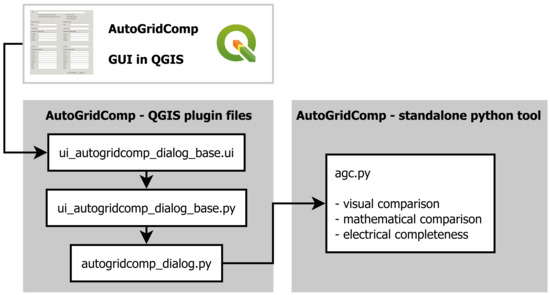

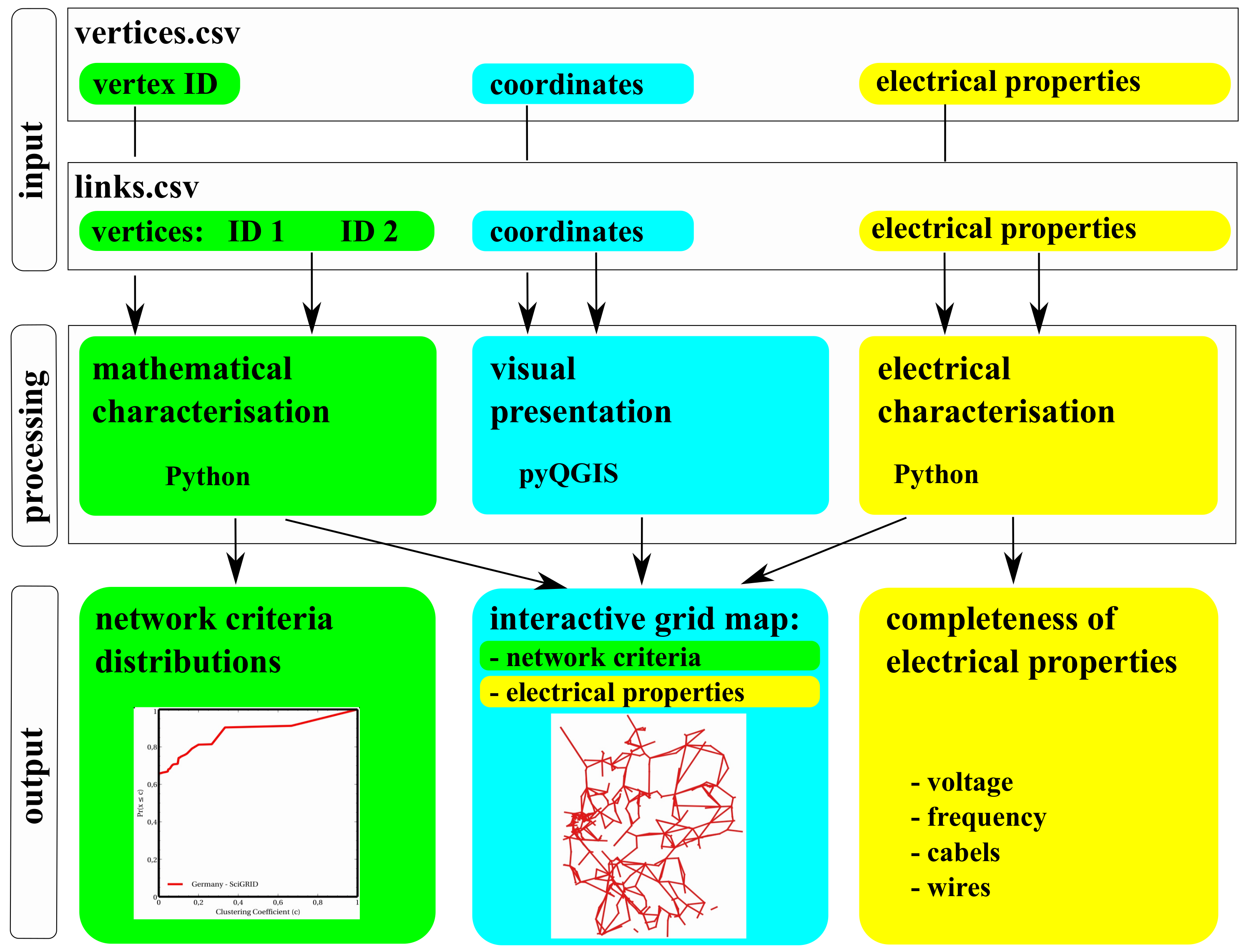

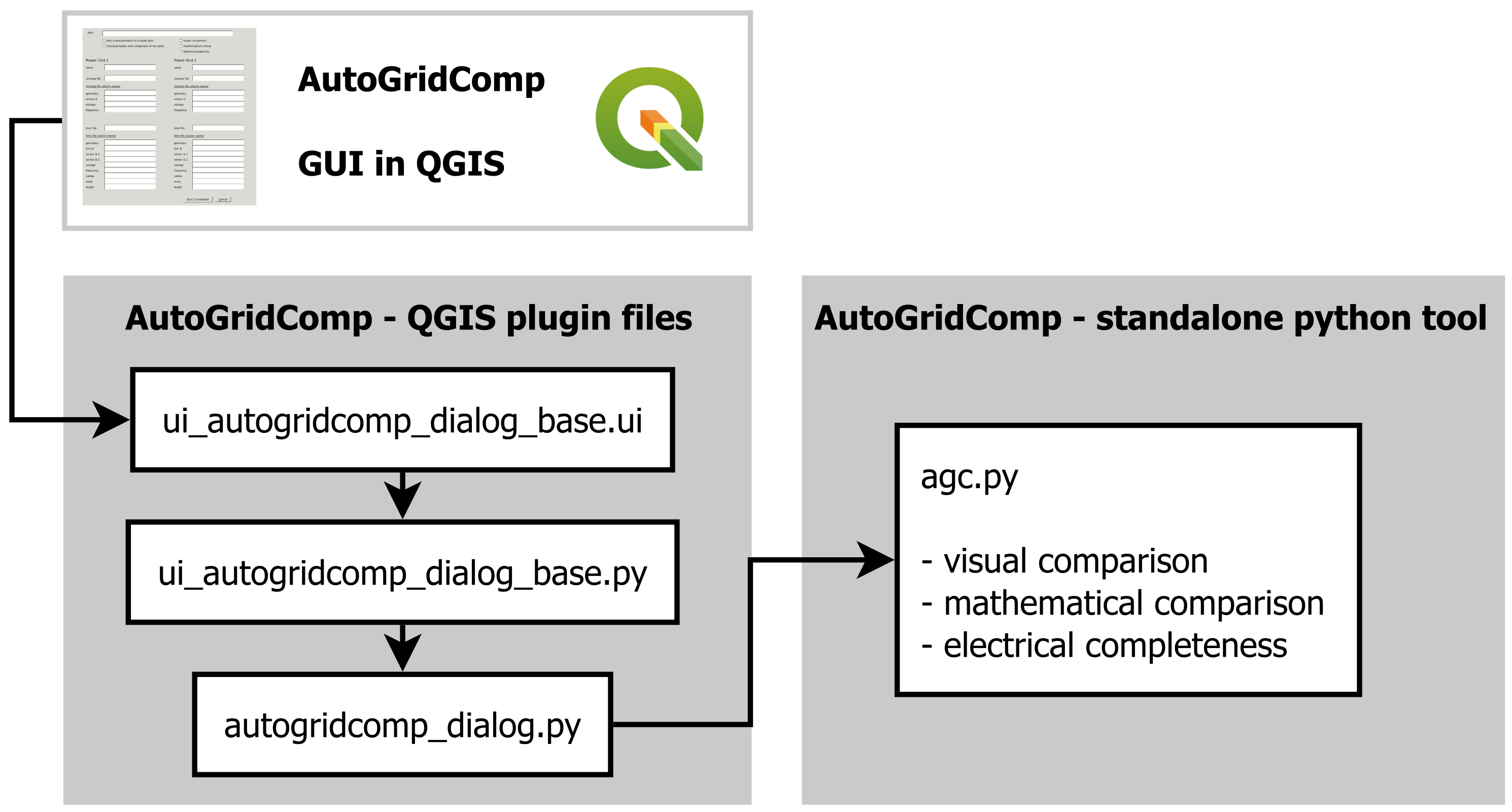

    Description: The open source tool AutoGridComp automatically compares power grid models, taking into account mathematical, visual and electrical criteria. AutoGridComp can be used as a standalone python tool or as a QGIS plugin. The tool can also be applied to grid models other than those of power grids. Licensed under the BSD-3-Clause Revised License.
