Enthalpies of Hydrate Formation and Dissociation from Residual Thermodynamics

Abstract

We have proposed a consistent thermodynamic scheme for evaluation of enthalpy changes of hydrate phase transitions based on residual thermodynamics. This entails obtaining every hydrate property such as gas hydrate pressure-temperature equilibrium curves, change in free energy which is the thermodynamic driving force in kinetic theories, and of course, enthalpy changes of hydrate dissociation and formation. Enthalpy change of a hydrate phase transition is a vital property of gas hydrate. However, experimental data in literature lacks vital information required for proper understanding and interpretation, and indirect methods of obtaining this important hydrate property based on the Clapeyron and Clausius-Clapeyron equations also have some limitations. The Clausius-Clapeyron approach for example involves oversimplifications that make results obtained from it to be inconsistent and unreliable. We have used our proposed approach to evaluate consistent enthalpy changes of hydrate phase transitions as a function of temperature and pressure, and hydration number for CH₄ and CO₂. Several results in the literature of enthalpy changes of hydrate dissociation and formation from experiment, and Clapeyron and Clausius-Clapeyron approaches have been studied which show a considerable disagreement. We also present the implication of these enthalpy changes of hydrate phase transitions to environmentally friendly production of energy from naturally existing CH₄ hydrate and simultaneously storing CO₂ on a long-term basis as CO₂ hydrate. We estimated enthalpy changes of hydrate phase transition for CO₂ to be 10–11 kJ/mol of guest molecule greater than that of CH₄ within a temperature range of 273–280 K. Therefore, the exothermic heat liberated when a CO₂ hydrate is formed is greater or more than the endothermic heat needed for dissociation of the in-situ methane hydrate.

1. Introduction

The international interest in natural gas hydrates as a potential source of energy is increasing rapidly [1,2,3,4,5,6,7]. Important global economies [2,5,8] in the world, like for instance Japan and China, are highly dependent on import of energy. These countries have substantial resources of natural gas hydrates [2]. For China, the beneficial situation is that these hydrate energy sources are located offshore as well as onshore in permafrost regions [3,9]. These natural resources have been estimated to be huge in amount by Makogon et al. [2] and Collett [10]. However, the exact or accurate amount is still being debated, thus, uncertain [8]. Klauda and Sandler [11] predicted it is more than 74,200 metric gigatons (Gt) from thermodynamic modelling. While Milkov [12], based on the available information on natural gas hydrate distribution puts this amount at 2500 Gt. Nevertheless, as stated above, natural gas hydrates are considered as a potential source of unconventional energy for the future [1,2,3,4,5,6,7,8].

A large variety of techniques for mining or production of the energy resources have been recommended in the last three decades till date. Most efforts have been devoted to investigation of thermal stimulation and pressure reduction. A more novel approach of using CO₂ is attractive due to the combination of energy production and long-term safe storage of CO₂ as hydrate. And as we show in this work the enthalpy changes of hydrate phase transitions of both (methane and carbon dioxide) components will play a vital function in this process. Thus, it is imperative to obtain accurate values of these heat of hydrate formation and dissociation.

However, the data that can be found in literature for enthalpy of hydrate phase transition obtained by experiment most times lack vital information needed for proper understanding and interpretation. Available experimental data for hydrate dissociation enthalpies are filled with various sources of bias that we have discussed in separate papers. Several data available in literature are limited and relevant information needed for proper understanding and interpretation are frequently missing. Sometimes information about pressure, temperature or of both properties is missing [13]. Hydration number and hydrate composition are also not available sometimes. The equation of state applied is also not reported in some literature.

The Clausius-Clapeyron approach is the simplest method that is generally applied to estimate enthalpy change of hydrate phase transition. The calculations are based on hydrate equilibrium data of pressure and temperature from experiments or calculated data. The Clausius-Clapeyron equation is over-simplified, which is the reason for the limitation of the accuracy of estimates especially at higher pressures. Therefore, the ordinary Clapeyron equation is favoured by most recent works applying different models for the change in volume associated with the hydrate phase transitions [14]. The estimates obtained by the use of the Clausius-Clapeyron approach are thus not reliable and not consistent because of its over-simplification. In addition, older data based on Clapeyron equation lack appropriate volume corrections. For example, the work of Anderson [14], hydrate filling fractions even up to 282 K seem very high. Several experimental data (calorimetry) also lack any measured filling fractions and regularly use a constant value that suggest that they might just be guessed values. Information about superheating above the hydrate equilibrium conditions to completely dissociate the gas hydrate to liquid water and gas is normally not lacking.

However, thermodynamically, enthalpy change is uniquely but trivially related to change in free energy. Therefore, thermodynamic models used for description of change in free energy associated with hydrate phase transition (formation or dissociation) will have a consistent change in enthalpy on the basis of the specific models. This kind of consistent method applies to kinetic theories like classical nucleation theory (CNT) [15], phase-field theory [16,17,18,19,20], and multicomponent diffuse interface theory (MDIT) [21], and other kinetic theory that is complete. Being complete implies there is implicit coupling of heat and mass transports, together with the thermodynamics of phase transition. This is why we propose the use of residual thermodynamics which able to evaluate real and not mere ideal thermodynamic properties and the approach does not have the limitations of the other aforementioned methods. With residual thermodynamics, we can calculate enthalpy changes of hydrate phase transition which are consistent. We can calculate values outside of equilibrium, while the Clausius-Clapeyron and Clapeyron approached are based on equilibrium. Real hydrate phase transitions, in industry and nature―except in the laboratory―cannot reach equilibrium. This has been extensively discussed in our previous studies [22,23,24]. We can obtain the degree of superheating needed for dissociation of hydrates to liquid water and guest molecule back to its original phase (this is not included in this study but in a subsequent work to this).

There are substantial deviations between various experimental data. Likewise, calculations based on both the Clapeyron and Clausius-Clapeyron also vary considerably. The proposed residual thermodynamic scheme is even very much numerically simpler than Anderson’s Clapeyron scheme [14,25,26] that goes through ice, and it is directly adaptable to gas mixtures. This study is a continuation of our previous work [26] in the Project, “Simultaneous production of energy from in-situ methane hydrate and long-termed offshore storage of CO₂”. However, this work focuses on application or implication of the enthalpies. This work also involves use of more extensive literature, and we also make available data of enthalpies of hydrate phase transitions from our residual thermodynamic approach that other researchers can make comparison with. This approach will be applied to hydrate systems involving mixture of hydrate formers in our subsequent work.

2. Theoretical Analysis

Pure methane forms a structure denoted as structure I. In this structure, water molecules form two types of cavities. The smallest cavity consists of 20 water molecules and is suitable for surrounding molecules like for instance methane. A larger cavity consisting of 24 water molecules is large enough to larger molecules like for instance ethane.

The cavities are stabilized by the molecular volume of the “guest” that enters the cavity and weakens attractive forces which typically decay proportionally to the distance between water and methane to the inverse of power 6. This is similar to the attractive part of the Lennard-Jones (12-6) potential, and also the Kihara potential, which contains an additional parameter which is intended to imitate effects of molecular elongation.

Van der Waal and Platteeuw [27] used a semi grand canonical ensemble to derive a Langmuir type adsorption theory in which water molecules are fixed and rigid while molecules that enter cavities (guest molecules) are open to exchange with surrounding phases. The final result of the derivation is expressed in terms of chemical potential of water in hydrate:

$${\mu }_{H_{2}O}^H={\mu }_{H_{2}O}^{0,H}-{\displaystyle \sum }_{k=1,2}RT{v}_{k}ln\left(1+{\displaystyle \sum }_i{h}_{ij}\right)$$

(1)

${\mu }_{H_{2}O}^H$ is the chemical potential of water in hydrate, while ${\mu }_{H_{2}O}^{0,H}$ is the chemical potential of water in an empty clathrate for the given structure in consideration. Historically, this value has not been calculated by theoretical methods but rather fitted to experimental data in the form of chemical potential of pure liquid water minus empty clathrate water chemical potential. See Sloan and Koh [28] for some examples of values. T stands for temperature, and P is pressure. k is an index for cavity types and j is an index for guest molecules in the various cavities. Number of cavities is ν, with subscripts k for large and small cavities respectively. For structure I, which is the main focus here, ν_øarge = 3/24 and ν_small = 1/24. For structure II the corresponding numbers are ν_øarge = 1/17 and ν_small = 2/17.

The canonical partition functions for the cavities, $h_{ij}$ that will be a result of the grand canonical derivation will generally be an exponential function of the chemical potential time Boltzmann integrals over interactions between guests and water (generally also with surrounding guest molecules [29]). In the classical formulation of van der Waal and Platteeuw [27] the result for a rigid lattice is:

$$h_{ki}=f_i^{gas}\left(T,P,\overrightarrow{x}\right)C_{ki}\left(T\right)=x_i{\varnothing }_i\left(T,P,\overrightarrow{x}\right)P{C}_{ki}\left(T\right)$$

(2)

The Langmuir constant $C_{ki}\left(T\right)$ for a molecule i in cavity k and given below as Equation (3). In the simplest case of a monoatomic spherical guest molecules, the Langmuir constant is a simple integral over the Boltzmann factors of interaction energies between the guest molecule and surrounding waters.

$$C_{ki}\left(T\right)=\frac{1}{K_{B}T}{{\displaystyle \iiint }}^{}{e}^{\beta \left[{\phi }_{iw}\left(x,y,z\right)\right]}dxdydz$$

(3)

For non-linear multi-atomic representations of guest molecules, the integration will involve rotational degrees of freedom.

The most common guest/water interaction model in present versions hydrate equilibrium codes based of the reference method is based on a spherically smeared out version of the Kihara potential for interactions between a water and a guest. The Kihara potential can be expressed as:

$${\varnothing }_{ij}\left(r_{ij}\right)=4{\epsilon }_{ij}\left[{\left(\frac{{\sigma }_{ij}}{r_{ij}-a_{ij}}\right)}^{12}-{\left(\frac{{\sigma }_{ij}}{r_{ij}-a_{ij}}\right)}^6\right]$$

(4)

where i and j are molecular indices, while $r_{ij}-a_{ij}$ is the closest distance between the two molecules. ${\sigma }_{ij}$ is a molecular diameter, and ${\epsilon }_{ij}$ is a well-depth. For a_ij equal to zero, Equation (4) reduces to the Lennard-Jones (12-6) potential. A summation of approximate pairwise interactions in Equation (3) is possible and integration can be conducted efficiently using a Monte Carlo approach [29,30]. It is, however, more common to use an integrated smeared interaction version in which the average water/guest interaction are smeared out over the surface of a spherically smoothed cavity radius R. Z is used as the number of waters represented in this spherical shell in Equation (4) below. Z is therefore 20 for small cavity and 24 for large cavity. The details of this integration to reach at the spherically smoothed potential is far too extensive to include here. See reference [28] for more details and further references as well as examples of values for Equation (4). The final results for each specific cavity k is:

$${\phi }_{iw}\left(r\right)=2Z_k{\epsilon }_{iw}\left[\frac{{\sigma }_{iw}^{12}}{R_k^{11}r}\left({\mathsf{\Delta }}^{10}+\frac{a_{iw}}{R_k}{\mathsf{\Delta }}^{11}\right)-\frac{{\sigma }_{iw}^6}{R_k^{5}r}\left({\mathsf{\Delta }}^4+\frac{a_{iw}}{R_k}{\mathsf{\Delta }}^5\right)\right]$$

(5)

$${\mathsf{\Delta }}^N=\frac{1}{N}\left[{\left(1-\frac{r}{R_k}-\frac{a_{iw}}{R_k}\right)}^{-N}-{\left(1-\frac{r}{R_k}-\frac{a_{iw}}{R_k}\right)}^N\right]$$

(6)

The spherically symmetric integration version of Equation (3) can then be expressed as:

$$C_{ki}\left(T\right)=\frac{4\pi }{k_{B}T}{{\displaystyle \int }}_0^{\infty }{e}^{\beta \left[{\phi }_{iw}\left(x,y,z\right)\right]}{r}^{2}dr$$

(7)

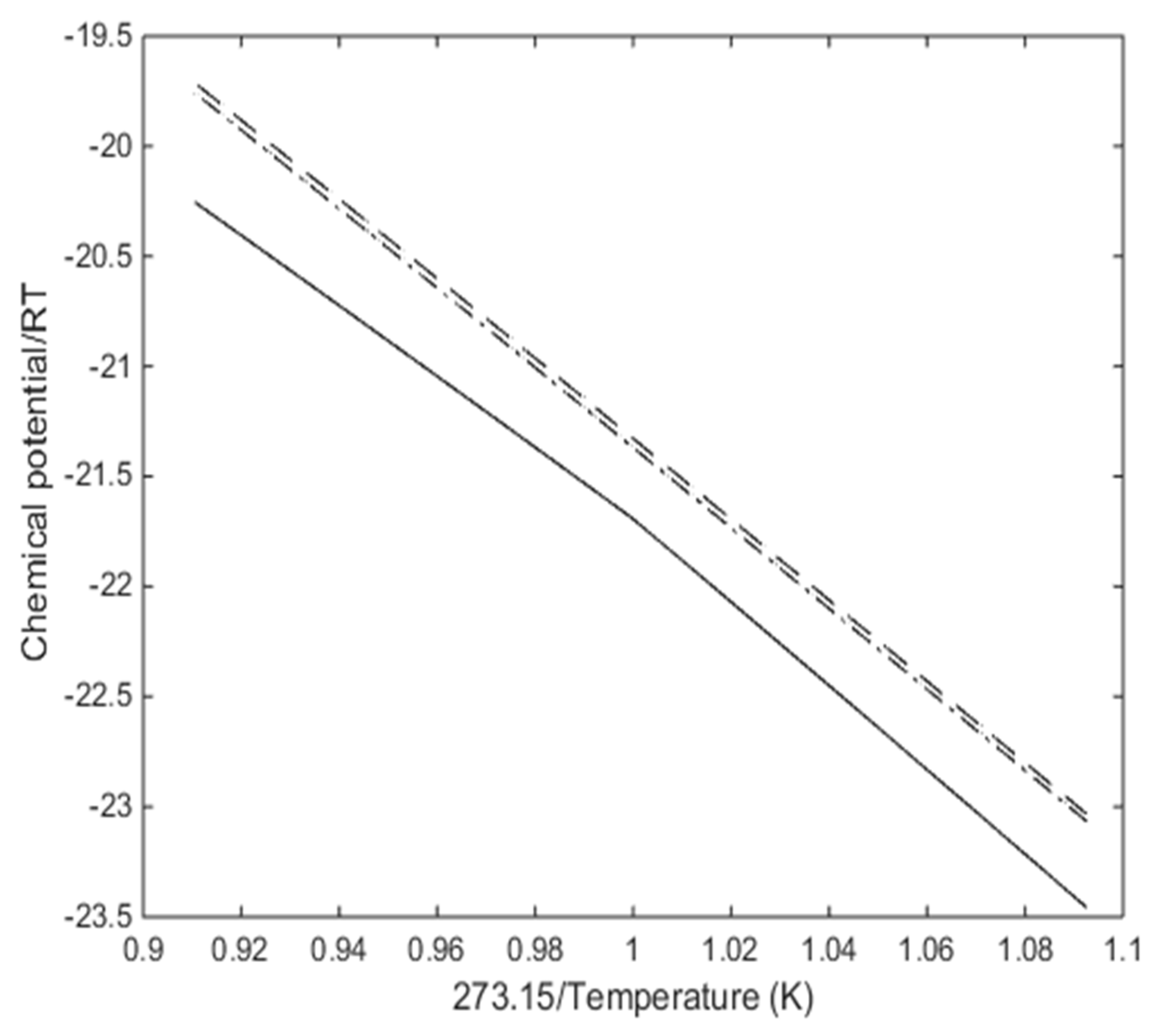

Kvamme and Tanaka [31] also utilized a semi grand canonical ensemble and used molecular dynamics simulations to derive the same equation as Equation (1), but the meaning of chemical potential is now the physically average sampled chemical potential of water in empty clathrate based on a harmonic oscillator approach. These chemical potentials are therefore denoted as reference chemical potentials. Values for chemical potential of water in empty clathrates of structures I and II are plotted in Figure 1 below [30,31].

Parameters for linear fits of the various chemical potential in the plot is listed in

Table 1. Parameters for dimensionless chemical potential functions in Equation (8).

Water Phase, m	a0	a1
Empty structure I	−3.087	−18.246
Empty structure II	−3.188	−18.186
Ice (T < 273.15 K)	−2.639	−19.051
Liquid water (T > 273.15 K)	−5.610	−16.080

below.

$$\frac{{\mu }_{H_{2}O}^m}{RT}=a_0^m+a_1^m\left(\frac{273.15}{T}\right)$$

(8)

Similar for the evaluation of the canonical partition functions in Equation (1). These can also be evaluated for a rigid lattice in a similar fashion as Equation (2) but they can also be evaluated using a harmonic oscillator approach and be expressed as:

$$h_{ki}=e^{\beta \left[{\mu }_{ki}-\mathsf{\Delta }{\mathrm{g}}_{ki}\right]}$$

(9)

where β is equal to the inverse of the universal gas constant multiplied by temperature. $\mathsf{\Delta }{\mathrm{g}}_{ki}$ stands for the effect on hydrate water for inclusion of a hydrate former (guest molecules) i in the hydrate cavity k. In an equilibrium situation, the chemical potential of the hydrate forming molecules i in the cavity (cage) k is uniform with its (guest molecules i) chemical potential in the co-existing (original) phase it emanates from. Considering a non-equilibrium situation, adjustment of the chemical potential is done for distance from equilibrium through a Taylor expansion as will be discussed later. The free energies of inclusion, that is $\mathsf{\Delta }{\mathrm{g}}_{ki}$ have been reported in other works [22,32,33,34]. At thermodynamic equilibrium, ${\mu }_{ki}$ is the chemical potential of the hydrate forming guest molecule in its original phase (gas, liquid, or fluid) at the equilibrium pressure and temperature of the hydrate.

The composition of the hydrate is also trivially given by the derivation from the semi grand canonical ensemble and given by:

$${\theta }_{ki}=\frac{h_{ki}}{{{\displaystyle \sum }}_j{h}_{ki}}$$

(10)

${\theta }_{ki}$ is the filling fraction of component i in cavity (cage) type k. Then:

$$x_i^H=\frac{{\theta }_{large,i}{v}_{large}+{\theta }_{small,i}{v}_{small}}{1+{\theta }_{large,i}{v}_{large}+{\theta }_{small,i}{v}_{small}}$$

(11)

where ν stands for the fraction of cavity in each water (i.e., per water) for the actual cavity (cage) type, as shown by the subscripts. The corresponding mole-fraction (concentration) of water is therefore:

$$x_{H_{2}O}^H=1-{\displaystyle \sum }_i{x}_i^H$$

(12)

And the associated hydrate free energy is then:

$$G^{\left(H\right)}=x_{H_{2}O}^H{\mu }_{H_{2}O}^H+{\displaystyle \sum }_i{x}_i^H{\mu }_i^H$$

(13)

Outside of equilibrium the corresponding result for a Taylor expansion is given by:

$$\begin{array}{ll}{G}_{Non-equilibrium}^H& \left(T,P,\overrightarrow{x}\right)\\ & =H^{H,Eq.}\left(T^{Eq.},P^{Eq.},{\overrightarrow{x}}^{Eq.}\right)+{\displaystyle \sum }_r\frac{\partial G^H}{\partial x_r}{│}_{P,T,i\ne r}\left(x_r-x_r^{Eq.}\right)\\ & +\frac{\partial G^H}{\partial P}{│}_{T,x}\left(P-P^{Eq.}\right)+\frac{\partial G^H}{\partial T}{│}_{P,x}\left(T-T^{Eq.}\right)\end{array}$$

(14)

Residual Thermodynamic Modelling of Hydrate Phase Transition

With residual thermodynamics we are able to calculate real gas behaviour taking into account thermodynamic deviations from ideal gas behaviour [35]. A phase transition of hydrate (formation or dissociation) can be reversed along the pressure-temperature equilibrium curve of hydrate, just as it is used in the Clapeyron method for hydrate formation from a separate hydrate former phase (gas or liquid) and a free water phase. The change in the free energy for this hydrate phase change can be expressed as:

$$\begin{gathered} \mathsf{\Delta }{G}^H=\left[x_{H_{2}O}^H\left({\mu }_{H_{2}O}^H\left(T,P,{\overrightarrow{x}}^H\right)-{\mu }_{H_{2}O}^{water}\left(T,P,\overrightarrow{x}\right)\right) \\ +{\displaystyle \sum }_j{x}_j^H\left({\mu }_j^H\left(T,P,{\overrightarrow{x}}^H\right)-{\mu }_j^{\mathrm{g}as}\left(T,P,{\overrightarrow{y}}^{\mathrm{g}as}\right)\right)\right] \end{gathered}$$

(15)

where superscript H signifies hydrate phase in Equation (15). T signifies temperature, and P is pressure. x signifies mole-fraction (hydrate or liquid phase), and y denotes mole-fraction in hydrate former phase (gas or liquid). j is an index for guest molecules or hydrate formers. Superscript water refers to water phase which is turned into hydrate. The water phase is usually liquid or ice, but in this study, we have considered liquid water only. And µ is chemical potential. The chemical potential of liquid water is estimated from the symmetric excess:

$$\begin{gathered} {\mu }_{H_{2}O}\left(T,P,\overrightarrow{x}\right)={\mu }_{H_{2}O}^{pure,H_{2}O}\left(T,P\right)+RTln\left[x_{H_{2}O}{\gamma }_{H_{2}O}\left(T,P,\overrightarrow{x}\right)\right]\approx {\mu }_{H_{2}O}^{pure,H_{2}O}\left(T,P\right) \\ +RTln\left[x_{H_{2}O}\right] \\ lim\left({\gamma }_{H_{2}O}\right)=1.0\mathrm{when}{x}_{H_{2}O}\mathrm{approaches}1 \end{gathered}$$

(16)

where γ represents activity coefficient, superscript H₂O signifies water phase and subscript H₂O is liquid water. In Equation (16) the approximation on the right-hand side (R.H.S) is not necessary. A theoretical model can be used for the activity coefficient or Gibbs-Duhem equation [36]. CH₄ solubility in water is very low, thus, the R.H.S of Equation (16) will then be close to pure water chemical potential. From to residual thermodynamics, the hydrate former j chemical potential is given as:

$${\mu }_i\left(T,P,\overrightarrow{y}\right)={\mu }_i^{pure,idealgas}\left(T,P,\overrightarrow{y}\right)+RTln\left[y_i{\varnothing }_i\left(T,P,\overrightarrow{y}\right)\right]$$

(17)

where y_i denotes mole-fraction of component i in the gas mixture. ${\varnothing }_i$ represents the fugacity coefficient for component i. Ideal gas chemical potential for pure component i can be trivially computed for any model molecule by means of statistical mechanics from mass and intramolecular structure (bond lengths and bond angles). The ideal gas chemical potential as well as density and temperature are obtainable from the momentum space canonical partition function. The Soave-Redlich-Kwong equation of state (SRK EOS) [37] have been used to calculate the fugacity coefficient and the density required for the ideal gas free energy evaluations.

Enthalpy change is trivially connected to the associated change in free energy thermodynamically as:

$$\frac{\partial {\left[\frac{\mathsf{\Delta }{G}^{Total}}{RT}\right]}_{P,N}}{\partial T}=-\left[\frac{\mathsf{\Delta }{H}^{Total}}{R{T}^2}\right]$$

(18)

superscript Total is brought in to also include the penalty of pushing away the old phases to make way for the new hydrate phase during hydrate formation. The total free energy change is in essence Equation (16) in addition to the interface free energy, multiplied by the area of contact between water and the hydrate forming phase in the nucleation stage of hydrate formation, divided by the number of molecules in the given core size. Since the critical nuclei sizes are small [15], the entire particle can be seen or considered as covered with water because of capillary forces. When the hydrate core grows beyond the critical core size, the penalty reduces rapidly in comparison to the free energy benefits of going into hydrate, given by Equation (16).

$$\frac{\partial {\left[\frac{{\mu }_{H_{2}O}^H}{RT}\right]}_{P,\overrightarrow{N}}}{\partial T}=\frac{\partial {\left[\frac{{\mu }_{H_{2}O}^{0,H}}{RT}\right]}_{P,\overrightarrow{N}}}{\partial T}-{\left[\frac{\partial }{\partial T}\right]}_{P,\overrightarrow{N}}\left[{\displaystyle \sum }_{k=1,2}{v}_{k}ln\left(1+{\displaystyle \sum }_i{h}_{ki}\right)\right]$$

(19)

The water (liquid) phase in Equation (16), and the chemical potential of the empty hydrate, which is the first term on R.H.S. of Equation (19), is trivially evaluated from [31]. Then, the second term is rearranged as given in Equation (20):

$${\left[\frac{\partial }{\partial T}\right]}_{P,\overrightarrow{N}}\left[{\displaystyle \sum }_{k=1,2}{v}_{k}ln\left(1+{\displaystyle \sum }_i{h}_{ki}\right)\right]=\left[{\displaystyle \sum }_{k=1,2}{v}_k\frac{{{\displaystyle \sum }}_i{\left[\frac{\partial h_{ki}}{\partial T}\right]}_{P,\overrightarrow{N}}}{\left(1+{{\displaystyle \sum }}_i{h}_{ki}\right)}\right]$$

(20)

Differentiation of cavity partition functions can be written as:

$${\left[\frac{\partial h_{ki}}{\partial T}\right]}_{P,\overrightarrow{N}}=h_{ki}\left[-\frac{1}{R{T}^2}\left({\mu }_{ki}-\mathsf{\Delta }{\mathrm{g}}_{ki}\right)+\frac{1}{RT}\left(\frac{\partial {\mu }_{ki}}{\partial T}-\frac{\partial \mathsf{\Delta }{\mathrm{g}}_{ki}}{\partial T}\right)\right]$$

(21)

The partial differentiation in the last term on R.H.S. is numerically computed from the polynomial fits of [31]:

$$\frac{\partial {\left[\frac{{\mu }_{H_{2}O}^H}{RT}\right]}_{P,\overrightarrow{N}}}{\partial T}=\frac{\partial {\left[\frac{{\mu }_{H_{2}O}^{0,H}}{RT}\right]}_{P,\overrightarrow{N}}}{\partial T}+\left[{\displaystyle \sum }_{k=1,2}{v}_k\frac{{{\displaystyle \sum }}_i{h}_{ki}\left[\frac{1}{R{T}^2}\left({\mu }_{ki}-\mathsf{\Delta }{\mathrm{g}}_{ki}\right)+\frac{1}{RT}\left(\frac{\partial {\mu }_{ki}}{\partial T}-\frac{\partial \mathsf{\Delta }{\mathrm{g}}_{ki}}{\partial T}\right)\right]}{\left(1+{{\displaystyle \sum }}_i{h}_{ki}\right)}\right]$$

(22)

$${\mu }_{H_{2}O}^{0,H}=-R{T}^2\frac{\partial {\left[\frac{{\mu }_{H_{2}O}^{0,H}}{RT}\right]}_{P,\overrightarrow{N}}}{\partial T}+\left[{\displaystyle \sum }_{k=1,2}{v}_k\frac{{{\displaystyle \sum }}_i{h}_{ki}\left[\left({\mu }_{ki}-\mathsf{\Delta }{\mathrm{g}}_{ki}\right)+T\left(\frac{\partial {\mu }_{ki}}{\partial T}-\frac{\partial \mathsf{\Delta }{\mathrm{g}}_{ki}}{\partial T}\right)\right]}{\left(1+{{\displaystyle \sum }}_i{h}_{ki}\right)}\right]$$

(23)

the enthalpy of water (liquid) is yet more trivially estimated with the use of numerical differentiation of the polynomial fit of chemical potential as a function of temperature T as Kvamme and Tanaka [31] specified.

If we consider equilibrium scenario, the chemical potential of a specific hydrate former (guest molecule) in the two types of cages have to be uniform and they have to also be uniform with the chemical potential of the same hydrate former in the original phase that it is taken or extracted from. Considering a heterogeneous hydrate formation, it means the chemical potential of the hydrate former phase, either gas or liquid. Nevertheless, outside of equilibrium which represent industrial situation and nature, the gradients in chemical potentials as function of pressure, temperature and concentrations (mole-fractions) need to reflect how the hydrate former behaves in the cage.

Enthalpies of different hydrate formers in the two cavity types can be computed utilizing Monte Carlo simulations along the lines described by Kvamme et al. (1993) [29] and Kvamme and Førrisdahl (1993) [30] by sampling interactions energies between water and guest molecule, and efficient volumes from the movements of the guest molecules:

$$H_{ki}^R=U_{ki}^R+\left(z_{ki}-1\right)RT$$

(24)

U here stands for energy and superscript R signifies residual (interaction) contribution. z_ki is compressibility factor for the hydrate forming guest i in cavity k. The consistent ideal gas values for the same interaction models which have been used in computation of the residual values is trivial.

$$z_{ki}=\frac{P{V}_{ki}}{k_{B}T}$$

(25)

$k_B$ is Boltzmann’s constant and $V_{ki}$ is the excluded volume of a hydrate forming molecule of type i in cavity of type k. This latter volume can be calculated from the sampled volume of centre of mass movements together with the excluded volume because of water/guest occupation.

The differentiation of chemical potential of a hydrate former molecule i in cavity (cage) type k with respect to temperature, T as required in Equation (22) is the negative of partial molar entropy for the same hydrate former molecule and can be computed as follows:

$${\left[\frac{\partial {\mu }_{ki}}{\partial T}\right]}_{N,\overrightarrow{N}}=\frac{{\mu }_{ki}-H_{ki}}{T}$$

(26)

And Equation (23) can then be reorganised into:

$${\mu }_{H_{2}O}^{0,H}=-R{T}^2\frac{\partial {\left[\frac{{\mu }_{H_{2}O}^{0,H}}{RT}\right]}_{P,\overrightarrow{N}}}{\partial T}+\left[{\displaystyle \sum }_{k=1,2}{v}_k\frac{{{\displaystyle \sum }}_i{h}_{ki}\left[H_{ki}-\mathsf{\Delta }{\mathrm{g}}_{ki}+T\frac{\partial \mathsf{\Delta }{\mathrm{g}}_{ki}}{\partial T}\right]}{\left(1+{{\displaystyle \sum }}_i{h}_{ki}\right)}\right]$$

(27)

The residual enthalpies for guest molecule in a separate hydrate former (guest molecule) phase are trivially evaluated from:

$$H_{ki}^R=-R{T}^2{\displaystyle \sum }_i{y}_i{\left[\frac{\partial ln{\varnothing }_i^{\mathrm{g}as}}{\partial T}\right]}_{P,y_{j\ne i}}$$

(28)

The same Soave-Redlich-Kwong [37] equation of state (SRK EOS) is applied for estimating fugacity coefficients for the chemical potentials.

3. Results and Discussion

3.1. Hydrate Equilibrium Curves Using Residual Thermodynamics

Hydrate equilibrium (P-T) curves calculated for methane and carbon dioxide hydrates using our scheme based on residual thermodynamic scheme approach are plotted with experimental (and some calculated) data in Figure 2a,b. For CH₄ hydrate, we compared our estimates with different 11 data sets from literature [14,38,39,40,41,42,43,44,45,46], and our CO₂ hydrate estimates are also compared with 11 different data sets [13,25,38,42,47,48,49,50,51,52]. The agreement is sufficiently good even though we did not do any empirical data fitting because it is not a priority. Our priority is to have the statistical mechanical model used [31] without adjustable parameters in all aspect, including the chemical potential of empty hydrate and that of water (ice and liquid). For CO₂ (Figure 2b) at 283 K, a jump can be observed. This has been explained in some of our previous studies [53,54]. The jump represents a point where the hydrate former undergoes a phase split (from gas phase to both liquid + gas), if we increase the P-T conditions along the equilibrium curve. It is caused by a change to a higher density because of part of the CO₂ becoming liquid at this higher pressure. This point is called a “quadruple point”; hydrate + liquid water + liquid CO₂ + CO₂ gas co-exist at this point. Several literature do not show this jump. Some smoothen the curve and some stop their evaluations at this point. However, Ohgaki et al. [52] show this jump and show that these high pressures are due to liquid phase of CO₂. Our calculations took account of the presence of both liquid CO₂ and CO₂ gas as from this quadruple point, which is realistic. Ohgaki et al. [52] performed their evaluations for each of the separate phases (liquid and gas) of CO₂. However, this is not the focus of this paper. The focus is on reviewing and revealing the wide differences in values calculated for enthalpy changes of hydrate phase transition (formation or dissociation) and the importance of enthalpies in CH₄-CO₂ swap.

3.2. Enthalpy Changes of Hydrate Formation or Dissociation: Residual Thermodynamics versus Other Approaches

Enthalpy change of a hydrate phase transition, hydrate formation or dissociation is a very vital property of gas hydrate [13] as we have mentioned earlier. For example, to produce natural gas from the vast amount of in-situ methane hydrates dispersed in the world, information about the dissociation heat of these hydrates is very vital. In gas transport in form of hydrate, we also require this information about heat of formation and dissociation of the hydrate for effective and efficient gas recovery. Enthalpy change of hydrate formation or dissociation is normally obtained by direct measurement by means of experiment [45,55,56], or indirectly by calculations based on thermodynamic models. The Clausius-Clapeyron [46,50,57] and Clapeyron [14,25,46] equations are generally used by many researchers. Some researchers use these equations with different modifications [50,58]. We have focused on only CH₄ and CO₂ hydrate guest molecules in this study because they are the relevant components in our project: simultaneous CH₄ production from in-situ CH₄ hydrate and long-term storage of CO₂ as hydrate. We have also reported our calculations in hydrate dissociation (positive values). However, both formation and dissociation have the same values, negative values for hydrate formation since it is exothermic process and positive values for dissociation being an endothermic process.

In this section and the subsequent Section 3.3 and Section 3.4, we are not using literature data to verify or validate our thermodynamic scheme. That has been done in Section 3.1. This is to show the picture of how the values obtained from the literature (even values from the same method) vary substantially. A look at several literature shows remarkable disagreement in reported values obtained for enthalpy changes of hydrate phase transition. Lirio and Pessoa [13] acknowledged this variation in literature values and their results. Thus, they [13] and some other literature have more confidence in their average values.

Estimates using residual thermodynamics which we have proposed are plotted with several data sets (experimental and calculated data from the Clapeyron and Clausius-Clapeyron equations) from literature as can be seen in Figure 3a,b and Figure 4a,b. We have plotted enthalpy changes of hydrate dissociation in kJ/mol of guest molecule as a function of temperature for CH₄ and CO₂ in Figure 3a and Figure 4a respectively. While Figure 3b and Figure 4b present enthalpy changes of hydrate dissociation in kJ/mol of guest molecule as a function of pressure for CH₄ and CO₂ respectively. Figure 3a,b also include our calculations using Clapeyron and Clausius-Clapeyron approaches. These figures represent what we have in literature now. They present the picture of varying values of enthalpy changes of hydrate formation and dissociation as mentioned above. For example, Gupta et al. [46] obtained different values for the enthalpy changes from experiment, Clapeyron and Clausius-Clapeyron approaches as presented in both Figure 3a,b. Our estimates using residual thermodynamics and the other two indirect methods also show great difference in values as can be seen in Figure 3a–Figure 4b. It is observed that Clausius-Clapeyron calculations give very high values, except when used with some modifications. The deviations are more in the case of CO₂ as can be observed in Figure 4a,b. Nevertheless, for methane hydrate, the results of Nakamura et al. [44] are closed to our results, and also the experimental results of Gupta et al. [46] but only between 280 and 286 K. A lot of literature reports a single value and sometimes it is the average of all the values calculated within a temperature range [13]. That is why we have only one value plotted for some studies in the figures. The single point value of Kang et al. [54] and Sloan and Fleyfel [58] are close to our results. We do not expect much agreement with our results based on the limitations of the other methods, especially, the simplicity of both the Clapeyron and Clausius-Clapeyron equations. Our calculations of enthalpy changes of hydrate dissociation and hydration (occupation) number for a temperature range of 273–290 K are presented in

Table 2. Enthalpy changes of hydrate phase transition and hydration number of CH₄ and CO_2.

Temperature	Methane (CH4)			Carbon Dioxide (CO2)
	Pressure	Hydration Number (n)	$\mathsf{\Delta }{\mathit{H}}_{\mathit{d}\mathit{i}\mathit{s}\mathit{s}\mathit{o}\mathit{c}\mathit{i}\mathit{a}\mathit{t}\mathit{i}\mathit{o}\mathit{n}}$	Pressure	Hydration Number (n)	$\mathsf{\Delta }{\mathit{H}}_{\mathit{d}\mathit{i}\mathit{s}\mathit{s}\mathit{o}\mathit{c}\mathit{i}\mathit{a}\mathit{t}\mathit{i}\mathit{o}\mathit{n}}$
(K)	(kPa)		(kJ/mol Guest)	(kPa)		(kJ/mol Guest)
273.16	25.19	6.46	57.07	14.19	7.26	67.79
274.17	27.87	6.43	56.63	15.73	7.24	67.24
275.13	31.01	6.41	56.19	17.59	7.22	66.67
276.15	34.53	6.38	55.75	19.73	7.20	66.08
277.16	38.45	6.37	55.31	22.21	7.18	65.50
278.17	42.83	6.35	54.88	25.06	7.16	64.91
279.13	47.43	6.34	54.47	28.17	7.14	64.36
280.14	52.87	6.32	54.03	31.96	7.11	63.77
281.16	58.97	6.31	53.57	36.34	7.09	63.18
282.17	65.80	6.30	53.11	41.42	7.07	62.59
283.13	73.03	6.30	52.66	46.95	7.05	62.03
284.14	81.64	6.29	52.17	109.88	6.69	60.96
285.15	91.41	6.28	51.65	128.38	6.67	60.40
286.17	102.55	6.28	51.11	152.24	6.64	59.86
287.13	114.65	6.27	50.57	183.38	6.62	59.39
288.14	129.55	6.27	49.97	233.44	6.59	58.96
289.16	147.28	6.26	49.33	313.22	6.57	58.68
290.00	164.94	6.26	48.76	404.15	6.55	58.55

with their pressures.

3.3. Hydration Number (n) Using Residual Thermodynamics versus Experimental Data

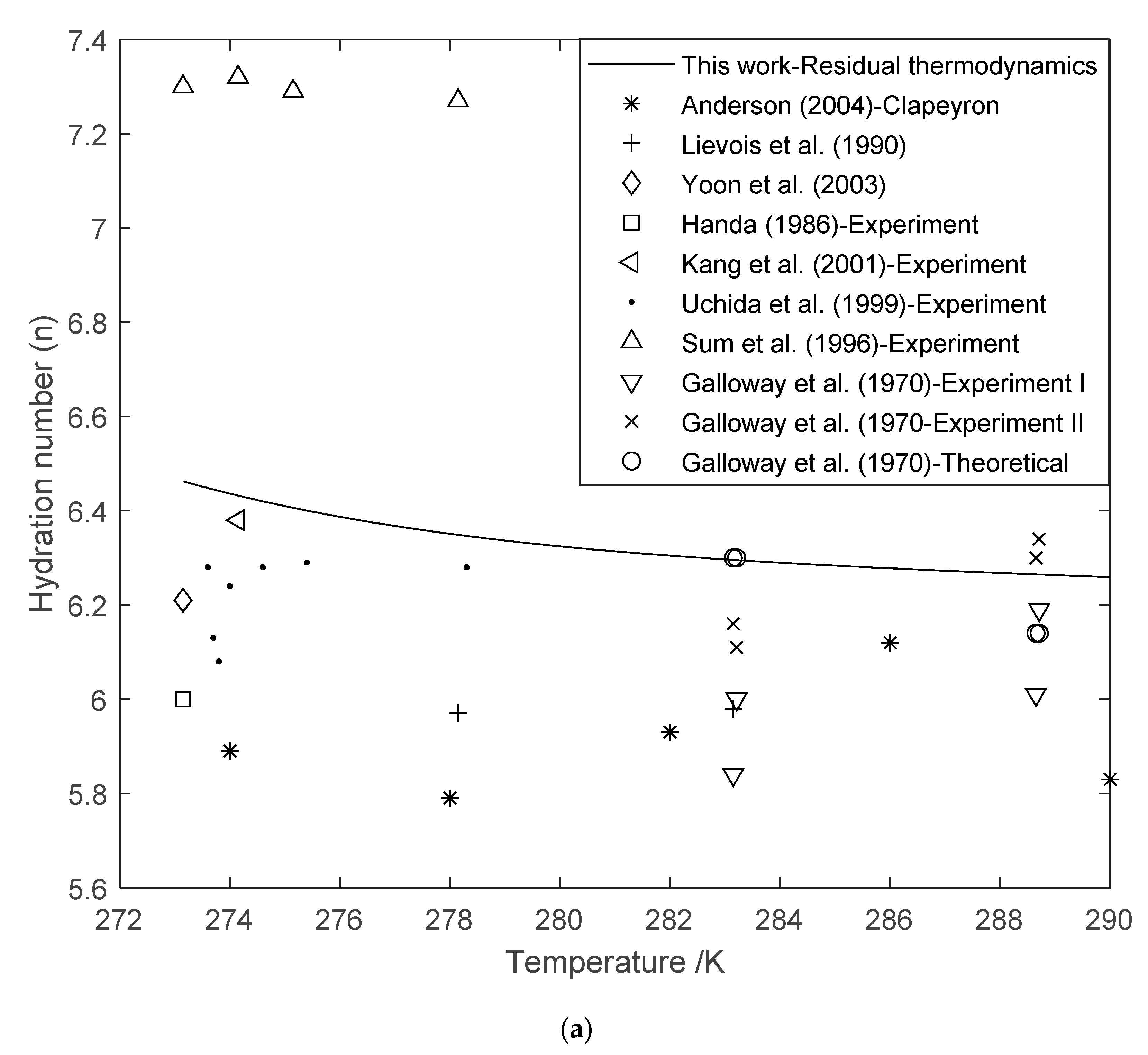

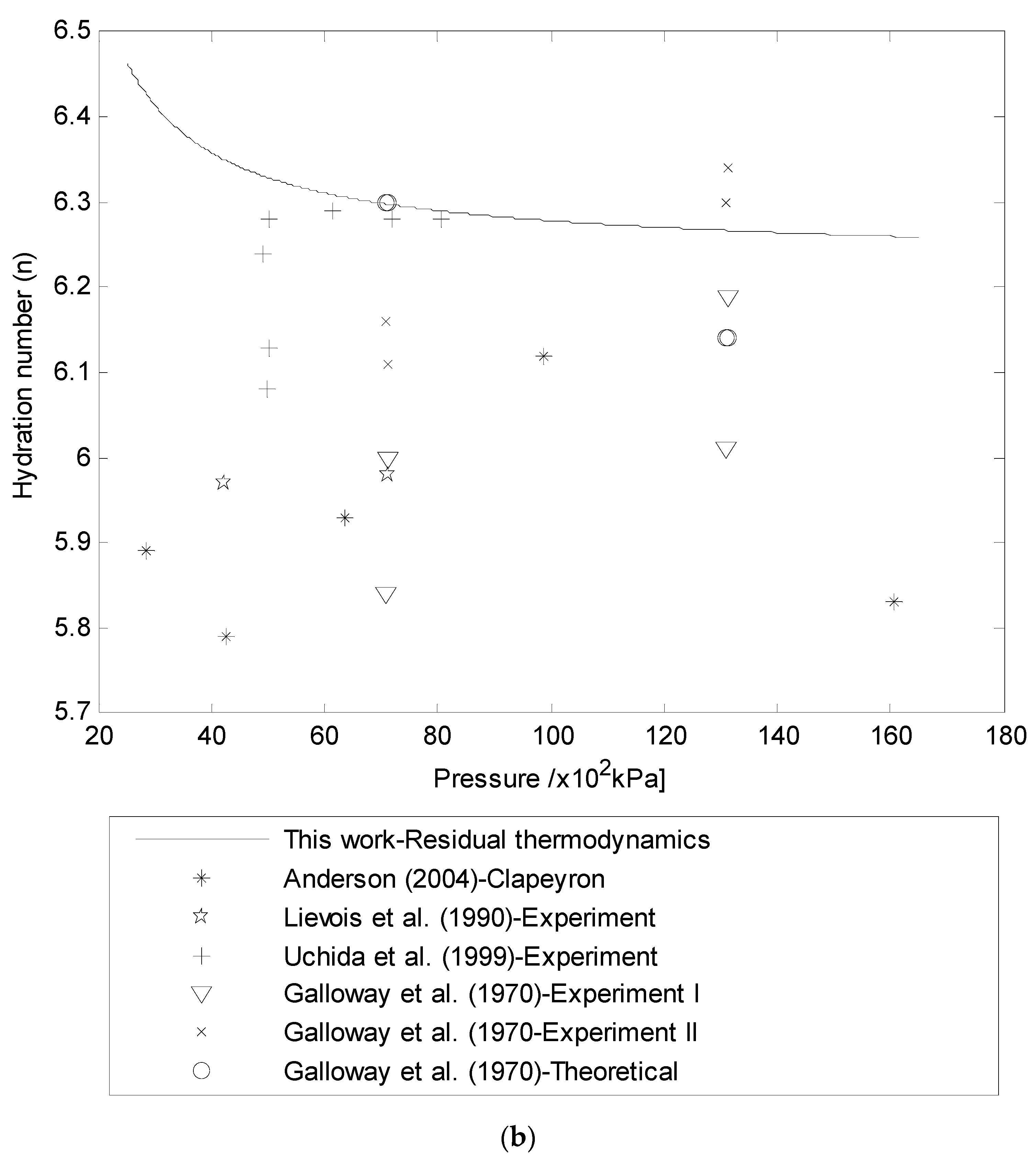

Figure 5a,b and Figure 6a,b present the overview of the values of our estimates of the hydration number (n), which is the number of water per guest molecule, and recalculated back from the calculated mole-fractions of guests in hydrate. Literature values are also plotted. We have plotted values of CH₄ and CO₂ as a function of temperature (Figure 5a and Figure 6a) and as a function of pressure (Figure 5b and Figure 6b). These figures also present the overview values calculated by various literature and our consistent approach. Essentially, our aim here is not to validate our studies with literature values, having seen the limitations in the other methods. However, in the case of CH₄ hydrate, the results of Galloway et al. [65] from their solid–solution theory at 283.15 K and 283.21 K agree with our results (Figure 5a,b). Kang et al. [55] value experimentally obtained at 273.65 K is also close (Figure 5a). In Figure 5b, that is from pressure perspective, the same theoretical results of Galloway [65] agree with our results. Uchida et al. [66] experimental results between 6000–8000 kPa also have good agreement.

Both CH₄ and CO₂ are structure I hydrates. This structure has 46 molecules of water and two small and six large cavities. Since CH₄ can occupy both the small and large cavities, if we assume full occupation which is not realistic, then we will have 2 + 6 = 8 cavities that CH₄ can occupy. This will give us a hydration number (n) of 46 water molecules divided by 8 cavities, which is 5.75. Therefore, the realistic hydration number of methane hydrate should be greater than this value.

The hydration number of CO₂ hydrate values obtained experimentally by Kang et al. [55], Bozzo et al. [68] and the value calculated by Vlahakis [64] from their Clausius-Clapeyron approach have good agreement with our results (Figure 6a). The results of Lirio and Pessoa. [13] along the hydrate equilibrium are not in agreement with our results. However, as mention earlier, they have more confidence in their average value and that is the value they compared with other literature. That is the value that is also in agreement with our results as can be seen in both Figure 6a,b.

3.4. The Significance of Enthalpy Changes of Hydrate Formation or Dissociation in CH₄-CO₂ Swap

Beside the problem gas hydrates can pose in industrial applications involving pipeline transport of gas [23,24,53,70,71,72,73], the vast naturally occurring hydrates also offer potential possibility to provide a huge source of cleaner energy (compared to other fossil fuels) to the world, and a possibility of CO₂ sink (long-term storage) [54]. Much attention has been given to the production of natural gas from the abundant in-situ methane hydrate spread across the world. Highly populated nations like China, Japan, and Indian who depend on huge import of fuel for energy have been investing a lot of money in research and tests towards realizing self-sufficiency in energy through exploration of these vast source of cleaner energy. Pressure reduction [74] below hydrate stability pressure is one major method that is being explored. This can only take care of the thermodynamic driving force. However, whatever technology that will be used to produce these vast energy resources will require supply of heat to ensure successful operation. The lessons learnt from the two tests already carried out offshore of Japan [75] few years ago agree with this. Among other challenges, they encountered a freezing down problem because of insufficient heat supply from the surroundings. One solution to this is thermal stimulation [76], that is, by supplying heat using either hot water or steam. While it is possible technologically, economically, it has been assessed to be too expensive. Therefore, a novel solution which is an environmentally friendly solution is injection of carbon dioxide (CO₂) into the reservoir of sin-situ CH₄ hydrate deposits. This is the focus in this section. Lee et al. [77] and also Falenty et al. [78] had confirmed a solid-state CO₂-CH₄ swap process but in the ice region. The main aim in this section is to draw our attention to the significance of the role enthalpies of CO₂ hydrate formation and enthalpies of CH₄ hydrate formation can play in the swap process. Figure 7a and Figure 8b present our estimates of enthalpy changes of hydrate formation and dissociation.

Hydrate formation is an exothermic process, and hydrate dissociation process is endothermic. It can be seen clearly in Figure 7a,b and Figure 8a,b that the enthalpy changes for CO₂ hydrate phase transition are well over those for CH₄ hydrate formation or dissociation. Considering a temperature range of 273–280 K, the enthalpy changes we calculated from residual thermodynamics scheme for CO₂ hydrate formation are approximately 10–11 kJ/mol of guest molecule greater than the enthalpy changes of CH₄ dissociation (see Figure 7a,b). Kang et al. [55] calculated this difference to be 8.4 kJ/mol of guest molecule at 273.65 K. Anderson [14,25] calculated approximately 10 kJ/mol of guest molecule at 274 K and 7 kJ/mol of guest molecule at 278 K. These are significant differences (values). Basing the calculation on per mole of hydrate, we got about 0.5–0.6 kJ/mol hydrate within a temperature range of 273–280 K as can be observed in Figure 8a,b. The implication is, when CO₂ is injected into the in-situ methane hydrate reservoir, CO₂ hydrate will be formed either directly through a solid-state process or from the available free water (including pore water). Since CO₂ hydrate formation is an exothermic process, heat that is 10–11 kJ/mol of guest molecule greater than the heat requirement for CH₄ hydrate dissociation will be released. This heat is then available for further dissociation of CH₄ hydrate to liquid water and CH₄ gas. The CH₄ will be released through buoyancy forces and the liquid water will be available for further CO₂ hydrate formation and the process will go on. It is important to state here that this process is still under study and under development, and there are constraints which are also under investigation. CO₂ hydrate formation from CO₂ and pore water at the interface occurs very rapidly, which quickly forms a thin film of CO₂ hydrate at the interface [15] thereby blocking the pore space to limit further supply of CO₂. There have been suggestions of using nitrogen (N₂) in mixture with CO₂ to reduce the driving force. This reduces the driving force so much and leads to a very slow [33,71], ineffective and inefficient conversion of the in-situ CH₄ hydrate to CO₂ hydrate. Nevertheless, we recommend using surfactants instead of nitrogen, to reduce the hydrate nucleation and growth processes at the interface in order to enable an effective control of the simultaneous CH₄ production and long-term CO₂ storage in form of hydrate [79].

4. Conclusions

Enthalpy changes of hydrate phase transition is one of the most important properties of clathrate hydrate. However, the data in literature for enthalpy of hydrate formation and dissociation from experiment are lacking in vital information needed for proper understanding and interpretation. Indirect methods of obtaining this significant hydrate property based on the Clapeyron and Clausius-Clapeyron equations also have some limitations. The Clausius-Clapeyron approach for example involves oversimplifications that make results obtained from it to be inconsistent and unreliable. The approach can also not be used for very high-pressure systems. Therefore, we recommend a consistent thermodynamic scheme where every gas hydrate property such as hydrate pressure–temperature equilibrium curves, change in free energy (thermodynamic driving force in kinetic theories), and enthalpy changes involved in hydrate dissociation and formation are obtained based on residual thermodynamics approach. Calculations based on residual thermodynamics enable us to evaluate real gas behaviour with consideration of the thermodynamic deviations from ideal gas behaviour. We have given the overview of the estimates of enthalpy changes of hydrate phase transitions available in literature from experiments, Clapeyron and Clausius-Clapeyron approaches which shows remarkable disagreement in the various estimated values. Our calculations based on our proposed approach, and residual thermodynamics are plotted together. Overview of the available hydration number is also given in this work. The significance of these enthalpy changes of hydrate phase transitions to environmentally friendly energy production from in-situ methane hydrate and simultaneously storing carbon dioxide in form of gas hydrate is also highlighted in this study. Enthalpy changes of hydrate phase transition for CO₂ are between 10–11 kJ/mol of guest molecule more than that of CH₄ within a temperature range of 273–280 K. Kang et al. calculated a difference of 8.4 kJ/mol of guest molecule at 273.65 K, and Anderson calculated it to be 10 kJ/mol of guest molecule at 274 K and 7 kJ/mol of guest molecule at 278 K. And since heat is needed to be supplied from the surroundings during production of methane from in-situ methane hydrate, injection of CO₂ into the reservoir of in-situ methane which will lead to CO₂ hydrate formation will also provide more heat per guest molecule than the heat per guest molecule needed to dissociate methane hydrate.
