Modeling and Stability Analysis of Model Predictive Control Dual Active Bridge Converter

The State Key Laboratory of Electrical Insulation and Power Equipment, Shaanxi Key Laboratory of Smart Grid, School of Electrical Engineering, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(16), 3103; https://doi.org/10.3390/en12163103
Received: 1 July 2019 / Revised: 6 August 2019 / Accepted: 8 August 2019 / Published: 13 August 2019
(This article belongs to the Special Issue Advanced in Resonant Converter and Dual Active Bridge Converter)
  |
PDF [7012 KB, uploaded 19 August 2019]
  |

Abstract

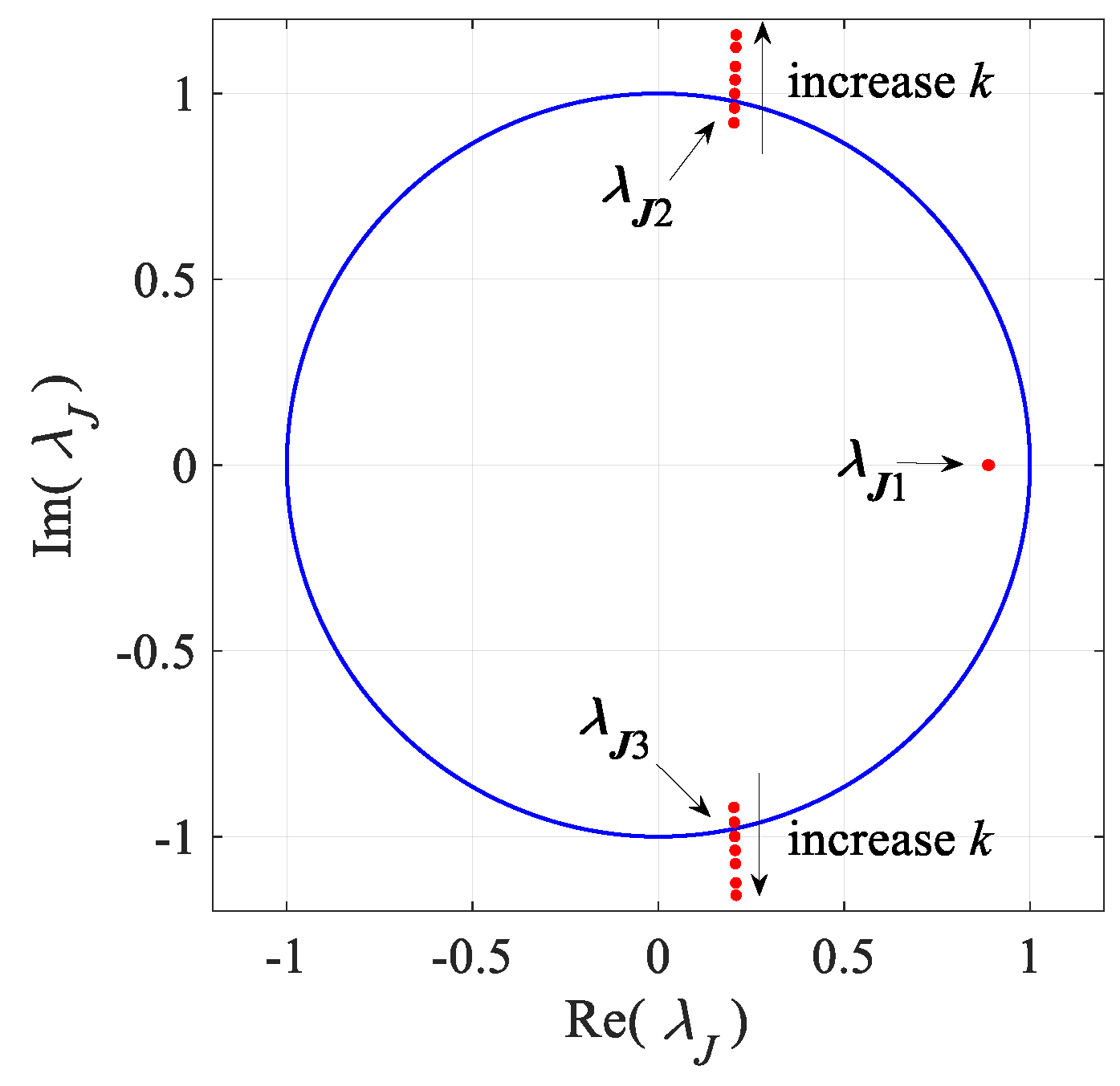

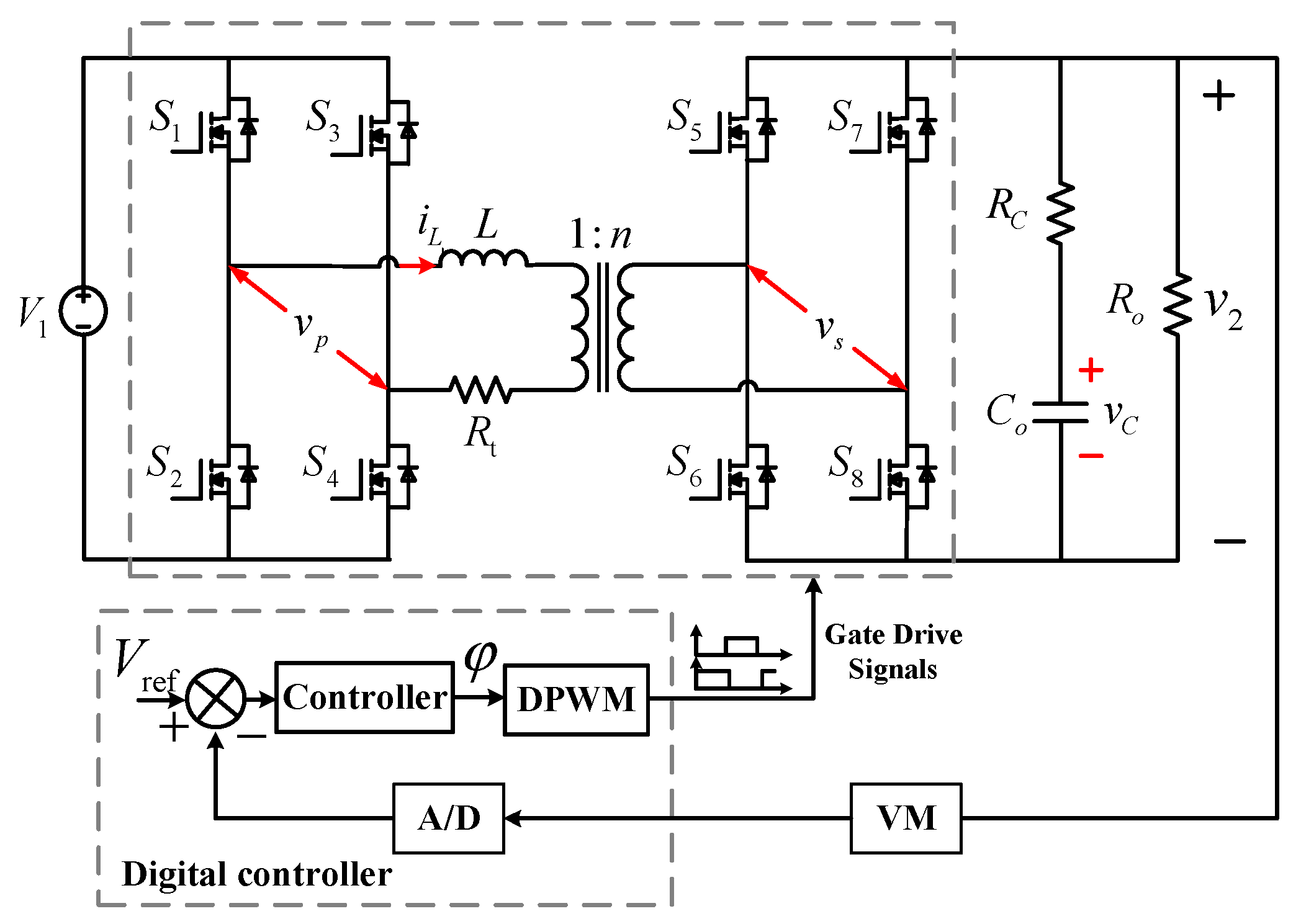

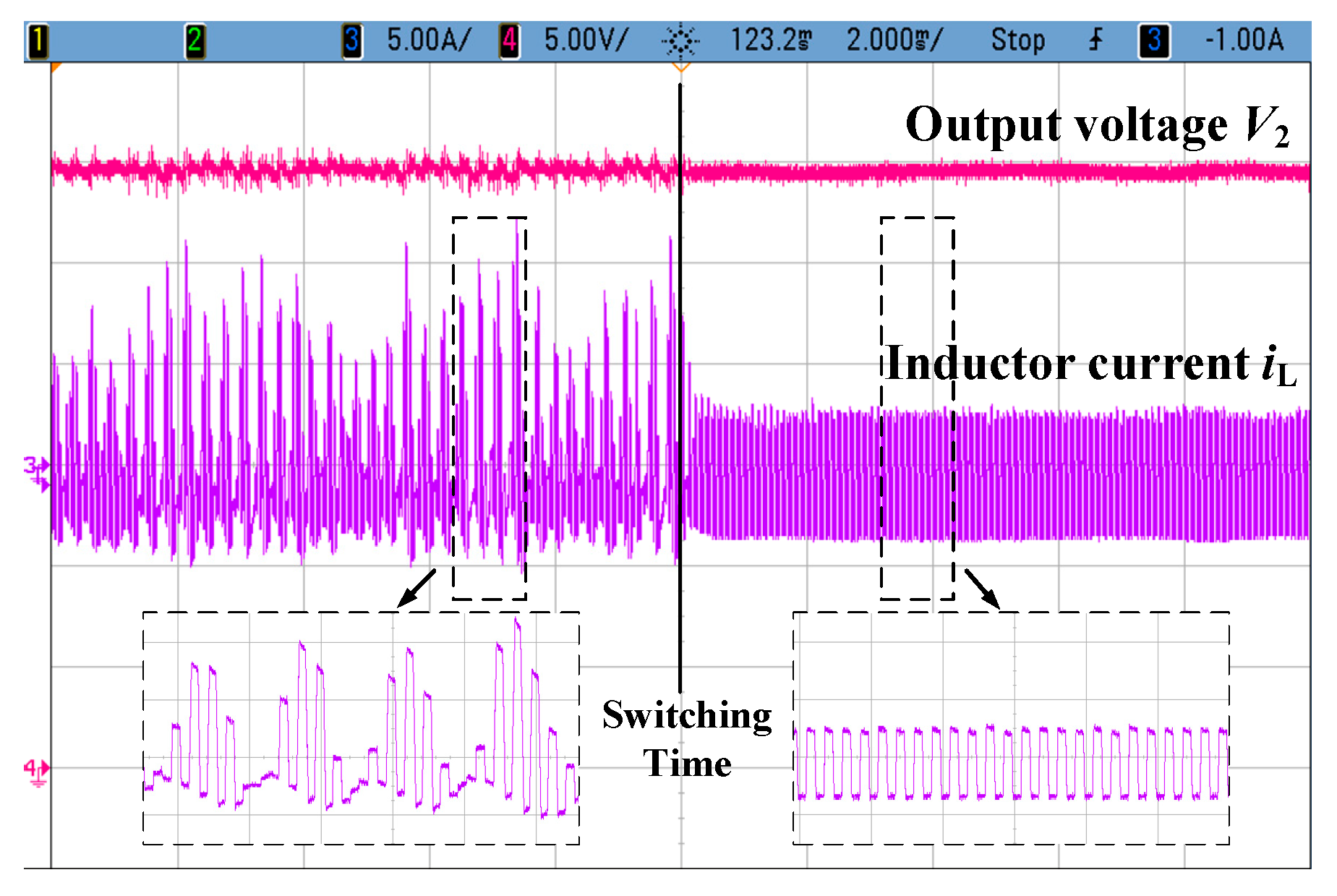

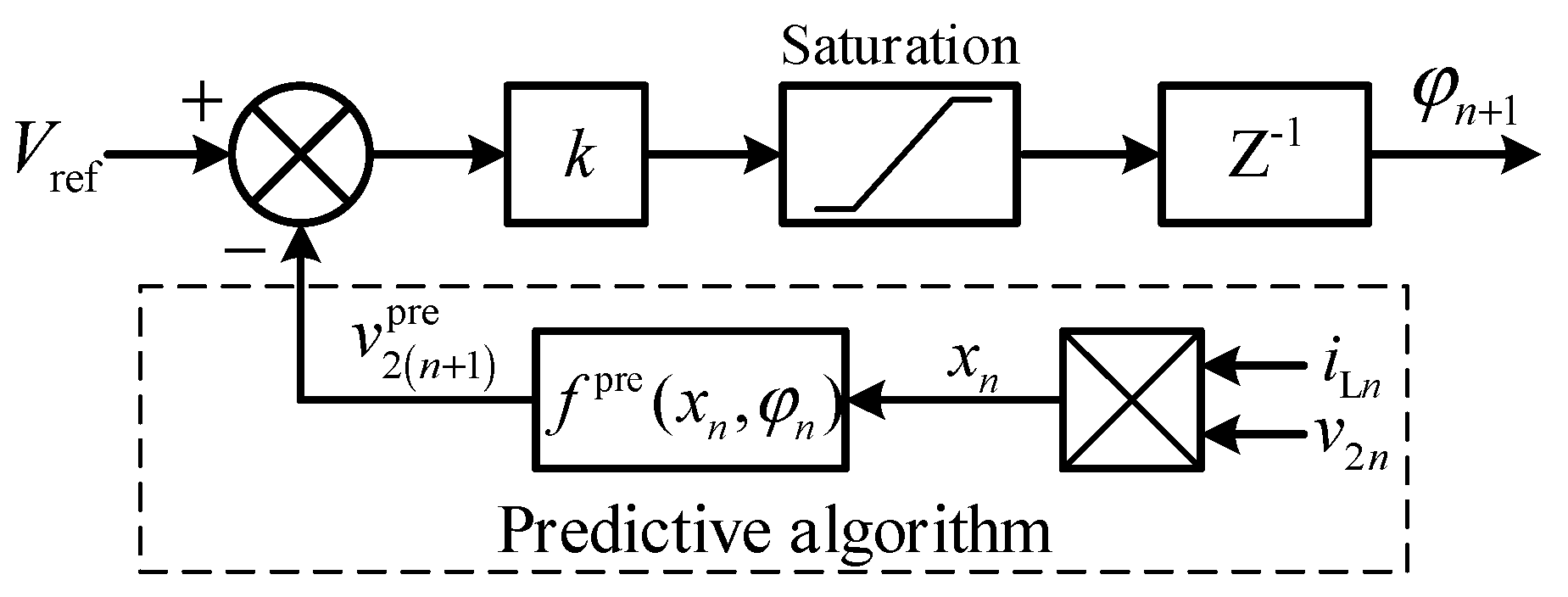

Digital control has been widely used in dual active bridge (DAB) converters, which are pivotal parts of electric vehicles and distributed generation systems. However, the time delays introduced by the digital control could affect the performance or even lead to the instability of the digitally controlled DAB converter. In order to reduce the effect of time delay on the dynamics and stability of the system, the model predictive control (MPC) of the DAB converter is proposed based on the discrete-time iteration in this paper to compensate for the digital control delay. According to the obtained discrete-time model, the instability mechanism of the MPC DAB converters with different parameters is revealed. The simulation and theoretical analysis indicate that this method could reduce the influence of the digital control delay and increase the stable range of the system compared with the conventional control strategy. The proposed method is also revealed to have a strong compatibility and portability. In addition, the accurately predicted stability boundaries can be applied to the practical parameter design and guarantee the stable operation of the system. The experimental results are consistent with the theoretical analysis and verify the proposed method. View Full-Text
Keywords: dual active bridge (DAB) converter; discrete-time modelling; digital control delay; model predictive control; stability analysis dual active bridge (DAB) converter; discrete-time modelling; digital control delay; model predictive control; stability analysis
Figures

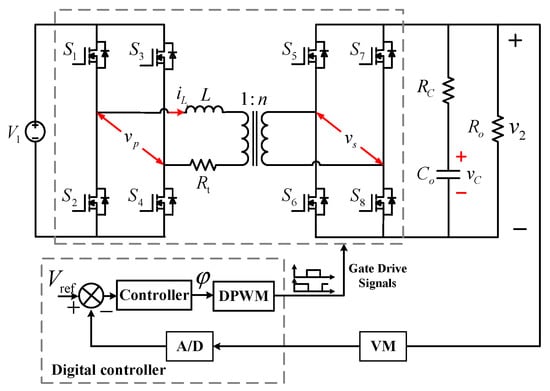

Figure 1
