# New Assessment Scales for Evaluating the Degree of Risk of Wind Turbine Blade Damage Caused by Terrain-Induced Turbulence

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

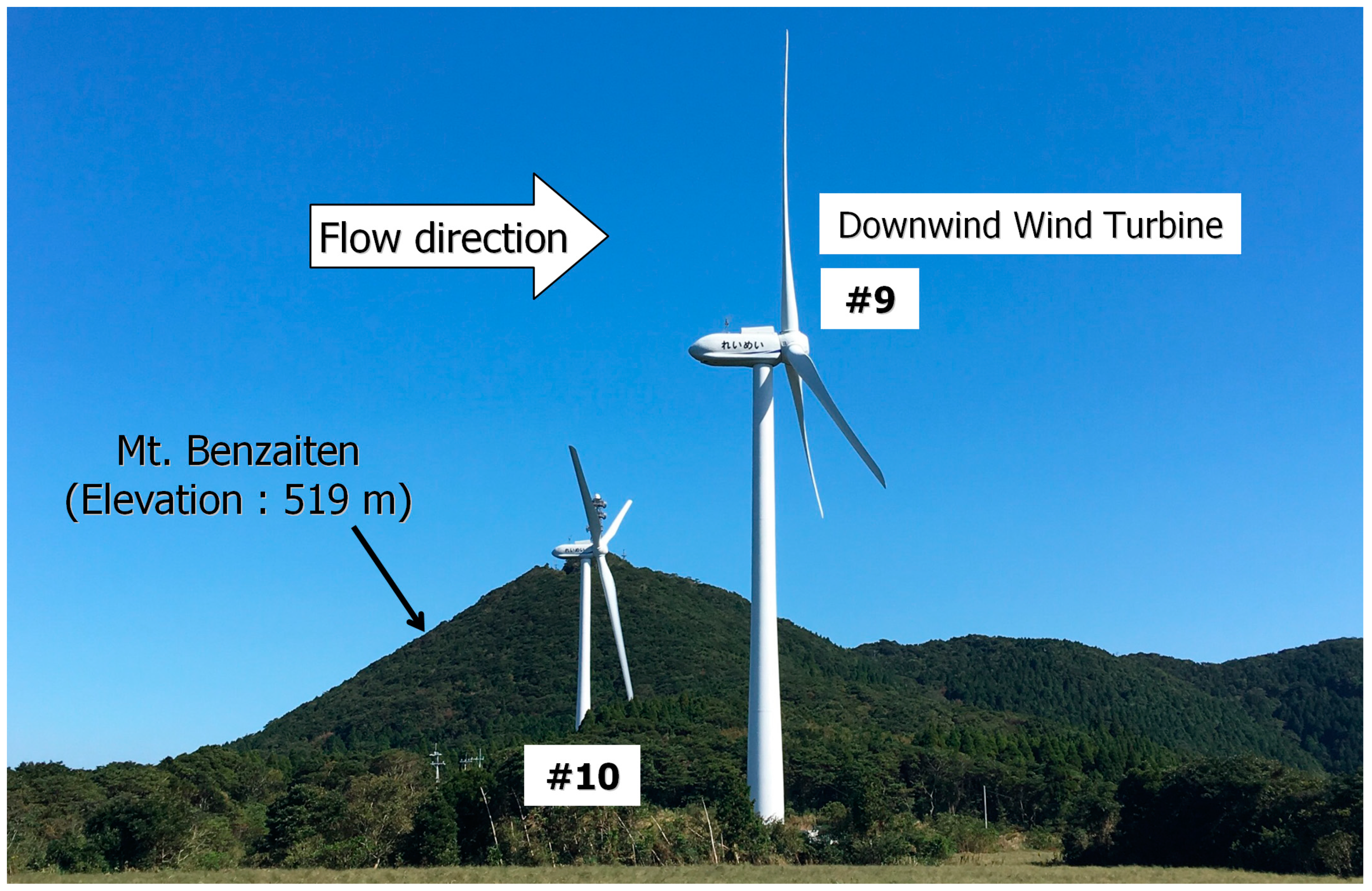

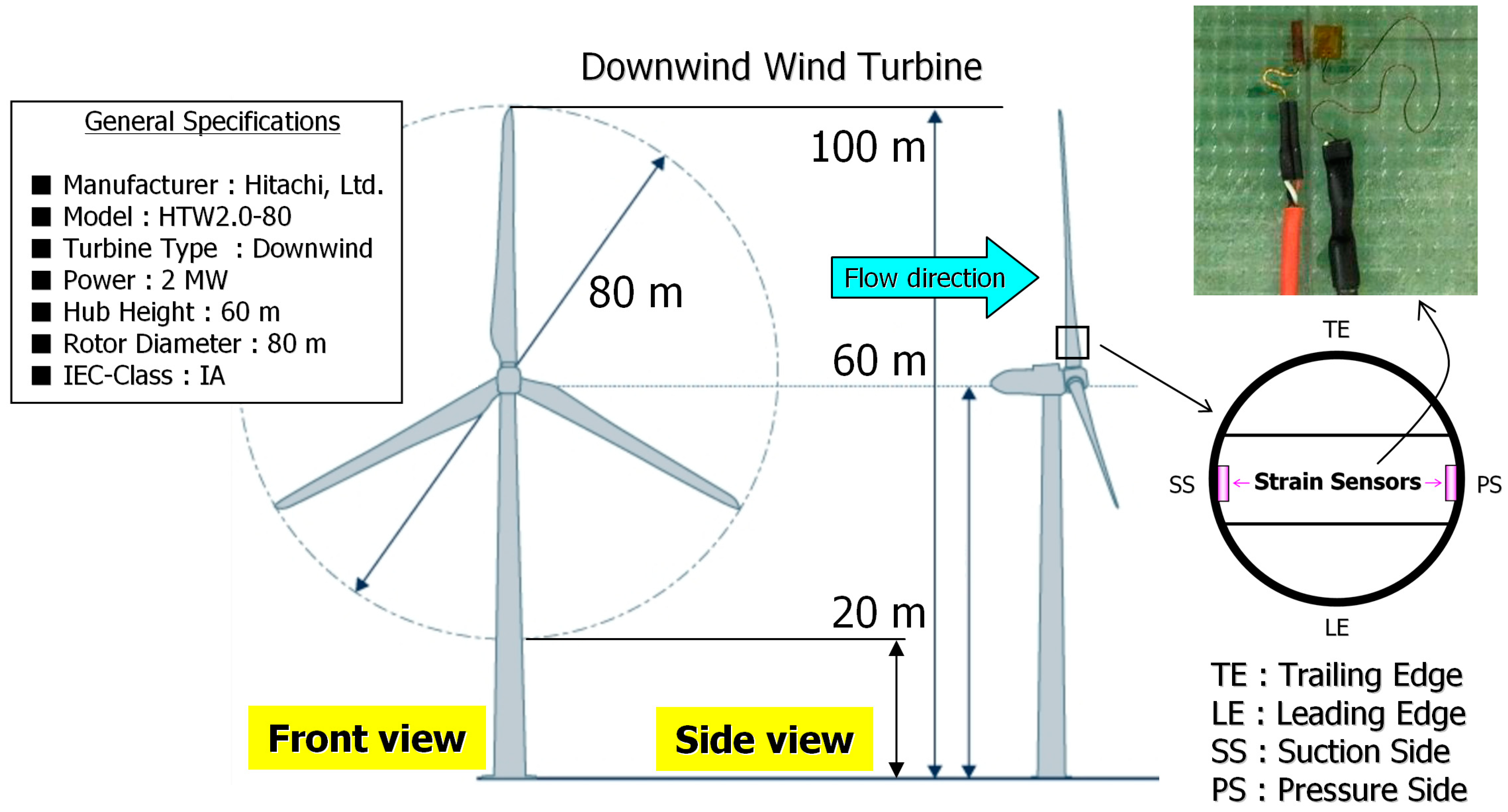

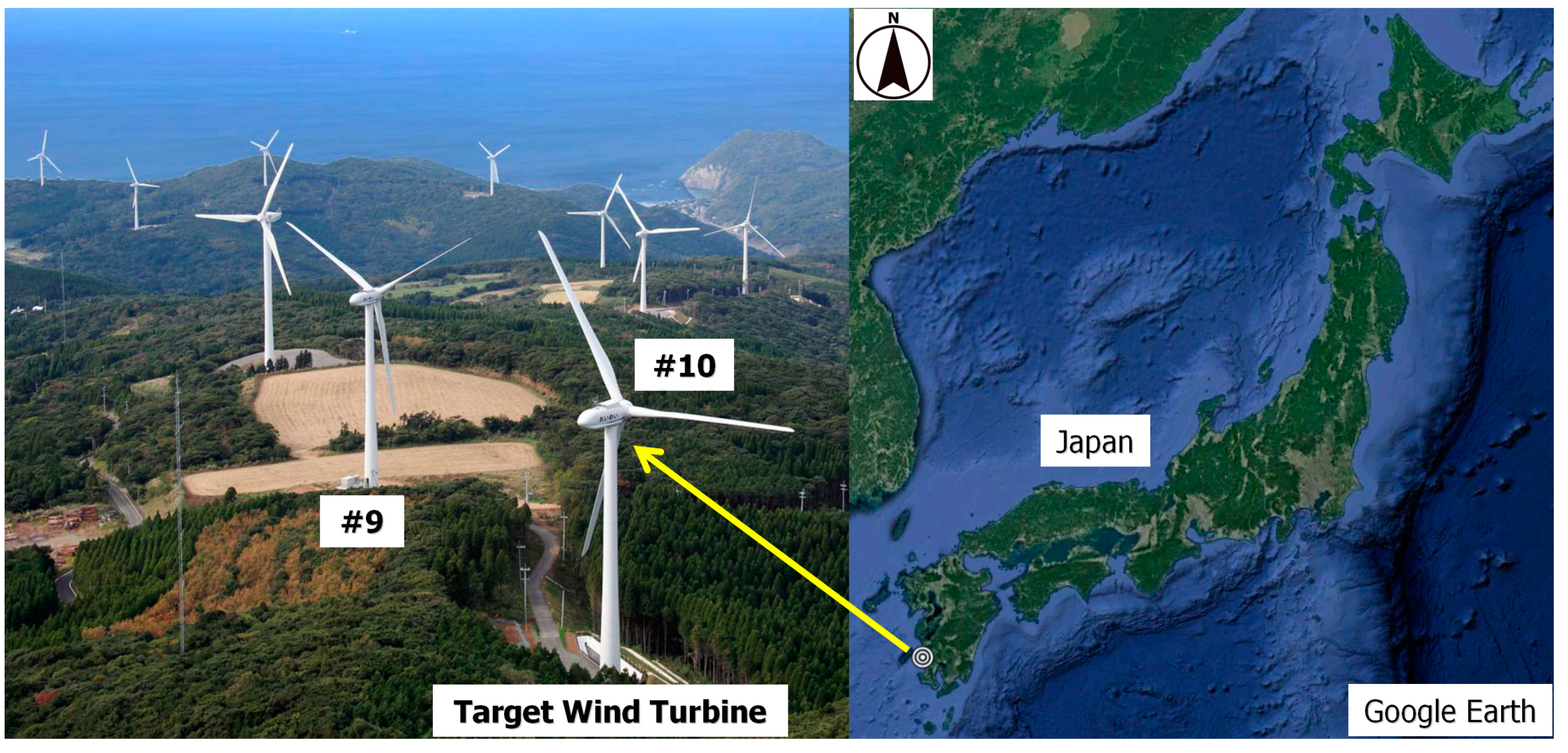

## 2. Overview of the Kushikino Reimei Wind Farm

## 3. In-Situ Data Analysis

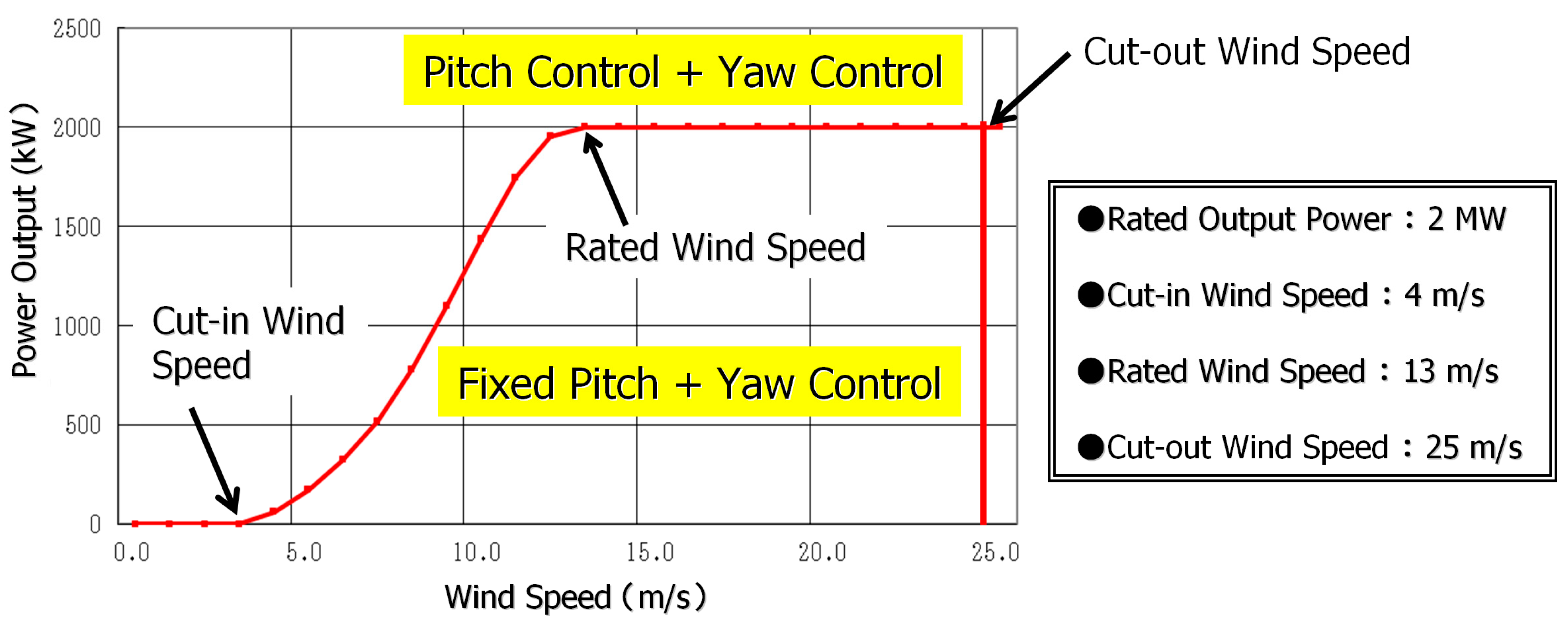

#### 3.1. Analysis of Wind Turbine Power Output Data

#### 3.2. Analysis of Wind Turbine Alarm Data

- (1)
- Shutdown due to excessive yaw error (definition: malfunctions occur due to deviation of the nacelle direction and the anemoscope direction).
- (2)
- Discordance in wind directions of sensors for wind direction and speed (definition: malfunctions occur due to disagreement in the values of the two sensors).

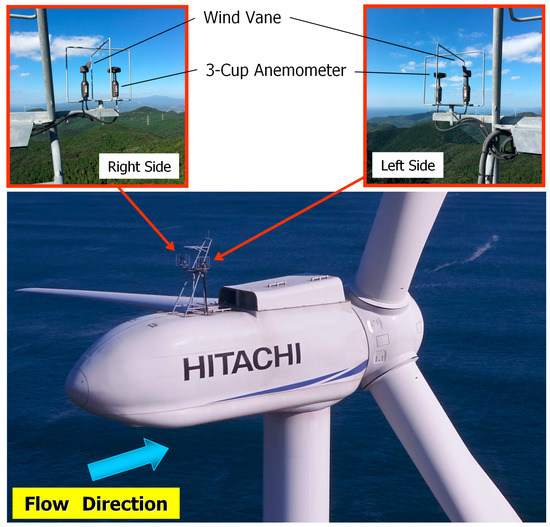

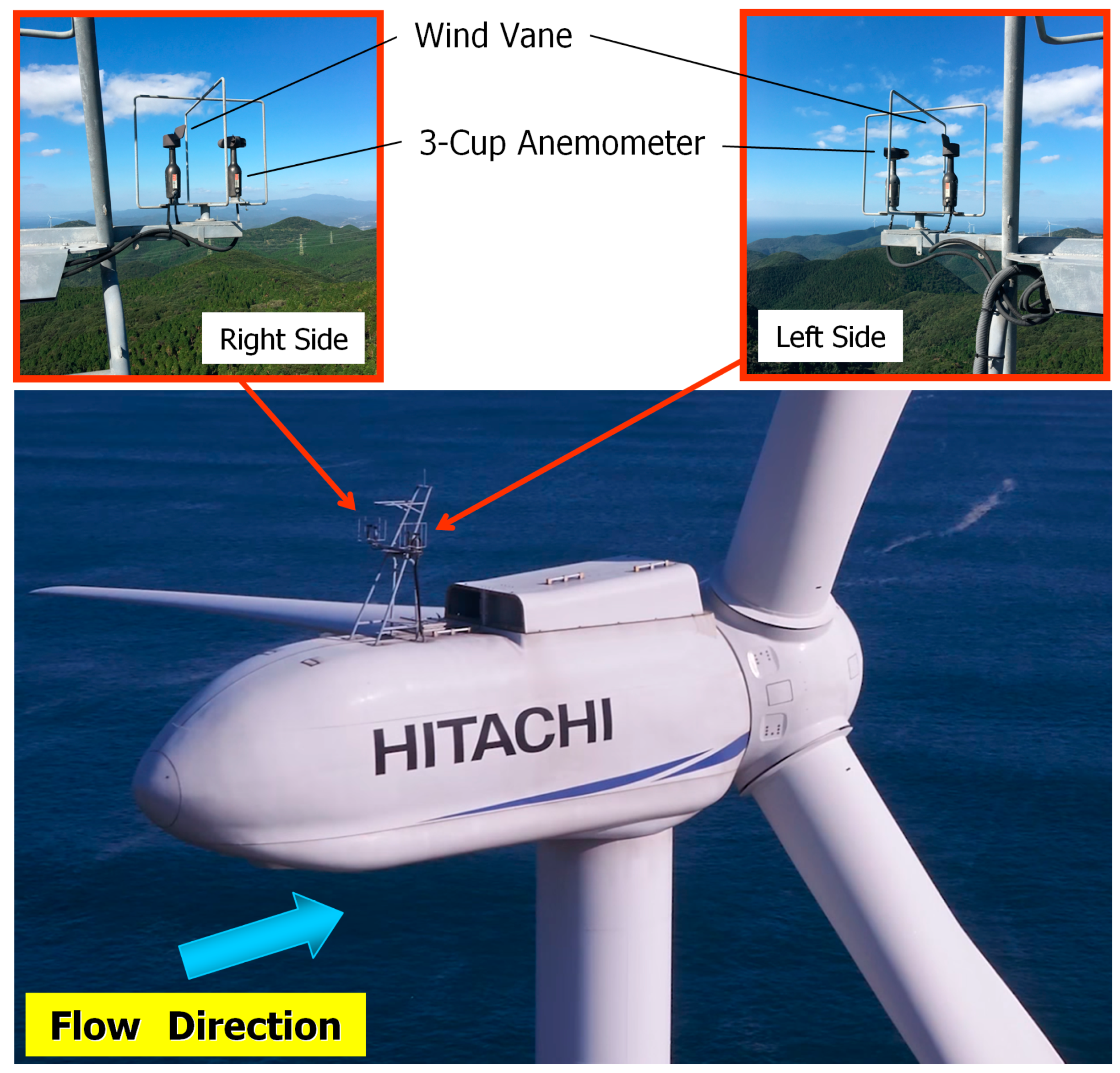

#### 3.3. Analysis of Nacelle Propeller-Vane Anemometer Data

#### 3.4. Analysis of Wind Turbine Blade Strain Data

- F
_{i}is the load of the i-th class of the fatigue load spectrum; - n
_{i}is the number of cycles in the i-th class of the fatigue load spectrum; - N is the equivalent of cycles;
- m is the S-N (stress-number of cycles to failure) curve slope for relevant material.
- N = 600 and m = 10 with fiber-reinforced plastic (FRP) blades in this study.

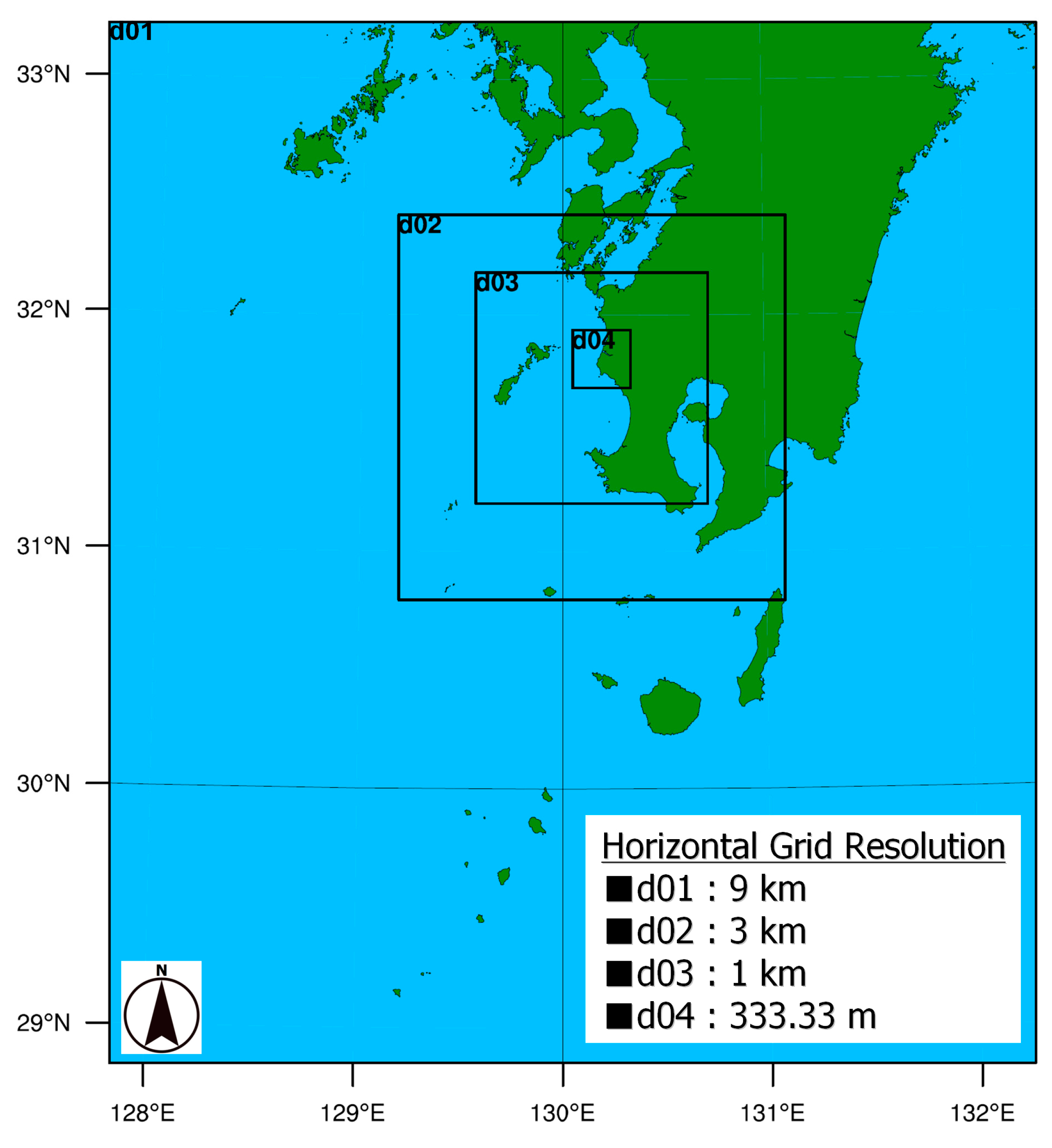

## 4. Numerical Simulation of Airflow with the WRF Mesoscale Model

## 5. Overview of the Numerical Simulation Method Based on Large-Eddy Simulation (RIAM-COMPACT)

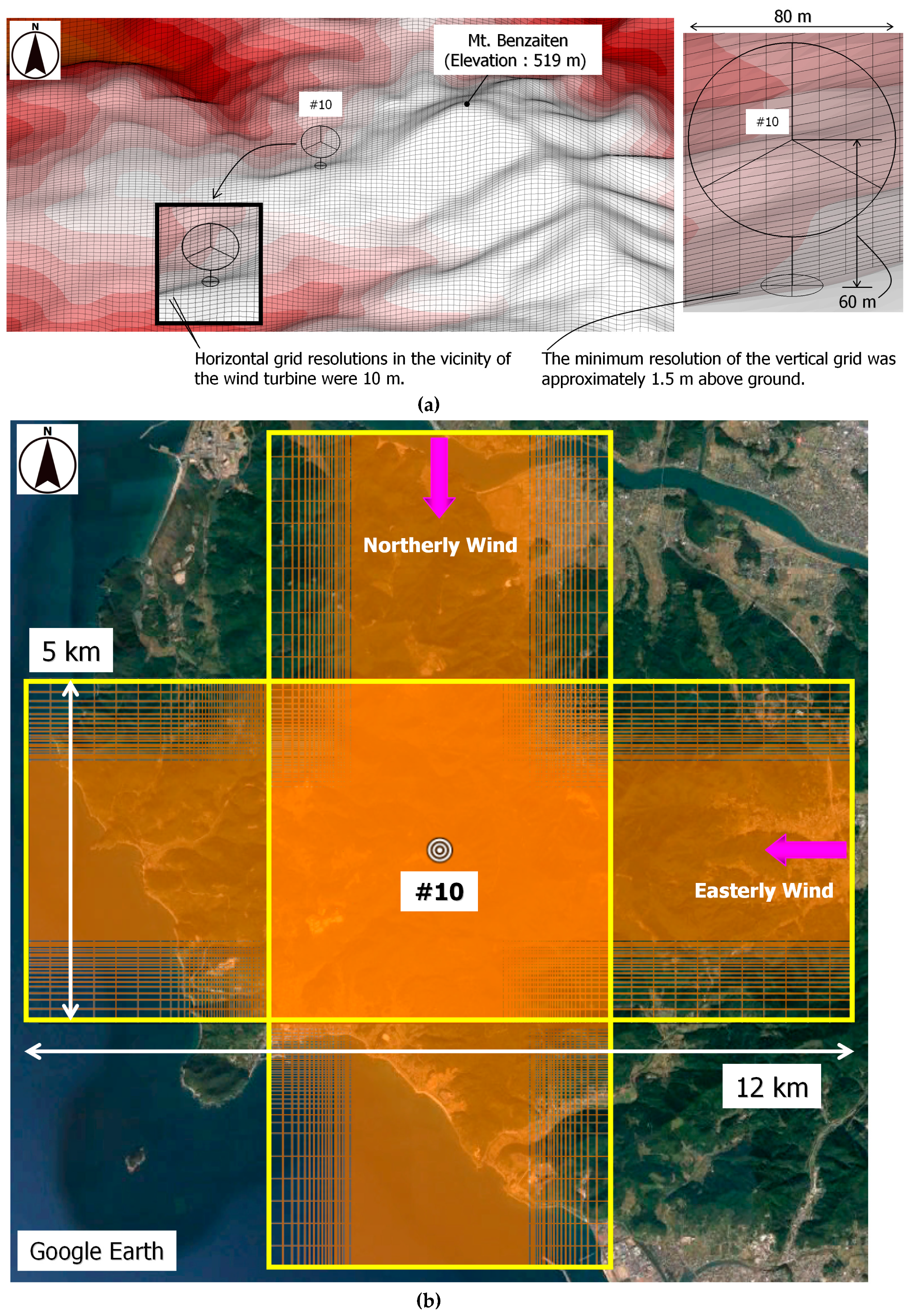

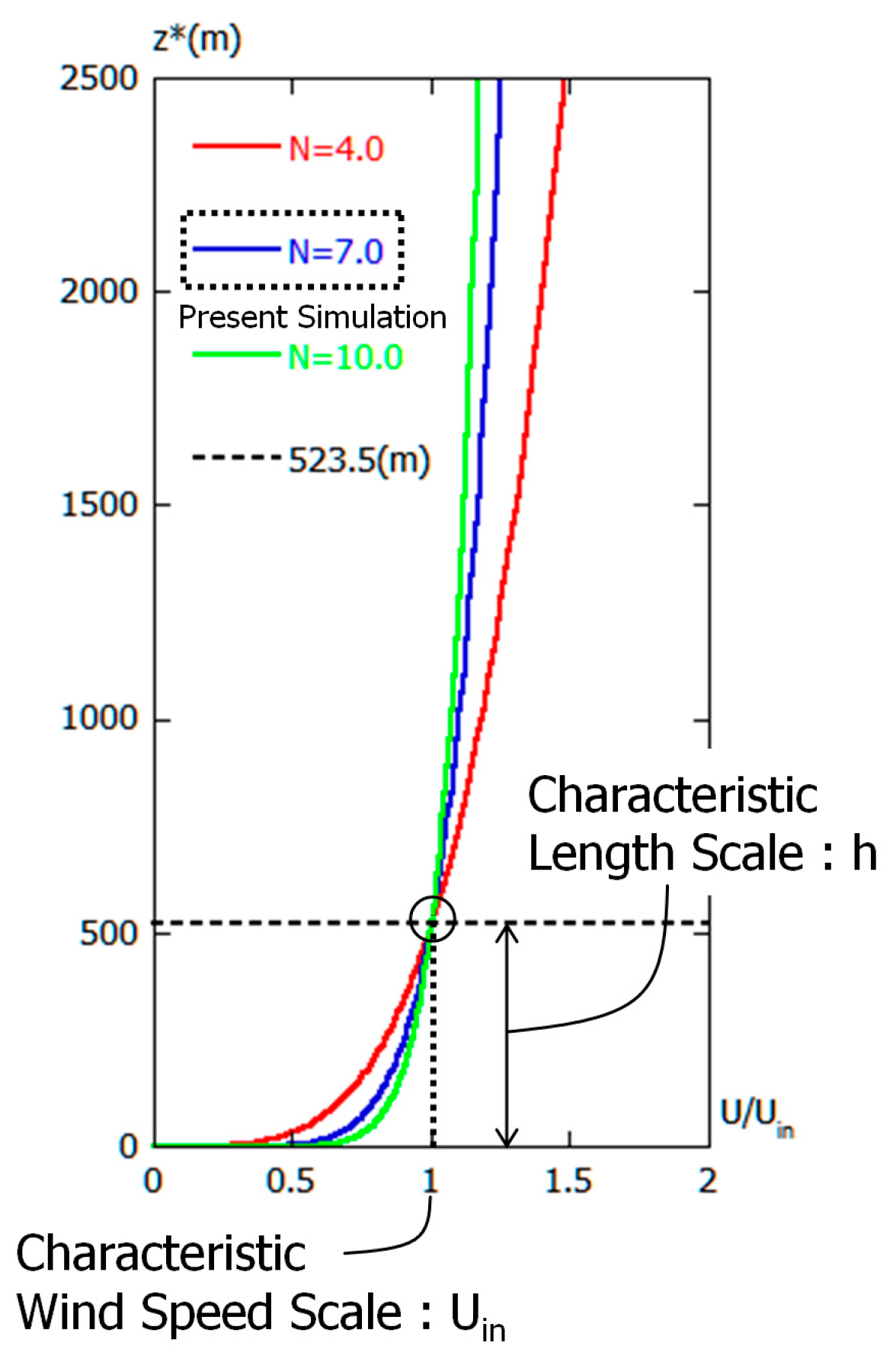

#### 5.1. Setting of Numerical Parameters

_{in}represents streamwise wind velocity of the inlet boundary at the maximum altitude point, and ν represents the coefficient of kinematic viscosity. On the basis of the two types of reference scales, the dimensionless parameter, Re, is the Reynolds number (= U

_{in}h/ν). For this simulation, Re = 10

^{4}. The time step was specified as Δt = 2 × 10

^{−3}h/U

_{in}. Furthermore, identical simulation conditions were applied to both northerly and easterly winds. In the present study, we used a vector-parallel supercomputer system named NEC SX-ACE. The NEC SX-ACE provides four cores per node. When using one node of this system, about 8 million grid points of LES simulation took several hours.

#### 5.2. Flow Visualization of Simulation Results

#### 5.3. Proposal of Turbulence Evaluation Index (Uchida-Kawashima Scale_1)

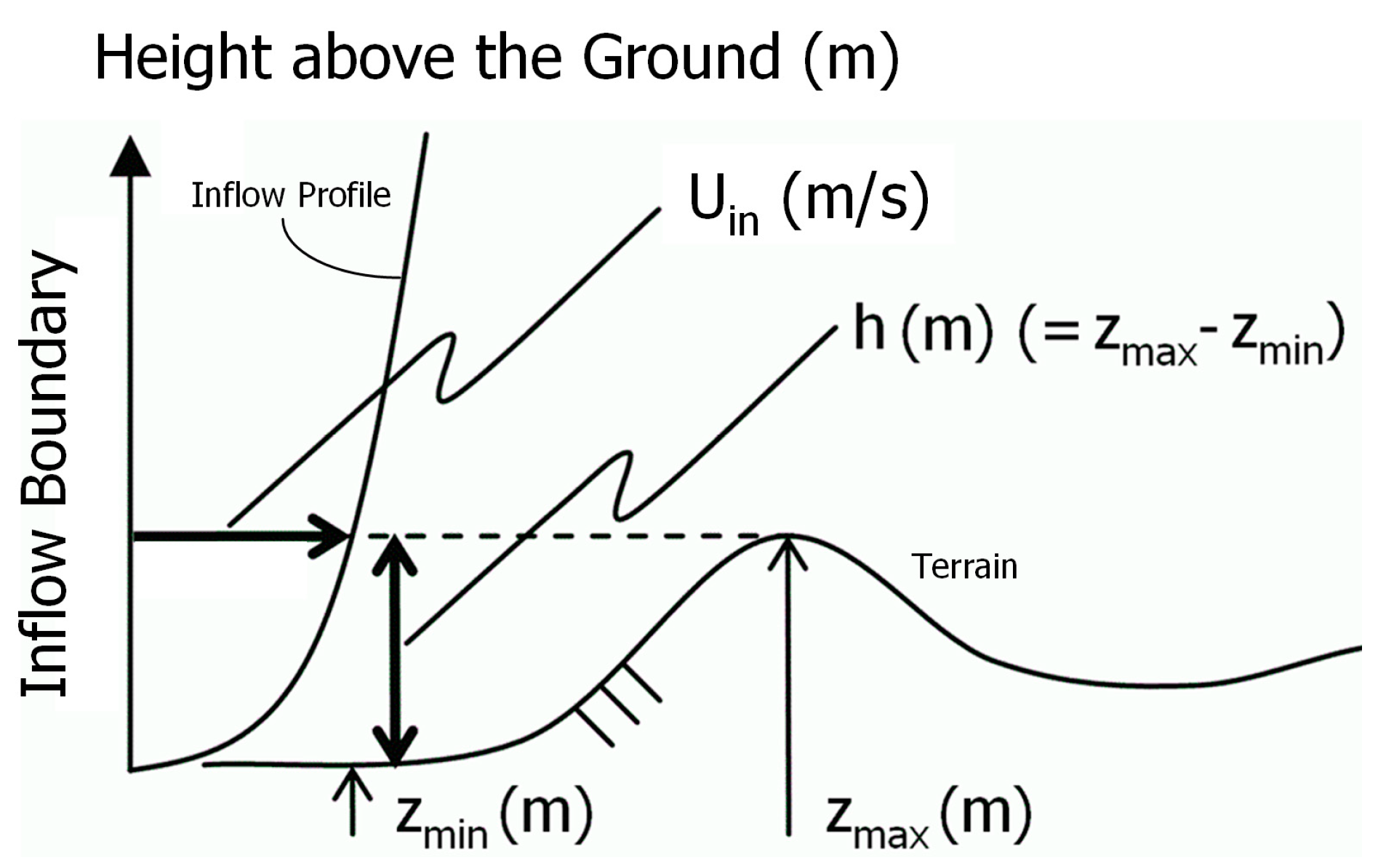

_{in}

_{,}wind velocity at the maximum height above the ground of the inflow boundary, as shown in Figure 15. Instead of the average wind velocity at the hub height, the U

_{in}inflow velocity at the inflow boundary is used for normalization; the formula is generalized and does not depend on wind directions or terrain undulations.

#### 5.4. Analysis of Turbulence Statistics and Uchida-Kawashima Scale_1 Verification Part 1

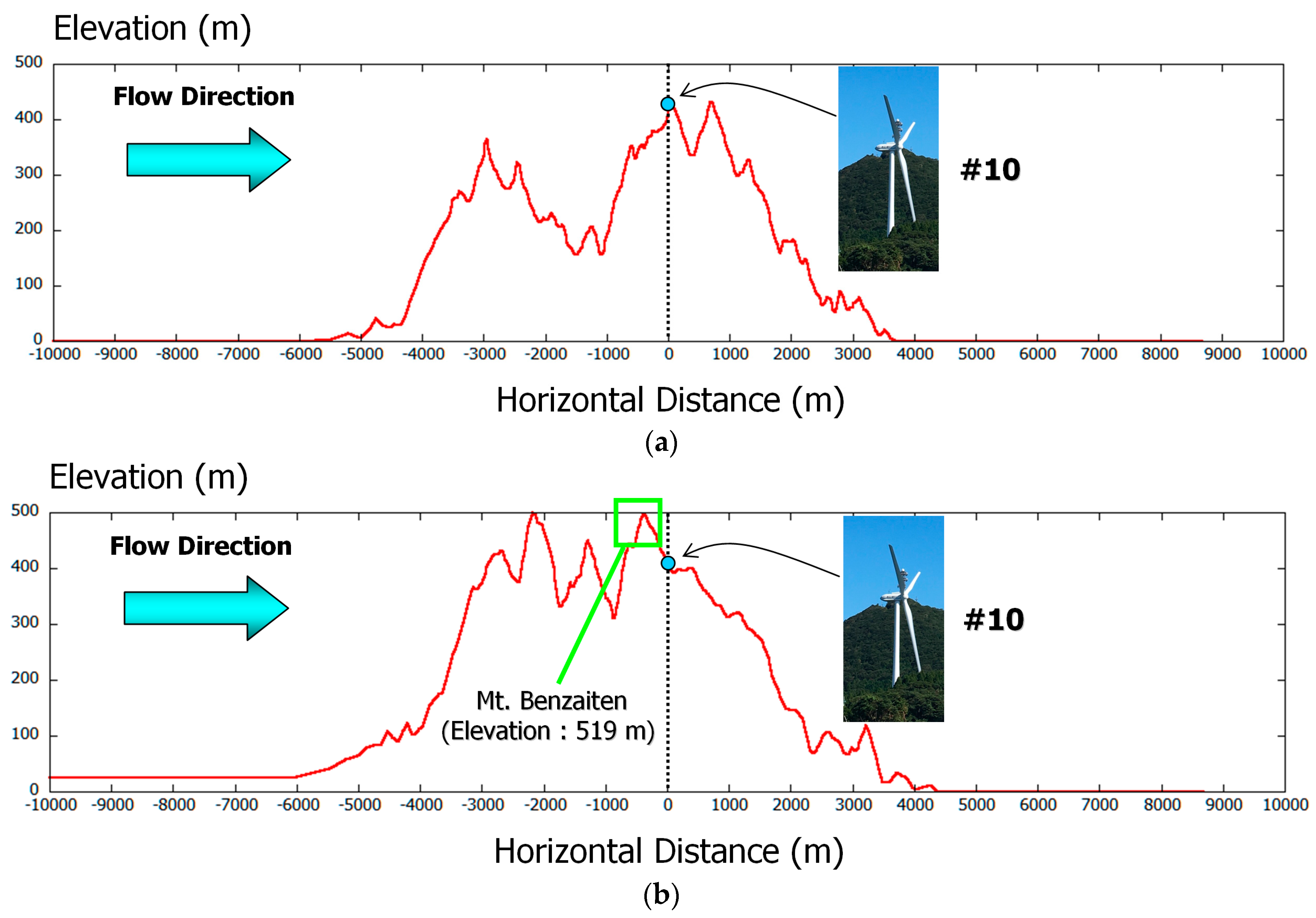

#### 5.5. Mt. Benzaiten Impact Assessment and Uchida-Kawashima Scale_1 Verification Part 2

## 6. In-situ Data Analysis of Impacts of Terrain-induced Turbulence on Fatigue Damage in Wind Turbine Blades

#### 6.1. Relationship between Wind Speed and its Standard Deviation and Damage Equivalent Load (DEL)

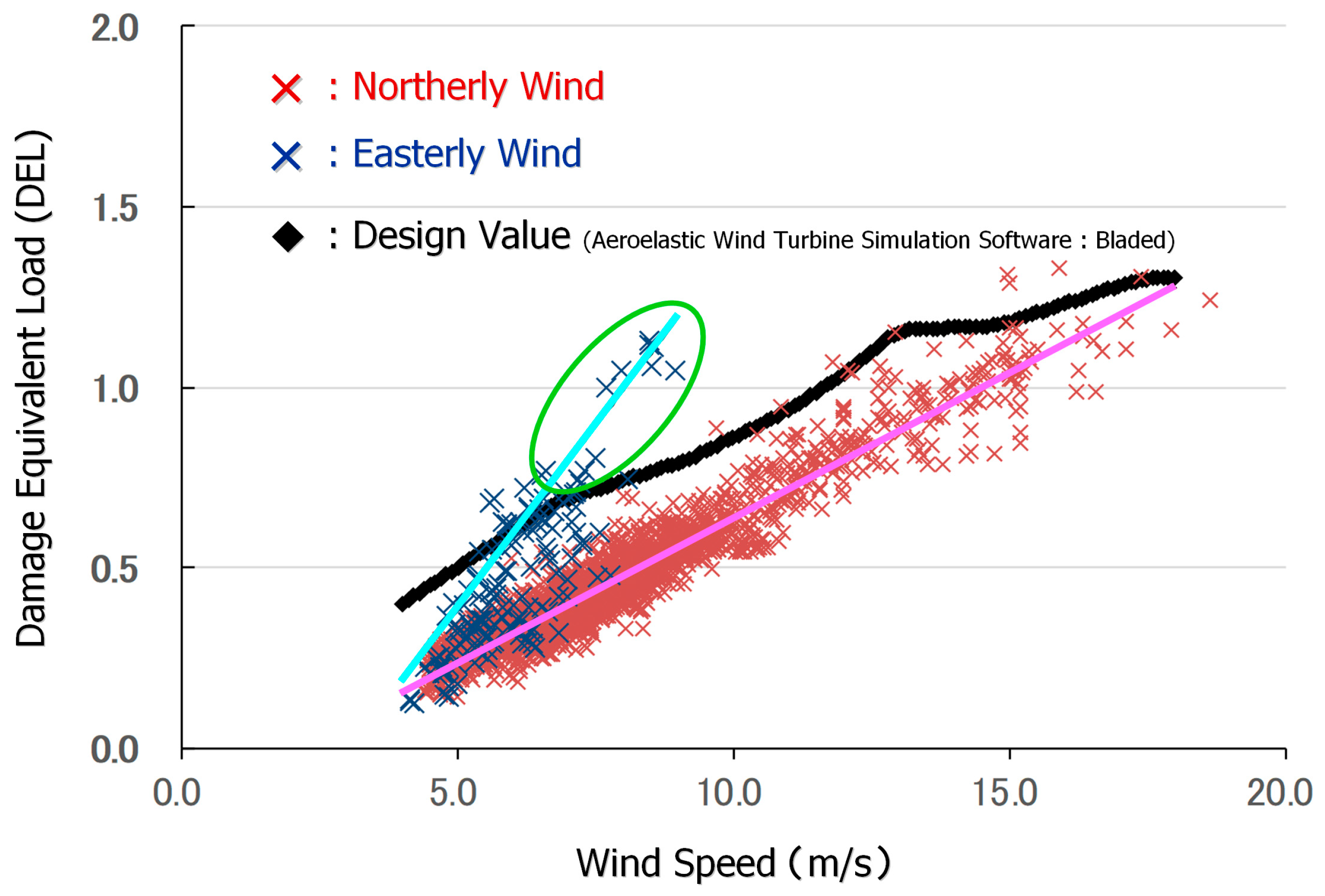

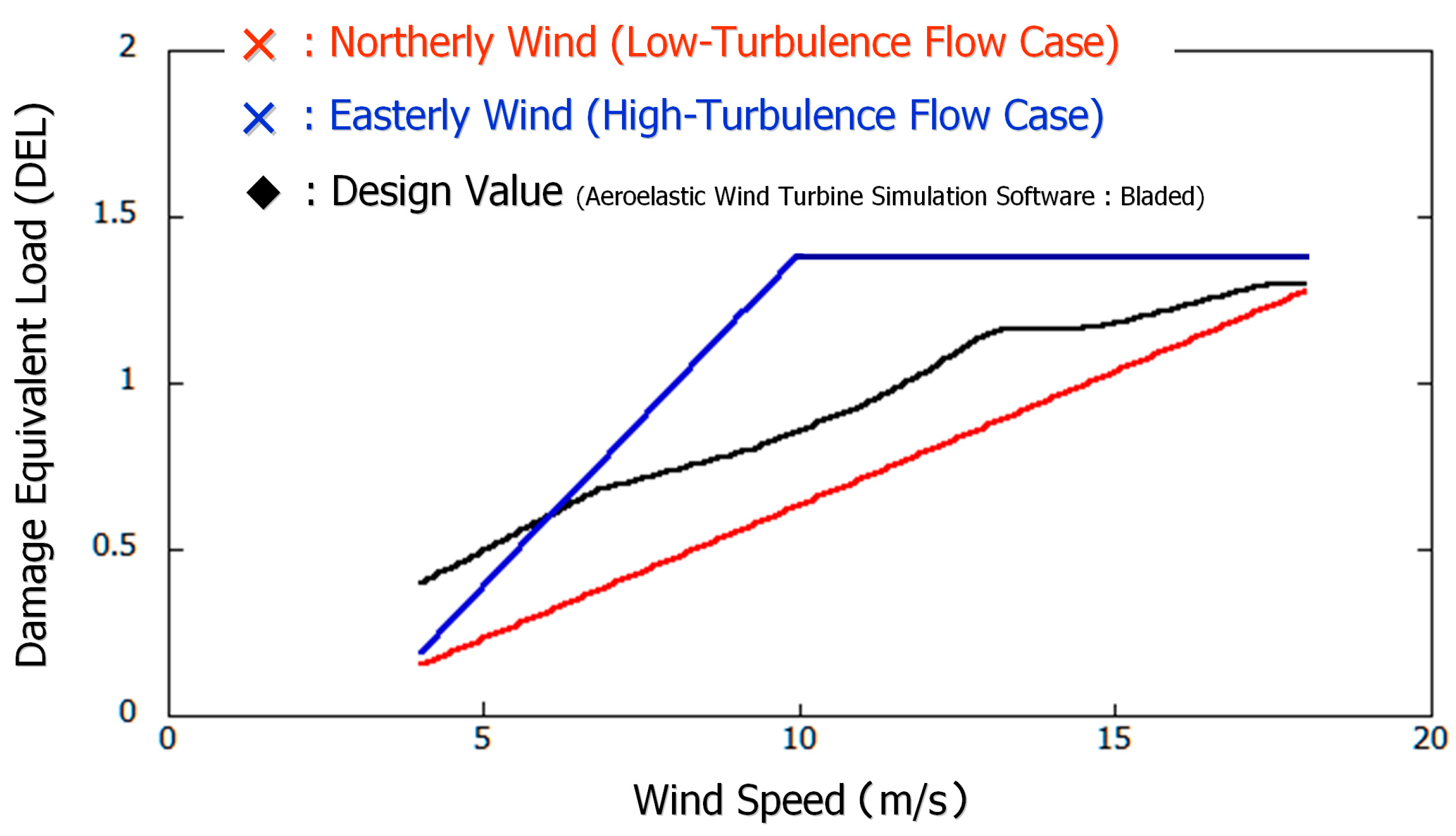

#### 6.2. Investigation Regarding Accumulated Fatigue Damage of Wind Turbine Blades

- U-K scale_2 > 1.0: more than the design value, impact of the terrain-induced turbulence: large.
- U-K scale_2 ≦ 1.0: design value and less, impact of terrain-induced turbulence: small.

## 7. A Proposal for the Use of the U-K Scales and Future Research

## 8. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Tang, X.-Y.; Zhao, S.; Fan, B.; Peinke, J.; Stoevesandt, B. Micro-scale wind resource assessment in complex terrain based on CFD coupled measurement from multiple masts. Appl. Energy
**2019**, 238, 806–815. [Google Scholar] [CrossRef] - Gargallo-Peiró, A.; Avila, M.; Owen, H.; Prieto-Godino, L.; Folch, A. Mesh generation, sizing and convergence for onshore and offshore wind farm Atmospheric Boundary Layer flow simulation with actuator discs. J. Comput. Phys.
**2018**, 375, 209–227. [Google Scholar] [CrossRef] - Sessarego, M.; Shen, W.Z.; Van der Laan, M.; Hansen, K.; Zhu, W.J. CFD Simulations of Flows in a Wind Farm in Complex Terrain and Comparisons to Measurements. Appl. Sci.
**2018**, 8, 788. [Google Scholar] [CrossRef] - Temel, O.; Bricteux, L.; Beeck, J.V. Coupled WRF-OpenFOAM study of wind flow over complex terrain. J. Wind Eng. Ind. Aerodyn.
**2018**, 174, 152–169. [Google Scholar] [CrossRef] - Dhunny, A.Z.; Lollchund, M.R.; Rughooputh, S.D.D.V. Wind energy evaluation for a highly complex terrain using Computational Fluid Dynamics (CFD). Renew. Energy
**2017**, 101, 1–9. [Google Scholar] [CrossRef] - Murthy, K.S.R.; Rahi, O.P. A comprehensive review of wind resource assessment. Renew. Sustain. Energy Rev.
**2017**, 72, 1320–1342. [Google Scholar] [CrossRef] - Simões, T.; Estanqueiro, A. A new methodology for urban wind resource assessment. Renew. Energy
**2016**, 89, 598–605. [Google Scholar] [CrossRef] [Green Version] - Blocken, B.; Hout, A.V.D.; Dekker, J.; Weiler, O. CFD simulation of wind flow over natural complex terrain: Case study with validation by field measurements for Ria de Ferrol, Galicia, Spain. J. Wind Eng. Ind. Aerodyn.
**2015**, 147, 43–57. [Google Scholar] [CrossRef] - Gopalan, H.; Gundling, C.; Brown, K.; Roget, B.; Sitaraman, J.; Mirocha, J.D.; Miller, W.O. A coupled mesoscale-microscale framework for wind resource estimation and farm aerodynamics. J. Wind Eng. Ind. Aerodyn.
**2014**, 132, 13–26. [Google Scholar] [CrossRef] - Ishugah, T.F.; Li, Y.; Wang, R.Z.; Kiplagat, J.K. Advances in wind energy resource exploitation in urban environment: A review. Renew. Sustain. Energy Rev.
**2014**, 37, 613–626. [Google Scholar] [CrossRef] - Palma, J.M.L.M.; Castro, F.A.; Ribeiro, L.F.; Rodrigues, A.H.; Pinto, A.P. Linear and nonlinear models in wind resource assessment and wind turbine micro-siting in complex terrain. J. Wind Eng. Ind. Aerodyn.
**2008**, 96, 2308–2326. [Google Scholar] [CrossRef] - Uchida, T.; Takakuwa, S. A Large-Eddy Simulation-Based Assessment of the Risk of Wind Turbine Failures Due to Terrain-Induced Turbulence over a Wind Farm in Complex Terrain. Energies
**2019**, 12(1925), 1485. [Google Scholar] [CrossRef] - Uchida, T.; Li, G. Comparison of RANS and LES in the Prediction of Airflow Field over Steep Complex Terrain. Open J. Fluid Dyn.
**2018**, 8, 286–307. [Google Scholar] [CrossRef] [Green Version] - Uchida, T. Computational Investigation of the Causes of Wind Turbine Blade Damage at Japan’s Wind Farm in Complex Terrain, Journal of Flow Control. Meas. Vis.
**2018**, 6, 152–167. [Google Scholar] - Uchida, T. Designed Wind Speed Evaluation Technique in Wind Turbine Installation Point by Using the Meteorological Model and CFD Model. J. Flow Control Meas. Vis.
**2018**, 6, 168–184. [Google Scholar] [CrossRef] - Uchida, T. LES Investigation of Terrain-Induced Turbulence in Complex Terrain and Economic Effects of Wind Turbine Control. Energies
**2018**, 11(6), 1530. [Google Scholar] [CrossRef] - Uchida, T. Computational Fluid Dynamics (CFD) Investigation of Wind Turbine Nacelle Separation Accident over Complex Terrain in Japan. Energies
**2018**, 11(6), 1485. [Google Scholar] [CrossRef] - Uchida, T.; Maruyama, T.; Ohya, Y. New Evaluation Technique for WTG Design Wind Speed using a CFD-model-based Unsteady Flow Simulation with Wind Direction Changes. Model. Simul. Eng.
**2011**. [Google Scholar] [CrossRef] - Uchida, T.; Ohya, Y. Micro-siting technique for wind turbine generators by using large-eddy simulation. J. Wind Eng. Ind. Aerodyn.
**2008**, 96, 2121–2138. [Google Scholar] [CrossRef] - Uchida, T.; Ohya, Y. Large-eddy simulation of turbulent airflow over complex terrain. J. Wind Eng. Ind. Aerodyn.
**2003**, 91, 219–229. [Google Scholar] [CrossRef] - Uchida, T.; Ohya, Y. Numerical simulation of atmospheric flow over complex terrain. J. Wind Eng. Ind. Aerodyn.
**1999**, 81, 283–293. [Google Scholar] [CrossRef] - Kiyoki, S.; Uchida, T.; Kawashima, Y.; Kondo, K. Impact Assessment of Terrain Turbulece to Wind Turbine Fatigue. Presented at the 15th World Wind Energy Conference (WWEC 2016), Tokyo, Japan, 31 October 31–3 November 2016. [Google Scholar]
- Freebury, G.; Musial, W. Determining Equivalent Damage Loading for Full-Scale Wind Turbine Blade Fatigue Tests; Technical Report for National Renewable Energy Laboratory: Golden, CO, USA, February 2000. [Google Scholar]
- Takemi, T.; Kusunoki, K.; Araki, K.; Imai, T.; Bessho, K.; Hoshino, S.; Hayashi, S. Representation and Localization of Gusty Winds Induced by Misocyclones with a High-Resolution Meteorological Modeling. Theor. Appl. Mech. Jpn.
**2010**, 58, 121–130. [Google Scholar] - Kim, J.; Moin, P. Application of a fractional-step method to incompressible Navier-Stokes equations. J. Comput. Phys.
**1985**, 59, 308–323. [Google Scholar] [CrossRef] - Kajishima, T. Upstream-shifted interpolation method for numerical simulation of incompressible flows. Bull. Jpn. Soc. Mech. Eng. B
**1994**, 60, 3319–3326. [Google Scholar] [CrossRef] - Kawamura, T.; Takami, H.; Kuwahara, K. Computation of high Reynolds number flow around a circular cylinder with surface roughness. Fluid Dyn. Res.
**1986**, 1, 145–162. [Google Scholar] [CrossRef] - Smagorinsky, J. General circulation experiments with the primitive equations: I. Basic experiments. Mon. Weather Rev.
**1963**, 91, 99–164. [Google Scholar] [CrossRef]

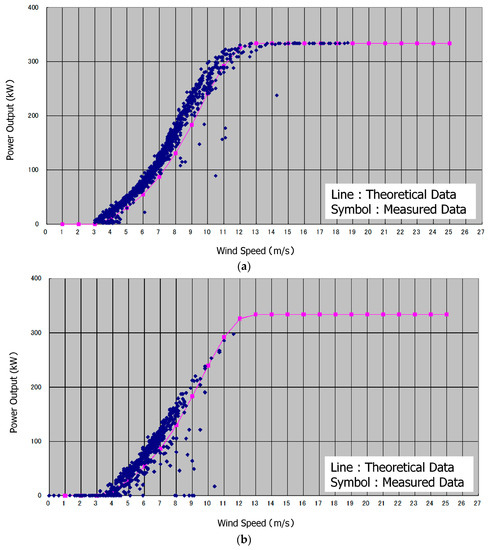

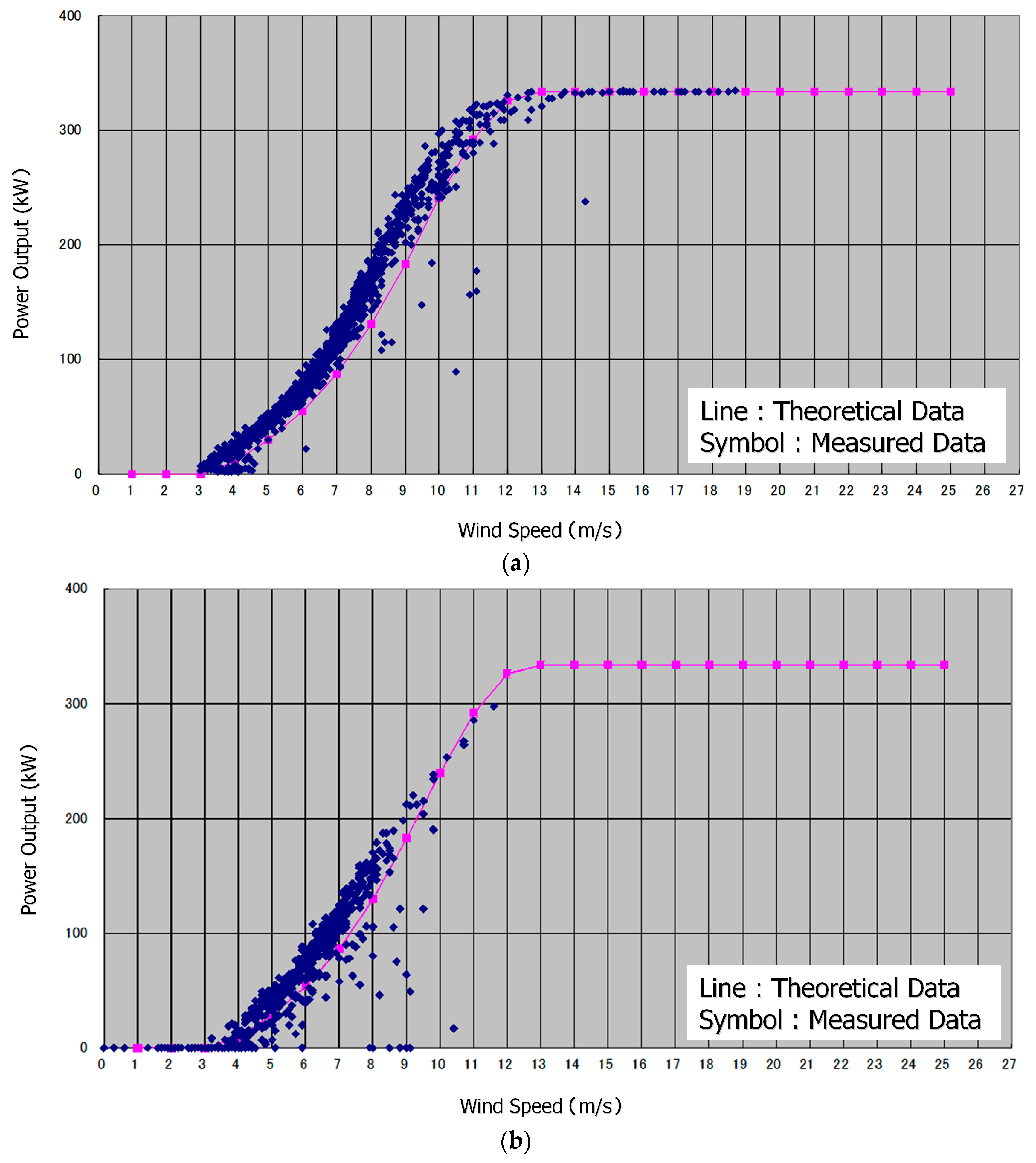

**Figure 7.**Comparison between theoretical data and measured data for wind turbine #10. (

**a**) Northerly wind. (

**b**) Easterly wind.

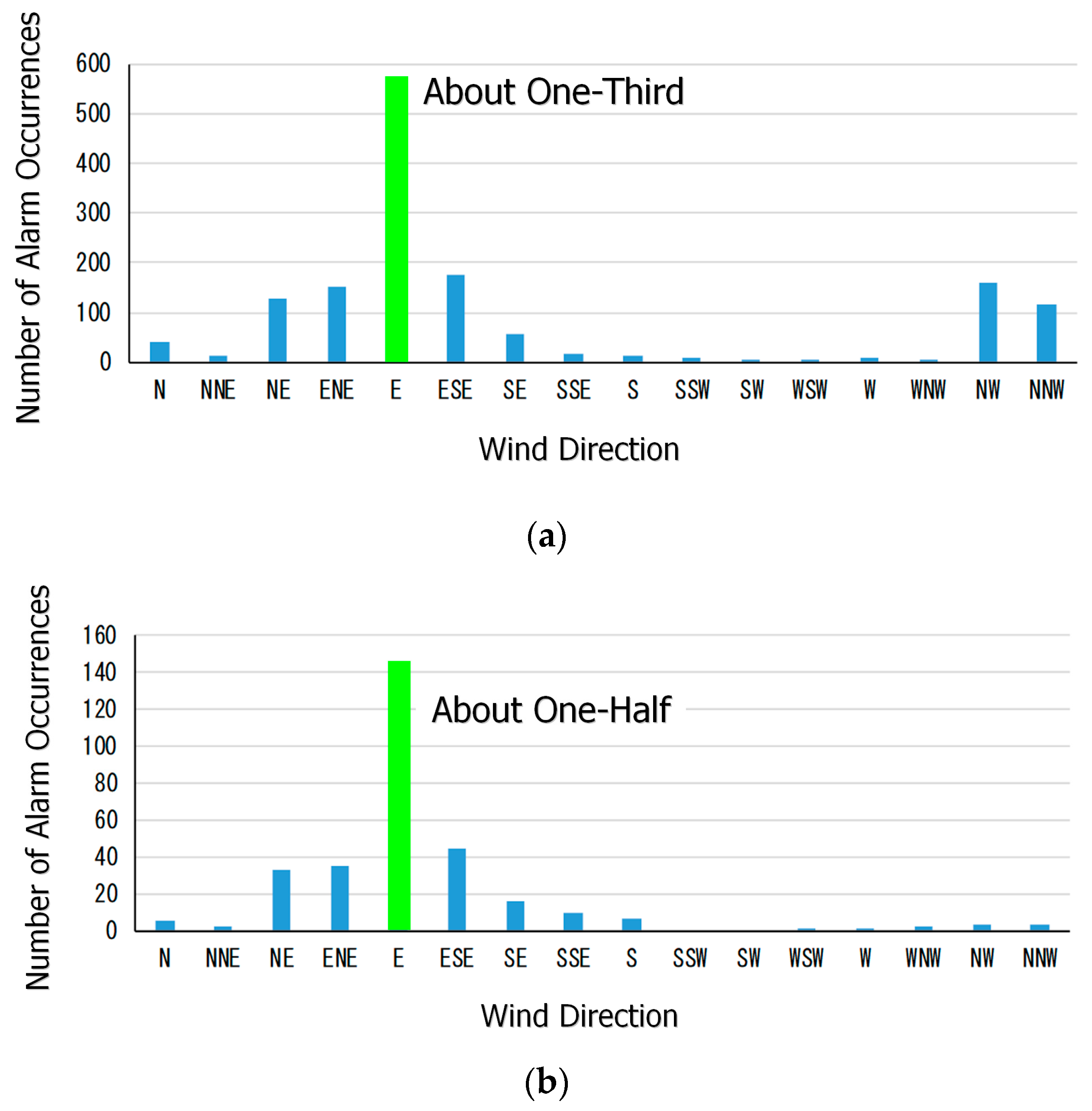

**Figure 8.**Result of graphing the values in Table 3. (

**a**) Number of alarm occurrences for yaw misalignment. (

**b**) Number of alarm occurrences for wind direction mismatch of the wind vane. Note: Wind turbine systems resort to shutting down the wind turbine if the yaw misalignment exceeds a threshold.

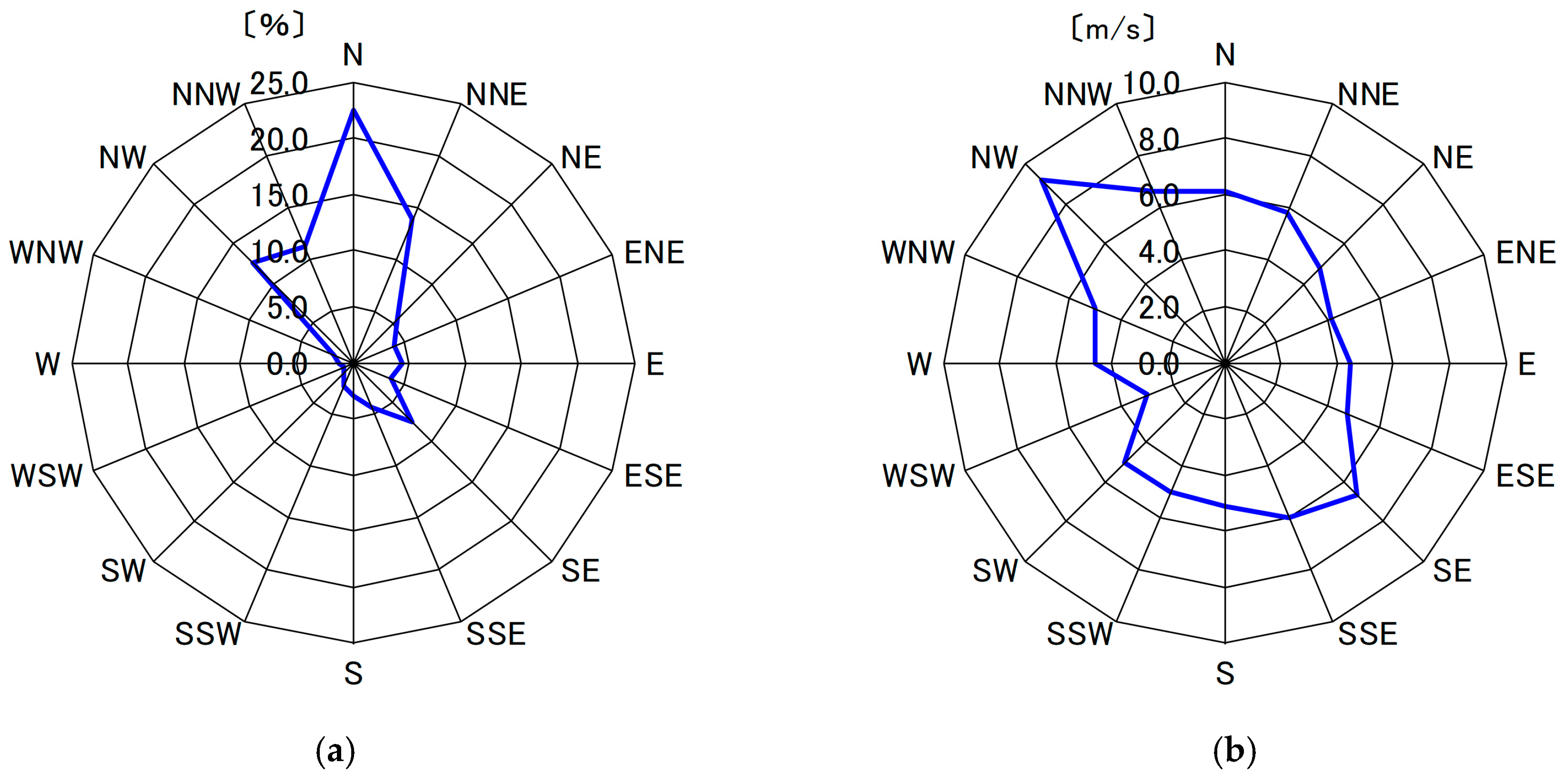

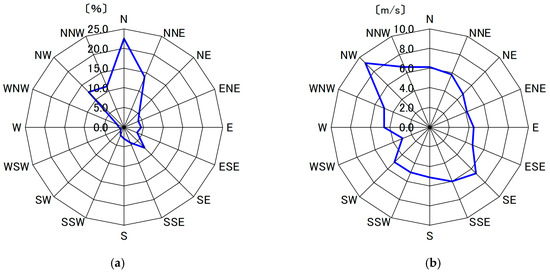

**Figure 9.**Frequency distribution of the direction of the 10-min average wind (%): (

**a**) wind rose (frequency distribution) and the average of the 10-min average wind speed observed for 16 wind directions (m/s): (

**b**) wind speed by direction (wind measurement height: hub height (60 m), analysis period: 3 November 2015, 0:00 a.m. JST–17 March 2016, 7:00 a.m. JST).

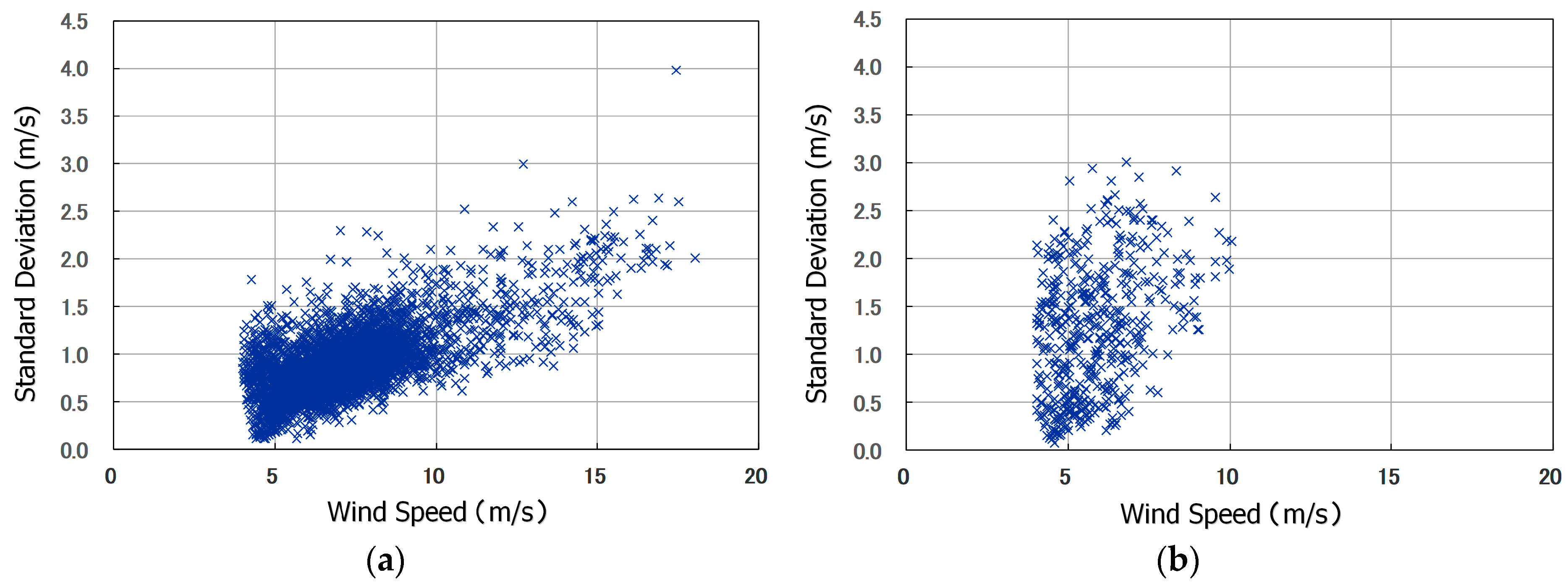

**Figure 10.**Relationship between the standard deviation and the average of the wind speed in 10-min periods for two wind directions (wind measurement height: hub-height (60 m), analysis period: 3 November 2015, 0:00 a.m. JST–17 March 2016, 7:00 a.m. JST). (

**a**) Northerly wind. (

**b**) Easterly wind.

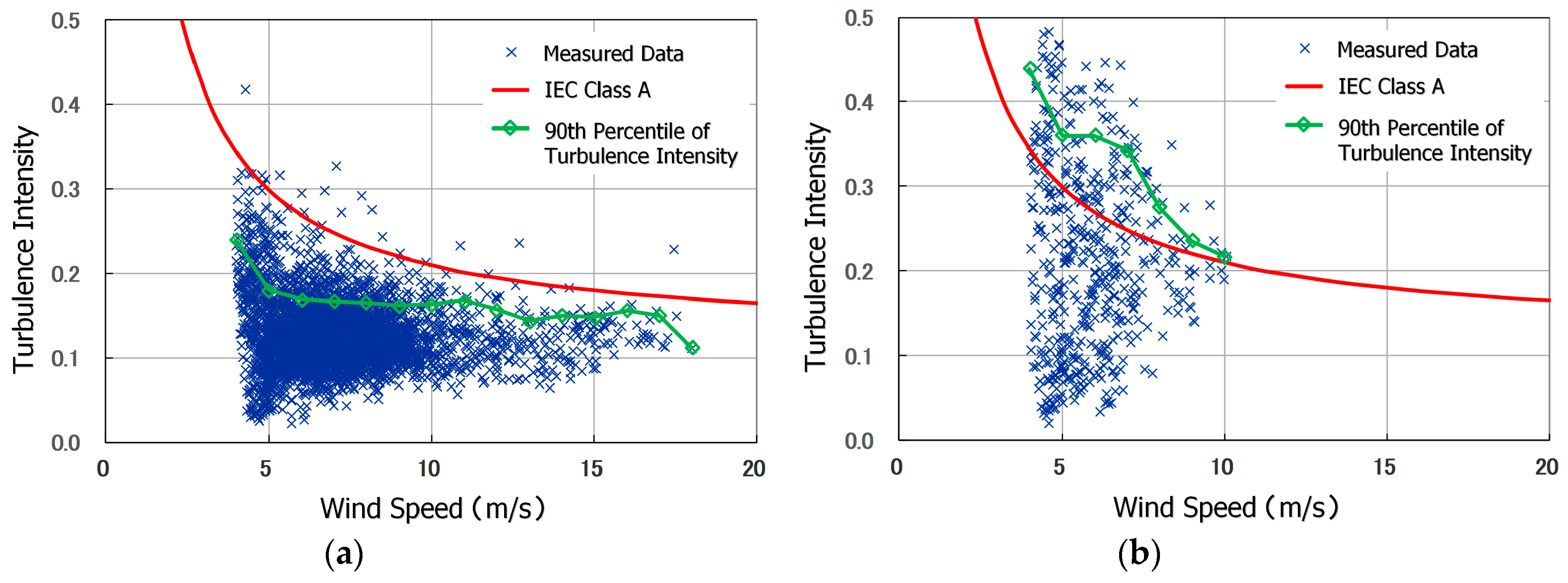

**Figure 11.**Relationship between turbulence intensity and the average of the wind speed in 10-min periods for two wind directions (wind measurement height: hub-height (60 m), analysis period: 3 November 2015, 0:00 a.m. JST–17 March 2016, 7:00 a.m. JST). (

**a**) Northerly wind. (

**b**) Easterly wind.

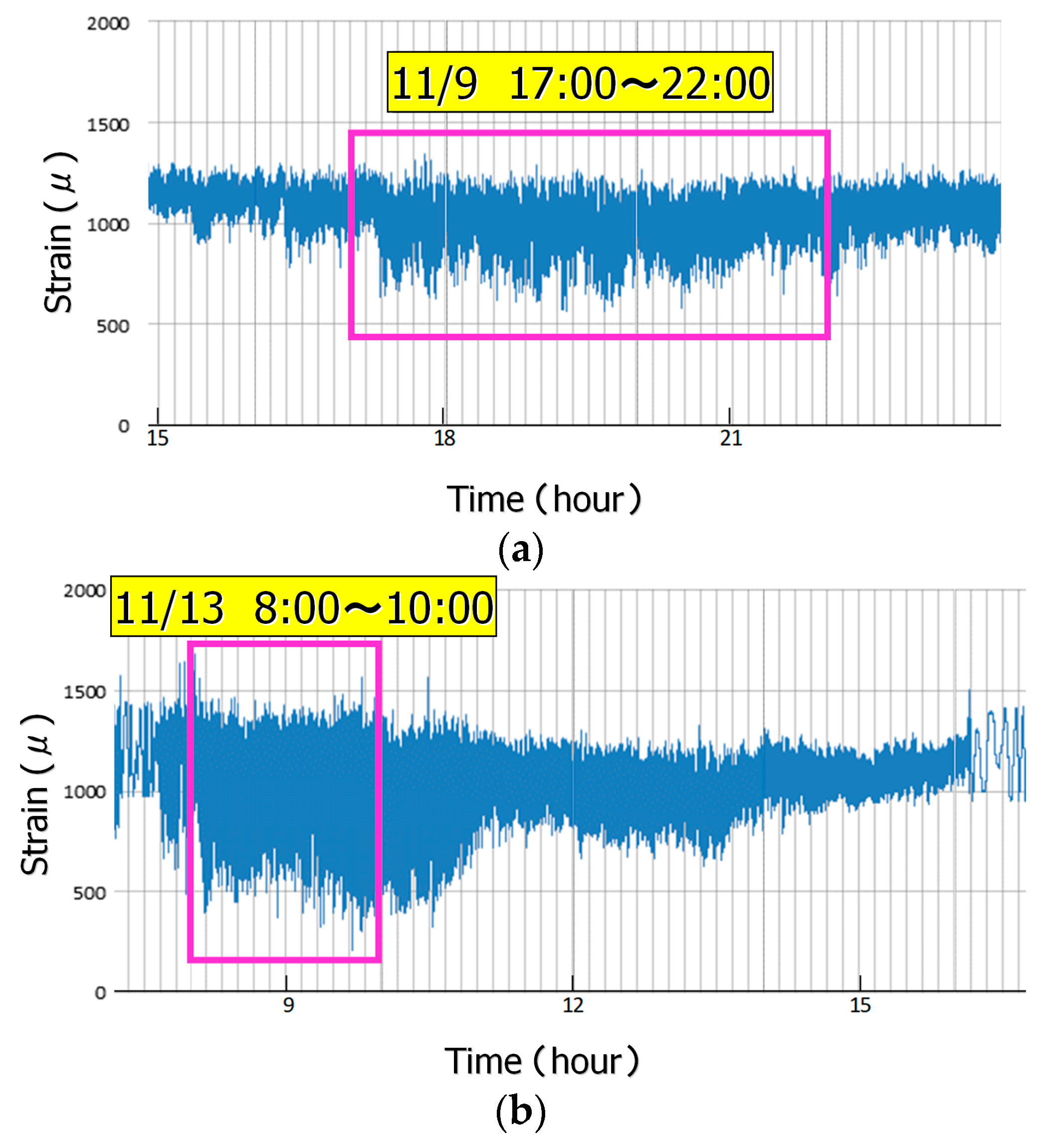

**Figure 12.**Blade strain data (blade flapwise bending raw data). (

**a**) Northerly wind. (

**b**) Easterly wind. Note: interval: 0.02 seconds, average wind speed: approx. 9 m/s.

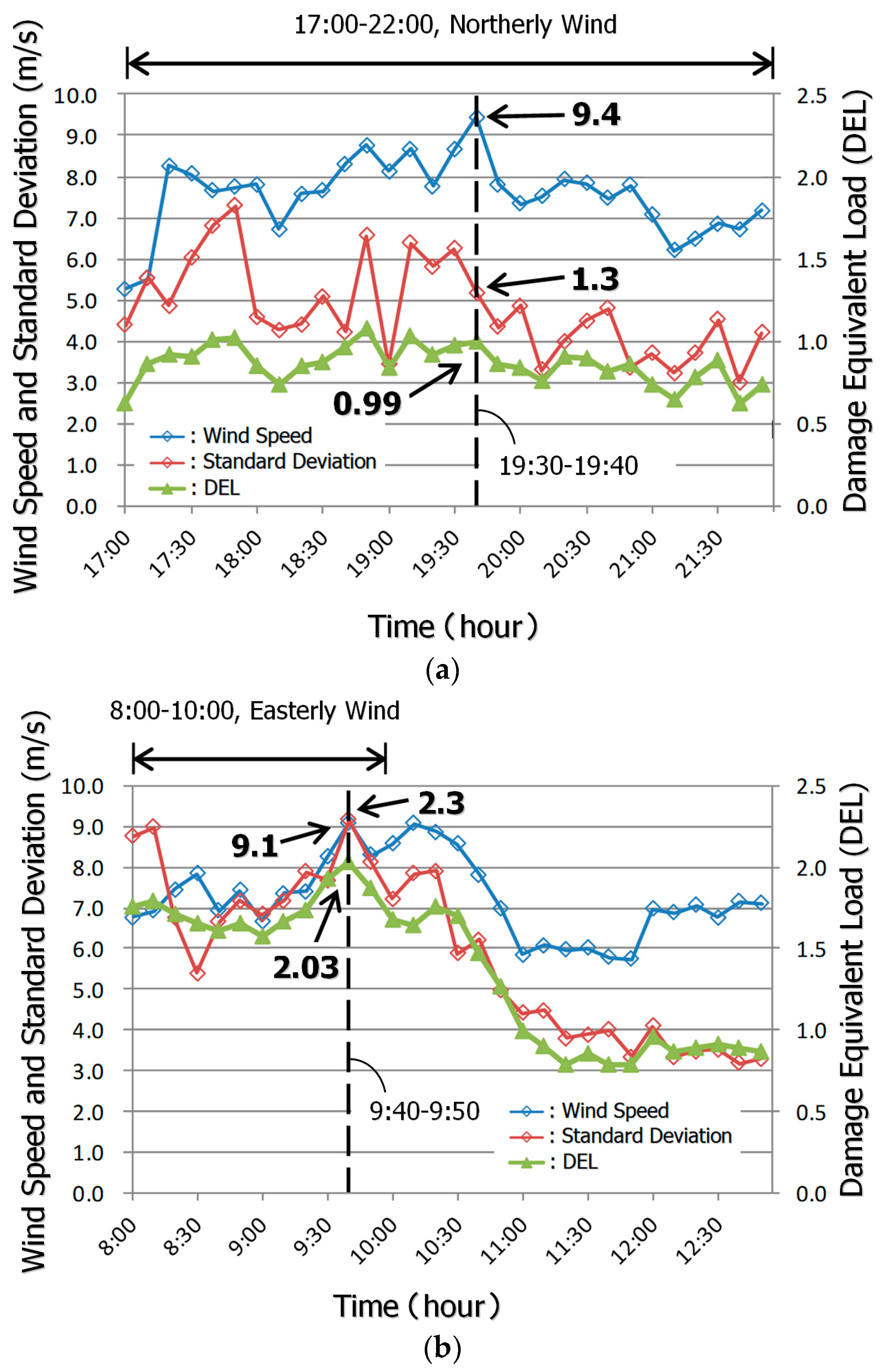

**Figure 13.**Time series of wind speed, standard deviation and normalized damage equivalent load (DEL) for flapwise blade bending. Plotted values were evaluated from instantaneous data values within 10-min periods. (

**a**) Northerly wind. (

**b**) Easterly wind.

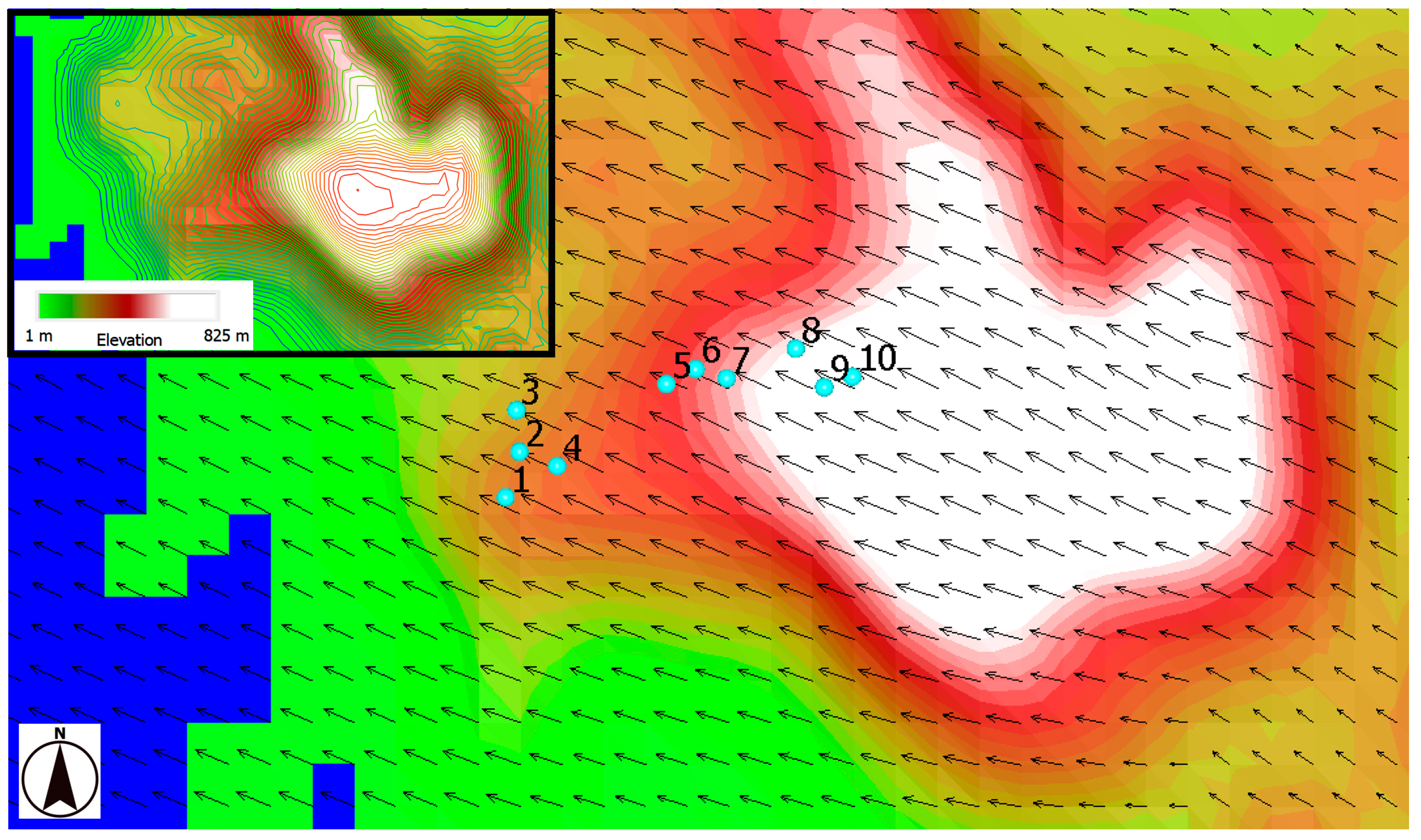

**Figure 15.**Distribution of the horizontal wind vectors in Domain 4, approximately 60 m above the ground surface. 9:40 a.m. JST, Nov. 13, 2015.

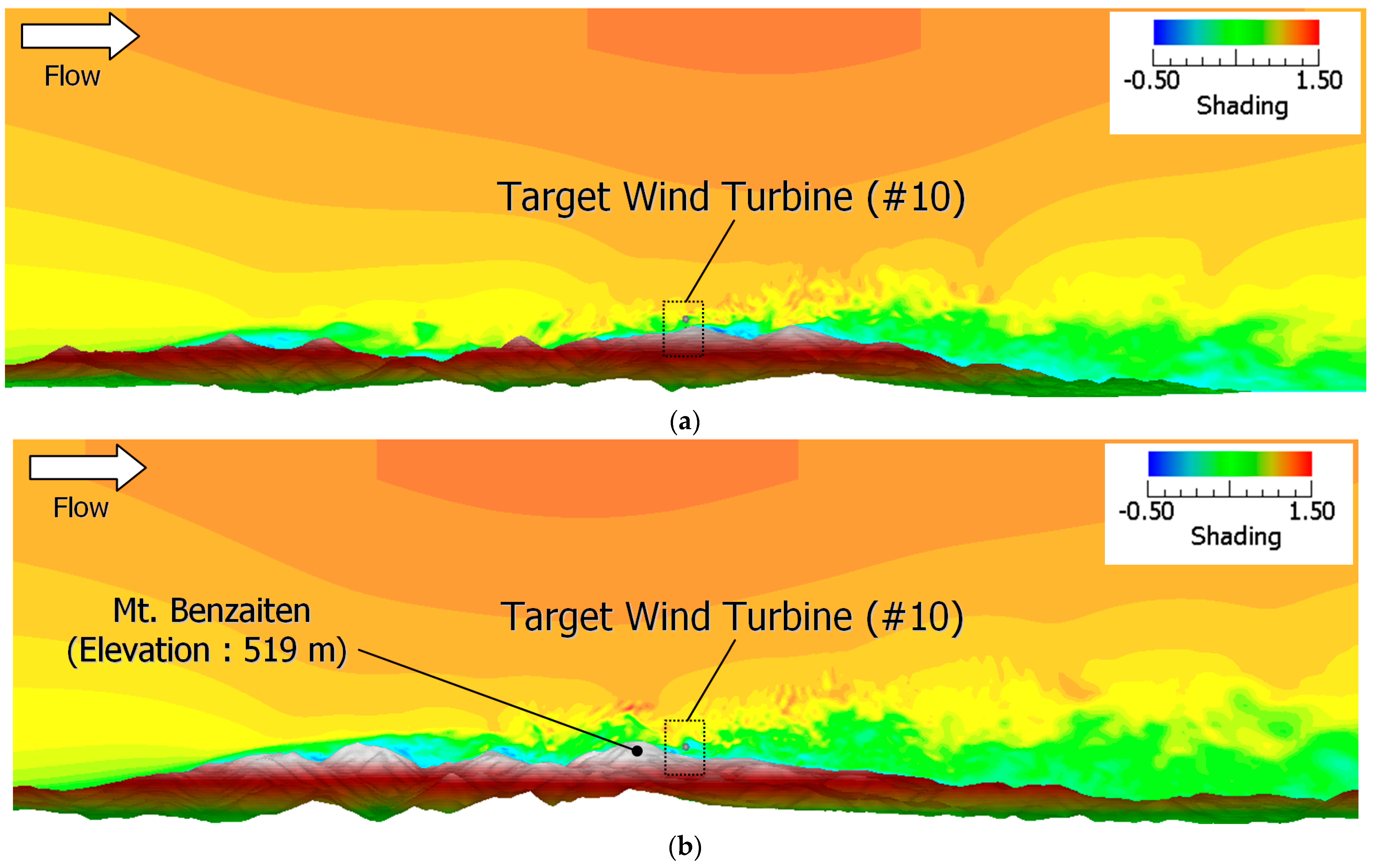

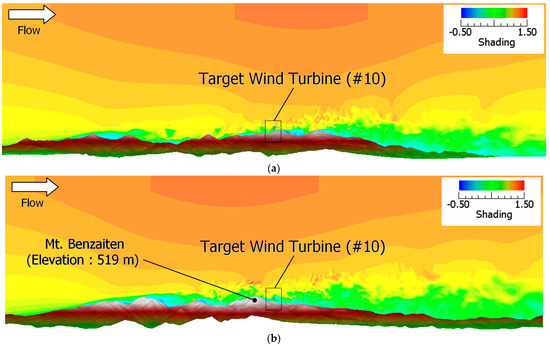

**Figure 20.**Distribution of the streamwise wind velocity component on a vertical cross-section that includes wind turbine #10 and the instantaneous flow field. (

**a**) Northerly wind. (

**b**) Easterly wind.

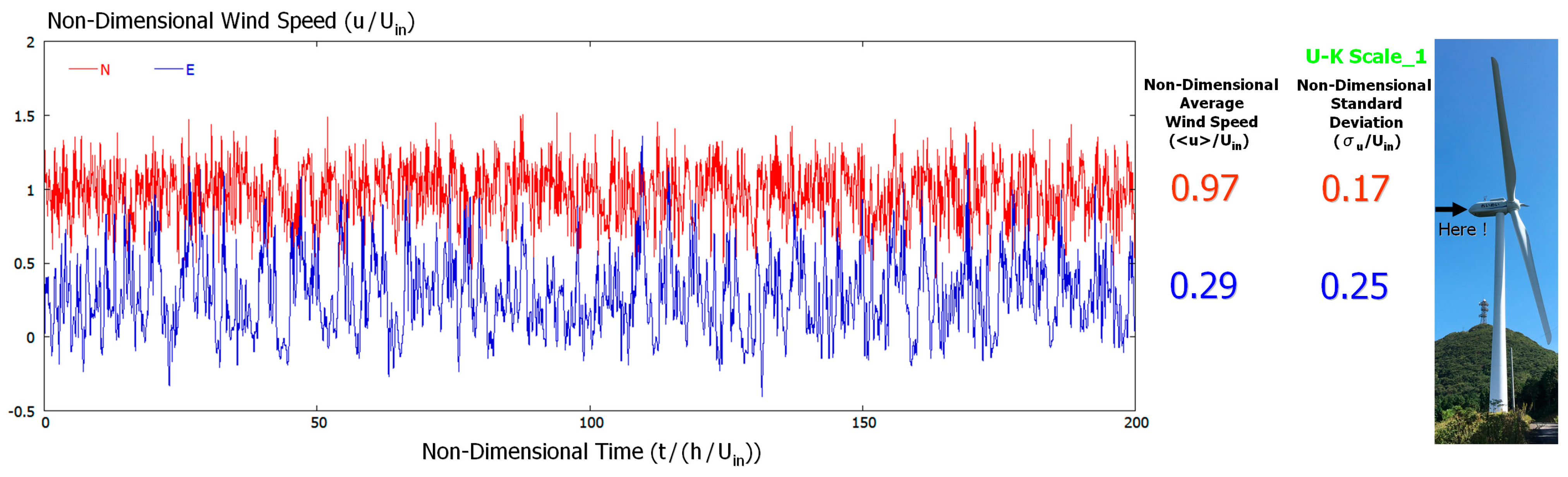

**Figure 21.**Time-series data of streamwise wind velocity from the numerical simulations. Red: northerly wind, Blue: easterly wind.

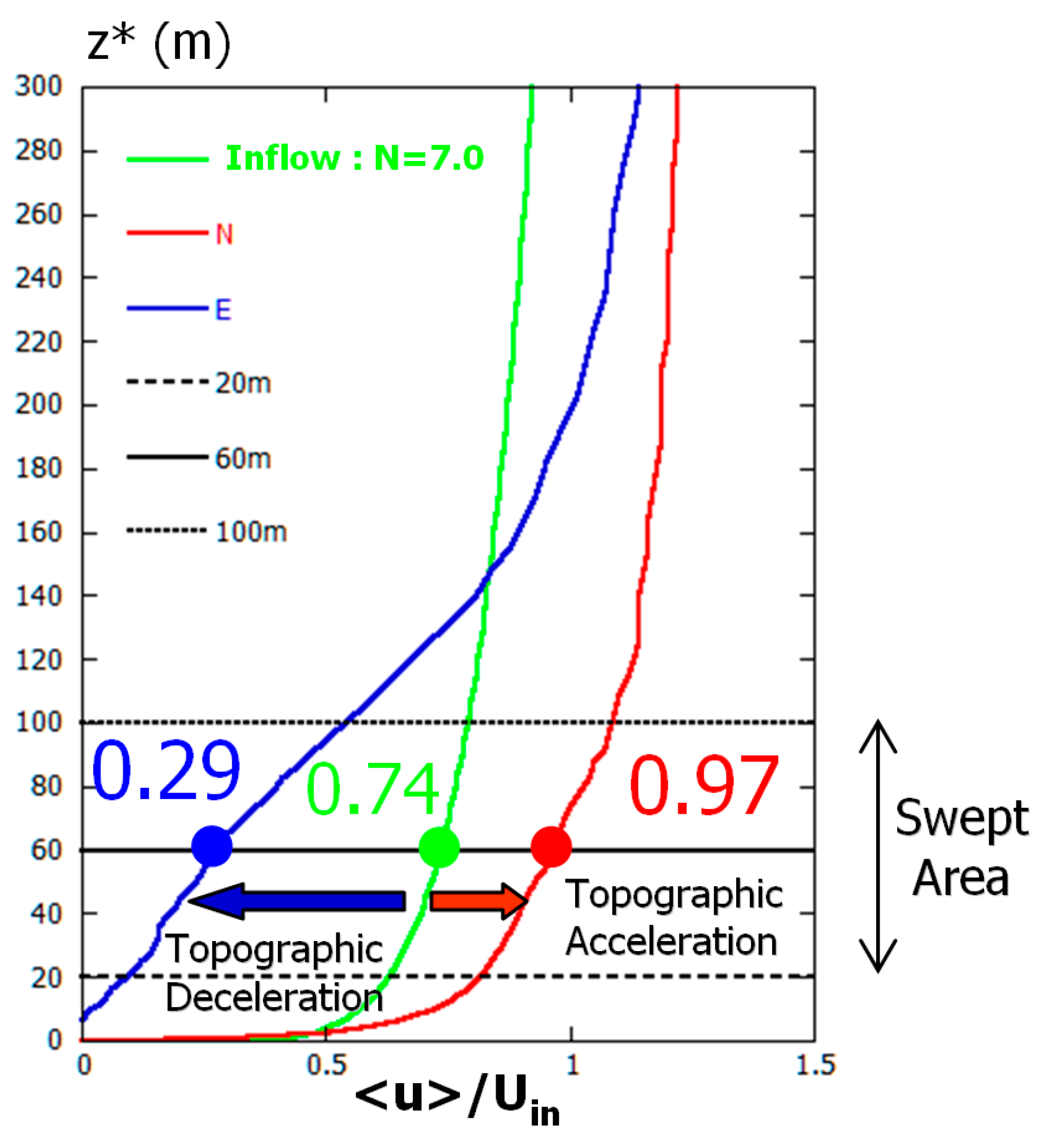

**Figure 22.**Vertical profiles of the streamwise wind velocity at wind turbine #10, with a time-averaged flow field. Red: northerly wind, Blue: easterly wind.

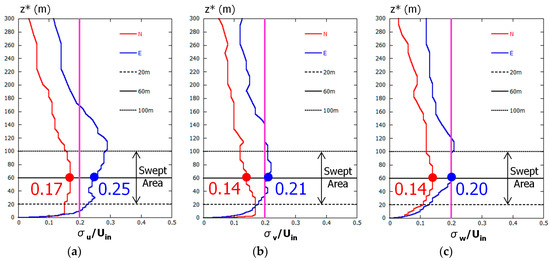

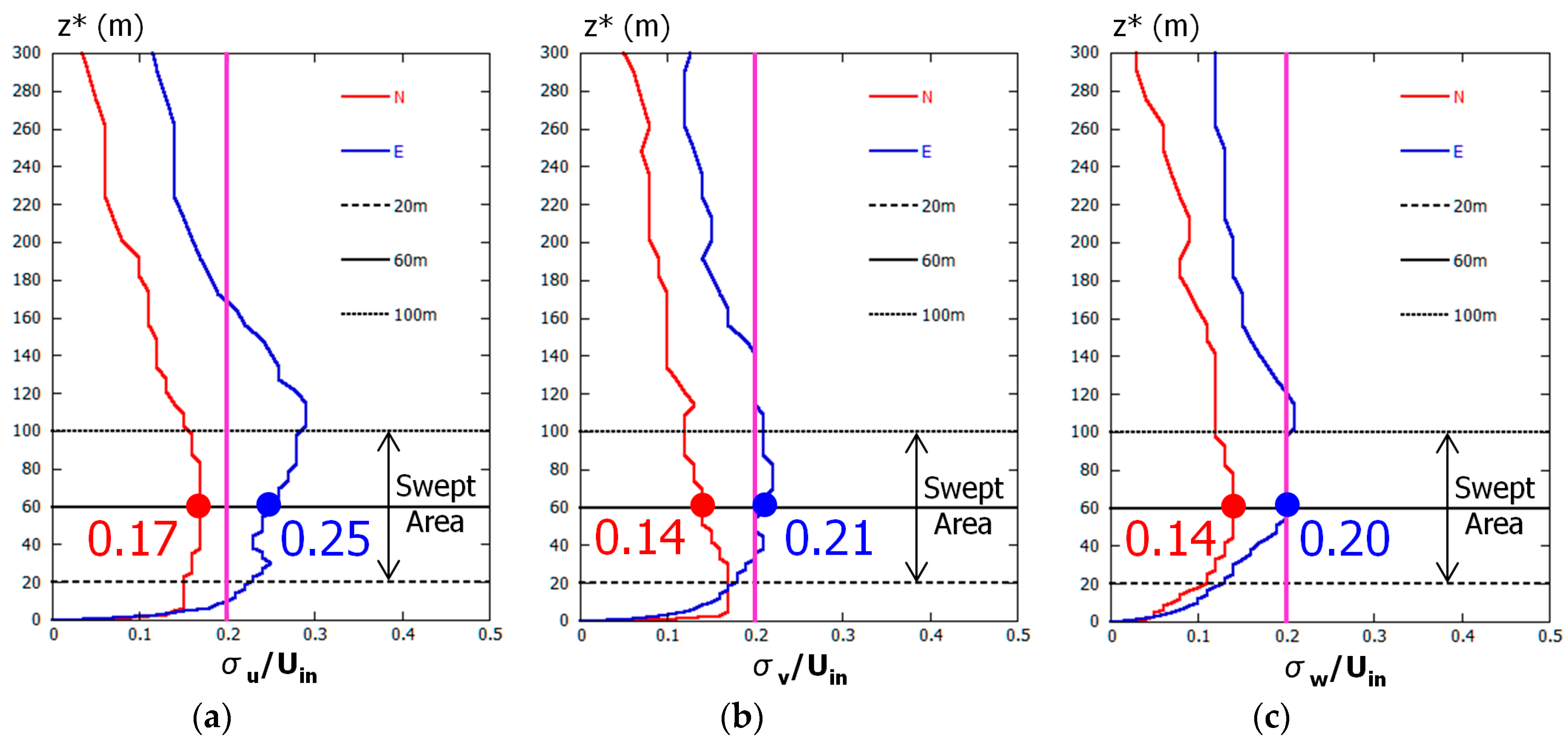

**Figure 23.**Vertical profiles of the non-dimensional standard deviations at wind turbine #10, with a time-averaged flow field. Red: northerly wind, Blue: easterly wind. (

**a**) Streamwise direction. (

**b**) Spanwise direction. (

**c**) Vertical direction.

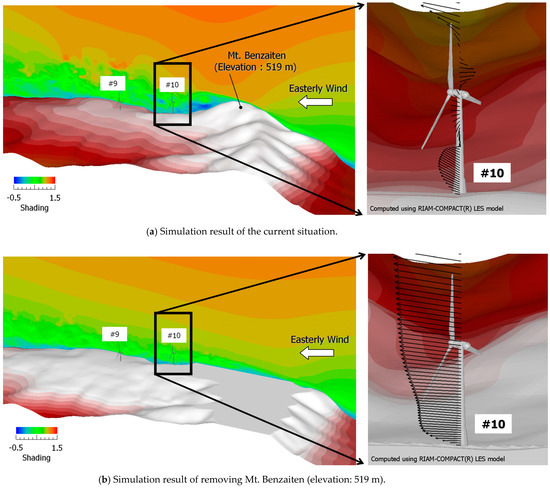

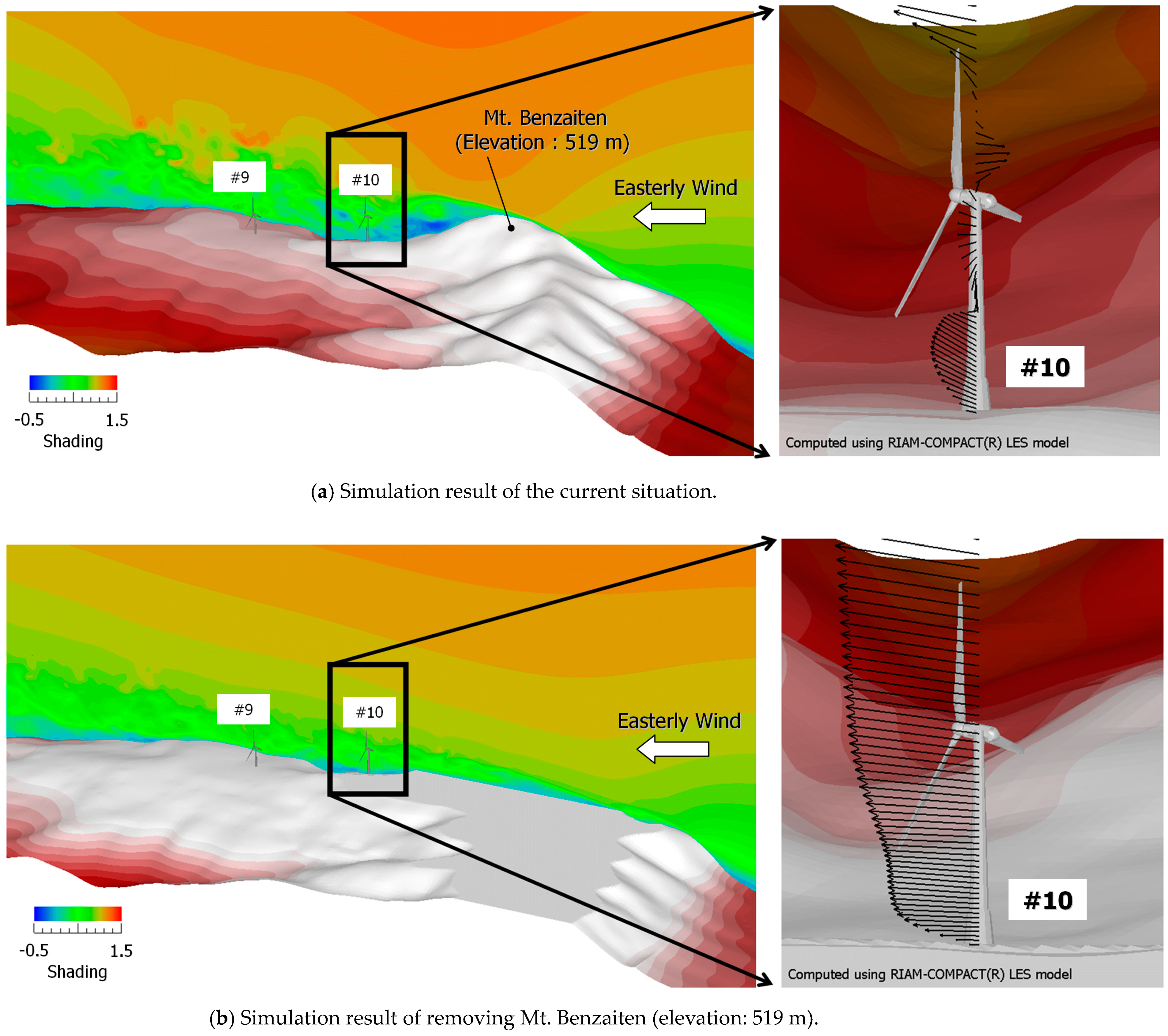

**Figure 24.**Distribution of the streamwise wind velocity component on a vertical cross-section, which includes wind turbine #10 and wind velocity vectors at wind turbine #10, easterly wind, and instantaneous flow field.

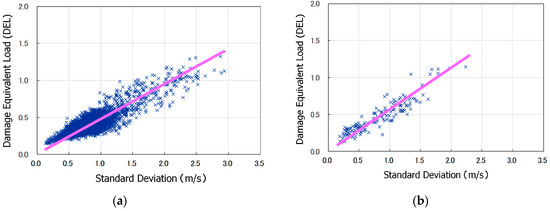

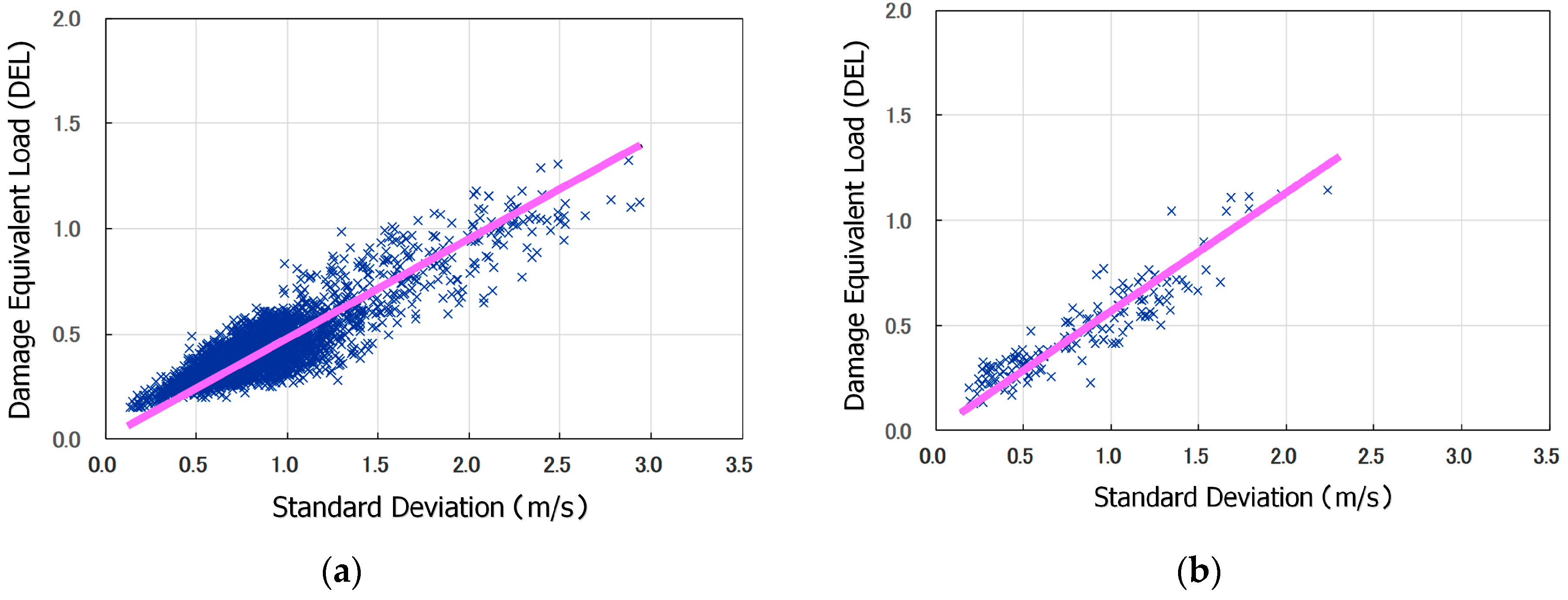

**Figure 26.**Relationship between standard deviation (m/s) and damage equivalent load (DEL). (

**a**) Northerly wind. (

**b**) Easterly wind.

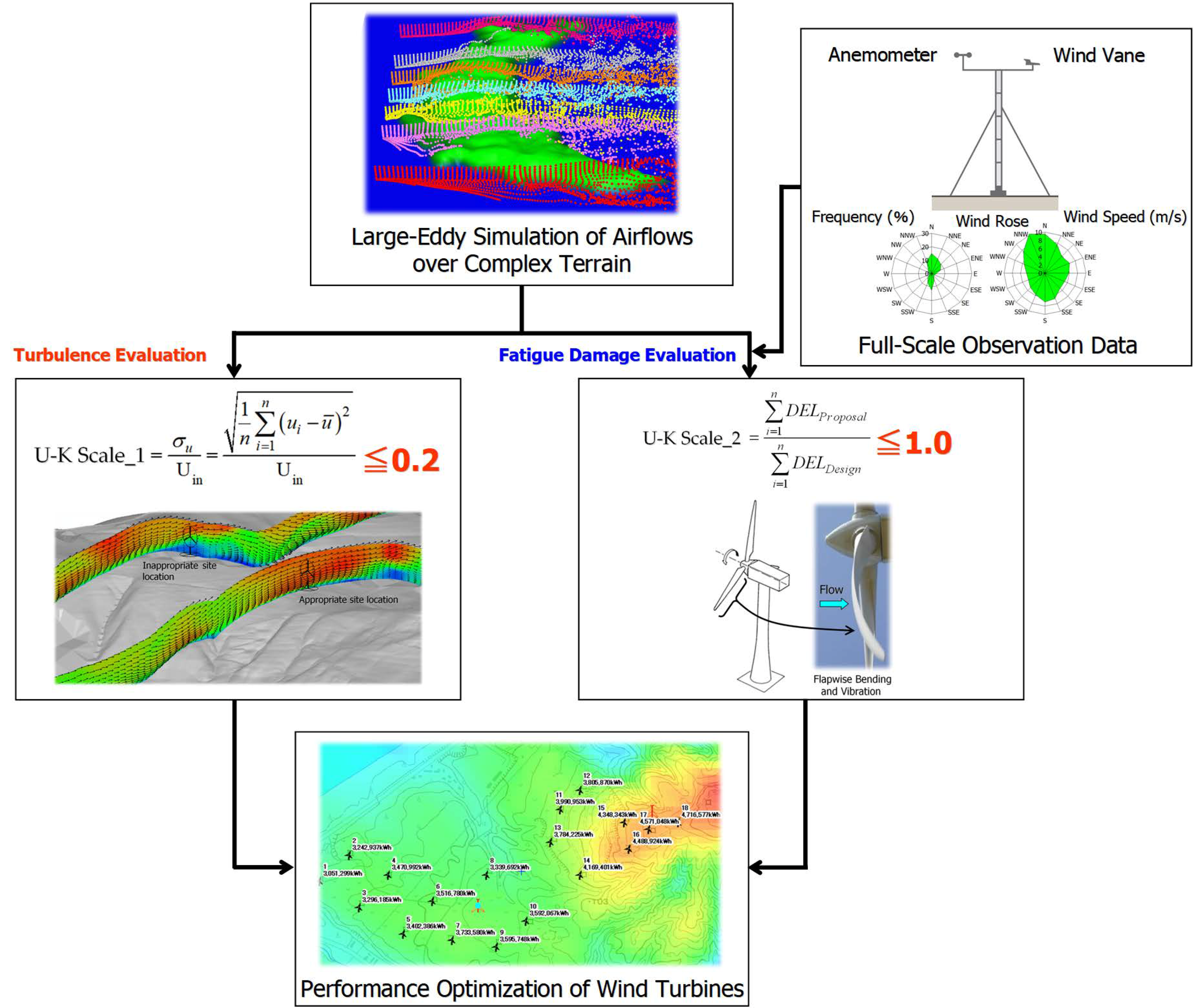

**Figure 28.**An example of wind energy resource assessment based on the two reference scales (the U-K scales).

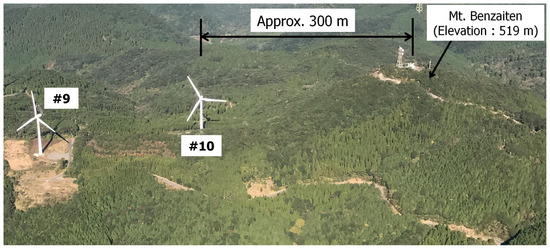

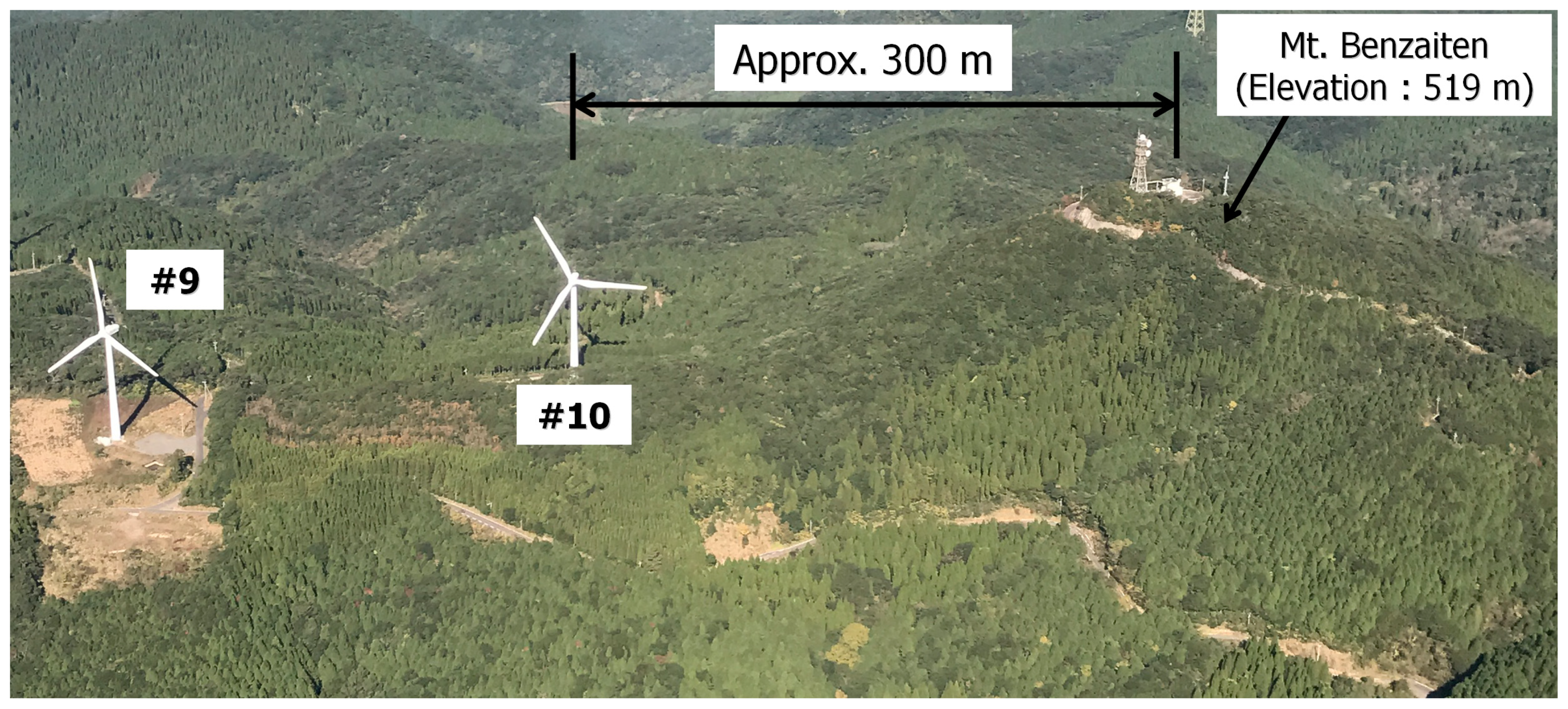

**Table 1.**Elevation information for wind turbine #10 and distance between Mt. Benzaiten (elevation 519 m) and wind turbine #10.
