Input Disturbance Suppression for Unidirectional Matrix Converter with a Stability-Enhancing Modulation Scheme

Abstract

This paper proposes an input voltage disturbance suppression control strategy for the unidirectional matrix converter (UMC) with a new modulation scheme enhancing the stability. In the new scheme, the modulation index is directly, rather than reversely, proportional to the instantaneous amplitude of input filter capacitor voltages. Contrary to traditional schemes, the stability of the UMC with this new scheme is even better with the increase of the transferred active power, which is particularly suitable for applications with sinusoidal and balanced input conditions. As to the disturbed input conditions, the new scheme could introduce low-frequency harmonics into output currents. To address this issue, a feedback control strategy of output current amplitude is further proposed to eliminate the additional harmonics. Stability analysis of a UMC with the proposed modulation scheme and feedback control strategy is presented. Experimental results have verified the validity of the proposed control solution.

1. Introduction

The matrix converter (MCs) realizes direct AC–AC power conversion with minimal passive components [1] and has attracted attention from many researchers [2,3,4,5]. The indirect matrix converter (IMC) is a subtype of the MC [6], which consists of a rectifier stage and an inverter stage, as shown in Figure 1a. The IMC features a simple commutation strategy which could achieve zero current switching for the rectifier stage. For applications where only unidirectional power supply is required, such as the aerospace power supply system, the rectifier stage of the IMC could be simplified by removing the forward transistors. Termed as the unidirectional MC (UMC) in this paper, the simplified topology is shown in Figure 1b. Moreover, it is possible to further reduce the usage of transistors by using other configurations of switches at the rectifier stage [6,7,8,9].

Due to the lack of intermediate energy storage elements, the MC is sensitive to input voltage disturbances. Besides, LC filter resonance could be easily affected if the damping is insufficient. Both issues are related with the modulation scheme of the MC. Most existing modulation schemes address the first issue effectively, sampling instantaneous input voltages to correct the modulation signals [10,11,12,13]. Specifically, the modulation index of the MC is obtained from the reference output voltage amplitude divided by the instantaneous input voltage amplitude, which is designated as the feedforward control.

Nevertheless, the stability issue has subordinate priority in the control goal of existing schemes. If the input source is ideal, source voltages can be sampled for modulation so that the MC stability would not be affected. Yet, the damping of the input LC filter is insufficient, and thus additional passive or active damping control is still necessary [14]. When the source is weak with high impedance (such as a generator input), the filter capacitor voltages are sampled for modulation. In this case, the stability of MC could be deteriorated, as is well acknowledged in the literature. In [15], the small-signal analysis shows that these schemes lead to unstable poles. In [16], the phase margin is found to be negative. Reference [17] reveals that these schemes generate negative input admittances, which is the reason for the worsened stability. In addition, the analyses in the literature also prove that the higher the transferred active power is, the worse the stability will be.

To improve the stability of the MC with existing modulation schemes, some stabilization methods have been proposed in the literature, most of which adopt digitally filtered input voltages to calculate the modulation signals [16,17,18,19]. Though they do have the capability to stabilize the MC, their performance relies on the parameters of the digital filters [17]. Besides, the digital filter directly transfers the input voltage disturbances to output voltages, degrading the output control performance [20]. Therefore, structure and parameters of the digital filters need to be carefully designed, considering both the stability improvement and disturbance suppression.

In this paper, a novel control solution is proposed, especially applicable to the UMC. Different from existing solutions, the proposed solution grants higher priority to the stability issue and adopts additional methods to suppress the effects of input voltage disturbances, if any. A new modulation scheme is firstly applied to the UMC, in which the modulation index is directly proportional to the instantaneous amplitude of input filter capacitor voltages. The new scheme generates positive input admittances, which become larger with the increase of the active power. Therefore, it always enhances the stability of the UMC without additional stabilization methods, which is particularly suitable for situations with balanced and sinusoidal input voltages. When the input voltages are unbalanced and/or distorted, low-frequency harmonics are present in output currents. A feedback control strategy of output current amplitude is then proposed to eliminate the unwanted harmonics. Stability analysis is performed for the UMC with the proposed control solution. Experimental results are provided to verify the effectiveness of the proposed control solution.

2. Modulation Schemes for the UMC

2.1. Traditional Modulation Scheme

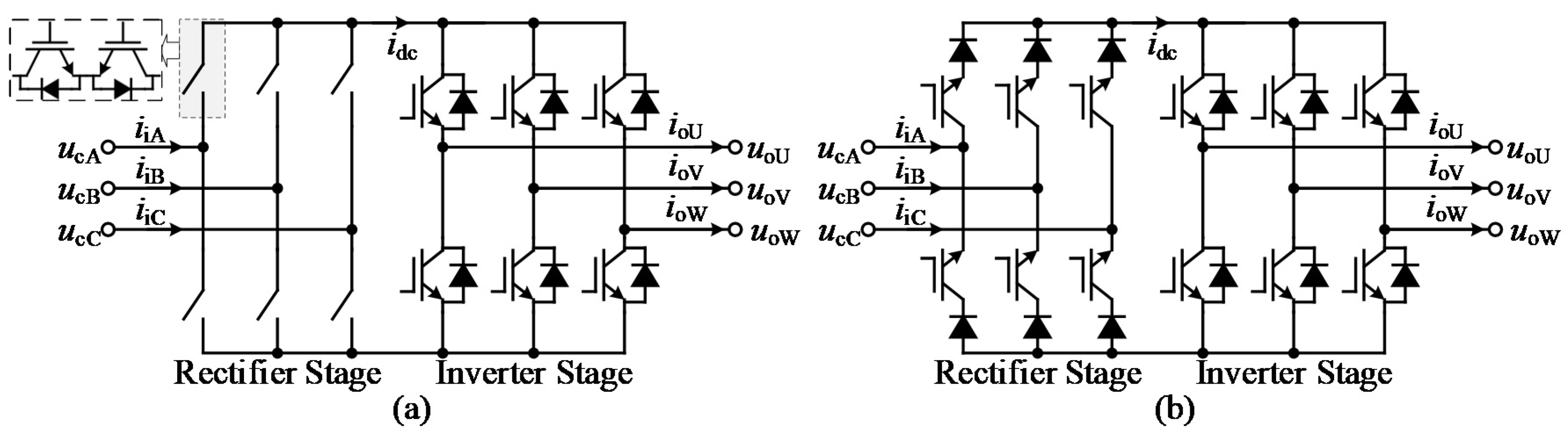

Control of the typical UMC system is shown in Figure 2. The load of the UMC can be a simple passive load, as adopted in this paper, or an active load such as a motor, which does not affect the effectiveness of the study in this paper. As discussed in [17], the load effect has quite limited effect on the input stability of the MC, and thus can be ignored for simplifying the stability study of the MC [16,17]. The output control, such as the typical field-oriented control for the motor, generates the reference amplitude, u_om^*, and phase angle, θ_ou, of the output voltages of the UMC.

For traditional modulation schemes with feedforward control, the modulation index, m, of the UMC is calculated as

$$m=\frac{2u_{\mathrm{om}}^{*}}{\sqrt{3}{u}_{\mathrm{cm}}\cos {\phi }_{\mathrm{i}}}$$

(1)

where u_om^* is the reference output voltage amplitude, u_cm is the instantaneous amplitude of the input filter capacitor voltages, and φ_i is the input power factor angle. The phase angle, θ_ii, for the rectifier stage modulation is the subtraction of θ_cu and φ_i, where θ_cu is the phase angle of the capacitor voltages.

Both the duty cycle calculation and the switching pattern for the UMC are the same as those for the typical indirect matrix converter [2], which are not changed by the proposed modulation scheme and the feedback control strategy. As presented below, the proposed modulation scheme only changes the expression of the modulation index.

With the traditional modulation scheme, the αβ-axis components of input currents can be expressed as [14]

$$i_{\mathrm{i}\mathsf{\alpha }}=m\cos {\theta }_{\mathrm{ii}}{i}_{\mathrm{dc}}=m\cos \left({\theta }_{\mathrm{cu}}-{\phi }_{\mathrm{i}}\right)i_{\mathrm{dc}},$$

(2)

$$i_{\mathrm{i}\mathsf{\beta }}=m\sin {\theta }_{\mathrm{ii}}{i}_{\mathrm{dc}}=m\sin \left({\theta }_{\mathrm{cu}}-{\phi }_{\mathrm{i}}\right)i_{\mathrm{dc}}.$$

(3)

The αβ-axis components of capacitor voltages satisfy

$$u_{\mathrm{c}\mathsf{\alpha }}=u_{\mathrm{cm}}\cos {\theta }_{\mathrm{cu}},$$

(4)

$$u_{\mathrm{c}\mathsf{\beta }}=u_{\mathrm{cm}}\sin {\theta }_{\mathrm{cu}}.$$

(5)

Variable i_dc in Equation (2) is defined as [14]

$$i_{\mathrm{dc}}=\frac{\sqrt{3}\left(u_{\mathrm{o}\mathsf{\alpha }}^{*}{i}_{\mathrm{o}\mathsf{\alpha }}+u_{\mathrm{o}\mathsf{\beta }}^{*}{i}_{\mathrm{o}\mathsf{\beta }}\right)}{2u_{\mathrm{om}}^{*}}.$$

(6)

With the substitution of Equations (1), (4), and (6), Equation (2) can be rewritten as

$$i_{\mathrm{i}\mathsf{\alpha }}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{c}\mathsf{\alpha }}+u_{\mathrm{c}\mathsf{\beta }}\tan {\phi }_{\mathrm{i}}\right)}{1.5u_{\mathrm{cm}}^2},$$

(7)

$$i_{\mathrm{i}\mathsf{\beta }}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{c}\mathsf{\beta }}-u_{\mathrm{c}\mathsf{\alpha }}\tan {\phi }_{\mathrm{i}}\right)}{1.5u_{\mathrm{cm}}^2},$$

(8)

where p_o is the instantaneous active power to be transferred to the load, expressed as

$$p_{\mathrm{o}}=1.5\left(u_{\mathrm{o}\mathsf{\alpha }}^{*}{i}_{\mathrm{o}\mathsf{\alpha }}+u_{\mathrm{o}\mathsf{\beta }}^{*}{i}_{\mathrm{o}\mathsf{\beta }}\right),$$

(9)

where u_oα^* and u_oβ^* are the reference αβ-axis components of the output voltages. Theoretically, p_o should be a constant DC signal for the balanced and sinusoidal load.

Usually, the stability analysis for the MC system should be performed in the synchronous reference frame, where all the variables are DC signals. In the synchronous reference frame oriented with the source voltage vector, the dq-axis input currents are obtained from Equations (7) and (8) as

$$i_{\mathrm{id}}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{cd}}+u_{\mathrm{cq}}\tan {\phi }_{\mathrm{i}}\right)}{1.5u_{\mathrm{cm}}^2},$$

(10)

$$i_{\mathrm{iq}}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{cq}}-u_{\mathrm{cd}}\tan {\phi }_{\mathrm{i}}\right)}{1.5u_{\mathrm{cm}}^2},$$

(11)

where the square of the instantaneous amplitude of capacitor voltages satisfies

$$u_{\mathrm{cm}}^2=u_{\mathrm{cd}}^2+u_{\mathrm{cq}}^2$$

(12)

where u_cd and u_cq are the dq-axis components of capacitor voltages.

The stability analysis method based on the input impedance is quite intuitive and thus is adopted in this paper. According to the definition of input admittances of the MC [17], the dq-axis input admittances with the traditional modulation scheme are

$$Y_{\mathrm{id}}=\frac{\partial i_{\mathrm{id}}}{\partial u_{\mathrm{cd}}}\approx -\frac{P_o}{1.5U_{cm}^2}$$

(13)

$$Y_{\mathrm{iq}}=\frac{\partial i_{\mathrm{iq}}}{\partial u_{\mathrm{cq}}}\approx \frac{P_{\mathrm{o}}}{1.5U_{\mathrm{cm}}^2}$$

(14)

where the capitalized variables represent the steady-state values. The detailed derivation of Equations (13) and (14) is presented in the Appendix A section. Equation (13) shows that the d-axis admittance Y_id is always negative, which is the reason for the deteriorated stability of the UMC with the traditional modulation scheme. Besides, the larger the active power P_o, the larger the absolute value of Y_id and the worse the stability of UMC.

2.2. Stability-Enhancing Modulation Scheme

From the derivation process of the input admittances, the instantaneous amplitude, u_cm, located in the denominator of the modulation index expression in Equation (1) is the reason for the negative sign of Y_id. Therefore, a new modulation scheme is inspired, which calculates the modulation index with

$$m=\frac{2u_{\mathrm{om}}^{*}{u}_{\mathrm{cm}}}{\sqrt{3}{U}_{\mathrm{cm}}^2\cos {\phi }_{\mathrm{i}}}.$$

(15)

It shows that m is directly, rather than inversely, as in the traditional modulation schemes, proportional to u_cm. Theoretically, the modulation index obtained with Equation (15) is the same with that obtained with Equation (1) at the steady state, if the system remains stable. This is because U_cm in Equation (15) is exactly the same as the steady-state value of u_cm. However, the stability performance with each of the two equations differs significantly, as discussed below.

With the substitution of Equations (6) and (15), the αβ-axis components of input currents are obtained from Equation (2):

$$i_{\mathrm{i}\mathsf{\alpha }}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{c}\mathsf{\alpha }}+u_{\mathrm{c}\mathsf{\beta }}\tan {\phi }_{\mathrm{i}}\right)}{1.5U_{\mathrm{cm}}^2},$$

(16)

$$i_{\mathrm{i}\mathsf{\beta }}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{c}\mathsf{\beta }}-u_{\mathrm{c}\mathsf{\alpha }}\tan {\phi }_{\mathrm{i}}\right)}{1.5U_{\mathrm{cm}}^2}.$$

(17)

Accordingly, the dq-axis components of input currents with this new scheme are

$$i_{\mathrm{id}}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{cd}}+u_{\mathrm{cq}}\tan {\phi }_{\mathrm{i}}\right)}{1.5U_{\mathrm{cm}}^2},$$

(18)

$$i_{\mathrm{iq}}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{cq}}-u_{\mathrm{cd}}\tan {\phi }_{\mathrm{i}}\right)}{1.5U_{\mathrm{cm}}^2}$$

(19)

and the dq-axis input admittances can be derived as

$$Y_{\mathrm{id}}=\frac{\partial i_{\mathrm{id}}}{\partial u_{\mathrm{cd}}}\approx \frac{P_o}{1.5U_{cm}^2},$$

(20)

$$Y_{\mathrm{iq}}=\frac{\partial i_{\mathrm{iq}}}{\partial u_{\mathrm{cq}}}\approx \frac{P_{\mathrm{o}}}{1.5U_{\mathrm{cm}}^2}.$$

(21)

For the UMC, the transferred active power P_o is positive, and thus both Y_id and Y_iq are positive. As a result, the new scheme always enhances the stability of the UMC, saving the need for an additional stabilization method. Besides, Y_id and Y_iq become larger in the positive direction with the increase of P_o. Therefore, the stability of the UMC with this new scheme is even better under high power applications, contrary to existing schemes. This is a prominent advantage of the proposed modulation scheme.

It can be derived that the dq-axis impedances are both zero if the source voltages u_sA, u_sB, and u_sC are sampled for modulation, which thereby have no effect on the stability. Consequently, for traditional schemes, sampling the source voltages are preferred if they are accessible. However, an additional passive or active stabilization method is still necessary to suppress the filter resonance. On the contrary, sampling the capacitor voltages is preferred for the proposed scheme even if the source voltages are accessible, as the stability and filter damping can always be enhanced with this scheme.

3. Proposed Feedback Control Strategy and Stability Analysis

3.1. Feedback Control of Output Current Amplitude

In some cases, such as a generator input, the input voltages are sinusoidal and balanced. The proposed modulation scheme can be applied to achieve enhanced stability and satisfactory power quality without additional control, reducing the control complexity. Yet, when the input source is the utility grid, which could be unbalanced and/or distorted, the output power quality is reduced by the proposed scheme. The traditional modulation schemes with an additional stabilization method also suffer from this issue [20]. This issue can be addressed by incorporating an additional controller in the closed-loop control on the output side. This paper proposes a novel feedback control strategy for the proposed modulation scheme.

If Equation (15) is directly applied to the UMC, the actual output voltage amplitude u_om is

$$u_{\mathrm{om}}=\frac{\sqrt{3}}{2}m{u}_{\mathrm{cm}}\cos {\phi }_{\mathrm{i}}=\frac{u_{\mathrm{om}}^{*}{u}_{\mathrm{cm}}^2}{U_{\mathrm{cm}}^2}.$$

(22)

It can be seen that u_om is not equal to its reference u_om^*, but is directly proportional to the square of u_cm. Under disturbed input conditions, u_cm² is not a constant DC signal but contains rich low-frequency harmonics [20]. For example, for the unbalanced component, the 5^th and 7^th harmonics of the capacitor voltages introduce 2^nd, 4^th, 6^th, and 8^th harmonics in u_cm². Consequently, u_om also contains low-frequency harmonics even if its reference u_om^* is constant, directly degrading the output power quality.

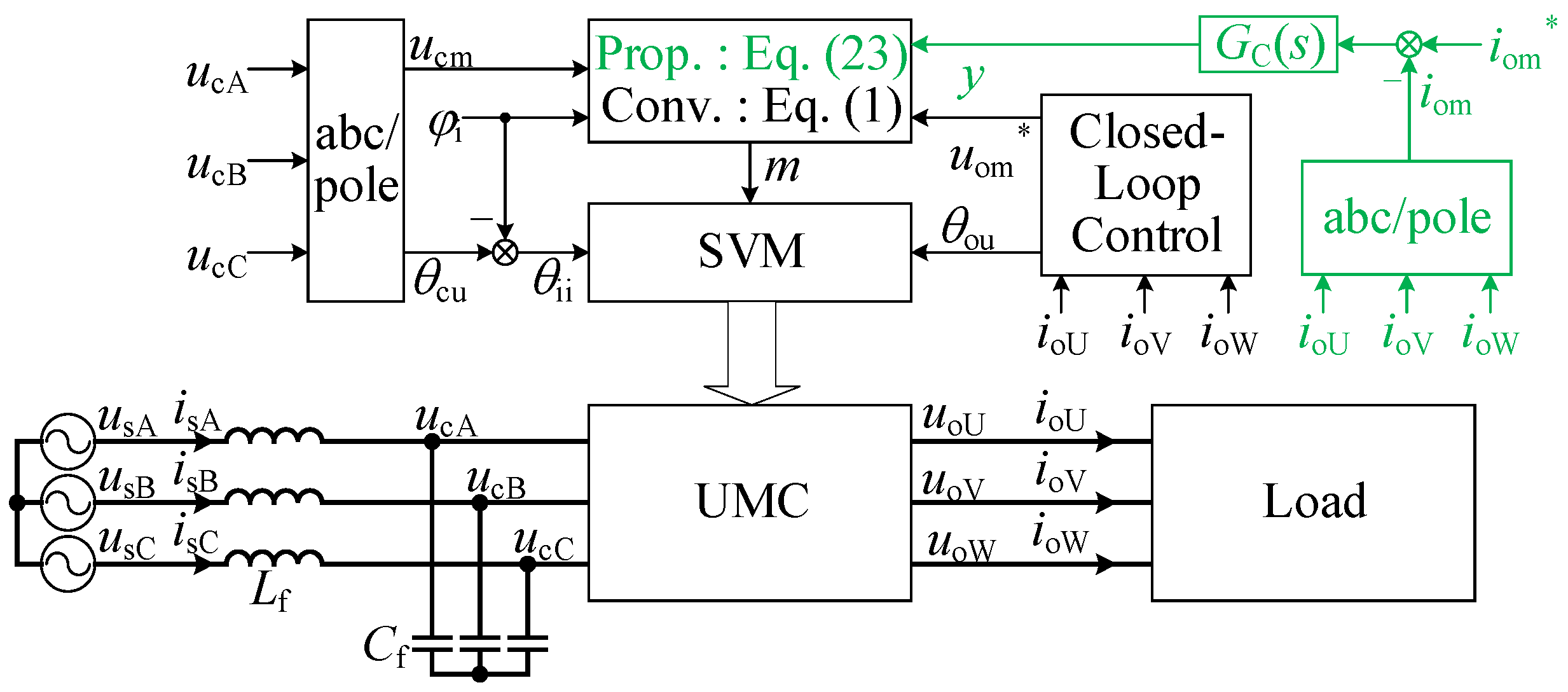

To address this issue, the proposed feedback control strategy shown in Figure 2 can be applied, which adopts a controller, G_C(s), to regulate the output current amplitude, i_om. The output signal of G_C(s) is defined as y, which is used to further correct the modulation index:

$$m=\frac{2u_{\mathrm{om}}^{*}{u}_{\mathrm{cm}}}{\sqrt{3}\left(1-y\right)U_{\mathrm{cm}}^2\cos {\phi }_{\mathrm{i}}}.$$

(23)

The actual u_om with the proposed feedback control strategy is

$$u_{\mathrm{om}}=\frac{\sqrt{3}m{u}_{\mathrm{cm}}\cos {\phi }_{\mathrm{i}}}{2}=u_{\mathrm{om}}^{*}\frac{u_{\mathrm{cm}}^2}{U_{\mathrm{cm}}^2\left(1-y\right)}.$$

(24)

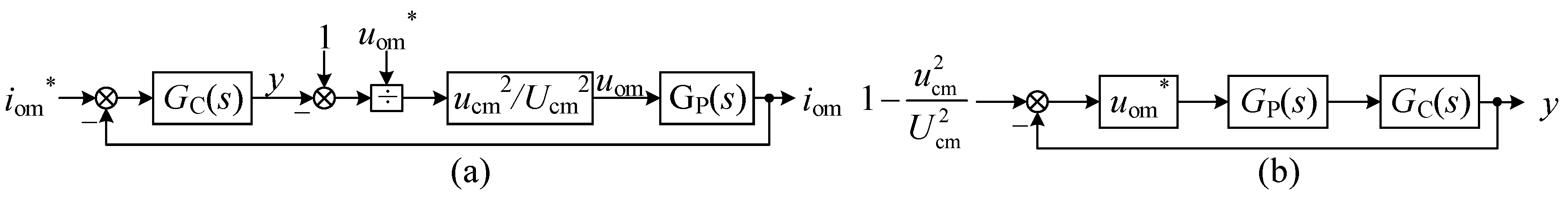

The signal flow graph of the proposed feedback control strategy is shown in Figure 3a. Its small-signal linearization is shown in Figure 3b. In Figure 3, G_P(s) is the transfer function from u_om to i_om, which is approximately equal to 1/(L_os + R_o), where L_o and R_o are the output inductance and resistance, respectively. The closed-loop transfer function H_y(s) from (1 − u_cm²/U_cm²) to y is obtained from Figure 3b:

$$H_{\mathrm{y}}\left(s\right)=\frac{u_{\mathrm{om}}^{*}{G}_{\mathrm{C}}\left(s\right)G_{\mathrm{P}}\left(s\right)}{1+u_{\mathrm{om}}^{*}{G}_{\mathrm{C}}\left(s\right)G_{\mathrm{P}}\left(s\right)}.$$

(25)

According to Equation (24), to eliminate the effects of input voltage disturbances, the low-frequency components in (1 − y) should be equal to u_cm²/U_cm². Therefore, the complex gains of H_y(s) at the concerned frequencies associated with the input voltage disturbances should be at unity. To achieve this goal, several advanced resonant controllers (RCs) are adopted in parallel to construct the controller G_C(s):

$$G_{\mathrm{C}}\left(s\right)={\displaystyle \sum \frac{K_{\mathrm{R}n}}{u_{\mathrm{om}}^{*}}\frac{s\left(L_{\mathrm{o}}s+R_{\mathrm{o}}\right)}{s^2+{\left(n{\omega }_{\mathrm{i}}\right)}^2}},$$

(26)

where ω_i is the input angular frequency, n is the order of the concerned frequency, and K_Rn is the static gain of each RC. The integral controller can also be included in G_C(s) by setting n = 0, so that the effect of imprecise U_cm² in Equation (23) can be eliminated. Each RC compensates the additional loop gain u_om^* and the pole of G_P(s) in order to simplify the expression of H_y(s) and improve the dynamic performance. According to the principle of RC, it provides infinite gain at its central frequency but sorely limited gain at the other frequencies. It can be deduced that the complex gains of H_y(s) at the frequencies nω_i are at unity but approach zero at the other frequencies. Therefore, the proposed feedback control strategy can eliminate the effects of input voltage disturbances without introducing other harmonics.

3.2. Stability Analysis

Stability analysis is performed in this part to verify the validity of the proposed feedback control strategy. The impedance-based method presented in [17] is adopted to perform the analysis. To simplify the analysis, the dq-axis coupling terms and the load effect, which have quite limited effect on the stability, are ignored in this paper.

With the proposed feedback control strategy, the dq-axis components of input currents can be obtained from Equations (18) and (19) by replacing Equation (15) with Equation (23):

$$i_{\mathrm{id}}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{cd}}+u_{\mathrm{cq}}\tan {\phi }_{\mathrm{i}}\right)}{1.5U_{\mathrm{cm}}^2\left(1-y\right)},$$

(27)

$$i_{\mathrm{iq}}=\frac{p_{\mathrm{o}}\left(u_{\mathrm{cq}}-u_{\mathrm{cd}}\tan {\phi }_{\mathrm{i}}\right)}{1.5U_{\mathrm{cm}}^2\left(1-y\right)}.$$

(28)

As signal y is associated with u_cm², according to the principle of the proposed strategy, the input admittances of the UMC are only different with those with the new modulation scheme, which can be derived from Equations (27) and (28) with the substitution of H_y(s):

$$Y_{\mathrm{id}}=\frac{\partial i_{\mathrm{id}}}{\partial u_{\mathrm{cd}}}\approx \frac{P_{\mathrm{o}}}{1.5U_{\mathrm{cm}}^2}\left[1-2H_{\mathrm{y}}\left(s\right)\right],$$

(29)

$$Y_{\mathrm{iq}}=\frac{\partial i_{\mathrm{iq}}}{\partial u_{\mathrm{cq}}}\approx \frac{P_{\mathrm{o}}}{1.5U_{\mathrm{cm}}^2}.$$

(30)

The detailed derivation is provided in the Appendix A section. Equations (29) and (30) show that the proposed strategy could theoretically influence the d-axis input admittance and further the UMC stability, subject to the transfer function H_y(s). Nevertheless, the practical influence is sorely limited, as analyzed below.

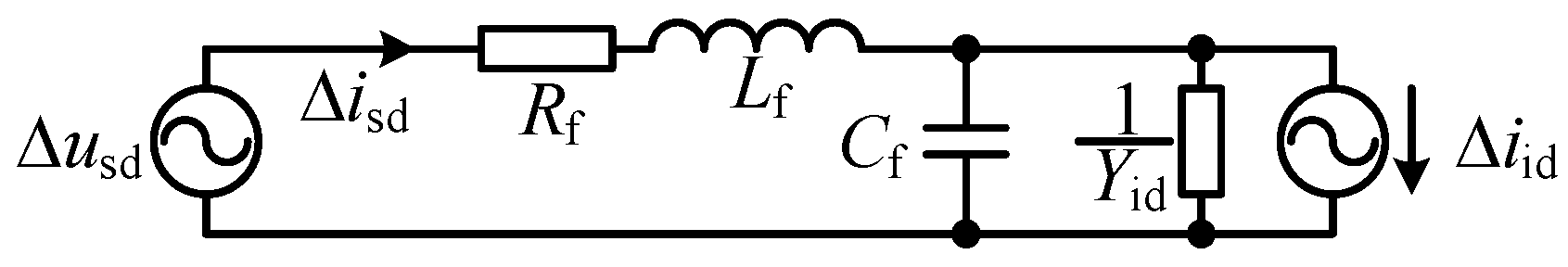

The small signal d-axis input circuit of the UMC is shown in Figure 4, where R_f is the resistance of the filter inductor, L_f. The transfer function H_is(s) from Δi_id to Δi_sd is obtained from Figure 4:

$$H_{\mathrm{is}}\left(s\right)=\frac{1}{1+\left(s{C}_{\mathrm{f}}+Y_{\mathrm{id}}\right)\left(s{L}_{\mathrm{f}}+R_{\mathrm{f}}\right)},$$

(31)

The poles of H_is(s) can be used to evaluate the UMC stability. If there is a pole located in the right-half complex plane, the UMC becomes unstable.

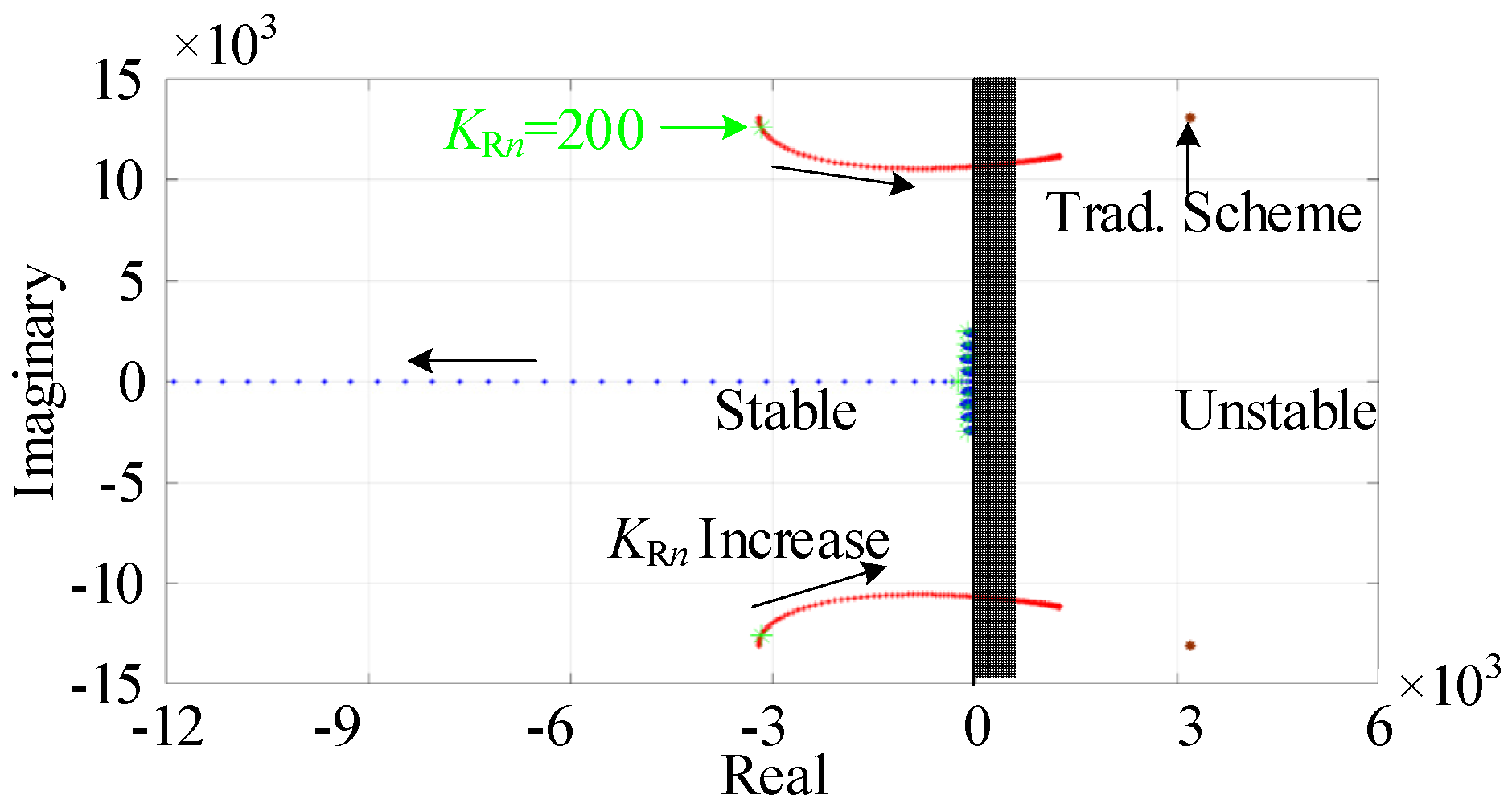

As shown in Figure 5, the poles with the traditional modulation schemes are located at the unstable region with positive real parts, resulting from the negative input admittances. Therefore, an additional stabilization method is inevitably needed for traditional schemes so as to drive the unstable poles to the stable region, which requires great control effort.

The proposed modulation and control strategy are applied to the UMC instead. In this example, five RCs with n = 0, 2, 4, 6, and 8 are adopted in the controller G_C(s), which are sufficient to eliminate the effects of the imprecise U_cm², the input voltage unbalance, and the common 5^th and 7^th input voltage harmonics. With the static gain K_Rn increasing from 0 to 4000, the pole locus of H_is(s) is illustrated in Figure 5. When the proposed feedback control strategy is disabled with K_Rn = 0, the poles associated with the resonant mode of the input LC filter are located in the stable region and far away from the imaginary axis. This proves that the new modulation scheme enhances the stability dramatically. When K_Rn increases, the damping of the resonant mode increases first and then decreases. When K_Rn is very large, the poles may move to the right-half complex plane, showing that the UMC becomes unstable. The value of K_Rn at the critically stable point is about 2000, which far exceeds the value of 200 adopted in practice. The poles with K_Rn = 200 are highlighted in Figure 5, indicating that all the poles are stable with sufficient damping.

The influence can also be found from the expression of Y_id(s) shown in Equation (29). When K_Rn is small, the gain of H_y(s) at the resonant frequency is small and thus the new modulation scheme dominates, enhancing the stability. On the contrary, when K_Rn is extremely large, H_y(s) can be considered at unity. In this case, Y_id is negative, just as for the one generated by the traditional modulation schemes. This means that the new modulation scheme and the proposed feedback control strategy will behave like the traditional modulation schemes under extremely large values of K_Rn. Nevertheless, small K_Rn values are always sufficient to eliminate the effects of input voltage disturbances, and thus the influence of the additional feedback control strategy on the UMC stability is quite minor.

4. Experimental Verification

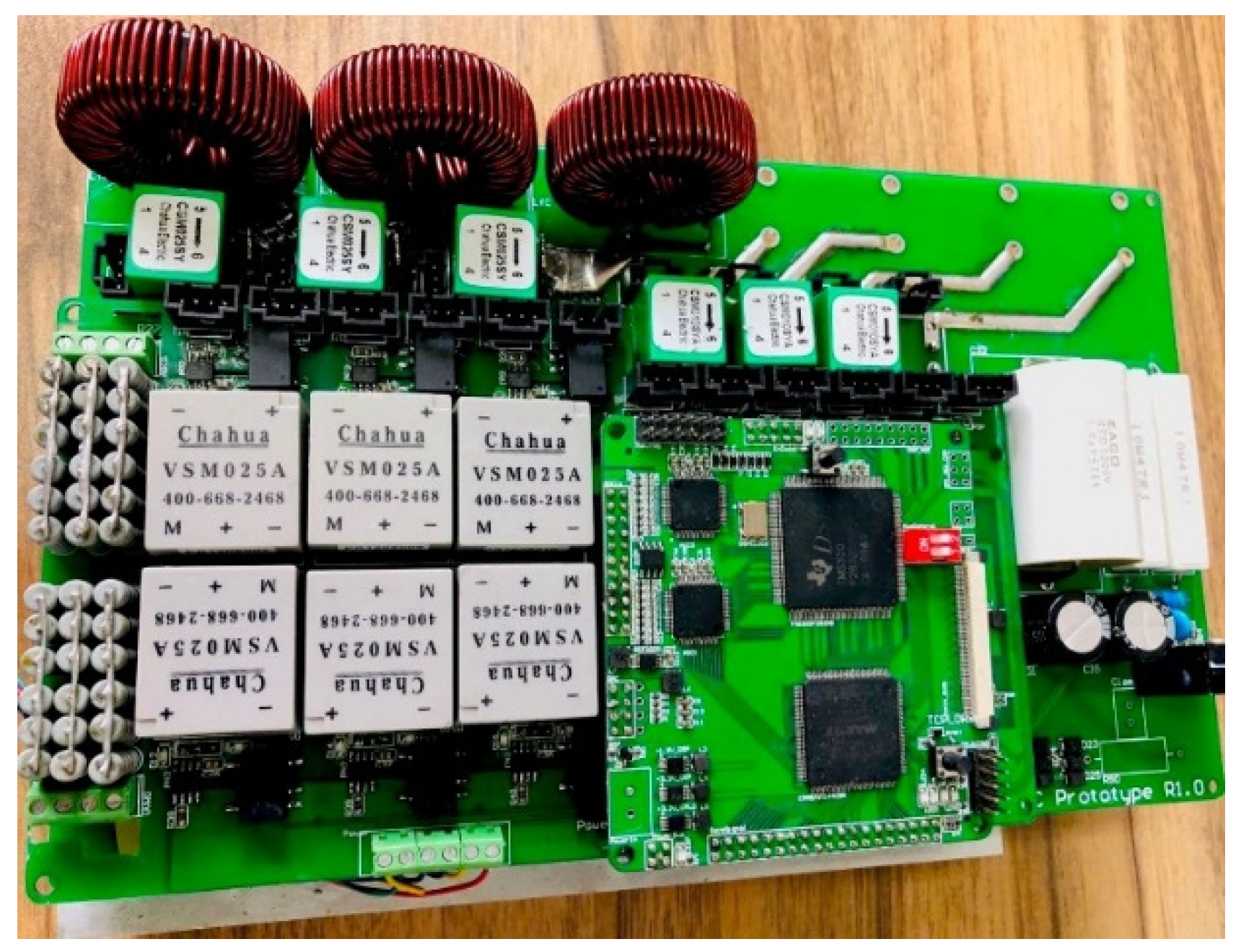

Experimental verification is conducted on the UMC prototype shown in Figure 6. The prototype parameters are listed in

Table 1. Parameters of the UMC prototype.

Term	Value
Input Filter Inductor, Lf	1.1 mH
Input Filter Capacitor, Cf	5.0 μF
Resistance of Lf	0.01 Ω
Output Inductor, Lo	10.6 mH
Output Resistor, Ro	10.0 Ω
Output Current Amplitude Reference, iom*	8.0 A
Input Frequency	50 Hz
Output Frequency, fo	60 Hz
Sampling Frequency, fs	30 kHz
Static Gain, KRn, of Each RC	200

. The typical closed-loop control of output phase currents in a stationary reference frame is applied to generate the reference amplitude and phase angle of output voltages. A high-performance programmable AC source (Chroma 61511) serves as the input source.

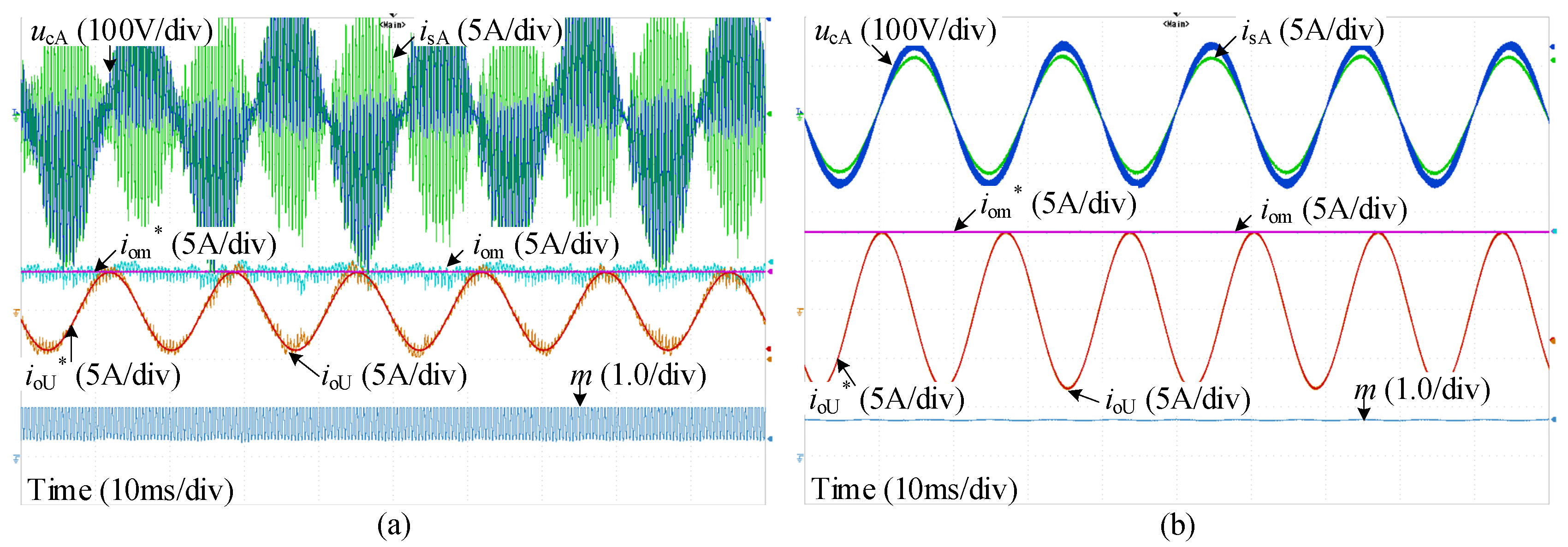

Firstly, source voltages are set as balanced and sinusoidal. The root mean square (RMS) value of phase voltages is 100 V. The experimental result with the traditional modulation scheme shown in Figure 7a indicates that the UMC becomes unstable with severe filter resonance observed. Both the input and output power quality are very poor. It should be noted that the output current amplitude reference is reduced by half in this case. If the reference is set to the rated value listed in Table 1, the stability will be even worse. As a result, an additional stabilization method is indispensable for the traditional scheme. When the proposed modulation scheme is applied instead, both the input and output currents are highly sinusoidal, as shown in Figure 7b. In particular, the input filter resonance is suppressed effectively without an additional passive or active stabilization method. The proposed scheme is quite suitable for applications with sinusoidal and balanced input voltages, such as the distributed generation system with a generator input. In these applications, the proposed scheme is preferable since the elimination of an additional stabilization method could reduce the control and hardware complexity of the UMC significantly. Therefore, there will be more space, in both the software and hardware, to achieve other control objectives.

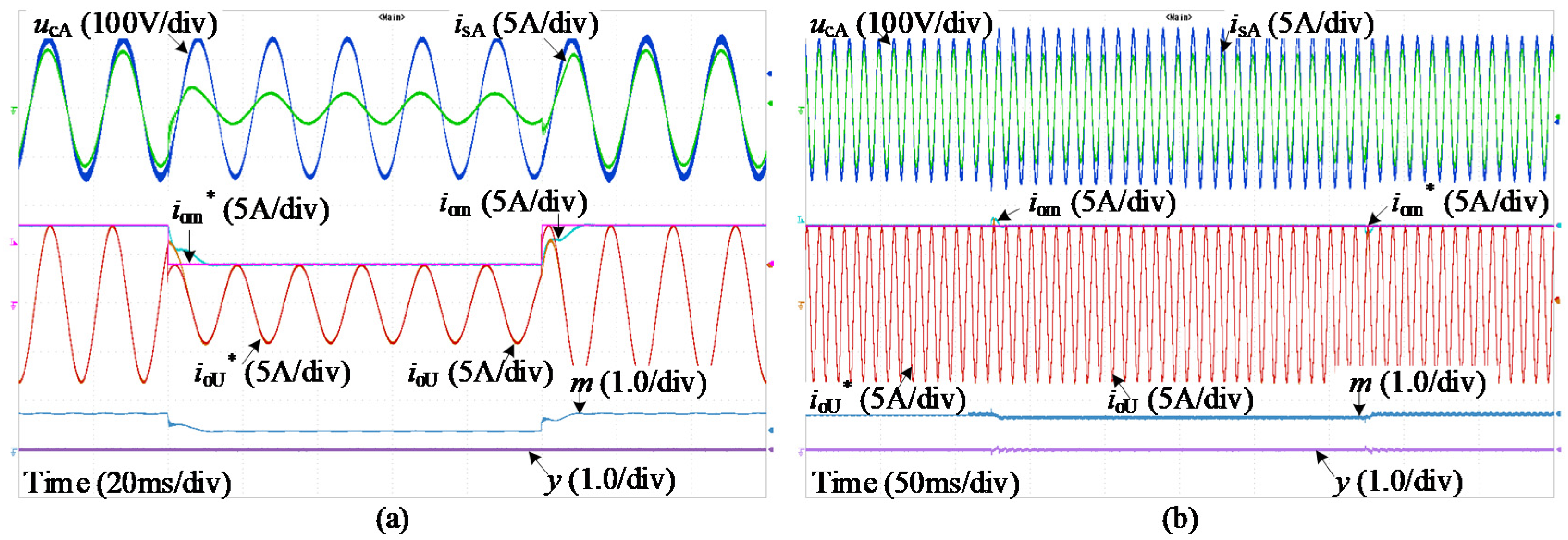

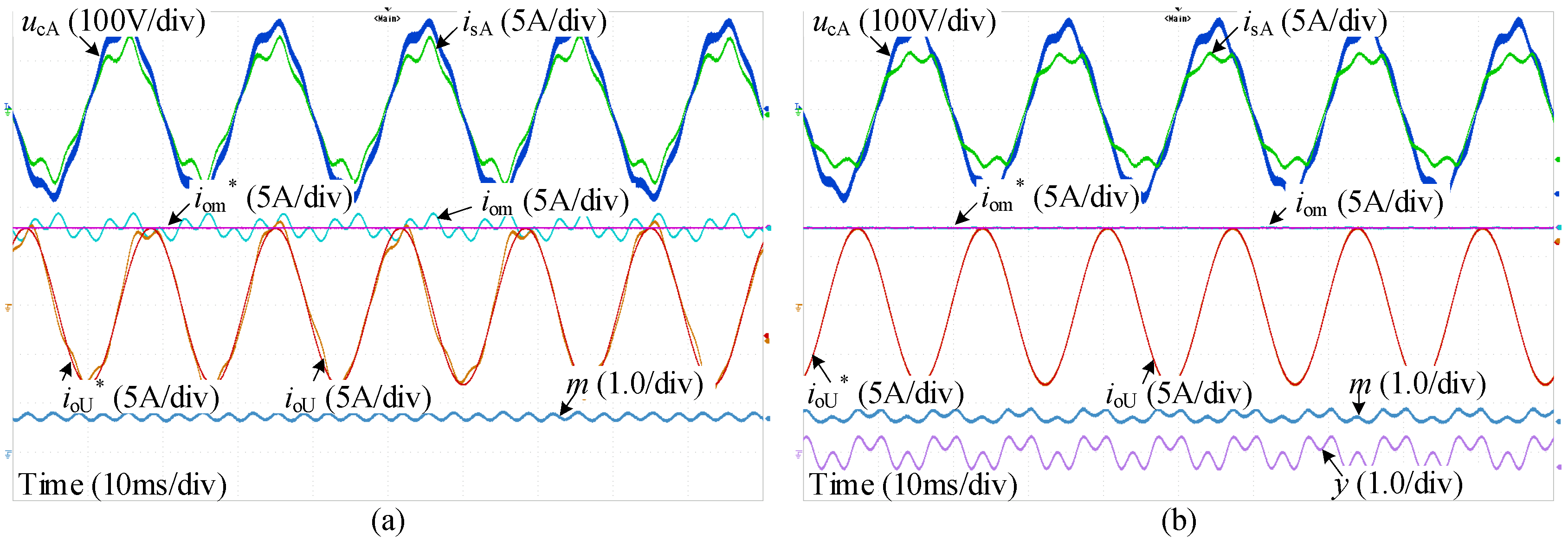

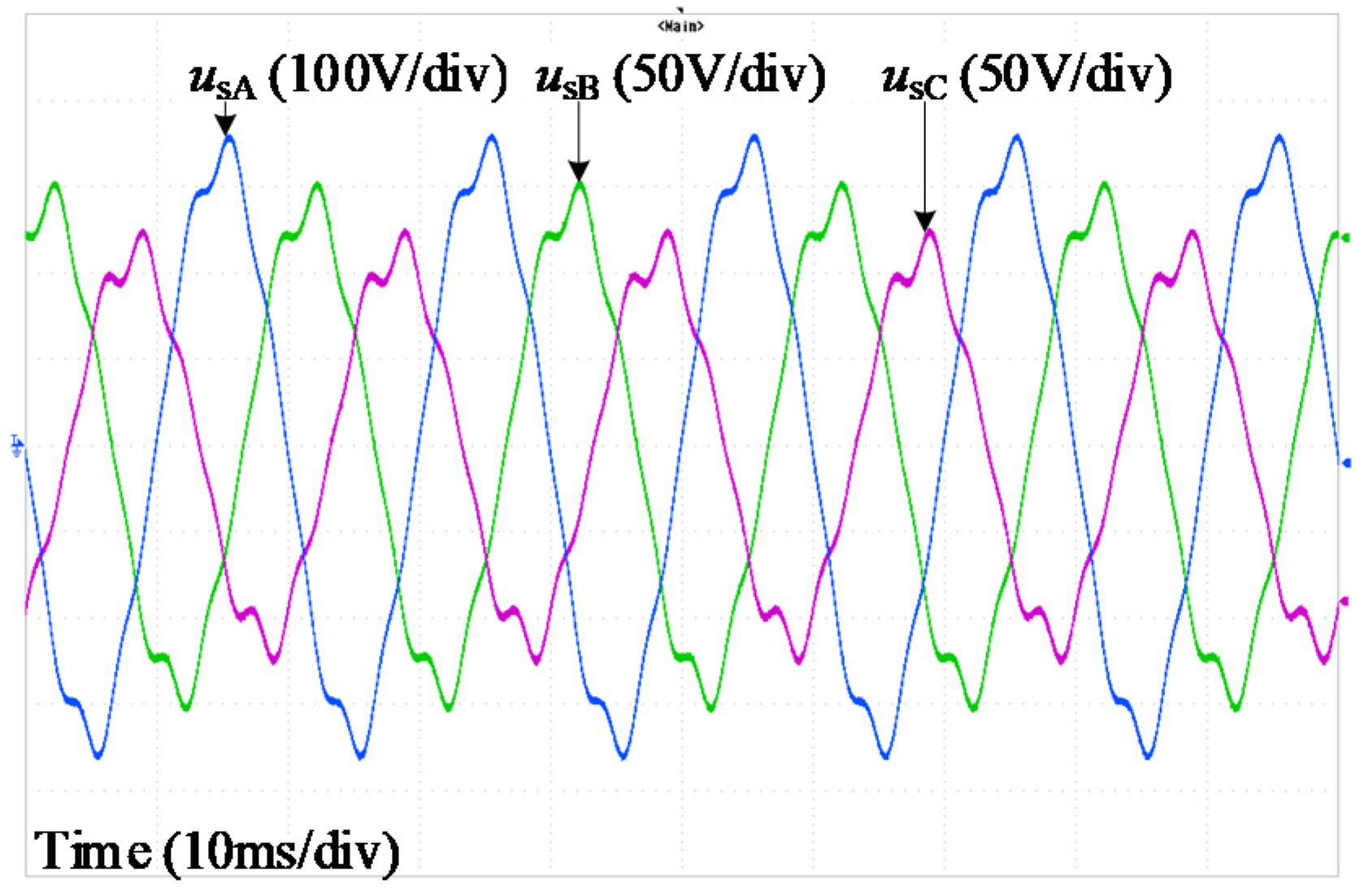

Secondly, source voltages are set as unbalanced and distorted. The RMS values of the three-phase source voltages are 120 V, 100 V, and 80 V, respectively, causing voltage unbalance. Each phase voltage contains 5% 5^th and 5% 7^th harmonics. Therefore, the source voltages are highly disturbed, as shown in Figure 8. Figure 9a shows the experimental results with the proposed modulation scheme and without the proposed feedback control strategy. It is clear that only the proposed modulation scheme cannot obtain sinusoidal output currents in this case. Significant low-frequency ripples are observed in the instantaneous amplitude, i_om, of output currents. The output current is highly distorted. It should be noted that the traditional modulation schemes with an additional stabilization method based on input voltage filtering also suffer from degraded power quality under input disturbances [20]. The proposed feedback control strategy is then incorporated, of which the experimental results are shown in Figure 9b. It can be seen that the output current is highly sinusoidal and perfectly tracks its reference. The low-frequency ripples in its amplitude, i_om, are eliminated. The additional control signal y generated by the proposed feedback control strategy contributes to the variation of the modulation index m, which compensates the source voltage disturbances and thus is the reason for the high output power quality. In addition, the filter resonance is still effectively suppressed, as shown in Figure 9a,b, which proves that the proposed modulation scheme can always enhance the MC stability, regardless of the source voltage disturbances. To sum up, although the proposed modulation scheme reduces the immunity of the UMC to the input voltage disturbances, the proposed feedback control strategy can easily suppress such side effect. Therefore, the proposed modulation scheme and control strategy is a preferable solution for general applications, even with large source voltage disturbances, considering the prominent advantage of increased stability.

The dynamic performance of the proposed modulation scheme and feedback control strategy is also evaluated. The obtained experimental results are shown in Figure 10. In Figure 10a, the reference amplitude of output current fluctuates between 8 A and 4 A. It is clear that the additional control signal y is quite small during the dynamic process, which indicates that the proposed control solution does not influence the dynamic performance when the load changes. This is also demonstrated by the experimental results shown in Figure 10a. In Figure 10b, the amplitude of source voltages is increased by 10% and then returns to the normal. Although the amplitude of output current is affected slightly during this dynamic process, the proposed feedback control strategy together with the typical closed-loop control of output currents can effectively suppress the effects of the disturbances in a short time. Moreover, the sudden change of the input voltage amplitude has minor influence on the additional control signal y, which remains small during the dynamic process. Figure 10 proves that the proposed control solution could achieve satisfactory dynamic performance considering the source and load transients.

5. Conclusions

Input disturbance suppression and stability improvement are two important issues for the UMC, both of which are highly dependent on the modulation scheme. Although the existing modulation schemes could theoretically suppress the input disturbances, they suffer from the degraded stability. On the contrary, the modulation scheme proposed in this paper always enhances the stability of the UMC, especially under high active power output, which is well demonstrated by experimental results. For applications with sinusoidal and balanced source voltages, the proposed modulation scheme is preferable since the hardware and control complexity is reduced significantly. When source voltages are disturbed, the proposed feedback control strategy could effectively eliminate the output low-frequency harmonics without affecting the stability performance. Therefore, the proposed control solution is a promising alternative to the existing control solutions for the UMC.

The new modulation scheme is not suitable for the standard MC working in reverse mode. In this case, the traditional modulation schemes with filtered input phase angle can be applied instead, which will not generate additional low-frequency harmonics in the output currents. Therefore, a hybrid control solution is suitable for the standard MC.
