Carbon Capture for CO₂ Emission Reduction in the Cement Industry in Germany

Abstract

The share of global CO₂ emissions deriving from the cement industry is about 5%. More than 50% of these are process-related and cannot be avoided. This paper addresses the application of CO₂ capture technology to the cement industry. Analyses focusing on post-combustion technology for cement plants are carried out on the basis of detailed model calculations. Different heat supply variants for the regeneration of loaded wash solution were investigated. CO₂ avoidance costs are in a range of 77 to 115 EUR/tCO₂. The achievable CO₂ avoidance rate for the investigated cases was determined to be 70% to 90%. CO₂ reduction potentials were identified using CCS technology, focusing on the German cement industry as a case study. The results show that adopting carbon capture technology could lead to a significant reduction in CO₂ emissions.

1. Introduction

Combatting climate change and mitigating its effects are on the agendas of governments worldwide. As part of the German Climate Action Plan 2050 [1] (“Klimaschutzplan 2050”), the government has set the goal of reducing greenhouse gas (GHG) emissions by at least 55% by 2030 and by 80–95% through 2050 against 1990 emission levels. Such a substantial GHG emissions reduction cannot be achieved through the Energiewende (energy transition) in the energy sector alone. In fact, all sectors, i.e., energy, industry, transport, agriculture, and households will need to correspondingly and radically cut their GHG emissions in order to achieve the German government’s ambitious goals.

Whereas the transport, household, and industry sectors, in many cases, can reduce their GHG emissions with the so-called “sector coupling” approach [2], in other areas, in which process-related CO₂ emissions occur, this approach would not work for all emissions. Hence, other options, for example in steel production with the use of hydrogen, have to be investigated [3]. Another area in which these process-related CO₂ emissions occur is the cement industry. In total, 4% of global anthropogenic CO₂ emissions are contributed by the cement industry [4,5]. The CO₂ emissions of the German cement industry in 2017 amounted to approximately 20.5 Mt, which is 2.5% of total national CO₂ emissions [6]. Since the 1950s, the German cement industry has already halved its power consumption (to 2800 kJ_th/kg cement today) through a variety of different technological approaches and measures (e.g., the substitution of fossil fuels by waste and alternative fuels, increased energy efficiency, etc.) [7]. In order to further reduce GHG emissions, the substitution of fossil fuels by renewable energy sources is a promising pathway to further cut the industry’s CO₂ emissions. However, only about 40% of a cement plant’s overall CO₂ emissions are produced through the burning of fossil fuels. The remaining 60% of all carbon dioxide emissions in a cement plant stem from the calcination reaction, in which clinker, the main component of cement, is formed [8,9]. Hence, process enhancements and the substitution of fossil fuels by renewable energy sources alone only show limited potential for further cutting GHG emissions in the future.

In some CO₂ reduction scenarios for Germany [10,11,12], carbon capture technology in the cement industry is seen as an important measure to achieve the ambitious CO₂ reduction goals by 2050. Compared with other CO₂ mitigation measures, Pfluger et al. [12] conclude that carbon capture in the cement industry is a cost-effective option as part of an overall mitigation strategy. Furthermore, the captured CO₂ may play an important role as a feedstock for other applications (power to chem, power to liquid, methanation) [13,14,15]. However, the use of carbon capture technology will depend significantly on cost effectiveness.

Carbon capture, utilization, and storage (CCUS) technologies have been proposed in the literature as a viable technological pathway to radically cut CO₂ emissions in the cement industry by separating CO₂ from flue gas. In this paper, a system analysis to explore the feasibility of the monoethanolamin (MEA)-based chemical absorption technology is carried out. The potential for energetically and economically reducing the cement industry’s CO₂ emissions is examined. The analysis focuses on the cement industry in Germany. CO₂ emission projections for clinker production and emission reduction potentials are also investigated.

The structure and content of the paper are briefly summarized as follows: State-of-the-art cement production processes and a literature review regarding post-combustion CO₂ capture technology are outlined in Section 2; modeling of CO₂ capture using MEA absorption can be found in Section 3; four capture cases for using CO₂ capture in cement plants are investigated in Section 4. The energetic and economic analyses for these scenarios and sensitivity analysis are then carried out. The simulation results are compared to the literature data. Furthermore, the potential for reducing CO₂ emissions in Germany using chemical absorption technologies is explored.

2. CO₂ Capture in Cement Production

In this section, the fundamentals for the subsequent analysis are laid out and the relevant literature is assessed. Section 2.1 introduces the cement production process. A brief overview of the status quo of the German cement industry is then given. Section 2.2 focuses on post-combustion amine scrubbing technologies. Relevant literature is reviewed and discussed.

2.1. State of the Art Cement Plant

Today, all newly built plants are dry process plants with cyclone preheaters and precalciners and are considered state-of-the-art [16]. Cyclone preheaters are arranged in towers of one to six preheaters that reach heights of up to 120 m. The raw meal passes the preheaters from the top to the bottom while the (hot) flue gas stream from the kiln passes the preheaters in the counter flow. Hence, the raw material is heated and the remaining water vaporized [17].

The raw meal then enters the precalciner, where it reaches the temperature necessary to drive the calcination reaction of around 900 °C. In the precalciner, the raw material reaches levels of 90% calcination. In order to ensure sufficient thermal energy input, fuel is consumed in the precalciner and makes up to 60–70% of the overall fuel consumption [18]. A so-called tertiary air duct provides the precalciner with combustion air from the clinker cooler. Typically, the material is fed into the precalciner from the second lowest preheater column and the calcined material is collected in the lowest preheating column before being released into the rotary kiln [19]. The material coming from the second lowest preheater is entrained by the combustion gases and lifted to the bottom preheater in the co-current flow [20].

After sintering, the clinker is cooled down and stored in silos. The clinker produced is ground alone or together with additives to form fine ground cement. Additives or other cement constituents (such as quartz sand, gypsum, etc.) are separately milled and ground and then mixed into the clinker. Different kinds of cement (with different chemical and mechanical properties) are produced by adjusting the blending steps. After blending, the product is stored and shipped [17]. The clinker and cement mass produced are linked by the clinker-to-cement ratio, which equaled 0.72 in Germany in 2016, i.e., 720 kg clinker is used to produce 1 ton of cement [21].

The Verein Deutscher Zementwerke (VDZ, German Cement Association) lists 22 companies that operate 53 cement plants in Germany [21]. Thirty-nine dry process cyclone preheater plants with a capacity of 0.1 Mt/d, as well as 6.7 kt/d of shaft kilns and grate preheater plants are in operation. Plants without clinker production are supplied with clinker and produce cement by means of clinker milling and blending with other raw materials. In Germany, 36% of the total clinker volume produced in 2014 was produced in a dry process with preheater and precalciner, 58% were produced in a dry process with preheater but without precalciner, and 7% were produced in a mixed process (dry/wet) [22].

2.2. Literature Review about CO₂ Capture for Cement Plants

Post-combustion, oxyfuel and calcium looping carbon capture technologies have been proposed to effectively reduce CO₂ emissions in the cement industry [19,20,23,24,25,26]. However, due to the advancements and existing process knowledge of post-combustion (in the power sector), amine scrubbing, in particular, is generally regarded as being the technologically most mature option [27]. In addition, the post-combustion process offers the possibility of retrofitting. Hence, the focus of this paper is post-combustion amine-scrubbing.

In the literature, the utilization of CO₂ capture for cement production, as well as its costs and CO₂ reduction potential, has been widely investigated. The following section provides an overview of the existing literature, approaches, and the results of investigating post-combustion for cement production. The technical and economic parameters used in different studies are listed in

Table A1. Technical and economic overview of chemical absorption for PCC.

	CEMCAP [20,23]	Jakobsen et al. [32]	Zhou et al. [33]	Summers et al. [35]	Ho et al. [34]	Kuramochi et al. [31]	Barker et al. [30]	Hassan [29]
Cement capacity	1.36 Mt/a	1.2 Mt/a	/	1 Mt/a	1 Mt/a	/	1 Mt/a	0.68 Mt/a
Clinker capacity	3000 t/d;	/	5000 t/d	/	/	/	/	2400 t/d
	1 Mt/a		/	/		1 Mt/a/	0.91 Mt/a	/
Process type	5-stage preheater with precalciner	/	/	/	/	Dry process with precalciner	5-stage preheater with precalciner	/
Solvent type	MEA	MEA/advanced solvent	MEA	MDEA	MEA	Adv. Solv./KS1/MEA	MEA	MEA
Flue gas treatment	FGD, SCR	/	/	FGD, SCR	FGD, SCR	/	FGD, SCR	FGD, bag filters
CO2 lean loading molCO2/mol MEA	0.27	/	/	/	/	/	0.22	0.3
CO2 rich loading molCO2/molMEA	0.49	/	/	/	/	/	0.45	/
Steam source	NG boiler; NG CHP; waste heat recovery; external coal power plant	Waste heat (31 MW) and NG boiler	Steam import; CHP	NG boiler	External NGCC	Steam import (Coal plant, boiler); Onsite CHP	CHP plant; import from power plant; NG boiler	Steam (imported)
Scenarios	Capture rates of 0.9 and 0.6; 7 steam source scenarios	Different transport and storage scenarios	Different steam scenarios	Retrofit and greenfield plant	Different prices and fuels for external steam supply	Short-mid-term (ST/MT) and long term (LT) technologies	3 million ton cement plant	Different operational cases
Thermal Energy requirement [MJ/kgCO2]	3.83	3.2 (MEA)/2.1 (advanced solvent)	3.7	/	1.5	2.7 (ST/MT, MEA; 3.7 (LT, Adv. Solvent)	3.38	/
CO2 capture rate	90% (base case), 60%	42% (base case); max. 85%	85% 62%	95%	90%	/	85%	85%
Economic lifetime	25 a	25 a	25 a	30 a	25 a	20 a	25 a	20 a
Interest rate	8%	8%	10%	8%	7%	10%	10%	7%
Investment costs for CCUS plant	79.3 MEUR (90% capture) and 62.2 MEUR (60% capture) in comp. to cement plant	/	110 MUSD	145 MUSD	91 MUSD	/	295 MEUR	298 MUSD (average load)
Operating costs for CCUS plant	26.7 EUR/tcement (90% capt.); 18.6 EUR/tcement (60% capt.)	/	7.9 MUSD	60 MUSD	43 MUSD	/	30.4 MEUR	25.1 MUSD (average load)
Costs of CO2 captured	63.2 EUR/t (base case); 41-65 €/tCO2 in alternative scenarios	/	74.1/t USD (imp. steam); 72.3/t USD (CHP)	/	/	/	59.6/t EUR/t	51 USD/t (average load)
Costs of CO2 avoided	83.2 EUR/t (base case); 54-86 €/tCO2 in alternative scenarios	40-70 EUR/t (capture + conditioning)	87.6 USD/t (imp. steam); 100 USD/t (CHP)	96/121 USD/t (greenfield excl./incl. FGD, SCR)	68 USD/t	37 EUR/t (Adv. solvent, steam import) to 131 EUR/t (MEA, onsite CHP)	107.4 EUR/t	/

(Appendix A).

For the European Union’s “CO₂ capture from cement production (CEMCAP)” project, the Norwegian research organization, SINTEF, simulated an MEA-based capture process for a cement plant based on data provided by a VDZ process model and evaluated different scenarios for steam production [23,28]. The reference cement plant used for the calculations is based on VDZ’s best available technology (BAT) (dry process, a five-stage cyclone preheater and precalciner, clinker output: 1 Mt/a). The results show that compared to a 33% decrease in the CO₂ capture rate in the scenarios, the costs for the cement product are only reduced by 14%, from 80.6 EUR/t_cement to 70.5 EUR/t_cement (90% and 60% CO₂ capture rates, respectively). The investigated steam supply scenarios show that a rising rate of waste heat recovery, low cost heat from a nearby steam supplier (e.g., a power plant), or an in-house combined heat and power (CHP) plant (provided that high electricity prices are achieved) can significantly reduce the costs of CO₂ capture.

Hassan [29] conducted a study estimating the costs of MEA scrubbing for a reference cement plant (clinker production capacity: 2400 t/d) in Canada. Additional necessary flue gas treatment was not considered in the simulation. However, for the economic assessment, the author used literature values to estimate the costs of the bag filters and flue gas desulphurization (FGD). The costs per ton of CO₂ captured are estimated to vary between 49 and 54 USD. The author shows that the biggest cost factor is steam, representing roughly 40% of the overall CO₂ capture costs, followed by variable operating and maintenance (O&M) costs (~18%), fixed O&M (~8%), and annual capital costs (~5%).

Barker et al. [18,30] evaluated the costs of cement production with and without CO₂ capture for different scenarios. As a base case for the analysis, a dry feed plant with a capacity of 910,000 t_clinker/a in the UK is assessed. In a sensitivity case, the performance of a 3 Mt_cement/a plant in Asia was considered. Post-combustion and oxyfuel combustion processes were also assessed and analyzed. The major cost drivers for post-combustion capture process are the flue gas desulphurization (FGD) unit, as well as the steam supply for the stripper. Therefore, in the case of co-location with a power plant supplying steam at low cost and allowing the flue gas to pass, the power plant’s FGD equipment would have avoidance costs of 55 EUR/t_CO2, as is shown in the study.

Kuramochi et al. [31] conducted a techno-economic analysis and compared the costs and suitability of CO₂ capture for consistent boundary conditions in the industrial sectors of cement, iron, and steel, as well as petrochemicals and petroleum refineries. By using standardized assumptions and framework conditions for assessing the application potential of CO₂ capture for the different industry sectors, the authors aimed to conduct a transparent comparison of the different sectors. For a short-term (10 to 15 years) assessment, the MEA technology with steam import from a power plant or boiler and onsite combined heat and power (CHP) and CO₂ capture, as well as KS-1 capture process, are assessed. For the long term (more than 20 years), post-combustion with an advanced solvent, oxyfuel combustion, and calcium looping (CaL) were assessed. The results indicate that technologies available in the long term might prove considerably more cost effective, ranging from avoidance costs of 37 EUR/t_CO2 for advanced solvent post-combustion capture (PCC) (steam imported from a power plant), to 52 EUR (steam imported from a boiler). The expected CO₂ avoidance lies between 0.5–0.7 t_CO2/t_clinker (short term) and 0.4–0.7 t_CO2/t_clinker (long term).

Jakobsen et al. [32] calculated the costs of a demonstration CO₂ capture plant for an existing coastal cement plant in Norway. In contrast to many other studies, they included detailed scenarios of CO₂ transportation and storage costs. The CCUS options assessed were: MEA-based, advanced solvent-based, and membrane capture processes combined with CO₂ pipeline transport or shipping to a storage location. Different storage scenarios were assessed, such as storage in depleted oil and gas fields, saline aquifers, and CO₂ utilization for enhanced oil recovery. The scenarios show CO₂ avoidance costs of 100 EUR/t_CO2 to 150 EUR/t_CO2. Due to the relatively low carbon capture rate and the detailed investigation of the storage scenarios, these costs are higher compared to other values in the literature.

Zhou et al. [33] investigated different carbon dioxide emission reduction scenarios by applying CCUS to China’s cement industry. The plant size was assumed to be 5000 t_clinker/d and three cases (i.e., MEA system with imported steam, onsite CHP, and precalciner oxyfuel CCUS) were investigated and compared to a CO₂ capture plant for a 600 MW_el coal power plant. The data input for the cost estimations were derived from the literature and no plant simulation was conducted. In terms of flue gas treatment, the authors assumed that in future, more stringent future regulations will lead to a general installation of advanced DeNO_x and FGD equipment in the cement industry. According to this report, the CO₂ avoidance cost is 45 €/t CO₂, which is lower than the values reported by other literature. The reasons for this might include that the flue gas treatment costs were not taken into account and that the costs of deploying CCUS plants to the Chinese market were assumed to be lower than the literature values for Europe and the US. Defining different emission scenarios, the authors show that CO₂ capture has the potential to reduce the Chinese cement sector’s CO₂ emissions by up to 57% by 2030.

Ho et al. [34] estimated the costs of MEA chemical CO₂ absorption for different industrial sectors in Australia. Specifically, the authors focused on the estimation of the capture costs, while transport and storage were neglected. The flue gas parameters were drawn from Hassan [29]. A techno-economic model developed at the University of New South Wales was used to assess the different technologies. The necessary steam is supplied from a natural gas CHP plant and the costs are assumed to be those of “lost electricity production” with 100 USD/MW_el. Consistent with other research, the results show that the gas pre-treatment, such as FGD, SCR (selective catalytic reduction), and flue gas cooling, and the MEA plant itself, together amount to 70% of the total equipment costs (6% to 15% of the total capture costs in all sectors). The operating costs are dominated by the energy costs (35% to 70%, depending on the sector investigated). Interestingly, the cement-specific avoidance costs are, at 68 USD/t_CO2, of the same size and even slightly cheaper than the costs of the coal power plant investigated, with 70 USD/t_CO2.

Summers et al. [35] conducted an analysis for various industry sectors regarding their costs of CO₂ capture and CO₂ avoidance potential. The authors used the cement flue gas specifications as given in Hassan’s work to study the potential of applying MDEA scrubbing to an average US cement plant. Flue gas treatment was only considered in the sensitivity analysis. For the base case, it was assumed that the flue gas already reached adequate pollutant levels. The authors calculated the total costs for a greenfield, namely a newly built cement plant, and retrofit case, assuming that the retrofit costs are 5% higher than those of the greenfield case. The estimated costs of CO₂ capture are estimated to be 96 USD. By multiplying the CO₂ emission factor per ton of cement (1.2 t_CO2/t_cement) with overall cement production in the US, they estimate the CO₂ available for CO₂ capture in the US cement industry to be 79.8 Mt.

3. Modeling of the CO₂ Capture

Cement plant specifications are derived from the literature, real cement plant data, and simulation data [16,18,23,24,29,36,37,38,39]. It is impossible to obtain specific plant data from the German cement industry, as precise flue gas data are classified as ‘competition data’ and, hence, is not publicly available.

The plant investigated here is a dry process plant with a five-stage cyclone preheater, a precalciner with a tertiary air duct, rotary kiln, and grate cooler. The production capacity is 3000 t_clinker/d and 1 Mt_clinker and 1.36 Mt_cement per year (clinker to cement ratio of 0.74), corresponding to a run time of around 330 d (~8000 h). Specific CO₂ emissions account for 850 kg_CO2/t_clinker. The reference cement kiln is based on the best available technology (BAT) document by the European Union [16] and describes state-of-the-art cement plants in Europe. For a more detailed account, see the literature [20,23,24].

Air leaks affect the flue gas volume flow and the CO₂ content. The lower the leakage, the higher the CO₂ content. It is assumed that during the yearly general inspection of the plant, all air sealings in the raw mill are checked and, if necessary, renewed. Hence, in the first months after the revision, the low air leak mode applies, while during the latter half of the operational year, the medium air leak case is reached as air sealings become degraded during operation. In a conservative approach, similar to the work done in CEMCAP [20], in this paper, the medium air leak is regarded as the base case.

Table 1. Gas parameters at the stack [20].

Air Leak in Raw Mill	Medium	Low
Air leak in raw mill, flow rate [kg/h]	139,806	69,903
Total flow rate [kg/h]	388,098	318,192
Temperature [°C]	110	130
Gas composition, wet basis [mol%]
CO2	18	22
N2	63	60
O2	10	7
H2O	9	11

compares the flue gas conditions at the stack for the operational modes described in the literature [20].

3.1. Energy Modeling

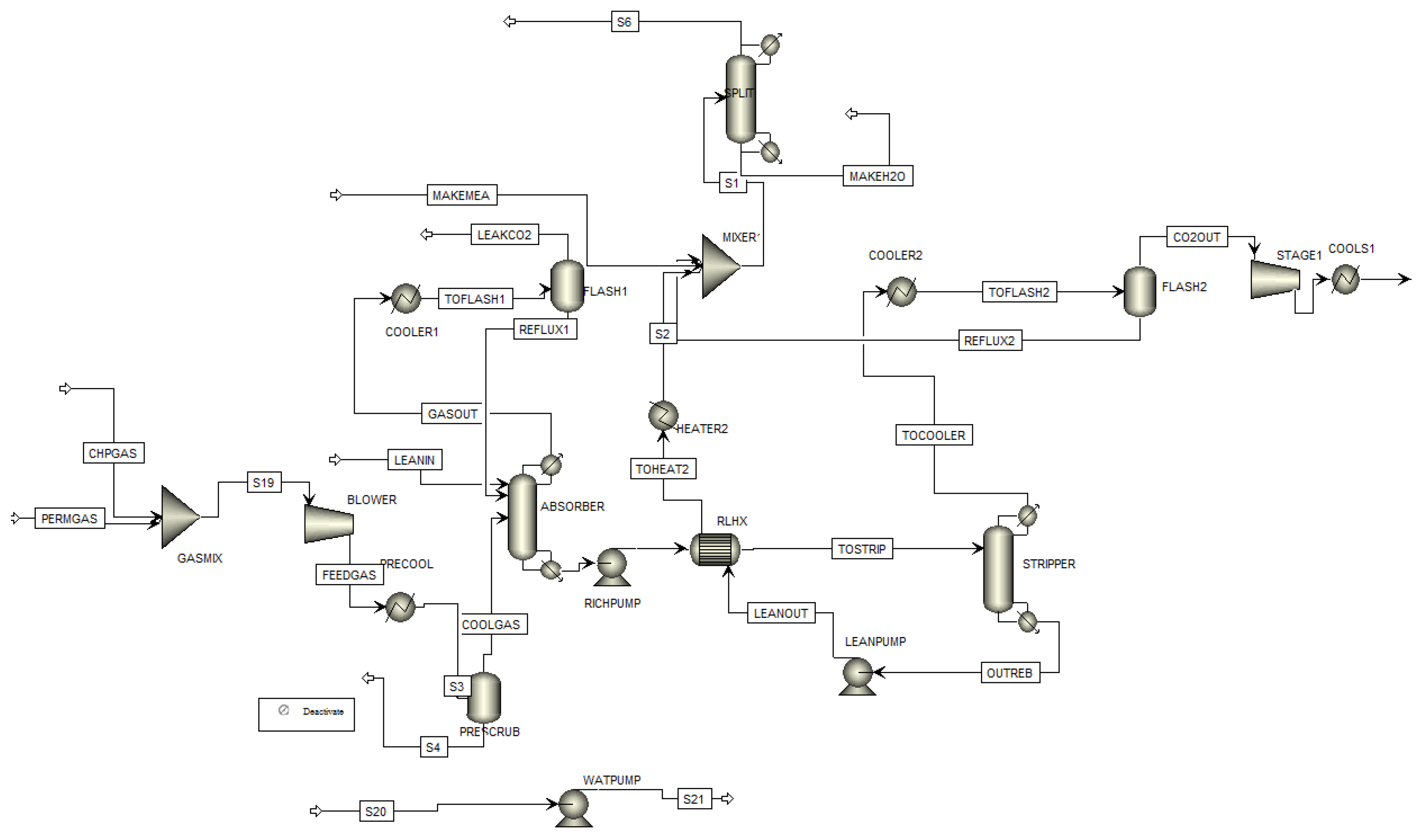

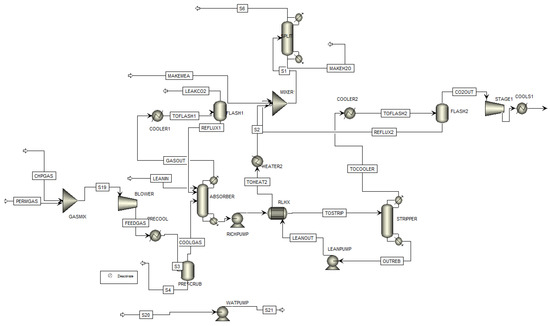

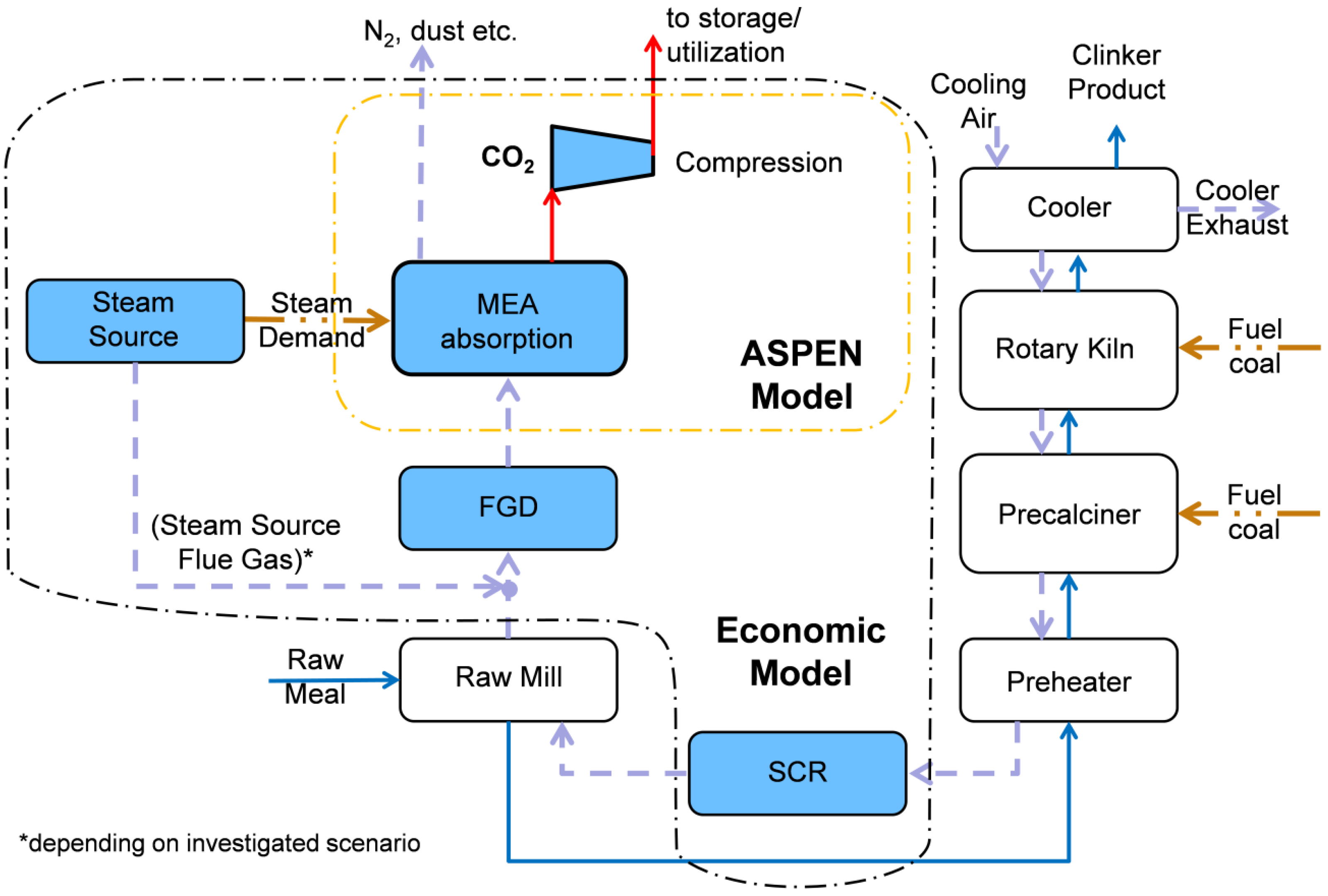

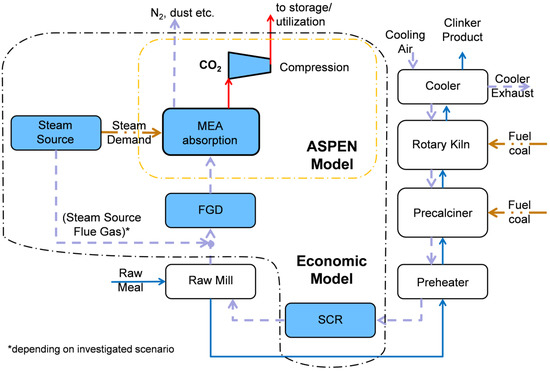

A process (Figure 1) for using MEA to capture CO₂ from a cement plant is proposed, similar to the study of IEAGHG [18]. The flue gas from the preheater enters an SCR in which NO_x emissions are reduced to an acceptable limit. After the raw mill, SO₂ emissions are reduced to an acceptable limit in the FGD unit. The flue gas is led to the chemical absorption plant, where CO₂ is separated from the flue gas, compressed, and utilized or stored. The CO₂-free flue gas (contains ~2 mol% CO₂) is emitted to the atmosphere.

An Aspen Plus model used for the energetic analysis only includes the MEA absorption and CO₂ compression. The FGD unit and SCR unit are only considered in the economic model and their respective CO₂ emissions and electric work consumption are included in the energy analysis.

In order to assess the energy performance of the CCUS plant in comparison to that in other studies, indicators are calculated. These are the specific thermal energy requirement and cooling duty in [MJ_th/kg_CO2] and the specific compression work and electricity consumption in [MJ_el/kg_CO2]. The equations for their calculation are given in

Table 2. Energy analysis: Performance indicators for carbon capture, utilization, and storage (CCUS).

		Equation
Specific Thermal Energy Requirement	$=$	$\frac{ThermalEnergyRequirement}{m_{C{O}_2,cap}}$
Specific Cooling Duty	$=$	$\frac{CoolingDuty}{m_{C{O}_2,cap}}$
Specific Compression Work	$=$	$\frac{CompressionWork}{m_{C{O}_2,cap}}$
Specific Electricity Consumption	$=$	$\frac{ElectricityConsumption}{m_{C{O}_2,cap}}$

, below. $m_{C{O}_2,cap}$ is the annual mass of CO₂ captured and the simulation results.

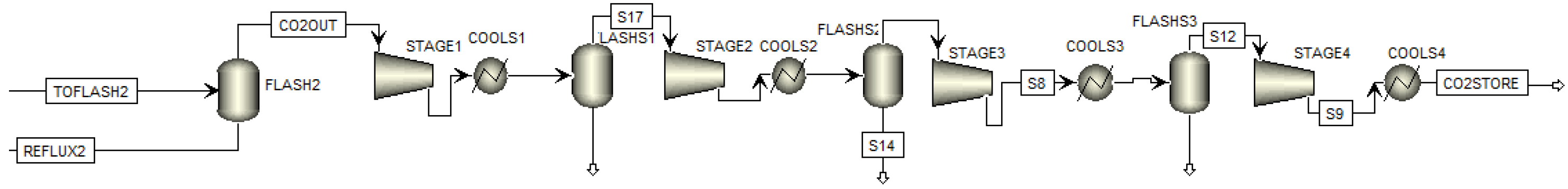

An Aspen Plus model of a chemical CO₂ capture plant has been developed and is adopted for the present analysis and shown in Appendix B.

3.2. Economic Modeling

The Aspen Plus simulation results are used to derive the carbon capture plant’s cost and economic performance indicators. The capture plant costs are estimated by first determining the costs of equipment purchased and then calculating the CAPEX (CAPital EXpenditure) and OPEX (OPerational EXpenditure) of the plant. Abu-Zhara et al. [40] present a methodology for estimating the economics of CCUS in coal power plants. Their methodology is applied here. The estimation methodology is based on the calculation of the purchased equipment costs (PEC) and is expected to achieve an accuracy of ±20% to 30% compared to the real project costs [41]. The PECs are the costs of all the equipment as shipped by the supplier. All of these were converted to EUR₂₀₁₆ using the chemical engineering plant cost index (CEPCI) obtained from the literature [42,43]. For converting USD to EUR, an exchange rate of 1.11 USD/EUR₂₀₁₆ is used.

The annual costs for carbon capture are, therefore, calculated by the summation of OPEX and the annual CAPEX depreciation: Annual CAPEX depreciation is calculated as the product of CAPEX and annuity. CO₂ capture costs, avoidance costs, and clinker costs are determined by the division of the annual costs by the mass of CO₂ captured $m_{C{O}_2,cap}$, avoided and clinker produced, respectively. The equations are given in

Table 3. Annual costs, CO₂ avoidance, CO₂ avoidance costs, clinker costs.

	Symbol		Equation
Total Annual Costs	$K_{an,tot}$	$=$	$K_{OPEX}+I_{CAPEX}*a$
CO2 Avoidance	$m_{C{O}_2,av}$	$=$	$m_{C{O}_2,cap}-m_{C{O}_2,additional}$
Additional CO2 Emissions	$m_{C{O}_2,additional}$	$=$	$m_{C{O}_2,steam}+m_{C{O}_2,el}$
CO2 Avoidance Costs	$k_{C{O}_2,av}$	$=$	$\frac{K_{an,tot}}{m_{C{O}_2,av}}$
CO2 Capture Costs	$k_{C{O}_2,cap}$	$=$	$\frac{K_{an,tot}}{m_{C{O}_2,cap}}$
Clinker Costs	$k_{clinker}$	$=$	$k_{clinker,base}+\frac{K_{an,tot}}{m_{clinker,an}}$

. The calculation boundary conditions and data for CAPEX and OPEX can be found in Appendix C and Appendix D.

It is important to distinguish the CO₂ capture cost from the CO₂ avoidance cost. The distinction is caused by the difference between the amounts of CO₂ captured and avoided. The amount of CO₂ captured refers to the absolute amount of CO₂ captured by the capture system. The amount of CO₂ avoided, however, equals the amount of CO₂ captured minus the additional CO₂ ($m_{C{O}_2,additional}$) generated because of using the capture system. Therefore, it is normally smaller than the amount of CO₂ captured. In this study, the additional emissions stem from emissions associated with the steam production, $m_{C{O}_2,steam}$, and indirect CO₂ emissions from electricity consumption, $m_{C{O}_2,el}$.

3.3. Analyzed Cases for CO₂ Capture

Four cases are distinguished in the following (

Table 4. Definitions and parameters.

Parameter	Base	Case 2	Case 3	Case 4
Flue Gas Air Leak	Medium	Low	Medium	Medium
Electricity Source	Import	Import	Import	Generation in CHP
Steam Source	Import	Import	Generation in Boiler	Generation in CHP

). In the base case as well as in case 2, imported steam is used to meet the reboiler heat demand. Between both cases, the amount of false air in the flue gas varies. Case 3 assesses the utilization of a coal boiler to generate steam onsite, while in case 4, a coal CHP is used for this purpose. The case definitions and assumptions are summarized in Table 4. What should be noted here is that, as discussed above, more frequent renewal of the sealings would lead to less CO₂ leakage. Nonetheless, this is not considered as a CO₂ abatement strategy in the present paper because this paper is focused on examining the feasibility of the MEA technology in capturing CO₂ from a cement plant. Therefore, any changes that would interfere with the original operation of the cement plant is not in the scope of the research.

• Base case

In the base case, the cement plant is operated in a medium air leak interconnected mode (see Table 1). The CO₂ content in the flue gas is 18 mol%. It is assumed that the steam suitable for the reboiler duty is imported from a nearby coal power plant at 8 EUR/t associated with CO₂ emissions at the steam generator of 152 kg_CO2/MWh_th (the steam emission data were interpolated from the CEMCAP study for steam from a coal CHP at 131 °C). Electricity is bought from the grid at the given costs and associated with 516 kg_CO2/MWh_el emissions.

• Case 2: Low Air Leak

In case 2, the cement plant is operated in low air leak interconnected mode. The CO₂ content in the flue gas of 22 mol% is 4 mol% higher than that in the base case. The same assumptions for the steam and electricity import as for the base case apply.

• Case 3: Coal Boiler

In case 3, the cement plant is operated in medium air leak interconnected mode, as in the base case. However, steam is not imported but produced onsite in a coal boiler. The CO₂ from the coal boiler is also captured in the CCUS plant. Electricity is imported under the same conditions as above.

• Case 4: Coal-fired CHP

In case 4, steam is supplied by a coal CHP and the electricity can be produced in parallel for the carbon capture plant and cement plant. The cement plant’s flue gas is that of medium air leak operation. The CO₂ from the CHP is captured in the CCUS plant. The CHP provides electricity for both the CCUS plant and cement plant. Providing electricity to the cement plant not only leads to cost savings, but also avoids CO₂ emissions associated with the cement plant’s electricity consumption.

4. Results and Analyses

4.1. Energetic and Economic Performance

A comparison of all cases in terms of their energetic performance is given in

Table 5. Analysis of carbon capture for cement plants.

Parameter	Unit	Base	Case 2	Case 3	Case 4
Heat Demand (Reboiler)	MWth	92	89	150	181
Electricity Demand CCUS Plant	MWel	11.9	11.5	19.8	23.7
Flue Gas Flow Cement	kg/h	388,098	318,192	388,098	388,098
Flue Gas Flow Boiler/CHP	kg/h	/	/	243,360	369,878
CO2 Content Boiler/CHP Flue Gas	mol%	/	/	15.7	15.7
CO2 Content in the Flue Gas (Cement + Boiler/CHP)	mol%	18	22	17	17
CO2 Capture Rate	%	90	90	90	90
CO2 Captured${\mathit{m}}_{\mathit{C}{\mathit{O}}_{\mathbf{2}}\mathbf{,}\mathit{c}\mathit{a}\mathit{p}}$	kt/a	728	722	1137	1364
Specific Thermal Energy Requirement	MJth/kgCO2	3.6	3.5	3.8	3.8
Specific Cooling Duty	MJth/kgCO2	4.3	4.3	4.5	4.5
Specific Compression Work	MJel/kgCO2	0.30	0.30	0.30	0.29
Specific Electricity Consumption	MJel/kgCO2	0.41	0.41	0.44	0.44

. The heat demand in the base case is equal to 92 MW_th. In case 2, with a 4 mol% higher CO₂ content in the flue gas and a smaller overall flue gas rate, the heat demand drops by 3 to 89 MW_th. In cases 3 and 4, the heat demand increases as a result of two reasons: (1) A lower CO₂ content in the flue gas; and (2) a 60% and 95% higher total flue gas mass flow as the CO₂ from the boiler and CHP are also captured, respectively. Hence, in case 4, the flue gas from the CHP nearly equals the cement plant flue gas flow.

The specific thermal energy requirement reflects this. While from the base case to case 2, the thermal energy demand per captured ton of CO₂ decreases, it increases in case 3 and case 4. A similar tendency fits for the cooling duty. Total work consumption and compression work stay approximately constant across all cases.

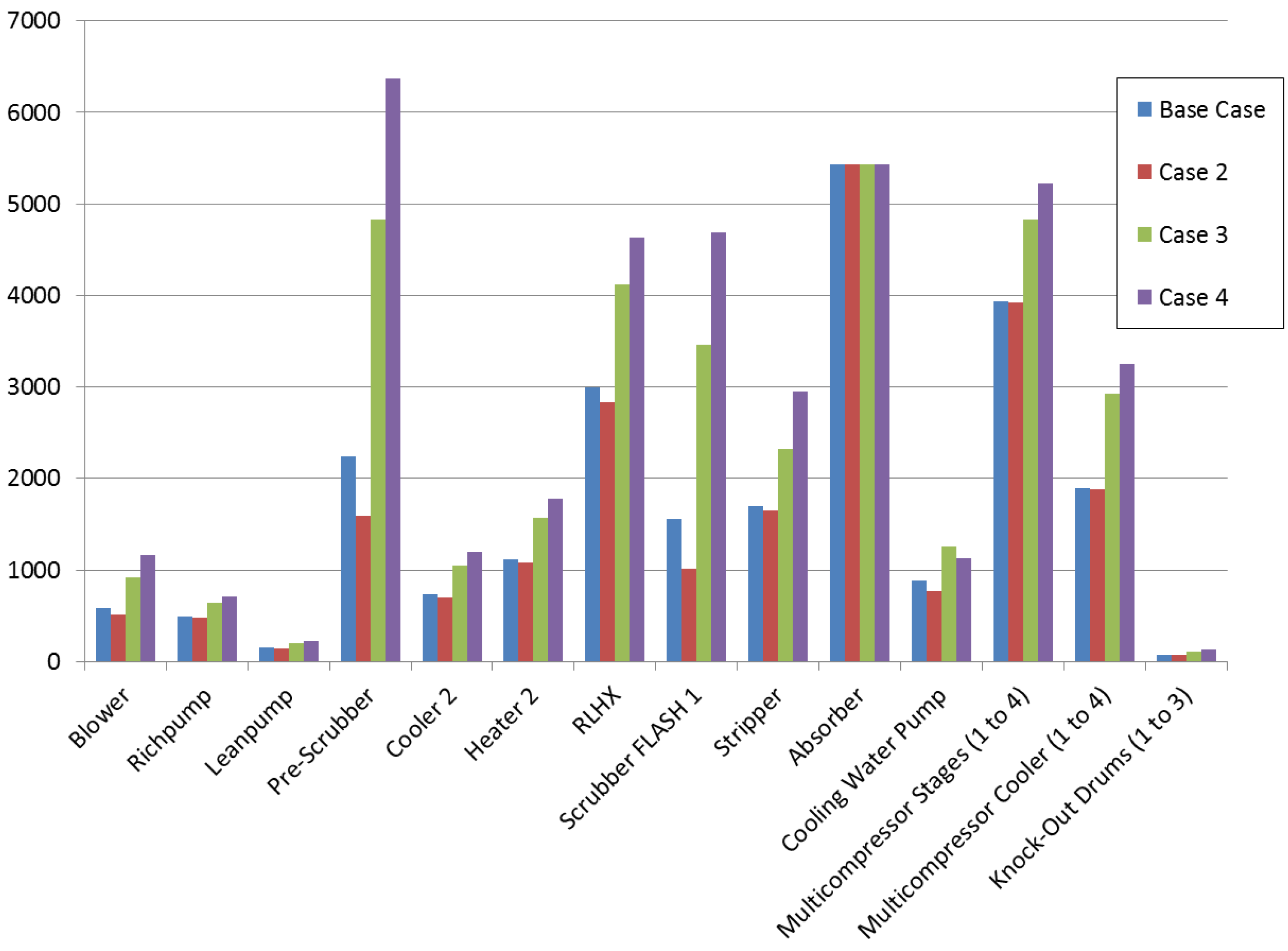

The purchased equipment costs (PEC) are depicted in Figure 2. In the base case, the absorber costs are the major cost factor, followed by the compressor costs, heat exchangers, and pre-scrubber costs. The base case PEC totals 23.8 MEUR.

In case 2, with a smaller flow gas rate, the single equipment costs are reduced, while in cases 3 and 4 the equipment costs rise due to the larger flue gas flow. It is striking that the absorber costs remain constant in all cases. This originates from the simulation set-up in Aspen. Aspen neither calculates nor optimizes the stage number, diameter, or height of the vessel. Hence, in all cases, the geometric parameters were assumed to be identical.

The equipment costs showing the largest sensitivity to the flue gas conditions are those for the pre-scrubber. This is due to the large dependence of the pre-scrubber costs on the flue gas flow rate. As the flue gas flow rate nearly doubles from the base case to case 4, the pre-scrubber costs more than double. In case 4, the pre-scrubber costs surpass the absorber costs, which are then followed by the absorber and multi-compressor stage costs.

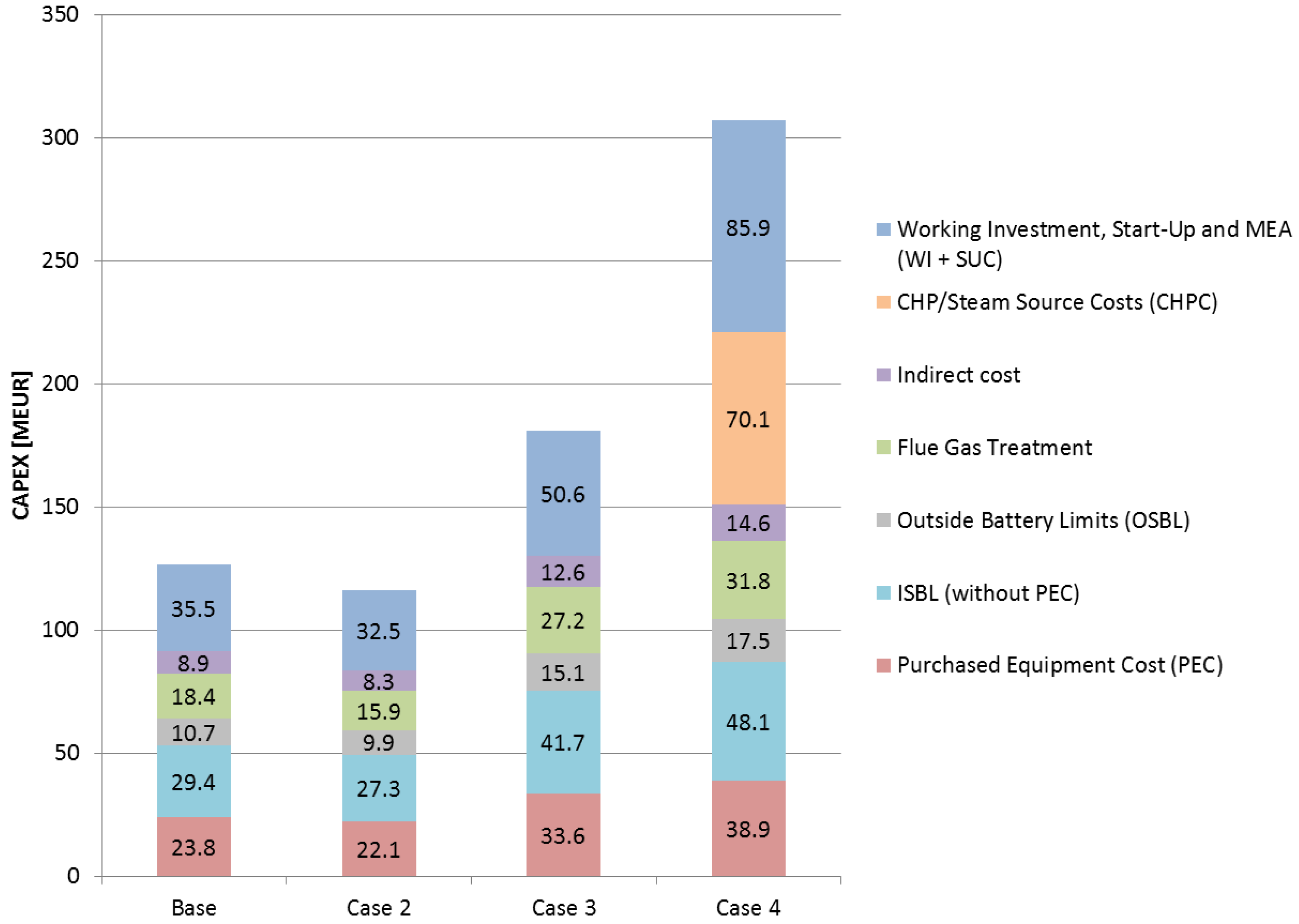

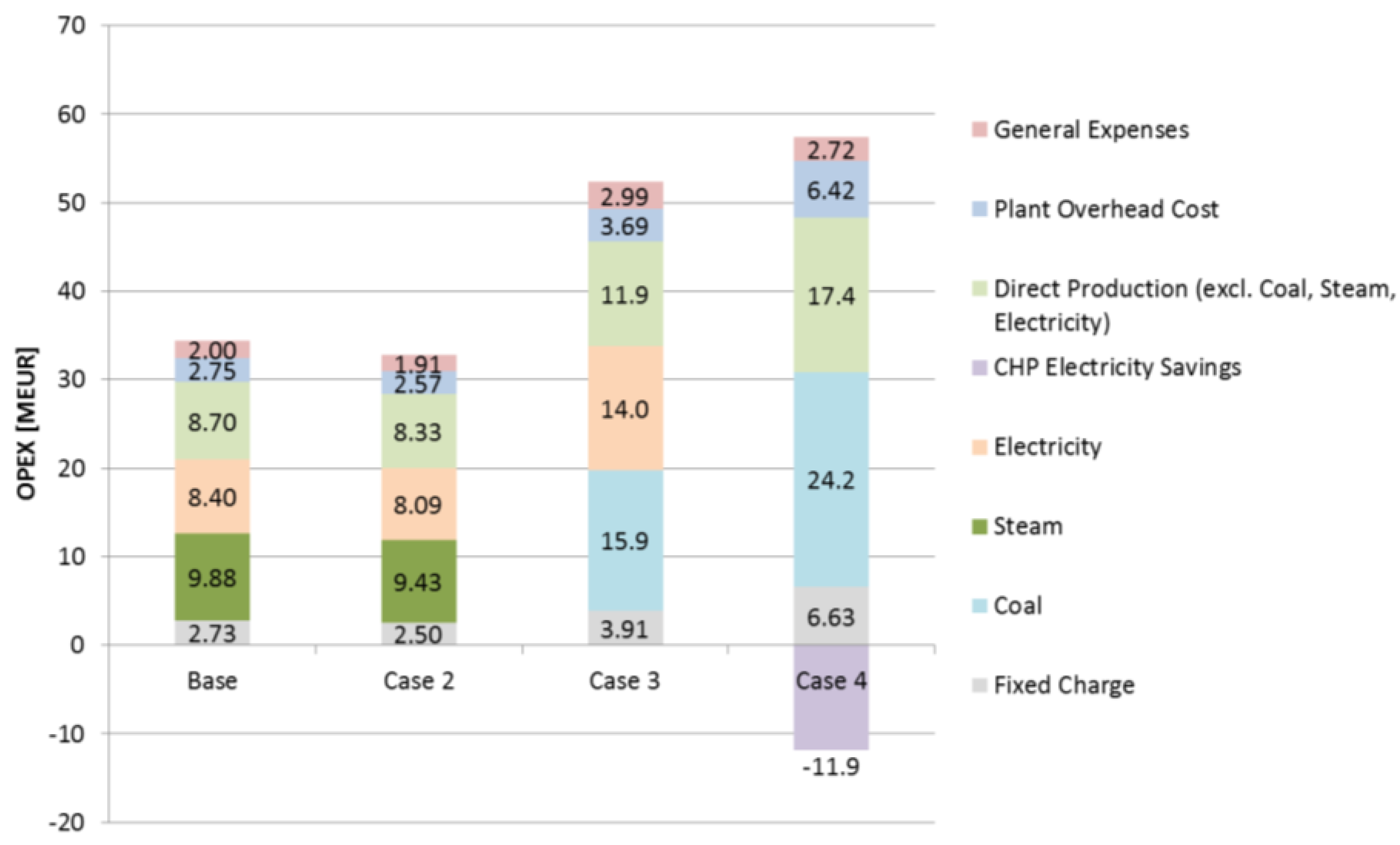

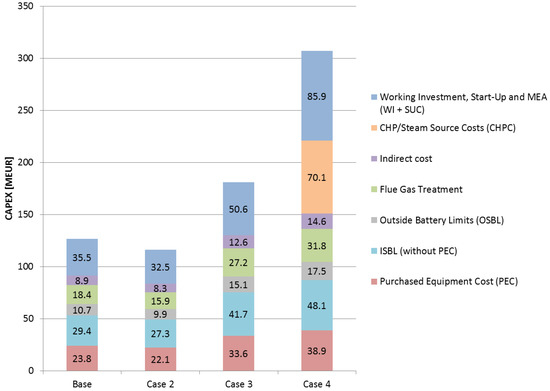

The simulation results for CAPEX and OPEX can be found in Appendix E and Appendix F, respectively.

Table 6. Annual costs, CO₂ captured, and avoidance mass and costs, clinker costs for carbon capture in cement plants.

Parameter	Unit	w/o CCS	Base	Case 2	Case 3	Case 4
Total Annual Costs	MEUR/a	/	46.3	43.7	69.3	74.2
CO2 Avoidance Rate	%	/	70	71	74	90
CO2 Avoidance	kt/a	/	567	567	601	727
CO2 Capture Costs	EUR/t	/	63.6	60.5	60.9	54.4
CO2 Avoidance Costs	EUR/t	/	81.7	77.1	115	102
Clinker Costs	EUR/t	61.7	108	105	131	136
Cement Costs	EUR/t	45.3	77.8	75.6	94.3	97.9

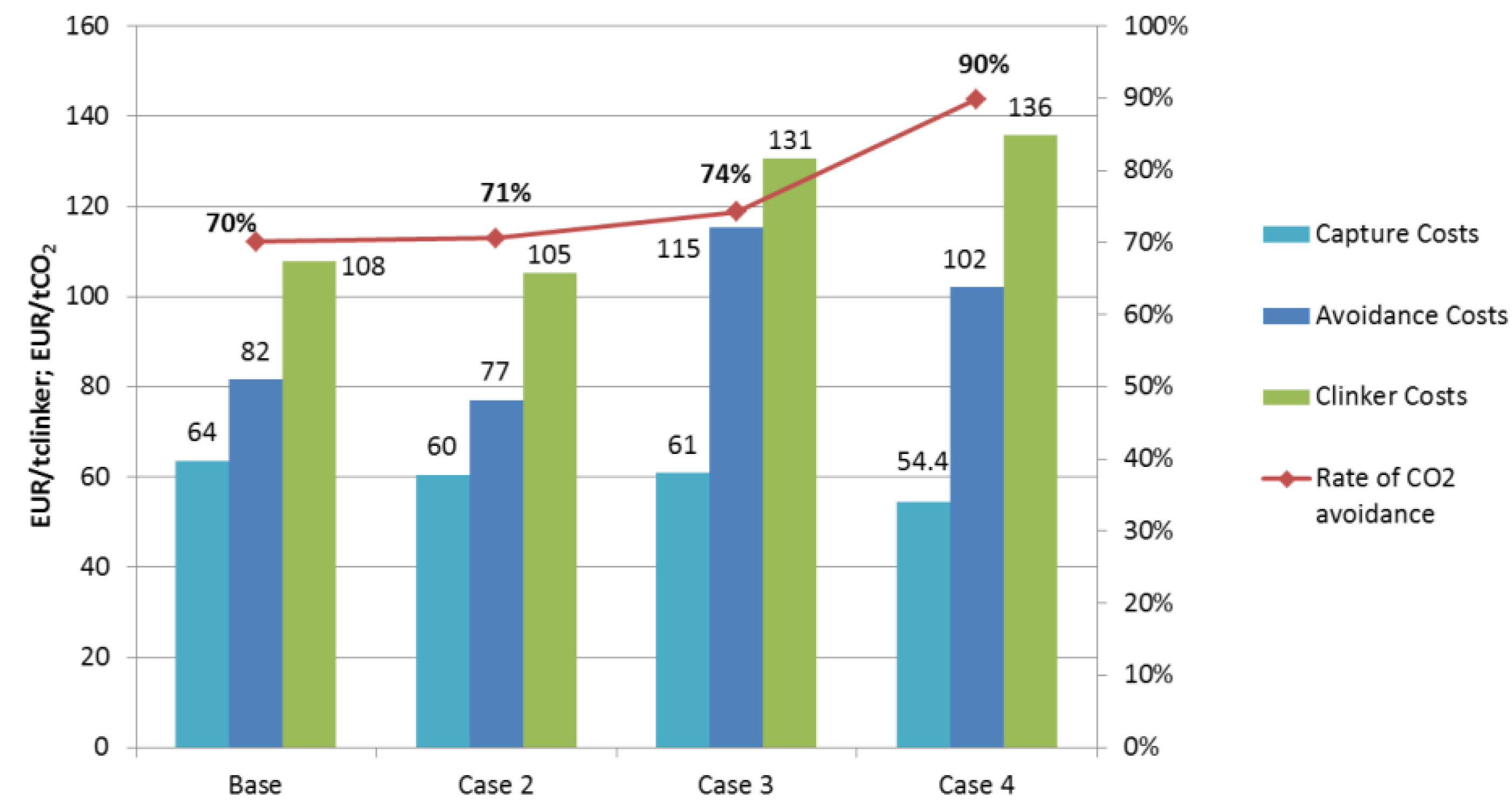

and Figure 3 summarize and depict the CO₂ capture, avoidance, and clinker costs, as well as the CO₂ avoidance rate and associated values.

To calculate the CO₂ avoided and captured, as well as the clinker costs, the total annual costs are now allocated to the annual mass of CO₂ avoided and captured and clinker. While the CO₂ capture rate was defined as 90% in all cases, the CO₂ emissions avoided are lower.

In the base case and case 2, CO₂ avoidance amounts to 70% and 71%, respectively, due to additional emissions associated with the steam and electricity imported. In case 3, the CO₂ avoidance is 74%. The difference stems from the electricity only, as steam is produced in the boiler and the related emissions are captured. In case 4, however, the CO₂ avoidance rate equals 90%. This result is achieved because grid electricity for the cement plant is substituted by “CO₂-free” electricity from the CHP with capture.

The costs of captured and avoided CO₂ are 64 and 82 EUR/t in the base case, 61 and 77 EUR/t in case 2, 61 and 115 EUR/t in case 3, and 54 and 102 EUR/t in case 4, respectively. While the costs of CO₂ captured remain close to 60 EUR/t in all cases, the avoidance costs increase in cases 3 and 4. The reason for this behavior is that in cases 3 and 4, the mass of CO₂ avoided per year is significantly less than the mass of CO₂ captured. Hence, the specific costs of CO₂ avoided are higher than the specific costs for capture.

Clinker production costs increase from 108 and 105 EUR/t in the base case and case 2 to 131 and 136 EUR/t in cases 3 and 4. The reason for this is that the costs (CAPEX and OPEX) are broken down into the clinker costs. As these are higher in cases 3 and 4, the specific clinker costs are also higher.

4.2. Sensitivity Analysis

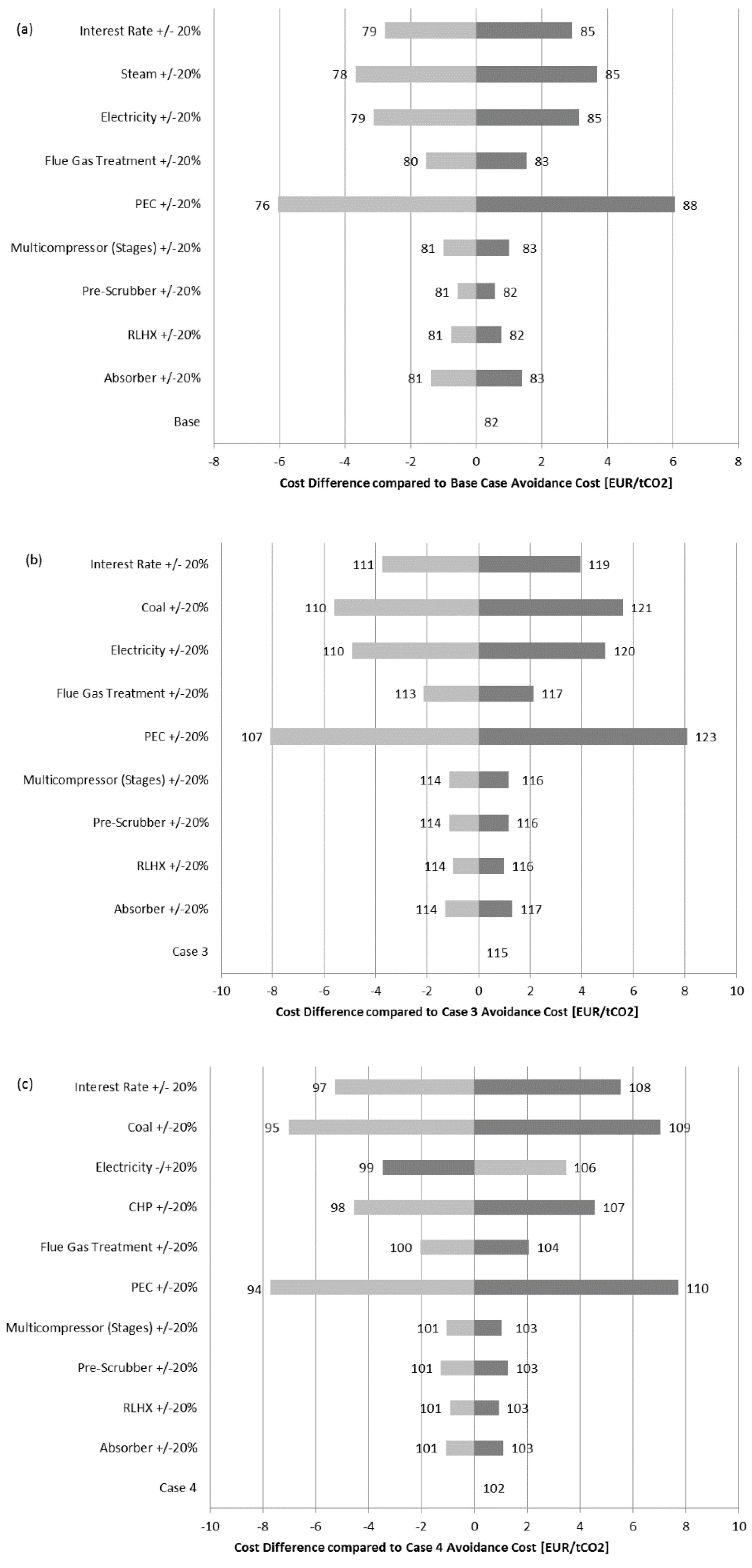

In order to assess the sensitivity of the costs calculated to variations of the input parameters, a sensitivity analysis is conducted for the CO₂ avoidance costs for the base case, case 3, and case 4. A sensitivity analysis for case 2 is not conducted, as the results show only a marginal difference compared to the base case. In the analysis, the assumptions or results obtained in the above calculations are varied by +/−20%. Due to the large number of parameters in the analysis of carbon capture for cement plants, the parameters to be varied are chosen on the basis of their relative weighting in the PEC, CAPEX, or OPEX calculation. Figure 4 depicts the results for the base case, case 3, and case 4.

Across all the analyzed cases, the single purchased equipment costs show only a small influence on the CO₂ avoidance costs. However, changing the weighting of the PEC in the CAPEX calculation shows the strongest impact on the overall costs. This is not surprising as the CAPEX is a function of the PEC. The second and third largest influencing factors on the avoidance costs are the steam and electricity costs in the base case. In case 3 and case 4, these costs are substituted by the coal and CHP costs, which show a similarly strong influence. In case 4, the electricity costs variations only apply to the cost savings associated with the substitution of electricity from the grid with electricity generated at the CHP. Hence, a higher grid electricity price results in larger cost savings and, hence, smaller avoidance costs and vice versa. The fourth largest sensitivity in the base case and case 3 is the interest rate. In case 4, the interest rate is in third place in terms of impact. This reflects the considerably larger CAPEX in case 4.

The analysis indicates that in all cases, the costs are relatively stable as a variation of ± 20% only has a limited impact of less than 10% on the CO₂ avoidance costs for all the parameters investigated.

4.3. Comparison with Literature

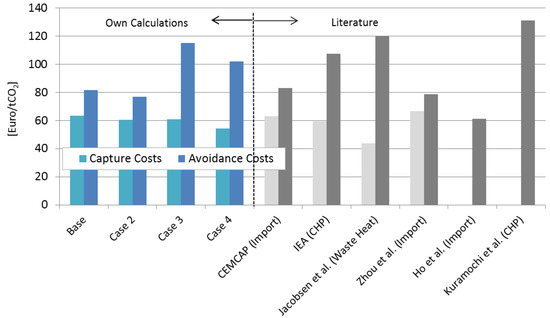

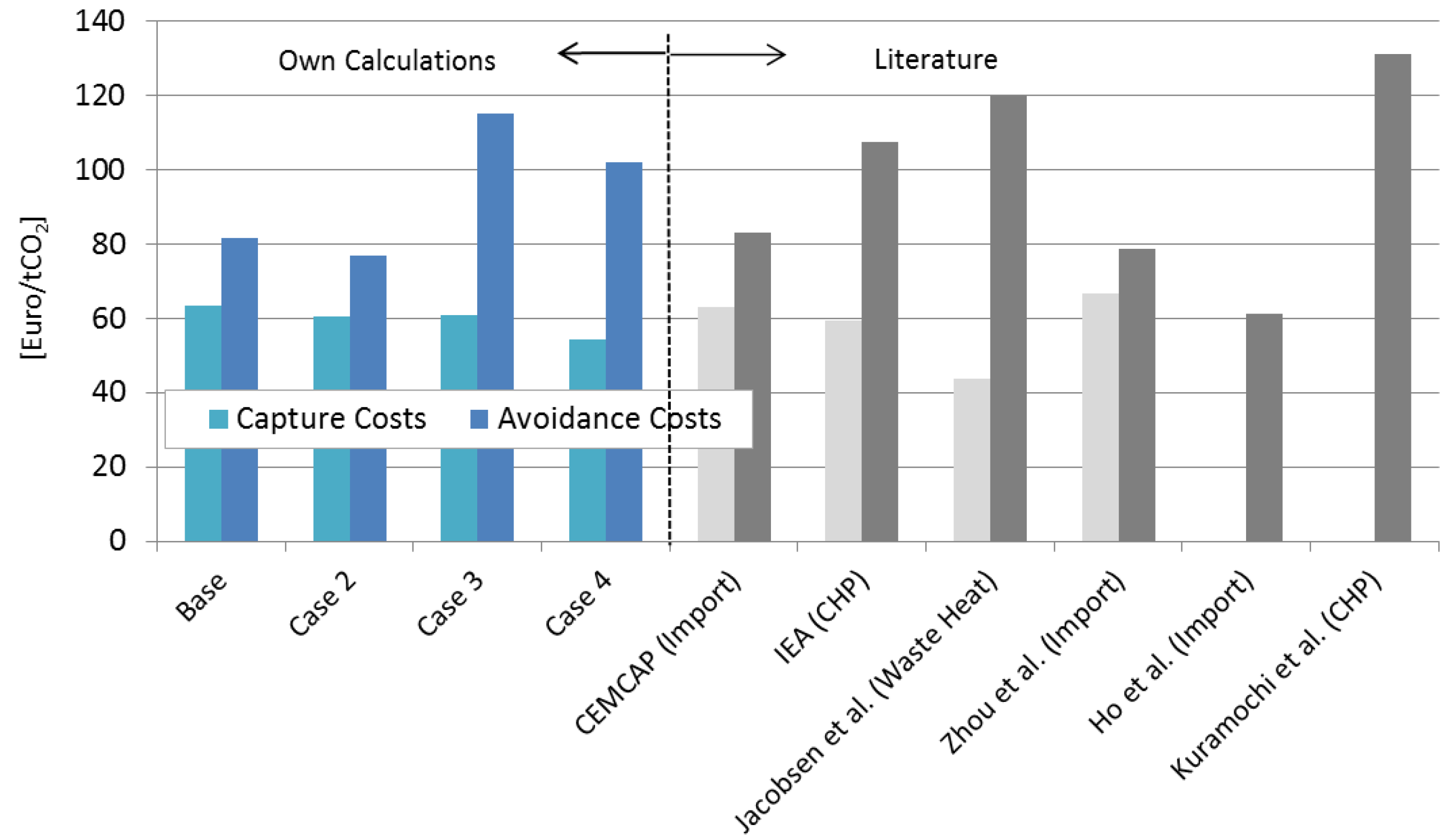

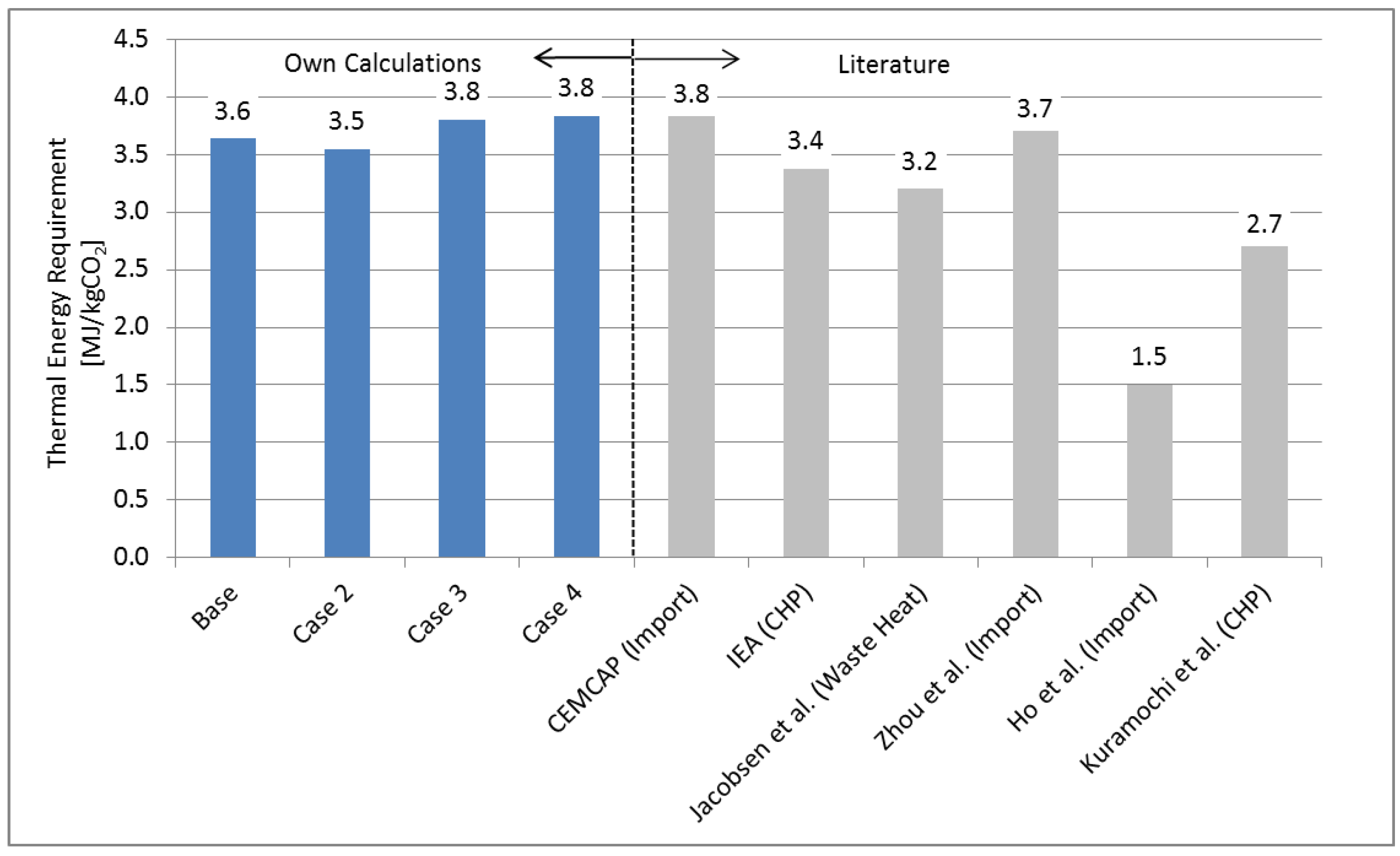

Figure 5 and Figure 6 show the comparison of this study’s results with the literature for the thermal energy requirement, as well as the CO₂ capture and avoidance costs, respectively.

The thermal energy requirement for all cases lies well in the existing literature’s scope. Only the values obtained by Ho et al. [34] are considerably lower; however, the methodology of Ho et al.’s analysis is not explained in detail in their paper and, hence, no reason for their low value can be given.

The CO₂ avoidance and capture costs also match the existing literature well. Again, only Ho et al. achieved considerably lower carbon capture costs. Figure 6 indicates which steam sources were used in the respective literature to obtain these results. The comparison shows, once again, that the carbon capture and avoidance costs obtained compare well to the existing data in the literature. The nearly doubled avoidance costs compared to the capture costs in case 3 and case 4 match the results for the CHP steam supply cases in the literature.

Our calculated avoidance costs range from 82 to 115 €/tCO₂. The concept of social cost of carbon tries to evaluate the climate impacts, like human health, property damages, etc. Some policymakers use the concept of social costs to set a carbon price. Under the Obama administration, the social cost of carbon was set for the United States at $45 per ton of carbon dioxide [44], which is below our avoidance costs. It is important to keep in mind that measuring the social cost of carbon is very complex [45,46]. Furthermore the concept of social cost of carbon is very contentious and values above 100 $/tCO₂ are not uncommon [47].

Another definition of carbon price more recently used in the policy debate around climate change is to define ideal carbon prices based not on the concept of social cost of carbon, but on the level that is required to achieve a given goal. The high-level commission on carbon prices provides guidelines on the range of carbon prices necessary to achieve the Paris Agreement’s goal of keeping temperature increase within 2 °C above pre-industrial levels, and ideally within 1.5 °C [48]. According to these guidelines, our calculated avoidance costs are in the recommended range of values of the guidelines. Carattini et al. [49] propose a global carbon price of 40–80 $/t assuming a system of harmonized carbon taxes. Against this background, CCS technology in cement industry is an interesting option.

4.4. CO₂ Emissions Reduction Potential in Germany

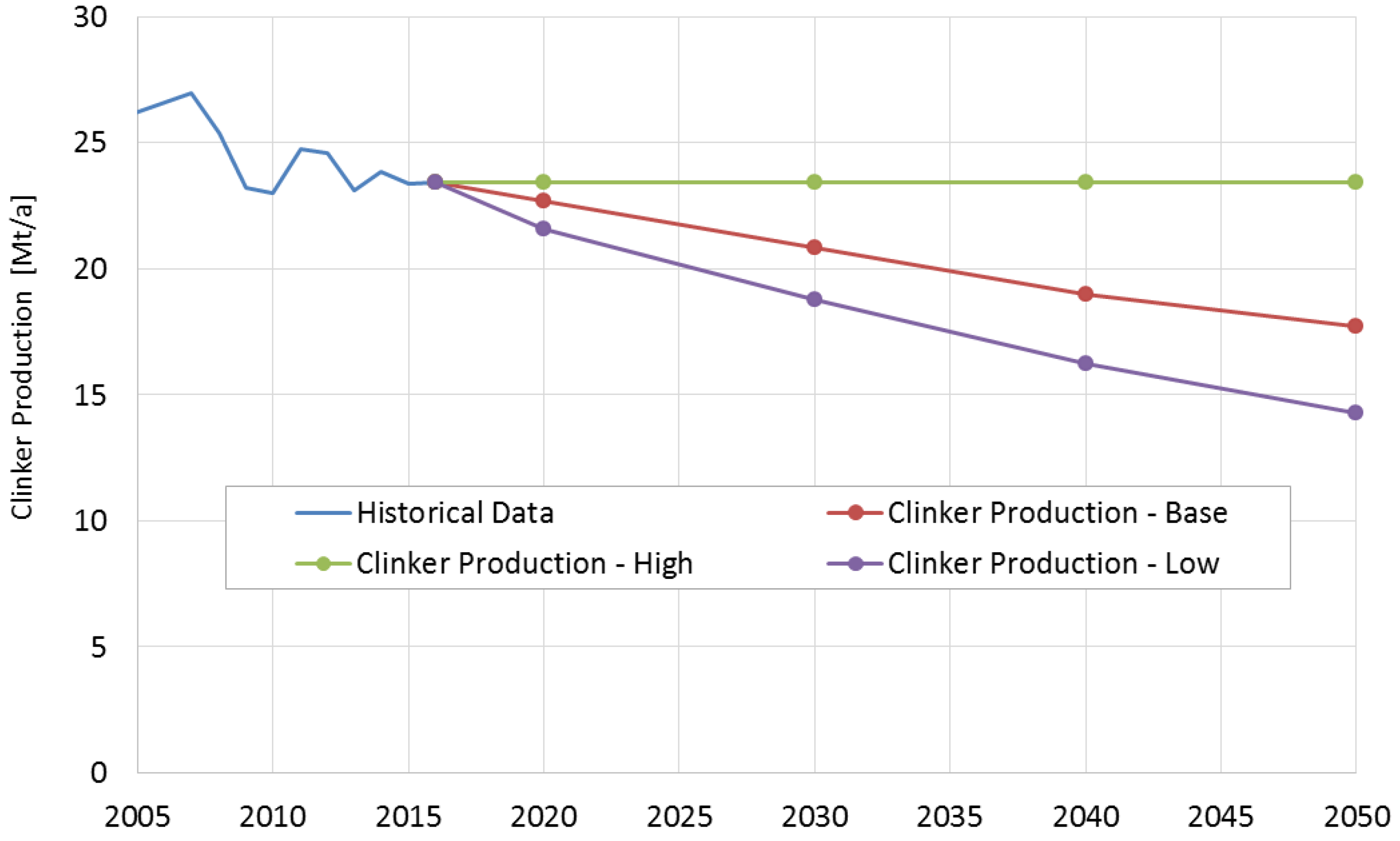

Cement clinker production projections for Germany through 2050 are available in a study conducted by Fraunhofer ISI and the Öko-Institut [50]. They develop two climate protection scenarios for a period up to the year 2050. Both scenarios estimate a decrease in clinker production. Here, the lower scenario will serve as the scenario for low clinker production and the higher scenario as the base scenario in this paper. For the high clinker production scenario, it is assumed that clinker production stagnates at today’s levels until 2050. Figure 7 depicts the three clinker production scenarios.

To derive the CO₂ emissions scenarios, the specific CO₂ emissions per ton of clinker produced must be determined for all years. In 2010, specific CO₂ emissions from primary fuels, secondary fuels, and process emissions together were 890 kg/t_clinker [51]. It is assumed that due to process enhancements in the last years, 850 kg/t_clinker—as assumed for the BAT reference cement plant—is a realistic value today. Using these specific CO₂ emissions, the clinker-related emissions can be derived from the clinker production scenarios. It is assumed that no other CO₂ emission reductions from other technologies apply.

In order to assess the impact of applying CCUS to the German cement industry, three CCUS adaptation scenarios are outlined. It is assumed that every CCUS plant could avoid 70% of CO₂ as determined in the above base case. It is assumed that CCUS for cement plants becomes ready for commercial utilization by 2025:

• Base Scenario: CCUS is applied to 30% of German clinker production capacities.
• Pessimistic Scenario: CCUS is applied to 10% of German clinker production capacities.
• Optimistic Scenario: CCUS is applied to 80% of German clinker production capacities.

It is assumed that CCUS is applied linearly between 2025 and 2050. Hence, the average specific emissions over all cement plants can be determined. The emission scenarios show that by 2050, 21%, 7%, and 56% of emissions could be avoided in the base, pessimistic, and optimistic scenario, respectively.

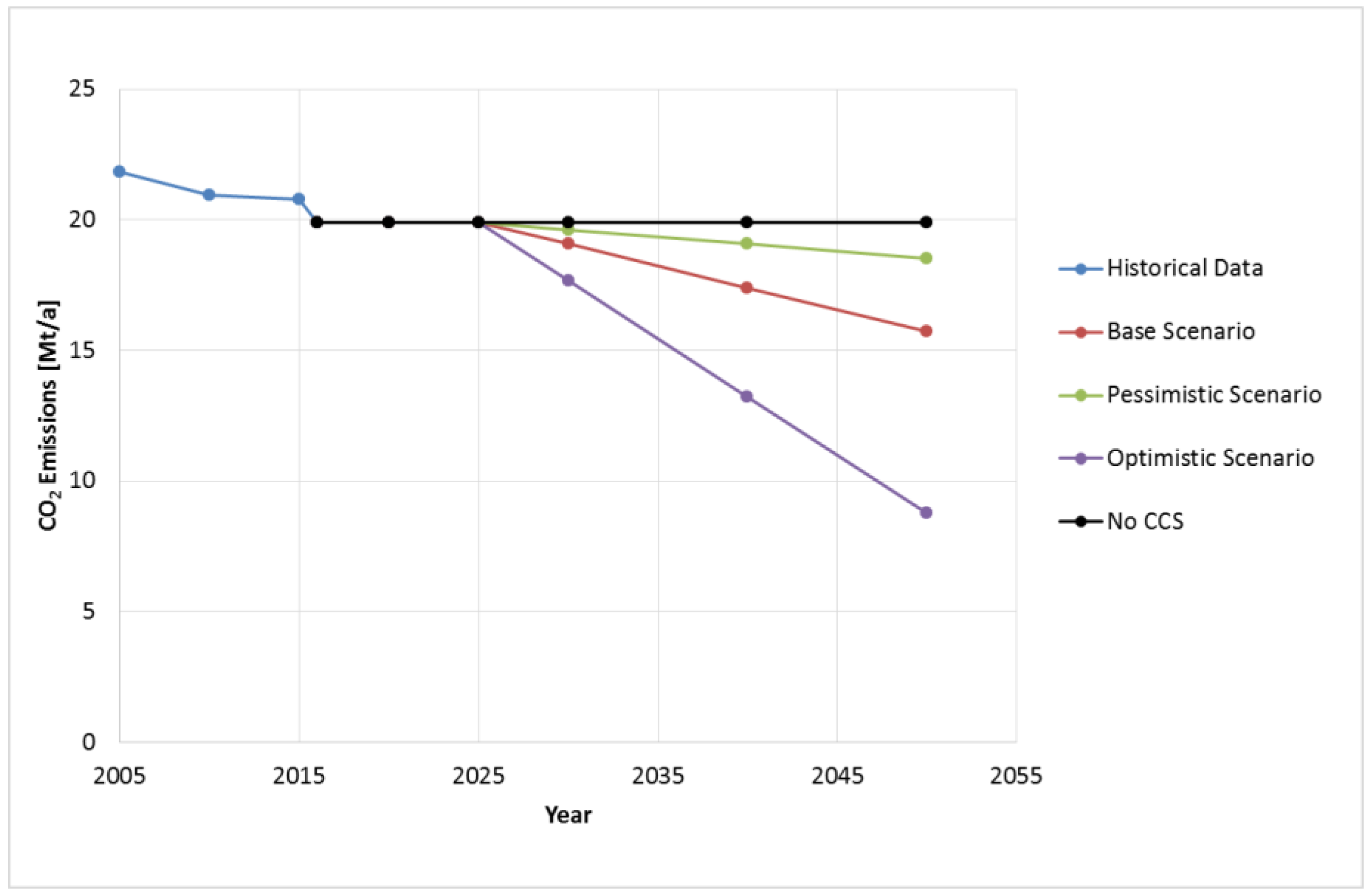

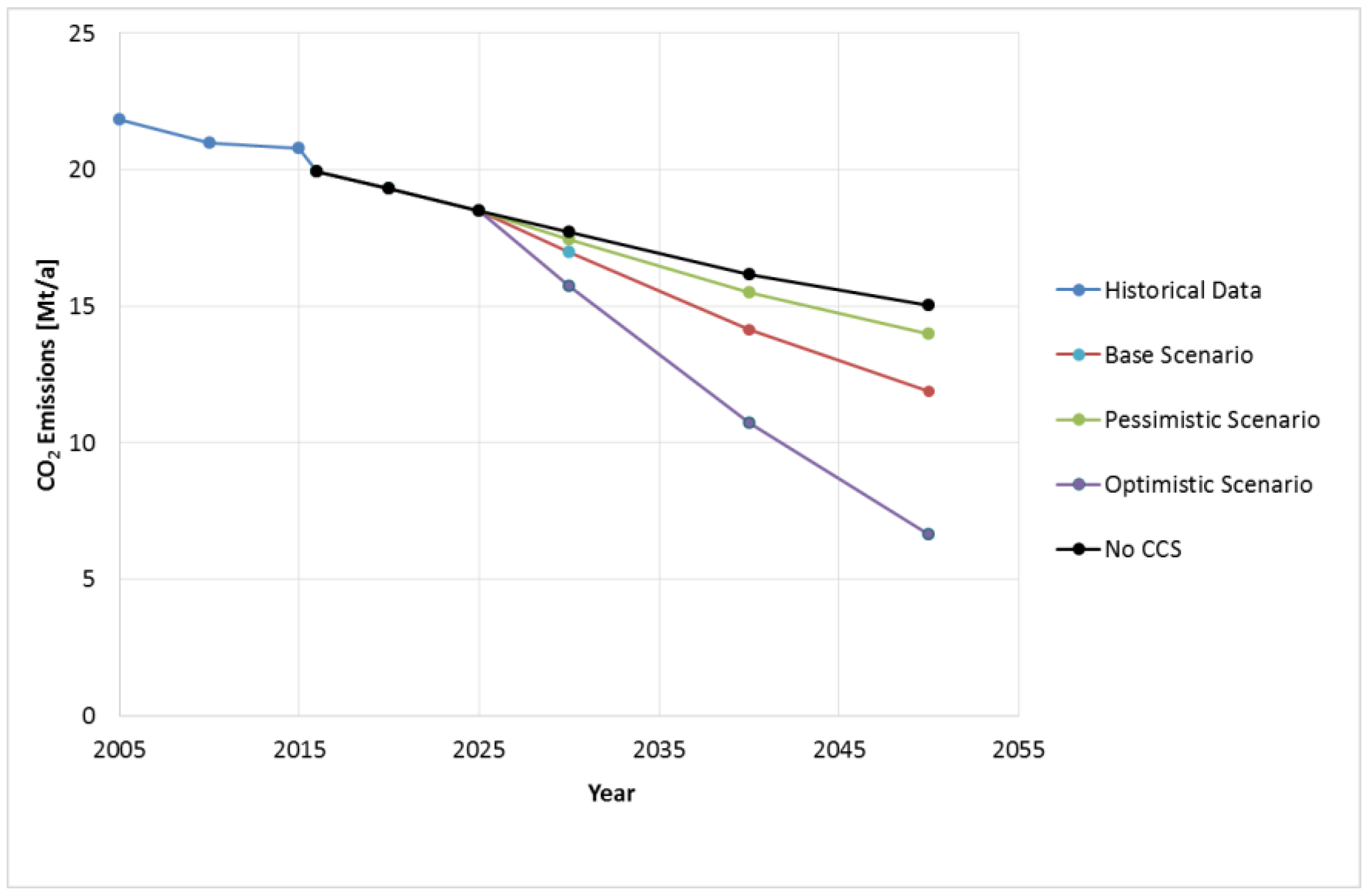

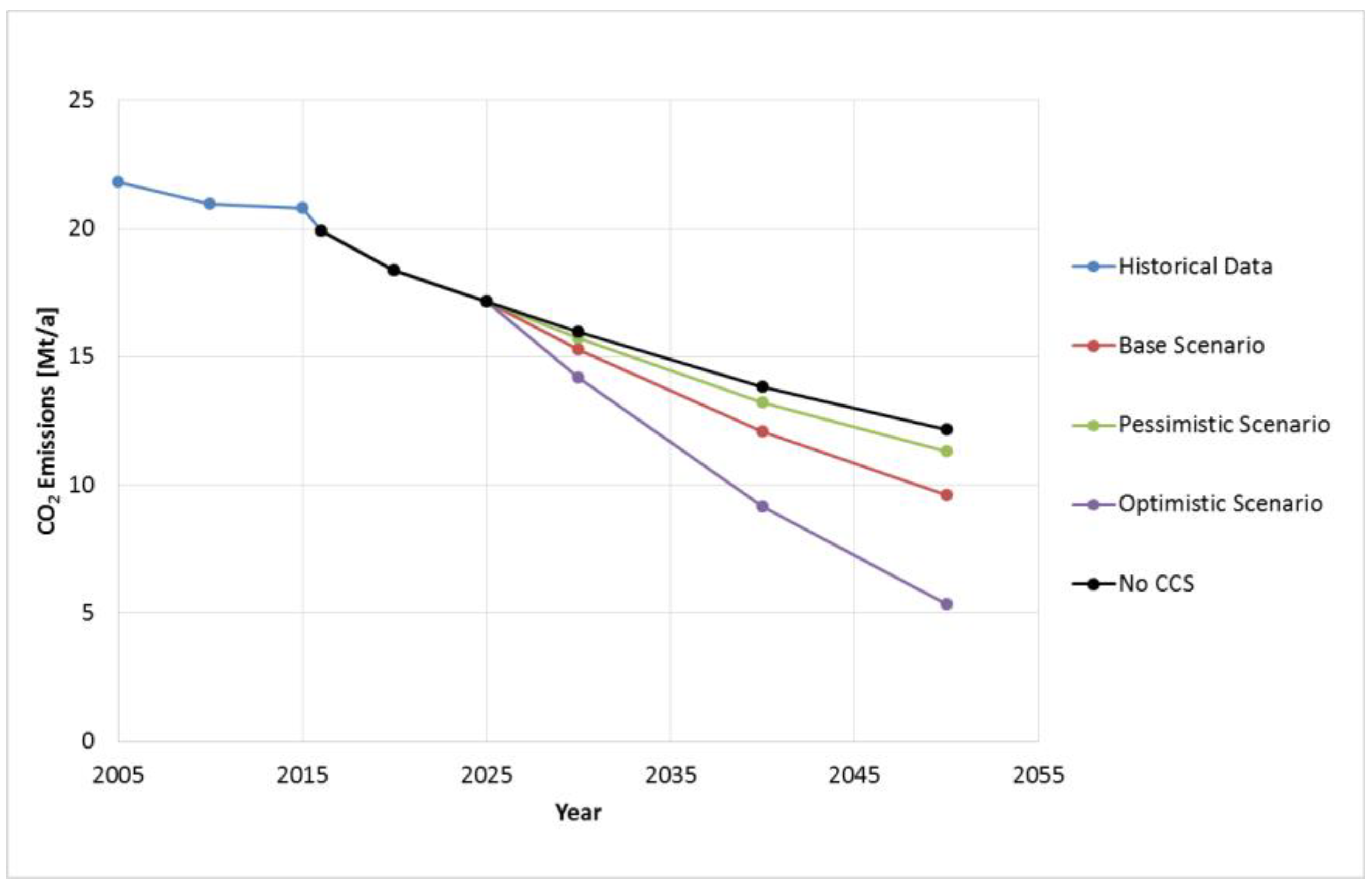

The emission scenarios, together with the clinker production projections, now allow for the deriving of CO₂ emission (reduction) scenarios for the German cement industry. Figure 8, Figure 9 and Figure 10 show that the CO₂ emission projections for all emission scenarios for the clinker production base, low, and high case, respectively. Emissions derived under the assumption that today’s specific emission factor applies unchanged in the future are labeled ‘No CCS’.

In the pessimistic emissions scenario, the total emissions reduction would amount to 0.9 to 1.4 Mt per year by 2050. In the base emissions scenario, between 2.6 to 4.2 Mt are avoided in 2050. Pfluger et al. [12] calculate a comparable reduction potential of 3.3 Mt by the year 2050 for the German cement industry. In the case of the optimistic emission scenario, between 6.8 and 11 Mt are avoided in 2050.

Specific CO₂ emissions used today were set at 850 kg_CO2/t_clinker. However, in 2016, the German Cement Association (VDZ) noted emissions of only 560 kg_CO2/t_clinker. The difference stems from the burning of alternative fuels, which are not counted towards the plant CO₂ emissions. Hence, reductions of 290 kg_CO2/t_clinker (34%) are already avoided today through the utilization of alternative fuels. This implies that in the optimistic emission scenario, only 84 kg_CO2/t_clinker would be emitted by 2050. A larger avoidance rate or CO₂ utilization in Germany connotes zero or negative emissions.

5. Summary and Conclusions

In this paper, a system analysis to explore post-combustion MEA absorption CCUS in the cement industry was carried out. The potential for reducing the industry’s CO₂ emissions was energetically and economically quantified. Furthermore, CO₂ emission projections for the clinker-producing industry and emission reduction potentials were derived for Germany.

For CO₂ capture, steam supply plays a key role; four cases are assessed in the scenario analysis. In the base case and case 2, steam for supplying the reboiler heat demand is imported, and the associated emissions not captured. In case 3, steam is produced in an onsite coal boiler, and in case 4, steam and electricity are produced in a coal CHP. The boiler and CHP-associated emissions are captured in the post-combustion capture plant, too. The results show that the specific thermal energy requirement (3.5–3.8 MJ_th/kg_CO2), specific cooling demand (4.3–4.5 MJ_th/kg_CO2), specific compressor work (0.3 MJ_el/kg_CO2), and specific total work consumption (0.4 MJ_el/kg_CO2) only vary slightly across all cases. The same holds for the carbon capture costs, which amount to 63.6 EUR/t in the base case and 60.5, 60.9, and 54.4 EUR/t in cases 2, 3, and 4, respectively. For the CO₂ avoidance costs, however, the investigated cases show a significant difference. While in the base case and case 2, CO₂ avoidance costs are determined at 81.7 and 77.7 EUR/t, in case 3 and case 4, avoidance costs rise sharply to 115 and 107 EUR/t. This is also reflected in the clinker costs. For the base case, case 2, case 3, and case 4, clinker costs are 108, 105, 131, and 136 EUR/t, respectively. The cost difference stems from the much higher flue gas streams and lower CO₂ contents in the flue gas for cases 3 and 4. The CO₂ avoidance rate is most favorable in case 4, with 90%, while in the base case, case 2, and 3, the avoidance rates were at 70%, 71%, and 74%, respectively. The importance of the steam and electricity supply was underlined in the sensitivity analysis, which showed that these factors, together with the purchased equipment costs and interest rate, have the highest influence on the CO₂ avoidance costs. The obtained results fit well with the existing literature on CO₂ capture for cement plants.

For CO₂ emission reduction analysis, base, pessimistic, and optimistic adaptations are assumed, resulting in base, pessimistic, and optimistic emission scenarios. In Germany, between 2.6 and 4.2 Mt/a could be avoided in the base emission cases (30% of German cement plants adopt CCUS with a 70% avoidance rate), amounting to a 21% emissions reduction by 2050 per year. In the optimistic case (80% of plants adopt CCUS) and pessimistic case (10% of plants adopt CCUS), 56% and 7% of the cement industry’s emissions, respectively, could be avoided by 2050.

The calculated CO₂ reduction potential is based on the simplifying assumption that the cement production plants are each greenfield plants. In fact, there is an existing stock of cement plants that have an age structure that is not known. It is likely that this will be continuously renewed over the next few decades. All in all, it can be concluded that the calculated CO₂ reduction potentials for Germany must be understood as the upper limit. In addition, the option of retrofitting would need to be taken up in a follow-up analysis.
