A New Physics-Based Modeling Approach for a 0D Turbulence Model to Reflect the Intake Port and Chamber Geometries and the Corresponding Flow Structures in High-Tumble Spark-Ignition Engines

Department of Mechanical and Aerospace Engineering, Seoul National University, Seoul 08826, Korea
*
Author to whom correspondence should be addressed.
Energies 2019, 12(10), 1898; https://doi.org/10.3390/en12101898
Received: 30 March 2019 / Revised: 6 May 2019 / Accepted: 13 May 2019 / Published: 18 May 2019
  |
PDF [7549 KB, uploaded 18 May 2019]
  |

Abstract

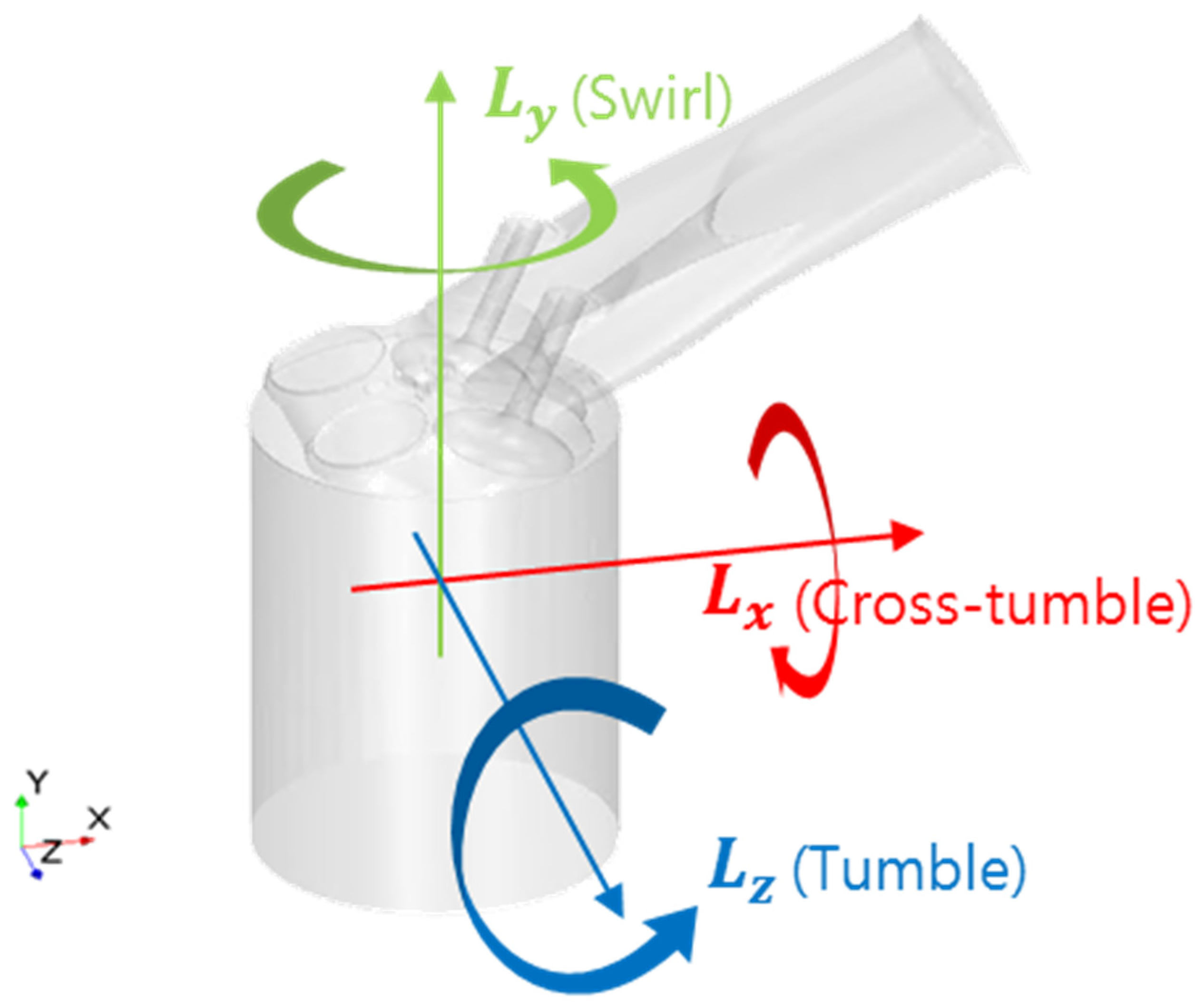

Turbulence is one of the most important aspects in spark-ignition engines as it can significantly affect burn rates, heat transfer rates, and combustion stability, and thus the performance. Turbulence originates from a large-scale mean motion that occurs during the induction process, which mainly consists of tumble motion in modern spark-ignition engines with a pentroof cylinder head. Despite its significance, most 0D turbulence models rely on calibration factors when calculating the evolution of tumble motion and its conversion into turbulence. In this study, the 0D tumble model has been improved based on the physical phenomena, as an attempt to develop a comprehensive model that predicts flow dynamics inside the cylinder. The generation and decay rates of tumble motion are expressed with regards of the flow structure in a realistic combustion chamber geometry, while the effects of port geometry on both charging efficiency and tumble generation rate are reflected by supplementary steady CFD. The developed tumble model was integrated with the standard k-ε model, and the new turbulence model has been validated with engine experimental data for various changes in operating conditions including engine speed, load, valve timing, and engine geometry. The calculated results showed a reasonable correlation with the measured combustion duration, verifying this physics-based model can properly predict turbulence characteristics without any additional calibration process. This model can suggest greater insights on engine operation and is expected to assist the optimization process of engine design and operating strategies. View Full-Text
Keywords: 0D model; predictive model; tumble; turbulent intensity; spark-ignition engine; engine geometry 0D model; predictive model; tumble; turbulent intensity; spark-ignition engine; engine geometry
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
