Energies 2019, 12(1), 163; https://doi.org/10.3390/en12010163

Dual-Vector Predictive Torque Control of Permanent Magnet Synchronous Motors Based on a Candidate Vector Table

1
,
2,* , 1
and
3
1
School of Electrical and Information Engineering, Tianjin University, Tianjin 300072, China
2
College of Electrical Engineering, Zhejiang University, Hangzhou 310027, China
3
Tianjin Engineering Center of Electric Machine System Design and Control, Tianjin Polytechnic University, Tianjin 300387, China
*
Author to whom correspondence should be addressed.
Received: 16 November 2018 / Revised: 22 December 2018 / Accepted: 28 December 2018 / Published: 4 January 2019
Full-Text   |   PDF [6062 KB, uploaded 4 January 2019]   |

Abstract

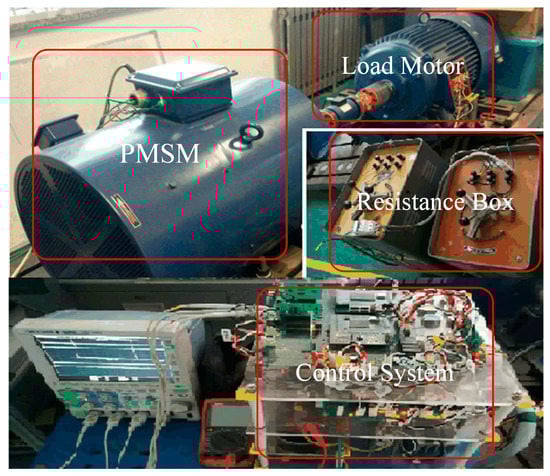

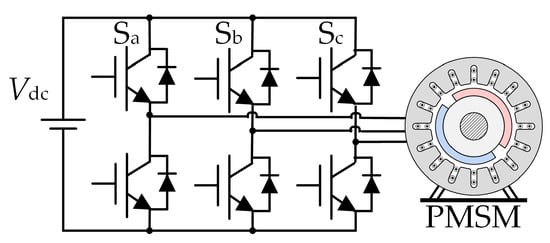

In order to reduce the torque ripple of permanent magnet synchronous motors (PMSMs), this paper proposes a dual-vector predictive torque control strategy based on a candidate vector table. The main feature of this strategy is that two vectors are acted in a control period to form a vector combination, and the vector combination can be either an effective-zero combination or an effective-effective combination. In the process of establishing the vector combinations, the switching frequency is also taken into account, therefore avoiding a high switching frequency, while effectively reducing the motor torque ripple. The candidate vector table is constructed offline, and three sets of candidate vectors and their duty cycles can be determined by looking up the table. Then the cost function is used to screen the action vectors from the three sets candidate vectors, so the two vectors acted in one control period and their duty cycles can be obtained simultaneously. Finally, the feasibility and effectiveness of the proposed method are verified on a 5.2 kW two-level inverter-fed PMSM drive system. View Full-Text
Keywords: permanent magnet synchronous motor; predictive torque control; synthesized vector set; deadbeat principle; candidate voltage vector table; torque ripple permanent magnet synchronous motor; predictive torque control; synthesized vector set; deadbeat principle; candidate voltage vector table; torque ripple
Figures

Figure 1
