Energies 2018, 11(6), 1555; https://doi.org/10.3390/en11061555

Characterization of a Thermoelectric Generator (TEG) System for Waste Heat Recovery

Department of Renewable Energies, UNILA, Federal University of Latin American Integration, Av. Sílvio Américo Sasdelli, 1842 Foz do Iguaçu-PR, Brazil
*
Author to whom correspondence should be addressed.
Received: 14 May 2018 / Revised: 1 June 2018 / Accepted: 1 June 2018 / Published: 14 June 2018
(This article belongs to the Special Issue Energy Economy, Sustainable Energy and Energy Saving)
Full-Text   |   PDF [3302 KB, uploaded 14 June 2018]   |

Abstract

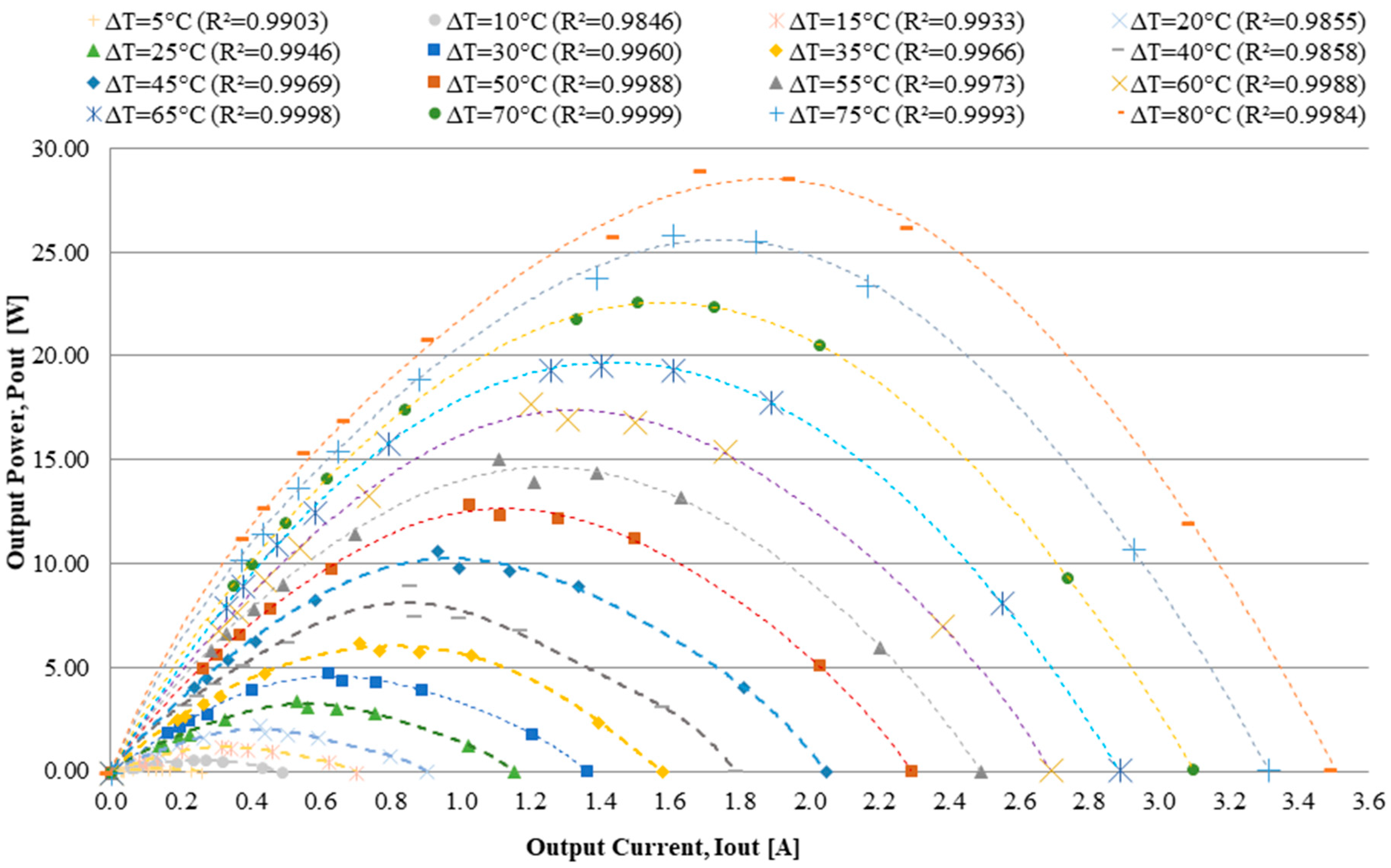

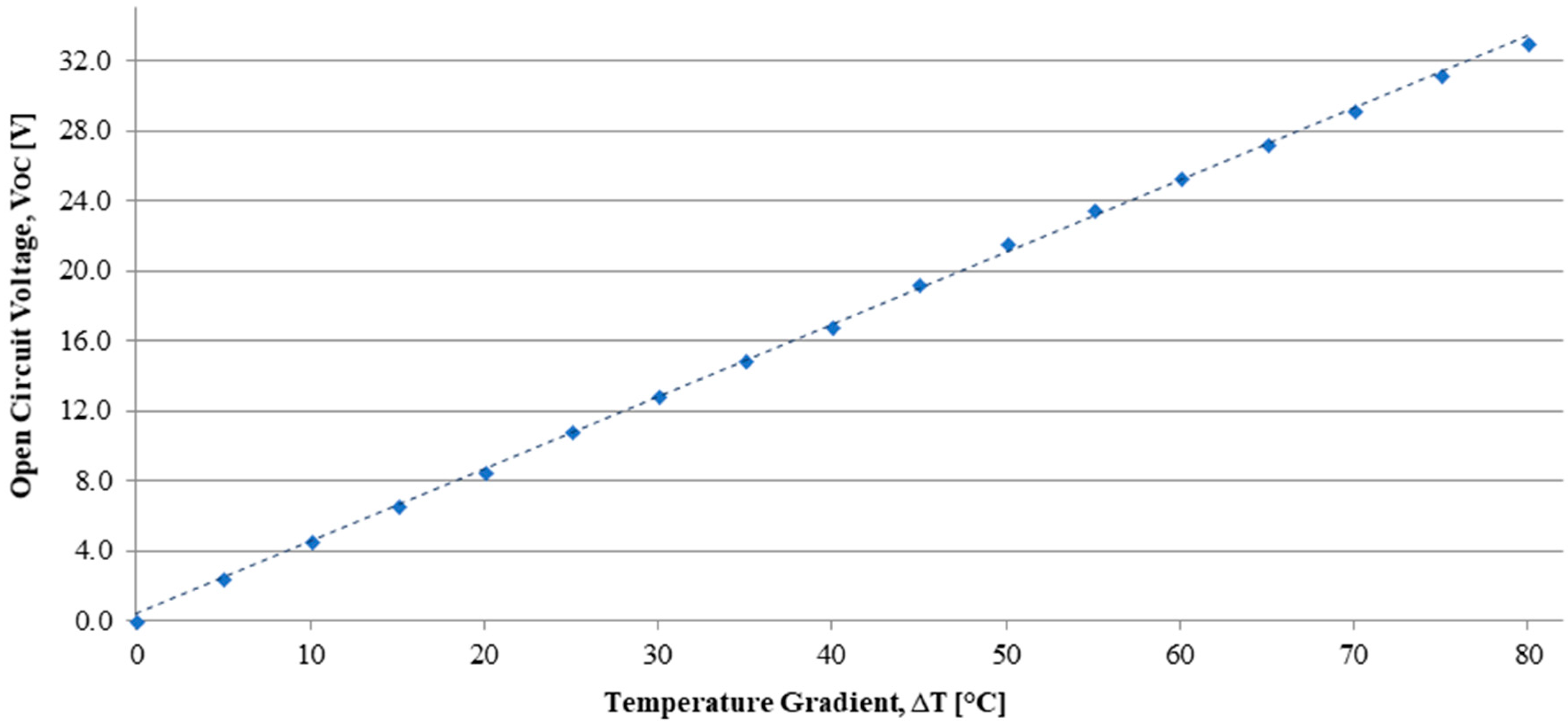

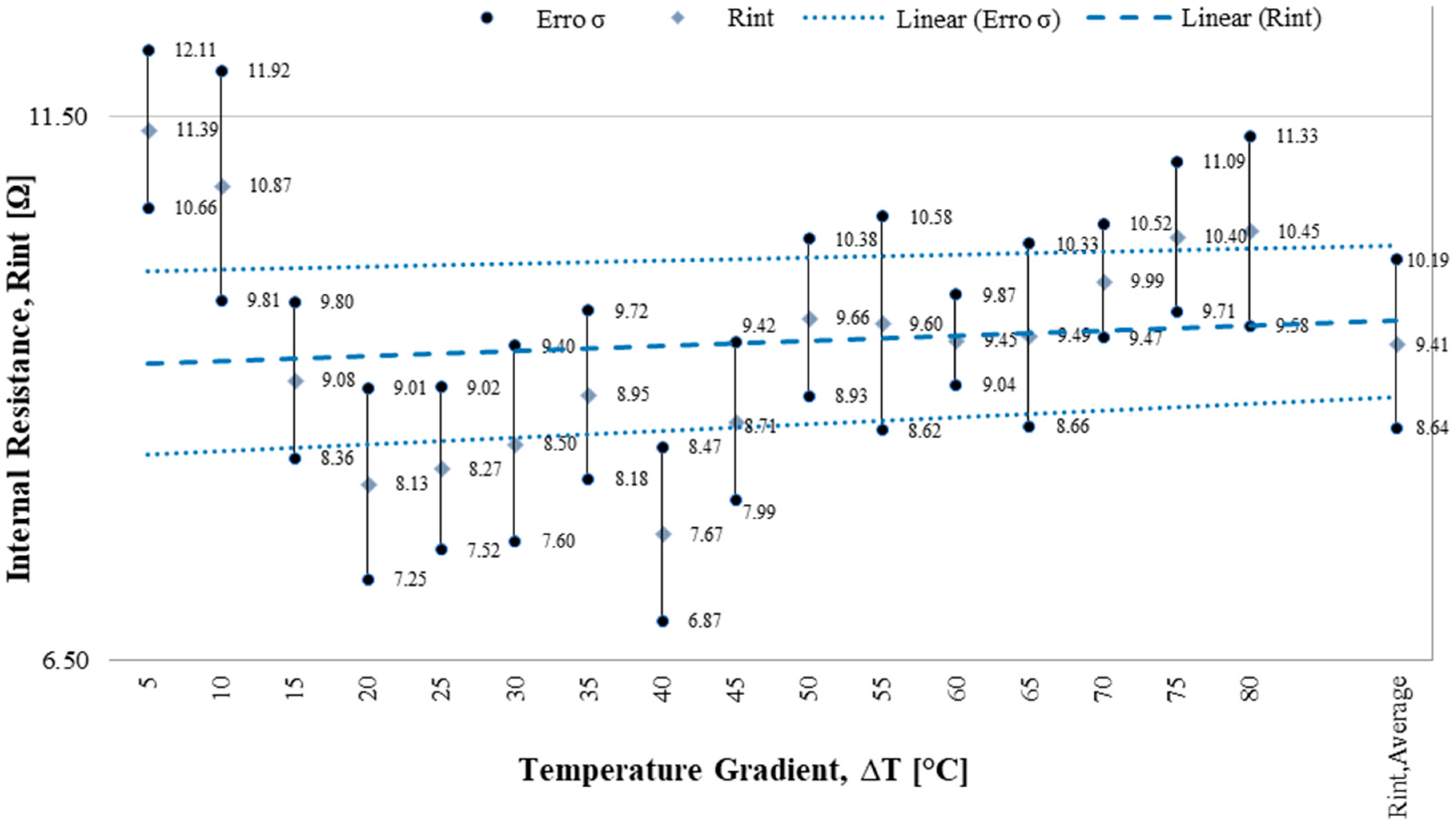

This paper presents the development and characterization of a thermoelectric generator (TEG) system for waste heat recovery to low temperature in industrial processes. The relevance of this mode of electric energy harvest is that it is clean energy and it depends only on the capture of losses. These residual energies from industrial processes are, in principle, released into the environment without being exploited. With the proposed device, the waste energy will not be released into the environment and will be used for electrical generation, which is useful for heat production. The characterization of TEGs that are used a data-acquisition system have measured data for the voltage, current, and temperature, in real-time, for temperatures down to 200 °C without signal degradation. As a result, the measured data has revealed an open circuit voltage of VOC = 0.4306 × ΔT, internal resistance of R0 = 9.41 Ω, with tolerance ΔRint = ±0.77 Ω, where Rint = 9.41 ± 0.77 Ω. The measurements were made on the condition that the maximum output was obtained at a temperature gradient of ΔT = 80 °C, resulting in a maximum power gain of Pout ≈ 29 W. View Full-Text
Keywords: thermoelectricity; energy harvest; green energy; seebeck effect; cogeneration thermoelectricity; energy harvest; green energy; seebeck effect; cogeneration
Figures

Figure 1a
