Energies 2018, 11(3), 479; https://doi.org/10.3390/en11030479

Design of Peak Efficiency of 85.3% WPC/PMA Wireless Power Receiver Using Synchronous Active Rectifier and Multi Feedback Low-Dropout Regulator

1
College of Information and Communication Engineering, Sungkyunkwan University, Suwon 16419, Korea
2
School of Information and Communications, Gwangju Institute of Science and Technology, Gwangju 61005, Korea
*
Author to whom correspondence should be addressed.
Received: 20 January 2018 / Revised: 12 February 2018 / Accepted: 22 February 2018 / Published: 25 February 2018
Full-Text   |   PDF [5493 KB, uploaded 25 February 2018]   |

Abstract

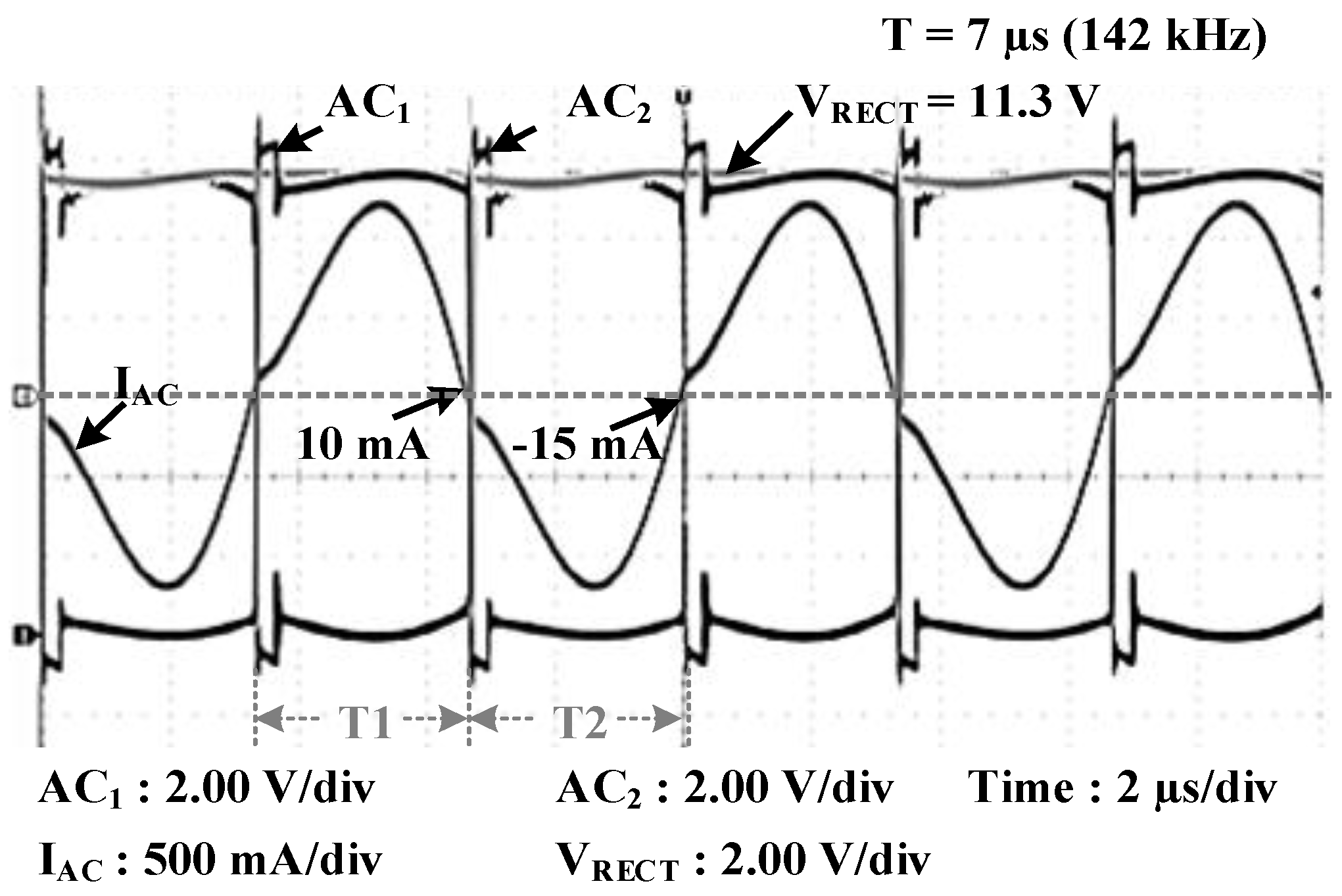

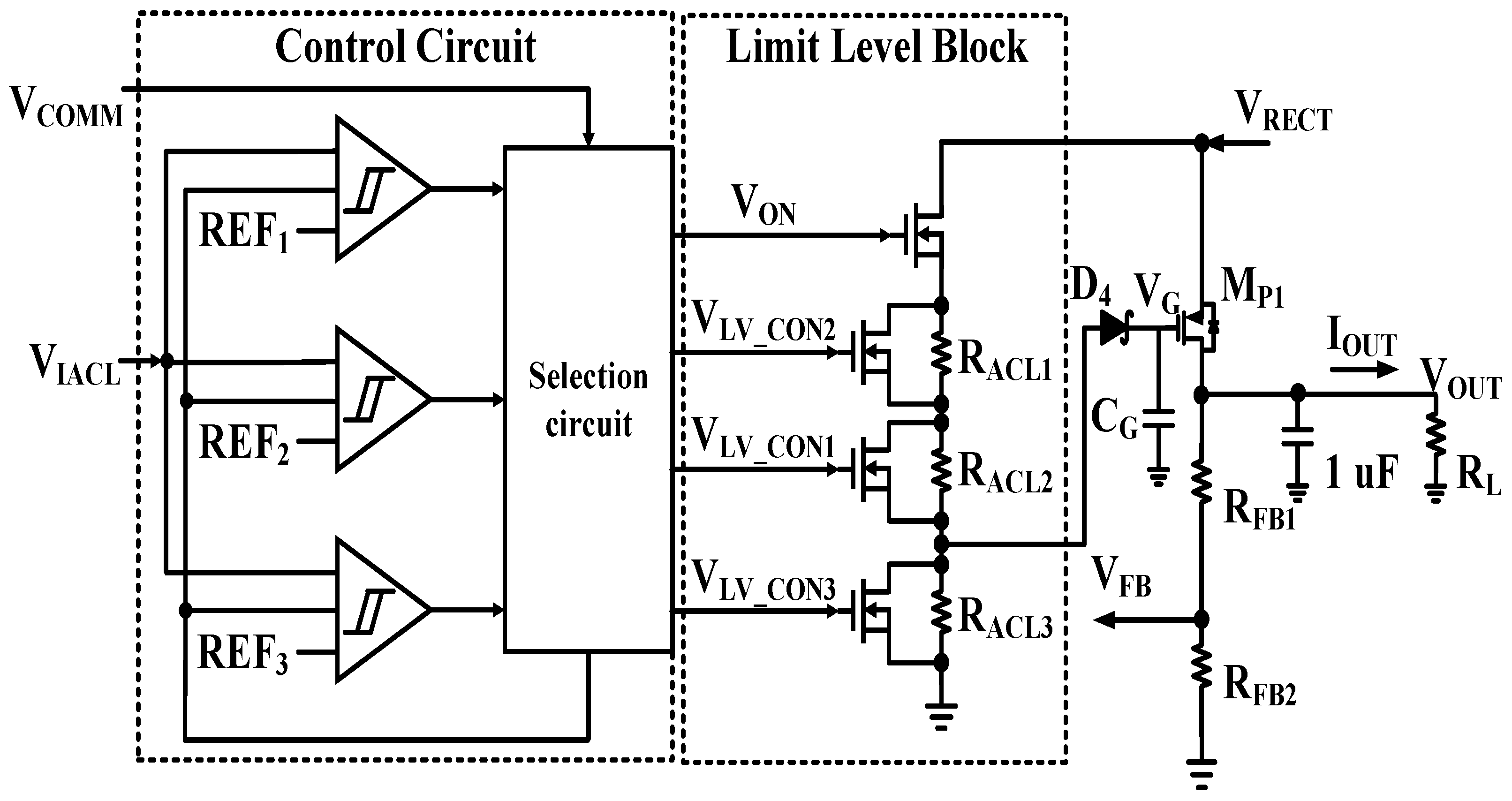

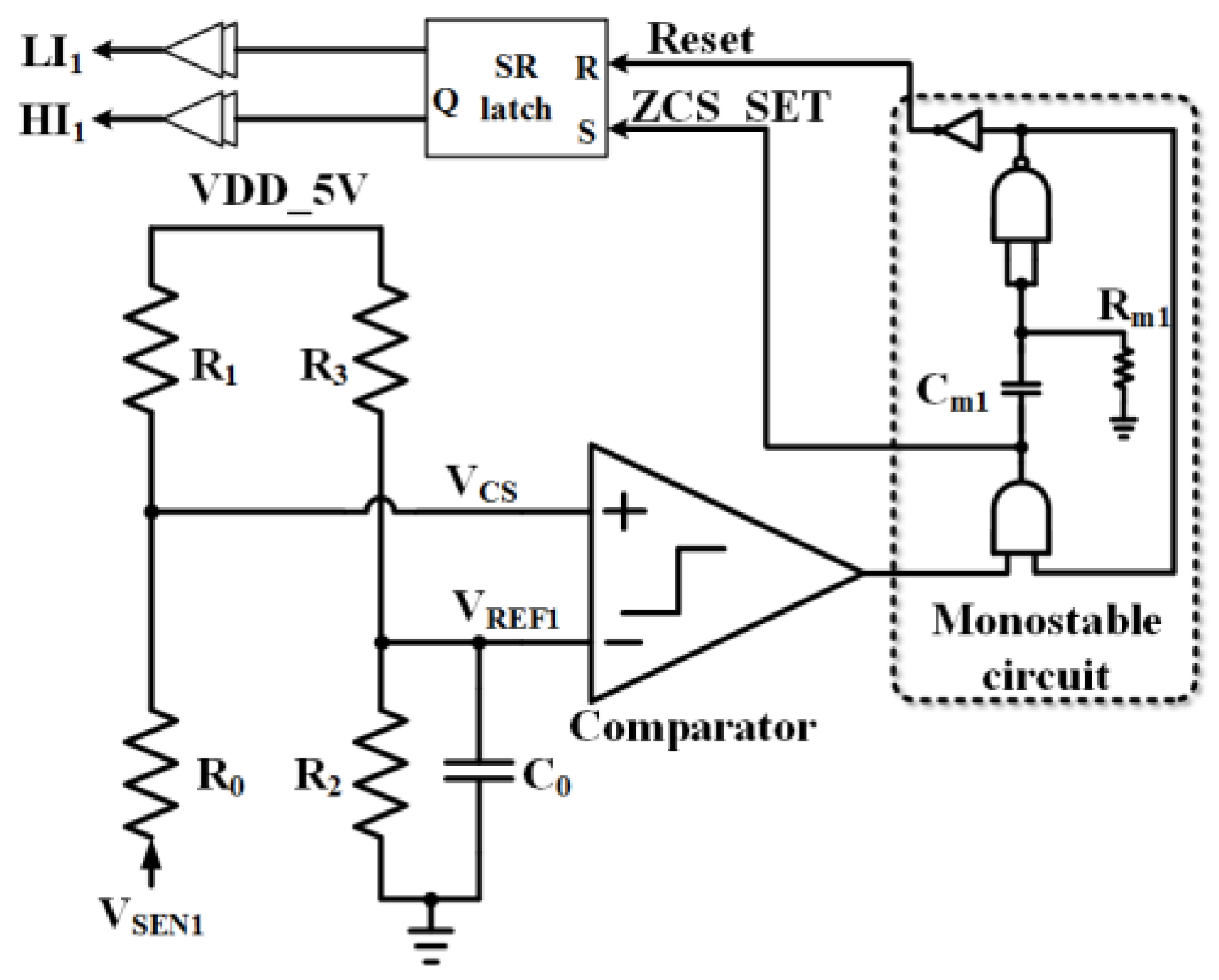

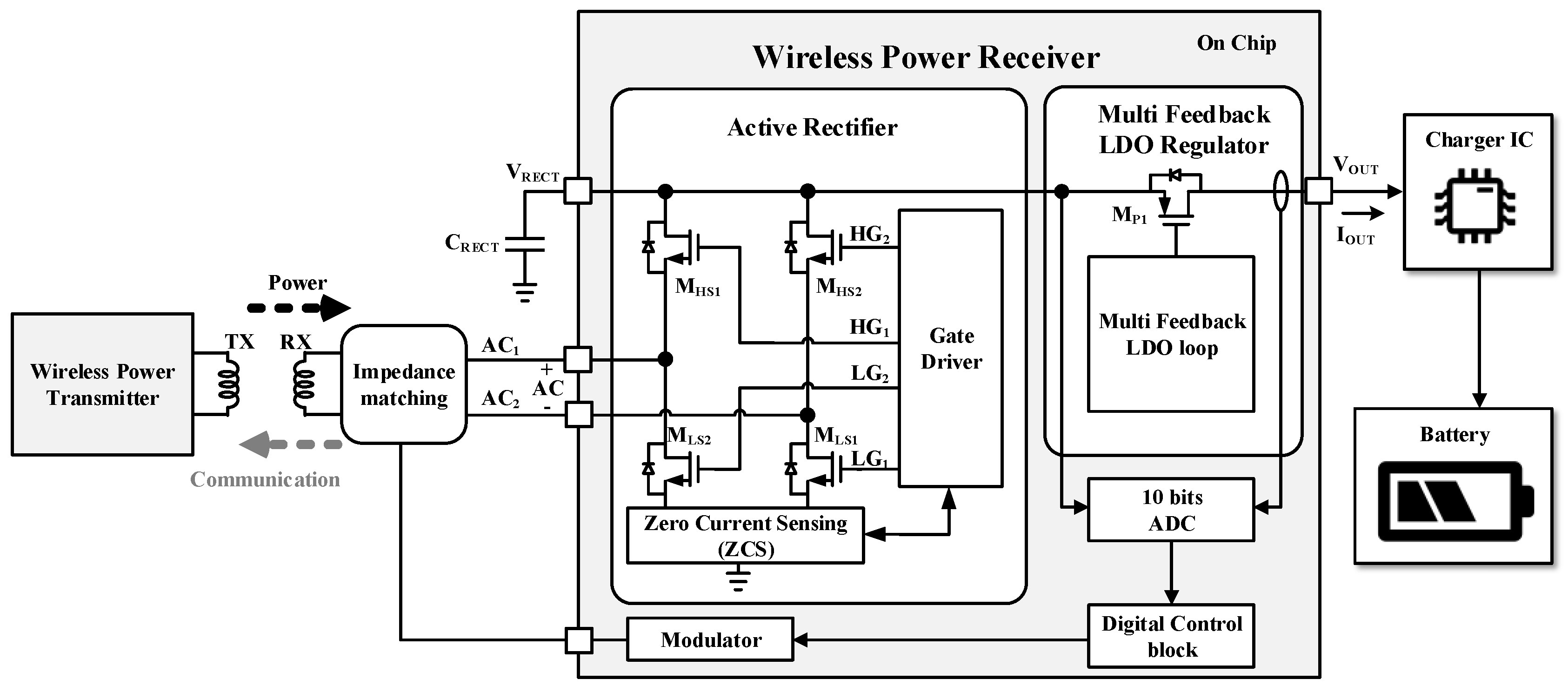

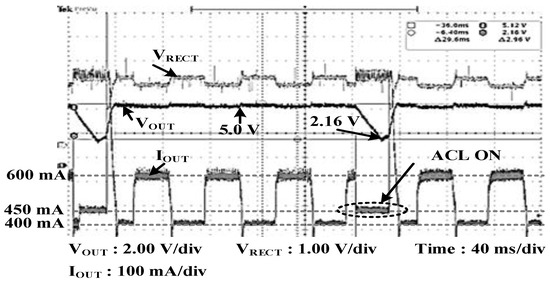

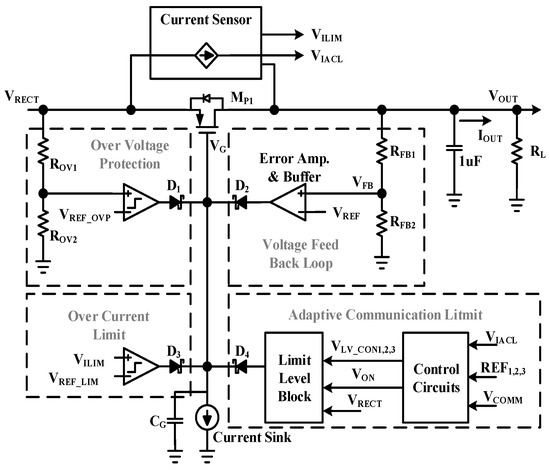

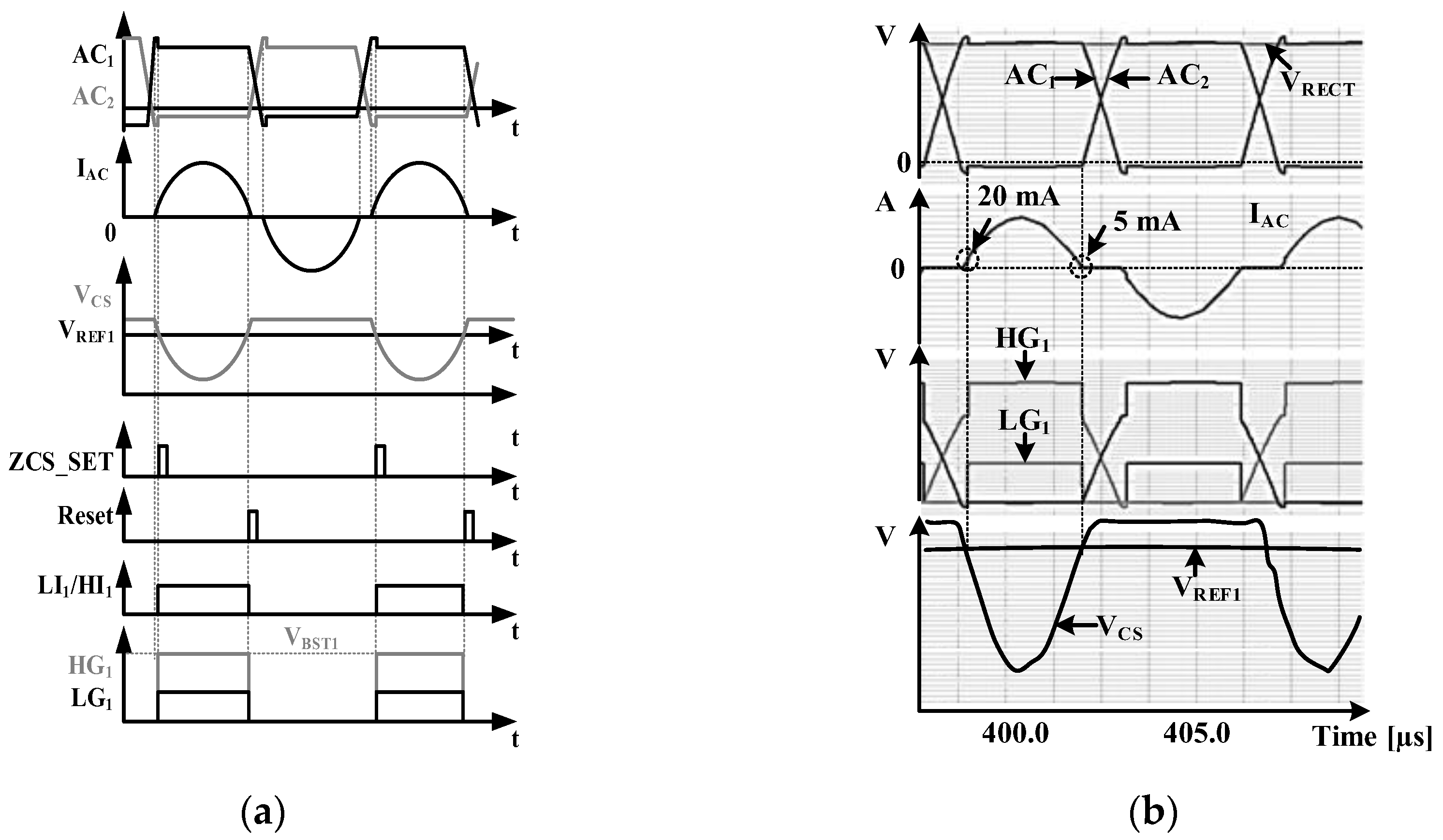

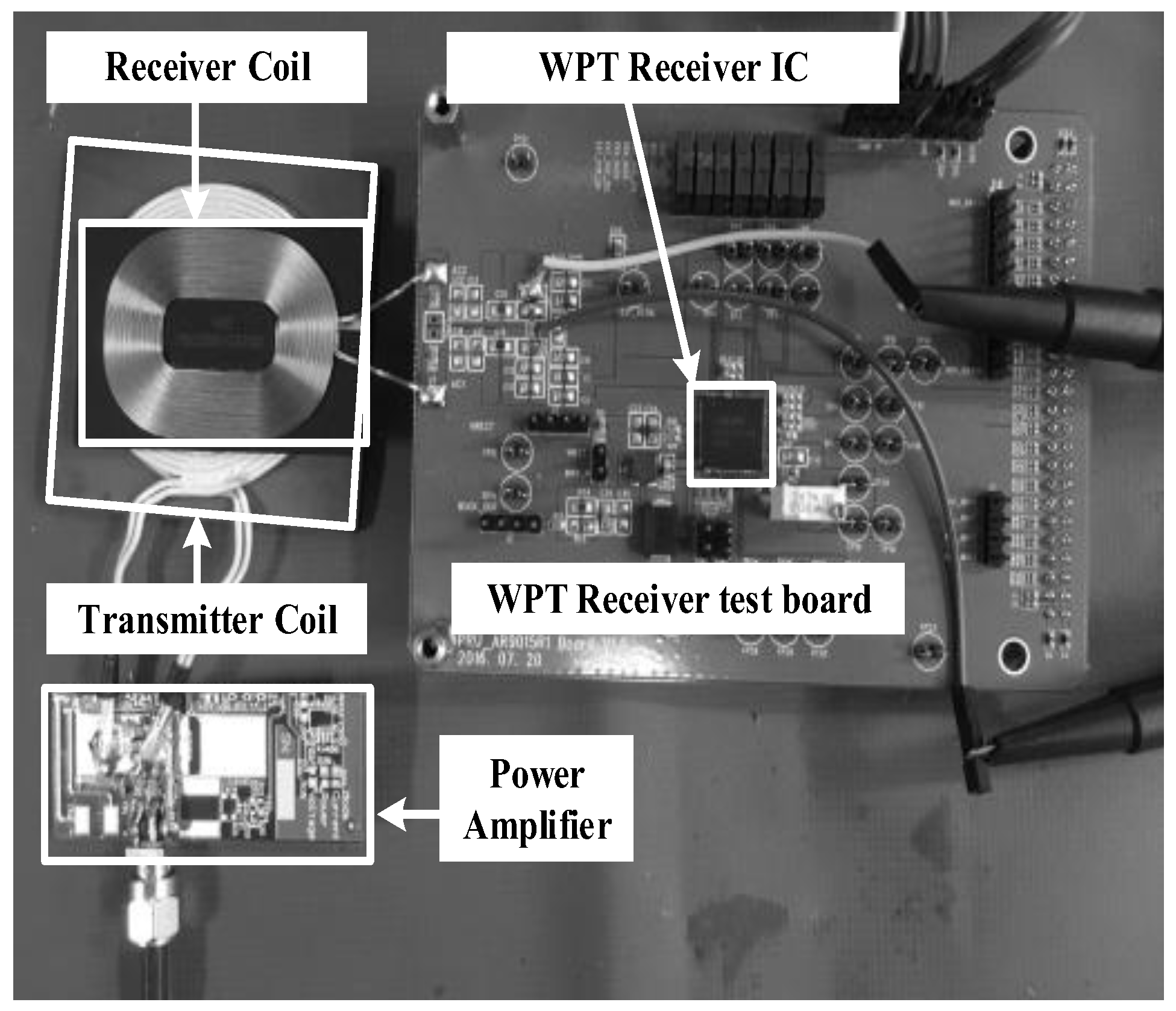

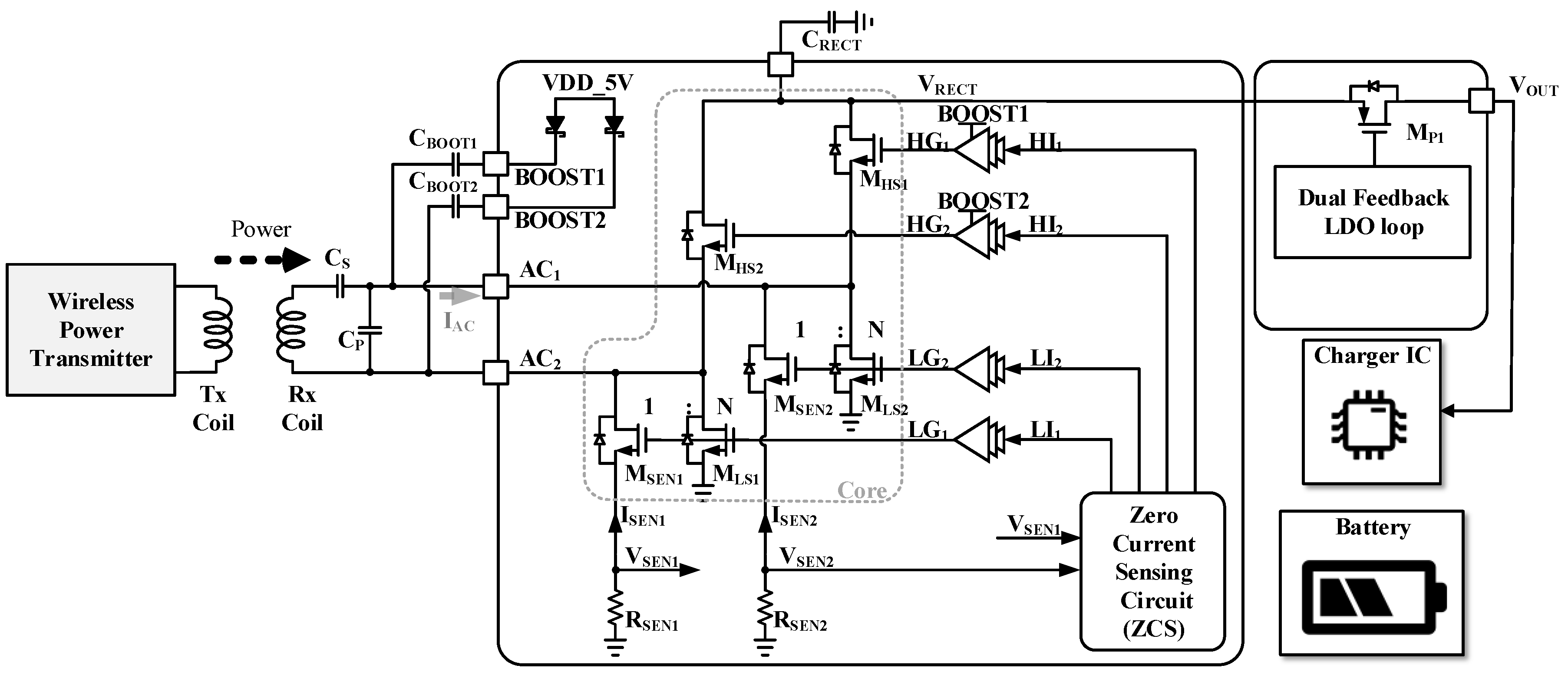

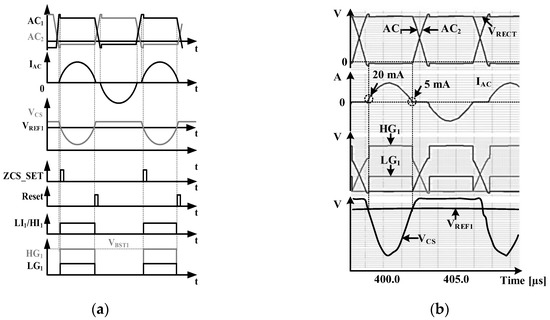

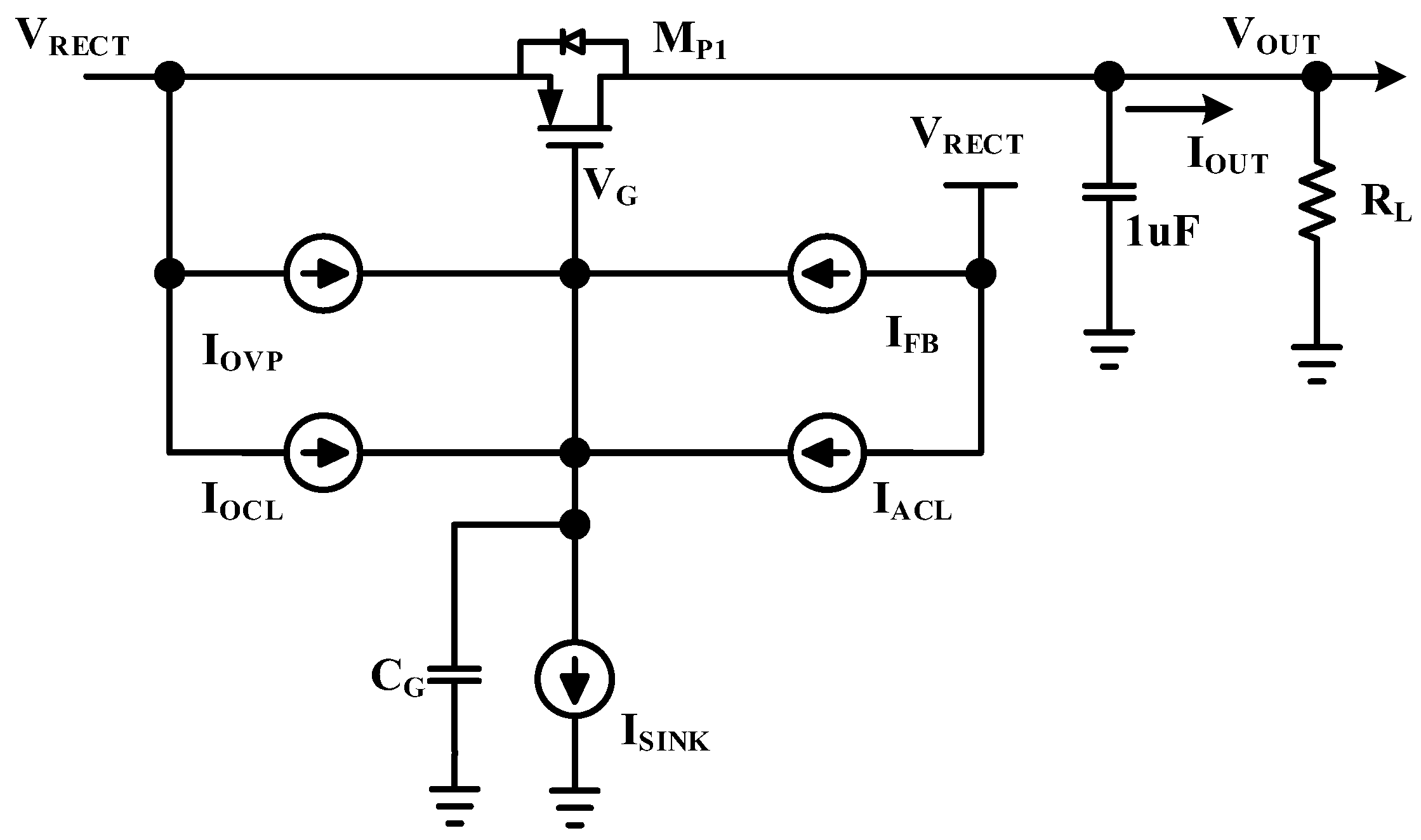

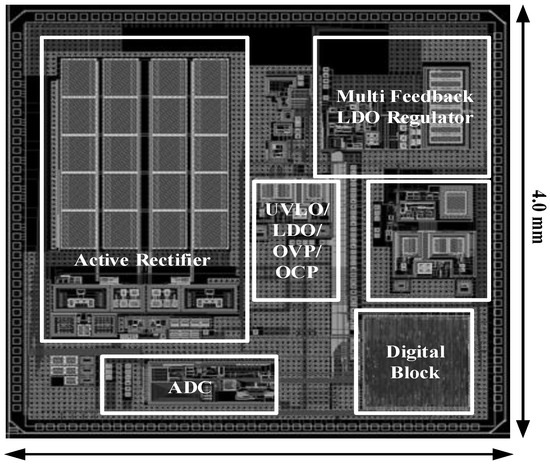

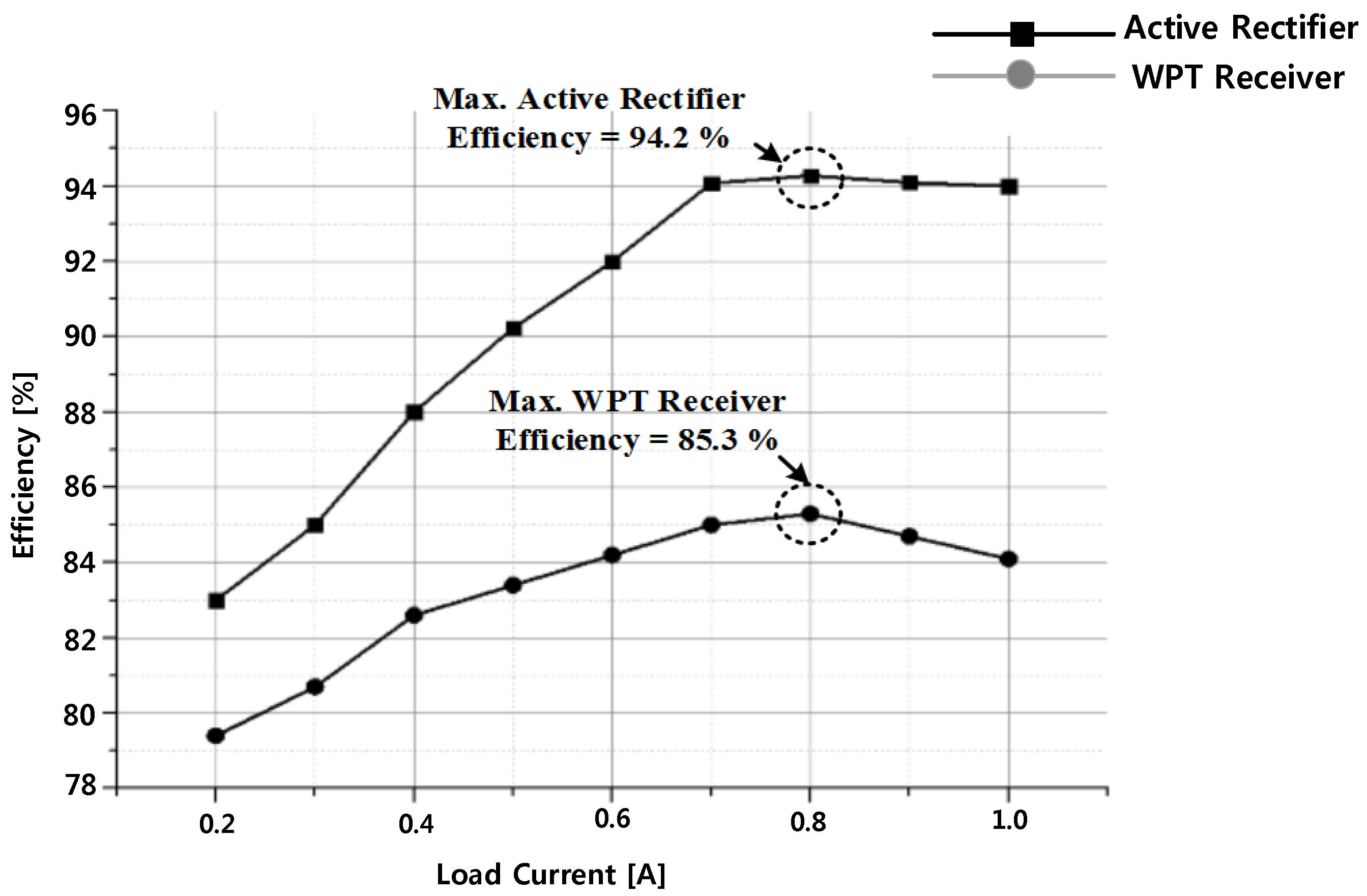

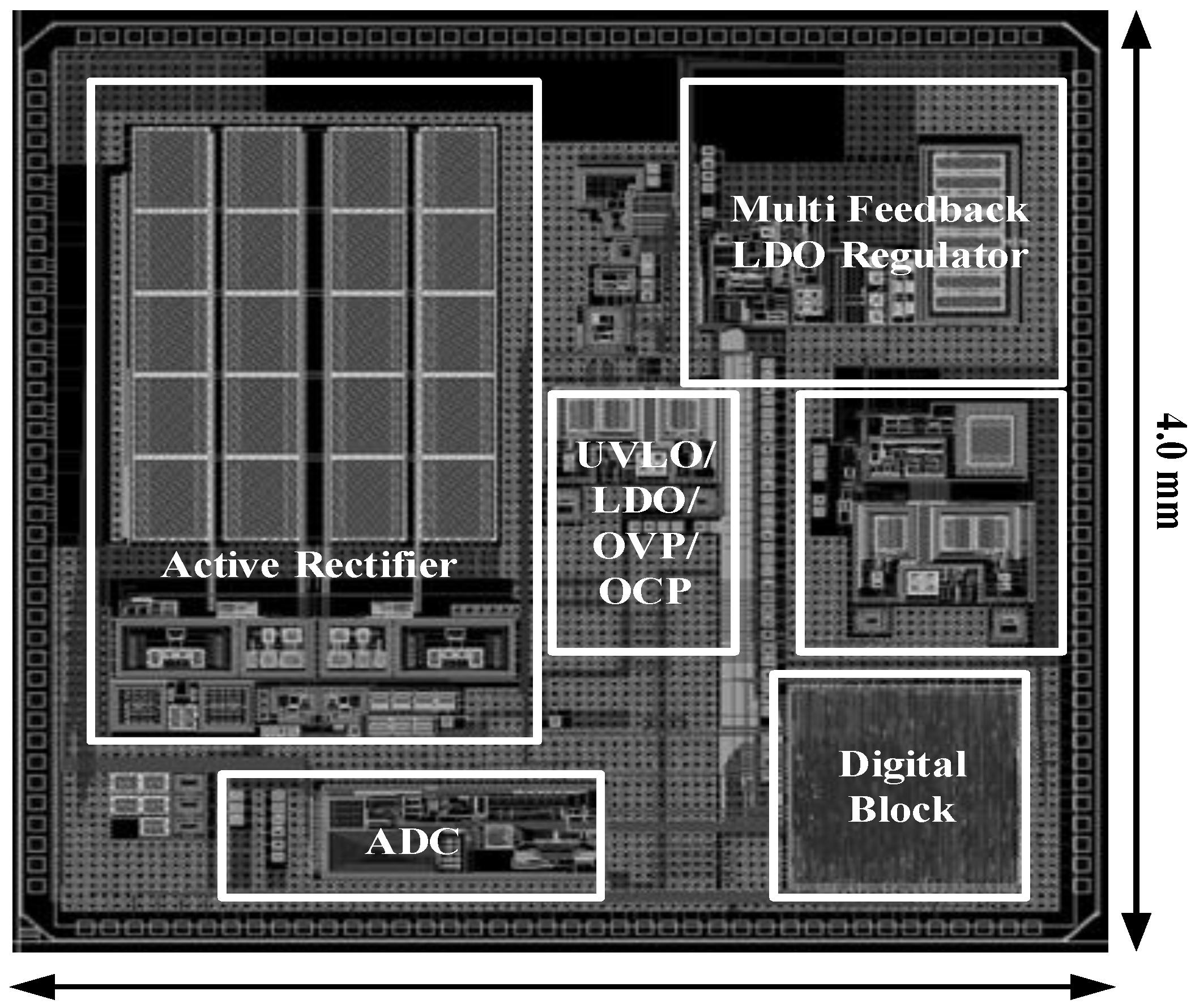

An efficient synchronous active rectifier and Multi Feedback low drop out (LDO) Regulator coupled with a wireless power receiver (WPR) is proposed in this study. An active rectifier with maximum power conversion efficiency (PCE) of 94.2% is proposed to mitigate the reverse leakage current using zero current sensing. Output voltage and current are regulated by multi-feedback LDO regulator, sharing the single path transistor. The proposed chip is fabricated in the 0.18 μm BCD technology having die area of 16.0 mm2. A 94.2% power conversion efficiency with the load current of 800 mA is measured for the proposed active rectifier. View Full-Text
Keywords: wireless power receiver; active rectifier; multi-feedback low-dropout regulator; power conversion efficiency (PCE) wireless power receiver; active rectifier; multi-feedback low-dropout regulator; power conversion efficiency (PCE)
Figures

Figure 1
