Experimental Investigation on Microscopic Residual Oil Distribution During CO₂ Huff-and-Puff Process in Tight Oil Reservoirs

Abstract

The determination of microscopic residual oil distribution is beneficial for exploiting reservoirs to their maximum potential. In order to investigate microscopic residual oil during the carbon dioxide (CO₂) huff-and-puff process in tight oil reservoirs, several CO₂ huff-and-puff tests with tight sandstone cores were conducted at various conditions. Then, nuclear magnetic resonance (NMR) was used to determine the microscopic residual oil distribution of the cores. The experiments showed that the oil recovery factor increased from 27.22% to 52.56% when injection pressure increased from 5 MPa to 13 MPa. The oil recovery was unable to be substantially enhanced as the injection pressure further increased beyond the minimum miscible pressure. The lower limit of pore distribution where the oil was recoverable corresponded to relaxation times of 2.68 ms, 1.29 ms, and 0.74 ms at an injection pressure of 5 MPa, 11 MPa, and 16 MPa, respectively. Longer soaking time also increased the lower limit of the oil-recoverable pore distribution. However, more cycles had no obvious effect on expanding the interval of oil-recoverable pore distribution. Therefore, higher injection pressure and longer soaking time convert the residual oil in smaller and blind pores into recoverable oil. This investigation provides some technical ideas for oilfields in design development programs for optimizing the production parameters during the CO₂ huff-and-puff process.

1. Introduction

The contribution of tight oil is becoming increasingly important for maximizing oil production around the world. [1,2,3,4]. However, due to poor water injectivity, conventional water flooding is unsuitable after natural depletion of tight oil reservoirs. It has been proven that carbon dioxide (CO₂) injection is a reliable method to enhance oil recovery in tight oil reservoirs [5,6]. The CO₂ injection technique can be generally categorized into CO₂ huff-and-puff and CO₂ flooding processes. In tight oil reservoirs, due to ultra-low permeability, it is difficult for the gas to drive oil from the injection well to the production well [7]. However, tight oil reservoirs often have natural fractures or hydraulic fractures, which result in early break-through during the CO₂ flooding process, resulting in very low sweep efficiency [8,9].

The CO₂ huff-and-puff process is an effective single-well enhanced oil recovery (EOR) operation in tight oil reservoirs developed through laboratory experiments [10] and now used in field application [11]. The main recovery mechanisms during the CO₂ huff-and-puff process include viscosity reduction, oil swelling, interfacial tension (IFT) reduction, hydrocarbon extraction, and solution gas drive [12,13]. Among them, the oil swelling and hydrocarbon extraction effects are considered principal mechanisms for recovering crude oil from tight formations [14,15].

To explore the CO₂ huff-and-puff processes, many experimental investigations have been reported. During the CO₂ huff-and-puff process, once the injected CO₂ contacts the crude oil, CO₂ dissolves into the crude oil. Then, the oil swells and the light components of the oil components vaporize into the CO₂ phase [16,17]. The oil recovery performance of the CO₂ huff-and-puff operation is influenced by parameters such as injection volume of CO₂, soaking time, number of cycles, and injection pressure. Abedini and Torabi [18] compared recovery performance and recognized CO₂-EOR mechanisms of immiscible and miscible CO₂ huff-and-puff processes as a superior method. They found that the ORF increased considerably and approached the maximum value as the injection pressure reached the minimum miscible pressure (MMP). Ma et al. [19] optimized the effects of the primary parameters of CO₂ huff-and-puff for tight formations and indicated that three cycles are optimal for tight oil reservoirs, and an oil recovery factor (ORF) of more than 30% was obtained with three cycles. Pu et al. [20] found that differential production pressure (ΔP) is the dominant parameter for tight oil recovery in CO₂ huff-puff processes from an investigation in 0.3 md cores. The field-scale CO₂ huff-and-puff performance was evaluated through experimental and numerical techniques [21]. Song and Yang [10] revealed that 15 days was the optimal soaking time for the ORF of CO₂ huff-and-puff process in Bakken tight oil formations.

The current investigations of CO₂ huff-and-puff processes in tight oil reservoirs are mainly about EOR mechanisms and parameter optimization. The microscopic residual oil distribution during CO₂ huff-and-puff processes in tight oil reservoirs has rarely been studied. The determined residual oil distribution is not only beneficial for determining the EOR mechanisms of the CO₂ huff-and-puff tests, but also for exploiting tight reservoirs to their maximum potential.

At present, various microscopic experiments have been employed to identify the residual oil in porous media, such as the micro-displacement model built with true sandstone [21], the photoetching model [22,23], and the X-ray computed tomography (CT) scanning technique [24]. However, the residual oil distribution in micro-displacement models and photoetching models is difficult to accurately quantify. Due to the X-ray CT technique responding to fluid and rock matrix materials, the accuracy of the residual oil distribution mainly depends on the image processing technique [24]. Nuclear magnetic resonance (NMR) signals are only correlated with fluid distributed in pores, and there is a positive correlation between the pore radius and the NMR transverse relaxation time (T₂) value [25]. Yang [26] and Chen [27] used NMR measurements to investigate the residual oil distribution during waterflooding processes and waterflooding huff-and-puff in tight oil formations. Gao [28] quantitatively determined the initial and residual oil distribution in medium-to-high-permeability cores with the NMR technique. Therefore, NMR is a reliable method to quantitatively determine the microscopic residual oil distribution during CO₂ huff-and-puff processes.

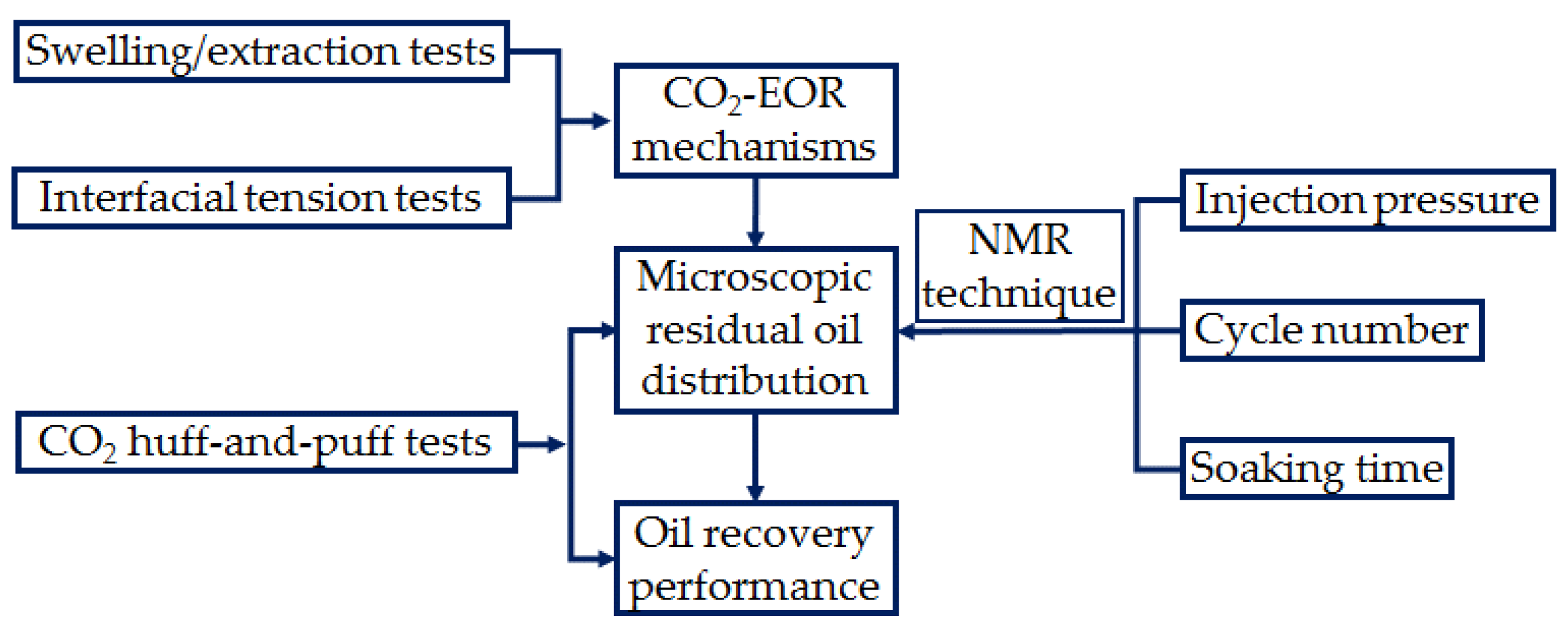

In this paper, the microscopic residual oil distribution during CO₂ huff-and-puff processes in tight oil reservoirs was experimentally investigated. The logic structure diagram of this paper is presented in Figure 1. In order to clarify the CO₂-EOR mechanisms, a phase behavior study of a CO₂-oil system was carried out. CO₂ solubility, oil swelling factor, and the interfacial tension of the CO₂-oil system during CO₂ injection process were measured. Then, several CO₂ huff-and-puff tests were carried out at various conditions. In each test, the stage and cumulative amount of produced oil and the viscosity of the produced oil were measured. After each huff-and-puff test, the NMR technique was used to determine the microscopic residual oil distribution. The effect of injection pressure, cycle number, and soaking time on the microscopic residual oil distribution were analyzed. The CO₂-EOR mechanisms could be further interpreted through a microscopic residual oil distribution analysis. This study provides an interpretation of the CO₂ huff-and-puff process from a microscopic perspective as well as suggestions for optimizing production parameters in tight formations.

2. Experimental Setup

2.1. Materials

In the experiment, the core samples were tight cores collected from Changqing Oilfield, China. It is noted that core samples with nearly the same gas permeability and pore distribution were selected from the same formation. The properties of cores are listed in

Table 1. Basic properties of tight core plug samples.

No.	Length (cm)	Diameter (cm)	Permeability (mD)	Porosity (%)	Connate Water Saturation (%)
1	6.652	2.506	0.81	13.34	24.49
2	6.138	2.506	0.36	12.20	26.01

.

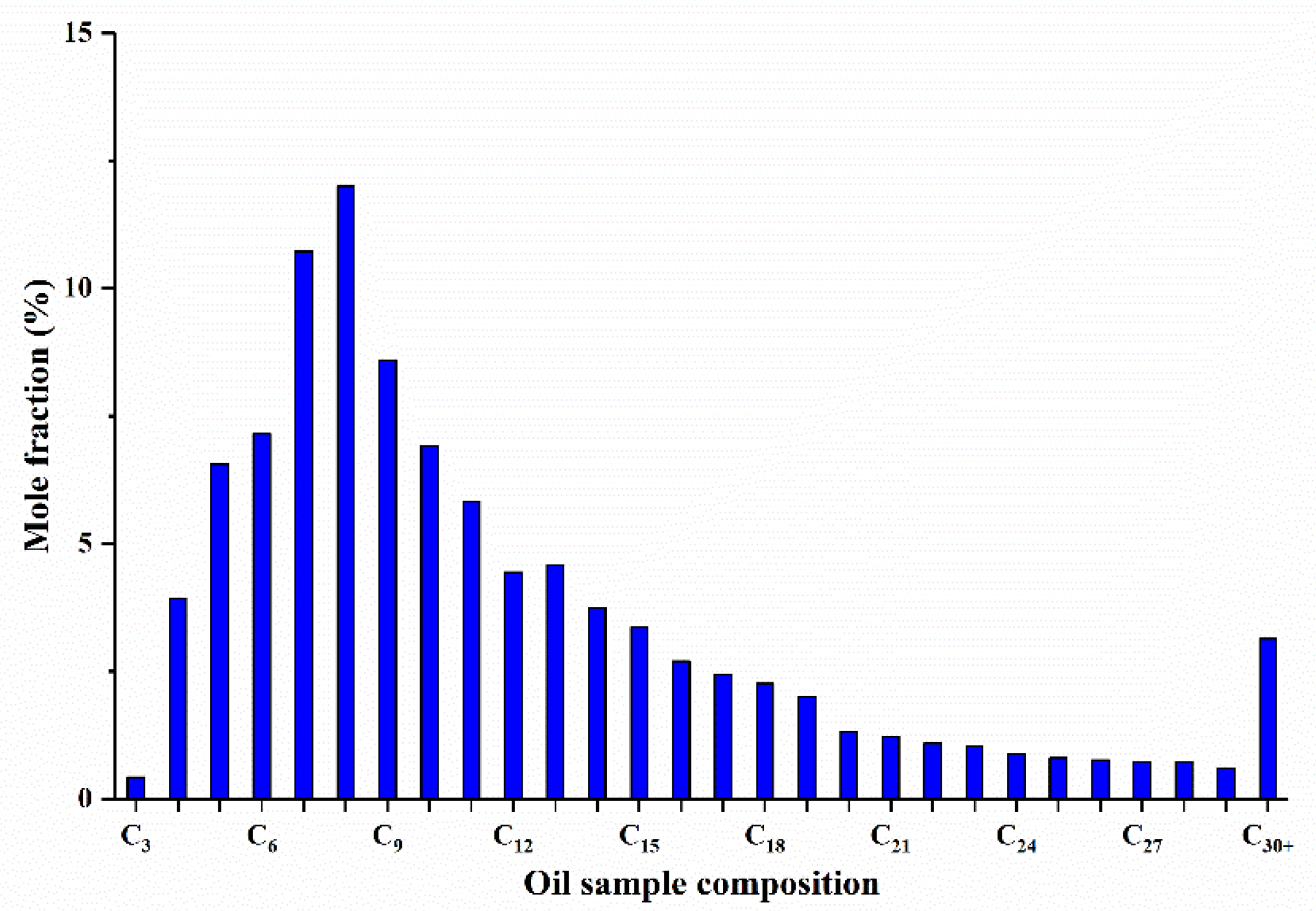

The stock tank oil (STO) sample was collected from the Changqing Oilfield, China. The density, molecular weight (MW_oil), and viscosity of the cleaned STO was measured as 833.4 kg/m³, 229.7 g/mol and 4.80 mPa·s, respectively, at atmospheric pressure and 61 °C. The gas chromatography (GC) compositional analysis of the cleaned crude oil sample at 21 °C is shown in Figure 2.

The brine was considered to be a calcium chloride water type of, which had the total dissolved solids (TDS) of 30,917.8 mg/L. The brine viscosity was measured as 0.4 mPa·s at atmospheric pressure and 61 °C. The purity of the CO₂ used in this study was 99.99%, and was supplied by Beijing Huayuan Gas Chemical Co. Ltd. (Beijing, China).

2.2. CO₂ Solubility and Oil Swelling Factor Measurements

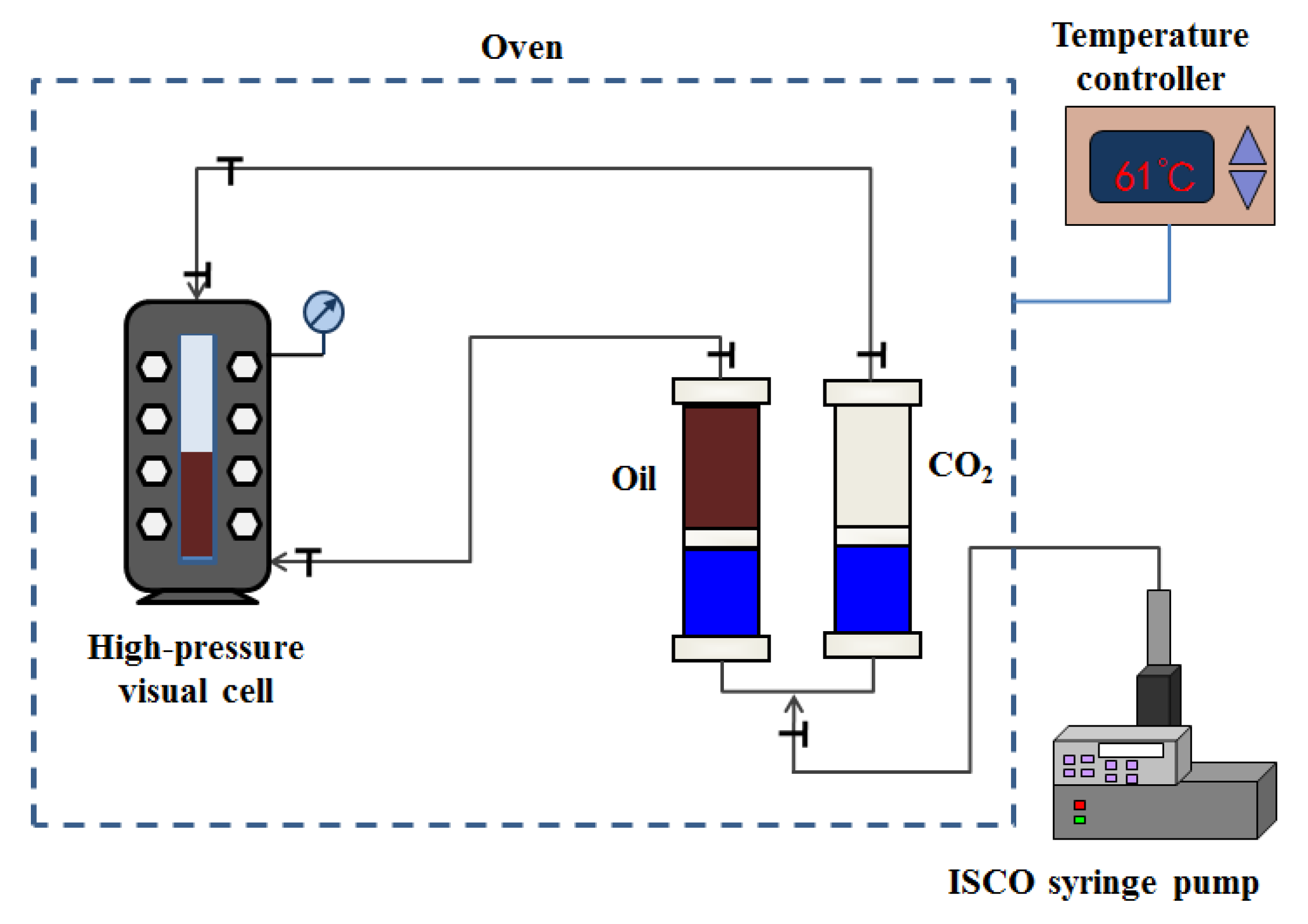

Figure 3 shows the schematic diagram of the experimental apparatus used for CO₂ solubility and oil swelling factor measurements at various equilibrium pressures. The apparatus includes a high-pressure visual cell (HD-KS-02, Huada, Haian, China), a magnetic stirrer (85-2, Sile, Shanghai, China), high-pressure cylinders and a constant flow pump (260D, ISCO, Lincoln, NE, USA). A pressure transducer (HKY-06C, HKY, Beijing, China) was used to measure pressure inside the cell. The inner volume of the high-pressure cell was 80.00 cm³ and the magnetic stirrer was used to accelerate the CO₂ dissolution into the oil. The crude oil sample was injected into the visual cell to a specific volume of V_o,i = 30.00 cm³.

Then, the cell was pressurized with CO₂ to a prespecified pressure $P_i$. When the pressure inside the cell reached a stable value ($P_f$) and did not change, the CO₂-oil system was considered to have reached equilibrium. The height of the oil sample inside the visual cell was measured using a cathetometer. In this study, the CO₂ solubility (${\chi }_{{\mathrm{CO}}_2}$) is defined as the total moles of dissolved CO₂ in 1 L of the original crude oil sample. Mass balance equations were used to calculate the CO₂ solubility, which is shown follows:

$$n_{C{O}_2}=n_{C{O}_2,i}-n_{C{O}_2,f }=\frac{P_i{V}_i}{Z_{i}RT}-\frac{P_f{V}_f}{Z_{f}RT}=\frac{1}{RT}\left(\frac{P_i{V}_i}{Z_i}-\frac{P_f{V}_f}{Z_f}\right)$$

(1)

where $n_{C{O}_2}$ represents the moles of CO₂ dissolved in the oil (mol); $n_{C{O}_2,i}$ and $n_{C{O}_2,f}$ are the moles of the CO₂ of the gas phase at initial and final condition (mol), respectively; $P_i$ and $P_f$ are the initial pressure and final pressure of the system (MPa), respectively; $V_i$ and $V_f$ represent the initial and final volume of the CO₂ of gas phase (cm³), respectively; $R$ is the universal gas constant (8.314 J/(mol·k)); $T$ is the experimental temperature (K); and $Z_i$ and $Z_f$ are the gas compressibility factor at initial and final conditions, respectively.

$${\chi }_{C{O}_2}=\frac{n_{C{O}_2}}{V_{o,i}}=\frac{1}{RT{V}_{o,i}}\left(\frac{P_i{V}_i}{Z_i}-\frac{P_f{V}_f}{Z_f}\right)$$

(2)

where ${\chi }_{C{O}_2}$ is the solubility of CO₂ in the oil (mol/L) and $V_{o,i}$ represents initial volume of the oil (cm³).

Then, the oil swelling factor (SF) was determined by the ratio of the final volume of the oil to its initial value at the beginning of the experiment:

$$SF=\frac{V_{o,f}}{V_{o,i}}$$

(3)

where SF is the oil swelling factor and $V_{o,i}$ represents the final volume of the oil (cm³).

2.3. CO₂-oil IFT Measurements

A schematic diagram of the setup to measure the dynamic IFT between CO₂ and the crude oil is shown in shown in Figure 4. The core device of the set-up was the high-pressure IFT cell (IFT-10, Temco, Fremont, CA, USA) with maximum operating pressure and temperature of 69 MPa and 177 °C, respectively, and the designed volume of the IFT cell was 49.5 cm³. A pump (260D, ISCO, Lincoln, NE, USA) was used for injecting CO₂ into the optical cell and another syringe pump was used for injecting the crude oil into a stainless syringe needle. A microscopic camera was used to capture the image of the pendant drop and computer installed software (FTA, First Ten Angstroms Portsmouth, VA, USA) based on axisymmetric drop shape analysis (ADSA) was utilized to analyze the digital oil drop image. A densitometer (DMA512P, Anton Paar, Graz, Austria) was used to measure the densities of the oil during different tests.

After cleaning the experimental setup and heating the setup to a reservoir temperature of 61 °C, CO₂ was pumped into the optical cell to the designated pressure. A pendant drop of the oil was introduced and formed. A series of digital images of the pendant drop were captured at different times. The pendant drop remained two minutes at the tip of the syringe needle before the drop dropped off when equilibrium was achieved. The shapes of the pendant drop were analyzed by the ADSA technique to measure the dynamic IFT between the pendant oil drop and the CO₂ phase. The IFT tests at different designed pressures were repeated three times and the measurement error between different tests should be less than 0.5 mJ/m².

2.4. CO₂ Huff-and-Puff Tests

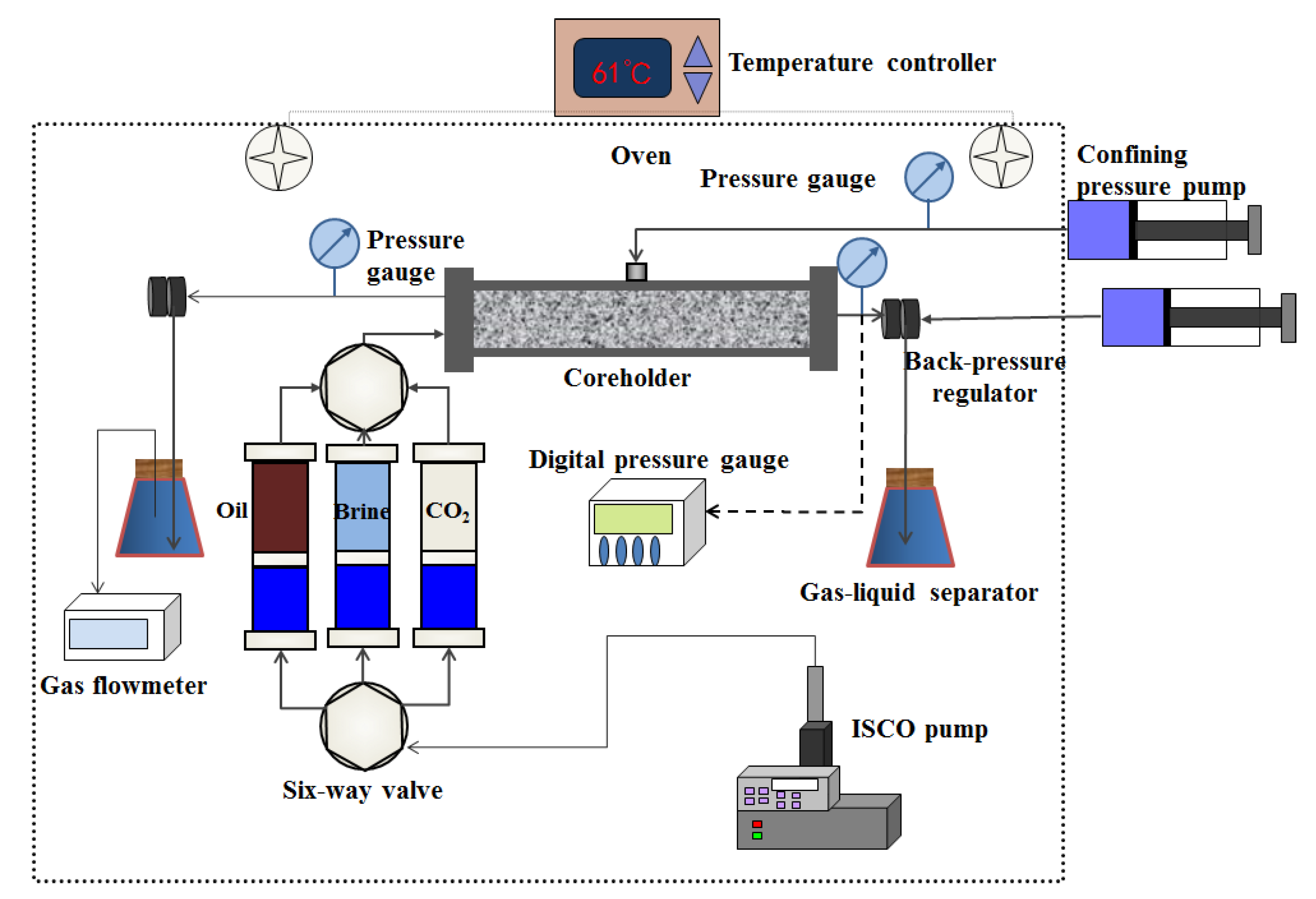

The CO₂ huff-and-puff tests were carried out with the apparatus shown in Figure 5. A constant flow pump (260D, ISCO, Lincoln, NE, USA) was applied to displace the crude oil, brine, and CO₂ through the core plug inside a high-pressure stainless steel coreholder (TY-4, Huada, Haian, China) with an inner and outer diameter of 25 mm and 40 mm, respectively. Three high-pressure cylinders were applied to store and deliver crude oil, brine and CO₂, respectively. The confining pressure on the core plug was always maintained 2–3 MPa higher than the injection pressure with another ISCO syringe pump. An air bath that was heated by two electronic heat guns combined with a temperature controller was used to keep the system at the reservoir temperature of 61 °C. A back-pressure regulator (HDB-03, Huada, Haian, China) was used to target the desired production pressure during the coreflood test. The produced oil was collected in a burette and the volume of the produced gas was measured by a gas flow meter.

The general procedure for the CO₂ coreflood tests is briefly described as follows.

(1)

Prior to each test, the core plugs were thoroughly cleaned using a Dean-Stark extractor (SXT-02, Shanghai Pingxuan Scientific Instrument Co., Ltd., Shanghai, China) for 20–30 days. After the core plugs were cleaned and dried at 100 °C. The gas permeability and porosity were measured with nitrogen (High-Pressure Gas Permeameter/Porosimeter, Temco, Tulsa, OK, USA).

(2)

The core plug was placed in a high-pressure coreholder (TY-4, Huada, Haian, China) and vacuumed for 24 hours. Then, the formation brine was injected at a flow rate of 0.2 cm³/min to saturate the core plug. After that, the NMR apparatus (Mini-NMR, Niumag, Suzhou, China) was used to measure the transverse relaxation time T₂ of the core sample under the initial water-saturated condition. The magnetic intensity, gradient value control precision, and frequency range of the NMR apparatus were 0.5 T, 0.025 T/m, 0.01 MHz, and 1–30 MHz, respectively.

(3)

The core was displaced with MnCl₂ solution (15,000 mg/L) of 5 PV. Then, the saturated core was scanned again by the NMR apparatus to ensure the hydrogen signal of the brine was eliminated.

(4)

After that, 3.0 PV of the crude oil was pumped through the core plugs at a constant rate of 0.1 cm³/min until no water was produced to achieve the connate water saturation (S_wc) and the initial oil saturation (S_oi) at a reservoir temperature of 61 °C. The T₂ spectrum was measured again after the core had been saturated with crude oil.

(5)

In each test, the pressure of the CO₂ in the high-pressure cylinder was increased to the prespecified injection pressure at the temperature of 61 °C. Then, the CO₂ was injected into the oil saturated core at constant pressure to the desired pressure and the pump maintained the constant pressure condition for 30 min. After CO₂ injection, CO₂ was allowed to soak for t_soak = 6 h. Then, the oil was produced from the same end of the coreholder at atmospheric pressure. The huff-and-puff cycles continued until no considerable oil production was obtained. The injection and production pressure were continuously monitored and recorded during the entire test. A video camera was utilized to measure the cumulative produced oil volume.

(6)

After the CO₂ huff-and-puff test, the T₂ transverse relaxation time of the core samples was measured with the NMR apparatus.

3. Results and Discussion

3.1. Phase Behaviors of CO₂-Oil System

3.1.1. CO₂ Solubility and Oil Swelling Measurement

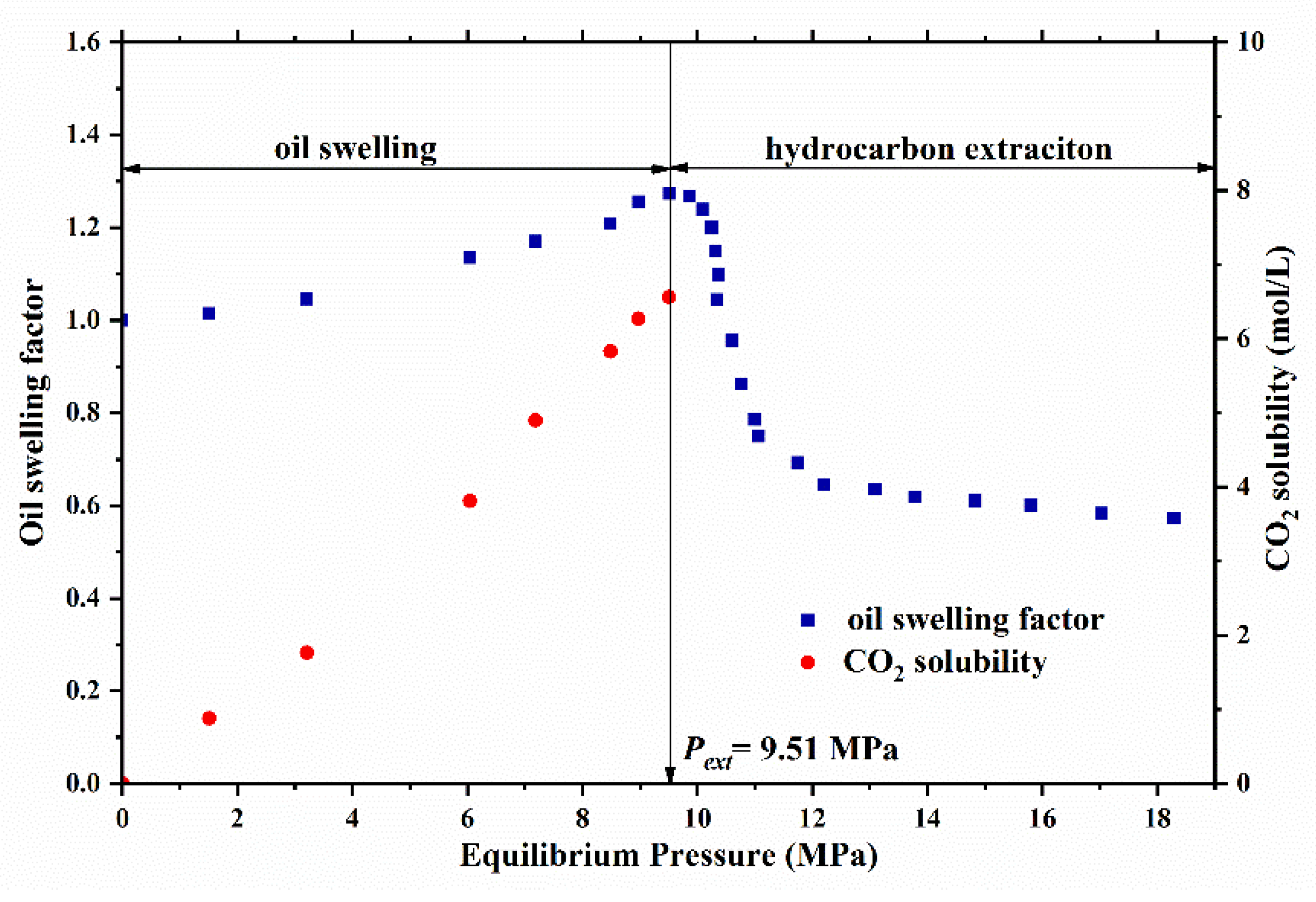

The CO₂ solubility in the crude oil, which is the key parameter of the performance of the CO₂ injection process, directly influences the oil swelling factor, oil viscosity, oil density, and CO₂-oil IFT [29]. The swelling/extraction test of the oil sample was conducted at a reservoir temperature of 61 °C. As shown in Figure 6, CO₂ solubility increased with increasing equilibrium pressure. At the same time, the oil swelling factor increased due to more dissolved CO₂ in the crude oil. However, the oil swelling factor did not monotonously increase throughout the experiment. When the equilibrium pressure was higher than 9.51 MPa, the crude oil expanded by 28% and the oil swelling factor began to decrease. As the pressure continued to increase, the escaping rate of the light component molecules began to be greater than the rate of CO₂ dissolved in the liquid phase [30]. When the equilibrium pressure reached 14.83 MPa, the oil swelling factor was only 0.61.

The curve of the oil swelling factor at various equilibrium pressures was divided into two sections. When the oil swelling factor increases, the dominant effect was the oil swelling effect due to CO₂ dissolved in the crude oil, though some light components in the liquid phase evaporated. As the oil swelling factor started to decrease, the extraction effect played a dominant role. The minimum extraction pressure (MEP) is defined as the pressure where the oil swelling factor begins to decrease. When the equilibrium pressure was between 9.51 MPa and 12.20 MPa, the oil swelling factor decreased rapidly because the light components are easily extracted. The larger the molecular weight, the smaller the rate of molecular motion at the same temperature [31]. When the pressure was higher than 12.20 MPa, most light components were already extracted and molecules with higher weights is more difficult to be extracted by CO₂. Thus, the curve of oil swelling factor with pressure decease much more slowly.

3.1.2. IFT Measurement

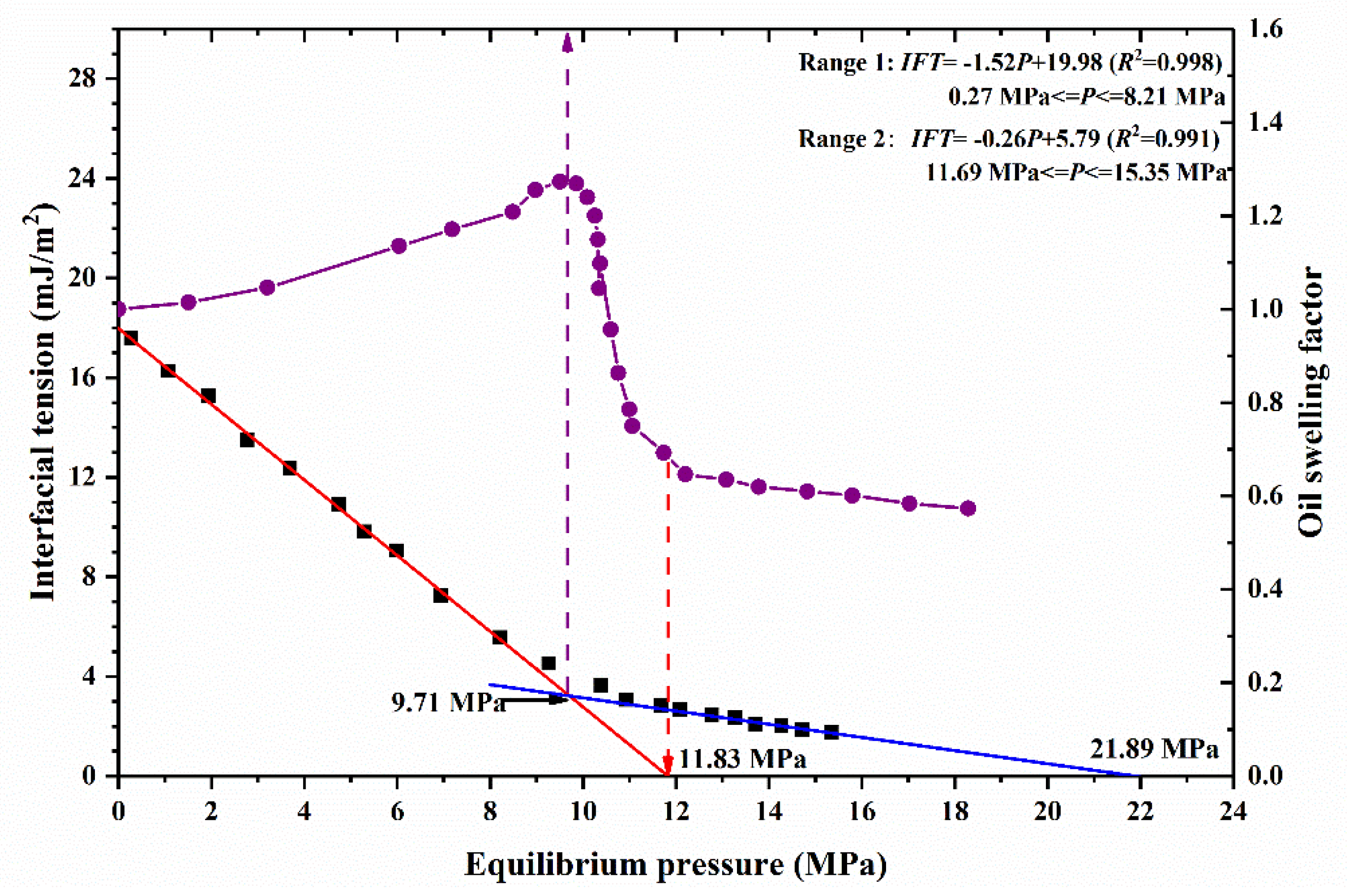

In this study, the IFT between the CO₂ and crude oil was determined using the ADSA technique. Figure 7 shows the measured IFT of the CO₂-crude oil system at various equilibrium pressure. The IFT of the CO₂-oil system decreases with increasing pressure and the CO₂-oil system was considered to be miscible when the IFT was 0 [32]. The whole curve was divided into two sections to fit and extrapolate to intersect with the X axis, respectively (Figure 7). The two fitted straight lines intersect at 9.71 MPa, which was 0.2 MPa higher than the MEP of the crude oil (9.51 MPa). Therefore, 9.71 MPa was considered to be the critical point where the CO₂-ROE mechanism changed from oil swelling effect to hydrocarbon extraction effect.

The pressure in Range 1 was defined from 0.047 MPa to 9.71 MPa and the intercept of the linear regression of points in Range 1 was 11.83 MPa (Figure 7). Corresponding to the IFT tests, the phenomenon during the swelling/extraction tests was recorded by photographs, as shown in Figure 8. When the equilibrium pressure was 3.21 MPa, which was much lower than the MEP of the crude oil, the oil in the area below the phase interface was lighter in color due to CO₂ dissolution. As the pressure increased to a MEP of 9.51 MPa, light-colored droplets appeared on the glass window. The time required to reach equilibrium between the gas and liquid phase increased with increasing equilibrium pressure. When the equilibrium pressure reached 11.73 MPa, a light-colored area that was about 5–6 mm appeared above the liquid level. This area was mainly composed of light and medium components as well as dissolved CO₂. Multi-phase contact between CO₂ and crude oil is necessary for CO₂-oil system to attain miscibility. Therefore, 11.83 MPa was the multi-phase-contact minimum miscibility pressure of the CO₂-oil system. When the pressure was higher than M-MMP, the oil swelling factor changed little. The second linear regression intersected with IFT = 0 at 21.89 MPa, which was interpreted as the first-contact minimum miscibility pressure because almost all medium and heavy components were also miscible with CO₂ at this pressure [33].

3.2. Microscopic Residual Oil Distribution During CO₂ Huff-and-Puff Processes

3.2.1. Effect of Injection Pressure on Residual Oil

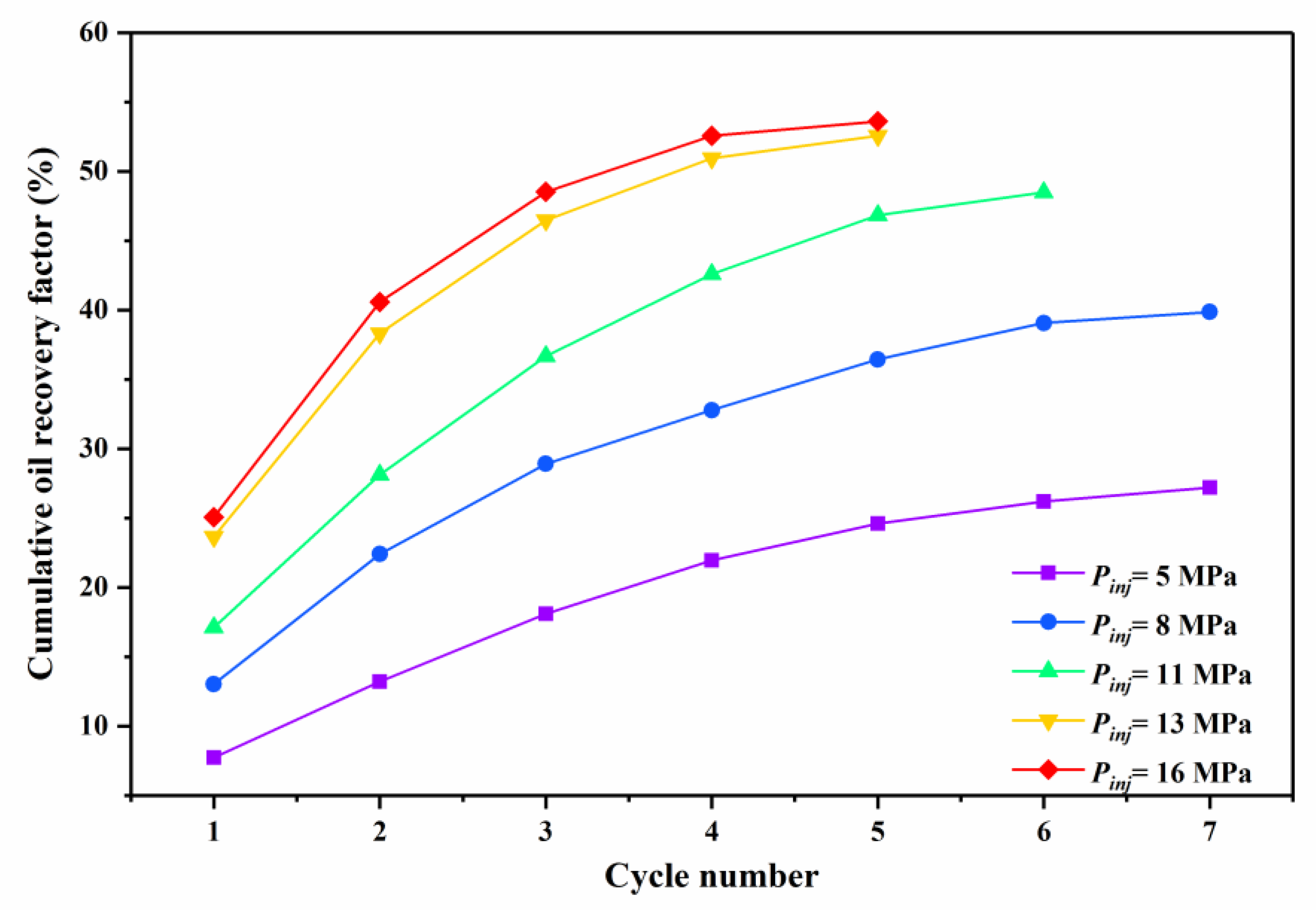

Figure 9 shows the measured ORF versus cycle number at different injection pressures. The total cycle number of each CO₂ huff-and-puff test was lower at higher injection pressures. When the injection pressure was less than MEP of 9.51 MPa, seven cycles were conducted until no oil was obtained in each test. When the injection pressure was higher than the MMP of 11.83 MPa, the cyclic CO₂ injection test was terminated after five cycles. The ultimate ORF increased with the injection pressure and gradually slowed down (Figure 9 and Figure 10). The ultimate ORF increased remarkably from 27.22% to 52.56% as the injection pressure increased from 5 MPa to 13 MPa. Obvious oil recovery was not obtained with further increase in the injection pressure, and the ORF only increased by 1.04% as the injection pressure increased from 13 MPa to 16 MPa.

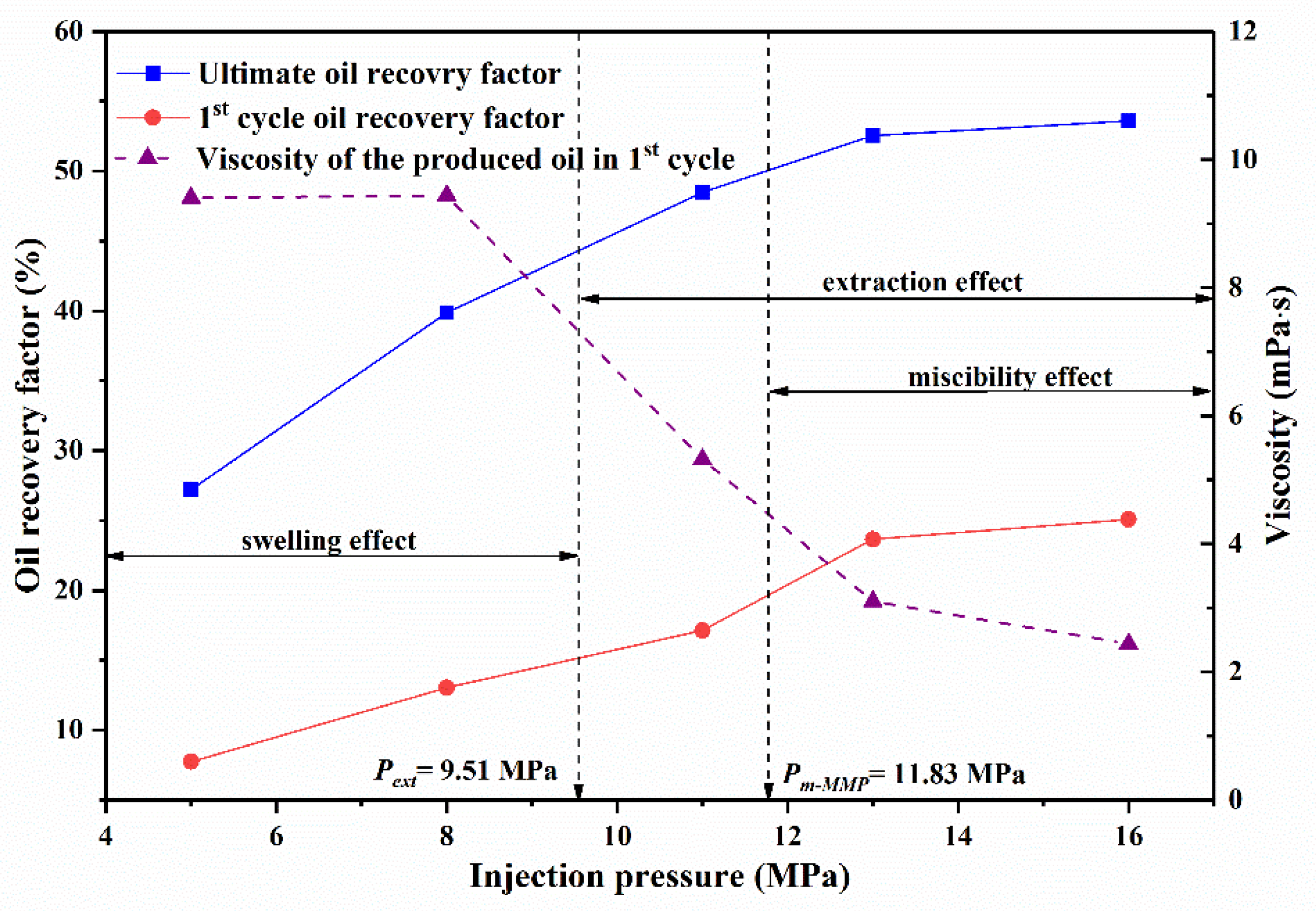

The viscosity of the produced oil in the first cycle of the CO₂ huff-and-puff tests performed at different injection pressures is shown in Figure 10. The viscosity of the produced oil decreased from 9.40 mPa·s to 2.44 mPa·s as the injection pressure increased. When the injection pressure was lower than the MEP, the interface of the CO₂-oil was obvious. The oil swelling effect was determined as the dominant recovery mechanism and the extraction effect of the CO₂ was weak. So, the viscosity of the produced oil and the composition of the residual oil in the formation changed little. The produced oil form each cycle was mainly recovered through the elastic energy of the reservoir. More cycles were necessary at lower injection pressures to reach the development capacity of the reservoir.

When the injection pressure was higher than the MEP, especially higher than the MMP, more light and medium components could be extracted by the injected CO₂. The produced oil could be categorized into two portions: the lighter oil extracted by the injected CO₂ and the oil recovered due to the elastic energy and oil swelling effect. The proportion of the lighter oil increased with injection pressure, so the viscosity of the produced oil was lower at higher injection pressure. As the huff-and-puff process progressed, the heavy components content of the residual oil increased. The solubility of the CO₂ in the residual oil decreased and the CO₂ played a weaker role in the later cycles. Therefore, the ORF in each cycle was higher and fewer cycles were needed at higher injection pressure during the CO₂ huff-and-puff processes.

In order to investigate the effect of injection pressure on the microscopic residual oil distribution during CO₂ huff-and-puff processes, the NMR technique was applied to measure core #1 after the first cycle of cyclic CO₂ injection at injection pressures of 5 MPa, 11 MPa, and 16 MPa. As shown in Figure 11, the pore distribution of core #1 was bimodal with larger slanting degrees from the T₂ spectrum of the core saturated with water. The T₂ spectrum was artificially divided into four intervals: micro pores (0.1–1 ms), small pores (1–10 ms), medium pores (10–100 ms), and large pores (100–1000 ms). By comparing the differences between the T₂ spectrum for core #1 saturated with water and that saturated with oil, the sum of the amplitude in micro, small, medium, and large pores decreased by 43.43%, 35.55%, 16.88%, and 6.14%, respectively. The irreducible water was mainly distributed in micro and small pores.

As shown in Figure 11, the amplitude of the T₂ spectrum of medium and large pores (10–1000 ms) decreased homogeneously after the first cycle at different injection pressures. The ORF of the medium and large pores (10–1000 ms) was 10.85%, 21.37%, and 30.42% at the injection pressure of 5 MPa, 11 MPa, and 16 MPa, respectively, whereas the ORF of the micro and small pores (0.1–10 ms) was 4.16%, 9.56%, and 14.30%, respectively. It should be noted that the CO₂ injection caused asphaltene precipitation in the pores, which influenced the T₂ spectrum measured by the NMR technique [34]. In the CO₂ injection process, the CO₂ molecules began to occupy the larger pores due to the lower oil-gas phase. The injected CO₂ interacted with the crude oil and dissolved in the oil. As soaking progressed, the CO₂ gradually diffused into smaller pores. Therefore, the escape of CO₂ drove the crude oil into some larger pores. At the same time, the oil in smaller pores swelled and expanded into the larger pores of the core.

Through the variation in the T₂ spectrum of core #1 after the first cycle at different pressures and the T₂ spectrum of core #1 saturated with oil, the interval of the pore distribution where the oil was recoverable expanded as the injection pressure increased (Figure 11). The lower limit of the pore distribution where the oil was recoverable corresponds to T₂ values of 2.68 ms, 1.29 ms, and 0.74 ms at the injection pressure of 5 MPa, 11 MPa, and 16 MPa, respectively. This is because the CO₂ overcomes the capillary pressure and enters smaller pores with higher injection pressure [35]. Moreover, when the injection pressure is higher than the MEP, the injected CO₂ extracts the oil in the smaller and blind pores, which converts the residual oil into recoverable oil. Therefore, higher injection pressure is beneficial for recovering the oil in smaller and blind pores.

3.2.2. Effect of Cycle Number on Residual Oil

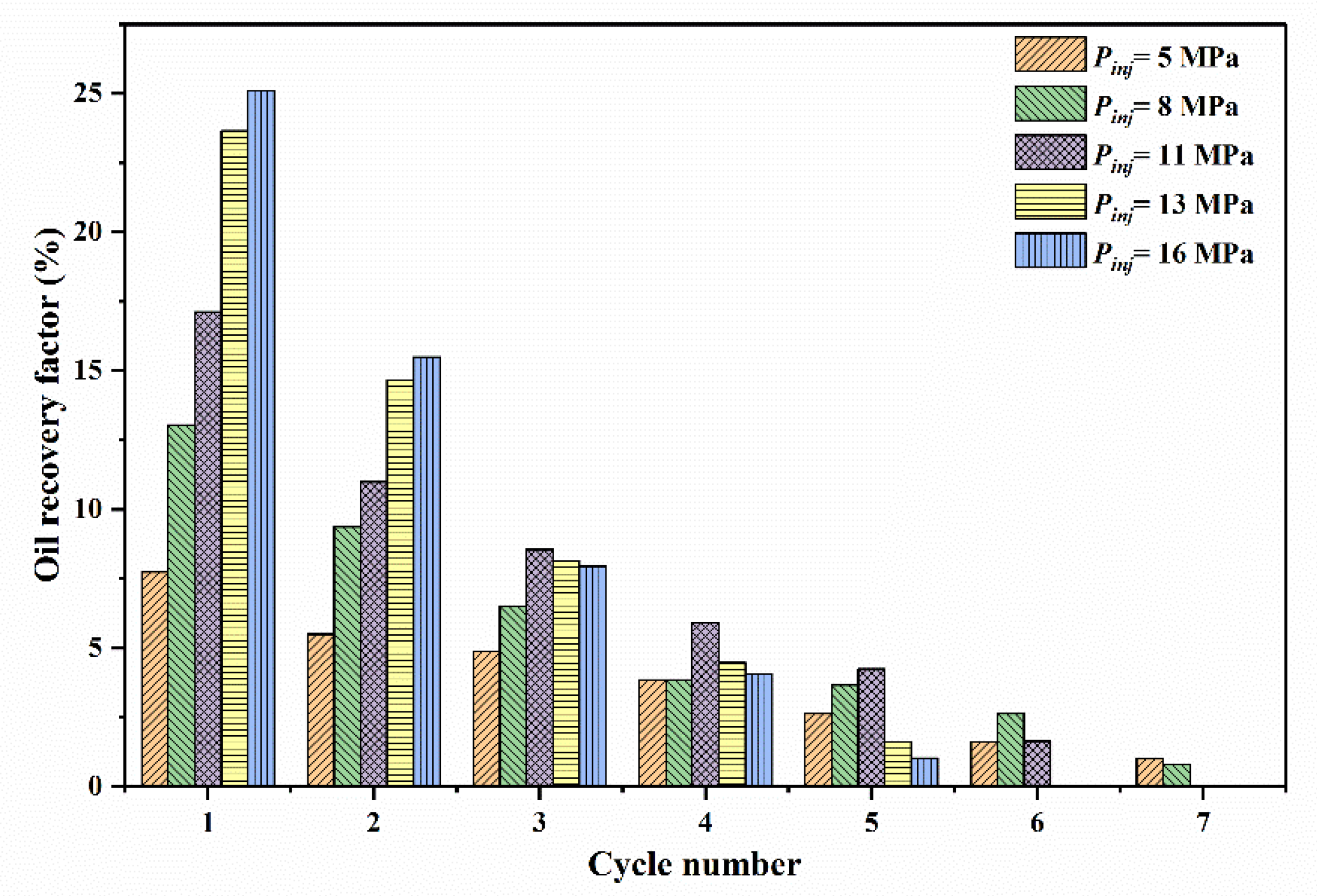

As shown in Figure 12, the ORF in each cycle of different injection pressures decreased with the increase in cycle number. When the injection pressure was higher than the MMP, only five cycles were carried out until no oil was produced. Higher injection pressure is beneficial for improving the ultimate ORF and reducing the cumulative time of the total development process due to fewer huff-and-puff cycles. As a result, a higher production rate was achieved.

The NMR T₂ spectrum for core #1 after different numbers of cycles of CO₂ huff-and-puff tests at the injection pressure of 11 MPa is presented in Figure 13. The cumulative ORFs after the first, third, and sixth cycle of core #1 were 17.13%, 36.68%, and 48.48%, respectively. The initial oil saturation and the cumulative ORF contributed by different intervals of pore distribution are shown in

Table 2. Initial oil saturation and cumulative ORFs after different huff-and-puff cycles.

Experimental Condition	Cumulative ORFs in Different-Sized Pores (%)
	Micro (0.1–1 ms)	Small (1–10 ms)	Medium (10–100 ms)	Large (100–1000 ms)	Sum
Soi	57.45	64.45	82.25	94.58	75.51
1st cycle	4.02	12.16	15.96	37.59	17.13
3rd cycle	5.84	21.11	32.17	64.41	36.68
6th cycle	9.79	29.29	48.23	86.18	48.48

. As the number of huff-and-puff process cycles increased, the ORF contributed by small, medium, and large pores (1–1000 ms) increased significantly, while the oil produced from micro pores (0.1–1 ms) had no obvious changes. The lower limit of the pore distribution where the oil was recoverable also did not increase with increasing cycle number. So, the oil in smaller pores cannot be recovered with increasing the number of huff-and-puff cycles. Residual oil in pores, which was distributed in the range of 1–1000 ms of the T₂ spectrum, was still the main force contributing to production.

3.2.3. Effect of Soaking Time on Residual Oil

The range of soaking time in the field scale ranges from several days to tens of days, which has an significant effect on the oil recovery performance of CO₂ huff-and-puff [36]. Figure 14 shows the ORF and average recovery rate of the first CO₂ huff-and-puff cycle versus the soaking time at the injection pressure of 11 MPa. The extension of soaking time resulted in a noticeable ORF improvement. The average recovery rate is defined as the ORF per hour during an entire huff-and-puff process, including the injection, soaking, and production period. The ORF increased from 13.20% to 23.91% when the soaking time increased from 3 h to 18 h and the average recovery rate decreased from 3.77%/h to 1.29%/h. As the soaking time increased from 18 h to 24 h, the ORF only increased by 1.03%. The contact between CO₂ and oil is a dynamic process. The CO₂ phase contacts the oil phase completely and dissolves into the oil phase fully with longer soaking time, due to viscosity reduction, oil swelling, solution gas drive, and extraction effect of the injected CO₂, to improve the ORF. When the soaking time was longer than 18 h, the dissolved CO₂ concentration in the accessible oil tended to be saturated and the dissolution and diffusion rate slowed down. The CO₂ had no significant effect on improving the ORF.

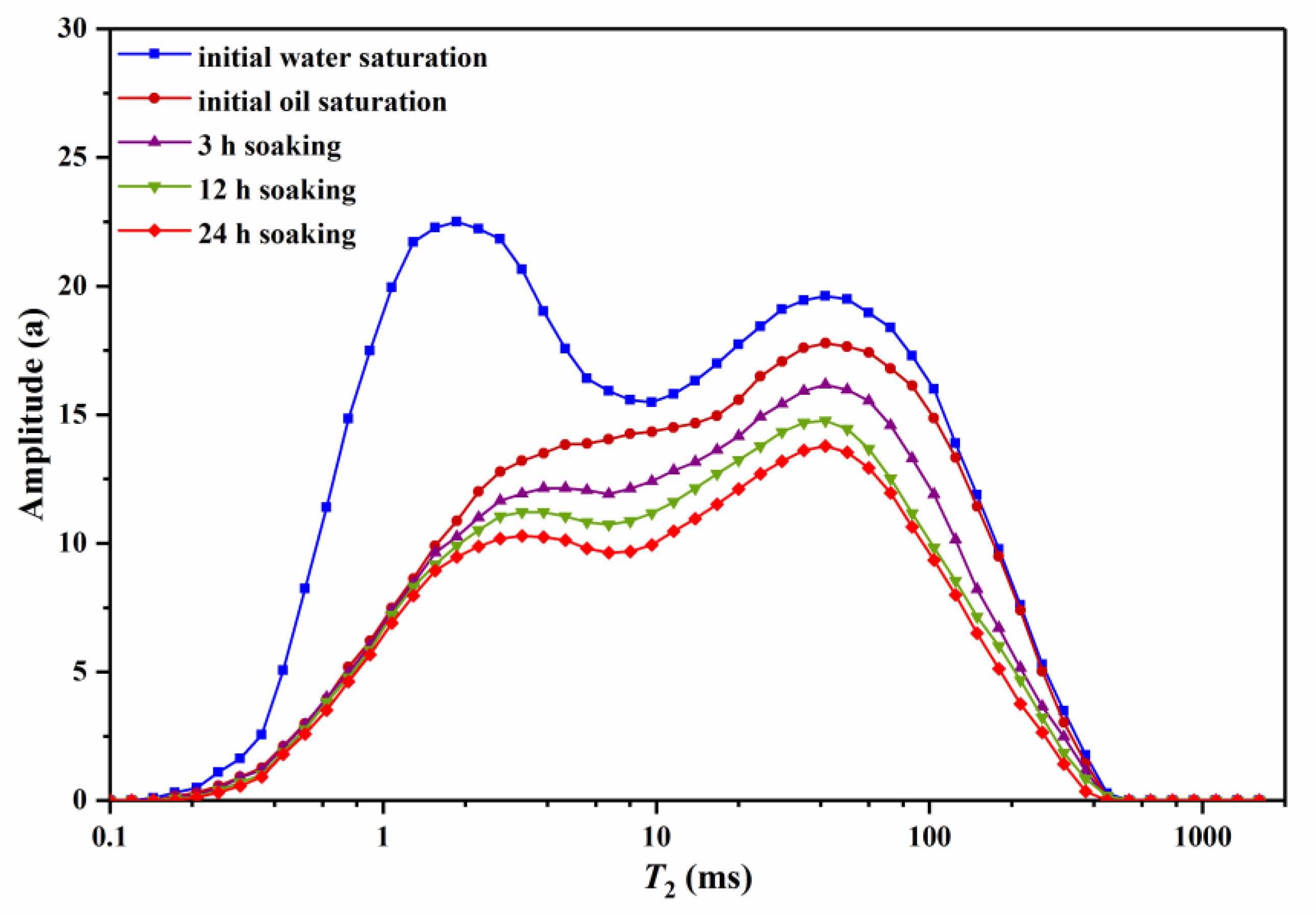

The NMR T₂ spectrum for core #2 with different soaking times for the first huff-and-puff cycle at the injection pressure of 11 MPa is shown in Figure 15. The amplitude of the micro pores (0.1–1 ms) had no obvious change. The amplitude of small pores (1–10 ms) decreased by 9.84%, 16.06%, and 22.49% and the amplitude of medium and large pores (10–1000 ms) decreased by 14.38%, 23.37%, and 29.78% with soaking time of 3 h, 12 h, and 24 h, respectively. The residual oil of the interval of pore distribution where the recoverable oil homogeneously decreased with longer soaking time. The lower limit of the pore distribution where the oil was recoverable expanded as the soaking time increased, which means crude oil in smaller pores turns from residual oil to recoverable oil. This is because the injected CO₂ dissolved and diffused in smaller pores with longer soaking time. Although the ORF and the recoverable oil increased, the average recovery rate decreased with longer soaking time (Figure 14). Oilfields are usually assigned production tasks with a specified time. Therefore, under the premise of being able to meet the assigned production requirements, longer soaking times can fully exploit the potential of the reservoir and reduce the residual oil in smaller pores within a certain range.

4. Conclusions

In this paper, a phase behavior study was carried out to clarify the CO₂ recovery mechanisms during the CO₂ injection process. Afterward, a series of CO₂ huff-and-puff tests were conducted at various conditions. NMR was used to determine the microscopic residual oil distribution. From this study, the following conclusions were drawn.

The MEP was determined to be 9.51 MPa through oil swelling tests in the visual cell. When the pressure increased higher than the MEP, the hydrocarbon extraction effect played a more dominant role in the CO₂-EOR process and the gas-fluid interface became increasingly blurred. In the CO₂ huff-and-puff process, the ultimate ORF increased considerably as injection pressure increased, whereas the viscosity of the produced oil in the first cycle decreased from 9.40 mPa·s to 2.44 mPa·, due to the stronger hydrocarbon-extraction capacity of the injected CO₂ at higher pressures. As injection pressure increased, a higher ultimate ORF was obtained with fewer cycle numbers, so that a higher production rate was achieved to reach the development capacity of the reservoir.

CO₂ overcomes the capillary pressure and enters smaller pores to extract the oil in the smaller and blind pores at higher injection pressure, which converts the residual oil into recoverable oil. Longer soaking time also expands the lower limit of the pore distribution where the oil was recoverable. However, more cycles had no obvious effect on expanding the interval of pore distribution where oil was recoverable, which only homogeneously reduced the residual oil in the medium and large pores (10–1000 ms). Therefore, increasing injection pressure and extending soaking time are effective methods to recover the residual oil in smaller and blind pores within a certain range. The determination of microscopic residual oil distribution is not only beneficial for ensuring the EOR mechanisms in the microscopic pores of the CO₂ huff-and-puff, but also for optimizing production parameters to exploit the tight reservoirs to their maximum potential in the shortest possible time.
