Energies 2017, 10(8), 1175; https://doi.org/10.3390/en10081175

A Sliding Surface-Regulated Current-Mode Pulse-Width Modulation Controller for a Digital Signal Processor-Based Single Ended Primary Inductor Converter-Type Power Factor Correction Rectifier

Department of Electrical Engineering, National Dong Hwa University, Hualien 97401, Taiwan
*
Author to whom correspondence should be addressed.
Received: 10 July 2017 / Revised: 2 August 2017 / Accepted: 7 August 2017 / Published: 9 August 2017
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [10665 KB, uploaded 10 August 2017]   |

Abstract

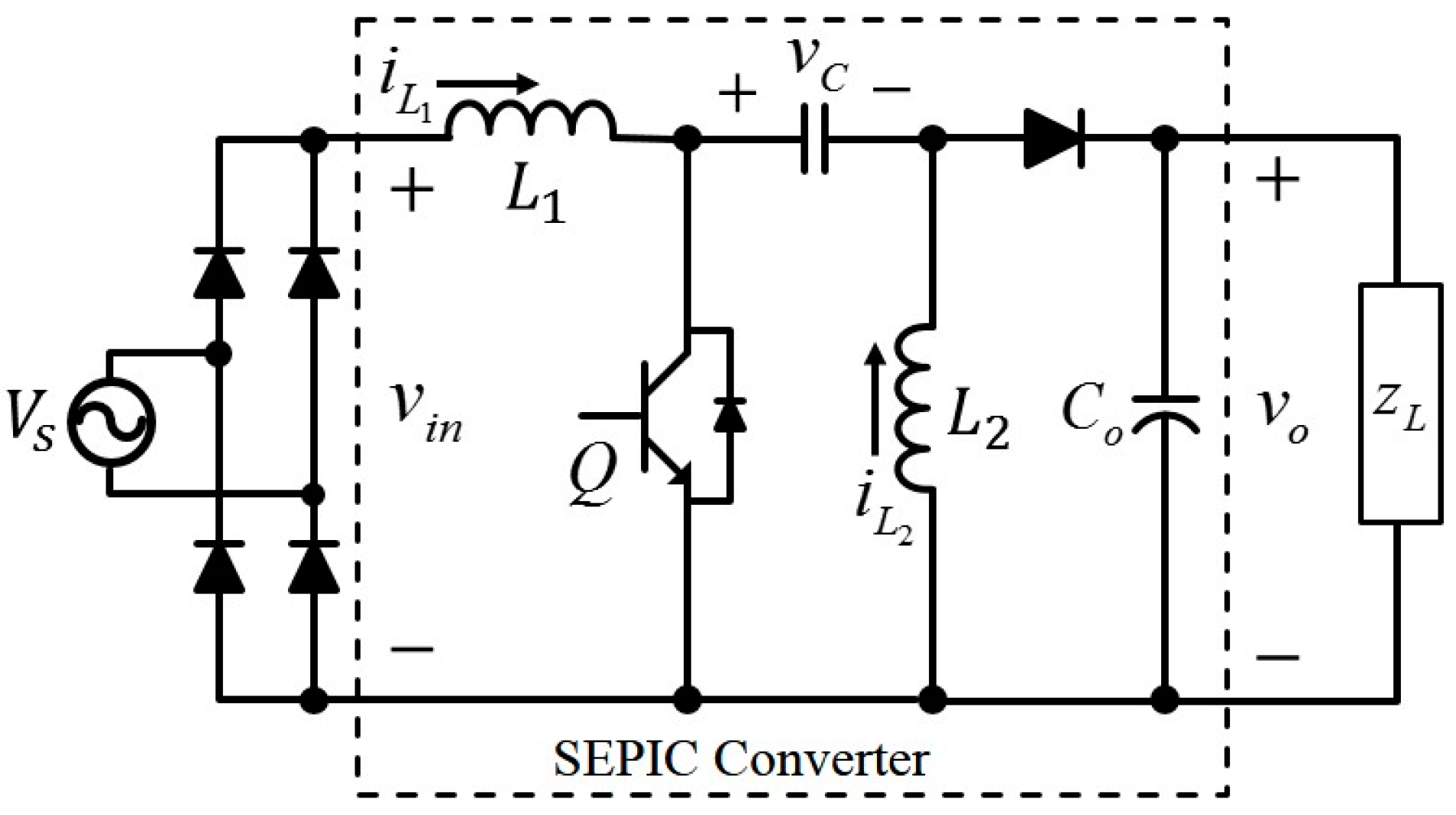

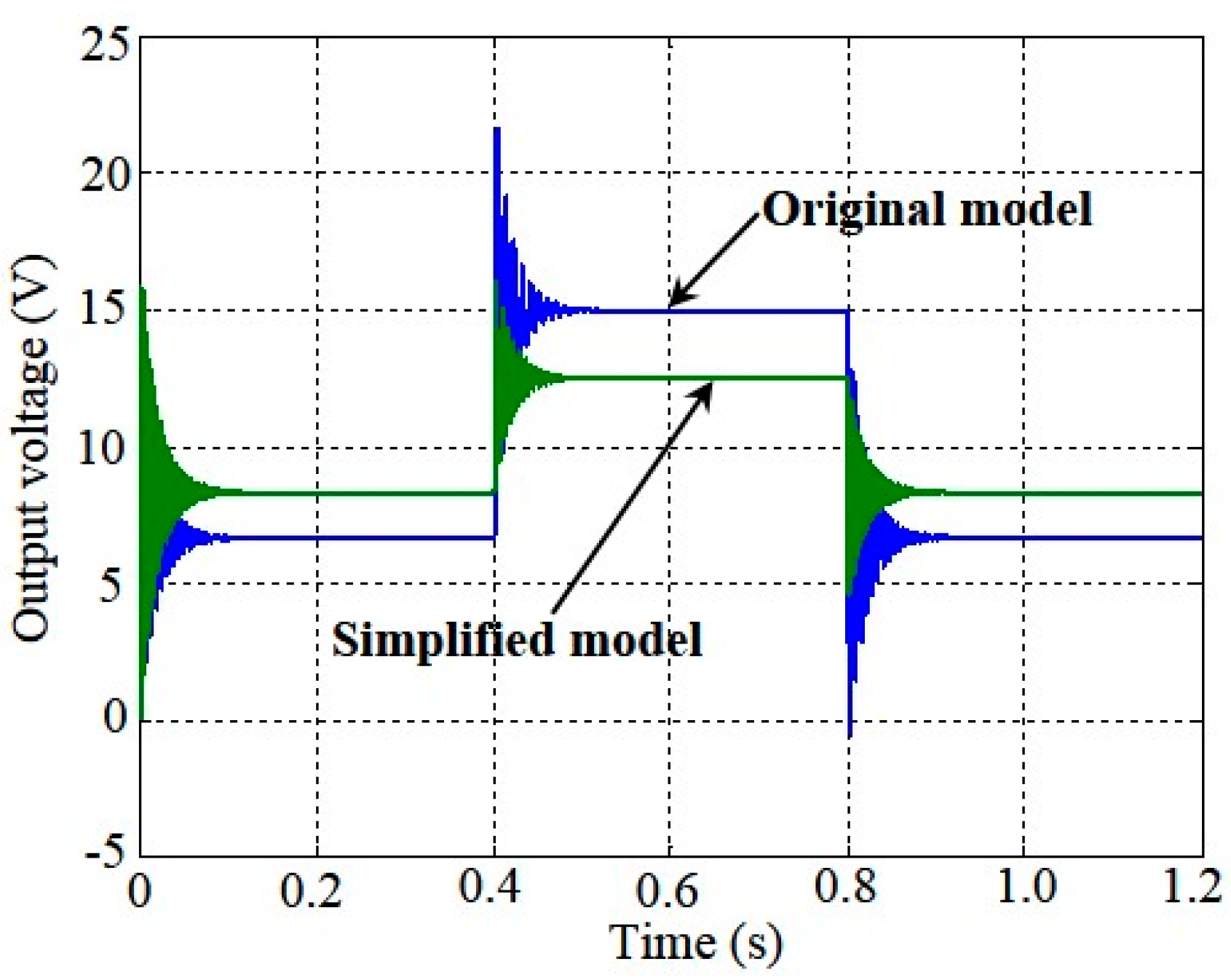

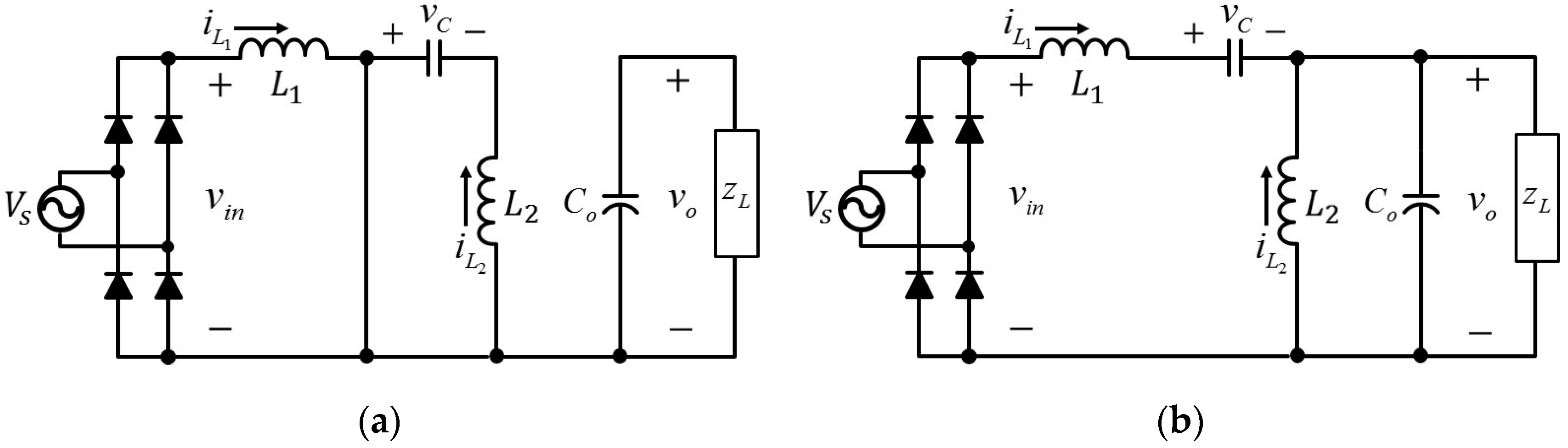

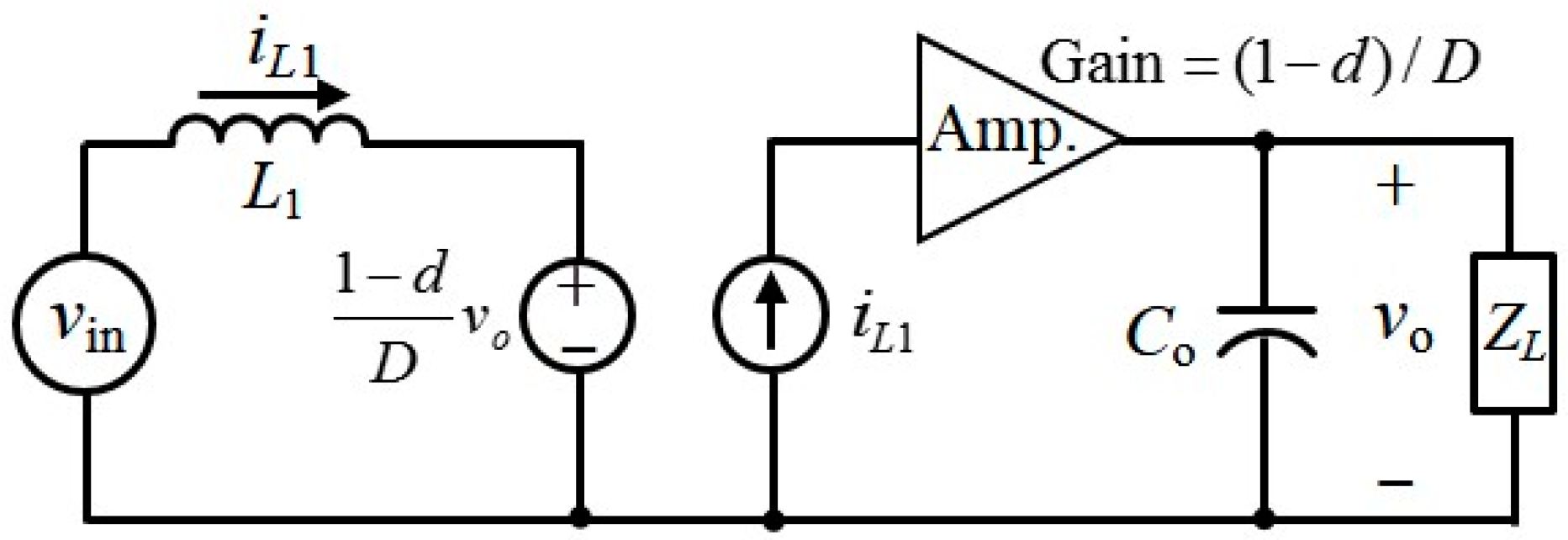

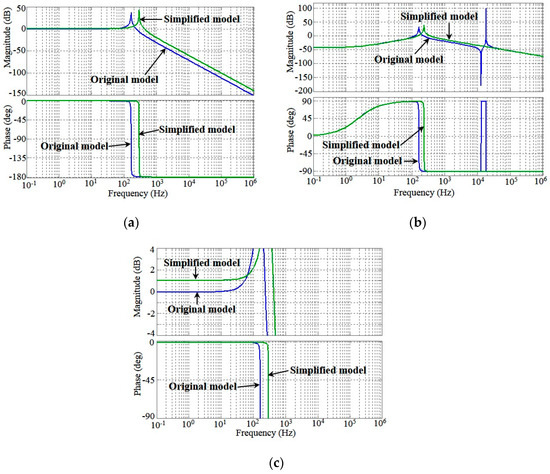

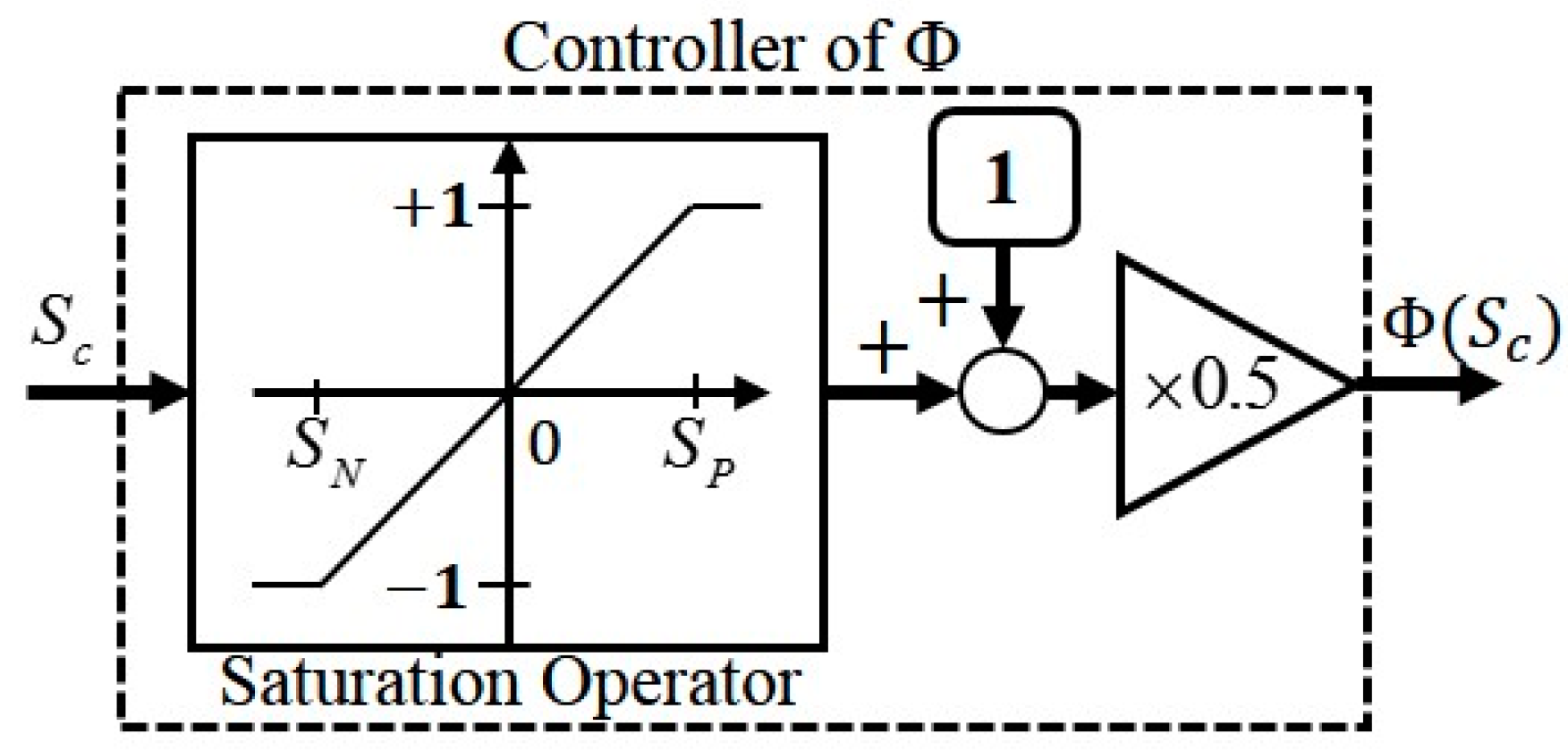

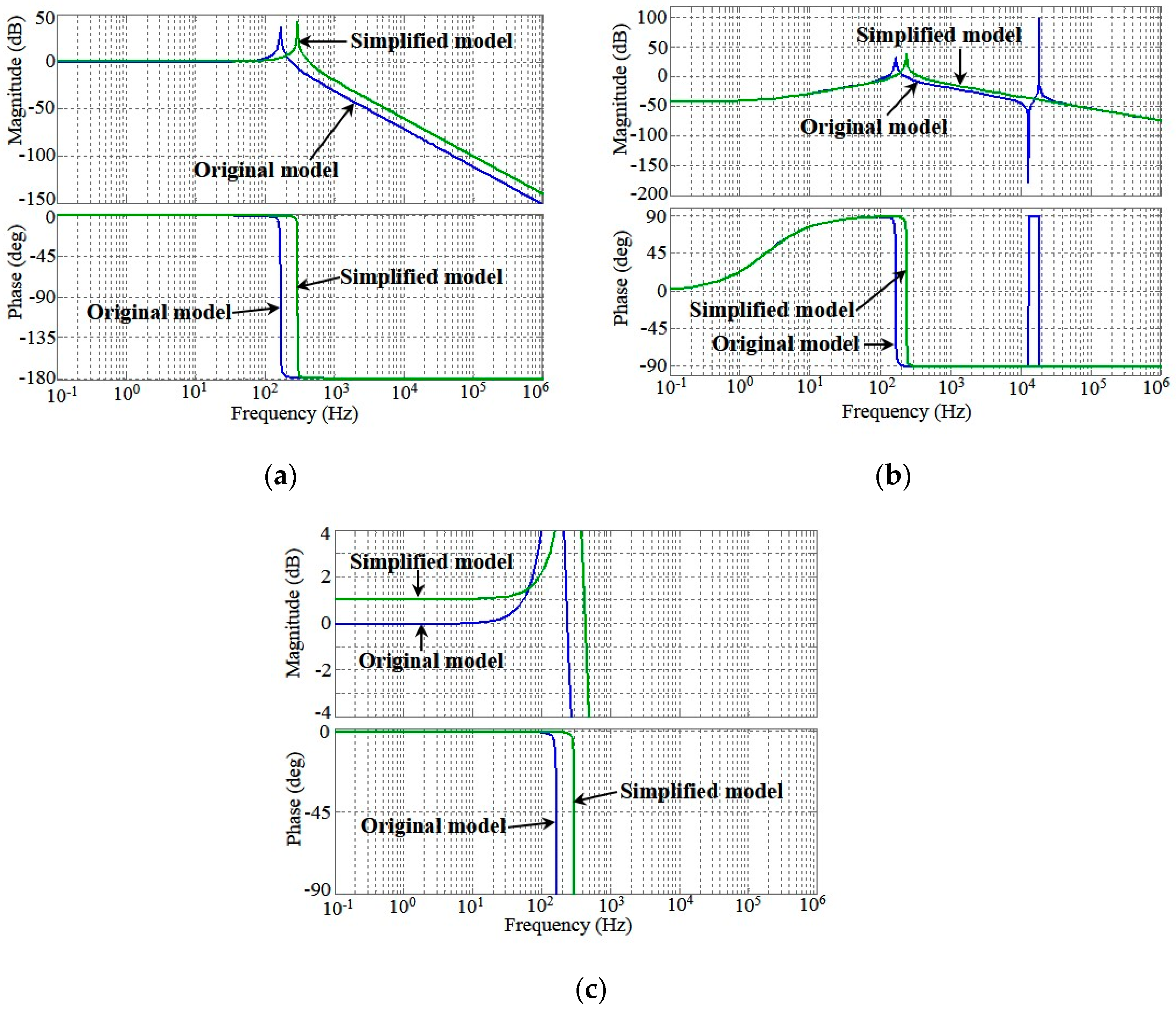

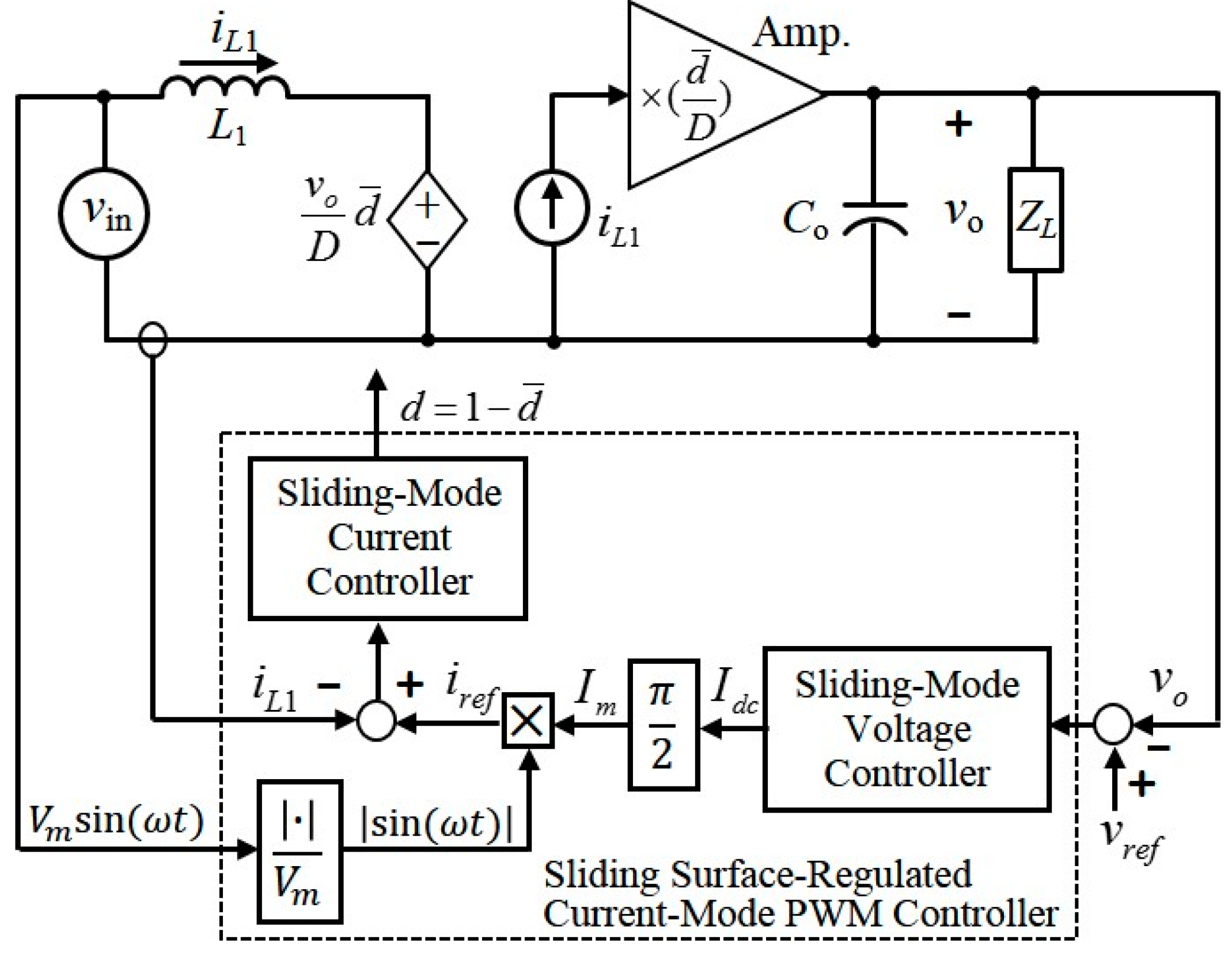

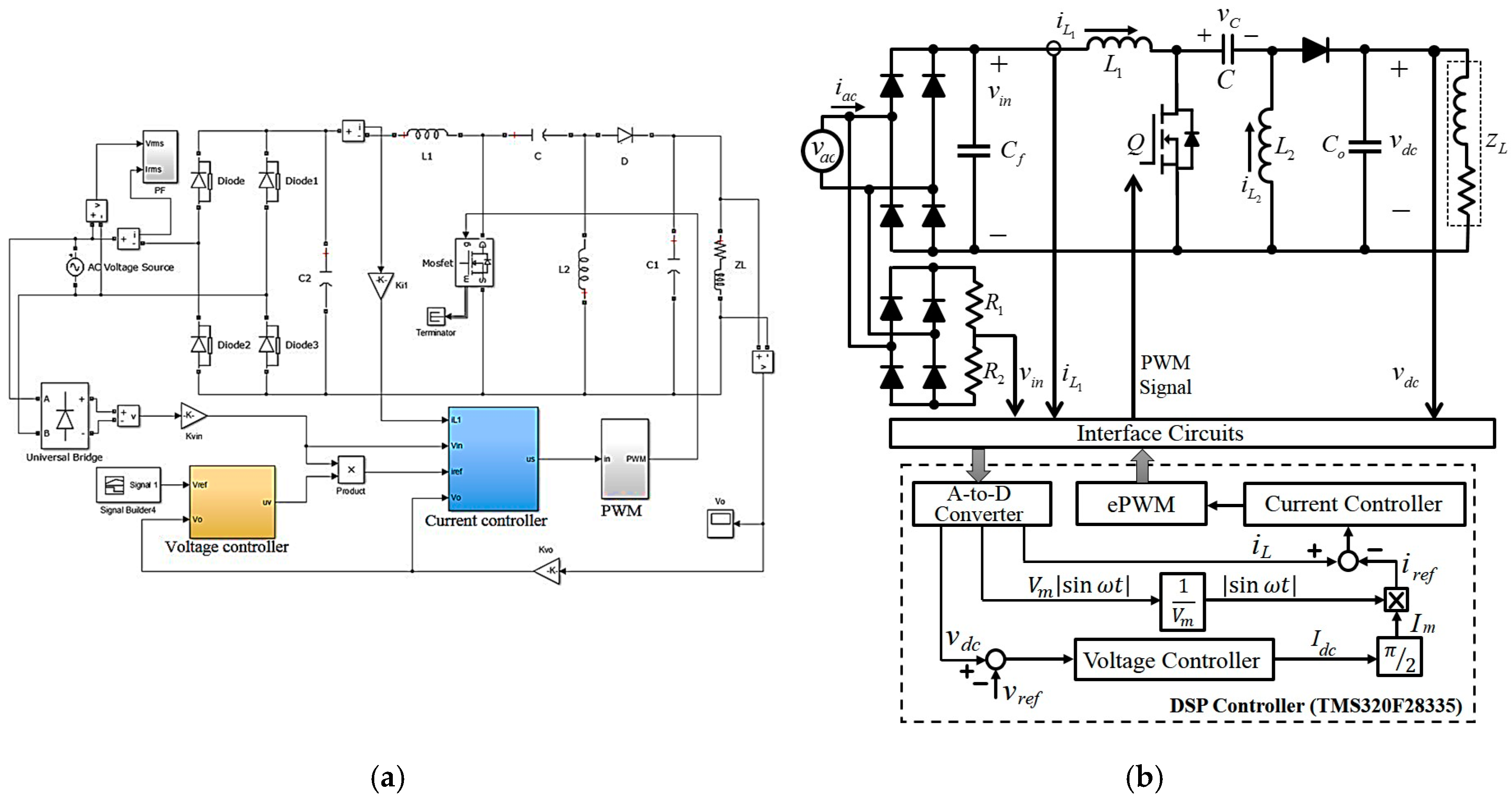

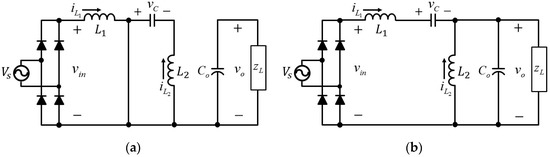

To efficiently supply wide-range DC voltage from a pulse-width modulation (PWM) rectifier, this paper presents a single-phase, full-wave, diode-bridge, single-ended primary-inductor converter-type (SEPIC-type) power-factor-correction (PFC) rectifier in continuous conduction mode with a sliding surface-regulated current-mode PWM controller. According to the switched-mode operation of the rectifier, a fourth-order switch model of the SEPIC is derived. From the fourth-order model, a simplified state-averaged model which approximately describes the dynamic behaviors of both the output voltage and inductor current is proposed. Then, from the simplified state-averaged model, the sliding surface-regulated current-mode PWM controller for the SEPIC-type PFC rectifier is proposed. The sliding surface-regulated current-mode PWM controller comprises a sliding-mode voltage controller in outer loop for robust control of the output DC-voltage and a sliding-mode current controller in inner loop for phase-synchronized control of the inductor current. For experimental studies, implementation of the proposed control algorithm in a DSP controller and a laboratory prototype of the SEPIC-type rectifier with the DSP-based PWM controller were carried out. Experimental results from the DSP controller-applied SEPIC-type rectifier are illustrated to confirm the validity of the proposed controller for practical applications. View Full-Text
Keywords: rectifier; power converter; power factor; sliding-mode control rectifier; power converter; power factor; sliding-mode control
