Open AccessArticle
Energies 2017, 10(5), 699;

Photovoltaic Array Fault Detection by Automatic Reconfiguration

†,* ,
School of Computer Science and Engineering, Northeastern University, Shenyang 116024, China
Current address: No. 195, Chuangxin Road, Hunnan District, Shenyang 116024, China
Author to whom correspondence should be addressed.
Academic Editors: Senthilarasu Sundaram and Tapas Mallick
Received: 8 February 2017 / Revised: 9 May 2017 / Accepted: 10 May 2017 / Published: 16 May 2017
Full-Text   |   PDF [1172 KB, uploaded 16 May 2017]   |

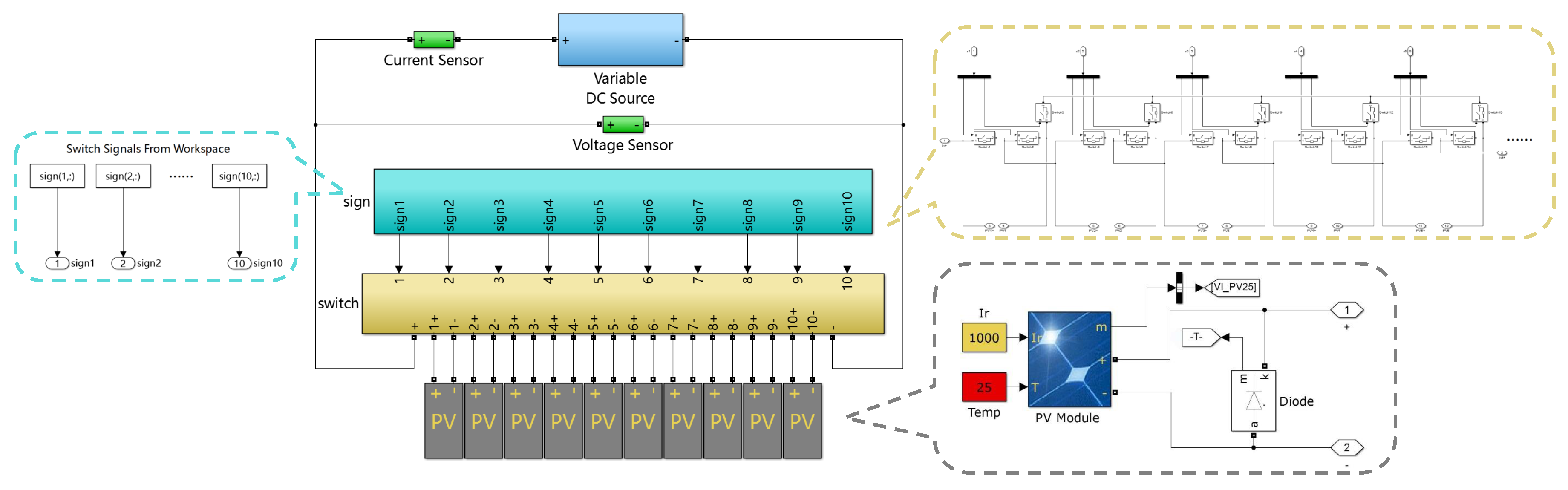

Photovoltaic (PV) system output electricity is related to PV cells’ conditions, with the PV faults decreasing the efficiency of the PV system and even causing a possible source of fire. In industrial production, PV fault detection is typically laborious manual work. In this paper, we present a method that can automatically detect PV faults. Based on the observation that different faults will have different impacts on a PV system, we propose a method that systematically and iteratively reconfigures the PV array until the faults are located based on the specific current-voltage (I-V) curve of the (sub-)array. Our method can detect several main types of faults including open-circuit faults, mismatch faults, short circuit faults, etc. We evaluate our methods by Matlab/Simulink-based simulation. The results show that the proposed methods can accurately detect and classify the different faults occurring in a PV system. View Full-Text
Keywords: photovoltaic; TCT; reconfiguration; I-V curve; fault detection photovoltaic; TCT; reconfiguration; I-V curve; fault detection

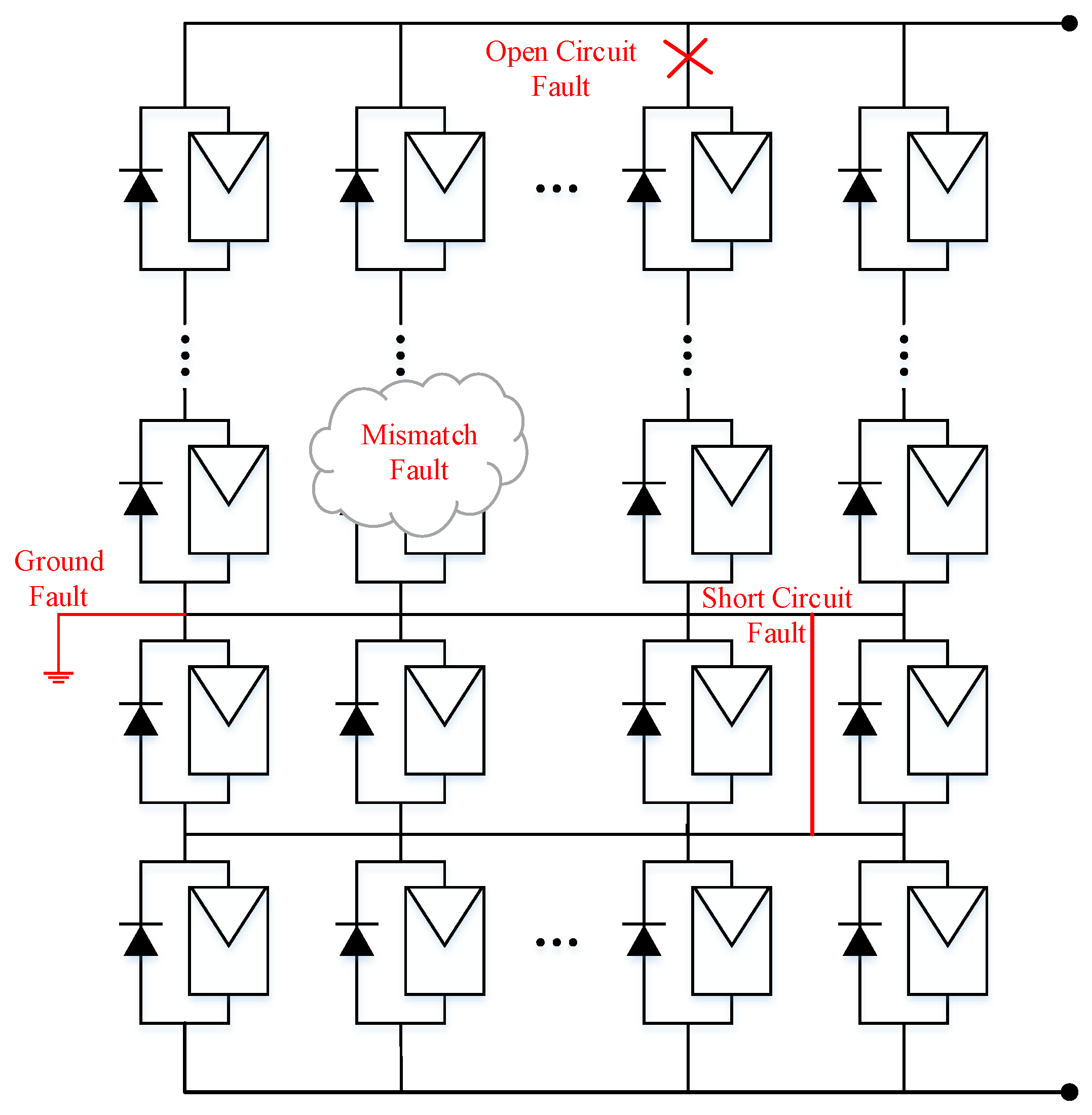

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
